LG 32LM620Y User manual

Printed in KoreaP/NO : MFL67441813 (1202-REV00)
CHASSIS : LB22E
MODEL : 32LM6200 32LM6200-TA
MODEL : 32LM620Y 32LM620Y-TA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED LCD TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION ................................................................ 9
SCREW ASSEMBLY WORKING GUIDE ............................................... 15
BLOCK DIAGRAM .................................................................................. 16
EXPLODED VIEW .................................................................................. 17
SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board mod-
ule or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri-
cally shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the LCD TV used LB22E
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
- Wireless : Wireless HD Specification (Option)
4. Model General Specification
No. Item Specication Remarks
1. Market Asia, Oceania, Africa, Middle East
(PAL/DVB Market)
Australia/New Zealand(AU), Singapore(SG), Indonesia(ID),
Malaysia(MY), Vietnam(VN),
South Africa(ZA), Iran(IR)- Considering for Israel(IL)
only Analog for A-ASIA
2. Broadcasting system
1) PAL/SECAM-B/G/D/K
2) PAL-I/II
3) NTSC-M
4) DVB-T
PAL for NZ/SG
3. Channel Storage ATV - 135EA, DTV - 1000EA
4. Receiving system Analog : Upper Heterodyne
Digital : COFDM(DVB-T)
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
5. Video Input RCA PAL, SECAM, NTSC 4 System :
PAL, SECAM, NTSC, PAL60
6. Component Input Y/Cb/Cr, Y/Pb/Pr
7. RGB Input RGB-PC Analog(D-SUB 15PIN)
8. HDMI Input HDMI1-DTV/DVI,HDMI2-DTV/DVI
HDMI3-DTV/DVI,HDMI4-DTV/DVI
PC(HDMI Ver. 1.4)
Support HDCP
9. Audio Input
RGB/DVI Audio
Component
AV
10. SPDIF out SPDIF out
11 USB Input For My Media(Movie/Photo/Music List)
or For SVC

- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Component Video Input (Y, Cb/Pb, Cr/Pr)
6. RGB input (PC)
No. Resolution H-freq(kHz) V-freq(Hz) Porposed
1 720×480 15.73 60.00 SDTV, DVD 480i
2 720×480 15.63 59.94 SDTV, DVD 480i
3 720×480 31.47 59.94 480p
4 720×480 31.50 60.00 480p
5 720×576 15.625 50.00 SDTV, DVD 625 Line
6 720×576 31.25 50.00 HDTV 576p
7 1280×720 45.00 50.00 HDTV 720p
8 1280×720 44.96 59.94 HDTV 720p
9 1280×720 45.00 60.00 HDTV 720p
10 1920×1080 31.25 50.00 HDTV 1080i
11 1920×1080 33.75 60.00 HDTV 1080i
12 1920×1080 33.72 59.94 HDTV 1080i
13 1920×1080 56.250 50 HDTV 1080p
14 1920×1080 67.5 60 HDTV 1080p
No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remark
1 640 x 350 @70Hz 31.468 70.09 EGA
2 720 x 400 @70Hz 31.469 70.08 DOS
3 640 x 480 @60Hz 31.469 59.94 VESA(VGA)
4 800 x 600 @60Hz 37.879 60.31 VESA(SVGA)
5 1024 x 768 @60Hz 48.363 60 VESA(XGA)
6 1152 x 864 @60Hz 54.348 60.053 VESA
7 1360 x 768 @60Hz 47.712 60.015 VESA(WXGA)
8 1920 x 1080 @60Hz 67.5 60 WUXGA(CEA 861D) FHD only

- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
7. HDMI Input
7.1. DTV mode
No. Resolution H-freq(kHz) V-freq.(kHz) Proposed Proposed
1. 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716/ 33.75 29.976/30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P
7.2. PC mode
No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remark
1 640 x 350 @70Hz 31.468 70.09 EGA
2 720 x 400 @70Hz 31.469 70.08 DOS
3 640 x 480 @60Hz 31.469 59.94 VESA(VGA)
4 800 x 600 @60Hz 37.879 60.31 VESA(SVGA)
5 1024 x 768 @60Hz 48.363 60 VESA(XGA)
6 1152 x 864 @60Hz 54.348 60.053 VESA
7 1280 x 1024 @60Hz 63.981 60.02 VESA(SXGA) FHD only(Support to HDMI-PC)
8 1360 x 768 @60Hz 47.712 60.015 VESA(WXGA)
9 1920 x 1080 @60Hz 67.5 60 WUXGA(CEA 861D) FHD only

- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED LCD TV
with LB22E chassis.
2. Designation
(1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
(2) Power adjustment : Free Voltage.
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard.
(5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 °C ± 5 °C
Relative humidity : 65 ± 10 %
Input voltage : 220 V, 60 Hz
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours
In case of keeping module is in the circumstance of below -20
°C, it should be placed in the circumstance of above 15 °C for
3 hours.
(6) Adjustment equipments: Color Analyzer (CA-210 or CA-110),
DDC Adjustment Jig equipment, Service remote control.
(7) Push the “IN STOP" key - For memory initialization.
3. Main PCB check process
▪ APC - After Manual-Insert, executing APC

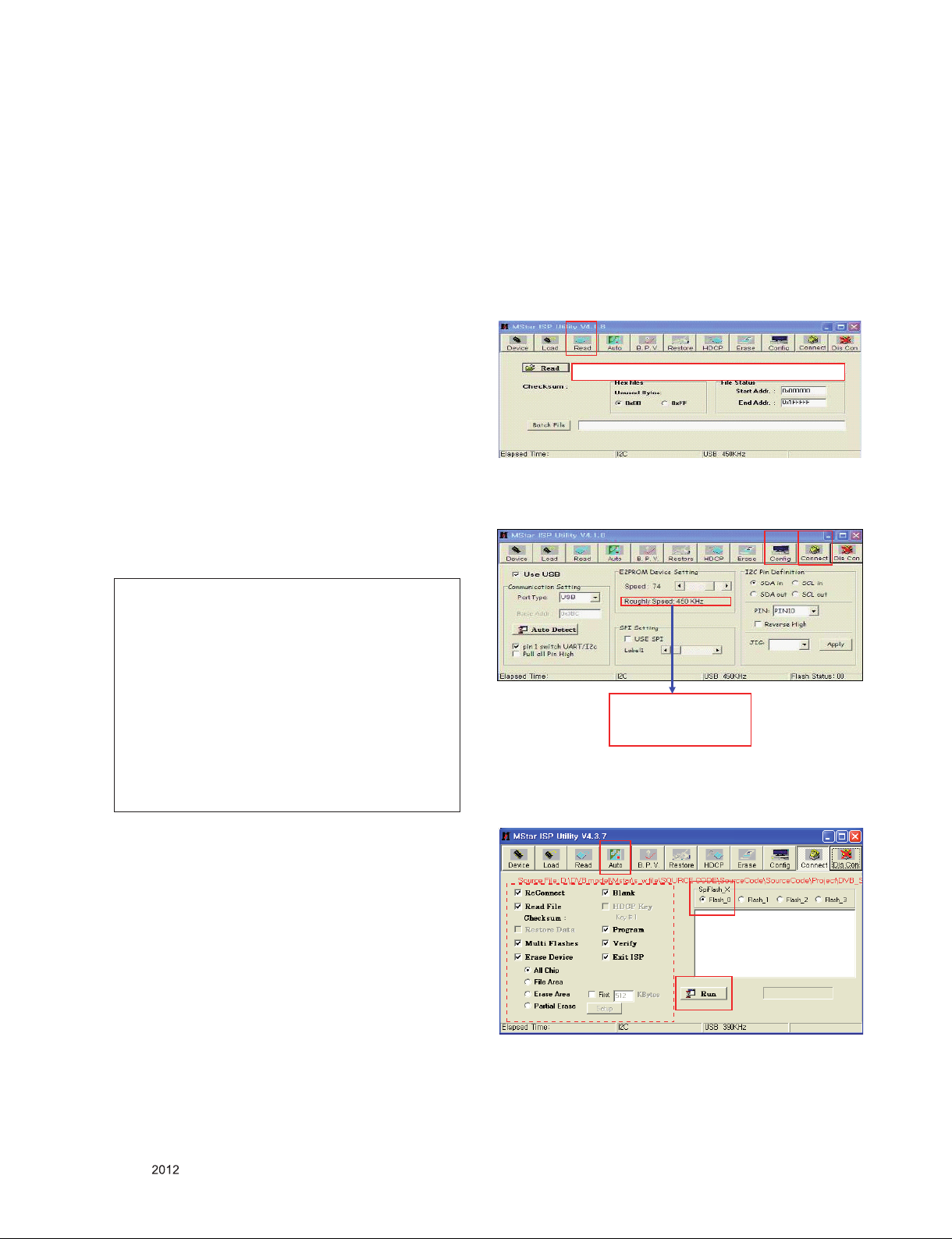

* Boot file Download
(1) Execute ISP program "Mstar ISP Utility" and then click
"Config" tab.
(2) Set as below, and then click "Auto Detect" and check "OK"
message.
If "Error" is displayed, check connection between computer,
jig, and set.
(3) Click "Read" tab, and then load download file(XXXX.bin)
by clicking "Read"
(4) Click "Connect" tab. If "Can't" is displayed, check connection
between computer, jig, and set.
(5) Click "Auto" tab and set as below.
(6) Click "Run".
(7) After downloading, check "OK" message.
Case1 : Software version up
1. After downloading S/W by USB , TV set will reboot
automatically.
2. Push “In-stop” key.
3. Push “Power on” key.
4. Function inspection
5. After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at rst.
2. Push “Power on” key for turning it on.
→ If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.
(1)
filexxx.bin
(4)
(5)
(6)
(7)...........OK
filexxx.bin
(2)
(3)
Please Check the Speed :
To use speed between
from 200KHz to 400KHz

- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
* USB DOWNLOAD(*.epk file download)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
- If your downloaded program version in USB Stick is Low,
it didn't work. But your downloaded version is High, USB
data is automatically detecting.
(3) Show the message "Copying files from memory".
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically.
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have, TV
can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn’t have a DTV/
ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
3.1. ADC Process
- Enter Service Mode by pushing "ADJ" key,
- Enter ADC mode by pushing "►" key at "8. ADC Calibration".
- There are 2 ways for ADC Calibration.(OTP, External)
OTP mode: Automatic ADC Calibration.(Internal ADC Calibration)
On the manufacture line, OTP is used for ADC
Calibration automatically.
Externl mode: Manual ADC Calibration. When OTP mode is
failed, ADC calibration should be “OK” by using
External mode.
3.1.1. OTP mode
(1) Press "ADJ" key on the Adjustment Remote Control, then
select “8. ADC Calibration”. By pressing Enter key, enter
ADC Calibration menu.
(2) Set up the ADC Type to OTP, then Select [Start] button by
pressing Enter key, Component and RGB are Written and
display Success or NG.
3.1.2. External mode
* Equipment: MSPG-925 series Pattern Generator , RS-232C Jig
(1) Input the signal for TV SET by using Pattern Generator
(Model : 225, Pattern No : 65)_1080P
(2) Change the ADC type “External” by using “►”key.
(3) Enter “Start” key.
(4) Check the sign “OK” all of comp/RGB.
- Pattern : Horizontal 100% Color Bar Pattern
- Pattern level : 0.7±0.1 Vp-p
- Image
<Caution> Using "P-ONLY" key of the Adjustment remote
control, power on TV.
* ADC Calibration Protocol (RS232)
Adjust Sequence
▪ aa 00 00 [Enter Adjust Mode]
▪ xb 00 40 [Component1 Input (480i)]
▪ ad 00 10 [Adjust 480i Comp1]
▪ xb 00 60 [RGB Input (1024*768)]
▪ ad 00 10 [Adjust 1024*768 RGB]
▪ aa 00 90 End Adjust mode
* Required equipment : Adjustment remote control.
3.2 Function Check
3.2.1 Check display and sound
■ Check Input and Signal items.
(1) TV
(2) AV (SCART1/SCART2/ CVBS)
(3) COMPONENT (480i)
(4) RGB (PC : 1024 x 768 @ 60hz)
(5) HDMI
(6) PC Audio In
* Display and Sound check is executed by Remote control.
<Caution>
Not to push the "INSTOP" key after completion if the function
inspection.
NO Item CMD 1 CMD 2 Data 0
Enter
Adjust MODE
Adjust
‘Mode In’ A A 0 0 When transfer the ‘Mode In’, Carry the command.
ADC adjust ADC Adjust A D 1 0 Automatically adjustment
(The use of a internal pattern)

- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. Total Assembly line process
4.1. Adjustment Preparation
▪ W/B Equipment condition
CA210
: CCFL/EEFL -> CH9, Test signal: Inner pattern(80IRE)
LED -> CH14, Test signal: Inner pattern(80IRE)
▪ Above 5 minutes H/run in the inner pattern. ("power on" key
of Adjustment remote control)(Only EEFL)
* White Balance table.
▪ Edge LED module change color coordinate because of
aging time
▪ Apply under the color coordinate table, for compensated
aging time
* Connecting picture of the measuring instrument
(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER ON -> Enter
the mode of White-Balance, the pattern will come out.
* Auto-control interface and directions
(1) Adjust in the place where the influx of light like floodlight
around is blocked. (Illumination is less than 10 lux).
(2) Adhere closely the Color analyzer(CA210) to the module
less than 10 cm distance, keep it with the surface of the
Module and Color analyzer's prove vertically.(80° ~ 100°).
(3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.
- Using 'no signal' or 'POWER ONLY' or the others, check
the back light on.
▪ Auto adjustment Map(RS-232C)
RS-232C COMMAND
[CMD ID DATA]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End
<Caution>
Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.(When R/G/B Gain are all
C0, it is the FULL Dynamic Range of Module)
* Manual W/B process using adjust Remote control.
▪ After enter Service Mode by pushing "ADJ" key,
▪ Enter White Balance by pushing "►" key at "9. White
Balance".
* After you finished all adjustments, Press "In-start" key and
compare Tool option and Area option value with its BOM, if
it is correctly same then unplug the AC cable. If it is not
same, then correct it same with BOM and unplug AC cable.
For correct it to the model's module from factory Jig model.
* Push the “IN STOP" key after completing the function
inspection. And Mechanical Power Switch must be set
“ON”.
Full White Pattern CA-210
COLOR
ANALYZER
TYPE : CA-210
RS-232C Communication
Cool 13,000 K X=0.269 (±0.002)
Y=0.273 (±0.002) <Test Signal>
Inner pattern
(204gray, 80IRE)
Medium 9,300 K X=0.285 (±0.002)
Y=0.293 (±0.002)
Warm 6,500 K X=0.313 (±0.002)
Y=0.329 (±0.002)
GP4
Aging
time
(Min)
Cool Medium Warm
X y x y x y
269 273 285 293 313 329
1 0-2 280 287 296 307 320 337
2 3-5 279 285 295 305 319 335
3 6-9 277 284 293 304 317 334
4 10-19 276 283 292 303 316 333
5 20-35 274 280 290 300 314 330
6 36-49 272 277 288 297 312 327
7 50-79 271 275 287 295 311 325
8 80-119 270 274 286 294 310 324
9 Over 120 269 273 285 293 309 323
RS-232C COMMAND
[CMD ID DATA] MIN
CENTER
(DEFAULT) MAX
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192
G Gain jh Jb je 00 172 192 192 192
B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128

- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.2. DPM operation confirmation
(Only Apply for MNT Model)
Check if Power LED Color and Power Consumption operate
as standard.
■ Set Input to RGB and connect D-sub cable to set
■ Measurement Condition: (100~240V@ 50/60Hz)
■ Confirm DPM operation at the state of screen without Signal
4.3 DDC EDID Write (RGB 128Byte )
■ Connect D-sub Signal Cable to D-Sub Jack.
■ Write EDID DATA to EEPROM(24C02) by using
DDC2B protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.4 DDC EDID Write (HDMI 256Byte)
■ Connect HDMI Signal Cable to HDMI Jack.
■ Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.5 EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***: Year : Controlled
****: Check sum
4.5.1. Auto Download
■ When you turn on the TV, EDID will set automatically._Not
operate
<Caution>
Never connect HDMI & D-sub Cable when EDID downloaded.
■ Edid data and Model option download (RS232)

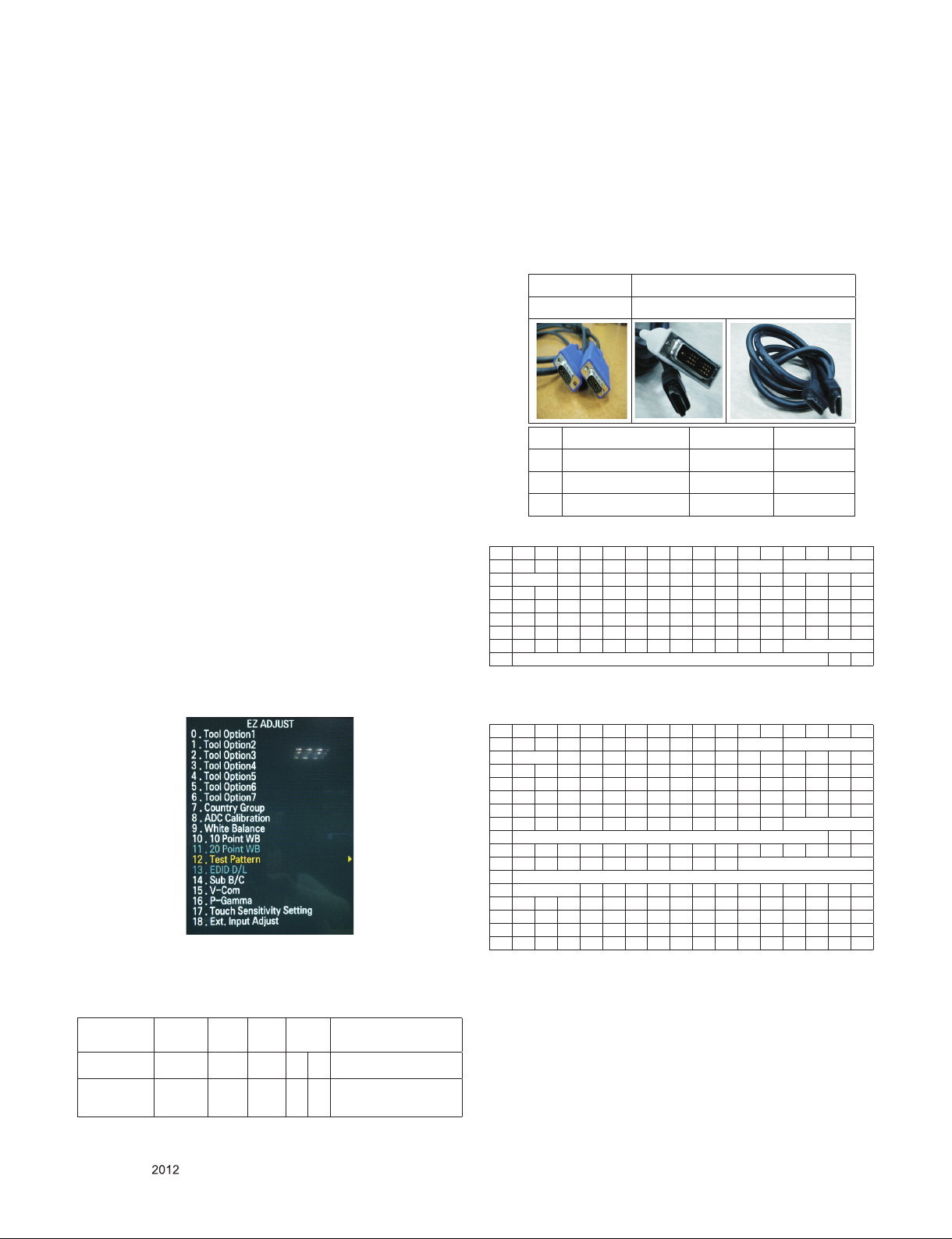

4.5.2. Manual Download
<Caution>
1) Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
2) Never connect HDMI & D-sub Cable at the same time.
3) Use the proper cables below for EDID Writing.
4) Download HDMI1, HDMI2 separately because HDMI1 is
different from HDMI2.
(1) 3D FHD RGB EDID data (xvYCC : OFF)
(2) 3D FHD RGB EDID data (xvYCC : OFF)
NO Item CMD 1 CMD 2 Data 0
Enter
download Mode
Download
‘Mode In’ A A 0 0 When transfer the ‘Mode In’, Carry the command.
EDID data and
Model option
download
ADC
Adjust A E 00 10 Automatically adjustment (The use of a internal pattern)
For Analog For HDMI EDID
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
No. Item Condition Hex Data
1 Manufacturer ID GSM 1E6D
2 Version Digital : 1 01
3 Revision Digital : 3 03
0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F
0x00 00 FF FF FF FF FF FF 00 1E 6D a b
0x01 c 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26
0x02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
0x04 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
0x07 d 00 e3
0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F
0x00 00 FF FF FF FF FF FF 00 1E 6D a b
0x01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
0x02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
0x04 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
0x07 d 01 e1
0x00 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21
0x01 22 15 01 26 15 07 50 09 57 07 f
0x02 f
0x03 f E3 05 03 01 02 3A 80 18 71 38 2D 40 58
0x04 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16
0x05 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51
0x06 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e2

- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(3) Detail EDID Options are below
a. Product ID
b. Serial No: Controlled on production line.
c. Month, Year: Controlled on production line:
ex) Week : '01' -> '01'
Year : '2012' -> '16' fix
d. Model Name(Hex):
cf) TV set’s model name in EDID data is below.
e. Checksum: Changeable by total EDID data.
f. Vendor Specific(HDMI)
- 3D FHD model (3D_xvYCC_OFF & 3D_xvYCC_ON)
4.6. Model name & Serial number D/L
▪ Press "Power on" key of service remote control.
(Baud rate : 115200 bps)
▪ Connect RS232 Signal Cable to RS-232 Jack.
▪ Write Serial number by use RS-232.
▪ Must check the serial number at the Product/Service info..
(menu key → red key → select product/Service info)
4.6.1. Signal Table
CMD : A0h
LENGTH : 85~94h (1~16 bytes)
ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD + LENGTH + ADH + ADL + Data_1 +...+ Data_n
Delay : 20ms
4.6.2. Comand Set
* Description
FOS Default write : <7mode data> write
Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,
Phase
Data write : Model Name and Serial Number write in EEPROM,.
4.6.3. Method & notice
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced in
production line, because serial number D/L is mandatory by
D-book 4.0.
* Manual Download(Model Name and Serial Number)
If the TV set is downloaded by OTA or Service man, sometimes
model name or serial number is initialized.(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "7.Model Number D/L" like below photo.
3) Input the Factory model name or Serial number like photo.
4) Check the model name Instart menu. → Factory name displayed.
5) Check the Product/Service info..(Menu Key → Support →
Select Product/Service Info.) → Buyer model displayed.
4.7. Local Dimming Function Check
Step 1) Turn on TV and push the "Tilt" Key on Remote control
in Power Only Mode.
Step 2) At the Local Dimming mode, module Edge Backlight
moving right to left Back light of IOP module moving
Step 3) confirm the Local Dimming mode
Step 4) Press "exit" Key
HEX EDID Table DDC Function
0001 01 00 Analog/Digital
MODEL NAME MODEL NAME(HEX)
LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)
3D FHD Model e1 e2 e3
HDMI1 43 15 X
HDMI2 43 05 X
HDMI3 43 F5 X
HDMI4 43 E5 X
RGB X X 5C
Input Model name(HEX)
HDMI1 78 03 0C 00 10 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI2 78 03 0C 00 20 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI3 78 03 0C 00 30 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI4 78 03 0C 00 40 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY
Adjust mode CMD(hex) LENGTH(hex) Description
EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)
Local Dimming Demo
(Edge LED Model)

- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.8. 3D function test
(Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4])
* HDMI mode No. 872 , pattern No.83
(1) Please input 3D test pattern like below.
(2) When 3D OSD appear automatically, then select OK key.
(3) Don't wear a 3D Glasses, check the picture like below.
4.9. Wi-Fi Test
Step 1) Turn on TV.
Step 2) Select Network Connection option in Network Menu.
Step 3) Select Start Connection button in Network Connection.
Step 4) If the system finds any AP like blow PIC, it is working
well.
4.10. Magic Motion Remote control test
(1) Equipment : RF Remote control for test, IR-KEY-Code
Remote control for test
(2) You must confirm the battery power of RF-Remote control
before test(recommend that change the battery per every lot)
(3) Sequence (test)
1) if you select the "Start(OK)" key on the Adjustment
remote control, you can pairing with the TV SET.
2) You can check the cursor on the TV Screen, when select
the "OK" key on the Adjustment remote control.
3) You must remove the pairing with the TV Set by select
"OK" key + "Mute" key on the Adjustment remote control.
4.11. Outgoing condition Configuration
■ When pressing IN-STOP key by Service remote control, Red
LED are blinked alternatively. And then automatically turn off.
(Must not AC power OFF during blinking)

- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
■ Screw specification and application situation
<Warning>
Check Screw Type When Screw is assembled at 'A' Part. If 'C' Screw is used at the 'A'
part, Module will get damaged.
SCREW ASSEMBLY WORKING GUIDE
DD
D
D
DD DD
DD
DD
ח ͷͲͳ
;ͽͳͼ;ΒΔΙΚΟΖ
ח ͶͲ
ח ͷͲͳ
;ͽͳͼ΅ΒΡΥΚΥΖ
ח ͶͲ ח ͷͲͳ
;ͽͳͼ΅ΒΡΥΚΥΖ
ח ͶͲ
ח ͷͲͳ
;ͽͳͼ;ΒΔΙΚΟΖ
ͶͲ

- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Audio
AMP
(NTP7500)
CVBS
DIF(+/-)
USB1
RS-232C
PC-RGB
PC-AUDIO
OPTIC
LAN
SYSTEM
DDR3 X
1600 X
16
(2Gb)
HDMI1 HDMI2
HDMI3
Side Rear
SYSTEM EEPROM X 1
(256Kb)
M-Remote
Module
Air/ Cable
SI2176
Silicon TUNER
USB2 USB3
HDMI4
EPI 50P, 50P
LVDS 51P
EPI 50P, 50P
LVDS 51P
eMMC X 1
(4GB)
USB_WIFI
SYSTEM
DDR3 X
1600 X 16
(2Gb)
LOCAL DIMMING
Sub Micom
(NEC) IR
Remote Control
SYSTEM
DDR3 X
1600 X
16
(2Gb)
SYSTEM
DDR3 X
1600 X 16
(2Gb)
SIF
TDSS-G151D
Half NIM
L/R In
SPDIF OUT
USB
I2S Out
MTK
T/C Demod
RGB,H/V
Ethernet
CVBS
UART
HDMI
MUX
(HDCP
EEPROM)
LVDS
OR EPI
LVDS
OR EPI
DDR
CONTROLER A/B
SPI
I2C
UART
Audio

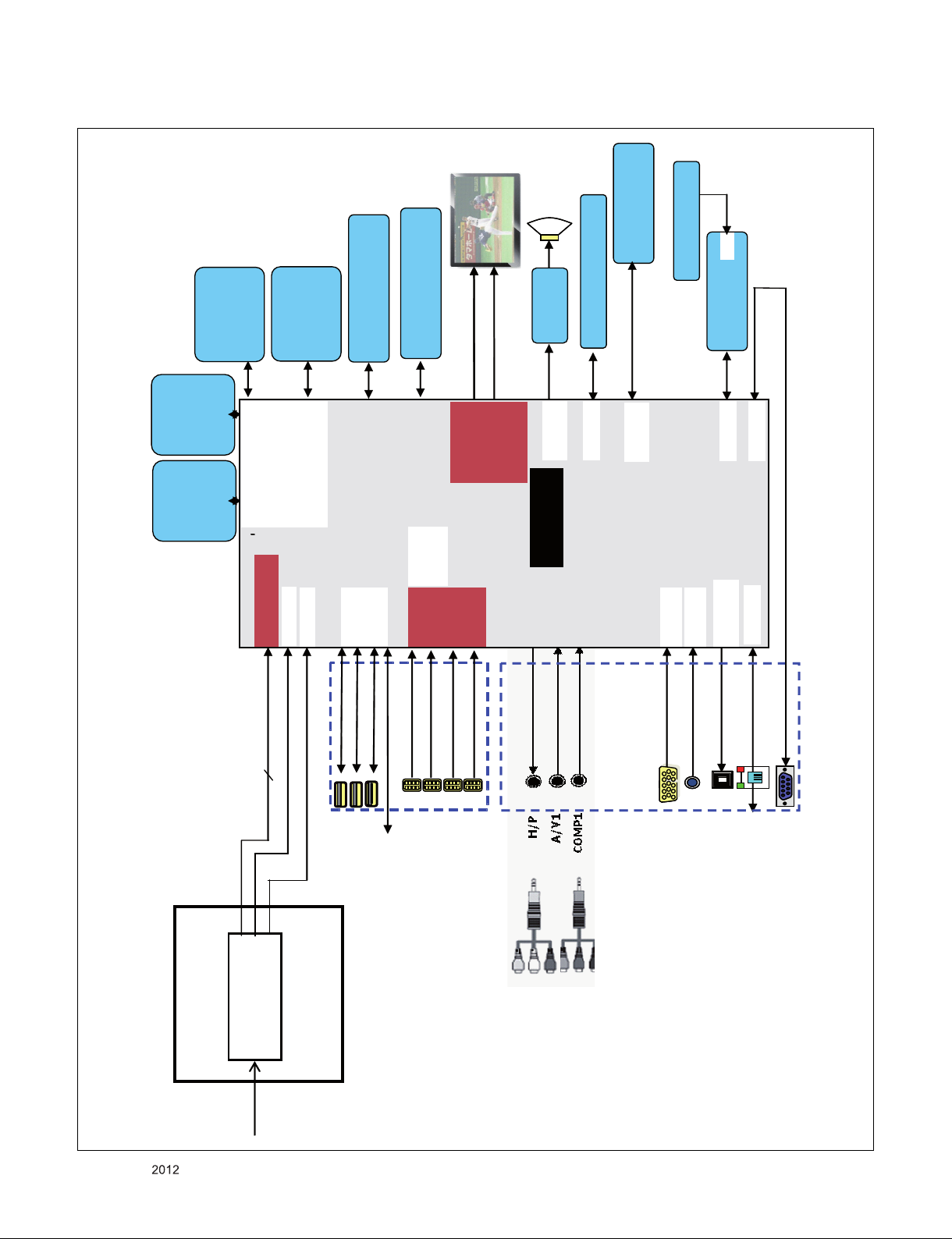

BLOCK DIAGRAM

- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
A7
A2
A21
A5 A10
AG1 900
300
200
400
540
521
530
810
910
120
510
511
310
* Set + Stand * Stand Base + Body
LV1
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

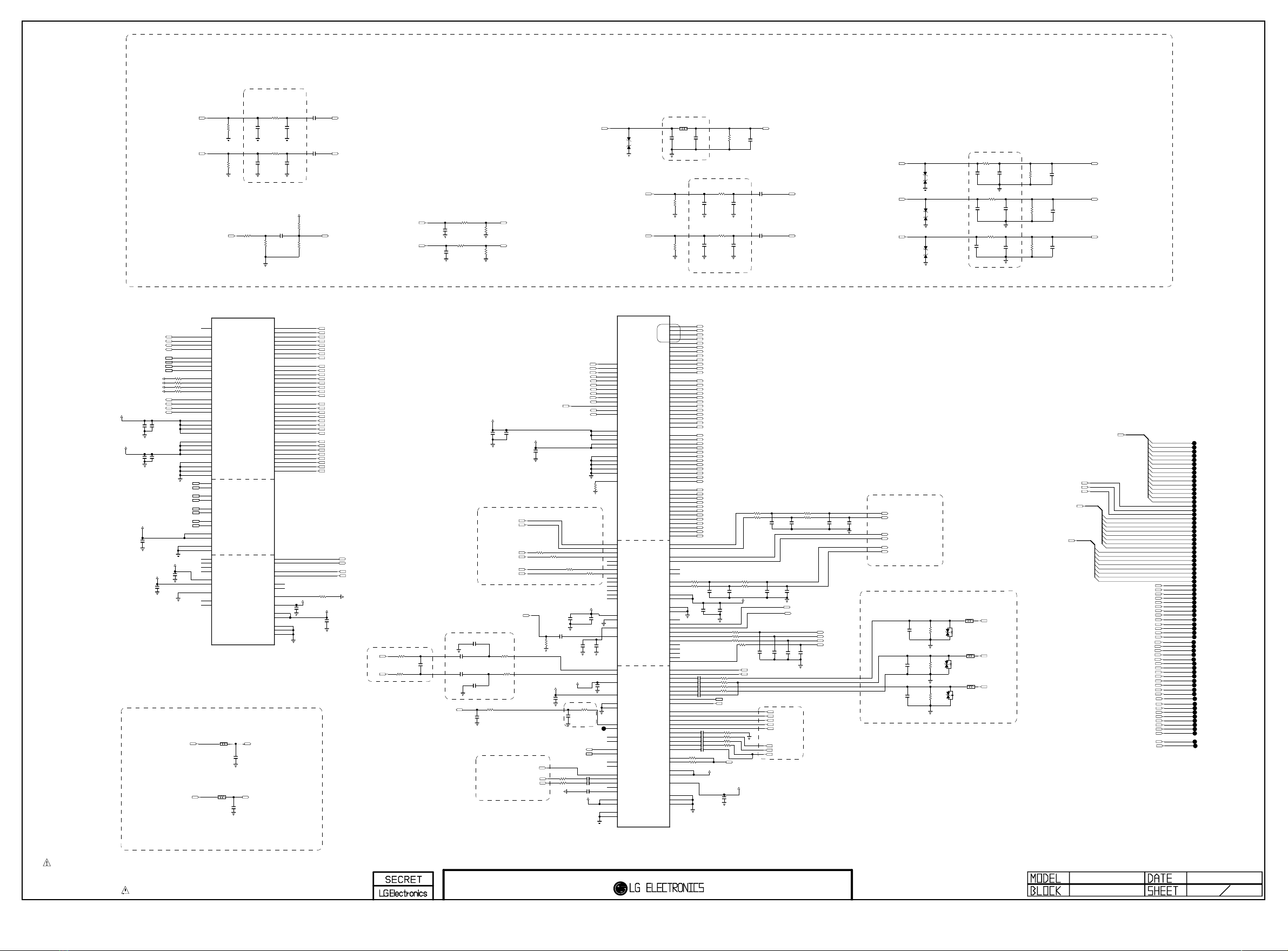

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
CI_DATA[5]
CI_DATA[7]
MT5369_TS_OUT[2]
CI_DATA[2]
CI_DATA[4]
CI_ADDR[2]
CI_ADDR[10]
MT5369_TS_OUT[1]
CI_ADDR[13]
FE_TS_DATA[7]
CI_ADDR[5]
EMMC_DATA[7]
EMMC_DATA[6]
FE_TS_DATA[5]
CI_ADDR[8]
CI_DATA[0]
CI_ADDR[6]
CI_ADDR[1]
EMMC_DATA[4]
CI_ADDR[11]
CI_ADDR[12]
CI_DATA[1]
EMMC_DATA[2]
FE_TS_DATA[6]
FE_TS_DATA[0]
CI_ADDR[7]
FE_TS_DATA[4]
MT5369_TS_OUT[4]
CI_DATA[3]
EMMC_DATA[3]
EMMC_DATA[5]
FE_TS_DATA[3]
CI_ADDR[0]
MT5369_TS_OUT[7]
CI_ADDR[3]
CI_DATA[6]
FE_TS_DATA[1]
MT5369_TS_OUT[5]
MT5369_TS_OUT[0]
CI_ADDR[9]
CI_ADDR[14]
FE_TS_DATA[2]
MT5369_TS_OUT[3]
CI_ADDR[4]
MT5369_TS_OUT[6]
MODEL_OPT_2
JTRST#
FE_TS_SYNC
STB_SCL
USB_CTL3
SOC_RX
C116
0.1uF
R150
1K
MODEL_OPT_0
MT5369_TS_VAL
R147
1K
OPT
/CI_CD2
R155
10K
OPT
R166
2.7K
OPT
EMMC_CLK
R151
1K
OPT
MT5369_TS_SYNC
MT5369_TS_IN[1]
R165
4.7K
OSDA0
L/DIM0_MOSI
/USB_OCD3
R172
22
/PCM_CE1
OSDA1
+3.3V_NORMAL
MODEL_OPT_8
MODEL_OPT_6
R148
1K
JTMS
SOC_TX
CI_ADDR[0-14]
FE_TS_VAL
R167
4.7K
L/DIM0_VS
R103
4.7K
MT5369_TS_OUT[0-7]
MT5369_TS_IN[5]
EMMC_DATA[2-7]
R168
4.7K
OPT
R157
4.7K
OPT
R158 33
OPT
MODEL_OPT_1
CI_DATA[0-7]
JTDI
/PCM_IORD
MT5369_MISTRT
MODEL_OPT_1
CI_A_VS1
LED_PWM0
/PCM_REG
MT5369_XTAL_OUT
MT5369_MIVAL_ERR
I2C_SDA5
MT5369_XTAL_IN
AVDD_33SB
JTCLK
MODEL_OPT_5
A_DIM
FE_TS_CLK
USB_CTL2
MT5369_TS_IN[4]
SOC_RESET
/USB_OCD2
MT5369_MCLKI
/USB_OCD1
/PCM_OE
MT5369_TS_CLK
AVDD_33SB
PCM_RST
MODEL_OPT_3
MT5369_TS_IN[6]
USB_CTL1
MODEL_OPT_10
L/DIM0_SCLK
R153
1K
OPT
LED_PWM1
/PCM_IOWR
JTDO
C118
0.1uF
M_REMOTE_TX
OSCL0
VDD3V3
LED_PWM1
/PCM_WE
M_REMOTE_RX
R136 33
MT5369_TS_IN[0]
MODEL_OPT_5
MODEL_OPT_3
MT5369_TS_IN[2]
MT5369_TS_IN[3]
MODEL_OPT_0
+3.3V_NORMAL
ERROR_OUT
MT5369_TS_IN[7]
MODEL_OPT_6
+3.3V_NORMAL
IC104
AT24C256C-SSHL-T
NVRAM_ATMEL
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
FE_TS_DATA[0-7]
MODEL_OPT_9
R174
10K
OPCTRL3
/PCM_WAIT
EMMC_CLK
/PCM_IRQA
R169 10K
OPT
R171
22
R170 22
OSCL1
PWM_DIM2
R137 33
R161
4.7K
OPT
R178
4.7K
OPT
PWM_DIM1
/CI_CD1
LED_PWM0
M_RFModule_ISP
+3.3V_NORMAL
IR
R154
1K
C117
0.1uF
I2C_SCL5
+3.3V_NORMAL
STB_SDA
X100
27MHz
MT5369_XTAL_OUTMT5369_XTAL_IN
+3.3V_NORMAL
R143 33
MTK_JTAG
JTMS
+3.3V_NORMAL
R144
10K
R152
1K
MTK_JTAG
JTDO
JTRST#
JTCLK
JTDI
AR100
10K
R149
10K
MTK_JTAG
R146
10K
MTK_JTAG
R145
10K
MTK_JTAG
+3.3V_NORMAL
R139
2.7K
OSDA2
I2C_SDA2
R117 33
+3.3V_NORMAL
R115 33
I2C_SDA6
R188
2.7K
I2C_SCL4
I2C_SDA4
OSCL2
I2C_SCL5
R122 33
R160
2.7K
R116 33
I2C_SDA5
R142
2.7K
OSCL0
I2C_SCL2
STB_SDA R111 33
R123 33
R134
2.7K
I2C_SDA1
I2C_SCL3
R114 33
R110 33
OSCL1
I2C_SCL6
I2C_SDA3
R113 33
R164
2.7K
OSDA1
R173
2.7K R156
2.7K
R118 33
R185
2.7K
OSDA0
R177
2.7K
R112 33
I2C_SCL1
R121 33
STB_SCL
R176 10K
SC_ID_SOC
M_RFModule_RESET
R162 10K
R163 10K
/TU_RESET
RF_SWITCH_CTL
AV1_CVBS_DET
OPCTRL3
DSUB_DET
HP_DET
COMP1_DET
SC_DET
OPCTRL_1_SCL
OPCTRL_11_SCL
/S2_RESET
SMARTCARD_VCC
SMARTCARD_RST
SMARTCARD_DATA
SMARTCARD_CLK
SMARTCARD_DET
SMARTCARD_PWR_SEL
SMARTCARD_VCC
SMARTCARD_PWR_SEL
SMARTCARD_RST
SMARTCARD_CLK
SMARTCARD_DATA
SMARTCARD_DET
+3.3V_NORMAL
R140 4.7K
MTK_DVB_T2_TUNER
R106 4.7K
MTK_Int_FRC/URSA5
R135 4.7K
MTK_CP_BOX
R101 4.7K
MTK_FRC3/URSA5
R189 4.7K
MTK_EPI
R186 4.7K
MTK_DVB_C2_TUNER
R125 4.7K
MTK_OPTIC_Tx_IC
R130 4.7K
MTK_3D_DEPTH_IC
R108 4.7K
MTK_FHD
R175 4.7K
MTK_DVB_S_TUNER
R132 4.7K
MTK_DDR_768MB
R190 4.7K
MTK_NON_EPI
R127 4.7K
MTK_NON_OPTIC_Tx_IC
R133 4.7K
MTK_DDR_DEFAULT
R129 4.7K
MTK_NON_3D_DEPTH_IC
R141 4.7K
MTK_NON_DVB_T2_TUNER
R102 4.7K
MTK_NO_FRC/Int_FRC
R138 4.7K
MTK_NON_CP_BOX
R109 4.7K
MTK_HD
R187 4.7K
MTK_NON_DVB_C2_TUNER
R184 4.7K
MTK_NON_DVB_S_TUNER
R107 4.7K
MTK_NO_FRC/FRC3
EPI_LOCK6
OPCTRL_0_SDA
OPCTRL_10_SDA
OPCTRL_1_SCL
OPCTRL_11_SCL
OPCTRL_0_SDA
OPCTRL_10_SDA
C101
0.1uF
16V
R191 22
+3.3V_NORMAL
R192 22
I2C_SCL1
R181 4.7K
I2C_SDA1
+3.3V_NORMAL
MDS62110213
M100
MTK_H/S_3.5T
MDS62110213
M101
MTK_H/S_3.5T
MDS62110213
M102
MTK_H/S_3.5T
MDS62110213
M103
MTK_H/S_3.5T
+3.3V_NORMAL
R159 4.7K
P100
12507WS-12L
MTK_JTAG
1
2
3
4
5
6
7
8
9
10
11
12
13
C120
2.2uF
10V
OPT
R193 10K
NON_EU
OPC_EN
/S2_RESET
R128
1.2K R131 1.2K
EMMC_DATA[0]
EMMC_DATA[1]
EMMC_CMD
R119
0
IC104-*1
M24256-BRMN6TP
NVRAM_ST
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
C115
24pF
C113
24pF
AMP_RESET_SOC AMP_RESET_N
R124
33
AMP_RESET_BY_SOC
AMP_RESET_SOC
IC105
LGE2112
MT5369_NON_RM
JTCK
AP14
JTDI
AM14
JTDO
AR14
JTMS
AR15
JTRST
AN14
OSDA0
AP12
OSCL0
AN12
OSDA1
AP15
OSCL1
AN15
XTALI
AT34
XTALO
AU34
AVDD33_XTAL_STB
AK27
AVSS33_XTAL_STB
AH26
AVDD33_VGA_STB
AK18
AVSS33_VGA_STB
AK17
AVDD33_PLLGP
AK23
AVSS33_PLLGP
AM27
AVDD10_LDO
AJ20
GPIO0
H32
GPIO1
F37
GPIO2
F36
GPIO3
G37
GPIO4
G36
GPIO5
G35
GPIO6
G34
GPIO7
H34
GPIO8
L34
GPIO9
L32
GPIO10
K33
GPIO11
K32
GPIO12
H33
GPIO13
L35
GPIO14
K36
GPIO15
J32
GPIO16
J34
GPIO17
K34
GPIO18
K35
GPIO19
K37
GPIO20
J36
GPIO21
J37
GPIO22
J35
GPIO23
J33
GPIO24
G33
GPIO25
H35
GPIO26
H31
GPIO27
F34
GPIO28
E36
GPIO29
N33
GPIO30
P32
GPIO31
M35
GPIO32
M37
GPIO33
M33
GPIO34
F35
GPIO35
E35
GPIO36
E37
GPIO37
N32
GPIO38
M34
GPIO39
M36
GPIO40
M32
GPIO41
L33
GPIO42
E33
GPIO43
E32
GPIO44
F32
GPIO45
A29
GPIO46
D31
GPIO47
C31
GPIO48
E30
GPIO49
E31
GPIO50
F31
GPIO51
E29
GPIO52
AP9
GPIO53
AT9
GPIO54
AR9
GPIO55
AU9
ADIN0_SRV
AN23
ADIN1_SRV
AN24
ADIN2_SRV
AP23
ADIN3_SRV
AR23
ADIN4_SRV
AU23
ADIN5_SRV
AT23
ADIN6_SRV
AM24
ADIN7_SRV
AM23
U0TX AR18
U0RX AP18
U1RX AU16
U1TX AT16
POWE A35
POOE C33
POCE1 B34
POCE0 D33
PDD7 D29
PDD6 C30
PDD5 D30
PDD4 B31
PDD3 A31
PDD2 B32
PDD1 A32
PDD0 C32
PARB D32
PACLE A34
PAALE C34
EMMC_CLK C29
OPWRSB AM20
ORESET AM22
OIRI AU21
FSRC_WR D27
STB_SCL AT21
STB_SDA AR21
DEMOD_RST T34
DEMOD_TSCLK T32
DEMOD_TSDATA0 T36
DEMOD_TSDATA1 U36
DEMOD_TSDATA2 T33
DEMOD_TSDATA3 T30
DEMOD_TSDATA4 V33
DEMOD_TSDATA5 V32
DEMOD_TSDATA6 V31
DEMOD_TSDATA7 V30
DEMOD_TSSYNC T35
DEMOD_TSVAL T31
CI_INT N36
CI_TSCLK T37
CI_TSDATA0 R35
CI_TSSYNC R37
CI_TSVAL R36
PVR_TSCLK R34
PVR_TSVAL R32
PVR_TSSYNC R33
PVR_TSDATA0 P33
PVR_TSDATA1 P34
SPI_CLK1 N37
SPI_CLK P35
SPI_DATA N34
SPI_CLE N35
OPWM2 AU12
OPWM1 AT12
OPWM0 AR12
SD_D0 A37
SD_D1 C35
SD_D2 A36
SD_D3 B35
SD_CMD B36
SD_CLK B37
LDM_CS AT11
LDM_CLK AU11
LDM_VSYNC AR10
LDM_DO AM9
LDM_DI AP10
LED_PWM1 AN22
LED_PWM0 AP21
OPCTRL11 AU20
OPCTRL10 AT20
OPCTRL9 AN18
OPCTRL8 AP20
OPCTRL7 AM18
OPCTRL6 AN19
OPCTRL5 AP19
OPCTRL4 AR19
OPCTRL3 AN21
OPCTRL2 AM19
OPCTRL1 AN20
OPCTRL0 AR20
IC104-*2
R1EX24256BSAS0A
NVRAM_RENESAS
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
R100
10K AMP_RESET_BY_SOC
C114
0.1uF
16V
C105
0.1uF
OPT
C106
0.1uF
OPT
C100
0.1uF
OPT
C103
0.1uF
OPT
C102
0.1uF
OPT
C104
0.1uF
OPT
R120
1K
PWM1_PULL_DOWN_1K
R126
1K
PWM2_PULL_DOWN_1K
MDS61887710
M104
MTK_H/S_9.5T
IC100
M24C16-R
HDCP_EEPROM_ST
3
NC_3
2
NC_2
4
VSS
1
NC_1
5SDA
6SCL
7WC
8VCC
IC100-*1
24LC16B
HDCP_EEPROM_MICRO
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
R105
4.7K
OPT
R104
4.7K
OPT
M_RFModule_ISP
C108
2.2uF
10V
C107
2.2uF
10V
IC105-*1
LGE2112-AL
MT5369_RM
DDRV_44
AC1
DDRV_45
AC2
DDRV_1
A3
DDRV_2
A4
DDRV_5
B4
DDRV_8
C4
DDRV_10
D4
DDRV_4
B3
DDRV_7
C3
DDRV_46
AC3
DDRV_47
AC4
MEMTP
G10
MEMTN
G9
RVREF_B
G13
RVREF_A
G21
ARCKE
F10
ARCLK1
D9
ARCLK1
C9
ARCLK0
A20
ARCLK0
A21
ARODT
E18
ARRAS
F17
ARCAS
E17
ARCS
E16
ARWE
D14
ARRESET
B14
ARBA0
A13
ARBA1
G11
ARBA2
D16
ARCSX
F18
ARA14
C15
ARA13
A15
ARA12
F13
ARA11
C14
ARA10
F11
ARA9
E15
ARA8
D13
ARA7
B15
ARA6
E14
ARA5
F16
ARA4
E13
ARA3
B13
ARA2
A14
ARA1
F14
ARA0
F15
ARDQM0 C19
ARDQS0 C21
ARDQS0 B21
ARDQ0 C23
ARDQ1 B17
ARDQ2 D23
ARDQ3 C17
ARDQ4 D24
ARDQ5 C16
ARDQ6 C24
ARDQ7 D15
ARDQM1 D21
ARDQS1 B20
ARDQS1 C20
ARDQ8 A17
ARDQ9 A23
ARDQ10 D17
ARDQ11 B23
ARDQ12 D20
ARDQ13 D22
ARDQ14 D19
ARDQ15 C22
ARDQM2 A7
ARDQS2 B9
ARDQS2 A9
ARDQ16 C12
ARDQ17 D6
ARDQ18 B12
ARDQ19 C5
ARDQ20 C13
ARDQ21 A5
ARDQ22 A12
ARDQ23 B5
ARDQM3 E10
ARDQS3 C8
ARDQS3 D8
ARDQ24 C6
ARDQ25 D10
ARDQ26 D7
ARDQ27 C11
ARDQ28 C7
ARDQ29 C10
ARDQ30 B7
ARDQ31 B10
AVDD33_MEMPLL N14
AVSS33_MEMPLL N15
DVSS_50 R1
DVSS_48 P21
8
MID_MAIN_1 2011.12.13
LG FRC2
3D DEPTH
T2 Tuner
MODEL OPTION 8 is just for CP Box
It should not be appiled at MP
NON_3D_Depth_IC
S Tuner
SoC
internal
FRC
SOC -> CI SLOT
NON_OPTIC
CI SLOT -> SOC
SOC -> CI SLOT
MODEL_OPT_9
OPTIC
1
MODEL_OPT_7
MODEL_OPT_3
Support
FHD
Write Protection
- Low : Normal Operation
- High : Write Protection
Disable
Reserved
DDR_768MB
EPI
Reserved
MODEL_OPT_2
DDR
MODEL_OPT_6
HIGH
MODEL_OPT_8
CI SLOT -> SOC
MODEL_OPT_0
Not Support
Default
1
Not Support
CP BOX
MODEL_OPT_5
0
0
CI SLOT -> SOC
Support
Enable
LOW
1
NO_FRC
NVRAM
Model Option
0
Close to eMMC Flash
(IC8100)
MODEL_OPT_10
0
CI SLOT -> SOC
HD
STRAPPING LED_PWM0 LED_PWM1 OPCTRL3
ICE mode + 27M + Serial boot 0 0 0
ICE mode + 27M + ROM to Nand boot 0 0 1
ICE mode + 27M + Rom to eMMC boot 0 1 0
from eMMC pins (share pins w/s NAND)
ICE mode + 27M + ROM to eMMC boot 0 1 1
from SDIO pins
DDR_Default
EXTERNAL DEMOD
-> SOC
MODEL_OPT_1 1
MODEL_OPT_4 3D_Depth_IC
X-TAL
JTAG
I2C
I2C_1 : AMP, L/DIMMING,HDCP KEY
I2C_2 : T-CON
I2C_3 : MICOM
I2C_4 : S/Demod,T2/Demod, LNB
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)
FOR JAPAN
FOR JAPAN
HDCP EEPROM
Support Not Support
HEAT SINK SMD GASKET
5V Tolerance
MODEL_OPT_4
MODEL_OPT_4
Crystal Matching Test result
: 27pF -> 20pF -> 24pF
IC
EAX6430790* : LD22* / LC22*
EAX6443420* : LT22* / LJ22* / LA22* / LB22*
MODEL_OPT_7
MODEL_OPT_7
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
CI_ADDR[3]
CI_DATA[7]
CI_ADDR[4]
CI_DATA[2]
MT5369_TS_OUT[1]
CI_ADDR[7]
CI_ADDR[8]
CI_ADDR[10]
CI_ADDR[14]
CI_DATA[5]
MT5369_TS_OUT[6]
CI_DATA[6]
MT5369_TS_OUT[4]
CI_DATA[3]
CI_ADDR[12]
MT5369_TS_OUT[7]
CI_ADDR[0]
CI_ADDR[5]
MT5369_TS_OUT[2]
CI_ADDR[11]
MT5369_TS_OUT[5]
CI_DATA[0]
CI_ADDR[1]
CI_DATA[1]
CI_DATA[4]
CI_ADDR[13]
CI_ADDR[6]
MT5369_TS_OUT[0]
CI_ADDR[2]
MT5369_TS_OUT[3]
CI_ADDR[9]
C323
0.1uF
MT5369_TS_IN[0]
TP324
C343
100pF
50V
C3690.01uF
HDMI_HPD_3_JACK
TP337
AV1_R_IN_SOC
D0+_HDMI2_JACK
TXA4P
TP353
COMP1_Pr_SOC
R3791.2K
TP321
R358100
SCART_Rout_SOC
TP345
C355
0.047uF
T/C&AT&CHB
DTV/MNT_V_OUT_SOC
C3740.01uF
R323 22
TP378
C397
1200pF
C359 0.047uF
TP374
TXD1P
C398
1200pF
R330
75
1%
C382
0.1uF
C354
0.1uF
/PCM_WE
MT5369_TS_IN[5]
TP375
R311 30K
HP_LOUT_AMP
VDD3V3
TXCCLKP
HP_ROUT_AMP
MT5369_TS_IN[4]
HDMI_HPD_2_JACK
TP372
TXA0N
D2+_HDMI3_JACK
HP_ROUT_MAIN
TP326
C307
0.1uF
C336 1uF
10V
T/C&AT&CHB
R373
0
C384
10pF
50V
TXDCLKN
IF_AGC
C361 1uF
CK+_HDMI4_JACK
TXD0P
R3781.2K
VDD3V3
SC_R_SOC
R3521.2K
HP_OUT
D2-_HDMI3_JACK
TXC1P
PC_R_IN_SOC
C380
0.1uF
DSUB_VSYNC
TXD2N
TP322
TP307
TXB2P
C400
1200pF
TP350
PC_L_IN_SOC
+1.2V_MTK_AVDD
C3710.01uF
AV1_CVBS_IN_SOC
TXC1N
TP329
+1.2V_MTK_AVDD
R341 100
R309
100K
TXD0N
PC_R_IN
EPHY_TDP
C391
27pF
50V
OPT
TP311
R371 100
D2-_HDMI4_JACK
R310 30K
TP318
SCART_Rout_SOC
C386
27pF
50V
OPT
TXB1P
DSUB_HSYNC_SOC
AUD_LRCH
R300
470K
OPT
DDC_SDA_1_SOC
TP313
TXC2N
TP348
C332
0.22uF
10V
HP_OUT
C3660.01uF
TXC0P
SC_B_SOC
CK-_HDMI2_JACK
OSCL2
OSDA2
D1-_HDMI2_JACK
C302
0.1uF
R354
75
1%
DSUB_VSYNC_SOC
C392
27pF
50V
OPT
C395
1200pF
HP_OUT
DDC_SCL_4_JACK
R335 51
T/C&AT&CHB
TXDCLKP
TXA1P
EPHY_RDP
TP365
DAC_3V3
C385
27pF
50V
OPT
PC_L_IN_SOC
SCART_Lout_SOC
5V_HDMI_2_JACK
R368 100
AV1_L_IN_SOC
TP355
+1.2V_MTK_AVDD
C331
0.22uF
10V
HP_OUT
C383
1200pF
HP_OUT
TP300
D1+_HDMI3_JACK
R3701.2K
HP_OUT
SC_G_SOC
TP341
D0-_HDMI1_SOC
DDC_SCL_2_JACK
R343
24K
1%
VDD3V3
VDD3V3
SC_G_SOC
TP370
AV1_R_IN
C341
0.047uF
T/C&AT&CHB
TP308
C393
22pF
OPT
D0+_HDMI1_SOC
R367 100
C387
22pF
OPT
TXA4N
VDD3V3
R372
0
TP330
C308
0.1uF
TP351
TP366
/CI_CD1
C319
10uF
16V
R362100
TP360
TXD3P
D0+_HDMI4_JACK
TP334
MT5369_MISTRT
C3701500pF
R301
470K
OPT
D1+_HDMI1_SOC
D2+_HDMI2_JACK
C314
100pF
50V
OPT
COMP1_Pr_SOC
TXB1N
SC_L_IN_SOC
C340
47pF
50V
C364
0.1uF
ARC
TP317
SC_DET
C344
27pF
50V
OPT
TXA3N
C300
560pF
50V
OPT
SPDIF_OUT
TP359
C301
560pF
50V
OPT
D0-_HDMI4_JACK
C351
0.1uF
IF_P
TU_CVBS
WIFI_DM
TXD4N
R334 51
T/C&AT&CHB
R3500
R357100
TXA1N
TXACLKP
TXC0N
L303
BLM18PG121SN1D
HP_OUT
TUNER_SIF
TP338
/PCM_IRQA
MT5369_MIVAL_ERR
SC_R_SOC
TP320
DDC_SCL_3_JACK
R324 22
C316
0.1uF
TP373
R3511.2K
HP_OUT
MT5369_TS_IN[6]
MT5369_TS_IN[7]
C337 1uF
10V
T/C&AT&CHB
/PCM_REG
TP352
VDD3V3
HDMI_HPD_1_SOC
EPHY_RDN
WIFI_DP
C3720.01uF
C3730.01uF
R308
1.2K
OPT
R366 100
+1.2V_MTK_AVDD
TXA2P
C3670.01uF
D2-_HDMI2_JACK
DSUB_G+
R328
470K
OPT
TP314
DDC_SDA_2_JACK
D1+_HDMI4_JACK
+1.2V_MTK_AVDD
TP335
VDD3V3
C399
1200pF
L302
BLM18PG121SN1D
HP_OUT
D2+_HDMI1_SOC
R353
75
1%
AUDIO_R_OUT_COMMERCIAL
TP356
PCM_5V_CTL
TP336
R31524K
D1+_HDMI2_JACK
MT5369_TS_SYNC
TP328
R322
75
HP_ROUT
MT5369_MCLKI
TP310
R361100
MT5369_TS_VAL
C320
10uF
16V
TP342
CK+_HDMI3_JACK
RGB_DDC_SDA
TXB0N
C390
1200pF
HP_OUT
VDD3V3
R355
75
1%
AUD_LRCK TP358
HP_LOUT_MAIN
TXC2P
TXB4P
C377
1200pF
HP_OUT
C3680.01uF
TP346
TXB4N
C329
5pF
50V
OPT
EPHY_TDN
TP312
AUD_MASTER_CLK
TXD2P
/PCM_IORD
MT5369_TS_CLK
TP343
TP362
TXACLKN
D2+_HDMI4_JACK
/PCM_CE1
COMP1_Pb_SOC
MT5369_TS_IN[2]
PC_L_IN
R321
75
MT5369_TS_IN[1]
R320
75
TP349
TXA2N
R307 1K
C394
27pF
50V
OPT
C304
0.1uF
DTV/MNT_V_OUT_SOC
R329
470K
OPT
TXCCLKN
TP319
SC_COM_SOC
HDMI_ARC
AV1_R_IN_SOC
R339
2.2K
OPT
AV1_CVBS_IN_SOC
C388
27pF
50V
OPT
HDMI_HPD_4_JACK
R3761.2K
CK-_HDMI4_JACK
D1-_HDMI4_JACK
TP347
CK-_HDMI3_JACK
D0+_HDMI3_JACK
TXB3P
SC_FB_SOC
COMP1_Y_SOC
D1-_HDMI1_SOC
TXB0P
R356100
5V_HDMI_4_JACK
C389
22pF
OPT
CK-_HDMI1_SOC
R374
0
COMP1_Pr
TP377
R3771.2K
C346
10uF
16V
C360 0.047uF
R305 1K
TP367
TP323
C363
1uF
25V
AV1_L_IN
/PCM_OE
TXD3N
C315
100pF
50V
OPT
R3691.2K HP_OUT
5V_HDMI_3_JACK
TP331
SC_R_IN_SOC
R326
2K
OPT
SC_CVBS_IN_SOC
VDD3V3
C328
0.1uF
SC_COM_SOC
SC_ID_SOC
SC_L_IN_SOC
RGB_DDC_SCL
CK+_HDMI1_SOC
CI_DATA[0-7]
C330
5pF
50V
OPT
C358
0.01uF
50V
MT5369_TS_OUT[0-7]
TP316
D0-_HDMI2_JACK
C345
10uF
16V
CK+_HDMI2_JACK
DDC_SDA_4_JACK
ARC
COMP1_Pb
C303
0.1uF
AV1_CVBS_IN
C3751500pF
R340 100
TP339
SC_FB_SOC
IF_N
R342 10K
T/C&AT&CHB
SC_CVBS_IN_SOC
TXC4N
TP371
R359100
C379
10pF
50V
DDC_SDA_3_JACK
+1.2V_MTK_AVDD
TXA0P
DDC_SCL_1_SOC
DSUB_HSYNC
TXC4P
C378
10pF
50V
TP340
COMP1_Y_SOC
R332 10K
T/C&AT&CHB
C347
0.1uF
AUD_SCK
SC_R_IN_SOC
TP357
C338
560pF
50V
OPT
TP325
PCM_RST
D2-_HDMI1_SOC
D1-_HDMI3_JACK
/PCM_IOWR
SC_B_SOC
TP363
R306 1K
DSUB_VSYNC_SOC
SCART_Lout_SOC
R304 1K
TXC3P
CI_ADDR[0-14]
R303
82
TP315
TP309
TP332
AV1_L_IN_SOC
D0-_HDMI3_JACK
/PCM_WAIT
AUDIO_L_OUT_COMMERCIAL
R363100
5V_HDMI_1_SOC
TP368
TXBCLKN
TXBCLKP
COMP1_Y
TP344
TP361
R3490 OPT
HP_LOUT
CI_A_VS1
DSUB_R+
COMP1_Pb_SOC
/CI_CD2
TP327
TP364
TP369
TXA3P
TXB2N
TXB3N
C342
100pF
50V
TP333
MT5369_TS_IN[3]
C339
560pF
50V
OPT
R325
2K
OPT
R302
180
C352 0.01uF
TXC3N
PC_R_IN_SOC
DSUB_B+
R364100
DSUB_HSYNC_SOC
TXD4P
TP354
C396
33pF
OPT
+5V_NORMAL
TXD1N
C306
0.1uF
MODEL_OPT_10
2D/3D_CTL
MODEL_OPT_2
PCM_5V_CTL
EMMC_RST
MODEL_OPT_8
MODEL_OPT_9
VCOM_DYN
GST_SOC
MCLK_SOC
GCLK_SOC
EO_SOC
PMIC_RESET
C365
0.01uF
C305
1uF
25V
C362
0.1uF
C350
0.1uF
R314
0
R336
0
R331 0
T/C&AT&CHB
R346 0
T/C&AT&CHB
C309
OPT
C311 1uF
10V
C310
33pF
T/C&AT&CHB
C312
33pF
T/C&AT&CHB
C334
47pF
50V
C335
47pF
50V
C333
47pF
50V
USB_DP2
USB_DM2
USB_DP1
USB_DM1
USB_DM3
USB_DP3
IC105
LGE2112
HDMI_CEC
AA32
HDMI_0_SCL
AG33
HDMI_1_SCL
AE33
HDMI_2_SCL
AC33
HDMI_3_SCL
AH32
HDMI_0_SDA
AF33
HDMI_1_SDA
AD33
HDMI_2_SDA
AB33
HDMI_3_SDA
AH33
HDMI_0_PWR5V
AG31
HDMI_1_PWR5V
AE31
HDMI_2_PWR5V
AC31
HDMI_3_PWR5V
AH31
HDMI_0_HPD
AG32
HDMI_1_HPD
AE32
HDMI_2_HPD
AC32
HDMI_3_HPD
AJ32
AVDD12_HDMI_0_RX
AA24
AVDD12_HDMI_1_RX
Y24
AVDD12_HDMI_2_RX
W24
AVDD12_HDMI_3_RX
AB24
AVDD33_HDMI_0_RX
AB29
AVDD33_HDMI_1_RX
AA29
AVDD33_HDMI_2_RX
Y29
AVDD33_HDMI_3_RX
AC29
AVSS33_HDMI_RX_1
AB30
AVSS33_HDMI_RX_2
AD30
AVSS33_HDMI_RX_3
AF31
AVSS33_HDMI_RX_4
AF32
USB_DP_P0
C36
USB_DM_P0
C37
USB_DP_P1
D36
USB_DM_P1
D37
USB_DP_P2
AT13
USB_DM_P2
AU13
USB_DP_P3
AT14
USB_DM_P3
AU14
AVDD33_USB_P0P1
D35
AVDD33_USB_P2P3
AP13
AVSS33_USB_P1
D34
AVSS33_USB_P2
AR13
PCIE11_TXP
W35
PCIE11_TXN
W34
PCIE11_RXN
Y34
PCIE11_RXP
Y35
AVDD12_PCIE11
U24
AVDD33_PCIE11
V24
AVSS12_PCIE11
W30
PCIE11_REFCKN
W36
PCIE11_REFCKP
W37
HDMI_0_RX_0 AG35
HDMI_0_RX_0B AG34
HDMI_0_RX_1 AG37
HDMI_0_RX_1B AG36
HDMI_0_RX_2 AF35
HDMI_0_RX_2B AF34
HDMI_0_RX_C AH35
HDMI_0_RX_CB AH34
HDMI_1_RX_0 AE37
HDMI_1_RX_0B AE36
HDMI_1_RX_1 AD35
HDMI_1_RX_1B AD34
HDMI_1_RX_2 AC35
HDMI_1_RX_2B AC34
HDMI_1_RX_C AE35
HDMI_1_RX_CB AE34
HDMI_2_RX_0 AB35
HDMI_2_RX_0B AB34
HDMI_2_RX_1 AA35
HDMI_2_RX_1B AA34
HDMI_2_RX_2 AA37
HDMI_2_RX_2B AA36
HDMI_2_RX_C AC37
HDMI_2_RX_CB AC36
HDMI_3_RX_0 AK35
HDMI_3_RX_0B AK34
HDMI_3_RX_1 AJ35
HDMI_3_RX_1B AJ34
HDMI_3_RX_2 AJ37
HDMI_3_RX_2B AJ36
HDMI_3_RX_C AJ33
HDMI_3_RX_CB AK33
TXVP_0 AT18
TXVN_0 AU18
RXVN_1 AU17
RXVP_1 AT17
PHYLED1 AN16
PHYLED0 AM16
REXT AD15
AVDD12_REC AD14
AVDD33_COM AD16
AVDD33_LD AD17
AVSS33_LD AL16
AVSS33_COM AL15
AVSS12_REC AL14
IC105
LGE2112
TCON0
F27
TCON1
E27
TCON2
F30
TCON3
F29
TCON4
B27
TCON5
A27
TCON6
B28
TCON7
A28
TCON8
C28
TCON9
D28
TCON10
E28
TCON11
F28
TCON12
B29
AVDD12_LVDS_1
AG6
AVDD12_LVDS_2
AJ6
AVDD12_VPLL
AF6
AVDD33_LVDSB
AE6
AVDD33_LVDSA
AH7
AVSS12_LVDS_2
AJ5
AVSS12_LVDS_1
AG5
AVSS12_VPLL
AF5
AVSS33_LVDSB
AE5
AVSS33_LVDSA
AH5
REXT_VPLL
AG7
AIN0_R_AADC
AU37
AIN0_L_AADC
AU35
AIN1_R_AADC
AT35
AIN1_L_AADC
AT37
AIN2_R_AADC
AU36
AIN2_L_AADC
AP34
AIN3_R_AADC
AT36
AIN3_L_AADC
AR37
AIN4_R_AADC
AR33
AIN4_L_AADC
AP32
AIN5_R_AADC
AR36
AIN5_L_AADC
AP37
AIN6_R_AADC
AR35
AIN6_L_AADC
AP36
AVDD33_AADC
AL31
AVSS33_AADC
AJ28
VMID_AADC
AJ27
MPXP
AN28
ADCINP_DEMOD
AU32
ADCINN_DEMOD
AT32
AVDD33_DEMOD
AD22
AVDD12_DEMOD
AL27
AVSS33_DEMOD
AM28
AVSS12_DEMOD
AJ26
IF_AGC
U35
RF_AGC
U34
LOUTN
AP31
LOUTP
AN30
OSCL2
V35
OSDA2
V34
SC0
AP28
SY0
AR29
CVBS3P
AT30
CVBS2P
AR30
CVBS1P
AR31
CVBS0P
AN29
CVBS_COM
AP30
AVDD33_CVBS_1
AK24
AVDD33_CVBS_2
AK25
AVSS33_CVBS_1
AL25
AVSS33_CVBS_2
AM26
AO3N AG3
AO3P AG4
AO4N AG1
AO4P AG2
AOCLKN AF3
AOCLKP AF4
AO2N AE3
AO2P AE4
AO1N AE1
AO1P AE2
AO0N AD1
AO0P AD2
AE4N AL3
AE4P AL4
AE3N AL1
AE3P AL2
AECLKN AK3
AECLKP AK4
AE2N AJ3
AE2P AJ4
AE1N AJ1
AE1P AJ2
AE0N AH3
AE0P AH4
BO4N AT2
BO4P AU2
BO3N AT1
BO3P AU1
BOCLKN AR1
BOCLKP AR2
BO2N AP1
BO2P AP2
BO1N AN1
BO1P AN2
BO0N AM3
BO0P AM4
BE4N AT6
BE4P AU6
BE3N AP6
BE3P AR6
BECLKN AP5
BECLKP AR5
BE2N AT4
BE2P AU4
BE1N AP4
BE1P AR4
BE0N AP3
BE0P AR3
AR0_ADAC AN35
AL0_ADAC AN34
AR1_ADAC AM32
AL1_ADAC AM34
AR2_ADAC AM37
AL2_ADAC AM33
AR3_ADAC AM36
AL3_ADAC AM35
AVDD33_DAC AG30
AVDD33_DAC1 AF30
AVSS33_DAC AK30
AVSS33_DAC1 AE30
ALIN Y33
ASPDIF0 AR16
ASPDIF1 Y32
AOBCK AR11
AOLRCK AP11
AOMCLK AM12
AOSDATA4 AM10
AOSDATA3 AM11
AOSDATA2 AN11
AOSDATA1 AN10
AOSDATA0 AN9
HSYNC AN25
VSYNC AM25
RP AR25
GP AR24
BP AU24
COM AP24
SOG AT24
VGA_SDA AR22
VGA_SCL AP22
COM1 AT26
PB1P AR26
PR1P AP26
Y1P AU26
SOY1 AP25
COM0 AU28
PB0P AT28
PR0P AR28
Y0P AP27
SOY0 AR27
VDACX_OUT AU30
VDACY_OUT AP29
AVDD33_VDAC_BG AD20
AVDD33_VDAC AD21
AVDD12_RGB AD19
AVSS33_VDAC_BG AJ22
AVSS12_RGB AJ21
AVSS33_VDAC AL24
L301
BLM15BD121SN1
L300
BLM15BD121SN1
L304
BLM15BD121SN1
ZD304
5.48VTO5.76V
ZD305
5.48VTO5.76V
ZD306
5.48VTO5.76V
ZD307
5.48VTO5.76V
ZD302
5.48VTO5.76V
ZD300
5.48VTO5.76V
ZD303
5.48VTO5.76V
ZD301
5.48VTO5.76V
D300
5.5V
ADLC 5S 02 015
D302
5.5V
ADLC 5S 02 015
D301
5.5V
ADLC 5S 02 015
R344
30K
R345
30K
C348
100pF
50V
R333
120ohm
R338 0
R337 0
9
MID_MAIN_2 2011.12.09
Close to MT5369
Place at JACK SIDE
1608 sizs For EMI
PLACE AT JACK SIDE
Close to Tuner
1.0Vpp
Close to Tuner
CHANGE SYMBOL
1608 sizs For EMI
1608 sizs For EMI
Don’t use as GPIO
FOR EMI
CH1
CH2
CH3
CH4
CH5
CH6
1608 sizs For EMI
1608 sizs For EMI
1608 sizs For EMI
1608 sizs For EMI
For PCB Pattern
For PCB Pattern
For PCB Pattern
For PCB Pattern
Close to MT5369
Port was changed !!!!
PLACE AT JACK SIDE
1608 sizs For EMI
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C532
0.1uF
+3.3V_NORMAL
POWER_ON/OFF1
C544
0.1uF
16V
C535
0.1uF
C503
10uF
C539
10uF
+1.2V_MTK_CORE
EMMC_VCCQ
C550
0.1uF
C525
10uF
+1.2V_MTK_CORE
C529
0.1uF
+1.2V_MTK_CORE
TP500
3.3V_EMMC
R500
1
C512
0.1uF
16V
C546
0.1uF
C540
10uF
10V
TP501
C543
0.1uF
L500
BLM18PG121SN1D
DAC_3V3
LAN_JACK_POWER
+3.3V_NORMAL
L504
BLM18PG121SN1D
+3.3V_NORMAL
VDD3V3
C548
0.1uF
C500
10uF C510 0.1uF
+1.2V_MTK_CORE
VDD3V3
C522
0.1uF
16V
C526
10uF
10V
L506
BLM18PG121SN1D
+5V_NORMAL
C552
0.1uF C553 0.1uF
VDD3V3
L501
BLM18PG121SN1D
C501
0.1uF
AVDD_33SB
L502
BLM18PG121SN1D
C502
0.1uF
+1.2V_MTK_CORE +1.2V_MTK_AVDD
C505
10uF
C506
10uF
+1.2V_MTK_CORE
+1.5V_DDR
IC501
AP1117E33G-13
OUT
INADJ/GND
C524
10uF
IC105
LGE2112
DVSS_51
R2
DVSS_52
R3
DVSS_37
J4
DVSS_53
R4
DVSS_107
Y4
DVSS_20
F5
DVSS_38
J5
DVSS_54
R5
DVSS_108
Y5
DVSS_95
W5
DVSS_44
L7
DVSS_46
M7
DVSS_56
R7
DVSS_120
AA5
DVSS_130
AB5
DVSS_43
K7
DVSS_77
U7
DVSS_97
W7
DVSS_13
E9
DVSS_12
E8
DVSS_22
F9
DVSS_28
G14
DVSS_39
J6
DVSS_57
R15
DVSS_68
T15
DVSS_78
U15
DVSS_87
V15
DVSS_99
W15
DVSS_112
Y15
DVSS_122
AA15
DVSS_132
AB15
DVSS_34
H11
DVSS_58
R16
DVSS_69
T16
DVSS_79
U16
DVSS_88
V16
DVSS_100
W16
DVSS_113
Y16
DVSS_123
AA16
DVSS_133
AB16
DVSS_59
R17
DVSS_70
T17
DVSS_80
U17
DVSS_89
V17
DVSS_114
Y17
DVSS_71
T18
DVSS_90
V18
DVSS_115
Y18
DVSS_72
T19
DVSS_91
V19
DVSS_116
Y19
DVSS_101
W17
DVSS_124
AA17
DVSS_134
AB17
DVSS_60
R18
DVSS_131
AB6
DVSS_35
H19
DVSS_36
H22
DVSS_40
J11
DVSS_41
J12
DVSS_42
J22
DVSS_55 R6
DVSS_62 R20
DVSS_73 T20
DVSS_83 U20
DVSS_92 V20
DVSS_104 W20
DVSS_117 Y20
DVSS_127 AA20
DVSS_137 AB20
DVSS_29 G16
DVSS_63 R21
DVSS_74 T21
DVSS_84 U21
DVSS_93 V21
DVSS_105 W21
DVSS_118 Y21
DVSS_128 AA21
DVSS_138 AB21
DVSS_64 R22
DVSS_75 T22
DVSS_85 U22
DVSS_94 V22
DVSS_106 W22
DVSS_119 Y22
DVSS_129 AA22
DVSS_139 AB22
DVSS_65 R23
DVSS_76 T23
DVSS_86 U23
DVSS_140 AB23
DVSS_96 W6
DVSS_30 G17
DVSS_27 F25
DVSS_109 Y6
DVSS_17 E21
DVSS_25 F21
DVSS_45 L8
DVSS_66 T7
DVSS_7 D11
DVSS_14 E11
DVSS_8 D12
DVSS_18 E22
DVSS_26 F22
DVSS_33 G25
DVSS_136 AB19
DVSS_126 AA19
DVSS_49 P22
DVSS_103 W19
DVSS_82 U19
DVSS_61 R19
DVSS_110 Y7
DVSS_135 AB18
DVSS_125 AA18
DVSS_102 W18
DVSS_81 U18
DVSS_121 AA7
DVSS_47 N22
DVSS_67 T8
DVSS_98 W8
DVSS_111 Y8
DVSS_11 E7
DVSS_21 F8
IC105
LGE2112
VCCK_43
AR7
VCCK_45
AT7
VCCK_47
AU7
VCCK_42
AP8
VCCK_44
AR8
VCCK_46
AT8
VCCK_48
AU8
VCCK_37
AM7
VCCK_39
AN7
VCCK_41
AP7
VCCK_38
AM8
VCCK_40
AN8
VCCK_1
P14
VCCK_9
R14
VCCK_11
T14
VCCK_13
U14
VCCK_14
V14
VCCK_16
W14
VCCK_18
Y14
VCCK_20
AA14
VCCK_22
AB14
VCCK_23
AC14
VCCK_28
AC19
VCCK_2
P15
VCCK_24
AC15
VCCK_3
P16
VCCK_25
AC16
VCCK_15
V23
VCCK_17
W23
VCCK_19
Y23
VCCK_21
AA23
VCCK_31 AC22
VCCK_32 AC23
VCCK_36 AD24
VCCK_8 P23
VCCK_10 R24
VCCK_12 T24
VCCK_33 AC24
VCCK_30 AC21
VCCK_7 P20
VCCK_29 AC20
VCCK_6 P19
VCCK_27 AC18
VCCK_5 P18
VCCK_26 AC17
VCCK_4 P17
VCCK_34 AD18
VCCK_35 AD23
VCC3IO_B_4 AL9
VCC3IO_B_2 AK10
VCC3IO_B_1 AK9
VCC3IO_B_3 AK11
VCC3IO_A_5 H29
VCC3IO_A_7 J29
VCC3IO_A_6 H30
VCC3IO_A_8 J30
VCC3IO_A_3 G31
VCC3IO_A_4 G32
VCC3IO_A_2 F33
VCC3IO_A_1 E34
MDS62110209
M501
SMD_GASKIT_8.5T_RGB
MDS62110209
M500
SMD_GASKIT_8.5T_LAN
MDS62110209
M502
SMD_GASKIT_8.5T_COMP
C545
0.1uF
+1.2V_MTK_CORE
C531
0.1uF C537 0.1uF
+1.5V_DDR
C547
0.1uF
C533
0.1uF C536 0.1uF
C520
0.1uF C527 0.1uF
C514
0.1uF
C508
0.1uF C523 0.1uF
MDS62110217
M504
SMD_GASKIT_12.5T_USB1 MDS62110217
M506
SMD_GASKIT_12.5T_HDMI1
MDS62110217
M503
SMD_GASKIT_12.5T_HDMI2
MDS62110217
M505
SMD_GASKIT_12.5T_USB3
C504
2.2uF
10
2011.12.09
MID_MAIN_3
60mA
5600mA
DECAP FOR SOC (HIDDEN - UCC) DECAP FOR SOC (BOTTOM)
SMD Gaskit
LAN RGB COMP
HDMI2~3HDMI1~2 USB1~2 USB3
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
