OWNER’S MANUAL
LCD TV PLASMA TV
LCD TV MODELS PLASMA TV MODELS
37LC2R*
42LC2R*
37LC25R*
42LC25R*
37LC3R*
42LC3R*
32LB2R*
37LB2R*
42LB2R*
47LB2R*
42PC1R*
42PC3R*
50PC1R*
PPlleeaasseerreeaaddIInnffoorrmmaattiioonnMaannuuaalliinncclluuddeedd
ttooggeetthheerrbbeeffoorreerreeaaddiinnggtthhiissmmaannuuaallaannddooppeerraatt--
iinnggyyoouurrsseett..
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer when you require service.
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL PORTUGUÊS NEDERLANDS ∂ÏÏËÓÈÎ
¿

ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the
dealer where you purchased the product.
Owner's
Manual
Owner’s manual
Owner’s Manual
Batteries
OK
INPUT TVTV
INPUT
PIPPR- PIPPR+ SWAP PIPINPUT
DVD
ARC
EXIT
VOL
TIME
REVEAL INDEX
Q.VIEW
MUTE
PR
SLEEP
LIST I/II
MENU
TEXT PIP SIZE
POSTION
VCR
POWER
1 2 3
4 5 6
7 8 9
*
0
FAV
?
Remote Control Power Cord
2-Wall brackets 2-eye-bolts
2-bolts for stand assembly
(Refer p.12)
This feature is not available
for all models.
2-TV brackets
2-Wall brackets 2-bolts
Twister Holder
Arrange the wires
with the twister holder.
1
ACCESSORIES
4422//5500PPCC11RR**,,4422PPCC33RR**
3377//4422LLCC22RR**,,3377//4422LLCC2255RR**,,3377//4422LLCC33RR**,,3322//3377//4422//4477LLBB22RR**
Polishing Cloth
Polish the screen with the cloth
(Option)
Cable
Management
3377//4422LLCC33RR**
Cable
Management
3377//4422LLCC22RR**,,3377//4422LLCC2255RR**,,
3322//3377//4422//4477LLBB22RR**
*Slightly wipe stained spot on the exterior only with
the cleansing cloths for the product exterior if
there is stain or fingerprint on surface of the exterior.
Do not wipe roughly when removing stain. Please
be cautious of that excessive power may cause
scratch or discoloration.

2
CONTENTS
CONTENTS
AACCCCEESSSSOORRIIEESS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
INTRODUCTION
Controls / Connection Options . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Remote Control Key Functions/
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
TV MENU
On Screen Menus Selection and Adjustment . . . . .34
SSeettttiinngguuppTTVVssttaattiioonnss
Auto programme tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Manual programme tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Fine tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Assigning a station name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Booster (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Programme edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Favourite programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Calling the programme table
. . . . . . . . . . . . . . . . . . . . . . . . . 42
PPiiccttuurreeMMeennuu
PSM (Picture Status Memory) . . . . . . . . . . . . . . . . . . . . . .43
Picture Adjustment (PSM-User option) . . . . . . . . .44
CSM (Colour Status Memory) . . . . . . . . . . . . . . . . . . . . . .45
Manual Colour Temperature Control
(CSM - User option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
SSoouunnddMMeennuu
SSM (Sound Status Memory) . . . . . . . . . . . . . . . . . . . . . . .50
Sound Frequency Adjustment
(SSM - User option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Balance Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Stereo/Dual Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
NICAM Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Speaker Sound Output Selection . . . . . . . . . . . . . . . . . .55
TTiimmeeMMeennuu
Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
On/Off Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Auto Sleep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
SSppeecciiaallMMeennuu
Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
ISM (Image Sticking Minimization)
Method (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Low Power (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
INSTALLATION
Unfolding The Base Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

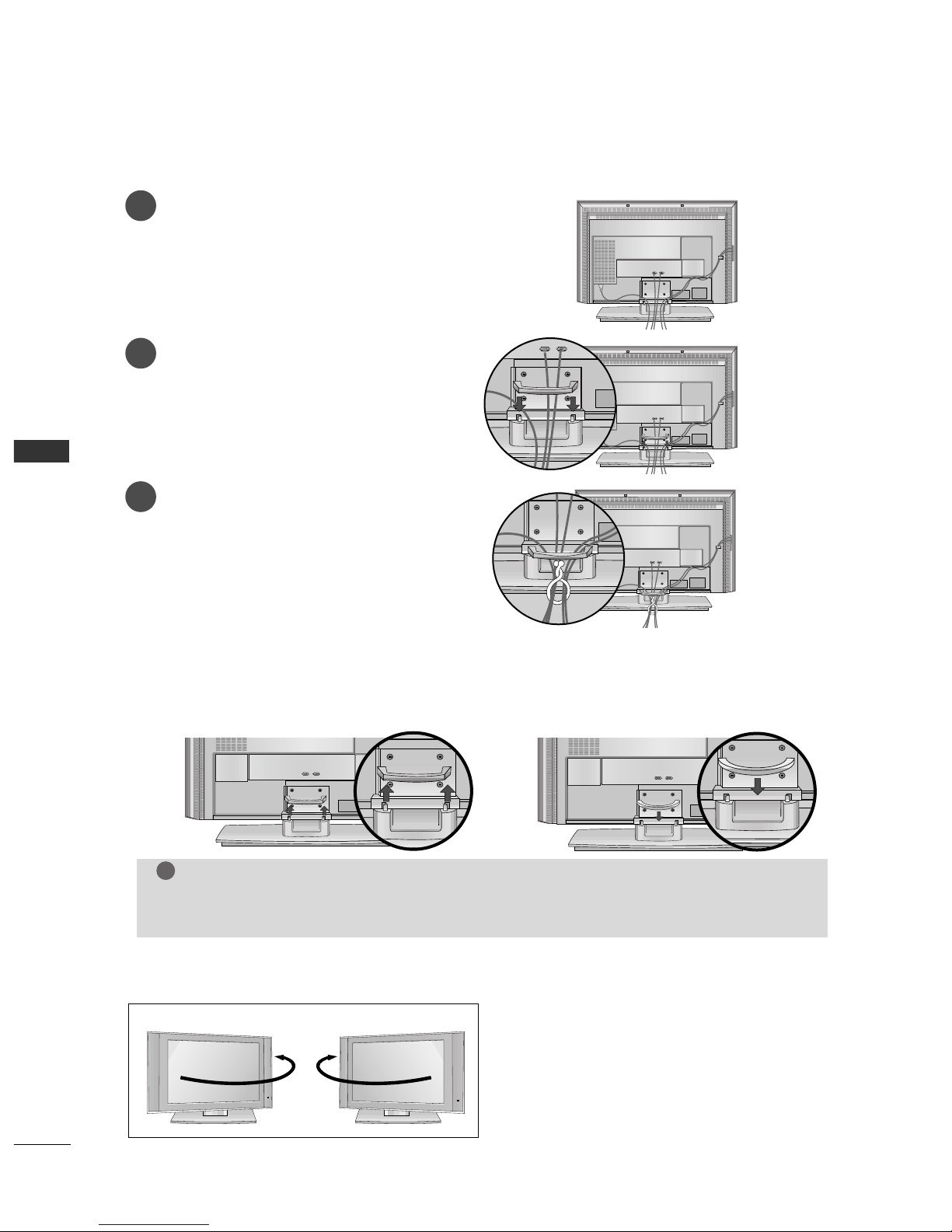

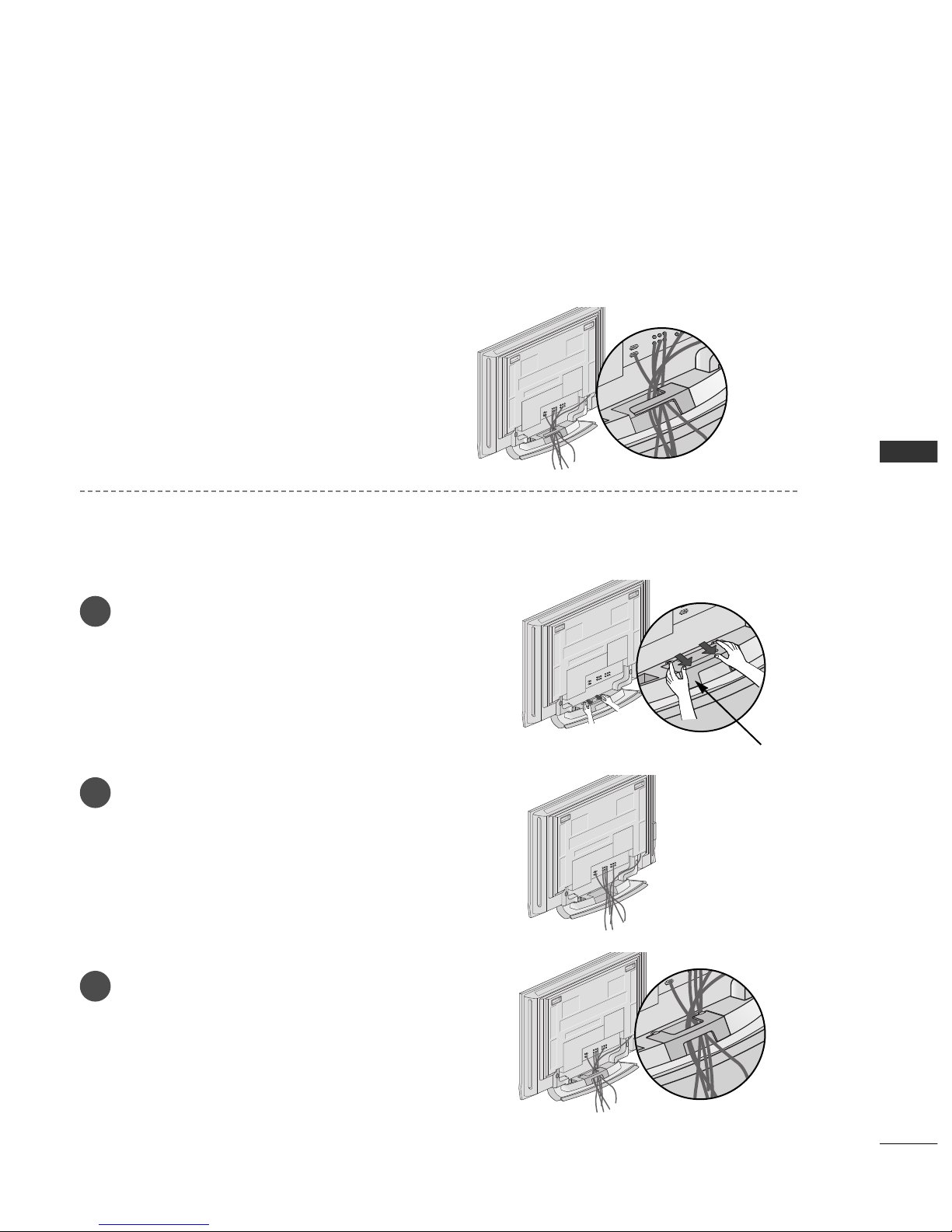

Basic Connection / How to Remove the Cable
Management /
Swivel Stand . . . . . . . . . . . . . . . . . . . . . . . . . .13-14
How to join the product assembly to the wall
to protect the set tumbling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CONNECTIONS & SETUP

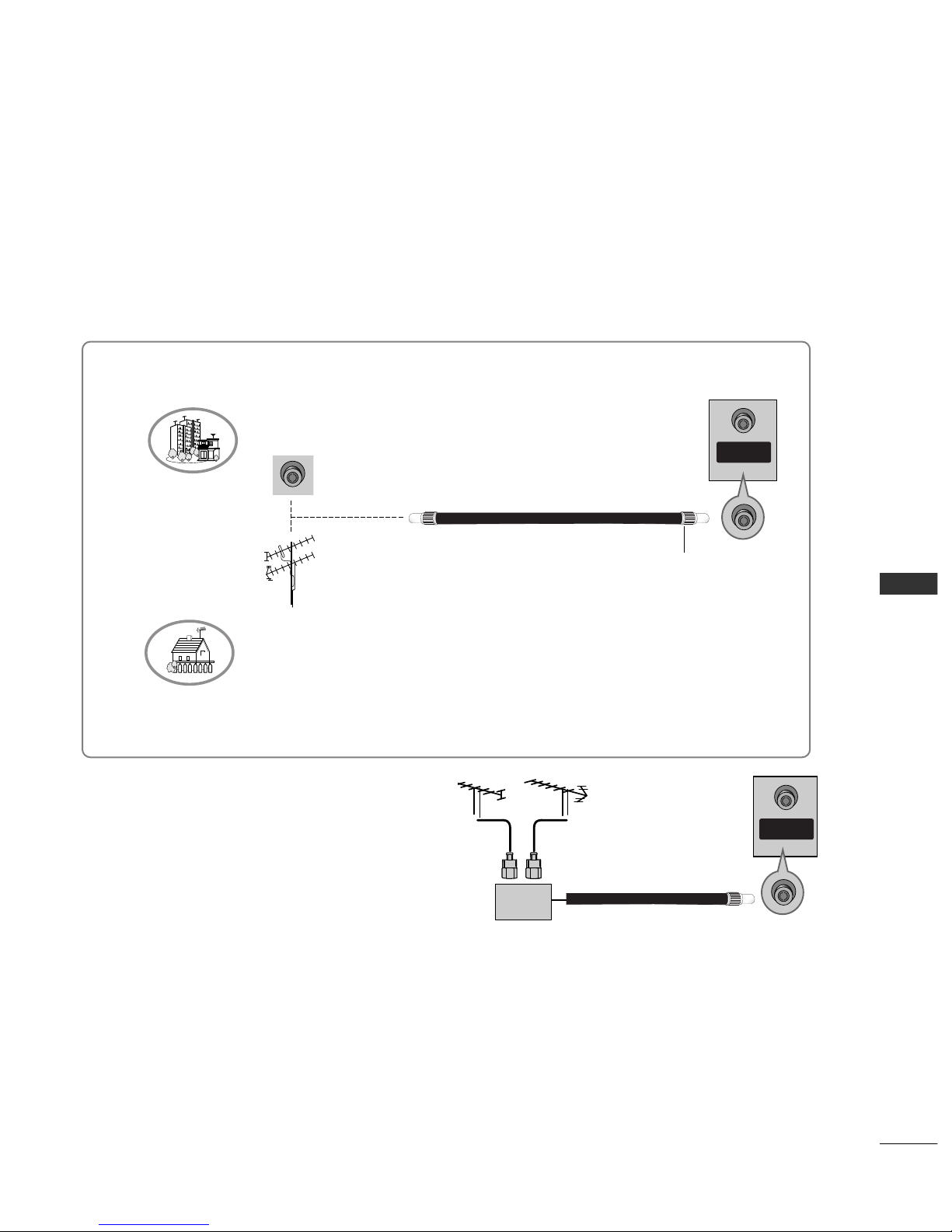

Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

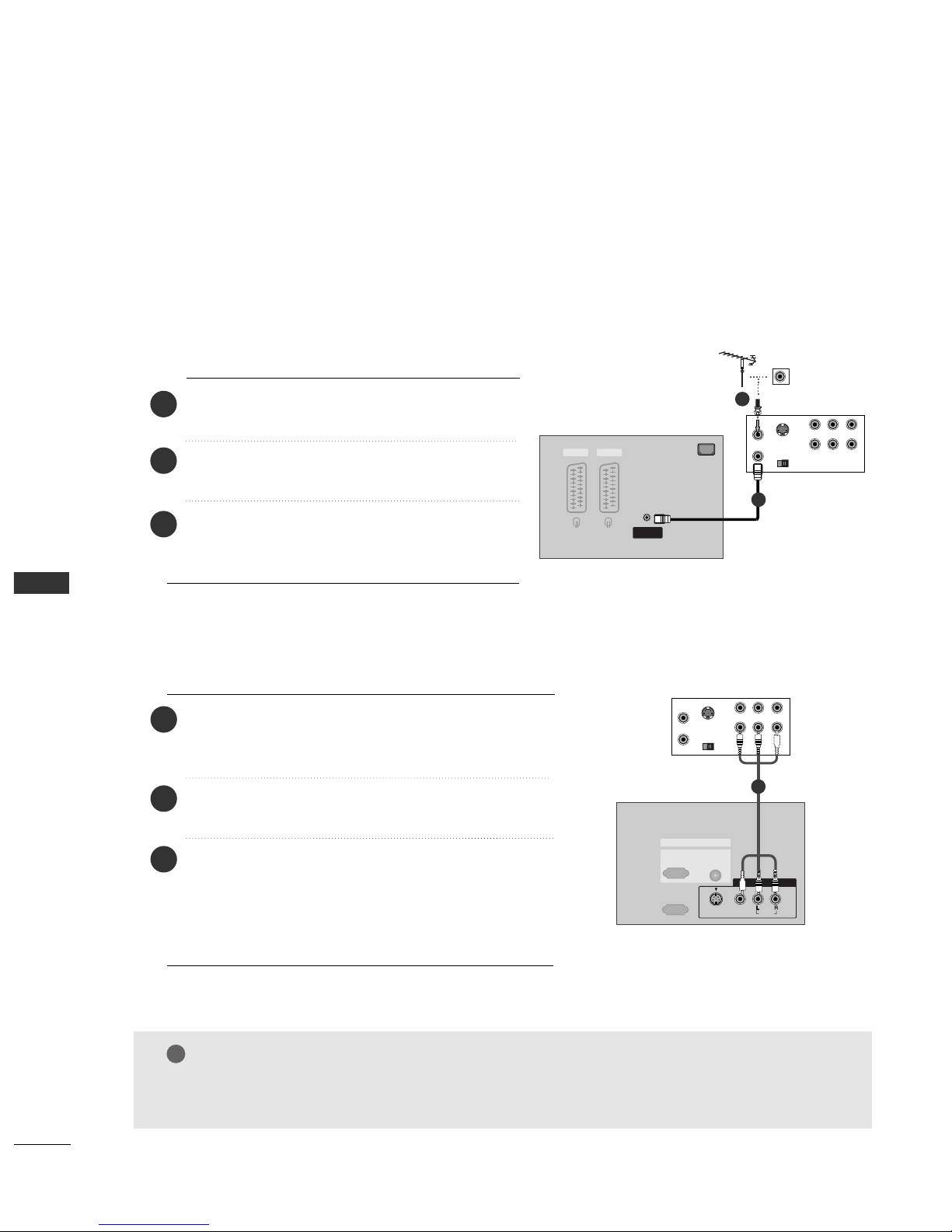

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19
External Equipment Connections . . . . . . . . . . . . . . . . . . . . . . .20
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22
STB(SET-TOP BOX) Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25-27
TURNING THE TV ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-29
SPECIAL FUNCTIONS
PPIIPP((PPiiccttuurree--IInn--PPiiccttuurree))//DDoouubblleeWWiinnddooww//PPOOPP
Watching PIP/Double Window/POP . . . . . . . . . . . . . .30
Programme Selection for Sub Picture . . . . . . . . . . . .30
Input Source Selection for Sub Picture . . . . . . . . .30
Sub Picture Size Adjustment (PIP mode only)30
Moving the Sub Picture (PIP mode only) . . . .31
Adjusting PIP Transparency (PIP mode only) .31
Swapping between main and sub pictures . . .31
POP
(Picture-out-of-Picture: Programme Scan) . . .31
TTeelleetteexxtt
Switch on/off . . . . . . . . . . . . . . . . . . . . . . . . .32
SIMPLE Text . . . . . . . . . . . . . . . . . . . . . . . . . .32
TOP Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
FASTEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Special Teletext Functions . . . . . . . . . . . . . . .33

3
CONTENTS
TV MENU
SSccrreeeennMMeennuu
Auto Configure (RGB [PC] mode only) . . . . . . . . . . . .63
Manual Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Setting the Picture Format . . . . . . . . . . . . . . . . . . . . . .65-66
Selecting Wide VGA/XGA/UXGA mode . . . . . . . .67
Initializing
(Reset to original factory settings) . . . . . . . . . . . . . . . .67
APPENDIX
Programming the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Programming code
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69-70
Troubleshooting Checklist
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 71-72
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Product Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74-76

4
INTRODUCTION
This is the front panel of models 4422PPCC33RR* TVs.
PRPR
VVOLOL
OKOK
MENUMENU
INPUTINPUT
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates white when the set is switched on.
PROGRAMME Buttons
VOLUME Buttons
OK Button
MENU Button
INPUT Button
POWER Button
CONTROLS
INTRODUCTION
This is the front panel of models 4422//5500PPCC11RR*TVs.
■
This is a simplified representation of a front panel. Here shown may be somewhat different from your TV.
■
If your product has a protection film attached, remove the film and then wipe the product with a polishing cloth.
Front Panel Controls
PROGRAMME Buttons
VOLUME Buttons
MENU Button
OK Button
INPUT Button
POWER Button
PRPR
VOLVOL
OKOK
MENUMENU
INPUTINPUT
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates white when the set is
switched on.
<Front Panel >
<Side Panel >

5
INTRODUCTION
This is the front panel of models 3322//3377//4422//4477LLBB22RR** TVs.
■
This is a simplified representation of a front panel. Here shown may be somewhat different from your TV.
■
f your product has a protection film attached, remove the film and then wipe the product with a polishing cloth.
Front Panel Controls
INPUT MENU OK VOL PR
RGB
PCPC
INPUT Button
VOLUME
Buttons
Remote Control
ensor
PROGRAMME
Buttons
MENU Button
OK Button
POWER Button
TV mode
AV 1, 2, 3, 4 (47LB2R*
only) , -Video mode
RGB mode
HDMI mode
Component
RGB
PC
Intelligent eye
Power/ tandby Indicator (rr)
•illuminates red in standby mode.
• illuminates white when the set is
switched on.
Index
Intelligent eye

6
INTRODUCTION
CONNECTION OPTION
INTRODUCTION
AC IN
RS-232C INRS-232C IN
(CONTROL(CONTROL && SERSERVICEVICE))
ANTENNAANTENNA
ININ
AAV 1V 1 AAV 2V 2
AUDIO OUTAUDIO OUT
VVARIABLEARIABLE
RGB INRGB IN
VIDEOVIDEO
AUDIOAUDIO
COMPONENTCOMPONENT ININ
AAV IN 4V IN 4
L/L/MONOMONO
RR
AUDIOAUDIO
VIDEOVIDEO
MONO
(())
AUDIOAUDIO
VIDEOVIDEO
S-VIDEOS-VIDEO
AAV IN 3V IN 3
RGBRGB
(PC/DTV)(PC/DTV)
AUDIO
(RGB/DVI)
22
1 (DVI)1 (DVI)
HDMI INHDMI IN
CONTROLIN
REMOTE

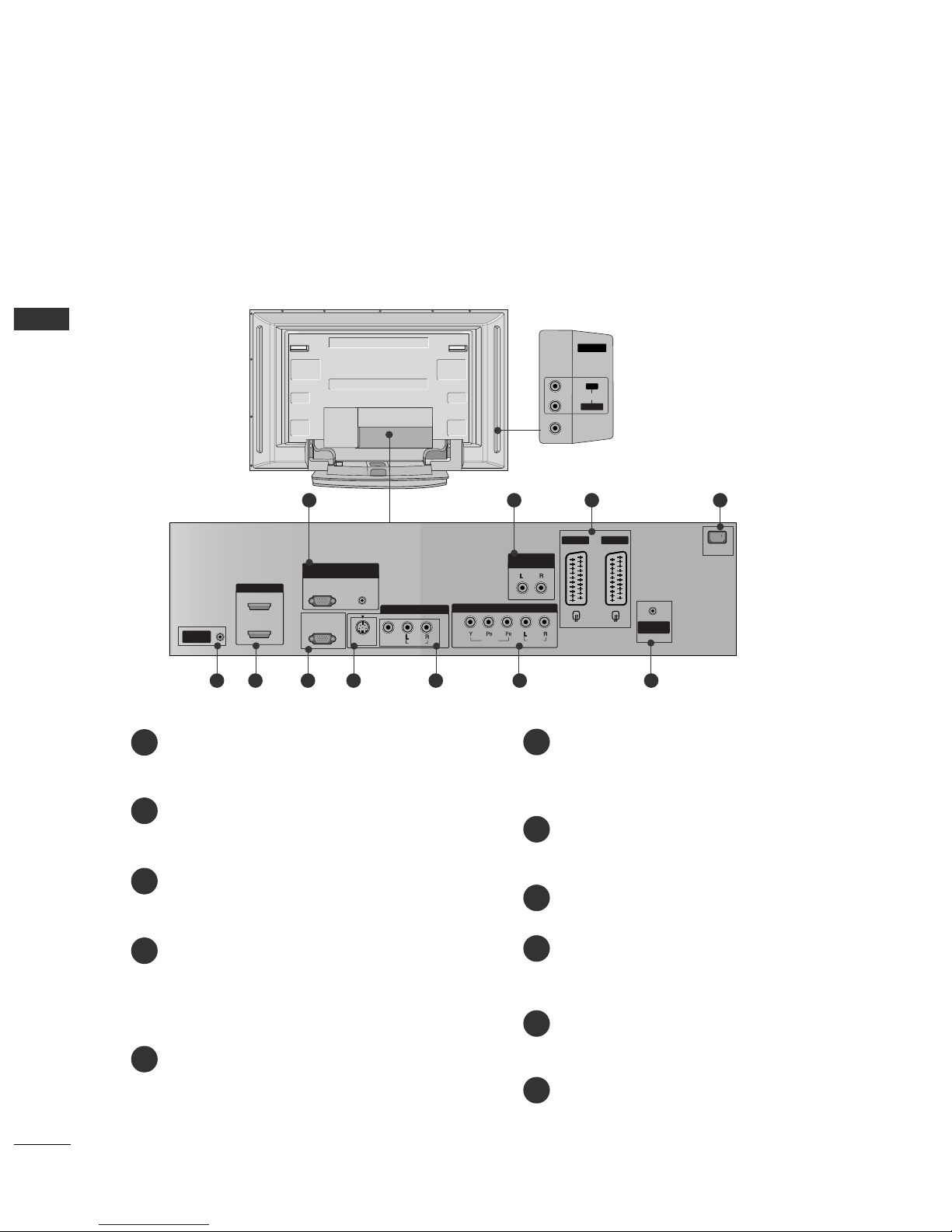

This is the back panel of models 4422//5500PPCC11RR*,4422PPCC33RR*TVs.

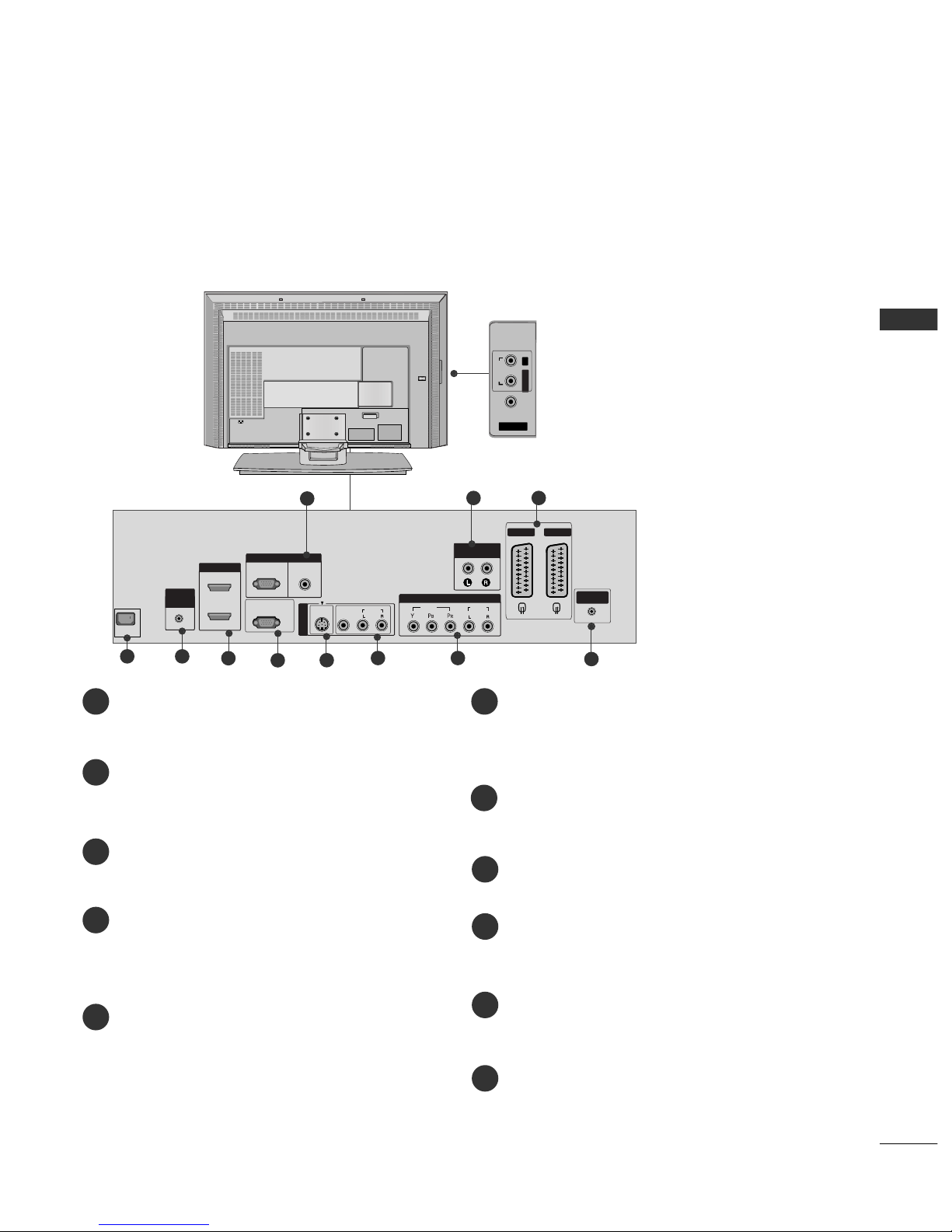

Back Connection Panel
AUDIO Input
Connections are available for listening
stereo sound from an external device.
VIDEO Input
Connects the video signal from a video
device.
RGB/Audio Input
Connect the monitor output from a PC/DTV to
the appropriate input port.
Variable Audio Output
Connect an external amplifier or add a sub-
woofer to your surround sound system.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
Power Cord Socket
This TV operates on an AC power. The voltage
is indicated on the Specifications page. Never
attempt to operate the TV on DC power.
Remote Control Port
HDMI Input
Connect a HDMI signal to HDMI IN.
Connect DVI(VIDEO) signal to HDMI/DVI port
with DVI to HDMI cable.
RS-232C Input(CONTROL&SERVICE)Port
Connect the serial port of the control devices
to the RS-232C jack.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
Antenna Input
1
2
3
4
5
6
7
8
9
10
11
4321
7 8 9 10 11 65
(except 42PC3R*)

7

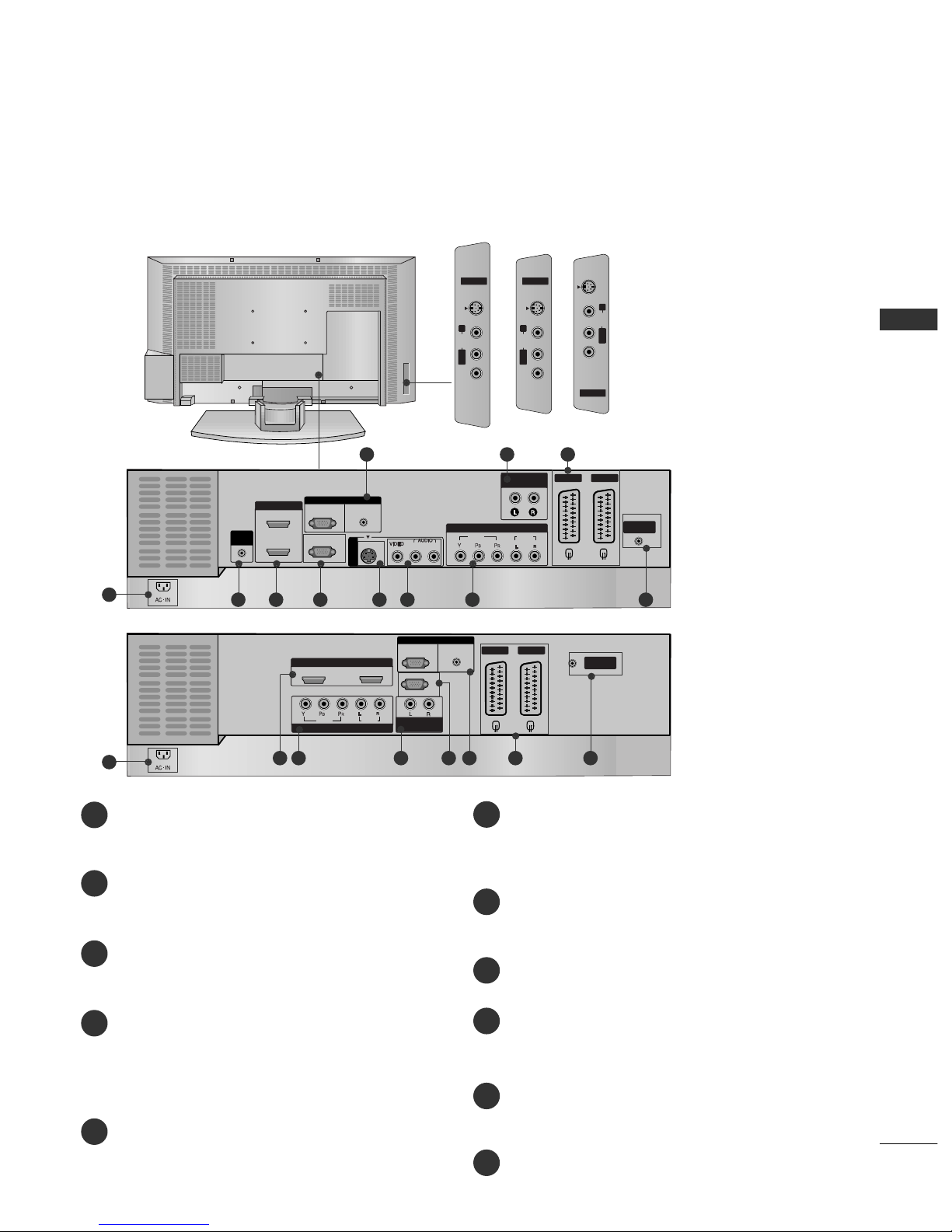

INTRODUCTION
RGB/Audio Input
Connect the monitor output from a PC/DTV to
the appropriate input port.
Variable Audio Output
Connect an external amplifier or add a sub-
woofer to your surround sound system.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
Power Cord Socket
This TV operates on an AC power. The voltage
is indicated on the Specifications page. Never
attempt to operate the TV on DC power.
Remote Control Port
HDMI Input
Connect a HDMI signal to HDMI IN.
Connect DVI(VIDEO) signal to HDMI/DVI port
with DVI to HDMI cable.
RS-232C Input(CONTROL&SERVICE)Port
Connect the serial port of the control devices
to the RS-232C jack.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
Antenna Input
1
2
3
4
5
6
7
8
9
10
11
CONNECTION OPTION
S-VIDEO
VIDEO
AUDIO
L/MONO
R
AV IN 4
S-VIDEO
VIDEO
AUDIO
L/MONO
R
AV IN 3
S-VIDEO
VIDEO
AUDIO
L/MONO
R
AV IN 3
REMOTE
CONTROL
IN
(CONTROL & SERVICE)
RS-232C IN
RGB IN AUDIO
(RGB/DVI)
RGB
(PC/DTV)
S-VIDEO
AV IN 3
R
L(MONO)
2
1 (DVI)
HDMI IN
AV 1 AV 2
COMPONENT IN
ANTENNA
IN
VARIABLE
AUDIO OUT
AUDIOVIDEO
AV 1 AV 2
ANTENNA
IN
1 (DVI) 2
HDMI IN
COMPONENT IN
AUDIO
VIDEO
RGB IN AUDIO
(RGB/DVI)
RGB
(PC/DTV)
(CONTROL & SERVICE)
RS-232C IN
VARIABLE
AUDIO OUT
This is the back panel of models 3322//3377//4422//4477LLBB22RR**TVs.
Back Connection Panel
AUDIO Input
Connections are available
for listening stereo sound
from an external device.
VIDEO Input
Connects the video signal
from a video device.
45 6 7 8 9
10 11
4
1 2 3
4477LLBB22RR**4422//3377LLBB22RR**3322LLBB22RR**
6 1 372
10 11

8
INTRODUCTION
INTRODUCTION
CONTROLS
This is the front panel of models 3377//4422LLCC22RR*, 3377//4422LLCC2255RR*, 3377//4422LLCC33RR*TVs.
■
This is a simplified representation of a front panel. Here shown may be somewhat different from your TV.
■
If your product has a protection film attached, remove the film and then wipe the product with a polishing cloth.
R
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates white when the set is switched on.
PR
VOL
OK
MENU
INPUT
/I
PROGRAMME Buttons
VOLUME Buttons
OK Button
MENU Button
INPUT Button
POWER Button
<Front Panel 37/42LC2R*,37/42LC25R* >
<Side Panel >
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates white when the set is switched on.
<Front Panel 37/42LC3R* >
