LG 37LH260H User manual

lcd tv
w w w. LG c o m m e r c i a l . c o m
NEW! BUILT-IN INTEGRATED b-LAN™
Includes full support of:
LodgeNet's HD Video on Demand (VOD)
LodgeNet's HD ree-To-Guest ( TG)
Supports many other TG system providers
(see sales rep)
Compatible with MA-100 and MA-LG101
EcoSmart™
Dynamic Power Savings
Static Power Savings
RoHS COMPLIANT
HD VOD PPV ENCRYPTION
Integrated Pro:Idiom®
MPEG-2/MPEG-4 H.264 DECODING
DYNAMIC CONTRAST RATIO
20,000:1
NATIVE DISPLAY RESOLUTION
1920 x 1080
BUILT-IN ATSC/NTSC/ AM CLEAR TUNER
INVISIBLE SPEAKER SYSTEM
Hidden speaker grilles
180° DETACHABLE SWIVEL STAND
LG'S EXCLUSIVE XD ENGINE®
USB 2.0 MEDIA HOST FOR PHOTOS AND MUSIC
USB CLONING
CLEAR VOICE II
REAL CINEMA™
2 HDMI™ INPUTS WITH HDCP
V.1.3 with deep color
AUTO SENSING REMOTE JACK PACK (RJP) COMPATIBLE*
2 YEAR LIMITED WARRANTY
(parts and labor)
Integrated Full HD with HD-PPV
Capability
*NOTE: Contact your LG Sales representative on the RJPs that
are compatible with the LH260H & LH265H series.
LCD Commercial Widescreen
42LH260H
37LH260H
37LH265H
42" class (42.0" d agonal)
37" class (37.0" d agonal)
h gloss black
h gloss black
matte black

R E E - T O - G U E S T MANAGEMENT APPLIANCE
FMA-LG101
HEAD-END SYSTEM
Manages channel line-up changes, channel label changes, designates a
startup channel, configuration of commercial installer menu settings, and
can set the time/date, and broadcast that information to all the terminals
on a regular basis all from the head-end. Also, enables Pro:Idiom tuning
for Pro:Idiom encrypted content.
•EcoSmart
Dynamic Power Savings - Using built-in algorithms, TV will automatically reduce
the power consumption based on incoming video, while maximizing picture
performance.
Static Power Savings - Picture brightness level can be set at the preferred power
consumption level to reduce power and increase energy savings.
•RoHS Compliant
Meets directive on restriction of hazardous substances.
PHOTO LIST MUSIC LIST
ENERGY SAVING LEVELS
By selecting lower levels of backlight settings, a reduction in power consumption is achieved
resulting in energy savings and lower costs.
USB 2.0 will support JPG and MP3 files from a USB storage device.
Page 2/3 No Marked
Photo List
Up Folder
1366x768, 125KB
KY101 06/10/2008
KY102 04/03/2008
JMJ001 01/01/2000
JMJ002 06/15/2008
JMJ003 04/03/2008
JMJ004 02/18/2008
KY103 03/30/2008
KY104 06/19/2008
KY105 01/31/2008
JMJ005 05/13/2008
JMJ006 05/26/2008
JMJ007 02/18/2008
JMJ008 02/18/2008
Up Folder
Drive1
JMJ001
Music List
Up Folder
noitaruDeltiT
Page 2/3 No Marked
Drive1
AA00:00 / 04:16
Up Folder
TESTING CONDITION: Vivid/Static mode, Comp 720p 216 Gray PatternHOTEL COSTS FOR FREE-TO-GUEST CHANNEL MANAGEMENT(OVER 5 YEARS)
U S B 2 . 0
M E D I A H O S T
LG'S FREE-TO-GUEST COST EFFECTIVE SOLUTION
or ree-To-Guest hotel installations, when using LG’s b-LAN ree-To-Guest built-in technology
plus LG’s ree-to-Guest Management Appliance ( MA), virtual channel mapping, configuration
of commercial installer menu settings, and other adjustments can be made from the centralized
head-end MA system. This is an added value of time savings and therefore cost savings in labor
charges by not having to go room to room for a change of settings.
Labor Costs FTG Card
Price
*FMA
MAP price Total Savings over other brand
Other brand
$20 (est.) x 2 times per
year (to update channels)
x 100 rooms x 5 years
-- -- $20,000 --
LG Pro:Idiom TVs with
Integrated b-LAN, plus
MA
-- -- $1,999 $1,999 $18,001
* MA MAP price subject to change.
R E E - T O - G U E S T INTEGRATED b-LAN
b-LAN
FREE-TO-GUEST TECHNOLOGY
Will allow viewing of HD secured Pro:Idiom encrypted content from
Pro:Idiom licensed Cable or Satellite providers. Compatible with
MA-100 and MA-LG101 head-end systems. system. Pay-Per-View ready.
L I E ’ S G O O D . . .
WHEN IT’sGREEN.
LG is committed to improving product development,
manufacturing and usage to meet the demand
for environmentally friendlier products.
The LH260H/LH256H series have technologies to
reduce power consumption and in return increase cost
savings per room. We’ve also placed limits in the
amounts of harmful materials used in these televisions.
Applied Model Backlight Setting
Value
Brightness/
Static
[cd/m2]
Power
Consumption
[Watts]
Energy savings
[%]
42LH260H
Level 100 355 157 0%
90 330 147 6%
80 300 136 13%
70 270 126 20%
60 239 116 26%
50 211 106 32%
40 177 94 40%
30 127 84 46%
20 104 74 53%
10 71 64 59%
1 52 54 66%
37LH260H/265H
Level 100 178 121 0%
90 165 116 4%
80 151 105 13%
70 137 99 18%
60 122 91 25%
50 108 84 31%
40 91 74 39%
30 77 68 44%
20 62 61 50%
10 48 53 56%
1 35 45 63%
Note: Energy Saving percentages listed are percentages off of level 100.

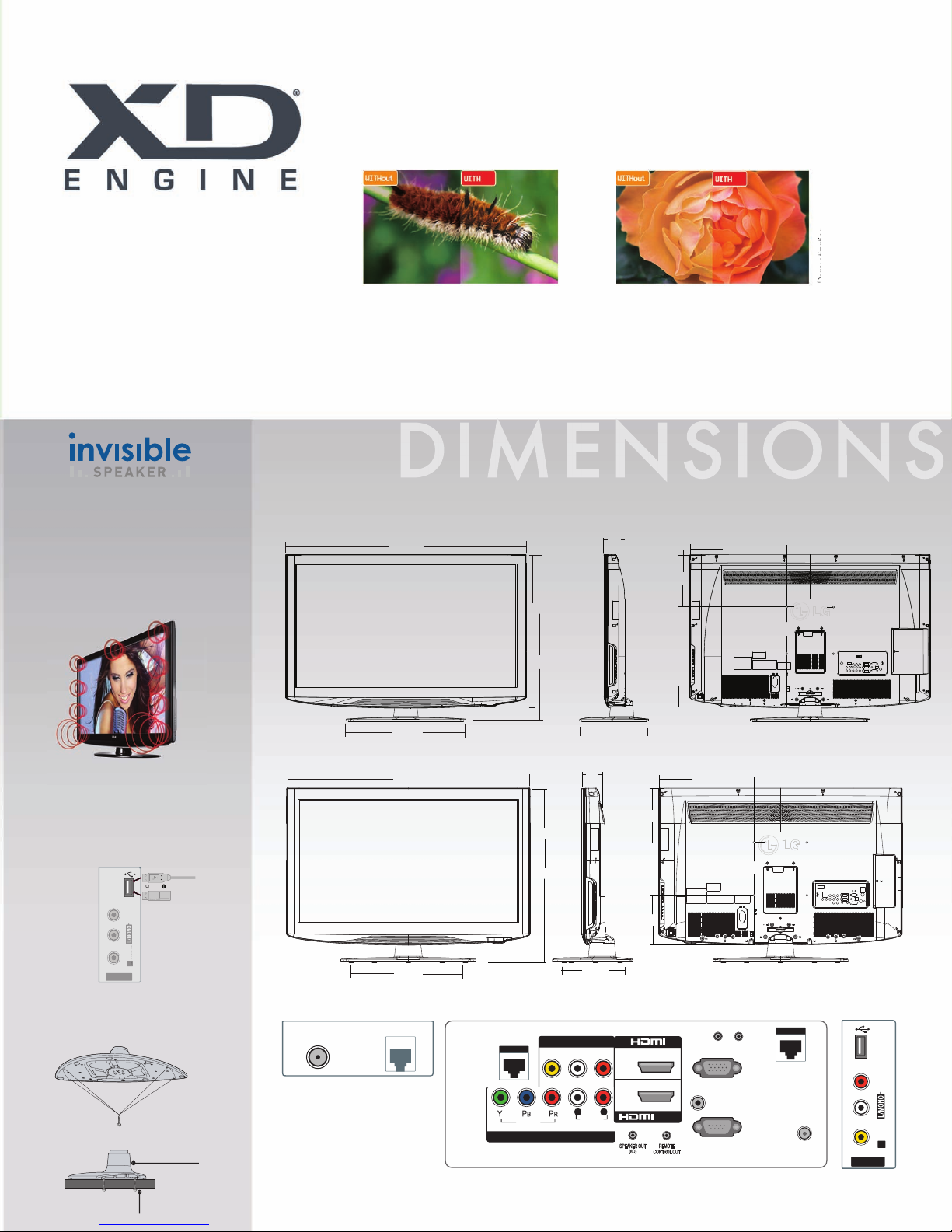

42LH260H
4-Screws
(not provided)
Stand
Desk
MOUNTING HOLES ON STAND
ATTACHING THE TV TO A DESK
RS-232C IN
(
SERVICE ONLY)
AUDIO IN
(RGB/DVI)
TV-LINK CFG
VIDEO
AUDIO
RGB IN (PC)
VIDEO AUDIO
L(MONO)
R
2
1
L R
/DVI IN
COMPONENT IN
AV IN 1
GAMEGAME
CONTROLCONTROL
RJP
UPDATEUPDATE
RESETRESET
AVIN2
VIDEO
USB IN
AV IN 2
H-AUDIO
M.P.I.
ANTENNA IN
REAR ACK PANEL SIDE ACK PANEL
AVIN2
VIDEO
AV IN 2
H-AUDIO
VIDEO
AV IN 2
H
-AUDIO
-
USB IN
40.4”
20.2”
3.4”
11.6”
200mm
200mm
25.7”
28.1”
16.3"
8.9”
9.1”
SOUND IS HEARD, NOT SEEN
Enjoy a combination of smart technology
and stylish design with the invisible
speaker system custom tuned by audio
expert Mr. Mark Levinson. This unique
system provides a clean, polished look
and an enhanced auditory experience
by increasing the sweet spot and
providing a wider sound field.
SHARPER
BRIGHTER
CLEARER
Dramatization
Six distinct processes contribute to picture improvement. LG’s XD Engine takes
the low resolution of analog signals to near HD levels by improving brightness,
contrast, detail and enhancing color as well as reducing signal noise.
Dramatization
MPI SLOT
USB CLONING
USB cloning will allow for easy transfer
of Commercial Installer Menu Settings
from the “Master TV” to an unlimited
number of same type televisions.
36.2”
20.2”
3.4”
11.6”
200mm
200mm
23.4”
25.9”
14.2"
8.1"
7.5"
37LH260H/265H

All screen images are simulated. Dimensions and weights are approximate.
Design, features and specifications subject to change without notice.
© Copyright 2010 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is
a registered trademark of LG Corp. XD Engine is a registered trademark of LG
Electronics, Inc. EcoSmart is a trademark of LG Corp.
Pro:Idiom is a registered
trademark of Zenith Electronics Corp. SRS and the SRS symbol and TruSurround XT are
trademarks or registered trademarks of SRS Labs, Inc. VESA is a trademark of Video
Electronics Standards Association.
b-LAN is a trademark of LodgeNet Interactive
Corporation.
All other product and brand names are trademarks or registered
trademarks of their respective companies.
Printed in the USA. May 2010
XT
180
spec f cat ons
www.LGcommercial.com
lcd tv
LCD SPECIFICATION
Screen Size (Class) 42” class (42.0” diagonal)
37" class (37.0" diagonal)
Native Display Resolution 1920 x 1080
Brightness 500 cd/m
2
Dynamic Contrast Ratio 20,000:1
Viewing Angle 178°/178°
Color Reproduction 10 Bit
Response Time 5ms
Life Span (Typical) 50,000 hrs
BROADCASTING SYSTEM
Analog Yes
ATSC/NTSC/Clear QAM Yes
b-LAN (R Modem) Yes
VIDEO
XD Engine Yes
Video Codec MPEG-2/4
Aspect Ratio 16:9
Aspect Ratio Correction 5 Modes
Just Scan 0% over scan
HDMI/Component: HD/DTV
Enhanced Noise Reduction (Video Noise ilter) Yes, 3D NR/MPEG NR
Digital Comb ilter Yes (3D)
Color Temperature Control 3 Modes (Medium, Warm, Cool)
Black Stretcher Yes
24p Real Cinema Yes
Cinema 3:2/2:2 Mode Yes
Picture Reset Yes
EZ Picture/PSM Yes (6 mode)
xvYCC (richer color) Yes
DTV Signal Strength Indicator Yes
Video Reset/Initializing Yes
AUDIO
Mono/Stereo/Dual (MTS/SAP) Yes
Audio Output Power 10W x 2
Invisible Speaker System Details 1 Way 2 Speaker
Dolby Digital 5.1 Decoder Yes
Surround System Type SRS TruSurround XT
Bass/Treble/Balance Controls Yes
Clear Voice II Yes
Auto Volume Leveler Yes
EZ Sound Mode/SSM 5 Modes
SPECIAL FEATURES
Integrated Pro:Idiom Yes
Auto-Sensing RJP compatible Yes (with select RJP versions, non - PIP)
Backlight Control Yes
USB Cloning Yes
720p/1080p Source Input
HDMI 60f/30f/24f
Component 60f/30f/29f
Auto Screen Adjust Yes
resh White Yes
lashback (Previous Channel) Yes
Quick Setup Guide Yes
Parental Control w/V-Chip Yes
Key Lock/Child Lock Yes
Customizable Closed Caption/Sub-title Yes
CONVENIENCE FEATURES
Language English/Spanish/ rench
Alvin UI Yes
Commercial unction Menu Yes
Auto Tuning/Programming Yes
Channel Add/Delete Yes
Channel Labeling Yes
avorite Channel Programming Yes
Auto/Manual Clock Yes
On/Off Timer Yes
Sleep Timer Yes
Auto Off/Auto Sleep (When no video is present) Yes
AUDIO/VIDEO INPUTS/OUTPUTS
R In (Antenna/Cable) 1
L/R Audio/Composite Video In 1 (rear), 1 (side)
HD Component Video In (Y, Pb, Pr) + L/R Audio 1
Speaker Out 1 (1W mono)
HDMI/HDCP Input (V1.3 with Deep Color) 2(1 port PC mode)
RGB In (D-Sub 15pin) - PC 1 (up to WXGA)
PC Audio Input 1
RS-232c In (Service Only) 1
USB 2.0 Input
1 (Side) Media Host (jpeg, mp3) , Cloning,
Service
Remote Control Port out 1
RJ45 (for RJP interface, non PIP) 1
MPI Jack (RJ-12) 1 on MPI Card Slot
Game Port (RJ-12) 1for LodgeNet game controller
TV-LINK C G(b-LAN phoneMPI jack) 1
CABINET/ACCESSORIES
Cabinet Color Hi Gloss Black
Swivel Stand (degrees) + 90°/-90°
ire Retardant Cabinet Material Yes
Kensington Security System Slot Yes
Security Screws (TORX) Yes (optional use)
VESA
®
Standard Mount Compatible (WxH) 200mm x 200mm, M6 screw
Remote Control Yes
Cloning Capable USB input, opt. LT2002, or opt. TLL-1100A
POWER
Voltage, Hz 100V - 240V, 50/60 Hz
Stand-by Mode Less than1W
Dynamic/Static Power Savings Yes
Power Consumption Max 200W
(with Power Saving Modes Disabled) Typical 173W
RoHS Compliant Yes
DIMENSIONS & WEIGHT
TV without stand (WxHxD) 36.2" x 23.4" x 3.4" (37”)
40.4" x 25.7" x 3.4" (42”)
TV with stand (WxHxD) 36.2” x 25.9” x 11.6” (37”)
40.4.” x 28.1” x 11.6” (42”)
Shipping Dimensions (WxHxD) 47.0” x 26.2” x 9.0” (37”)
52.4” x 30.3” x 9.0” (42”)
TV without stand weight 29.1 Ibs (37”)
37.0 Ibs (42”)
TV with stand weight 33.0 Ibs (37”)
41.0 Ibs (42”)
Shipping Weight 40.2 Ibs (37”)
46.7 Ibs (42”)
SERVICE/LIMITED WARRANTY 2 Years (Parts/Labor)
UPC CODE
42LH260H 7 19192 17650 8
37LH260H 7 19192 90009 7
37LH265H 7 19192 90010 3
LG Electronics U.S.A., Inc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
Contact your LG Regional Sales Representative
Hospitality: 800.228.1236
Vertical Markets: 800.897.8788
Channel: 800.897.8871
E-mail: L[email protected]
SPEC_LH260_265_041043_PR
42LH260H
37LH260H
37LH265H
42" class (42.0" d agonal)
37" class (37.0" d agonal)
h gloss black
h gloss black
matte black
