LG 37LG300C User manual

담 당 관리자
Model Description
MODEL BRAND
Printing Specification
1. Trim Size (Format) : 185mm x 260 mm
2. Printing Colors
•Cover : 1 COLOR (BLACK)
•Inside : 1 COLOR (BLACK)
3. Stock (Paper)
•Cover : Coated paper, S/W 150 g/㎡
•Inside : Uncoated paper , 백상지 60 g/㎡
4. Printing Method : Off-set
5. Bindery : Perfect bind
6. Language : English (1)
7. Number of pages : 96
Part No.
1.
2.
User’s Guide Specification
User’s Guide Specification
Changes
4.
REV.
NO. MM/DD/YY SIGNATURE CHANGE NO. CHANGE CONTENTS
1
2
3
4
5
7
6
SUFFIX
JMJ
08.03.06
22/26/32/
37/42LG300C-ZA LG MFL34441619
(0810-REV03)
KIM JONG OK
08.03.06
(1) Origin Notification
* LGEIN : Printed in Indonesia * LGEWA : Printed in U.K.
* LGESP : Printed in Brazil * LGEMX : Printed in Mexico
* LGEND : Printed in China * LGEIL : Printed in India
* LGEMA : Printed in Poland
8
9
Special Instructions3.
Product Name
EU
10
“This part contain Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,
Details should be followed Eco-SCM management standard[LG(56)-A-2524].
Especially, Part should be followed and controlled the following specification.
(1)Eco-hazardous substances test report should be submitted
when Part certification test and First Mass Production.
(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.
N
O
T
E
S
22/26/32/37/42LG300C-ZA
May.23.08 Jeon Mi Jeong S8-20892 Applied the result of PQ testing.
Sep.23.08 Jeon Mi Jeong S8-30668 Added Screw for stand fixing(37LG300C-ZA)
Oct. 21.08 Jeon Mi Jeong S8-32796 Added the Protective Bracket and Bolt for Power Cord

Pagination sheet
Pagination sheet P/NO. MFL34441619
Total pages : 96 pages
Front cover
<en>
…… …… ……
…… ……
<en>
Back cover
1……
92
Blank
page
Blank
page

Please read this manual carefully before operating
your TV.
Retain it for future reference.
Record model number and serial number of the TV.
Refer to the label on the back cover and quote this
information.
To your dealer when requiring service.
LCD TV
OWNER’S MANUAL
LCD TV MODELS
2222LL3300****
2266LL3300****
3322LL3300****
3377LL3300****
4422LL3300****
Trade Mark of the DVB Digital Video
Broadcasting Project (1991 to 1996)
ENGLISH
IIDD NNuummbbeerr((ss))::5243: 22L 300C-ZA
5242: 26L 300C-ZA
5382: 32L 300C-ZA
5383: 37L 300C-ZA
5384: 42L 300C-ZA PP//NNOO:: MMFFLL3344444411661199 ((00881100--RREEVV0033))
PPrriinntteedd iinn KKoorreeaa

1
ACCESSORIES
ACCESSORIES
Ensure that the following accessories are included with your TV If an accessory is missing, please contact the
dealer where you purchased the TV
The accessories included may differ from the images below
Batteries Remote Control
Power Cord
Polishing Cloth
Polishing cloth for use on the screen.
Lightly wipe any stains or fingerprints on the surface
of the TV with the polishing cloth.
Do not use excessive force. This may cause scratching
or discolouration.
This feature is not available for all models.
OOnnllyy 2222LL3300****
Cable Management Clip Protection Cover
OOnnllyy 2266//3322//3377//4422LL3300****
Screw for stand fixing
(Refer to P11)
Bolts for stand assembly
(Refer to P8)
x 4 x 4
Protection Cover
(Refer to P13)
or
(Only 26/32/37/42LG30**)
Owner’s Manual
Protective Bracket and Bolt for Power Cord
(This feature is not available for all models.)
(Refer to P10)
Dual Lock™
(This feature is not available for
all models.)
(Refer to P11)

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
PREPARATIO
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . 4
Back Panel Information . . . . . . . . . . . . . . . . . . . . . . 6
Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Please set it up carefully so the product
does not fall over . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Back Cover for Wire Arrangement . . . . . . . . . . . . . 10
Attaching the TV to a desk . . . . . . . . . . . . . . . . . . . 11
Swivel Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Positioning your display . . . . . . . . . . . . . . . . . . . . . 12
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Kensington Security System . . . . . . . . . . . . . . . . . . 12
Protection cover . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Desktop Pedestal Installation . . . . . . . . . . . . . . . . . 14
Wall Mount: Horizontal installation . . . . . . . . . . . . 14

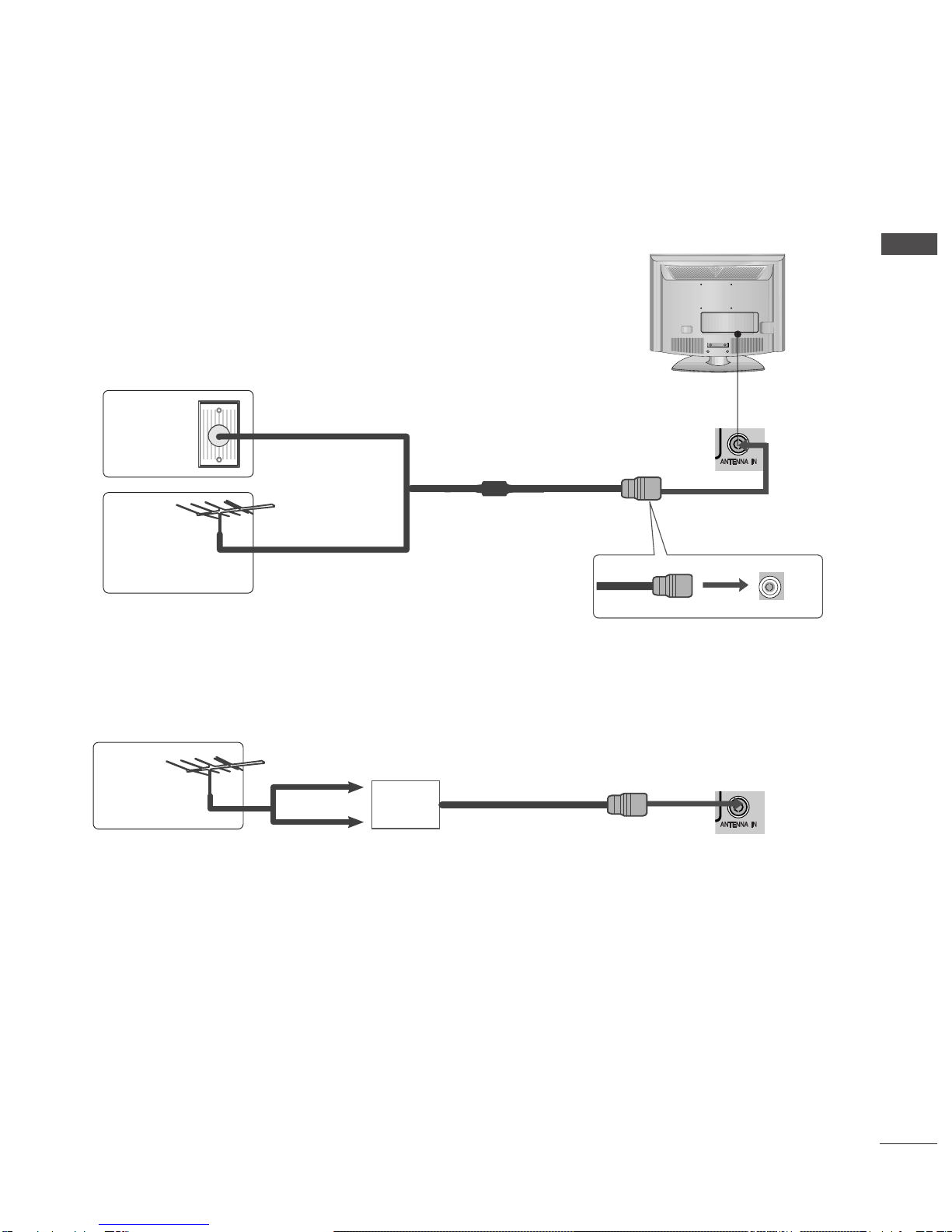

Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . 15
EXTER AL EQUIPME T SETUP
HD Receiver Setup . . . . . . . . . . . . . . . . . . . . . . . . 16
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Other A/V Source Setup . . . . . . . . . . . . . . . . . . . . 22
Insertion of CI Module . . . . . . . . . . . . . . . . . . . . . . 22
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
- Screen Setup for PC Mode . . . . . . . . . . . . . . . 26
WATCHI G TV / PROGRAMME CO TROL
Remote Control Key Functions . . . . . . . . . . . . . . . 30
Turning on the TV . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Programme Selection . . . . . . . . . . . . . . . . . . . . . . . 32
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 32
On-Screen Menus Selection and Adjustment . . . . 33
Auto Programme Tuning . . . . . . . . . . . . . . . . . . . . . 34
Manual Programme Tuning (In Digital Mode) . . . . 35
Manual Programme Tuning (In Analogue Mode) . . 36
Programme Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
CI Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Selecting the Programme Table . . . . . . . . . . . . . . 45
Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
EPG (ELECTRONIC PROGRAMME
GUIDE) (IN DIGITAL MODE)
Switch On/ Off EP . . . . . . . . . . . . . . . . . . . . . . . . 47
Select Programme . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Button Function in NOW/NEXT uide Mode . . . . . 47
Button Function in 8 Day uide Mode . . . . . . . . . . 48
Button Function in Date Change Mode . . . . . . . . . . 48
PICTURE CONTROL
Picture Size (Aspect Ratio) Control . . . . . . . . . . . . 49
Preset Picture Settings
- Picture Mode-Preset . . . . . . . . . . . . . . . . . . . . 51
- Auto Colour Tone Control (Warm/Medium/Cool) . . . . .52
Manual Picture Adjustment
- Picture Mode-User option . . . . . . . . . . . . . . . . 53
Picture Improvement Technology . . . . . . . . . . . . . . . . . 54
Advanced - Film Mode . . . . . . . . . . . . . . . . . . . . . . 55
Advanced - Black(Darkness) Level . . . . . . . . . . . . . 56
Eye Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Picture Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2
CO TE TS
CONTENTS

SOU D & LA GUAGE CO TROL
Auto Volume Leveler . . . . . . . . . . . . . . . . . . . . . . . . 59
Preset Sound Settings - Sound Mode . . . . . . . . . . 60
Sound Setting Adjustment - User Mode . . . . . . . . . . 61
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Audio Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
I/II
-
Stereo/Dual Reception (In Analogue Mode Only)
. . . . 64
-
NICAM Reception (In Analogue Mode Only) . . . . . . . 65
- Speaker Sound Output Selection . . . . . . . . . . 65
On-Screen Menu Language/Country Selection . . . . . . . . 66
Language selection (In Digital Mode only) . . . . . . 67
TIME SETTI G
Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Auto On/ Off Timer Setting . . . . . . . . . . . . . . . . . . 69
Auto Shut-off Setting . . . . . . . . . . . . . . . . . . . . . . . 70
Time Zone Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . . . . 71
Alarm setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
PARE TAL CO TROL / RATI GS
Set Password & Lock System . . . . . . . . . . . . . . . . . 72
Block Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
TELETEXT
Switch On/ Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
SIMPLE Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
TOP Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
FASTEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Special Teletext Functions . . . . . . . . . . . . . . . . . . . . 77
DIGITAL TELETEXT
Teletext within Digital Service . . . . . . . . . . . . . . . 78
Teletext in Digital Service . . . . . . . . . . . . . . . . . . 78
APPE DIX
Initializing (Reset to original factory setting) . . . . . 79
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Product Specifications . . . . . . . . . . . . . . . . . . . . . . 83
IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
External Control Device Setup . . . . . . . . . . . . . . . 86
3
CONTENTS

4
PREPARATIO
PREPARATION
FRONT PANEL CONTROLS
■
Image shown may differ from your TV.
■
If your TV has a protection film attached, remove the film and then wipe the TV with a polishing cloth.
INPUT MENU P-+-+OK
PROGRAMMEVOLUME
MENU OK
INPUT
22LG30**
POWER
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates blue when the TV is switched on.
Note: You can adjust PPoowweerr IInnddiiccaattoorrin the OPTION
menu.
Clock LED

5
PREPARATION
26/32/37/42LG30**
POWER
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates blue when the TV is switched on.
Note: You can adjust PPoowweerr IInnddiiccaattoorrin
the OPTION menu.
P
MENU
INPUT
OK
+
-
+
-
PROGRAMME
VOLUME
OK
MENU
INPUT
Clock LED

BACK PANEL INFORMATION
A
Image shown may differ from your TV.
6
PREPARATION
PREPARATION
AV IN 2
L/ MONO
R
AUDIO
PCMCIA CARD SLOT
VIDEO
( )
HDMI/DVI IN
2 3 4 5
AV IN 2V IN 2
L/MONOMONO
R
AUDIOAUDIO PCMCIA CARD SLOTPCMCIA CARD SLOT
VIDEOVIDEO
( )
HDMI/DVI IN
121186 7910
13
14
22LG30**
1
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
HDMI Input
Connect a HDMI signal to HDMI IN. Or DVI (VIDEO)
signal to HDMI/DVI port with DVI to HDMI cable.
RGB/DVI Audio Input
Connect the audio from a PC or STB with DVI output.
RJP INTERFACE
Connect control line (RJ45) for RJP(Remote Jack pack)
Remote Control Port
RGB Input
Connect the output from a PC.
SERVICE ONLY PORT
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.

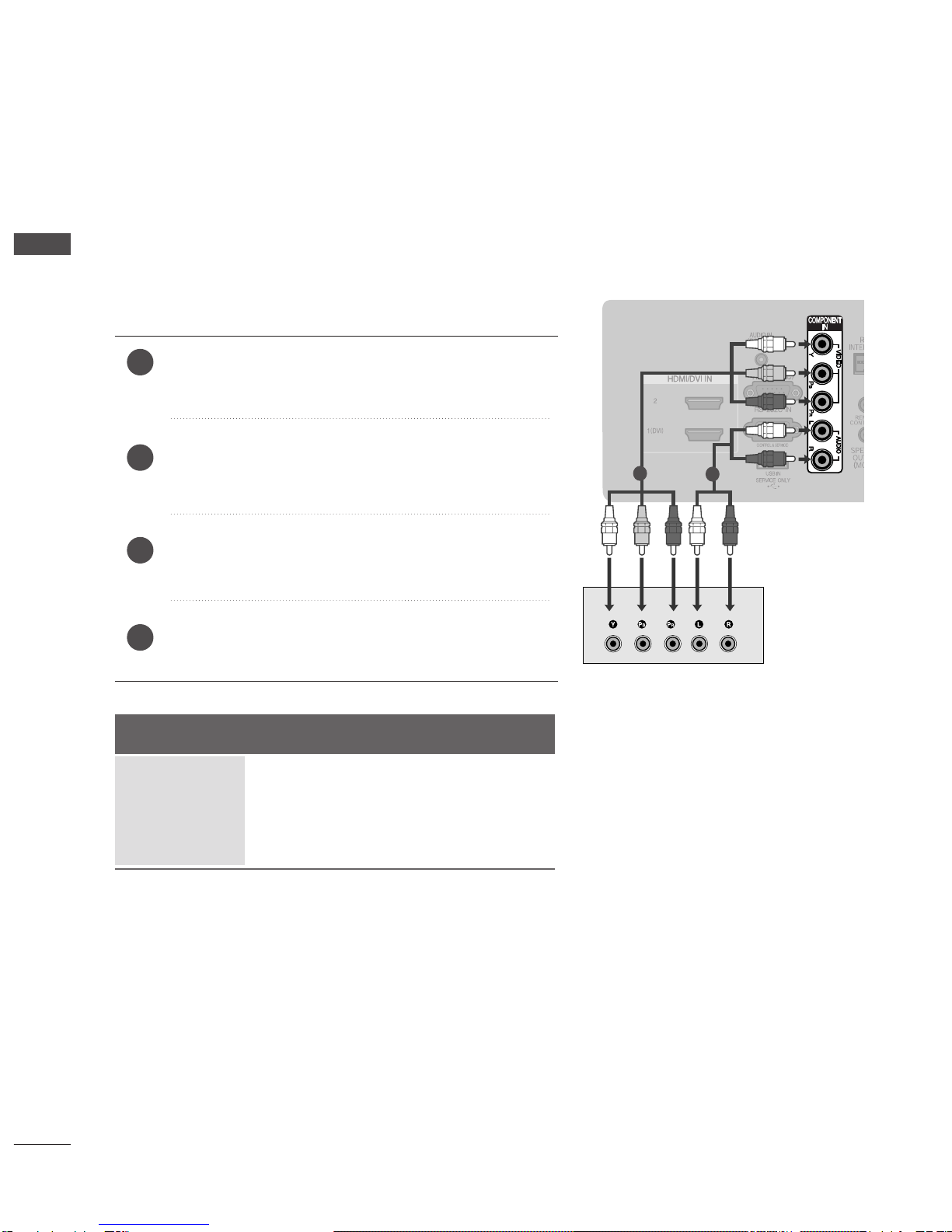

Component Input
Connect a component video/audio input to these
jacks.
SPEAKER OUTPUT(MONO)
The phone socket for external speaker is on this
jack.
Euro Scart Socket (AV1)
Connect scart socket from an external device to
this jack.
Antenna Input
Connect RF antenna to this jack.
PCMCIA (Personal Computer Memory Card
International Association) Card Slot
(This feature is not available in all countries.)
Audio/Video Input(AV2)
Connect audio/video output from an external
device to these jacks.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
