Integrated Full HD with LED
Backlighting
LCD Commercial Widescreen
55" class (54.6" diag nal)
47" class (47.0" diag nal)
42" class (42.0" diag nal)
55LE530C
47LE530C
42LE530C

Eco mart
•Intelligent Sensor - Continually monitors room light conditions to automatically
optimize the picture quality for a more enjoyable viewing experience, which can help
save energy.
•Dynamic Power Savings - Using built-in algorithms, TV will automatically reduce the
power consumption based on incoming video, while maximizing picture performance.
•Static Power Savings - Picture brightness level can be set at the preferred power
consumption level to reduce power and increase energy savings.
•RoH Compliant - Meets directive on restriction of hazardous substances.
•Energy tar 4.1 Qualified - Meets current reduction requirements of energy
consumption.
L I F E ’ S G O O D . . .
WHEN IT’sGREEN.
LG is committed to improving product development,
manufacturing and usage to meet the demand
for environmentally friendlier products. Our
LE530C television has technologies to reduce
power consumption and in return increase cost
savings. We’ve also placed limits in the amounts of
harmful materials used in these televisions.
TruM otion 120Hztechnology lets you see sports, video games and
high-speed action with virtually no motion blur. Now your TV can keep
up with your fast-moving entertainment.
VIEWING QUALITY A THE DIRECTOR INTENDED
24p playback matches the original frame rate of film based content,
making your viewing experience one step closer to “Real Cinema”.
Original Film
Original film has a frame rate of 24 frames per
second. To be viewed on standard video equipment
such as TVs it must have a pull down solution.
Real Cinema
Real Cinema uses a 2:3 pull down which takes
every other frame and splits it into three fields of
video for a smoother transition from film to video.
Dramatization
NTSC Pulldown Solution
NTSC corrects the frame rate difference by
repeating every 4th frame. Sound must be
separated from the film to avoid any distortion.
Automatically examines the room environment and optimizes the
picture to the light and color conditions in the room for a more
enjoyable viewing experience–that can also save energy and money.
Easily connect your external USB drive to enjoy JPEG photos while listening
to MP3 files at the same time for a picture slide show. Allows you to enjoy
all of those family photos for a truly memorable viewing experience.
Manually select your choice for the brightness level for the television. By
selecting Minimum, Medium, or Maximum, the power consumption will
be reduced and an increase in energy savings can be achieved. (Note:
Selecting minimum level may slightly increase power consumption on some models)
ENERGY AVING LEVEL

REAR JACK PANEL IDE JACK PANEL
OUND I HEARD, NOT EEN
Enjoy a combination of smart technology
and stylish design with the invisible
speaker system custom tuned by audio
expert Mr. Mark Levinson. This unique
system provides a clean, polished look
and an enhanced auditory experience
by increasing the sweet spot and
providing a wider sound field.
SHARPER
BRIGHTER
CLEARER
Dramatization
Six distinct processes contribute to picture improvement. LG’s XD Engine takes
the low resolution of analog signals to near HD levels by improving brightness,
contrast, detail and enhancing color as well as reducing signal noise.
Dramatization
55LE530C
47LE530C
42LE530C

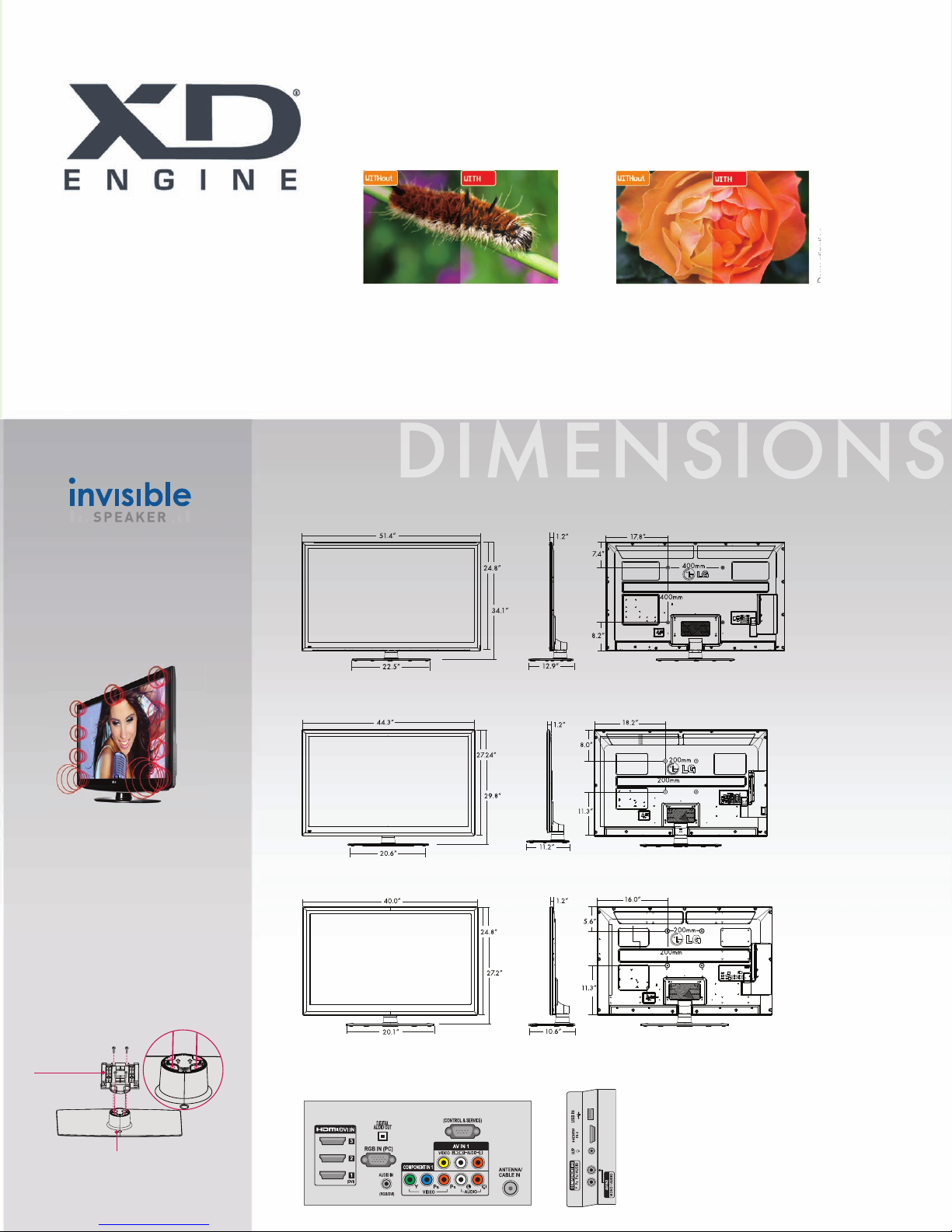

STAND BODY
COVER BASE
4-Screws
(provided)
MOUNTING HOLE ON TAND
ATTACHING THE TV TO A DES

All screen images are simulated. Dimensions and weights are approximate.
Design, features and specifications subject to change without notice.
© Copyright 2010 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is
a registered trademark of LG Corp. XD Engine is a registered trademark of LG
Electronics, Inc. EcoSmart is a trademark of LG Corp.
ENERGY STAR is a registered
trademark of the U.S. Environmental Protection Agency. SRS and the SRS symbol and
TruSurround XT are trademarks or registered trademarks of SRS Labs, Inc. VESA is a
trademark of Video Electronics Standards Association. All other product and brand
names are trademarks or registered trademarks of their respective companies.
Printed in the USA. October 2010
XT
180
specificati ns
www.LGs o l u t i o n s .com
lcd tv
LCD PECIFICATION
LED Backlighting Edge lit
Screen Size 55” class (54.6” diagonal)
47” class (47.0” diagonal)
42” class (42.0” diagonal)
Native Display Resolution 1920 x 1080
Dynamic Contrast Ratio 3,000,000:1
Viewing Angle 178°/178°
Response Time (GTG) 2.4ms
BROADCA TING Y TEM
Analog Yes
ATSC/NTSC/Clear QAM Yes
VIDEO
Built-In Tuner ATSC/NTSC/Clear QAM
XD Engine Yes
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes (16.9, Just scan, Set by program,
4:3, Zoom1, Cinema Zoom1
Just Scan (1:1 Pixel Matching)
HDMI/Component 1080p/1080i/720p
RF 1080i/720p
Color Temperature Control 3 Modes (Medium, Warm, Cool)
24p Real Cinema Yes
2:2 Pulldown Yes
Cinema 3:2 Yes
Picture Reset Yes
AV Mode II 3 Modes (Cinema, Sport, Game)
Picture Mode 8 Modes (Intelligent sensor, Vivid, Standard,
Cinema, Sport, Game, Expert1, Expert 2)
ISFccc Ready Yes
Intelligent Sensor Mode Yes
x.v.Color Yes
DTV Signal Strength Indicator Yes
AUDIO
Mono/Stereo/Dual (MTS/SAP) Yes
Audio Output Power 20W (10W x 2)
Speaker System Invisible Speaker (1 Way/ 2 Speakers)
Dolby Digital Decoder Yes
Surround System Type Infinite Sound
Bass/Treble/Balance Controls Yes
Clear Voice II Yes
Auto Volume Leveler Yes
EZ Sound Mode/SSM 5 Modes (Standard, Music, Cinema, Sport, Game)
PECIAL FEATURE
Picture Wizard II Yes
Backlight Control Yes
Smart Energy Saving Yes
1080p Source Input
HDMI 60p/30p/24p
Component 60p/30p/24p
RGB 60P (WXGA)
A/V Input Navigation Yes
Input Labeling Yes
Quick View (Flashback) Yes
Parental Control w/V-Chip Yes
ey Lock/Child Lock Yes
Closed Caption Yes
SIMPLIN ™ (HDMI/CEC) Yes
CONVENIENCE FEATURE
Language 4 (English/Spanish/French/ orean)
Auto Tuning/Programming Yes
Channel Add/Delete Yes
Favorite Channel Programming Yes
Auto/Manual Clock Yes
On/Off Timer/Sleep Timer Yes
Auto Off/Auto Sleep (When no video is present) Yes
AUDIO/VIDEO INPUT /OUTPUT
RF In (Antenna/Cable) 1 (rear)
AV In 1 (rear), 1 (side w/gender)
Component Video In (Y, Pb, Pr) + L/R Audio 1 (rear), 1 (side w/gender)
Digital Audio Out (Optional) 1 (rear)
HDMI/HDCP Input (V1.3 with Deep Color) 3 (rear), 1 (side)
RGB In (D-Sub 15pin) - PC 1 (rear)
PC Audio Input 1(rear)
RS-232c In (Control & Service Only) 1(rear)
USB 2.0 Input 1(Side) Media Host (jpeg, mp3), Cloning,
Service
Wireless Control 1 (rear)
Remote Control Port out 1
RJ45 (for RJP interface, non PIP) 1
CABINET/ACCE ORIE
Cabinet Color Glossy Black
Swivel Stand (degrees) + 20°/-20°
VESA®Standard Mount Compatible (WxH) 200mm x 200mm (42”, 47”)
400mm x 400mm (55”)
Remote Control Yes
POWER
Voltage, Hz 100V - 240V, 50/60 Hz
Stand-by Mode 0.3W
Dynamic/Static Power Savings Yes
Power Consumption Max 195W
(55”) ,186W (47”) ,170W (42”)
(with Power Saving Modes Disabled) Typical 163W (55”) ,134W (47”) ,115W (42”)
ENERGY STAR 4.1 Qualified Yes
RoHS Compliant Yes
DIMEN ION & WEIGHT
TV without stand (WxHxD) 40.0" x 24.8" x 1.1" (42”)
44.3" x 27.2" x 1.1" (47”)
51.4" x 31.3" x 1.1" (55”)
TV with stand (WxHxD) 40.0" x 27.2" x 10.6" (42”)
44.3" x 29.8" x 11.2" (47”)
51.4" x 34.1" x 12.9" (55”)
Shipping Dimensions (WxHxD) 42.7" x 30.3" x 8.9" (42”)
47.0" x 31.4" x 9.9" (47”)
58.8" x 34.7" x 11.3" (55”)
TV without stand weight 36.8 Ibs (42”)
43.2 Ibs (47”)
63.5 Ibs (55”)
TV with stand weight 42.9 Ibs (42”)
50.4 Ibs (47”)
76.1 Ibs (55”)
Shipping Weight 51.1 Ibs (42”)
59.7 Ibs (47”)
85.9 Ibs (55”)
ERVICE/LIMITED WARRANTY 2 Years (Parts/Labor)
UPC CODE
55LE530C 7 19192 90190 2
47LE530C 7 19192 90189 6
42LE530C 7 19192 90188 9
LG Electronics U.S.A., Inc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer ervice: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional ales Representative
Hospitality: 800.228.1236
Vertical Markets: 800.897.8788
Channel: 800.897.8871
E-mail: [e-mail]
