Lg 37lv3500 User manual

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LJ01U

MODEL : 37LV3500 37LV3500-SA

North/Latin America http://aic.lgservice.com

Europe/Africa http://eic.lgservice.com

Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL62886936 (1104-REV00)

Only for training and service purposes - 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SPECIFICATION....................................................................................... 6

ADJUSTMENT INSTRUCTION............................................................... 11

EXPLODED VIEW .................................................................................. 16

SVC. SHEET ...............................................................................................

Only for training and service purposes - 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the

Schematic Diagram and Exploded View.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent

Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the

servicing of a receiver whose chassis is not isolated from the AC

power line. Use a transformer of adequate power rating as this

protects the technician from accidents resulting in personal injury

from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitry that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,

over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc., to

be sure the set is safe to operate without damage of electrical

shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an

electrical jumper across the two AC plug prongs. Place the AC

switch in the on position, connect one lead of ohm-meter to the AC

plug prongs tied together and touch other ohm-meter lead in turn to

each exposed metallic parts such as antenna terminals, phone

jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩand 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC voltmeter

with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC voltage

measurements for each exposed metallic part. Any voltage

measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.

In case any measurement is out of the limits specified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Only for training and service purposes - 4 -

CAUTION: Before servicing receivers covered by this service

manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.

NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on

page 3 of this publication, always follow the safety precautions.

Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power

source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.

CAUTION: A wrong part substitution or incorrect polarity

installation of electrolytic capacitors may result in an

explosion hazard.

2. Test high voltage only by measuring it with an appropriate high

voltage meter or other voltage measuring device (DVM,

FETVOM, etc) equipped with a suitable high voltage probe.

Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its

assemblies.

4. Unless specified otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the

contacts with a pipe cleaner, cotton-tipped stick or comparable

non-abrasive applicator; 10% (by volume) Acetone and 90% (by

volume) isopropyl alcohol (90%-99% strength)

CAUTION: This is a flammable mixture.

Unless specified otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which

receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its

electrical assemblies unless all solid-state device heat sinks are

correctly installed.

7. Always connect the test receiver ground lead to the receiver

chassis ground before connecting the test receiver positive

lead.

Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily

by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques

should be used to help reduce the incidence of component

damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any electrostatic

charge on your body by touching a known earth ground.

Alternatively, obtain and wear a commercially available

discharging wrist strap device, which should be removed to

prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES

devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classified as "anti-static" can generate

electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective

package until immediately before you are ready to install it.

(Most replacement ES devices are packaged with leads

electrically shorted together by conductive foam, aluminum foil

or comparable conductive material).

7. Immediately before removing the protective material from the

leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be

installed.

CAUTION: Be sure no power is applied to the chassis or circuit,

and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged

replacement ES devices. (Otherwise harmless motion such as

the brushing together of your clothes fabric or the lifting of your

foot from a carpeted floor can generate static electricity

sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate

tip size and shape that will maintain tip temperature within the

range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed

of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire-

bristle (0.5 inch, or 1.25cm) brush with a metal handle.

Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F)

b. Heat the component lead until the solder melts.

c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.

a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there

only until the solder flows onto and around both the

component lead and the foil.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Only for training and service purposes - 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through

which the IC leads are inserted and then bent flat against the

circuit foil. When holes are the slotted type, the following technique

should be used to remove and replace the IC. When working with

boards using the familiar round hole, use the standard technique

as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently

prying up on the lead with the soldering iron tip as the solder

melts.

2. Draw away the melted solder with an anti-static suction-type

solder removal device (or with solder braid) before removing the

IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and

solder it.

3. Clean the soldered areas with a small wire-bristle brush.

(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor

Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as

possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining

on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding

leads extending from the circuit board and crimp the "U" with

long nose pliers to insure metal to metal contact then solder

each connection.

Power Output, Transistor Device

Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit

board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as

possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit

board.

3. Observing diode polarity, wrap each lead of the new diode

around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of

the two "original" leads. If they are not shiny, reheat them and if

necessary, apply additional solder.

Fuse and Conventional Resistor

Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow

stake.

2. Securely crimp the leads of replacement component around

notch at stake top.

3. Solder the connections.

CAUTION: Maintain original spacing between the replaced

component and adjacent components and the circuit board to

prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit

board will weaken the adhesive that bonds the foil to the circuit

board causing the foil to separate from or "lift-off" the board. The

following guidelines and procedures should be followed whenever

this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the

following procedure to install a jumper wire on the copper pattern

side of the circuit board. (Use this technique only on IC

connections).

1. Carefully remove the damaged copper pattern with a sharp

knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if

used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and

carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper

pattern and let it overlap the previously scraped end of the good

copper pattern. Solder the overlapped area and clip off any

excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern

at connections other than IC Pins. This technique involves the

installation of a jumper wire on the component side of the circuit

board.

1. Remove the defective copper pattern with a sharp knife.

Remove at least 1/4 inch of copper, to ensure that a hazardous

condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern

break and locate the nearest component that is directly

connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the

nearest component on one side of the pattern break to the lead

of the nearest component on the other side.

Carefully crimp and solder the connections.

CAUTION: Be sure the insulated jumper wire is dressed so the

it does not touch components or sharp edges.

Only for training and service purposes

1. Application range

This spec sheet is applied LCD TV with LJ01U chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC

2) Relative Humidity: 65 ± 10 %

3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz)

* Standard Voltage of each product is marked by models

4) Specification and performance of each parts are followed

each drawing and specification by part number in

accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement.

Only for training and service purposes

4. General Specification(TV)

No Item Specification Remark

1 Receivable System 1) ATSC / NTSC-M

2 Available Channel 1) VHF : 02 ~ 13

2) UHF : 14 ~ 69

3) DTV : 07 ~ 69

4) CATV : 01 ~ 135

3 Input Voltage 1) AC 100 - 240V~ 50/60Hz

4 Market Central and South AMERICA

5 Screen Size 26 inch Wide (1366 x 768) 26LK330

32 inch Wide (1366 x 768) 32LV2500, 32LK330

32 inch Wide (1920 x 1080)

32LV4500, 32LV3500, 32LV3400, 32LK450, 32LK430

37 inch Wide (1920 x 1080) 37LV3500, 37LK450

42 inch Wide (1920 x 1080)

42LV4500, 42LV3500, 42LV3400, 42LK550, 42LK450

47 inch Wide (1920 x 1080) 47LV3500, 47LK450

55 inch Wide (1920 x 1080) 55LV3500

6 Aspect Ratio 16:9

7 Tuning System FS

8 LCD Module T260XW04-V9 HD, 60Hz AUO 26LK330

T315XW03-VF HD, 60Hz AUO 32LK330

LC320WXN-SCA2 LGD

LC320WXE-SCA1 LGD

T315HW04-V9

FHD, 60Hz

AUO 32LK430

T315HW04-V9

FHD, 60Hz

AUO 32LK450

LC320WUN-SDA1 LGD

LC320WUE-BCA1 LGD

T315XW06-V3 HD, 60Hz AUO 32LV2500

LC320EXN-SDA1 LGD

VVX32H110G00 IPS

LC320EUN-SDV2

FHD, 60Hz

LGD 32LV3400

V315H3-LE7

FHD, 60Hz

CMI 32LV3500

T315HW07-V8 AUO

LC320EUN-SDV2 LGD

LC320EUD-SDA1

FHD, 120Hz

LGD 32LV4500

LC370WUE-SCA1

FHD, 60Hz

LGD 37LK450

T370HW05-V1

FHD, 60Hz

LGD 37LV3500

LC370EUN-SDV2 AUO

T420HW09-V0

FHD, 60Hz

AUO 42LK450

LC420WUE-SCA2 LGD

LC420WUF-SCA2

FHD, 120Hz

LGD 42LK550

LC420EUN-SDV3

FHD, 60Hz

LGD 42LV3400, 42LV3500

T420HW08-V1

FHD, 60Hz

AUO 42LV3500

LC420EUF-SDA1

FHD, 120Hz

LGD 42LV4500

LC470WUE-SCA2

FHD, 60Hz

LGD 42LK450

LC470EUE-SDV1

FHD, 60Hz

LGD 47LV3500

LC550EUF-SDA1

FHD, 120Hz

LGD 55LV3500

9 Operating Environment Temp : 0 ~ 40 deg

Humidity : ~ 80 %

10 Storage Environment Temp : -20 ~ 60 deg

Humidity : -85 %

Only for training and service purposes

5. Chrominance & Luminance(37/42LV3500-SA, 42LV3400-SA)

No Item Min Typ Max Unit Remark

1 Max Luminance

Module

290 360 cd/m2LGD

(Center 1-point / 320 400 cd/m2AUO

Full White Pattern) SET 250 320 cd/m2LGD

280 360 cd/m2AUO

2 Luminance uniformity 77

2 Color coordinate RED X Typ. 0.637 Typ. 37LV3500-SA(LGD)

Y -0.03 0.341 +0.03

GREEN X 0.319

Y 0.605

BLUE X 0.154

Y 0.051

WHITE X 0.279

Y 0.292

RED X Typ. 0.637 Typ. 42LV3500-SA/42LV3400-SA(LGD)

Y -0.03 0.341 +0.03

GREEN X 0.325

Y 0.600

BLUE X 0.152

Y 0.051

WHITE X 0.279

Y 0.292

RED X Typ. 0.640 Typ. 37LV3500-SA(AUO)

Y -0.03 0.330 +0.03

GREEN X 0.320

Y 0.620

BLUE X 0.150

Y 0.050

WHITE X 0.279

Y 0.292

RED X Typ. 0.630 Typ. 42LV3500-SA/42LV3400-SA(AUO)

Y -0.03 0.330 +0.03

GREEN X 0.320

Y 0.620

BLUE X 0.150

Y 0.040

WHITE X 0.279

Y 0.292

3. Contrast ratio 1100/1100 1600/1400 37”/42”(LGD)

3200 4000 37”/42”(AUO)

4. Color Temperature Cool 0.254 0.269 0.284 <Test Condition>

0.258 0.273 0.288 * The W/B Tolerance is ± 0.015 for

Standard 0.270 0.285 0.300 Adjustment

0.278 0.293 0.308

Warm 0.298 0.313 0.324

0.314 0.329 0.344

Only for training and service purposes

6. Component Video Input (Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*576 15.625 50.000 13.5 SDTV 576I

2. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

3. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

4. 720*480 31.50 60 27.027 SDTV 480P

5. 720*480 31.47 59.94 27.0 SDTV 480P

6. 720*576 31.250 50.000 27.000 SDTV 576P

7. 1280*720 37.500 50.000 74.25 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 44.96 59.94 74.176 HDTV 720P

10. 1920*1080 28.125 50.00 74.250 HDTV 1080I

11. 1920*1080 33.75 60.00 74.25 HDTV 1080I

12. 1920*1080 33.72 59.94 74.176 HDTV 1080I

13. 1920*1080 56.250 50.00 148.50 HDTV 1080P

14. 1920*1080 67.500 60 148.50 HDTV 1080P

15. 1920*1080 67.432 59.94 148.352 HDTV 1080P

16. 1920*1080 27.000 24.000 74.25 HDTV 1080P

17. 1920*1080 26.97 23.976 74.176 HDTV 1080P

18. 1920*1080 33.75 30.000 74.25 HDTV 1080P

19. 1920*1080 33.71 29.97 740176 HDTV 1080P

7. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1280*768 47.78 59.870 79.5 CVT(WXGA) O

7. 1360*768 47.712 60.015 85.50 VESA(WXGA) O

8. 1280*1024 63.981 60.020 108.00 VESA(SXGA) O

9. 1920*1080 67.5 60 148.5 HDTV 1080P O

•RGB PC Monitor Range Limits

Min Vertical Freq - 58 Hz

Max Vertical Freq - 62 Hz

Min Horiz. Freq - 30 kHz

Max Horiz. Freq - 83 kHz

Pixel Clock - 160 MHz

Only for training and service purposes - 10 -

8. HDMI input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

7. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

8. 1920*1080 67.500 60.000 148.50 HDTV 1080P O

DTV

1 720*480 31.469 59.940 27.000 SDTV 480P

2 720*480 31.500 60 27.027 SDTV 480P

3 720*576 31.250 50.000 27.000 SDTV 576P

4 1280*720 37.500 50.000 74.25 HDTV 720P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 28.125 50.000 74.25 HDTV 1080I

8 1920*1080 33.75 60.00 74.25 HDTV 1080I

9 1920*1080 33.72 59.94 74.176 HDTV 1080I

10 1920*1080 56.250 50.000 148.50 HDTV 1080P

11 1920*1080 67.500 60 148.50 HDTV 1080P

12 1920*1080 67.432 59.94 148.352 HDTV 1080P

13 1920*1080 27.000 24.000 74.25 HDTV 1080P

14 1920*1080 26.97 23.976 74.176 HDTV 1080P

15 1920*1080 33.75 30.000 74.25 HDTV 1080P

16 1920*1080 33.71 29.97 74.176 HDTV 1080P

•HDMI Monitor Range Limits

Min Vertical Freq - 58 Hz Max Vertical Freq - 62 Hz

Min Horiz. Freq - 30 kHz Max Horiz. Freq - 83 kHz

Pixel Clock - 160 MHz

Only for training and service purposes - 11 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LCD TV with

LJ01U/LJ01T/LJ01S chassis.

2. Designation

1) The adjustment is according to the order which is designated

and which must be followed, according to the plan which can

be changed only on agreeing.

2) Power Adjustment: Free Voltage

3) Magnetic Field Condition: Nil.

4) Input signal Unit: Product Specification Standard

5) Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25 ºC ± 5 ºC

Relative humidity : 65 % ± 10 %

Input voltage : 100 ~ 220 V~, 50/60 Hz

6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),

DDC Adjustment Jig equipment, Service remote control.

7) Push the “IN STOP” key - For memory initialization.

3. Main PCB check process

* APC - After Manual-Insult, executing APC

* Boot file Download

1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

2) Set as below, and then click “Auto Detect” and check “OK”

message

If “Error” is displayed, Check connection between

computer, jig, and set.

3) Click “Read” tab, and then load download file (XXXX.bin)

by clicking “Read”

4) Click “Connect” tab. If “Can’t” is displayed, check

connection between computer, jig, and set.

5) Click “Auto” tab and set as below

6) Click “Run”.

7) After downloading, check “OK” message.

* USB DOWNLOAD

1) Put the USB Stick to the USB socket

2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low,

it didn’t work. But your downloaded version is High, USB

data is automatically detecting

3) Show the message “Copying files from memory”

4) Updating is staring.

filexxx.bin

(4)

(7) .OK

(5)

(6)

(1)

filexxx.bin

(2) (3)

Please Check the Speed :

To use speed between

from 200KHz to 400KHz

Case1 : Software version up

1. After downloading S/W by USB, TV set will reboot

automatically

2. Push “In-stop”key

3. Push “Power on”key

4. Function inspection

5. After function inspection, Push “In-stop”key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push

“In-stop”key at first.

2. Push “Power on”key for turning it on.

-> If you push “Power on”key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop”key.

Only for training and service purposes

5) Uploading completed, The TV will restart automatically.

6) If your TV is turned on, check your updated version and

Tool option.(explain the Tool option, next stage)

* If downloading version is more high than your TV have,

TV can lost all channel data. In this case, you have to

channel recover. if all channel data is cleared, you didn’t

have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

1) Push "IN-START" key in service remote control.

2) Select “Tool Option 1”and Push “OK”button.

3) Punch in the number. (Each model has their number)

4) Completed selecting Tool option.

3.1. ADC Process

(1) ADC

- Enter Service Mode by pushing “ADJ”key,

- Enter Internal ADC mode by pushing “G”key at “6. ADC

Calibration”

<Caution> Using ‘power on’button of the Adjustment R/C,

power on TV.

* ADC Calibration Protocol (RS232)

Adjust Sequence

•aa 00 00 [Enter Adjust Mode]

•xb 00 40 [Component1 Input (480i)]

•ad 00 10 [Adjust 480i Comp1]

•xb 00 60 [RGB Input (1024*768)]

•ad 00 10 [Adjust 1024*768 RGB]

•aa 00 90 End Adjust mode

* Required equipment : Adjustment R/C.

3.2. Function Check

* Check display and sound

- Check Input and Signal items. (cf. work instructions)

1) TV

2) AV (SCART1/SCART2/ CVBS)

3) COMPONENT (480i)

4) RGB (PC : 1024 x 768 @ 60hz)

5) HDMI

6) PC Audio In

* Display and Sound check is executed by Remote control.

No Item CMD1 CMD2 Data0

Enter Adjust Adjust A A 0 0 When transfer the ‘Mode In’,

Mode ‘Mode In’Carry the command.

ADC adjust ADC Adjust A D 1 0 Automatically adjustment

(The use of a internal pattern)

Module Module Too l option1 Too l option2 Too l option3 Too l option4 Too l option5

42LV4500-SA LGD 26496 19478 55337 10520 8448

32LV4500-SA LGD 18304 19478 55337 10520 8480

55LV3500-SA LGD 46944 19478 55337 10520 8448

47LV3500-SA LGD 34656 19478 55337 10520 256

42LV3500-SA AUO 26472 19478 55337 10520 352

42LV3500-SA LGD 26464 19478 55337 10520 288

37LV3500-SA AUO 22376 19478 55337 10520 352

37LV3500-SA LGD 22368 19478 55337 10520 288

32LV3500-SA CMI 18276 19478 55337 10520 352

32LV3500-SA AUO 18280 19478 55337 10520 352

32LV3500-SA LGD 18272 19478 55337 10520 288

42LV3400-SA LGD 26592 9226 53289 10520 288

32LV3400-SA LGD 18400 9226 53289 10520 288

32LV2500-SA CMI 18212 19478 55337 10520 352

32LV2500-SA AUO 18216 19478 55337 10520 352

32LV2500-SA LGD 18208 19478 55337 10520 288

26LV2500-SA AUO 14120 8714 55337 10520 288

26LV2500-SA LGD 14112 8714 55337 10520 288

22LV2500-SA CMI 10020 8714 55337 10520 288

22LV2500-SA AUO 10024 8714 55337 10520 288

19LV2500-SA AUO 5928 8714 55337 10520 288

19LV2500-SA CMI 5924 8714 55337 10520 288

19LV2500-SA LGD 5920 8714 55337 10520 288

47LK450-SA LGD 34432 18966 55305 10520 8450

42LK450-SA LGD 26240 18966 55305 10520 8450

42LK450-SA AUO 26248 18966 55305 10520 290

37LK450-SA LGD 22144 18966 55305 10520 8450

37LK450-SA AUO 22152 18966 55305 10520 290

32LK450-SA AUO 18056 18966 55305 10520 290

32LK450-SA LGD 18048 18966 55305 10520 8482

32LK450-SA LGD

(CoMS) 18048 18966 55305 10520 8450

32LK430-SA AUO 18024 18966 51209 10520 290

32LK330-SB AUO 17992 18966 51209 10520 290

32LK330-SB LGD 17984 18966 51209 10520 290

32LK330-SB LGD

(CoMS) 17984 18966 51209 10520 258

26LK330-SB AUO 13896 18966 51209 10520 290

Only for training and service purposes

4. Total Assembly line process

4.1. Adjustment Preparation

·W/B Equipment condition

CA210 : CH 9, Test signal : Inner pattern (85IRE)

·Above 5 minutes H/run in the inner pattern. (“power on”key

of adjust remote control)

* Connecting picture of the measuring instrument

(On Automatic control)

Inside PATTERN is used when W/B is controlled. Connect to

auto controller or push Adjustment R/C POWER ON ->

Enter the mode of White-Balance, the pattern will come out.

* Auto-control interface and directions

1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10 lux).

2) Adhere closely the Color Analyzer (CA210) to the module

less than 10 cm distance, keep it with the surface of the

Module and Color Analyzer’s prove vertically.(80°~ 100°).

3) Aging time

- After aging start, keep the power on (no suspension of

power supply) and heat-run over 5 minutes.

- Using ‘no signal’or ‘full white pattern’or the others,

check the back light on.

•Auto adjustment Map(RS-232C)

RS-232C COMMAND

[CMD ID DATA]

Wb 00 00 White Balance Start

Wb 00 ff White Balance End

Color Temperature : COOL, Medium, Warm.

One of R Gain/G Gain/ B Gain should be kept on 0xC0, and

adjust other two lower than C0.

(when R/G/B Gain are all C0, it is the FULL Dynamic Range

of Module)

* Manual W/B process using adjusts Remote control.

•After enter Service Mode by pushing “ADJ”key,

•Enter White Balance by pushing “G”key at “6. White

Balance”.

* After done all adjustments, Press “In-start”button and

compare Tool option and Area option value with its BOM, if

it is correctly same then unplug the AC cable. If it is not

same, then correct it same with BOM and unplug AC cable.

For correct it to the model’s module from factory Jig model.

* Push the “IN STOP”key after completing the function

inspection. And Mechanical Power Switch must be set

“ON”.

4.2. DDC EDID Write (RGB 128Byte)

•Connect D-sub Signal Cable to D-sub Jack.

•Write EDID Data to EEPROM(24C02) by using DDC2B

protocol.

•Check whether written EDID data is correct or not.

* For SVC main Assembly, EDID have to be downloaded to

Insert Process in advance.

4.3. DDC EDID Write (HDMI 256Byte)

•Connect HDMI Signal Cable to HDMI Jack.

•Write EDID Data to EEPROM(24C02) by using DDC2B

protocol.

•Check whether written EDID data is correct or not.

* For SVC main Assembly, EDID have to be downloaded to

Insert Process in advance.

4.4. EDID DATA

1) All Data : HEXA Value

2) Changeable Data :

*: Serial No : Controlled / Data:01

**: Month : Controlled / Data:00

***:Year : Controlled

****:Check sum

Cool 13,000 K X=0.269(±0.002)

Y=0.273(±0.002) <Test Signal>

Medium 9,300 K X=0.285(±0.002) Inner pattern

Y=0.293(±0.002) (216gray,85IRE)

Warm 6,500 K X=0.313(±0.002)

Y=0.329(±0.002)

Full White Pattern

COLOR

ANALYZER

TYPE: CA-210

RS-232C Communication

CA-210

RS-232C COMMAND MIN CENTER MAX

[CMD ID DATA] (DEFAULT)

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

Only for training and service purposes

4.5. Auto Download

1) Press Adj. key on the Adj. Remote control.

2) Select EDID D/L menu.

3) By pressing Enter key, EDID download will begin

4) If Download is successful, OK is display, but If Download if

failure, NG is displayed.

5) If Download is failure, Re-try downloads.

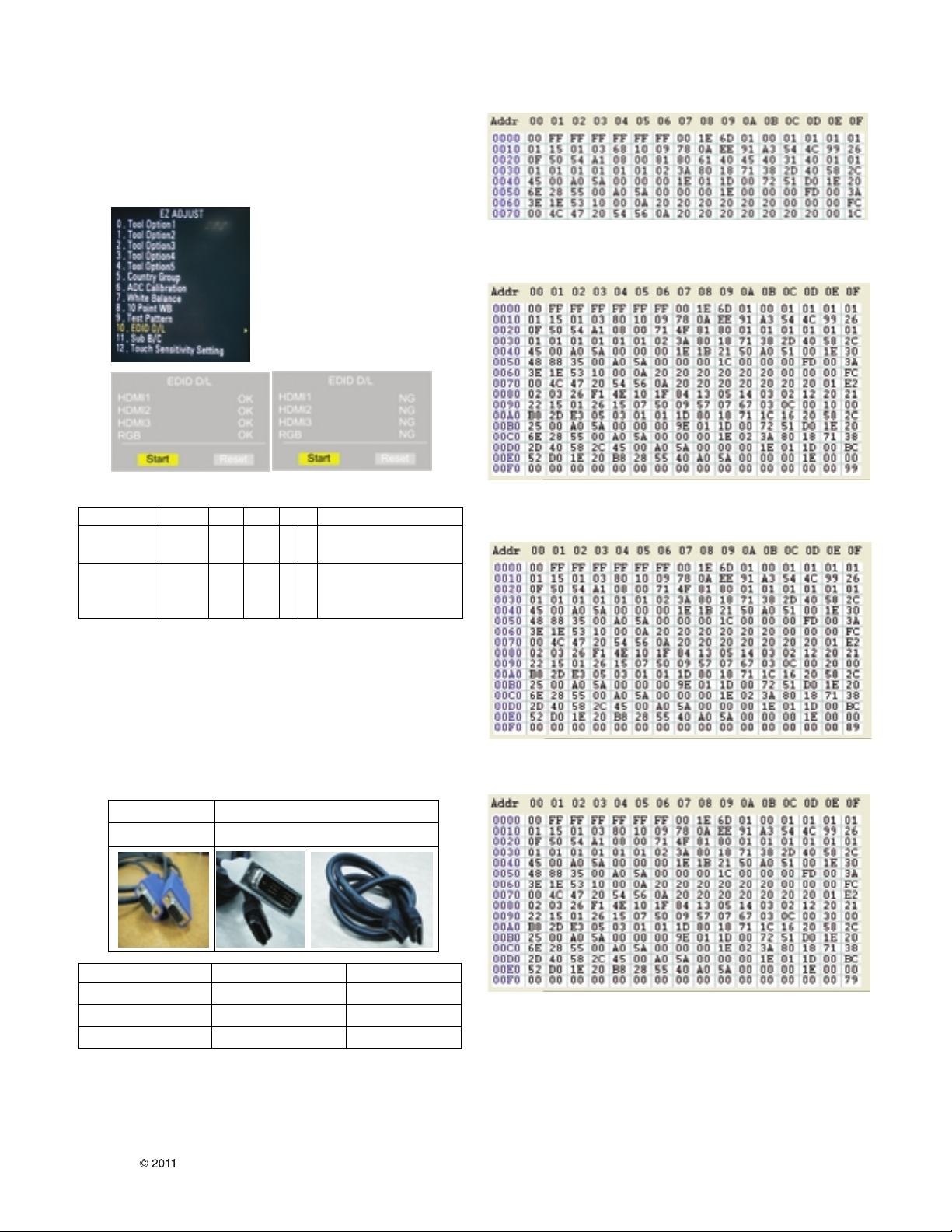

* Edid data and Model option download (RS232)

- Manual Download

* Caution

1) Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

2) Never connect HDMI & D-sub Cable at the same time.

3) Use the proper cables below for EDID Writing

4) Download HDMI1, HDMI2, separately because HDMI1 is

different from HDMI2

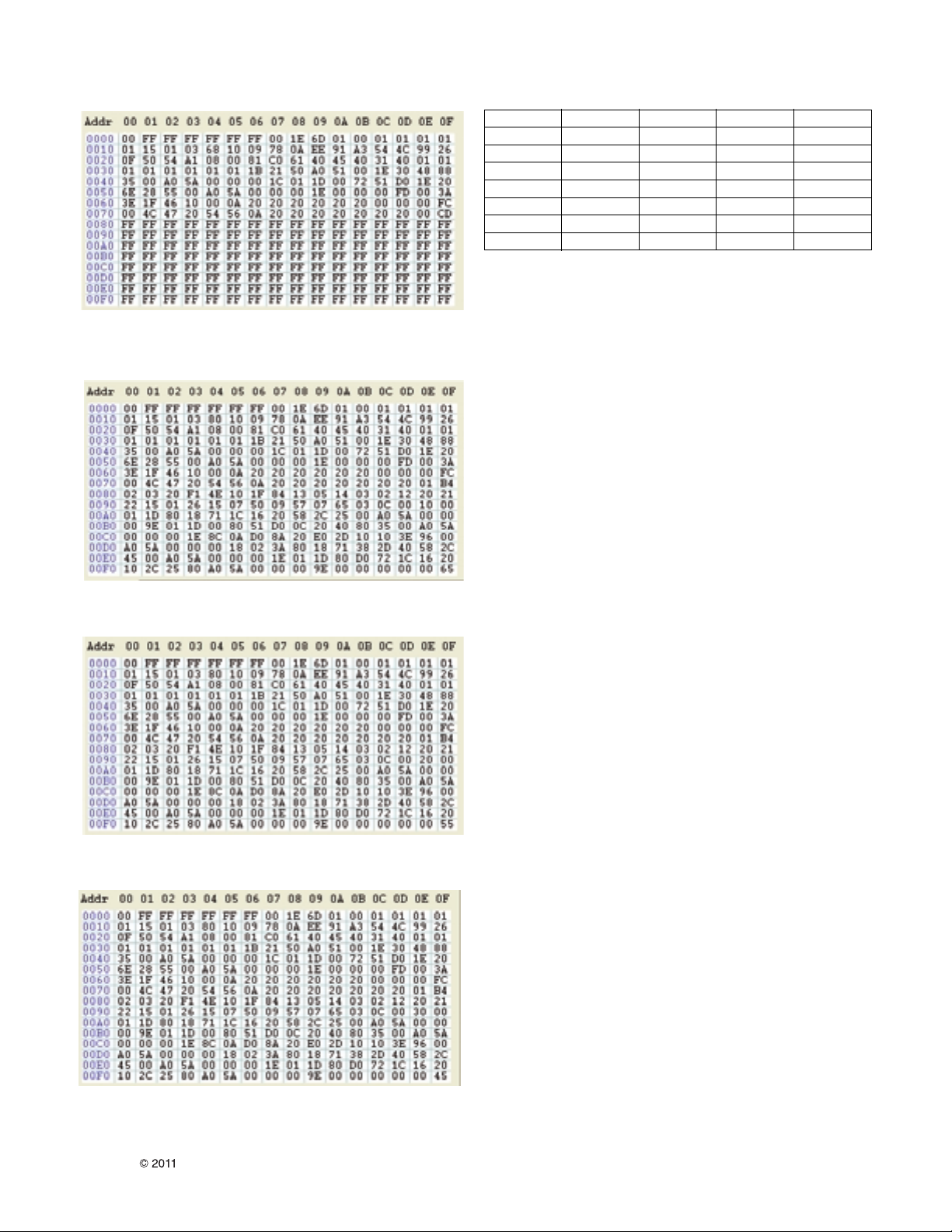

1) FHD RGB EDID data(Check sum:1C)

2) FHD HDMI EDID data

HDMI 1 (Check sum:E2, 99)

HDMI 2 (Check sum:E2, 89)

HDMI 3 (Check sum:E2, 79)

Item

Manufacturer ID

Version

Revision

Condition

GSM

Digital : 1

Digital : 3

Data(Hex)

1E6D

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

NO Item CMD1 CMD2 Data0

Enter Download A A 0 0 When transfer the ‘Mode In’,

download Mode ‘Mode In’Carry the command.

EDID data Download A E 00 10 Automatically Download

and Model (The use of a internal pattern)

option download

Only for training and service purposes

3) HD RGB EDID data(Check sum:CD)

4) HD HDMI EDID data

HDMI 1 (Check sum:B4, 65)

HDMI 2 (Check sum:B4, 55)

HDMI 3 (Check sum:B4, 45)

- Model List

4.5. Outgoing condition Configuration

- When pressing IN-STOP key by SVC remocon, Red LED

are blinked alternatively. And then Automatically turn off.

(Must not AC power OFF during blinking)

4.6. Hi-pot Test

Confirm whether is normal or not when between power

board’s ac block and GND is impacted on 1.5 kV/min at

100mA(GND) and 3kV/min at 100mA(Signal)

HD(CCFL) FHD(CCFL) HD(LED)

FHD Small(LED)

FHD(LED)

32LK330-SB 32LK450-SA 19LV2500-SA 32LV4500-SA

37LK450-SA 22LV2500-SA 42LV4500-SA

42LK450-SA 26LV2500-SA 32LV3500-SA

47LK450-SA 32LV2500-SA 37LV3500-SA

32LK430-SA 42LV3500-SA

47LV3500-SA

55LV3500-SA

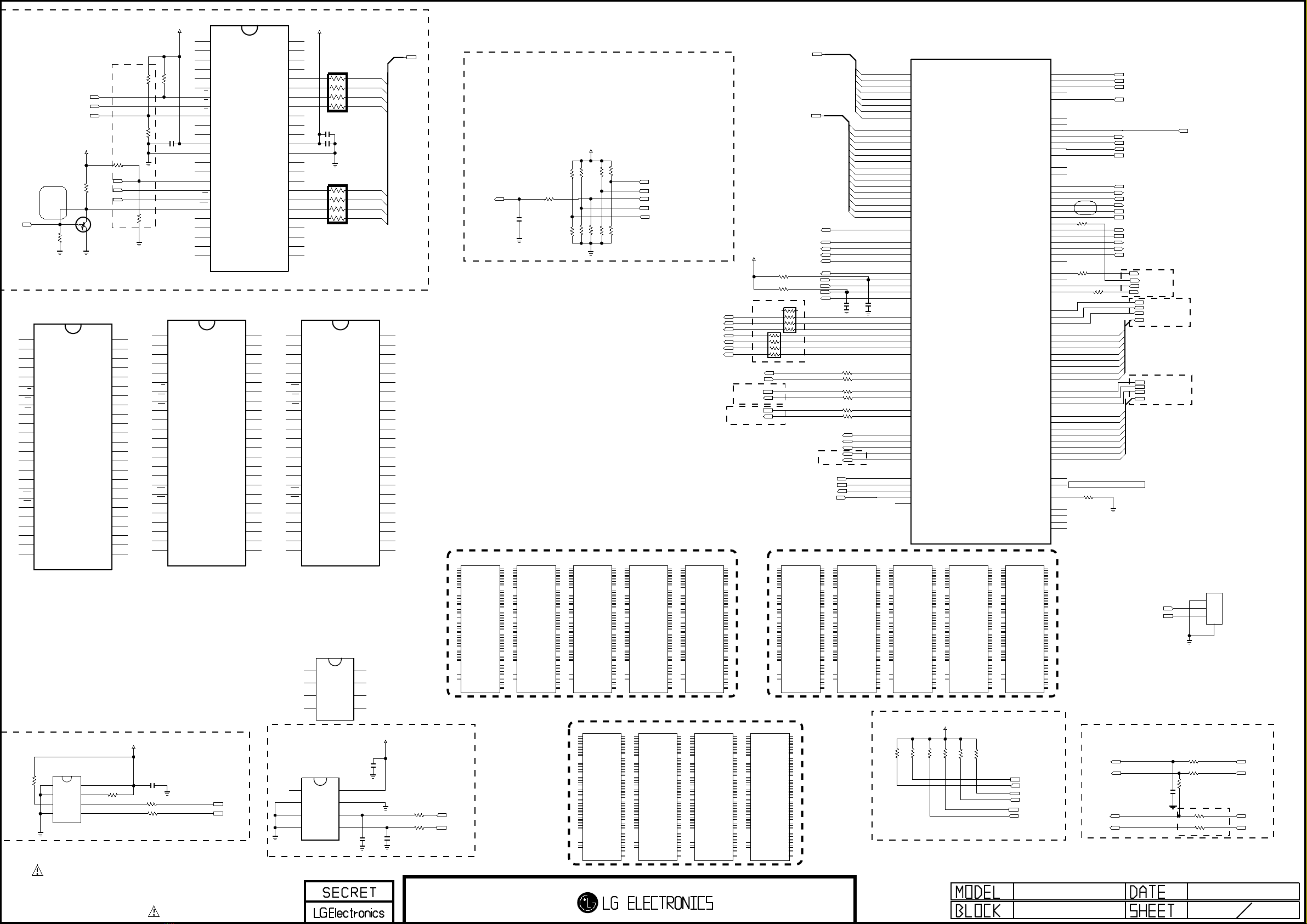

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NEC_SCL

/PF_WE

5V_DET_HDMI_2

/PCM_IRQA

10K

R104

OPT

/PF_WP

AUD_LRCH

AMP_SDA

22R111

PWM2

2.2K

R144

RGB_DDC_SCL

PCM_D[0-7]

3.3K

R143

8pF

OPT

C106

2.2K

R145

/SPI_CS

FRC_PWM0

PWM0

3.3K

R142

AUD_SCK

FRC_SDA

DSUB_DET

/PF_CE0

AR102

M24M01-HRMN6TP

IC104

EEPROM_1MBIT_ST

VSS

5SDA

6SCL

7WP

8VCC

/PF_OE

CI_TS_DATA[0-7]

/PCM_OE

/F_RB

SCAN_BLK1/OPC_OUT

R125

OPT

R160

MODEL_OPT_2

/PF_WP

SIDEAV_DET

SCAN_BLK2

SPI_SDO

/F_RB

NEC_SDA

SC1/COMP1_DET

AT24C1024BN-SH-T

IC104-*1

EEPROM_1MBIT_ATMEL

GND

5SDA

6SCL

7WP

8VCC

I2C_SCL

TUNER_RESET

5V_DET_HDMI_4

SPI_SCK

R117

PCM_A[0-14]

PWM2

I2C_SDA

10uF

C102

3.3K

R102

SPI_SDI

DEMOD_RESET

USB1_CTL

+3.3V_Normal

1K OPT

R116

SC_RE1

0.1uF

C109

FE_TS_DATA[0-7]

RGB_DDC_SDA

CI_TS_VAL

22R138

AR101

PF_ALE

CONTROL_ATTEN

NAND01GW3B2CN6E

EAN60762401

IC102

NAND_FLASH_1G_NUMONYX

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VDD_2

38 NC_23

39 NC_24

40 NC_25

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_26

46 NC_27

47 NC_28

48 NC_29

NC_3

NC_6

NC_10

NC_9

VSS_1

VDD_1

NC_8

NC_7

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

PCM_5V_CTL

S7_NEC_RXD

ERROR_OUT

OPT

R108

MODEL_OPT_1

3.9KR109

1K OPT

R118

/PF_WE

H27U1G8F2BTR-BC

EAN35669102

IC102-*1

NAND_FLASH_1G_HYNIX

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VCC_2

38 NC_23

39 NC_24

40 NC_25

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_26

46 NC_27

47 NC_28

48 NC_29

ALE

NC_3

NC_6

CLE

NC_10

NC_9

VSS_1

VCC_1

NC_8

NC_7

R/B

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

I2C_SDA FE_TS_VAL_ERR

PWM1

1KR126

PWM1

22R129

/PCM_REG

USB1_OCD

+5V_Normal

OPT

R105

FRC_RESET

0.1uF

C103

1KR121

PCM_A[0-7]

MODEL_OPT_3

2.2uF

C111

5V_DET_HDMI_1

1KR124

MODEL_OPT_0

/PCM_CE

22R139

AUD_MASTER_CLK_0

+3.3V_Normal

/PCM_IORD

0.1uF

C105

/PF_CE1

12505WS-03A00

P3904

URSA_DEBUG

/PCM_WE

/PF_CE1

100

R158

OPT

4.7K

R113

0.1uF

C101

33 R146

R123

OPT

+3.3V_Normal

SC_RE2

/PCM_CD

AR103

KRC103S

OPT

Q101

0.1uF

C107

AMP_SCL

FRC_PWM1

33 R151

FRC_SCL

33 R147

CI_TS_CLK

22R137

/PCM_WAIT

I2C_SDA

10K

R132

A_DIM

100

R157

R128

I2C_SCL

CI_TS_SYNC

I2C_SCL

/PF_CE0

0OPT

R155

22R136

PWM_DIM

/PCM_IOWR

10K

R133

CAT24WC08W-T

IC103

VSS

5SDA

6SCL

7WP

8VCC

/PF_OE

PF_ALE

R107

PCM_RST

S7_NEC_TXD

FE_TS_CLK

100

R159

OPT

MODEL_OPT_6

R106

AV_CVBS_DET

R140

R141

22R135

0.1uF

OPT

C108

+3.3V_Normal

PWM0

/FLASH_WP

10K

R156

I2C_SDA

22R134

AR104

FE_TS_SYNC

HP_DET

+3.3V_Normal

4.7KR127

8pF

OPT

C104

PWM0

I2C_SCL

R115

22R112

ET_RXER

/RST-PHY

AUD_MASTER_CLK

R148

100pF

50V

C112

LGE101DC-R [S7R DIVX/MS10]

IC101-*4

S7R_DivX_MS10

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE101C-R-1 [S7R BASIC]

IC101-*1

S7R_BASIC

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE101C-R [S7R MS10]

IC101-*2

S7R_MS10

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE101DC-R-1 [S7R DIVX]

IC101-*3

S7R_DivX

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE101RC-R [S7R RM]

IC101-*5

S7R_RM

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE107DC-R [S7MR DIVX/MS10]

IC101-*9

S7MR_DivX_MS10

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107C-R-1 [S7MR BASIC]

IC101-*6

S7MR_BASIC

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107C-R [S7MR MS10]

IC101-*7

S7MR_MS10

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107DC-R-1 [S7MR DIVX]

IC101-*8

S7MR_DivX

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107RC-R [S7MR RM]

IC101-*10

S7MR_RM

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107DC-RP [S7M+ DIVX/MS10]

IC101

S7M-PLUS_DivX_MS10

PCM_D0

U22

PCM_D1

T21

PCM_D2

T22

PCM_D3

AB18

PCM_D4

AC18

PCM_D5

AC19

PCM_D6

AC20

PCM_D7

AC21

PCM_A0

U21

PCM_A1

V21

PCM_A2

Y22

PCM_A3

AA22

PCM_A4

R22

PCM_A5

R21

PCM_A6

T23

PCM_A7

T24

PCM_A8

AA23

PCM_A9

Y20

PCM_A10

AB17

PCM_A11

AA21

PCM_A12

U23

PCM_A13

Y23

PCM_A14

W23

PCM_REG_N

W22

PCM_OE_N

AA17

PCM_WE_N

V22

PCM_IORD_N

W21

PCM_IOWR_N

Y21

PCM_CE_N

AA20

PCM_IRQA_N

V23

PCM_CD_N

P23

PCM_WAIT_N

R23

PCM_RESET

P22

PCM_PF_CE0Z

AC17

PCM_PF_CE1Z

AB20

PCM_PF_OEZ

AA18

PCM_PF_WEZ

AB21

PCM_PF_ALE

AB19

PCM_PF_AD[15]

AD17

PCM_PF_RBZ

AA19

UART_TX2/GPIO65

M23

UART_RX2/GPIO64

N23

DDCR_DA/GPIO71

M22

DDCR_CK/GPIO72

N22

DDCA_DA/UART0_TX

DDCA_CK/UART0_RX

PWM0/GPIO66

K23

PWM1/GPIO67

K22

PWM2/GPIO68

G23

PWM3/GPIO69

G22

PWM4/GPIO70

G21

SAR0/GPIO31

SAR1/GPIO32

SAR2/GPIO33

SAR3/GPIO34

SAR4/GPIO35

GPIO143/TCON0 N21

GPIO145/TCON2 M21

GPIO147/TCON4 L22

GPIO149/TCON6 L21

GPIO151/TCON8 P21

GPIO36/UART3_RX K21

GPIO37/UART3_TX L23

GPIO38 K20

GPIO39 L20

GPIO40 M20

GPIO41 G20

GPIO42 G19

GPIO50/UART1_RX F20

GPIO51/UART1_TX F19

GPIO6/PM0/INT0 E7

GPIO7/PM1/PM_UART_TX D7

GPIO8/PM2 E11

GPIO9/PM3 G9

GPIO10/PM4 F9

GPIO11/PM5/PM_UART_RX/INT1 C5

PM_SPI_CS1/GPIO12/PM6 E8

PM_SPI_WP1/GPIO13/PM7 E9

PM_SPI_WP2/GPIO14/PM8/INT2 F7

GPIO15/PM9 F6

PM_SPI_CS2/GPIO16/PM10 D8

GPIO17/PM11/INT3 G12

GPIO18/PM12/INT4 F10

PM_SPI_CK/GPIO1 D9

GPIO0/PM_SPI_CZ D11

PM_SPI_DI/GPIO2 E10

PM_SPI_DO/GPIO3 D10

TS0_CLK AA9

TS0_VLD AA5

TS0_SYNC AA10

TS0_D0 AB5

TS0_D1 AC4

TS0_D2 Y6

TS0_D3 AA6

TS0_D4 W6

TS0_D5 AA7

TS0_D6 Y9

TS0_D7 AA8

TS1_CLK AC5

TS1_VLD AC6

TS1_SYNC AB6

TS1_D0 AC10

TS1_D1 AB10

TS1_D2 AC9

TS1_D3 AB9

TS1_D4 AC8

TS1_D5 AB8

TS1_D6 AC7

TS1_D7 AB7

MPIF_CLK D12

MPIF_CS_N D14

MPIF_BUSY E14

MPIF_D0 E12

MPIF_D1 F12

MPIF_D2 D13

MPIF_D3 E13

LGE107C-RP-1 [S7M+ BASIC]

IC101-*11

S7M-PLUS_BASIC

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_VSYNC_LIKE

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_SPI_CZ AB16

FRC_GPIO1 AA14

FRC_SPI1_CK AC15

FRC_GPIO8 Y16

FRC_SPI_DO AC16

FRC_SPI1_DI AC14

FRC_SPI_CK AA16

FRC_SPI_DI AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107C-RP [S7M+ MS10]

IC101-*12

S7M-PLUS_MS10

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_VSYNC_LIKE

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_SPI_CZ AB16

FRC_GPIO1 AA14

FRC_SPI1_CK AC15

FRC_GPIO8 Y16

FRC_SPI_DO AC16

FRC_SPI1_DI AC14

FRC_SPI_CK AA16

FRC_SPI_DI AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107DC-RP-1 [S7M+ DIVX]

IC101-*13

S7M-PLUS_DivX

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_VSYNC_LIKE

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_SPI_CZ AB16

FRC_GPIO1 AA14

FRC_SPI1_CK AC15

FRC_GPIO8 Y16

FRC_SPI_DO AC16

FRC_SPI1_DI AC14

FRC_SPI_CK AA16

FRC_SPI_DI AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107RC-RP [S7M+ RM]

IC101-*14

S7M-PLUS_RM

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_VSYNC_LIKE

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_SPI_CZ AB16

FRC_GPIO1 AA14

FRC_SPI1_CK AC15

FRC_GPIO8 Y16

FRC_SPI_DO AC16

FRC_SPI1_DI AC14

FRC_SPI_CK AA16

FRC_SPI_DI AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

K9F1G08U0D-SCB0

EAN61857001

IC102-*2

NAND_FLASH_1G_SS

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VCC_2

38 NC_23

39 NC_24

40 NC_25

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_26

46 NC_27

47 NC_28

48 NC_29

ALE

NC_3

NC_6

CLE

NC_10

NC_9

VSS_1

VCC_1

NC_8

NC_7

R/B

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

TC58NVG0S3ETA0BBBH

EAN61508001

IC102-*3

NAND_FLASH_1G_TOSHIBA

26 NC_17

27 NC_18

28 NC_19

29 I/O1

30 I/O2

31 I/O3

32 I/O4

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VCC_2

38 NC_23

39 NC_24

40 NC_25

41 I/O5

42 I/O6

43 I/O7

44 I/O8

45 NC_26

46 NC_27

47 NC_28

48 NC_29

ALE

NC_3

NC_6

CLE

NC_10

NC_9

VSS_1

VCC_1

NC_8

NC_7

RY/BY

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

CI_TS_DATA[1]

FE_TS_DATA[6]

PCM_A[0]

PCM_A[4]

PCM_D[6]

PCM_D[0]

PCM_A[12]

PCM_A[0]

PCM_A[13]

PCM_A[6]

PCM_A[7]

PCM_A[2]

PCM_A[4]

FE_TS_DATA[5]

PCM_A[1]

PCM_A[10]

CI_TS_DATA[5]

FE_TS_DATA[0]

PCM_A[5]

PCM_D[3]

PCM_A[3]

FE_TS_DATA[7]

PCM_A[3]

PCM_D[4]

FE_TS_DATA[3]

PCM_A[14]

CI_TS_DATA[7]

CI_TS_DATA[6]

FE_TS_DATA[1]

PCM_A[8]

FE_TS_DATA[2]

PCM_A[9]

PCM_A[6]

PCM_A[5]

PCM_A[7]

PCM_D[2]

PCM_D[7]

PCM_A[1]

PCM_A[11]

CI_TS_DATA[3]

FE_TS_DATA[4]

PCM_D[1]

PCM_D[5]

CI_TS_DATA[2]

CI_TS_DATA[0]

CI_TS_DATA[4]

GP3_Saturn7M Ver. 0.1

FLASH/EEPROM/GPIO

NAND FLASH MEMORY

/PF_CE0

H : Serial Flash

L : NAND Flash

/PF_CE1

H : 16 bit

L : 8 bit

from CI SLOT

Boot from SPI flash : 1’b0

Boot from NOR flash : 1’b1

TO SCART1

Addr:10101--

MIPS_no_EJ_NOR8 : 4’h3 (MIPS as host. No EJ PAD. Byte mode NAND flash.)

MIPS_EJ1_NOR8 : 4’h4 (MIPS as host. EJ use PAD1. Byte mode NAND flash.)

MIPS_EJ2_NOR8 : 4’h5 (MIPS as host. EJ use PAD2. Byte mode NAND flash.)

B51_Secure_no scramble : 4’hb (8051 as host. Internal SPI flash secure boot, no scramble)

B51_Sesure_scramble : 4’hc (8051 as host. Internal SPI flash secure boot with scarmble)

I2C

for SYSTEM/HDCP

EEPROM&URSA3

A0’h

(AUD_SCK, AUD_MASTER_CLK, PWM1, PWM0)

Internal demod out

/External demod in

$0.199

LD650 Scan

Delete Wireless

Delete /PIF_SPI_CS

DIMMING

HDCP EEPROM EEPROM

for SERIAL FLASH

S7R S7MR

S7MR-PLUS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

1KR293 OPT

TP202

PHM_OFF

R212

0.1uFC292

OPT

MVREF

10uFC4001

0.047uFC204

TU_CVBS

D0+_HDMI1

0.1uFC4044

OPT

10uF

C263

22 LED_DRIVER_D/L

R4028 BLM18PG121SN1D

L207

SCART1_Lout

BLM18SG700TN1D

L226

0.1uF

C290

OPT

DSUB_R+

D1+_HDMI1

100

OPT

R213

D2+_HDMI1

VDD33_DVI

AVDD_DMPLL

AU33

AVDD_DDR0

0.1uFC4056

2.2uF

C4060

10uFC276

22 LED_DRIVER_D/L

R4029

D1+_HDMI4

SIDE_USB_DM

DSUB_HSYNC

0.1uF

C4008

OPT

AU33

0.1uFC4011

OPT

0.1uFC285

D2-_HDMI2

AUD_LRCK

VDD_RSDS

0.1uF

C4004 OPT

1uF

C253

AVDD_DMPLL

BLM18SG121TN1D

L223

1000pFC210 VDD_RSDS

33R4016

SC1_FB

BLM18SG700TN1D

L228

1uFC4045

AU25

+1.26V_VDDC

D1-_HDMI4

D0-_HDMI4

0.1uF

C4042

OPT

HP_LOUT

CK+_HDMI4

0.047uF

C214

+2.5V_Normal

10K

R4026

0.047uFC208

10uF

C4022

OPT

BLM18PG121SN1D

L227

BLM18PG121SN1D

L217

0.1uF

C4032

2.2uFC245 PC_R_IN

0.047uFC231

AVDD25_PGA

33R249

0.1uFC286

OPT

33R257

AVDD_DDR0

NON_EU

R236

0.1uFC4026

D2+_HDMI2

0.1uF

C4028

VDD33_DVI

100R201 OPT

TP209

D0-_HDMI1

0.1uFC4019

OPT

AVDD_DMPLL

0.1uFC4014

AUD_SCK

VDD33

HPD2

100R288

TU_SCL

2.2uF

C242

10uFC4061

FRC

0.1uFC251

VDD33

0.1uFC283

OPT

AVDD_DDR0

+3.3V_Normal

+2.5V_Normal

FRCVDDC

+1.5V_FRC_DDR

0.1uF

C291 FRC

COMP2_R_IN

VDD33

68R231

RF_SWITCH_CTL

CEC_REMOTE_S7

+1.26V_VDDC

2.2uFC238

MODEL_OPT_1

D1-_HDMI1

22R292

FULL_NIM

AVDD2P5

33R248

10uFC275

COMP2_Pb+

MODEL_OPT_4

0.1uF

C4043

68R258

10uF

C279 FRC

BLM18PG121SN1D

L210

FRC

AVDD2P5

MODEL_OPT_4

0.047uFC223

SIDE_USB_DP

DDC_SDA_2

COMP2_DET

0.1uFC4058

FRC

R226

0.1uFC4016

0.047uFC209

+2.5V_Normal

+3.3V_Normal

R4019

50/60Hz LVDS

R297

BLM18PG121SN1D

L206

0.047uFC225

0.047uFC221

0.047uF

C213

0.1uF

C4038

CK-_HDMI2

AV_R_IN

D2-_HDMI1

DSUB_B+

TP210

0.047uFC222

0.1uF

C4046

SIDEAV_L_IN

SC1_R+/COMP1_Pr+

68R242

BLM18PG121SN1D

L215

100

R202BOOSTER_OPT

100

OPT

R210

NO_FRC

R227

SC1_G+/COMP1_Y+

PHM_ON

R211

1/16W

R4014

VDD33

0.047uFC218

24MHz

X201

0.022uF

16V

C4065

0.1uFC4062

D0-_HDMI2

0.047uFC220

10K

R4023

TP201

2.2uF

C247 OPT

R255

AU25

33R250

MIU1VDDC

0.1uF

FRC

C240

R4018

FRC

MODEL_OPT_2

BLM18PG121SN1D

L204

AVDD_DDR0

D0+_HDMI4

+3.3V_Normal

+2.5V_Normal

SC1_SOG_IN

MODEL_OPT_5

1000pFC217

SC1_B+/COMP1_Pb+

VDD33

BLM18PG121SN1D

L222

FRC

47R4003

0.1uFC4041

FRC

CK-_HDMI4

R4025

5.6uH

L203

CM2012F5R6KT

DDC_SDA_4

0.1uF

C288

10K

R4020

0.1uFC4007

OPT

LCD

R215

0.1uF

C4017

SCART1_Rout

AVDD2P5

100R289

DDC_SDA_1

0.1uFC4031

R207

2.2uF

C239

0.1uF

C4005

LED_DRIVER_D/L_SDA

22R291

FULL_NIM

R256 FRC_VDD33_DDR

TP203

33R245

MIU0VDDC

AUD_LRCH

0.1uFC4024

33R237

HP_ROUT

FHD

R206

0.047uF

C216

D1+_HDMI2

MODEL_OPT_5

0.047uFC230

2.2uFC244

0.1uF

C4003

+1.26V_VDDC

0.047uFC4057

R239

0.047uFC207

0.1uFC4040

AVDD_DDR0

10uFC289

0.1uFC258

10uFC4063

0.1uF

C298 OPT

100R296

2.2uF

OPT

C234

0.047uFC232

0.1uFC295

IF_P_MSTAR

HPD4

MODEL_OPT_0IF_AGC_SEL

0.047uFC227

10uF

C287

27pFC262

D0+_HDMI2

TP211

4.7uF

C272

0.1uF

C4009

0.1uF

C294

0.1uFC4020

OPT

D1-_HDMI2

AUD_MASTER_CLK_0

SPDIF_OUT

0.047uFC211

+1.5V_DDR

0.047uF

C215

MODEL_OPT_6

TP205

SOC_RESET

2.2uF

C246 OPT

TU_SIF

SC1/COMP1_R_IN

R287

FRC_AVDD

CK+_HDMI1

BLM18PG121SN1D

L219

10uFC4066

AVDD_DDR0

AVDD2P5

10uFC293

OPT

AV_CVBS_IN

BLM18PG121SN1D

L221

FRC

DDC_SCL_4

LED_DRIVER_D/L_SCL

10K

R4017

OPT

1KR295

DDC_SCL_2

HPD1

68R233

0.047uFC226

PC_L_IN

TP207

1/16W

R4015

33R228

33R246

IF_AGC_MAIN

0.1uFC4012

33R253

MODEL_OPT_3

AMP_SCL

D2-_HDMI4

FRCVDDC

AV_CVBS_IN2

VDD33

FRC_VDD33_DDR

D2+_HDMI4

AV_L_IN

0.1uF

C241 0.1uFC4025

100/120Hz LVDS

R294

0.1uFC4027

OPT

R214

DSUB_G+ 0.047uFC206

BLM18PG121SN1D

L213

OPT

33R244

BLM18PG121SN1D

L212

NEC_SCL

+1.26V_VDDC

AVDD2P5

NEC_SDA

R240

DEMOD_SDA

IF_N_MSTAR

68R229

FRC_LPLL

0.047uFC233

SC1/COMP1_L_IN

+2.5V_Normal

10K

R205

FRC

BLM18SG121TN1D

L202

0.047uFC212

33R241

DTV/MNT_VOUT

BLM18PG121SN1D

FRC

L214

0.047uFC219

0.1uF

C297

OPT

10uF

C281

OPT

TU_SDA

SC1_CVBS_IN

AVDD2P5

DEMOD_SCL

0.1uF

C4002

0.1uF

C4015

OPT

CK-_HDMI1 MIU0VDDC

TP208

2.2uF

C237

0.1uFC257

AVDD_DDR_FRC

10uFC284

COMP2_L_IN

5.6uHL205

CM2012F5R6KT

LNA2_CTL

AVDD_DDR_FRC

0.047uFC229

100R204

OPT

10uF

C282 FRC

+3.3V_Normal

+1.26V_VDDC

TP204

DDC_SCL_1

0.047uFC205

68R238

BLM18PG121SN1D

L209

33R251

AVDD25_PGA

47R4002

COMP2_Pr+

100

R203RF_SW_OPT

COMP2_Y+

2.2uFC236

10uFC228

10K

R4006

0.1uF

C4036

OPT

0.1uF

C4064

VDD33

SIDEAV_CVBS_IN

0.1uF

C4010 FRC

AMP_SDA

SIDEAV_R_IN

2.2uFC243

FRC_RESET

1KR2092D

CK+_HDMI2

1000pF

OPT

C264

27pFC261

DSUB_VSYNC

0.1uFC4023

R4024

AV_CVBS_IN2

100R298 OPT

68R254

0.1uFC250

1000pFC224

1000pF

OPT

C203

SC1_ID

2.2uFC4059

FRC_AVDD

+3.3V_Normal

4.7uF

C249

MVREF

33R230

4.7uF

C268

10uF

C4018

BLM18SG700TN1D

L225

FRC

10uF

C278

0.1uF

C256

FRC_LPLL

BLM18PG121SN1D

L211

2.2uF

OPT

C235

0.1uFC296

TP206

MIU1VDDC

33R232

R208

68R252

0.1uFC280

ET_MDC

ET_TXD1

ET_CRS

ET_TXD0

ET_REF_CLK

ET_RXD1

ET_MDIO

ET_TX_EN

ET_RXD0

LGE107DC-RP [S7M+ DIVX/MS10]

IC101

S7M-PLUS_DivX_MS10

A_RXCP

A_RXCN

A_RX0P

A_RX0N

A_RX1P

A_RX1N

A_RX2P

A_RX2N

DDCDA_DA/GPIO24

DDCDA_CK/GPIO23

HOTPLUGA/GPIO19

B_RXCP

B_RXCN

B_RX0P

B_RX0N

B_RX1P

B_RX1N

B_RX2P

B_RX2N

DDCDB_DA/GPIO26

DDCDB_CK/GPIO25

HOTPLUGB/GPIO20

C_RXCP

AA2

C_RXCN

AA1

C_RX0P

AB1

C_RX0N

AA3

C_RX1P

AB3

C_RX1N

AB2

C_RX2P

AC2

C_RX2N

AC1

DDCDC_DA/GPIO28

AB4

DDCDC_CK/GPIO27

AA4

HOTPLUGC/GPIO21

AC3

D_RXCP

D_RXCN

D_RX0P

D_RX0N

D_RX1P

D_RX1N

D_RX2P

D_RX2N

DDCDD_DA/GPIO30

DDCDD_CK/GPIO29

HOTPLUGD/GPIO22

CEC/GPIO5

HSYNC0

VSYNC0

RIN0P

RIN0M

GIN0P

GIN0M

BIN0P

BIN0M

SOGIN0

HSYNC1

VSYNC1

RIN1P

RIN1M

GIN1P

GIN1M

BIN1P

BIN1M

SOGIN1

HSYNC2

RIN2P

RIN2M

GIN2P

GIN2M

BIN2P

BIN2M

SOGIN2

CVBS0P

CVBS1P

CVBS2P

CVBS3P

CVBS4P

CVBS5P

CVBS6P

CVBS7P

CVBS_OUT1

CVBS_OUT2

VCOM0

VIFP W2

VIFM W1

IP V2

IM V1

SSIF/SIFP Y2

SSIF/SIFM Y1

QP U3

QM V3

IFAGC Y5

RF_TAGC Y4

TGPIO0/UPGAIN U1

TGPIO1/DNGAIN U2

TGPIO2/I2C_CLK R3

TGPIO3/I2C_SDA T3

XTALIN T2

XTALOUT T1

SPDIF_IN/GPIO177 G14

SPDIF_OUT/GPIO178 G13

DM_P0 B7

DP_P0 A7

DM_P1 AF17

DP_P1 AE17

I2S_IN_BCK/GPIO175 F14

I2S_IN_SD/GPIO176 F13

I2S_IN_WS/GPIO174 F15

I2S_OUT_BCK/GPIO181 D20

I2S_OUT_MCK/GPIO179 E20

I2S_OUT_SD/GPIO182 D19

I2S_OUT_SD1/GPIO183 F18

I2S_OUT_SD2/GPIO184 E18

I2S_OUT_SD3/GPIO185 D18

I2S_OUT_WS/GPIO180 E19

LINE_IN_0L N1

LINE_IN_0R P3

LINE_IN_1L P1

LINE_IN_1R P2

LINE_IN_2L P4

LINE_IN_2R P5

LINE_IN_3L R6

LINE_IN_3R T6

LINE_IN_4L U5

LINE_IN_4R V5

LINE_IN_5L U6

LINE_IN_5R V6

LINE_OUT_0L U4

LINE_OUT_2L W3

LINE_OUT_3L W4

LINE_OUT_0R V4

LINE_OUT_2R Y3

LINE_OUT_3R W5

MIC_DET_IN R4

MICCM T5

MICIN R5

AUCOM T4

VRM P7

VAG R7

VRP P6

HP_OUT_1L R1

HP_OUT_1R R2

ET_RXD0 E21

ET_TXD0 E22

ET_RXD1 D21

ET_TXD1 F21

ET_REFCLK E23

ET_TX_EN D22

ET_MDC F22

ET_MDIO D23

ET_CRS F23

AVLINK F8

IRINT G8

TESTPIN K8

RESET A4

U3_RESET Y17

LGE107DC-RP [S7M+ DIVX/MS10]

IC101

S7M-PLUS_DivX_MS10

VDDC_1

H11

VDDC_2

H12

VDDC_3

H13

VDDC_4

H14

VDDC_5

H15

VDDC_6

J12

VDDC_7

J13

VDDC_8

J14

VDDC_9

J15

VDDC_10

J16

VDDC_11

L18

A_DVDD

H16

B_DVDD

K19

FRC_VDDC_0

L19

FRC_VDDC_1

M18

FRC_VDDC_2

M19

FRC_VDDC_3

N18

FRC_VDDC_4

N19

FRC_VDDC_5

N20

FRC_VDDC_6

P18

FRC_VDDC_7

P19

FRC_VDDC_8

P20

U3_DVDD_DDR

Y12

AVDD1P2

J11

DVDD_NODIE

AVDD2P5_ADC_1

AVDD2P5_ADC_2

AVDD25_REF

AVDD_AU25

PVDD_1

W15

PVDD_2

Y15

AVDD25_PGA

AVDD_NODIE

AVDD_DVI_1

AVDD_DVI_2

AVDD3P3_CVBS

AVDD_DMPLL

AVDD_AU33

AVDD_EAR33

AVDD33_T

VDDP_1

VDDP_2

VDDP_3

FRC_VD33_2_1

V20

FRC_VD33_2_2

W20

FRC_AVDD_RSDS_1

U19

FRC_AVDD_RSDS_2

U20

FRC_AVDD_RSDS_3

V19

FRC_AVDD

W19

FRC_AVDD_LPLL

U18

FRC_AVDD_MPLL

T20

FRC_VDD33_DDR

Y14

AVDD_MEMPLL

R19

FRC_AVDD_MEMPLL

W14

AVDD_DDR0_D_1

D15

AVDD_DDR0_D_2

D16

AVDD_DDR0_D_3

E15

AVDD_DDR0_D_4

E16

AVDD_DDR0_C

E17

AVDD_DDR1_D_1

F16

AVDD_DDR1_D_2

F17

AVDD_DDR1_D_3

G16

AVDD_DDR1_D_4

G17

AVDD_DDR1_C

H17

FRC_AVDD_DDR_D_1

AB11

FRC_AVDD_DDR_D_2

AB12

FRC_AVDD_DDR_D_3

AC11

FRC_AVDD_DDR_D_4

AC12

FRC_AVDD_DDR_C

AA12

MVREF

G15

NC_1

NC_2

GND_1 G18

GND_2 H9

GND_3 H10

GND_4 H18

GND_5 H19

GND_6 J10

GND_7 J17

GND_8 J18

GND_9 J19

GND_10 K9

GND_11 K10

GND_12 K11

GND_13 K12

GND_14 K13

GND_15 K14

GND_16 K15

GND_17 K16

GND_18 K17

GND_19 K18

GND_20 L9

GND_21 L10

GND_22 L11

GND_23 L12

GND_24 L13

GND_25 L14

GND_26 L15

GND_27 L16

GND_28 L17

GND_29 M9

GND_30 M10

GND_31 M11

GND_32 M12

GND_33 M13

GND_34 M14

GND_35 M15

GND_36 M16

GND_37 M17

GND_38 N10

GND_39 N11

GND_40 N12

GND_41 N13

GND_42 N14

GND_43 N15

GND_44 N16

GND_45 N17

GND_46 P10

GND_47 P11

GND_48 P12

GND_49 P13

GND_50 P14

GND_51 P15

GND_52 P16

GND_53 P17

GND_54 R10

GND_55 R11

GND_56 R12

GND_57 R13

GND_58 R14

GND_59 R15

GND_60 R16

GND_61 R17

GND_62 R18

GND_63 T10

GND_64 T11

GND_65 T12

GND_66 T13

GND_67 T14

GND_68 T15

GND_69 T16

GND_70 T17

GND_71 T18

GND_72 T19

GND_73 U10

GND_74 U11

GND_75 U12

GND_76 U13

GND_77 U14

GND_78 U15

GND_79 U16

GND_80 U17

GND_81 V7

GND_82 V8

GND_83 V9

GND_84 V10

GND_85 V11

GND_86 V12

GND_87 V13

GND_88 V14

GND_89 V15

GND_90 V16

GND_91 V17

GND_92 V18

GND_93 W7

GND_94 W8

GND_95 W9

GND_96 W10

GND_97 W11

GND_98 W12

GND_99 W13

GND_100 W16

GND_101 W17

GND_102 W18

GND_103 Y13

GND_104 Y18

GND_105 AA13

GND_106 AB13

GND_107 AC13

GND_FU J9

PGA_VCOM U9

GND_108 D17

GND_109 H23

GND_110 AF13

0.1uFC277

0.1uFC299

0.1uFC4006

0.1uFC4013

0.047uF

C248

D18

MODEL_OPT_3

reserved for FRC : LOW HIGH

FRC_AVDD:60mAAU33:31mA

TU/DEMOD_I2C

E18

AUDIO OUT

CVBS In/OUT

U5_EXTERNALBOOT :HIGH HIGH

MODEL_OPT_0

Close to MSTAR

FRC_MPLL:4mA

MODEL_OPT_5

AVDD_DDR1:55mA

AVDD_DMPLL/AVDD_NODIE:7.362mA

VDD33_T/VDDP/U3_VD33_2:47mA

100/120Hz LVDS

MODEL_OPT_6

DTV_IF

Normal Power 3.3V

LCD

AVDD_DDR_FRC:55mA

FRC_LPLL:13mA

MODEL OPTION

OLED

MODEL_OPT_2

Close to MSTAR

HDMI

B/T USB

Normal 2.5V

AVDD2P5/ADC2P5:162mA

RSDS Power OPT

DSUB

50/60Hz LVDS

PIN NAME

MODEL_OPT_1

I2S_I/F

VDD_RSDS:88mA

Close to MSTAR

NO FRC FRC

PIN NO.

DDR3 1.5V

AUDIO IN

U3_INTERNAL : HIGH LOW

VDDC 1.26V

LOW

H/P OUT

HIGH

AVDD_DDR0:55mA

Ready

VDDC : 2026mA

AVDD25_PGA:13mA

G19

MODEL_OPT_4

SCART1_RGB/COMP1

SIDE USB

FHD

default

MODEL OPTION

VDD33_DVI:163mA

FRC_VDD33_DDR:50mA

NO_FRC : LOW LOW

AVDD_MEMPLL:24mA

Delete CHB_CVBS_IN

Close to MSTAR

OPT_0

RSDS Power OPT

AU25:10mA

-->In case of GP2, This port was used for GIP/NON_GIP

ANALOG SIF

COMP2

PHM_ON

OPT_4

PHM_OFF --> This option is only applied in EU.

In case of NON_EU, default value set LOW.

GP2R

MAIN2, HW OPT 2

20101023

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C-MDQU7

I2C_SDA

C-MDQU0

C-TMA12

FRC_MODEL_OPT_0

C-MA1

C-TMA0

RXA0-

C-MDQU7

C-TMDQL5

RXB0-

R338

OPT

VCC1.5V_U3_DDR

C-TMA6

C-MBA2

C-MA11

0.1uF

C317

L/DIM_SCLK

RXC0+

C-MDQU2

RXCCK+

RXACK-

RXA1+

C-TMA3

C-MDML

FRC_PWM1

C-MBA0

C-TMA0

R334

OPT

C-MDQL2

C-MA7

R307

RXA1-

RXD2+

C-TMCKB

C-TMDQU1

0.1uF

C306

C-TMCKE

S7M-PLUS

R330

C-TMA7

C-TMA12

R329

S7M-PLUS

C-MDQSU

RXD1+

R323

FRC

C-MA4

1000pF

C304

C-TMRESETB

R311

FRC_CONF0

+1.5V_FRC_DDR

1K 1%

R301

C-TMA4

C-MDQU5

RXD4+

0.1uF

C320

1KR325

S7M-R

RXA2-

FRC_SPI_SDI

10uF

C301

C-MDQU6

C-TMDQU5

RXCCK-

FRC_MODEL_OPT_2

OPT R322

C-TMA5

+3.3V_Normal

C-TMDQU4

C-TMDQL0

C-TMDQU5

2D/3D_CTL

C-TMA11

C-MA5

VCC1.5V_U3_DDR

C-MODT

C-TMDMU

RXA2+

C-TMA10

AR308

AR309

C-MBA0

C-MDQSLB

C-MDQU2

RXB4-

FRC_SPI_SCK

C-MA2

C-MVREFDQ

C-TMDML

C-TMDQL6

C-MCK

C-MCKE

C-MDQL6

C-MCKB

C-TMCKB

1KR341

LVDS_S7M-PLUS

R316

RXB1-

C-TMA6

AR303

820

R317

S7M-R

C-TMDQU6

C-MA9

RXB1+

S7M-PLUS R321

C-MA3

0.1uF

C305

C-TMDQL4

FRC_SPI_SDI

C-TMDQU6

C-MDQL4

0.1uF

C323

C-MA7

C-MDQL3

FRC_PWM1

33R300

FRC_L/DIM

AR307

C-MDQSL

AR305

C-TMA9

C-TMDQU4

C-MDQSL

R314

RXA3+

0.1uF

C308

S7M-PLUS

R327

RXC4+

0.1uF

C322

R313

FRC_/SPI_CS

C-MRASB

C-TMDQL7

C-TMCKE

RXB4+

C-MDQL3

2D/3D_CTL

RXD3+

C-MA1

FRC_PWM0

RXDCK-

C-TMA3

RXD0+

C-TMRASB

RXC2-

C-TMDQU7

VCC1.5V_U3_DDR

C-TMDQU3

C-MDML

0.1uF

C316

RXB0+

0.1uF

C303

OPT

C-TMA8

C-TMA2

C-TMDQSL

0.1uF

C318

RXA3-

0.1uF

C310

C-TMDQL2

C-MA12

C-TMCK

R308

C-TMDQL1

C-TMA7

LVDS_EXT_URSA5 R340

FRC_MODEL_OPT_0

C-MDQU3

RXD4-

1000pF

C314

C-MA10

OPT

R343

FRC_CONF0

C-MDQU5

C-MVREFCA

C-TMBA0

R309

RXBCK-

C-TMDQL4

C-MBA1

RXA4+

C-MDQU6

0.1uF

C319

C-MWEB

C-TMCASB

0.1uF

C302

RXB2+

C-MDQU1

C-MA10

C-MBA2

C-MVREFCA

R310

C-MDQSLB

0.1uF

C321

C-TMDQL3

C-TMDQU0

VCC1.5V_U3_DDR

RXD1-

FRC_SDA

C-TMA10

C-MA4

R312

FRC_MODEL_OPT_1

C-MDQU4

RXC4-

C-TMBA2

FRC_CONF1

150

OPT

R306

C-MDMU

C-TMDQSUB

240

R303

OPT R319

R335

OPT

C-TMODT

1K 1%

R305

C-TMDQSU

C-TMBA1

C-TMA9

C-MDQSU

C-TMDQSU

S7M-PLUS

R328

C-MDQU0

C-MCK

C-MCASB

C-TMBA1

C-MA12

C-MDQU4

C-MDQSUB C-TMDQU1

C-MA9

0.1uF

C313

C-TMDQU3

C-TMBA0

FRC_SPI_SDO

C-TMA1

0.1uF

C312

L/DIM_EDGE_32/37

R336

C-MRESETB

1KR318

FRC

RXC3-

C-TMDQSL

I2C_SCL

L301

C-TMDQL3

RXC1+

C-TMBA2

FRC_PWM0

RXA4-

C-MA6

C-MDQL7

FRC_/SPI_CS

R326 FRC

C-MA8

C-TMWEB

C-MDQL2

C-TMDQL2

C-TMDQU2

C-TMDQL7

C-TMA8

0.1uF

C311

0.1uF

C315

C-MCKB

C-MA11

C-MWEB

C-MA0

V_SYNC

AR301

OPT R324

C-TMDML

C-MDQL0

0.1uF

16V

C325

FRC_SPI_SCK

C-MA5

C-MDQL1

C-MDQL6

C-TMCK

RXC1-

10K

R349

S7M-PLUS

RXC3+

RXACK+

C-MODT

RXB3+

RXD2-

1KR339

C-MDQSUB

RXBCK+

C-TMDQSLB

R331 FRC

FRC_L/DIM

R348

1K 1%

R304

OPT

R342

L/DIM_EDGE_42/47/55

R337

C-TMDQL1

C-TMA1

RXD3-

RXDCK+

C-TMRESETB

RXC2+

C-TMWEB

C-MRASB

C-MA3

L/DIM_MOSI

AR304

C-MA6

33 R332

FRC_L/DIM

RXD0-

C-TMA5

RXB3-

AR302

0.1uF

C307

+3.3V_Normal

C-TMA11

FRC_SPI_SDO

R320

FRC

C-TMDQL0

0.1uF

C309

10K

R333

C-TMDMU

C-TMCASB

C-MA8

C-TMA2

C-TMDQU7

C-MA2

10uF

10V

C324

C-TMA4

C-MCKE

C-MBA1

+3.3V_Normal

FRC_MODEL_OPT_2

C-MDQL0

C-TMDQL5

C-MDMU

VCC1.5V_U3_DDR

4.7K

R350

OPT

C-MVREFDQ

FRC_SCL

C-TMDQSUB

1K 1%

R302

+3.3V_Normal

AR306

C-MDQU3

C-MA0

R315 FRC_MODEL_OPT_1

C-MDQL5

RXA0+

C-TMDQSLB

C-MDQL7

C-TMDQL6

C-MDQL4

RXB2-

C-TMRASB

C-MRESETB

C-TMDQU0

C-MDQU1

FRC_CONF1

C-MDQL5

VCC1.5V_U3_DDR

C-TMODT

RXC0-

C-TMDQU2

C-MCASB

LGE107DC-RP [S7M+ DIVX/MS10]

IC101

S7M-PLUS_DivX_MS10

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_VSYNC_LIKE

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_SPI_CZ AB16

FRC_GPIO1 AA14

FRC_SPI1_CK AC15

FRC_GPIO8 Y16

FRC_SPI_DO AC16

FRC_SPI1_DI AC14

FRC_SPI_CK AA16

FRC_SPI_DI AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

H5TQ1G63DFR-H9C

EAN61828901

IC301

FRC_DDR_1333_HYNIX

A0 N3

A1 P7

A2 P3

A3 N2

A4 P8

A5 P2

A6 R8

A7 R2

A8 T8

A9 R3

A10/AP L7

A11 R7

A12/BC N7

A13 T3

NC_5 M7

BA0 M2

BA1 N8

BA2 M3

CK J7

CK K7

CKE K9

CS L2

ODT K1

RAS J3

CAS K3

WE L3

RESET T2

DQSL F3

DQSL G3

DQSU C7

DQSU B7

DML E7

DMU D3

DQL0 E3

DQL1 F7

DQL2 F2

DQL3 F8

DQL4 H3

DQL5 H8

DQL6 G2

DQL7 H7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

VREFCA

VREFDQ

VDD_1

VDD_2

VDD_3

VDD_4

VDD_5

VDD_6

VDD_7

VDD_8

VDD_9

VDDQ_1

VDDQ_2

VDDQ_3

VDDQ_4

VDDQ_5

VDDQ_6

VDDQ_7

VDDQ_8

VDDQ_9

NC_1

NC_2

NC_3

NC_4

NC_6

VSS_1

VSS_2

VSS_3

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9

VSS_10

VSS_11

VSS_12

VSSQ_1

VSSQ_2

VSSQ_3

VSSQ_4

VSSQ_5

VSSQ_6

VSSQ_7

VSSQ_8

VSSQ_9

H5TQ1G63DFR-PBC

EAN61829001

IC301-*2

FRC_DDR_1600_HYNIX

A10/AP

A11

A12/BC

A13

A15

BA0

BA1

BA2

CKE

ODT

RAS

CAS

RESET

DQSL

DQSU

DML

DMU

DQL0

DQL1

DQL2

DQL3

DQL4

DQL5

DQL6

DQL7

DQU0

DQU1

DQU2

DQU3

DQU4

DQU5

DQU6

DQU7

VREFCA M8

VREFDQ H1

ZQ L8

VDD_1 B2

VDD_2 D9

VDD_3 G7

VDD_4 K2

VDD_5 K8

VDD_6 N1

VDD_7 N9

VDD_8 R1

VDD_9 R9

VDDQ_1 A1

VDDQ_2 A8

VDDQ_3 C1

VDDQ_4 C9

VDDQ_5 D2

VDDQ_6 E9

VDDQ_7 F1

VDDQ_8 H2

VDDQ_9 H9

NC_1 J1

NC_2 J9

NC_3 L1

NC_4 L9

NC_6 T7

VSS_1 A9

VSS_2 B3

VSS_3 E1

VSS_4 G8

VSS_5 J2

VSS_6 J8

VSS_7 M1

VSS_8 M9

VSS_9 P1

VSS_10 P9

VSS_11 T1

VSS_12 T9

VSSQ_1 B1

VSSQ_2 B9

VSSQ_3 D1

VSSQ_4 D8

VSSQ_5 E2

VSSQ_6 E8

VSSQ_7 F9

VSSQ_8 G1

VSSQ_9 G9

W25X20BVSNIG

IC302

S7M-PLUS_S_FLASH_2MBIT_WIN

GND

5DIO

6CLK

7HOLD

8VCC

4.7K

S7M-PLUS

R317-*1

K4B1G1646G-BCH9

EAN61857101

IC301-*3

FRC_DDR_1333_SS_NEW

A10/AP

A11

A12/BC

A13

NC_5

BA0

BA1

BA2

CKE

ODT

RAS

CAS

RESET

DQSL

DQSU

DML

DMU

DQL0

DQL1

DQL2

DQL3

DQL4

DQL5

DQL6

DQL7

DQU0

DQU1

DQU2

DQU3

DQU4

DQU5

DQU6

DQU7

VREFCA M8

VREFDQ H1

ZQ L8

VDD_1 B2

VDD_2 D9

VDD_3 G7

VDD_4 K2

VDD_5 K8

VDD_6 N1

VDD_7 N9

VDD_8 R1

VDD_9 R9

VDDQ_1 A1

VDDQ_2 A8

VDDQ_3 C1

VDDQ_4 C9

VDDQ_5 D2

VDDQ_6 E9

VDDQ_7 F1

VDDQ_8 H2

VDDQ_9 H9

NC_1 J1

NC_2 J9

NC_3 L1

NC_4 L9

NC_6 T7

VSS_1 A9

VSS_2 B3

VSS_3 E1

VSS_4 G8

VSS_5 J2

VSS_6 J8

VSS_7 M1

VSS_8 M9

VSS_9 P1

VSS_10 P9

VSS_11 T1

VSS_12 T9

VSSQ_1 B1

VSSQ_2 B9

VSSQ_3 D1

VSSQ_4 D8

VSSQ_5 E2

VSSQ_6 E8

VSSQ_7 F9

VSSQ_8 G1

VSSQ_9 G9

NT5CB64M16DP-CF

EAN61857201

IC301-*4

FRC_DDR_1333_NANYA_NEW

A10/AP

A11

A12

NC_6

NC_5

BA0

BA1

BA2

CKE

ODT

RAS

CAS

RESET

DQSL

DQSU

DML

DMU

DQL0

DQL1

DQL2

DQL3

DQL4

DQL5

DQL6

DQL7

DQU0

DQU1

DQU2

DQU3

DQU4

DQU5

DQU6

DQU7

VREFCA M8

VREFDQ H1

ZQ L8

VDD_1 B2

VDD_2 D9

VDD_3 G7

VDD_4 K2

VDD_5 K8

VDD_6 N1

VDD_7 N9

VDD_8 R1

VDD_9 R9

VDDQ_1 A1

VDDQ_2 A8

VDDQ_3 C1

VDDQ_4 C9

VDDQ_5 D2

VDDQ_6 E9

VDDQ_7 F1

VDDQ_8 H2

VDDQ_9 H9

NC_1 J1

NC_2 J9

NC_3 L1

NC_4 L9

NC_7 T7

VSS_1 A9

VSS_2 B3

VSS_3 E1

VSS_4 G8

VSS_5 J2

VSS_6 J8

VSS_7 M1

VSS_8 M9

VSS_9 P1

VSS_10 P9

VSS_11 T1

VSS_12 T9

VSSQ_1 B1

VSSQ_2 B9

VSSQ_3 D1

VSSQ_4 D8

VSSQ_5 E2

VSSQ_6 E8

VSSQ_7 F9

VSSQ_8 G1

VSSQ_9 G9

$ 0.17

CLose to Saturn7M IC

(FRC_CONF0)

Close to DDR Power Pin

CLose to DDR3

(FRC_CONF1,FRC_PWM1, FRC_PWM0)

DDR3 1.5V By CAP - Place these Caps near Memory

3’d5 : boot from internal SRAM

3’d6 : boot from EEPROM

3’d7 : boot form SPI flash

HIGH : I2C ADR = B8

LOW : I2C ADR = B4

GP2R

FRC_DDR

20101023

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0.1uF

16V

C462

0.1uF

16V

C432

1/16W 330K 5%

R452

51K

R465

AOZ1072AI-3

IC406

AGND

VIN

PGND

5COMP

6EN

7LX_1

8LX_2

100

R480

PD_+12V

PANEL_VCC

TP5302

0.1uF

16V

C477

0.1uF

16V

C470

0.1uF

16V

C411

V_SYNC

4.7K

R486

OPT

AO3438

Q408

FRC

5.6K

R440

10uF

25V

C405

22uF

10V

C476

1/16W

15K

R455

0.1uF

16V

C416

OPT 100pF

50V

OPT

C423

2200pF

C413

NR8040T3R6N

3.6uH

L422

PWM_DIM

100pF

50V

C463

0.1uF

16V

C441

POWER_23_GND

R476

22K

R431

1/16W

56K

R449

+3.5V_ST

100pF

50V

OPT

C427

10K

R445

0.1uF

16V

C407

OPT

10uF

10V

C430

ERROR_OUT

+3.3V_Normal

+3.5V_ST

L420

A_DIM

0.1uF

16V

C431

L413

SCAN_BLK1/OPC_OUT

L417

2.2K

R407

PANEL_DISCHARGE_RES

L412

+3.3V_Normal

10K

R462

22uF

16V

C420

10K

R459

3.9K

R606

PWM_PULL-DOWN_3.9K

RT1P141C-T112

Q402

33K

R439

10uF

10V

C461

0.1uF

16V

C473

AO3407A

Q409

100

R415

POWER_18_INV_CTL

1.5K

R416

0.1uF

16V

C455

POWER_22_A_DIM

R485

R419

10K

R456

2SC3052

Q406

10K

R464

FW20020-24S

P403

NORMAL_EXPEPT_32

21 22

23 24

SMAW200-H24S2

SLIM_32~52

P401

12V

14 GND

3.5V

424V

18 INV ON

GND

8GND

24V

12V

12 3.5V

GND

224V

16 GND/V-sync

3.5V

6GND

PWRON

20 A.DIM

GND

10 3.5V

GND

12V 22 P.DIM1

GND/P.DIM2 24 Err OUT

+12V/+15V

0.1uF

16V

C438

AOZ1073AIL-3

IC401

AGND

VIN

PGND

5COMP

6EN

7LX_1

8LX_2

47K 1%

R457

10uF

25V

C410

51K

R414

100K

R404 PD_+12V

POWER_ON/OFF2_2

INV_CTL

POWER_ON/OFF2_1

+24V

1608

0.1uF

50V

C451

OPT

10K

R443

FRC

0.1uF

16V

C428

OPT

0.1uF

16V

C408

OPT

100K

R488

L416

TP5305

+12V/+15V

POWER_DET

2SC3052

Q401

4.7K

R461

POWER_ON/OFF2_2

PANEL_CTL

1:AK10

OPC_OUT

+12V/+15V

10K

R401

NR8040T3R6N

3.6uH

L415

0.1uF

16V

C440

100uF

16V

C401

10K

OPT

R427

10K

R463

OPT

POWER_20_PWM_DIM

R484

0.1uF

C474

POWER_24_GND

R475

27K

R460

4.7K

R406

+2.5V_Normal

22uF

10V

C453

POWER_ON/OFF1

12K

R458

+1.5V_FRC_DDR

0.1uF

16V

C468

4.7uF

OPT

C445

TP5304 SCAN_BLK2

4.7uF

10V

OPT C435

NR8040T3R6N

3.6uH

L423

+12V/+15V

+3.5V_ST

0.1uF

16V

C406

0.1uF

16V

C444

2.2K

R405

PANEL_DISCHARGE_RES

POWER_ON/OFF2_1

22uF

10V

C472

1.5K

R466

+3.5V_ST

10K

R426 OPT

120K

OPT

R434

1/16W

7.5K

R436

R473

1/16W 330K 5%

R432

OLP

0.1uF

16V

C475

MLB-201209-0120P-N2

L404

0.1uF

16V

C404

10K

R467

100pF

50V

C439

L401

4700pF

50V

C467

+24V

+3.5V_ST

22K 1%

R444

+5V_Normal

+5V_USB

+3.3V_Normal

10K

R410

0.1uF

16V

C412

PD_+12V

RL_ON

+1.5V_DDR

CIC21J501NE

L424

POWER_20_A_DIM

R453

+3.5V_ST

+12V/+15V

TP5303

3300pF

50V

C448

2SC3052

Q407

MLB-201209-0120P-N2

L407

+3.3V_Normal

100

POWER_20_ERROR_OUT

R437

POWER_18_A_DIM

R451

+3.5V_ST

POWER_ON/OFF2_1

10K

R421

24K 1%

R442

10uF

10V

C403

100uF

16V

C402

FM20020-24

P404

NORMAL_32

21 22

23 24

10uF

16V

OPT

C442

100

POWER_24_INV_CTL

R425

POWER_22_PWM_DIM

R471

68uF

35V

C426

100

R402

0.01uF

25V

C436

0.01uF

NR8040T3R6N

3.6uH

L406

POWER_16_GND

R412

+12V/+15V

0.1uF

16V

C424

47K

R429

0.1uF

16V

C485

AZ2940D-2.5TRE1

IC402

GND

3VOUT

VIN

1/8W

75K

R441

2SC3052

Q405

10K

OPT

R430

+1.26V_VDDC

0.1uF

50V

C418

22uF

10V

C471

22K

R435

NR8040T3R6N

3.6uH

L421

10K

R423

6.8K

OPT

R418

0.1uF

16V

C447

AOZ1073AIL-3

IC405

AGND

VIN

PGND

5COMP

6EN

7LX_1

8LX_2

22uF

10V

C456

POWER_24_PWM_DIM

R472

100

R420

POWER_24_ERROR_OUT

+1.5V_DDR

100pF

50V

OPT

C429

TP5306

2200pF

C466

NCP803SN293

IC409 PD_+12V

GND

VCC 2RESET

NCP803SN293

IC408

GND

VCC 2RESET

THERMAL

TPS54319TRE

IC407

VIN_1

GND_1

COMP

9SS/TR

10 PH_1

11 PH_2

12 PH_3

13 BOOT

14 PWRGD

15 EN

16 VIN_3

AGND

RT/CLK

VSENSE

GND_2

VIN_2 17

EP[GND]

PD_+3.5V

R450

8.2K

R482

POWER_+24V

1.5K

R403

POWER_+24V

0.01uF

50V

C465

0.01uF

50V

C488

MLB-201209-0120P-N2

L402

CIS21J121

L402-*1

CIS21J121

L404-*1

CIS21J121

L407-*1

2.7K

PD_+12V

R448

1/10W

1.21K

R447

PD_+12V

10uF

25V

C443

10uF

25V

C457

10uF

25V

C458

10uF

25V

C459

10uF

25V

C460

0.015uF

50V

C409

0.015uF

12K

R454

12K

R413

22uF

16V

C469

2200pF

C464

THERMAL

SN1007054RTER

IC403

VIN_1

GND_1

COMP

9SS

10 PH_1

11 PH_2

12 PH_3

13 BOOT

14 PWRGD

15 EN

16 VIN_3

AGND

RT/CLK

VSENSE

GND_2

VIN_2 17

EP[GND]

R606-*1

PWM_PULL-DOWN_1K

PIN No

LGD edge led error-out use or not? checking is necessary...

INV_ON

New item

26/32/52:GND

24V-->3.78V --> 3.92V (3.79V)

2000 mA

INV_ON

26/32/52:PWM

CMO10"LED

GND

err_out

(PSU)

Vout=(1+R1/R2)*0.8

GND

<LED MODULE PIN MAP -> latest update 20100618>

$ 0.145

err_out

GNDGND

18.5V-->3.5V --> 3.75V (3.59V)

SHARP

err_out

INV_ON

err_out

AUO 10"Lamp

INV_ON

A-DIM

MAX 1A

Vout=0.8*(1+R1/R2)

LGD LPB/

+3.5V_ST -> 3.375V

INV_ON

GND

+3.3V_Normal

or LIPS

PANEL_POWER

CMO10"Lamp

+5V_Normal

S7M DDR 1.5V

26/32HD:NC

S7M core 1.26V volt

(PSU)

INV_ON

Err_out

PWM_DIM

(PSU)

OS LPB (PSU)

AUO 10"LED

32LE5300-TA

1934 mA

32LE4500-TA

LGD(PSU)

VBR-A

(PSU)

Err_out

GND

PWM_DIM

20V-->3.51V --> 3.76V (3.59V)

60:PWM

INV_ON

300 mA

PWM_DIM

GND

PWM_DIM

INV_ON

Vout=0.8*(1+R1/R2)=1.29V

PWM_DIM

Err_out

LGD 10"LED

12V -->3.58V --> 3.82V (3.68V)

52/60:ERROR

GND

--> NC

GND

ST_3.5V--> 3.375V --> 3.46V

+5V_USB

32LE5300-TA

$ 0.165

--> NC

IPS-@

--> NC

FROM LIPS & POWER B/D

60:NC

Power_DET

PWM_DIM

--> NC

1074 mA

PWM_DIM

Vout=(1+R1/R2)*0.8

INV_ON

(PSU)

PIN No

+2.5V/+1.8V

+1.5V_DDR_FRC

Vd=550mV

GND

PWM_DIM

(PSU)

Vout=0.827*(1+R1/R2)=1.521V

20101023

GP2R

POWER_LARGE 4

INV <--> MAIN

#11 <--> #24

#12 <--> #18

#13 <--> #20

#14 <--> #22

Other manuals for 37LV3500

This manual suits for next models

Table of contents

Popular LCD TV manuals by other brands

Sony

Sony WEGA KLV-27HR3 Service manual

Samsung

Samsung LA32E420 E-manual

Sony

Sony KDL-42W802A quick start guide

Philips

Philips 32PFL7603D - annexe 1 Specifications

Samsung

Samsung LE32D550K1W user manual

Hisense

Hisense L Series Quick setup guide

Seiki

Seiki SC151FS Features & benefits

Sony

Sony KLV-40V410A Service manual

Sanyo

Sanyo CES26WSD7-B Specification sheet

Goodmans

Goodmans GTVL42W37HD instruction manual

Sharp

Sharp AQUOS LC-42SB45U Operation manual

Philips

Philips 15HF5234 Specifications

Panasonic

Panasonic TX-P42VT30E operating instructions

H-BUSTER

H-BUSTER HBTV-32D03HD Service manual

Insignia

Insignia NS-L22X-10A user guide

Toshiba

Toshiba 19AV73 G Series manual

FUNAI

FUNAI LED19-H800M Service manual

Hisense

Hisense M3000 user manual

LG 37LV3500 User manual

Popular LCD TV manuals by other brands
