LG 47LV3700 User manual

LED LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LT12B
MODEL : 47LV3700 47LV3700-DA
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL67007917 (1105-REV00)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 2 -
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ......................................................................... 3
SPECIFICATION....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 17
EXPLODED VIEW .................................................................................. 26
SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

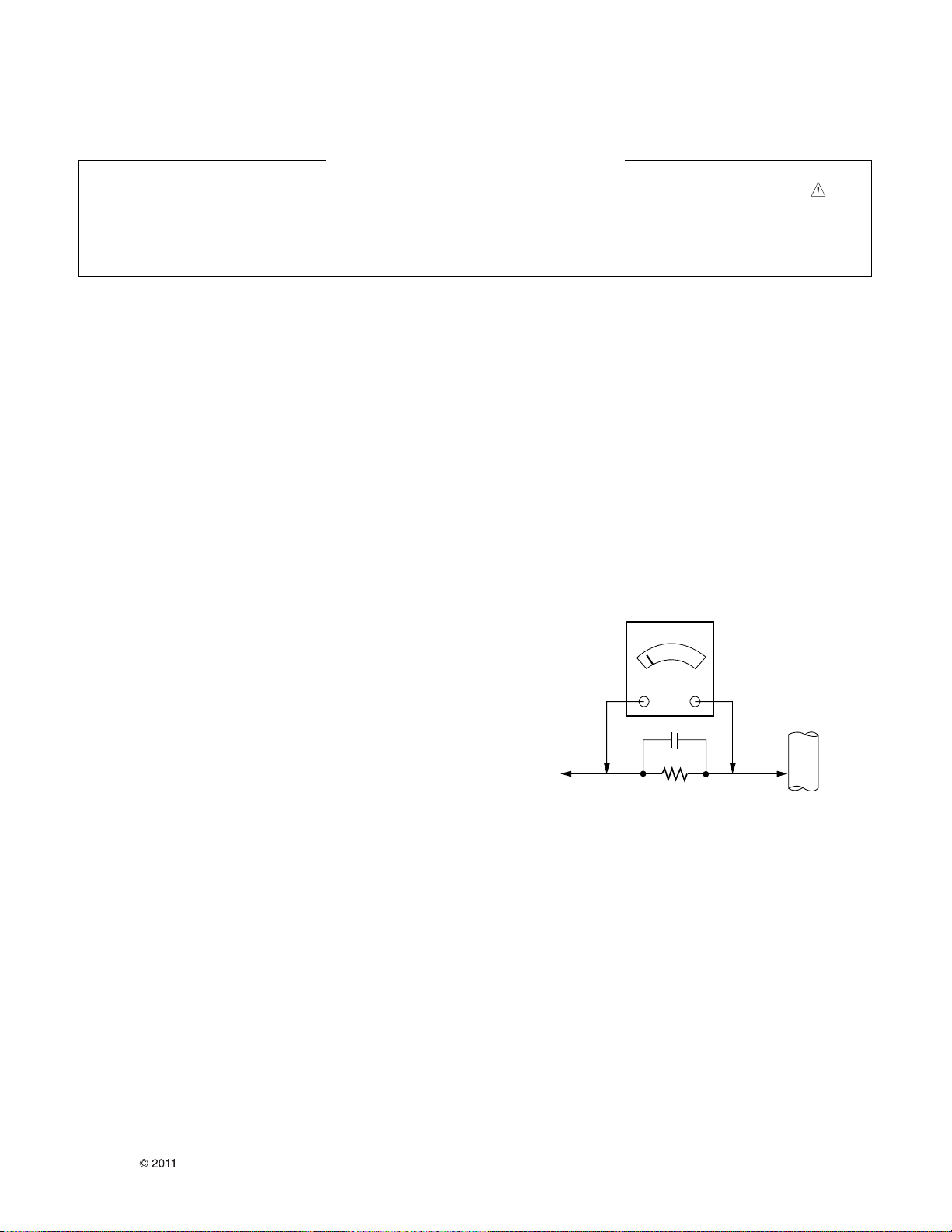

Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
1. Application range
This spec sheet is applied all of the 32”,42”,47”,55”,60”, 72”
LCD TV with LT12B/C/D/E/N chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 ºC ± 5 ºC, CST : 40 ± 5 ºC
2) Relative Humidity: 65 ± 10 %
3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz)
* Standard Voltage of each product is marked by models
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC: CE,IEC
- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.

- 7 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4. General Specification(TV)
No Item Specification Remark
32 wideColor Display Module Resolution: 1920*1080
42 wideColor Display Module Resolution: 1920*1080
47 wideColor Display Module Resolution: 1920*1080
55 wideColor Display Module Resolution: 1920*1080
65 wideColor Display Module Resolution: 1920*1080
1. Display Screen Device
72 wideColor Display Module Resolution: 1920*1080
2. AspectRatio 16:9
32" TFT WUXGA LCD
42" TFT WUXGA LCD
47 TFT WUXGA LCD
55 TFT WUXGA LCD
3. LCDModule
42 ALEF
47 ALEF
55 ALEF
65
72 IOL
TFT Temp. : 0 ~ 40deg
Humidity : 0 ~ 85%
ALEF Temp. : 0 ~ 50deg
Humidity : 20 ~ 90%
4. Operating Environment
IOL Temp. : 0 ~ 50deg
Humidity : 20 ~ 90%
TFT Temp. : -20 ~ 60deg
Humidity : 10 ~ 90%
ALEF Temp. : -20 ~ 60deg
Humidity : 10 ~ 90%
5. Storage Environment
IOL Temp. : -20 ~ 60deg
Humidity : 10 ~ 90%
LGE SPEC
6. Input Voltage AC100~ 240V, 50/60Hz
32 50 W Normal : LC320EUN-SDV2 [32LV3700-DA]
42 90 W Normal : LC420EUN-SDV3 [42LV3700-DA]
FHD
60Hz
Edge LED 47 90 W Normal : LC470EUE-SDV1 [37LV3700-DA]
100 W Normal : V315H3-LE8 [32LV5500-DD]
60 W Normal : LC320EUD-SDA1 [32LV5500-DD]
32 60 W PG: LC320EUD-SDF1 [32LW5700-DA]
110 W Normal : V420H2-LE6 [42LV5500-DD]
90
100
110
W Normal : LC420EUF-SDA1 [42LV5500-DD]
42 100 W
W
W
PG: LC420EUF-SDF1 [42LW5700-DA]
Normal : LC470EUF-SDA1 [47LV5500-DD]
47 PG: LC470EUF-SDF1 [47LW5700-DA]
FHD
120Hz
Edge LED
55 14 0 W Normal : LC550EUF-SDA1 [55LV5500-DD]
42 110 W SG: LC420DUC-SDS1 [42LW7700-DA]
47 160 W SG: LC470DUC-SDS1 [47LW7700-DA]
7. Power Consumption
= LCD(Module) +
Backlight(LED)
FHD
M240Hz
ALEF 55 170 W SG: LC550DUC- SDS1[55LW7700-DA]
47 30 W SG: LC470DUT-SDA1 Only Cell
FHD
T480Hz
ALEF 55 30 W SG: LC550DUT-SDA1 Only Cell
65
FHD
T480Hz
IOL 72 400 W SG: LC720DUC-SCM1 Only Cell

- 8 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
Maker Inch (H)mm x(V)mm x (D)mm Unit: mm
735.4 x 433.0 x 10.8
LC320EUN-SDV2 : Edge Non-3D_60Hz
735.4 x 433.0 x 10.8
LC320EUD-SDA1 : Edge Non-3D_120Hz
32 698.40 x 392.85 x 10.8
LC320EUD-SDF1 : Edge3D-PG
968.4 x 564 x 10.8
LC420EUN-SDV3: EdgeNon-3D_60Hz
968.4 x 564 x 10.8
LC420EUF-SDA1 : Edge Non-3D_120Hz
968.4 x 564 x 10.8
LC420EUF-SDF1 : Edge3D-PG
42
968.4 x 564 x 12.2
LC420DUC-SDS1 : ALEF 3D-SG M240
1078.6 x 626.0x 10.8
LC470EUE-SDV1 : Edge Non-3D_60Hz
1078.6 x 626.0x 10.8
LC470EUF-SDA1 : Edge Non-3D_120Hz
1078.6 x 626.0x 10.8
LC470EUF-SDF1 : Edge3D-PG
1078.6 x 626.0x 12.2
LC470DUC-SDS1 : ALEF 3D-SG M240
47
1054.5 x 600.0x 1.8
LC470DUT-SDA1 : ALEF 3D-SGT480
1255.6 x 726.4x 19.0
LC550EUF-SDA1 : Edge Non-3D_120Hz
1255.6 x 726.4x 12.2
LC550DUC- SDS1 : ALEF 3D-SG M240
55 1220.8 x 693.8x 1.8
LC550DUT-SDA1 : ALEF 3D-SGT480
65
LGD
72 1666.0 x 968.0x 60.0 LC720DUC-SCM1 : IOL 3D-SG
32 735.4 x 433 x 10.8 V315H3-LE8 : EdgeNon-3D
Size
CMI 42 968.4 x 564 x 10.8 V420H2-LE6 : EdgeNon-3D
Maker Inch mm x mm mm
LC320EUN-SDV2 : Edge Non-3D_60Hz
LC320EUD-SDA1 : Edge Non-3D_120Hz
8. LCD Module
Pixel Pitch LGD 32 0.36375 x 0.36375
LC320EUD-SDF1 : Edge3D-PG
LC420EUN-SDV3: EdgeNon-3D_60Hz
LC420EUF-SDA1 : Edge Non-3D_120Hz
LC420EUF-SDF1 : Edge3D-PG
42 0.4845 x 0.4845
LC420DUC-SDS1 : ALEF 3D-SG M240
LC470EUE-SDV1 : Edge Non-3D_60Hz
LC470EUF-SDA1 : Edge Non-3D_120Hz
LC470EUF-SDF1 : Edge3D-PG
LC470DUC-SDS1 : ALEF 3D-SG M240
47 0.5415 x 0.5415
LC470DUT-SDA1 : ALEF 3D-SGT480
LC550EUF-SDA1 : Edge Non-3D
LC550DUC- SDS1 : ALEF 3D-SG M240
55 0.630 x 0.630
LC550DUT-SDA1 : ALEF 3D-SGT480
65
72 0.831 x 0.831 LC720DUC-SCM1 : IOL 3D-SG
32 0.12125 x 0.12125 V315H3-LE8 : EdgeNon-3D
CMI 42 0.1615 x 0.4845 V420H2-LE6 : EdgeNon-3D
32 Ed ge-LED LC320EUN-SDV2 LC320EUD-SDA1
LC320EUD-SDF1
Edge-LED LC420EUN-SDV3 LC420EUF-SDA1
LC420EUF-SDF1
42
ALEF LC420DUC-SDS1
Edge-LED LC470EUE-SDV1 LC470EUF-SDA1
LC470EUF-SDF1
47
ALEF LC470DUC-SDS1
LC470DUC-SDS1
Edge-LED LC550EUF-SDA1
55 ALEF LC550DUC- SDS1
LC550DUT-SDA1
Back Light LGD
65

- 9 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
72 IOL LC720DUC-SCM1
32 Ed ge-LED V315H3-LE8
CMI 42 Ed ge-LED V420H2-LE6
1.06 B (10-bit) Except FHD 60Hz models
Display Colors 16.7 M (8-bit) Only FHD 60Hz models
Coating 3H(Hard coating), Anti-glare
5. Chrominance & Luminance
No Item Min Typ Max Unit Remark
89/89
89/89
Edge :LC320EUN-SDV2
Edge :LC420EUN-SDV3
Edge :LC470EUE-SDV1
Edge :LC320EUD-SDA1
Edge :LC420EUF-SDA1
Edge :LC470EUF-SDA1
Edge :LC550EUF-SDA1
Edge :LC320EUD-SDF1
Edge :LC420EUD-SDF1
Edge :LC470EUF-SDF1
ALEF : LC420DUC-SDS1
ALEF : LC470DUC-SDS1
ALEF : LC550DUC-SDS1
ALEF : LC470DUT-SDA1
ALEF : LC550DUT-SDA1
IOL : LC720DUC-SCM1
1 View angle (R/L, U/D)
88/88
88/88
degree
Edge :V315H3-LE8
Edge :V420H2-LE6
290 360
Edge :LC320EUN-SDV2
Edge :LC420EUN-SDV3
Edge : LC470EUE-SDV1
320 400
Edge :V315H3-LE8
Edge :LC320EUD-SDA1
Edge :LC420EUF-SDA1
Edge :LC470EUF-SDA1
Edge :LC550EUF-SDA1
: FHD 120Hz EdgeLED
Edge :LC320EUD-SDF1
Edge :LC420EUF-SDF1
Edge :LC470EUF-SDF1
: FHD 120HzPatternedEdgeLED
2 Luminance
(W/O PC mode)
360 450
cd/m
ALEF : LC420DUC-SDS1
ALEF : LC470DUC-SDS1
ALEF : LC550DUC-SDS1
: FHD M240Hz ALEF LED

- 10 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
350 450 Edge :V420H2-LE6
: FHD 120Hz EdgeLED
360 450 ALEF : LC470DUT-SDA1
ALEF : LC550DUT-SDA1
: FHD T480Hz ALEF LED
400 500 IOL : LC720DUC-SCM1
: FHD T480Hz IOL LED
1000:1 1400:1 Edge :LC320EUN-SDV2
Edge :LC420EUN-SDV3
Edge :LC470EUE-SDV1
3500:1 5000:1 Edge :V315H3-LE8
4200:1 6000:1 Edge :V420H2-LE6
1100:1 1600:1
Edge :LC320EUD-SDA1
Edge :LC420EUF-SDA1
Edge :LC470EUF-SDA1
Edge :LC550EUF-SDA1
Edge :LC320EUD-SDF1
Edge :LC420EUF-SDF1
Edge : LC470EUF-SDF1
900:1 1300:1
ALEF : LC420DUC-SDS1
ALEF : LC470DUC-SDS1
ALEF : LC550DUC-SDS1
900:1 1300:1
ALEF : LC470DUT-SDA1
ALEF : LC550DUT-SDA1
3 Module Contrast Ratio
1000:1 1200:1 IOL : LC720DUC-SCM1
X 0.279
White Y 0.292
X 0.637
Red Y 0.341
X 0.320
Green Y 0.606
X 0.152
Blue Y
Typ.
-0.03
0.055
Typ.
+0.03 Edge :LC320EUN-SDV2
X 0.279
4 CIE
Color Coordinates
White Y 0.292 Typ. Edge :LC420EUN-SDV3
X 0.637
Red Y 0.341
X 0.325
Green Y 0.600
X 0.152
Blue Y
Typ.
-0.03
0.051
+0.03
X 0.279
White Y 0.292
X 0.639
Red Y 0.343
X 0.316
Green Y 0.595
X 0.152
Blue Y
Typ.
-0.03
0.058
Typ.
+0.03 Edge : LC470EUE-SDV1
X 0.280
White Y 0.290
X 0.635
Red Y 0.323
X 0.288
Green Y 0.600
X 0.148
Blue Y
Typ.
-0.03
0.050
Typ.
+0.03 Edge :V315H3-LE8
X 0.279
White Y 0.292
X 0.649
Red Y 0.333
X 0.301
Green Y 0.609
X 0.152
Blue Y
Typ.
-0.03
0.060
Typ.
+0.03 Edge : LC320EUD-SDA1

- 11 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
Y
X
X 0.280
White 0.290
0.644
Red Y
Typ.
-0.03
0.331
Typ.
+0.03 Edge :V420H2-LE6
0.297
Green 0.618
0.147
Blue 0.054
X 0.279
White Y 0.292
X 0.644
Red Y
X
Y
X
Y
0.333
X 0.306
Green Y 0.604
X 0.150
Blue Y
Typ.
-0.03
0.058
Typ.
+0.03 Edge : LC420EUF-SDA1
X 0.279
White Y 0.292
X 0.648
Red Y 0.333
X 0.308
Green Y 0.600
X 0.149
Blue Y
Typ.
-0.03
0.059
Typ.
+0.03 Edge : LC470EUF-SDA1
X
X
X
X
0.279
White Y 0.292
0.649
Red Y 0.332
0.307
Green Y
Y
0.595
0.149
Blue Y
Typ.
-0.03
0.059
Typ.
+0.03 Edge : LC550EUF-SDA1
X 0.279
White 0.292
X 0.648
Red Y 0.334
X 0.307
Green Y
Typ.
-0.03
0.606
Typ.
+0.03 Edge :LC320EUD-SDF1
X 0.152
Blue Y
Y
0.058
X 0.279
White 0.292
X 0.650
Red Y 0.333
X 0.307
Green Y 0.604
X 0.150
Blue Y
Y
Typ.
-0.03
0.059
Typ.
+0.03 Edge :LC420EUF-SDF1
X 0.279
White 0.292
X 0.648
Red Y 0.332
X 0.306
Green Y 0.606
X 0.150
Blue Y
Typ.
-0.03
0.058
Typ.
+0.03 Edge :LC470EUF-SDF1
X
White Y
X
Red Y
X
Green Y
X
Blue Y
Typ.
-0.03
Typ.
+0.03 ALEF : LC420DUC-SDS1
Y
X
X 0.280
White 0.290
0.644
Red Y
Typ.
-0.03
0.331
Typ.
+0.03 Edge :V420H2-LE6
0.297
Green 0.618
0.147
Blue 0.054
X 0.279
White Y 0.292
X 0.644
Red Y
X
Y
X
Y
0.333
X 0.306
Green Y 0.604
X 0.150
Blue Y
Typ.
-0.03
0.058
Typ.
+0.03 Edge : LC420EUF-SDA1
X 0.279
White Y 0.292
X 0.648
Red Y 0.333
X 0.308
Green Y 0.600
X 0.149
Blue Y
Typ.
-0.03
0.059
Typ.
+0.03 Edge : LC470EUF-SDA1
X
X
X
X
0.279
White Y 0.292
0.649
Red Y 0.332
0.307
Green Y
Y
0.595
0.149
Blue Y
Typ.
-0.03
0.059
Typ.
+0.03 Edge : LC550EUF-SDA1
X 0.279
White 0.292
X 0.648
Red Y 0.334
X 0.307
Green Y
Typ.
-0.03
0.606
Typ.
+0.03 Edge :LC320EUD-SDF1
X 0.152
Blue Y
Y
0.058
X 0.279
White 0.292
X 0.650
Red Y 0.333
X 0.307
Green Y 0.604
X 0.150
Blue Y
Y
Typ.
-0.03
0.059
Typ.
+0.03 Edge :LC420EUF-SDF1
X 0.279
White 0.292
X 0.648
Red Y 0.332
X 0.306
Green Y 0.606
X 0.150
Blue Y
Typ.
-0.03
0.058
Typ.
+0.03 Edge :LC470EUF-SDF1
X
White Y
X
Red Y
X
Green Y
X
Blue Y
Typ.
-0.03
Typ.
+0.03 ALEF : LC420DUC-SDS1

- 12 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
Y
X
Y
X
Y
X
X
0.279
White 0.292
0.644
Red 0.333
0.308
Green 0.605
0.149
Blue Y
Typ.
-0.03
0.059
Typ.
+0.03 ALEF : LC470DUC-SDS1
X 0.279
White Y 0.292
X 0.644
Red Y 0.333
X 0.308
Green Y 0.605
X 0.149
Blue Y
Typ.
-0.03
0.059
Typ.
+0.03 ALEF : LC550DUC-SDS1
X 0.280
White Y 0.290
X 0.651
Red Y 0.334
X 0.312
Green Y 0.598
X 0.150
Blue Y
Typ.
-0.03
0.068
Typ.
+0.03 ALEF : LC470DUT-SDA1
X 0.279
White Y 0.292
X 0.642
Red Y 0.333
X 0.307
Green Y 0.606
X 0.149
Blue Y
Typ.
-0.03
0.068
Typ.
+0.03
ALEF : LC550DUT-SDA1
X 0.279
White Y 0.292
X 0.646
Red Y 0.330
X 0.303
Green Y 0.640
X 0.152
Blue Y
Typ.
-0.03
0.059
Typ.
+0.03 IOL : LC720DUC-SCM1

- 13 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
5 8
Edge :LC320EUD-SDA1
Edge :LC370EUD-SDA1
Edge :LC420EUF-SDA1
Edge :LC470EUF-SDA1
Edge :LC320EUD-SDP1
Edge :LC420EUD-SDP1
Edge :LC470EUF-SDP1
Edge :LC550EUF-SDP1
ALEF : LC420DUC-SDS1
ALEF : LC470DUC-SDS1
ALEF : LC550DUC-SDS1
ALEF : LC470DUT-SDA1
ALEF : LC550DUT-SDA1
IOL : LC720DUC-SCM1
8. 5 Edge :V315H3-LE8
6 12 Edge :V420H2-LE6
Gray to Gray
6 9 Edge :LC320EUN-SDV2 Edge :LC420EUN-SDV3
Edge : LC470EUE-SDV1
8 12
Edge :V315H3-LE8
Edge :LC320EUD-SDA1
Edge :LC370EUD-SDA1
Edge :LC420EUF-SDA1
Edge : LC470EUF-SDA1
8 12 Edge :LC320EUD-SDF1 Edge :LC420EUF-SDF1
Edge :LC470EUF-SDF1
8 12 ALEF : LC420DUC-SDS1
ALEF : LC470DUC-SDS1
ALEF : LC550DUC-SDS1
8 12 ALEF : LC470DUT-SDA1
ALEF : LC550DUT-SDA1
5 Response time
MPRT
8 12
ms
IOL : LC720DUC-SCM1
14 18 %
Edge :LC320EUD-SDF1
Edge :LC420EUF-SDF1
Edge :LC470EUF-SDF1
14 18 %
ALEF : LC420DUC-SDS1
ALEF : LC470DUC-SDS1
ALEF : LC550DUC-SDS1
14 18 %
ALEF : LC470DUT-SDA1
ALEF : LC550DUT-SDA1
5 3D Crosstalk
14 18 % IOL : LC720DUC-SCM1

- 14 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
6. Component Video Input (Y, CB/PB, CR/PR)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1. 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2. 720*480i 15.73 60.00 13.514 SDTV, DVD 480I(525I)
3. 3. 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
4. 720*480p 31.47 59.94 27.000 SDTV 480P
5. 720*480p 31.50 60.00 27.027 SDTV 480P
6. 720*576p 31.25 50.00 27.000 SDTV 576P
7. 1280*720 44.96 59.94 74.176 HDTV 720P
8. 1280*720 45.00 60.00 74.250 HDTV 720P
9. 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz
10. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
11. 1920*1080 33.72 59.94 74.176 HDTV 1080I
12. 1920*1080 33.75 60.00 74.25 HDTV 1080I
13. 1920*1080 26.97 23.976 74.176 HDTV 1080P
14. 1920*1080 27.00 24.000 63.36 HDTV 1080P
15. 1920*1080 33.71 29.97 79.120 HDTV 1080P
16. 1920*1080 33.75 30.00 79.20 HDTV 1080P
17. 1920*1080 56.25 50 148.5 HDTV 1080P
18. 1920*1080 67.432 59.94 148.350 HDTV 1080P
19. 1920*1080 67.5 60.00 148.5 HDTV 1080P
7. RGB Input (PC)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
PC
1. 640*350 31.468 70.09 25.17 EGA
2. 720*400 31.469 70.08 28.32 DOS
3. 640*480 31.469 59.94 25.17 VESA(VGA)
4. 800*600 37.879 60.31 40.00 VESA(SVGA)
5. 1024*768 48.363 60.00 65.00 VESA(XGA)
6. 1360*768 47.712 60.015 85.50 VESA(WXGA)
7. 1920*1080 66.587 59.94 138.50 WUXGA (Reduced Blanking)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 15 -
8. HDMI input (DTV)
9. HDMI input (PC)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1. 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2. 720*480i 15.73 60.00 13.514 SDTV, DVD 480I(525I)
3. 3. 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
4. 720*480p 31.47 59.94 27.000 SDTV 480P
5. 720*480p 31.50 60.00 27.027 SDTV 480P
6. 720*576p 31.25 50.00 27.000 SDTV 576P
7. 1280*720 44.96 59.94 74.176 HDTV 720P
8. 1280*720 45.00 60.00 74.250 HDTV 720P
9. 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz
10. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
11. 1920*1080 33.72 59.94 74.176 HDTV 1080I
12. 1920*1080 33.75 60.00 74.25 HDTV 1080I
13. 1920*1080 26.97 23.976 74.176 HDTV 1080P
14. 1920*1080 27.00 24.000 63.36 HDTV 1080P
15. 1920*1080 33.71 29.97 79.120 HDTV 1080P
16. 1920*1080 33.75 30.00 79.20 HDTV 1080P
17. 1920*1080 56.25 50 148.5 HDTV 1080P
18. 1920*1080 67.432 59.94 148.350 HDTV 1080P
19. 1920*1080 67.5 60.00 148.5 HDTV 1080P
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remark
PC
1. 640*350 31.468 70.09 25.17 EGA
2. 720*400 31.469 70.08 28.32 DOS
3. 640*480 31.469 59.94 25.17 VESA(VGA)
4. 800*600 37.879 60.31 40.00 VESA(SVGA)
5. 1024*768 48.363 60.00 65.00 VESA(XGA)
6. 1360*768 47.712 60.015 85.50 VESA(WXGA)
7. 1280*1024 63.981 60.02 109.00 SXGA Only FHD
8. 1920*1080 67.5 60 158.40 WUXGA (Reduced Blanking) Only FHD Model

- 16 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
* Only 3DTV
10. HDMI Input(1.4a)
11. HDMI Input(1.3a)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode
1 1280*720 75 50 148.5 HDTV 720P Frame packing
2 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom
3 1280*720 89.9 59.94 148.35 HDTV 720P Frame packing
90 60 148.5
4 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom
5 1920*1080 53.95 23.98 148.35 HDTV 1080P Frame packing
54 24 148.5
6 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top and Bottom
7 1920*1080 33.7 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom
8 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom
9 1920*1080 56.25 50 148.5 HDTV 1080P Side by Side(half), Top and bottom,
10 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom
11 1920*1080 28.1 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode
1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom
2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom
3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom
4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom
5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
Single Frame Sequential
8 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
Single Frame Sequential

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 17 -
ADJUSTMENT INSTRUCTION
1. Application range
This spec sheet is applied to LT12E Chassis applied LCD TV
all models manufactured in TV factory
2. Specification
2.1 Because this is not a hot chassis, it is not necessary
to use an isolation transformer. However, the use of
isolation transformer will help protect test instrument.
2.2 Adjustment must be done in the correct order.
2.3 The adjustment must be performed in the
circumstance of 25±5°C of temperature and 65±10%
of relative humidity
2.4 The input voltage of the receiver must keep
100~240V, 50/60Hz.
2.5 Before adjustment, execute Heat-Run for 5 minutes
at RF no signal.
3. Adjustment items
3.1. PCB assembly adjustment items
1) MAC Address, ESN Key and Wide-vine Key D/L
2) LAN Test( Ping-Test )
3) Main S/W program download : Using USB Memory stick
4) Input Tool - Option
5)Download EDID : EDID data are automatically
downloaded when adjusting the Tool Option.
6) ADC Calibration –RGB & Component
7) Check SW Version
3.2. SET assembly adjustment items
1) Input Area option.
2) Adjustment of White Balance : Auto
3) Adjustment of White Balance : Manual
4) Intelligent Sensor Inspection Guide
5) LAN Inspection Guide
6) Widevine Key Inspection Guide
7) Model name & Serial number D/L
8) Wi-Fi MAC Address Check
9) Local Dimming Inspection Guide
10) Preset CH information
11) Internal Press Test
12) Motion Remote controller Inspection
13) 3D Function test
14) Outgoing Condition Configuration
15) Sound spec
16) Factoring Option Data input.
4. PCB assembly adjustment method
4.1. MAC Address and ESN Key and Wide-
vine Key download
4.1.1. Equipment & Condition
1) Play file: keydownload.exe
2) Key Write: Com 1,2,3,4 and 115200 (Baudrate)
3) Barcode: Com 1,2,3,4 and 9600 (Baudrate)
4.1.2. Process
1) Execute “keydownload.exe”on PC
2) Select the download items.
3) Mode check: Online only
4) Check the test process
- DETECT MAC_WRITE ESN_WRITE WIDEVINE_WRITE
5) Play: START
6) Check of result: Ready, Test, OK or NG

- 18 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes

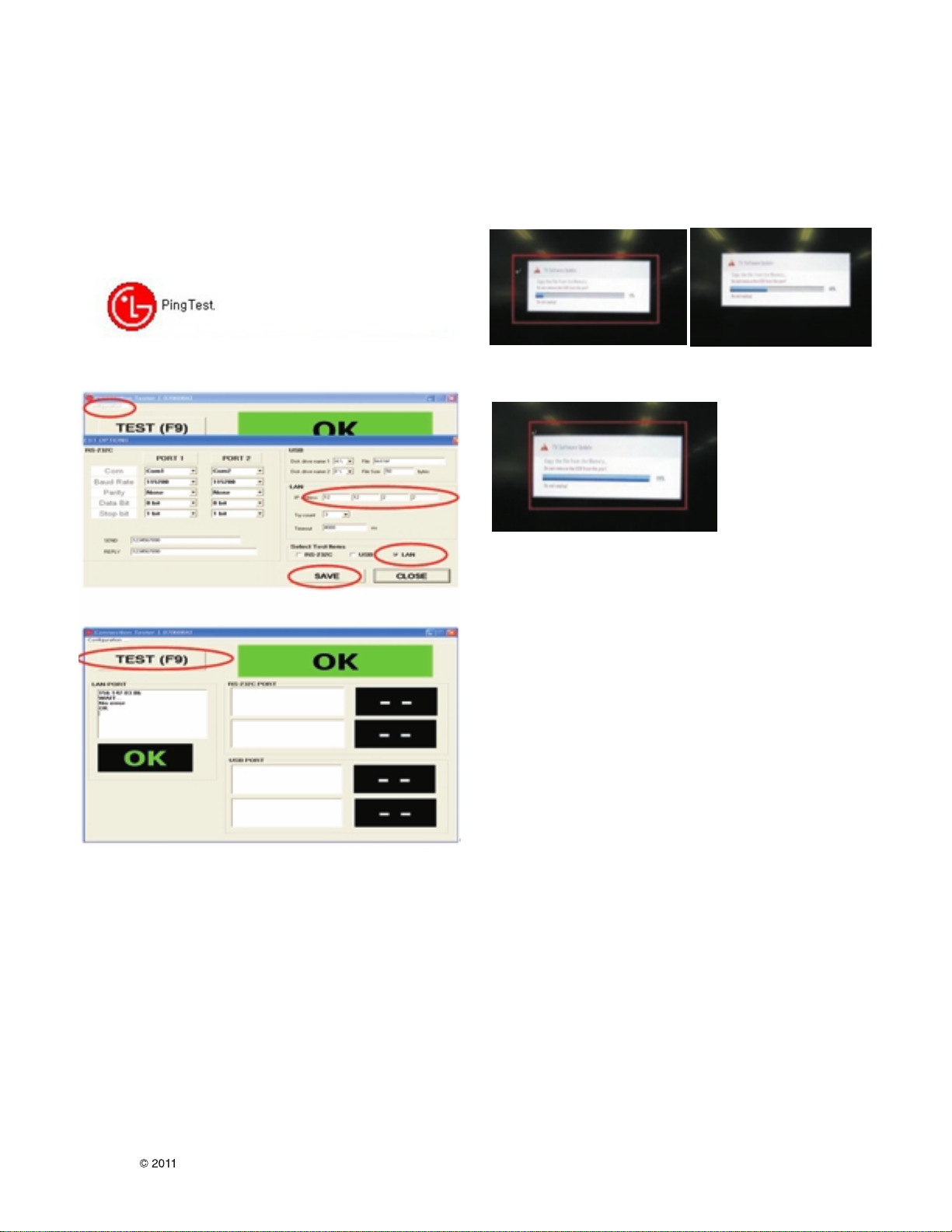

4.2. PING Test(LAN Operating Test)
4.2.1. Check PCBA
1) Connect LAN to PCBA& Power On.
2) Push ADJ key on Adjust remote-controller.
3) Enter “13. ACAP PING TEST”& check Network.
4.2.2. Check Set
1) Connect TV-Set & PC with Cross LAN cable.(PC IP :
12.12.2.3)
2) Execute “PINT Test program”, Check setting data of
program. (TV-Set IP : 12.12.2.2)
3) Push Power Only key on Adjust remote-controlle.
4) Click “RUN”, Check “OK”or “NG”
4.3. Main S/W program download
4.3.1. Using the Memory Stick
** USB DOWNLOAD : Service Mode
1) Insert the USB memory Stick to the USB port.
2) Automatically detect the SW Version.
-> S/W download process is executed automatically.
3) Show the message “Copy the file from the Memory”
4) After Finished the Download, Automatically DC Off ->
On
5) If the TV IS Turn On, Check the updated SW Version
and Tool Option.

- 19 -
4.4. Input tool option.
Adjust tool option refer to the BOM.
•Tool Option Input : PCBA Check Process
•Area Option Input : Set Assembly Process
After Input Tool Option and AC off
Before PCBA check, you have to change the Tool option and have to AC off/on (Plug out and in)
(If missing this process, set can operate abnormally)
4.4.1. Profile : Must be changed the option value because being different with some setting value depend on module maker, inch
and market
4.4.2. Equipment : adjustment remote control.
4.4.3. Adjustment method
- The input methods are same as other chassis.(Use ADJ Key on the Adjust Remocon.)
(If not changed the option, the input menu can differ the model spec.)
Refer to Job Expression of each main chassis ass’y (EBTxxxxxxxx) for Option value
Caution : Don’t Press “IN-STOP”key after completing the function inspection.
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
MODEL 55LW9500 47LW9500
Tool Option1 33115 33112
Tool Option2 5461 5461
Tool Option3 3327 3327
Tool Option4 35003 35003
Tool Option5 47695 47695
Tool Option6 697697
MODEL 55LW7700 47LW7700
42LW7700
Tool Option1 33083 33080 33078
Tool Option2 5461 5461 5461
Tool Option3 3327 3327 3327
Tool Option4 51387 51387 51387
Tool Option5 47693 47693 47693
Tool Option6 665 665 665
35044
3299635046
32998
33000
MODEL 55LV5500 47LV5500 42LV5500
LGD 42LV5500 CMI 32LV5500 LGD 32LV5500 CMI
Tool Option1 33003
Tool Option2 1365 1365 1365 1365 1365 1365
Tool Option3 3327 3327 3327 3327 3327 3327
Tool Option4 17593 17593 17593 17594 17594 17594
Tool Option5 8789 8789 8789 87898717 8717
Tool Option6 665 665 665 665 665 665
MODEL 47LW5700
42LW5700
32LW5700
Tool Option1 33192 33190 37284
Tool Option2 5461 5461 1365
Tool Option3 3327 3327 3327
Tool Option4 17593 17593 17594
Tool Option5 14933 14933 14933
Tool Option6 729 729 729
MODEL 72LZ9700 47LV3700 42LV3700 32LV3700
Tool Option1 33231 440 438 436
Tool Option2 13718 1495 1495 1495
Tool Option3 3327 33273327 3327
Tool Option4 43195 1759417593 17594
Tool Option5 47693 8789 8789 8789
Tool Option6 665 649649 649

- 20 -
4.5. EDID D/L method
Recommend that don’t connect HDMI and RGB(D-SUB) cable when downloading the EDID. If not possible, recommend that
connect the MSPG equipment.
There are two methods of downloading the edid data
4.5.1. 1st Method
EDID datas are automatically downloaded when adjusting the Tool Options. Automatically downloaded when pushing the enter key
after adjusting the tool option5. It takes about 2seconds.
4.5.2. 2nd Method
•Caution : Must be checked that the tool option is right or not. If tool option is wrong, hdmi edid data could not be downloaded well.
1) Press the ADJ key
2) Move to the 10. EDID D/L and Press the right direction key(G)
3) Press the right direction key(G) at Start.
4) After about a few seconds, appear “Waiting..”=> “OK”, then compele.
4.5.3. RS-232C command Method
1) Command : AE 00 10
•Caution : Don’t connect HDMI and RGB(D-SUB) cable when downloading the EDID. If the cables are connected, Downloading of
edid could be failed.
4.5.4. EDID data
4.5.4.1. Non-3D M0DEL(LV5500)
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
** Analog(RGB): 128bytes
G0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 98
** HDMI 1 : 256Bytes
G0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 10 00
A0 B8 2D E3 05 03 01 01 1D 80 18 71 1C 16 20 58 2C
B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A 20
C0 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71 38
D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0
E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D9
** HDMI 2 : 256Bytes
G0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 20 00
A0 B8 2D E3 05 03 01 01 1D 80 18 71 1C 16 20 58 2C
B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A 20
C0 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71 38
D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0
E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C9
G
G
