LG 55LA8600 User manual

Life's Good
iiii_ii _i i
r',w N Et_,_S MA*" UAL
LED
" LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
55LA8600
60LA8600
P/NO : MFL67652602 (1304-REV01) www.Jg.com

2 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your
product.
WARNING/CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing)instructions in the literature
accompanying the appliance.
WARNING/CAUTION
-TO REDUCE THE RiSK OF FiRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
tf you ignore the warning message, you may be
seriously injured or there is a possibility of accident
or death.
_ CAUTION
if you ignore the caution message, you may be
stightly injured or the product may be damaged.
NOTE
The note helps you understand and use the product
safely. Please read the note carefully before using
the product.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after hand/ing.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat,
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ by
country).
Do not press strongly upon the panel with a hand or
a sharp object such as a nail, pencil or pen, or make
a scratch on it.

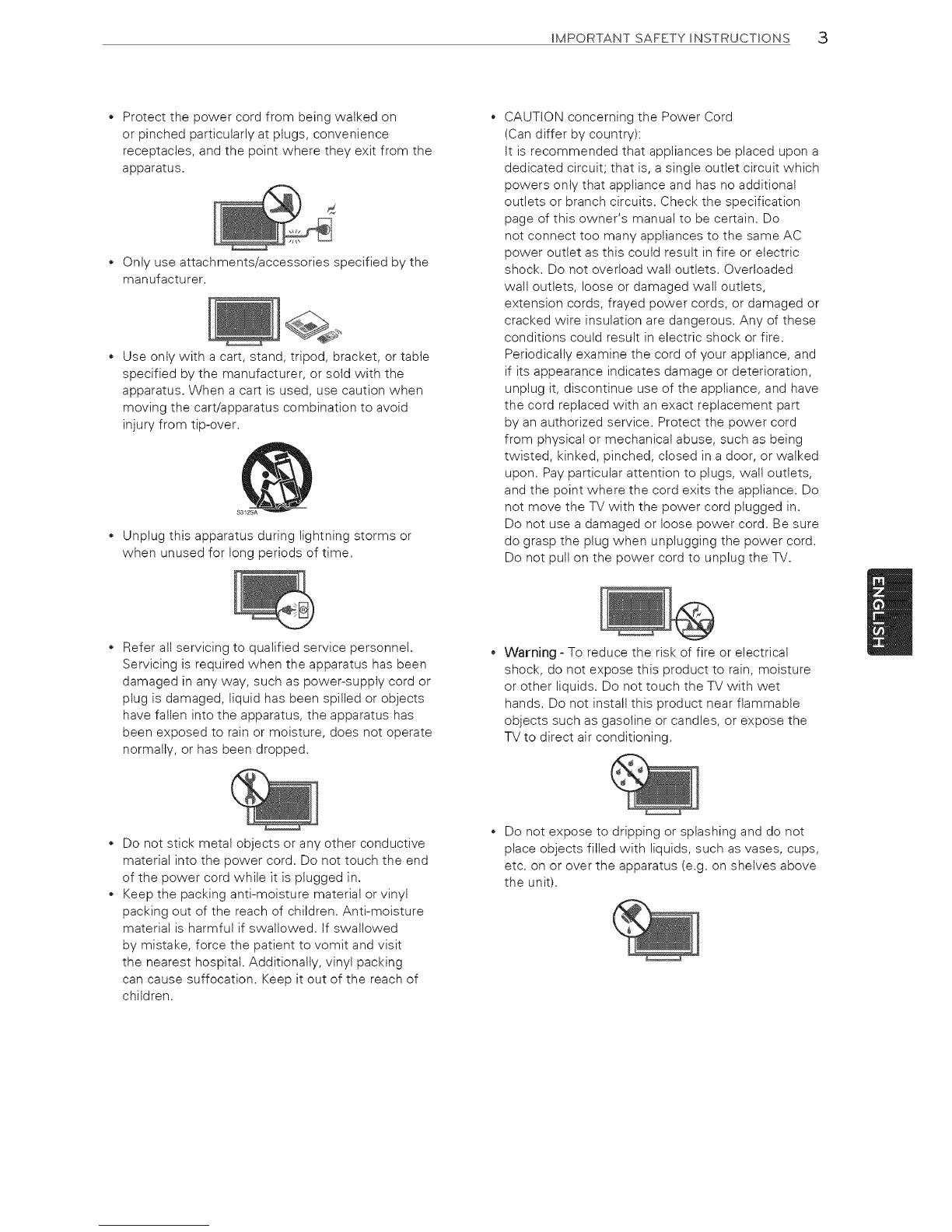

IMPORTANT SAFETY INSTRUCTIONS 3
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
d
Only use attachments/accessories specified by the
manufacturer.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be placed upon a
dedicated circuit; that is, a single outlet circuit which
powers only that appliance and has no additional
outlets or branch circuits. Check the specification
page of this owner's manual to be certain. Do
not connect too many appliances to the same AC
power outlet as this could result in fire or electric
shock. Do not overload wall outlets. Overloaded
wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and
if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part
by an authorized service. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance. Do
not move the TV with the power cord plugged in.
Do not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power cord.
Do not pull on the power cord to unplug the TV.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain, moisture
or other liquids. Do not touch the TV with wet
hands. Do not install this product near flammable
objects such as gasoline or candles, or expose the
TV to direct air conditioning.
Do not stick metal objects or any other conductive
material into the power cord. Do not touch the end
of the power cord while it is plugged in.
Keep the packing anti-moisture material or vinyl
packing out of the reach of children. Anti-moisture
material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit
the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
Do not expose to dripping or splashing and do not
place objects filled with liquids, such as vases, cups,
etc. on or over the apparatus (e.g. on shelves above
the unit).

4IMPORTANT SAFETY INSTRUCTIONS
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not
try to ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power Supply
As long as this unit is connected to the AC walt
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user's
authority to operate this product.
Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can come in contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges. Section 810 of the
National Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSl/NFPA 70
Antenna Discharge Unit
(NED Section 810-20)
Grounding Conductor
Ground Clamp (NED Section 810-21)
Power Service Grounding
NEC: National Electrical Code Electrode System
(NEC Art 280 r Part H)
Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the TV
as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners or benzine.
Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2 or
more people to carry larger TVs. Do not press or put
stress on the front panel of the TV.
Ventilation
Install your TV where there is proper ventilation. Do
not instalt in a confined space such as a bookcase.
Do not cover the product with cloth or other
materials while plugged. Do not install in excessively
dusty places.
If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
Keep the product away from direct sunlight.
Never touch this apparatus or antenna during a
thunder or lightning storm.
When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
Do not allow an impact shock or any objects to fan
into the product, and do not drop anything onto the
screen.
Disconnecting the Main Power
The power outlet used with this device must remain
easily accessible.
Store the accessories (battery, etc.) in a safe
location out of the reach of children.
This apparatus use batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact your
local authorities for disposal or recycling information.
Do not dispose of batteries in a fire.
Do not short circuit, disassemble or allow the
batteries to overheat.

IMPORTANT SAFETY INSTRUCTIONS .5
Dot Defect
The Plasma or LCD panet is a high technology
product with resolution of two million to six million
pixels. In a very few cases, you could see fine dots
on the screen while you're viewing the TV. Those
dots are deactivated pixets and do not affect the
performance and reliability of the TV.
Generated Sound
"Cracking" noise: A cracking noise that occurs
when watching or turning off the TV is generated by
plastic thermal contraction due to temperature and
humidity. This noise is common for products where
thermal deformation is required.
Electrical circuit humming/panel buzzing: A low level
noise is generated from a high-speed switching
circuit, which supplies a large amount of current
to operate a product. It varies depending on the
product.
This generated sound does not affect the
performance and reliability of the product.
Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or cause
defects in the product.
If the TV feels cold to the touch, there may be a
small "flicker" when it is turned on. This is normat,
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing as
tiny red, green, or blue spots. However, they have
no adverse effect on the TV's performance. Avoid
touching the LCD screen or holding your finger(s)
against it for long periods of time, Doing so may
produce some temporary distortion effects on the
screen.
If a fixed image displays on the TV screen for a long
period of time, it wilt be imprinted and become a
permanent disfigurement on the screen. This is
"image burn" or "burn-in" and not covered by the
warranty.
If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on the
letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen for
a long period of time (2 or more hours for LCD, 1
or more hours for the Plasma TV) to prevent image
burn.
For USA and Canada
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radioFV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference
and (2) this device must accept any interference
received, including interference that may cause
undesired operation of the device.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.

6 IMPORTANT SAFETY INSTRUCTIONS
Viewing 3D Imaging
© WARNING
Viewing Time
- When watching 3D content, take 5 - 15 minute
breaks every hour. Viewing 3D content for a long
period of time may cause headache, dizziness,
fatigue or eye strain.
Some users may experience a seizure or other
abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D content.
Do not watch 3D videos if you feet nauseous,
are pregnant and! or have a chronic illness such
as epilepsy, cardiac disorder, or blood pressure
disease, etc.
3D Content is not recommended for those who
suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be
experienced.
If you have strabismus (cross-eyed), amblyopia
(weak eyesight) or astigmatism, you may have
trouble sensing depth and easily feel fatigue due to
double images. It is advised to take frequent breaks
than the average adult.
If your eyesight varies between your right and left
eye, revise your eyesight prior to watching 3D
content.
Do not watch 3D content when you feel fatigue
from lack of sleep, overwork or intoxication.
CAUTION
Viewing Distance
- Maintain a distance of at least twice the screen
diagonal length when watching 3D content. If
you feet discomfort in viewing 3D content, move
further away from the TV.
infants /Children
- Usage/Viewing 3D content for children under the
age of 5 are prohibited.
- Children under the age of 10 may overreact and
become overly excited because their vision is in
development (for example: trying to touch the
screen or trying to jump into it. Special monitoring
and extra attention is required for children watching
3D content.
- Children have greater binocular disparity of 3D
presentations than adults because the distance
between the eyes is shorter than one of adults.
Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.
Teenagers
- Teenagers under the age of 19 may be stimulated
to light coming from 3D videos. Advise them not
to watch 3D videos for a long time when they are
tired.
Elderly
- The elderly may perceive less of a 3D effect than
the youth. Do not sit closer to the TV than the
recommended distance.
When these symptoms are experienced, stop using/
watching 3D content and get enough rest until the
symptom subsides.
- Consult your doctor when the symptoms persist.
Symptoms may include headache, eyeball
pain, dizziness, nausea, palpitation, blurriness,
discomfort, double image, visual inconvenience or
fatigue.
Only use LG 3D glasses. Otherwise, you may not
be abte to view 3D videos properly.
Do not use 3D glasses instead of your normal
glasses, sunglasses or protective goggles.
Using modified 3D glasses may cause eye strain or
image distortion.
Do not keep your 3D glasses in extremel high or
low temperatures. It will cause deformation.
The 3D glasses are fragile and are easy to
scratched. Use a soft, clean piece of cloth when
wiping the lenses. Do not scratch the lenses of the
3D glasses with sharp objects or clean/wipe them
with chemicals.

LICENSES /OPEN SOURCE SOFTWARE NOTICE "7
LICENSES
Supported licenses may differ by model. For more information about licenses, visit 'www.lg.com'.
[_ DOLBY Manufactured under license from Dolby Laboratories. "Dolby" and the doubte-D symbol are
DIGITALPLUS trademarks of Dolby Laboratories.
H SlNII|
_IGH-DEFINITION MUI TIMEDIA INTERFACE
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
liD
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an official DivX Certified ®device that plays DivX video. Visit divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ®device must be registered in order to
play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on
how to complete your registration.
"DivX Certified ® to play DivXe_video up to HD 1080p, including premium content."
"DivX ®, DivX Certified ®and associated Iogos are trademarks of Rovi Corporation or its
subsidiaries and are used under license."
"Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274"
dtS
2.0+Digital Out
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol
together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product
includes software. @ DTS, Inc. Atl Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit 'http://opensource.lge.com'.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping and handling) upon emait request to '[email protected]'. This offer
is valid for three (3) years from the date on which you purchased the product.

8 TABLE OF CONTENTS
TABLE OF CONTENTS
2 IMPORTANT SAFETY INSTRUCTIONS
6 Viewing 3D Imaging
7 LICENSES
7 OPEN SOURCE SOFTWARE NOTICE
8 TABLE OF CONTENTS
9 INSTALLATION PROCEDURE
9 ASSEMBLING AND PREPARING
9
11
12
13
14
14
15
16
17
18
18
18
19
Unpacking
Optional Extras
Parts and Buttons
Lifting and moving the TV
Setting up the TV
- Attaching the stand
- Mounting on a table
- Tidying cables
- Mounting on a wall
Using Built-in Camera
- Preparing Built-in Camera
- Name of Parts for the Built-In Camera
- Checking the Camera's Shooting Range
MAKING CONNECTIONS2O
20 Connecting to an antenna or cable
21 Connecting to a HD receiver, DVD Player or VCR
21 - HDMI Connection
22 - DVI to HDMI Connection
23 - Connecting to a mobile phone
24 - Component Connection
25 - Composite Connection
26 Connecting a PC
26 - HDMI Connection or DVI to HDMI Connection
2S Connecting to an Audio System
28 - Digital Optical Audio Connection
29 Connecting Headphones
29 Connecting a USB Device
3O
31
31
31
MAGIC REMOTE CONTROL
FUNCTIONS
Registering Magic Remote Control
How to use Magic Remote Control
Precautions to Take when Using the Magic
Remote Control
32 WATCHING TV
32 Turning the TV on for the first time
33 USING THE USER GUIDE
34 SPECIFICATIONS
37 EXTERNAL CONTROL DEVICE SETUP
38 MAINTENANCE
38
38
38
Cleaning Your TV
- Screen, frame, cabinet and stand
- Power cord
38 TROUBLESHOOTING
r@ NOTE
• image shown may differ from your TV.
Your TV's OSD (On Screen Disptay) may differ
slightly from that shown in this manual.
The available menus and options may differ from
the input source or product model that you are
using.
New features may be added to this TVin the
future.

INSTALLATION PROCEDURE ASSEMBLING AND PREPARING c)
INSTALLATION PROCEDURE
1
2
3
4
Open the package and make sure all the accessories are included.
Attach the stand to the TV set.
Connect an external device to the TV set.
Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
Z_ CAUTION
• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• Some models appear to have a thin film on the screen. It is actually part of the screen, do not remove it.
_ @ NOTE
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to upgrade of product
functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches)
thick and 18 mm (0.7 inches) width.
Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's
USB port.
*A "< 10 mm (0.39 inches)
*B<__ 18 mm (0.7 inches)

10 ASSEMBLING AND PREPARING
Magic Remote Control,
Batteries (AA)
(See p. 30)
Owner's Manual Power Cord
Cinema 3D Glasses
The number of 3D glasses may
differ depending on the model
or country.
Stand Screws
4EA, M4x 16
(See p. 14)
Stand Base
(See p. 14)
Cable Holder
(See p. 16) Component video cable (See p. 24) Composite video cable (See p. 24, 25)
Tag On

ASSEMBLING AND PREPARING 11
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
The model name or design may be changed manufacturer's circumstances or policies.
AN-MR400 AG-F***
Magic Remote Cinema 3D Glasses AG-F***DP Dual Play Glasses
LG Audio device Tag On AN-BL***
Wireless IR Blaster
(Depending on model)

12 ASSEMBLING AND PREPARING
Parts and Buttons
Video call camera
_Screen
Speakers control and
Intellgent sensors, 1
Logo light
Bu#ons
Button DesCription
/_ (A/V) Scrolls through the saved channels.
+/_ (+ /m) Adjusts the volume level.
(OK®) Selects the highlighted menu option or confirms an input.
S (SETTINGS) Accesses the main menus, or saves your input and exits the menus.
(INPUT 4E3) Changes the input source.
@ ((D/I) Turns the power on or off.
1,Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

ASSEMBLING AND PREPARING 13
Lifting and moving theTV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and for
safe transportation regardless of its type and size.
_ CAUTION -,
Avoid touching the screen at atl times, as this may
result in damage to the screen.
*It is recommended to move the TV in the box or
packing material that the TV originally came in.
*Before moving or lifting the TV, disconnect the
power cord and alt cables.
*When holding the TV, the screen should face away
from you to avoid damage.
Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grill area.
........ J
X x
*When transporting a large TV, there should be at
least 2 peopte.
*When transporting the TV by hand, hold the TV as
shown in the following illustration.
*When transporting the TV, do not expose the TV to
jolts or excessive vibration.
*When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left
or right.

14 ASSEMBLING AND PREPARING
Setting up theTV
You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other
furniture.
Affaching fhe sfand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
J.i CAUTmON
When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to
protect the screen from scratches.
Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward
after being installed.)
Do not tighten the screws with too much force; otherwise they may be damaged and come loose later.
F_@ NOTE
, Remove the stand before the TV wall the stand attachment in
installing on a mount by performing reverse.
zzzzzz_!_
Stand Base
Wrapping bag
(Depending on model)
\\ i
M4 x 16
........ 2 EA
M4 x 16
2 EA
zzzzzz_!_i!_

ASSEMBLING AND PREPARING 15
Mounting on a table
1Lift and tilt the TV into its upright position on a table.
-Leave a 10 cm (4 inch)(minimum)space from
the wall for proper ventilation.
10cm (4 inches)
i ii
2Connect the power cord to a wall outlet.
L,/(_ CAUTION -,,
I' Do not place the TV near or on sources of heat, as I
Swivel 8 degrees to the left oF right and adjust the angle
of the TV to suit your view.
"i.....................Jio
.-_ CAUTION
installthe product on a flatsurface for easy swivel.
Make sure to use the TV cabinet or stand that can
properly support the TV.
After installingthe TV, the angle of the screen can
be adjusted to the leftor right.
When adjusting the angle, make sure there are
no objects near the TV and the TV has enough
distance from the wail.A space of at least5 cm
on the frontand I0 cm on the back should be
available.Otherwise, the product could falldue to
balance problems, which may cause personal injury
or damage to the product.

16 ASSEMBLING AND PREPARING
(Depending on model)
Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position,
remove the bolts first.
2Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
3Connect the eye-bolts and wall brackets tightly with
a sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.
LA CAUTION
I' Make sure that children do not climb on or hang on
L the TV.
@ NOTE
Use a platform or cabinet that is strong and large
enough to support the TV securely.
Brackets, bolts and ropes are optional. You can
obtain additional accessories from your local dealer.
Tidying cables
1Gather and bind the cables with the cable holder on
the back of theTV.
2
Cable Holder
Gather and bind the cables with the cable
management clip.
/\] U
Cable Management Clip
_.,_ CAUTION
Do not move the TV by holding the cable holder
and cable management clip, as the cable holders
may break, and injuries and damage to the TV may
Occur.

ASSEMBLING AND PREPARING 17
Mounting on a wall
An optional wall mount can be used with your LG
Television. Consult with your local dealer for a wall
mount that supports the VESA standard used by your
TV model. Carefully attach the wall mount bracket at the
rear of the TV. Install the wall mount bracket on a solid
wall perpendicular to the floor. If you are attaching the
TV to other building materials, please contact qualified
personnel to install the walt mount. Detailed instructions
wilt be included with the walt mount. We recommend
that you use an LG brand wall mount.
Make sure to use screws and wall mounts that meet the
VESA standard. Standard dimensions for the wall mount
kits are described in the following table.
VESA (A x B)
, oB
Standard screw
Number of screws
Wall mount bracket
(optional)
VESA (A x B)
,
Standard screw
Number of screws
Wall mount bracket
(optional)
55LA8600
400 x 400
M6
4
MSW240
LSW430B
60LA8600
400 x 400
M6
4
LSW430B
e Wall mount bracket (optional)
LSW430B
MSW240
_ CAUTION
Disconnect the power before moving or installing
the TV. Otherwise electric shock may occur.
If you install the TV on a ceiling or slanted waN, it
may fatl and result in severe injury.
Use an authorized LG wall mount and contact the
local dealer or qualified personnel.
Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
Use the screws and wall mounts that meet the
VESA standard. Any damages or injuries by misuse
or using an improper accessory are not covered by
the warranty.
-@ NOTE
Use the screws that are listed in the VESA
standard screw specifications.
The wati mount kit incJudes an installation manual
and necessary parts.
The wan mount bracket is optional. You can obtain
additional accessories from your local dealer.
The length of screws may differ depending on the
wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied
with the wail mount.

]8 ASSEMBLING AND PREPARING
Using Built-in Camera
You can make a Skype video call or use the motion
recognition function using the built-in camera of the TV.
This TV does not support the use of an external camera.
.@ NOTE
Before using the built-in camera, you must
recognize the fact that you are legally responsible
for the use or misuse of the camera by the relevant
national laws including the criminal law.
The relevant taws include the Personal Information
Protection law which regulates the processing
and transferring of personal information and the
law which regulates the monitoring by camera in a
workplace and other places.
When using the built-in camera, the user must gain
consent from the persons being observed. Please
avoid using the camera in the following manner.
We suggest avoiding the following situations:
(1) Using the camera in areas where the use of
camera is generally prohibited such as restroom,
locker room, fitting room and security area.
(2) Using the camera while causing the
infringement of privacy.
(3) Using the camera while causing the violation of
the relevant regulations or laws.
Preparing Built-in Camera
1. Pull up the slide at the back of the TV.
2You can adjust the angle of the camera with the
angle adjustment lever on the back of the built-in
camera (within 5 degrees vertically).
3 Pull down the built-in camera when you are not using
it.
Slide
Name ot: Parts for the Builf-ln Camera
Microphone
Indicator
CameraLen.i s j I
-@ NOTE
Remove the protective film before using the built-
in camera.

Checking the Camera's Shooting Range
ASSEMBLING AND PREPARING 19
1Press the SMART button on the remote controt to
display the More menu.
2Select Settings from the More menu and then press
the wheel (OK) button.
3 Go to OPTION _ Camera Setting Help and press
the wheel (OK) button.
(-@ NOTE -,_
I • The optimal distance from the camera to use the
/ motion recognition function is between 1.5(5 ft)

20 MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs,
audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external
device's connection, refer to the manual provided with each device.
----@ NOTE
*If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the
TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the
connected device.
,The external device connections shown may differ slightly from illustrations in this manual.
,Connect external devices to the TV regardless of the order of the TV port.
o If you connect a gaming device to the TV, use the cable supplied with the gaming device.
o Refer to the external equipment's manual for operating instructions.
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from
the actual items and a RF cable is optional.
VHF Antenna
_UHF Antenna
Antenna
(*Not Provided)
Coaxial (750)
e
Terminal
"_Z_ CAUTION
Make sure not to bend the copper wire of the RF
cable.
Copper wire
*Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
..i@ NOTE
Use a signal splitter to use more than 2 TVs.
Visit http://Igknowledgebase.com for more
information about the antenna and cabte
connection. Search for antenna.
DTV Audio Supported Codec: MPEG, Dolby Digital.
