OWNER’S MANUAL
LCD TV
Please read this manual carefully before operating
your set and retain it for future reference.
P/NO: MFL59868613 (1003-REV06)
Printed in Korea

HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC

1
ACCESSORIES
ACCESSORIES
Ensure that the following accessories are included with your TV
If an accessory is missing, please contact the dealer where you purchased the TV
■
Here shown may be somewhat different from your TV
Owner’s Manual Batteries
Remote ControlPower Cord
Polishing Cloth
Polishing cloth for use on the screen.
his item is not included for all models.
* Lightly wipe any stains or fingerprints on
the surface of the V with the polishing
cloth.
AVMODEVMODE ENERGYENERGYSASAVINGVING
RETURN
MENU
Q.MENU
MARK
MUTEMUTE
POWERPOWER
LISTLIST
Q.VIEWQ.VIEW
RARATIOTIO
FAV
AVMODE ENERGYSAVING
MUTE
LIST
Q.VIEW
Bolts for stand assembly
(Refer to p.6)
x 4
Protection cover
(Refer to p.7)
1-screw for stand fixing
(Refer to p.6)
Wall Mounting Bracket(Separate purchase)
RW230
(26/32LH2***)
AW-47LG30M
(32/37/42LH2***)
Protective Bracket and
Bolt for Power Cord
(Refer to p.6)
Do not use excessive force. his may
cause scratching or discolouration.
Dual Lock™
( his item is not included
for all models. )
(Refer to P7)

CONTENTS
2
CONTENTS
ACCESSORIES 1
PREPARA ION
Front Panel Controls 4
Back Panel Information 5
Stand Installation 6
Not Using the desk-type stand 6
Attaching the TV to a desk 6
How to secure the power cable 6
Back Cover for Wire Arrangement 7
Swivel Stand 7
How to use Dual Lock™ 7
Careful Installation Advice 8
Desktop Pedestal Installation 8
Wall Mount: Horizontal Installation 9
Kensington Security System 9
Antenna Connection 10
EX ERNAL EQUIPMEN SE UP

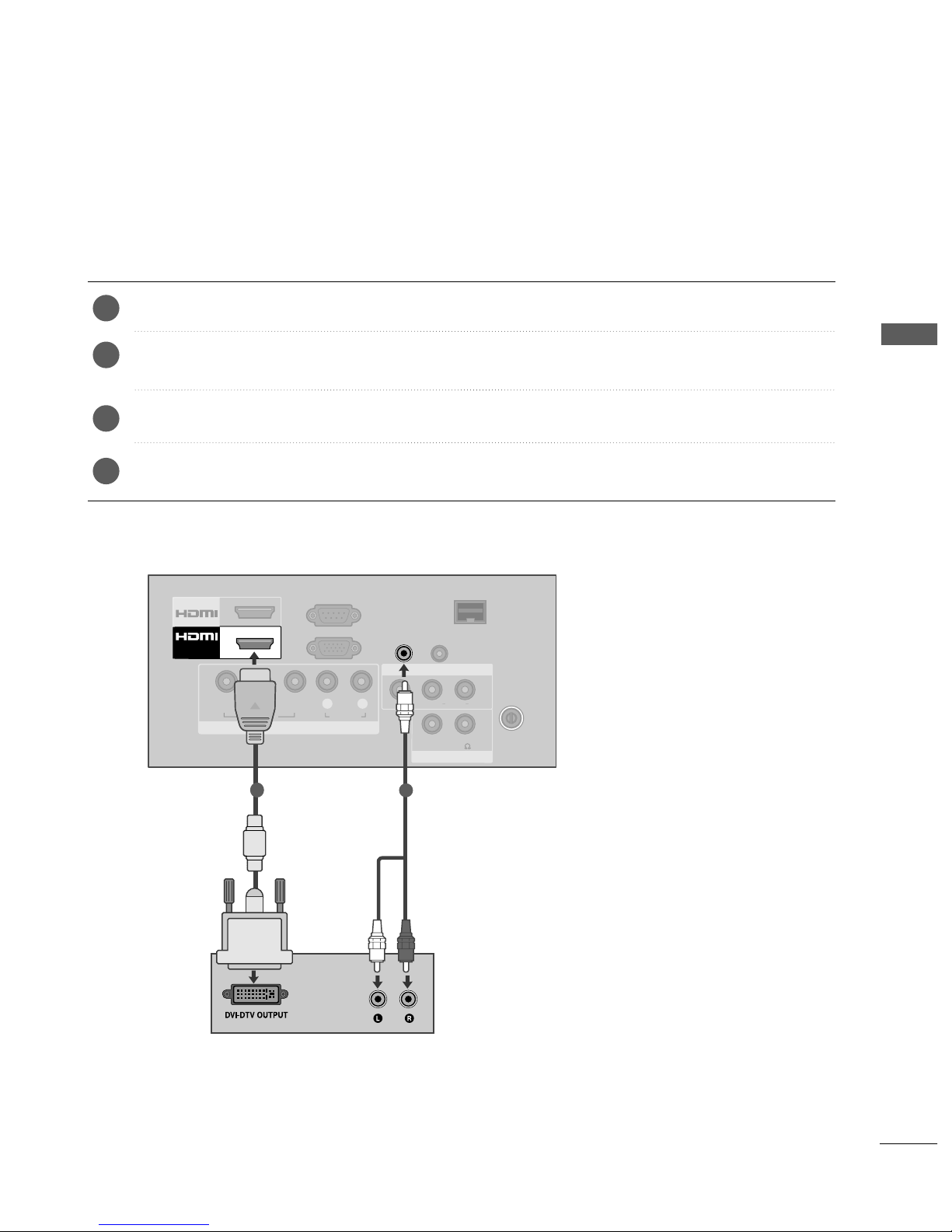

HD Receiver Setup 11
DVD Setup 14

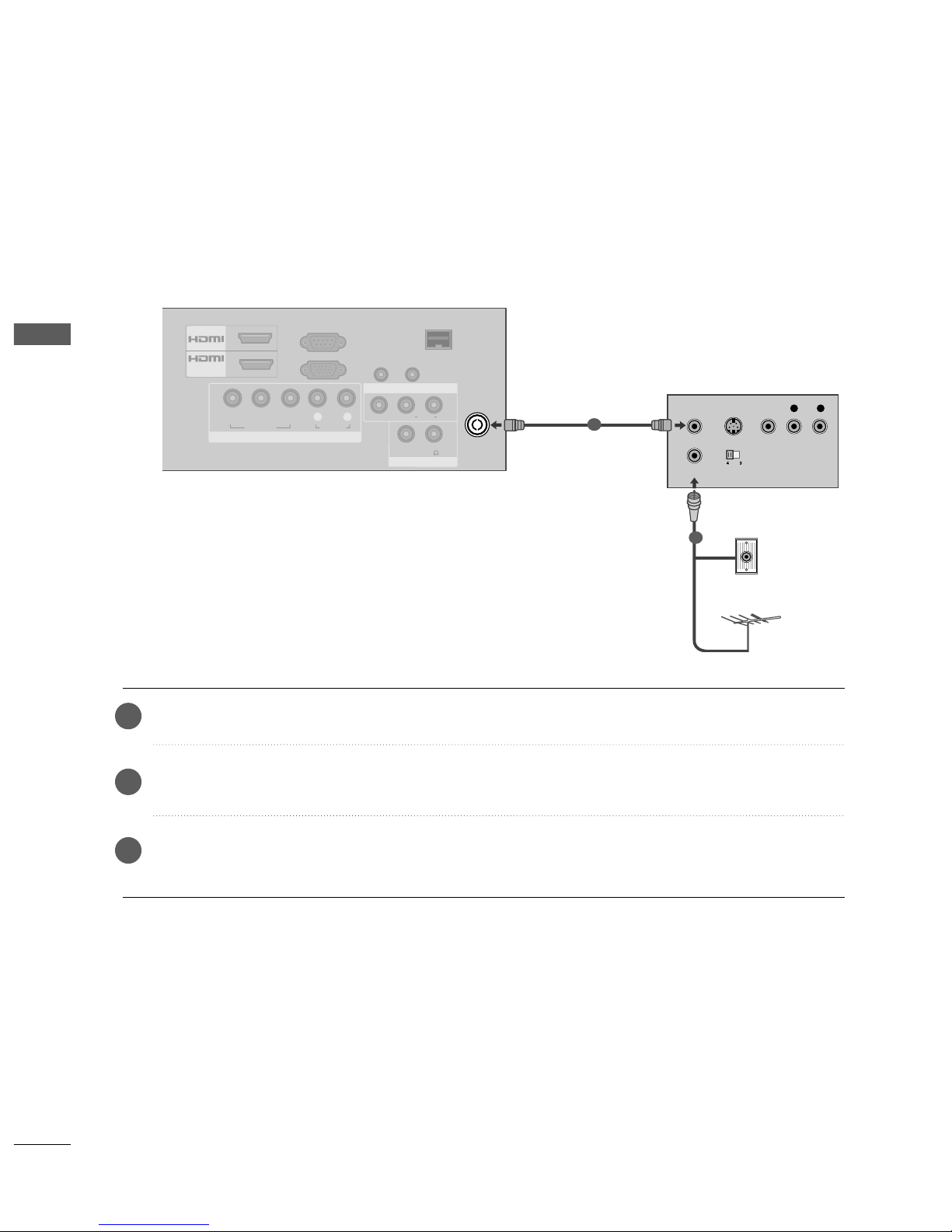

VCR Setup 16

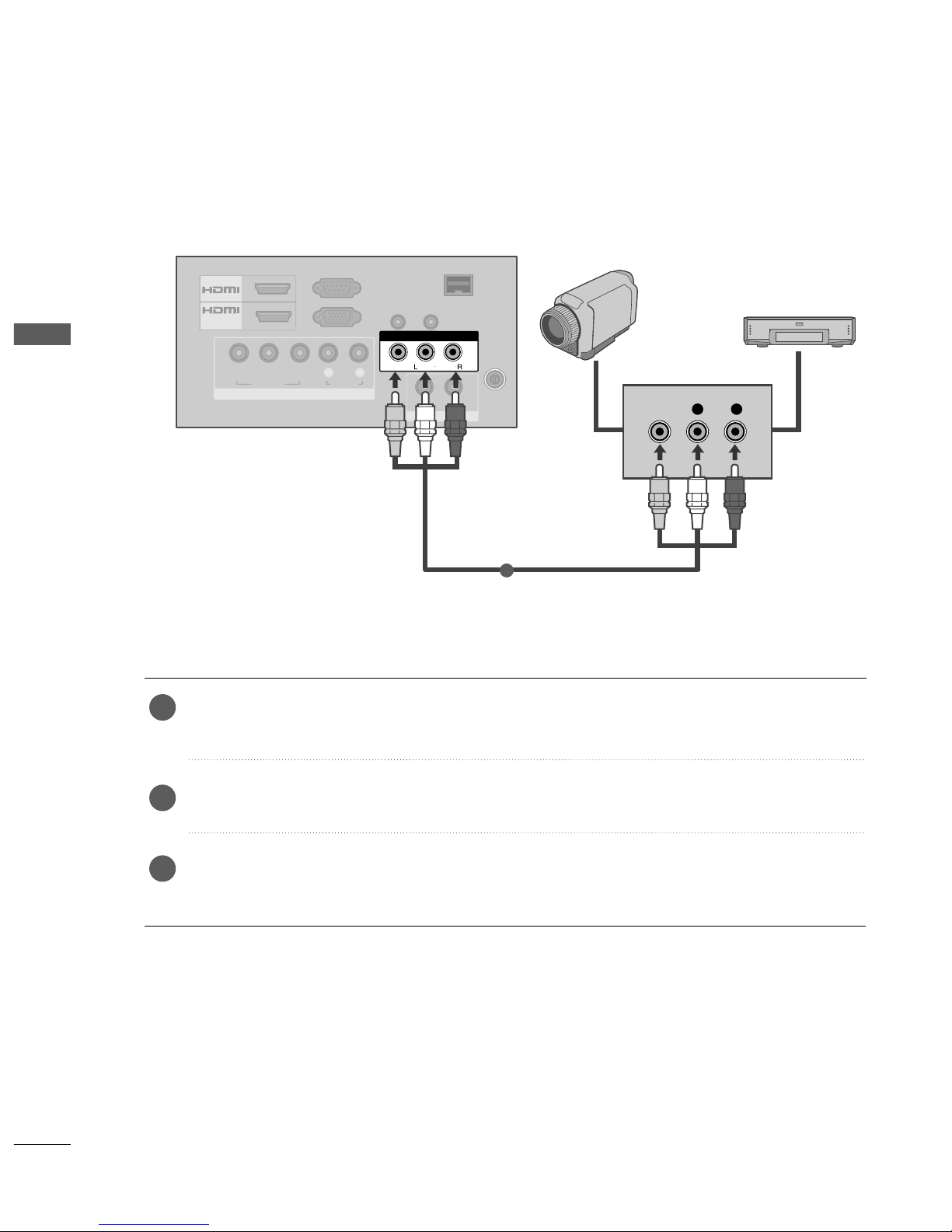

Other A/V Source Setup 18
USB In Setup 19
Speaker Output Setup 19
PC Setup 20
- Screen Setup for PC Mode 22
WA CHING V / PROGRAMME CON ROL
Remote Control Key Functions 26
Turning on the TV 28
Programme Selection 28
Volume Adjustment 28
Quick Menu 29
On-Screen Menus Selection and Adjustment 30
Auto Programme Tuning 31
Manual Programme Tuning 32
Programme Edit 34
Selecting the Programme List 36
Favourite Programme Setup 37
Input List 38
Input Label 39
40
Key Lock 43
Initializing(Reset to original factory settings) 44
AV Mode 45
O USB A USB DEVICE
When connecting the USB device 46
Photo List 48
Music List 52
Movie List 55
Divx Registration Code 58
Deactivation 59
PIC URE CON ROL
Picture Size (Aspect Ratio) Control 60
Energy Saving 62
Preset Picture Settings
- Picture Mode-Preset 63
Manual Picture Adjustment
- Picture Mode-User option 64
Picture Improvement Technology 65
Expert Picture Control 66
Picture Reset 69
Power Indicator 69
Demo Mode 70
SOUND & LANGUAGE CON ROL
Auto Volume Leveler 71
Preset Sound Settings - Sound Mode 72
Sound Setting Adjustment - User Mode 73
SRS TruSurround XT 73
Clear Voice ll 74
Balance 75

CONTENTS
3
Audio Reset 76
I/II
- Stereo/Dual Reception 77
- NICAM Reception 78
- Speaker Sound Output Selection 78
On-Screen Menu Language Selection 79
IME SE ING
Clock Setup 80
Auto On/ Off Timer Setting 81
Sleep Timer Setting 82
ELE EX
Switch on/off 83
SIMPLE Text 83
TOP Text 83
FASTEXT 84
Special Teletext Functions 84
APPENDIX
Troubleshooting 85
Maintenance 87
Product Specifications 88
IR Codes 89
External Control Device Setup 90

PREPARATION
4
PREPARATION
FRONT PANEL CONTROLS
■
Here shown may be somewhat different from your TV
Only 32/37/42LH2***
INPUT MENU P OK
PROGRAMME
VOLUME
OK
Only 26LH2***
MENU
POWER
INPUT
INPUT
MENU
OK
P
PROGRAMME
VOLUME
OK
MENU
INPUT
POWER
Remote Control Sensor
Power/Standby Indicator
• Illuminates red in standby mode
• Illuminates blue when the TV is switched on
This is a simplified representation of the front panel

5
PREPARATION
BACK PANEL INFORMATION
■
Here shown may be somewhat different from your TV
L( MONO)
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
ANTENNA IN
L( MONO)
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
ANTENNA
IN
1
AUDIO
VIDEO
L(L(MONO)MONO)
R
AUDIOAUDIO
AV IN
SPEAKER OUT
VIDEOVIDEO
VOLUMEVOLUME
CONTROLCONTROL
STEREO\STEREO\
(8 )(8 )
ANTENNA
IN
RGB IN (PC)
RS-232C IN
(CONTROL&SERVICE)
AUDIO IN
(RGB/DVI)
RJP
INTERFACE
AUDIO
OUT
1
2
/DVI IN
COMPONENT IN
6
3
24
810
7
Power Cord Socket
This TV operates on an AC power The voltage is
indicated on the Specifications page Never
attempt to operate the TV on DC power
HDMI Input
Connect a HDMI signal to HDMI IN
Or DVI(VIDEO)signal to HDMI/DVI port with DVI
to HDMI cable
RS-232C IN PORT
Connect to the RS-232C port on a PC
This port is used for Service or Hotel mode
RGB Input
Connect the output from a PC
RGB/DVI Audio Input
Connect the audio from a PC
Audio Output
Connect to the Home Theater (or amp)
RJP INTERFACE
Connect control line (RJ45) for RJP(Remote Jack pack)
Component Input
Connect a component video/audio device to these
jacks
Audio/Video Input
Connect audio/video output from an external
device to these jacks
SPEAKER OUTPUT(STEREO)
The phone socket for external speaker is on this
jack
Antenna Input
Connect RF antenna to this jack
USB IN Input
Connect USB storage device to this jack
1
2
3
4
5
6
8
9
10
11
7
5
11
L(MONO)
R
AUDIO
VIDEO
VOLUME
CONTROL
STEREO\
(8 )
ANTENNA
IN
USB IN
12
12
9

6
PREPARATION
PREPARATION

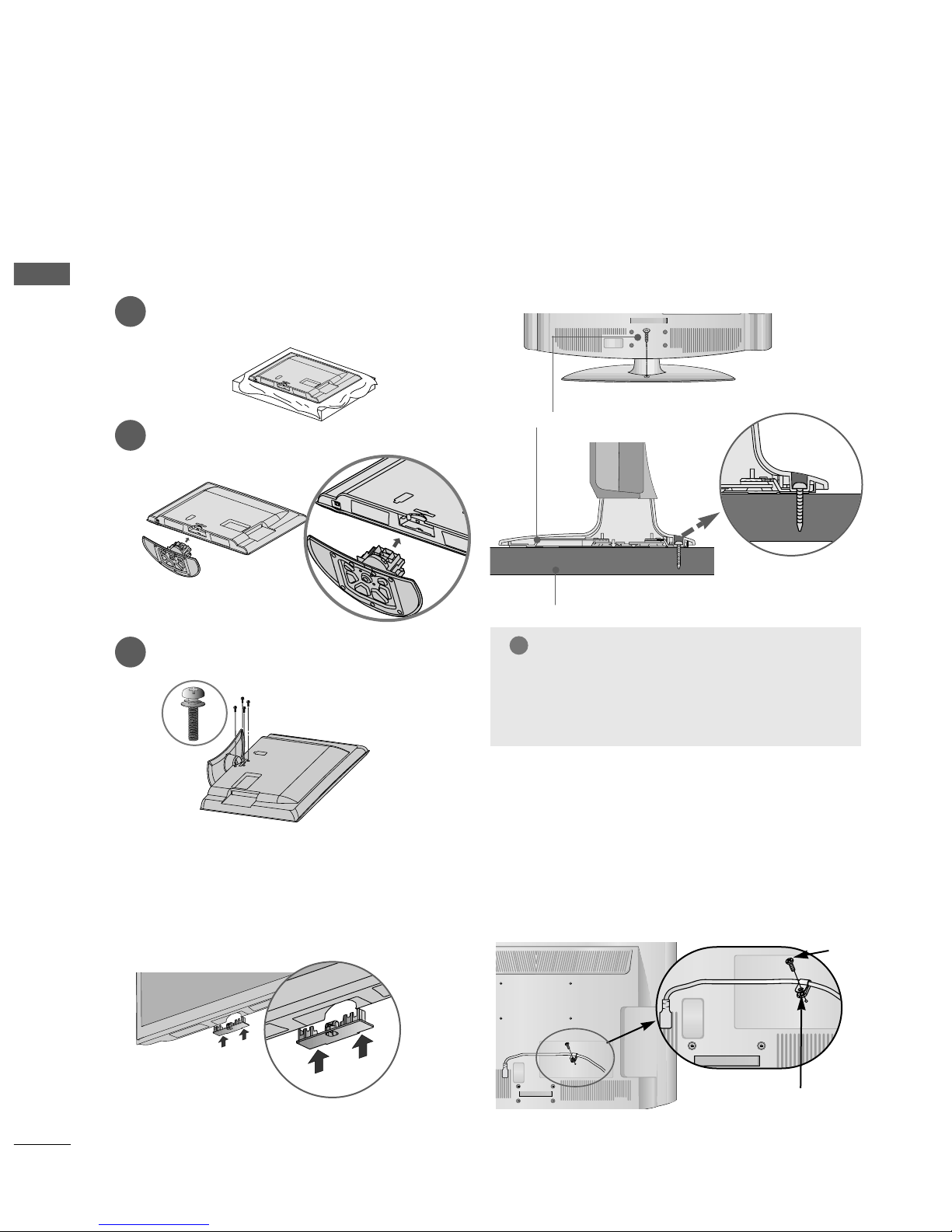

STAND INSTALLATION
■
Here shown may be somewhat different from your TV
When assembling the desk type stand, check whether the
bolt is fully tightened (If not tightened fully, the product
can tilt forward after the product installation ) If you tight-
en the bolt with excessive force, the bolt can deviate from
abrasion of the tightening part of the bolt
1
2
3
Carefully place the TV screen side down on a cushioned
surface to protect the screen from damage
Assemble the TV as shown
Fix the 4 bolts securely using the holes in the
back of the TV
ATTACHING THE TV TO A
DESK
■
Here shown may be somewhat different from your TV
The TV must be attached to desk so it cannot be pulled
in a forward/backward direction, potentially causing
injury or damaging the product Use only an attached
screw
1-Screw (provided as parts of the product)
Desk
Stand
WARNING
!
G To prevent TV from falling over, the TV should be
securely attached to the floor/wall per installation
instructions Tipping, shaking, or rocking the
machine may cause injury
PRO EC IVE BRACKE
Bolt
Secure the power cable with the PRO EC IVE BRACKE and
the bolt as shown It will help prevent the power cable from
being removed by accident
HOW TO SECURE THE
POWER CABLE
■
Here shown may be somewhat different from your TV
When installing the wall-mounted unit, use the pro-
tection cover
NOT USING THE DESK-TYPE
STAND
Insert the PPRROOTTEECCTTIIOONN CCOOVVEERRinto the TV until
clicking sound

7
PREPARATION

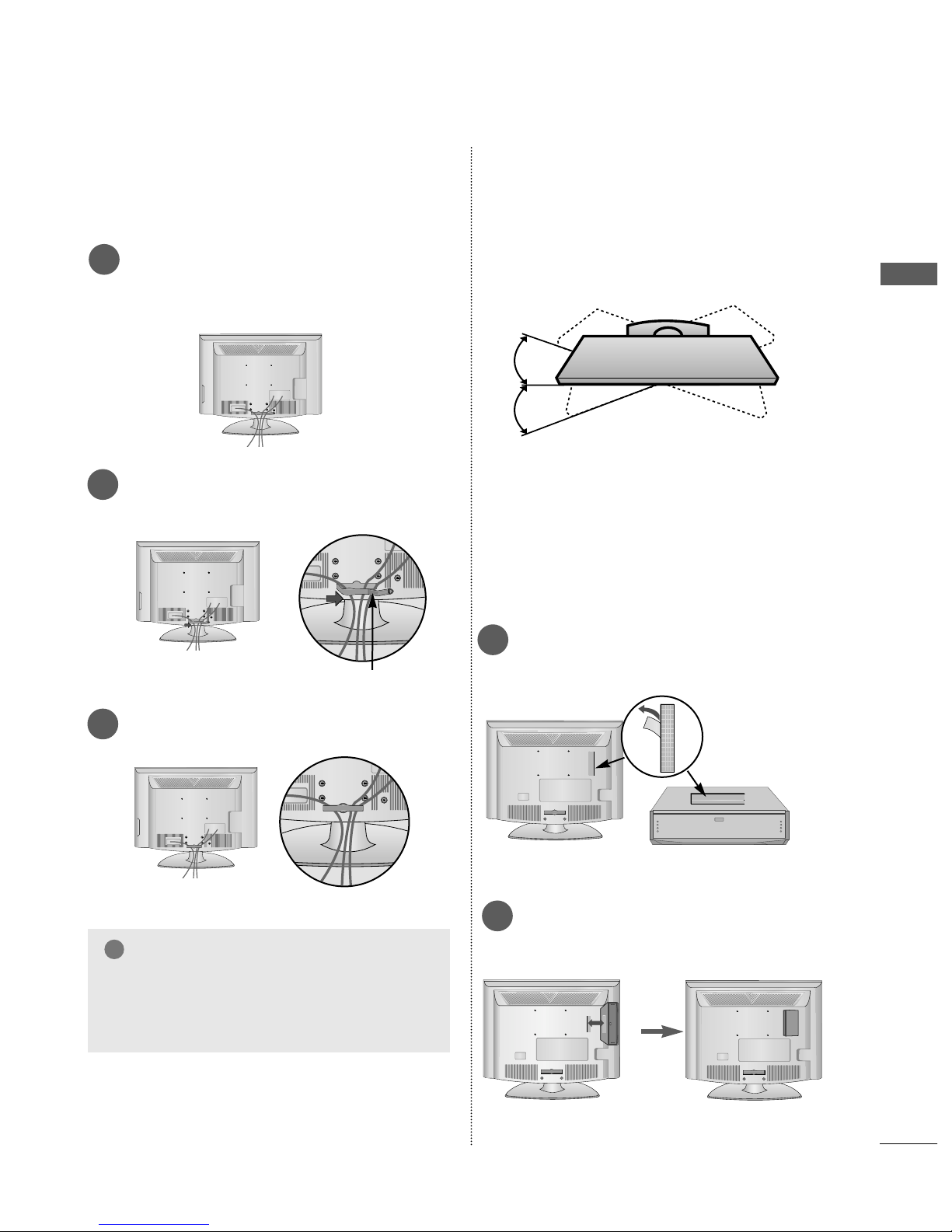

BACK COVER FOR WIRE
ARRANGEMENT
■
Here shown may be somewhat different from your TV
Connect the cables as necessary
To connect additional equipment, see the External
Equipment Setup section of the manual
1
Open the CCAABBLLEE MMAANNAAGGEEMMEENNTT CCLLIIPPas
shown and manage the cables
2
CABLE MANAGEMENT CLIP
Fit the CCAABBLLEE MMAANNAAGGEEMMEENNTT CCLLIIPPas shown
3
GGDo not hold the CABLE MANAGEMEN CLIP
when moving the TV
- If the TV is dropped, you may be injured or the
TV may be damaged
NO E
!
HOW TO USE DUAL LOCK™
(This feature is not available for all
models )
Fix the set-top box to the TV and use it when you
want to
After removing the protection paper from the
Dual Lock, stick it to the TV and the set-top
box as shown
Attach the set-top box to the TV by pressing the
Velcro strips together
SWIVEL STAND
■
This feature is not available for all models
■
After installing the TV, you can adjust the TV manually
to the left or right direction by 20 degrees to suit your
viewing position
1
2

8
PREPARATION
PREPARATION
AThe TV can be installed in various ways such as on
a wall, or on a desktop etc
A The TV is designed to be mounted horizontally
Power Supply
Circuit breaker
EAR HING
Ensure that you connect the earth wire to prevent pos-
sible electric shock If grounding methods are not pos-
sible, have a qualified electrician install a separate cir-
cuit breaker
Do not try to earth the TV by connecting it to tele-
phone wires, lightening rods or gas pipes
10 c m
10 c m 10 c m 10 c m
DESKTOP PEDESTAL INSTALLATION
For adequate ventilation allow a clearance of 10cm
all around the TV

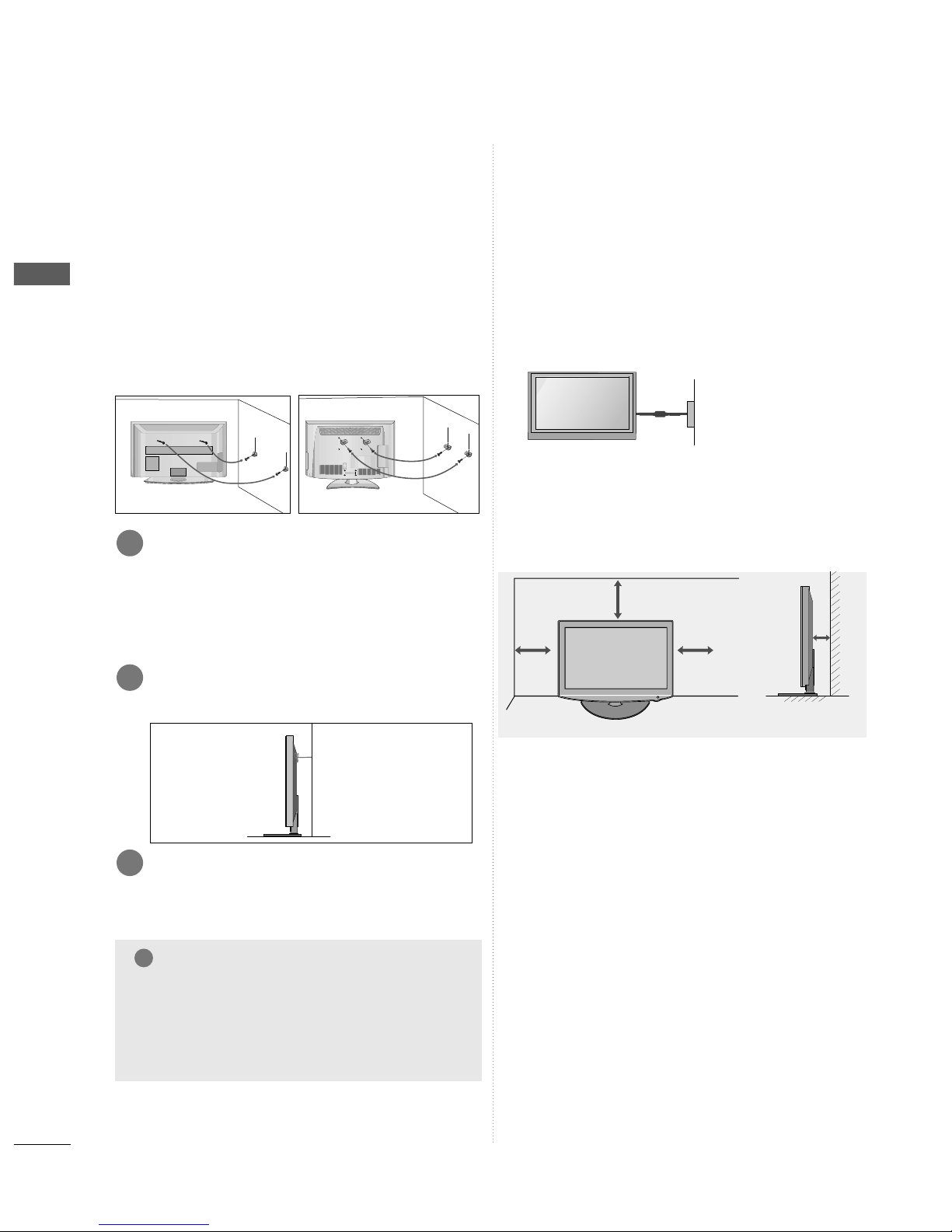

CAREFUL INSTALLATION ADVICE
AYou should purchase necessary components to fix the TV
safety and secure to the wall on the market
APosition the TV close to the wall to avoid the possibility
of it falling when pushed
AThe instructions shown below are a safer way to set up
the TV, by fixing it to the wall, avoiding the possibility of
it falling forwards if pulled This will prevent the TV from
falling forward and causing injury This will also prevent
the TV from damage Ensure that children do not climb or
hang from the TV
NO E
!
G When moving the TV undo the cords first
G Use a platform or cabinet strong and large enough to
support the size and weight of the TV
G To use the TV safely make sure that the height of the
bracket on the wall and on the TV is the same
3
1
2
Use the eye-bolts or TV brackets/bolts to fix the prod-
uct to the wall as shown in the picture
(If your TV has bolts in the eyebolts, loosen then
bolts )
* Insert the eye-bolts or TV brackets/bolts and tight-
en them securely in the upper holes
Secure the wall brackets with the bolts on the wall
Match the height of the bracket that is mounted on the
wall
3
Use a sturdy rope to tie the product for alignment It
is safer to tie the rope so it becomes horizontal
between the wall and the product
2
1
2
1
