LG EzSign 32LD452B User manual

LCD TV
www.LGsolutions.com
•I VISIBLE SPEAKER SYSTEM
Hidden speaker grilles
•LG'S EXCLUSIVE XD E GI E®
• Multi Remote IR Code
• USB 2.0 Media Host for photos and music
•USB CLO I G
•CLEAR VOICE II
• REAL CI EMA™
• 2 HDMI™ I PUTS WITH HDCP
V.1.3 with deep color
• 2 year Limited Warranty (parts and labor)
LCD Comm rcial Wid scr n Th LG EzSign TV
FEATURES
•Digital Signage Function with Free S/W
•Public Display Settings - Cloning Capable
• EcoSmart™
Energy Saving Levels
• RoHS COMPLIA T
• Auto Sensing Remote Jack Pack (RJP)
Compatible*
• Pro:Centric™ ST
• DY AMIC CO TRAST RATIO 60,000:1
• ATIVE DISPLAY RESOLUTIO
1920 x 1080 full HD 1080p (42”/47” class)
1366 x 768 (32” class)
• BUILT-I ATSC/ TSC/QAM CLEAR TU ER
The Best Award winner from the Commercial Integrator magazine for digital signage hardware, the LG EzSign TV is an innovation
in digital signage that can entertain while maximizing the impact of your message. Create your own signage content by using your
PC and the free EzSign software. Transfer that content by using a USB drive and plug it in to the EzSign TV to run content in the
form of a billboard - no additional hardware is needed. Advertisement, information, and a live television broadcast can be arranged
on the same screen to attract attention and deliver specific messaging to your customers.
47LD452B
42LD452B
32LD452B
*NOTE: Contact your LG Sales representative on the RJPs that are
compatible with the LD452B series.
The estimated annual energy cost determined in accordance with 16 CFR Part 305.5
for models 47LD452B, 42LD452B, & 32LD452B are $26, $20, & $15, respectively.
“Your energy cost depends on your utility rates and use. The estimated cost is based
on 11 cents per kWh and 5 hours of use per day. For more information, visit
www.ftc.gov/energy.”1
1FTC Television labeling rule (18 CFR Part 305, as added by 76 Fed. Reg. 1038 (Jan 6, 2011)).
LGE091108 SPEC_LD452B_Layout 1 9/14/11 10:22 AM Page 1

•EcoSmart
Energy Saving Levels - Manually select your choice for the brightness
level for the television.
•RoHS Compliant - Meets directive on restriction of hazardous
substances.
L FE’S GOOD...
WHEN T’s GREEN.
LG is committed to improving product
development, manufacturing and usage to
meet the demand for environmentally
friendlier products. Our LD452B televisions
have technologies to reduce power
consumption and in return increase cost
savings per room. We’ve also placed limits
in the amounts of harmful materials used in
these televisions.
VARIETY - Pick and choose from a broad range of template designs
The LG EzSign TV gives you the power to choose and change according
to your needs.
LG EZSIGN SOFTWARE - Simple 4 step procedure
Manually select your choice for the brightness level for the television. By
selecting Minimum, Medium, or Maximum, the power consumption will
be reduced and an increase in energy savings can be achieved. (Note:
Selecting minimum level may slightly increase power consumption on some models)
ENERGY SAVING LEVELS
CONNECTIVITY
As a versatile addition to the TV viewing experience, LG's optional
autosensing Remote Jack Packs (RJP)*, can serve as a multimedia hub
that can be installed conveniently on a table or in a wall. Connect
portable devices such as a laptop, mp3 player, or a digital camera to
display images, play video or music from the set.
FAST AND EASY - Edit content quickly and easily
Select one of the pre-installed content templates.
Apply images and add texts on it. t’s that simple.
CUSTOMIZED TO YOUR NEEDS - Signage content can
be specific to your business
The LG EzSign TV allows you to create your own signage
content and make revisions on the fly.
COST EFFECTIVE
No need to buy a media player - Create your own signage content by
using your PC and the free EzSign software. Transfer that content by
using a USB flash drive and plug it in to the EzSign TV to run it
COST EFFECTIVE. SIMPLE. HIGHLY EFFECTIVE.
STEP1 Choose a Template
STEP3 Edit the TextSTEP2 Add Photos STEP4 Export to USB
LG’S SIGNAGE TECHNOLOGY MEETS THE TELEVISION
LG EZSIGN TV
LGE091108 SPEC_LD452B_Layout 1 9/14/11 10:22 AM Page 2

47LD452B
42LD452B
32LD452B

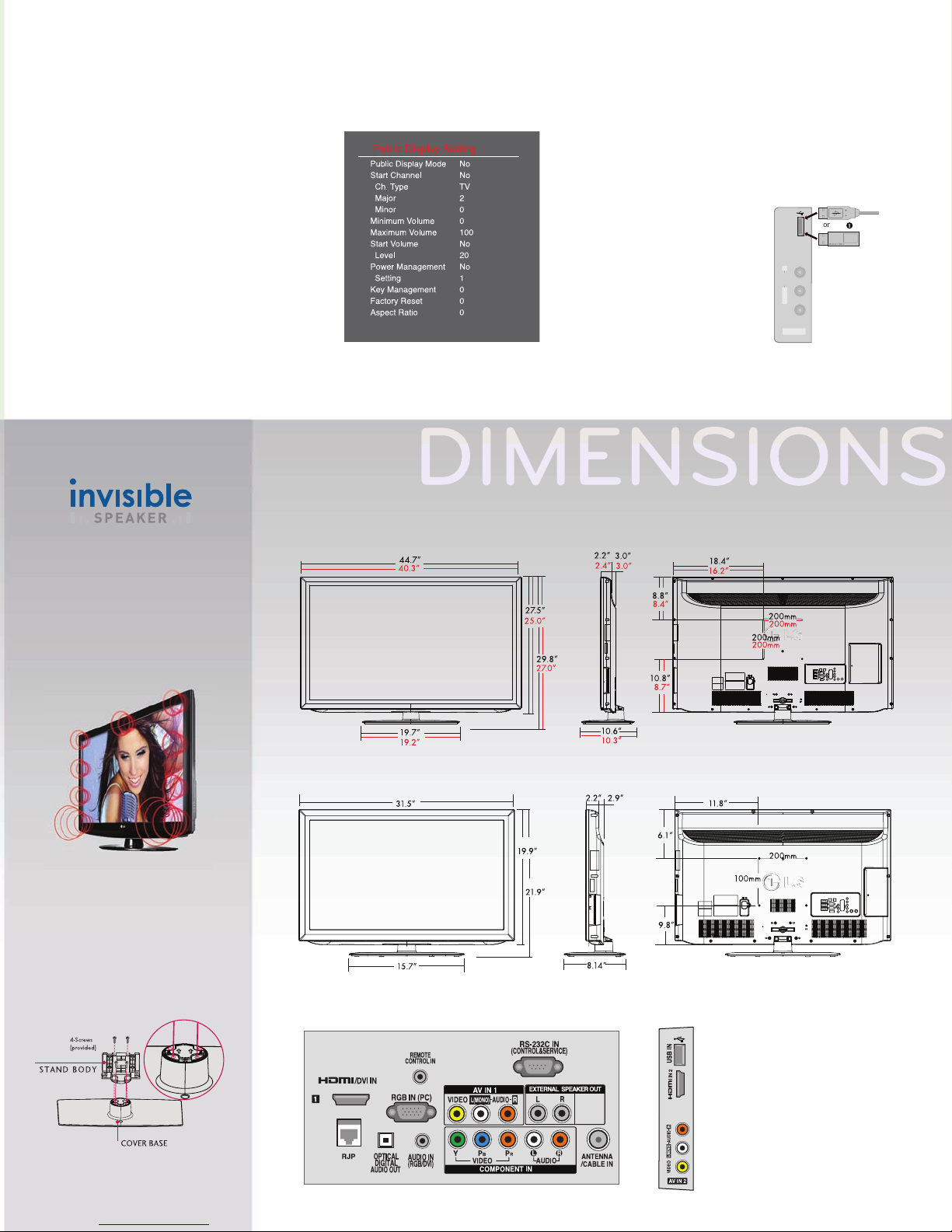

MOUNTING HOLES ON STAND
REAR SIDE
AVIN2
L/ MONO
R
AUDIO
VIDEO
USB IN
SOUND IS HEARD, NOT SEEN
Enjoy a combination of smart technology
and stylish design with the invisible speaker
system custom tuned by audio expert Mr.
Mark Levinson. This unique system
provides a clean, polished look and an
enhanced auditory experience by
increasing the sweet spot and providing a
wider sound field.
PUBLIC DISPLAY SETTINGS
When used in public areas, these HDTVs
can be easily programmed by the installer
to have the TV turn on at a specified
channel/volume level, set the minimum/
maximum volume, lock out the control
panel/remote, set the aspect ratio, and
return to a factory reset. By using Power
Management, these displays can be
programmed to turn off if there has been
no activity (remote or control panel
buttons) for a preset time (1-7) hours.
USB CLONING
USB cloning will allow for easy transfer of
Public Display Settings from the “Master TV”
to an unlimited number of same type
televisions.
LGE091108 SPEC_LD452B_Layout 1 9/14/11 10:22 AM Page 3

All scr n imag s ar simulat d. Dimensions and weights are approximate. Design,
features and specifications subject to change without notice.
© Copyright 2011 LG Electronics USA, nc. All Rights Reserved. “LG Life’s Good” is a
registered trademark of LG Corp. XD Engine is a registered trademark of LG Electronics,
nc. HealthView and EcoSmart are trademarks of LG Corp. Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories. SRS and the SRS symbol,
TruSurround XT and WOW are trademarks or registered trademarks of SRS Labs, nc.
VESA is a trademark of Video Electronics Standards Association. All other product and
brand names are trademarks or registered trademarks of their respective companies.
Printed in the USA. September 2011
XT
®
SPECIFICATIONS
www.LGsolutions.com
LCD TV
LCD SPECIFICATION
Screen Size (Class) 47” class (47.0” measured diagonally)
42” class (42.0” measured diagonally)
32” class (31.5” measured diagonally)
Native Display Resolution 1920 x 1080 (42”, 47” class)
1366 x 768 (32” class)
Dynamic Contrast Ratio 60,000:1
Viewing Angle 178°/178°
Color Reproduction 10 Bit
Response Time (G to G) 4ms
True Viewing Angle Yes
Life Span (Typical) 60,000 hrs
BROADCASTING SYSTEM
Analog Yes
ATSC/NTSC/Clear QAM Yes
MPEG4 Yes
VIDEO
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes (16:9/Just scan/Set by
program/4:3/Zoom/Cinema Zoom)
Color Temperature Control 3 Modes (Cool/Medium/Warm)
Picture Status Mode 7 Modes (Vivid/Standard/Cinema/
Sport/Game/Expert 1/Expert 2)
Just Scan (0% over scan)
HDM 1080i/1080p/720p
Component 1080i/1080p/720p
RF/DTV 1080i/720p
24p Real Cinema (24p 5:5/2:2 Pull down) Yes
Eye Care (Anti Dazzling) Yes
Fresh White Yes
Expert Mode/ SF Ready Yes
Picture Wizard Yes
AV Mode (Cinema/Game/Sport) Yes
xvyCC Yes
DTV Signal Strength Yes
AUDIO
Audio Output 10W x 2
nvisible Speaker System Details 1 Way 2 Speaker
Dolby Digital 5.1 Decoder Yes
Surround System Type nfinite Sound
Bass/Treble/Balance Controls Yes
Auto Volume Leveler Yes
EZ Sound Mode/SSM 5 Modes
Clear Voice Yes
SPECIAL FEATURES
XD Engine Yes
Energy Saving Modes Yes (Backlight Control, Video Mute)
EPG(S ) Yes (Pro:Centric)
1080p Source nput Yes HDM /Component (60/30/24p),
RGB (WXGA)
A/V nput Navigation Yes
nput Labeling/Sub-title Yes
LG S MPL NK™ (HDM CEC) Yes
Parental Control w/V-Chip Yes
Key Lock/Child Lock Yes
Customizable Closed Caption/Sub-title Yes
Splash mage - Logo (on start up) Yes
Multi Remote R code (Bed1/2/3/4) Yes
Auto-Sensing RJP compatible Yes (with select RJP versions)
Bed 1/Bed 2/ Bed 3/ Bed 4 Control Yes
PictureWizard Yes
TVLink-Protocol (Tuner, Loader) Yes
USB Cloning (USB Link Loader) Yes
1080p Source nput
HDM 60p/30p/24p
Component 60p/30p/24p
RGB WXGA
Quick View (Flashback) Yes
e-Streamer Yes (for shop mode)
OSD Language 4 (English/Spanish/French/Korean)
Quick Menu(Round Type-8 menus selectable) Yes (Aspect Ratio/SAP/ Picture Mode/
Sound Mode/Audio/Sleep Timer/Ch
Add/USB Eject)
Alvin U Yes
Function Menu Yes
nstallation Menu Yes (v2.6)
CONVENIENCE FEATURES
Auto Tuning/Programming Yes
Channel Add/Delete Yes
Favorite Channel Programming Yes
Auto/Manual Clock Yes
On/Off Timer Yes
Sleep Timer Yes
Auto Off/Auto Sleep (When no video is present) Yes
AUDIO/VIDEO INPUTS/OUTPUTS
RF n (Antenna/Cable) 1
L/R Audio/Composite Video n 1 (rear), 1 (side)
HD Component Video n (Y, Pb, Pr) + L/R Audio 1
Digital Audio Out (Optical) 1
HDM /HDCP nput (V1.3 with Deep Color) 1 (side), 1 (rear)
RGB n (D-Sub 15pin) - PC 1 (1920 x 1080)
PC Audio nput 1
RS-232c n (Control/Service) 1
USB 2.0 nput 1 (side) Media Host (JPEG, MP3),
Cloning, and Service
Remote Control Port n 1
RJ45 (for RJP interface - non P P) 1
CABINET/ACCESSORIES
Cabinet Color Glossy Black
Swivel Stand (degrees) +20°/-20°
Top Side Mounting Screw Yes
TORX Security Screw (2 each) Yes
Power ndicator Yes (on/off)
Fire Retardant Cabinet Material Yes
Kensington Security System Slot Yes
VESA® Mount Compatible Yes
Remote Control Yes
POWER
Voltage, Hz 100V - 240V, 50/60 Hz
Stand-by Mode (typ.) 0.2W (EPA 4.0)
Power Consumption Max 180W (32” class), 260W (42” class),
330W (47” class)
Power Consumption Typical 78W (32” class), 115W (42” class),
138W (47” class)
Dynamic Power Savings Yes
Static Power Savings Yes
REQUIRED APPROVALS
RoHS Compliant Yes
UL, cUL, NOM Yes
DIMENSIONS & WEIGHT
TV without stand (WxHxD) 31.5" x 19.9" x 2.9" (32” class)
40.3" x 25.0" x 3.0" (42” class)
44.7" x 27.5" x 3.0" (47” class)
TV with stand (WxHxD) 31.5" x 21.9" x 8.1" (32” class)
40.3" x 27.0" x 10.3" (42” class)
44.7" x 29.8" x 10.6" (47” class)
Shipping Dimensions (WxHxD) 38.0" x 23.2" x 7.5" (32” class)
43.6" x 30.3" x 9.0" (42” class)
48.8" x 31.6" x 10.0" (47” class)
TV without stand weight 17.9 bs (32” class)
29.8 bs (42” class)
38.6 bs (47” class)
TV with stand weight 20.1 bs (32” class)
33.3 bs (42” class)
43.0 bs (47” class)
ShippingWeight 24.9 bs (32” class)
41.7 bs (42” class)
52.7 bs (47” class)
SERVICE/LIMITED WARRANTY 2 Years (Parts/Labor)
UPC CODE
32LD452B 7 19192 90239 8
42LD452B 7 19192 90242 8
47LD452B 7 19192 90243 5
LG Electronics U.S.A., nc.
Commercial Displays
2000 Millbrook Drive
Lincolnshire, L 60069
Custom r S rvic : 888.865.3026
www.LGsolutions.com/support
Contact your LG R gional Sal s R pr s ntativ
V rtical Mark ts: 800.897.8788
Chann l: 800.897.8871
Hospitality: 800.228.1236
E-mail: [e-mail]
