Lg Ru-15la61 User manual

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : ML-012C

MODEL : RU-15LA61

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

MONO DPM

STEREO

ST

SAP

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

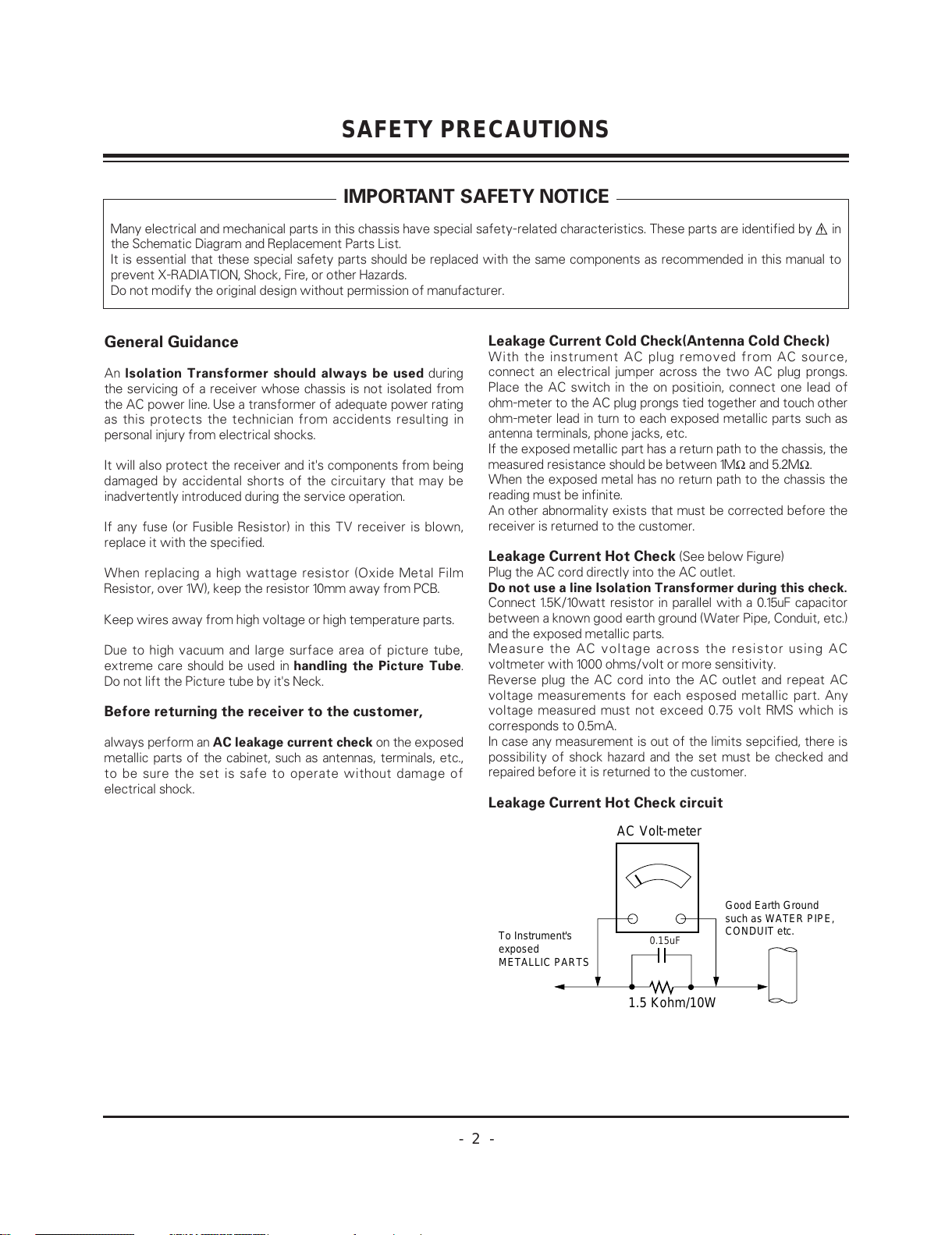

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in

the Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to

prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An lsolation Transformer should always be used during

the servicing of a receiver whose chassis is not isolated from

the AC power line. Use a transformer of adequate power rating

as this protects the technician from accidents resulting in

personal injury from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitary that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film

Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube.

Do not lift the Picture tube by it's Neck.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc.,

to be sure the set is safe to operate without damage of

electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source,

connect an electrical jumper across the two AC plug prongs.

Place the AC switch in the on positioin, connect one lead of

ohm-meter to the AC plug prongs tied together and touch other

ohm-meter lead in turn to each exposed metallic parts such as

antenna terminals, phone jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩ and 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC

voltmeter with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC

voltage measurements for each esposed metallic part. Any

voltage measured must not exceed 0.75 volt RMS which is

corresponds to 0.5mA.

In case any measurement is out of the limits sepcified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

All manuals and user guides at all-guides.com

- 3 -

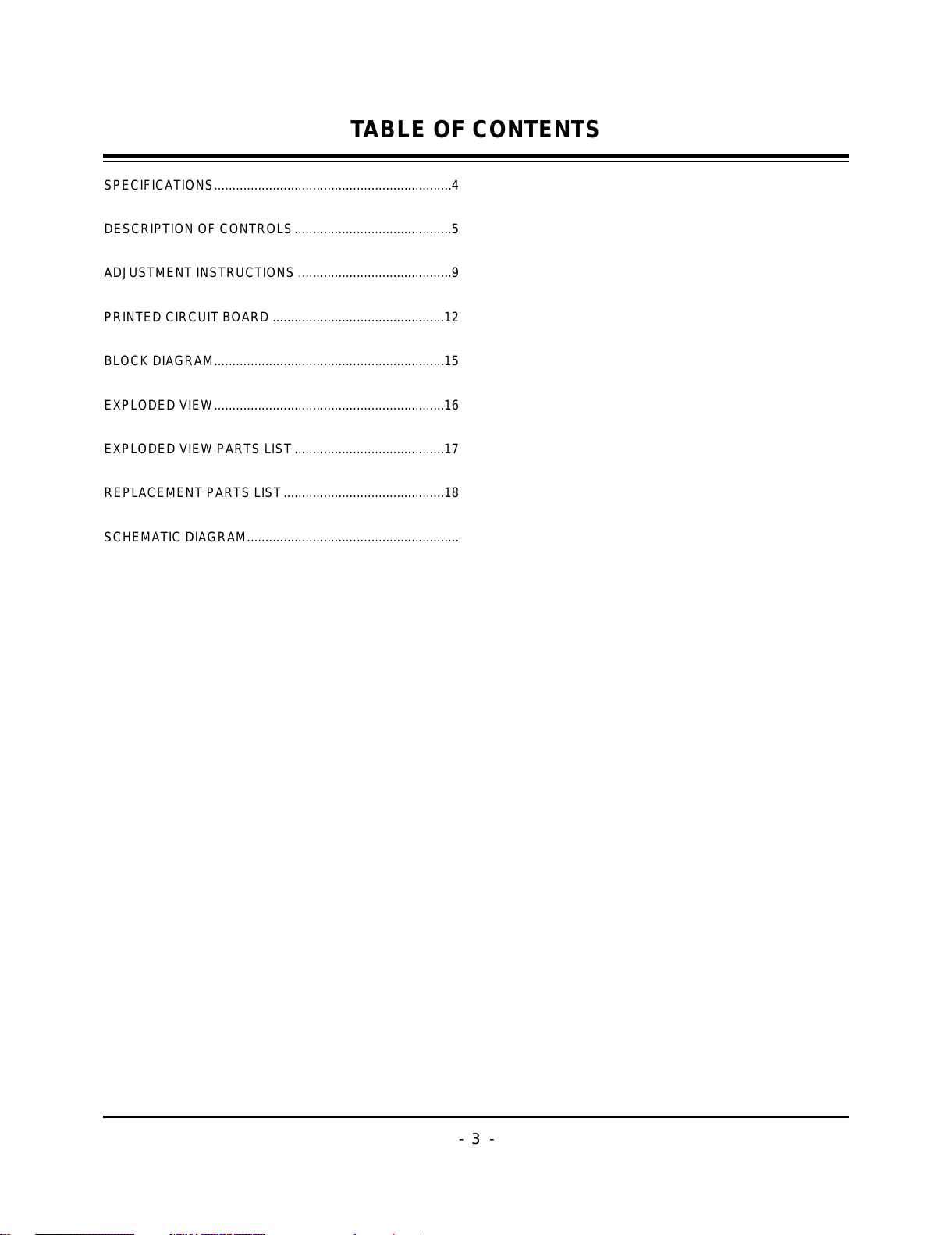

SPECIFICATIONS.................................................................4

DESCRIPTION OF CONTROLS...........................................5

ADJUSTMENT INSTRUCTIONS ..........................................9

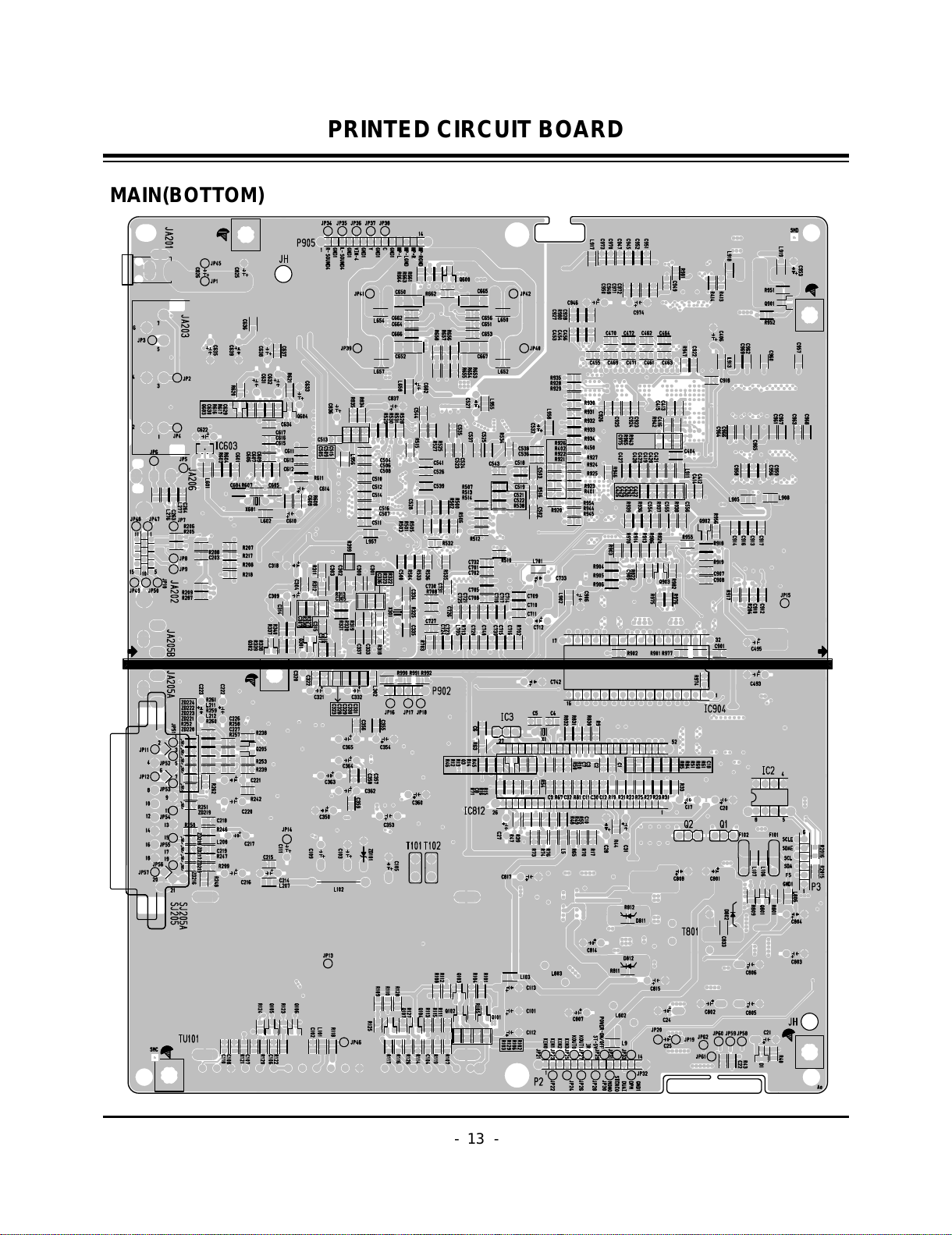

PRINTED CIRCUIT BOARD ...............................................12

BLOCK DIAGRAM...............................................................15

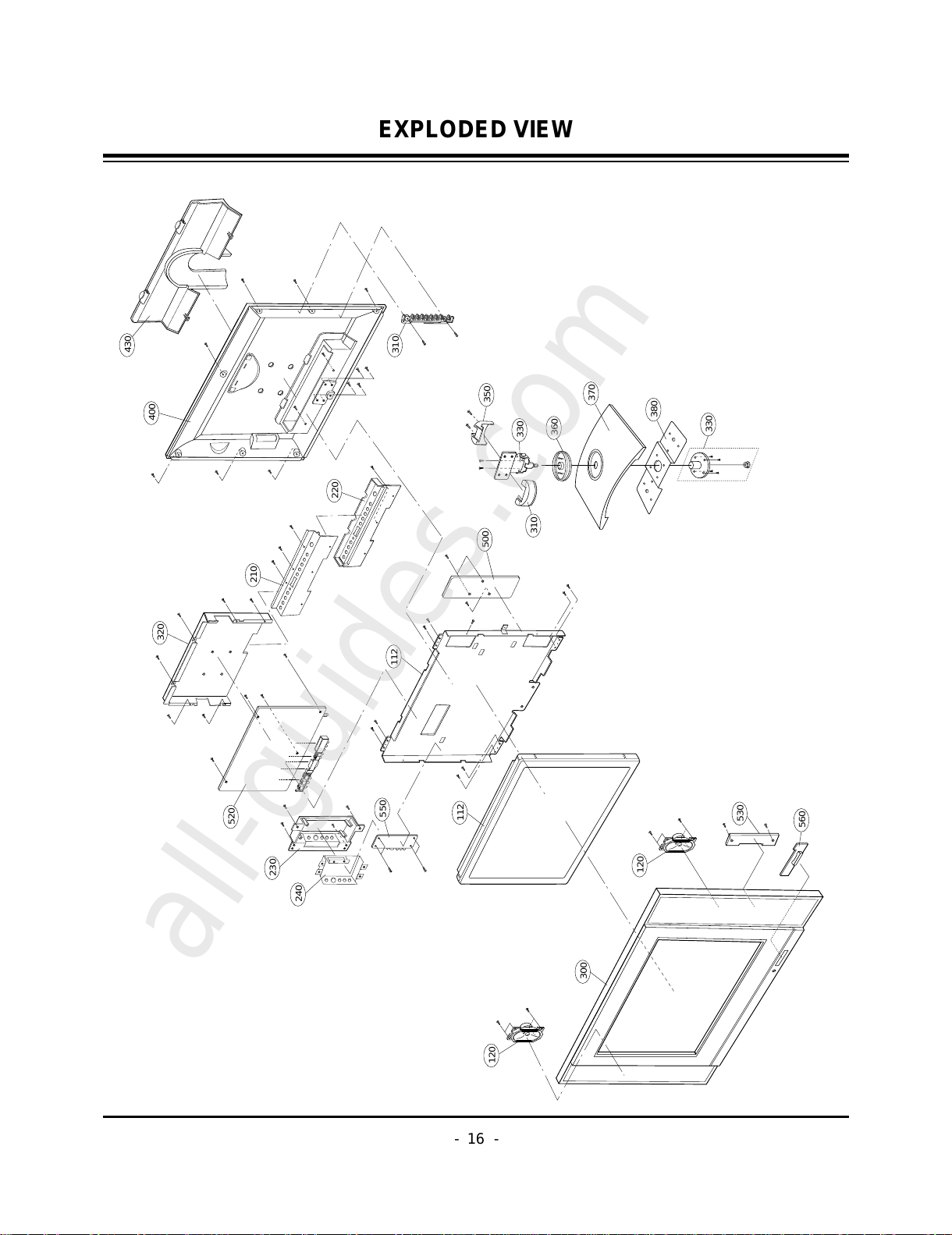

EXPLODED VIEW...............................................................16

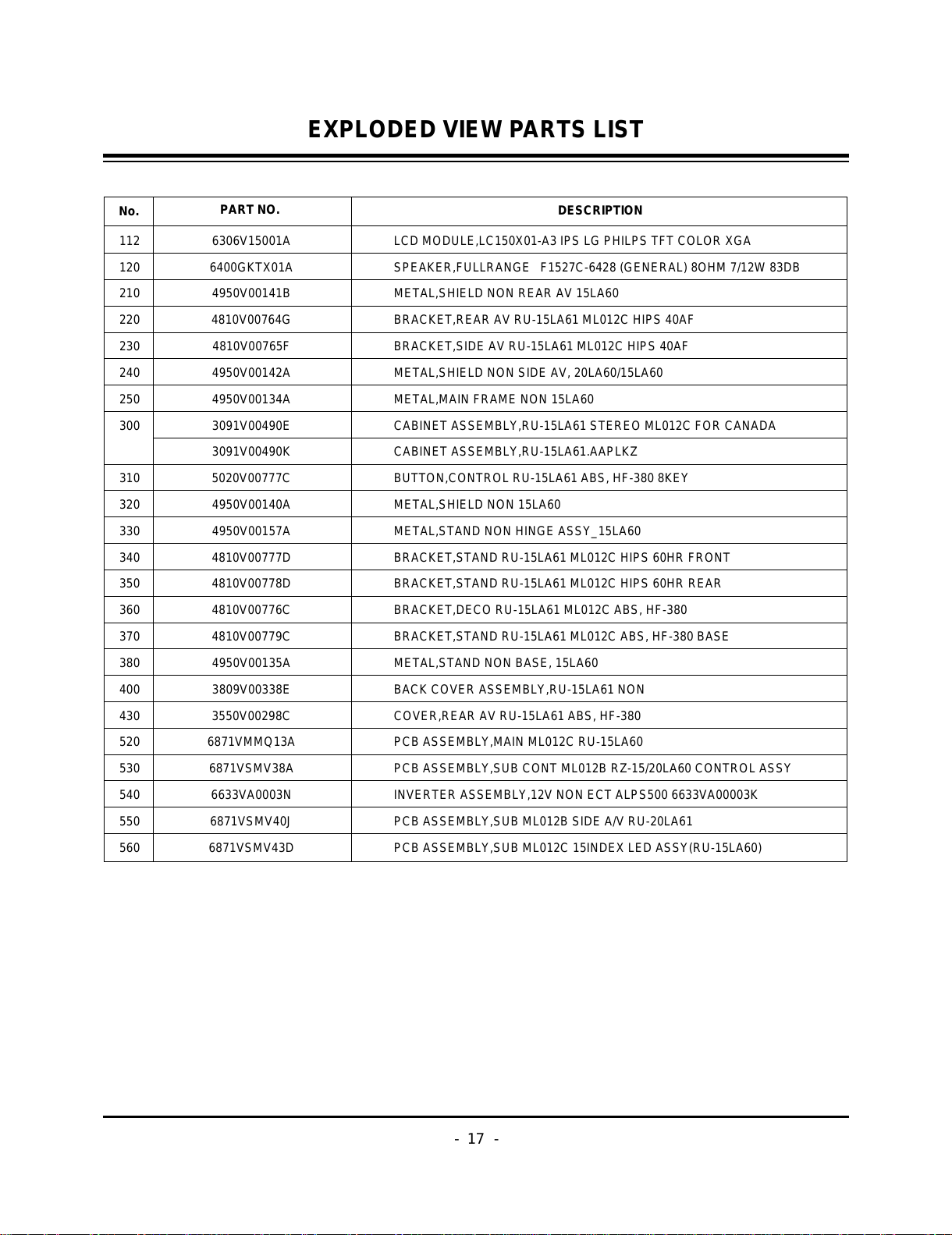

EXPLODED VIEW PARTS LIST.........................................17

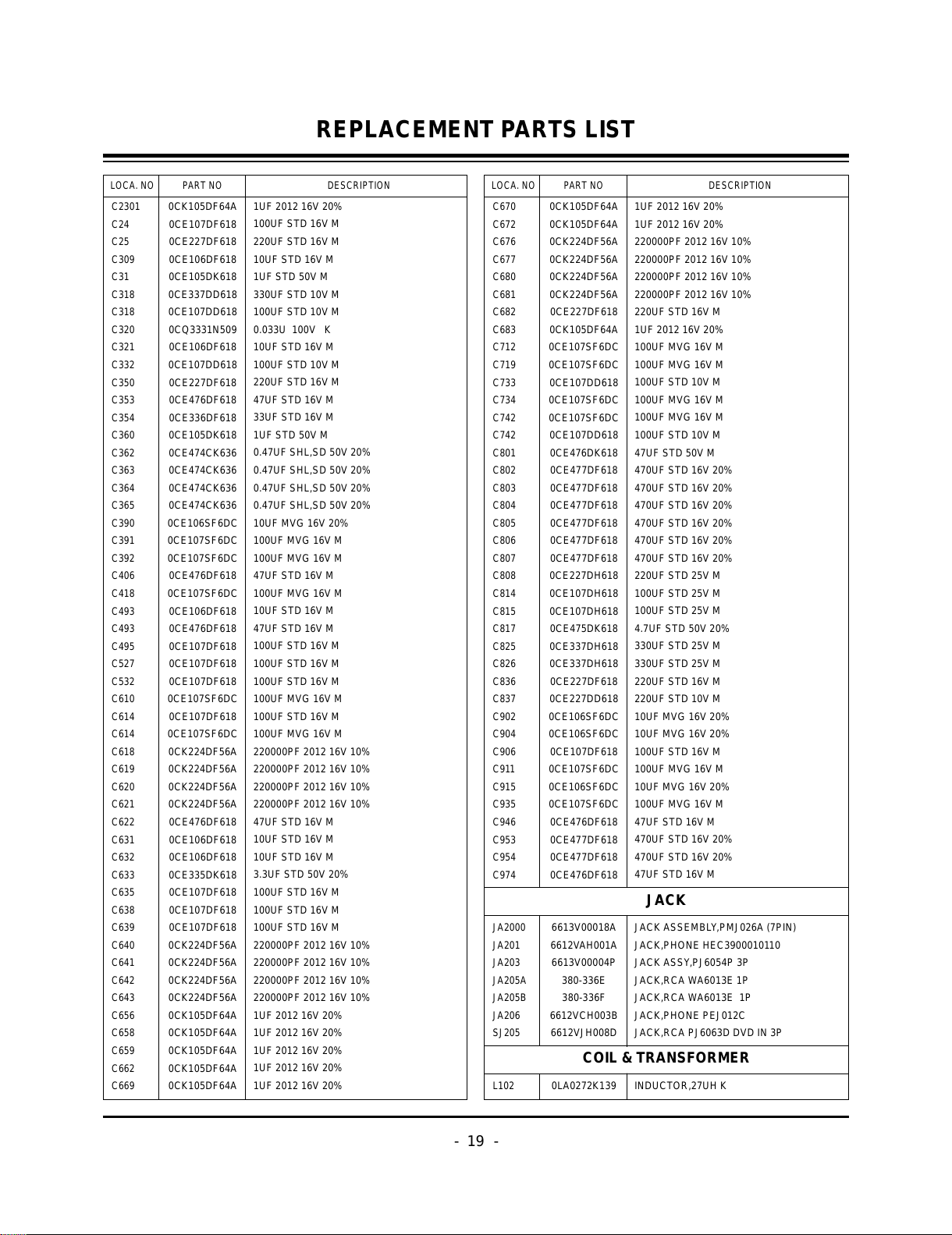

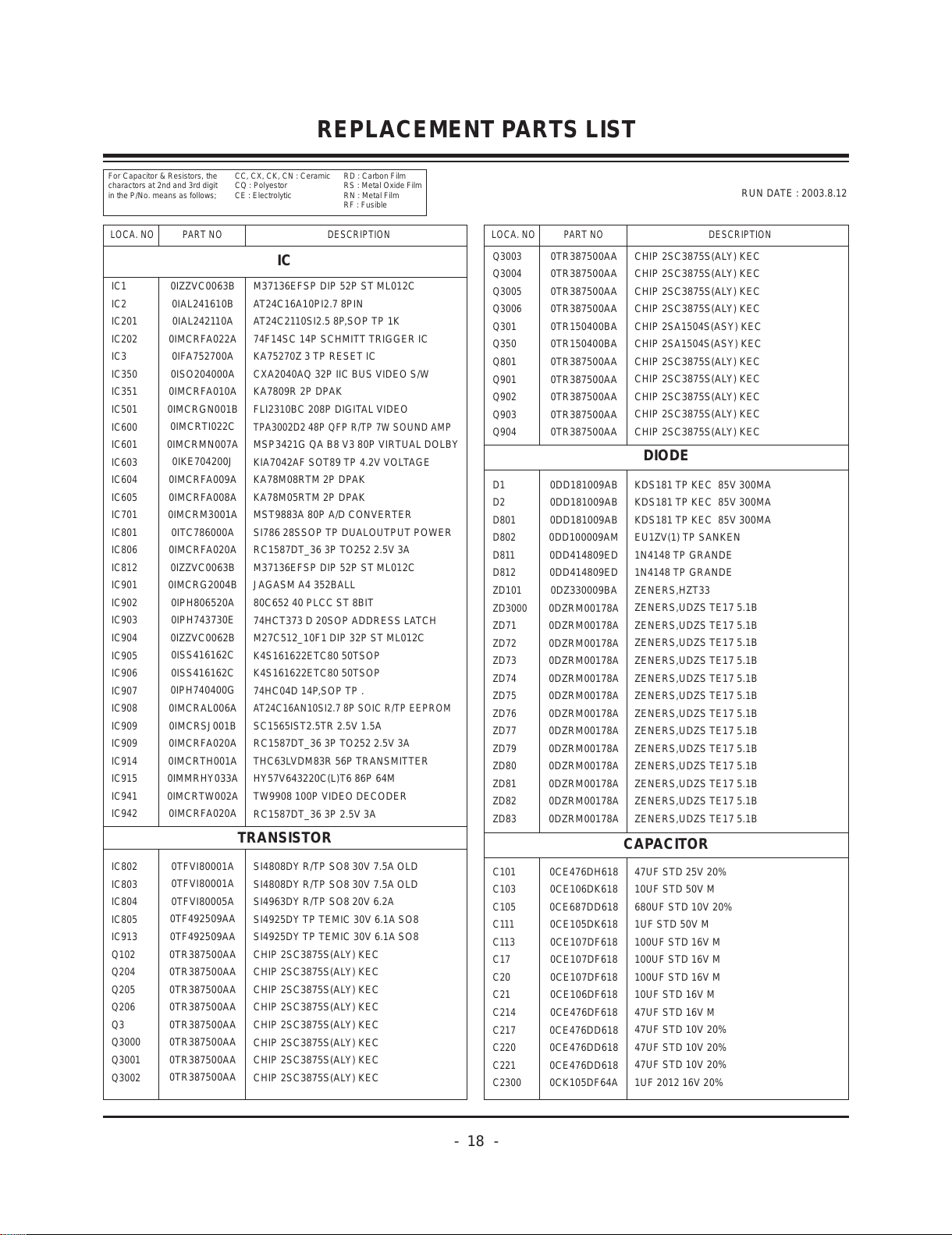

REPLACEMENT PARTS LIST............................................18

SCHEMATIC DIAGRAM..........................................................

TABLE OF CONTENTS

All manuals and user guides at all-guides.com

- 4 -

SPECIFICATIONS

Model RU-15LA61 RU-20LA61

Horizontal size (Inches) 18.3 22.8

Height (Inches) 14.8 18.3

Thickness (Inches) 6.7 8

Weight (pounds) 13.9 21.6

Power requirements DC 12V/4.5A DC 15V/4.5A

Television system NTSC

Television channels VHF : 2 ~ 13, UHF : 14 ~ 69

Cable : 01 ~ 125

Television Screen LCD Panel

External antenna impedance 75 Ω

Power consumption 50 W 70 W

Audio output 3 W + 3 W 5 W + 5 W

Adapter (DC power) In : AC 100-240V ~ 1.5A-0.6A

50/60Hz, 115~180VA

Out : DC 12V, 5A

* CAUTION : For use only with Model No. SAD6012SE AC Adapter, manufactured by H &

E co., Ltd.

Power supply cordset : Standard North America three wire earth-grounding with

flexible cord SJT type or higher type.

* CAUTION : If replacement becomes necessary, replace with an exact duplicate.

Contact any LG authorized service center.

In: AC 100-240V ~ 1.6A-0.7A

50/60Hz

Out: DC 15V, 4.5A

For use only with Model No.

SAD7015SE AC Adapter,

manufactured by H & E co., Ltd.

In: AC 100-240V ~ 1.5A-0.6A

50/60Hz

Out: DC 12V, 5A

For use only with Model No.

SAD6012SE AC Adapter, man-

ufactured by H & E co., Ltd.

All manuals and user guides at all-guides.com

- 5 -

DESCRIPTION OF CONTROLS

Front of the

Front of the TV

TV

MONO DPM

STEREO

ST

SAP

MONO DPM

SAP

STEREO

ST

Remote Control Sensor

DPM Indicator

(RU-15LA61 Only)

SAP Indicator

Mono Indicator

Stereo Indicator

Power/Standby indicator

Illuminates red in standby mode, Illuminates

green when the TV is turned on.

All manuals and user guides at all-guides.com

- 6 -

DESCRIPTION OF CONTROLS

DC IN (15V)

ANT IN

+75 Ω

COMPONENT(480i/480p/720p/1080i)

VIDEO IN

DVD/DTV IN

AUDIO

RLVIDEO

P

R

P

B

Y L R

AUDIO(MONO)

DC 12V

ANT IN

+75 Ω

PC INPUT

COMPONENT(480i/480p/720p/1080i)

PC

SOUND VIDEO IN

DVD/DTV IN

AUDIO

RLVIDEO

P

R

P

B

Y L R

AUDIO(MONO)

Back of the

Back of the TV

TV

Audio/Video Input

- This manual mainly explains the features for the RU-15LA61

PC Input PC sound Input

Antenna Input

DC 12V Input

DVD/DTV IN

(Component (480i/480p/720p/1080i),

AUDIO) Input

RU-15LA61

RU-20LA61

* Kensington

Security System

Connector

DC 15V Input

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

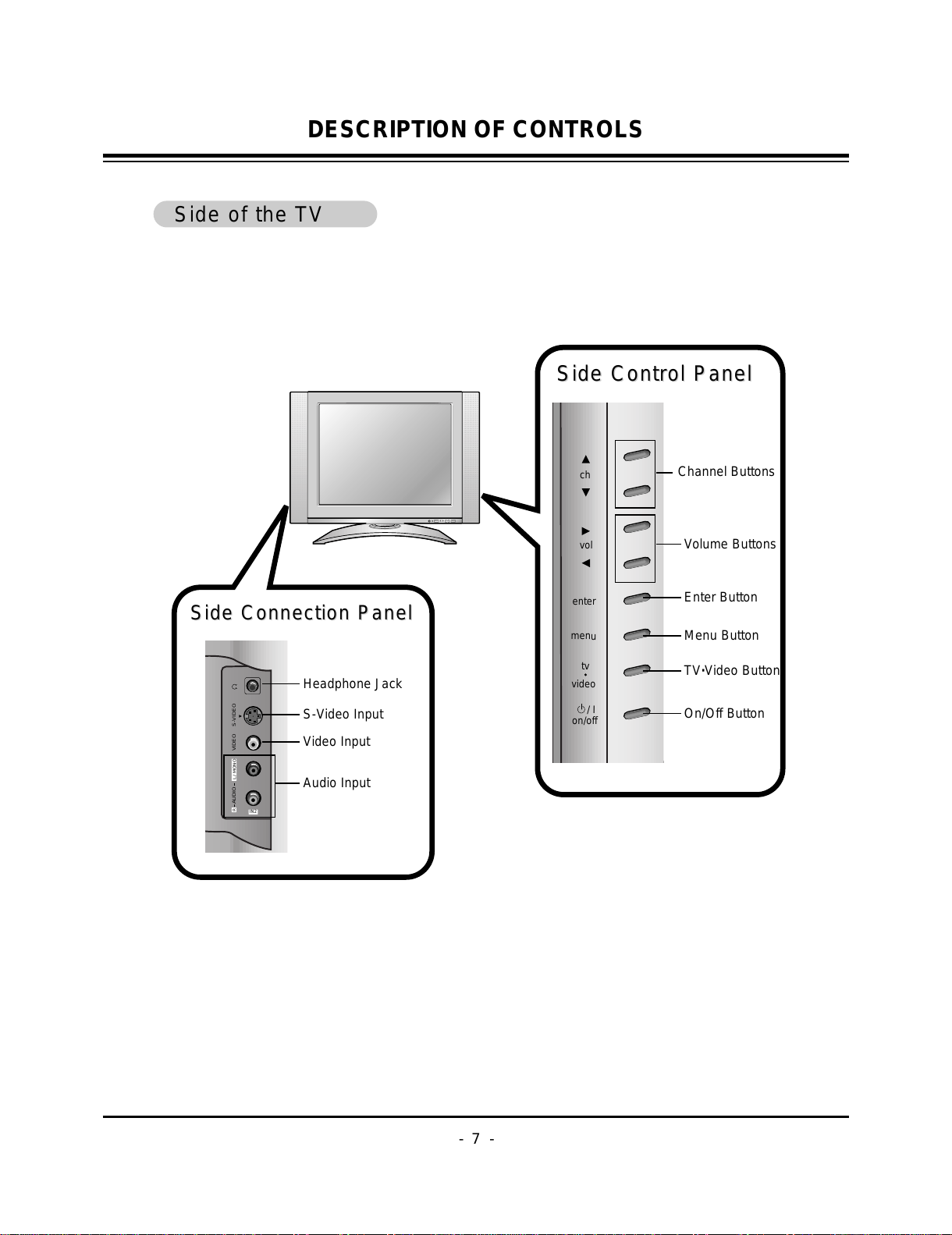

DESCRIPTION OF CONTROLS

MONO DPM

STEREO

ST

SAP

Side of the

Side of the TV

TV

S-VIDEOVIDEO

AUDIO

R

IN2

L / MONO

Side Control Panel

Side Connection Panel

Channel Buttons

Volume Buttons

ch

vol

menu

enter

on/off

tv

video

/ I

Enter Button

Menu Button

TV·Video Button

On/Off Button

Headphone Jack

S-Video Input

Video Input

Audio Input

All manuals and user guides at all-guides.com

- 8 -

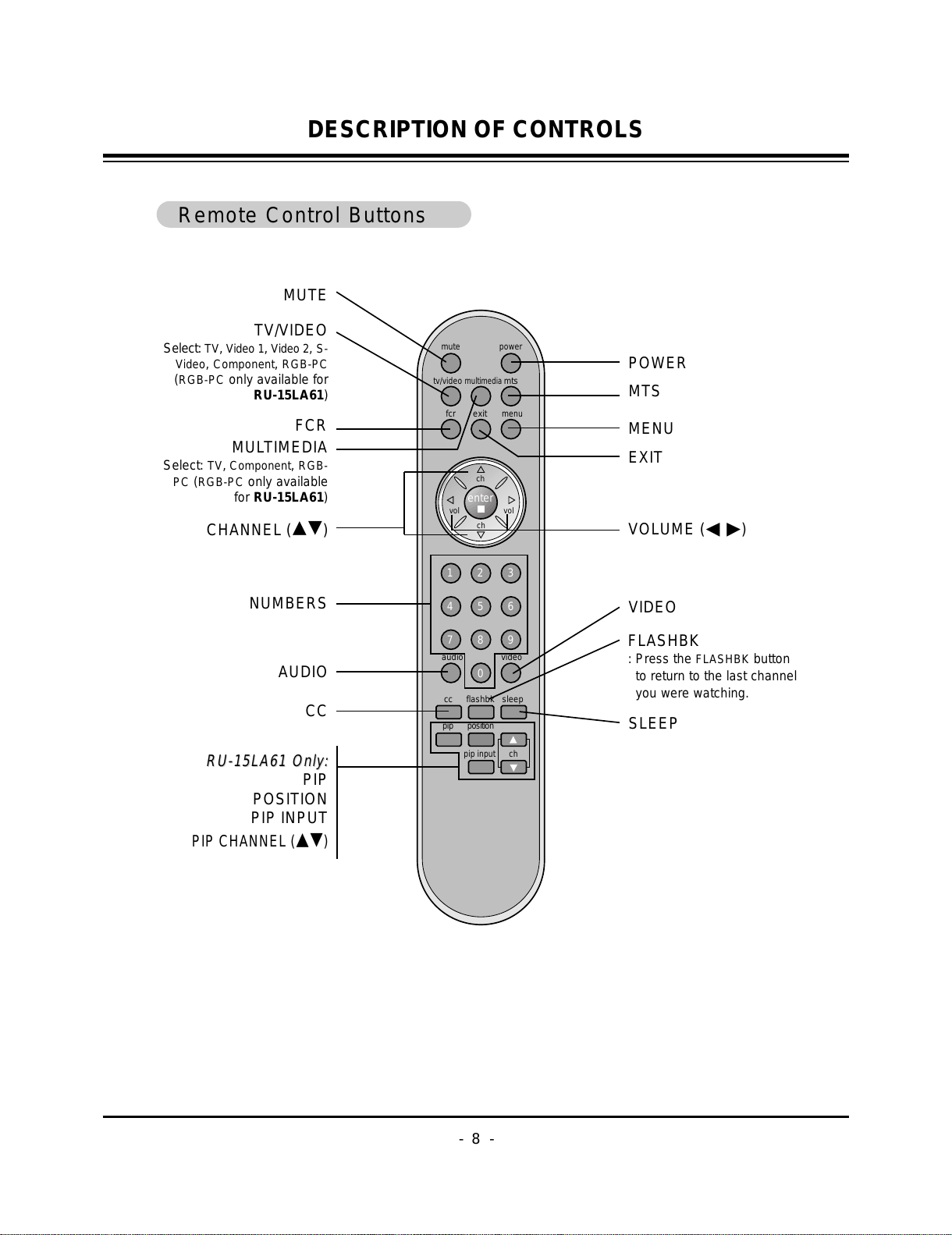

DESCRIPTION OF CONTROLS

powermute

tv/video

multimedia

mts

fcr

ch

vol enter

123

456

789

0

vol

exit

menu

audio

flashbkcc sleep

video

pip position

pip input ch

POWER

MTS

EXIT

VOLUME (F G)

MUTE

NUMBERS

CHANNEL (DE)

TV/VIDEO

Select: TV, Video 1, Video 2,S-

Video, Component, RGB-PC

(RGB-PC only available for

RU-15LA61)

FCR

MULTIMEDIA

Select: TV, Component, RGB-

PC (RGB-PC only available

for RU-15LA61)

AUDIO

CC

RU-15LA61 Only:

PIP

POSITION

PIP INPUT

PIP CHANNEL (DE)

MENU

VIDEO

FLASHBK

:Press the FLASHBK button

to return to the last channel

you were watching.

Remote Control Buttons

SLEEP

All manuals and user guides at all-guides.com

- 9 -

1. Application Object

This instruction is for the application to the LCDTV, ML012C.

2. Notes

(1) This set uses an adapter, so connect the adapter to the TV

correctly before adjustment.

(2) These adjustments must be performed in the correct

sequence.

(3) These adjustments must be performed at 25!5cC of

temperature and 65!10% of relative humidity.

(4) The input voltage of the receiver must be kept at

100~220V, 50/60Hz during adjustment.

(5) The set must be operated for 30 minutes before

adjustment. Heat Run must be performed with the full white

signal or a TV noise signal.

3. Component Mode Adjustment

: Component Model only

3-1. Required Test Equipment

(1) MSPG-925LTH, Pattern Generator for Digital TV 1080i

mode Color-Bar signal output, Digital TV Set-Top Box

(2) Remote controller for adjustment (SVC Remocon)

3-2. Preparation for Adjustment

(1) Perform Heat Run for at least 30 minutes with a white

pattern.

(2) Connect the signal from a pattern generator to the LCD

TV’s component Input Jack.

3-3. YPbPr ADJUST Adjustment

(1) Receive the Color Bar Pattern signal of Digital TV 1080i

Mode from Pattern Generator.

(2) Select the YPbPr ADJUST of the adjustment mode(SVC

Menu Mode) by pressing the IN-START Key(or SVC Key)

on the remote controller for adjustment(SVC).

(3) Start the adjustment by pressing the F, GKey(Volume

Key) in the YPbPr ADJUST of the adjustment mode.

(4) When adjustment is completed, "OK" will replace the "To

Set" shown in the top/center of the OSD.

4. PC Input Mode Adjustment

: 15 Inch Model only

4-1. Required Test Equipment

(1) 801GF(or VG819), Pattern generator with a Gray Pattern

of 16(11) tones.

(2) Remote controller for adjustment (SVC Remocon)

4-2. Preparation for Adjustment

(1) Perform Heat Run for more than 30 minutes with a white

pattern.

(2) Connect the signal from a pattern generator to the LCD

TV’s PC Input Jack(D-Sub).

4-3. Auto Gray Adjustment

(1) Apply the gray signal of XGA(1024X768) 16 tones(H: 31-

214 Pattern, V: 60-84 Pattern) by using 801GF.

Or apply the gray signal by using VG819, Pattern

generator with a Gray Pattern of 16(11) tones.

(2) Select the adjustment mode(SVC Menu Mode) by pressing

the ADJ Key(or SVC Key) on the remote controller for

adjustment(SVC) and change the Auto gray from 0 to 1

using Volume + Key.

ADJUSTMENT INSTRUCTION

All manuals and user guides at all-guides.com

- 10 -

ADJUSTMENT INSTRUCTION

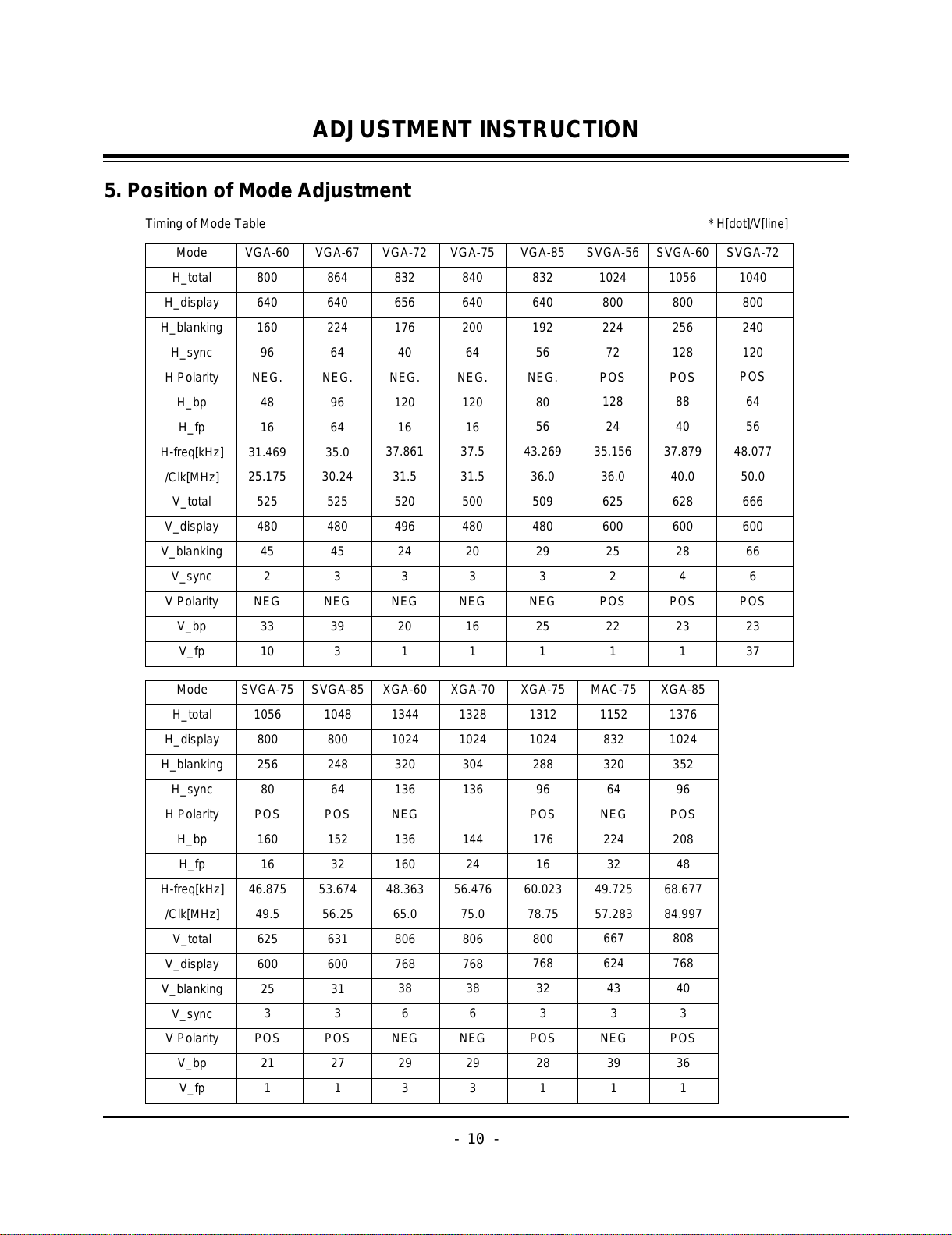

5. Position of Mode Adjustment

Timing of Mode Table * H[dot]/V[line]

Mode

H_total

H_display

H_blanking

H_sync

H Polarity

H_bp

H_fp

H-freq[kHz]

/Clk[MHz]

V_total

V_display

V_blanking

V_sync

V Polarity

V_bp

V_fp

VGA-60

800

640

160

96

NEG.

48

16

31.469

25.175

525

480

45

2

NEG

33

10

VGA-67

864

640

224

64

NEG.

96

64

35.0

30.24

525

480

45

3

NEG

39

3

VGA-72

832

656

176

40

NEG.

120

16

37.861

31.5

520

496

24

3

NEG

20

1

VGA-75

840

640

200

64

NEG.

120

16

37.5

31.5

500

480

20

3

NEG

16

1

VGA-85

832

640

192

56

NEG.

80

56

43.269

36.0

509

480

29

3

NEG

25

1

SVGA-56

1024

800

224

72

POS

128

24

35.156

36.0

625

600

25

2

POS

22

1

SVGA-60

1056

800

256

128

POS

88

40

37.879

40.0

628

600

28

4

POS

23

1

SVGA-72

1040

800

240

120

POS

64

56

48.077

50.0

666

600

66

6

POS

23

37

Mode

H_total

H_display

H_blanking

H_sync

H Polarity

H_bp

H_fp

H-freq[kHz]

/Clk[MHz]

V_total

V_display

V_blanking

V_sync

V Polarity

V_bp

V_fp

SVGA-75

1056

800

256

80

POS

160

16

46.875

49.5

625

600

25

3

POS

21

1

SVGA-85

1048

800

248

64

POS

152

32

53.674

56.25

631

600

31

3

POS

27

1

XGA-60

1344

1024

320

136

NEG

136

160

48.363

65.0

806

768

38

6

NEG

29

3

XGA-70

1328

1024

304

136

144

24

56.476

75.0

806

768

38

6

NEG

29

3

XGA-75

1312

1024

288

96

POS

176

16

60.023

78.75

800

768

32

3

POS

28

1

MAC-75

1152

832

320

64

NEG

224

32

49.725

57.283

667

624

43

3

NEG

39

1

XGA-85

1376

1024

352

96

POS

208

48

68.677

84.997

808

768

40

3

POS

36

1

All manuals and user guides at all-guides.com

- 11 -

ADJUSTMENT INSTRUCTION

Mode

H_total

H_display

H_blanking

H_sync

H Polarity

H_bp

H_fp

H-freq[kHz]

/Clk[MHz]

V_total

V_display

V_blanking

V_sync

V Polarity

V_bp

V_fp

VGA350-70

800

640

160

96

POS

48

16

31.468

25.17

449

350

99

2

NEG

60

37

VGA350-85

832

640

192

64

POG

96

32

37.86

31.47

445

350

95

3

NEG

60

32

VGA400-70

800

640

160

96

NEG

48

16

31.46

25.17

449

400

49

2

POS

35

12

VGA400-85

832

640

192

64

NEG

96

32

37.86

31.5

445

400

45

3

POS

41

1

6. EDID(The Extended Display Identification Data):

00

10

20

30

40

50

60

70

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

00

14

81

01

26

00

FF

0B

50

40

01

30

32

FF

01

54

81

01

18

55

FF

01

BF

80

01

88

1E

FF

78

E8

01

36

46

FF

1F

80

01

00

0D

FF

17

31

10

01

0E

00

70

59

0E

01

C3

0A

30

E8

3B

01

F9

01

10

20

E5

C3

D9

01

15

01

00

20

D7

A0

45

01

64

00

20

3A

A3

59

01

19

1E

20

01

54

61

01

00

20

00

4C

59

01

40

00

20

00

97

71

01

41

00

24

59

01

00

FD

C8

All manuals and user guides at all-guides.com

all-guides.com

- 12 -

PRINTED CIRCUIT BOARD

MAIN(TOP)

All manuals and user guides at all-guides.com

- 13 -

PRINTED CIRCUIT BOARD

MAIN(BOTTOM)

All manuals and user guides at all-guides.com

- 14 -

PRINTED CIRCUIT BOARD

CONTROL

SIDE A/V LED ASSY

All manuals and user guides at all-guides.com

- 15 -

BLOCK DIAGRAM

All manuals and user guides at all-guides.com

- 16 -

EXPLODED VIEW

120

300

112

560

530

112

520

550

500

320

210

220

310

350

330

360

370

380

330

400

430

230

240

All manuals and user guides at all-guides.com

all-guides.com

- 17 -

112 6306V15001A LCD MODULE,LC150X01-A3 IPS LG PHILPS TFT COLOR XGA

120 6400GKTX01A SPEAKER,FULLRANGE F1527C-6428 (GENERAL) 8OHM 7/12W 83DB

210 4950V00141B METAL,SHIELD NON REAR AV 15LA60

220 4810V00764G BRACKET,REAR AV RU-15LA61 ML012C HIPS 40AF

230 4810V00765F BRACKET,SIDE AV RU-15LA61 ML012C HIPS 40AF

240 4950V00142A METAL,SHIELD NON SIDE AV, 20LA60/15LA60

250 4950V00134A METAL,MAIN FRAME NON 15LA60

300 3091V00490E CABINET ASSEMBLY,RU-15LA61 STEREO ML012C FOR CANADA

3091V00490K CABINET ASSEMBLY,RU-15LA61.AAPLKZ

310 5020V00777C BUTTON,CONTROL RU-15LA61 ABS, HF-380 8KEY

320 4950V00140A METAL,SHIELD NON 15LA60

330 4950V00157A METAL,STAND NON HINGE ASSY_15LA60

340 4810V00777D BRACKET,STAND RU-15LA61 ML012C HIPS 60HR FRONT

350 4810V00778D BRACKET,STAND RU-15LA61 ML012C HIPS 60HR REAR

360 4810V00776C BRACKET,DECO RU-15LA61 ML012C ABS, HF-380

370 4810V00779C BRACKET,STAND RU-15LA61 ML012C ABS, HF-380 BASE

380 4950V00135A METAL,STAND NON BASE, 15LA60

400 3809V00338E BACK COVER ASSEMBLY,RU-15LA61 NON

430 3550V00298C COVER,REAR AV RU-15LA61 ABS, HF-380

520 6871VMMQ13A PCB ASSEMBLY,MAIN ML012C RU-15LA60

530 6871VSMV38A PCB ASSEMBLY,SUB CONT ML012B RZ-15/20LA60 CONTROL ASSY

540 6633VA0003N INVERTER ASSEMBLY,12V NON ECT ALPS500 6633VA00003K

550 6871VSMV40J PCB ASSEMBLY,SUB ML012B SIDE A/V RU-20LA61

560 6871VSMV43D PCB ASSEMBLY,SUB ML012C 15INDEX LED ASSY(RU-15LA60)

EXPLODED VIEW PARTS LIST

No. PART NO. DESCRIPTION

All manuals and user guides at all-guides.com

- 18 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

Q3003

Q3004

Q3005

Q3006

Q301

Q350

Q801

Q901

Q902

Q903

Q904

D1

D2

D801

D802

D811

D812

ZD101

ZD3000

ZD71

ZD72

ZD73

ZD74

ZD75

ZD76

ZD77

ZD79

ZD80

ZD81

ZD82

ZD83

C101

C103

C105

C111

C113

C17

C20

C21

C214

C217

C220

C221

C2300

0TR387500AA

0TR150400BA

0TR387500AA

0DD181009AB

0DD100009AM

0DD414809ED

0DZ330009BA

0DZRM00178A

0CE476DH618

0CE106DK618

0CE687DD618

0CE105DK618

0CE107DF618

0CE106DF618

0CE476DF618

0CE476DD618

0CK105DF64A

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

KDS181 TP KEC 85V 300MA

EU1ZV(1) TP SANKEN

1N4148 TP GRANDE

ZENERS,HZT33

ZENERS,UDZS TE17 5.1B

47UF STD 25V 20%

10UF STD 50V M

680UF STD 10V 20%

1UF STD 50V M

100UF STD 16V M

10UF STD 16V M

47UF STD 16V M

47UF STD 10V 20%

1UF 2012 16V 20%

LOCA. NO PART NO DESCRIPTION

IC1

IC2

IC201

IC202

IC3

IC350

IC351

IC501

IC600

IC601

IC603

IC604

IC605

IC701

IC801

IC806

IC812

IC901

IC902

IC903

IC904

IC905

IC906

IC907

IC908

IC909

IC914

IC915

IC941

IC942

IC802

IC803

IC804

IC805

IC913

Q102

Q204

Q205

Q206

Q3

Q3000

Q3001

Q3002

0IZZVC0063B

0IAL241610B

0IAL242110A

0IMCRFA022A

0IFA752700A

0ISO204000A

0IMCRFA010A

0IMCRGN001B

0IMCRTI022C

0IMCRMN007A

0IKE704200J

0IMCRFA009A

0IMCRFA008A

0IMCRM3001A

0ITC786000A

0IMCRFA020A

0IZZVC0063B

0IMCRG2004B

0IPH806520A

0IPH743730E

0IZZVC0062B

0ISS416162C

0IPH740400G

0IMCRAL006A

0IMCRSJ001B

0IMCRFA020A

0IMCRTH001A

0IMMRHY033A

0IMCRTW002A

0IMCRFA020A

0TFVI80001A

0TFVI80005A

0TF492509AA

0TR387500AA

M37136EFSP DIP 52P ST ML012C

AT24C16A10PI2.7 8PIN

AT24C2110SI2.5 8P,SOP TP 1K

74F14SC 14P SCHMITT TRIGGER IC

KA75270Z 3 TP RESET IC

CXA2040AQ 32P IIC BUS VIDEO S/W

KA7809R 2P DPAK

FLI2310BC 208P DIGITAL VIDEO

TPA3002D2 48P QFP R/TP 7W SOUND AMP

MSP3421G QA B8 V3 80P VIRTUAL DOLBY

KIA7042AF SOT89 TP 4.2V VOLTAGE

KA78M08RTM 2P DPAK

KA78M05RTM 2P DPAK

MST9883A 80P A/D CONVERTER

SI786 28SSOP TP DUALOUTPUT POWER

RC1587DT_36 3P TO252 2.5V 3A

M37136EFSP DIP 52P ST ML012C

JAGASM A4 352BALL

80C652 40 PLCC ST 8BIT

74HCT373 D 20SOP ADDRESS LATCH

M27C512_10F1 DIP 32P ST ML012C

K4S161622ETC80 50TSOP

74HC04D 14P,SOP TP .

AT24C16AN10SI2.7 8P SOIC R/TP EEPROM

SC1565IST2.5TR 2.5V 1.5A

RC1587DT_36 3P TO252 2.5V 3A

THC63LVDM83R 56P TRANSMITTER

HY57V643220C(L)T6 86P 64M

TW9908 100P VIDEO DECODER

RC1587DT_36 3P 2.5V 3A

SI4808DY R/TP SO8 30V 7.5A OLD

SI4963DY R/TP SO8 20V 6.2A

SI4925DY TP TEMIC 30V 6.1A SO8

CHIP 2SC3875S(ALY) KEC

IC

TRANSISTOR

RUN DATE : 2003.8.12

For Capacitor & Resistors, the

charactors at 2nd and 3rd digit

in the P/No. means as follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

DIODE

CAPACITOR

All manuals and user guides at all-guides.com

- 19 -

LOCA. NO PART NO DESCRIPTION

C2301

C24

C25

C309

C31

C318

C320

C321

C332

C350

C353

C354

C360

C362

C363

C364

C365

C390

C391

C392

C406

C418

C493

C495

C527

C532

C610

C614

C618

C619

C620

C621

C622

C631

C632

C633

C635

C638

C639

C640

C641

C642

C643

C656

C658

C659

C662

C669

0CK105DF64A

0CE107DF618

0CE227DF618

0CE106DF618

0CE105DK618

0CE337DD618

0CE107DD618

0CQ3331N509

0CE106DF618

0CE107DD618

0CE227DF618

0CE476DF618

0CE336DF618

0CE105DK618

0CE474CK636

0CE106SF6DC

0CE107SF6DC

0CE476DF618

0CE107SF6DC

0CE106DF618

0CE476DF618

0CE107DF618

0CE107SF6DC

0CE107DF618

0CE107SF6DC

0CK224DF56A

0CE476DF618

0CE106DF618

0CE335DK618

0CE107DF618

0CK224DF56A

0CK105DF64A

1UF 2012 16V 20%

100UF STD 16V M

220UF STD 16V M

10UF STD 16V M

1UF STD 50V M

330UF STD 10V M

100UF STD 10V M

0.033U 100V K

10UF STD 16V M

100UF STD 10V M

220UF STD 16V M

47UF STD 16V M

33UF STD 16V M

1UF STD 50V M

0.47UF SHL,SD 50V 20%

10UF MVG 16V 20%

100UF MVG 16V M

47UF STD 16V M

100UF MVG 16V M

10UF STD 16V M

47UF STD 16V M

100UF STD 16V M

100UF MVG 16V M

100UF STD 16V M

100UF MVG 16V M

220000PF 2012 16V 10%

47UF STD 16V M

10UF STD 16V M

3.3UF STD 50V 20%

100UF STD 16V M

220000PF 2012 16V 10%

1UF 2012 16V 20%

LOCA. NO PART NO DESCRIPTION

C670

C672

C676

C677

C680

C681

C682

C683

C712

C719

C733

C734

C742

C801

C802

C803

C804

C805

C806

C807

C808

C814

C815

C817

C825

C826

C836

C837

C902

C904

C906

C911

C915

C935

C946

C953

C954

C974

JA2000

JA201

JA203

JA205A

JA205B

JA206

SJ205

L102

0CK105DF64A

0CK224DF56A

0CE227DF618

0CK105DF64A

0CE107SF6DC

0CE107DD618

0CE107SF6DC

0CE107DD618

0CE476DK618

0CE477DF618

0CE227DH618

0CE107DH618

0CE475DK618

0CE337DH618

0CE227DF618

0CE227DD618

0CE106SF6DC

0CE107DF618

0CE107SF6DC

0CE106SF6DC

0CE107SF6DC

0CE476DF618

0CE477DF618

0CE476DF618

6613V00018A

6612VAH001A

6613V00004P

380-336E

380-336F

6612VCH003B

6612VJH008D

0LA0272K139

1UF 2012 16V 20%

220000PF 2012 16V 10%

220UF STD 16V M

1UF 2012 16V 20%

100UF MVG 16V M

100UF STD 10V M

100UF MVG 16V M

100UF STD 10V M

47UF STD 50V M

470UF STD 16V 20%

220UF STD 25V M

100UF STD 25V M

4.7UF STD 50V 20%

330UF STD 25V M

220UF STD 16V M

220UF STD 10V M

10UF MVG 16V 20%

100UF STD 16V M

100UF MVG 16V M

10UF MVG 16V 20%

100UF MVG 16V M

47UF STD 16V M

470UF STD 16V 20%

47UF STD 16V M

JACK ASSEMBLY,PMJ026A (7PIN)

JACK,PHONE HEC3900010110

JACK ASSY,PJ6054P 3P

JACK,RCA WA6013E 1P

JACK,PHONE PEJ012C

JACK,RCA PJ6063D DVD IN 3P

INDUCTOR,27UH K

JACK

COIL & TRANSFORMER

REPLACEMENT PARTS LIST

All manuals and user guides at all-guides.com

- 20 -

LOCA. NO PART NO DESCRIPTION

L2105

L2106

L651

L653

L655

L656

L802

L803

T801

R2002

R2003

R803

R805

RA901

RA902

RA903

RA904

RA905

RA906

RA911

RA912

RA926

RA927

RA928

RA929

RA930

RA931

SW1101

SW1102

SW1103

SW1104

SW1105

SW1106

SW1107

SW1108

L1

L101

L103

L106

L107

L205

L206

L207

L2100

L2101

0LA0472K119

6140VR0005B

6140VB0004B

6140VB0004A

6170VTCA30A

0RD1200H609

0RHZVTA001A

0RRZVTA001A

140-313B

6210TCE001G

6210TCE001A

6210TCE001G

6210TCE001A

INDUCTOR,47UH K

COIL,SLF7045T330MR82

COIL,CHOKE 26UH

COIL,CHOKE 9.5UH

TRANSFORMER,SMPS[COIL] EPC 13Z 320UH

120 OHM 1/2 W 5.00%

0.025 OHM 1W 2%

MNR14E0AJ101 R OHM 100 OHM 5%

SWITCH,TACT 2LEAD 160G(TA)

FILTER,EMC HH1M3216501

FILTER,EMC HB1S2012080JT

FILTER,EMC HH1M3216501

FILTER,EMC HB1S2012080JT

LOCA. NO PART NO DESCRIPTION

L2105

L2106

L2107

L2108

L2109

L215

L216

L276

L277

L3

L300

L301

L302

L350

L601

L602

L603

L658

L7

L701

L702

L703

L704

L8

L801

L804

L805

L806

L901

L902

L904

L905

L908

L911

L913

L917

L918

L919

L920

L922

L923

L955

L956

L957

L958

R2004

R953

X1

X301

X501

6210TCE001A

6210TCE001G

6210TCE001A

6210TCE001G

6210TCE001A

6210TCE001G

6210TCE001A

6210TCE001G

6210TCE001A

6210TCE001G

6200JB8010L

6210TCE001G

156-A01P

156-A02X

6202VDT002J

FILTER,EMC HB1S2012080JT

FILTER,EMC HH1M3216501

FILTER,EMC HB1S2012080JT

FILTER,EMC HH1M3216501

FILTER,EMC HB1S2012080JT

FILTER,EMC HH1M3216501

FILTER,EMC HB1S2012080JT

FILTER,EMC HH1M3216501

FILTER,EMC HB1S2012080JT

FILTER,EMC HH1M3216501

FILTER,EMC MLB2012091000LN2

FILTER,EMC HH1M3216501

RESONATOR,CRYSTAL HC49U 8.000MHZ

RESONATOR,CRYSTAL HC49U 27.000MHZ

RESONATOR,CRYSTAL SX1 13.500000MHZ

FILTER & CRYSTAL

REPLACEMENT PARTS LIST

SWITCH

RESISTOR

All manuals and user guides at all-guides.com

LG RU-15LA61 User manual

Popular LCD TV manuals by other brands
