Please read this manual carefully before operating your TV
and retain it for future reference.
OWNER’S MANUAL
Safety and Reference
LED TV*
*Disclaimer
LG LED TV applies LCD screen with LED backlights.
P/NO : MFL69480102 (1605-REV01)
Printed in Korea
www.lg.com
*MFL69480102*
MT58* MT48* MT41*

ENG
ENGLISH
2
Table of contents
3 Safety precautions
6 Licenses
6 Open source software notice
information
6 Preparing
7 Lifting and moving the TV
7 Setting up the TV
7 Using the joystick button
7 - Basic functions
8 - Adjusting the menu
8 Mounting on a table
8 - Adjusting the angle of the TV to suit view
9 - Using the kensington security system
9 Mounting on a wall
9 - Separate purchase
(Wall mounting bracket)
10 Connections (notifications)
10 - Antenna connection
10 - Satellite dish connection
10 - CI module connection
10 - Euro scart connection
10 - Other connections
11 - Connecting to a PC
11 Remote control
12 Settings
16 To see web manual
17 Maintenance
17 - Cleaning your TV
17 - Screen, frame, cabinet and stand
17 - Power cord
17 - Preventing “Image burn”or“Burn-in”on
your TV screen
17 Troubleshooting
18 Specifications

ENGENGLISH
3
Safety precautions
Please read these safety precautions carefully before using the
product.
yIf you ignore the warning message, you may be seriously
injured or there is a possibility of accident or death.
WARNING
yIf you ignore the caution message, you may be slightly
injured or the product may be damaged.
CAUTION
Precautions in installing the Product
WARNING
yKeep away from heat sources like electrical heaters.
►Electrical shock, fire, malfunction or deformation may occur.
yKeep the packing anti-moisture material or vinyl packing out
of the reach of children.
►Anti-moisture material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can cause suffocation. Keep
it out of the reach of children.
yDo not put heavy objects on the product or sit upon it.
►If the product collapses or is dropped, you may be injured.
Children must pay particular attention.
yDo not leave the power or signal cable unattended on the
pathway.
►The passerby can falter, which can cause electrical shock, fire,
product breakdown or injury.
yInstall the product in a neat and dry place.
►Dust or moisture can cause electrical shock, fire or product
damage.
yIf you can smell smoke or other odors or hear a strange sound
unplug the power cord and contact the service center.
►If you continue to use without taking proper measures,
electrical shock or fire can occur.
yIf you dropped the product or the case is broken, turn off the
product and unplug the power cord.
►If you continue to use without taking proper measures,
electrical shock or fire can occur. Contact the service center.
yDo not drop an object on or apply impact to the product. Do
not throw any toys or objects on the product screen.
►It can cause injury to human, problem to product and damage
the display.
yDo not let the product fall or drop when connecting it with an
external device.
►This may cause injury and/or damage to the product.
yWhen connecting it with a game device, keep a distance of
four times as long as the diagonal measurement of the screen
from the device.
►If the product falls because of the short cable, this may cause
injury and/or damage to the product.
yLeaving a fixed image on the screen for a long time may cause
damage to the screen and cause image burn-in.To use the
product for a long period of time, use a screen saver on the
PC or utilize the residual image prevention function on the
product, and when the product is not used, turn off the power.
Burn-in and related problems are not covered by the warranty
on this product.
yDo NOT install this product on a wall where there is high risk of
exposure to oil fumes or mist.
►This may damage product and cause is to fail.
CAUTION
yMake sure the product ventilation hole is not blocked. Install
the product in a suitably wide place (more than 100 mm from
the wall).
►If you install the product too close to the wall, it may be
deformed or fire can break out due to internal heat.
yDo not block the ventilation hole of the product by a tablecloth
or curtain.
►The product can be deformed or fire can break out due to
overheating inside the product.
yInstall the product on a flat and stable place that has no risk of
dropping the product.
►If the product is dropped, you may be injured or the product
may be broken.
yInstall the product where no EMI occurs.
yKeep the product away from direct sunlight.
►The product can be damaged.
yIf you install the product in a place that does not meet the
recommended conditions, this may cause serious damage to
the product’s picture quality, life cycle and appearance. Please
check with LG or a qualified installer before installing.This
caution applies to a place where there is an abundance of fine
dust or oil mist, chemical substances are used, the temperature
is very high or low, the humidity is very high, or the product
is likely to remain turned on for a long period of time (airport
and train station), failure to do so will invalidate the warranty.
yDo not install the product in an area with poor ventilation
(e.g.on a bookshelf, in a closet) or outside and avoid placing on
cushions or carpets.
yIn addition, do not install it where there are heating objects
such as lighting equipment.

ENG
ENGLISH
4
Precautions to the AC Adapter and
Electrical Power
WARNING
yIf water or any foreign substance goes inside the product (TV,
monitor, power cord, or AC adapter), disconnect the power
cord immediately and contact the service center.
►Otherwise, this may cause a fire or electric shock due to
damage to the product.
yDo not touch the power plug or AC adapter with wet hands.
If the pins of the plug are wet or dusty, wipe and dry them
before use.
►Otherwise, this may cause a fire or electric shock.
yMake sure to completely insert the power cord into the AC
adapter.
►If loosely connected, the poor connection may cause a fire or
electric shock.
yBe sure to use power cords and AC adapters provided or
approved by LG Electronics, Inc.
►The use of non-approved products may cause a fire or electric
shock.
yWhen unplugging the power cord, always pull it by the plug.
Do not bend the power cord with excessive force.
►The power line can be damaged, which may cause electric
shock or fire.
yBe careful not to step or place heavy objects (electronic
appliances, clothing, etc.) on the power cord or AC adapter. Be
careful not to damage the power cord or AC adapter with sharp
objects.
►Damaged power cords may cause a fire or electric shock.
yNever disassemble, repair or modify the power cord or AC
adapter.
►This may cause a fire or electric shock.
yMake sure to connect the power cable to the grounded current.
►You may be electrocuted or injured.
yUse the rated voltage only.
►The product can be damaged, or you may be electrocuted.
yIn the presence of thunder and lightning, never touch the
power cord and signal cable because it can be very dangerous.
►It can cause electric shock.
yDo not connect several extension cords, electrical appliances
or electrical heaters to a single outlet. Use a power bar with
a grounding terminal designed for exclusive use with the
computer.
►A fire can break out due to overheating.
yDo not touch the power plug with wet hands. Additionally, if
the cord pin is wet or covered with dust, dry the power plug
completely or wipe dust off.
►You may be electrocuted due to excess moisture.
yIf you don’t intend to use the product for a long time, unplug
the power cable from the product.
►Covering dust can cause a fire, or insulation deterioration can
cause electric leakage, electric shock or fire.
yFix the power cable completely.
►If the power cable is not fixed completely, a fire can break out.
yDo not insert a conductor (like a metal chopstick) into one
end of the power cable while the other end is connected to
the input terminal on the wall. Additionally, do not touch the
power cable right after plugging into the wall input terminal.
►You may be electrocuted.
yThe appliance coupler is used as the disconnect device.
yPlease make sure the device is installed near the wall outlet to
which it is connected and that the outlet is easily accessible.
yAs long as this unit is connected to the AC wall outlet, it is
not disconnected from the AC power source even if the unit is
turned off.
CAUTION
yBe sure to keep the outlet, AC adapter, and pins of the power
plug clean from dust and etc.
►This may cause a fire.
yDo not unplug the power cord while the product is in use.
►Electrical shock can damage the product.
yUse only the power cord supplied with the unit. If you use
another power cord, make sure that it is certified by the
applicable national standards when not provided by the
supplier. If the power cable is faulty in any way, please contact
the manufacturer or the nearest authorized repair service
provider for a replacement.
Precautions in moving the product
WARNING
yMake sure to turn off the product.
►You may be electrocuted or the product can be damaged.
yMake sure to remove all cables before moving the product.
►You may be electrocuted or the product can be damaged.
yMake sure the panel faces forward and hold it with both hands
to move. If you drop the product, the damaged product can
cause electric shock or fire. Contact an authorized the service
center for repair.
yMake sure the product is turned off, unplugged and all cables
have been removed. It may take 2 or more people to carry
larger apparatus. Do not press against or put stress on the front
panel of the apparatus.
CAUTION
yDo not shock the product when moving it.
►You may be electrocuted or the product can be damaged.
yDo not dispose the product-packing box. Use it when you
move.

ENGENGLISH
5
Precautions in using the product
WARNING
yDo not disassemble, repair or modify the product at your own
discretion.
►Fire or electric shock accident can occur.
►Contact the service center for check, calibration or repair.
yWhen the display is to be left unattended for an extended
period of time, unplug it from the wall outlet.
yKeep the product away from water.
►Fire or electric shock accident can occur.
yDo not shock or scratch the front and sides of the screen with
metallic objects.
►Otherwise, it may cause damage to the screen.
yAvoid high temperatures and humidity.
CAUTION
yDo not put or store inflammable substances near the product.
►There is a danger of explosion or fire due to careless handling of
the inflammable substances.
yWhen cleaning the product, unplug the power cord and scrub
gently with a soft cloth to prevent scratching. Do not clean
with a wet cloth or spray water or other liquids directly onto
the product. An electric shock may occur. (Do not use chemicals
such as benzene, paint thinners or alcohol)
yTake a rest from time to time to protect your vision.
yKeep the product clean at all times.
yTake a comfortable and natural position when working with a
product to relax the muscles.
yTake a regular break when working with a product for a long
time.
yDo not press strongly upon the panel with a hand or sharp
object such as nail, pencil or pen, or make a scratch on it.
yKeep the proper distance from the product.
►Your vision may be impaired if you look at the product too
closely.
ySet the appropriate resolution and clock by referring to the
User’s Guide.
►Your vision can be impaired.
yUse authorized detergent only when cleaning the product. (Do
not use benzene, thinner or alcohol.)
►Product can be deformed.
yDo not expose to dripping or splashing and do not place
objects filled with liquids, such as vases, cups, etc. on or over
the apparatus(e.g. on shelves above the unit).
yBatteries should not be exposed to excessive heat. For
example, keep away from direct sunlight, open fireplace and
electric heaters.
yDo NOT place non-rechargeable batteries in charging device.
yUsing headsets (earphones) for a long time or listening loudly
can cause damage to your hearing.
ySpray water onto a soft cloth 2 to 4 times, and use it to clean
the front frame; wipe in one direction only. Too much moisture
may cause staining.
WATER
CHEMICALS
yDo not use products using high voltage around the Monitor.
(ex. Electrical Swatter)
►Monitor may have malfunction as its electrical shock.
Mounting on a wall
yDo not install this product by yourself. Contact the service
technician qualified by the Manufacturer. It may cause injuries.

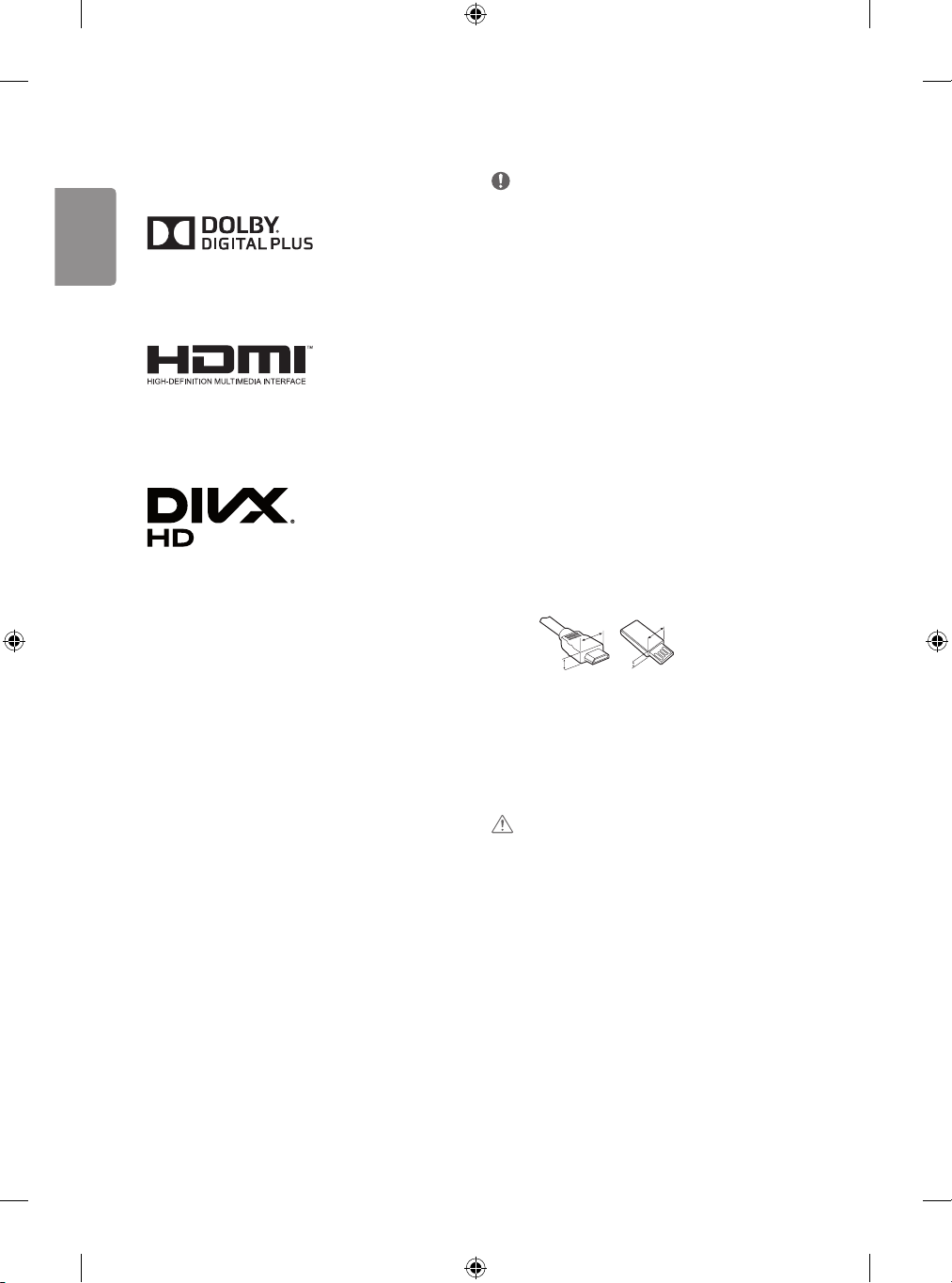

ENG
ENGLISH
6
NOTE
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that
shown in this manual.
yThe available menus and options may differ from the input
source or product model that you are using.
yNew features may be added to this TV in the future.
yTheTV can be placed in standby mode in order to reduce the
power consumption. And theTV should be turned off if it
will not be watched for some time, as this will reduce energy
consumption.
yThe energy consumed during use can be significantly reduced
if the level of brightness of the picture is reduced, and this will
reduce the overall running cost.

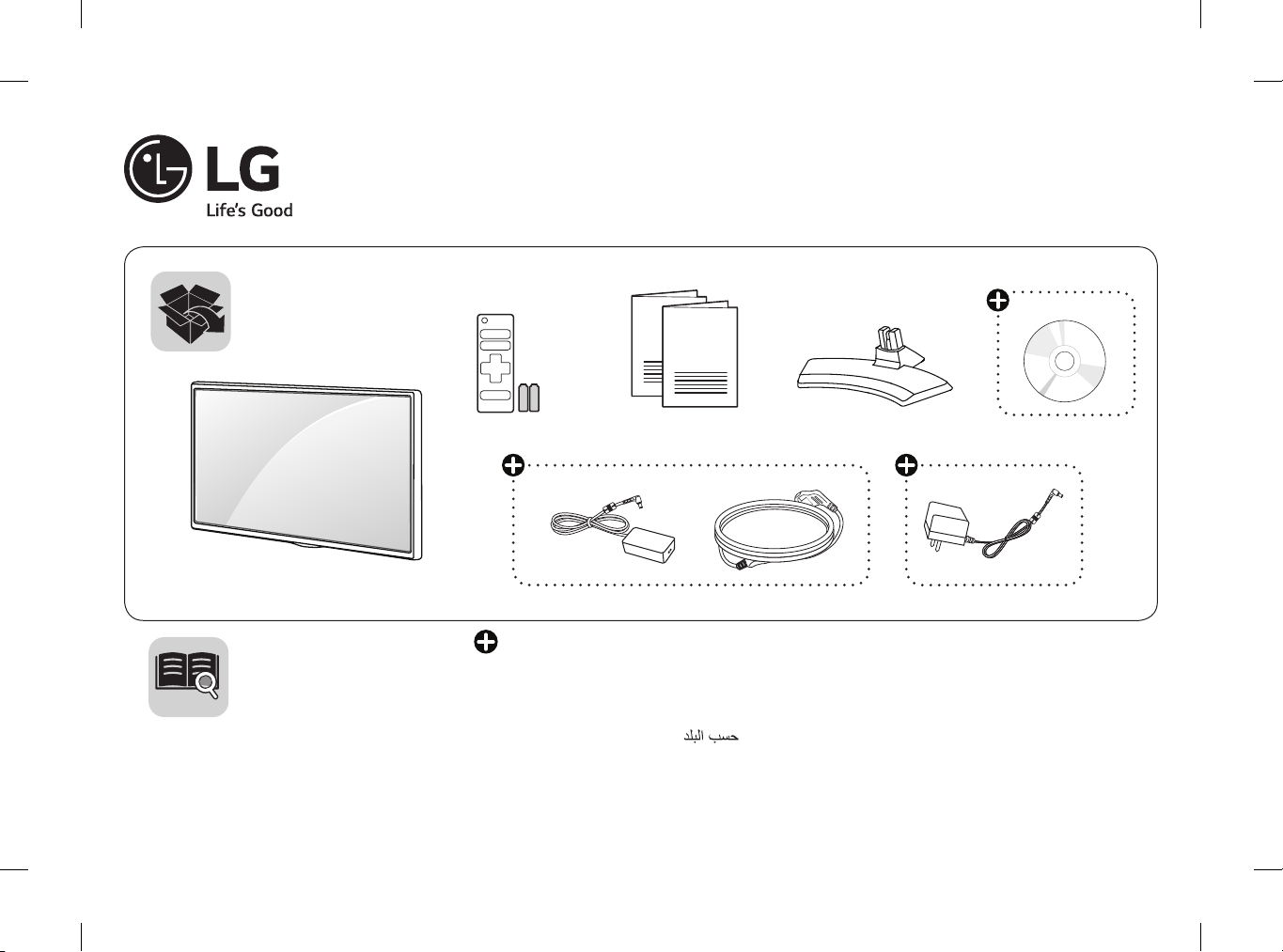

yThe items supplied with your product may vary depending on
the model.
yProduct specifications or contents of this manual may be
changed without prior notice due to upgrade of product
functions.
yFor an optimal connection, HDMI cables and USB devices
should have bezels less than 10 mm thick and 18 mm width.
Use an extension cable that supports USB 2.0 if the USB cable
or USB memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
yUse a certified cable with the HDMI logo attached. If you do
not use a certified HDMI cable, the screen may not display or a
connection error may occur.
yRecommended HDMI cable types
- High-Speed HDMI®/™cable
- High-Speed HDMI®/™cable with Ethernet
CAUTION
yDo not use any unapproved items to ensure the safety and
product life span.
yAny damage or injuries caused by using unapproved items are
not covered by the warranty.
ySome models have a thin film attached on to the screen and
this must not be removed.
Preparing
Licenses
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
This DivX Certied® device has passed rigorous testing to ensure it
plays DivX® video.
To play purchased DivX movies, rst register your device at
vod.divx.com. Find your registration code in the DivX VOD section of
your device setup menu.
DivX Certied® to play DivX® video up to HD 1080p, including
premium content.
DivX®, DivX Certied® and associated logos are trademarks of DivX,
LLC and are used under license.
Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and
others available at [www.divx.com/patents]
Open Source Software
Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit
http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].This oer is valid for three (3) years from the date
on which you purchased the product.

ENGENGLISH
7
Lifting and moving the TV
Please note the following advice to prevent the TV from being
scratched or damaged and for safe transportation regardless of its
type and size.
yIt is recommended to move the TV in the box or packing
material that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and
all cables.
yWhen holding the TV, the screen should face away from you to
avoid damage.
yHold the top and bottom of theTV frame firmly. Make sure not
to hold the transparent part, speaker, or speaker grill area.
yWhen transporting the TV, do not expose the TV to jolts or
excessive vibration.
yWhen transporting the TV, keep the TV upright, never turn the
TV on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause flexing /bending of
frame chassis as it may damage screen.
CAUTION
yAvoid touching the screen at all times, as this may result in
damage to the screen.
yWhen handling the TV, be careful not to damage the
protruding joystick button. (Depending on model)
Using the joystick button
You can simply operate theTV functions, pressing or moving the
joystick button up, down, left or right.
yImage shown may differ from your TV.

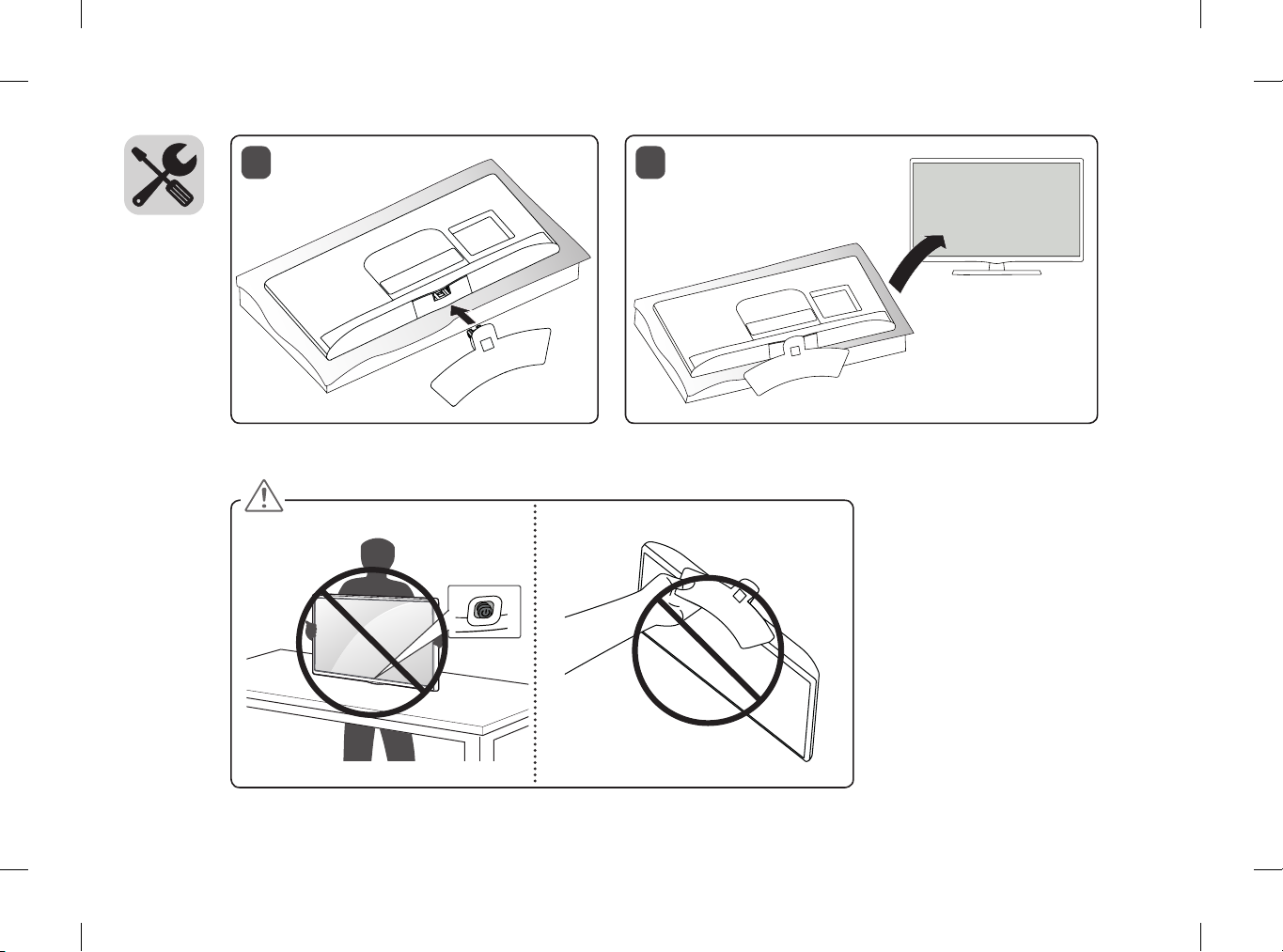

Setting up the TV
CAUTION
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or flat surface to protect the screen
from scratches.
yDo not carry the monitor upside-down by holding the stand
body (or stand base) as this may cause it to fall off, resulting in
damage or injury.
NOTE
yRemove the stand before installing the TV on a wall mount
by performing the stand attachment in reverse. (Only MT58*,
MT48T)
yLift up the latch at the bottom of the stand base and detach
the stand base from theTV. (Only MT48D*, MT48V*, MT48U,
MT41*)
Basic functions
Power On
When the TV is turned o, place
your nger on the joystick button
and press it once and release it.
Power O
When the TV is turned on, place
your nger on the joystick button
and press it once for a few seconds
and release it. (However, if the
Menu button is on the screen,
pressing and holding the joystick
button will let you exit the Menu.)
Volume
Control
If you place your nger over the
joystick button and move it left or
right, you can adjust the volume
level you want.
Programmes
Control
If you place your nger over the
joystick button and move it up or
down, you can scrolls through the
saved programmes you want.
Joystick Button
Remote control
sensor

ENG
ENGLISH
8
Adjusting the menu
When the TV is turned on, press the joystick button one time. You
can adjust the Menu items moving the joystick button up, down, left
or right.
Turns the power o.
Clears on-screen displays and returns to TV viewing.
Changes the input source.
Accesses the setting menu.
NOTE
yIf you press the joystick button first, you may not be able to adjust
the volume level and saved programmes.
CAUTION
yWhen your finger over the joystick button and push it to the up,
down, left or right, be careful not to press the joystick button.
Mounting on a table
yImage shown may differ from your TV.
1 Lift and tilt the TV into its upright position on a table.
-Leave a 100 mm (minimum) space from the wall for proper
ventilation.
100 mm
100 mm
100 mm
100 mm
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources of heat, as this may
result in fire or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter
before connecting theTV’s power plug to a wall power outlet.

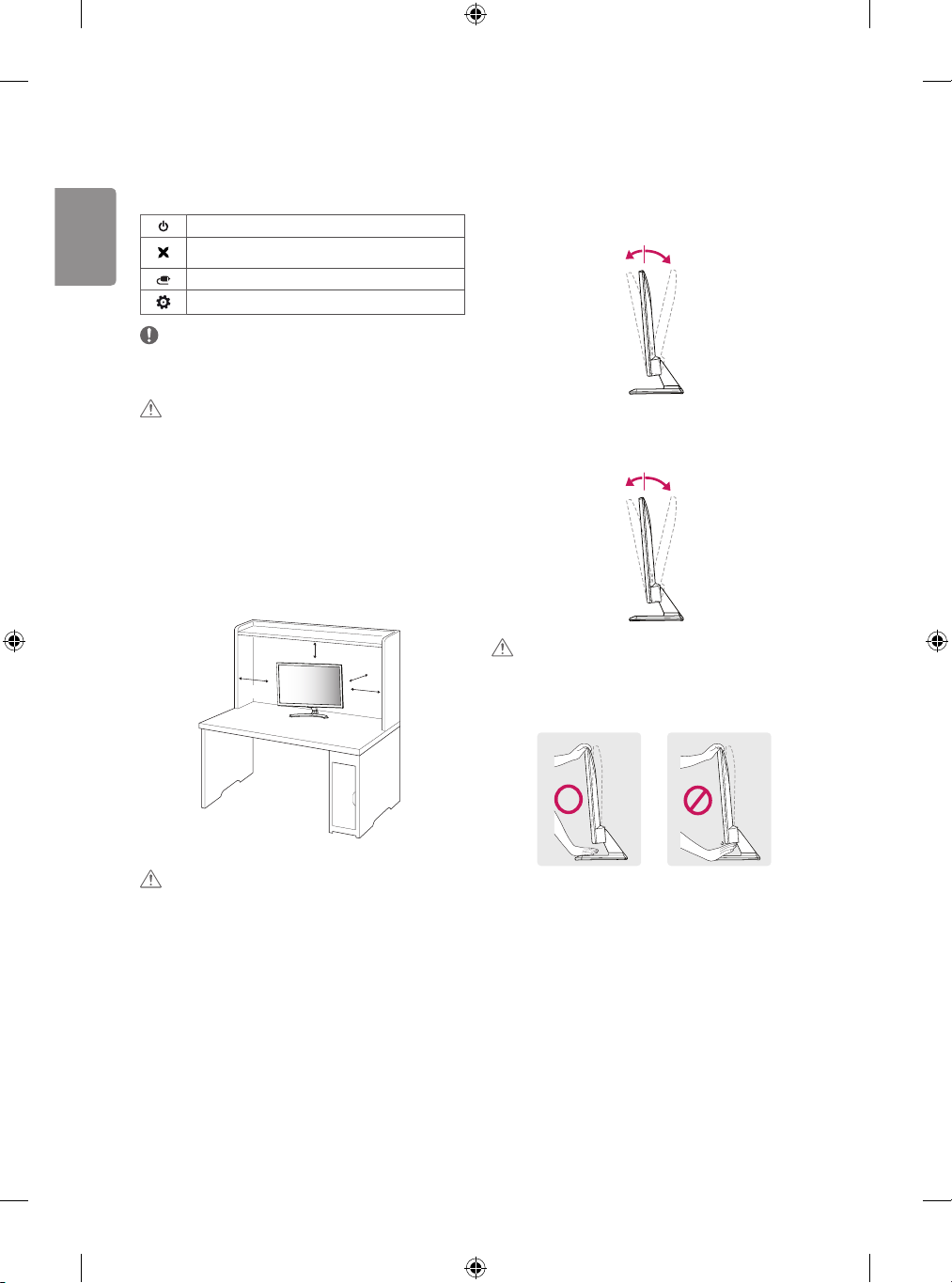

Adjusting the angle of the TV to suit view
yImage shown may differ from your TV.
(Only 22MT58*)
Tilt from -5° to 20° degrees up or down to adjust the angle of the TV
to suit your view.
Front Rear
20°
-5°
(Only 24/27MT58*)
Tilt from -2° to 15° degrees up or down to adjust the angle of the TV
to suit your view.
Front Rear
15°
-2°
CAUTION

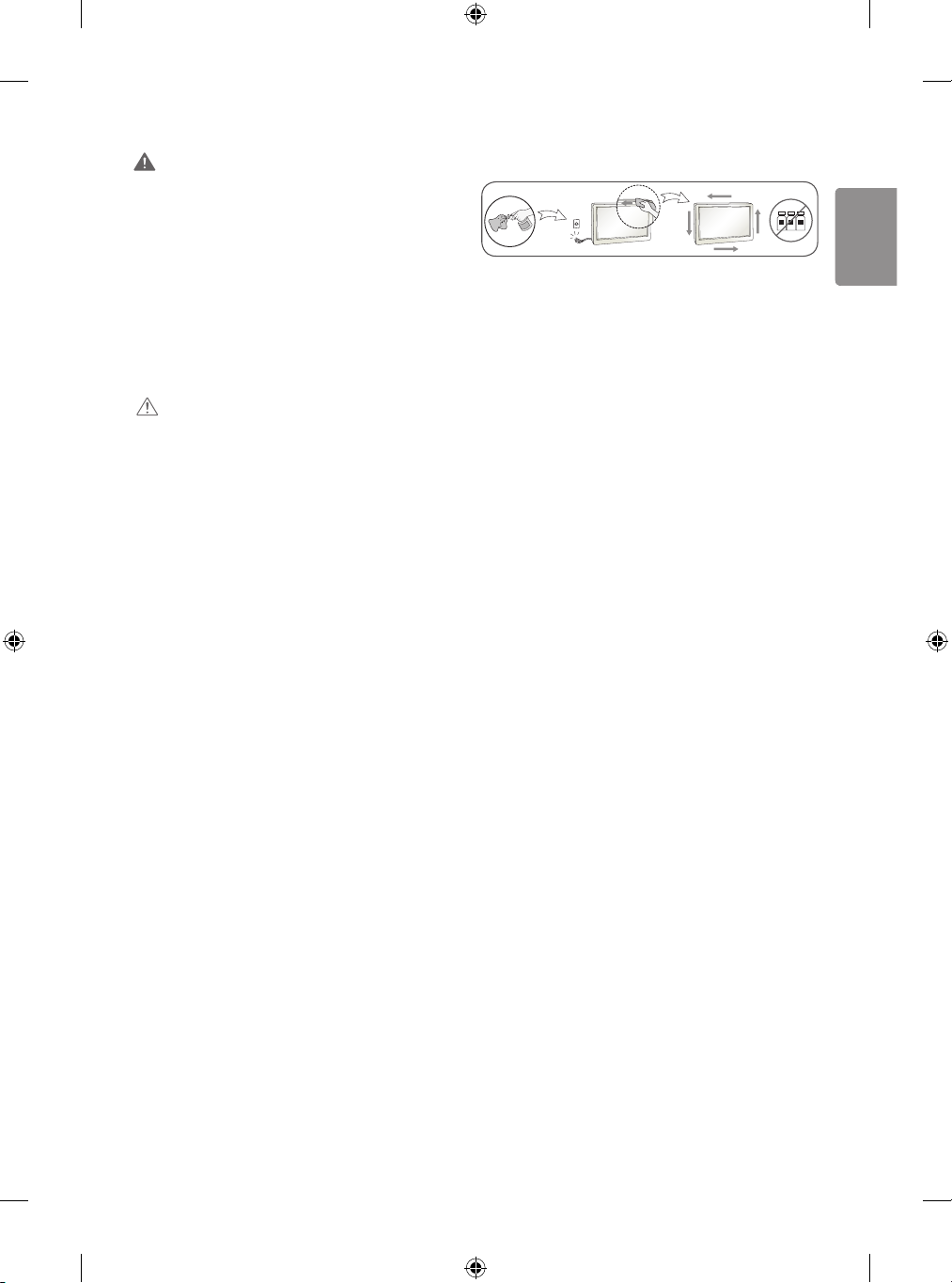

yWhen you adjust the angle, do not hold the buttom of the TV
frame as shown on the following illustration, as may injure
your fingers.

ENGENGLISH
9

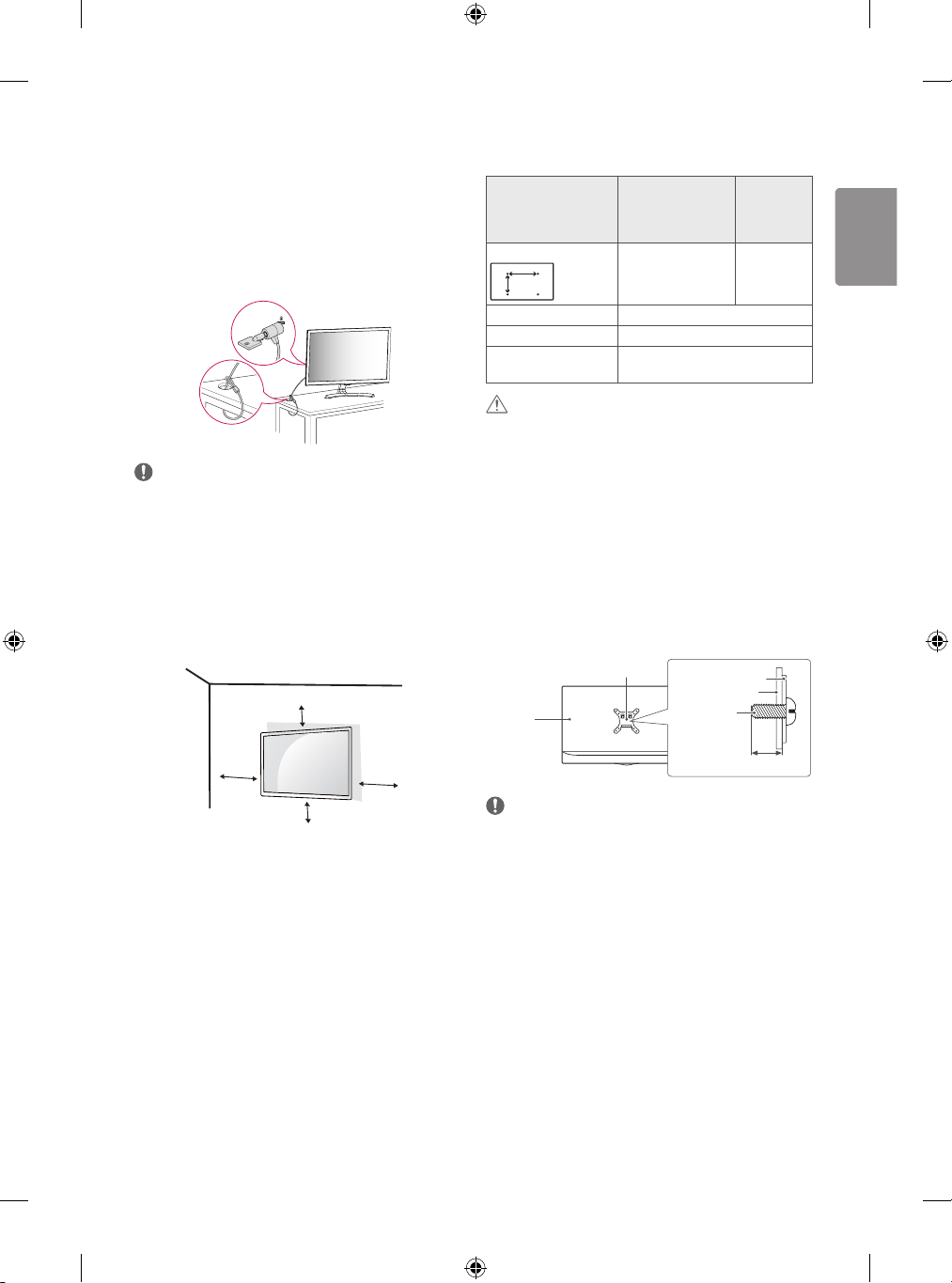

Using the kensington security system
(This is not available for all models.)
yImage shown may differ from your TV.
The Kensington security system connector is located at the rear of the
TV. For more information of installation and using, refer to the manual
provided with the Kensington security system or visit
http://www.kensington.com. Connect the Kensington security system
cable between the TV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from most electronics stores.
Mounting on a wall
For proper ventilation, allow a clearance of 100 mm on each side and
from the wall. Detailed installation instructions are available from
your dealer, see the optional TiltWall Mounting Bracket Installation
and Setup Guide.
100 mm
100 mm
100 mm 100 mm
If you intend to mount the TV to a wall, attach Wall mounting
interface (optional parts) to the back of the TV.
When you install theTV using the wall mounting interface (optional
parts), attach it carefully so it will not drop.
1 If you use screw longer than standard, the TV might be damaged
internally.
2 If you use improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
Separate purchase
(Wall mounting bracket)
Model
20MT48* / 22MT58*
22MT48* / 22MT41*
24MT58* / 24MT48*
24MT41*
27MT58*
28MT48*
28MT41*
29MT48*
Wall mount (A x B)
A
B75 x 75 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall mount bracket
(optional)
RW120
CAUTION
yDisconnect the power first, and then move or install the TV.
Otherwise electric shock may occur.
yIf you install theTV on a ceiling or slanted wall, it may fall and
result in severe injury.
yUse an authorized LG wall mount and contact the local dealer
or qualified personnel.
yDo not over tighten the screws as this may cause damage to
the TV and void your warranty.
yUse the screws and wall mounts that meet the VESA standard.
Any damages or injuries by misuse or using an improper
accessory are not covered by the warranty.
yScrew length from outer surface of back cover should be under
8 mm.
Wall mount Pad
Back Cover Standard screw
: M4 x L10
Wall mount Pad
Back Cover
Max. 8 mm
NOTE
yUse the screws that are listed on the VESA standard screw
specifications.
yThe wall mount kit includes an installation manual and
necessary parts.
yThe wall mount bracket is optional. You can obtain additional
accessories from your local dealer.
yThe length of screws may differ depending on the wall mount.
Be sure to use the proper length.
yFor more information, refer to the instructions supplied with
the wall mount.

ENG
ENGLISH
10
Connections (notications)
Connect various external devices to theTV and switch input modes
to select an external device. For more information about an external
device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players,VCRs, audio
systems, USB storage devices, PC, gaming devices, and other external
devices.
NOTE
yThe external device connection may differ from the model.
yConnect external devices to theTV regardless of the order of
the TV port.
yIf you record a TV programme on a DVD recorder orVCR, make
sure to connect theTV signal input cable to the TV through a
DVD recorder or VCR. For more information of recording, refer
to the manual provided with the connected device.
yRefer to the external equipment’s manual for operating
instructions.
yIf you connect a gaming device to theTV, use the cable
supplied with the gaming device.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present,
change the PC output to another resolution, change the refresh
rate to another rate or adjust the brightness and contrast on
the Picture menu until the picture is clear.
yIn PC mode, some resolution settings may not work properly
depending on the graphics card.

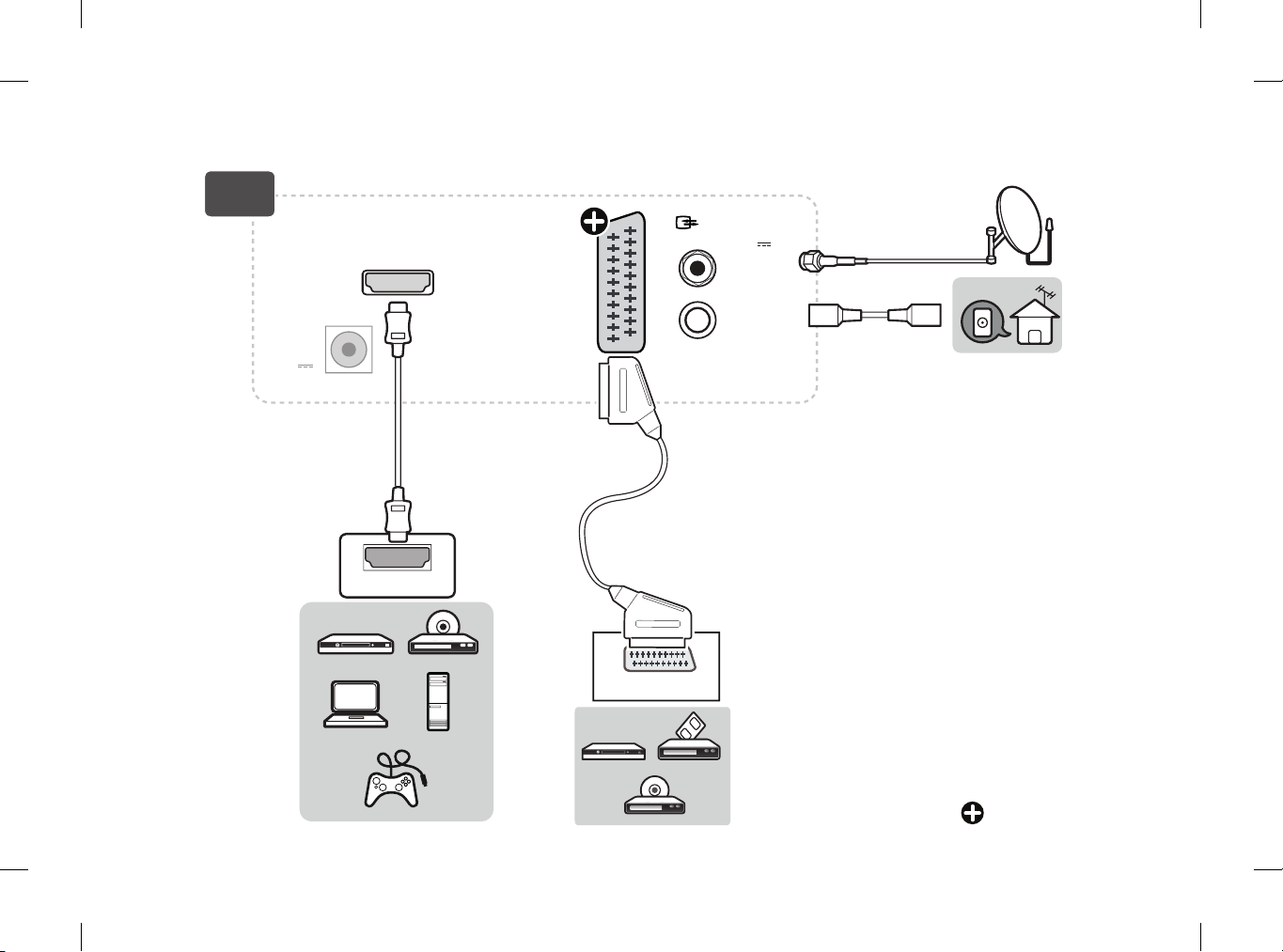

Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplifier properly
to improve the image quality.
yIf the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
Satellite dish connection
(Only satellite models)
Connect the TV to a satellite dish to a satellite socket with a satellite
RF cable (75 Ω).
CI module connection
(Depending on model)
View the encrypted (pay) services in digital TV mode.
yCheck if the CI module is inserted into the PCMCIA card slot in
the right direction. If the module is not inserted properly, this
can cause damage to the TV and the PCMCIA card slot.
yIf the TV does not display any video and audio when CI+ CAM
is connected, please contact to theTerrestrial/Cable/Satellite
Service Operator.
Euro scart connection
(Depending on model)
Transmits the video and audio signals from an external device to the
TV set. Connect the external device and theTV set with the euro scart
cable.
Output
Type
Current
input mode
AV1
(TV Out1)
Digital TV Digital TV
Analogue TV
Analogue TV
AV, HDMI
Component, RGB (Depending on model)
1 Outputs Analogue TV or DigitalTV signals.
NOTE
yAny Euro scart cable used must be signal shielded.
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and theTV with the HDMI cable.
Some separate cable is not provided.
yUSB port supports 0.5 A electric current. If you need more
electric current in case of HDD, use the separate power adaptor.
NOTE
ySupported HDMI Audio format :
Dolby Digital (32 KHz, 44.1 KHz, 48 KHz),
PCM (32 KHz, 44.1 KHz, 48 KHz, 96 KHz, 192 KHz)
(Depending on model)

ENGENGLISH
11

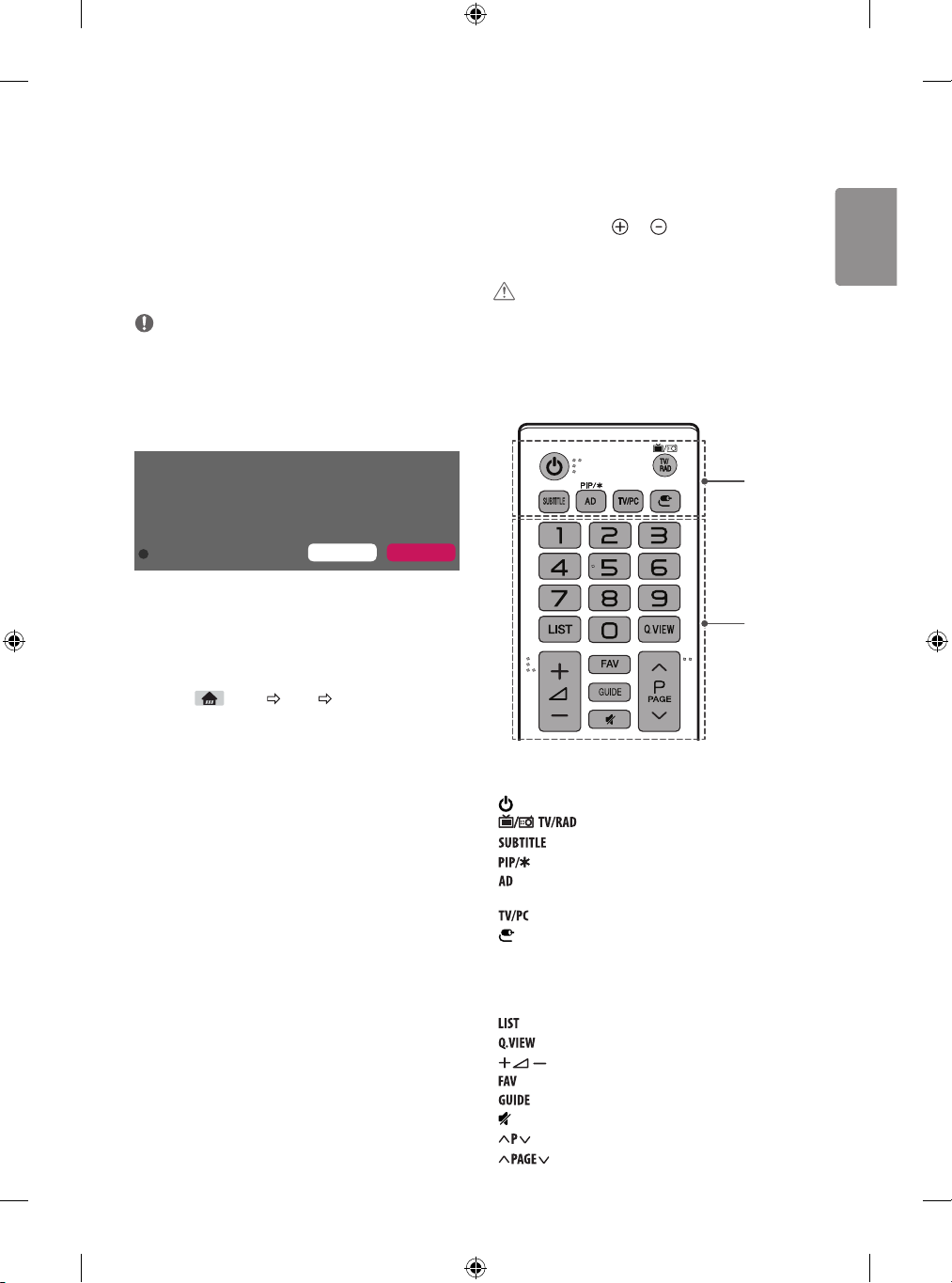

Remote control
The descriptions in this manual are based on the buttons on the remote
control. Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries
(1.5 V AAA) matching the and ends to the label inside the
compartment, and close the battery cover. To remove the batteries,
perform the installation actions in reverse.
CAUTION
yDo not mix old and new batteries, as this may damage the
remote control.
yThe remote control will not be included for all sales market.
Make sure to point the remote control toward the remote control
sensor on the TV.
A
(Power) Turns the TV on or o.
Selects Radio, TV and DTV programme.
Recalls your preferred subtitle in digital mode.
Turns the PIP mode on or o. (Depending on model)
By pressing the AD button, audio descriptions function will be
enabled.
Selects TV or PC mode.
(Inputs) Changes the input source.
B
Number buttons Enters numbers.
Accesses the saved programme list.
Returns to the previously viewed programme.
Adjusts the volume level.
Accesses your favourite programme list.
Shows programme guide.
Mutes all sounds.
Scrolls through the saved programmes.
Moves to the previous or next screen.
hri^Z`^\^_]
A
B
Connecting to a PC
yImage shown may differ from your TV.
Your TV supports the Plug and Play* feature and has the built-in
speakers withVirtual Surround that reproduces sound clearly with a
rich bass.
* Plug and Play:The function when a PC recognizes a connected device
that users connect to a PC and turn on, without device conguration
or user intervention.
NOTE
yIf you want to use HDMI-PC mode, you must set the Input
Label to PC mode.
yThe OSD (On Screen Display) is displayed on the screen as
shown below.
»When turning the product on in HDMI input.
»When switching to HDMI input.
Is the input connected to your PC?
Do not show message again YES NO
yIf you select "YES" the size and image quality are optimised
for your PC.
yIf you select "NO" the size and image quality are optimised for
the AV device (DVD player, set-top box).
yIf you select "Do not show message again" this message
does not appear until the TV is reset. You can change the set
value in (Home) Inputs Input Label.
yThe values set for HDMI1/HDMI2 are saved independently.
(Only MT58*)

ENG
ENGLISH
12
Settings
Automatically Setting Up Programme
(Settings) Programmes Auto Tuning
Automatically tunes the programmes.
yIf Input Source is not connected properly, programme
registration may not work.
yAuto Tuning only finds programmes that are currently
broadcasting.
yIf Lock System is turned on, a pop-up window will appear
asking for password.
To select Picture Mode
(Settings) Picture Picture Mode Settings Picture
Mode
Select the picture mode optimized for the viewing environment or the
programme.
yVivid : Heightens contrast, brightness and sharpness to display
vivid images.
yStandard : Displays images in standard levels of contrast,
brightness and sharpness.
yEco/APS: [Depending on model]
The Energy Saver feature changes settings on theTV to reduce
power consumption.
yCinema/Game : Displays the optimum picture for movie,
game.
ySports : [Depending on model]
Optimizes the video image for high and dynamic actions by
emphasizing primary colours such as white, grass, or sky blue.
yExpert 1,2 : Menu for adjusting picture quality that
allows experts and amateurs to enjoy the bestTV viewing.
This is the adjustment menu provided for ISF-certified picture
tuning professionals. (ISF logo can only be used on ISF-certified
TVs.)
ISFccc: Imaging Science Foundation Certified Calibration
Control
yDepending on input signal, available range of picture modes
may differ.
yExpert mode is for picture tuning professionals to
control and fine-tune using a specific image. For normal
images, the effects may not be dramatic.
yThe ISF function is only available on some models.
C
Teletext buttons ( ) These buttons are used for
teletext.
(Home) Accesses the Home menu.
(Settings) Accesses the settings menu.
Accesses the Quick menus.
(Navigation buttons) Scrolls through menus or
options.
Selects menus or options and conrms your input.
Returns to the previous level.
Clears on-screen displays and returns to TV viewing.
D
Views the information of the current programme and
screen.
Not functional.
(Control buttons) Controls media contents.
, , , (Colour buttons) These access special
functions in some menus.
(Gaming mode) Turns the gaming mode on or o.
(Backlight) Adjusts the brightness of the screen by
controlling the screen backlight.
NOTE
yOn MHEG programme, you cannot adjust the backlight with
the yellow or blue key.
hri^Z`^\^_]
C
D
