LG 24TL520V User manual

24TL520U 24TL520V
28TL520V
24TL510V
28TL510V
www.lg.com
Copyright 2019 LG Electronics Inc. All Rights Reserved.
Safety and Reference
(LED TV*)
OWNER’S MANUAL
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your TV and retain it for future
reference.

2
ENGLISH
Table of contents
Licenses ----------------------------------------------3
Open source software notice information -3
Preparing--------------------------------------------3
Lifting and moving the TV----------------------4
Setting up the TV----------------------------------4
Using the button ----------------------------------5
Mounting on a table------------------------------5
Mounting on a wall -------------------------------6
Connections (notications) --------------------7

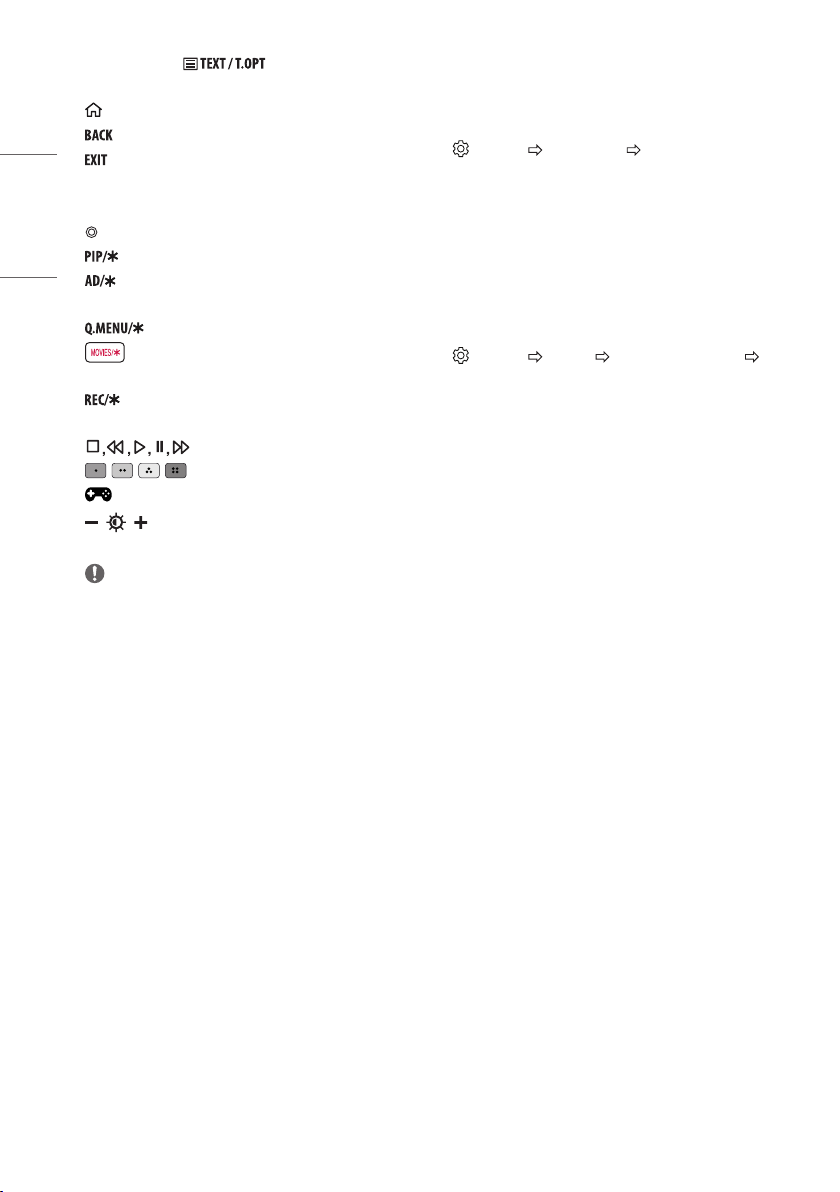

Remote control ------------------------------------9
Settings -------------------------------------------- 10
To see web manual------------------------------ 16
Maintenance-------------------------------------- 17
Troubleshooting--------------------------------- 17
Specications ------------------------------------ 18

3
ENGLISH

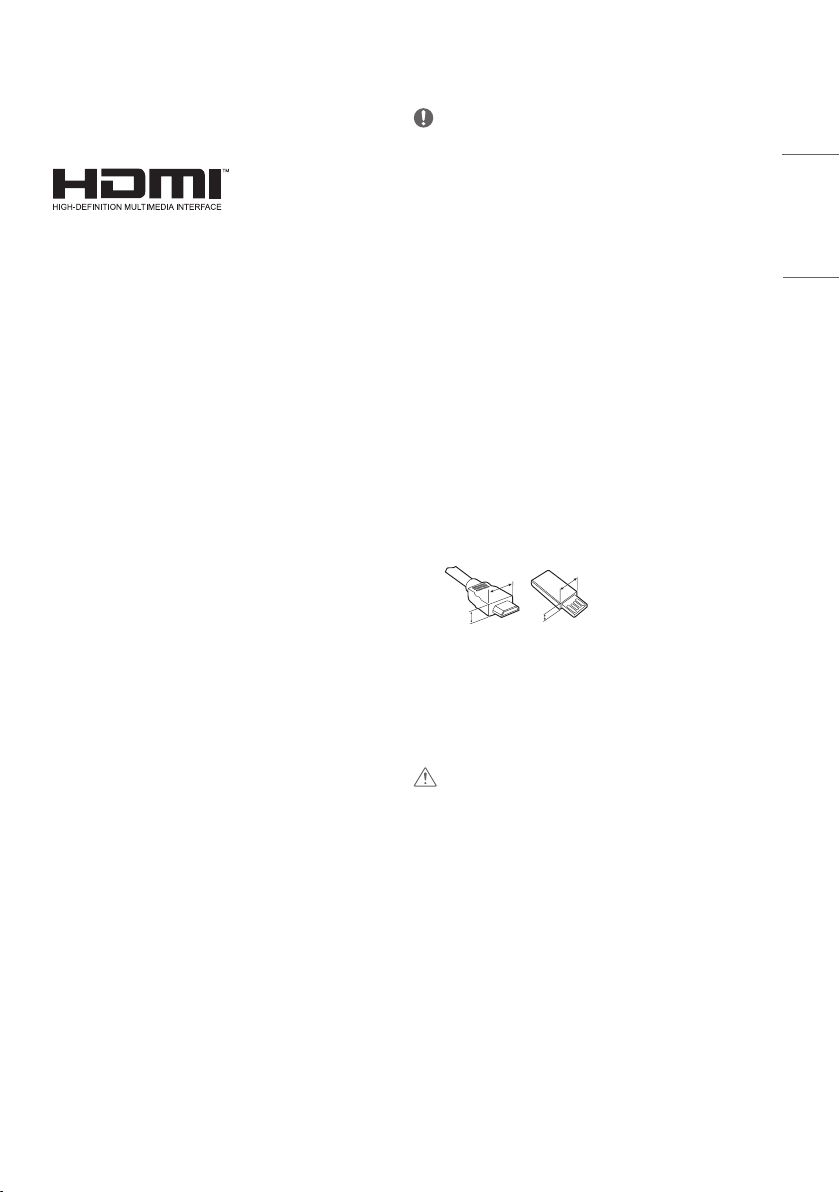

Licenses
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com.
The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
Open source software
notice information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].
This oer is valid for a period of three years after our last shipment of
this product.This oer is valid to anyone in receipt of this information.
Preparing
NOTE
yImage shown may dier from your TV.
yYour TV’s OSD (On Screen Display) may dier slightly from that
shown in this manual.
yThe available menus and options may dier from the input source
or product model that you are using.
yNew features may be added to this TV in the future.
yTheTV can be placed in standby mode in order to reduce the power
consumption. And theTV should be turned o if it will not be
watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be signicantly reduced if the
level of brightness of the picture is reduced, and this will reduce
the overall running cost.
yThe items supplied with your product may vary depending on the
model.
yProduct specications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width. Use an
extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not t into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
yUse a certied cable with the HDMI logo attached. If you do not use
a certied HDMI cable, the screen may not display or a connection
error may occur.
yRecommended HDMI cable types
-High-Speed HDMI®/™ cable
-High-Speed HDMI®/™ cable with Ethernet
CAUTION
yDo not use any unapproved items to ensure the safety and product
life span.
yAny damage or injuries caused by using unapproved items are not
covered by the warranty.

4
ENGLISH

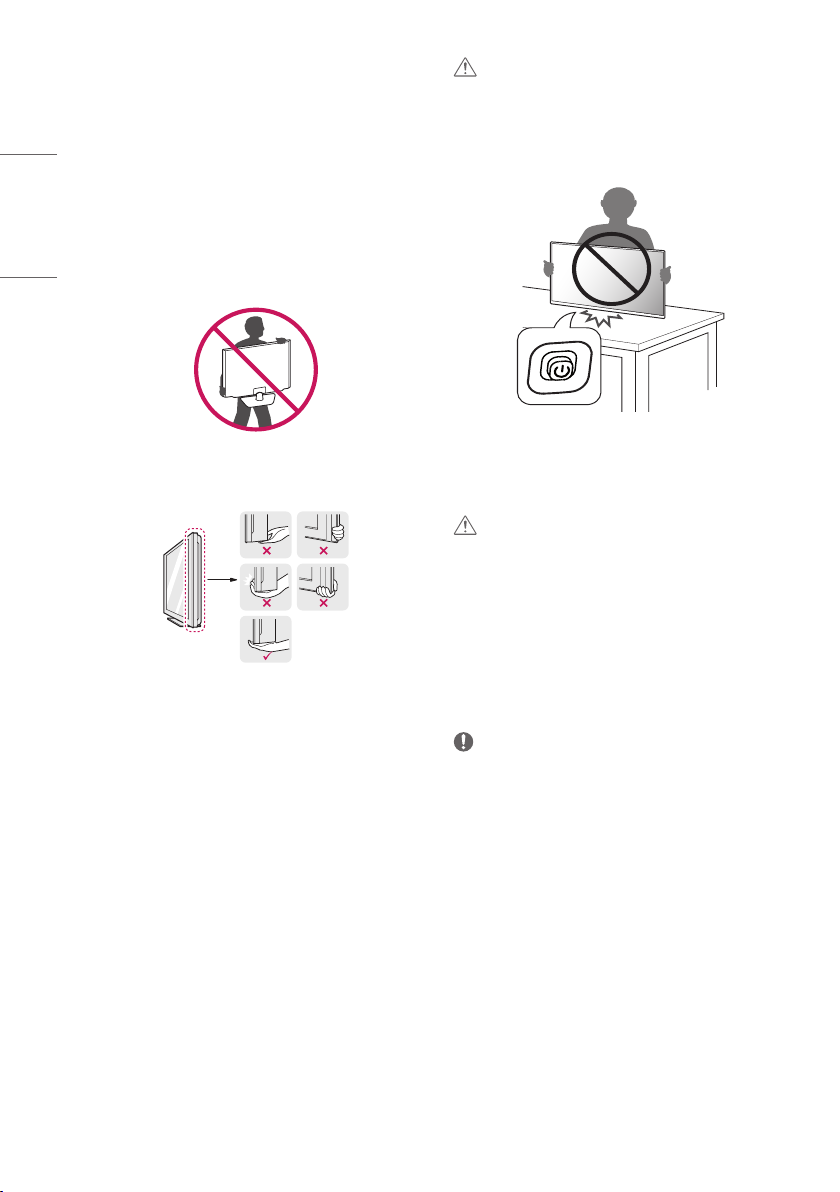

Lifting and moving the TV
Please note the following advice to prevent theTV from being
scratched or damaged and for safe transportation regardless of its
type and size.
yIt is recommended to move the TV in the box or packing material
that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and all
cables.
yWhen holding the TV, the screen should face away from you to
avoid damage.
yHold the top and bottom of theTV frame rmly. Make sure not to
hold the transparent part, speaker, or speaker grill area.
yWhen transporting the TV, do not expose the TV to jolts or excessive
vibration.
yWhen transporting the TV, keep the TV upright, never turn the TV
on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause exing/bending of frame
chassis as it may damage screen.
CAUTION
yAvoid touching the screen at all times, as this may result in damage
to the screen.
yWhen handling the TV, be careful not to damage the protruding
joystick button. (Depending on model)
Setting up the TV
CAUTION
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen
from scratches.
yDo not carry the TV upside-down by holding the stand body (or
stand base) as this may cause it to fall o, resulting in damage or
injury.
yDo not apply foreign substances (oils, lubricants, etc.) to the screw
parts when assembling the product. (Doing so may damage the
product.)
NOTE
yRemove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse. (Only TL520*)
yLift up the latch at the bottom of the stand base and detach the
stand base from theTV. (Only TL510V)

5
ENGLISH

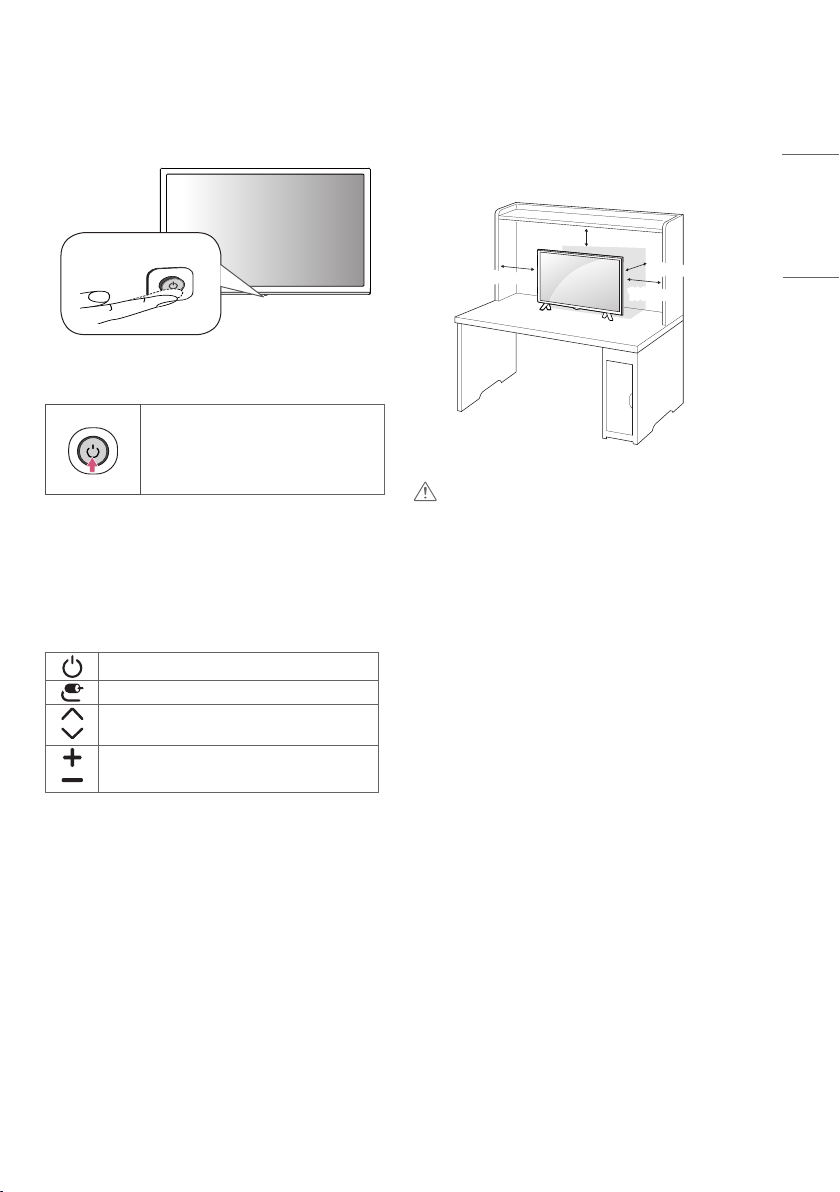

Mounting on a table
yImage shown may dier from your TV.
1 Lift and tilt theTV into its upright position on a table.
-Leave a 100 mm (minimum) space from the wall for proper
ventilation.
100 mm
100 mm
100 mm
100 mm
2 Connect the AC-DC Adapter and power cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources of heat, as this may result in
re or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter before
connecting the TV’s power plug to a wall power outlet.
Using the button
yYou can operate your TV by pressing the button.
yImage shown may dier from your TV.
Basic functions
Power On (Press)
Power O (Press and Hold)
Menu Control (Press1)
Menu Selection (Press and Hold2)
1 You can access and adjust the menu by pressing the button when
TV is on.
2 You can use the function when you access menu control.
Adjusting the menu
When the TV is turned on, press the button one time.
You can adjust the Menu items using the button.
Turns the power o.
Changes the input source.
Scrolls through the saved programmes.
Adjusts the volume level.

6
ENGLISH

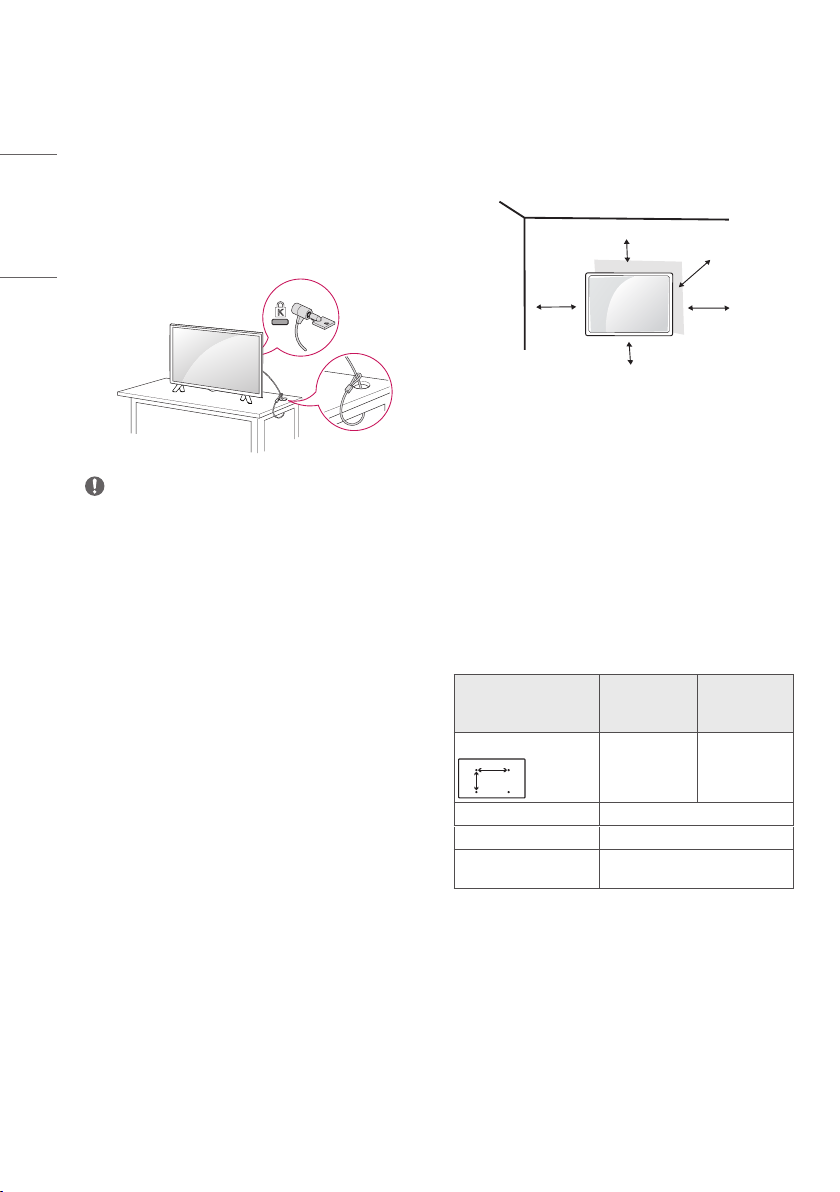

Using the kensington security
system (optional)
(This is not available for all models.)
yImage shown may dier from your TV.
The Kensington security system connector is located at the rear of
the TV. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington security system cable
between the TV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from most electronics stores.
Mounting on a wall
For proper ventilation, allow a clearance of 100 mm on each side and
from the wall. Detailed installation instructions are available from
your dealer, see the optionalTilt Wall Mounting Bracket Installation
and Setup Guide.
100 mm
100 mm
100 mm 100 mm
100 mm
If you intend to mount the TV to a wall, attach Wall mounting
interface (optional parts) to the back of the TV.
When you install theTV using the wall mounting interface (optional
parts), attach it carefully so it will not drop.
1 If you use screw longer than standard, theTV might be damaged
internally.
2 If you use improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
Separate purchase
(Wall mounting bracket)
Model
24TL520V
24TL520U
24TL510V
28TL520V
28TL510V
Wall mount (A x B) (mm)
A
B
75 x 75 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall mount bracket
(optional) RW120

7
ENGLISH
Connections (notications)
Connect various external devices to theTV and switch input modes
to select an external device. For more information about an external
device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio
systems, USB storage devices, PC, gaming devices, and other external
devices.
NOTE
yThe external device connection may dier from the model.
yConnect external devices to theTV regardless of the order of the
TV port.
yIf you record a TV programme on a DVD recorder orVCR, make
sure to connect theTV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the
manual provided with the connected device.
yRefer to the external equipment’s manual for operating
instructions.
yIf you connect a gaming device to theTV, use the cable supplied
with the gaming device.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the [PICTURE]
menu until the picture is clear.
yIn PC mode, some resolution settings may not work properly
depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω) (Not
Provided).
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplier properly to
improve the image quality.
yIf the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio : MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
CAUTION
yMust use the enclosed screw in the box. (Depending on model)
yDisconnect the power rst, and then move or install the TV.
Otherwise electric shock may occur.
yIf you install theTV on a ceiling or slanted wall, it may fall and
result in severe injury.
yUse an authorized LG wall mount and contact the local dealer or
qualied personnel.
yDo not over tighten the screws as this may cause damage to the TV
and void your warranty.
yUse the screws and wall mounts that meet the VESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the warranty.

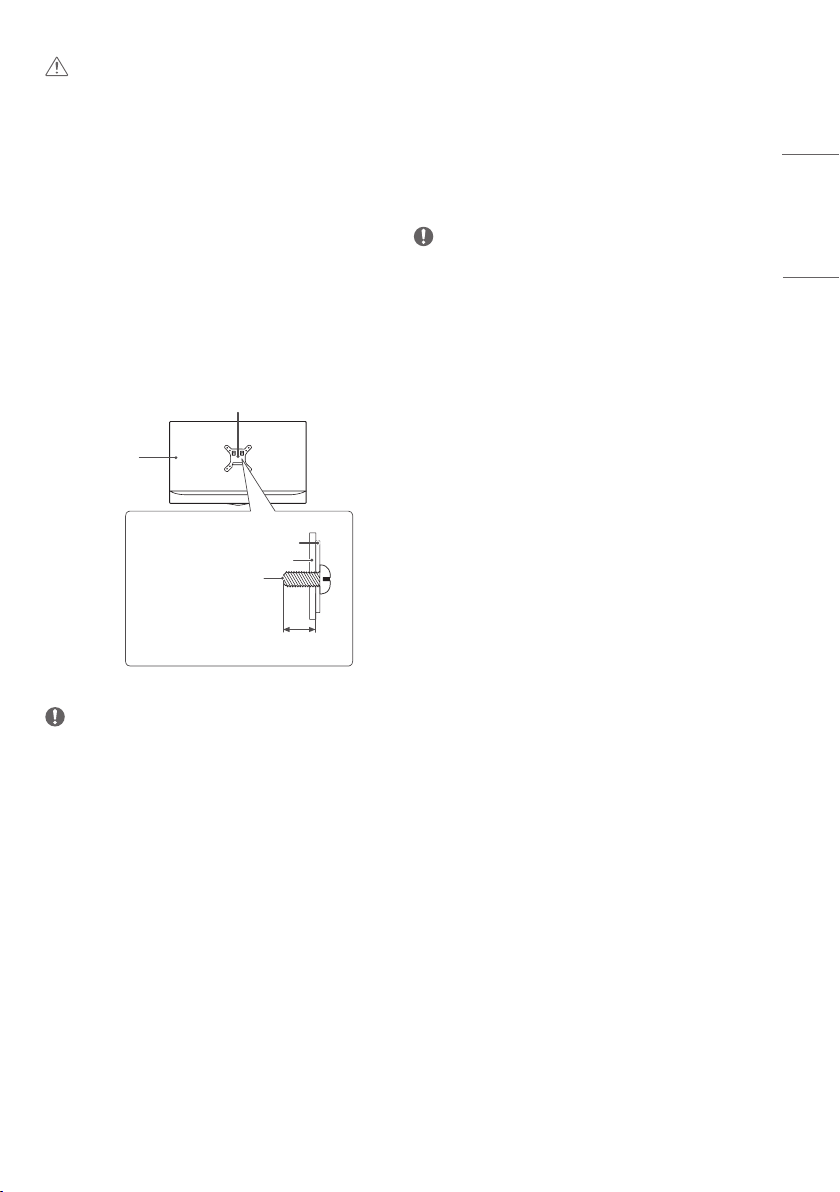

yScrew length from outer surface of back cover should be under 8
mm.
Wall mount Pad
Back Cover
Standard screw
: M4 x L10
Wall mount Pad
Back Cover
Max.8 mm
NOTE
yUse the screws that are listed on the VESA standard screw
specications.
yThe wall mount kit includes an installation manual and necessary
parts.
yThe wall mount bracket is optional.You can obtain additional
accessories from your local dealer.
yThe length of screws may dier depending on the wall mount. Be
sure to use the proper length.
yFor more information, refer to the instructions supplied with the
wall mount.

8
ENGLISH
Connecting to a PC
yImage shown may dier from your TV.
Your TV supports the Plug and Play* feature and has the built-in
speakers withVirtual Surround that reproduces sound clearly with
a rich bass.
* Plug and Play :The function when a PC recognizes a connected
device that users connect to a PC and turn on, without device
conguration or user intervention.
NOTE
yIf you want to use HDMI-PC mode, you must set the [Input Label]
to [PC] mode.
yThe OSD (On Screen Display) is displayed on the screen as shown
below.
»When turning the product on in HDMI input.
»When switching to HDMI input.
Is the input connected to your PC?
Do not show message again YES NO
yIf you select [YES] the size and image quality are optimized for
your PC.
yIf you select [NO] the size and image quality are optimized for the
AV device (DVD player, set-top box).
yIf you select [Do not show message again] this message does not
appear until the TV is reset. You can change the set value in
(Home) [Inputs] [Input Label].
Satellite dish connection
(Only satellite models)
Connect the TV to a satellite dish to a satellite socket with a satellite
RF cable (75 Ω).
CI module connection
(Depending on model)
View the encrypted (pay) services in digital TV mode.
yCheck if the CI module is inserted into the PCMCIA card slot in the
right direction. If the module is not inserted properly, this can
cause damage to the TV and the PCMCIA card slot.
yIf the TV does not display any video and audio when CI+ CAM is
connected, please contact to theTerrestrial/Cable/Satellite Service
Operator.
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and theTV with the HDMI cable.
Some separate cable is not provided.
yUSB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.
NOTE
ySupported HDMI Audio format : Dolby Digital / Dolby Digital Plus
(32 kHz / 44.1 kHz / 48 kHz), PCM (32 kHz / 44.1 kHz / 48 kHz / 96
kHz / 192 kHz) (Depending on model)

9
ENGLISH
Remote control
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use the TV
correctly.
To replace batteries, open the battery cover, replace batteries (1.5
V AAA) matching the and ends to the label inside the
compartment, and close the battery cover.To remove the batteries,
perform the installation actions in reverse.
CAUTION
yDo not mix old and new batteries, as this may damage the remote
control.
yThe remote control will not be included for all sales market.
Make sure to point the remote control toward the remote control
sensor on the TV.
(Some buttons and services may not be provided depending on
models or regions.)
1 To use the button, press and hold for more than 3 seconds.
(Power) Turns the TV on or o.
Selects Radio, TV and DTV programme.
Selects TV or PC mode.
Recalls your preferred subtitle in digital mode.
(Settings) Accesses the settings menu.
(Inputs) Changes the input source.
Number buttons Enters numbers.
1Edits QUICK ACCESS. (Depending on model)
QUICK ACCESS is a feature that allows you to enter a specied app or
LiveTV directly by pressing and holding the number buttons.
Accesses the saved programme list.
(More actions) Displays more remote control functions.
(Depending on model)
Adjusts the volume level.
Accesses your favourite programme list.
Shows programme guide.
(Mute) Mutes all sounds.
1Accesses the [Accessibility] menu.
Scrolls through the saved programmes.

10
ENGLISH
Teletext buttons ( ) These buttons are used for
teletext.
(Home) Accesses the home menu.
Returns to the previous level.
Clears on-screen displays and returns to TV viewing.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
Selects menus or options and conrms your input.
Turns the PIP mode on or o. (Depending on model)
Audio descriptions function will be enabled. (Depending on
model)
Accesses the Quick menus. (Depending on model)
(Streaming Service button) Connects to the Video
Streaming Service. (Depending on model)
Starts to record and displays record menu. (Only Time
MachineReady supported model) (Depending on model)
(Control buttons) Controls media contents.
, , , These access special functions in some menus.
(Gaming Mode) Turns the gaming mode on or o.
(Backlight) Adjusts the brightness of the screen by
controlling the screen backlight.
NOTE
yOn MHEG programme, you cannot adjust the backlight with the
yellow or blue key.
Settings
Automatically Setting Up Programme
(Settings) [Programmes] [Auto Tuning]
Automatically tunes the programmes.
yIf Input Source is not connected properly, programme registration
may not work.
y[Auto Tuning] only nds programmes that are currently
broadcasting.
yIf [Lock System] is turned on, a pop-up window will appear asking
for password.
To select Picture Mode
(Settings) [Picture] [Picture Mode Settings]
[Picture Mode]
Select the picture mode optimized for the viewing environment or
the programme.
y[Vivid]: Heightens contrast, brightness and sharpness to display
vivid images.
y[Standard]: Displays images in standard levels of contrast,
brightness and sharpness.
y[Eco] / [APS]: (Depending on model)
The Energy Saver feature changes settings on theTV to reduce
power consumption.
y[Cinema] / [Game]: Displays the optimum picture for movie, game.
y[Sports]: (Depending on model) Optimized picture mode for sport.
The pitch and kits are presented in vibrant colours, with crystal-
clear images even for fast movements.
