LG TK410 Series User manual

LED TV
24TK420V
28TK420V
AAA
www.lg.com
Depending on country / Në varësi të shtetit / В зависимост от страната / Ovisno o zemlji / V závislosti na
regionu / Zavisno od države / Afhankelijk van het land / En función del país / Sõltub riigist / Selon les pays /
Abhängig vom Land / Ανάλογα με τη χώρα / A seconda del Paese / Елге байланысты / Atkarīgs no valsts /
Priklausomai nuo šalies / Во зависност од земјата / Országfüggő / Zależnie od kraju / Dependendo do país /
În funcţie de ţară / В зависимости от страны / Závisí od krajiny / Odvisno od države / Залежно від країни /
Mamlakatga bog’liq ravishda / / Ülkeye bağlı
(M4 x L14)
28TK420V
X 2
(M4 X L10)
X 4
*MFL70459703*
(1802-REV00)

English Read Safety and Reference.
Shqip Lexo Siguria dhe referencat.
Български Прочетете Безопасност и справки.
Hrvatski Pročitajte Sigurnost i reference.
Česky Přečtěte si část Bezpečnost a
reference.
Srpski Pročitajte Bezbednost i informacije.
Nederlands Lees Veiligheid en referentie goed door.
Español Leer Seguridad y Referencias.
Eesti Lugege Ohutus ja viited.
Français Lire le document Sécurité et référence.
Deutsch Bitte lesen Sie die Sicherheitshinweise
und Referenzen.
Ελληνικά Ανάγνωση Ασφάλεια και αναφορά.
Italiano Leggere Sicurezza e informazioni di
riferimento.
Қазақша Қауіпсіздік нұсқаулық бөлімін
оқыңыз.
Latviešu Izlasiet Drošībai un uzziņai.
Lietuvių k. Perskaitykite „Saugumas ir nuorodos“.
Македонски Прочитајте во Безбедносни информации и
референтни материјали.
Magyar Lásd: Biztonsági óvintézkedések.
Polski Przeczytaj Zasady bezpieczeństwa i
informacje dodatkowe.
Português Consulte o manual Segurança e Referência.
Română Citiţi Siguranţă şi referinţe.
Русский Прочитайте Руководство по технике
безопасности.
Slovenčina Prečítajte si časť Bezpečnosť a odkazy.
Slovenščina Preberite Varnostne informacije in napotki.
Українська Прочитайте Правила безпеки та довідкова
інформація.
O’zbekcha Xavfsizlik bo’yicha ko’rs
atmalar va havolalarni o’qing.
Türkçe Güvenlik ve Referans bölümünü
okuyun.

1-A 1-B
2
28TK420V24TK420V

B
A
USB IN
5 V 0.5 A
▲ PCMCIA ▲
CARD SLOT
A

HDMI OUTHDMI OUT
Satellite
700 mA Max
LNB IN
13/18 V
HDMI IN
DC-IN
(19 V )
ANTENNA
/CABLE IN
HDMI OUTHDMI OUT
HDMI IN
D
C
-IN
(19 V )
ANTENNA
/CABLE IN
B
A
B

DC-IN
(19 V )
1
2
3
DC-IN
( 19 V )
2
1

12
43

www.lg.com
TK410*
TK420*
TK41EV
TK600V
Safety and Reference
OWNER’S MANUAL
LED TV*
*LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future refer-
ence.
Copyright © 2018 LG Electronics Inc. All Rights Reserved.

ENG
ENGLISH
2
Table of contents
Licenses ----------------------------------------------3
Open source software notice information -3
Preparing--------------------------------------------3
Lifting and moving the TV----------------------4
Setting up the TV----------------------------------4
Using the joystick button -----------------------5
Using the button ----------------------------------5
Mounting on a table------------------------------6
Mounting on a wall -------------------------------7
Connections (notications) --------------------8
Remote control ---------------------------------- 10
Settings -------------------------------------------- 12
To see web manual------------------------------ 17
Maintenance-------------------------------------- 18
Troubleshooting--------------------------------- 18
Specications ------------------------------------ 19

ENGENGLISH
3
Licenses
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com.
The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
Open source software notice
information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].
This oer is valid for a period of three years after our last shipment of
this product.This oer is valid to anyone in receipt of this information.
Preparing
NOTE
yImage shown may dier from your TV.
yYour TV’s OSD (On Screen Display) may dier slightly from that
shown in this manual.
yThe available menus and options may dier from the input source or
product model that you are using.
yNew features may be added to this TV in the future.
yTheTV can be placed in standby mode in order to reduce the power
consumption. And theTV should be turned o if it will not be
watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be signicantly reduced if the
level of brightness of the picture is reduced, and this will reduce the
overall running cost.

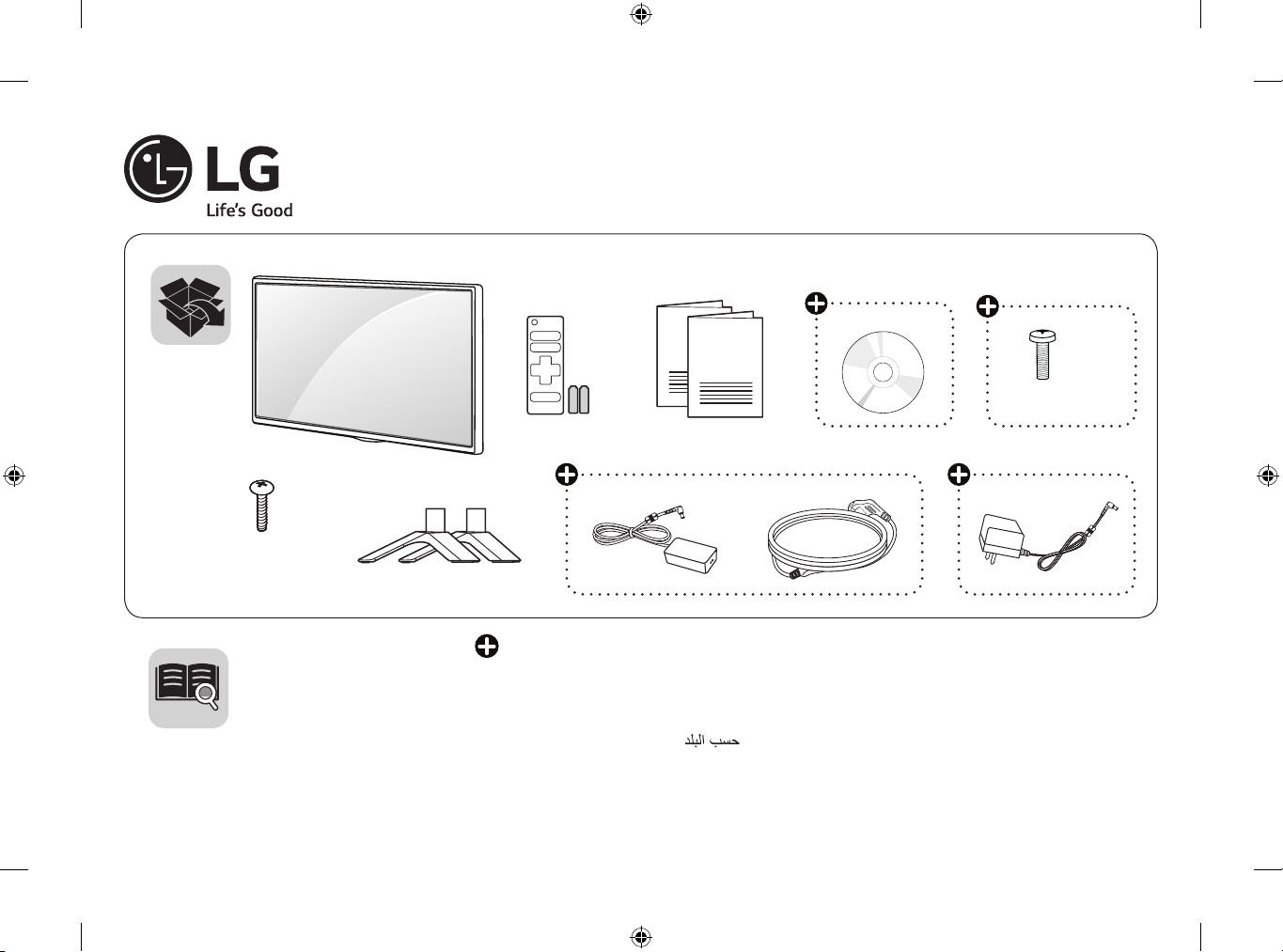

yThe items supplied with your product may vary depending on the
model.
yProduct specications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width. Use an
extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not t into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
yUse a certied cable with the HDMI logo attached. If you do not use
a certied HDMI cable, the screen may not display or a connection
error may occur.
yRecommended HDMI cable types
-High-Speed HDMI®/™ cable
-High-Speed HDMI®/™ cable with Ethernet
CAUTION
yDo not use any unapproved items to ensure the safety and product
life span.
yAny damage or injuries caused by using unapproved items are not
covered by the warranty.

ENG
ENGLISH
4

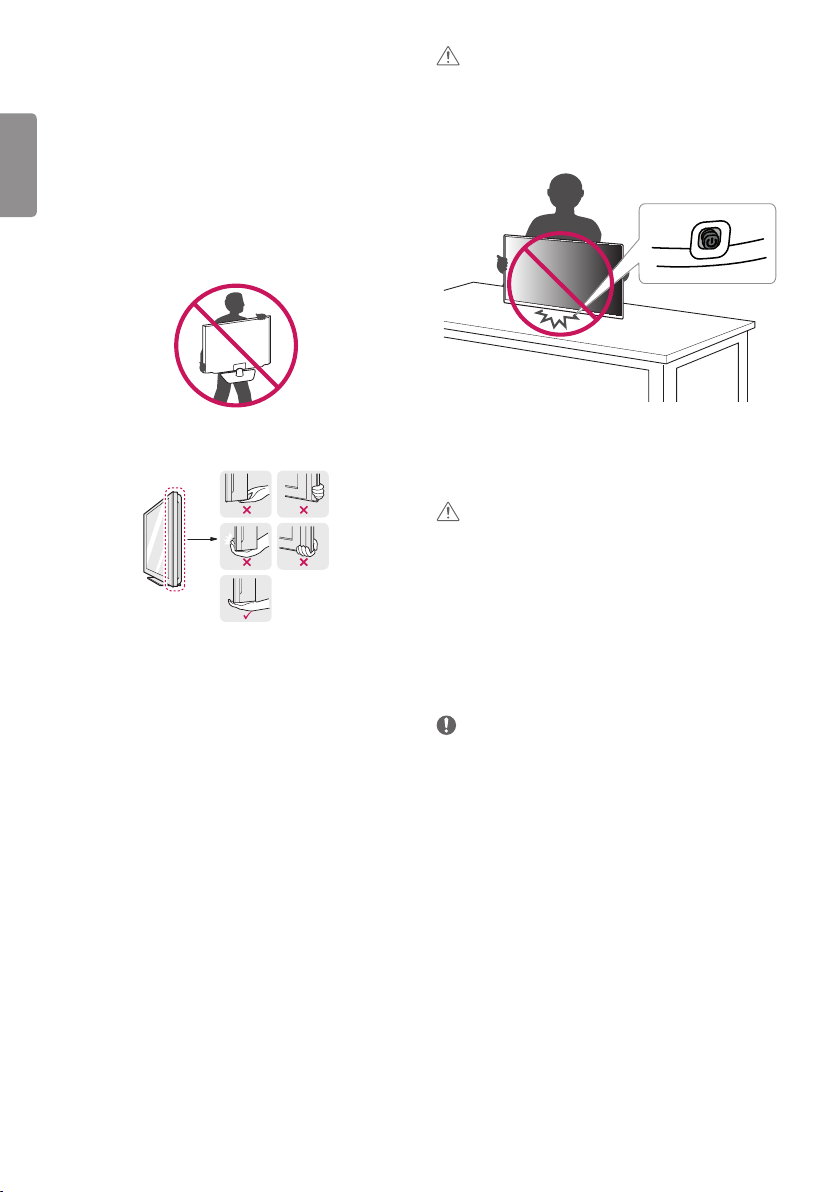

Lifting and moving the TV
Please note the following advice to prevent the TV from being
scratched or damaged and for safe transportation regardless of its type
and size.
yIt is recommended to move the TV in the box or packing material
that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and all
cables.
yWhen holding the TV, the screen should face away from you to avoid
damage.
yHold the top and bottom of theTV frame rmly. Make sure not to
hold the transparent part, speaker, or speaker grill area.
yWhen transporting the TV, do not expose theTV to jolts or excessive
vibration.
yWhen transporting the TV, keep theTV upright, never turn the TV on
its side or tilt towards the left or right.
yDo not apply excessive pressure to cause exing/bending of frame
chassis as it may damage screen.
CAUTION
yAvoid touching the screen at all times, as this may result in damage
to the screen.
yWhen handling the TV, be careful not to damage the protruding
joystick button. (Depending on model)
Setting up the TV
CAUTION
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen from
scratches.
yDo not carry the TV upside-down by holding the stand body (or
stand base) as this may cause it to fall o, resulting in damage or
injury.
yDo not apply foreign substances (oils, lubricants, etc.) to the screw
parts when assembling the product. (Doing so may damage the
product.)
NOTE
yLift up the latch at the bottom of the stand base and detach the
stand base from theTV. (Only TK410*, TK41EV)
yRemove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse. (Only TK420*)
yTK600 model does not require the additional assembly.

ENGENGLISH
5
Using the button
(Only 27TK600V)
yImage shown may dier from your TV.

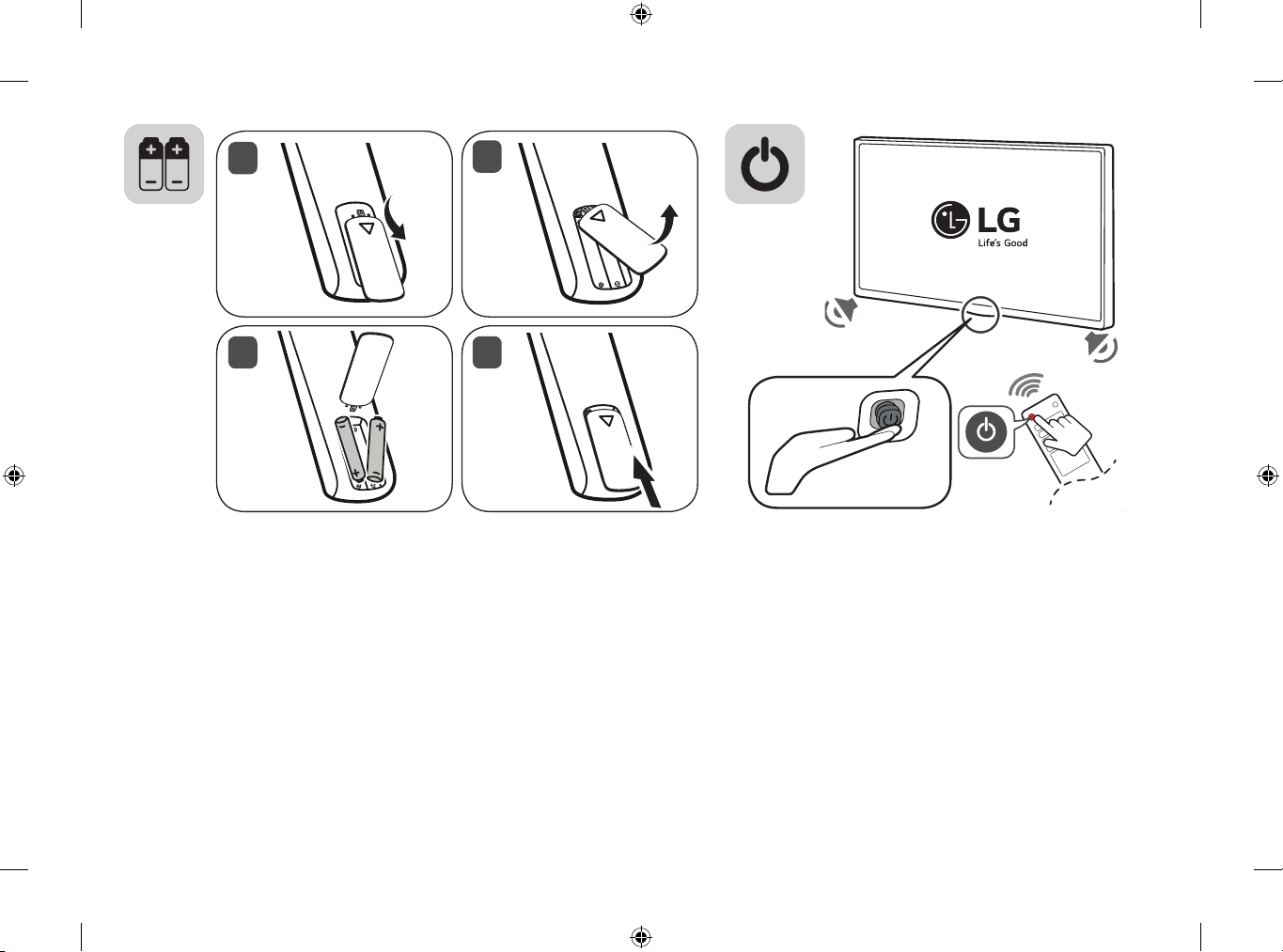

yYou can operate yourTV by pressing the button.
yThe button is located at the back of your TV.
Basic functions
Power On (Press)
Power O (Press and Hold)
Menu Control (Press)1
Menu Selection (Press and Hold)2
1 You can access and adjust the menu by pressing the button when
TV is on.
2 You can use the function when you access menu control.
Adjusting the menu.
When the TV is turned on, press the button one time.
You can adjust the Menu items using the button.
Turns the power o.
Changes the input source.
Scrolls through the saved programmes.
Adjusts the volume level.
Using the joystick button
(Only TK410*, TK420*, TK41EV)
You can simply operate theTV functions, pressing or moving the
button.
yImage shown may dier from your TV.
Basic functions
Power On (Press)
Power O (Press and hold)1
Volume Control
Programmes Control
1 If the menu button is on the screen, pressing and holding the
button will let you exit the menu.
Adjusting the menu
When the TV is turned on, press the joystick button one time.You can
adjust the menu items pressing or moving the buttons.
Turns the power o.
Accesses the setting menu.
Clears on-screen displays and returns to TV viewing.
Changes the input source.
NOTE
yIf you press the joystick button rst, you may not be able to adjust
the volume level and saved programmes.
CAUTION
yWhen your nger over the joystick button and push it to the up,
down, left or right, be careful not to press the joystick button.

ENG
ENGLISH
6
Mounting on a table
yImage shown may dier from your TV.
1 Lift and tilt the TV into its upright position on a table.
-Leave a 100 mm (minimum) space from the wall for proper
ventilation.
100 mm
100 mm
100 mm
100 mm

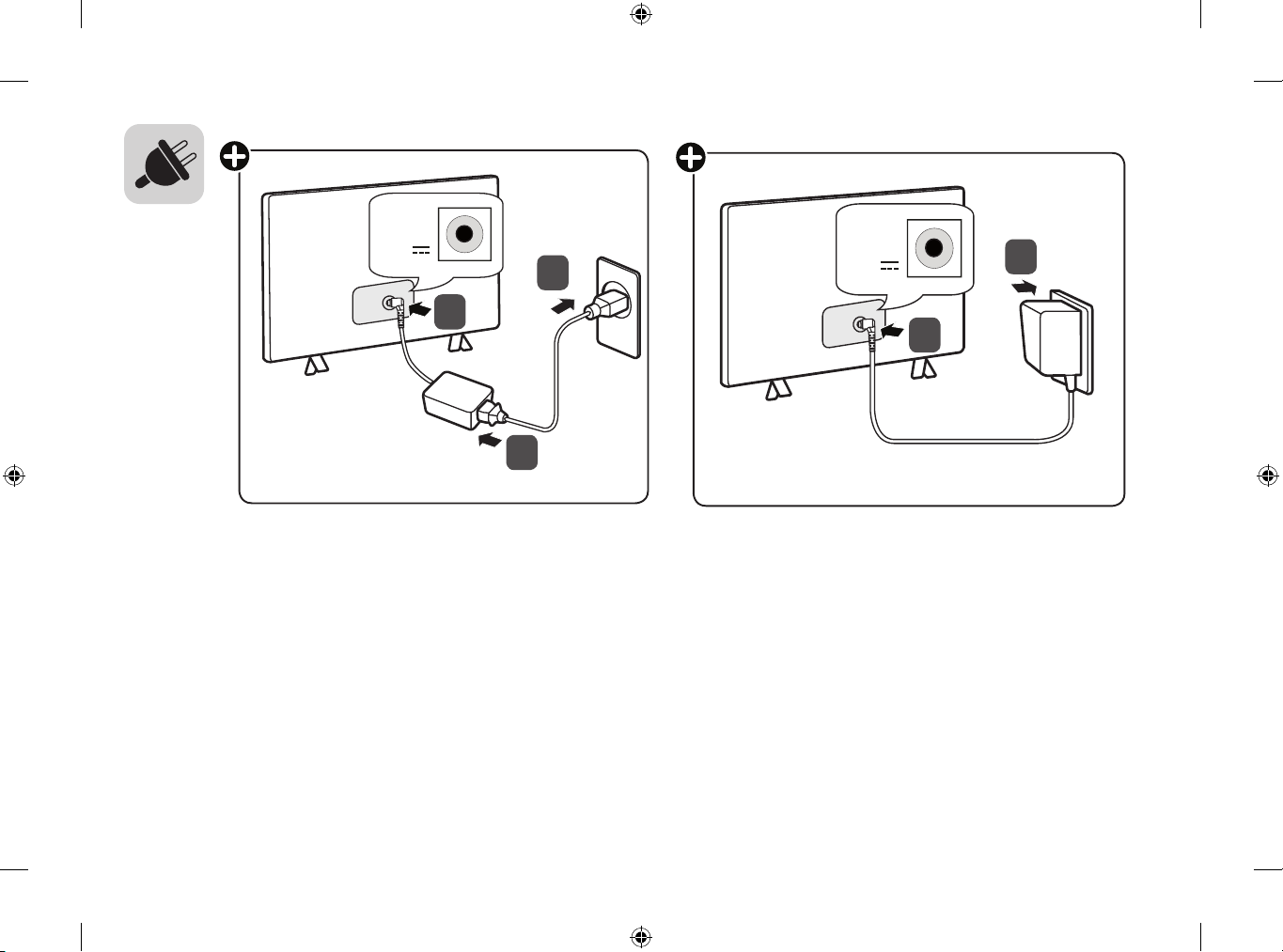

2 Connect the AC-DC Adapter and power cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources of heat, as this may result in
re or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter before
connecting the TV’s power plug to a wall power outlet.
Using the kensington security system
(This is not available for all models.)
yImage shown may dier from your TV.
The Kensington security system connector is located at the rear of
the TV. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington security system cable
between the TV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from most electronics stores.

ENGENGLISH
7
CAUTION
yMust use the enclosed screw in the box. (Depending on model)
yDisconnect the power rst, and then move or install the TV.
Otherwise electric shock may occur.
yIf you install theTV on a ceiling or slanted wall, it may fall and result
in severe injury.
yUse an authorized LG wall mount and contact the local dealer or
qualied personnel.
yDo not over tighten the screws as this may cause damage to the TV
and void your warranty.
yUse the screws and wall mounts that meet theVESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the warranty.
yScrew length from outer surface of back cover should be under 8
mm.
Wall mount Pad
Back Cover
Standard screw
: M4 x L10
Wall mount Pad
Back Cover
Max.8 mm
NOTE
yUse the screws that are listed on theVESA standard screw
specications.
yThe wall mount kit includes an installation manual and necessary
parts.
yThe wall mount bracket is optional. You can obtain additional
accessories from your local dealer.
yThe length of screws may dier depending on the wall mount. Be
sure to use the proper length.
yFor more information, refer to the instructions supplied with the
wall mount.
Mounting on a wall
For proper ventilation, allow a clearance of 100 mm on each side and
from the wall. Detailed installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
100 mm
100 mm
100 mm 100 mm
100 mm
If you intend to mount the TV to a wall, attach Wall mounting interface
(optional parts) to the back of the TV.
When you install theTV using the wall mounting interface (optional
parts), attach it carefully so it will not drop.
1 If you use screw longer than standard, the TV might be damaged
internally.
2 If you use improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
Separate purchase
(Wall mounting bracket)
Model
22/24TK410*
24TK420*
24TK41EV
28TK410*
28TK420*
27TK600V
28TK41EV
Wall mount (A x B) (mm)
A
B
75 x 75 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall mount bracket
(optional) RW120

ENG
ENGLISH
8
Satellite dish connection
(Only satellite models)
Connect the TV to a satellite dish to a satellite socket with a satellite
RF cable (75 Ω).
CI module connection
(Depending on model)
View the encrypted (pay) services in digital TV mode.
yCheck if the CI module is inserted into the PCMCIA card slot in the
right direction. If the module is not inserted properly, this can cause
damage to theTV and the PCMCIA card slot.
yIf the TV does not display any video and audio when CI+ CAM is
connected, please contact to theTerrestrial/Cable/Satellite Service
Operator.
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
Some separate cable is not provided.
yUSB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.
NOTE
ySupported HDMI Audio format : Dolby Digital / Dolby Digital Plus (32
KHz, 44.1 KHz, 48 KHz), PCM (32 KHz, 44.1 KHz, 48 KHz, 96 KHz, 192
KHz) (Depending on model)
Connections (notications)
Connect various external devices to theTV and switch input modes
to select an external device. For more information about an external
device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio
systems, USB storage devices, PC, gaming devices, and other external
devices.
NOTE
yThe external device connection may dier from the model.
yConnect external devices to theTV regardless of the order of the
TV port.
yIf you record aTV programme on a DVD recorder or VCR, make
sure to connect theTV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the
manual provided with the connected device.
yRefer to the external equipment’s manual for operating instructions.
yIf you connect a gaming device to theTV, use the cable supplied
with the gaming device.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the Picture
menu until the picture is clear.
yIn PC mode, some resolution settings may not work properly
depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω) (Not
Provided).
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplier properly to
improve the image quality.
yIf the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio : MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC

ENGENGLISH
9
Connecting to a PC
yImage shown may dier from your TV.
Your TV supports the Plug and Play* feature and has the built-in
speakers withVirtual Surround that reproduces sound clearly with a
rich bass.
* Plug and Play :The function when a PC recognizes a connected
device that users connect to a PC and turn on, without device congu-
ration or user intervention.
NOTE
yIf you want to use HDMI-PC mode, you must set the Input Label
to PC mode.
yThe OSD (On Screen Display) is displayed on the screen as shown
below.
»When turning the product on in HDMI input.
»When switching to HDMI input.
Is the input connected to your PC?
Do not show message again YES NO
yIf you select "YES"the size and image quality are optimised for
your PC.
yIf you select "NO" the size and image quality are optimised for the
AV device (DVD player, set-top box).
yIf you select "Do not show message again" this message does not
appear until the TV is reset. You can change the set value in
(Home) Inputs Input Label.
yThe values set for HDMI1/HDMI2 are saved independently.
(Depending on model)
Network
(Depending on model - Only port model)
Wired network connection
LAN
Internet connection
Wired router
Network setting
1 Select the (Settings) NETWORK Network Setting
menu.

ENG
ENGLISH
10
2 Select the START CONNECTION.
3 The device automatically tries to connect to the network.
4 The connected network is displayed.
Select the CLOSE to conrm the network connection.
Remote control
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use theTV
correctly.
To replace batteries, open the battery cover, replace batteries (1.5
V AAA) matching the and ends to the label inside the compart-
ment, and close the battery cover. To remove the batteries, perform
the installation actions in reverse.
CAUTION
yDo not mix old and new batteries, as this may damage the remote
control.
yThe remote control will not be included for all sales market.
Make sure to point the remote control toward the remote control
sensor on the TV.
hri^Z`^\^_]
A
B
(Power) Turns the TV on or o.
Selects Radio,TV and DTV programme.
Recalls your preferred subtitle in digital mode.
Turns the PIP mode on or o. (Depending on model)
Audio descriptions function will be enabled.
Selects TV or PC mode.
(Inputs) Changes the input source.

ENGENGLISH
11
Number buttons Enters numbers.
Accesses the saved programme list.
Returns to the previously viewed programme.
Adjusts the volume level.
Accesses your favourite programme list.
Shows programme guide.
(Mute) Mutes all sounds.
Scrolls through the saved programmes.
Moves to the previous or next screen.
hri^Z`^\^_]
C
D
Teletext buttons ( ) These buttons are used for
teletext.
(Home) Accesses the home menu.
(Settings) Accesses the settings menu.
Accesses the quick menus.
(Navigation buttons) Scrolls through menus or
options.
Selects menus or options and conrms your input.
Returns to the previous level.
Clears on-screen displays and returns to TV viewing.
Views the information of the current programme and
screen.
Not functional.
(Control buttons) Controls media contents.
, , , These access special functions in some menus.
(Gaming Mode) Turns the gaming mode on or o.
(Backlight) Adjusts the brightness of the screen by
controlling the screen backlight.
NOTE
yOn MHEG programme, you cannot adjust the backlight with the
yellow or blue key.

ENG
ENGLISH
12
Settings
Automatically Setting Up Programme
(Settings) Programmes Auto Tuning
Automatically tunes the programmes.
yIf Input Source is not connected properly, programme registration
may not work.
yAuto Tuning only nds programmes that are currently
broadcasting.
yIf Lock System is turned on, a pop-up window will appear asking
for password.
To select Picture Mode
(Settings) Picture Picture Mode Settings
Picture Mode
Select the picture mode optimized for the viewing environment or the
programme.
yVivid : Heightens contrast, brightness and sharpness to display
vivid images.
yStandard : Displays images in standard levels of contrast,
brightness and sharpness.
yEco :The Energy Saver feature changes settings on the TV to reduce
power consumption.
yCinema /Game : Displays the optimum picture for movie, game.
ySports : [Depending on model] Optimised picture mode for sport.
The pitch and kits are presented in vibrant colours, with crystal-clear
images even for fast movements.
yExpert1, 2 : Menu for adjusting picture quality that
allows experts and amateurs to enjoy the bestTV viewing.This
is the adjustment menu provided for ISF-certied picture tuning
professionals. (ISF logo can only be used on ISF-certied TVs.) ISFccc:
Imaging Science Foundation Certied Calibration Control
yDepending on input signal, available range of picture modes may
dier.
yExpert mode is for picture tuning professionals to control
and ne-tune using a specic image. For normal images, the eects
may not be dramatic.
yThe ISF function is only available on some models.
yChanging Picture Mode may modify Energy Saving
and Motion Eye Care settings, which can also aect energy
consumption.
Fine-tuning Picture Mode
(Settings) Picture Picture Mode Settings
This feature allows you to adjust the selected picture mode in detail.
yBacklight : Controls the level of screen brightness by adjusting the
backlight.The closer to 100, the brighter the screen.
yContrast : Adjusts the contrast of the bright and dark areas of the
picture.The closer to 100, the higher the contrast.
yBrightness : Adjusts the overall screen brightness. The closer to
100, the brighter the screen.
ySharpness : Adjusts the sharpness of the image.The closer to 50,
the sharper and clearer the image.
yColour : Tones down or up the colours displayed on the screen. The
closer to 100, the deeper the colour.
yTint : Adjusts the colour balance between red and green displayed
on the screen.The closer to Red 50, the more red the colour will be.
The closer to Green 50, the more green the colour will be.
yColour Temperature : Adjusts the colour temperature from cold
to warm.
yDepending on input signal or other picture settings, the range of
detailed items for adjustment may dier.
To set advanced control
(Settings) Picture Picture Mode Settings
Advanced Controls / Expert Controls
Calibrates the screen for each picture mode; or adjusts picture settings
for a special screen.
yDynamic Contrast : Adjusts the contrast to the optimal level
according to the brightness of the image.
yDynamic Colour : Adjusts colours to make the image appear in
more natural colours.
yPreferred Colour : Adjust the colours of skin, grass and sky to your
personal preferences.
yGamma : Sets the gradation curve according to the output of
picture signal in relation to the input signal.
yColour Gamut : Selects the range of colours that can be expressed.
yColour Filter : Filters a specic colour spectrum in RGB colours to
ne-tune colour saturation and hue accurately.
yWhite Balance : Adjusts the overall tone of the screen as desired.
yColour Management System :This is a system that experts use
when they adjust colour with a test pattern.They can select from six
colour areas (Red / Green / Blue / Cyan / Magenta /Yellow) without
aecting other colours. For normal images, adjustments may not
result in noticeable colour changes.
yDepending on input signal or other picture settings, the range of
detailed items for adjustment may dier.
