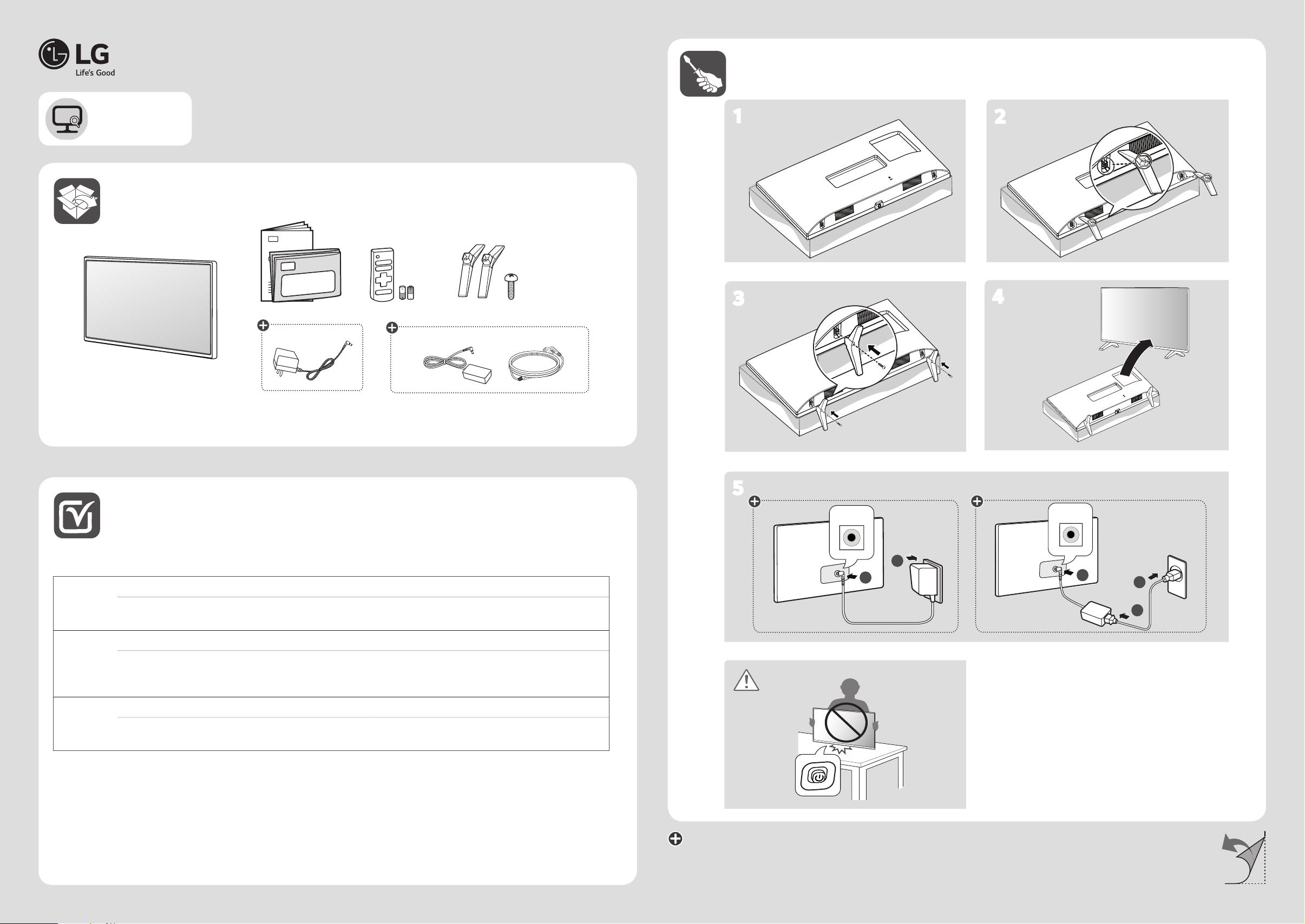

LG 27LQ625S User manual

(2202-REV00)
*MFL70524108*
www.lg.com
X 2
(M4 X L12)
AAA
1
4
2
3
5
DC-IN
1
DC-IN
27LQ625S
2
1
23
LG LED TV
TÉLÉVISEUR À DEL DE LG
TV LG LED
Printed in Korea
: Depending upon model / Selon le modèle / Según el modelo
English Read Safety and Reference.
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
Français Lire le document Sécurité et références.
Guide de configuration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver afin de pouvoir le consulter
ultérieurement.
Español Leer Seguridad y referencias.
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.

USB IN
Kg
English
MODELS 27LQ625S
Dimensions
(W x D x H)
With stand 612 x 150 x 394.8 (mm)
24.0 x 5.9 x 15.5 (inches)
Without stand 612 x 73.9 x 368.5 (mm)
24.0 x 2.9 x 14.5 (inches)
Weight With stand 3.55 kg (7.8 lbs)
Without stand 3.5 kg (7.7 lbs)
Français
MODÈLES 27LQ625S
Dimensions
(L x P x H)
Avec socle 612 x 150 x 394,8 (mm)
24,0 x 5,9 x 15,5 (po)
Sans socle 612 x 73,9 x 368,5 (mm)
24,0 x 2,9 x 14,5 (po)
Poids Avec socle 3,55 kg (7,8 lb)
Sans socle 3,5 kg (7,7 lb)
Español
MODELOS 27LQ625S
Dimensiones
(Ancho x Profundidad x Altura)
Con base 612 x 150 x 394,8 (mm)
Sin base 612 x 73,9 x 368,5 (mm)
Peso Con base 3,55 (kg)
Sin base 3,5 (kg)
Consumo de potencia (Predeterminado) 32 W
Alimentación requerida 19 V 2,0 A
Adaptador de ca/cc Entrada 100–240 V~ 50/60 Hz
Salida 19 V 2,1 A
USB IN
3
5

www.lg.com
Copyright 2022 LG Electronics Inc. All Rights Reserved.
*MFL69376209*
(2202-REV00)
27LQ615S
27LQ625S
24LQ510S
24LQ520S
Printed in Korea
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your TV and retain it for
future reference.
OWNER’S MANUAL
Safety and Reference
(LED TV*)

2
ENGLISH
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS -------------3
LICENSES-----------------------------------------------7
OPEN SOURCE SOFTWARE
NOTICE INFORMATION ------------------------------7
PREPARING -------------------------------------------7
SEPARATE PURCHASE -------------------------------8
LIFTING AND MOVING THE TV ---------------------8
SETTING UP THE TV----------------------------------9
USING THE BUTTON ---------------------------------9
MOUNTING ON A TABLE--------------------------- 10
MOUNTING ON A WALL --------------------------- 11
CONNECTIONS -------------------------------------- 12
REMOTE CONTROL --------------------------------- 13
USER GUIDE----------------------------------------- 14
TROUBLESHOOTING ------------------------------- 14
SPECIFICATIONS------------------------------------ 15
REGULATORY---------------------------------------- 17

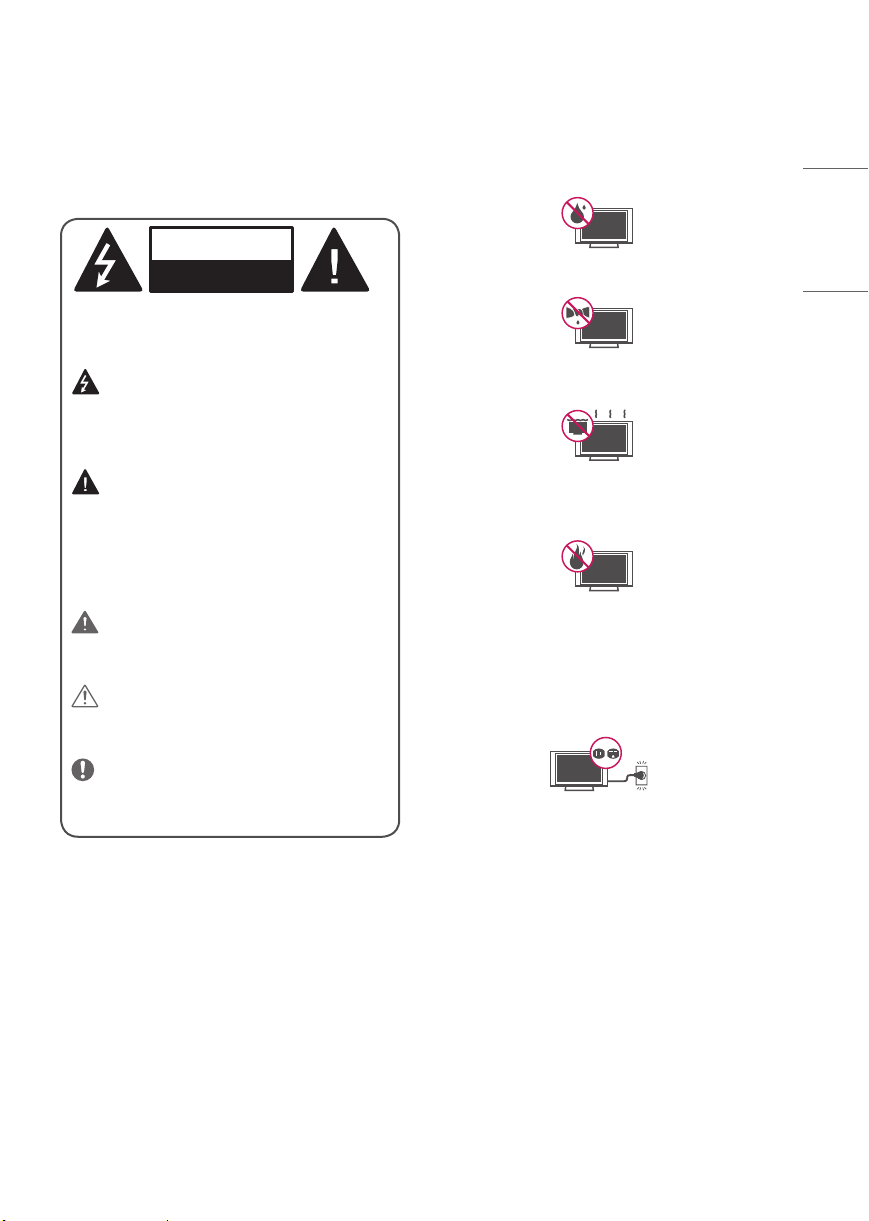

IMPORTANT SAFETY
INSTRUCTIONS
Always comply with the following precautions to avoid dangerous
situations and ensure peak performance of your product.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFERTO
QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sucient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the device.
WARNING/CAUTION
-TO REDUCETHE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT
EXPOSETHIS PRODUCT TO RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may be seriously injured
or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or
the product may be damaged.
NOTE
The note helps you understand and use the product safely.
Please read the note carefully before using the product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
yDo not use this apparatus near water.
yClean only with dry cloth.
yDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
yDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
yDo not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete outlet.
3
ENGLISH

yProtect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
yOnly use attachments/accessories specied by the manufacturer.
yUse only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus.When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
yUnplug this apparatus during lightning storms or when unused for
long periods of time.
yRefer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
yDo not press strongly upon the panel with a hand or a sharp object
such as a nail, pencil, or pen, or make a scratch on it.
yDo not stick metal objects or any other conductive material into
the power cord. Do not touch the end of the power cord while it
is plugged in.
yKeep the packing anti-moisture material or vinyl packing out
of the reach of children. Anti-moisture material is harmful if
swallowed. If swallowed, induce vomiting and go to the nearest
hospital. Additionally, vinyl packing can cause suocation. Keep it
out of the reach of children.
yCAUTION concerning the Power Cord (Can dier by country):
Check the specication page of this owner’s manual to be certain
concerning current requirements. Do not connect too many
devices to the same AC power outlet as this could result in re
or electric shock. Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric shock or re.
Periodically examine the cord of your device, and if its appearance
indicates damage or deterioration, unplug it, discontinue use of
the device, and have the cord replaced with an exact replacement
part by an authorized servicer. Protect the power cord from
physical or mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord exits the
device. Do not move theTV with the power cord plugged in. Do
not use a damaged or loose power cord. Be sure to grasp the plug
when unplugging the power cord. Do not pull on the power cord
to unplug theTV.
yWarning - To reduce the risk of re or electrical shock, do not
expose this product to rain, moisture or other liquids. Do not touch
theTV with wet hands. Do not install this product near ammable
objects such as gasoline or candles, or expose theTV to direct air
conditioning.
yDo not expose to dripping or splashing and do not place objects
lled with liquids, such as vases, cups, etc. on or over the
apparatus (e.g., on shelves above the unit).
4
ENGLISH

yGrounding
(Except for devices which are not grounded.)
-Ensure that you connect the earth ground wire to prevent
possible electric shock (i.e., a TV with a three-prong grounded
AC plug must be connected to a three-prong grounded AC
outlet).
If grounding methods are not possible, have a qualied
electrician install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone wires, lightning
rods, or gas pipes.
Circuit
Breaker
Power Supply
-As long as this unit is connected to the AC wall outlet, it is
not disconnected from the AC power source even if the unit is
turned o.
-Do not attempt to modify this product in any way without
written authorization from LG Electronics. Unauthorized
modication could void the user’s authority to operate this
product.

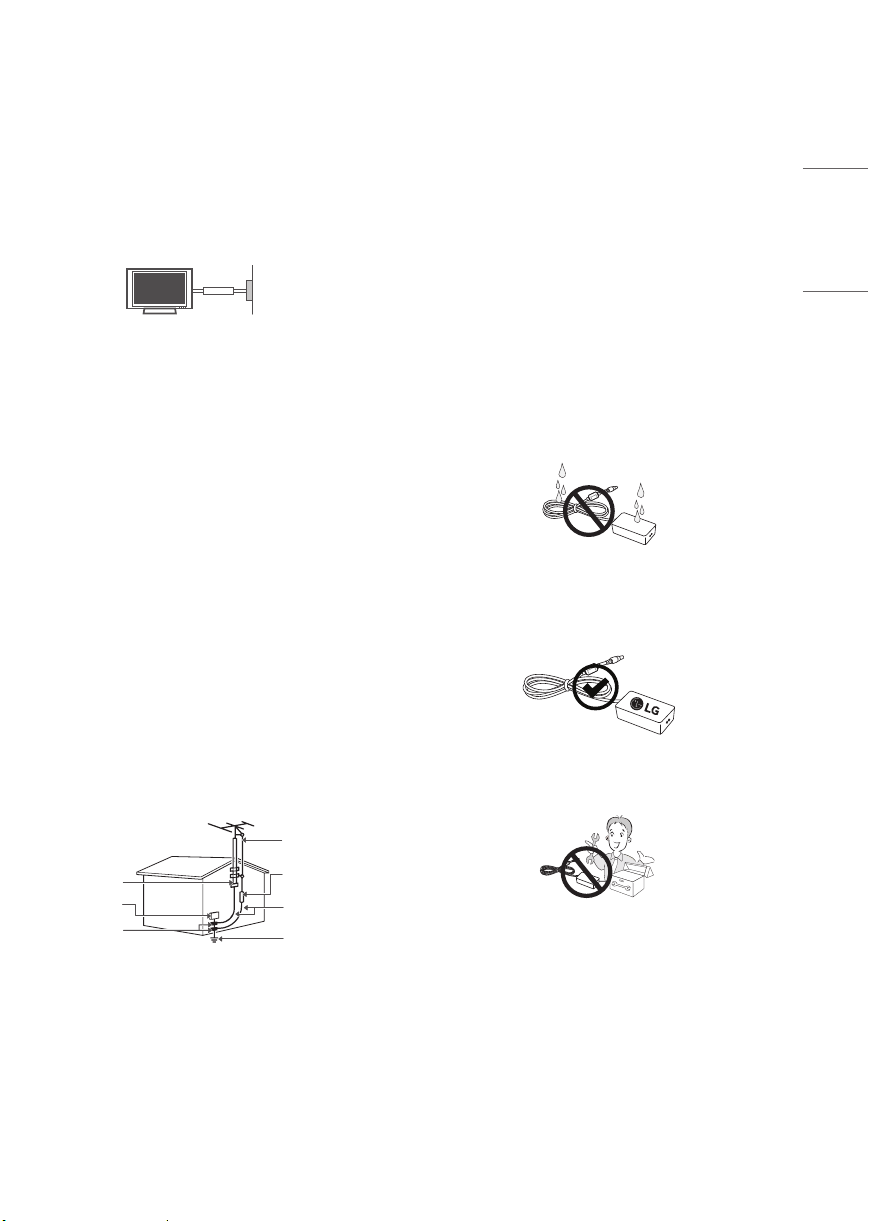

yOutdoor Antenna Grounding
(Can dier by country):
-If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such power
lines or circuits as death or serious injury can occur. Be sure
the antenna system is grounded to provide some protection
against voltage surges and built-up static charges. Section
810 of the National Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
yAntenna grounding according to the National Electrical
Code, ANSI/NFPA 70
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead inWire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
Ground Clamp
yCleaning
-When cleaning, unplug the power cord and wipe gently with
a soft cloth to prevent scratching. Do not spray water or other
liquids directly on theTV as electric shock may occur. Do not
clean with chemicals such as alcohol, thinners, or benzene.
yMoving
-Make sure the product is turned o, unplugged, and all cables
have been removed. It may take 2 or more people to carry larger
TVs. Do not press or put stress on the front panel of theTV.
yVentilation
-Install yourTV where there is proper ventilation. Do not install
in a conned space such as a bookcase. Do not cover the
product with cloth or other materials while plugged in. Do not
install in excessively dusty places.
yIf you smell smoke or other odors coming from the TV, unplug the
power cord and contact an authorized service center.
yIf water or another substance enters the product (like an AC
adapter, power cord, orTV), disconnect the power cord and contact
the service center immediately. Otherwise, this may result in re
or electric shock.
yUse only an authorized AC adapter and power cord approved by
LG Electronics.
Otherwise, this may result in re, electric shock, malfunction, or
product deformation.
yNever disassemble the AC adapter or power cord. This may result in
re or electric shock.
5
ENGLISH

yHandle the adapter carefully to avoid dropping or striking it. An
impact could damage the adapter.
yKeep the product away from direct sunlight.
yNever touch this apparatus or antenna during a lightning storm.
yWhen mounting aTV on the wall, make sure not to install the TV
by hanging the power and signal cables on the back of theTV.
yDo not allow an impact shock or any objects to fall into the
product, and do not drop anything onto the screen.
yDisconnecting the Device from the Main Power
-The power plug is the disconnecting device. In case of an
emergency, the power plug must remain readily accessible.
yMake sure the power cord is connected securely to the power plug
on theTV.
yBatteries
-Store the accessories (battery, etc.) in a safe location out of the
reach of children.
-This apparatus uses batteries. In your community there might
be regulations that require you to dispose of these batteries
properly due to environmental considerations. Please contact
your local authorities for disposal or recycling information.
-Do not dispose of batteries in a re.
-Do not short circuit, disassemble, or allow the batteries to
overheat.
-Do not use high voltage electrical equipment near the TV, (e.g.,
a bug zapper).
This may result in product malfunction.
-For models using a battery, This device is equipped with a
portable battery or accumulator. Risk of re or explosion if the
battery is replaced by an incorrect type.
yDot Defect
-The panel is a high technology product with resolution of two
million to six million pixels. In a very few cases, you could see
ne dots on the screen while you’re viewing the TV. Those dots
are deactivated pixels and do not aect the performance and
reliability of theTV.
yGenerated Sound
-Cracking noise
A cracking noise that occurs when watching or turning o
theTV is generated by plastic thermal contraction due to
temperature and humidity. This noise is common for products
where thermal deformation is required.
-Electrical circuit humming/panel buzzing
A low level noise is generated from a high-speed switching
circuit, which supplies a large amount of current to operate a
product. It varies depending upon the product.This generated
sound does not aect the performance and reliability of the
product.
yTake care not to touch the ventilation openings.When watching
theTV for a long period, the ventilation openings may become
hot.This does not aect the performance of the product or cause
defects in the product.
yDo not install this product on a wall if it could be exposed to oil or
oil mist.This may damage the product and cause it to fall.
yIf theTV feels cold to the touch, there may be a small icker when
it is turned on.This is normal; there is nothing wrong withTV.
Some minute dot defects may be visible on the screen, appearing
as tiny red, green, or blue spots. However, they have no adverse
eect on the TV’s performance. Avoid touching the LCD screen or
holding your nger(s) against it for long periods of time. Doing so
may produce some temporary distortion eects on the screen.
yDisplaying a still image for a prolonged time may cause image
sticking. Avoid displaying a xed image on theTV screen for a long
period of time.
6
ENGLISH

LICENSES
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com.
OPEN SOURCE SOFTWARE
NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses that have the obligations to disclose source code, that
is contained in this product, and to access all referred license terms,
copyright notices and other relevant documents please visit https://
opensource.lge.com.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].
This oer is valid to anyone in receipt of this information for a period
of three years after our last shipment of this product.
PREPARING
NOTE
(Depending upon model)
yImage shown may dier from your TV.
yYourTV’s OSD (On Screen Display) may dier slightly from that
shown in this manual.
yThe available menus and options may dier from the input source
or product model that you are using.
yNew features may be added to this TV in the future.
yThe items supplied with your product may vary depending upon
the model.
yProduct specications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm (0.3 inches) thick and 18 mm (0.7
inches) width. Use an extension cable that supports USB 2.0 if the
USB cable or USB ash drive does not t into your TV’s USB port.
A
B
A
B
*A 10 mm (0.3 inches)
*B 18 mm (0.7 inches)
yUse a certied cable with the HDMI logo attached. If you do
not use a certied HDMI cable, the screen may not display or a
connection error may occur.
yRecommended HDMI cable types
-Ultra High Speed HDMI®/™ cable (3 m (9.8 ft) or less)
CAUTION
yDo not use any unapproved items to ensure the safety and
product’s lifespan.
yAny damages or injuries by using unapproved items are not
covered by the warranty.
7
ENGLISH

SEPARATE PURCHASE
Separate purchase items can be changed or modied for quality
improvement without any notication. Contact your dealer to buy
these items.These devices only work with certain models.
The model name or design may be changed depending on the
upgrade of product functions, manufacturer’s circumstances or
policies.
Magic Remote Control
Check whether yourTV model supports Bluetooth in theWireless
Module Specication to verify whether it can be used with the Magic
Remote.
LIFTING AND MOVING THE
TV
When moving or lifting theTV, read the following to prevent the
TV from being scratched or damaged and for safe transportation
regardless of its type and size.
yIt is recommended to move the TV in the box or packing material
that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and
all cables.

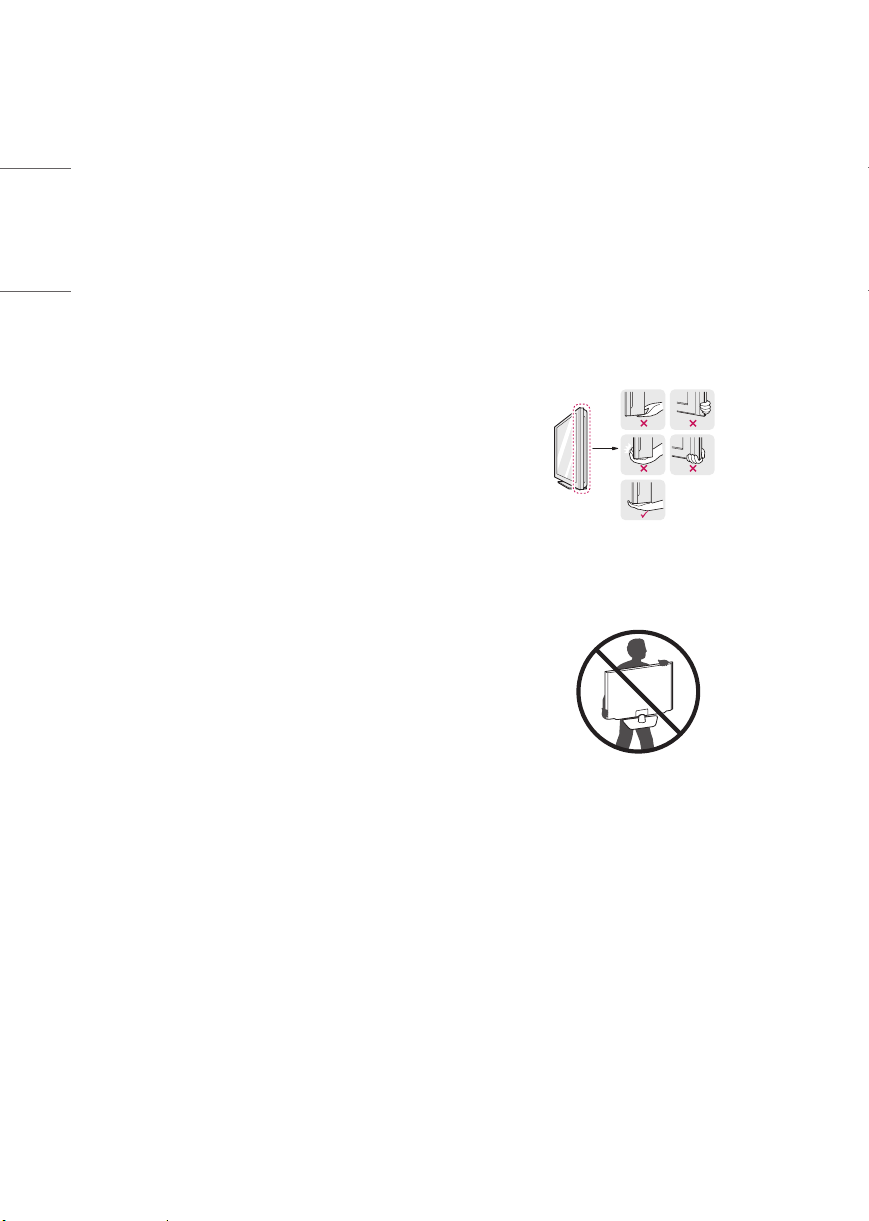

yWhen holding theTV, the screen should face away from you to
avoid damage.
yHold the top and bottom of theTV frame rmly. Make sure not to
hold the transparent part, speaker, or speaker grille area.
yWhen transporting the TV, do not expose the TV to jolts or
excessive vibration.
yWhen transporting the TV, keep the TV upright; never turn theTV
on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause exing /bending of frame
chassis as it may damage screen.
8
ENGLISH

CAUTION
yAvoid touching the screen at all times, as this may result in
damage to the screen.
yDo not carry theTV upside-down by holding the stand body (or
stand base) as this may cause it to fall o, resulting in damage
or injury.
yDo not place the product on the oor with its front facing down
without padding. Failure to do so may result in damage to the
screen.
yWhen handling theTV, be careful not to damage the protruding
button. (Depending upon model)
SETTING UP THE TV
CAUTION
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen
from scratches.
yDo not apply foreign substances (oils, lubricants, etc.) to the screw
parts when assembling the product. (Doing so may damage the
product.)
NOTE
yRemove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse.
USING THE BUTTON

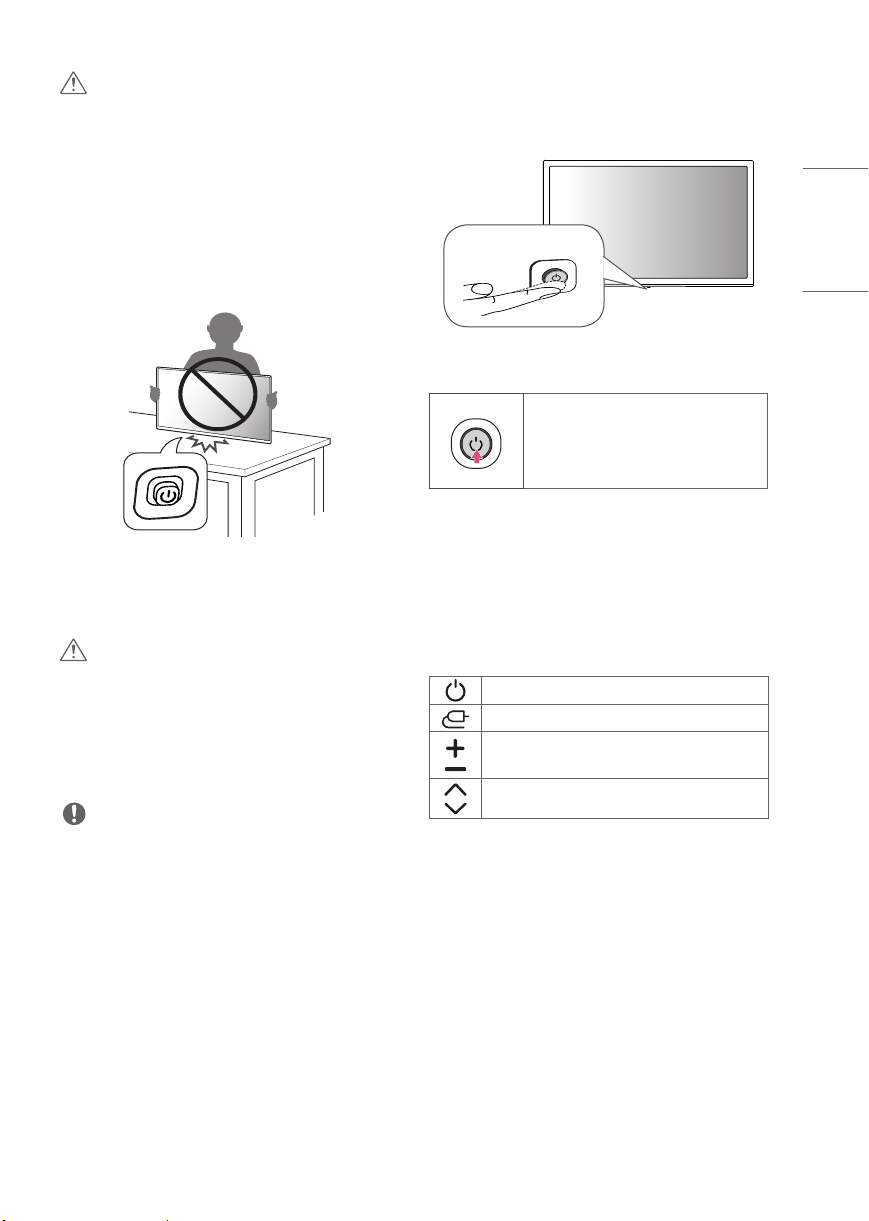

yYou can operate your TV by pressing the button.
yImage shown may dier from your TV.
Basic Functions
Power On (Press)
Power O1 (Press and Hold)
Menu Control (Press2)
Menu Selection (Press and Hold3)
1 All running apps will close.
2 You can access and adjust the menu by pressing the button when
TV is on.
3 You can use the function when you access menu control.
Adjusting the menu
When theTV is turned on, press the button one time.You can adjust
the Menu items using the button.
Turns the power o.
Changes the input source.
Adjusts the volume level.
Scrolls through the saved channels.
9
ENGLISH

MOUNTING ON A TABLE

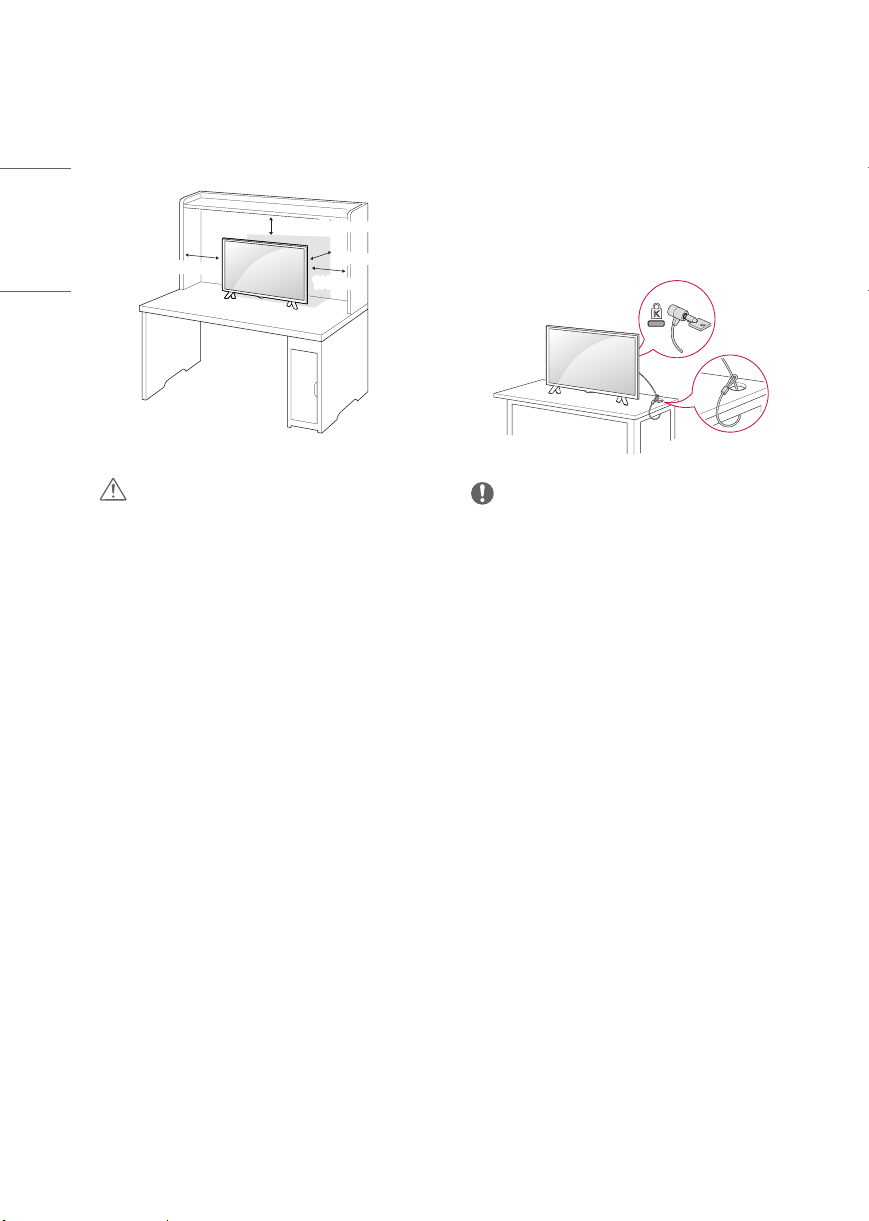

1 Lift and tilt the TV into its upright position on a table.
-Leave a 100 mm (3.9 inches) (minimum) space from the wall
for proper ventilation.
100 mm
100 mm
100 mm (3.9 inches)
100 mm
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
CAUTION
yDo not place theTV near or on sources of heat, as this may result in
re or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter
before connecting theTV’s power plug to a wall power outlet.
Using the Kensington security system
(optional)
(This is not available for all models.)
yImage shown may dier from your TV.
The Kensington security system connector is located at the rear of
theTV. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington security system cable
between theTV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from your local dealer.
10
ENGLISH

MOUNTING ON A WALL
An optional wall mount can be used with your LGTelevision. Consult
with your local dealer for a wall mount that supports the VESA
standard used by your TV model. Carefully attach the wall mount
bracket at the rear of the TV. Install the wall mount bracket on a solid
wall perpendicular to the oor. If you are attaching the TV to other
building materials, please contact qualied personnel to install the
wall mount. Detailed instructions will be included with the wall
mount.We recommend that you use an LG brand wall mount. The LG
wall mount is easy to adjust or to connect the cables.When you do
not use LG’s wall mount bracket, use a wall mount bracket where the
device is adequately secured to the wall with enough space to allow
connectivity to external devices. If you are using a non-adjustable
mount, attach the mount to the wall. Attach the cables to theTV rst,
then attach theTV to the mount.
100 mm (3.9 inches)
100 mm
100 mm 100 mm
100 mm

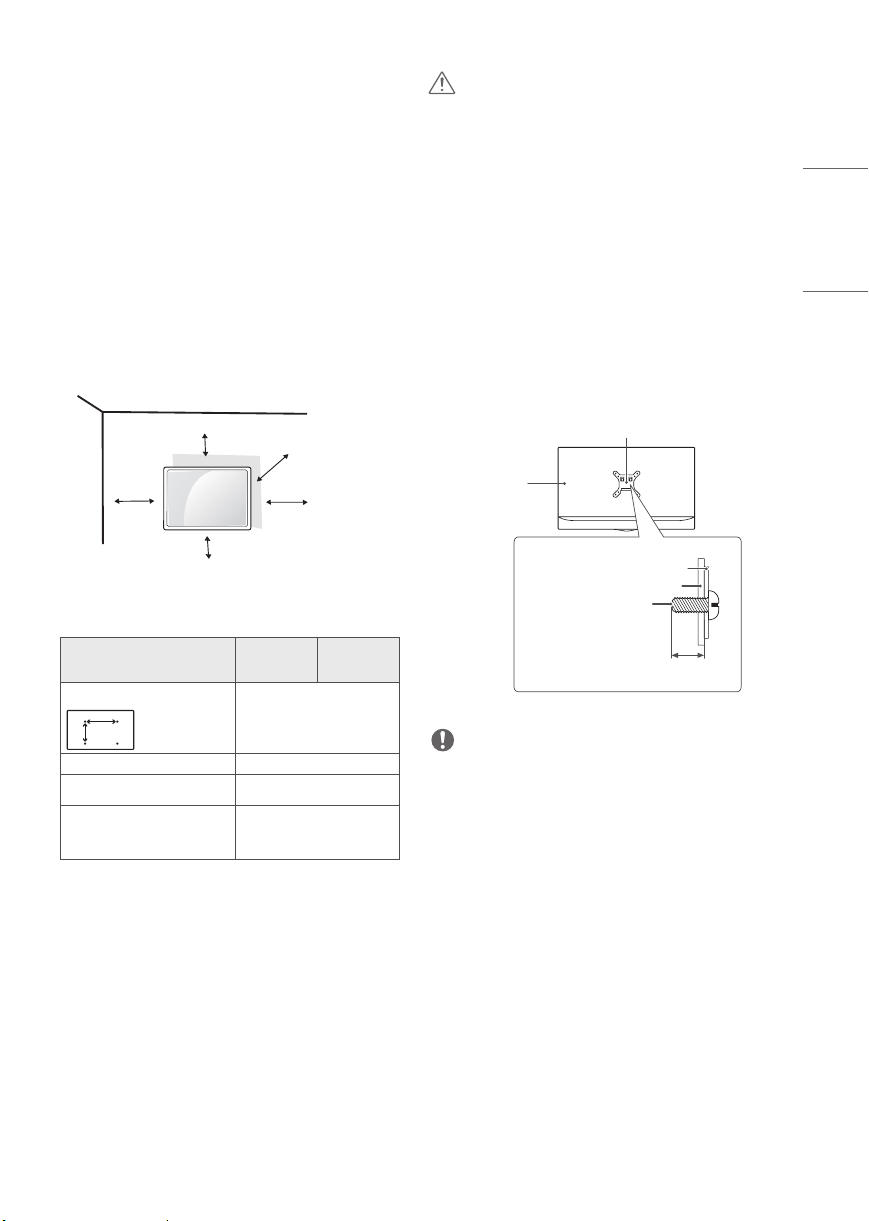

Make sure to use screws and wall mounts that meet theVESA
standard. Standard dimensions for the wall mount kits are described
in the following table.
Model 24LQ510S
24LQ520S
27LQ615S
27LQ625S
Wall mount (A x B) 75 x 75 (mm)
2.9 x 2.9 (inches)
A
B
Standard screw M4 x L10
Number of screws 4
Wall mount bracket (optional)
LSW149
CAUTION
yMust use the enclosed screw in the box. (Depending upon model)
yDisconnect the power before moving or installing theTV.
Otherwise electric shock may occur.
yRemove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse.
yIf you install theTV on a ceiling or slanted wall, it may fall and
result in severe injury. Use an authorized LG wall mount and
contact the local dealer or qualied personnel.When using a third-
party wall mount, it is not covered by the warranty.
yDo not overtighten the screws as this may cause damage to the TV
and void your warranty.
yUse the screws and wall mounts that meet the VESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the warranty.
yScrew length from outer surface of back cover should be less than
8 mm (0.3 inches).
Wall mount Pad
Back Cover
Standard screw:
M4 x L10
Wall mount Pad
Back Cover
Max.8 mm (0.3 inches)
NOTE
yUse the screws that are listed on the VESA standard screw
specications.
yThe wall mount kit includes an installation manual and necessary
parts.
yThe wall mount bracket is optional.You can obtain additional
accessories from your local dealer.
yThe length of screws may dier depending upon the wall mount.
Make sure to use the proper length.
yFor more information, refer to the manual supplied with the wall
mount.
11
ENGLISH

CONNECTIONS
You can connect various external devices to theTV. Supported
external devices are: HD receivers, DVD players, VCRs, audio systems,
USB storage devices, PC, gaming devices, and other external devices.
For more information on an external device’s connection, refer to the
manual provided with each device.
NOTE
yThe external device connections shown may dier slightly from
illustrations in a manual.
yConnect external devices to theTV regardless about the order of
theTV port.
yIf you record a TV program on a DVD recorder orVCR, make sure to
connect the TV signal input cable to theTV through a DVD recorder
orVCR. For more information about recording, refer to the manual
provided with the connected device.
yIf you connect a gaming device to theTV, use the cable supplied
with the gaming device.
yRefer to the external equipment’s manual for operating
instructions.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast, or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate, or adjust the brightness and contrast on the [Picture]
menu until the picture is clear.
Depending upon the graphics card, some resolution settings may
not allow the image to be positioned on the screen properly.
yWhen connecting via a wired LAN, it is recommended to use a CAT
7 cable. (Only when port is provided.)
yEthernet only supports 100 Base-T.
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watchTV. The illustrations
may dier from the actual items and an RF cable is optional.
CAUTION
yMake sure not to bend the copper wire of the RF cable.
Copper wire
yComplete all connections between devices, and then connect the
power cord to the power outlet to prevent damage to yourTV.
NOTE
yUse a signal splitter to use 2TVs or more.
yDTV Audio Supported Codec: MPEG, Dolby Digital.
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and theTV with the HDMI cable.
Depending upon the model, a cable may not be provided.
NOTE
yUSB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.
ySupported HDMI Audio format:
Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz), PCM
(32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) (Depending upon
model)
12
ENGLISH

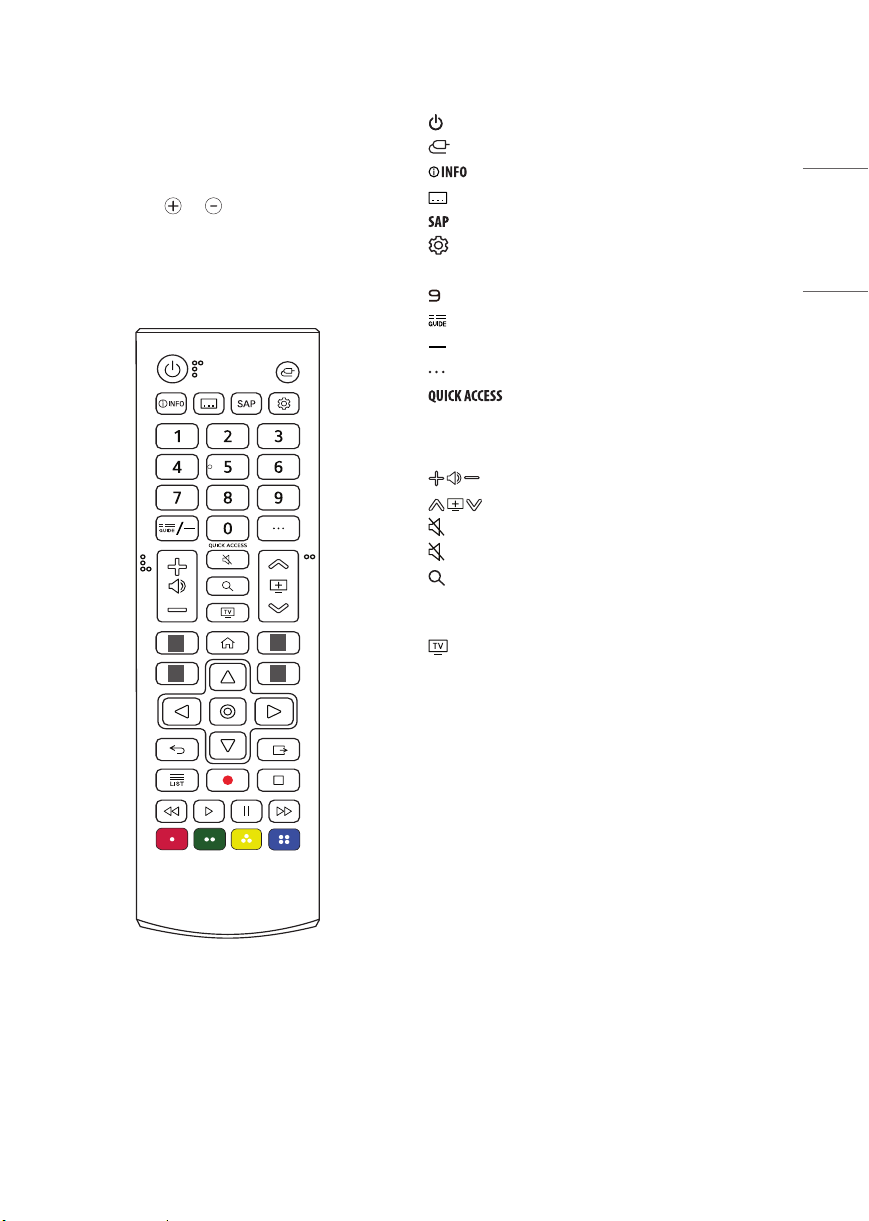

REMOTE CONTROL
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use theTV
correctly.
To install batteries, open the battery cover, replace batteries (1.5
V AAA) matching the and ends to the label inside the
compartment, and close the battery cover.To remove the batteries,
perform the installation actions in reverse.This remote uses infrared
light.
Make sure to point the remote control toward the remote control
sensor on theTV.
##
# #
(Some buttons and services may not be provided depending on
models or regions.)
(Power) Turns the TV on or o.
(Input) Changes the input source.
Shows information on the current program.
(CC/SUB) Recalls your preferred subtitle in digital mode.
Enables SAP (Secondary Audio Program) Feature.
(Q. Settings) Accesses the Quick Settings.
Number buttons Enters numbers.
1Accesses the [Quick Help].
Displays the program event according to time scheduler.
(Dash) Inserts a dash between numbers such as 2-1 and 2-2.
(More actions) Displays more remote control functions.
1Edits QUICK ACCESS.
-QUICK ACCESS is a feature that allows you to enter a specied
app or LiveTV directly by pressing and holding the number
buttons.
Adjusts the volume level.
Scrolls through the saved channels.
(Mute) Mutes all sounds.
(Mute)1Accesses the [Accessibility] menu.
(Search) Check for recommended content. (Some recommended
services may not be available in some countries.)
Shows the search mode.
You can watchTV or LG Channels.
13
ENGLISH

#
Streaming Service buttons Connects to theVideo Streaming
Service.
(HOME) Accesses Home menu.
(HOME)1Launches the last used apps.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
(OK) Selects menus or options and conrms your input.
(OK)1Accesses the [Magic Explorer]. When using [TV Guide],
[Settings], [Sports Alert], or [Art Gallery], press and hold down on
the text.
(Back) Returns to the previous level.
(Exit) Clears on-screen displays and returns toTV viewing.
, , , , Control buttons for media contents.
Accesses the saved channel list.
(REC) Starts to record and displays record menu.ThisTV does not
support recording function.
, , , These access special functions in some menus.
1 To use the button, press and hold for more than 3 seconds.
USER GUIDE
For more information about this TV, read the USER GUIDE embedded
in the product. (Depending on model)
yTo open the USER GUIDE [Support] [User Guide]
TROUBLESHOOTING
Cannot control the TV with the remote control.
yCheck if anything such as tape has been placed over the receiver.
yCheck if there is any obstacle between the product and the remote
control.
yReplace the batteries with new ones.
No image display and no sound is produced.
yCheck if the product is turned on.
yCheck if the power cord is connected to a wall outlet.
yCheck if there is a problem in the wall outlet by connecting other
products.
The TV turns off suddenly.
yCheck the power control settings.The power supply may be
interrupted.
yCheck if the auto-o function is activated on the settings related
time.
yIf there is no signal while theTV is on, the TV will turn o
automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI), no signal is
detected.
yTurn the TV o/on using the remote control.
yReconnect the HDMI cable.
yRestart the PC with the TV on.
14
ENGLISH

SPECIFICATIONS
Product specications may be changed without prior notice due to upgrade of product functions.
Models
Dimensions (W x D x H) Weight Power
consumption
(Outgoing
condition)
Power
requirement
With stand Without stand With
stand
Without
stand
24LQ510S 563.1 x 148.6 x 393.8 (mm) 563.1 x 58 x 340.9 (mm) 3.6 (kg) 3.25 (kg) 28W 19V 2.0 A
22.1 x 5.8 x 15.5 (inches) 22.1 x 2.2 x 13.4 (inches) 7.9 (lbs) 7.1 (lbs)
24LQ520S 563.1 x 150.1 x 367 (mm) 563.1 x 58 x 340.9 (mm) 3.3 (kg) 3.25 (kg) 28W 19V 2.0 A
22.1 x 5.9 x 14.4 (inches) 22.1 x 2.2 x 13.4 (inches) 7.2 (lbs) 7.1 (lbs)
27LQ625S 612 x 150 x 394.8 (mm) 612 x 73.9 x 368.5 (mm) 3.55 (kg) 3.5 (kg) 32 W 19V 2.0 A
24.0 x 5.9 x 15.5 (inches) 24.0 x 2.9 x 14.5 (inches) 7.8 (lbs) 7.7 (lbs)
27LQ615S 612 x 152.5 x 423.1 (mm) 612 x 73.9 x 368.5 (mm) 3.75 (kg) 3.5 (kg) 32 W 19V 2.0 A
24.0 x 6.0 x 16.6 (inches) 24.0 x 2.9 x 14.5 (inches) 8.2 (lbs) 7.7 (lbs)
AC/DC Adapter
Manufacturer: PI
Model: AD2137620
Manufacturer: Honor
Model: ADS-45FSQ-19 19040EPCU-1
In: AC 100 – 240V~ 50/60Hz
Out: DC 19V 2.1A
Environment condition
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity Less than 80%
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Storage Humidity Less than 85%
Television System ATSC, NTSC-M, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
15
ENGLISH

Wireless module specification
Wireless module (LGSBWAC03) specications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range Output Power (Max.)
2,400 to 2,483.5MHz
5,150 to 5,725MHz
5,725 to 5,850MHz
20 dBm
18.5 dBm
18 dBm
Bluetooth
Frequency Range Output Power (Max.)
2,400 to 2,483.5MHz 9 dBm
As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is congured for the regional
frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20cm (7.8 inches) between the device
and the body.
FCC ID: BEJLGSBWAC03 / IC: 2703H-LGSBWAC03
16
ENGLISH

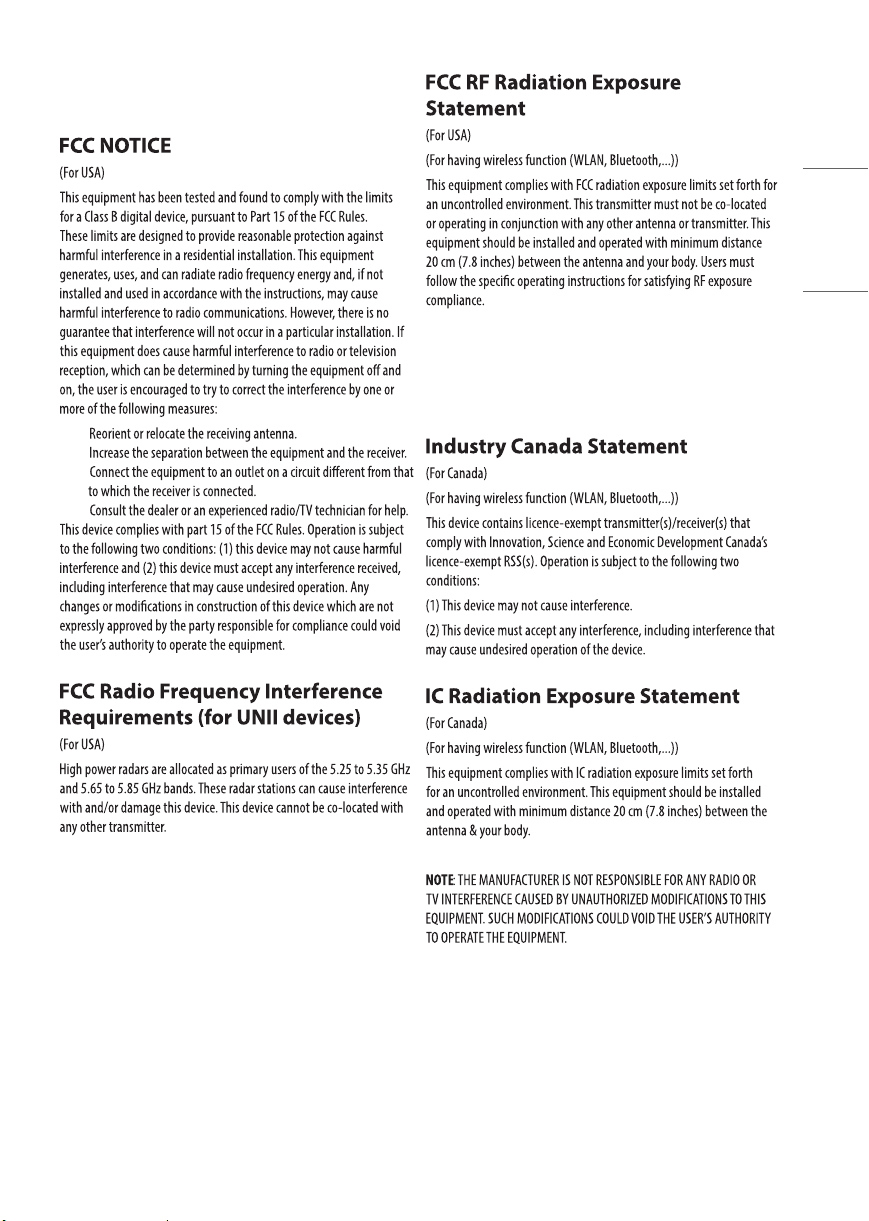

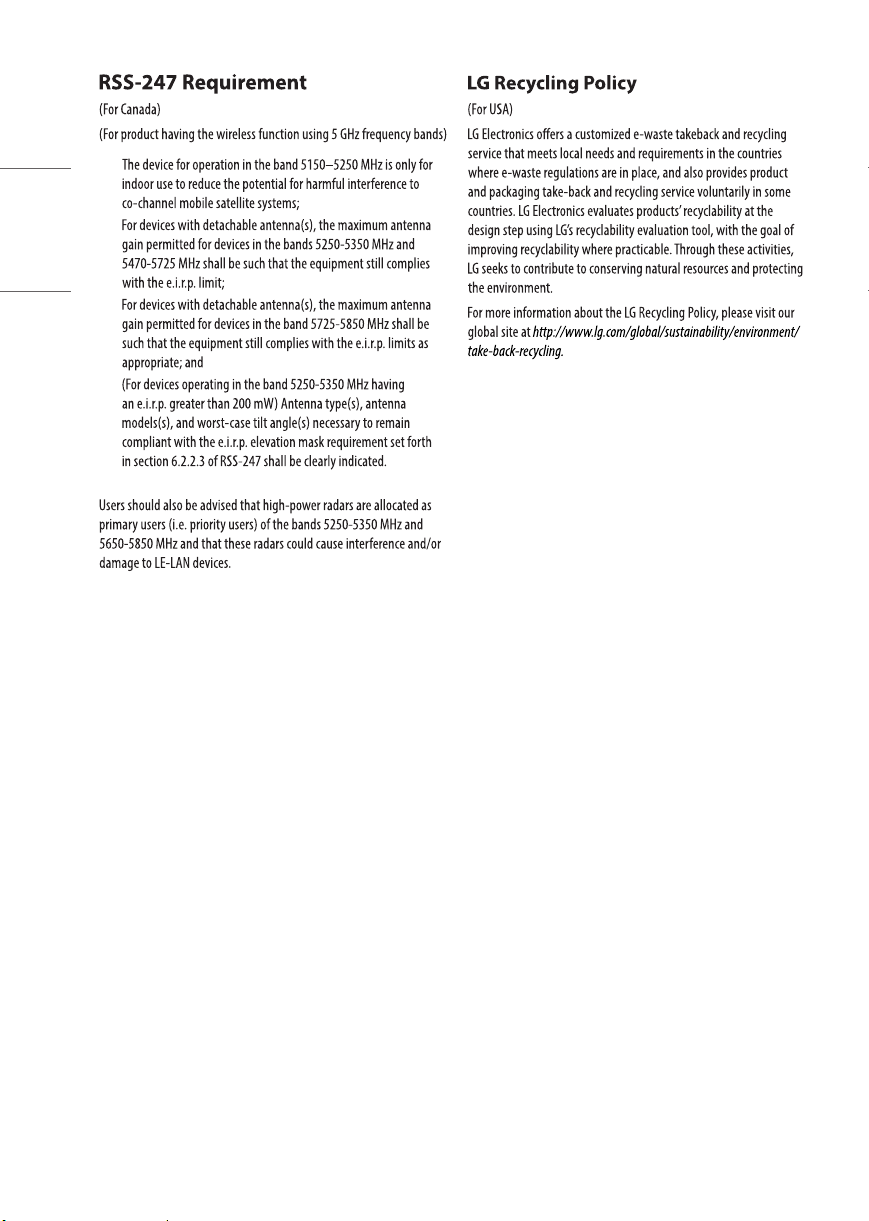

REGULATORY
-
-
-
-
17
ENGLISH

1
2
3
4
NOTE TO CABLE/TV INSTALLER
(For USA and Canada)
This reminder is provided to call the CATV system installer’s attention
to Article 820-40 of the National Electric Code (U.S.A.). The code
provides guidelines for proper grounding and, in particular, species
that the cable ground shall be connected to the grounding system of
the building, as close to the point of the cable entry as practical.
18
ENGLISH
