LG 29MA73D-PH.AHK User manual
2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3LICENSES
4INSTALLATION PROCEDURE
5ASSEMBLING AND PREPARING
5 Unpacking
7 Parts and buttons
9 Lifting and moving the TV
10 Setting up the TV
10 - Attaching the Stand
12 - Detaching the Stand
13 - Mounting on a table
13 - Tidying cables
15 - Mounting on a wall
17 WATCHING TV
17 Turning the TV on for the first time
19 TV display (5:9 OSD)
19 - Programme Guide
20 PIP function
22 MAKING CONNECTIONS
22 Connecting an antenna
23 Connecting to a HD receiver, DVD Player,
VCR or Gaming device
23 - HDMI connection
24 - DVI-D connection
25 - Component connection
26 - Composite connection
27 Headphone connection
28 Connecting a USB Device
29 Smartphone (MHL) connection
30 Connecting to a PC
31 - HDMI connection
32 - DVI-D connection
33 - DisplayPort connection
34 REMOTE CONTROL
36 INSTALLING SCREEN SPLIT
37 CUSTOMIZING SETTINGS
37 Accessing the Main Menus
37 - TV, Component, AV
42 - DVI, HDMI IN 1, HDMI IN 2(MHL),
DisplayPort
49 USING THE USER GUIDE
49 Accessing User Guide menu.
50 MAINTENANCE
50 Cleaning Your TV
50 Screen and frame
50 Cabinet and stand
50 Power cord
51 Preventing “Image burn” or “Burn-in” on
your TV screen
52 TROUBLESHOOTING
54 SPECIFICATIONS
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
VESA, VESA logo, Display Port Compliance Logo and Display Port Compliance
Logo for dual-mode source are all registered trademarks of the Video Electronics
Standards Association.
ENGLISH
4INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV.
3Connect an external device to the TV.
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you are
using.
yNew features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

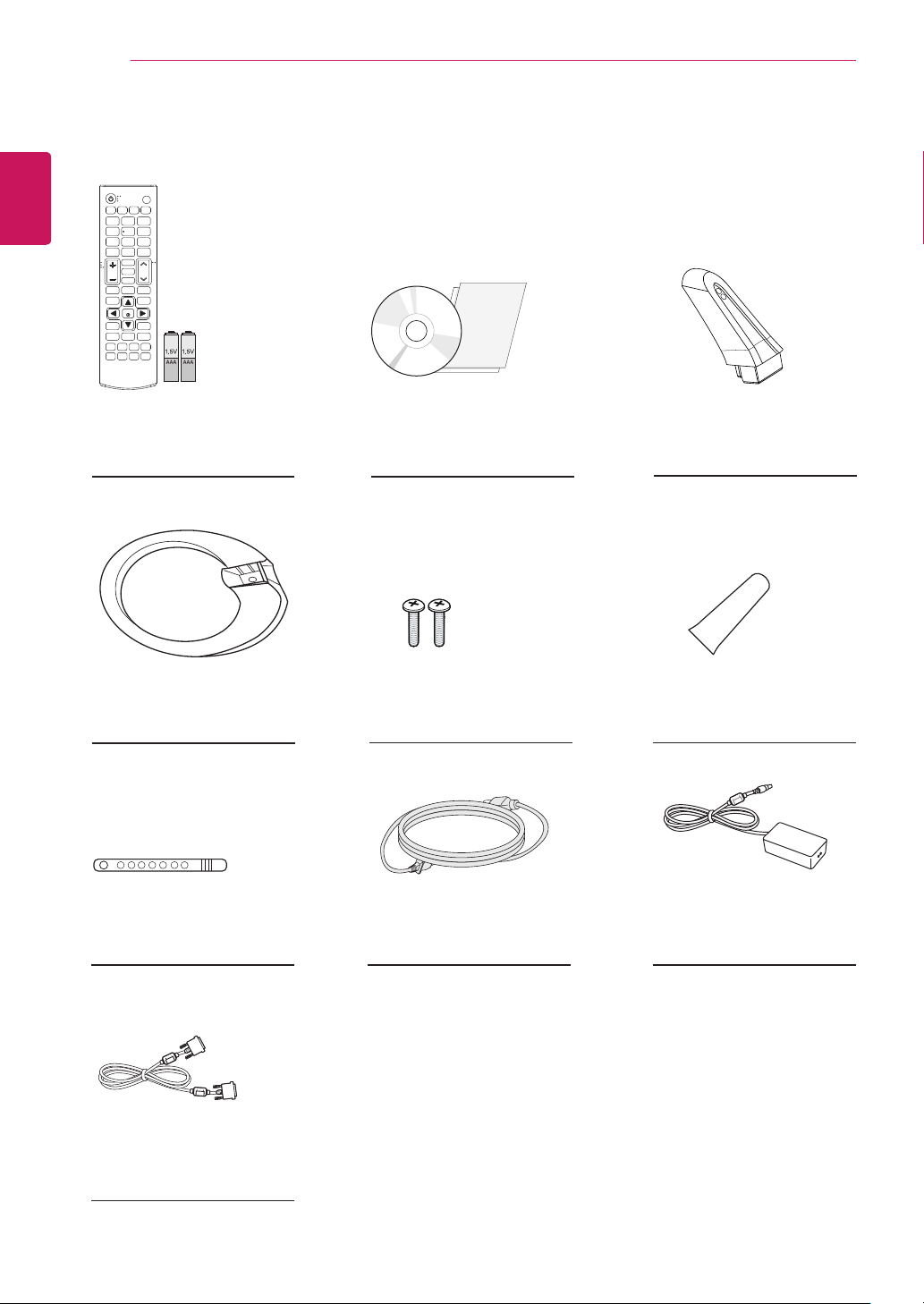

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
yDo not use any pirated items to ensure the safety and product life span.
yAny damages or injuries by using unapproved or counterfeit parts or accessories are not covered
by the manufacturer’s warranty.
CAUTION
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
NOTE
*A ≤ 10 mm
*B ≤ 18 mm
A
B
A
B
ENGLISH
6ASSEMBLING AND PREPARING
(See p.34, 35)
(See p.13) (See p.13)
(See p.24, 32)
(See p.13)
(See p.10, 12)
(See p.10, 12) (See p.10, 12)
(See p.10, 12)
Remote Control /
Batteries (AAA)
Power Cord
Stand Base
CD (Owner's Manual) /
Cards
Stand Body
Stand Screws
2 EA
Stand Screw cover
Cable Tie AC-DC Adapter
DVI-D cable
ENGLISH
7
ASSEMBLING AND PREPARING

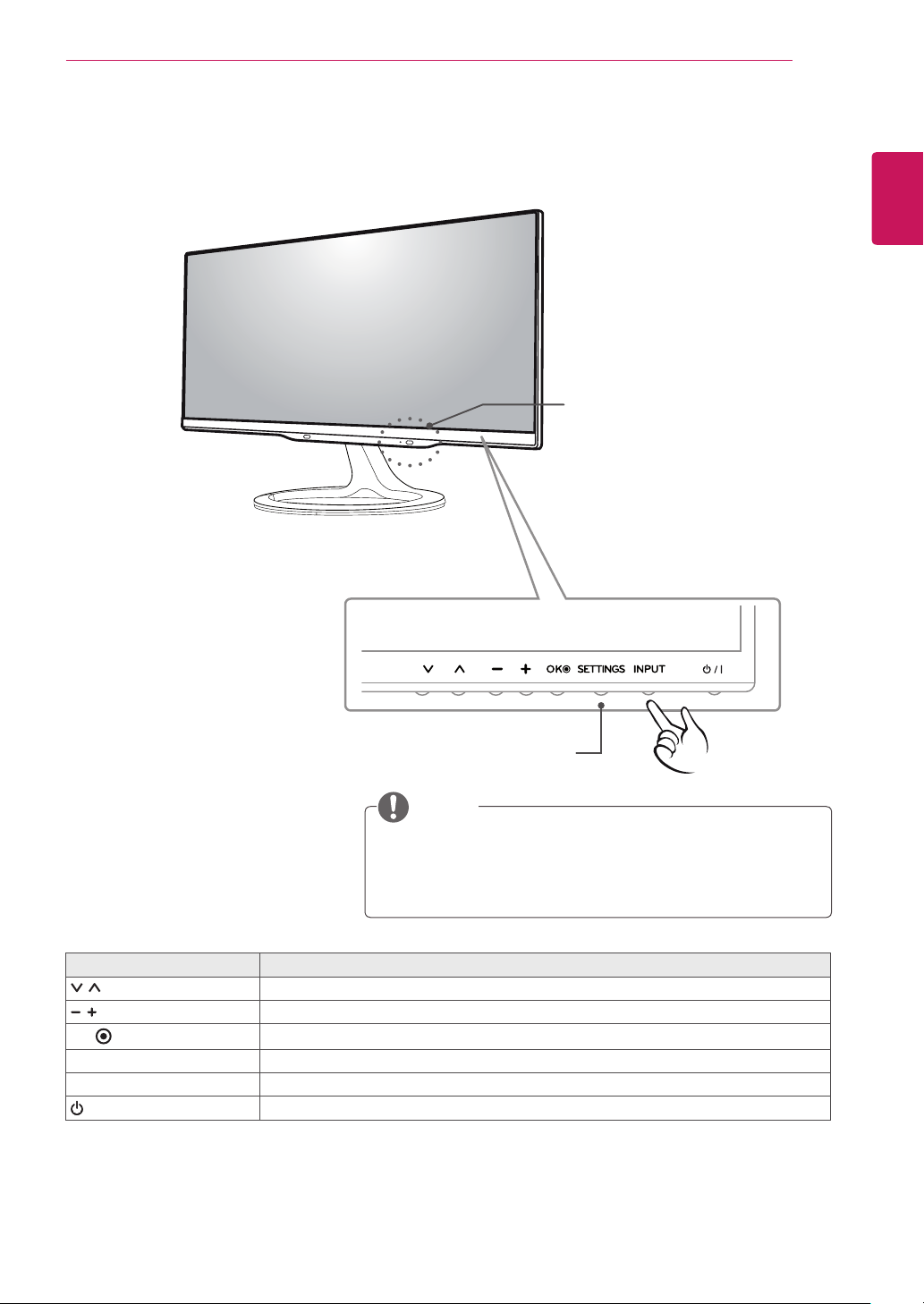

Parts and buttons
NOTE
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ITurns the power on or off.
Touch Buttons
Remote Control Sensor
Standby Light
yLighting On :
When Power is turned off
yLighting Off :
When Power is turned on
yAll of the buttons are touch sensitive and can be operated
through simple touch with your finger.
yPower and control touch button are located on the bottom.
ENGLISH
9
ASSEMBLING AND PREPARING
yWhen holding the TV, the screen should face
away from you to prevent the screen from
scratches.
yWhen transporting the TV, do not expose the
TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
yIt is recommended to move the TV in the
box or packing material that the TV originally
came in.
yBefore moving or lifting the TV, disconnect
the power cord and all cables.
yHold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
CAUTION
ENGLISH
10 ASSEMBLING AND PREPARING

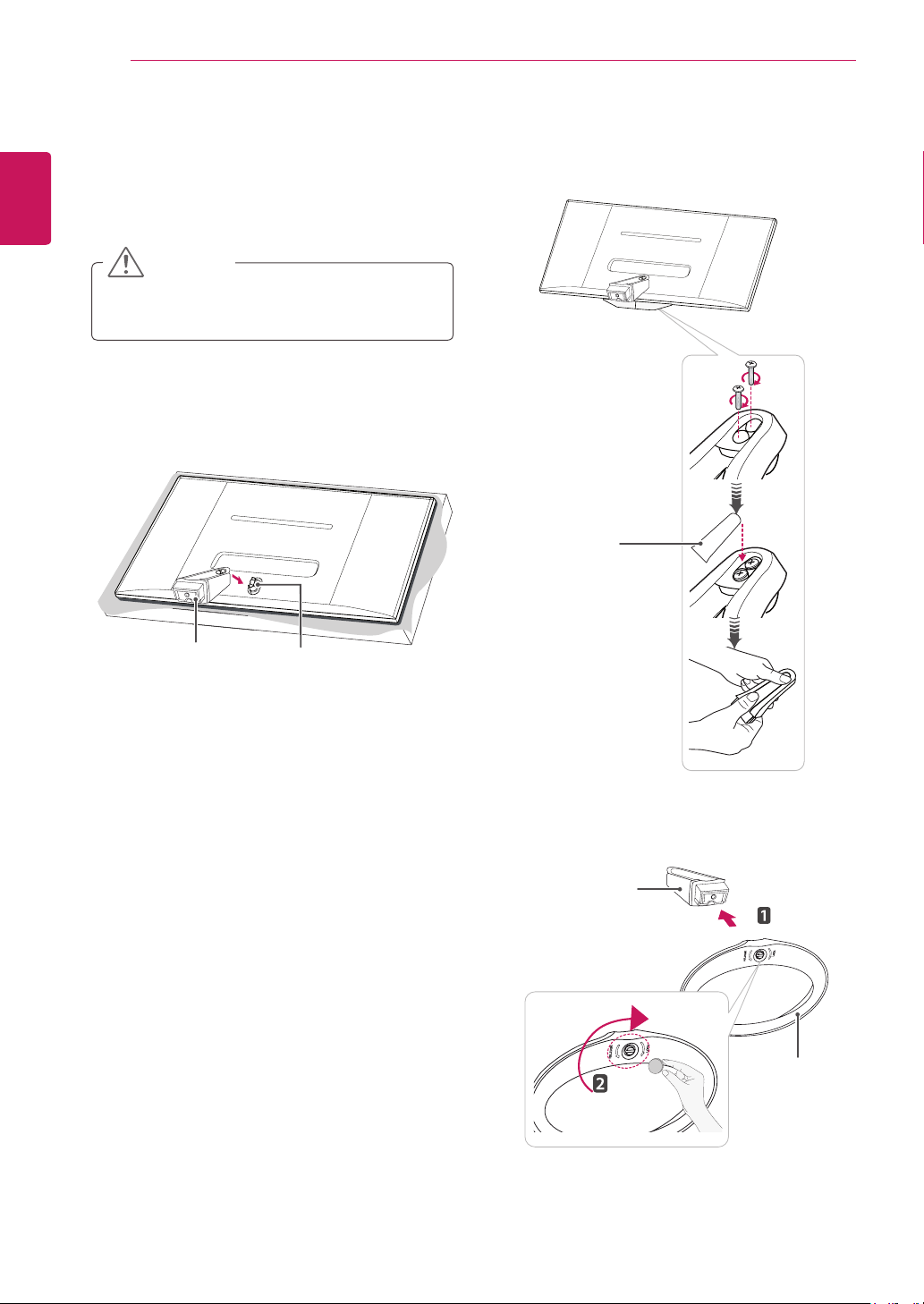

Setting up the TV
Attaching the Stand
1Place the screen face down.
4Attach the Stand Base from the Stand Body by
turning the screw to the right with a Coin.
yTo protect the screen from scratches, cover
the surface with a soft cloth.
3Fix two screws into the back of the Stand Body
and close the Stand Screw Cover.
2Check the orientation (front and rear) of the
stand base and mount the Stand Body to the
Stand Hinge as shown in the figure.
Stand Body Stand Hinge
CAUTION
Stand Base
Stand Screw
Cover
Stand Body
ENGLISH
11
ASSEMBLING AND PREPARING

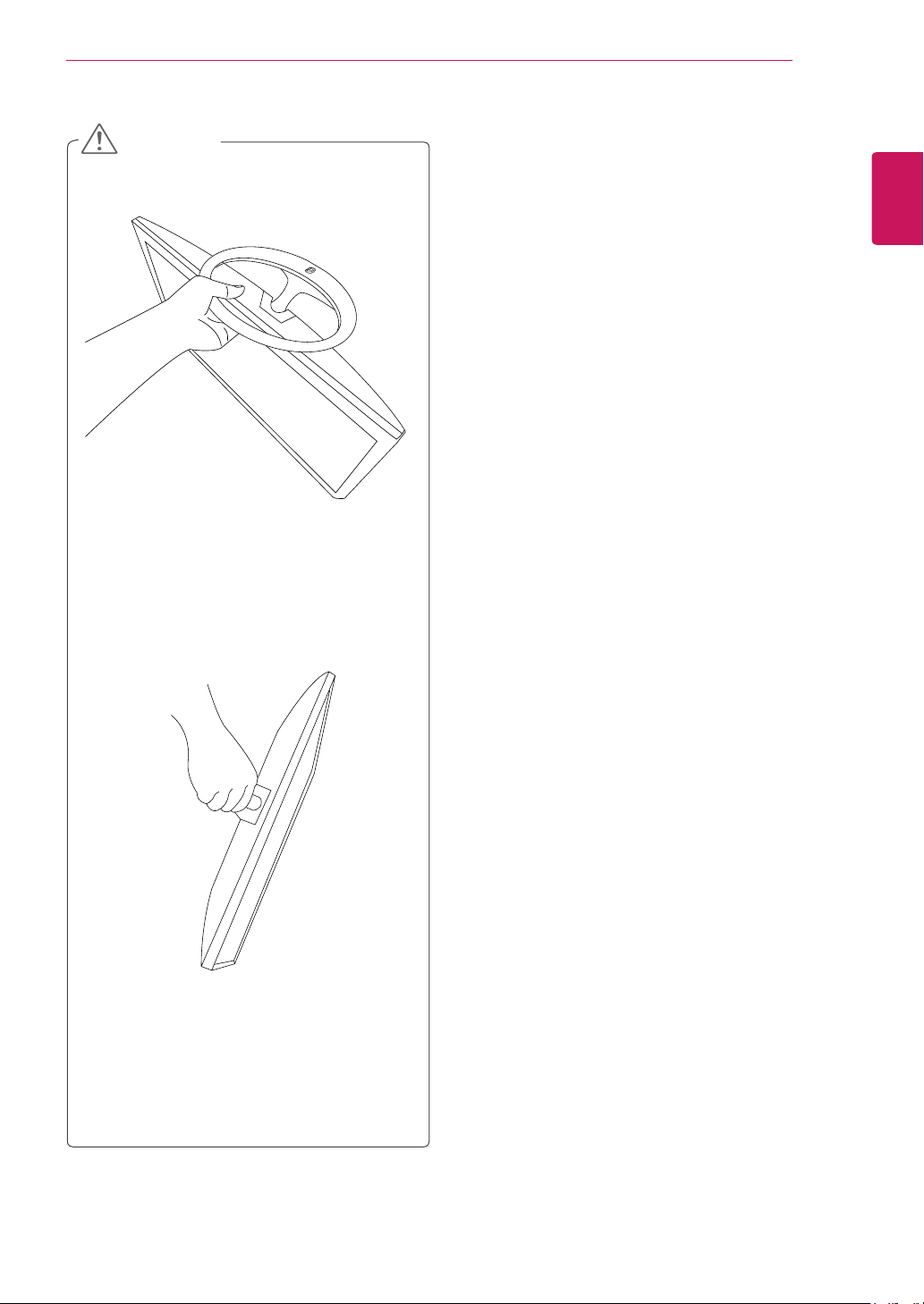

CAUTION
yDo not carry the TV upside-down by holding
the stand body as this may cause it to fall
off, resulting in damage or injury.
yThe illustration shows a general example of
installation and may look different from the
actual product.
yDo not carry the TV upside-down as this
may cause it to fall off its stand, resulting in
damage or injury.
yThe illustration shows a general example of
installation and may look different from the
actual product.
ENGLISH
12 ASSEMBLING AND PREPARING

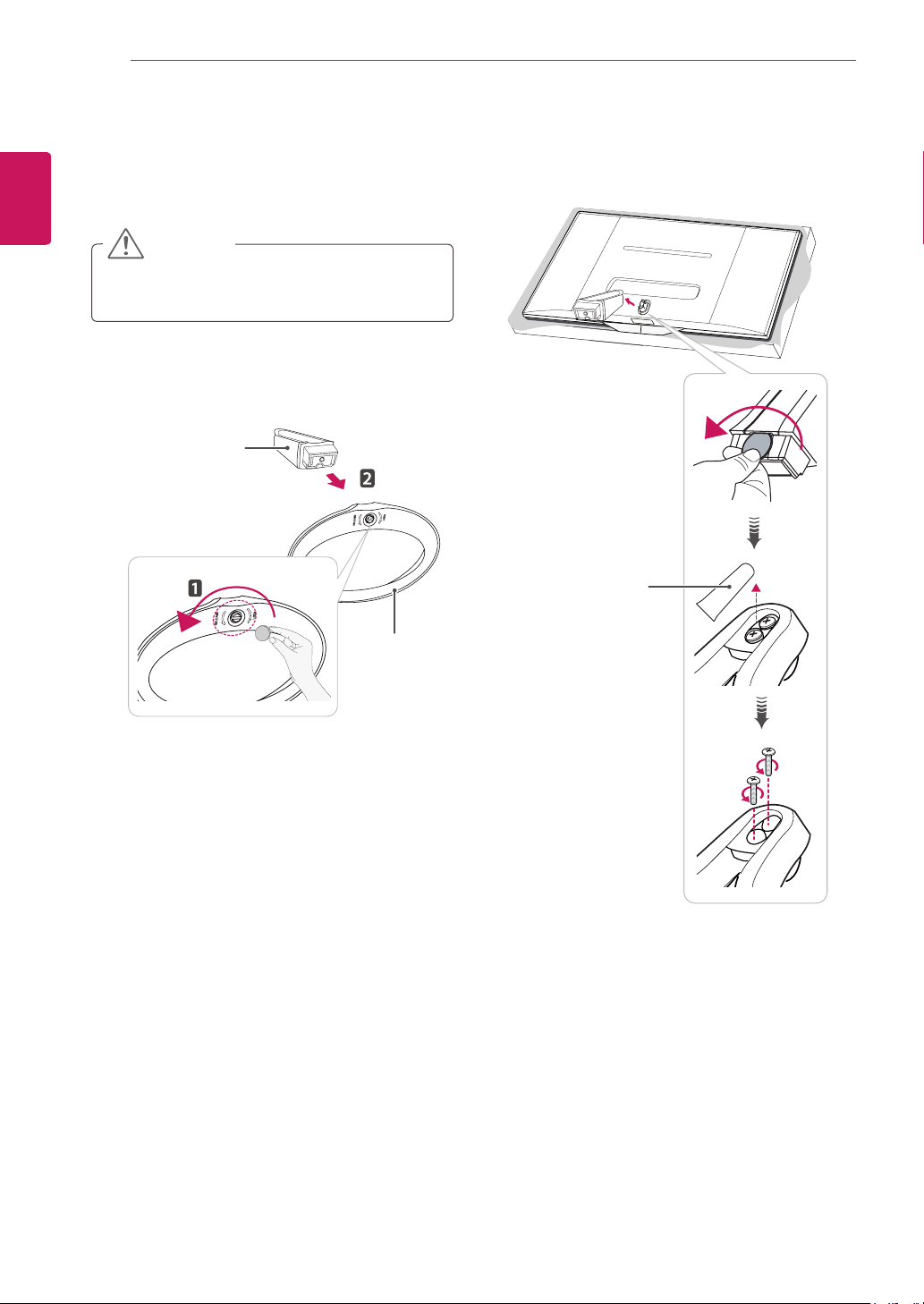

Detaching the Stand
1Place the screen face down.
yTo protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
3Open the Stand Screw Cover on the back of
the stand body and use a screw driver to re-
move the two screws.
Stand Screw Cover
2Turn the screw to the left, and then pull out the
Stand Base from the Stand Body.
Stand Body
Stand Base
ENGLISH
13
ASSEMBLING AND PREPARING

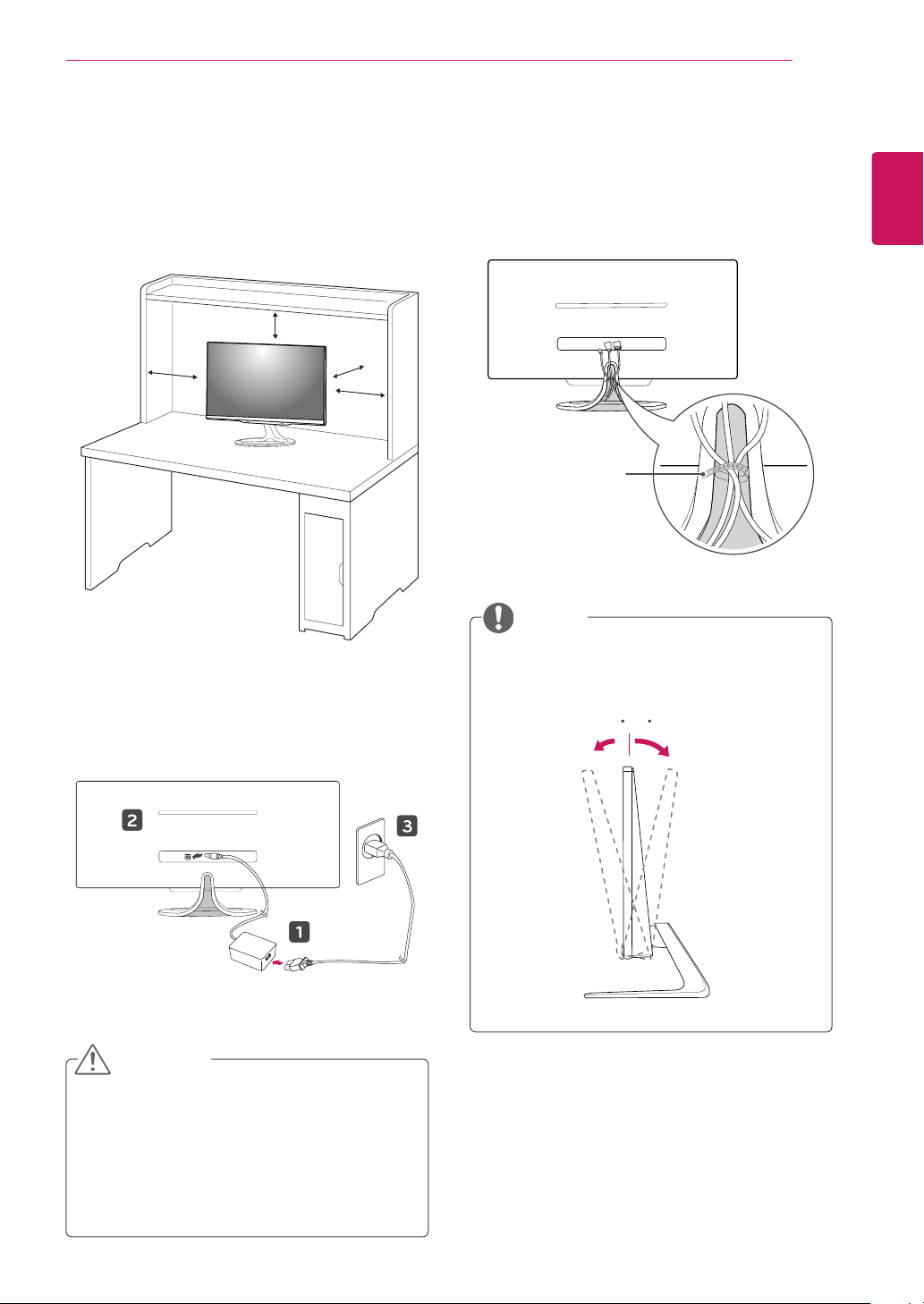

Mounting on a table
1Lift and tilt the TV into its upright position on a
table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2Connect the AC-DC Adapter and Power Cord
to a wall outlet.
Tilt from -5 to +20 degrees up or down to
adjust the angle of the TV to suit your view.
NOTE
Front Rear
Tidying cables
Gather and bind the cables with the supplied
cable tie.
-5 20
:
yDo not place the TV near or on sources
of heat, as this may result in fire or other
damage.
yDisconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
CAUTION
Cable Tie
ENGLISH
14 ASSEMBLING AND PREPARING

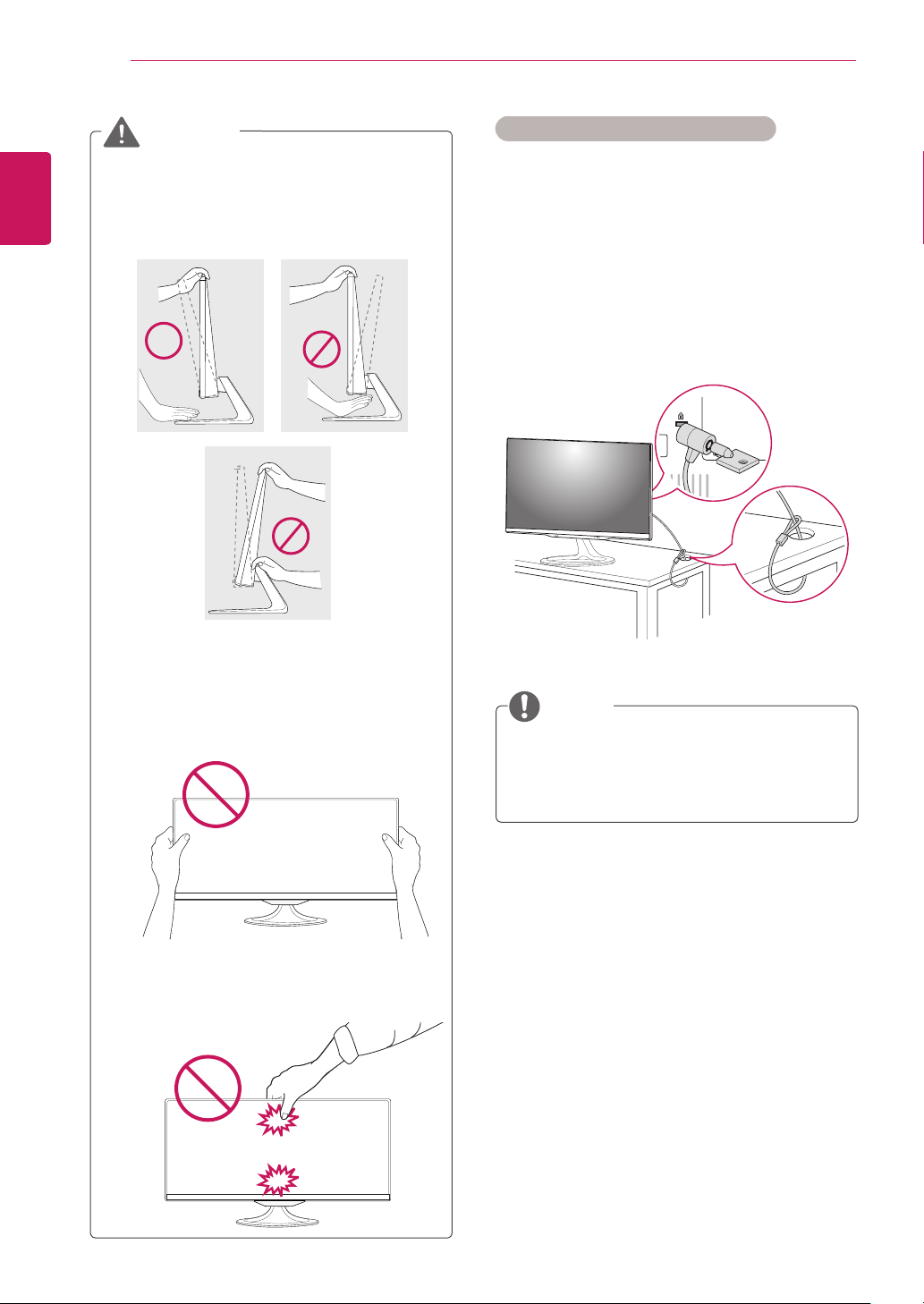

Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the TV and a table.
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
yBe careful not to touch or press the screen
area when adjusting the angle of the TV.
yWhen you adjust the angle, do not hold
the buttom of the TV frame as shown on
the following illustration, as may injure your
fingers.
WARNING
-5 20
:
-5 20
:
-5 20
:
yBe careful not to press the screen with your
fingers or palm.
-520
-520
ENGLISH
15
ASSEMBLING AND PREPARING
5Please use VESA standard as below.
y784.8 mm and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ4.0 mm x Pitch 0.7 mm x
Length 10 mm
y787.4 mm and above
* Please use VESA standard wall mount pad
and screws.
Mounting on a wall
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
If you intend to mount the TV to a wall, attach Wall
mounting interface (optional parts) to the back of
the TV.
When you install the TV using the wall mounting
interface (optional parts), attach it carefully so it
will not drop.
1Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2If you use screw longer than standard, the TV
might be damaged internally.
3If you use improper screw, the product might
be damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
4VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
yVESA (A x B)
AB
10 cm
10 cm
10 cm
10 cm
VESA (A x B) 100 x 100
Standard screw M4
Number of screws 4
Wall mount bracket
(optional)
RW120
ENGLISH
16 ASSEMBLING AND PREPARING
yDisconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
yIf you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
yUse an authorized LG wall mount and
contact the local dealer or qualified
personnel.
yDo not over tighten the screws as this may
cause damage to the TV and void your
warranty.
yUse the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the manufacturer’s
warranty.
CAUTION
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit includes an installation
manual and necessary parts.
yThe wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
yThe length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
yFor more information, refer to the instructions
supplied with the wall mount.
NOTE
ENGLISH
17
WATCHING TV
Turning the TV on for the first time
When you access the TV for the first time, the initial setting screen appears. Select a language and
customize the basic settings.
1Connect the power cord to a power outlet.
2Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.
3The initial setting screen appears if you access the TV for the first time.
When the TV is in Power saving mode, the Standby Light turns amber.
NOTE
If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting
menus will disappear.
NOTE
WATCHING TV
4Follow the on-screen instructions to customize your TV according to your preferences.
City（城市）
展示模式選項
電源顯示燈
自動搜尋頻道
Selects Home Use(家用) for the home environment.
Scans and saves available programmes automatically.
Selects the Standby Light(待機顯示燈). If you select On(開啟), the TV turns on
the Standby Light(待機顯示燈) in the front panel when the TV is off.
Select a city to display.
ENGLISH
18 WATCHING TV
yYou can also switch the TV from PC mode to TV mode, press TV/PC.
yYou can also access Factory Reset by accessing OPTION in the main menus.
NOTE
5When the basic settings are complete, press OK.
6To turn the TV off, press on the TV.
The Standby Light is turned on.
If you do not complete the initial setting, it will appear whenever you access the TV.
NOTE
Disconnect the power cord from the power outlet when you do not use the TV for a long period of
time.
CAUTION
yFor those countries without confirmed DTV broadcasting standards, some DTV features might not
work, depending on the DTV broadcasting environment.
yTo display images in the best quality for your home environment, select Home Use(家用) mode.
yStore Demo(商店展示) mode is suitable for the retail environment.
yyyIf you select Store Demo(商店展示) mode, the previously customized settings will switch to the
default settings of Store Demo(商店展示) mode in 5 minutes.
NOTE
ENGLISH
19
WATCHING TV
57
1. 1.
.0/0
1. 1.
1. 1.
1. 1.
"
J
%
#
$
%
&
8BUDI
: .PWF : 0, "MM
▶
◀
4DIFEVMF 0UIFSDIBOOFMT
1. 1.
Press the GUIDE button on the remote control while you are watching TV.
- On the right-hand side (5:9 OSD) of the TV screen, the details of channel you are
currently watching and the channel organization information are displayed.
- For analogue TV, the message "No program information" is displayed.
- Only digital TV channels are searched and displayed. If there is no channel available,
the message "No program information" is displayed.
NO. Description
①Displays the programme you are currently watching.
②Displays the broadcasting type of the channel you are currently watching.
③Displays the broadcasting type icon.
(e.g., HD, Dolby Digital, etc.)
④Displays the current date and time.
⑤Displays the current channel or the entire programme list.
⑥Broadcasting type icon area
⑦Displays the name of programme you are currently watching.
⑧Displays the running time of the programme.
- Displays the progress including start and end times of the programme.
⑨Displays the available functions.
- If the channel you are currently watching is focused, the Watch function is displayed.
- If the channel you are not currently watching is focused, the Schedule function is displayed.
⑩Displays the program guide for all channels.
TV display (5:9 OSD)
Programme Guide
①
②③
④
⑤
⑥
⑦
⑧⑨
⑩
ENGLISH
20 WATCHING TV
5$7,2

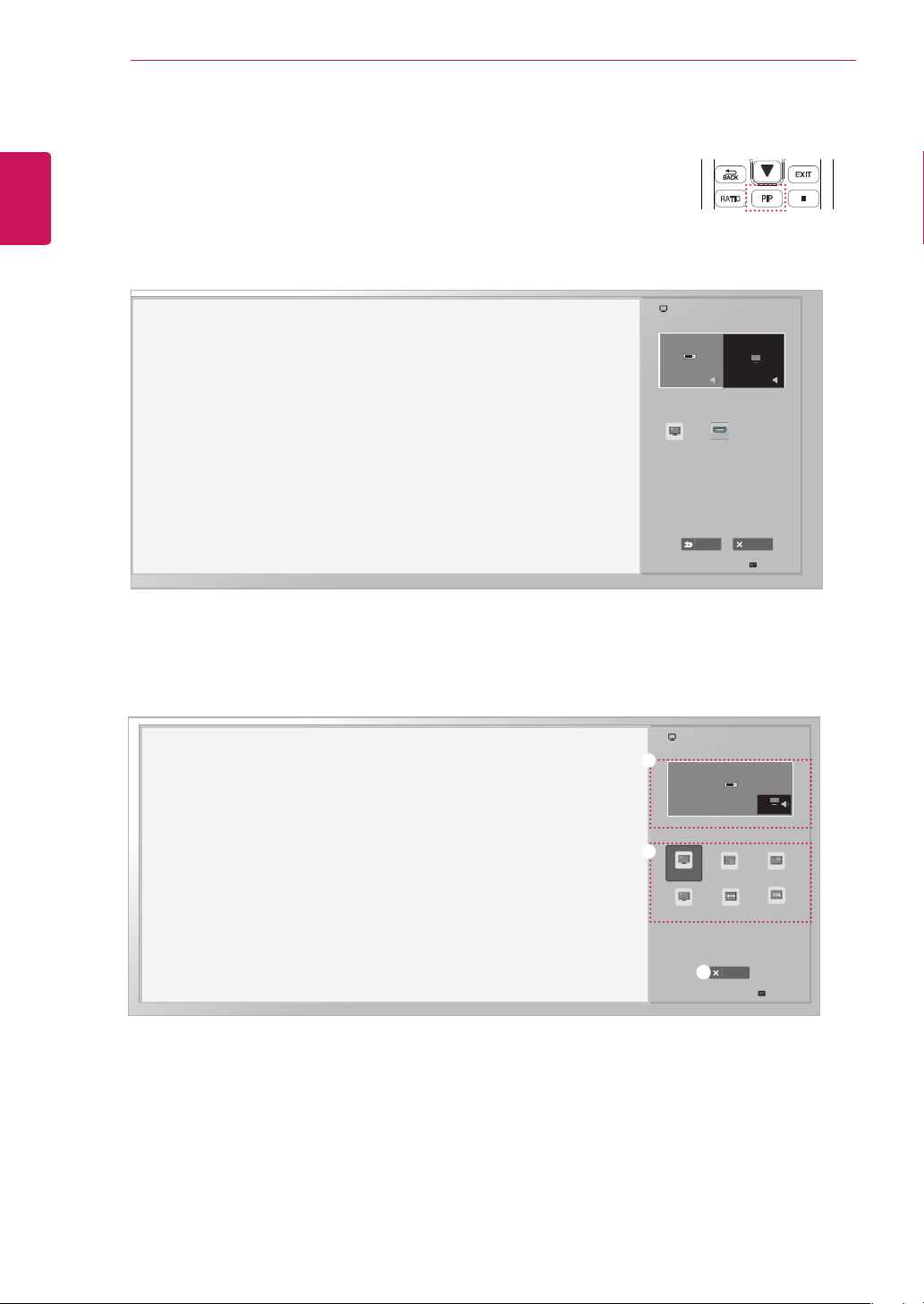

PIP SETTINGS
PIP SIZE
Press the PIP button on the remote control while you are watching DVI, HDMI1,2, DisplayPort
PIP function
DVI
TV
wpwGz w
PIP t
PIP Preview
z¡
◀▶: t OK : z : l
GGGGh
CH
y
{
l
①
②
③
While watching PIP, press the PIP SETTINGS button on the remote control to display the Sub Menu.
DVI TV
57
PIP 4VC
PIP Preview
◀▶: .PWF OK : 4FMFDU : &YJU
CH
&YJU
..
%JTQMBZ1PSU
#BDL
This manual suits for next models
1
Table of contents
Other LG LED TV manuals
