LG 29MN33D User manual

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO :
CHASSIS :
MODEL :
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
SERVICE MANUAL
MFL67580683 (1301-REV00)
29MN33D 29MN33D-PSP
LA31R
LED TV

- 2 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION ................................................................ 9

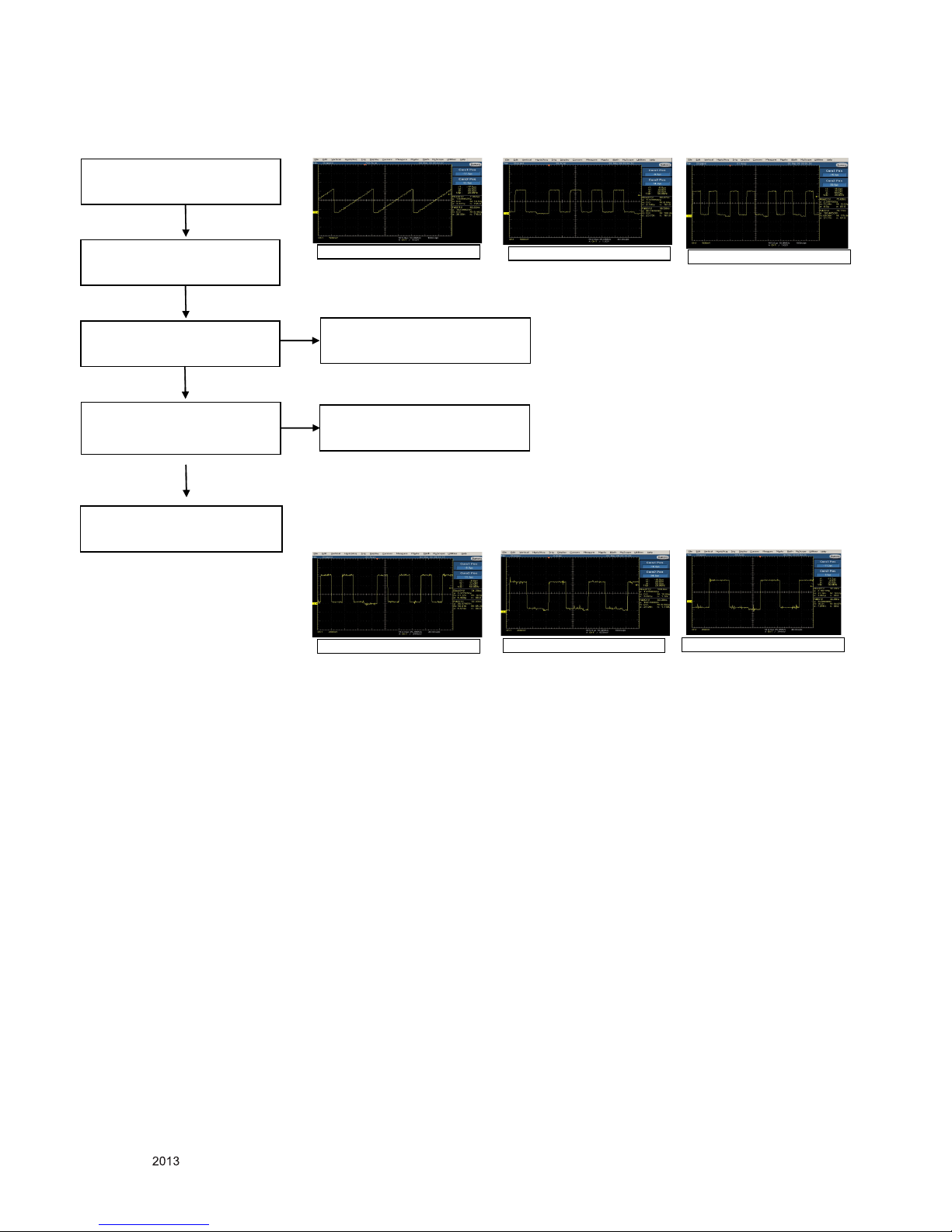

TROUBLE SHOOTING ........................................................................... 13
BLOCK DIAGRAM .................................................................................. 20
EXPLODED VIEW .................................................................................. 21
SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
0.15µF
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1
*Base on Adjustment standard
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 ˚F to 600 ˚F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 ˚F to 600 ˚F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 ˚F to 600 ˚F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

- 5 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
SPECIFICATION
1. Application Range
This spec sheet is applied all of the TV used LA31R chassis.
2. Specication
Each part is tested as below without special appointment
1) Temperature : 25 ˚C ± 5 ˚C (77 ˚F ± 9 ˚F),
CST : 40 ˚C ± 5 ˚C
2) Relative Humidity : 65 % ± 10 %
3) Power Voltage : Standard input voltage
(100 V - 240 V ~, 50 / 60 Hz)
· Standard Voltage of each products is marked by mod-
els
4) Specication and performance of each parts are followed
each drawing and specication by part number in accord-
ance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3.Test method
1) Performance : LGE TV test method followed
2) Demanded other specication
- Safety : CE,IEC specication
- EMC : CE,IEC specication
NOTE : Specications and others are subject to change without notice for improvement.

- 7 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
4. General specication
4.1. TV
4.2. RGB/HDMI(PC) Specication
No Item Specication Remarks
1 Supported Sync. Type Separate Sync., Digital
2 Operating Frequency Analog Horizontal 30 ~ 61 kHz
Vertical 56 ~ 75 Hz
Digital Horizontal 30 ~ 61 kHz
Vertical 56 ~ 75 Hz
3 Resolution Analog Max. 1366 x 768 @ 60Hz
Recommend 1366 x 768 @ 60Hz
Digital Max. 1366 x 768 @ 60Hz
Recommend 1366 x 768 @ 60Hz
4 Operating Environment Temp : 10 ˚C ~ 35 ˚C
Humidity : 20 % ~ 80 %
5 Storage Environment Temp : -10 ˚C ~ 60 ˚C non condensing
Humidity : 5 % ~ 90 % non condensing
No Item Specification Remarks
1 Market Brazil
2 Broadcasting system ISDB-T/ PAL-M/ PAL-N
3 Component Input
(1EA)
Y/Cb/Cr , Y/Pb/Pr
4 RGB Input RGB-PC Analog (D-SUB 15Pin)
5 HDMI Input (1EA) HDMI Rear / HDMI version 1.4/ support PC
Support HDCP
6 Audio Input (2EA) RGB/ DVI Audio
Component
L/ R Input
7 USB (1EA) Picture, Music, Movie, SVC Software Update + Picture + Music + Move
8 Local Key (Touch)

- 8 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
5. Timing
5.1. RGB/ HDMI (PC)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark
1. 720*400 31.468 70.080 28.321
2. 640*480 31.469 59.940 25.175
3. 640*480 37.500 75.000 31.500
4. 800*600 37.879 60.317 40.000
5. 800*600 46.875 75.000 49.500
6. 1024*768 48.363 60.004 65.000
7. 1024*768 60.023 75.029 78.750
8. 1280*800 49.702 59.810 83.500
9. 1366*768 47.717 59.79 85.5
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark
1 720* 480 31.469 / 31.5 59.94 / 60 27.00/ 27.03 SDTV 480P
2. 720*576 31.25 50.00 27.864 SDTV 576P
3. 1280*720 37.50 50.00 74.250 HDTV 720P
4 1280* 720 44.96 / 45 59.94 / 60 74.17/ 74.25 HDTV 720P
5 1920* 1080 33.72 / 33.75 59.94 / 60 74.17/ 74.25 HDTV 1080I
6 1920* 1080 28.125 50.00 74.25 HDTV 1080I
7 1920* 1080 27.00 24 74.25 HDTV 1080P
8 1920* 1080 33.75 30.00 74.25 HDTV 1080P
9 1920* 1080 56.250 50 148.5 HDTV 1080P
10 1920* 1080 67.43 / 67.5 59.94 / 60 148.35/ 148.50 HDTV 1080P
5.2. HDMI (DTV)
5.3. Component
No Specication Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel clock( MHz)
1 720* 480 15.730 59.940 13.500 SDTV, DVD 480I( 525I)
2 720* 480 15.750 60.000 13.514 SDTV, DVD 480I( 525I)
3 720* 576 15.625 50.000 13.500 SDTV, DVD 576I( 625I) 50Hz
4 720* 480 31.470 59.940 27.000 SDTV 480P
5 720* 480 31.500 60.000 27.027 SDTV 480P
6 720* 576 31.250 50.000 27.000 SDTV 576P 50Hz
7 1280* 720 44.960 59.940 74.176 HDTV 720P
8 1280* 720 45.000 60.000 74.250 HDTV 720P
9 1280* 720 37.500 50.000 74.250 HDTV 720P 50Hz
10 1920* 1080 33.720 59.940 74.176 HDTV 1080I
11 1920* 1080 33.750 60.000 74.250 HDTV 1080I
12 1920* 1080 28.125 50.000 74.250 HDTV 1080I 50Hz
13 1920* 1080 56.250 50 .000 148.500 HDTV 1080P
14. 1920* 1080 67.432 59.940 148.350 HDTV 1080P
15 1920* 1080 67.5 00 60.000 148.500 HDTV 1080P

- 9 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This document is applied to LA31R chassis TV which is
manufactured in TV (or Monitor) Factory or is produced on the
basis of this data.
2. Designation
1) The adjustment is according to the order which is designat-
ed and which must be followed, according to the plan which
can be changed only on agreeing.
2) Power adjustment : Free Voltage.
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specication Standard.
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 °C ± 5 °C
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz
6) Adjustment equipments : Color Analyzer (CA-210 or CA-
110), DDC Adjustment Jig equipment, SVC remote control-
ler.
7) Push The "IN STOP KEY" – For memory initialization

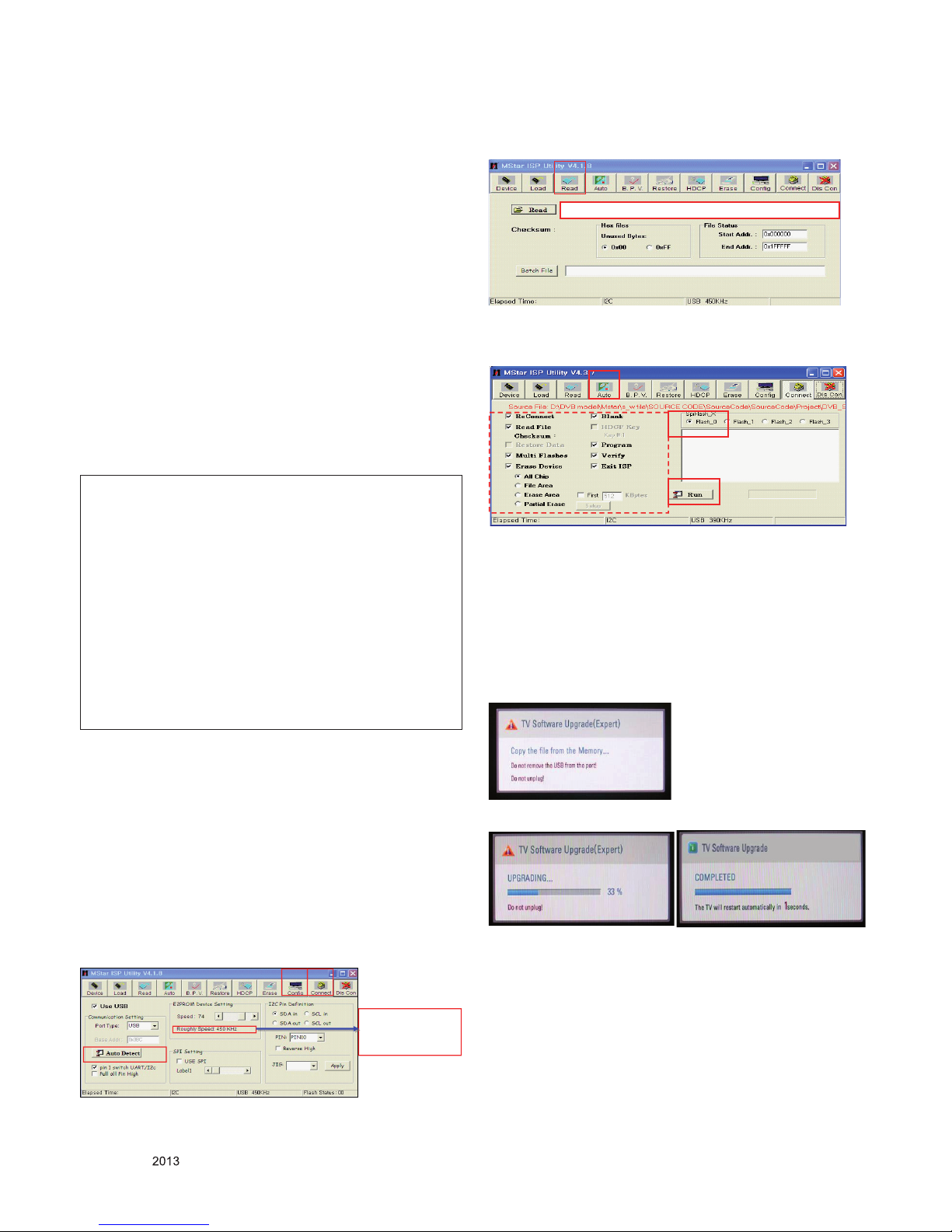

3. Main PCB check process
* APC - After Manual-Insult, executing APC
* Boot le Download
1) Execute ISP program “Mstar ISP Utility” and then click
“Cong” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message. If display “Error”, Check connect computer, jig,
and set.
3) Click “Connect” tab. If display “Can’t ”, Check connect
computer, jig, and set.
4) Click “Read” tab, and then load download le(XXXX.bin) by
clicking “Read”
5) Click “Auto” tab and set as below
6) Click “Run”.
7) After downloading, check “OK” message.
* USB DOWNLOAD(*.epk le download)
1) Make New folder named “LG_DTV” and put ISP le(*.epk)
in the folder.
2) Put the USB Stick to the USB socket.
3) Automatically detecting update le in USB Stick
- If your downloaded program version in USB Stick is
Low, it didn’t work. But your downloaded version is
High, USB data is automatically detecting.
4) Show the message “Copy the le from the Memory…”
5) Updating is starting.
6) Updating Completed, The TV will restart automatically.
7) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV
have, TV can lost all channel data. In this case, you
have to channel recover. if all channel data is cleared,
you didn’t have a DTV/ATV test on production line.
(1) (3)
(
2
)
OK
Please Check the Speed :
Use the speed under
200KHz.
(4)
filexxx.bin
(
6
)
(5)
(7) ……….OK
(
5
)
Case1 : Software version up
1) After downloading S/W by USB , Multi-vision set will
reboot automatically
2) Push "In-stop" key
3) Push "Power on" key
4) Function inspection
5) After function inspection, Push "In-stop" key.
Case2 : Function check at the assembly line
1) When TV set is entering on the assembly line, Push "In-
stop" ke y at rst.
2) Push "Power on" key for turning it on.
→ If you push "Power on" key, TV set will recover channel
information by itself.
3) After function inspection, Push "In-stop" key.

- 10 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

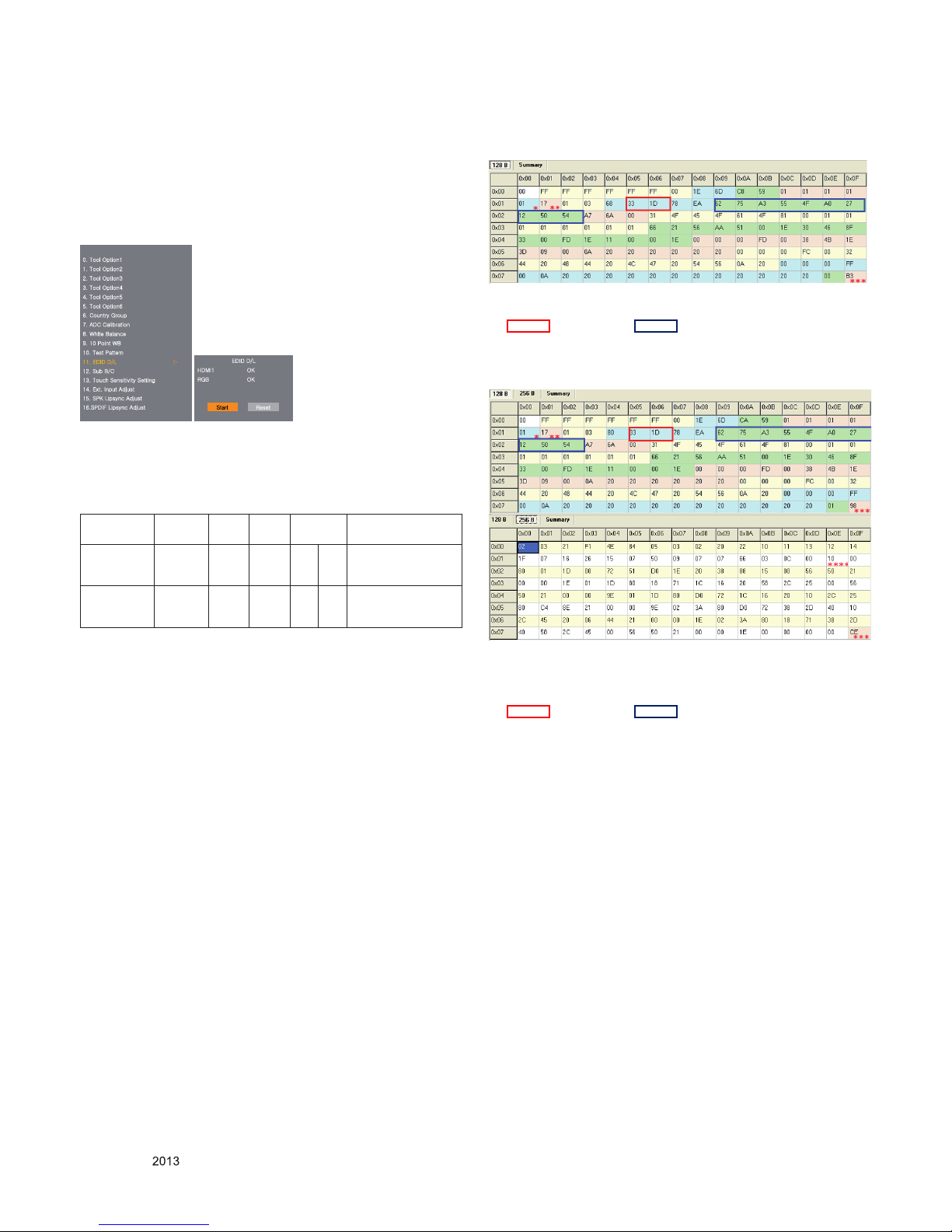

3.1. EDID Process
3.2.1. EDID download
1) Press "Power only" key of service remote control.
2) Press the ADJ KEY on R/C and enter EZ ADJUST
3) Enter EDID D/L mode by pushing "►" key at "EDID D/L".
4) EDID download is executed automatically.
5) Press EXIT key on R/C.
→ Caution: - Never connect HDMI & D-sub Cable when
download EDID.
- Download HDMI
* Edid data and Model option download (USB)
3.1.2. RGB EDID Data
- All models (Product ID : 22984/HEXA: 59C8)
*(week), **(year), ***(Check sum) : Adjustable Data
: Screen size,
: Color Characteristics
3.2.3. HDMI EDID Data
- All models (Product ID : 22986/HEXA:59CA)
*(week), **(year), ***(Check sum) : Adjustable Data
**** (physical address) : (HDMI : 10),
****(Check sum) : (HDMI : CE)
: Screen size,
: Color Characteristics
3.3. Function Check
3.3.1. Check display and sound
*Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (CVBS)
3) COMPONENT (480i)
4) RGB (PC : 1366 x 768 @ 60 Hz)
5) HDMI (PC : 1366 x 768 @ 60 Hz)
6) PC Audio In
* Display and Sound check is executed by Remote controller.
→ Caution : Not to push the INSTOP KEY after completion if
the function inspection.
NO Item CMD
1
CMD
2
Data 0
Enter
download
MODE
Download
‘Mode In’
A A 0 0 When transfer the
‘Mode In’,
Carry the command.
EDID data and
Model option
download
Download A E 00 10 Automatically download
(The use of a internal
Data)
lkpkGkVsG
oktpXGGGGGGGGGGGGvrG GG
yniGGGGGGGGGGGGGGvrG G G
G G G
G
GzG GyG G
G
G
WUG{GvXG G G
XUG{GvYG G G
YUG{GvZG G G
ZUG{Gv[G G G
[UG{Gv\G G G
\UG{Gv]G
]UGjGnG
G G
^UGhkjGjG G G
_UG~GiG G G
`UGXWGwG~iG G G G
XWUG{GwG G G G G
XXUGlkpkGkVsG ඖG
XYUGzGiVjG
XZUG{GzGzG
X[UGlUGpGhG
X\UGzwrGsGhG
X]UzwkpmGsGhG
G G
G G G

- 11 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
4. Total Assembly line process
4.1. Tool option & ADC Check
1) Press "Power on" key of service remote control.
2) Connect RS232 Signal Cable to RS-232 Jack.
3) Check the 'Tool Option' (Refer to the BOM Comments or
Adjustment spec)
4) Check the ‘ADC’ is ok.
4.2. Model name & Serial number Down-
load
4.2.1. Model name & Serial number D/L
1) Press "Power on" key of service remote control.
2) Connect RS232 Signal Cable to RS-232 Jack.
3) Write Serial number by use RS-232.
4) Must check the serial number at the Diagnostics of SET UP
menu. (Refer to below).
4.2.2. Method & notice
1) Serial number D/L is using of scan equipment.
2) Setting of scan equipment operated by Manufacturing
Technology Group.
3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0
* Manual Download (Model Name and Serial
Number)
If the TV set is downloaded By OTA or Service man, Some-
times model name or serial number is initialized.( Not always)
There is impossible to download by bar code scan, so It need
Manual download.
1) Press the 'Instart' key of ADJ remote controller.
2) Go to the menu 'Model Number D/L' like below photo.
3) Input the Factory model name(ex 24MN33D) or Serial
number like photo.
4) Check the model name Instart menu → Factory name
displayed (ex GP4-LOW)
5) Check the Diagnostics (DTV country only) → Buyer model
displayed (ex 24MN33D)
4.3. Function Check
4.3.1. Check display and sound
*Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (CVBS)
3) COMPONENT (480i)
4) RGB (PC : 1366 x 768 @ 60 Hz)
5) HDMI (PC : 1366 x 768 @ 60 Hz)
6) PC Audio In
* Display and Sound check is executed by Remote controller
→ Caution : Not to push the INSTOP KEY after completion if
the function inspection.
4.3.2. PIP Check
1) Press "Power on" key of service remote control.
2) Input RGB & TV(ATV or DTV) signal.
3) Set Input mode to RGB.
4) Press ‘PIP" key of ADJ remote controller
5) Check TV Video & Audio signal of Sub picture.

- 12 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

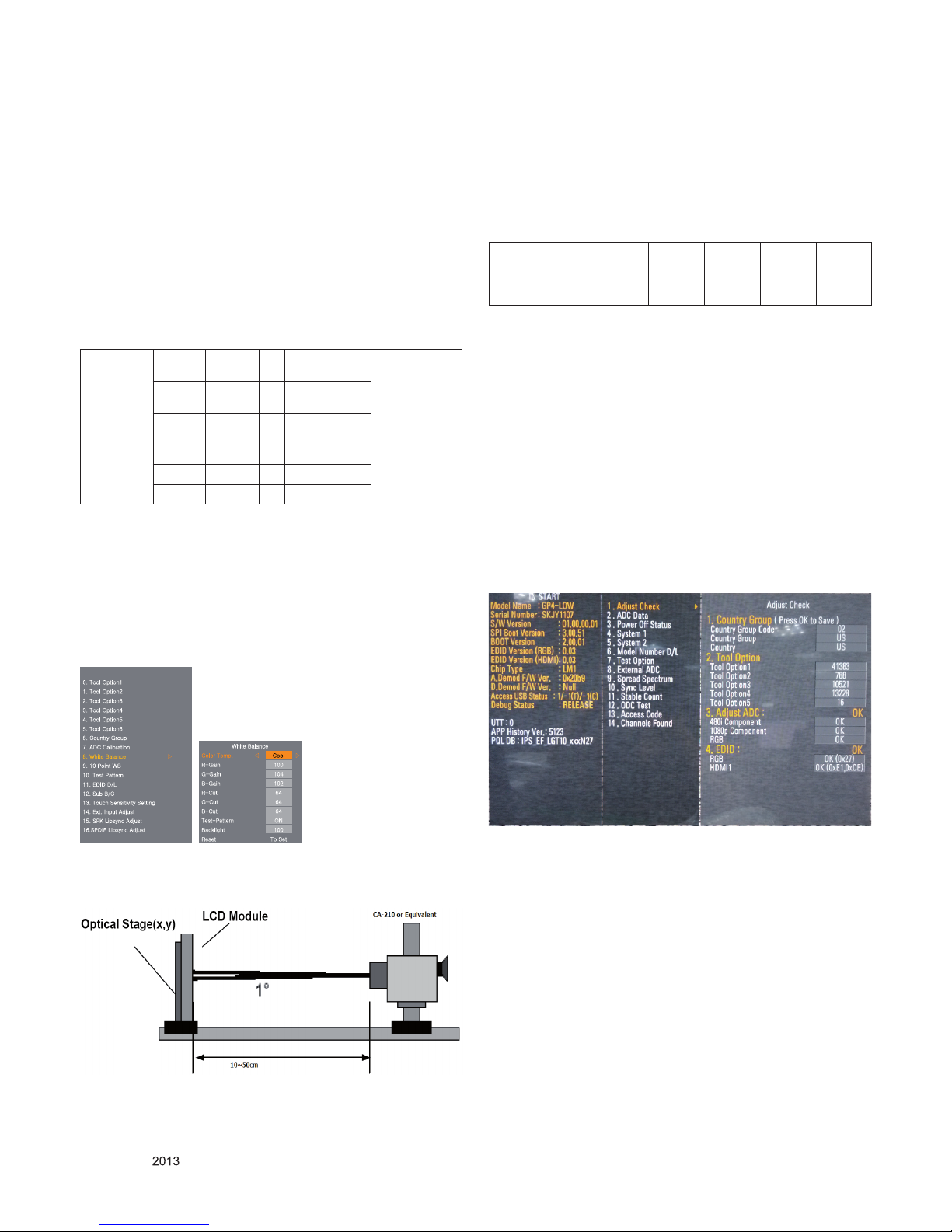

4.4. White balance adjustment
-Equipment
1) Color Analyzer: CA-210 (LED Module : CH 14)
2) Adj. Computer(During auto adj., RS-232C protocol is
needed)
3) Adjust Remocon
RGB_Gains are xed data for each model.
Insert RS-232C Jack which is connected with PC for White
Balance or equivalent device.
* Total Assembly line should be check whether the color
coordinate(x,y) data refer to below table were meet or not.
*Note : x,y coordinates are drifted about 0.007 after 30 mins
heat-run. So checking color coordinate within 5-min at
total assembly line, consider x,y coordinates might be
up to 0.007 than x,y target of each color temperature.
*Note : Manual W/B process using adjusts Remote control.
1) After enter Service Mode by pushing "ADJ" key,
2) Enter "White Balance" by pushing "►" key at "White Bal-
ance".
* When doing Adjustment, Please make circumstance as
below.
4.5. DPM Operation check
■ Measurement Condition: 100~240V@ 50/60Hz
1) Set Input to RGB-PC and connect D-sub cable to set –
RGB Mode. Set Input to HDMI(with Input Label set to PC)
and connect HDMI cable to set – HDMI Mode
2) Cut off H sync or V sync of signal.
3) Check DPM operation refer to the below table.
4.6. Model Name & SW Version & Adjust
check.
* Press the ‘Instart’ key of ADJ remote controller
4.6.1. Model Name& SW Version Check
1) Check ‘Model Name’.
2) Check ‘S/W Version’ (Refer to the IC Ver. in the BOM)
4.6.2. Adjust Check
1) Check ‘Country Group’
2) Check ‘Area Option’
3) Check ‘Tool Option’ (Refer to the BOM Comments)
4) Check ‘Adjust ADC[Comp&RGB]’ is OK.
5) Check ‘EDID[RGB&HDMI]’ is OK.
* After check all, Press the 'EXIT' key of ADJ remote controller
to go out SVC menu.
4.7. Outgoing condition Conguration
* After all function test., press IN-STOP Key by SVC Remote
controller. And make Outgoing Condition
~GiG
jG{UG ඔG jG ඖG
yTnG G XWWG G
nTnG G XW[G G
iTnG G X`YG G
yTjG G ][G G
nTjG G ][G G
iTjG G ][G G
{TwG G vuG G
iG G XWWG G
yG G {GzG G
G
WUG{GvXG G G
XUG{GvYG G G
YUG{GvZG G G
ZUG{Gv[G G G
[UG{Gv\G G G
\UG{Gv]G
]UGjGnG
GG
^UGhkjGjG G G
_UG~GiG ඖG G
`UGXWGwG~iG G G G
XWUG{GwG G G G G
XXUGlkpkGkVsG G G
XYUGzGiVjG
XZUG{GzGzG
X[UGlUGpGhG
X\UGzwrGsGhG
X]UzwkpmGsGhG
G G
G G G
Operating Condition Sync
(H/V)
Video LED
(SET)
Wattage
(W)
Power S/W On Sleep mode -
RGB,HDMI
Off/Off Off Amber 1
Color
Temperature
Cool 13,000k °K X=0.276 (±0.03)
Y=0.275 (±0.03)
<Test Signal>
Inner pattern
(204gray,80IRE)
Medium 9,300k °K X=0.290 (±0.03)
Y=0.298 (±0.03)
Warm 6,500k °K X=0.318 (±0.03)
Y=0.334 (±0.03)
Luminance
(cd/m²)
Cool Min : 80 Typ : 110 <Test Signal>
Inner pattern
(204gray,80IRE)
Medium Min : 80 Typ : 110
Warm Min : 70 Typ : 110

- 13 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
TROUBLE SHOOTING
1. No Power
Check C820 All
Voltage Level (19V)
Check Power connector
OK ? Replace Adapter
N N
Check IC802 output
Voltage Level (5V)
Replace IC802 &
Recheck
N
Check IC2602 Output
Voltage Level (3.3V_ST) Replace IC2602
N
Y
Check IC800 Output
Voltage Level (5V) Replace IC800
N
Y
Y
Y
Y
Check IC804 Output
Voltage Level (12V) Replace IC804
N
Y
Check IC810 Output
Voltage Level (2.5V) Replace IC810
N
Check X201 Clock
24MHz Replace X201
N
Check X201 Clock
24MHz Replace X201
N
Replace IC100 Flash Memory
Y
Check IC806 Output
Voltage Level (1.15V) Replace IC806
N
Y
Y
Check IC807 Output
Voltage Level (1.5V) Replace IC807
N

- 14 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. No Picture
Module
Back Light On ?
Check WLED_ENABLE high
R131
Check IC101
Replace Main Scaler IC
N N
Check Panel clock
P601(#9,10)
Check IC101
Repair Main B/D
N
Check Panel power
P601(#27,28,29,30) 12V
IC804Output 12V
Replace IC804
N
Y
Replace T-con
Board or module
Check FFC Cable for damage
or open conductors. Replace Cable
N
Y
Y
Y
Check LED Driver output
(LED Driver B’d P1101 #1)
Check LED Driver IC1100
Replace LED Driver IC
N
Y

- 15 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
3. No Video - Digital TV
Check RF Cable
Check Tuner(TU2603)
Data, CLK, SYN, VAL
Replace Tuner(TU2603)
Recheck
Y
N
1. Check Tuner(TU2603 #5) Power (3.3V)
2. Check IC803 Output voltage(3.3V)
Replace IC803
Y
N
Check Tuner(TU2602) I2C Signal
SCL(R3735), SDA(R3736)
Check IC101
Y
N
1. Check Tuner(TU2602 #7) Power (1.8V)
2. Check IC805 Output voltage(1.8V)
Replace IC805
Y
N

- 16 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
4. No Video - Component
Wave form of C220 Wave form of C218 Wave form of C222
Wave form of Comp Y Wave form of Comp Pb Wave form of Comp Pr
Check input signal format
Is it supported?
Check signal
R239,R237,R241
C220,C218,C222
Replace R239,R237,R241
C220,C218,C222
Y
N
Check JK2800 Replace JK2800 or
Check Device
Y
N
Y
IC101 has problem
Y
Check Component Cable

- 17 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

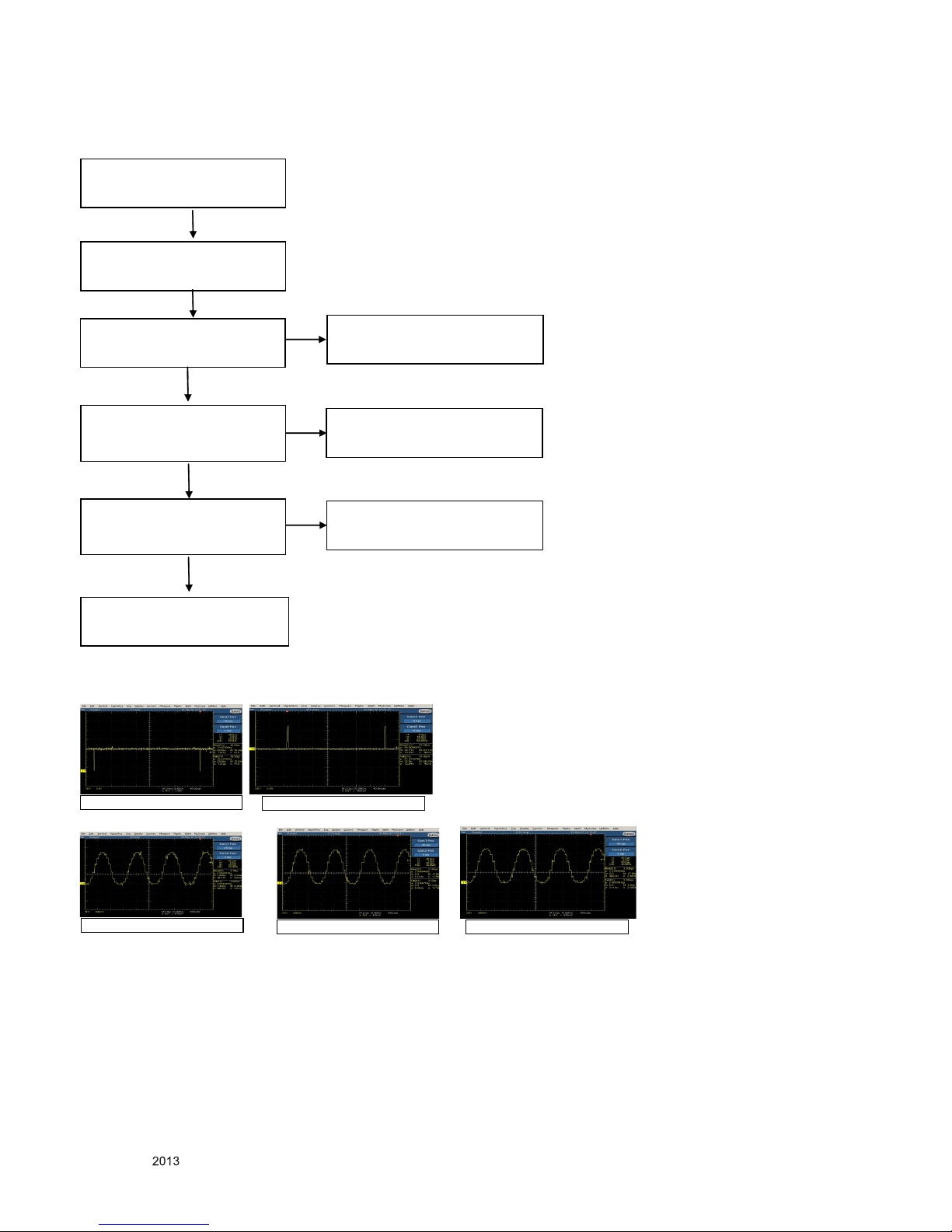

5. No Video - RGB
Wave form of R4025(Vsync) Wave form of R4024(Hsync)
Wave form of R230/C206
Wave form of R228/C204 Wave form of R232/C208
Check input signal format
Is it supported?
Check Hsync, Vsync
R4024, R4025 Replace R4024, R4025
Check signal RGB
R228,R230,R232
C204,C206,C208
N
Check JK406 Replace JK406 or
Check Device
Y
N
Y
Replace R228,R230,R232
C204,C206,C208
N
IC101 has problem
Y
Check RGB Cable
Y
Y

- 18 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
6. No Video - HDMI
Check input signal format
Is it supported?
Y
Check JK501
for proper connection or damage Replace connector
Y
N
Y
Check HDMI Cable for damage
or open connector
Check I2C Signal (JK501)
(#15, #16) Re download EDID data
Y
N
Check HDCP Key (IC101) Replace Scaler(IC101)
N

- 19 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
7. No Audio
Make sure you can’t hear any audio and
Device support the audio signal normally.
Check Speaker and
its wire connection (P700)
and the resistance
Check Signal from IC700
L700,L701, L706, L709
Y
Replace IC700
N
Check R4045 Voltage Level (3.3V)
Y
Replace IC807(3.3V)
N
Y
Check Signal from IC101
SDA/SCL
(R703/R214, R707/R213)
Y
Replace IC101
N
Replace connector or Speaker
N

- 20 - LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes
BLOCK DIAGRAM
