LG 42LN5204 User manual

P/NO : MFL67688555(1305-REV00)
Printed in Korea
LN52**
OWNER’S MANUAL
LED TV*
*LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-4 Tidying cables
A-5 MAKING CONNECTIONS
A-5 Antenna Connection
A-7 HDMI Connection
A-10 Adapter Connection
A-12 USB Connection
A-13 CI module Connection
A-15 Euro Scart Connection
LANGUAGE LIST
English
Deutsch
Français
Italiano
Español
Português
Nederlands
Ελληνικά
Slovenščina
B-1 SPECIFICATIONS
COMMON
COMMON
LANGUAGE

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.

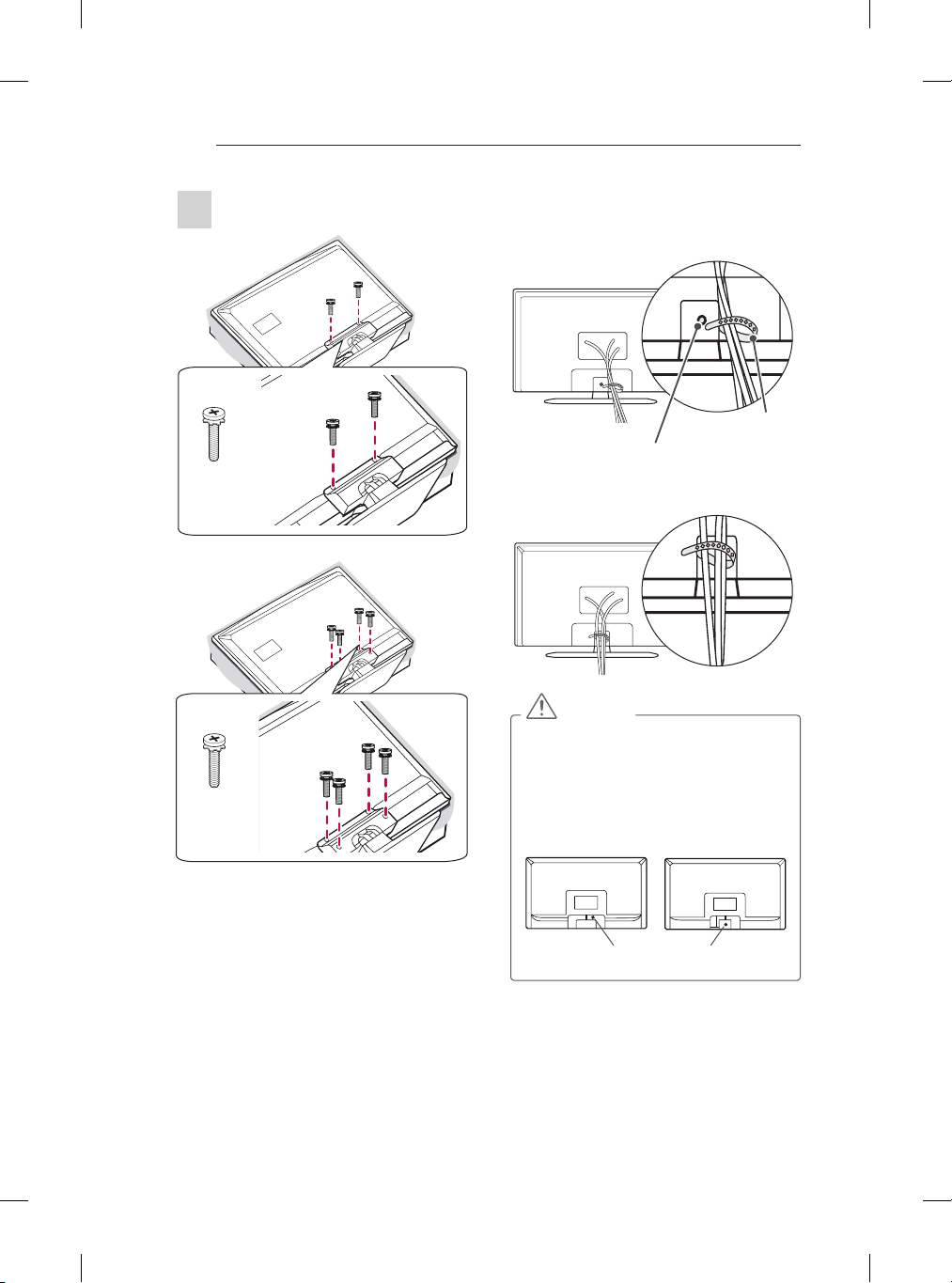

Attaching the stand
1
P5 x 25
3EA
Front
Stand Body
Stand Base
CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Make sure that the screws are inserted
correctly and fastened securely. (If they
are not fastened securely enough, the TV
may tilt forward after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.
NOTE
Remove the stand before installing the
TV on a wall mount by performing the
stand attachment in reverse.
2
(Only 32LN52**)
(Only 42LN52**)

A-4 SETTING UP THE TV
Tidying cables
1 Gather and bind the cables with the Cable
holder.
Cable holder
Cable holder hole
2 Fix the Cable holder rmly to the Cable holder
hole.
CAUTION
Do not move the TV by holding the cable
holder, as the cable holders may break,
and injuries and damage to the TV may
occur.
When attaching a wall mount bracket to
the TV, the Cable holder hole is located
on the TV back cover.
Cable holder hole
or
(Only 42LN52**)
M4 x 14
4EA
M4 x 14
2EA
3
(Only 32LN52**)

A-5
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the 32LN520B models.

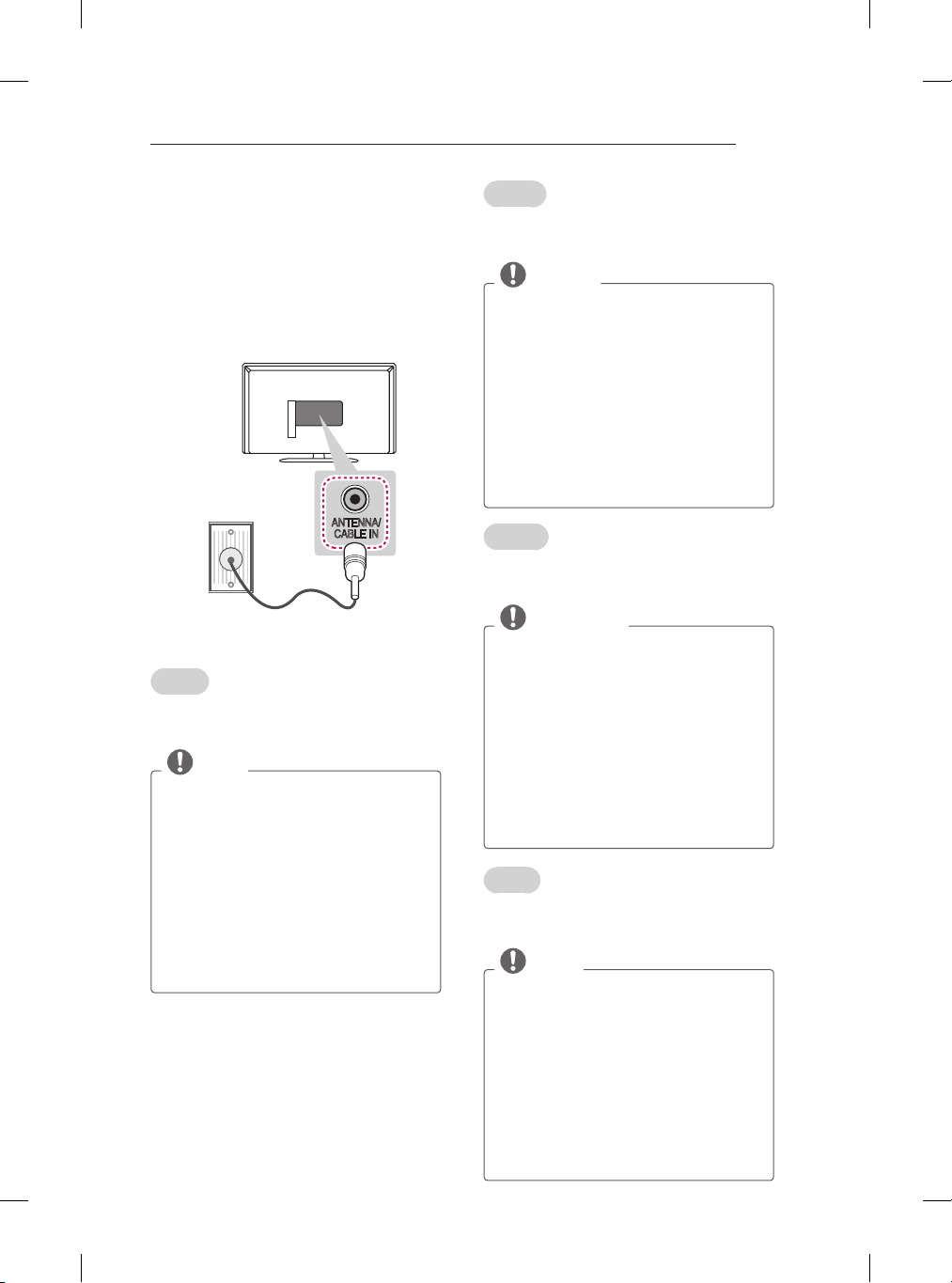

Antenna Connection
English
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
Use a signal splitter to use more than 2
TVs.
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
If the image quality is poor with an
antenna connected, try to realign the
antenna in the correct direction.
An antenna cable and converter are not
supplied.
Supported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus
ANTENNA/
CABLE IN
Wall Antenna
Socket
Deutsch
Schließen Sie das TV-Gerät mit einem HF-Kabel
(75 Ω) an eine Wandantennenbuchse an.
HINWEIS
Bei Verwendung von mehr als 2
TV-Geräten verwenden Sie einen
Signalsplitter.
Ist das Bild schlecht, installieren Sie einen
Signalverstärker, um die Bildqualität zu
verbessern.
Wenn die Bildqualität bei
angeschlossener Antenne schlecht ist,
richten Sie die Antenne richtig aus.
Antennenkabel und Verstärker sind nicht
im Lieferumfang enthalten.
 Unterstützter DTV-Ton: MPEG,
Dolby Digital, Dolby Digital Plus
Français
Connectez la TV à une prise d’antenne murale
avec un câble RF (75 Ω).
REMARQUE
Utilisez un séparateur de signaux pour
utiliser plus de deux téléviseurs.
Si la qualité d’image est mauvaise,
installez correctement un amplificateur de
signaux pour l’améliorer.
Si vous utilisez une antenne et que la
qualité d’image est mauvaise, essayez de
réaligner l’antenne dans la bonne direction.
Le câble et le convertisseur d’antenne ne
sont pas fournis.
Technologies audio TNT prises en
charge : MPEG, Dolby Digital,
Dolby Digital Plus
Italiano
Collegare il televisore all’antenna centralizzata
con un cavo RF (75 Ω).
NOTA
Utilizzare uno sdoppiatore del segnale
per usare più di 2 televisori.
Se la qualità dell’immagine è scarsa,
installare correttamente un amplificatore
del segnale per migliorarla.
Se la qualità dell’immagine è scarsa con
un’antenna collegata, provare a riallineare
l’antenna nella direzione corretta.
Il cavo e il convertitore dell’antenna non
sono in dotazione.
Audio DTV supportato: MPEG, Dolby
Digital, Dolby Digital Plus
