LG 43UH6500 Quick start guide

P/No: MFL69380006 (1512-REV00)
LED TV
43UH6500
49UH6500
55UH6500
60UH6500
65UH6500
75UH6550
43UH650T
49UH650T
55UH650T
60UH650T
65UH650T
75UH655T
www.lg.com
ENGLISH Easy Setup Guide
Please read this manual carefully before operating your set and retain it
for future reference.
ESPAÑOL Guía Rápida de Conguración
Lea atentamente este manual antes de poner en marcha el equipo y
consérvelo para futuras consultas.
ENGLISH Depending upon model
ESPAÑOL Según el modelo
43/49/55UH6500
43/49/55UH650T
43/49/55UH6500
43/49/55UH650T
43/49/55UH6500
43/49/55UH650T
aX 4
(M4 X L20)
X 2
60/65UH6500
60/65UH650T
60/65UH6500
60/65UH650T
60/65UH6500
60/65UH650T
bX 6
(M4 X L30)
X 2
75UH655T, 75UH6550 75UH655T, 75UH6550 75UH655T, 75UH6550
aX 8
(M4 X L20)
X 2
AA

ENGLISH Read Safety and Reference.
ESPAÑOL Leer Seguridad y Consultas.
43/49/55UH6500
43/49/55UH650T
2 3 41
B
A
B
A
a

60/65UH6500
75UH6550, 75UH655T
60/65UH650T
4
2 31
b
3 4
21
a

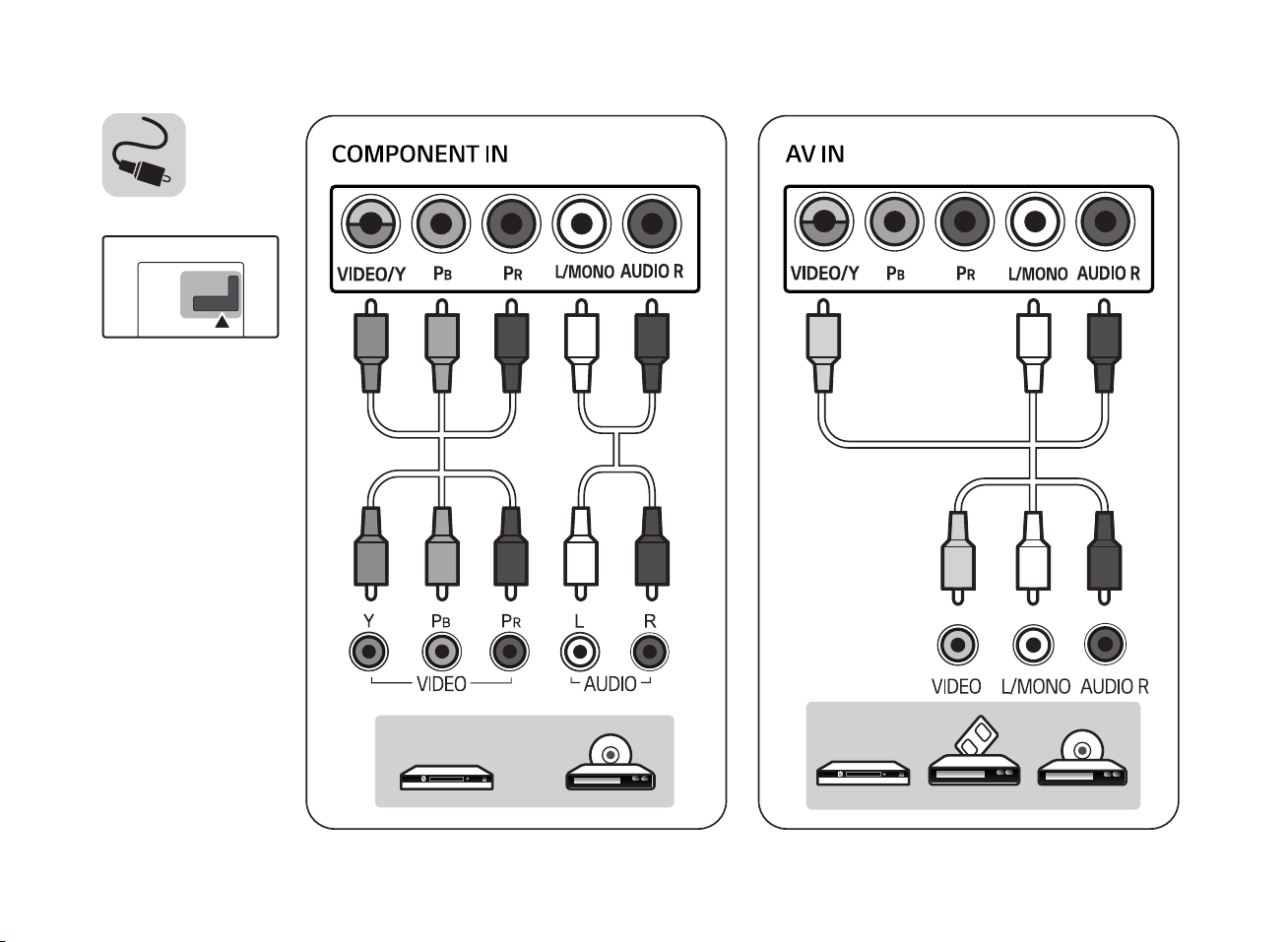

VIDEO/Y PBPRL/MONO AUDIO R
COMPONENT IN AV INAV IN
HDMI IN (ARC)
HDMI IN
USB IN
LAN
ANTENNA
IN
CABLE
IN
VIDEO L/MONO AUDIO R
VIDEO L/MONO AUDIO RVIDEO L/MONO AUDIO R
VIDEO AUDIO
VIDEO/Y PBPRL/MONO AUDIO R
/

HDMI IN 2/ARC
HDMI IN1
USB IN
HP OUT
ANTENNA
CABLE IN
43/49/55/60/65UH6500
43/49/55/60/65UH650T

75UH6550, 75UH655T

12
4
3

ENGLISH
MODELS
43UH6500
(43UH6500-SB)
49UH6500
(49UH6500-SB)
55UH6500
(55UH6500-SB)
43UH650T
(43UH650T-DB)
49UH650T
(49UH650T-DB)
55UH650T
(55UH650T-DB)
Dimensions
(W x H x D)
With stand (mm) 973 x 622 x 199 1,106 x 701 x 216 1,240 x 776 x 216
Without stand (mm) 973 x 572 x 77.2 1,106 x 646 x 77.2 1,240 x 721 x 60.9
Weight With stand (kg) 9.7 12.3 16.8
Without stand (kg) 9.5 12.0 16.5
Power requirement AC 100 - 240 V ~ 50 / 60 Hz
Current Value / Power Consumption 1.0 A / 100 W 1.2 A / 120 W 1.4 A / 140 W
MODELS
60UH6500
(60UH6500-SB)
65UH6500
(65UH6500-SB)
75UH6550
(75UH6550-SB)
60UH650T
(60UH650T-DB)
65UH650T
(65UH650T-DB)
75UH655T
(75UH655T-DB)
Dimensions
(W x H x D)
With stand (mm) 1,350 x 837 x 265 1,461 x 900 x 265 1,680.6 x 1,020.8 x 313.0
Without stand (mm) 1,350 x 782 x 62 1,461 x 845 x 62 1,680.6 x 959.0 x 56.0
Weight With stand (kg) 23.3 27.6 48.2
Without stand (kg) 22.5 26.8 46.8
Power requirement AC 100 - 240 V ~ 50 / 60 Hz
Current Value / Power Consumption 1.6 A / 160 W 1.7 A / 170 W 3.1 A / 310 W
12
0

ESPAÑOL
MODELOS
43UH6500
(43UH6500-SB)
49UH6500
(49UH6500-SB)
55UH6500
(55UH6500-SB)
43UH650T
(43UH650T-DB)
49UH650T
(49UH650T-DB)
55UH650T
(55UH650T-DB)
Dimensiones
(Ancho x altura
x profundidad)
Con base (mm) 973 x 622 x 199 1 106 x 701 x 216 1 240 x 776 x 216
Sin base (mm) 973 x 572 x 77,2 1 106 x 646 x 77,2 1 240 x 721 x 60,9
Peso Con base (kg) 9,7 12,3 16,8
Sin base (kg) 9,5 12,0 16,5
Potencia requerida AC 100 - 240 V ~ 50 / 60 Hz
Corriente de consumo /
Consumo de la potencia 1,0 A / 100 W 1,2 A / 120 W 1,4 A / 140 W
MODELOS
60UH6500
(60UH6500-SB)
65UH6500
(65UH6500-SB)
75UH6550
(75UH6550-SB)
60UH650T
(60UH650T-DB)
65UH650T
(65UH650T-DB)
75UH655T
(75UH655T-DB)
Dimensiones
(Ancho x altura
x profundidad)
Con base (mm) 1 350 x 837 x 265 1 461 x 900 x 265 1 680,6 x 1 020,8 x 313,0
Sin base (mm) 1 350 x 782 x 62 1 461 x 845 x 62 1 680,6 x 959,0 x 56,0
Peso Con base (kg) 23,3 27,6 48,2
Sin base (kg) 22,5 26,8 46,8
Potencia requerida AC 100 - 240 V ~ 50 / 60 Hz
Corriente de consumo /
Consumo de la potencia 1,6 A / 160 W 1,7 A / 170 W 3,1 A / 310 W
12
0
