LG 49UF690T-TC User manual

Printed in KoreaP/NO : MFL68704916 (1504-REV00)
CHASSIS : LB53K
MODEL : 43/49UF690T/690Y
43/49UF690T/690Y-TC
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS.................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 10

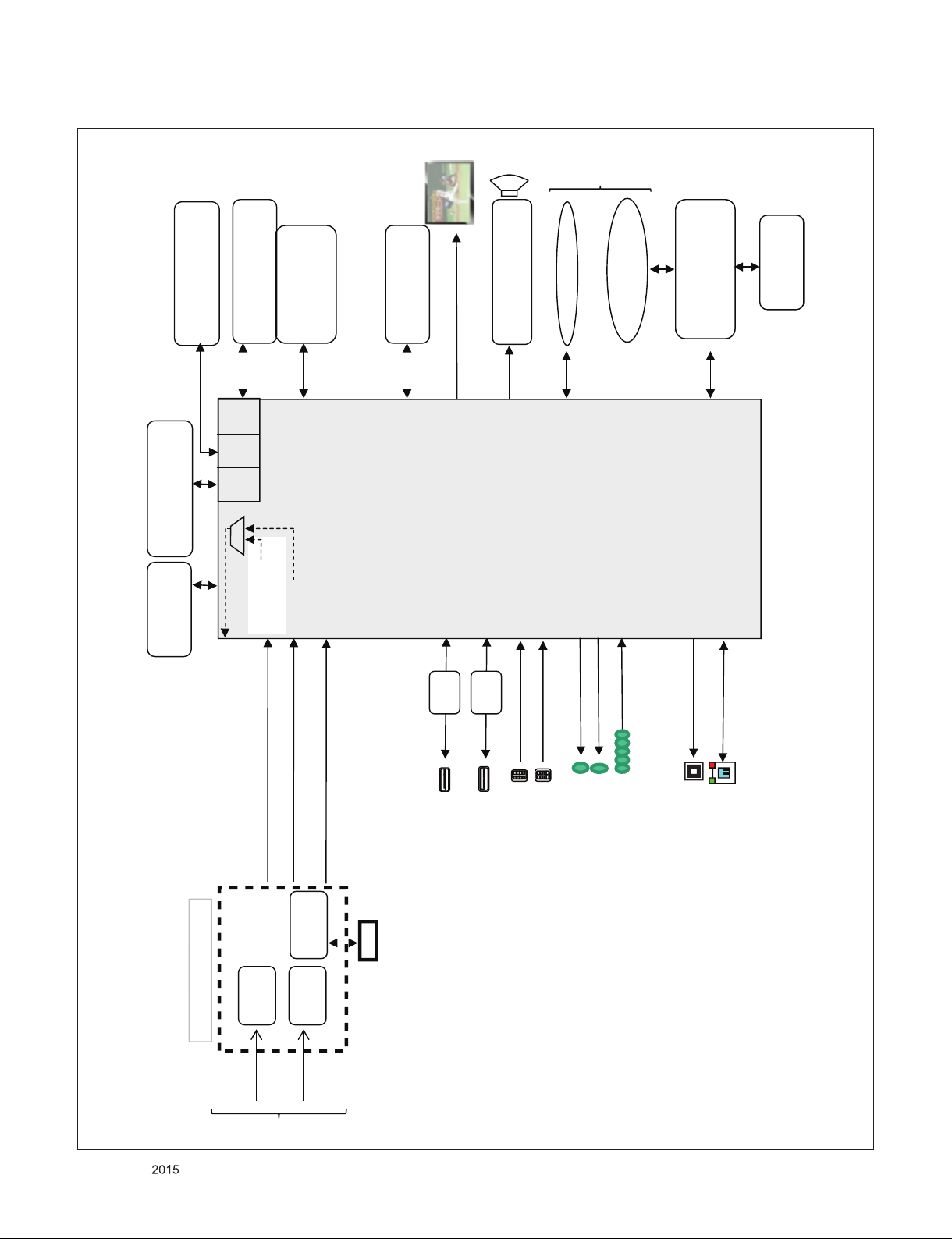

BLOCK DIAGRAM.................................................................................. 18

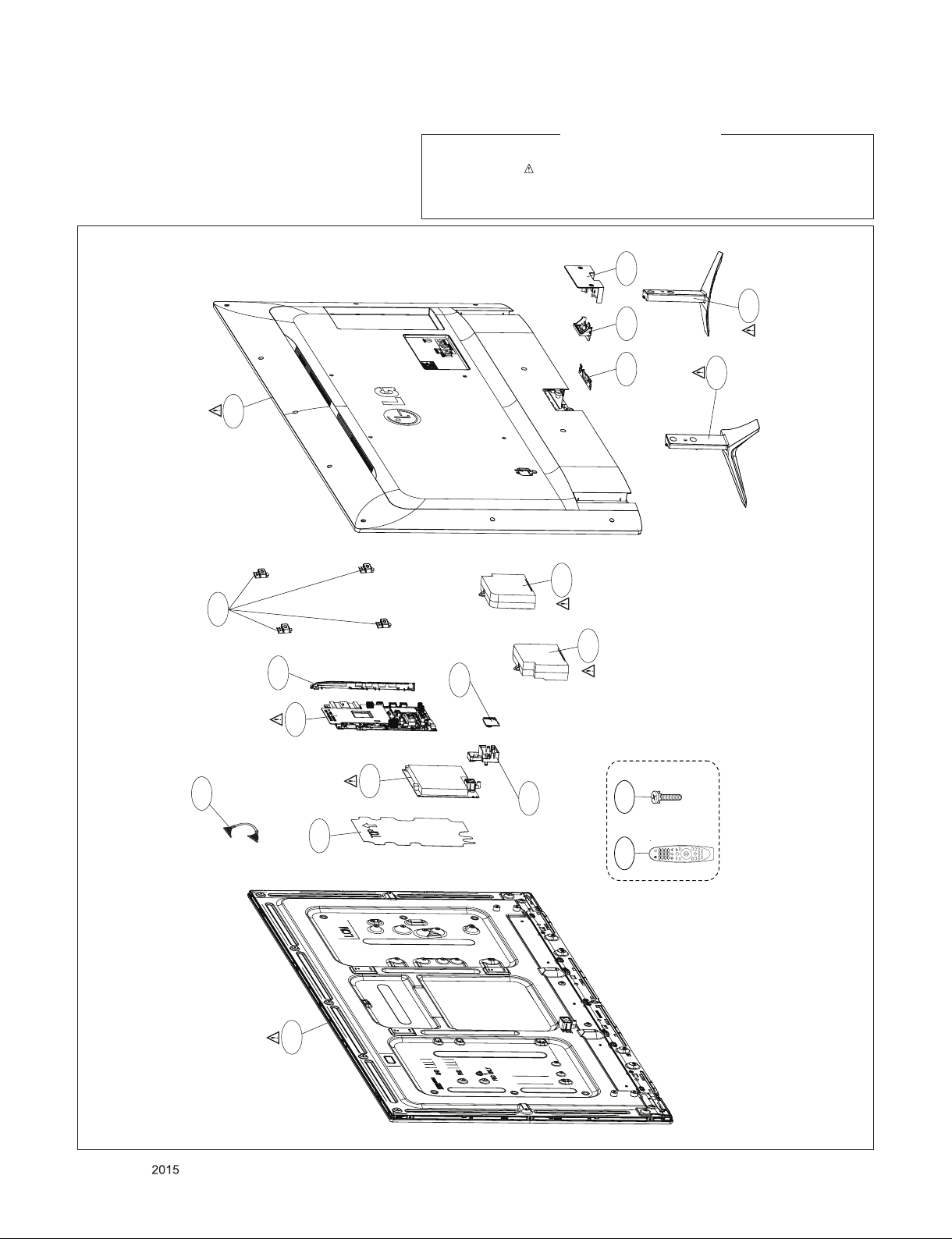

EXPLODED VIEW .................................................................................. 19

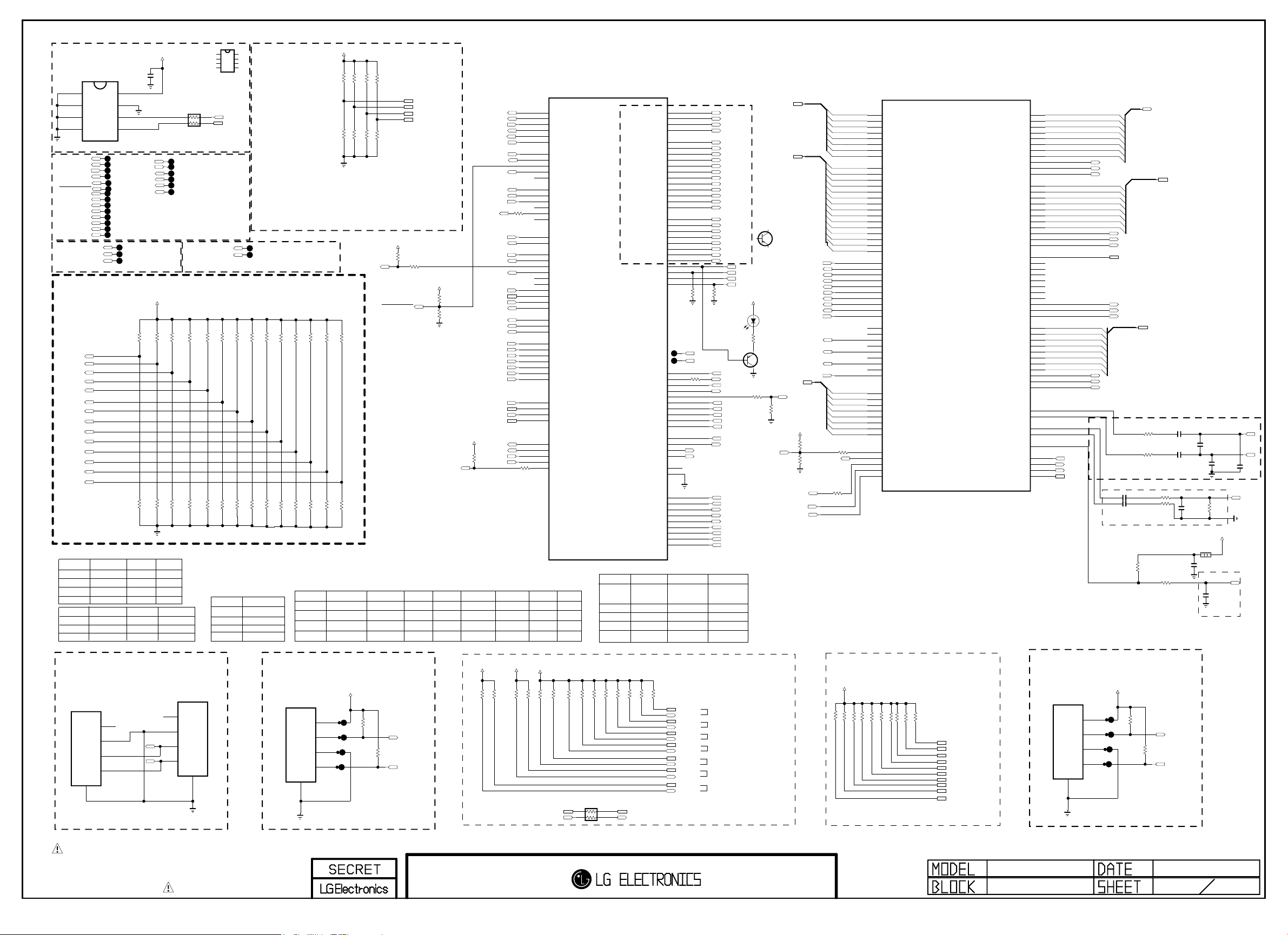

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX
TROUBLE SHOOTING GUIDE................................................. APPENDIX

- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau-
tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec-
trically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate-
rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri-
ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain-
ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when-
ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the LED TV used LB53K
chassis.
2. Requirement for Test
Each part is tested as below without special notice
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
- Wireless : Wireless HD Specification (Option)
4. Model General Specification
No. Item Specication Remarks
1 Market Asia, Oceania, Africa, Middle East(PAL/DVB Market)
2 Television system
1) PAL-BG/DK/I/I’
2) SECAM L/L’, DK, BG, I
3) DVB-T/T2, C, S/S2
3 Channel Storage ATV / DTV - 1500EA
4 Receiving system
Analog : Upper Heterodyne
Digital : COFDM(DVB-T) Only DVB-T Model
Digital : COFDM(DVB-T/T2) Only DVB-T2 Model
Digital : QAM
► DVB-T
- Guard Interval(Bitrate_Mbit/s): 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- Symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- Viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
5 Video Input RCA PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60
6 Component Input Y/Pb/Pr
7 Head phone out Antenna, AV1, Component, HDMI1, HDMI2, HDMI3,
USB1, USB2, USB3
8 HDMI Input HDMI1-DTV,HDMI2-DTV, HDMI3-DTV PC(HDMI Ver. 1.4), Support HDCP
9 Audio Input DVI Audio, Component, AV1
10 SPDIF out SPDIF out
11 USB Input For My Media(Movie/Photo/Music List) or For SVC

- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. External Input Support Format
5.1. 2D
(1) CVBS input
(2) Component (Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed
1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I)
2 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I)
3 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27.00 SDTV 480P
5 720*480p 31.50 60.00 27.03 SDTV 480P
6 720*576p 31.25 50.00 27.00 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.18 HDTV 720P
8 1280*720 45.00 60.00 74.25 HDTV 720P
9 1280*720 45.00 50.00 74.25 HDTV 720P 50Hz
10 1920*1080 28.13 50.00 74.25 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.18 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 56.25 50.00 148.50 HDTV 1080P
14 1920*1080 67.50 60.00 148.50 HDTV 1080P
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed Remarks
1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I) NTSC-M
2 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I) NTSC-M
3 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz PAL-BDGHI

- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(3) HDMI (DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*480 31.47 59.94 25.13 SDTV 480P
2 640*480 31.50 60.00 25.13 SDTV 480P
3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I)
Spec. out but display4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)
5 720*576 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27.00 SDTV 480P
7 720*480 31.50 60.00 27.03 SDTV 480P
8 720*576 31.25 50.00 27.00 SDTV 576P
9 1280*720 44.96 59.94 74.18 HDTV 720P
10 1280*720 45.00 60.00 74.25 HDTV 720P
11 1280*720 37.50 50.00 74.25 HDTV 720P
12 1920*1080 28.13 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.18 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.98 63.30 HDTV 1080P
16 1920*1080 27.00 24.00 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.12 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.50 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.50 60.00 148.50 HDTV 1080P
22 3840*2160 53.95 23.98 297.00 UDTV 2160P
23 3840*2160 54.00 24.00 297.00 UDTV 2160P
24 3840*2160 56.25 25.00 297.00 UDTV 2160P
25 3840*2160 61.43 29.97 297.00 UDTV 2160P
26 3840*2160 67.50 30.00 297.00 UDTV 2160P
27 3840*2160 112.50 50.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0
28 3840*2160 135.00 59.94 593.41 UDTV 2160P 8 bit / YCbCr 4:2:0
29 3840*2160 135.00 60.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0
30 4096*2160 53.95 23.98 297.00 UDTV 2160P
31 4096*2160 54.00 24.00 297.00 UDTV 2160P
32 4096*2160 56.25 25.00 297.00 UDTV 2160P
33 4096*2160 61.43 29.97 297.00 UDTV 2160P
34 4096*2160 67.50 30.00 297.00 UDTV 2160P
35 4096*2160 112.50 50.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0
36 4096*2160 135.00 59.94 593.41 UDTV 2160P 8 bit / YCbCr 4:2:0
37 4096*2160 135.00 60.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0

- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(4) HDMI Input (PC)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*350 31.47 70.09 25.17 EGA
2 720*400 31.47 70.08 28.32 DOS
3 640*480 31.47 59.94 25.17 VESA(VGA)
4 800*600 37.88 60.32 40.00 VESA(SVGA)
5 1024*768 48.36 60.00 65.00 VESA(XGA)
6 1360*768 47.71 60.02 84.75 VESA(WXGA)
7 1152*864 54.35 60.05 80.00 VESA
8 1280*1024 63.98 60.02 109.00 SXGA
9 1920*1080 67.50 60.00 158.40 WUXGA(Reduced Blanking)
10 3840*2160 54.00 24.00 297.00 UDTV 2160P
11 3840*2160 56.25 25.00 297.00 UDTV 2160P
12 3840*2160 67.50 30.00 297.00 UDTV 2160P
13 4096*2160 53.95 23.98 297.00 UDTV 2160P
14 4096*2160 54.00 24.00 297.00 UDTV 2160P

- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED TV with
LB53K chassis.
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
(4) The input voltage of the receiver must keep AC 100-240
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
In case of keeping module is in the circumstance of below
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. Automatic Adjustment
3.1. MAC address D/L, CI+ key D/L(Option),
Widevine key D/L, ESN D/L, HDCP20 D/L
Connect: USB port
Communication Prot connection
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ Check the test process
: DETECT→MAC→ESN→Widevine→CI(option)→HDCP20
▪ Play: Press Enter key
▪ Result: Ready, Test, OK or NG
▪ Printer Out (MAC Address Label)

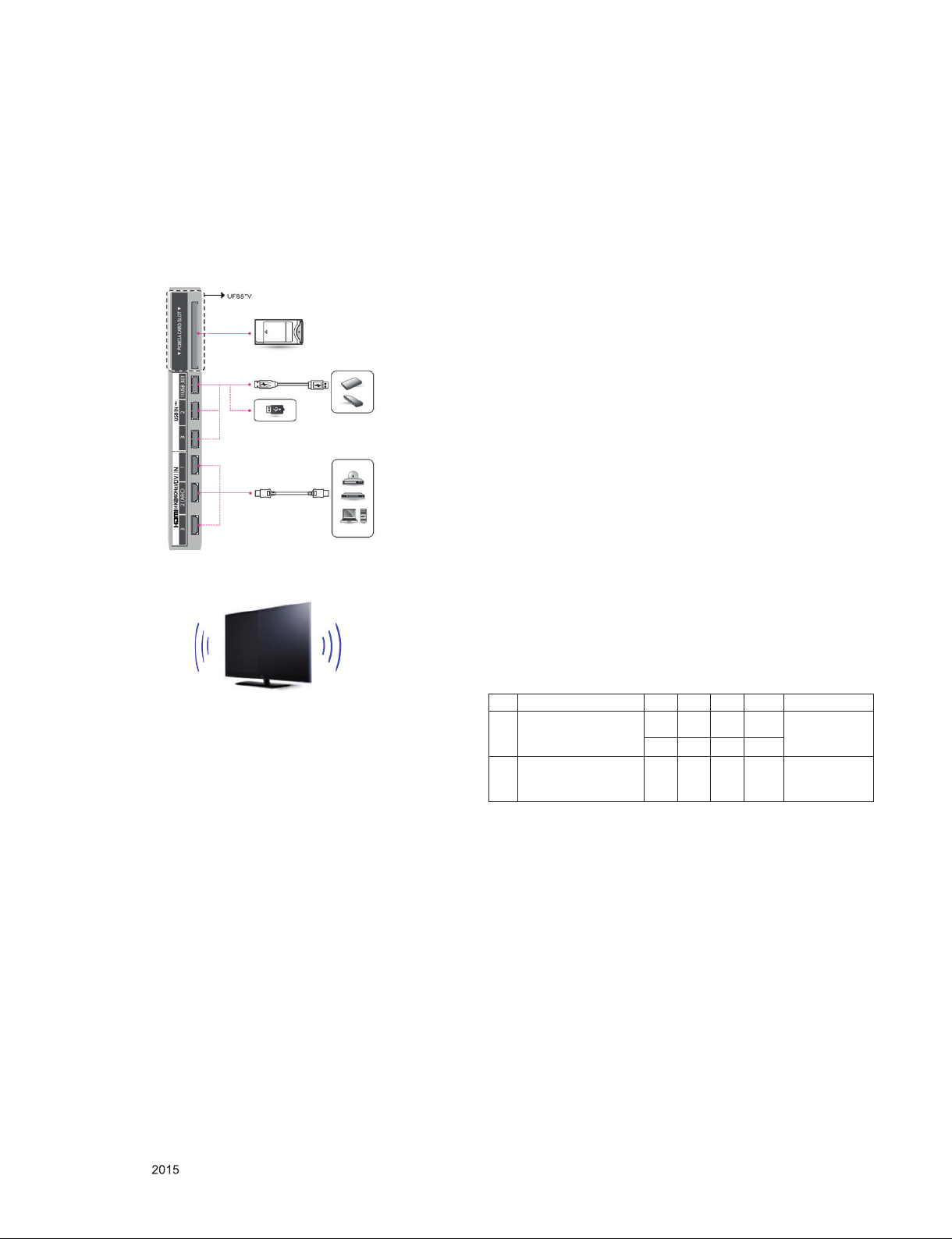

3.2. LAN Inspection
3.2.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
3.2.2. LAN inspection solution
▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
▪ Setting state confirmation
- If automatic setting is finished, you confirm IP and MAC
Address.
3.2.3. WIDEVINE key Inspection
- Confirm key input data at the "IN START" MENU Mode.
3.3. LAN PORT INSPECTION(PING TEST)
Connect SET → LAN port == PC → LAN Port
3.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.3.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.

SET PC

- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
3.4. Model name & Serial number Download
3.4.1. Model name & Serial number D/L
▪Press "P-ONLY" key of service remote control.
(Baud rate : 115200 bps)
▪Connect RS-232C Signal to USB Cable to USB.
▪Write Serial number by use USB port.
▪Must check the serial number at Instart menu.
3.4.2. Method & notice
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0.
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or service man, sometimes
model name or serial number is initialized.(Not always)
It is impossible to download by bar code scan, so It need
Manual download.

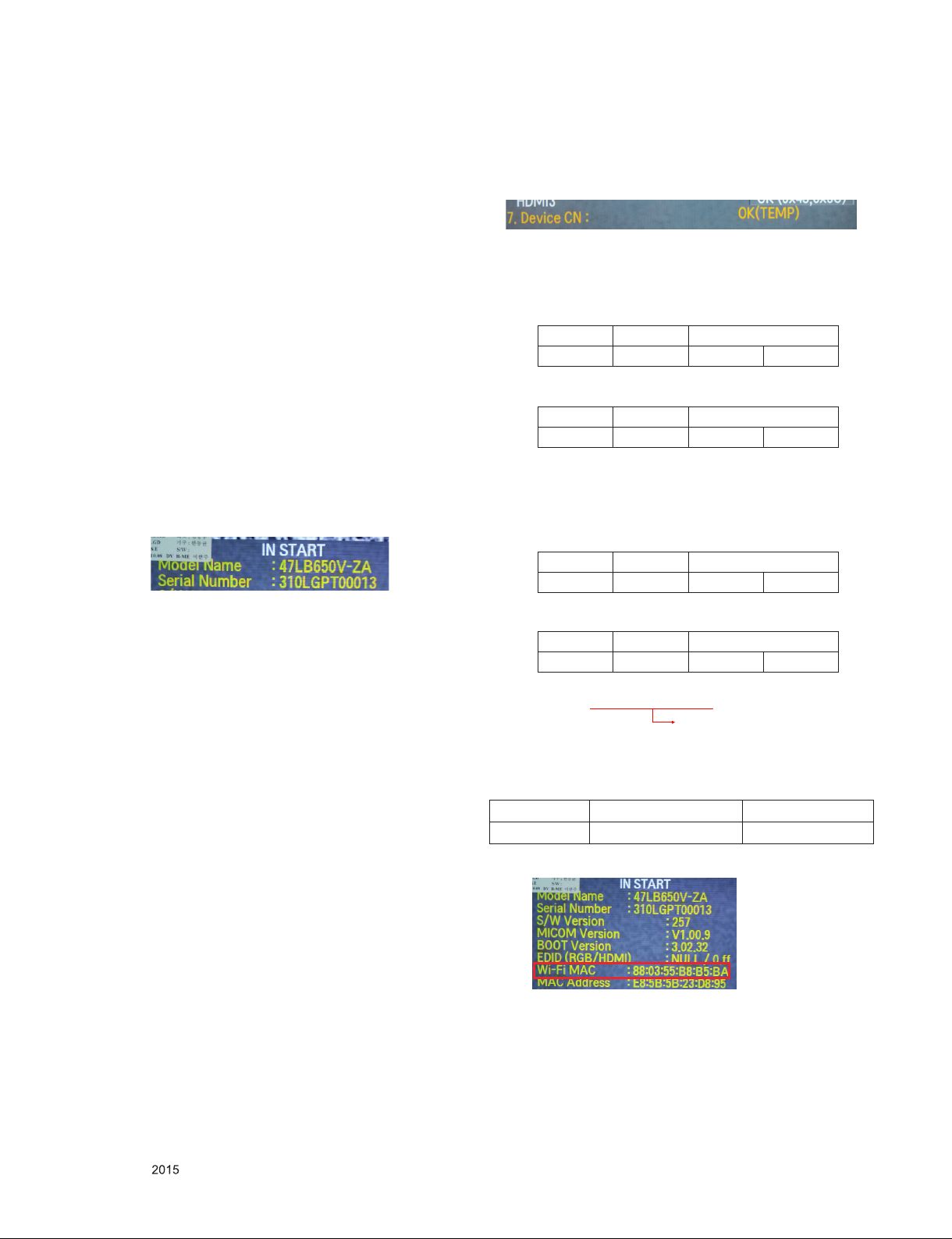

1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "7.Model Number D/L" like below photo.
3) Input the Factory model name(ex 47LB650V-ZA) or Serial
number like photo.
4) Check the model name Instart menu. → Factory name
displayed. (ex 47LB650V-ZA)
5) Check the Diagnostics.(DTV country only) → Buyer
model displayed. (ex 47LB650V-ZA)
3.5. CI+ Key checking method
(Check the Section 3.1)
Check whether the key was downloaded or not at ‘In Start’
menu. (Refer to below).
=> Check the Download to CI+ Key value in LGset.
3.5.1. Check the method of CI+ Key value
(1) Check the method on Instart menu
(2) Check the method of RS232C Command
1) Into the main ass’y mode(RS232: aa 00 00)
2) Check the key download for transmitted command
(RS232: ci 00 10)
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
3.5.2. Check the method of CI+ key value(RS232)
1) Into the main ass’y mode(RS232: aa 00 00)
2) Check the mothed of CI+ key by command
(RS232: ci 00 20)
3) Result value
i 01 OK 1d1852d21c1ed5dcx
3.6. WIFI MAC ADDRESS CHECK
(1) Using RS232 Command
(2) Check the menu on in-start
CMD 1 CMD 2 Data 0
A A 0 0
CMD 1 CMD 2 Data 0
C I 1 0
CMD 1 CMD 2 Data 0
A A 0 0
CMD 1 CMD 2 Data 0
C I 2 0
CI+ Key Value
H-freq(kHz) V-freq.(Hz)
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]

- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. Manual Adjustment
4.1. EDID(The Extended Display Identification
Data)/DDC(Display Data Channel) download
4.1.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
of user input. It is a realization of "Plug and Play".
4.1.2. Equipment
- Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
- Adjustment remote control
4.1.3. Download method
(1) Press "ADJ" key on the Adjustment remote control, then
select "12.EDID D/L", By pressing "Enter" key, enter EDID
D/L menu.
(2) Select "Start" button by pressing "Enter" key, HDMI1/
HDMI2/ HDMI3/ HDMI4 are writing and display OK or NG.
4.1.4. EDID DATA
▪ Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by Input mode.
ⓐProduct ID
ⓑSerial No: Controlled on production line.
ⓒMonth, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’, Year : ‘2015’ → ‘19’
ⓓModel Name(Hex): LGTV
ⓔChecksum(LG TV): Changeable by total EDID data.
ⓕVendor Specific(HDMI)
(1) EDID for Non 3D Model
# HDMI 1(C/S: E6 1D) - 3G
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI2 (C/S: E6 0D) - 3G
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI3 (C/S: E6 FD) - 3G
EDID Block 0, Bytes 0-127 [00H-7FH]
For HDMI EDID
DVI-D to HDMI or HDMI to HDMI
0 1 2 3 4 5 6 7 8 9 A B C D E F
0x00 00 FF FF FF FF FF FF 00 1E 6D ⓐ ⓑ
0x01 ⓒ01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
0x07 ⓓ01 ⓔ1
0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
0x01 22 15 01 29 3D 06 C0 15 07 50 ⓕ
0x02 ⓕ
0x03 ⓕ10 28 10 E3 05 03 01 02 3A 80 18 71 38
0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ2
0123456789ABCDEF
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6
0123456789ABCDEF
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6
0123456789ABCDEF
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
A0 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D
0123456789ABCDEF
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
A0 09 57 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 02
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0D
0123456789ABCDEF
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
EDID Block 1, Bytes 128-255 [80H-FFH]
* Checksum for Non 3D model (HDMI 1/2/3)
# HDMI 1(C/S : A0 C7) -6G
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 2(C/S : E6 0D) - 6G
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 3(C/S : E6 FD) - 6G
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
* Checksum for Non 3D model (HDMI 1/2/3)
4.2. White Balance Adjustment
4.2.1. Overview
▪ W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel's W/B deviation
(2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one
of R/G/B is fixed at 192, and the other two is lowered to
find the desired value.
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C
2) Warm-up time: About 5 Min
3) Surrounding Humidity : 20 % ~ 80 %
4.2.2. Equipment
(1) Color Analyzer: CA-210 (LED Module : CH 14)
(2) Adjustment Computer(During auto adj., RS-232C protocol
is needed)
(3) Adjustment Remote control
(4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model: 204, Pattern: 49)
→ Only when internal pattern is not available
•Color Analyzer Matrix should be calibrated using CS-100.
4.2.3. Equipment connection MAP
Input FFh (Checksum)
HDMI1 E6 1D
HDMI2 E6 0D
HDMI3 E6 FD
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
A0 09 57 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 02
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FD
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 47 F1 58 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 60 61 5D 5E 5F 65 66 62 63 64 29 3D 06
A0 C0 15 07 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20
B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05
C0 C0 00 E4 0F 00 C0 18 66 21 50 B0 51 00 1B 30 40
D0 70 36 00 40 84 63 00 00 1E 01 1D 00 72 51 D0 1E
E0 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C7
0123456789ABCDEF
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
A0 09 57 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 02
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FD
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
A0 09 57 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 02
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0D
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0
0123456789ABCDEF
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6
Input FFh (Checksum)
HDMI1 A0 C7
HDMI2 E6 0D
HDMI3 E6 FD
Color Analyzer
Computer
Pattern Generator
RS-232C
RS-232C
RS-232C
Probe
Signal Source
* If TV internal pattern is used, not needed

- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.2.4. Adj. Command (Protocol)
<Command Format>
- LEN: Number of Data Byte to be sent
- CMD: Command
- VAL: FOS Data value
- CS: Checksum of sent data
- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
▪ RS-232C Command used during auto-adjustment.
Ex) wb 00 00 → Begin white balance auto-adj.
wb 00 10 → Gain adj.
ja 00 ff → Adj. data
jb 00 c0
...
...
wb 00 1f → Gain adj. completed
*(wb 00 20(Start), wb 00 2f(end)) → Off-set adj.
wb 00 ff → End white balance auto-adj.
▪ Adj. Map
4.2.5. Adj. method
(1) Auto adj. method
1) Set TV in adj. mode using POWER ON key.
2) Zero calibrate probe then place it on the center of the
Display.
3) Connect Cable.(RS-232C to USB)
4) Select mode in adj. Program and begin adj.
5) When adj. is complete (OK Sign), check adj. status pre
mode. (Warm, Medium, Cool)
6) Remove probe and RS-232C cable to complete adj.
▪ W/B Adj. must begin as start command “wb 00 00” , and
finish as end command “wb 00 ff”, and Adj. offset if need.
(2) Manual adjustment. method
1) Set TV in Adj. mode using POWER ON.
2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10 cm of the surface.
3) Press ADJ key → EZ adjust using adj. R/C → 7. White-
Balance then press the cursor to the right(key ►).
(When right key(►) is pressed 216 Gray internal pattern
will be displayed)
4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
5) Adjustment is performed in COOL, MEDIUM, WARM 3
modes of color temperature.
** G-fix adjustment
Adjust modes (Cool), Fix the G gain to 172 (default data)
and change the others (G/B Gain).
Adjust two modes(Medium / Warm), Fix the one of R/G/B
gain to 192 (default data) and decrease the others.
▪ If internal pattern is not available, use RF input. In EZ Adj.
menu 7.White Balance, you can select one of 2 Test-
pattern: ON, OFF. Default is inner(ON). By selecting OFF,
you can adjust using RF signal in 216 Gray pattern.
▪ Adjustment condition and cautionary items
1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to
isolate adj. area into dark surrounding.
2) Probe location
: Color Analyzer(CA-210) probe should be within 10 cm
and perpendicular of the module surface (80° ~ 100°)
3) Aging time
- After Aging Start, Keep the Power ON status during 5
Minutes.
- In case of LCD, Back-light on should be checked
using no signal or Full-white pattern.
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP
RS-232C COMMAND
[CMD ID DATA] Explanation
wb 00 00 Begin White Balance adjustment
wb 00 10 Gain adjustment(internal white pattern)
wb 00 1f Gain adjustment completed
wb 00 20 Offset adjustment(internal white pattern)
wb 00 2f Offset adjustment completed
wb 00 ff End White Balance adjustment
(internal pattern disappears)
Adj. item
Command
(lower case ASCII)
Data Range
(Hex.) Default
(Decimal)
CMD1 CMD2 MIN MAX
Cool
R Gain j g 00 C0
G Gain j h 00 C0
B Gain j i 00 C0
R Cut
G Cut
B Cut
Medium
R Gain j a 00 C0
G Gain j b 00 C0
B Gain j c 00 C0
R Cut
G Cut
B Cut
Warm
R Gain j d 00 C0
G Gain j e 00 C0
B Gain j f 00 C0
R Cut
G Cut

- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.2.6. Reference (White balance Adj. coordinate and
color temperature)
▪ Luminance : 206 Gray
▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
▪ Standard color coordinate and temperature using CA-210(CH 14)
4.2.7. LED White balance table
▪ Edge & ALEF LED module change color coordinate because
of aging time.
▪ Apply under the color coordinate table, for compensated
aging time.
▪ (Normal line) White balance table
Model : (normal line) LGD
▪ AUO, INX, Sharp, CSOT, BOE (Cool is 13000 K)
4.3. Local Dimming Function Check
(1) Turn on TV.
(2) At the Local Dimming mode, module Edge Backlight
moving right to left Back light of IOP module moving.
(3) Confirm the Local Dimming mode.
(4) Press “exit” Key.
4.4. Magic Motion Remote control test
- Equipment : RF Remote control for test, IR-KEY-Code
Remote control for test
- You must confirm the battery power of RF-Remote control
before test(recommend that change the battery per every lot)
- Sequence (test)
1) If you select the ‘start key(OK)’ on the Adjustment remote
control, you can pairing with the TV SET.
2) You can check the cursor on the TV Screen, when select
the "OK" key on the Adjustment remote control.
3) You must remove the pairing with the TV Set by select
‘Mute + OK Key’ on the Adjustment remote control.
4.5. 3D function test
(Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4])
* HDMI mode NO. 872 , pattern No.83
(1) Please input 3D test pattern like below.
(2) When 3D OSD appear automatically, then select green key.
(3) Don't wear a 3D Glasses, Check the picture like below.
4.6. Option selection per country
4.6.1. Overview
- Option selection is only done for models in AJ/JA/IL
4.6.2.Method
(1) Press "ADJ" key on the Adjustment remote control, then
select Country Group Menu.
(2) Depending on destination, select Country Group Code or
Country Group then on the lower Country option, select
US, CA, MX. Selection is done using +, - or ►◄ KEY.
Mode Coordinate Temp ∆uv
x y
Cool 0.271 0.270 13000 K 0.0000
Medium 0.286 0.289 9300 K 0.0000
Warm 0.313 0.329 6500 K 0.0000
Mode Coordinate Temp ∆uv
x y
Cool 0.271 ± 0.002 0.270 ± 0.002 13000 K 0.0000
Medium 0.286 ± 0.003 0.289 ± 0.003 9300 K 0.0000
Warm 0.313 ± 0.002 0.329 ± 0.002 6500 K 0.0000
Aging
time
(Min)
Cool Medium Warm
x y x y x y
271 270 286 289 313 329
1 0-2 282 289 297 308 324 348
2 3-5 281 287 296 306 323 346
3 6-9 279 284 294 303 321 343
4 10-19 277 280 292 299 319 339
5 20-35 275 277 290 296 317 336
6 36-49 274 274 289 293 316 333
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
Cool Medium Warm
x y x y x y
271 270 285 293 313 329
Target 278 280 293 299 320 339

- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.7. HDMI ARC Function Inspection
(1) Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
(2) Test method
1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment. (HDMI 2)
2) Check the sound from the TV Set.
3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
4.8. Ship-out mode check (In-stop)
- After final inspection, press In-Stop key of the Adjustment
remote control and check that the unit goes to Stand-by
mode.
5. GND and Internal Pressure check
5.1. Method
(1) GND & Internal Pressure auto-check preparation
- Check that Power Cord is fully inserted to the SET. (If
loose, re-insert)
(2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord, Antenna cable and A/V
arrive to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX.)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the
pallet to move on to next process.
5.2. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms
6. Audio
Measurement condition:
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
No. Item Min Typ Max Unit
1
Audio practical max
Output, L/R (Distortion
=10% max Output)
10 12 W EQ Off
AVL Off
Clear Voice Off
8.10 10.8 Vrms
2Speaker
(6 Ω Impedance) 10 12 W
EQ On
AVL On
Clear Voice On

- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
7. USB S/W Download(Service only)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
- If your downloaded program version in USB Stick is
Older, it didn't work. But your downloaded version is
Newer, USB data is automatically detecting.(Download
Version High & Power only mode, Set is automatically
Download)

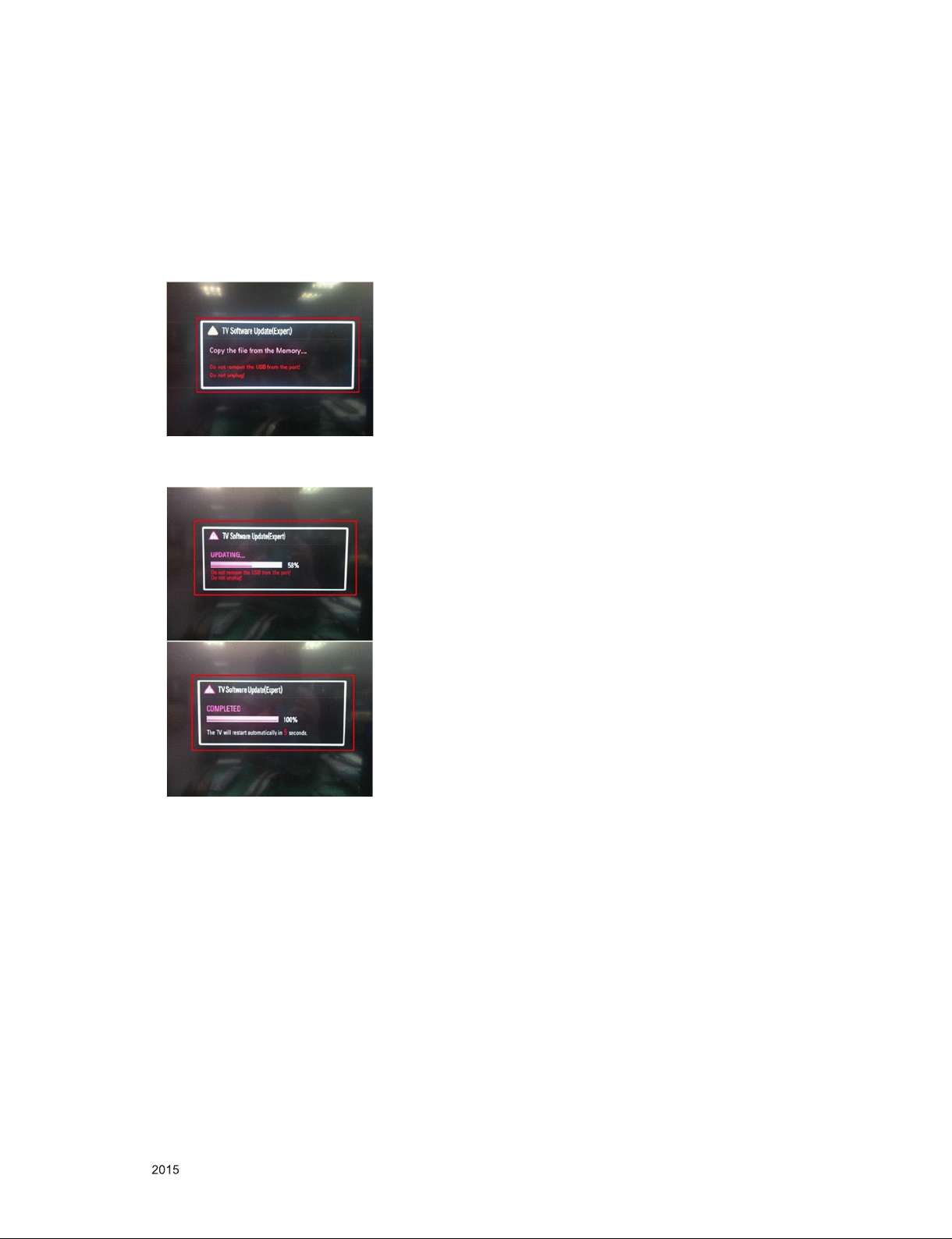

(3) Show the message "Copying files from memory".
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically.
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more new than your TV have, TV
can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn't have a
DTV/ATV test on production line.
* After downloading, have to adjust TOOL OPTION again.
1) Push "IN-START" key in service remote control.
2) Select "Tool Option 1" and push "OK" key.
3) Punch in the number. (Each model has their number.)
8. Tool Option selection
▪ Method: Press Adj. key on the Adjustment remote control,
then select Tool option.

- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
BLOCK DIAGRAM
MAIN Audio AMP
(NTP7514)
Mstar
LM15U
T/C Demod
IF (+/-)
USB1 (3.0)
OPTIC
LAN
DDR3 1866 X 32
(512MB X 2EA)
HDMI2(ARC)
HDMI1
Analog Demod
EEPROM(NVRA
M)
(256Kb)
HDMI
Air/
CableTUNER
(T2/C/A)
TUNER
(S2)
DVB-SDEMOD
(S2)
LNB
51P
eMMC (8GB)
Sub Micom
(RENESAS
R5F100GEAFB)
DDR3 1866 X 32
(256MB X 2EA)
P_TS
X_TAL 24MHz
T2/C
AB
X_TAL
32.768KHz
I2S Out
I2C 4
Vx1
USB
P_TS I2C 1
H/P
AV/COMP
OCP
OCP
R E A R
CVBS/YPbPr
SPDIF OUT
ETHERNETI2C 3
(HW Port)
SUB
ASS
Y
IR / KEY
LOGO LIGHT(Ready)
WIFI/BT Combo
USB_WIFI
CVBS
C
DDR3 1866 X 32
(512MB X 2EA)
USB2 (2.0)
I2C 6
RS232C

- 19 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
502
500
400
800
401
LV1
200
820
530
540
120
121
570
A22 A10
521
571
900
901
Set + Stand
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2015-02-26LM15U
1
MAIN1_SYSTEM
FE_DEMOD1_TS_DATA[4]
TPI_DATA[2]
EB_ADDR[0]
FE_DEMOD1_TS_DATA[3]
EMMC_DATA[1]
FE_DEMOD1_TS_DATA[6]
EMMC_DATA[0]
EB_ADDR[1]
EMMC_DATA[2]
EB_ADDR[4]
EMMC_DATA[7]
TPI_DATA[0-7]
EMMC_DATA[6]
EMMC_DATA[3]
EB_ADDR[3]
EB_ADDR[2]
EB_ADDR[5]
EMMC_DATA[4]
EMMC_DATA[5]
EB_ADDR[6]
EB_DATA[6]
TPI_DATA[7]
FE_DEMOD1_TS_DATA[7]
EB_ADDR[10]
FE_DEMOD1_TS_DATA[1]
TPI_DATA[3]
EB_DATA[1]
EB_ADDR[9]
TPI_DATA[6]
EB_ADDR[14]
TPI_DATA[0]
TPI_DATA[5]
TPI_DATA[4]
EB_ADDR[8]
TPI_DATA[1]
FE_DEMOD1_TS_DATA[2]
EB_DATA[3]
EB_DATA[5]
EB_DATA[4]
EB_DATA[7]
EB_ADDR[13]
EB_ADDR[12]
EB_DATA[2]
EB_ADDR[7]
EB_DATA[0]
EB_ADDR[11]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[0]
TPO_DATA[1]
TPO_DATA[6]
TPO_DATA[7]
TPO_DATA[0]
TPO_DATA[2]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[3]
I2C_SCL7
PWM_PM
USB_CTL3
BIT7
AMP_RESET_N
I2C_SCL1
USB_CTL2
TXOSD_1P
LOCKAn_Video
I2C_SDA3
DDCA_DA
USB_CTL1
BIT0
I2C_SDA3
TXVBY1_0P
BIT11
TXVBY1_6N
TPI_SOP
EB_BE_N1
BIT8
FRC_FLASH_WP
FE_DEMOD1_TS_SYNC
DDTS_RX
I2C_SDA4
I2C_SDA3
EB_ADDR[0-14]
SPI_DI_SOC
BIT2
TXVBY1_6P
TXVBY1_7N
FE_DEMOD1_TS_CLK
TXVBY1_4P
+3.3V_NORMAL
TXVBY1_2P
SOC_TX
WOL_WAKE_UP
I2C_SCL1
TXOSD_2N
I2C_SCL2
5V_DET_HDMI_2
DDCA_DA
DDTS_TX
I2C_SCL_MICOM
TXVBY1_1P
+3.3V_NORMAL
BIT9
/PCM_CE1
PWM_DIM2
TCON_I2C_EN
TCON_I2C_EN
BIT8
AMP_RESET_N
M_RFModule_RESET
EB_OE_N
/USB_OCD3
I2C_SDA6
SOC_TX
SC_DET
EMMC_CLK
BIT6
BIT7
I2C_SDA1
/USB_OCD1
I2C_SCL3
+3.3V_NORMAL
BIT0
M_RFModule_RESET
AVDD_3P3
LED1
FE_DEMOD3_TS_SYNC
SOC_RX
+3.3V_TU
EMMC_DATA[0-7]
TXOSD_3P
PCM_RESET
EB_WE_N
I2C_SDA1
BIT4
FRC_FLASH_SEL
USB_CTL2
+3.3V_LNA_TU
+3.3V_NORMAL
/USB_OCD2
+3.3V_NORMAL
HP_DET
TXOSD_0N
EMMC_CMD
TXVBY1_4N
HTPDAn_OSD
SPI_CK_SOC
RF_SWITCH_CTL
DDTS_TX
I2C_SDA6
HTPDAn_Video
L_DIM_EN
URSA_RESET_SoC
BIT10
I2C_SDA7
I2C_SDA1
TXVBY1_3N
I2C_SCL3
+3.3V_NORMAL
FE_DEMOD3_TS_DATA
I2C_SDA2
TXVBY1_2N
/USB_OCD1
TPI_VAL
I2C_SCL4
URSA9_CONNECT
SPI_DO_SOC
BIT11
IF_P
I2C_SCL5
BIT6
BIT1
CORE_VID0
I2C_SDA7
I2C_SDA_MICOM
CAM_IREQ_N
BIT1
DDTS_RX
CPU_VID0
LED0
TXVBY1_3P
FE_DEMOD3_TS_CLK
/TU_RESET1
TXVBY1_1N
EB_BE_N0
LED0
3D_EN
FE_DEMOD1_TS_VAL
FE_DEMOD1_TS_DATA[0-7]
5V_DET_HDMI_3
AV2_CVBS_DET
EB_DATA[0-7]
TXVBY1_5P
TXOSD_0P
PCM_5V_CTL
I2C_SCL3
/TU_RESET1
TXVBY1_7P
TXOSD_1N
PWM_PM
TPI_DATA[0-7]
+3.3V_NORMAL
+3.3V_NORMAL
BIT3 EMMC_STRB
TXOSD_3N
PCM_5V_CTL
I2C_SCL6
I2C_SCL6
5V_DET_HDMI_1
FE_DEMOD3_TS_VAL
SOC_RX
BIT4
DDCA_CK
BIT2
TXVBY1_5N
HTPDAn_OSD
BIT9
IF_N
BIT5
BIT10
TU_SIF
SPI_DI_SOC
CAM_WAIT_N
LED1
PWM_DIM
+3.5V_ST
/SPI_CS
TXVBY1_0N
AV1_CVBS_DET
I2C_SDA5
CAM_REG_N
/USB_OCD2
COMP1_DET
BIT5
EMMC_RST
BIT3
I2C_SCL7
RF_SWITCH_CTL
+3.3V_NORMAL
TPI_CLK
+3.3V_NORMAL
CAM_CD1_N
I2C_SCL1
TXOSD_2P
LOCKAn_OSD
IF_AGC
USB_CTL1
DDCA_CK
HTPDAn_Video
L/D_CLK_SOC
L/D_VSYNC_SOC
L/D_DI_SOC
+3.3V_NORMAL
L/D_CLK_SOC
L/D_VSYNC_SOC
L/D_DI_SOC
SPI_DO_SOC
SPI_DI_SOC
SPI_CK_SOC
/SPI_CS
FRC_FLASH_SEL
FRC_FLASH_WP
TXOSD_0P
TXOSD_0N
TXOSD_1N
TXOSD_2N
TXOSD_2P
TXOSD_3P
TXOSD_3N
TXOSD_1P
LOCKAn_OSD
URSA9_CONNECT
COMPENSATION_DONE
COMPENSATION_DONE
On_RF_Done
DATA_FORMAT_0_SOC
DATA_FORMAT_1_SOC
DATA_FORMAT_1_SOC
DATA_FORMAT_0_SOC
IC102-*1
BR24G256FJ-3
Rohm_NVRAM
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
R107 10K
BIT1_0
R166 4.7K
R142
10K
R139 1.8K
P102
12507WS-04L
UART_4PIN_WAFER
1
2
3
4
5
R116 10K
BIT4_1
R124 10K
BIT8_1
R111 10K
BIT3_0
R177
10K
OPT
R122 10K
BIT7_1
R141 100
R157 4.7K
R135 1.8K
R121 10K
BIT7_0
R150 10K
R105 10K
OPT
R100 10K
OPT
R163 4.7K
R183 10K
OPT
R167
0
FRC_FLASH_SEL
C103
0.1uF
C122
100pF
OPT
R158 4.7K
OPT
R120 10K
BIT6_1
P103
12505WS-04A00
MSTAR_DEBUG_OLD
1
2
3
4
5
R132 1.8K
R144 47
R110 10K
BIT2_1
R175
22
R153 10K
C120 0.1uF
R173
10K
HTPDAn_OSD_Pull_down
C123
33pF
OPT
R133 1.8K
R161 4.7K
OPT
R104 10K
BIT0_1
R152 10K
R1910
OPT
R128 1.8K
R182 10K
R143
0
R115 10K
BIT4_0
R103 10K
BIT0_0
R172
10K
HTPDAn_Video_Pull_down
R118 10K
R136 1.8K
P101
12507WS-04L
MSTAR_DEBUG_NEW
1
2
3
4
5
R125 1.8K
R108 10K
BIT1_1
C125
0.1uF
C121 0.1uF
R164 4.7K
OPT
R151 10K
C127
0.047uF
25V
R184 10K
OPT
R101 10K
OPT
R140 100 C118 0.1uF
R179
10K
U_SPI_WP_f_SoC
R102 10K
OPT
R117 10K
OPT
R170 10K
R174 0
R134 1.8K
R178
10K
OPT
R123 10K
BIT8_0
R129 1.8K
R185 10K
R160 10K
P100
12507WS-04L
DDTS_Debug
1
2
3
4
5
R126
10K
OPT
R162 4.7K
R154 10K
OPT
R145 47
R148 1.8K
IC102
AT24C256C-SSHL-T
Atmel_NVRAM
EAN61133501
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
R106 1.8K
R165 4.7K
OPT
R159 10K
HDMI_EXT_EDID
R171 10K
OPT
R147 1.8K
R109 10K
BIT2_0
R155
4.7K
OPT
C126
33pF
OPT
R112 10K
BIT3_1
R168
0
OPT
R146
300
OPT
R131
10K
WOL_WAKE_UP
C124
1000pF
OPT
R130 1.8K
R119 10K
BIT6_0
R1800
OPT
R1870
WOL_WAKE_UP
R149 10K
C119 0.1uF
R181 10K
NON_HDMI_EXT_EDID
R169 10K
R127 1.8K
LD100
19-21/R6C-FR1S1L/3T
VBY1_LOCK_LED
Q100
2N3906S-RTK
KEC_VBY1_LOCK_LED_TR
E
B
C
L100
PZ1608U121-2R0TF
Q100-*1
MMBT3906(NXP)
NXP_VBY1_LOCK_LED_TR
E
B
C
/TU_RESET2
R195
3.3K
VBY1_LOCK_LED
R176 1K
BIT13
BIT12
R186 10K R189 10K
R156 10K
OPT
R188 10K
OPT
BIT13
BIT12
TPO_CLK
TPO_DATA[0-7]
TPO_SOP
TPO_VAL
AR101
33
AR100
33
IC100
LGE5331(LM15U)
PWM0/GPIO157
A16
PWM1/GPIO158
C15
PWM2/GPIO159
A15
PWM3/GPIO160
B15
PWM4/GPIO161
C14
PWM_PM/GPIO10
E4
SAR0/GPIO50
H6
SAR1/GPIO51
J6
SAR2/GPIO52
G5
SAR3/GPIO53
J5
SAR5
D1
SPI_CK/GPIO1
D2
SPI_DI/GPIO2
D3
SPI_DO/GPIO3
E2
SPI_CZ0/GPIO0
F1
SPI_CZ1/GPIO_PM6/GPIO19
E3
SPI_CZ2/GPIO_PM10/GPIO23
F2
DDCA_CK/UART0_RX/GPIO11
N5
DDCA_DA/UART0_TX/GPIO12
P5
GPIO67/TX1
C9
GPIO68/RX1
A10
GPIO69/TX2
E9
GPIO70/RX2
F9
GPIO71/TX3
F10
GPIO72/RX3
G10
GPIO76/TX4
D9
GPIO77/RX4
M7
GPIO94/TX5
P6
GPIO95/RX5
N6
GPIO62
A12
GPIO63
A13
GPIO64
C12
GPIO65
B12
GPIO66
C11
GPIO73
B10
GPIO74
C10
GPIO75
B11
GPIO81/TX2
F6
GPIO82/RX2
F5
GPIO88/SCK0
K6
GPIO89/SDA0
L7
DDCR_CK/GPIO59
C16
DDCR_DA/GPIO58
B16
VID0/GPIO55
D5
VID1/GPIO56
D4
LED0/GPIO32
H4
LED1/GPIO33
H5
WOL/GPIO57
L5
LVSYNC/VBY0M AB36
LHSYNC/VBY0P AB35
LDE/VBY1M AC36
LCK/VBY1P AC37
B0M/VBY2M AD37
B0P/VBY2P AD36
B1M/VBY3M AD35
B1P/VBY3P AE36
B2M/VBY4M AF36
B2P/VBY4P AF37
BCKM/VBY5M AF35
BCKP/VBY5P AG37
B3M/VBY6M AG35
B3P/VBY6P AH36
B4M/VBY7M AH35
B4M/VBY7P AJ36
A0M/VBY_OSD_0M AJ35
A0P/VBY_OSD_0P AK37
A1M/VBY_OSD_1M AK36
A1P/VBY_OSD_1P AK35
A2M/VBY_OSD_2M AL35
A2P/VBY_OSD_2P AM36
ACKM/VBY_OSD_3M AM37
ACKP/VBY_OSD_3P AM35
A3M/LOCKN AJ33
A3P/HTPDN AJ34
A4M/OSD_LOCKN AJ32
A4P/OSD_HTPDN AJ31
GPIO_PM0/GPIO13 AD5
GPIO_PM2/GPIO15 AD6
GPIO_PM3/GPIO16 AE2
GPIO_PM4/GPIO17 AE3
GPIO_PM7/GPIO20 AF4
GPIO_PM8/GPIO21 AG5
GPIO_PM9/GPIO22 AG6
GPIO_PM13/GPIO26 AH6
GPIO_PM17/GPIO30 AJ5
GPIO_PM18/GPIO31 AJ4
GPIO_PM1/GPIO14 K5
GPIO_PM5/GPIO18 L6
GPIO_PM11/GPIO24 M5
GPIO_PM12/GPIO25 M6
AV_LNK/GPIO9 L4
TEST J15
GPIO112/SPI1_DI A18
GPIO111/SPI1_CK B18
GPIO114/SPI2_DI C17
GPIO113/SPI2_CK B17
GPIO110/VSYNC_LIKE C18
GPIO115/DIM0 D18
GPIO116/DIM1 E18
GPIO117/DIM2 F18
GPIO118/DIM3 E17
IC100
LGE5331(LM15U)
PCMDATA[0]/GPIO152
AT13
PCMDATA[1]/GPIO153
AT9
PCMDATA[2]/GPIO154
AR13
PCMDATA[3]/GPIO124
AT17
PCMDATA[4]/GPIO125
AR16
PCMDATA[5]/GPIO126
AT16
PCMDATA[6]/GPIO127
AR21
PCMDATA[7]/GPIO128
AT18
PCMADR[0]/GPIO151
AU10
PCMADR[1]/GPIO150
AT14
PCMADR[2]/GPIO148
AR10
PCMADR[3]/GPIO147
AT19
PCMADR[4]/GPIO146
AR18
PCMADR[5]/GPIO144
AU19
PCMADR[6]/GPIO143
AT11
PCMADR[7]/GPIO142
AT12
PCMADR[8]/GPIO136
AT20
PCMADR[9]/GPIO134
AU14
PCMADR[10]/GPIO130
AU16
PCMADR[11]/GPIO132
AR20
PCMADR[12]/GPIO141
AR12
PCMADR[13]/GPIO137
AU13
PCMADR[14]/GPIO138
AR19
PCMIRQA/GPIO140
AU20
PCMOEN/GPIO131
AT21
PCMIORD/GPIO133
AR15
PCMCEN/GPIO129
AU17
PCMWEN/GPIO139
AR11
PCMCD/GPIO156
AR17
PCMRST/GPIO155
AU11
PCMREG/GPIO149
AR14
PCMIOWR/GPIO135
AT15
PCMWAIT/GPIO145
AT10
NAND_ALE/GPIO194
D7
NAND_WPZ/GPIO193
F7
NAND_CEZ/EMMC_CMD/GPIO188
G7
NAND_CLE/GPIO190
E6
NAND_REZ/EMMC_CLK/GPIO191
F8
NAND_WEZ/GPIO192
E7
NAND_RBZ/EMMC_RSTN/GPIO195
E8
NAND_CEZ1/GPIO189
D6
NAND_DQS/GPIO196
D8
NAND_AD0/EMMC_D6/GPIO226
A6
NAND_AD1/EMMC_D7/GPIO225
C6
NAND_AD2/EMMC_D2/GPIO224
A7
NAND_AD3/EMMC_D1/GPIO223
B7
NAND_AD4/EMMC_D0/GPIO199
C7
NAND_AD5/EMMC_D3/GPIO198
B8
NAND_AD6/EMMC_D4/GPIO197
C8
NAND_AD7/EMMC_D5/GPIO227
B9
PCM2_CD/GPIO123
AM4
PCM2_CE/GPIO119
AP4
PCM2_IRQA/GPIO120
AL5
PCM2_WAIT/GPIO121
AN4
PCM2_RESET/GPIO122
AL4
TS1DATA_[0]/GPIO187 AL6
TS1DATA_[1]/GPIO186 AM6
TS1DATA_[2]/GPIO185 AP8
TS1DATA_[3]/GPIO184 AN7
TS1DATA_[4]/GPIO183 AM5
TS1DATA_[5]/GPIO182 AM7
TS1DATA_[6]/GPIO181 AN5
TS1DATA_[7]/GPIO180 AN6
TS1CLK/GPIO177 AL7
TS1VALID/GPIO179 AP5
TS1SYNC/GPIO178 AP6
TS0DATA_[0]/GPIO166 AP10
TS0DATA_[1]/GPIO167 AN10
TS0DATA_[2]/GPIO168 AM8
TS0DATA_[3]/GPIO169 AM10
TS0DATA_[4]/GPIO170 AM11
TS0DATA_[5]/GPIO171 AM12
TS0DATA_[6]/GPIO172 AN8
TS0DATA_[7]/GPIO173 AM9
TS0CLK/GPIO176 AN11
TS0VALID/GPIO174 AN9
TS0SYNC/GPIO175 AP9
TS2DATA_[0]/GPIO200 AM14
TS2DATA_[1]/GPIO204 AP15
TS2DATA_[2]/GPIO205 AN12
TS2DATA_[3]/GPIO206 AN15
TS2DATA_[4]/GPIO207 AN14
TS2DATA_[5]/GPIO208 AM16
TS2DATA_[6]/GPIO209 AN13
TS2DATA_[7]/VSENSE/GPIO210 AM15
TS2CLK/GPIO203 AP13
TS2VALID/GPIO201 AP12
TS2SYNC/GPIO202 AM13
TS3DATA_[0]/GPIO211 AM18
TS3DATA_[1]/GPIO212 AP16
TS3DATA_[2]/GPIO213 AM19
TS3DATA_[3]/GPIO214 AN18
TS3DATA_[4]/GPIO215 AP19
TS3DATA_[5]/GPIO216 AN20
TS3DATA_[6]/GPIO217 AP18
TS3DATA_[7]/GPIO218 AN19
TS3CLK/GPIO221 AN17
TS3VALID/GPIO219 AM17
TS3SYNC/GPIO220 AN16
VIFP AP1
VIFM AP2
SIFP AN2
SIFM AN1
IF_AGC AP3
TGPIO0/GPIO162 AR2
TGPIO1/GPIO163 AM2
TGPIO2/GPIO164 AK5
TGPIO3/GPIO165 AK6
URSA_RESET_SoC
OLED_FW_Update
OLED_FW_Update
On_RF_Done
T2
UHD
NVRAM
4_Division
RS232C_Debug
11
T ATSC
11
Mstart Debug
High
ANALOG SIF
Default
DVB
I2C PULL UP
BIT6
BR/PH
OLEDLCD
I2C for tuner&LNB
FOR HDMI2.0
BR
Division
BIT11
I2C for LCD Module
01
Display
CN/HK
ISDB INT
T2/C PIP
11
T2/C/S2
Default
CHIP CONFIG
00
20140701 version
JP
LM15U HW Option
NON_EXTERNAL
BIT5
Close to MSTAR
TW/COL
LM15U only
ISDB PIPDefault
Low
Model
I2C for tuner
JP
DDTS_Debug
High
T2/C PIP
I2C for Micom
KR
Value Mode Description
4’b1000 SB51_ExtSPI 51 boot from SPI
4’b1001 HEMCU_ExtSPI ARM boot from SPI
4’b1010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC
4’b1011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND
4’b1100 DBUS for test only
4’b0000 SB51_ExtSPI + Authentication 51 boot from SPI with ARM authentication
4’b0001 SB51_ExtSPI + Authentication HEMCU_ExtSPI + Authentication
4’b0011 HEMCU_ROM_NAND + Authentication ARM boot from ROM with authentication;
00
T2/C/S2 PIP
CN/HKBIT(2/3)
LM15U+URSA
BIT10
URSA11 4K@120Hz
BIT(0/1)
EXTERNAL
Write Protection
- Low : Normal Operation
- High : Write Protection
BIT9
EU/CIS
10
DTV_IF
EU
ISDB EXT
North.AM
CI+
Sri Lanka
01
Support
NONE
JP
AJJA
I2C for URSA9 (URSA9 Only)
GPIO PULL UP
KR
ATSC NIM+T2
T2/C/S2
10
TW/COL
Resolution
01
BIT(7/8)
AJJA
ATSC
A0’h
T/C
NON_Division
CHIP_CONFIG[3:0]
{LED1, SPI_DI,LED0, PWM_PM}
T/C
I2C for NAVRAM
URSA11 4K@60Hz
Close to MSTAR
FHD
BIT4
T2/C
10
I2C for Main Amp / Woofer AMP
EXTERNAL EDID
URSA9
00
Low
V-BY-ONE
B/E(FRC)
ATSC+T2
US
LM15U+URSA9
ATSC PIP
OLED LM15U_ONLY
BIT12
BIT13
New CI PathOld CI Path
VID VID Enable VID Disable
Reserved
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
