OWNER’S MANUAL
LED TV*
Please read this manual carefully before operating
your set and retain it for future reference.
* LG LED TV applies LCD screen with LED backlights.
*MFL67658610*
P/NO : MFL67658610(1409-REV07)
Printed in Korea
*MFL67658610*

A-2 TABLE OF CONTENTS
COMMON
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-6 Tidying cables
A-7 MAKING CONNECTIONS
A-7 Antenna connection
A-8 Satellite dish connection
A-8 HDMI connection
A-9 - ARC (Audio Return Channel)
A-10 DVI to HDMI connection
A-11 Component connection
A-12 Composite connection
A-12 MHL connection
A-13 Audio connection
A-13 - Digital optical audio connection
A-14 USB connection
A-15 CI module connection
A-16 Headphone connection
A-17 Euro Scart connection
LANGUAGE
LANGUAGE LIST
English
Italiano
COMMON
B-1 SPECIFICATIONS

A-3
SETTING UP THE TV
LA62**, LA64**, LA66** , LA71**, LN57**-ZE/ZK,
LN61** , LN65**
3
1
Front
M4 x 14
4 EA
Stand Base
Stand Body
M4 x 14
4 EA
M4 x 14
4 EA
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
2
(Only LA64**, LA66** , LA71**, LN65**)
(Only LA62**, LN57**-ZE/ZK, LN61**)
(Only LA62**, LN57**-ZE/ZK, LN61**)
(Only LA64**, LA66** , LA71**, LN65**)

A-4 SETTING UP THE TV
LA69**, LA74**
2
3
1
Stand Base
M4 x 20
4EA

A-5
SETTING UP THE TV
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect the
screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they are
not fastened securely enough, the TV may
tilt forward after being installed.)
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.
NOTE
yRemoving the protective film (from the
bottom)
(Depending on model)
Protective film is temporarily attached to
prevent the surface of the product from
being damaged during delivery.
Once the TV has been installed, please
remove the protective film on the bottom of
the unit as shown in the figure.
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
LN57**-ZA
2
3
1
Stand Body
Stand Base
P5 x 25
3EA
M4 x 14
4EA

A-6 SETTING UP THE TV
Tidying cables
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management rmly to the TV.
(Only LA62**, LA64**, LA66**, LA71**, LN57**-ZE/
ZK, LN61**, LN65**)
Cable Holder
Cable Management
(Only LA69**, LA74**)
⨲㘶ᖂ2
㏪ⱞ⋾#Ɐᴏ
Cable Holder
Cable Management
(Only LN57**-ZA)
1 Gather and bind the cables with the Cable
Holder.
Cable Holder
CAUTION
yDo not move the TV by holding the cable
holders, as the cable holders may break,
and injuries and damage to the TV may
occur.

A-7
MAKING CONNECTIONS
MAKING
CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the 47LA660S models.
Antenna connection
ANTENNA/
CABLE IN
English
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus
Italiano
Collegare il televisore all’antenna centralizzata con
un cavo RF (75 Ω).
NOTA
yUtilizzare uno sdoppiatore del segnale per
usare più di 2 televisori.
ySe la qualità dell’immagine è scarsa,
installare correttamente un amplificatore del
segnale per migliorarla.
ySe la qualità dell’immagine è scarsa con
un’antenna collegata, provare a riallineare
l’antenna nella direzione corretta.
yIl cavo e il convertitore dell’antenna non
sono in dotazione.
yAudio DTV supportato: MPEG, Dolby Digital,
Dolby Digital Plus

A-8 MAKING CONNECTIONS

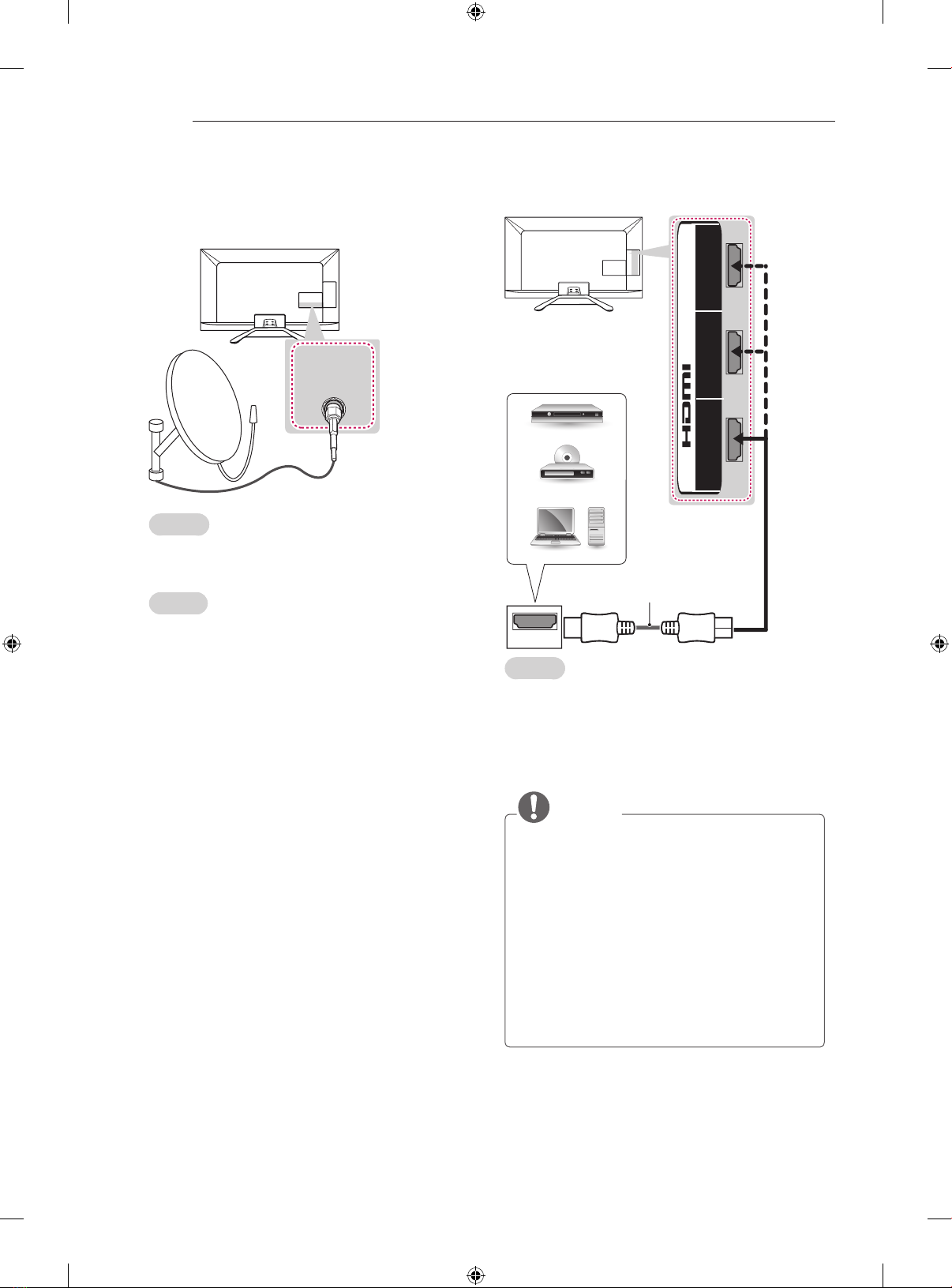

Satellite dish connection
(Only satellite models)
LNB
Satellite IN
13/18 V
700 mA Max
English
Connect the TV to a satellite dish to a satellite
socket with a satellite RF cable (75 Ω).
Italiano
Collegare la TV a un’antenna satellitare e a una
presa satellitare con un cavo RF satellitare (75 Ω).
HDMI connection
HDMI
1
(ARC)
3
(MHL)
2
/DVI IN
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
English
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
yIt is recommended to use the TV with the
HDMI connection for the best image quality.
yUse the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
yHigh Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
ySupported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192 KHz, 32KHz/4
4.1KHz/48KHz/88KHz/96KHz/176KHz/192K
Hz)

A-9
MAKING CONNECTIONS
Italiano
Il segnale digitale audio e video viene trasmesso
da un dispositivo esterno al televisore. Collegare il
dispositivo esterno e il televisore mediante il cavo
HDMI come mostrato nell’illustrazione di seguito.
Scegliere una porta di ingresso HDMI per il
collegamento. La scelta della porta è libera.
NOTA
ySi consiglia di utilizzare il televisore con il
collegamento HDMI per ottenere la migliore
qualità delle immagini.
yUtilizzare un cavo HDMI™ ad alta velocità
dotato dei requisiti più recenti con funzione
CEC (Customer Electronics Control).
yI cavi HDMI™ ad alta velocità sono testati
per trasmettere un segnale HD fino a 1080p
e superiore.
yFormato audio HDMI supportato: Dolby
Digital, DTS, PCM (fino a 192 KHz, 32
KHz/44,1 KHz/48 KHz/88 KHz/96 KHz/176
KHz/192 KHz)
ARC (Audio Return Channel)
English
yAn external audio device that supports
SIMPLINK and ARC must be connected
using HDMI/DVI IN 1 (ARC) port.
yWhen connected with a high-speed HDMI
cable, the external audio device that
supports ARC outputs optical SPDIF without
additional optical audio cable and supports
the SIMPLINK function.
Italiano
yPer il collegamento di un dispositivo
audio esterno che supporta le funzionalità
SIMPLINK e ARC, usare la porta HDMI/DVI
IN 1 (ARC).
ySe si effettua il collegamento con un cavo
HDMI ad alta velocità, il dispositivo audio
esterno che supporta ARC trasmette
il segnale SPDIF senza il cavo ottico
aggiuntivo e supporta la funzione SIMPLINK.

A-10 MAKING CONNECTIONS
DVI to HDMI connection
DVI OUT
AUDIO OUT
1
(ARC)
3
(MHL)
2
/DVI IN
L
L/MONO
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / PC
RED
WHITE
English
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
yDepending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in use.
yWhen using the HDMI/DVI cable, only Single
link is supported.
Italiano
Il segnale digitale video viene trasmesso da
un dispositivo esterno al televisore. Collegare
il dispositivo esterno e il televisore mediante il
cavo DVI-HDMI come mostrato nell’illustrazione
di seguito. Per trasmettere un segnale audio,
collegare un cavo audio.
Scegliere una porta di ingresso HDMI per il
collegamento. La scelta della porta è libera.
NOTA
yA seconda della scheda grafica in uso, la
modalità DOS potrebbe non funzionare se si
utilizza un cavo da HDMI a DVI.
yQuando si utilizza il cavo HDMI/DVI, è
supportata solo l’interfaccia Single link.
