LG 50US665H0VA User manual

P/NO : MFL71750542 (2012-REV00)
CHASSIS : UBXBR
MODEL : 50US665H0VA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED TV
SERVICE MANUAL
Copyright © 2020 LG Electronics Inc. All rights reserved. Only training and service purposes.
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means),
publication, modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you
have obtained the prior written consent of the LG Electronics entity from which you received this Service Manual.
The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service
Manual.

- 2 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION ...................................................................................... 6
SOFTWARE UPDATE ............................................................................ 10
BLOCK DIAGRAM ................................................................................. 12
EXPLODED VIEW .................................................................................. 13
ASSEMBLY / DISASSEMBLY GUIDE ................................................... 14
TROUBLE SHOOTING GUIDE ................................................ APPENDIX

- 3 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau-
tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-e󰀨ect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain o󰀨 any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges su󰀩cient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges su󰀩cient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec-
trically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate-
rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri-
ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain-
ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip o󰀨 excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-o󰀨" the board. The
following guidelines and procedures should be followed when-
ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip o󰀨
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the a󰀨ected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the LED TV used UBXBR
chassis.
2. Requirement for Test
Each part is tested as below without special notice.
(1) Temperature : 25°C ± 5°C (77°C ± 9°C), CST : 40°C ± 2°C
(2) Relative Humidity : 60 % ± 10 %
(3) Power Voltage :
Standard input voltage (AC100~240V @ 50/60Hz)
Standard Voltage of each product is marked by models
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 20 minutes prior
to the adjustment
3. Test method
(1) Performance: LGE TV test method followed
(2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
4. Model General Specification
No. Item Specication Remarks
1 Market OCEANIA / ASIA / AFRICA
2 Broadcasting system
(1) Digital TV
- DVB-T
- DVB-T2*
- DVB-C
- DVB-S/S2*
(2) Analogue TV
- PALB/B, B/G, D/K, I
- SECAM B/G, D/K
- NTSC-M*
Asia, MEA(T#, G#, V#)
* : Depending on country
3 Program coverage
(1) Digital TV
-DVB-T / DVB-T2*
-VHF III : 174 ~ 230 MHz
-UHF IV : 470 ~ 606 MHz
-UHF V : 606 ~ 862 MHz
-S Band II : 230 ~ 300 MHz
-S Band III : 300 ~ 470 MHz
-DVB-S/S2* (950 ~ 2150 MHz)
-DVB-C (46 ~ 890 MHz)
(2) Analogue TV (46 ~ 862 MHz)
* : Only DVB-T2/C/S2 support model only.
4Maximum number of storable
programmes
(1) DVB-S/S2 : 6,000
(2) DVB-C, DVB-T/T2, Analogue TV : 3,000
5 External antenna impedance Digital & Analogue TV : 75Ω
6 Receiving system
Analog : Upper Heterodyne
Digital : COFDM(DVB-T) Only DVB-T Model
Digital : COFDM(DVB-T/T2) Only DVB-T2
Model
Digital : QAM
▶DVB-T
- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
▶DVB-T2
- Guard Interval(Bitrate_Mbit/s): 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
▶DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
▶DVB-S/S2
- Symbolrate :
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- Viterbi :
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

- 7 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
5. External Input Format
5.1. Component (Y, PB, PR)
No. Specication
Resolution H-freq (kHz) V-freq (Hz) Pixel clock Proposed
1 720*480i 15.73 59.94 13.5 SDTV, DVD 480I(525I)
2 720*480i 15.75 60 13.514 SDTV, DVD 480I(525I)
3 720*576i 15.625 50 13.5 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27 SDTV 480P
5 720*480p 31.5 60 27.027 SDTV 480P
6 720*576p 31.25 50 27 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45 60 74.25 HDTV 720P
9 1280*720 37.5 50 74.25 HDTV 720P 50Hz
10 1920*1080 28.125 50 74.25 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60 74.25 HDTV 1080I
13 1920*1080 56.25 50 148.5 HDTV 1080P
14 1920*1080 67.43 59.94 148.5 HDTV 1080P
15 1920*1080 67.5 60 148.5 HDTV 1080P

- 8 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
5.2. HDMI
5.2.1. DTV mode
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*480 31.46 59.94 25.12 SDTV 480P
2 640*480 31.5 60 25.12 SDTV 480P
3 720*480 31.47 59.94 27 SDTV 480P
4 720*480 31.5 60 27.02 SDTV 480P
5 720*576 31.25 50 27 SDTV 576P
6 1280*720 44.96 59.94 74.17 HDTV 720P
7 1280*720 45 60 74.25 HDTV 720P
8 1280*720 37.5 50 74.25 HDTV 720P
9 1920*1080 28.12 50 74.25 HDTV 1080I
10 1920*1080 33.72 59.94 74.17 HDTV 1080I
11 1920*1080 33.75 60 74.25 HDTV 1080I
12 1920*1080 26.97 23.97 63.29 HDTV 1080P
13 1920*1080 27 24 63.36 HDTV 1080P
14 1920*1080 33.71 29.97 79.12 HDTV 1080P
15 1920*1080 33.75 30 79.2 HDTV 1080P
16 1920*1080 56.25 50 148.5 HDTV 1080P
17 1920*1080 67.43 59.94 148.35 HDTV 1080P
18 1920*1080 67.5 60 148.5 HDTV 1080P
19 1920*1080 112.5 100 297 UDTV 2160P Not Support for FHD.
20 1920*1080 134.86 119.88 296.7 UDTV 2160P Not Support for FHD.
21 1920*1080 135 120 297 UDTV 2160P Not Support for FHD.
22 3840*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
23 3840*2160 54 24 297 UDTV 2160P Not Support for FHD.
24 3840*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
25 3840*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
26 3840*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
27 3840*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
28 3840*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
29 3840*2160 135 60 594 UDTV 2160P Not Support for FHD.
30 3840*2160 225 100 1188 UDTV 2160P 4K120 model (K6Hp HDMI 3,4 port,
O20) or 8K model, Not Support for ID
model
31 3840*2160 269.73 119.88 1186.8 UDTV 2160P
32 3840*2160 270 120 1188 UDTV 2160P
33 4096*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
34 4096*2160 54 24 297 UDTV 2160P Not Support for FHD.
35 4096*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
36 4096*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
37 4096*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
38 4096*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
39 4096*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
40 4096*2160 135 60 594 UDTV 2160P Not Support for FHD.
41 4096*2160 225 100 1188 UDTV 2160P 4K120 model (K6Hp HDMI 3,4 port,
O20) or 8K model, Not Support for ID
model
42 4096*2160 269.73 119.88 1186.8 UDTV 2160P
43 4096*2160 270 120 1188 UDTV 2160P
44 7680*4320 107.89 23.98 1188 8K
8K Model Only.
45 7680*4320 108 24 1188 8K
46 7680*4320 110 25 1188 8K
47 7680*4320 131.87 29.97 1188 8K
48 7680*4320 132 30 1188 8K
49 7680*4320 220 50 2376 8K
50 7680*4320 263.74 59.94 2376 8K
51 7680*4320 264 60 2376 8K

- 9 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
5.2.2. PC mode
No. Resolution H-freq (kHz) V-freq (Hz) Pixel clock Proposed Remarks
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40 VESA(SVGA)
5 1024*768 48.36 60 65 VESA(XGA)
6 1360*768 47.71 60.01 84.75 VESA(WXGA)
7 1152*864 54.34 60.05 80 VESA
8 1280*1024 63.98 60.02 109 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.4 WUXGA(Reduced
Blanking)
10 1920*1080 134.86 119.88 296.7 UDTV 2160P Not Support for FHD.
11 1920*1080 135 120 297 UDTV 2160P Not Support for FHD.
12 3840*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
13 3840*2160 54 24 297 UDTV 2160P Not Support for FHD.
14 3840*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
15 3840*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
16 3840*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
17 3840*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
18 3840*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
19 3840*2160 135 60 594 UDTV 2160P Not Support for FHD.
20 4096*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
21 4096*2160 54 24 297 UDTV 2160P Not Support for FHD.
22 4096*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
23 4096*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
24 4096*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
25 4096*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
26 4096*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
27 4096*2160 135 60 594 UDTV 2160P Not Support for FHD.
28 2560*1440 88.78 59.95 241.5 3K (UHD 60Hz models only), Support only
when UHD DeepColor is On
29 2560*1440 182.99 119.99 497.7 3K (UHD, 8K 120Hz models only), Support only
when UHD DeepColor is On

- 10 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SOFTWARE UPDATE

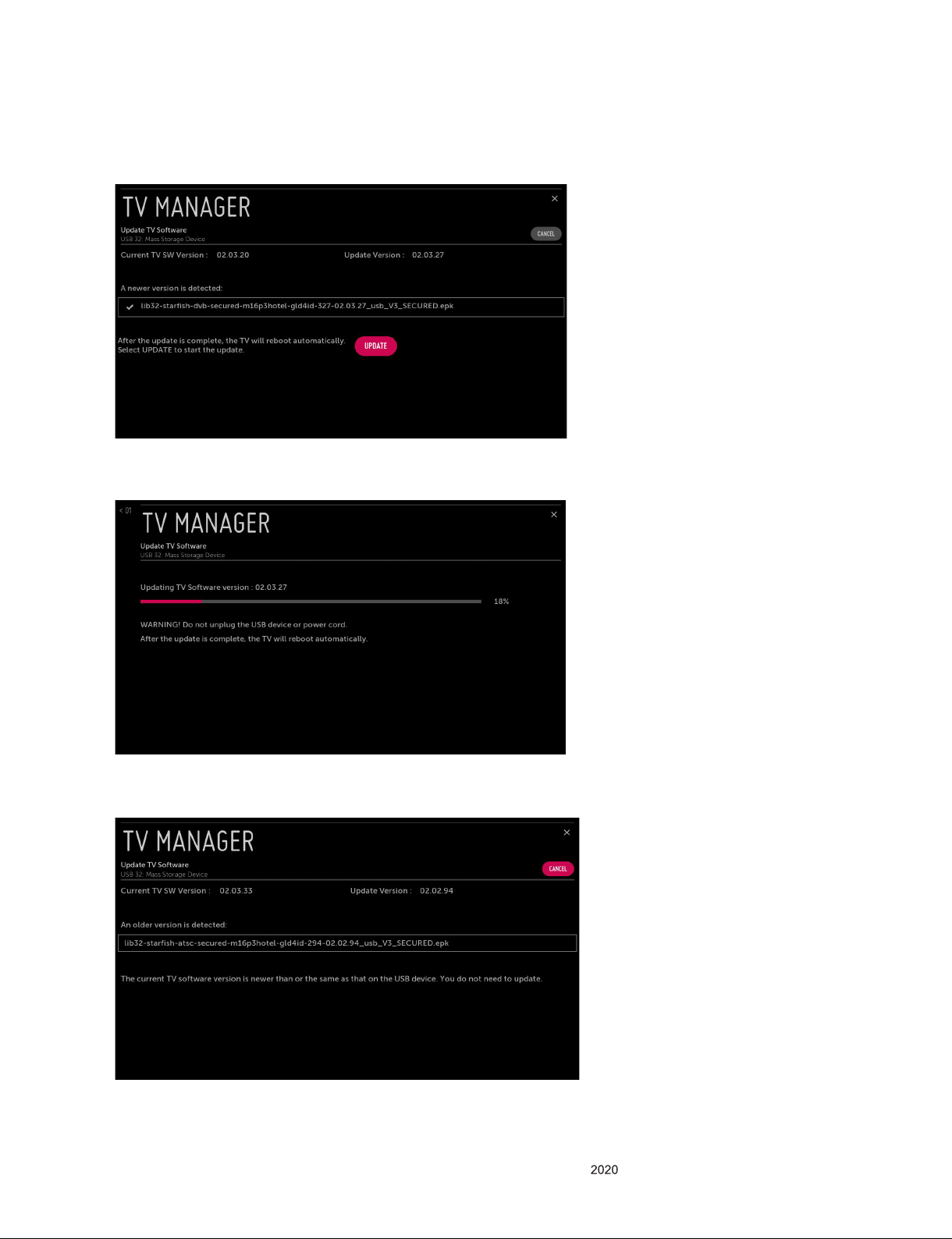

1. USB DOWNLOAD(User Mode)
(1) Insert the USB memory stick to the USB port.
(2) Automatically TV manager application is launched and detect the SW version.
(3) Select ‘UPDATE’ button.
(4) TV is updating.
(5) After finished the update, below Pop-up appears then TV will reboot automatically.
(6) Check the updated SW Version and Tool Option.
* If the software version on the USB device is equal to or lower than the version currently installed on the TV, it cannot be updated in
User Mode.

- 11 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
2. USB DOWNLOAD (Expert Mode)
(1) Menu → General : press ‘7’ consecutively by remote
control until TV Manager application is launched.
(2) Select the menu.
(3) Select the file.
(4) TV is updating.
(5) After finished the update, below Pop-up appears then TV
will reboot automatically.
(6) Check the updated SW Version and Tool Option
● Ez Download : The Ez Download utility enables users to
download multiple items all at once, e.g., TV (CPU), Micom,
TLL, Image, Icon, Video, Pro:Idiom M Key files.
● Data Coning : make and apply clone file.
● Image Download : Image Download downloads “Boot Logo
Image,” “Apps Background Image(s),” and “Hotel Directory
Image(s)” at once.
● Icon Download : Icon Download downloads “Hotel Icon on
Portal,” “Website Shortcut,” and “Input Shortcut” images at
once.
● Video Download : Video Download downloads “Hotel Video”
and “Welcome Video” files at once.
● Software Update: download software firmware, Micom or
CPU firmware file.
● The target files should be located in “LG_DTV” folder.
(*Clone files should be copied to the root folder of the USB)
● The downloadable items differ depending upon model.

- 12 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
RTK
K6Hp
eMMC (8GB)
CI Slot
Air/ Cable
TUNER
DVB-S
LNB
REAR(H)
IF (+/-)
P_TS_OUT
P_TS_IN
IR / KEY
LOGO LIGHT(Ready)
WIFI/BT Combo
USB_WIFI
X_TAL
27MHz
LAN2
ETHERNET
SPDIF SPDIF OUT
H/PAMP
MAIN Audio AMP
(SYVL64)
I2S Out
I2C 0
CEDS 68P(11Lane)Vx1 / EPI /CEDS
I2C 3
GMA
PMIC
Level
shifter
M0
IF_S
IF
I2C 3
NVRAM (1Mb)
I2C 5
I2C 2
EPI/CEDS block
IQ (+/-), IP(+/-)
TS
DDR4 - 2666 48bit
Sub MICOM
(TI)
I2C EYE
I2C SW
UART 1MCU D/L
X_TAL
32.768KHz
Normal Comm.
Ethernet
HUB
LAN1(AUX)
UART 0
UART SW
RS-232
(5V, 12V power outlet)
Adjust / debug
TV Link Com.
UART SW
Ext. SPKAMP
USB1 (2.0)
OCPUSB2 (2.0)
HDMI3 HDMI2(ARC) HDMI1
X_TAL
25MHz
Sub
MICOM
(TI)
RMII
EU, MEA, ASIA opt
TUNER
EU, MEA opt
Ext.
CLOCK EXT_CLOCK
BLOCK DIAGRAM

- 13 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
400
540
LV1
570
800
530
121
HP1
HS1
HW1
120
500
820
910
900
810
200A
200T
ARC1
Stand Screw
AR1 A10 700
LV2
Dependign on Model
Dependign on Model
200
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

- 14 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
ASSEMBLY / DISASSEMBLY GUIDE
1. Unscrew (“1” : 9EA, ”2” : 5EA, “3” : 1EA) to uncover back cover assembling from
module.
2. Remove a cable after uncovering the back cover.
(1) MODULE “A” -> POWER P801
(2) MAIN P1000 -> POWER P201
(3) MAIN P4000 -> WIFI Ass’y
(4) MAIN P5800 -> SPEAKER “B”, “C”
1
11
11
2
2
2
22
11
11
3
“C”
“A”
P801
P201
P1000
P5800
“B”
P4000

- 15 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
3. Unscrew (“4” : 1EA) and then remove wifi bracket.
4. Unscrew (“5” : 9EA) and then remove harness cable MAIN P7600 -> MODULE “D”.
4
5
5
55
55
5
5
5
“D”
P7600

- 16 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
5. Remove all boards, cables and speakers.
6. Unscrew (“6” : 4EA) to remove VESA brackets and then pick them out.
6
6 6
6

- 17 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

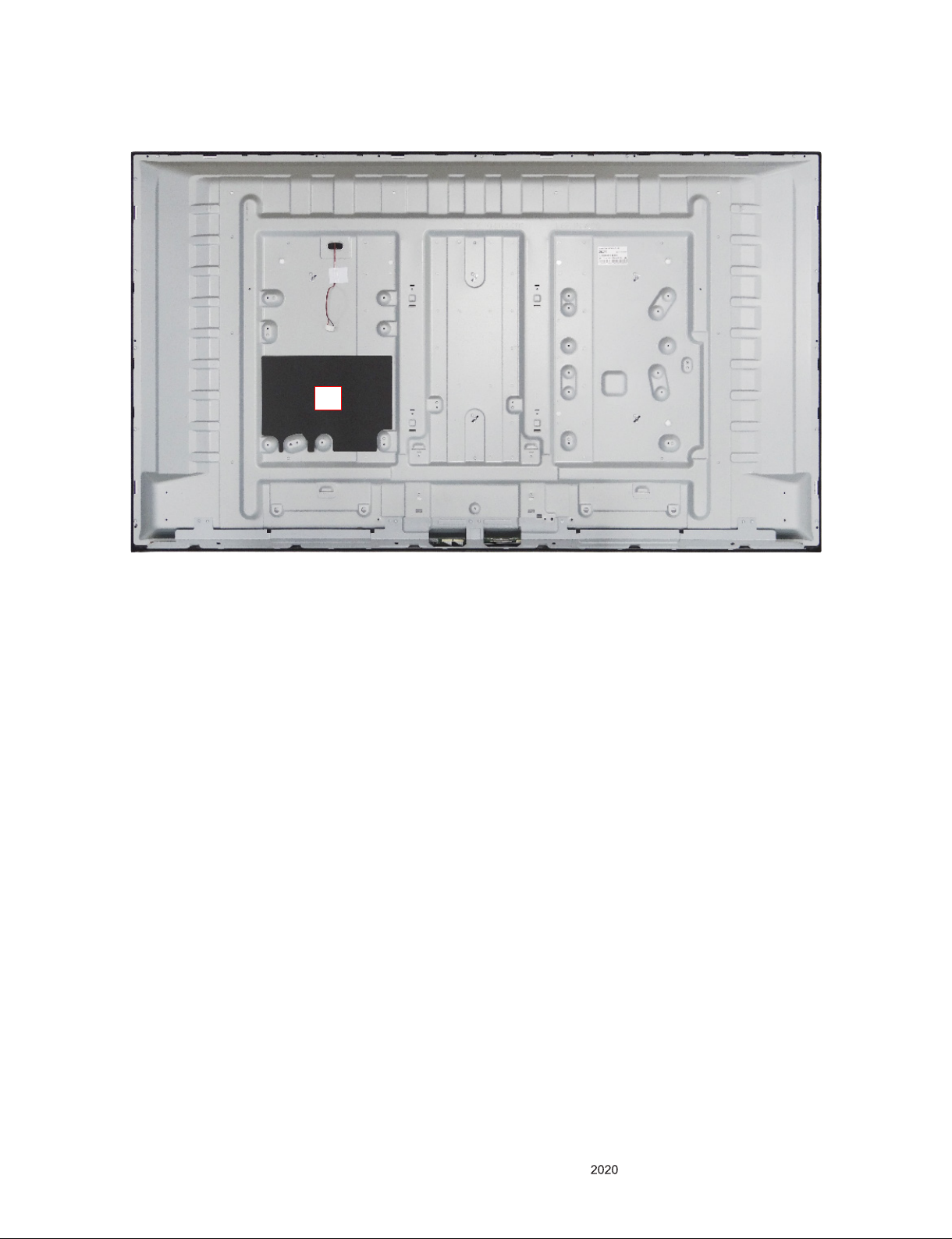

7. Remove insulation sheet “E” from module.
“E”

TROUBLE SHOOTING GUIDE
Copyright © 2020 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1
A. Video error
No video / Normal audio 1
2 No video / No audio 2
3 Picture broken / Freezing 3
4 Color error 4
5Vertical/Horizontal bar, residual image, light
spot, external device color error 5
6B. Power error No power 6
7Off when on, off while viewing, power auto
on/off 7-8
8C. Audio error No audio / Normal video 9
9 Wrecked audio / Discontinuation / Noise 10
10
D. Function error
Remote control & Local switch checking 11
11 MR20 operating checking 12
12 Wi-Fi operating checking 13
13 External device recognition error 14
14 E. Noise Circuit noise, Mechanical noise 15
15 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright © 2020 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

Normal
audio Y
N
Move to
No video/No audio
No video
Normal audio Check backlight on
with the naked eye On Y
N
Check 13.2V from
Power B/D Normal
voltage Y
N
Replace T-con/Main B/D
or module
Repair Power B/D
or parts
Check voltage from Power B/D to backlight
Normal
voltage YReplace module
N
Replace Power B/D
or repair parts
Always check & record S/W Version, White
Balance value before replacing the Main Board Replace Main Board Re-write Tool option, Area option and White Balance value
※Precaution
Established
date
Standard Repair Process
Revised date
Error
symptom A. Video error
No video / Normal audio
☞A18
☞A1
☞A18
☞A2& A4
First of all, Check whether all of cables between boards is assembled properly or not.
(Main B/D↔ Power B/D, Vx1 or EPI Cable, Speaker Cable, IR B/D Cable and so on)
1
End
Copyright © 2020 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
