LG 55UT672M0UC User manual

P/NO : MFL71663906 (1908-REV00)
CHASSIS : UA9BW
MODEL : 55UT672M0UC
LED TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CONFIDENTIAL
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means),
publication, modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you
have obtained the prior written consent of the LG Electronics entity from which you received this Service Manual.
The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service
Manual.
Copyright © 2019 LG Electronics Inc. All rights reserved. Only training and service purposes.

- 2 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION .......................................................................................6
SOFTWARE UPDATE ............................................................................ 11
BLOCK DIAGRAM ................................................................................. 13
EXPLODED VIEW .................................................................................. 14
DISASSEMBLY GUIDE........................................................................... 16
TROUBLE SHOOTING GUIDE ................................................ APPENDIX

- 3 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board mod-
ule or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri-
cally shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the LED TV used UA9BW
chassis.
2. Test condition
Each part is tested as below without special appointment.
(1) Temperature: 25 °C ± 5 °C, CST: 40 °C ± 2 °C
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
(1) Performance: LGE TV test method followed
(2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
4. General Specification
No Item Specication Remarks
1 Market North America
2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM
3 Available Channel VHF 2 ~ 13
UHF 14 ~ 69
DTV 2 ~ 69
CATV 1 ~ 135
CADTV 1 ~ 135
4 Receiving system Digital : ATSC, 64 & 256 QAM
Analog : NTSC-M
5 Video Input NTSC-M Rear Refer 5.
6 Component Input Y/Cb/Cr, Y/ Pb/Pr Rear
7 HDMI Input UHD HDMI 1 PC / DTV Format Support 6Gbps
HDMI 2 PC / DTV Format Support 6Gbps, Support ARC
HDMI 3 PC / DTV Format Support 6Gbps
HDMI 4 PC / DTV Format Support 6Gbps
8 Audio Input AV Audio / DVI Audio Rear
9 Audio out SPDIF Optical Audio out Rear
HeadPhone HeadPhone out
10 USB Input EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD
11 RS-232C IN(Control & Service) Rear
12 Game Control /M.P.I. Rear
13 TV-LINK CFG Conguration b_LAN Tuner Rear
14 RJP Remote Jack Pack Rear
15 Speaker Out(Line Out) Rear
16 LAN Rear
17 Service Only PTC / CPU Debugging Rear

- 7 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
No Item Q'TY Specication Remarks & Applied Models
1 RF Input 1 Analog : NTSC-M for USA/Canada/Mexico
Digital : ATSC
2 HDMI Input 4 Digital Input Side(3EA) Rear(1EA)
3 Digital Input Side(2EA) Rear(1EA)
2 Digital Input Side(1EA) Rear(1EA)
3 AV Input 1 CVBS/L/R Gender (Yellow Phone-Jack Type)
4 Component Input 1 480i /480p/720p/1080i/1080p RCA (Green, Blue, Red)
5 Audio Input 1 Component Audio / DVI Audio RCA(White, Red) :
6 Audio Output 1 SPDIF out S/PDIF Optical
7 USB 2 EMF, DivX HD, For SVC
(download)
Side(1EA) Rear(1EA)
1 Side(1EA) Rear(0EA)
2 Side(2EA) Rear(0EA)
8 RS-232C IN
(Control & Service)
1 "* D-SUB 9PIN Type
* Phone Jack type
9 Game Control /M.P.I. 1 "* Game Conteol/M.P.I.
* M.P.I.
10 TV-LINK CFG 1
11 RJP 1
12 "Speaker Out
(Line Out)"
1
13 LAN 2 AUX LAN / LAN
1 LAN
14 Service Only 1 CPU/MICOM Debugging
15 Remocon Code LG code
16 Local Key One Key(Power On/Off),
5 Keys(Power On/Off, CH Up, CH
Down, Volume Up, Volume Down)
17 Set Installation Wall Mount / Desk top
18 WIFI/BT Combo
5. Feature and Function

- 8 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
6. External Input Support Format
6.1. HDMI Input (PC/DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
PC
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40 VESA(SVGA)
5 1024*768 48.36 60.00 65 VESA(XGA)
6 1360*768 47.71 60.01 84.75 VESA(WXGA)
7 1152*864 54.34 60.05 80 VESA
8 1280*1024 63.98 60.02 109 SXGA
9 1920*1080 67.50 60.00 158.4 WUXGA(Reduced Blanking)
10 1920*1080 134.86 119.88 297 WUXGA(Reduced Blanking)
11 1920*1080 135.00 120.00 297 WUXGA(Reduced Blanking)
12 2560*1440 88.78 59.95 241.5 UHD 60Hz
13 3840*2160 53.95 23.98 297 UDTV 2160P
14 3840*2160 54.00 24.00 297 UDTV 2160P
15 3840*2160 56.25 25.00 297 UDTV 2160P
16 3840*2160 61.43 29.97 297 UDTV 2160P
17 3840*2160 67.50 30.00 297 UDTV 2160P
18 3840*2160 112.50 50.00 594 UDTV 2160P
19 3840*2160 134.86 59.94 594 UDTV 2160P
20 3840*2160 135.00 60.00 594 UDTV 2160P
21 4096*2160 53.95 23.98 296.7 UDTV 2160P
22 4096*2160 54.00 24.00 297 UDTV 2160P
23 4096*2160 56.25 25.00 297 UDTV 2160P
24 4096*2160 61.43 29.97 297 UDTV 2160P
25 4096*2160 67.50 30.00 297 UDTV 2160P
26 4096*2160 112.50 50.00 594 UDTV 2160P
27 4096*2160 134.86 59.94 594 UDTV 2160P
28 4096*2160 135.00 60.00 594 UDTV 2160P
29 7680*4320 108 24 1188 8K

- 9 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
DTV
1 640*480 31.46 59.94 25.12 SDTV 480p
2 640*480 31.50 60.00 25.12 SDTV 480p
3 720*480 31.47 59.94 27 SDTV 480p
4 720*480 31.50 60.00 27.02 SDTV 480p
5 720*576 31.25 50.00 27 SDTV 576p
6 1280*720 44.96 59.94 74.17 HDTV 720p
7 1280*720 45.00 60.00 74.25 HDTV 720p
8 1280*720 37.50 50.00 74.25 HDTV 720p
9 1920*1080 28.12 50.00 74.25 HDTV 1080i
10 1920*1080 33.72 59.94 74.17 HDTV 1080i
11 1920*1080 33.75 60.00 74.25 HDTV 1080i
12 1920*1080 26.97 23.97 63.29 HDTV 1080p
13 1920*1080 27.00 24.00 63.36 HDTV 1080p
14 1920*1080 33.71 29.97 79.12 HDTV 1080p
15 1920*1080 33.75 30.00 79.2 HDTV 1080p
16 1920*1080 56.25 50.00 148.5 HDTV 1080p
17 1920*1080 67.43 59.94 148.35 HDTV 1080p
18 1920*1080 67.50 60.00 148.5 HDTV 1080p
19 1920*1080 112.50 100.00 297 HDTV 1080p
20 1920*1080 134.86 119.88 296.7 HDTV 1080p
21 1920*1080 135.00 120.00 297 HDTV 1080p
22 3840*2160 53.95 23.98 296.7 UDTV 2160p
23 3840*2160 54.00 24.00 297 UDTV 2160p
24 3840*2160 56.25 25.00 297 UDTV 2160p
25 3840*2160 61.43 29.97 296.7 UDTV 2160p
26 3840*2160 67.50 30.00 297 UDTV 2160p
27 3840*2160 112.50 50.00 594 UDTV 2160p
28 3840*2160 134.86 59.94 593.4 UDTV 2160p
29 3840*2160 135.00 60.00 594 UDTV 2160p
30 4096*2160 53.95 23.98 296.7 UDTV 2160p
31 4096*2160 54.00 24.00 297 UDTV 2160p
32 4096*2160 56.25 25.00 297 UDTV 2160p
33 4096*2160 61.43 29.97 296.7 UDTV 2160p
34 4096*2160 67.50 30.00 297 UDTV 2160p
35 4096*2160 112.50 50.00 594 UDTV 2160p
36 4096*2160 134.86 59.94 593.4 UDTV 2160p
37 4096*2160 135.00 60.00 594 UDTV 2160p

- 10 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
DTV
40 4096*2160 112.5 50 594 UDTV 2160P When HDMI1,2,3,4
UHD DEEP COLOUR
ON
41 4096*2160 134.86 59.94 593.4 UDTV 2160P
42 4096*2160 135 60 594 UDTV 2160P
43 4096*2160 225 100 1188 UDTV 2160P
44 4096*2160 270 120 1188 UDTV 2160P
45 2560*1440 88.78 60 241.5 3K non-standard
46 2560*1440 183 120 497.7 3K non-standard
47 7680*4320 107.89 23.98 1188 8K 8K Model Only
48 7680*4320 108 24 1188 8K 8K Model Only
49 7680*4320 110 25 1188 8K 8K Model Only
50 7680*4320 131.87 29.97 1188 8K 8K Model Only
51 7680*4320 132 30 1188 8K 8K Model Only
52 7680*4320 220 50 2376 8K 8K Model Only
53 7680*4320 263.74 59.94 2376 8K 8K Model Only
54 7680*4320 264 60 2376 8K 8K Model Only
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
1 720*480i 15.73 59.94 13.5 SDTV, DVD 480I(525I)
2 720*480i 15.75 60 13.514 SDTV, DVD 480I(525I)
3 720*576i 15.625 50 13.5 SDTV, DVD 576I(625I)
50Hz
4 720*480p 31.47 59.94 27 SDTV 480P
5 720*480p 31.5 60 27.027 SDTV 480P
6 720*576p 31.25 50 27 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45 60 74.25 HDTV 720P
9 1280*720 37.5 50 74.25 HDTV 720P 50Hz
10 1920*1080 28.125 50 74.25 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60 74.25 HDTV 1080I
13 1920*1080 56.25 50 148.5 HDTV 1080P
14 1920*1080 67.43 59.94 148.5 HDTV 1080P
15 1920*1080 67.5 60 148.5 HDTV 1080P
6.2. Component Input

- 11 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SOFTWARE UPDATE

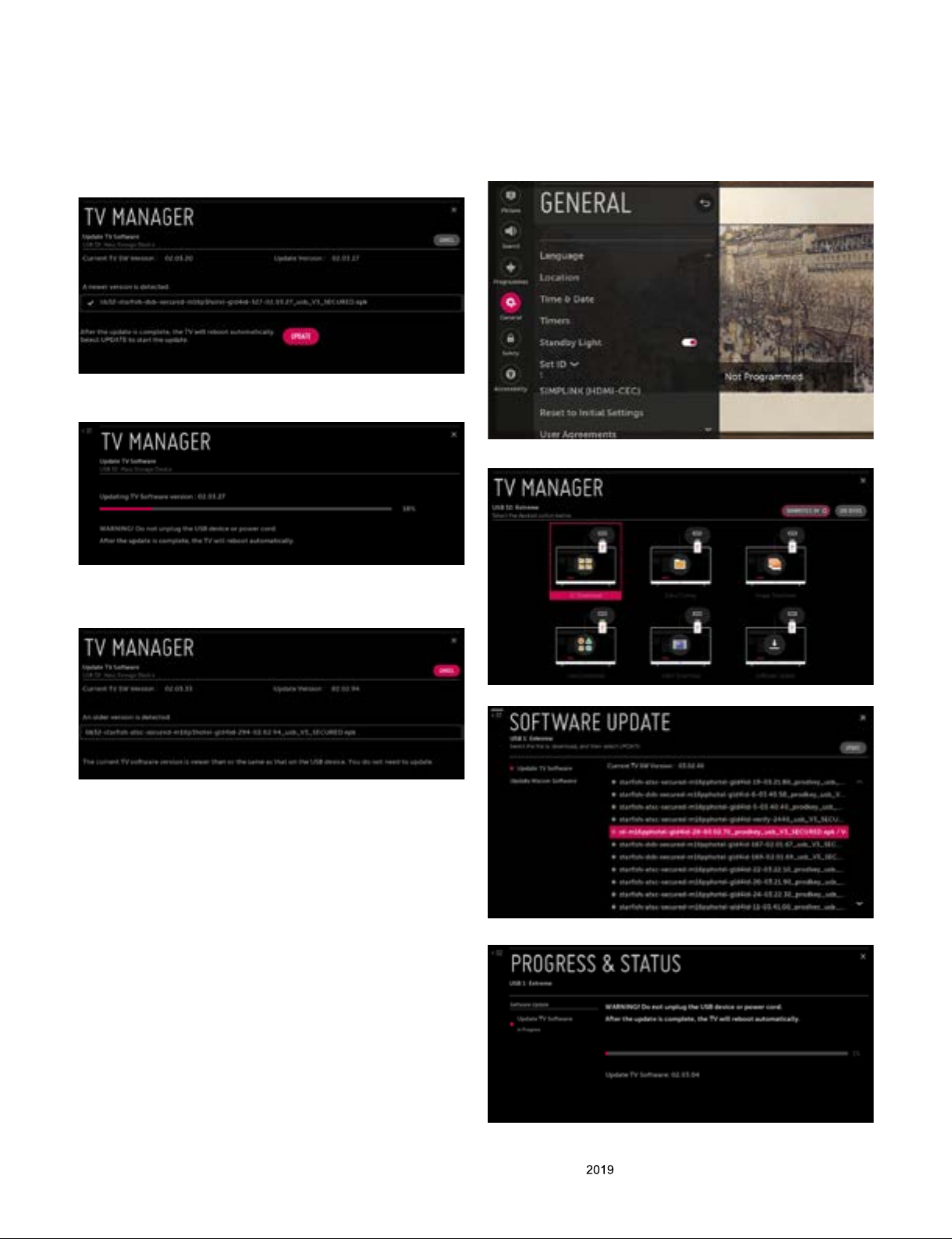

1. User Mode
(1) Insert the USB memory stick to the USB port.
(2) Automatically TV manager application is launched and
detect the SW version.
(3) Select ‘UPDATE’ button.
(4) TV is updating.

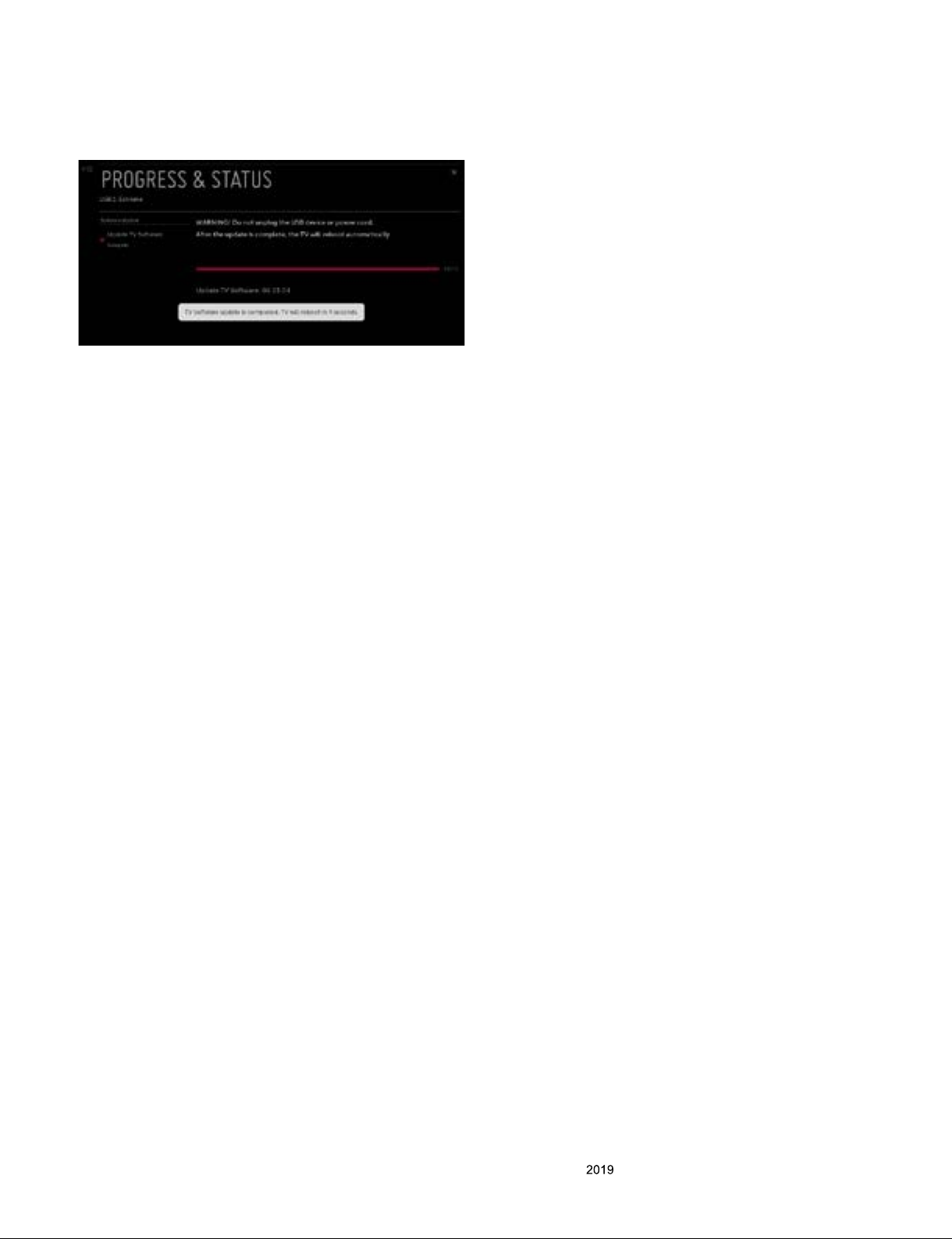

(5) After finished the update, below Pop-up appears then TV
will reboot automatically.
(6) Check the updated SW Version and Tool Option
* If the software version on the USB device is equal to or lower
than the version currently installed on the TV, it cannot be
updated in User Mode
2. Expert Mode
(1) Menu -> General : press ‘7’ consecutively by remote control
until TV Manager application is launched.
(2) Select the menu.
(3) Select the file.
(4) TV is updating.

- 12 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
(5) After finished the update, below Pop-up appears then TV
will reboot automatically.
(6) Check the updated SW Version and Tool Option
- Ez Download : The Ez Download utility enables users to
download multiple items all at once, e.g., TV
(CPU), Micom, TLL, Image, Icon, Video,
Pro:Idiom M Key files.
- Data Coning : make and apply clone file.
- Image Download : Image Download downloads “Boot Logo
Image,” “Apps Background Image(s),” and
“Hotel Directory Image(s)” at once.
- Icon Download : Icon Download downloads “Hotel Icon on
Portal,” “Website Shortcut,” and “Input
Shortcut” images at once.
- Video Download : Video Download downloads “Hotel Video”
and “Welcome Video” files at once.
- Software Update: download software firmware, Micom or
CPU firmware file.
- The target files should be located in “LG_DTV” folder.
(* Clone files should be copied to the root folder of the USB )
- The downloadable items differ depending upon model.

- 13 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
BLOCK DIAGRAM
Rear
Side
OCP 1.5A
AudioAMP
(DTA2010M)
Main IC
OPTIC
LAN1
DDR3 2133X16
(512MB X2EA)
eMMC (4GB)
DDR3 2133X16
(512MB X2EA)
SYSTEM EEPROM
(256Kb)
X_TAL 24MHz
I2SOut
SPDIFOUT BLUTOOTH
WIFI SUB
ASSY
Tuner:I2C5 D-Demod:I2C2
IF (+/-) CVBS/SIF
USB1 (2.0) HDMI2 (2.0) (ARC)
OCP 1.5A
TI MICOM
IR/Key/Eye
UART S/W
Debug
X_TAL
32.768MHz
I2C1
(Tx/Rx)
Ti Micom
Data
Demod
RF
b-LAN
Game Control / MPI
MPI/SPI
Rear
TV-LINKCFG
Side Side
Pillow SPK
AMP
Trans
Pillow SPK
Rear Rear
HDMI1 (2.0)
USB2 (2.0)
Rear Rear

- 14 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

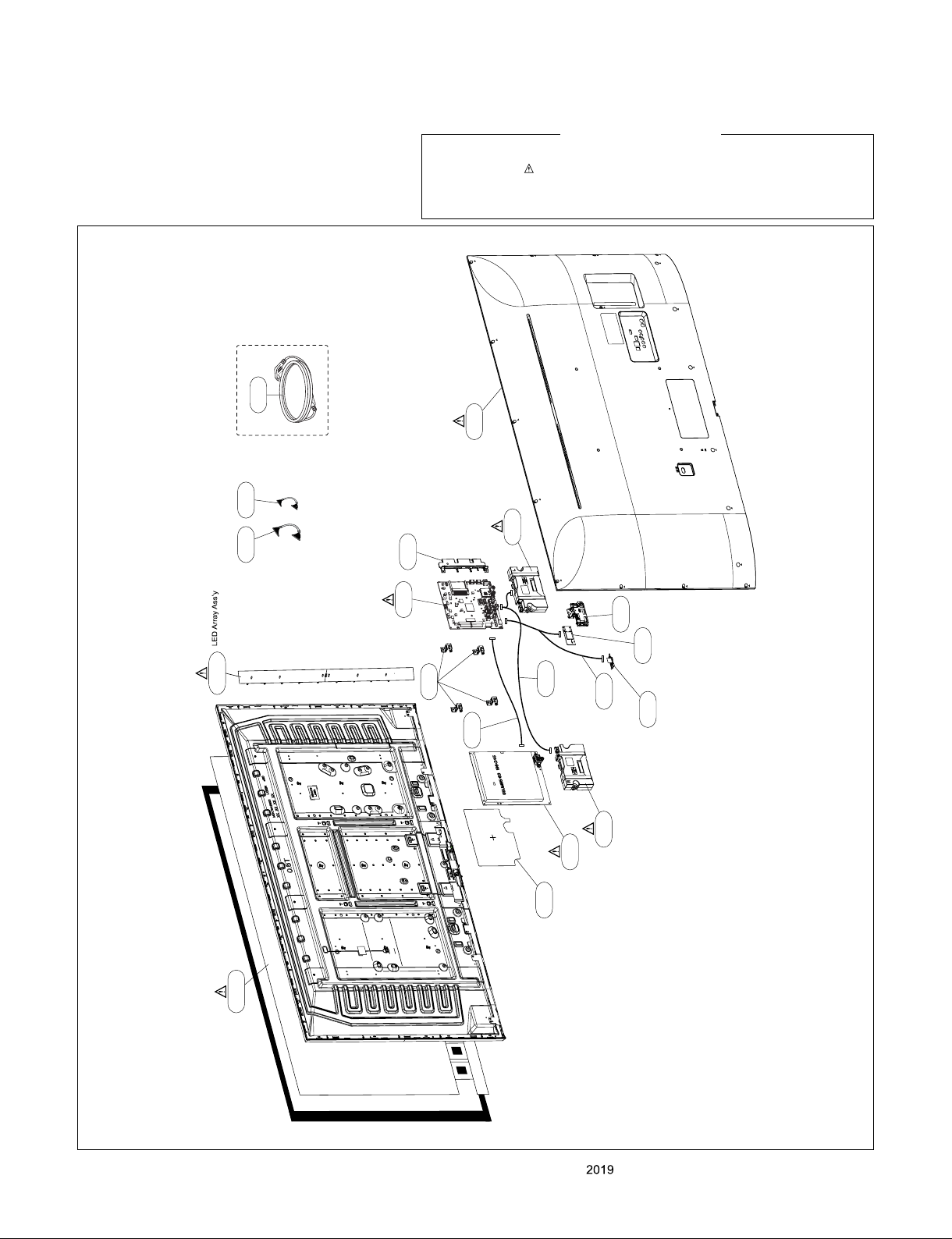

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
200A
800
HP1 400
540
200P LV1
521
570
530
HS1
HW1
700
571
500
820
LV2
121
120

- 15 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
MRC use only
* MRC : Module Repair Center
IMPORTANT NOTICE
EXPLODED VIEW (MODULE)
POL(Front) Panel
Ass’y
POL(Rear) Optical Sheet
Rear Side
200PPF 200PPR
200P
200PC 200SL1 200SR1

- 16 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
DISASSEMBLY GUIDE (SET)
22
1
2
2
2
222 2
22 2 2 22
2
22
chassis
3

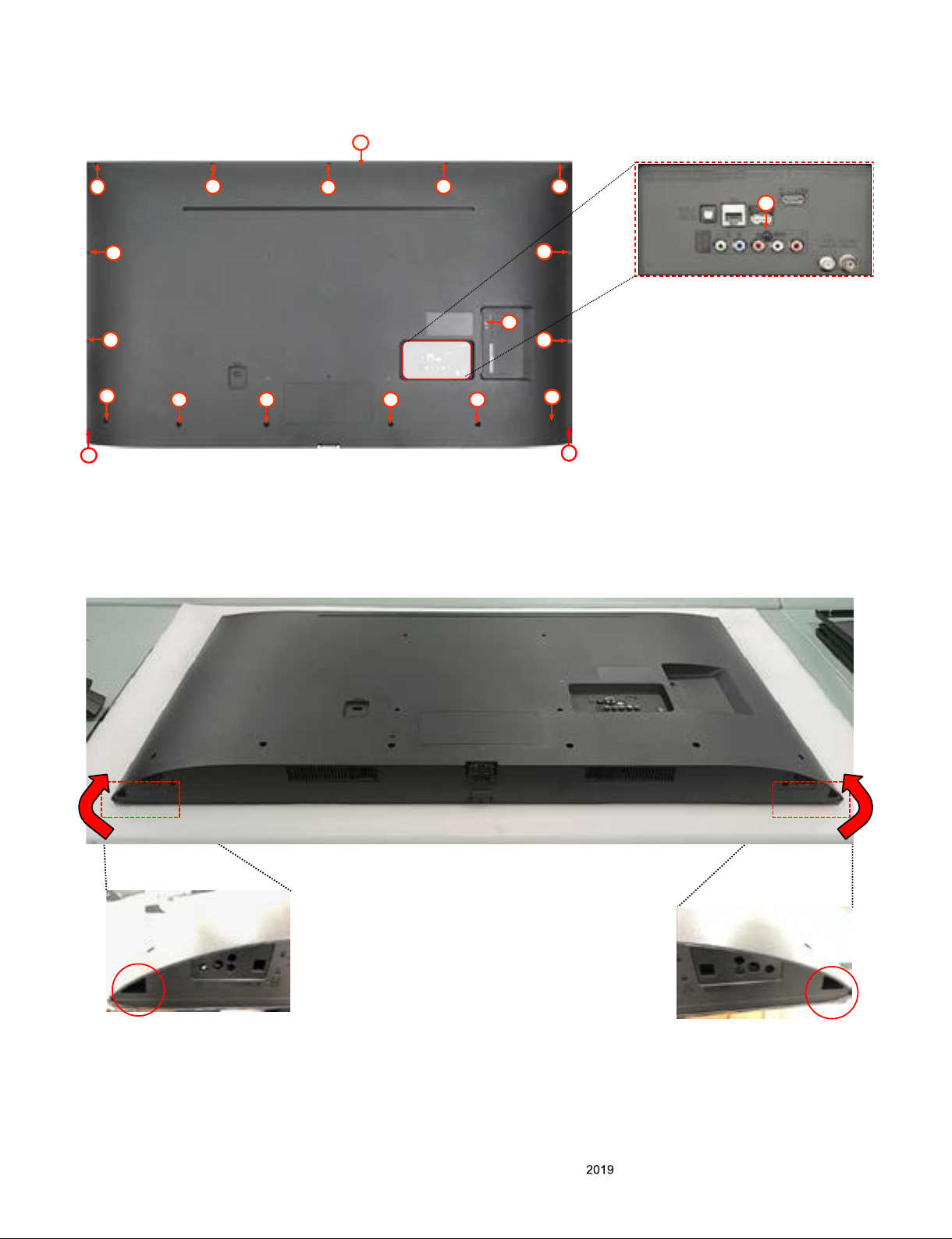

# When assembling the back cover, First align the upper part and Second align the lower part of the chassis.
- Back Cover Work Order
1. Back Cover (1) + Module Bottom Assembly
2. Screw (2) Assembly
3. Rear AV Screw (3) Assembly
* Do not wear items that may damage the appearance of the product
* SCREW TORQUE : 5 ~ 7Kgf.cm
# Insert your nger in the left/right triangle hole (indicated by the red circle) to disassemble the back cover
- Back Cover Work Order
1. Back Cover Screw disassemble
2. Insert the nger of the back cover bottom section triangle hole and disassemble it
* Do not wear items that may damage the appearance of the product
* SCREW TORQUE : 5 ~ 7Kgf.cm

- 17 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
DISASSEMBLY GUIDE (MODULE)
[Case Top]

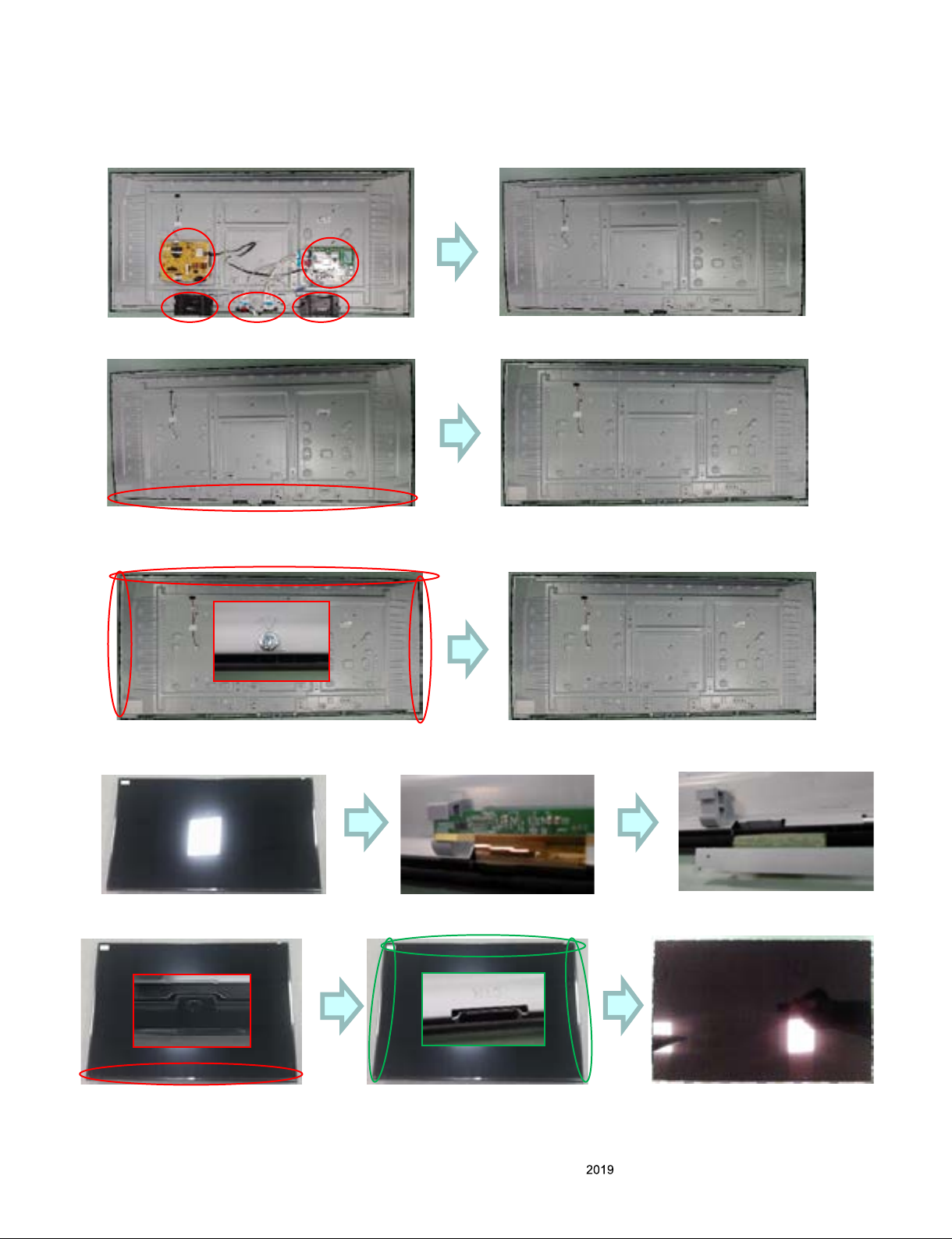

(Step 1) Disassemble the Main, PSU, SPK, Wifi & IR.
(Step 2) Disassemble the S-PCB Cover Shield .
(Step 3) Disassemble the Case Top Screw.(back screw)
(Step 4) LCM reverse and disassemble Source PCB from Holder
(Step 5) Disassemble the Case Top Screw (side screw) and Case Top.
* Rear Sliver screw 5ea
* Screw top 7 EA / side L 5ea / side R EA
* Hook top 6ea / side L 5 EA / side R 5 EA* Screw down 7 EA

- 18 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

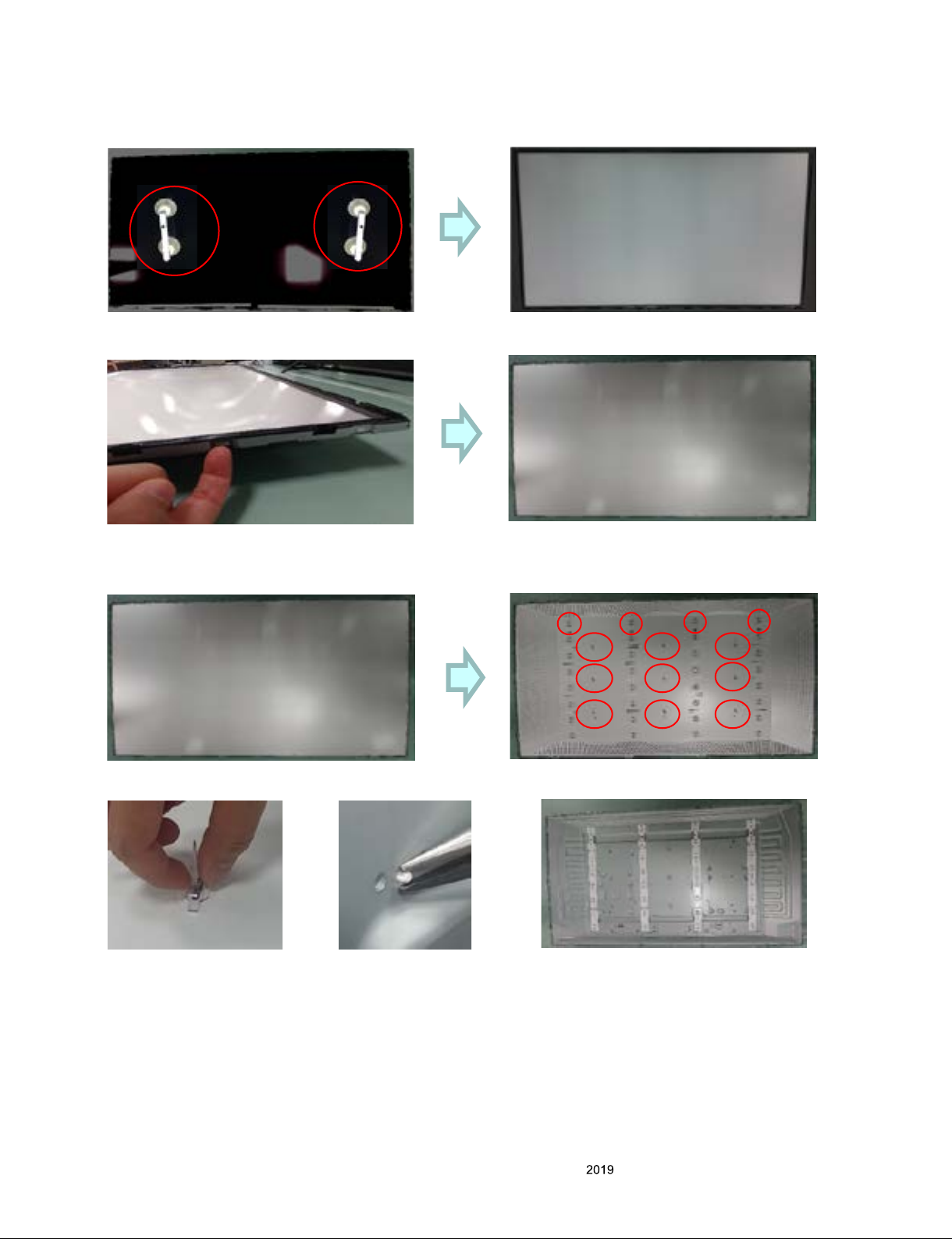

(Step 6) 6 Disassemble the Panel.
(Step 7) 6 Disassemble the guide panel.
(Step 8) Disassemble the Optical Sheet (Prism up, Prism down, DP)
(Step 9) Disassemble the DPS, LED Fixer & Reflector Sheet
* Rotate the DPS to remove (9 EA) * Push LED xer in back (4 EA)
* Hook top 8 EA / side L 4 EA / side R 4 EA / down 7 EA

- 19 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
[LED Array Disassemble]
(1) Disassemle the CNT form LED Array.
(2) Separate the LED Array from Cover Bottom.
(3) Remove the double tape form Cover Bottom.
[LED Array Assemble]
(Step 1) Attach the Double Tape
1) Attach the Double Tape in Guide Line of Cover Bottom (4ea)
2) Remove the protect film of Double Tape
(Step 2) Attach the LED Array
1) Attach the LED Array to the round hole on Cover Bottom embo.
2) Press the LED Array on the surface of Cover Bottom.
3) Connect the CNT to the LED Array.
* C/Bottom Guide Line * Completion of double tape attach (4ea)
* Finish the Attached LED Array (4 EA)
NG OK

TROUBLE SHOOTING GUIDE
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
