LG 60UU640C User manual

P/NO : MFL70721105 (1810-REV00)
CHASSIS : UD8BC
MODEL : 60UU640C 60UU640C-ZA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED TV
SERVICE MANUAL
CONFIDENTIAL
Copyright © 2018 LG Electronics Inc. All rights reserved. Only training and service purposes.

- 2 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION ...................................................................................... 6
SOFTWARE UPDATE ............................................................................ 10
BLOCK DIAGRAM ................................................................................. 11
EXPLODED VIEW .................................................................................. 12
DISASSEMBLY GUIDE .......................................................................... 13
TROUBLE SHOOTING GUIDE ................................................ APPENDIX

- 3 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau-
tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec-
trically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate-
rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri-
ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain-
ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when-
ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the LED TV used UD8BC
chassis.
2. Requirement for Test
Each part is tested as below without special notice.
(1) Temperature : 25°C ± 5°C (77°C ± 9°C), CST : 40°C ± 5°C
(2) Relative Humidity : 65 % ± 10 %
(3) Power Voltage :
Standard input voltage (AC100~240V @ 50/60Hz)
Standard Voltage of each product is marked by models
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 20 minutes prior
to the adjustment
3. Test method
(1) Performance: LGE TV test method followed
(2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
- Wireless : Wireless HD Specification (Option)
4. Model General Specification
No. Item Specication Remarks
1 Market EU(PAL Market-36Countries)/CIS
+ Moroco(Africa)
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countrie
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, , Belgium, Luxemburg, Greece, Czech, Turkey, Moroco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Beralus
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,
Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Cro-
atia, Turkey, Moroco, Ireland, Latvia, Estonia, Lithuania, Poland, Portu-
gal, Romania, Albania, Bosnia, Serbia, Slovakia, Beralus, UK, Sweden,
Denmark, Finland, Norway, Ukraine, Kazakhstan
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Moroco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Beralus, UK(Ireland), Sweden, Denmark, Finland,
Norway, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E , AMOS 4.0W , ASIASAT3S 105.5E , ASTRA 19.2E , ASTRA
23.5E , ASTRA 28.2E , ASTRA 4.8E, ATLANTIC BIRD2 8.0W , ATLAN-
TIC BIRD3 5.0W , BADR 26.0E , DIRECTV-1R 56.0E , EUROBIRD 9A
9.0E , EUROBIRD3 33.0E , EUTELSAT 36 A/B 36.0E ,EUTELSAT W2A
10.0E , EUTELSAT W3A 7.0E , EUTELSAT7WA 7.3WEUTELSAT 16.0E
, EXPRESS AM1 40.0E , EXPRESS AM3 140.0E , EXPRESS AM33
96.5E , HELLASSAT 39.0E , HISPASAT 1CDE 30.0WHOTBIRD 13.0E
, INTELSAT10&7 68.5E , INTELSAT15 85.2E , INTELSAT1R 50.0W,
INTELSAT903 33.5W , INTELSAT904 60.0E, NILESAT 7.0W , NSS12
57.0E , THOR 0.8W , TURKSAT 42.0E ,YAMAL201 90.0E , OTHER

- 7 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
No. Item Specication Remarks
2 Broadcasting system
1) Digital TV
- DVB-T
- DVB-T2*
- DVB-C
- DVB-S/S2*
2) Analogue TV
- PAL/SECAM B/G, D/K, I
- SECAM L
*:Depending on country and model
3 Channel coverage
1 ) Digital TV
1-1)DVB-T/T2
-VHF III : 174~230MHz
-UHF IV : 470~606MHz
-UHF V : 606~862MHz
-S Band II : 230~300MHz
-S Band III : 300 ~470MHz
1-2)DVB-C
- 46 ~ 890MHz
1-3)DVB-S/S2
- 950~2150MHz
2) Analogue TV
- 46~862MHz
*:Depending on country and model
4Maximum number of
storable programmes
1) DVB-S/S2 : 6,000
2) DVB-C, DVB-T/T2, Analogue TV : 3.000 *Depending on model
5External antenna
impedance Digital & Analogue TV : 75Ω *Depending on model
6 Receiving system Analog : Upper Heterodyne
Digital : COFDM, QAM
►DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2 (Model : *L*V*-Z* (T2 only Model))
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate :
4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

- 8 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
5. External Input format
No.
Specication
Resolution H-freq
(kHz) V-freq (Hz) Pixel clock Proposed Remarks
1 640*480 31.469 59.94 25.125 SDTV 480P
2 640*480 31.5 60.00 25.125 SDTV 480P
3 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
Spec. out but display
4 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)
5 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60.00 27.027 SDTV 480P
8 720*576 31.25 50.00 27 SDTV 576P
9 1280*720 44.96 59.94 74.176 HDTV 720P
10 1280*720 45 60.00 74.25 HDTV 720P
11 1280*720 37.5 50.00 74.25 HDTV 720P
12 1920*1080 28.125 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.176 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.976 63.296 HDTV 1080P
16 1920*1080 27.00 24.000 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.120 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.5 HDTV 1080P
20 1920*1080 67.432 59.94 148.350 HDTV 1080P
21 1920*1080 67.5 60.00 148.50 HDTV 1080P
22 1920*1080 135 120 297.00 HDTV 1080P
23 1920*1080 134.86 119.88 296.703 HDTV 1080P
24 1920*1080 112.5 100 297.00 HDTV 1080P
25 3840*2160 53.95 23.98 296.703 UDTV 2160P
26 3840*2160 54 24.00 297.00 UDTV 2160P
27 3840*2160 56.25 25.00 297.00 UDTV 2160P
28 3840*2160 61.43 29.97 296.703 UDTV 2160P
29 3840*2160 67.5 30.00 297.00 UDTV 2160P
30 3840*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2
UHD DEEP COLOUR ON
31 3840*2160 134.865 59.94 593.407 UDTV 2160P When HDMI1,2
UHD DEEP COLOUR ON
32 3840*2160 135 60.00 594 UDTV 2160P When HDMI1,2
UHD DEEP COLOUR ON
33 4096*2160 53.95 23.98 296.703 UDTV 2160P
34 4096*2160 54 24.00 297 UDTV 2160P
35 4096*2160 56.25 25.00 297 UDTV 2160P
36 4096*2160 61.43 29.97 296.703 UDTV 2160P
37 4096*2160 67.5 30.00 297 UDTV 2160P
5.1. HDMI : EDID DATA : Refer to adjust specification.
5.1.1. DTV mode

- 9 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
5.1.2. PC mode
NO Resolution H-freq (kHz) V-freq (Hz) Pixel clock Proposed Remarks
1 640*350 31.468 70.09 25.17 EGA
2 720*400 31.469 70.08 28.32 DOS
3 640*480 31.469 59.94 25.17 VESA(VGA)
4 800*600 37.879 60.31 40 VESA(SVGA)
5 1024*768 48.363 60.00 65 VESA(XGA)
6 1360*768 47.712 60.015 84.75 VESA(WXGA)
7 1152*864 54.348 60.053 80 VESA
8 1280*1024 63.981 60.020 109.00 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.40 WUXGA
(Reduced Blanking)
10 1920*1080 135 120 297
11 3840*2160 54 24.00 297.00 UDTV 2160P
12 3840*2160 56.25 25.00 297.00 UDTV 2160P
13 3840*2160 67.5 30.00 297.00 UDTV 2160P
14 4096*2160 53.95 23.97 296.703 UDTV 2160P
15 4096*2160 54 24 297 UDTV 2160P
38 4096*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2
UHD DEEP COLOUR ON
39 4096*2160 134.865 59.94 593.407 UDTV 2160P When HDMI1,2
UHD DEEP COLOUR ON
40 4096*2160 135 60.00 594 UDTV 2160P When HDMI1,2
UHD DEEP COLOUR ON

- 10 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
SOFTWARE UPDATE
1. USB
(1) Put the USB Stick to the USB socket
(2) Go to in-start menu then push blue button at adj. remote.
(3) Go to Hotel menu and select TV Manager menu in hotel menu.
(4) Go to Ez Download
(5) Select SW file.
(6) Push Update button
(7) Updating is staring.
(8) Updating Completed, The TV will restart automatically.(if TV did not re-start automatically, turn on TV by manually)
(9) If your TV is turned on, check your updated version.
※If downloading version is more high than your TV have, TV can lost all channel data. In this case, you have to channel recover.
if all channel data is cleared, you didn’t have a DTV/ATV test on production line.
* After downloading, have to adjust TOOL OPTION again.
1)Push "ADJ" key in service remote controller.
2)Select "Tool Option 1" and Push “OK” button.
3)Punch in the number. (Each model has their number.)

- 11 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
HDMI3 HDMI 2.0 MAIN Audio AMP
(DTA2010AM)
IC101
IF+, IF-
LAN
Air/
Cable TUNER
(C/A)
T2 DEMOD
(T2/S2)
eMMC
(4GB)
P_TS
X_TAL
24MHz
TDJN-G601D : T2/C/ S2
I2S Out
I2C 0
I2C 4
ETHERNET
I2C 1
SUB
ASSY
IR / KEY
LOGO LIGHT(Ready)
WIFI/BT Combo
USB2_2
CVBS
HDMI1 HDMI 2.0
USB1 (2.0)
HDMI2(ARC) HDMI 2.0
Vby1
OCP
USB3_0
USB2_0
SIF
PHY0_RX0N
M0 M1
DDR4 2666
512MB / 1GB
DDR4 2666
512MB / 1GB
DDR3 2133
512MB
DDR3 / 2133
512MB
I2C 5
USB2_1
Side
Depend on Region
TI MICOM
UART S/W
(Tx/Rx) RS232
Debug /
Ext. VOL Ctrl.
Real Time
Clock IC
Battery
X_TAL
32.768KHz
X_TAL
32.768KHz
H/P
HP
AMP
Rear
AUDA_OUTL/R_CH1
Rear
Rear
TPI/O
TV Signage
HDMI
SWITCH
OPTIC SPDIF OUT
SYSTEM EEPROM
(1Mb)
Ti Micom
BLOCK DIAGRAM

- 12 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

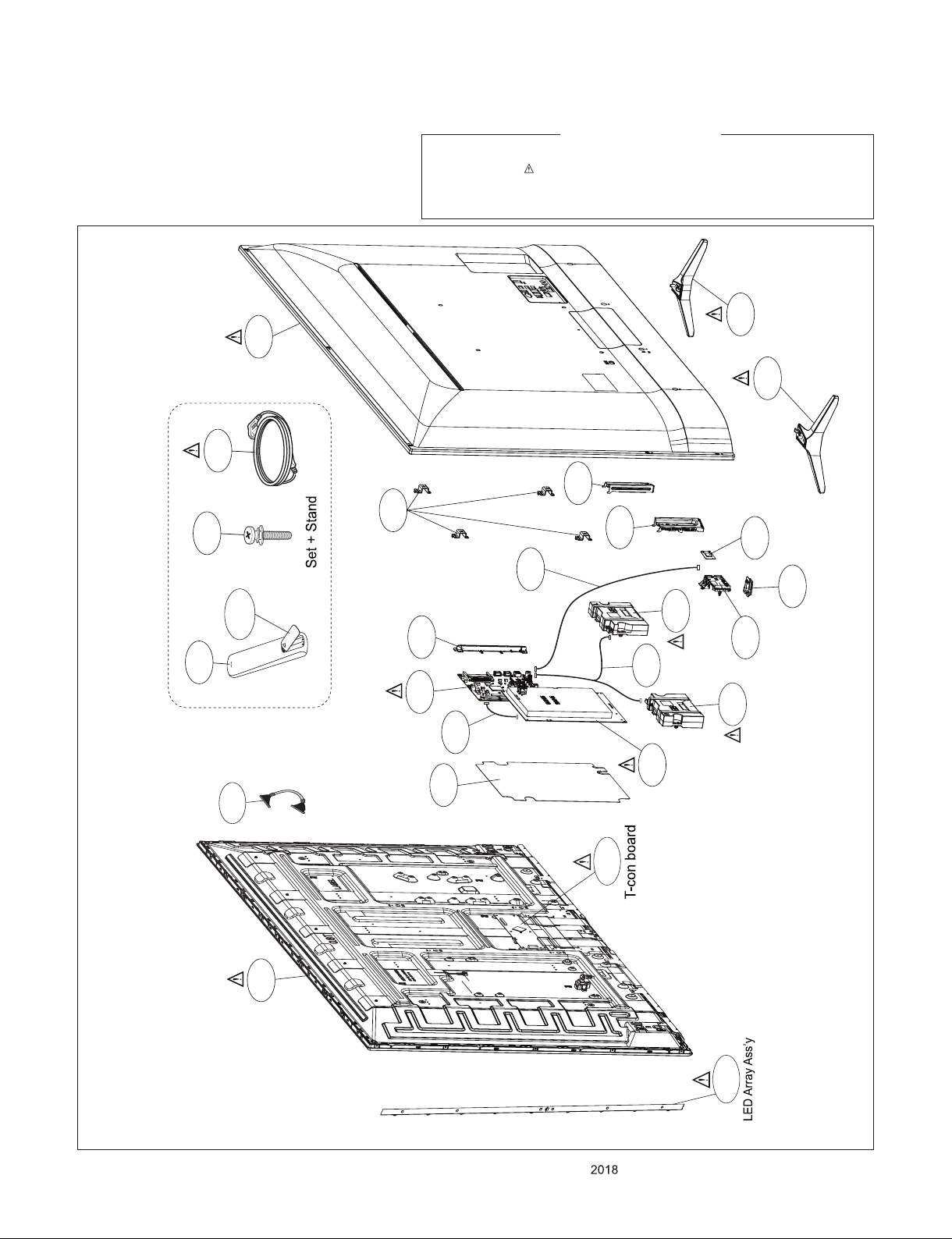

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
400
800
540 521
820
530
901
902
500
570
571
200
AR1
ARC1
700
A10
LV1
HS1
HP1
HW1
121
120
951
952
200T
200A

- 13 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
DISASSEMBLY GUIDE

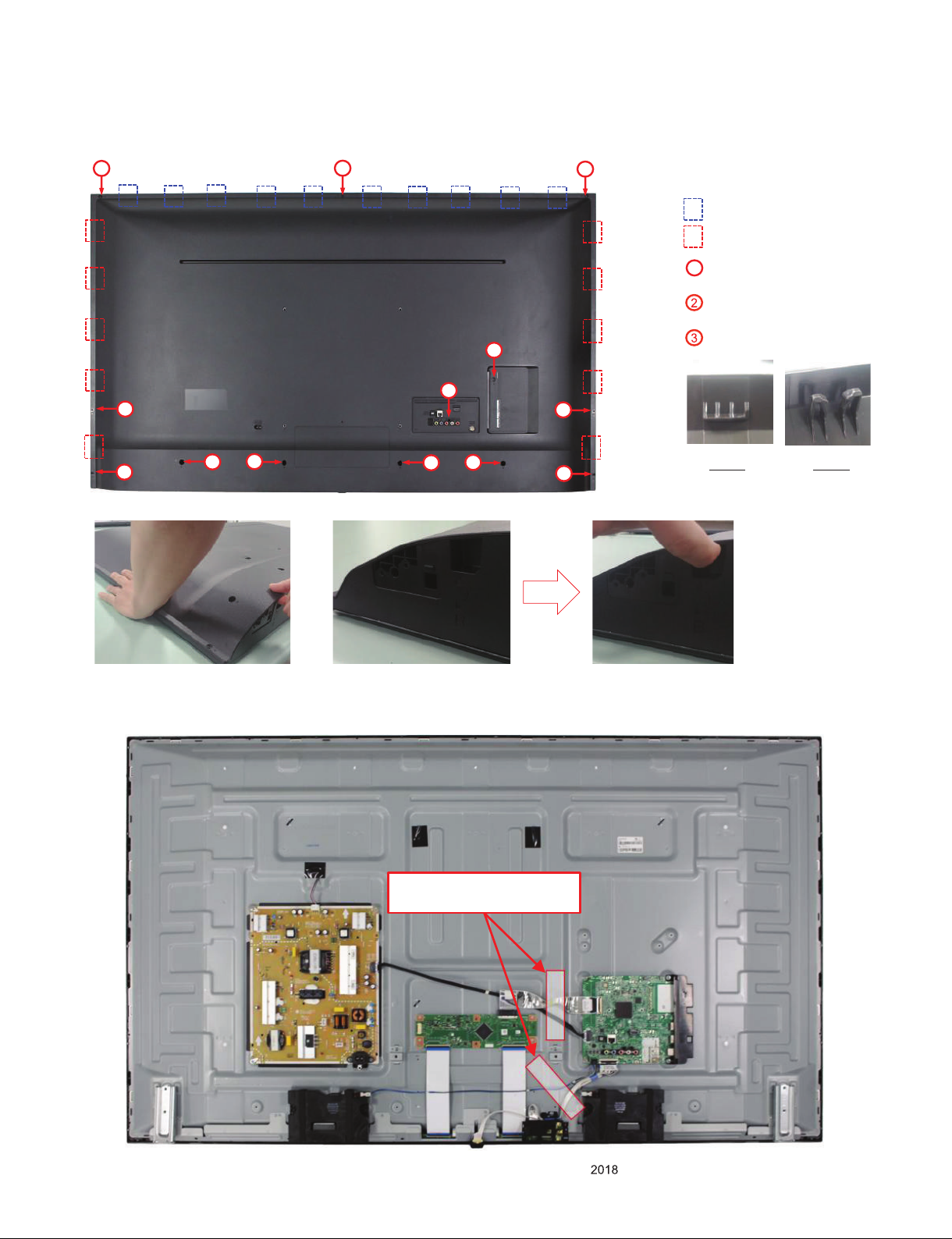

1. Remove Cover Rear
Latch 10EA
Screw 5EA(M3*5.5)
1
Hook 10EA
Screw 7EA(P3*10)
Screw 1EA(P4*10)
Hook Latch
2
2
2
2
2
2
2
1 1 1 1
1
3
Push the cover rear by one hand and pull it upward by another hand. It is easy to pull it if you put your finger in the groove.
2. Detach Tape
Detach tape

- 14 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
3. Remove all sort of cable.
4. IR assy, Wi-Fi PCB assy disassembly
Detach Hook
Disassemble screw(1ea) and
Remove cable from holder
IR Guide Hole

- 15 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
5. Screw disassembly
Screw 9
EA(M3*5.5)
1
1
1
1
1 1 1
1
1
1
6. Speaker disassembly
Detach hook

- 16 - Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
7. Screw disassembly
Screw 4
EA(M3*5.5)
Screw 4
EA(M4*8.0)
1
1
2 2
1
1
1
2
2

TROUBLE SHOOTING GUIDE
Copyright © 2018 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1
A. Video error
No video/Normal audio 1
2 No video/No audio 2
3 Picture broken/ Freezing 3
4 Color error 4
5 Vertical/Horizontal bar, residual image,
light spot, external device color error 5
6
B. Power error
No power 6
7 Off when on, off while viewing, power
auto on/off 7-8
8
C. Audio error
No audio/Normal video 9
9 Wrecked audio/discontinuation/noise 10
10
D. Function error
Remote control & Local switch checking 11
MR18 operating checking 12
11
12 Wifi operating checking 13
13 External device recognition error 14
14 E. Noise Circuit noise, mechanical noise 15
15 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright © 2018 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

Normal
audio
Y
N
Move to No
video/No audio
No video
Normal audio
Check Back Light
On with naked eye On Y
N
Check Power
Board
13.2V etc.
Normal
voltage
Y
N
Replace T-con/Main
Board or module
Repair Power
Board or parts
Check Power Board 13.2V output
Normal
voltage
Y Replace Inverter
or module
N
Repair Power
Board or parts
End
Always check & record S/W Version and White
Balance value before replacing the Main Board Replace Main Board Re-enter White Balance value
※Precaution
Established
date
Standard Repair Process
Revised date 1/16
Error
symptom A. Video error
No video/ Normal audio
☞A18☞A1
☞A18
☞A4 & A2
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS or EPI Cable, Speaker Cable, IR B/D Cable,,,)
1
Copyright © 2018 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

Normal
voltage?
Check various
voltages of Power
Board (13.2V…)
No Video/
No audio
Check and
replace
MAIN B/D
Y
Replace Power
Board and repair
parts
N End
Standard Repair Process
A. Video error
No video/ No audio
☞A18
Established
date
Revised date 2/16
Error
symptom
2
Copyright © 2018 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
