LG G3 series User manual

www.lg.com
Please read this manual carefully before operating your set and retain it
for future reference.
P/NO : MFL67468181 (1211-REV00)
OWNER’S MANUAL
LED TV
* LG LED TV applies LCD screen with LED backlights.
G3 Series

2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
2 TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
8 Viewing 3D Imaging
10 LICENSES
11 INSTALLATION PROCEDURE
11 ASSEMBLING AND PREPARING
11 Unpacking
13 Optional Extras
14 Parts and buttons
15 Lifting and moving the TV
16 Setting up the TV
16 - Attaching the stand
17 - Mounting on a table
18 - Mounting on a wall
19 - Tidying cables
20 MAKING CONNECTIONS
20 Connecting to an antenna or cable
21 Network connection
21 - Wireless Network Connection
21 - Wired Network Connection
22 Connecting to a HD receiver DVD Player or
VCR
22 - HDMI Connection
23 - DVI to HDMI Connection
24 - Connecting to a mobile phone
25 - Component Connection
26 - Composite Connection
27 Connecting a PC
27 - HDMI Connection or DVI to HDMI Con-
nection.
29 Connecting to an Audio System
29 - Digital Optical Audio Connection
30 Connecting to a USB
31 Using IR Blaster
32 REMOTE CONTROL
32 Inserting batteries
35 Registering the remote control
35 How to use the zoom in/out gestures
35 Speak to Watch
35 Precautions to take when using the remote
control
36 WATCHING TV
36 Turning the TV on for the first time
36 Setting the Mode
37 TROUBLESHOOTING
37 OPEN SOURCE SOFTWARE NOTICE
38 SPECIFICATIONS
40 MAINTENANCE
40 Cleaning Your TV
40 - Screen, frame, cabinet and stand
40 - Power cord
y Image shown may differ from your TV.
y Your TV’s OSD (On Screen Display) may
differ slightly from that shown in this
manual.
y The available menus and options may differ
from the input source or product model that
you are using.
y New features may be added to this TV in
the future.
NOTE

3
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your
product.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
y Do not use this apparatus near water.
y Clean only with a dry cloth.
y Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
y Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
y Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ by
country).
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.

4
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
y Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
y Only use attachments/accessories specified by
the manufacturer.
y Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
y Unplug this apparatus during lightning storms or
when unused for long periods of time.
y Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
y Never touch this apparatus or antenna during a
thunder or lightning storm.
y When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
y Do not allow an impact shock or any objects to fall
into the product, and do not drop anything onto
the screen.
y Keep the packing anti-moisture material or vinyl
packing out of the reach of children. Anti-moisture
material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit
the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
y CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and has
no additional outlets or branch circuits. Check the
specification page of this owner’s manual to be
certain. Do not connect too many appliances to
the same AC power outlet as this could result in
fire or electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indicates
damage or deterioration, unplug it, discontinue
use of the appliance, and have the cord replaced
with an exact replacement part by an authorized
service. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the
point where the cord exits the appliance. Do not
move the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power
cord. Do not pull on the power cord to unplug the
TV.

5
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
y Do not stick metal objects or any other conductive
material into the power cord. Do not touch the end
of the power cord while it is plugged in.
y Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain, moisture
or other liquids. Do not touch the TV with wet
hands. Do not install this product near flammable
objects such as gasoline or candles, or expose the
TV to direct air conditioning.
y Do not expose to dripping or splashing and do
not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g. on
shelves above the unit).
y Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not
try to ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Short-circuit Breaker
Power Supply
y Disconnecting the Main Power
The power outlet used with this device must
remain easily accessible.As long as this unit
is connected to the AC wall outlet, it is not
disconnected from the AC power source even if
the unit is turned off.
y Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product.

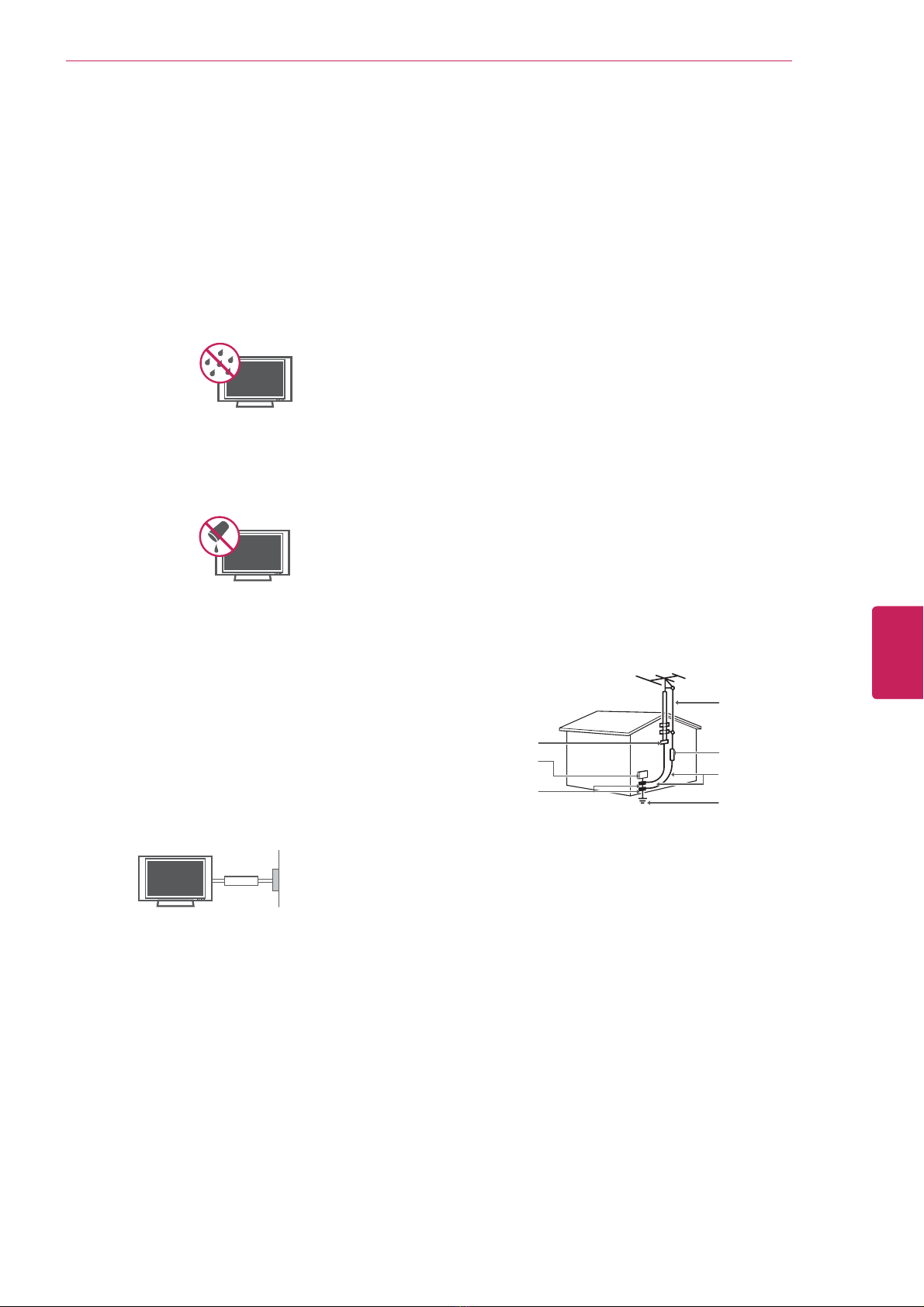

y Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can come in contact with
such power lines or circuits as death or serious
injury can occur. Be sure the antenna system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Section
810 of the National Electrical Code (NEC) in the
U.S.A. provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to
grounding electrodes and requirements for the
grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
NEC: National Electrical Code
Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
Electric Service
Equipment
Ground Clamp
y Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the TV
as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners or benzine.
y Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2
or more people to carry larger TVs. Do not press
or put stress on the front panel of the TV.

6
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
y Ventilation
Install your TV where there is proper ventilation.
Do not install in a confined space such as a
bookcase. Do not cover the product with cloth or
other materials while plugged. Do not install in
excessively dusty places.
y If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
y Do not press strongly upon the panel with your
hand or a sharp object such as a nail, pencil or
pen, or make a scratch on it.
y Keep the product away from direct sunlight.
y Dot Defect
The LCD panel is a high technology product with
resolution of two million to six million pixels. In
a very few cases, you could see fine dots on
the screen while you’re viewing the TV. Those
dots are deactivated pixels and do not affect the
performance and reliability of the TV.
y Generated Sound
“Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is generated
by plastic thermal contraction due to temperature
and humidity. This noise is common for products
where thermal deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-speed
switching circuit, which supplies a large amount of
current to operate a product. It varies depending
on the product.
This generated sound does not affect the
performance and reliability of the product.
y Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or cause
defects in the product.
y If the TV feels cold to the touch, there may be a
small “flicker” when it is turned on. This is normal,
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing as
tiny red, green, or blue spots. However, they have
no adverse effect on the TV’s performance. Avoid
touching the LCD screen or holding your finger(s)
against it for long periods of time. Doing so may
produce some temporary distortion effects on the
screen.
y Store the accessories (battery, etc.) in a safe
location out of the reach of children.
y This apparatus use batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact
your local authorities for disposal or recycling
information.
y Do not dispose of batteries in a fire.
y Do not short circuit, disassemble or allow the
batteries to overheat.
Preventing “Image burn” or “Burn-in” on your TV screen
y If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the screen.
This is “image burn” or “burn-in” and not covered
by the warranty.
y If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on the
letterboxed area of the screen.
y Avoid displaying a fixed image on the TV screen
for a long period of time (2 or more hours for LCD,
1 or more hours for the Plasma TV) to prevent
image burn.

7
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
FCC NOTICE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modifications in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding
system of the building, as close to the point of the
cable entry as practical.

8
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Viewing 3D Imaging
WARNING
Viewing Environment
y Viewing Time
- When watching 3D content, take 5 - 15 minute breaks every hour. Viewing 3D content for a long period of time may
cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
y Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or
particular pattern from 3D content.
y Do not watch 3D content if you feel nauseous, are pregnant and/ or have a chronic illness such as epilepsy, cardiac
disorder, or blood pressure disease, etc.
y 3D Content are not recommended for those who suffer from stereo blindness or stereo anomaly. Double images or
discomfort in viewing may be experienced.
y If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing
depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
y If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.
Symptoms which require discontinuation or refraining from watching 3D contents
y Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
y When these symptoms are experienced, stop using/watching 3D content and get enough rest until the symptom
subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea,
palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

9
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Viewing Environment
y Viewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D content. If you feel discomfort
in viewing 3D content, move further away from the TV.
Viewing Age
y Infants / Children
- Usage/ Viewing 3D content for children under the age of 5 are prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in development (for
example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for
children watching 3D content.
- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is
shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same
3D image.
y Teenagers
- Teenagers under the age of 19 may be stimulated to light coming from 3D videos. Advise them not to watch 3D
videos for a long time when they are tired.
y Elderly
- The elderly may perceive less of a 3D effect than the youth. Do not sit closer to the TV than the recommended
distance.
Cautions when using the 3D glasses
y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
y Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
y Using modified 3D glasses may cause eye strain or image distortion.
y Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
y The 3D glasses are fragile and are easy to scratched. Use a soft, clean piece of cloth when wiping the lenses. Do
not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

10
ENG
ENGLISH
LICENSES
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol
together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
y Image shown may differ from your TV.
y Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
y The available menus and options may differ from the input source or product model that you are using.
y New features may be added to this TV in the future.
NOTE

11
ENG
ENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV set.
3Connect an external device to the TV set.
4Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
y Do not use any unapproved items to ensure the safety and product life span.
y Any damages or injuries by using unapproved items are not covered by the warranty.
y Some models appear to have a thin film on the screen. It is actually part of the screen, do not
remove it.
CAUTION
y The items supplied with your product may vary depending on the model.
y Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
y Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV's USB port.
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
NOTE

12
ENG
ENGLISH
ASSEMBLING AND PREPARING
QWERTY Remote Control,
Batteries (AA)
(See p.32)
Owner’s Manual,
CD Manual
Power Cord
Cinema 3D Glasses
(Depending on model)
Stand Body
(See p.16)
Stand Base
(See p.16)
Stand Screws
8 EA, M4 x 14
(See p.16)
Wall Mount Inner Spacers
4 EA
Cable Holder
(See p.19)
Component Video Cable
(See p.25)
Composite Video Cable
(See p.25,26)
Cable Management
2 EA
(See p.19)
IR Blaster Cable
(See p.31)

13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with certain models.
AG-F3**
Cinema 3D Glasses
The model name or design may
be changed manufacturer’s
circumstances or policies.

14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
Touch button Description
/ ( / ) Scrolls through the saved channels.
/ ( / ) Adjusts the volume level.
(OK ) Selects the highlighted menu option or confirms an input.
(SETTINGS)Accesses the main menus, or saves your input and exits the menus.
(INPUT)Changes the input source.
( ) Turns the power on or off.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
Power indicator
Remote control and
intelligent1sensors
Speakers
OK
SETTINGS
INPUT
S
Screen
Buttons

15
ENG
ENGLISH
ASSEMBLING AND PREPARING

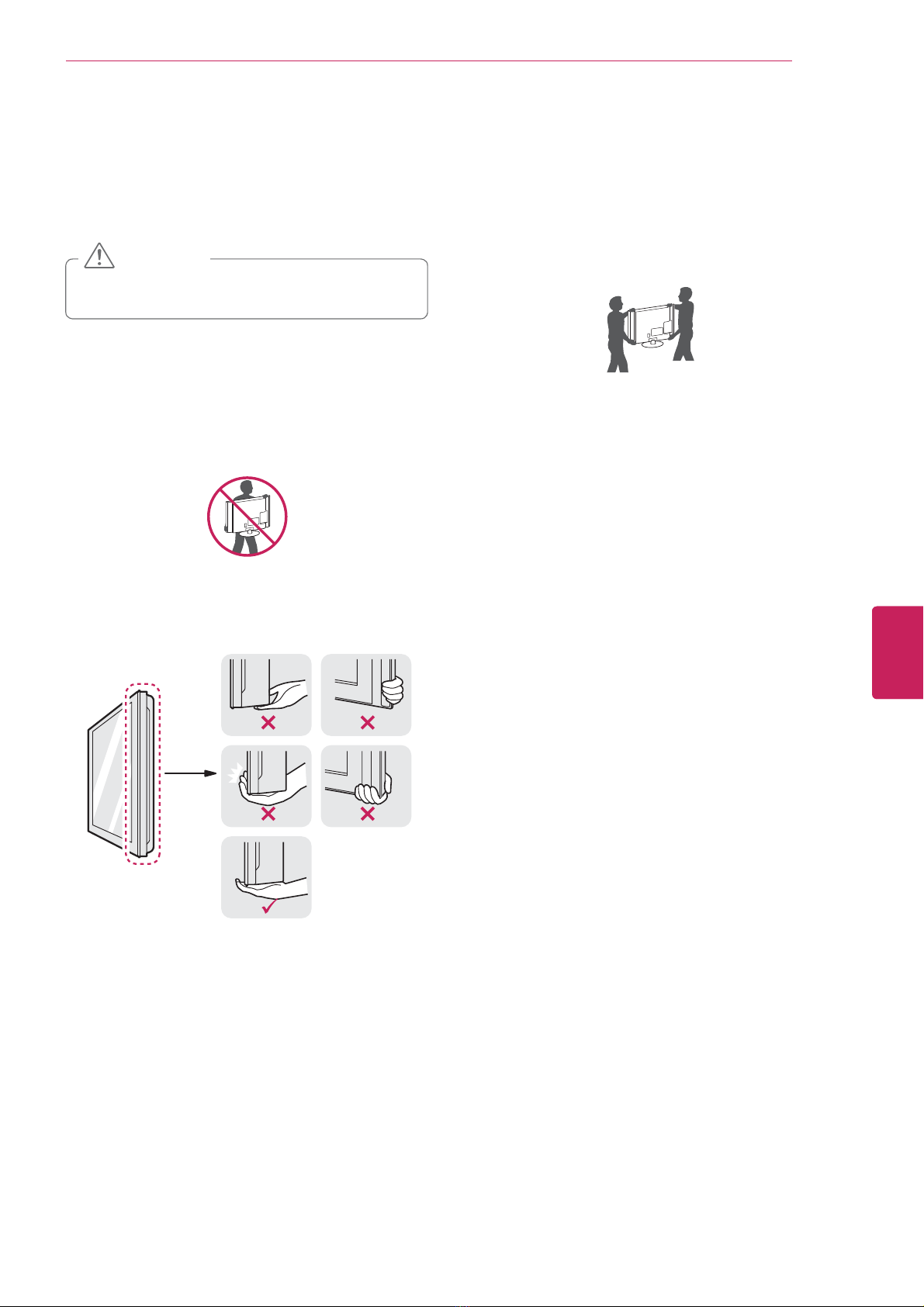

Lifting and moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and for
safe transportation regardless of its type and size.
y It is recommended to move the TV in the box or
packing material that the TV originally came in.
y Before moving or lifting the TV, disconnect the
power cord and all cables.
y When holding the TV, the screen should face
away from you to avoid damage.
y Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
y When transporting a large TV, there should be at
least 2 people.
y When transporting the TV by hand, hold the TV as
shown in the following illustration.
y When transporting the TV, do not expose the TV
to jolts or excessive vibration.
y When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left
or right.
y Avoid touching the screen at all times, as this
may result in damage to the screen.
CAUTION

16
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
3
2
4
5
CAUTION
y When attaching the stand to the TV set, place
the screen facing down on a cushioned table
or flat surface to protect the screen from
scratches.
y Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
1
Protection pad
(Depending on model)
Front
Top View
4 EA
M4 x 14
Stand base
Stand body
Wrapping bag
(Depending on model)
4 EA
M4 x 14

17
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a table
1Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm (4 inches)
10 cm
2Connect the power cord to a wall outlet.
y Do not place the TV near or on sources of heat,
as this may result in fire or other damage.
CAUTION
Adjusting the angle of the TV to suit view
Swivel 15 degrees to the left or right and adjust the
angle of the TV to suit your view.
Securing the TV to a wall (optional)
1Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position,
remove the bolts first.
2Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
3Connect the eye-bolts and wall brackets tightly with
a sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.
y Make sure that children do not climb on or hang
on the TV.
CAUTION
y Use a platform or cabinet that is strong and large
enough to support the TV securely.
y Brackets, bolts and ropes are optional. You can
obtain additional accessories from your local
dealer.
NOTE
y When adjusting the angle of the TV, watch out
for your fingers.
y Personal injury may occur if hands or fingers
are pinched. If the product is tilted too much,
it may fall, causing damage or injury.
NOTE



18
ENG
ENGLISH
ASSEMBLING AND PREPARING

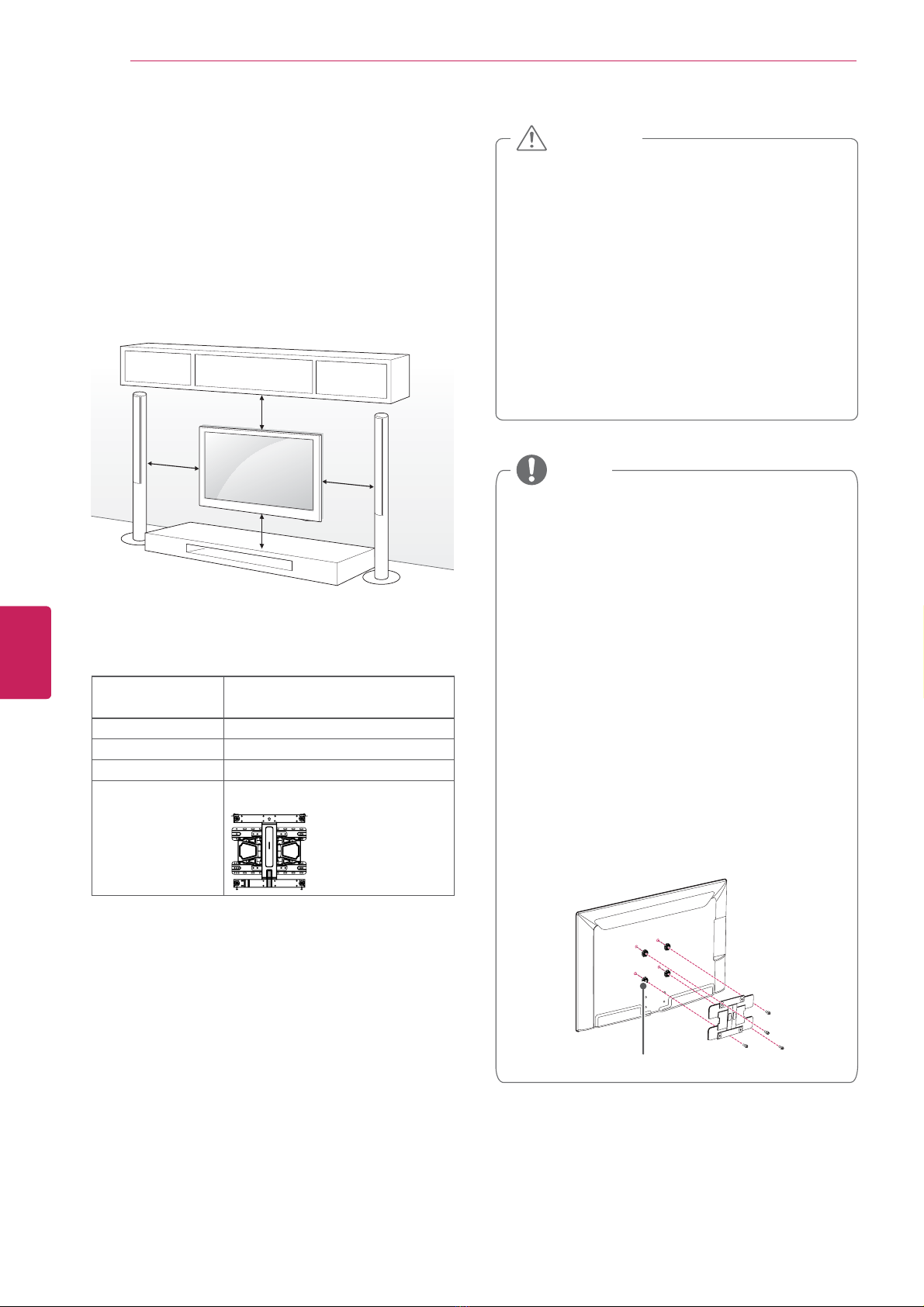

Mounting on a wall
Attach an optional wall mount bracket at the rear of the
TV carefully and install the wall mount bracket on a solid
wall perpendicular to the floor. When you attach the
TV to other building materials, please contact qualified
personnel.
We recommend that you use an LG brand wall mount
when mounting the TV to a wall.
10 cm
10 cm
10 cm (4 inches)
10 cm
Make sure to use screws and wall mounts that meet the
VESA standard. Standard dimensions for the wall mount
kits are described in the following table.
Model 42/47/50/55G310
42/47G3A
VESA 400 x 400
Standard screw M6
Number of screws 4
Wall mount
bracket (optional)
LSW430B
y Use the screws that are listed in the VESA
standard screw specifications.
y The wall mount kit includes an installation manual
and necessary parts.
y The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y The length of screws may differ depending on
the wall mount. Make sure to use the proper
length.
y For more information, refer to the manual
supplied with the wall mount.
y When attaching a third-party wall mounting
bracket to the TV, insert the wall mount
inner spacers into the TV wall mount holes
to move your TV in vertical angle. Please
make sure not to use the spacers for LG
wall mounting bracket.
Wall Mount Inner Spacer
NOTE
y Disconnect the power before moving or installing
the TV. Otherwise electric shock may occur.
y If you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury.
Use an authorized LG wall mount and contact the
local dealer or qualified personnel.
y Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
y Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the warranty.
CAUTION

19
ENG
ENGLISH
ASSEMBLING AND PREPARING
Tidying cables
1Gather the cables with the stand rear cover.
y Do not move the TV by holding the cable holder
and cable management clip, as the cable holders
may break, and injuries and damage to the TV
may occur.
CAUTION
2Install the cable management as shown.
Cable
Management
3Gather and bind the cables with the cable holder.
Cable Holder

20
ENG
ENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs,
audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external
device’s connection, refer to the manual provided with each device.
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from
the actual items and a RF cable is optional.
VHF Antenna
UHF Antenna
Antenna
Terminal
Coaxial (75Ω)
ANTENNA / CABLE
IN
y Make sure not to bend the copper wire of the RF
cable.
Copper wire
y Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
CAUTION
y Use a signal splitter to use more than 2 TVs.
y Visit http://lgknowledgebase.com for more
information about the antenna and cable
connection. Search for antenna.
y DTV Audio Supported Codec: MPEG, Dolby
Digital
NOTE
y If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information on recording, refer to the
manual provided with the connected device.
y The external device connection may differ from the model.
y Connect external devices to the TV regardless of the order of the TV port.
y If you connect a gaming device to the TV, use the cable supplied with the gaming device.
y Refer to the external equipment’s manual for operating instructions.
NOTE
