LG LW76 Series User manual

INSTALLATION MANUAL
LED TV*
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
LW76**
LY76**
LY96**

ENG
ENGLISH
2TABLE OF CONTENTS
TABLE OF CONTENTS
3 LOCATION AND FUNCTION OF
CONTROLS
3 Parts and Button
4 LED Clock Connection
5 EZMANAGER
5 INTRODUCTION
5 EZ-MANAGER WIZARD
6 LANGUAGE & COUNTRY SELECTION
7 - Automatically for Setup
10 - Manually for Setup
13 - USB LG Smart Install Utility
15 INSTALLATION MENU
15 INTRODUCTION
16 LG HOTEL MODE
16 - Hotel Mode Operation
16 - Power On Status
17 - Volume
17 - Key Management
17 - Limited Mode
17 - DTV Programme Update
17 - Power On Default
17 - Power Management
18 - Radio Video Blank
18 - Factory Reset
19 NETWORK
19 - MAC Address
19 - Network Setting
20 - IP Stream Control
20 - Wake On LAN
21 PRO:CENTRIC
21 - Mode
21 - WORF
21 - Room Number Setting
21 - Media Type
22 - Receive Data
23 GENERAL
23 - Configuration Setup
25 - External Speaker
26 - Set ID Setup
26 - Power Saving
26 - HCEC Setup
27 - Clock Setup
27 - Password Change
28 - PreLoaded App
28 - Lock Mode
29 MEDIA SHARE
29 - SmartShare
29 - Screen Share
29 - DMR
29 - TV Name
29 - SoftAP
30 - Use Default
30 - Security Key
31 TV MANAGER
31 - USB Download Menu
35 - Diagnostics Menu

ENGENGLISH
3
LOCATION AND FUNCTION OF CONTROLS
A type : LW76**, LY760*
Remote control and
Intelligent1sensors
Power Indicator
Speakers
Screen
Stand Base
(Only LY760*)
Joystick Button2
Remote control and
Intelligent1sensors
Power Indicator
Speakers
Screen
Joystick Button2
B type : LY761*
Remote control and
Intelligent1sensors
Power Indicator
Speakers
Screen
Joystick Button2
C type : LY96**
LOCATION AND FUNCTION OF CONTROLS
Parts and Button

ENG
ENGLISH
4TABLE OF CONTENTS
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button - This button is located below the TV screen.
NOTE
yYou can set the power indicator light to on or off by selecting General in the main menus.
LED Clock Connection
(Only LW76**, LY76**)
This TV can be connected to a LED Clock via the CLOCK port.
CLOCK
LED Clock
(*Not Provided)

ENGENGLISH
5
EZMANAGER
EZMANAGER
yImage shown may differ from your TV.
INTRODUCTION
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions. The default
Domain “procentric.local” and IP Server Address are needed to be registered in DNS TV will contact the IP
Server using the default Domain “procentric.local” via IP on server search page. If TV doesn’t contact the
Server, TV will search the pre-defined channel earlier than all channels. (Only DVB-C)
The frequencies of pre-defined channels are ‘794000, 714000, 634000, 554000, 474000, 394000, 314000,
234000, 154000, 90000 khz’.
EZ-MANAGER WIZARD
- If you are using Pro:Centric, this setup wizard till help you easily set up the TV. Select ‘NEXT’ to
continue.
- Otherwise, if you will not be installing a Pro:Centric Server, select ‘EXIT’ to quit.

ENG
ENGLISH
6EZMANAGER
LANGUAGE & COUNTRY SELECTION
Con󷶥rm your location and language setting.
Language ꕍ
English
Country ꕍ
United Kingdom
- Please select the Language and Country. Some countries need to select the Time Zone.

ENGENGLISH
7
EZMANAGER
Automatically for Setup

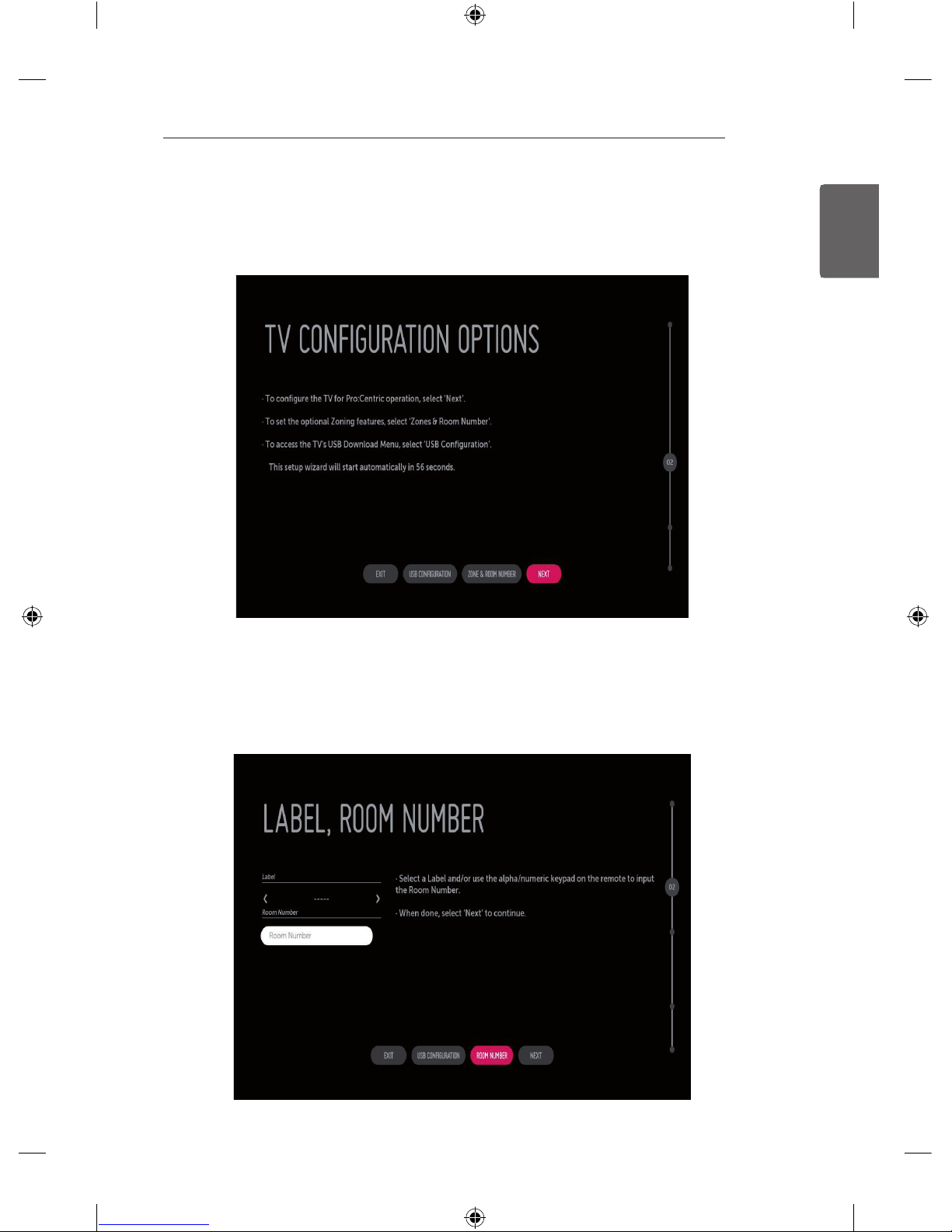

1 From the TV Conguration Options screen, you can choose how to proceed with the conguration
of this TV. Whether you will congure the TV for Pro:Centric operation via the wizard or use a USB
memory device to congure the TV, you may rst wish to set the Room Number on the TV.
- If you intend to set Room Number as part of the TV configuration, use the Room Number option
to assign the Room # for this TV before you continue with additional configuration.
- In the Label field, use the Left/Right arrow keys to specify a North, South, East, or West
designation for this TV.
- In the Room Number field, you can use the number keys on the Installer Remote to direct enter a
room number or use the virtual keyboard on the TV screen.
- To continue, move and select ‘NEXT’.

ENG
ENGLISH
8EZMANAGER

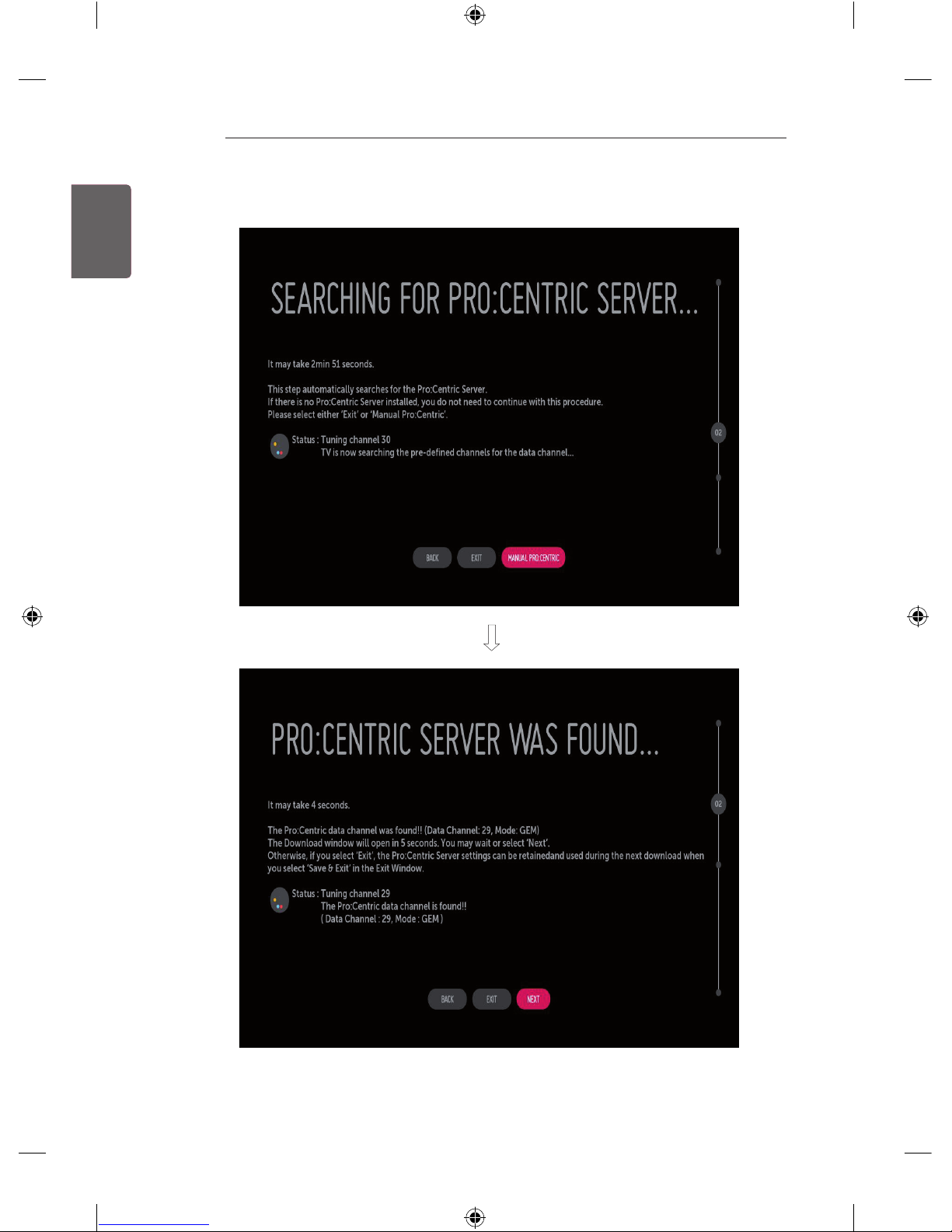

2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data channel,
select the ‘NEXT’.

ENGENGLISH
9
EZMANAGER
3 Downloading the Pro:Centric application les takes few minutes.
4 After the installation is completed, the following screen will be displayed.

ENG
ENGLISH
10 EZMANAGER
Manually for Setup
1 Select a Label and/or enter the Room Number using the numeric keypad on the remotes or using the
virtual keyboard on the TV screen. To continue, move and select ‘NEXT’.
2 Please select the ‘MANUAL PRO:CENTRIC’.

ENGENGLISH
11
EZMANAGER
3 Congure the appropriate Pro:Centric settings in the TV.

ENG
ENGLISH
12 EZMANAGER
4 Downloading the Pro:Centric application les takes few minutes.
5 After the installation is completed, the following screen will be displayed.

ENGENGLISH
13
EZMANAGER
USB LG Smart Install Utility
1 Select the ‘USB CONFIGURATION’ → ‘TV MANAGER’.
- If you have USB Memory for “LG_DTV” or “lg_dtv” folder, this step shows the USB file list for
downloading the items.

ENG
ENGLISH
14 EZMANAGER

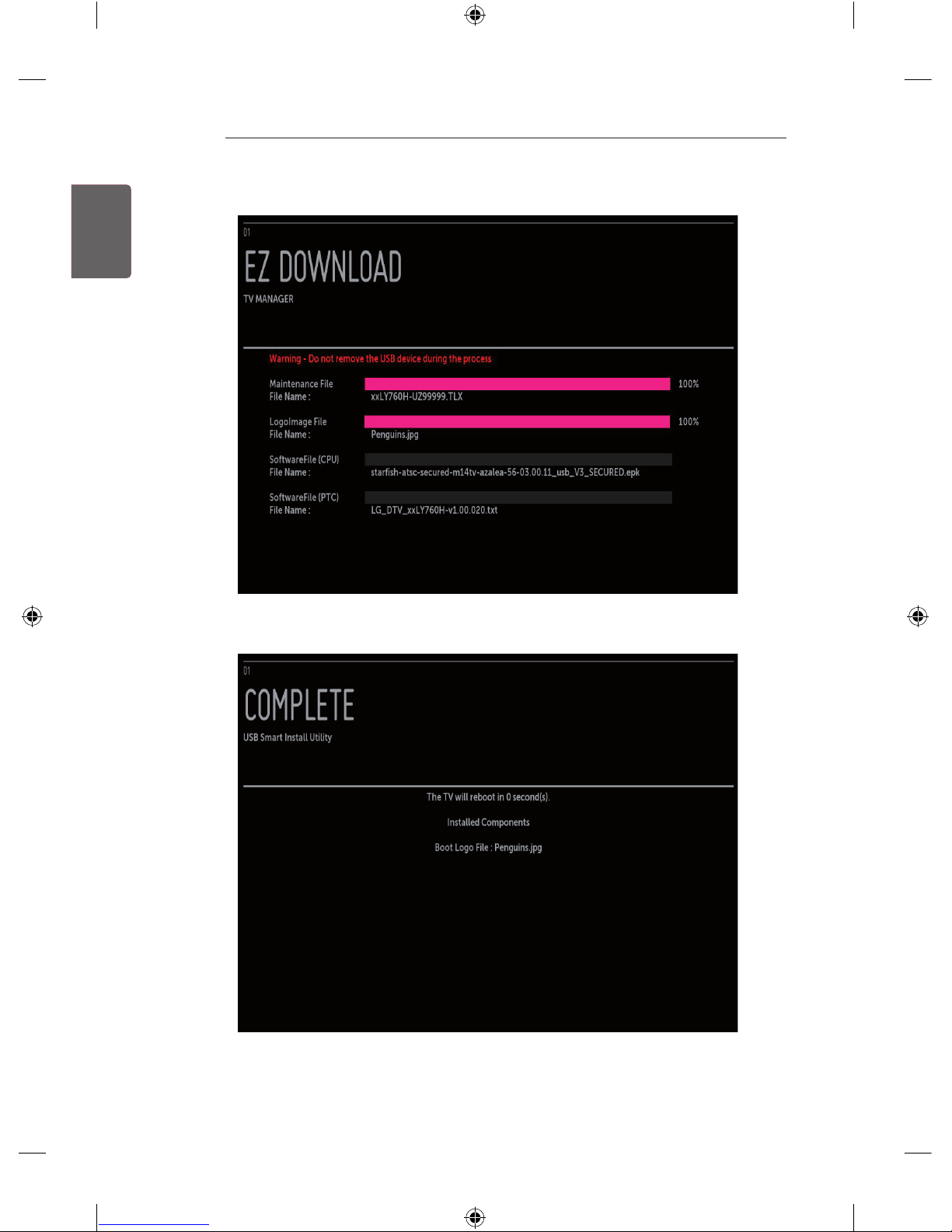

2 Downloading the Pro:Centric application les takes few minutes.
3 After the installation is completed, the following screen will be displayed.

ENGENGLISH
15
INSTALLATION MENU
INSTALLATION MENU
yImage shown may differ from your TV.
INTRODUCTION
The abundant functions for Hotel TV linked with software installation can be projected on OSD as ‘Installation
Menu’. The wide range of hotel features can be performed simply on additional window to enhance the LG
hotel TV’s easy installation and convenient operation for Hotelier and System Integrators.
LG Hotel Mode
Network
Pro:Centric
General
Media Share
TV Manager
HOTEL MODE SET
Hotel Mode Operation ꕍ
Off
Power On Status ꕍ
STD
Volume
Off
Key Management
Off
Limited Mode
Off
DTV Programme Update ꕍ
Auto
Power On Default
Off
Power Management
Off
Radio Video Blank
Off
Quick
Sound
General
Safety
Accessibility
QUICK SETTINGS
Programmes
Picture Mode
Eco
Sound Mode ꕍ
Standard
Aspect Ratio
16:9
Sleep Timer ꕍ
Off
TV
1 Press the Setting button for more than 5 seconds using the user remote control, programme
information will appear at top left on the screen.
2 Enter a four digit password and press ‘OK’ button.
- The TV is set with the initial password “1-1-0-5”.
3 Use the button to select the desired menu.

ENG
ENGLISH
16 INSTALLATION MENU
LG HOTEL MODE
LG Hotel Mode
Network
Pro:Centric
General
Media Share
TV Manager
HOTEL MODE SET
Hotel Mode Operation ꕍ
Off
Power On Status ꕍ
STD
Volume
Off
Key Management
Off
Limited Mode
Off
DTV Programme Update ꕍ
Auto
Power On Default
Off
Power Management
Off
Radio Video Blank
Off
1 Use the button to select the LG HOTEL MODE SETUP.
2 Use the ‘OK’ button and then button to select Hotel Mode Operation.
- When ‘Hotel Mode Operation’ is set to Yes (Work), all functions of Hotel Mode apply.
Hotel Mode Operation
- Decide to work all functions of ‘Hotel Mode Operation’ or not by setting ‘Hotel Mode Operation’
as Yes(Work) or No(Do Not Work)
- When ‘Hotel Mode Operation’ is set to Yes(Work), all functions of Hotel Mode apply.
- When ‘Hotel Mode Operation’ is set to No(Do Not Work), all functions of Hotel Mode Do Not
apply.
- When it is set to ‘Yes’, ‘Key Lock’ item of the User menu is disabled and the OSD is displayed
same to the Local Key Operation setting of the Hotel mode.
- When it is set to ‘Yes’, all items reserved at the Schedule list are deleted and the reservation
function is not supported.(applied for the model offering the reservation function)
- The TV triggered by the external device (ex: SIMPLINK, TVLink-Tuner, etc.) operates separately
from the Hotel mode.
- When it is set to ‘Yes’, User Menu → Option → ‘Factory Reset and Demo Mode’ are disabled.
- When ‘Hotel Mode Operation’ is set to Yes(Work), all skipped programs are not tuned by number
keys.
- When ‘Hotel Mode Operation’ is set to Yes(Work), Detailed Information about the programme is
not available in the EPG.
Power On Status
- Decide to select working status of TV Set when turn on main power.
- You can set with PWR, STD, LST.
- PWR always make TV set On status when turn on main power .
- STD make Stand-by status when turn on main power.
- LST make TVSet work like previous power status. As same concept as Power Backup mode; If
main power were turned off in Power On status, TVSet would work in On status. If main power
were turned off in Stand-by status, TVSet would work in Stand-by status.
- If there Block All is both IR Operation and Local Key Operation from Key Management, In order
to provide the Option that must be able to turn on the TV in the TV turned off situation, change
the value of the PWR. (Reference the Key Management)

ENGENGLISH
17
INSTALLATION MENU
Volume
- Please select ‘Yes’ or ‘No’ to set the ‘Start Volume’, ‘Maximum Volume’ and ‘Minimum Volume’
Start Volume
- When the TV is turned for the first time, and to set the size of the start sound.
- The default setting is “Off”.
Maximum Volume
- Set the maximum size of the TV sound.
Minimum Volume
- Set the minimum volume that is output from the TV.
Key Management
- It is possible to manage the usability ‘Local/Front Key’ and ‘Remote Control’.
Limited Mode
- Set the part to limit the operation of the TV function.
DTV Programme Update
- It is a mode to set whether to update dtv Programme automatically or not.
- When DTV Programme Update is set to ‘Auto’, the function to update TV’s programme map
according to dtv programme’s stream information.
- DTV Programme Update is set to ‘Manual’, the function to keep TV’s programme map even
though dtv programme’s information is changed.
Power On Default
- Set the channel to display and Volume Level, etc. when turn on power in AC Power On or Stand-
by status.
- Set to Yes(Work) or No(Do Not Work).
- When ‘Power On Default’ is set to No, it is not applied to the subordinate Programme, Volume,
A/V Setting menu.
- When Power On Default is set to Yes, it can set by entering the subordinate menu.
Power Management
- If there is no input the amount of time that is set via the remote control or local key after the TV is
turned on, TV is turned off automatically.
- The default setting is “Off”.

ENG
ENGLISH
18 INSTALLATION MENU
Radio Video Blank
- Set to Yes(Work) or No(Do Not Work).
- Programme that is set to ‘Radio Programme’ and only has Sound should decide whether to set ‘Video
Blank’ or not.
- When ‘Radio Video Blank’ is set to Yes(Work), ‘Video Blank’ works only in case of Radio
Programme.
- Although set to Yes(Work), if there are Video signal, ‘Video Blank’ wouldn’t work. In consideration of
case that display background screen and broadcast only with Radio, ‘Video Blank ’works only when
there is no Video signal.
- When set to No(Do Not Work), ‘Video Blank’ do not work although it is the Radio Programme.
- This operates only in the Analog TV Mode.
Factory Reset
- Change all settings to their default values.

ENGENGLISH
19
INSTALLATION MENU
NETWORK
LG Hotel Mode
Network
Pro:Centric
General
Media Share
TV Manager
NETWORK
MAC Address 12:34:56:78:12:34
Network Setting ꕍ
IP Stream Control
Wake On LAN
1 Use the button to select the NETWORK.
MAC Address
- Displays the MAC address (not customizable).
Network Setting
One-click network connection
- Connects easily to a wired/wireless network.
- Network Connection to connect to an available network automatically. Follow the prompts on the
TV.
To connect to a network through Set Expert
- For use in special circumstances such as in offices (in cases where a static IP is used).
1 Select a network connection, either Wired or Wireless.
2 When connecting via Wired, Con gures the IP settings of the TV set. You can set the IP address,
subnet mask, gateway and DNS server.
3 When connecting via Wi-Fi, use the one of the following network connection methods.
AP List Connects to the network selected from the AP List.
Enter the SSID Connects to the wireless AP typed in.
WPS-PBC Connects easily when the button of a wireless AP supporting PBC is pressed.
WPS-PIN Connects easily when the PIN of the wireless AP that you wish to connect to is
entered in to the AP website.
Ad-hoc Connects to a network via a wireless-enabled PC or mobile phone.

ENG
ENGLISH
20 INSTALLATION MENU
IP Stream Control
Audio PTS Offset
- Controlling output stream timing of audio.
Video PTS Offset
- Controlling output stream timing of video.
Wake On LAN
- Sets the Wake On LAN function to Enable or Disable.
Use “Magic Packet”.
