LG LX76 Series User manual

INSTALLATION MANUAL
LED TV*
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
LX76**
LW73**

ENG
ENGLISH
2TABLE OF CONTENTS
TABLE OF CONTENTS
3 LOCATION AND FUNCTION OF
CONTROLS
3 Parts and Button
4 EZMANAGER
4 INTRODUCTION
4 EZ-MANAGER WIZARD
5 LANGUAGE & COUNTRY SELECTION
6 - Automatically for Setup
9 - Manually for Setup
12 - USB LG Smart Install Utility
14 INSTALLATION MENU
14 INTRODUCTION
15 LG HOTEL MODE
15 - Hotel Mode Operation
15 - Power On Status
16 - Volume
16 - Key Management
17 - Limited Mode
17 - DTV Programme Update
18 - Power On Default
18 - Power Management
18 - Radio Video Blank
18 - Factory Reset
19 NETWORK
19 - MAC Address
19 - Network Setting
20 - IP Stream Control
20 - Wake On LAN
21 PRO:CENTRIC
21 - Mode
21 - WORF
22 - Media Type
22 - Receive Data
22 - Native EPG
22 - Room Number Setting
22
23 GENERAL
23 - Configuration Setup
26 - External Speaker
26 - Set ID Setup
26 - Power Saving
27 - HCEC Setup
28 - Clock Setup
29 - Password Change
29 - PreLoaded App
29 - Lock Mode
30 MEDIA SHARE
30 - SmartShare
30 - Screen Share
31 - DMR
31 - Bluetooth Sound Sync
31 - DIAL
31 - TV Name
31 - SoftAP
32 TV MANAGER
32 - USB Download Menu

ENGENGLISH
3
LOCATION AND FUNCTION OF CONTROLS
LOCATION AND FUNCTION OF CONTROLS
Parts and Button
Screen
Remote control and
Intelligent1sensors
Power Indicator
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button -This button is located below the TV screen.
NOTE
yYou can set the power indicator light to on or off by selecting General in the main menus.

ENG
ENGLISH
4EZMANAGER
EZMANAGER
•
•Image shown may differ from yourTV.
INTRODUCTION
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions. The default Domain“procentric.local”
and IP Server Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP
on server search page. If TV doesn’t contact the Server,TV will search the pre-defined channel earlier than all channels. (Only DVB-C)
The frequencies of pre-defined channels are below.
Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.
Philippines 6Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.
Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.
EZ-MANAGER WIZARD
-If you are using Pro:Centric, this setup wizard till help you easily set up the TV. Select‘NEXT’to continue.
-Otherwise, if you will not be installing a Pro:Centric Server, select‘EXIT’to quit.

ENGENGLISH
5
EZMANAGER
LANGUAGE & COUNTRY SELECTION
-Please select the Language and Country. Some countries need to select the Time Zone.
-(Only Philippines) If you choose 'Philippines' as the country,‘DVB-C Bandwidth’menu will be shown.

ENG
ENGLISH
6EZMANAGER
Automatically for Setup
1 From the TV Conguration Options screen, you can choose how to proceed with the conguration of this TV. Whether you will
congure theTV for Pro:Centric operation via the wizard or use a USB memory device to congure the TV, you may rst wish to set
the Room Number on the TV.
-If you intend to set Room Number as part of the TV configuration, use the Room Number option to assign the Room # for
this TV before you continue with additional configuration.
-In the Label field, use the Left/Right arrow keys to specify a North, South, East, orWest designation for this TV.
-In the Room Number field, you can use the number keys on the Installer Remote to direct enter a room number or use the
virtual keyboard on the TV screen.
-To continue, move and select‘NEXT’.

ENGENGLISH
7
EZMANAGER
2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data channel, select the‘NEXT’.

ENG
ENGLISH
8EZMANAGER
3 Downloading the Pro:Centric application les takes few minutes.
4 After the installation is completed, the following screen will be displayed.

ENGENGLISH
9
EZMANAGER
Manually for Setup
1 Select a Label and/or enter the Room Number using the numeric keypad on the remotes or using the virtual keyboard on the TV
screen.To continue, move and select‘NEXT’.
2 Please select the‘MANUAL PRO:CENTRIC’.

ENG
ENGLISH
10 EZMANAGER
3 Congure the appropriate Pro:Centric settings in the TV.

ENGENGLISH
11
EZMANAGER
4 Downloading the Pro:Centric application les takes few minutes.
5 After the installation is completed, the following screen will be displayed.

ENG
ENGLISH
12 EZMANAGER
USB LG Smart Install Utility

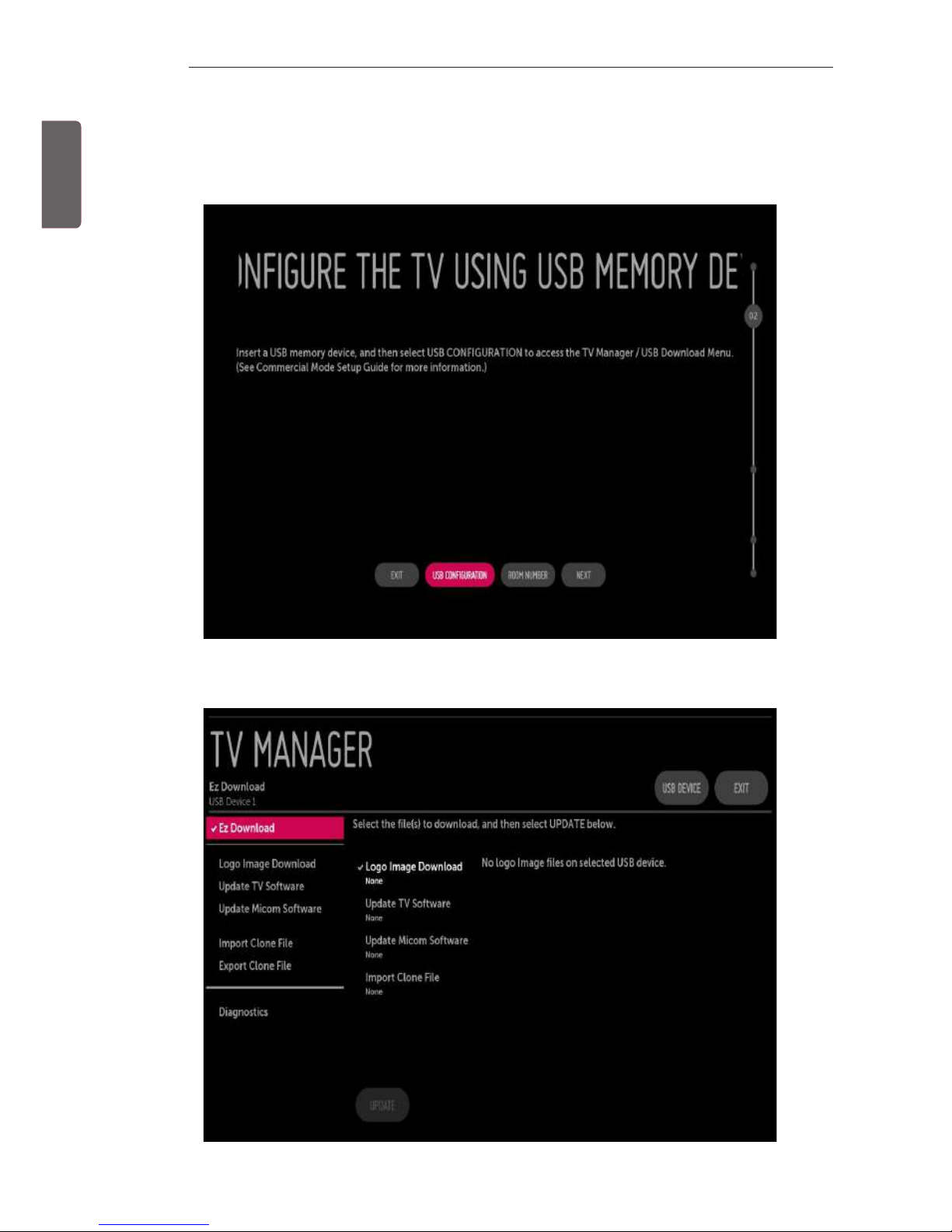

1 Select the ‘USB CONFIGURATION’ →‘TV MANAGER’.
-If you have USB Memory for“LG_DTV”or “lg_dtv”folder, this step shows the USB file list for downloading the items.

ENGENGLISH
13
EZMANAGER
2 Downloading the Pro:Centric application les takes few minutes.
3 After the installation is completed, the following screen will be displayed.

ENG
ENGLISH
14 INSTALLATION MENU
INSTALLATION MENU
•
•Image shown may differ from yourTV.
INTRODUCTION
The abundant functions for HotelTV linked with software installation can be projected on OSD as‘Installation Menu’.
The wide range of hotel features can be performed simply on additional window to enhance the LG hotel TV’s easy installation and
convenient operation for Hotelier and System Integrators.
TV
1 Press the Setting button for more than 5 seconds using the user remote control, programme
information will appear at top left on the screen.
2 Enter a four digit password and press‘OK’ button.
-TheTV is set with the initial password“1-1-0-5”.
3 Use the button to select the desired menu.

ENGENGLISH
15
INSTALLATION MENU
LG HOTEL MODE

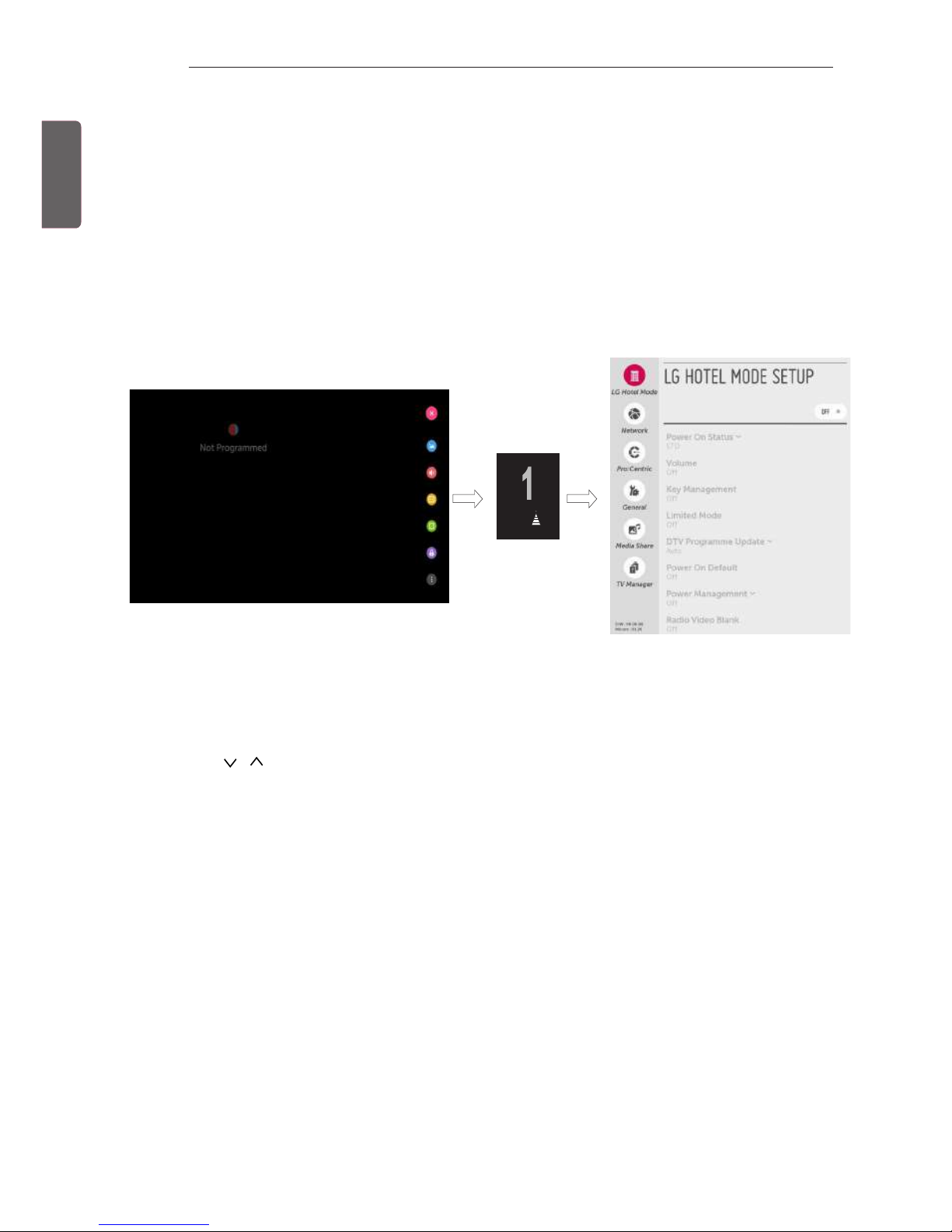

1 Use the button to select the LG HOTEL MODE SETUP.
2 Use the‘OK’button and then button to select Hotel Mode Operation.
-When‘Hotel Mode Operation’is set toYes (Work), all functions of Hotel Mode apply.
Hotel Mode Operation
-Decide to work all functions of‘Hotel Mode Operation’or not by setting‘Hotel Mode Operation’as Yes(Work) or No(Do Not
Work)
-When‘Hotel Mode Operation’is set toYes(Work), all functions of Hotel Mode apply.
-When‘Hotel Mode Operation’is set to No(Do NotWork), all functions of Hotel Mode Do Not apply.
-When it is set to‘Yes’,‘Key Lock’item of the User menu is disabled and the OSD is displayed same to the Local Key Operation
setting of the Hotel mode.
-When it is set to‘Yes’, all items reserved at the Schedule list are deleted and the reservation function is not supported.(applied
for the model offering the reservation function)
-TheTV triggered by the external device (ex: SIMPLINK, TVLink-Tuner, etc.) operates separately from the Hotel mode.
-When it is set to‘Yes’, User Menu →Option →‘Factory Reset and Demo Mode’are disabled.
-When‘Hotel Mode Operation’is set toYes(Work), all skipped programs are not tuned by number keys.
-When‘Hotel Mode Operation’is set toYes(Work), Detailed Information about the programme is not available in the EPG.
Power On Status
-Decide to select working status ofTV Set when turn on main power.
-You can set with PWR, STD, LST.
-PWR always make TV set On status when turn on main power .
-STD make Stand-by status when turn on main power.
-LST makeTVSet work like previous power status. As same concept as Power Backup mode; If main power were turned off
in Power On status, TVSet would work in On status. If main power were turned off in Stand-by status, TVSet would work in
Stand-by status.
-If there Block All is both IR Operation and Local Key Operation from Key Management, In order to provide the Option
that must be able to turn on theTV in the TV turned off situation, change the value of the PWR. (Reference the Key
Management)

ENG
ENGLISH
16 INSTALLATION MENU
Volume
-Decide to apply volume policy of‘Start Volume’,‘Maximum Volume’and‘Minimum Volume’asYes(Work) or No(Do Not
Work).
-(0 ≤ Min ≤ Start ≤ Max ≤ 100)
Start Volume
yThis entry sets the start volume level when is power on.
-The level is specified as a number between minimum volume to maximum value. (Min ≤ Start ≤ Max)
-The default setting is‘Off’(disabled).
-When enabled, if the value is lower then the minimum specified in the minimum volume entry, the minimum volume
entry must be used.
-When enabled, if the value is larger then the maximum specified in the maximum volume entry, the maximum volume
value must be used.
-Access to a volume in‘On Timer’must be fixed to start volume when‘Hotel Mode Operation’(Yes) and‘Start Volume’(Off, 0
~ 100) were set simultaneously.
Maximum Volume
yThis entry sets the maximum volume level the set. The level is specied as a number between‘Minimum Volume’to 100. (Min ≤
Max ≤ 100).
-If the command volume up to higher than maximum volume’is received, that should be ignored.
-The default value is 100.
Minimum Volume
yThis entry sets the minimum volume level the set will produce.
-The level is specified as a number between 0 to‘Maximum Volume’. (0 ≤ Min ≤ Max)
-If the command volume down to lower than minimum volume is received, that should be ignored.
-The default value is 0.
Key Management
-Manage key usability of Local(Front) Key and Remote Control.When selected to‘On’, following‘IR Operation’and‘Local Key
Operation’will be worked by below.
IR Operation
yDecide whether work the LG remote control or not.
-When‘IR Operation’is set to 'Normal', all remote keys are available.
-'Use PWR Only' makes block all remote keys except power key.
-When‘IR Operation’is set to 'Block All', all normal remote keys don’t work.
Local Key Operation
yDecide to operate 'Local/Front Key' working behavior by setting‘Local Key Operation’as 'Normal', 'Use PWR Only' and 'Block All'.
-When‘Local Key Operation’is set to 'Normal', all local keys are available.
-'Use PWR Only' makes block all local keys except power key.
-When‘Local Key Operation’is set to 'Block All', all local keys don’t work.

ENGENGLISH
17
INSTALLATION MENU
Limited Mode
-Configure TV function’s limitation.When selected to‘Yes’, following sub-menus will be worked by below.
Setup Menu
-Decide to enter 'Setup’Menu’as‘Yes’(Enter possible) or‘No’(Enter impossible)
Programme Change
yDecide to change channel or not by setting‘Program Change' as‘Yes’(Change Possible) or‘No’(Change Impossible) when present
source is TV.
-When‘Programme Change' is set to No (Change Impossible)
»Program Key, Numeral Key, List Key, Q.View Key don't work and entering 'Channel Menu' in the Main Menu OSD is
impossible.
»‘Programme' item in 'On Time' menu will be fixed.
»Entering‘Setup Menu' in the 'Main Menu’OSD is impossible regardless of‘Setup Menu' item.
-When 'Program Change’is set to Yes(Change Possible),‘Program Key’,‘Numeric Key’,‘List Key’,‘Q.View’Key does work and
entering‘Channel Menu' in the Main Menu OSD is possible.
Menu Display
yFunction to decide whether work with menu (including relevant menus too) of control key (Yes – Enter possible) or not (No –
Enter Impossible).
-Although select No(Enter impossible), the action that press a Menu button for 5 seconds to enter‘Installation Menu’is
available.
-When select Yes(Enter possible), Menu works.
OSD Display
yDecide to display OSD or not by setting‘OSD Display’as Yes(Display) or No(Do not Display).
-When‘OSD Display’is set to‘No’(Do not Display), all OSD is not displayed except some exception.
-Although select‘No’(Do not Display), the action that press a Menu button for 5 seconds to enter‘Installation Menu’and
entering service menu are available. (In-Start, Power-Only, Adjust, Installation Menu…)
System Provider Mode
y‘System Provider Mode’allows access to the menu system from the front panel or remote control but access is controlled as follows:
-When value is‘Yes’, Accessible Items on the menu system, others are not permissible.
»Input select screens
»Sleep timer
»Aspect Ratio
»Closed Caption
»‘Lock’/‘My Media’/‘Network’/ ‘Support’/‘Bluetooth’Menu
-‘Q.menu’, which is related to‘Setup’Menu, is not accessible.
-If the channel map is empty,‘Auto-tuning’guide dialog should be blocked by pressing‘List’,‘Fav’,‘CH+’,‘CH-’keys.
DTV Programme Update
-It is a mode to set whether to update dtv Programme automatically or not.
-When DTV Programme Update is set to‘Auto’, the function to updateTV’s programme map according to dtv programme’s
stream information.
-DTV Programme Update is set to‘Manual’, the function to keep TV’s programme map even though dtv programme’s
information is changed.

ENG
ENGLISH
18 INSTALLATION MENU
Power On Default
-Set the channel to display andVolume Level, etc. when turn on power in AC Power On or Stand-by status.
-Set to Yes(Work) or No(Do Not Work).
-When‘Power On Default’is set to No, it is not applied to the subordinate Input, Programme, A/V Setting, Aspect Ratio
menu.
-When Power On Default is set toYes, it can set by entering the subordinate menu.
Input
-Set whether it is turned on by the set input source or by the last stored input source.
Programme
-Select start channel number if Input source’s value is TV.
A/V Setting
-If‘A/V Setting’is changed from‘Off’to‘On’, A/V parameters that are set before entering‘Installation Menu’are applied
whenever turn on power.
Aspect Ratio
-The aspect ratio determines the default aspect ratio that the set returns to on power up.
Power Management
yThe Power Management feature will turn o the television receiver if no input control command is received from either the Local
or IR Key within a selected hours.
-Activity on either of these inputs shall reset the‘Power Management’timer and prevent interruption ofTV viewing.
-This entry can be set to a value which is corresponding to the desired hours (1Hour to 7Hours).
-Default value is‘Off(disabled)’.
Radio Video Blank
-Set to Yes(Work) or No(Do Not Work).
-Programme that is set to‘Radio Programme’and only has Sound should decide whether to set‘Video Blank’or not.
-When‘Radio Video Blank’is set to Yes(Work),‘Video Blank’works only in case of Radio Programme.
-Although set toYes(Work), if there areVideo signal,‘Video Blank’wouldn’t work. In consideration of case that display
background screen and broadcast only with Radio,‘Video Blank ’works only when there is noVideo signal.
-When set to No(Do NotWork),‘Video Blank’do not work although it is the Radio Programme.
-This operates only in the Analog TV Mode.
Factory Reset
-Change all settings to their default values.

ENGENGLISH
19
INSTALLATION MENU
NETWORK
1 Use the button to select the NETWORK.
MAC Address
-Displays the MAC address (not customizable).
Network Setting
One-click network connection
-Connects easily to a wired/wireless network.
-Network Connection to connect to an available network automatically. Follow the prompts on theTV.
To connect to a network through Set Expert
-For use in special circumstances such as in offices (in cases where a static IP is used).
1 Select a network connection, either Wired or Wireless.
2 When connecting via Wired, Congures the IP settings of the TV set.You can set the IP address, subnet mask, gateway and
DNS server.
3 When connecting via Wi-Fi, use the one of the following network connection methods.
AP List Connects to the network selected from the AP List.
Enter the SSID Connects to the wireless AP typed in.
WPS-PBC Connects easily when the button of a wireless AP supporting PBC is pressed.
WPS-PIN Connects easily when the PIN of the wireless AP that you wish to connect to is entered in to the AP website.
Ad-hoc Connects to a network via a wireless-enabled PC or mobile phone.

ENG
ENGLISH
20 INSTALLATION MENU
IP Stream Control
Audio PTS Offset
-Controlling output stream timing of audio.
-You can set the '-500~500' (Change step is -10 or +10)
Video PTS Offset
-Controlling output stream timing of video.
-You can set the '-500~500' (Change step is -10 or +10)
IGMP
-You can set IGMP version. (2 or 3)
Wake On LAN
ySets the Wake On LAN function to Enable or Disable.
-TheWake On LAN feature enables the TV to receive software updates and/or be powered ON upon receipt ofWake Up
Frame packets and/or Magic Packet data via the wired LAN. To facilitate use of this feature, note that the appropriate wired
connection must be made.
