LG 22MB35D User manual

www.lg.com
19MB35D
22MB35D
24MB35D
ENGLISH
OWNER’S MANUAL
LED LCD Monitor
(LED Monitor*)
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD MONITOR MODEL

2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3ASSEMBLING AND PREPAR-
ING
3 Unpacking
4 Parts and buttons
5 Setting up the Monitor set
5 - Attaching the Stand Base
5 - Detaching the Stand Base
6 - Mounting on a table
7 - Using the Kensington locking device
8 - Mounting on a wall
9USING THE MONITOR SET
9 Connecting to a PC
9 - D-SUB connection
9 - DVI-D connection
11 CUSTOMIZING SETTINGS
12 Customizing Settings
12 - Menu Settings
13 -Picture
14 -Color
15 -Display
16 -Others
17 READER Setting
18 - SMART ENERGY SAVING
19 TROUBLESHOOTING
21 SPECIFICATIONS
21 19MB35D
22 22MB35D
23 24MB35D
24 Preset Modes (Resolution)
24 Indicator
25 PROPER POSTURE
25 Proper posture for using the Monitor set.

3
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
yDo not use any unapproved accessories to ensure the safety and product life span.
yAny damages or injuries by using unapproved accessories are not covered by the warranty.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
CD(Owner's Manual) /
Card
D-SUB Cable
(This cable is not included in all
countries.)
Power Cord
DVI-D Cable
(This cable is not included in all
countries.)
Stand Body Stand Base

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
(Power Button)
Power Indicator
yLED On : Power is on
yLED Off: Power is off
Front Side Buttons
Input Connectors (See p.9)

5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Attach the Stand Body to the monitor set.
Attach the Stand Base.
Tie down the base lock to perpendicularity
direction.
Setting up the Monitor set
Attaching the Stand Base
1Place the Monitor set with the screen side
down on a flat and cushioned surface.
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
CAUTION
2
Stand Base
Stand Body
1
2
3
Detaching the Stand Base
1Place the Monitor set with the screen side
down on a flat and cushioned surface.
Stand Base
Stand Body
Pushing the PUSH button, Take the Stand
Body from the monitor set.
Change your lock on the product as it
follows and turnit in the arrow direction.
Pull out the Stand Base.
1
2
3
2
yIf you can't release the stand base even the
locking knob is at a release position, Please
push the indicated knob down and retry it.
CAUTION
yThis illustration depicts the general model of
connection. Your monitor may differ from the
items shown in the picture.
yDo not carry the product upside down holding
only the stand base. The product may fall
and get damaged or injure your foot.
CAUTION

6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a table
1Lift the monitor and place it on the table in an
upright position.
Install at least 100 mm away from the wall to
ensure sufficient ventilation.
2
3Press the (Power) button on the front of the
monitor to turn on the monitor.
100 mm
100 mm
100 mm
100 mm
yUnplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
CAUTION
Connect the Power cord to the monitor, then
plug the power cord into the wall outlet.
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Do not touch or press the screen when
adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
WARNING
Tilt from +20 to -5 degrees up or down to adjust
the angle of the Monitor set to suit your view.
NOTE
Front Rear

7
ENG
ENGLISH
ASSEMBLING AND PREPARING

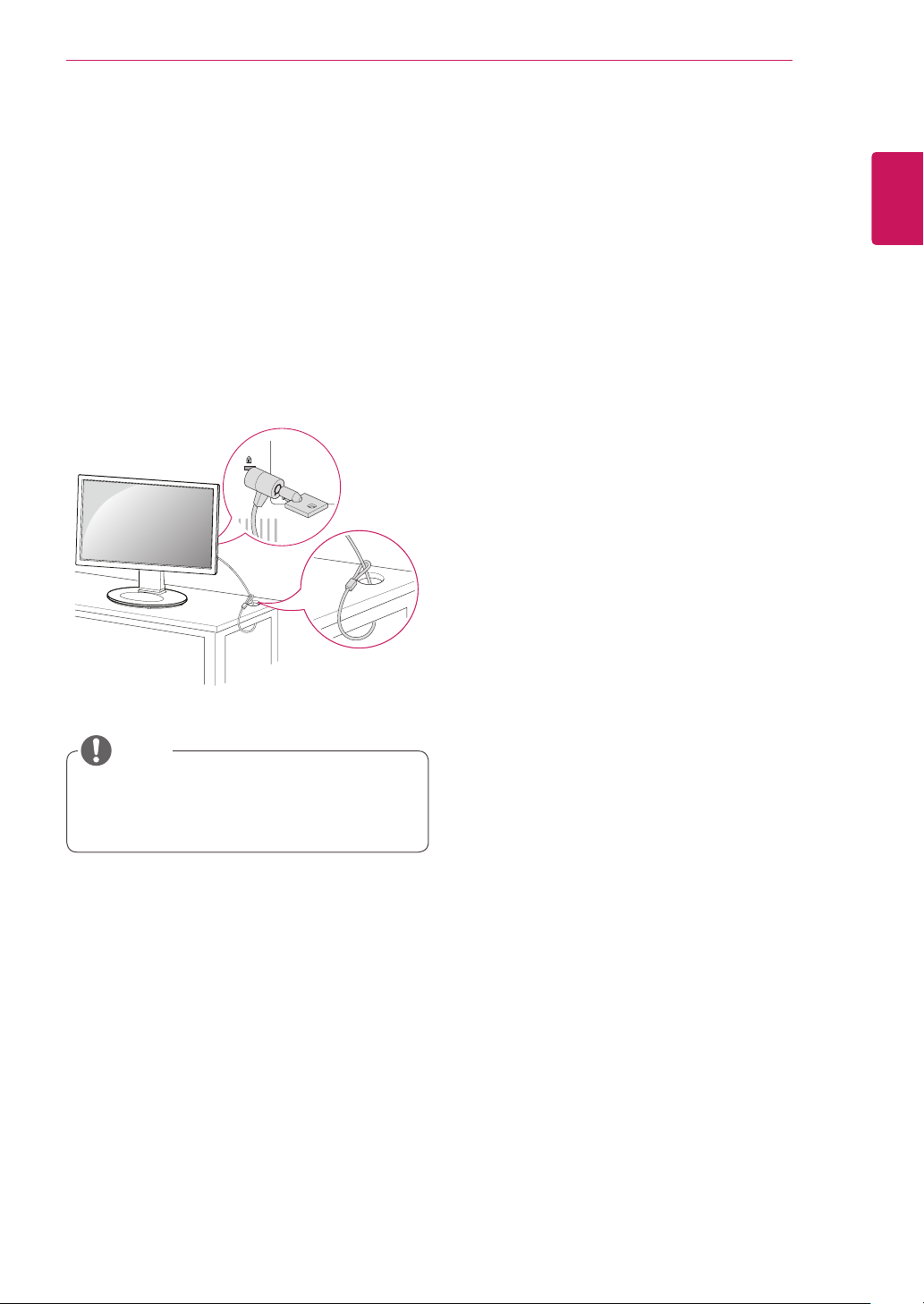

Using the Kensington locking
device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensing-
ton lock cable.
yUsing the Kensington lock is optional. The
accessories can be purchased at your local
electronics store.
NOTE

8
ENG
ENGLISH
ASSEMBLING AND PREPARING

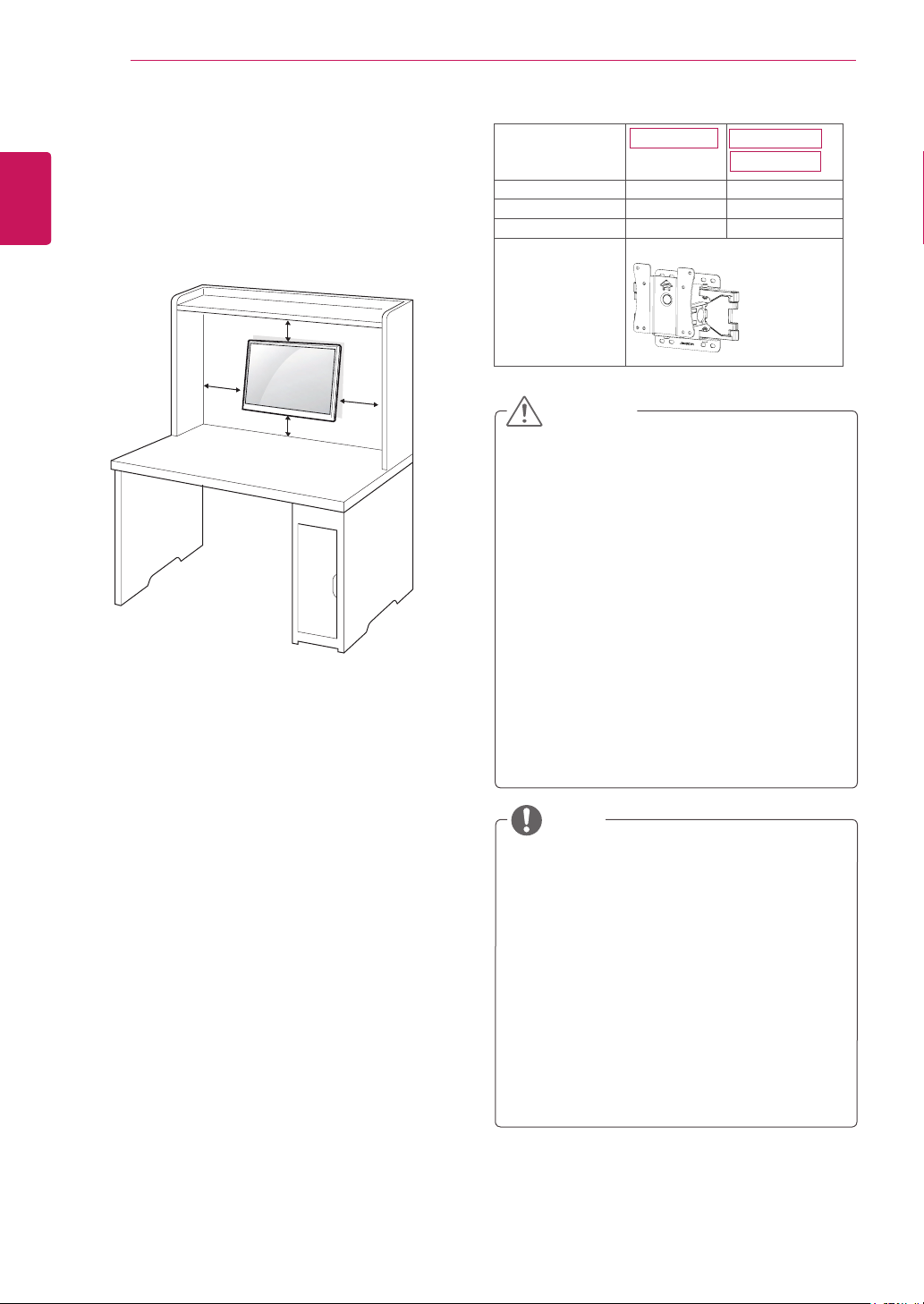

Mounting on a wall
For proper ventilation, allow a clearance of 100
mm on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2If you use screw longer than standard, the
monitor might be damaged internally.
3If you use improper screw, the product might be
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4VESA compatible.
5Please use VESA standard as below.
y784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
y787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
100 mm
100 mm
100 mm
100 mm
yDisconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
yIf you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
yUse only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
yDo not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
yUse only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit will include an installation
manual and necessary parts.
yThe wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
yThe length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
yFor more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
Model 19MB35D
VESA (A x B) 75 x 75 100 x 100
Standard screw M4 M4
Number of screws 4 4
Wall Mount Plate
(Optional)
LSW 149
24MB35D
22MB35D

9
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET

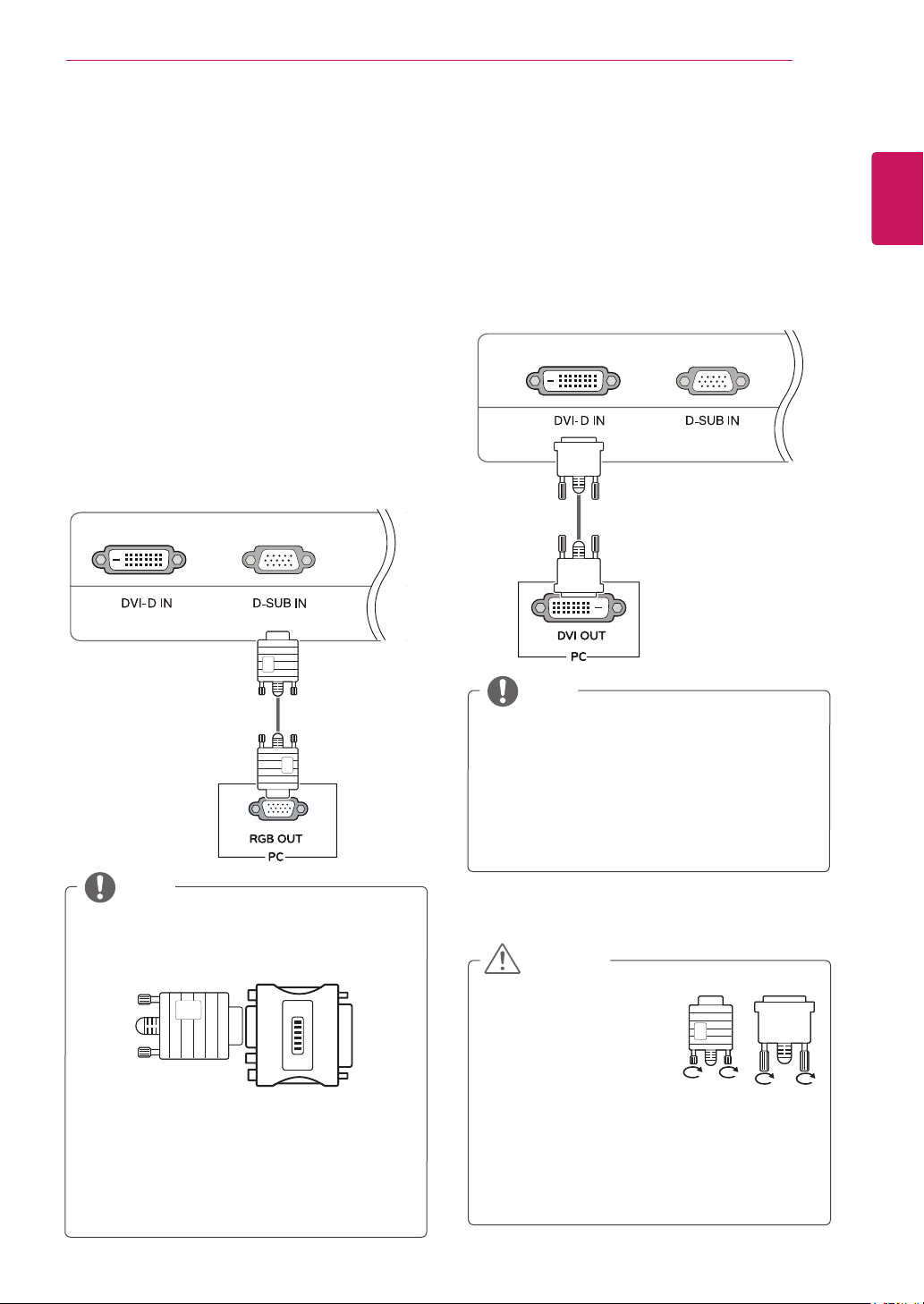

Connecting to a PC
yYour Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
yMac adapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
yWhen using a D-Sub signal input cable
connector for Macintosh
NOTE
DVI-D connection
Transmits a digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with a DVI cable as shown in the following
illustrations.
yWhen you want to use two PC in our Monitor,
please connect the signal cable(D-SUB/
DVI-D) respectively in Monitor set.
yIf you turn the Monitor set on while it is cold,
the screen may flicker. This is normal.
ySome red, green, or blue spots may appear
on the screen. This is normal.
NOTE
yConnect the signal
input cable and tighten
it by turning the screws
clockwise.
yDo not press the screen
with your finger for a long time as this may
result in temporary distortion on the screen.
yAvoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION

10
ENG
ENGLISH
USING THE MONITOR SET
y"Self Image Setting" Function.
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
y‘AUTO’ Function.
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
NOTE
Self Image Setting Function
Press the power button on the bottom panel to
turn the power on. When monitor power is turned
on, the "Self Image Setting" Function is executed
automatically. (Only supported in Analog Mode)

11
ENG
ENGLISH
CUSTOMIZING SETTINGS

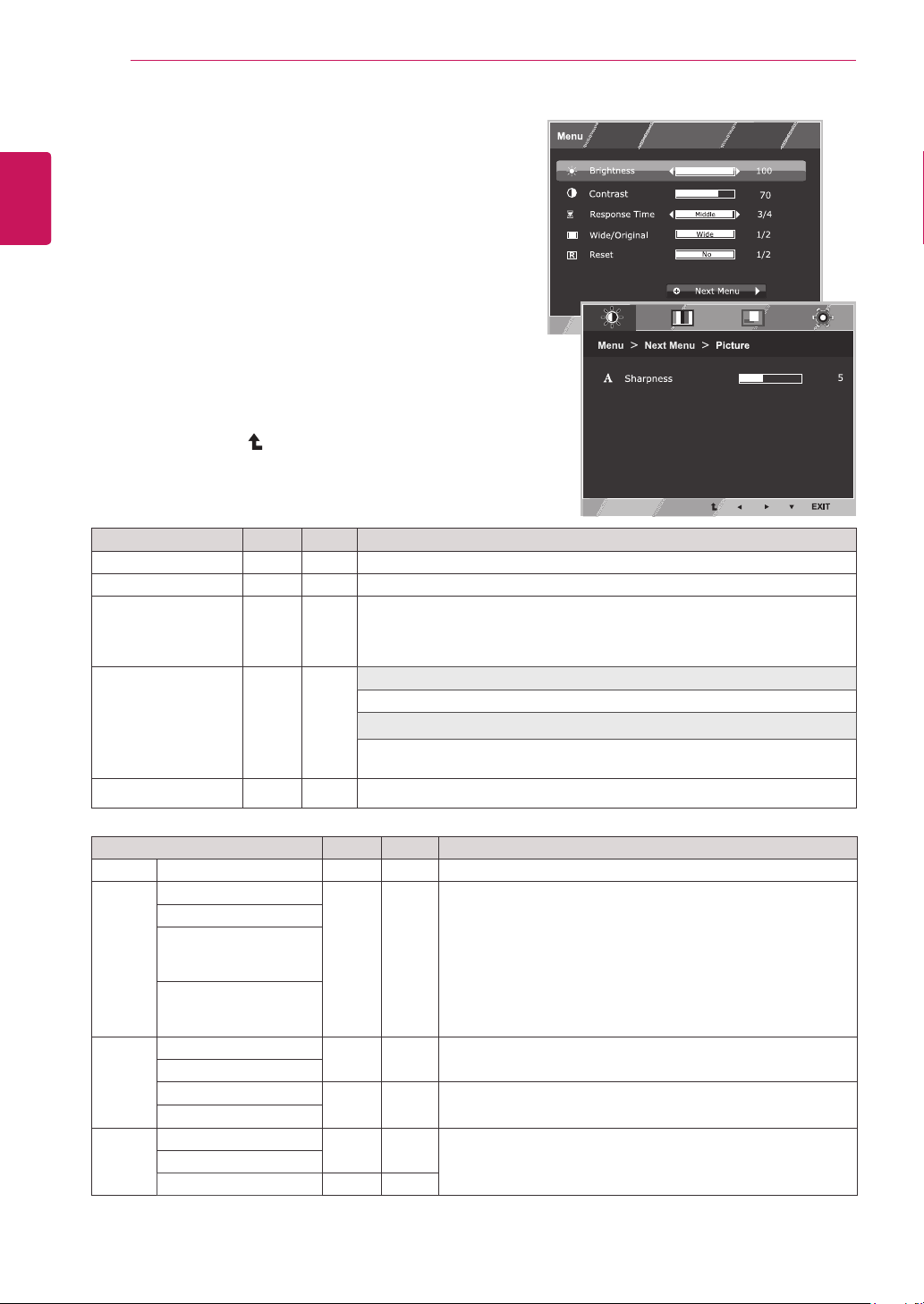

CUSTOMIZING SETTINGS
1Press the desired button on the bottom of the Monitor set.
2Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow ( ) button.
3Select EXIT to leave the OSD menu.
Monitor set Buttons
Button Description
Accesses the main menus.(See p.12)
OSD Locked/OSD
Unlocked
This function allow you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds. Then
OSD of “OSD Lock” will appear. After that, user can select
lock or unlock by pressing left/right button.
If user selects the “Lock” icon by pressing the “OK” button,
the message “OSD Locked” will appear. Otherwise, “OSD
Unlocked” will appear. After selecting the “Lock”, If you want
to change to Unlock, you can push the “MENU” button for
several seconds. The message “OSD Unlocked” will appear.

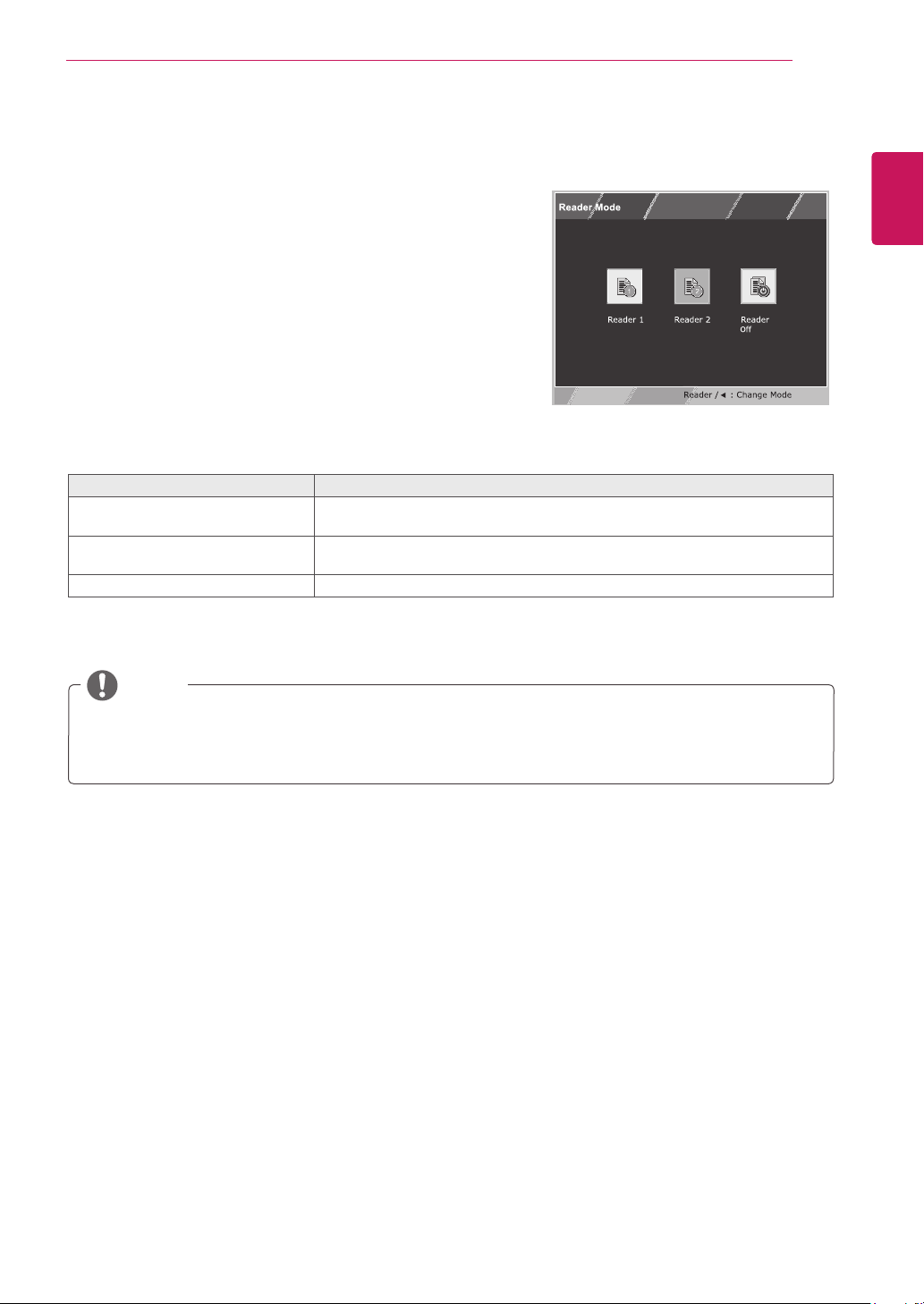

Use this button to enter Reader Mode menu. Its function works to display screen as
paper-like picture for Eye comfort.If you want to more information.(See p.17)

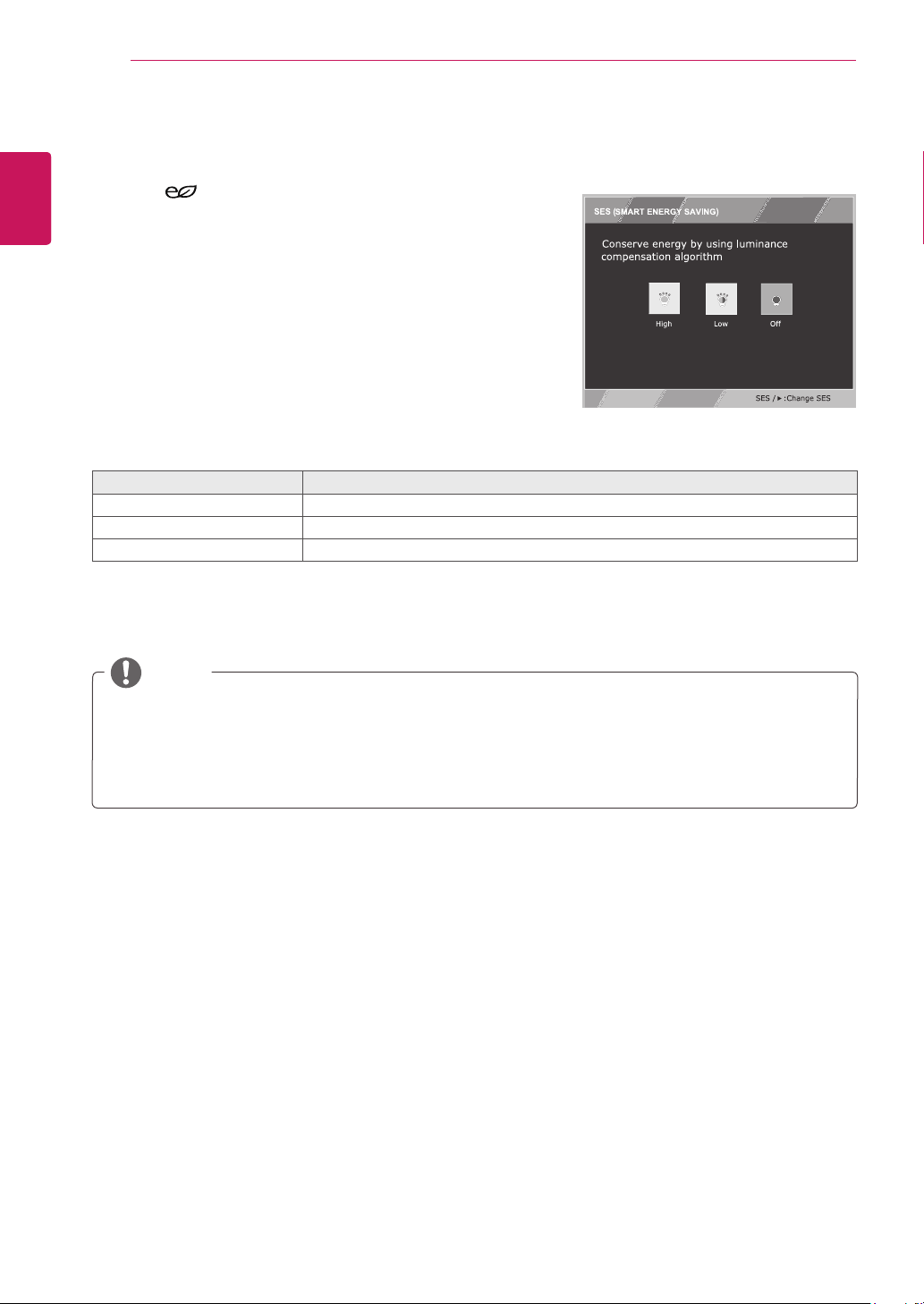

Use this button to enter SMART ENERGY SAVING menu.(See p.18)
When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode 19MB35D:1280 x 1024
22MB35D/24MB35D:1920 x 1080
You can choose the input signal.
• When two input signals are connected, you can select the input signal (D-SUB/DVI)
you want.
• When only one signal is connected, it is automatically detected. The default setting is
D-SUB.
EXIT
Exit the OSD(On Screen Display).
(Power Button) Turns the power on or off.
Power Indicator The power indicator stays white if the display is running
properly (On Mode). If the display is in Sleep Mode, the power
indicator blinks white.

12
ENG
ENGLISH
CUSTOMIZING SETTINGS
Customizing Settings
Menu Settings
1Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Set the options by pressing the ◄ or ► or ▼
buttons.
3Select the "Next Menu" button to enter the more
option settings.
4Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu Analog Digital Description
Picture Sharpness ● ● To adjust the clearness of the screen
Color Gamma
● ● To customize the color of the screen
Color Temp
Six Color (Only for
19MB35D/22MB35D-
I*/24MB35D)
Color Reset (Only for
19MB35D/22MB35D-
I*/24MB35D)
Display Horizontal ●To adjust the position of the screen
Vertical
Clock ●To improve the clarity and stability of the screen
Phase
Others Language ● ● To customize the screen status for a user's operating
environment
Power Indicator
Off Time Setting ● ●
yAnalog: D-SUB(Analog signal) input.
yDigital: DVI-D(Digital signal) input.
Menu Analog Digital Description
Brightness ●●
To adjust the brightness of the screen.
Contrast ● ● To adjust the contrast of the screen
Response Time
(Only for 19MB35D/
22MB35D-I*/24MB35D)
● ●
You can set a response time for displayed pictures based on the speed of the
screen. For a normal environment, it is recommended that you use 'Off'. For a
fast-moving picture, it is recommended that you use 'High'.
Wide/Original
(Only for 22MB35D
/24MB35D)
●●
Wide
Switch to full screen mode according to input image signal.
Original
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset ●●
Restore all factory default settings. Press the◄ , ►buttons to reset immediately.

13
ENG
ENGLISH
CUSTOMIZING SETTINGS
1Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2Select the "Next Menu" button to enter the more
option settings.
3Enter to Picture by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Picture Description
Sharpness To adjust the clearness of the screen.

14
ENG
ENGLISH
CUSTOMIZING SETTINGS
Color
1Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2Select the "Next Menu" button to enter the more
option settings.
3Select Color by pressing the ► button.
4Enter to Color by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Color Description
Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,
high gamma values display whitish images and low gamma values display
blackish images.
Color Temp Custom
• Red:Set your own red color levels.
• Green: Set your own green color levels.
• Blue:Set your own blue color levels.
Select the screen color.
Warm: Set the screen to warm color temperature (more red).
Medium: Set the screen to medium color temperature.
Cool: Set the screen to cool color temperature (more blue).
Six Color
(Only for 19MB35D/22MB35D-I*/
24MB35D)
Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/
Magenta/Yellow) to satisfy the color requirements of a user.
Hue Adjusts the screen hue.
Saturation Adjusts the color sharpness on the screen. Lower values make
the color sharpness weaker and colors lighter while higher
values make the color sharpness stronger and colors dark.
Color Reset
(Only for 19MB35D/22MB35D-I*/
24MB35D)
Resets the color settings to the factory default settings for the current input
device.

15
ENG
ENGLISH
CUSTOMIZING SETTINGS
Display
1Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2Select the "Next Menu" button to enter the more
option settings.
3Select Display by pressing the ► button.
4Enter to Display by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Display Description
Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
Phase To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.

16
ENG
ENGLISH
CUSTOMIZING SETTINGS
Others
1Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2Select the "Next Menu" button to enter the more
option settings.
3Select Others by pressing the ► button.
4Enter to Others by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Others Description
Language To choose the language in which the control names are displayed.
Power Indicator Use this function to set the power indicator on the bottom side of the monitor to
On or Off.If you set Off, it will go off.
If you set On at any time, the power indicator will automatically be turned on.
Off Time Setting The monitor set will switch to power off mode after the time to be chosen by user
(1 ~ 24 hours)

17
ENG
ENGLISH
CUSTOMIZING SETTINGS
READER Setting
1Press READER button on the bottom of the Monitor
set to display the Reader Mode OSD.
2 Set the options by pressing the ◄ buttons.
Reader Mode Description
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you
want screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Reader Off It is a mode that reader mode is off.
Each option is explained below.
NOTE
If option of Reader Mode is Reader 1 or Reader 2, Picture Mode will automatically be Custom and
SMART ENERGY SAVING will automatically be Off.

18
ENG
ENGLISH
CUSTOMIZING SETTINGS
ySaving Data depends on the Panel. So,those values should be different from each panel and panel
vendor.
yIf you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower
or higher depend on source.
NOTE
SMART ENERGY SAVING
1Press button on the bottom of the Monitor set to
display the SMART ENERGY SAVING OSD.
2 Set the options by pressing the ► buttons.
Each option is explained below.
SMART ENERGY SAVING Description
High Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.
Low Enables SMART ENERGY SAVING you can save energy with this energy- low efficient function.
Off Disables SMART ENERGY SAVING.
* SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.

19
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
yCheck and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
yPress the Power button.
Is the power on and the power
indicator White?
yAdjust the brightness and the contrast.
Is the power indicator flickering?
yIf the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yTry to turn on the PC.
Do you see an "OUT OF RANGE"
message on the screen?
yThis message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
Do you see a "NO SIGNAL"
message on the screen?
yWhen the monitor is on "No-Signal" in 5 minutes, the monitor goes to
DPM mode.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
yYou can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
Display image is incorrect
Display Position is incorrect.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
On the screen background, vertical
bars or stripes are visible.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
yCheck Control Panel ► Display ► Settings and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).

20
ENG
ENGLISH
TROUBLESHOOTING
Display image is incorrect
The screen color is mono or
abnormal.
yCheck if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yMake sure the video card is properly inserted in the slot.
ySet the color setting higher than 24 bits (true color) at Control Panel
►Settings.
The screen blinks.
yCheck if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
yBe sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
yMake sure to check if the video card supports Plug&Play function.
yCheck Control Panel ► Display ► Settings and see if the frequency or the resolution were
changed. If yes, readjust the video card to the recommend resolution.
yIf the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
yThe setting method can differ by computer and O/S (Operation System), and resolution mentioned
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
CAUTION
