LG 24CAV37K-B.AEU User manual

www.lg.com
24CAV37K
CLOUD(LED LCD) MONITOR MODEL
Owner's Manual
CLOUD MONITOR
LED LCD MONITOR
(LED MONITOR*)
Please read this manual carefully before operating
your set and retain it for future reference.
*LG LED Monitors are LCD Monitors with LED Backlighting.

2
ENG
English
Table of Contents
TABLE OF CONTENTS
3ASSEMBLING AND
PREPARING
3 Unpacking
4 Parts and buttons
5 Lifting and moving the Monitor
5 Setting Up the Monitor set
5 - Attaching the Stand Base
6 - Mounting on a table
6 - Adjusting the angle
7 - Adjusting the stand height
7 - Using the Kensington locking device
8 - Detaching the stand base
8 - Using the cable holder
8 - Detaching the stand body
9 - Swivel stand
9 - Using the Pivot function
10 - Installing the wall mount plate
10 - Mounting on a wall
12 USING THE MONITOR SET
12 Connecting Input Signal Cable
12 - D-SUB IN connection - PC
13 - DVI connection
14 Connecting LAN/Peripherals

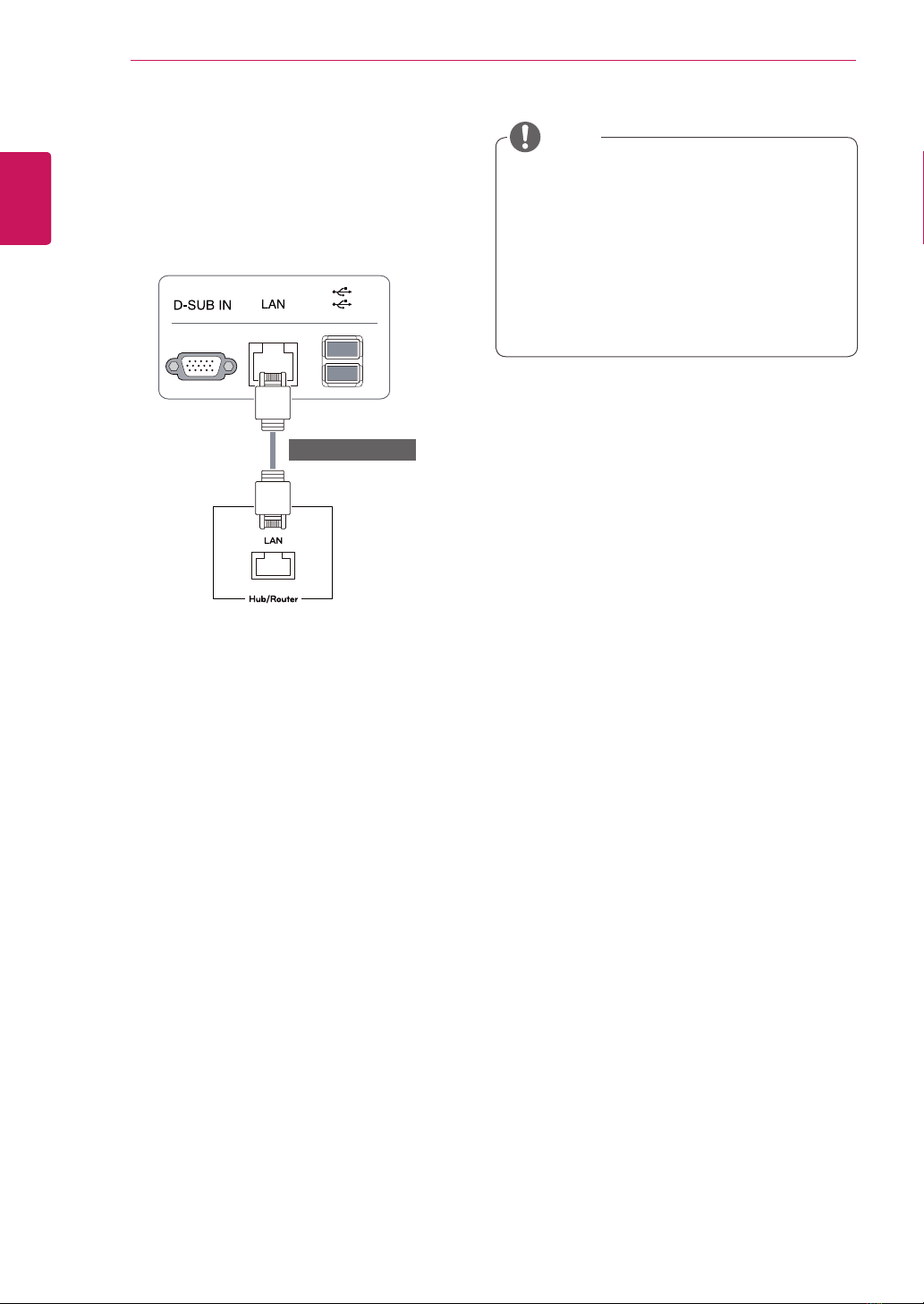

14 - LAN connection
15 - Peripheral device connection
16 - Self Image Adjustment
17 CUSTOMIZING SETTINGS
18 Customizing Settings
18 - Menu Settings
19 - Picture
20 - Color
21 - Display
22 - Others
23 - Volume
24 TROUBLESHOOTING
26 PRODUCT SPECIFICATION
27 Preset Mode
27 Indicator
28 PROPER POSTURE
28 Proper posture for using the monitor
29 USING CLOUD SOLUTION

3
ENG
English
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
yOnly use an approved LG power adapter.
yDamage caused by other power adapters is not covered by warranty.
yNote that the components may look different from those shown here.
yWithout prior notice, all information and specifications in this manual are subject to change to improve
the performance of the product.
yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail
store where you purchased the product.
Power Cord
User Manual/Card
CAUTION
NOTE
D-SUB Cable
(This cable is not included in all
countries.)
Stand Base One Screw Cable Holder
AC-DC Adapter

4
ENG
English
ASSEMBLING AND PREPARING
11
Parts and buttons
Power Indicator
yLED On : Power is on
yLED Off: Power is off
Front Side Buttons
Input Connectors (See p.12 to 15)
(Power Button)
Input Connectors
(See p.15 )

5
ENG
English
ASSEMBLING AND PREPARING
Setting Up the Monitor set
Attaching the Stand Base
1Place the monitor's screen face down.
yTo protect the screen from scratches, cover
the surface with a soft cloth.
3Using a coin, turn the screw clockwise to se-
cure the stand base.
2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
CAUTION
Stand Body
Stand Base
Stand Base
Lifting and moving the
Monitor
Please heed the following information when
moving the monitor.
yAvoid touching the screen at all times, as this
may result in damage to the screen or pixels .
CAUTION
yIt is recommended to move the Monitor in
the box or packing material that the Monitor
originally came in.
yBefore moving or lifting the Monitor,
disconnect the power cord and all cables.
yHold the top and bottom of the Monitor frame
firmly. Make sure not to hold the transparent
part area.
yWhen holding the Monitor, the screen should
face away from you to prevent the screen
from scratches.
yWhen transporting the Monitor, do not
expose the Monitor to jolts or excessive
vibration.
yWhen transporting the Monitor, keep the
Monitor upright, never turn the Monitor on its
side, or tilt towards the left or right.

6
ENG
English
ASSEMBLING AND PREPARING
Adjusting the angle
1Place the monitor mounted on the stand base
in an upright position.
2Adjust the angle of the screen. The angle of
the screen can be adjusted up to 5° forwards
and 35° backwards for a comfortable viewing
experience.
yTo avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
yBe careful not to touch or press the screen
area when adjusting the angle of the monitor.
WARNING
Mounting on a table
1Lift the monitor and place it on the table in an
upright position.
Install at least 10 cm away from the wall to
ensure sufficient ventilation.
2Connect the adaptor to the monitor, then plug
the power cord into the wall outlet.
3Press the (Power) button on the front of the
monitor to turn on the monitor.
10 cm
10 cm
10 cm
10 cm
yUnplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
CAUTION
Front SideRear Side

7
ENG
English
ASSEMBLING AND PREPARING
Using the Kensington locking
device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensing-
ton lock cable.
yUsing the Kensington lock is optional. The
accessories can be purchased at your local
electronics store.
NOTE
yOnce the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the stand height
1Place the monitor mounted on the stand base
in an upright position.
2Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
3The height can be adjusted up to 130 mm.
yDo not put your finger be-
tween the screen and the
base (chassis) when adjust-
ing the screen's height.
CAUTION
WARNING
130.0mm
Tape
Locking Pin
Stand Body

8
ENG
English
ASSEMBLING AND PREPARING
Detaching the stand body
1Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2Using a screwdriver, remove the four screws
and detach the stand from the monitor.
yThe components appearing in the illustra-
tions may look different from the actual prod-
uct.
yDo not carry the monitor upside-down as this
may cause it to fall off its stand, resulting in
damage or injury.
yTo avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
yOnly remove the tape and the locking pin
when the monitor is mounted on the stand
base and is in an upright position. Otherwise,
the stand body may protrude, which may
lead to injury.
Detaching the stand base
1Place the monitor's screen face down.
To protect the screen from scratches, cover the
surface with a soft cloth.
2Using a coin, turn the screw in the stand base
counterclockwise. Detach the stand base from
the stand body.
CAUTION
Stand Body
Stand Base
Using the cable holder
NOTE
The holes are used for wall mount bracket.
Varies depending upon your country or
model.
yThe holes are used for wall mount bracket.
yVaries depending upon your country or
model.
NOTE
NOTE
The holes are used for wall mount bracket.
Varies depending upon your country or
model.
Fix the Knob (Cable holder) to the
Hole(Hingebody).
1
2
3
Use one screw to fix the Cable Holder and
monitor set.
Close the Cable holder.

9
ENG
English
ASSEMBLING AND PREPARING
Swivel stand
yImage shown may differ from your Monitor
set.
1Swivel 355 degrees and adjust the angle of the
Monitor set to suit your view.
1Lift the monitor to its highest height to utilize
the Pivot function.
Using the Pivot function
The pivot function allows you to rotate the screen
90 degrees clockwise.
2Landscape & Portrait : You can rotate the panel
90° clockwise. Please be cautious and avoid
contact between the monitor head and the
Stand Base when rotating the screen to access
the Pivot function. If the monitor head touches
the Stand Base, then the Stand Base could
crack.
Head
section
Stand
section
3Be careful with the cables when rotating the
screen.

10
ENG
English
ASSEMBLING AND PREPARING
10 cm
10 cm
10 cm 10 cm
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1If you use screw longer than standard, the moni-
tor might be damaged internally.
2If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
Mounting on a wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
Installing the wall mount plate
This monitor has a VESA compatible mount on the
back. Most mounts will require an LG mounting
plate.
1Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2Place the wall mount plate on the monitor and
align it with the screw holes on the monitor.
3Using a screwdriver, tighten the four screws to
fix the plate onto the monitor.
yThe wall mount plate is sold separately.
yFor more information on the installation, refer
to the wall mount plate's installation guide.
NOTE
Wall Mount Plate
Model 24CAV37K
Wall Mount (A x B) 100 x 100
Stand Screw M4
Number of screws 4
Wall Mount Plate
(Optional)
RW120
