OWNER’S MANUAL
LED LCD Monitor
23MB35PH
24MB35PH
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD MONITOR MODEL
ENGLISH

2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3LICENSE
4ASSEMBLING AND PREPAR-
ING
4 Unpacking
5 Parts and buttons
6 Moving and Lifting the Monitor
7 Setting up the Monitor set
7 - Attaching the Stand Base
8 - Detaching the stand base
8 - Detaching the stand body
9 - Mounting on a table
9 - Adjusting the angle
10 - Adjusting the stand height
10 - Using the Kensington locking device
11 - Using the Pivot function

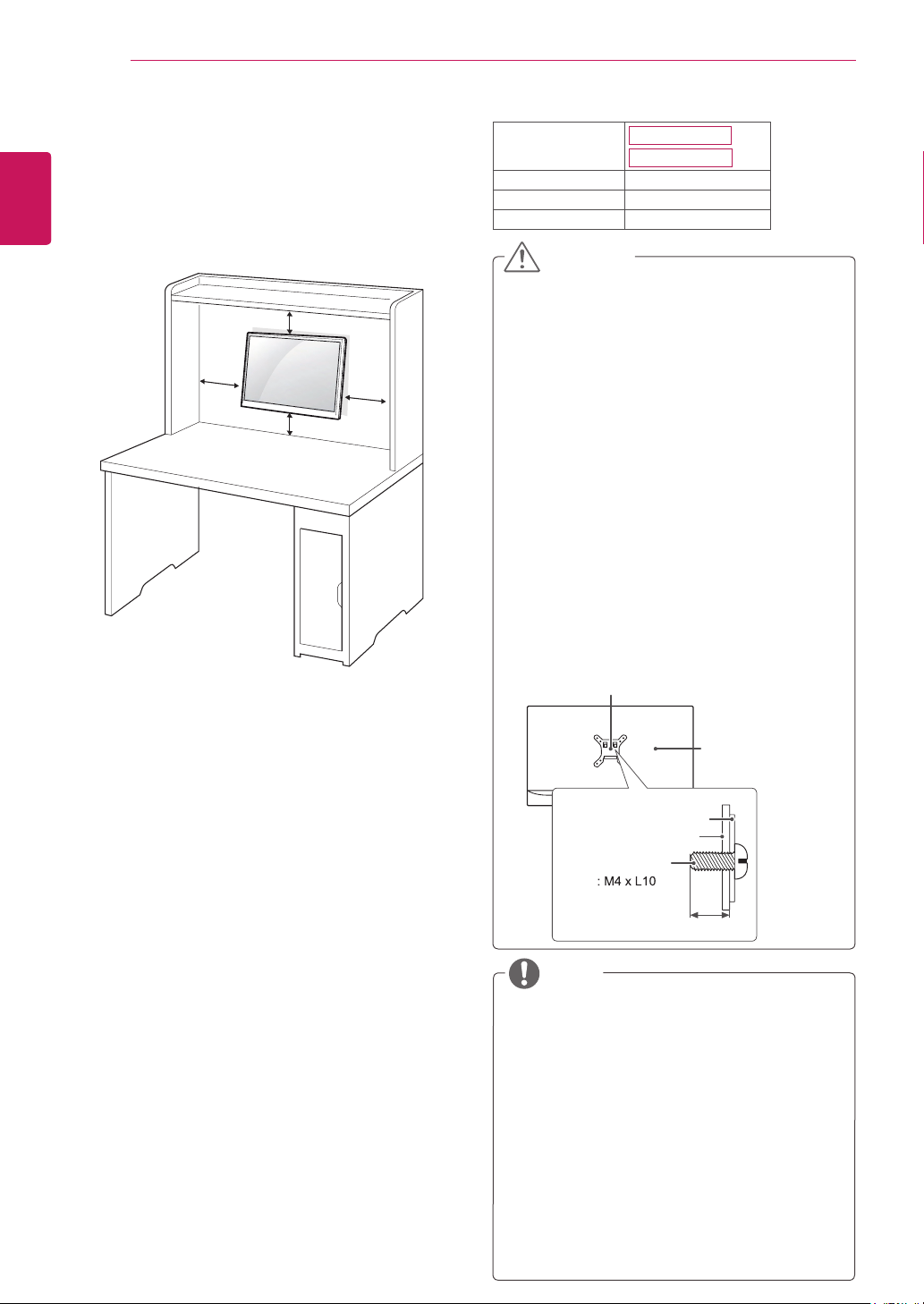

12 - Mounting on a wall
13 USING THE MONITOR SET
13 Connecting to a PC
13 - D-SUB connection
13 - DVI-D connection
13 - HDMI connection

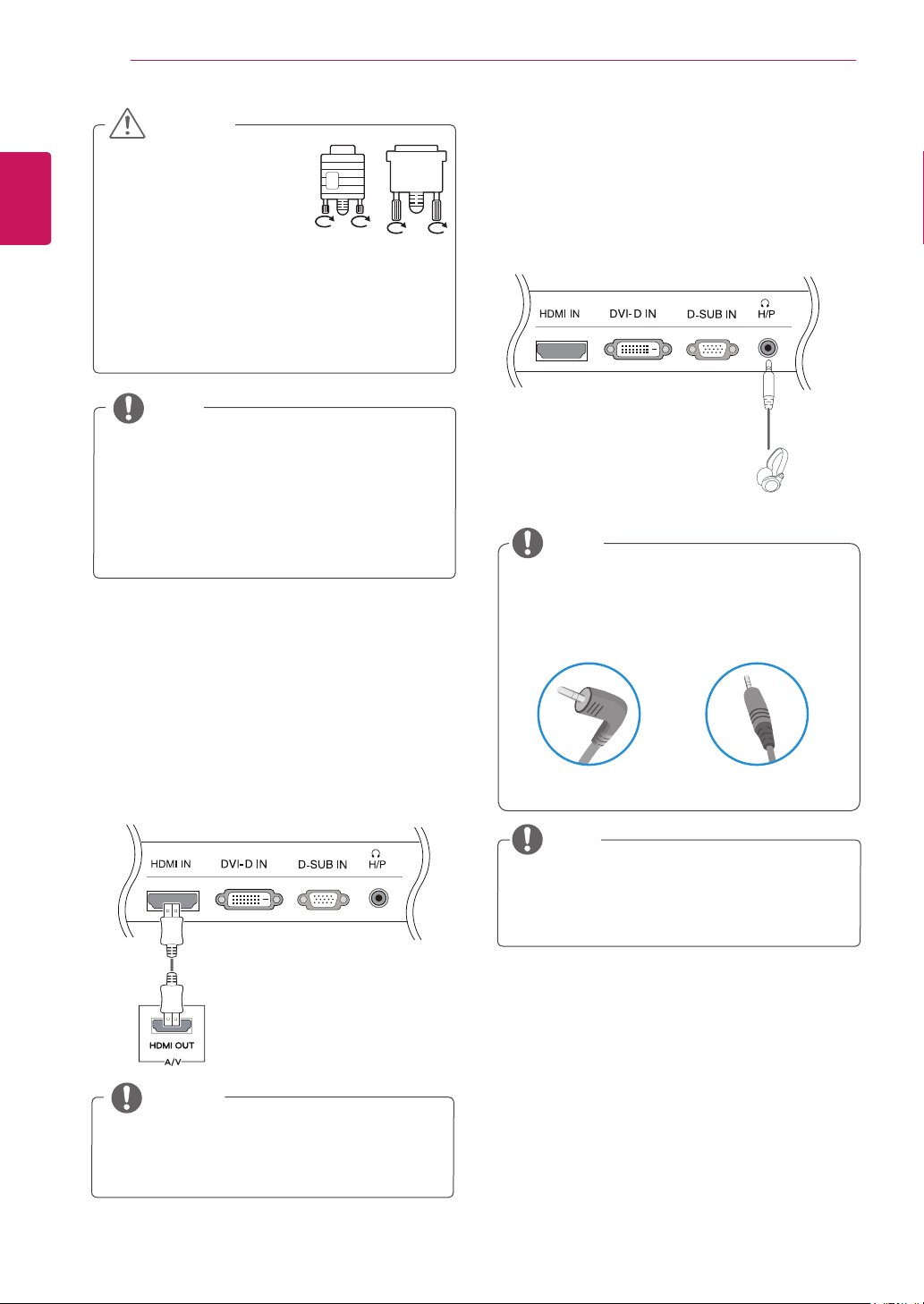

14 Connecting to AV Devices
14 - HDMI connection
14 Connecting to External Devices
14 - Peripheral device connection
16 CUSTOMIZING SETTINGS
17 Customizing Settings
17 - Menu Settings
18 -Picture
19 -Color
20 -Display
20 -Audio
21 -Others
22 READER Setting
23 -SMART ENERGY SAVING
24 TROUBLESHOOTING
26 SPECIFICATIONS
26 23MB35PH
27 24MB35PH
28 Preset Modes (Resolution)
28 Indicator
29 PROPER POSTURE
29 Proper posture for using the Monitor set.

3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-
ministrator, Inc.
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
yDo not use any unapproved accessories to ensure the safety and product life span.
yAny damages or injuries by using unapproved accessories are not covered by the warranty.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
CD(Owner's Manual) /
Card
D-SUB Cable
(This cable is not
included in all
countries.)
HDMI Cable
(This cable is not included in all
countries.)
DVI-D Cable
(This cable is not
included in all
countries.)
Stand Base
Power Cord

5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
Power Indicator
yLighting On: Turned on
yLighting Off: Turned off
Connection panel (See p.13~14)
Front Side Buttons
(Power Button)

6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
yAs far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
yIt is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
yBefore moving or lifting the monitor, discon-
nect the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
yWhen holding the monitor, the screen should
face away from you to prevent it being
scratched.
yWhen moving the monitor, avoid any strong
shock or vibrations to the product.
yWhen moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION

7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the Monitor set
Attaching the Stand Base
1Place the Monitor set with the screen side
down on a flat and cushioned surface.
Stand Base
Stand Body
yTo protect the screen from scratches, cover
the surface with a soft cloth.
3Using a coin, turn the screw clockwise to se-
cure the stand base.
2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
CAUTION
Stand Base
23MB35PH
24MB35PH
Stand Base
Stand Body
2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.

8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Detaching the stand body
1Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2Using a screwdriver, remove the four screws
and detach the stand from the monitor.
Stand Base
Stand Body
yThe components appearing in the illustra-
tions may look different from the actual prod-
uct.
yDo not carry the monitor upside-down as this
may cause it to fall off its stand, resulting in
damage or injury.
yTo avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
yOnly remove the tape and the locking pin
when the monitor is mounted on the stand
base and is in an upright position. Otherwise,
the stand body may protrude, which may
lead to injury.
Detaching the stand base
1Place the monitor's screen face down.
To protect the screen from scratches, cover the
surface with a soft cloth.
2Using a coin, turn the screw in the stand base
counterclockwise. Detach the stand base from
the stand body.
CAUTION
23MB35PH
23MB35PH
24MB35PH
24MB35PH
2Detach the stand base from the stand body.

9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Adjusting the angle
1Place the monitor mounted on the stand base
in an upright position.
2Adjust the angle of the screen. The angle of
the screen can be adjusted up to 5° forwards
and 20° backwards for a comfortable viewing
experience.
yTo avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
yBe careful not to touch or press the screen
area when adjusting the angle of the monitor.
WARNING
Mounting on a table
1Lift the monitor and place it on the table in an
upright position.
Install at least 100 mm away from the wall to
ensure sufficient ventilation.
2
3Press the (Power) button on the front of the
monitor to turn on the monitor.
100 mm
100 mm
100 mm
100 mm
yUnplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
CAUTION
Front SideRear Side
Connect the Power cord to the monitor, then
plug the power cord into the wall outlet.

10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Kensington locking
device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensing-
ton lock cable.
yUsing the Kensington lock is optional. The
accessories can be purchased at your local
electronics store.
NOTE
yOnce the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the stand height
1Place the monitor mounted on the stand base
in an upright position.
2Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
3The height can be adjusted up to 110 mm.
yDo not put your finger be-
tween the screen and the
base (chassis) when adjust-
ing the screen's height.
Tape
Locking Pin
Stand Body
CAUTION
WARNING
110.0mm
