LG 24MB35PU-B.AUS User manual

www.lg.com
ENGLISH
OWNER’S MANUAL
IPS LED MONITOR
(LED LCD MONITOR)
22MB35PU
24MB35PU
Please read this manual carefully before operating
your set and retain it for future reference.
IPS LED(LED LCD) MONITOR MODEL

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3ASSEMBLING AND PREPAR-
ING
3 Unpacking
4 Parts and buttons
5 Setting up the Monitor set
5 - Attaching the Stand Base
6 - Detaching the stand base
6 - Detaching the stand body
7 - Mounting on a table
7 - Adjusting the angle
8 - Adjusting the stand height
8 - Using the Kensington locking device
9 - Swivel stand
9 - Using the Pivot function

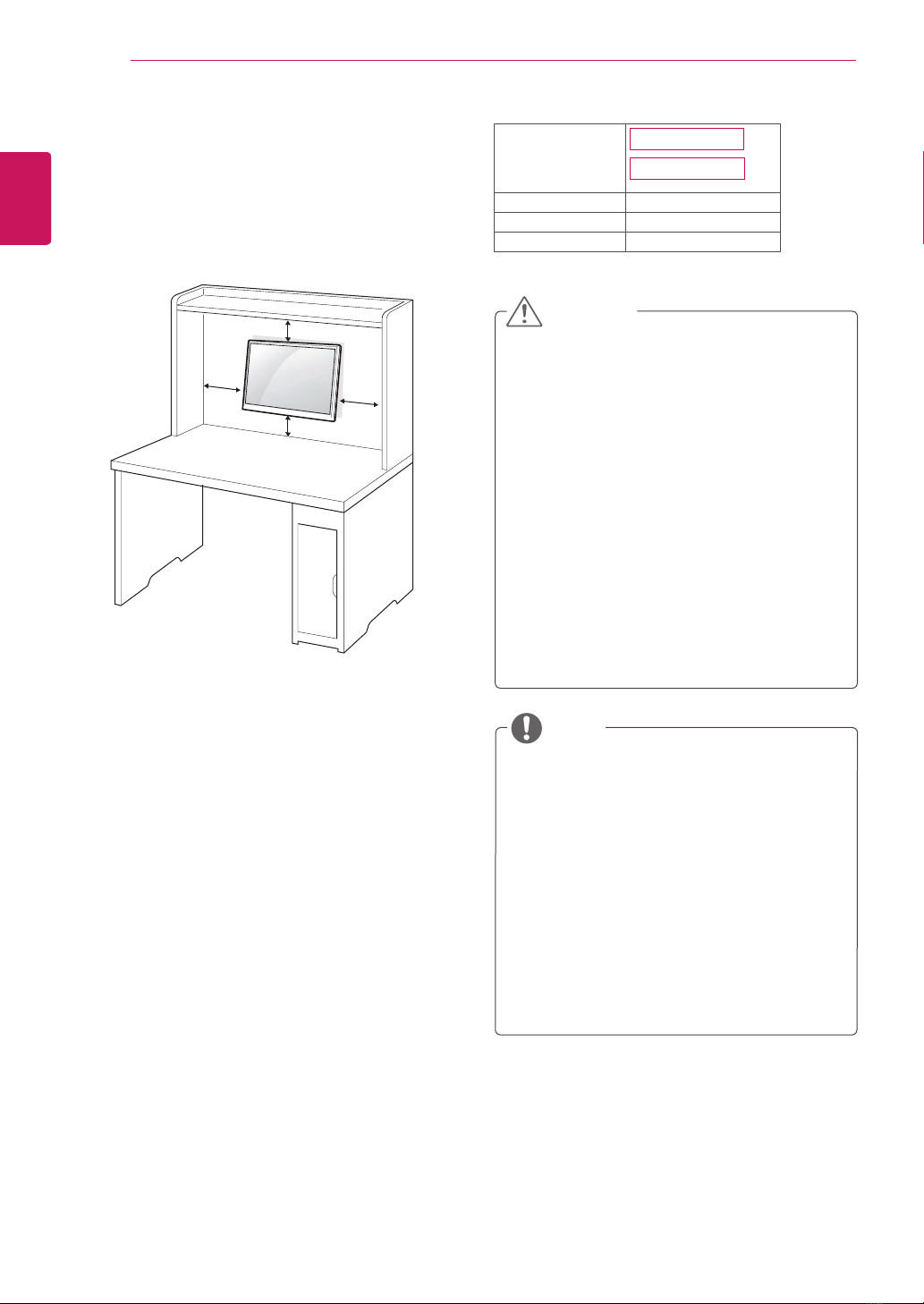

10 - Mounting on a wall
11 USING THE MONITOR SET
11 Connecting to a PC
11 - D-SUB connection
11 - DVI-D connection
13 - Peripheral device connection
14 CUSTOMIZING SETTINGS
15 Customizing Settings
15 - Menu Settings
16 -Picture

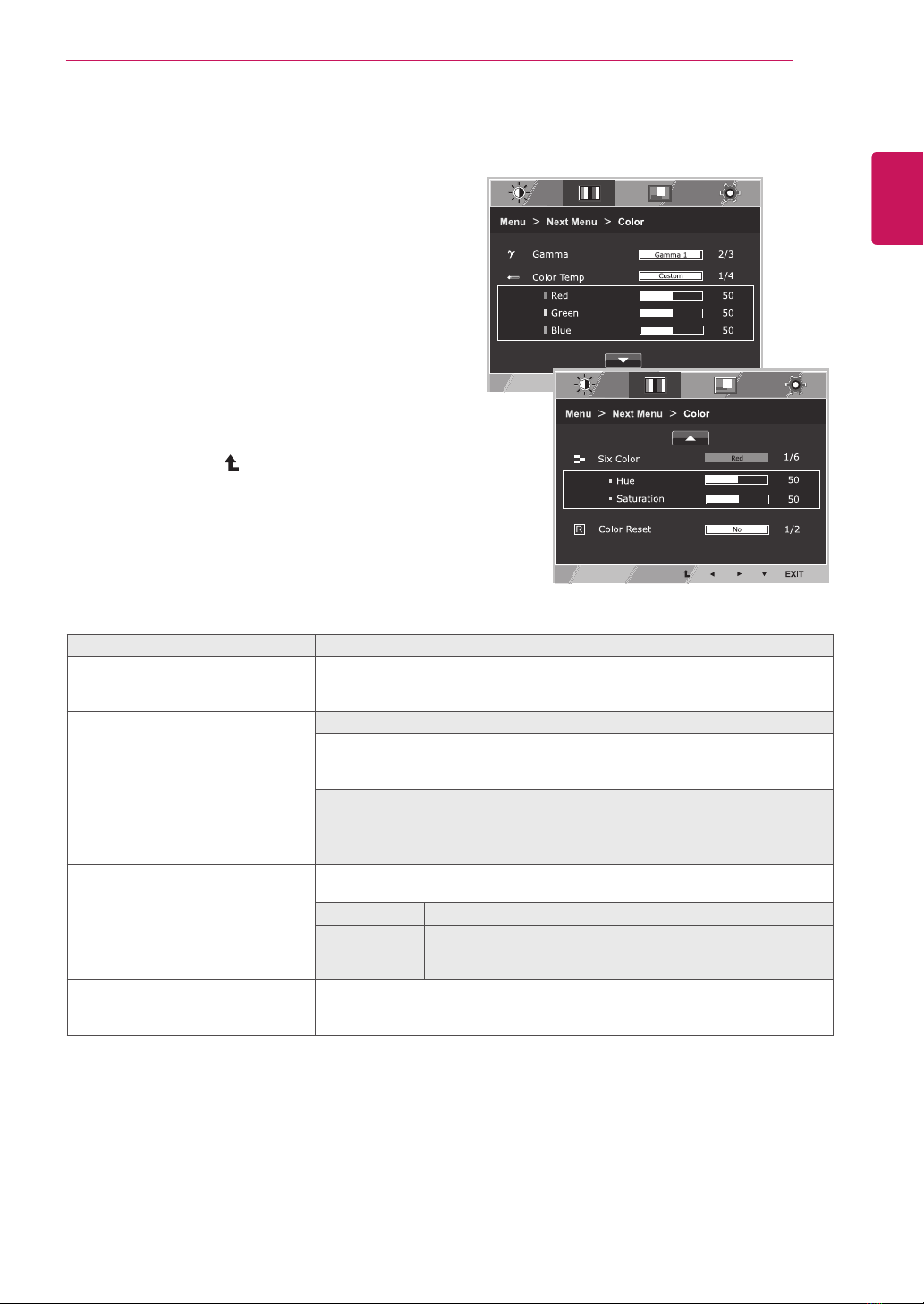

17 -Color
18 -Display
19 -Others
20 READER Setting
21 SMART ENERGY SAVING
22 TROUBLESHOOTING
24 SPECIFICATIONS
24 22MB35PU
25 24MB35PU
26 Preset Modes (Resolution)
26 Indicator
27 PROPER POSTURE
27 Proper posture for using the Monitor set.

3
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
yDo not use any unapproved accessories to ensure the safety and product life span.
yAny damages or injuries by using unapproved accessories are not covered by the warranty.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
Stand Base
CD(Owner's Manual) /
Card
D-SUB Cable
(This cable is not included in all
countries.)
Power Cord
DVI-D Cable
(This cable is not included in all
countries.)
( Depending on the country ) ( Depending on the country )
USB Cable
Audio Cable

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
(Power Button)
Power Indicator
yLED On : Power is on
yLED Off: Power is off
Front Side Buttons
Input Connectors (See p.11 to 13)See p.11 to 13)to 13)13))

5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the Monitor set
Attaching the Stand Base
1Place the Monitor set with the screen side
down on a flat and cushioned surface.
Stand Base
Stand Body
yTo protect the screen from scratches, cover
the surface with a soft cloth.
3Using a coin, turn the screw clockwise to se-
cure the stand base.
2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
CAUTION
Stand Base
2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
Stand Base
Stand Body
24MB35PU
22MB35PU

6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Detaching the stand body
1Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2Using a screwdriver, remove the four screws
and detach the stand from the monitor.
22MB35PU
24MB35PU
yThe components appearing in the illustrations
may look different from the actual product.
yDo not carry the monitor upside-down as this
may cause it to fall off its stand, resulting in
damage or injury.
yTo avoid damaging the screen when lifting or
moving the monitor, only hold the stand or the
plastic cover. This avoids putting unnecessary
pressure on the screen.
yOnly remove the tape and the locking pin when
the monitor is mounted on the stand base and
is in an upright position. Otherwise, the stand
body may protrude, which may lead to injury.
CAUTION
Detaching the stand base
1Place the monitor's screen face down.
To protect the screen from scratches, cover the
surface with a soft cloth.
2Using a coin, turn the screw in the stand base
counterclockwise. Detach the stand base from
the stand body.
Stand Base
Stand Body
2Detach the stand base from the stand body.
22MB35PU
24MB35PU

7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Adjusting the angle
1Place the monitor mounted on the stand base
in an upright position.
2Adjust the angle of the screen. The angle of
the screen can be adjusted up to 5° forwards
and 20° backwards for a comfortable viewing
experience.
yTo avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
yBe careful not to touch or press the screen
area when adjusting the angle of the monitor.
WARNING
Mounting on a table
1Lift the monitor and place it on the table in an
upright position.
Install at least 10 cm away from the wall to
ensure sufficient ventilation.
2
3Press the (Power) button on the front of the
monitor to turn on the monitor.
10 cm
10 cm
10 cm
10 cm
yUnplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
CAUTION
Front SideRear Side
Connect the Power cord to the monitor, then
plug the power cord into the wall outlet.

8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Kensington locking
device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensing-
ton lock cable.
yUsing the Kensington lock is optional. The
accessories can be purchased at your local
electronics store.
NOTE
yOnce the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the stand height
1Place the monitor mounted on the stand base
in an upright position.
2Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
3The height can be adjusted up to 110 mm.
yDo not put your finger be-
tween the screen and the
base (chassis) when adjust-
ing the screen's height.
Tape
Locking Pin
Stand Body
CAUTION
WARNING
110.0mm

9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Swivel stand
yImage shown may differ from your Monitor
set.
1Swivel 355 degrees and adjust the angle of the
Monitor set to suit your view.
1Lift the monitor to its highest height to utilize
the Pivot function.
Using the Pivot function
The pivot function allows you to rotate the screen
90 degrees clockwise.
2Landscape & Portrait : You can rotate the panel
90° clockwise. Please be cautious and avoid
contact between the monitor head and the
Stand Base when rotating the screen to access
the Pivot function. If the monitor head touches
the Stand Base, then the Stand Base could
crack.
Head
section
Stand
section
3Be careful with the cables when rotating the
screen.
