ATTACHMENT J –USER’S MANUAL

P/NO : 3828TUL141A (S-0011) Printed in Indonesia
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.
http://www.lge.com
Color Monitor
77ME/77M
User’s Guide
Benutzerhandbuch
Manuel d’utilisation
Guida Utente
Guia del Usuario
Manual do preprietário
Handleiding
StudioWorks
USER’S GUIDE StudioWorks 77ME / 77M Color Monitor

Contents
Introduction ..........................................................A1
Connecting the Monitor........................................A2
Location and Function of Controls.......................A3
Control Panel Function.........................................A4
On Screen Display (OSD) Control Adjustment ...A6
On Screen Display(OSD) Selection
and Adjustment ....................................................A7
Sound Selection and Adjustment ......................A11
Video Memory Modes ........................................A12
Troubleshooting..................................................A13
Specifications ......................................................A14
Einleitung...............................................................B1
Anschließen...........................................................B2
Ort und Funktion der Bedienungselemente .........B3
Bedienungselemente der Bildkontrolle.................B4
On Screen Display (OSD) Anpassung ..................B6
OSD Einstellung und Auswahlsymbole ................B7
Ton Einstellung und Auswahlsymbole................B11
Videospeichermodi .............................................B12
Störungen ............................................................B13
Produktbeschreibung..........................................B14
Introduction ..........................................................C1
Branchement du Moniteur ...................................C2
Nomenclature et Fonctions ..................................C3
Fonctions du Paneau de Commande....................C4
Réglage des Commandes Affichage Écran............C6
Options de sélection et de Réglage
OSD (affichage écran) .........................................C7
Son de Sélection et de Réglage...........................C11
Mise en Mémoire de Modes Vidéo.....................C12
Quelques Conseils en Cas D’incident ................C13
Spécifications D'entree.......................................C14
Introduzione .........................................................D1
Collegamento del Monitor ...................................D2
Posizione e Funzione dei Conando di Controllo ...D3
Funzione del Pannello di Controllo......................D4
Controllo Regolazione On Screen Display (OSD) ...D6
Elementi di Selezione e Regolazione dell'OSD....D7
Souno di Selezione e Regolazione.....................D11
Modalità di Memoria Video...............................D12
In Caso di Problemi............................................D13
Specifiche............................................................D14
Introducción ..........................................................E1
Conectando del Monitor .......................................E2
Ubicacion y Funcion de los Controles ..................E3
Función del Panel de Control................................E4
Ajuste del Control de Exhibición en Pantalla (OSD) ......E6
Ajuste del OSD y Selección de Elementos............E7
Ajuste del Sonido y Selección de Elementos ......E11
Modos de Memoria de Video..............................E12
Sugerencias para Localizar las Fallas ..................E13
Especificaciones...................................................E14
Introdução..............................................................F1
Conectando o Monitor..........................................F2
Posição dos Controles e Descrição .......................F3
Funções do Painel de Controle .............................F4
Ajuste On Screen Display(OSD) ...........................F6
Ajustes OSD e Itens de Seleção ............................F7
Ajustes Som e Seleção.........................................F11
Modos de Memória de Vídeo..............................F12
Resolvendo Problemas.........................................F13
Especificações......................................................F14
Inleiding ................................................................N1
De Monitor Aansluiten.........................................N2
De plaatsing en de werking van de knoppen.......N3
Het bedieningspaneel...........................................N4
Bediening via het beeldscherm OSD
(On Screen Display) .............................................N6
Kiezen en instellen via het OSD-systeem.............N7
Selectie en aanpassing van het geluid ...............N11
Modi voor videogeheugen..................................N12
Problemen oplossen ...........................................N13
Specificaties ........................................................N12
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
PORTUGUÊS
NEDERLANDS

Thank you for purchasing a high resolution monitor. It will give you high
resolution performance and convenient reliable operation in a variety of
video operating modes.
Features
The monitor is a 17 inches (15.9 inches viewable ) intelligent, microprocessor
based monitor compatible with most analog RGB (Red, Green, Blue) display
standards, including IBM PC®, PS/2®, Apple®, Macintosh®, Centris®, Quadra®, and
Macintosh II family.
The monitor provides crisp text and vivid color graphics with VGA, SVGA, XGA,
and VESA Ergonomic modes (non-interlaced), and most Macintosh compatible
color video cards when used with the appropriate adaptor. The monitor's wide
compatibility makes it possible to upgrade video cards or software without
purchasing a new monitor.
Digitally controlled auto-scanning is done with the micro-processor for horizontal
scan frequencies between 30 and 70kHz, and vertical scan frequencies
between 50-160Hz.
This monitor is capable of producing a maximum horizontal resolution of 1280
dots and a maximum vertical resolution of 1024 lines.
The microprocessor-based digital controls allow you to adjust conveniently a
variety of image controls by using the OSD (On Screen Display).
Plug and play capability if supported by your system.
This monitor has DDC 2B function.*
Compliant with the following regulated specifications :*
- EPA ENERGY STAR
- Swedish MPR II
- Swedish TCO’99 (Applies to 77ME only)
A1
Introduction
ENGLISH
*
For detailed information, please refer to the Reference Guide provided .

Connecting the Monitor
A2
On the back of the monitor are two plug-in connections; one for the AC
power cord, and the other for the signal cable from the video card.
Power off both the monitor and PC.
Connect the 15 pin VGA connector of the supplied signal cable to the output
VGA video connector on the PC. The connectors will mate only one way. If
you cannot attach the cable easily, turn the connector upside down and try
again. When mated, tighten the thumbscrews to secure the connection.
Locate the appropriate MAC to VGA adapter block at your local computer
store. This adapter changes the high density 3 row 15 pin VGA connector to
the correct 15 pin 2 row connection to mate with your MAC. Attach the other
end of the signal cable to the side of the adapter block with 3 rows.
Connect the attached adapter block/signal cable to the video output on your
MAC.
One end of the AC power cord is connected into the AC power connector on
the back of the monitor. The other end is plugged into a properly grounded
three-prong AC outlet.
Power ON the PC, then the monitor.
If you see the SELF DIAGNOSTICS message, check the signal cable and
connectors.
After using the system, power OFF the monitor, then the PC.
MIC.
OUT AUDIO. IN
Power Cord
Signal Cable
D-15P
Audio In
Mic Out
IBM PC MACINTOSH
D-15P
Mac Adapter
*NOTE : For Apple Macintosh use, a
separate plug adapter is needed to
change the 15 pin high density (3 row)
D-sub VGA connector on the supplied
cable to a 15 pin 2 row connector.
1
2
3
3
4
5
6
2'
2
2'

A3
Location and Function of Controls
Rear View
Front View
MIC.
OUT AUDIO IN
ID Label
Audio IN
Mic Out
D-Sub Signal Cable
AC Power Socket
Front Panel Controls
Left Side Jacks

A4
Control Panel Function
Front Panel Controls
OSD ON/OFF Enter Button
Sound Menu
OSD Select /Adjustment Control
Power Button
Brightness
Contrast
Power (DPMS) Indicator
Built-in Microphone
Sound Mute
OSD Select/
Adjustment Control Use these buttons to choose or adjust items in
the on screen display.
Use this button to enter or exit the on screen
display.
To adjust sound menu.
Used to select mute on (means sound off) and
mute off (means sound on).
OSD ON/OFF
Enter Button
Sound Menu
Sound Mute
Built-in Microphone.Built-in Microphone
Used to adjust the brightness of the screen. Brightness
Adjustment Control
Adjust the display to the contrast desired.
Contrast
Adjustment Control
This Indicator lights up green when the monitor
operates normally. If the monitor is in DPM
(Energy Saving) mode (stand-by/suspend/power
off), this indicator color changes to amber.
Power (DPMS)
Indicator
Use this button to turn the monitor on or off.Power Button
Control Function

A5
Control Panel Function
Left Side Jacks
Rear Panel Jacks
Headphone Jack Headphone Jack that automatically mutes
the speaker volume when headphone is
attached.
Microphone Jack An external microphone can be used
instead of the built-in microphone.
MIC.
OUT AUDIO IN
Mic. Out Connects microphone sound to PC via
cable.
Audio In Connects speaker sound to PC via cable
attachment.
Microphone Operation
On the left side there is a MIC (Microphone) jack. By plugging a microphone in
here, it may reduce the long length of cable needed to reach the PC's sound card.
In order to use this MIC jack, you need to use a cable (supplied) to plug into the
rear of the monitor (MIC OUT) and into the MIC input jack of your sound card (if
available).
Audio Features
A major feature of this monitor is its built-in audio system. This conveniently
integrates a stereo audio amplifier and speakers without taking up any more
space. Because the monitor is designed like this, you can easily upgrade to audio
capable multimedia applications by attaching your PC with sound card to the back
of this monitor. It will result in significantly less cabling and space requirements.

A6

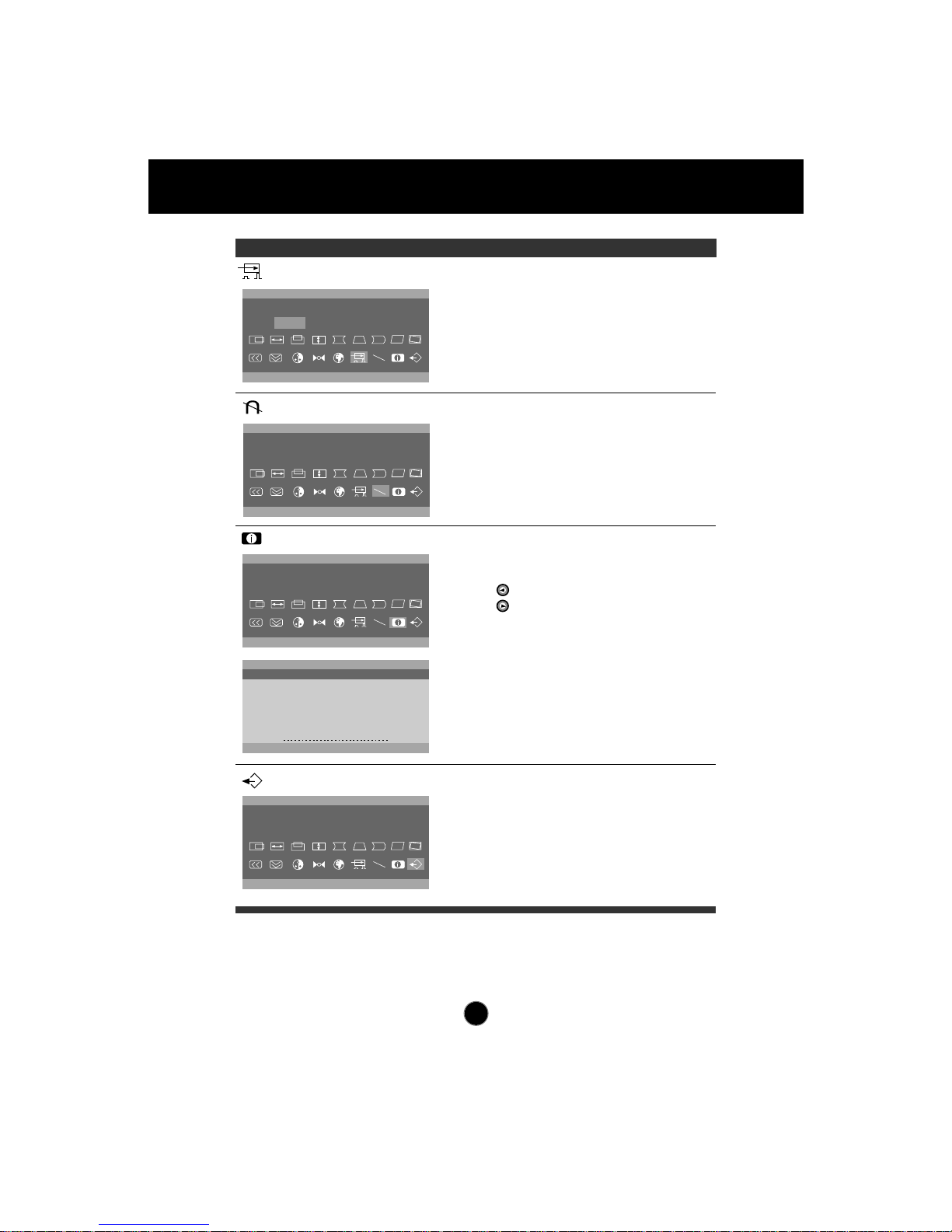

On Screen Display (OSD) Control Adjustment
Making adjustments to the image size, position and operating parameters of
the monitor are quick and easy with the On Screen Display Control system. A
quick example is given below to familiarize you with the use of the controls.
Following section is an outline of the available adjustments and selections you
can make using the OSD.

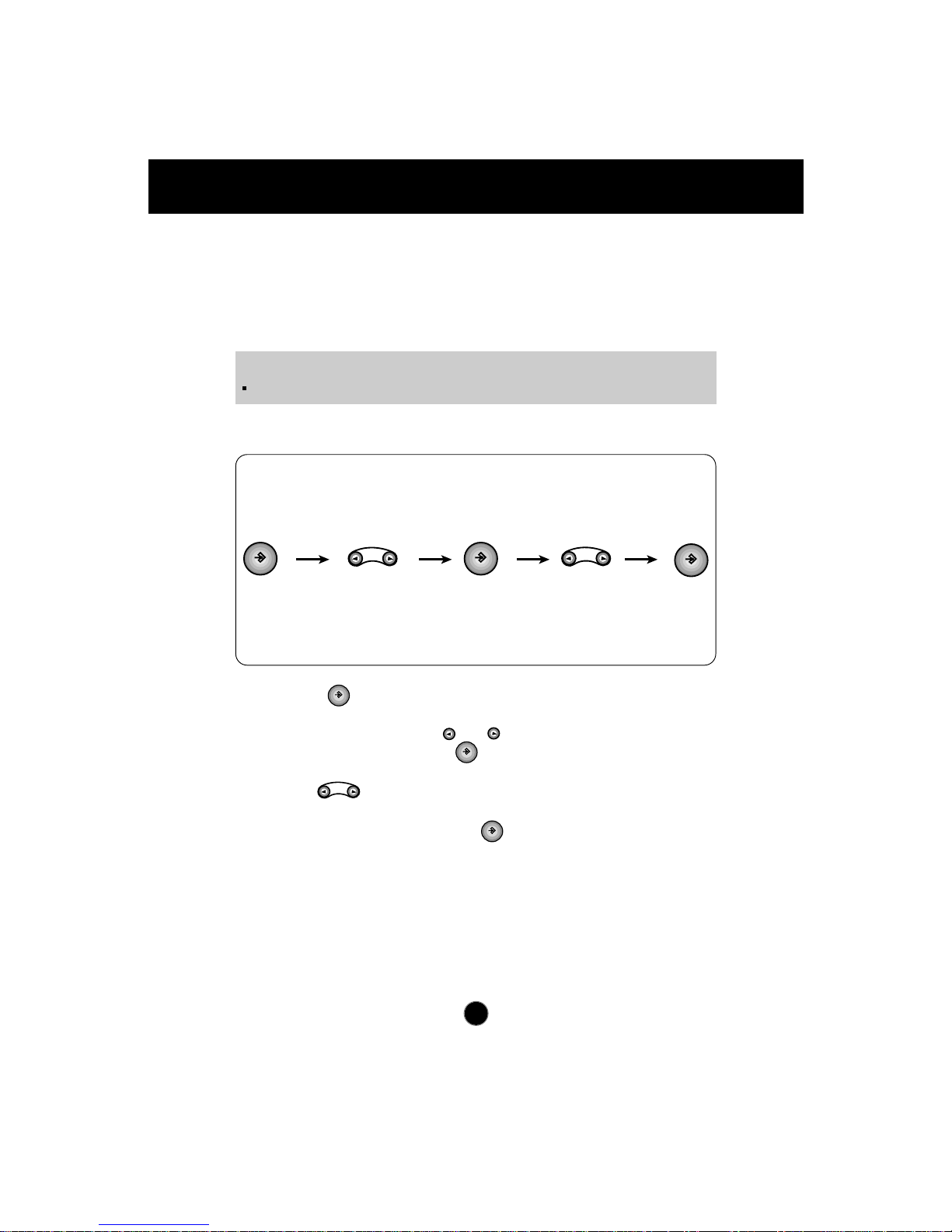

To make adjustments in the On Screen Display, follow these steps:
Press the Button, then the main menu of the OSD appears.
To acces a control, use the or Buttons. When the icon you want
becomes highlighted, press the Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the Button.
NOTE
Allow the monitor to stabilize for at least 30 minutes before making image adjustment.
1
1
2
3
4
5
6
7
1
2
2
3
4
5
6
7
1
2
3
3
4
5
6
7
1
2
3
4
4
5
6
7
