Please read this guide thoroughly before installation.
LDG3019ST
LDG301/7ST
LDG3016ST
LDG3015ST/SB/SW
P/No.: MFL62177703 www.lg.com

INSTALLATION INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE INSTALLATION
INSTALLATION SAFETY INSTRUCTIONS
XS
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
Installation of this range must conform with local
codes, or in the absence of local codes, with the
National Fuel Gas Code, ANS] Z223.1/NFPA.54,
latest edition. In Canada, installation must
conform with the current Natural Gas Installation
Code, CAN/CGAB149.1 or the current Propane
Installation Code, CAN/CGA-B149.2, and with
local codes where applicable. This range has
been design-certified by CSA International
according to ANSI 221.1, latest edition and
Canadian Gas Association according to
CAN/CGA-1.1 latest edition.
As with any appliance using gas and generating
heat, there are certain safety precautions you
should follow. You will find these precautions in
the Important Safety Information section in your
User’s Guide. Read them carefully.
* IMPORTANT — Save these instructions
for local electrical inspector’s use.
* IMPORTANT — Observe all governing
codes and ordinances.
Note to Installer: Leave these instructions with
the appliance after installation is completed.
Note to Consumer: Keep the User’s Guide and
installation Instructions for future reference.
NOTE: This appliance must be properly
grounded.
« The electrical diagram is in an envelop
attached to the back of the range.
* Skill level — Installation of this appliance
requires basic mechanical skills.
¢ Proper installation is the responsibility of
theinstaller.
« Product failure due to improper installation is
not covered under the Warranty.
* Remove all tape and packaging.
¢ Make sure the burners are properly seated and
level.
« Take the accessory pack out of the oven and/or
drawer.
* Check to be sure that no range parts have
come loose during shipping.

INSTALLATION INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE INSTALLATION
INSTALLATION SAFETY INSTRUCTIONS (continued)
BEFORE YOU BEGIN
Remove all tape and packing materials before using the range. Dispose of all plastic bags after
unpacking the range. Never allow children to play with packing materials.
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions completely and carefully. Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage. Refer to this manual. For assistance or
additional information, consult a qualified installer, service agency, manufacturer (dealer) or the gas
supplier.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or
hurt you and others. All safety messages will follow the safety alert symbol and either the
word “WARNING’ or “CAUTION ’.
4A
WARNING
This
symbol
will
alert
you
to
hazards
or
unsafe
practices
which
could
cause
serious
bodily
harm
or
death.
This symbol will alert you to hazarcs or unsafe practices which could
A CAUTI ON Cause bodily injury or property damage.
WHAT TO DO IF YOU SMELL GAS
* DO NOT try to light any appliance.
* DO NOT touch any electrical switch.
* DO NOT use any phone in your building.
* Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
* If you cannot reach your gas supplier, call the
fire department.
ri% WARNINGS tthe information in
this manual is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or death.
— DO NOT store or use combustible materials,
gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
installation and service must be performed by
a qualified installer, service agency or the gas
supplier.

INSTALLATION INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE INSTALLATION
- INSTALLATION SAFETY INSTRUCTIONS (continued)
4& WARNING!
* ALL RANGES CAN TIP
- INJURY TO PERSONS
COULD RESULT
* INSTALL ANTI-TIP DEVICES
PACKED WITH RANGE
* SEE INSTALLATION
INSTRUCTIONS
mA
ay
«DO NOT step or sit on the door. Install the
Anti-Tip Bracket packed with range.
- The range could be tipped and injury might result
from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for
cleaning, service, or any other reason, ensure that
the Anti-Tip Device is properly reengaged when
the range is pushed back against the wall.
All ranges can tip and injury could result. To prevent
accidental tipping of the range, attach an approved
Anti-Tip device to the wall. (See “INSTALLING THE
ANTI-TIP DEVICE?’ in this manual.) To check if the
device is installed and engaged properly, carefully
tip the range forward. The Anti-Tip device should
engage and prevent the range from tipping over.
if you pull the range out from the wall for any
reason, make sure the Anti-Tip device is engaged
when you push the range back against the wall.
4 WARNING!
* NEVER reuse old flexible connectors. The use of
old flexible connectors can cause gas leaks and
personal injury. Always use NEW flexible
connectors when installing a gas appliance.
* Your range must be installed by a qualified
installer.
* Your range should be electrically grounded in
accordance with local codes or, in the absence of
local codes, in accordance with the National
Electrical Code (ANSI/NFPA 70, latest edition). in
Canada, electrical grounding must comply with the
current CSA C22.1 Canadian Electrical Code Part
1 and/or local codes. See “ELECTRICAL
CONNECTIONS?” in this manual.
* Before installing your range on linoleum or any
other synthetic floor covering, make sure the floor
covering can resist 180°F(82°C) without shrinking,
warping or discoloring. Do not install the range
over carpeting unless a sheet of 1/4” thick
plywood or similar insulator is placed between the
range and carpeting.
* Make sure the wall coverings around the range
can resist heat generated by the range up to
200°F (93°C).
* Leak testing of the appliance shall be conducted
according to the manufacturer’s instructions.
* Avoid placing cabinets above the range. To
minimize the hazard caused by reaching over the
open flames of operating burners, install a
ventilation hood over the range that projects
forward at least 5” beyond the front of the
cabinets.
« The ventilation hood must be constructed of sheet
metal not less than 0.0122” thick. Install above
the cooktop with a clearance of not less than 1/4”
between the hood and the underside of the
combustible material or metal cabinet.
The hood must be at least as wide as the
appliance and centered over the appliance.
Clearance between the cooking surface and
the ventilation hood surface MUST NEVER BE
LESS THAN 24 INCHES.
EXCEPTION: Installation of a listed microwave
oven or cooking appliance over the cooktop shall
conform to the installation instructions packed with
that appliance.
* If cabinets are placed above the range, allow a
minimum clearance of 30” between the cooking
surface and the bottom of unprotected cabinets.

INSTALLATION INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE INSTALLATION
INSTALLATION SAFETY INSTRUCTIONS (continued)
4 WARNING!
* If a 30” clearance between cooking surface and « The vertical distance from the plane of the cooking
overhead combustible material or metal cabinets surface to the bottom of adjacent overhead
cannot be maintained, protect the underside of the cabinets extending closer than 1” to the plane of
cabinets above the cooktop with not less than 1/4” the range sides must not be less than 18”. (See
insulating millboard covered with sheet metal not the Dimensions and Clearances illustration in this
less than 0.0122” thick. Clearance between the manual.)
cooking surface and protected cabinets MUST
NEVER BE LESS THAN 24 INCHES.
4 CAUTION
* tems of interest to children should not be stored in «DO NOT attempt to operate the oven of this range
cabinets above a range or on the backsplash of a during a power failure.
range —children climbing on the range to reach
items could be seriously injured.
IN THE COMMONWEALTH OF MASSACHUSETTS
* This product must be installed by a licensed * When using a flexible gas connector, it must not
plumber or gas fitter. exceed 3 feet in length.
* When using ball type gas shut-off valves, they shall
be the T-handle type.
PREPARING FOR INSTALLATION
TOOLS YOU WILL NEED MATERIALS YOU MAY NEED
\ ° Gas line shut-off valve
=== * Pipe joint sealant that resists action of natural and
Phillips screwdriver : LP gases.
6== = ==Ap * Flexible metal appliance connector (3/4” or 1/2” NPT
Open-end or x 1/2” 1.D,)
Flat-blade screwdriver adjustable wrench Never use an old connector when installing a new
.
range.
= “ Wy Bs * Flare union adapter for connection to gas supply line
Pencil and ruler . SSS (3/4” or 1/2” NPT x 1/2” 1.D.)
Pipe wrench(2) - Flare union adapter for connection to pressure
{one for support) regulator on range (1/2” NPT x 1/2” 1.D.)
x * Liquid leak detector or soapy water.
Level « Lag bolt or 1/2” O.D. sleeve anchor (for concrete
eS /) floors only).
5@

INSTALLATION INSTRUCTIONS
Provide proper clearances between the range and
DIMENSIONS AND CLEARANCES
The range may be placed with 0” clearance (flush) at
yy
adjacent combustible surfaces. These dimensions the back wall.
must be met for safe use of your range. The location
of the electrical outlet and pipe opening (see “GAS
PIPE AND ELECTRICAL OUTLET LOCATIONS’)
may be adjusted to meet specific requirements.
(Ins TALLATION
CLEARANCES
Mint ' oF ,° Maximum depth E
cabinets on 9/9 for cabinets
either side of 30” coutertops
g 30”
5 Minimum al Dee 5”
13” Minimum Minimum clearance to
clearance right wall
to left wall |
OO 0 OO
oO 36” OO
0”
To cabinets
below cooktop
and at the range
\ ee - beck
DIMENSIONS Depth with door closed (includes door handle}
2834”
20"
7
ie
—"]
36” + 1/4”
Height
4776”
va
—
<<
we wy .
Depth with door open. L ue 25
435/22" ws weer
~

INSTALLATION INSTRUCTIONS
) LOCATION
Do not locate your range where it may be subject
to strong drafts. Any openings in the floor or wall
behind the range should be sealed. Make sure the
openings around the base of the range that
supply fresh air for combustion and ventilation
are not blocked by carpeting or woodwork.
Your range, like many other household units, is heavy
and can be installed on soft floor coverings such as
cushioned vinyl or carpeting. Use care when moving
the range on this type of flooring.
it is recommended that the following simple and
inexpensive instructions be followed to protect your
floor.
When the floor covering ends at the front of the
range, the area that the range will be installed on
should be built up with plywood to the same level or
higher than the floor covering. This will allow the
range to be moved for cleaning and servicing, as well
as proper air flow to the range.
Also, make sure the floor covering can resist 180°F
(82°C). See the "INSTALLATION SAFETY
INSTRUCTIONS" (included in this manual).
Make sure the wall coverings around your range can
resist the heat generated (up to 200°F/93°C) by the
range. See the "INSTALLATION SAFETY
INSTRUCTIONS" (included in this manual).

INSTALLATION INSTRUCTIONS
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
7
Ne
oo Recommended area for 120V
outlet on rear wall and area for
through-the wall connection of
pipe stub and shut-off valve.
ee
Recommended area for
through-the floor connection
of pipe stub and shut-off valve.
1. PROVIDE ADEQUATE GAS SUPPLY
Your range is designed to operate at a pressure of
5” of water column on natural gas or 10” of water
column on LP.
Make sure you are supplying your range with the type
of gas for which it is configured.
This range is convertible for use on natural or LP gas.
When using this range on LP gas, conversion must be
made by a qualified LP installer before attempting to
operate the range.
For proper operation, the pressure of natural gas
supplied to the regulator must be between 5” and 13”
of water column.
For LP gas, the pressure supplied to the regulator
must be between 10” and 13” of water column.
When checking for correct operation of the regulator,
the inlet pressure must be at least 1” more than the
operating (manifold) pressure as given above.
The pressure regulator located at the inlet of the
range must remain in the supply line regardless of
which type of gas is being used.
A flexible metal appliance connector used to connect
the range to the gas supply line should have an I.D. of
5/8” and a max of 5ft. In Canada, flexible connectors
must be single wall metal connectors less than 6 feet
in length.

INSTALLATION INSTRUCTIONS
2. CONNECT THE RANGE TO GAS
Shut off ine Sol gas supply valve perore h @ Connect a flexible metal appliance connector to
removing t ms d range and vetee Ht off until the the adapter on the range. Position range to permit
new hook-up has been completed. connection at the shut-off valve.
Because hard piping restricts movement of the range,
the use of a CSA International-certified flexible metal
appliance connector should be used unless local
codes require a hard-piped connection.
® When all connections have been made, be sure
all range controls are in the off position and turn
on the main gas supply valve. Gas leaks may
NEVER reuse an old connector when installing a new occur in your system and result in a dangerous
range. situation. Gas leaks may not be detected by smell
To protect against gas leaks, use a qualified pipe joint alone.
sealant on all external threads. Check all gas connection joints and fittings for
leaks with a non-corrosive leak detection fluid,
@ Install male 1/2” or 3/4” flare union adapter to the then wipe off.
Gas suppliers recommend you purchase and
install an UL approved gas detector. install and
use in accordance with Installation instructions.
NPT internal thread of the manual shut-off valve,
taking care to back-up the shut-off valve to keep it
from turning.
@ install male 1/2” flare union adapter to the 1/2” A WARNING |
NPT internal thread at inlet of pressure regulator. DO NOT USE A FLAME TO CHECK FOR GAS
Use a backup wrench on the pressure regulator LEAKS.
fitting to prevent damage.
4& WARNING!
isolate the range from the gas supply system by
closing its individual shut-off valve during any
pressure testing of the gas supply system at test
pressures equal to or less than 1/2” psig(38.5kPa).
FLEXIBLE CONNECTOR HOOKUP
~\
Gas Flow into Range
2
| wg. Flex connector
Adapter
Pressure regulator
(6 ft. max.)
<— Adapter
Installer: Inform the
consumer of the
location of the gas < Gas shut-off valve
shut-off valve 4/2" or 3/4"
LS Gas pipe _/

INSTALLATION INSTRUCTIONS
ELECTRICAL REQUIREMENTS
3. ELECTRICAL CONNECTIONS
120 Volt, 60 Hertz, properly grounded dedicated circuit protected by a 15 or 20 Amp circuit breaker, or slow
blow fuse.
GROUNDING
IMPORTANT: FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong grounding wall receptacle to minimize the
possibility of electric shock hazard from this
appliance.
The customer should have the wall receptacle and
circuit checked by a qualified electrician to make sure
the receptacle is properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced with a
properly grounded three-prong wall receptacle.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD (GROUND) PRONG FROM
THE POWER CORD.
Aword about GFCI’s — GFCl’s are not required or
recommended for gas range receptacles.
Ground Fault Circuit Interrupters (GFCI’s) are devices
that sense leakage of current in a circuit and
automatically switch off power when a threshold
leakage level is detected. These devices must be
manually reset by the consumer. The National
Electrical Code requires the use of GFCI’s in kitchen
receptacles installed to serve countertop surfaces.
Performance of the range will not be affected if
operated on a GFCl-protected circuit but occasional
nuisance can occur.
PREFERRED
METHOD
Ensure proper ground
exists before use
4. SEAL THE OPENINGS
4 CAUTION:
The customer should have the circuit checked by a
qualified electrician to make sure the receptacle is
properly grounded.
DO NOT use an adapter plug because disconnecting
of the power cord places undue strain on the adapter
and leads to eventual failure of the adapter ground
terminal.
The installation of appliances designed for mobile
home installation must conform with the Manufactured
Home Construction and Safety Standard, Title 24
CFR, Part 3280 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24, HUD,
Part 280) or, when such standard is not applicable,
the Standard for Manufactured Home Installations,
latest edition (Manufactured Home Sites,
Communities and Set-Ups), ANSI A225.1, latest
edition, or with local codes. In Canada, mobile home
installation must be in accordance with the current
CAN/CSA 2240/MH Mobile Home Installation Code.
4. WARNING!
POWER MUST BE DISCONNECTED BEFORE
SERVICING THE APPLIANCE. FAILURE TO DO
SO CAN RESULT IN DEATH OR ELECTRICAL
SHOCK.
Seal any openings in the wall and floor after electrical and gas supplies are completed.

INSTALLATION INSTRUCTIONS
5. ASSEMBLE THE SURFACE BURNERS
4& CAUTION
DO NOT operate the burners without all parts in
place.
Place the burner caps and heads on the cooktop.
Make sure that the caps and heads are placed in the
correct locations. There is one small, one medium,
one large and one extra large burner head and cap.
(— Center Burner >
[. fon some r models) ~ fon some models) |
Oval {Center} Burner Medium burner |
'HeadiCap Assembly head andcap 4
Small burner
head and cap
Medium burner
head and cap
>
crcr or cor
Large burner Front of range
Extra large burner
head and cap /
LL head and cap
Hole
Electrode
Make sure the hole in the burner head is positioned
over the electrode.
6. CHECK IGNITION OF SURFACE BURNERS
ELECTRIC IGNITION
Select a top burner knob and simultaneously push in
and turn to the “LITE” position. You will hear a clicking
sound indicating proper operation of the spark
module.
Once the air has been purged from the supply lines,
burner should ignite within 4 seconds.
After burner ignites, rotate knob out of the “LITE”
position. Try each burner in succession uniil all
burners have been checked.
QUALITY OF FLAMES
The combustion quality of burner flames needs to be
confirmed visually.
(\ A Yellow flames — Call for service
j j | B Yellow tips on outer cones—
itis normal for LP gas
i
! i f C Soft blue flames —
it is normal for natural gas
With LP gas, some yellow tipping on outer cones is
normal.
1@

INSTALLATION INSTRUCTIONS
7. ADJUST THE SURFACE BURNER TO THE LOW
FLAME(SIMMER) SETTING.
1) Light all surface burners.
2) Turn the knob on the burner being adjusted to
“O”.
3) Remove knob.
4) Insert a small, flat bladed screwdriver into the valve
shaft as shown in Fig. 1.
On right front valve for model LDG3019ST there is
a secondary adjustment for the low flame for the
outer burners.
insert a small, flat blade screwdriver into the hole
next to the valve stem to adjust the outer flame as
shown in Fig. 2.
Turn the adjustment screw until the flame reaches
the desired size.
5) Replace the knob.
Note: Hold the valve shaft with one hand while turning
the screw for adjustment with the other.
Center adjustment screw Adjustment screw next to
the valve shaft
Fig. 1 Fig. 2
6) Test the flame stability.
Test 1: Turn the knob from “HI” to “LO” quickly.
if the flame goes out, increase the flame size and test
again.
Test 2: With the burner on a “LO” setting, open and
close the oven door quickly. If the flame is
extinguished by the air currents created by the door
movement, increase the flame height and test again.
7) Repeat steps 1-6 for each surface burner.

INSTALLATION INSTRUCTIONS
» 8. CHECK OPERATION OF BAKE/BROIL BURNERS
To check ignition of the Bake burner, follow the steps To check ignition of the Broil burner, follow the steps
below: below:
1) Remove all packing from inside the oven cavity. 1) Press "Broil" ("Hi" will be shown in the display).
2) Press "Bake" (350 will be shown in the display). 2) Make sure the door is closed.
3) Press Start. 3) Press Start.
it may take between 30 and 90 seconds for the burner It may take between 30 and 90 seconds for the burner
to start heating. to start heating.
NOTE: Do not try and light either the bake or broil
burners during a power outage. The range has an
electrical ignition system and can not be used
without power.
» 9. AIR SHUTTER ADJUSTMENT FOR BAKE AND BROIL
BURNERS.
The range comes from the factory with air shutters adjusted for proper air flow for natural gas.
if converted to LP, follow the instructions provided in the conversion kit to properly adjust the air shutters.
LP conversion must be performed by a qualified technician.
13 @

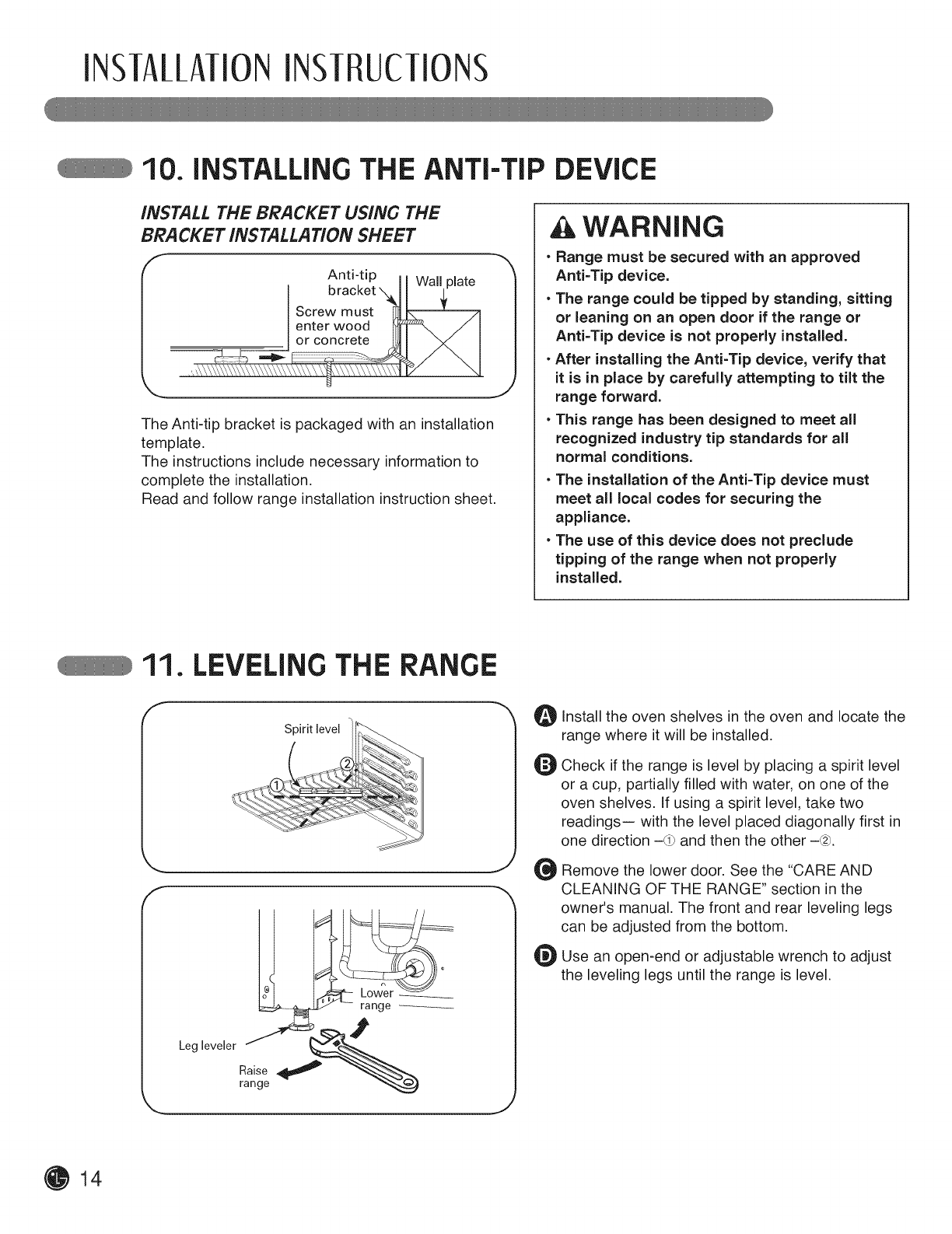

INSTALLATION INSTRUCTIONS
INSTALL THE BRACKET USING THE
BRACKET INSTALLATION SHEET
10. INSTALLING THE ANTI-TIP DEVICE
Anti-tip
bracket
Screw must
enter wood
or concrete
Wall plate
The Anti-tip bracket is packaged with an installation
template.
The instructions include necessary information to
complete the installation.
Read and follow range installation instruction sheet.
11. LEVELING THE RANGE
4& WARNING
* Range must be secured with an approved
Anti-Tip device.
* The range could be tipped by standing, sitting
or leaning on an open door if the range or
Anti-Tip device is not properly installed.
+ After installing the Anti-Tip device, verify that
it is in place by carefully attempting to tilt the
range forward.
* This range has been designed to meet all
recognized industry tip standards for all
normal conditions.
* The installation of the Anti-Tip device must
meet all local codes for securing the
appliance.
* The use of this device does not preclude
tipping of the range when not properly
installed.
Leg leveler
® install the oven shelves in the oven and locate the
range where it will be installed.
@ Check if the range is level by placing a spirit level
or a cup, partially filled with water, on one of the
oven shelves. If using a spirit level, take two
readings— with the level placed diagonally first in
one direction —® and then the other —®.
@ Remove the lower door. See the “CARE AND
CLEANING OF THE RANGE?” section in the
owner's manual. The front and rear leveling legs
can be adjusted from the bottom.
® Use an open-end or adjustable wrench to adjust
the leveling legs until the range is level.

INSTALLATION INSTRUCTIONS
> WHEN ALL HOOKUPS ARE COMPLETE
Make sure all controls are left in the off position. Make sure the flow of combustion and ventilation air
to the range is unblocked.
» CONVERTING TO LP GAS
(OR CONVERTING BACK TO NATURAL GAS FROM LP)
This range leaves the factory set for use with The conversion instructions and LP orifices can be
natural gas. The conversion to LP gas must be found attached to the range on the back.
performed by a qualified LP gas installer when Keep these instructions and the orifices in case you
converting to LP gas. want to convert back to natural gas.
15 @

Memo

Life’s Good
USA, Consumer User
| 1-888-865-3026 Us
Printed in Mexico
