LG SolarDOM MP9485SB User manual

LIGHT OVEN “ S olar DOM ”
OWNER’S MANUAL
PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING.
MP9485S
P/No: 3828W5A8422
MP9485SB

Precautions
2
Precautions to avoid possible exposure to excessive microwave energy.
You cannot operate your oven with the door open due to the safety interlocks
built into the door mechanism. These safety interlocks automatically switch off
any cooking activity when the door is opened; which in the operation of
microwave function could result in harmful exposure to microwave energy.
It is important not to tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow
food or cleaner residue to accumulate on sealing surfaces.
Do not operate your oven if it is damaged. It is particularly important that the
oven door closes properly and that there is no damage to the: (1) door(bent),
(2) hinges and latches (broken or loosened), (3) door seals and sealing
surfaces.
Your oven should not be adjusted or repaired by anyone except qualified
service personnel.
Warning
When heating liquids, e.g. soups, sauces and beverages in your oven with
microwave function, delayed eruptive boiling can occur without evidence of
bubbling. This could result in a sudden boil over of the hot liquid. To prevent
this possibility the following steps should be taken:
1 Avoid using straight sided containers with narrow necks.
2 Do not overheat.
3 Stir the liquid before placing the container in the oven and again halfway
through the heating time.
4 After heating, allow to stand in the oven for a short time, stir or shake
them(especially the contents of feeding bottles and baby food jars) again
carefully and check the temperature of them before consumption to avoid
burns (especially, contents of feeding bottles and baby food jars).
Be careful when handling the container.
Warning
Always allow food to stand after being cooked by
microwaves and check the temperature of them
before consumption. Especially contents of feeding
bottles and baby food jars.
Please ensure cooking times are correctly set as
over cooking may result in the FOOD catching fire
and subsequent damage to your oven.

3
Contents
How the Microwave Function Works
Microwaves are a form of energy similar to radio and television waves and
ordinary daylight. Normally, microwaves spread outwards as they travel
through the atmosphere and disappear without effect. This ovens, however,
have a magnetron which is designed to make use of the energy in
microwaves. Electricity, supplied to the magnetron tube, is used to create
microwave energy.
These microwaves enter the cooking area through openings inside the oven.
A turntable or tray is located at the bottom of the oven. Microwaves cannot
pass through metal walls of the oven, but they can penetrate such materials
as glass, porcelain and paper, the materials out of which microwave-safe
cooking dishes are constructed.
Microwaves do not heat cookware, though cooking vessels will eventually get
hot from the heat generated by the food.
A very safe appliance
Your oven, S olar DOM, is one of the safest of all home
appliances. When the door is opened, the oven
automatically stops producing microwaves. Microwave
energy is converted completely to heat when it enters
food, leaving no “left over” energy to harm you when
you eat your food.
Precautions 2
Contents 3
Unpacking & Installing 4 ~ 5
Control Panel 6
Setting the Clock 7
Child Lock 8
Convection Cooking 9
Speed Combi Cooking 10 ~ 12
Speed Auto Cooking 13 ~ 17
Defrost 18
Defrosting Guide 19
Grill Cooking 20
Micro Power Cooking 21
Micro Power Level 22
Two Stage Cooking 23
Quick Start 24
More or Less Cooking 25
Test dishes in accordance with EN 60705 26
Important safety instructions 27 ~ 28
Microwave - safe Utensils 29
Food characteristics & Microwave cooking 30 ~ 31
Questions & Answers 32
Plug Wiring Information/Technical Specifications 33
Maff Reheating Cooked Chilled Foods 34
Guarantee 35

Unpacking &
Installing
4
By following the basic steps on these two pages you will be able to quickly check that your oven is operating
correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your
oven make sure you remove all accessories and packing. Check to make sure that your oven has not been
damaged during delivery.
Place the oven in the level location of your choice with
more than 85cm height but make sure there is at least
20cm of space on the top and 10cm at the rear for proper
ventilation. The front of the oven should be at least min. 8cm/max.
22cm from the edge of the surface to prevent tipping.
An exhaust outlet is located on bottom or side of the oven. Blocking
the outlet can damage the oven.
Unpack your oven and place it on a flat level
surface.
* THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL
CATERING PURPOSES.
HIGH RACK
(For grill mode)
LOW RACK
(For microwave and
convection mode)
METAL TRAY

5
The DISPLAY will count down from 30 seconds. When it
reaches 0 it will sound BEEPS. Open the oven door and
test the temperature of the water. If your oven is operating the water
should be warm. Be careful when removing the container it may
be hot.
YOUR OVEN IS NOW INSTALLED
Fill a microwave safe container with 300 ml (1/2 pint)
of water. Place on the METAL TRAY and close the oven
door. If you have any doubts about what type of container to
use please refer to page 29.
Open your oven door by pulling the DOOR HANDLE.
Place the METAL TRAY inside the oven.
Plug your oven into a standard household socket. Make
sure your oven is the only appliance connected to the
socket. If your oven does not operate properly, unplug it
from the electrical socket and then plug it back in.
The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
Press the STOP/CLEAR button, and press
the START button one time to set 30
seconds of cooking time.

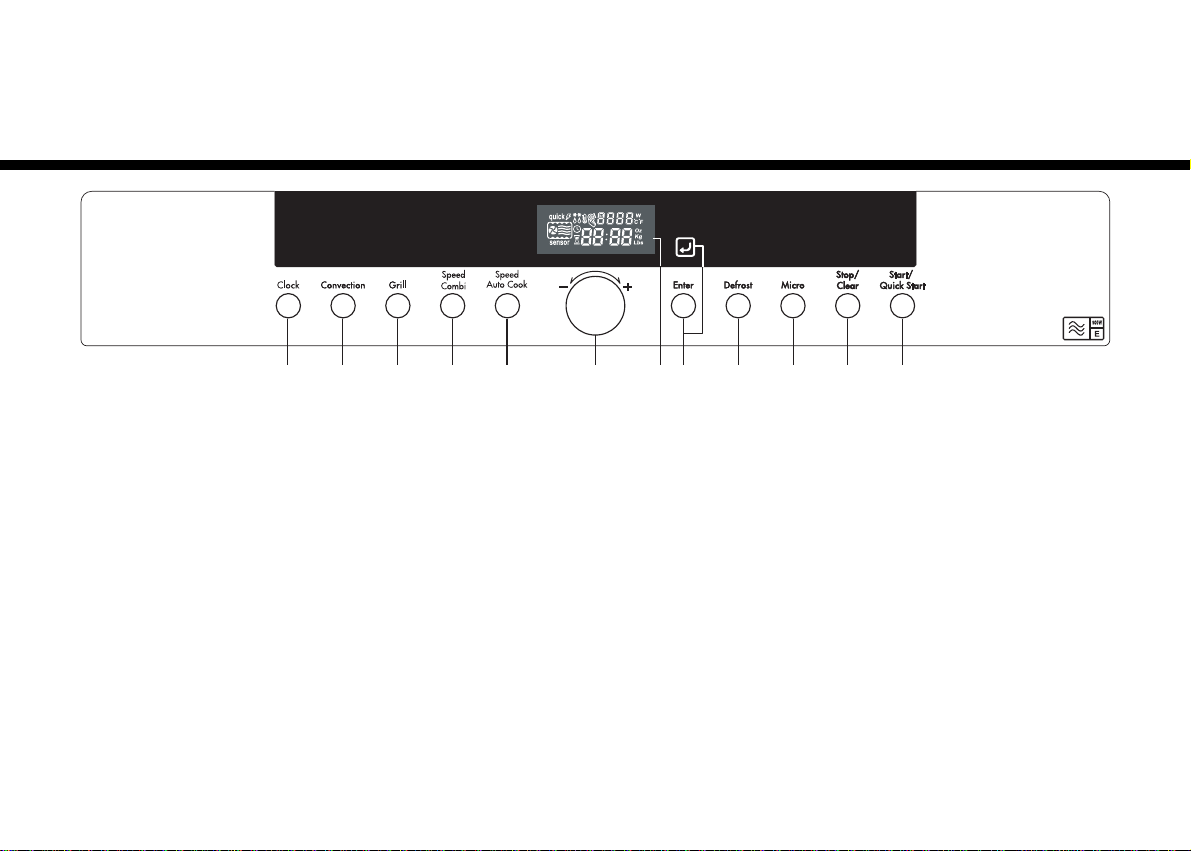

Control Panel
6
1 2 3 4 5 8 10 11 1267 9
1. Clock: You can set the time of day.
2. Convection: You can select temperature and time of convection.
3. Grill: You can select the grill categories.
4. Speed Combi: You can select the combination categories.
5. Speed Auto Cook: Speed auto cook allows you to cook most of your
favorite food quickly by selecting the food type and the weight of the food.
6. Dial Knob:
• You can set cooking times, temperature, weight and cooking categories.
• While cooking with auto and manual function, you can lengthen or
shorten the cooking time at any point by turning the dial knob(except
defrost mode).
7. Display Window: You can show time of day, cooking time, power level
and cooking categories.
8. Enter: You can determine the selected cooking category, microwave power
level or temperature.
9. Defrost: You can select the food type and the weight of the food.
10. Micro: You can select five power level settings.
11. Stop/Clear: You can stop over and clear all entries except time of day.
12. Start/Quick Start:
• In order to start cooking which is selected, press button one time.
• The quick start feature allows you to set 30 seconds intervals of HIGH
power cooking with a touch of the quick start button.

7
You can set either12 hour clock or 24 hour clock.
In the following example I will show you how to set the time for 14:35 when using the 24 clock.
Make sure that you have removed all packaging from your oven.
When your oven is plugged in for the
first time or when power resumes after a
power cut, a ‘0’ will be shown in the
display; you will have to reset the clock.
If the clock (or display) shows any
strange looking symbols, unplug your
oven from the electrical socket and plug
it back in and reset the clock.
NOTE: Information Blink
Make sure that you have correctly installed your oven as described
earlier in this book.
Press Stop/Clear.
Press Clock once.
(If you want to use a 12 hour clock, Press Clock once more.
If you want to change different option after setting clock,
you have to unplug and plug it back in.)
Turn Dial knob until display shows “14:00”.
Press Enter for hour confirmation
Turn Dial knob until display shows “14:35”.
Press Enter.
The clock starts counting.
For mode setting, blink will
guide to next step.
Setting the
Clock

8
Child
Lock
Press and hold Stop/Clear until “L” appears on the display and
BEEP sounds.
The CHILD LOCK is now set.
The time will disappear on the display but will reappear on
the display a few seconds later.
If any button is pressed, “L” will appear on the display
To cancel CHILD LOCK press and hold Stop/Clear until “L” disappears.
You will hear BEEP when it’s released.
Your oven has a safety feature that
prevents accidental running of the oven.
Once the child lock is set, you will be
unable to use any functions and no
cooking can take place.
However your child can still open the
oven door.
Press Stop/Clear.

9
Convection
Cooking
In the following example I will show you how to use the convection to cook some food for 50 minutes for 220˚C
temp.
Press Stop/Clear.
1. To Preheat 2. To Cook
Press Start.
Display shows “Pr-H”.
The convection oven has a temperature
range of 40°C and 100°C~250°C
The oven has a ferment function at the
oven temperature of 40°C. You should
wait until the oven is cool because you
cannot use a ferment function if the oven
temperature is over 40°C.
It is available to extend the cooking time
up to 9 hours in the condition of 40°C at
convection function for the operating mwo.
Your oven will take a few minutes to reach
the selected temperature.
Once it has reached correct temperature,
your oven will BEEP to let you know that it
has reached the correct temperature.
Then place your food in your oven: then
tell your oven to start cooking.
Temperature Conversion: When baking
the kinds of dishes below, decrease
convection temperature by 30-40°C from
your own recipe temperature.
- Bakery (Cakes, Breads, Pies, Cookies
etc.), Casseroles (Pasta, Rice etc.)
The low rack is
recommended for
convection cooking.
Press Convection to select
convection mode.
Turn Dial knob until display shows
“220˚C”.
Press Stop/Clear.
Turn Dial knob until display shows
“50:00”.
Press Start.
After cooking you must wear
gloves and container to take
metal tray out oven, because
metal tray is very hot.
Press Enter for temp. confirmation.
Press Convection to select
convection mode.
Turn Dial knob until display shows
“220˚C”.

10
Speed combi
Cooking In the following example I will show you how to programme your oven with micro power 360W and grill for a
cooking time of 25 minutes.
Your oven has a combination cooking
feature which allows you to cook food
with heater and microwave at the same
time or alternately. This generally means
it takes less time to cook your food.
You can set three kinds of micro power
level(180W, 360W and 600W) in
speed combi mode.
Press Speed Combi to select grill combination mode(Co-1, 2, 3).
Press Stop/Clear.Speed Combi
(Co-1, 2, 3)
Turn Dial knob until display shows “Co-1”.
Press Enter for grill-1 confirmation.
Turn Dial knob until display shows “360W”.
Press Enter for power confirmation.
Turn Dial knob until display shows “25:00”.
Press Start.
After cooking you must wear gloves and container to take
metal tray out oven, because metal tray is very hot.
* Speed combi Category
* Grill mode: Refer to page 20
Co-1
Co-2
Co-3
Co-4
Co-5
Grill-1 + Microwave power
Grill-2 + Microwave power
Grill-3 + Microwave power
Upper heater (1550 W) +
Lower heater + Microwave power
Upper heater (1100 W) +
Lower heater + Microwave power

11
Speed combi
Cooking
In the following example I will show you how to programme your oven with micro power 360W and at a
temperature 200˚C for a cooking time of 25 minutes.
Press Speed Combi to select speed combination mode(Co-4).
Press Stop/Clear.Speed Combi
(Co-4)
Turn Dial knob until display shows “Co-4”.
Press Enter for speed combi confirmation.
Turn Dial knob until display shows “200˚C”.
Press Enter for temp. confirmation.
Turn Dial knob until display shows “360W”.
Press Enter for power confirmation.
Turn Dial knob until display shows “25:00”.
Press Start.
After cooking you must wear gloves and container to take metal
tray out oven, because metal tray is very hot.
You can set four kinds of micro power
level(0W, 180W, 360W, 600W) in
speed combi mode(Co-4).
* Speed Combi Category
Co-1
Co-2
Co-3
Co-4
Co-5
Grill-1 + Microwave power
Grill-2 + Microwave power
Grill-3 + Microwave power
Upper heater (1550 W) +
Lower heater + Microwave power
Upper heater (1100 W) +
Lower heater + Microwave power
* Grill mode: Refer to page 20
[ X 2 ]

12
Speed combi
Cooking In the following example I will show you how to programme your oven with:- micro power 360W and at a
convection temperature 200 °C for a cooking time of 25 minutes.
Your oven has a combination cooking
feature which allows you to cook food with
convection temp. and microwave at the
same time or alternately. This generally
means it takes less time to cook your food.
Press Speed Combi to select convection combination mode.
Turn Dial knob until display shows “Co-5”.
Press Enter for convection confirmation.
Press Stop/Clear.Speed Combi
(Co-5)
Press Start.
After cooking you must wear gloves and container to take
metal tray out oven, because metal tray is very hot.
Turn Dial knob until display shows “360W”.
Press Enter for power confirmation.
Turn Dial knob until display shows “25:00”.
Turn Dial knob until display shows “200˚C”.
Press Enter for temp. confirmation.
You can set three kinds of micro power
level(180W, 360W, 600W) in speed
combi mode(Co-5).
* Speed Combi Category
Co-1
Co-2
Co-3
Co-4
Co-5
Grill-1 + Microwave power
Grill-2 + Microwave power
Grill-3 + Microwave power
Upper heater (1550 W) +
Lower heater + Microwave power
Upper heater (1100 W) +
Lower heater + Microwave power
* Grill mode: Refer to page 20

13
Speed Auto
Cooking
In the following example I will show you how to cook 0.4kg of frozen pizza(SC 1).
Press Stop/Clear.
Press Speed Auto Cook.
Turn Dial knob until display shows “SC 1”.
Press Enter for category(frozen pizza) confirmation.
Speed auto cook menus are
programmed.
Speed auto cook allows you to cook
most of your favorite food quickly by
selecting the food type and the weight of
the food.
Turn Dial knob until display shows “0.40kg”.
Press Start.
After cooking you must wear gloves and container to take metal
tray out oven, because metal tray is very hot.

14
Speed Auto
Cooking In the following example I will show you how to cook 0.6kg of jacket potatoes(SC 8).
Press Stop/Clear.
Press Speed Auto Cook.
Turn Dial knob until display shows “SC 8”.
Press Enter for category confirmation.
SPEED AUTO COOK allows you to cook
most of your favorite food quickly by
selecting the food type and the weight of
the food.
Turn Dial knob until display shows “0.60kg”.
Press Start.
After cooking you must wear gloves and container to take
metal tray out oven, because metal tray is very hot.

15
Instructions
SC 1
SC 2
SC 3
SC 4
SC 5
SC 6
Frozen
pizza
French
Fries
Whole
Chicken
Chicken
Pieces
Beef
Steaks
Roast
Pork
0.30~0.50kg
0.20~0.75kg
0.80~1.80kg
0.20~0.80kg
0.30~1.20kg
0.80~1.80kg
Metal tray
High rack
+ Metal tray
Low rack
+ Metal tray
High rack
+ Metal tray
High rack
+ Metal tray
Low rack
+ Metal tray
Frozen
Frozen
Refrigerated
Refrigerated
Refrigerated
Refrigerated
This function is for cooking frozen pizza. Remove all package and place
on the metal tray. After cooking, stand for 1~2 minutes.
Spread frozen potato products out on the baking paper on the high
rack. For the best results, cook in a single layer. After cooking, remove
from the oven and stand for 1~2 minutes.
Brush whole chicken with melted margarine, butter or seasonings, if
desired. Place the whole chicken breast-side down on the low rack.
When BEEP, drain the juices and turn food over immediately. And then
press start to continue cooking. After cooking, let stand covered with foil
for 10 minutes.
Place the chicken pieces on the high rack.
When BEEP, turn food over. And then press start to continue cooking.
After cooking, stand covered with foil for 2-5 minutes.
Place on the high rack. When BEEP, turn food over. And then press start
to continue cooking. After cooking, serve immediately.
Trim excess fat from pork. Brush the pork with melted margarine or
butter. Place on the low rack on the metal tray. When BEEP, turn food
over. And then press start to continue cooking.
After cooking, stand covered with foil for 10 minutes.
SPEED AUTO COOK GUIDE
Speed auto
cook
Function Category Food Temp.Utensil
Weight
Limit

16
Instructions
SC 7
SC 8
SC 9
SC 10
SC 11
Roast
Beef
Jacket
Potatoes
Frozen
Dinners
Fresh
Vegetables
Frozen
Vegetables
0.80~1.80kg
0.20~1.00kg
0.40~1.00kg
0.20~1.00kg
0.20~1.00kg
Low rack
+ Metal tray
High rack
+ Metal tray
Low rack
+ Metal tray
Metal tray +
Microwave-
safe bowl
with cover
Metal tray +
Microwave-
safe bowl
with cover
Refrigerated
Room
Frozen
Room
Frozen
Brush the beef with melted margarine or butter. Place on the low rack.
When BEEP, turn food over.
And then press start to continue cooking.
After cooking, stand covered with foil for 10 minutes.
Choose medium sized potatoes. (200-220g per each)
Wash and dry potatoes. Pierce the potatoes several times with a fork.
Place the potatoes on the metal tray. Adjust weight and press start. After
cooking, remove the potatoes from the oven. Let stand covered with foil
for 5 minutes.
Place frozen dinner uncovered on low rack.
Place vegetables in a microwave-safe bowl. Add water. Cover with
wrap. When BEEP, stir once. After cooking, stir and allow to stand for
2-3 minutes. Add amount of water according to the quantity.
** 0.2kg - 0.5kg : 2 Tablespoons
** 0.55kg - 1.0kg : 4 Tablespoons
Place vegetables in a microwave-safe bowl. Add water. Cover with
wrap. When BEEP, stir once. After cooking, stir and allow to stand for
2-3 minutes. Add amount of water according to the quantity.
** 0.2kg - 0.5kg : 2 Tablespoons
** 0.55kg - 1.0kg : 4 Tablespoons
SPEED AUTO COOK GUIDE
Speed auto
cook
Function Category Food Temp.Utensil
Weight
Limit

17
< Metal Tray > < Low Rack + Metal Tray >
Instructions
SC 12 Rice /
Pasta
0.10~0.30kg Metal tray +
Microwave-
safe bowl
with cover
Room Place rice/pasta and boiling water with 1/4to 1 teaspoon salt in a deep
and large bowl(3L). When BEEP, stir once.
** Rice - After cooking, stand covered for 5 minutes or until water is
absorbed.
** Pasta - During the cooking, stir several times if required. After
cooking, stand 1-2 minutes. Rinse pasta with cold water.
SPEED AUTO COOK GUIDE
Speed auto
cook
Function Category Food Temp.Utensil
Weight
Limit
Weight
Water Rice
Pasta
100g
300ml
400ml
200g
600ml
800ml
300g
900ml
1200ml
Cover
Cover and vent with wrap
Uncover
< High Rack + Metal Tray >

18
Defrost
Press Stop/Clear.
Weigh the food that you are about to defrost. Be certain to remove any
metallic ties or wraps; then place the food on microwave safe dish on
metal tray in your oven and close the oven door.
Press Enter for category(poultry) confirmation.
Enter the weight of the frozen food that you are about to defrost.
Turn Dial knob until display shows “1.4kg” for the weight of frozen food.
Press Defrost once.
Turn Dial knob until display shows “dEF2”.
Press Start.
Your oven has four microwave defrost
settings:- MEAT, POULTRY, FISH and
BREAD; each defrost category has
different power settings. Repeated
presses of the Defrost button will select a
different setting.
The temperature and density of food varies, I would recommend that the food be checked before cooking
commences. Pay particular attention to large joints of meat and chicken, some foods should not be completely
thawed before cooking. For example fish cooks so quickly that it is sometimes better to begin cooking while still
slightly frozen. The BREAD programme is suitable for defrosting small items such as rolls or a small loaf. These will
require a standing time to allow the centre to thaw. In the following example I will show you how to defrost 1.4Kg
of frozen poultry.
During defrosting your oven will “BEEP”, at which point open the oven door, turn food over and separate to
ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After
checking, close the oven door and press Start to resume defrosting.
Your oven will not stop defrosting (even when the beep sounded) unless the door is opened.
* When defrosting, use metal tray
only.

19
Meat
(dEF1)
Poultry
(dEF2)
Fish
(dEF3)
Bread
(dEF4)
Category Weight Limit Utensil Food
Defrosting Guide
0.1 ~ 3.0 kg
0.1 ~ 4.0 kg
0.1 ~ 4.0 kg
0.1 ~ 0.5 kg
Metal tray+
Microwave-safe
plate
Metal tray+
Paper towel
Meat
Minced beef, Fillet steak, Cubes for stew, Sirloin steak, Pot roast, Rump roast, Beef burger
Pork chops, Lamb chops, Rolled roast, Sausage, Cutlets(2cm)
Turn food over at beep.
After defrosting, let stand for 5-15 minutes.
Poultry
Whole chicken, Legs, Breasts, Turkey breasts(under 2.0kg)
Turn food over at beep.
After defrosting, let stand for 20-30 minutes.
Fish
Fillets, Steaks, Whole fish, Sea foods
Turn food over at beep.
After defrosting, let stand for 10-20 minutes.
Bread
Sliced bread, Buns, Baguette, etc.
After defrosting, let stand for 5 minutes.
* Food to be defrosted should be in a suitable microwave proof container and place uncovered on the metal tray.
* If necessary, shield small areas of meat or poultry with flat pieces of aluminum foil. This will prevent thin areas becoming warm during defrosting. Ensure the
foil does not touch the oven walls.
* Separate items like minced meat, chops, sausages and bacon as soon as possible.
When BEEP, turn food over. Remove defrosted portions. Continue to defrost remaining pieces.
After defrosting, allow to stand until completely thawed.

Grill
Cooking
20
In the following example I will show you how to use the Grill-1 to cook some food for 12 minutes and 30
seconds.
Press Stop/Clear.
Press Grill to select grill mode.
Turn Dial knob until display shows “gr-1”.
Press Enter for grill confirmation.
This feature will allow you to brown and
crisp food quickly.
The grill rack is placed on the metal tray
at the grill mode.
The high rack must be used during grill
cooking.
Turn Dial knob until display shows “12:30”.
Press Start.
After cooking you must wear gloves and container to take
metal tray out oven, because metal tray is very hot.
Category Display Heater Operating
Grill-1 gr-1 Upper Heater(1550W)
Grill-2 gr-2 Upper Heater(1100W)
Grill-3 gr-3 Lower Heater(700W)
