LG SolarDOM MZ-945TL P User manual

LIGHT OVEN “ S olar DOM ”
OWNER’S MANUAL
PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING.
MZ-945TL
P/No: MFL30378906

Precautions
2
Precautions to avoid possible exposure to excessive microwave energy.
You cannot operate your oven with the door open due to the safety interlocks
built into the door mechanism. These safety interlocks automatically switch off
any cooking activity when the door is opened; which in the operation of
microwave function could result in harmful exposure to microwave energy.
It is important not to tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow
food or cleaner residue to accumulate on sealing surfaces.
Do not operate your oven if it is damaged. It is particularly important that the
oven door closes properly and that there is no damage to the: (1) door(bent),
(2) hinges and latches (broken or loosened), (3) door seals and sealing
surfaces.
Your oven should not be adjusted or repaired by anyone except qualified
service personnel.
Warning
When heating liquids, e.g. soups, sauces and beverages in your oven with
microwave function, delayed eruptive boiling can occur without evidence of
bubbling. This could result in a sudden boil over of the hot liquid. To
prevent this possibility the following steps should be taken:
1 Avoid using straight sided containers with narrow necks.
2 Do not overheat.
3 Stir the liquid before placing the container in the oven and again halfway
through the heating time.
4 After heating, allow to stand in the oven for a short time, stir or shake
them(especially the contents of feeding bottles and baby food jars) again
carefully and check the temperature of them before consumption to avoid
burns (especially, contents of feeding bottles and baby food jars).
Be careful when handling the container.
Warning
Always allow food to stand after being cooked by
microwaves and check the temperature of them
before consumption. Especially contents of feeding
bottles and baby food jars.
Please ensure cooking times are correctly set as
over cooking may result in the FOOD catching fire
and subsequent damage to your oven.

3
Contents
How the Microwave Function Works
Microwaves are a form of energy similar to radio and television waves and
ordinary daylight. Normally, microwaves spread outwards as they travel
through the atmosphere and disappear without effect. This ovens, however,
have a magnetron which is designed to make use of the energy in
microwaves. Electricity, supplied to the magnetron tube, is used to created
microwave energy.
These microwaves enter the cooking area through openings inside the oven.
A turntable or tray is located at the bottom of the oven. Microwaves cannot
pass through metal walls of the oven, but they can penetrate such materials
as glass, porcelain and paper, the materials out of which microwave-safe
cooking dishes are constructed.
Microwaves do not heat cookware, though cooking vessels will eventually get
hot from the heat generated by the food.
A very safe appliance
Your oven, S olar DOM, is one of the safest of all home
appliances. When the door is opened, the oven
automatically stops producing microwaves. Microwave
energy is converted completely to heat when it enters
food, leaving no “left over” energy to harm you when
you eat your food.
Precautions _____________________________________________2
Contents________________________________________________3
Unpacking & Installing____________________________________4 ~ 5
Method to use accessories as per mode ______________________6
Control Panel ___________________________________________7
Convenient function ( Optical wave oven)_______________________8
Convenient function ( Warming drawer)________________________9
Microwave - safe Utensils _________________________________10
Setting the Clock _________________________________________11
Child Lock ______________________________________________12
Convection Cooking ______________________________________13
Speed Auto Cooking _____________________________________14 ~ 17
Oven Auto Cooking ______________________________________18 ~ 19
Defrost _________________________________________________20
Micro High/Low _________________________________________21
Grill Cooking ___________________________________________22
Fermentation ____________________________________________23
Deodorization___________________________________________24
Quick Start _____________________________________________25
More/Less Cooking ______________________________________26
Lamp function ___________________________________________27
How to use the warming drawer____________________________28
Important safety instructions _______________________________29 ~ 30
Food characteristics & Microwave cooking ___________________31 ~ 32
Check before requesting for service (Optical wave oven)________33
Check before requesting for service (Warming drawer)_________34
Plug Wiring Information/Technical Specifications______________35

Unpacking &
Installing
4
By following the basic steps on these two pages you will be able to quickly check that your oven is operating
correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your
oven make sure you remove all accessories and packing. Check to make sure that your oven has not been
damaged during delivery.
Place the oven in the level location of your choice with
more than 85cm height but make sure there is at least
20cm of space on the top and 10cm at the rear for proper
ventilation. The front of the oven should be at least min. 8cm/max.
22cm from the edge of the surface to prevent tipping.
An exhaust outlet is located on bottom or side of the oven. Blocking
the outlet can damage the oven.
Unpack your oven and place it on a flat level surface.
* THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL
CATERING PURPOSES.
* THIS OVEN CAN BE USED AS BUILT-IN TYPE .
* MUST USE THE BUILT-IN KIT THAT IS MADE BY LG ELECTRONICS.
HIGH RACK
LOW RACK
METAL TRAY
CRISPING TRAY
SHELF

5
The DISPLAY will count down from 30 seconds. When it
reaches 0 it will sound BEEPS. Open the oven door and
test the temperature of the water. If your oven is operating the water
should be warm. Be careful when removing the container it may
be hot.
YOUR OVEN IS NOW INSTALLED
Fill a microwave safe container with 300 ml (1/2 pint)
of water. Place on the METAL TRAY and close the oven
door. If you have any doubts about what type of container to use
please refer to page 10.
Open your oven door by pulling the DOOR HANDLE.
Place the METAL TRAY inside the oven.
Plug your oven into a standard household socket. Make
sure your oven is the only appliance connected to the
socket. If your oven does not operate properly, unplug it from the
electrical socket and then plug it back in.
The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
Press the STOP/CLEAR button, and press
the START button one time to set 30
seconds of cooking time.

6
Caution: Be sure to use accessories refer to cook guide.
Method to use accessories as per mode
Metal tray
Low rack
High rack
Crisping tray
Shelf
Microwave Grill Convection Warming drawer
: Acceptable
: Not Acceptable
: Selection use

Control Panel
7
12345 76 98 10 11 13 1412
Optical wave oven
1. Speed Auto Cook (Speed 자자동동메메뉴뉴): You can
select the speed auto cook categories.
2. Select Mode (레레인인지지강강//약약): You can select
the Micro high, Micro low.
3. Clock/Lamp (시시계계//램램프프):
• You can set the time of day.
• Lamp on/off.
4. Deodorization (탈탈취취): Used to remove smell in
the oven.
5. Oven Auto Cook (오오븐븐자자동동메메뉴뉴): Used to
cook the food listed by one touch.
6. Display Window (좌좌측측표표시시부부): You can show
cooking categories and temperature.
7. Dial Knob (메메뉴뉴//온온도도설설정정): You can set
cooking categories and temperature.
8. Enter (선선택택): You can determine the selected
cooking category, microwave power level or
temperature.
9. Dial Knob (시시간간//무무게게조조절절): You can set
cooking times, weight and set the time of day.
10. Stop/Clear (취취소소//절절전전): You can stop over
and clear all entries except time of day.
11. Start/Quick Start (조조리리시시작작//간간편편조조리리):
• In order to start cooking which is selected,
press button one time.
• The quick start feature allows you to set 30
seconds intervals of HIGH power cooking
with a touch of the quick start button.
12. Display Window (우우측측표표시시부부): You can
show time of day, cooking time and weight.
Warming drawer
13. Operating handle (동동작작조조절절손손잡잡이이):
When warming the food or sterilizing the
cutting board, knife or kitchen cloth, use the
china when it is nicely warmed up.
14. Operating lamp (동동작작표표시시등등): When you
turn the operating handle clockwise, you can
check the operation condition with the lights
on. When the warming drawer is closed, you
can check whether the operating lamp is
turned on through the right viewer lens.

Convenient function
( Optical wave oven)
8
Milk bottle sterilization
* Before sterilizing the milk bottles, clean it well and put about 50ml of water for
sterilization. Put the nipple part in a heat resistant container with about 90ml of water.
(1-4 nipples at a time)
* Operate the range to high for about 2 to 4 minutes, and when the water starts to boil,
press the "
취취소소//절절전전
" button after 1 minute.
* When the milk bottles are sterilized, you can get burnt by the water pressure when
you open the door immediately. Open the door after about 1 minute.
Convenient cooking function/Cooking time increase, decrease
function
* As you press the "
간간편편조조리리
" button, the cooking process immediately starts and is
extended by 30 seconds every time you press it one more time. (Up to maximum of
10 minutes.)
* It is convenient to increase or decrease the cooking time by turning the dial while
cooking.
Lamp function
* When you press the "
시시계계//램램프프
" button during cooking, the cooking room
brightens for about 5 seconds so you can easily check the cooking condition.
Lock function (Safety device)
* This is the safety device to stop the function to prevent the problems that can occur by
children operating the product.
* Setting method: Press the "
취취소소//절절전전
" button for about 4 seconds and the message
saying "
잠잠금금기기능능이이설설정정되되었었습습니니다다
" will be displayed in the panel with a
buzzer sound.
* Canceling method: Press the "
취취소소//절절전전
" button for about 4 seconds and the
message saying "
잠잠금금기기능능이이해해제제되되었었습습니니다다
" will be displayed in the panel
to become cooking condition.
Don,t forget function
* This is the function to notify the user to take out the food after the cooking is done.
* If you do not take out the food after the cooking is completed, the buzzer will go off
every minute notifying the user to take out the food.
Deodorizing function
* When you press the "
탈탈취취
" button, it will deodorize the unit for about 10 minutes.
Automatic cooling
* After completing cooking, the cooling fan automatically rotates for about 1 to 3
minutes to exhaust the hot air inside the oven.
Power save function
* This is the function that automatically turns off the indoor lamp after the door is kept
opens for more than 5 minutes, and you can save the electricity consumption.
Note
* During a specific cooking process, the halogen lamp repeatedly turns on and off to
realize the optimal cooking condition, which will repeatedly brighten and darken the
cooking room. You can feel safe in using the product since it is not a problem or an
abnormal operation.

9
Convenient function
( Warming drawer)
Food warming (High/Med/Low)
* This maintains the temperature of the food at a
consistent temperature.
- Moist food including soup/stew etc. – High
- To make dried fried food/pan cake crispy –
High
- To warm rice/porridge – Med
- To warm soup/curry/grilled food/broiled
food – Med
- To warm bread/pizza – Low
- To warm milk/traditional medicine etc. – Low
* 2 – 4 persons serving is appropriate for the
amount of food to warm.
* When warming the food, close lid to prevent the
surface from drying.
(If you want to make the fried food or pan cakes
crispy, do not use the lid.)
* Be careful since the container can be hot after
warming.
* The appropriate warming time is within 2 hours.
Sterilization function (Sterilization)
* It sterilizes the cutting board/knife/kitchen cloth.
(Never use the plastic cutting board because it
can melt.)
* Sterilize the items after cleaning with dish
detergent first.
* Be careful after the sterilization is complete
because it can be very hot.
* Set the sterilization time to within 2 hours.
Warming the china (High)
* It warms the china to a temperature where it can
be used well.
Note
* Always put the food or china on the shelf.
* When closing the door, push slowly and
completely all the way to the back.
* When checking the operating time, it is
convenient to use the clock function of the
optical wave oven.
* When the operation is complete, use the
operation control handle to set the power to
off.
Shelf

10
Microwave-safe
Utensils
Never use metal or metal trimmed utensils in using microwave function
Microwaves cannot penetrate metal. They will bounce off any metal object in
the oven and cause arcing, an alarming phenomenon that resembles
lightning. Most heat resistant non metallic cooking utensils are safe for use in
your oven. However, some may contain materials that render them unsuitable
as microwave cookware. If you have any doubts about a particular utensil,
there’s a simple way to find out if it can be used in using microwave function.
Place the utensil in question next to a glass bowl filled with water in using
microwave function. Microwave at power HIGH for 1 minute. If the water
heats up but the utensil remains cool to the touch, the utensil is
microwave~safe. However, if the water does not change temperature but the
utensil becomes warm, microwaves are being absorbed by the utensil and it is
not safe for use in using microwave function. You probably have many items
on hand in your kitchen right now that can be used as cooking equipment in
using microwave function. Just read through the following checklist.
Dinner plates
Many kinds of dinner-ware are microwave-safe. If in doubt consult the
manufacturer’s literature or perform the microwave test.
Glassware
Glassware that is heat-resistant is microwave-safe. This would include all
brands of oven tempered glass cookware. However, do not use delicate
glassware, such as tumblers or wine glasses, as these might shatter as the food
warms.
Plastic storage containers
These can be used to hold foods that are to be quickly reheated. However,
they should not be used to hold foods that will need considerable time in the
oven as hot foods will eventually warp or melt plastic containers.
Paper
Paper plates and containers are convenient and safe to use in using
microwave function , provided that the cooking time is short and foods to be
cooked are low in fat and moisture. Paper towels are also very useful for
wrapping foods and for lining baking trays in which greasy foods such as
bacon are cooked. In general, avoid coloured paper products as the
colour may run. Some recycled paper products may contain impurities
which could cause arcing or fires when used in using microwave function .
Plastic cooking bags
Provided they are made specially for cooking, cooking bags are
microwave safe. However, be sure to make a slit in the bag so that steam
can escape. Never use ordinary plastic bags for cooking in using
microwave function , as they will melt and rupture.
Plastic microwave cookware
A variety of shapes and sizes of microwave cookware are available. For
the most part, you can probably use items you already have on hand
rather than investing in new kitchen equipment.
Pottery, stoneware and ceramic
Containers made of these materials are usually fine for use in using
microwave function , but they should be tested to be sure.
CAUTION
Some items with high lead or iron content are not suitable for cooking
utensils.
Utensils should be checked to ensure that they are suitable for use in
using microwave function.

11
When your oven is plugged in for the
first time or when power resumes after a
power cut, a ‘0’ will be shown in the
display; you will have to reset the clock.
If the clock (or display) shows any
strange looking symbols, unplug your
oven from the electrical socket and plug
it back in and reset the clock.
NOTE: Information Blink
Make sure that you have correctly installed your oven as described
earlier in this book.
Press 시시계계//램램프프.
Turn Dial (시시간간//무무게게조조절절) knob until display shows “10:00”.
Press 선선택택for hour confirmation.
Turn Dial (시시간간//무무게게조조절절) knob until display shows “10:30”.
Press 선선택택.
The clock starts counting.
For mode setting, blink will
guide to next step.
Setting the
Clock
In the following example I will show you how to set the time for 10:30.
Make sure that you have removed all packaging from your oven.

12
Child
Lock
Press and hold 취취소소//절절전전until “잠잠금금기기능능이이설설정정되되었었습습니니다다”
appears on the display and BEEP sounds.
The CHILD LOCK is now set.
The time will disappear on the display but will reappear on
the display a few seconds later.
To cancel CHILD LOCK press and hold 취취소소//절절전전until “잠잠금금기기능능이이
해해제제되되었었습습니니다다” disappears. You will hear BEEP when it’s released.
Your oven has a safety feature that
prevents accidental running of the oven.
Once the child lock is set, you will be
unable to use any functions and no
cooking can take place.
However your child can still open the
oven door.
Press 취취소소//절절전전.

13
Convection
Cooking
In the following example I will show you how to use the convection to cook some food for 20 minutes for 200˚C
temp.
Press 취취소소//절절전전.
1. To Preheat 2. To Cook
Press 조조리리시시작작.
Turn Dial (메메뉴뉴//온온도도설설정정) knob
until display shows “오오븐븐”.
Press 선선택택.
Press 취취소소//절절전전.
Press 조조리리시시작작.
Turn Dial (시시간간//무무게게조조절절) knob
until display shows “20:00”.
Press 조조리리시시작작.
After cooking you must wear
gloves and container to take
metal tray out oven, because
metal tray is very hot.
Turn Dial (메메뉴뉴//온온도도설설정정) knob
until display shows “200˚C”.
Turn Dial (시시간간//무무게게조조절절) knob
until display shows “20:00”.
Turn Dial (메메뉴뉴//온온도도설설정정) knob
until display shows “200˚C”.
Turn Dial (메메뉴뉴//온온도도설설정정) knob
until display shows “오오븐븐”.
Press 선선택택.

14

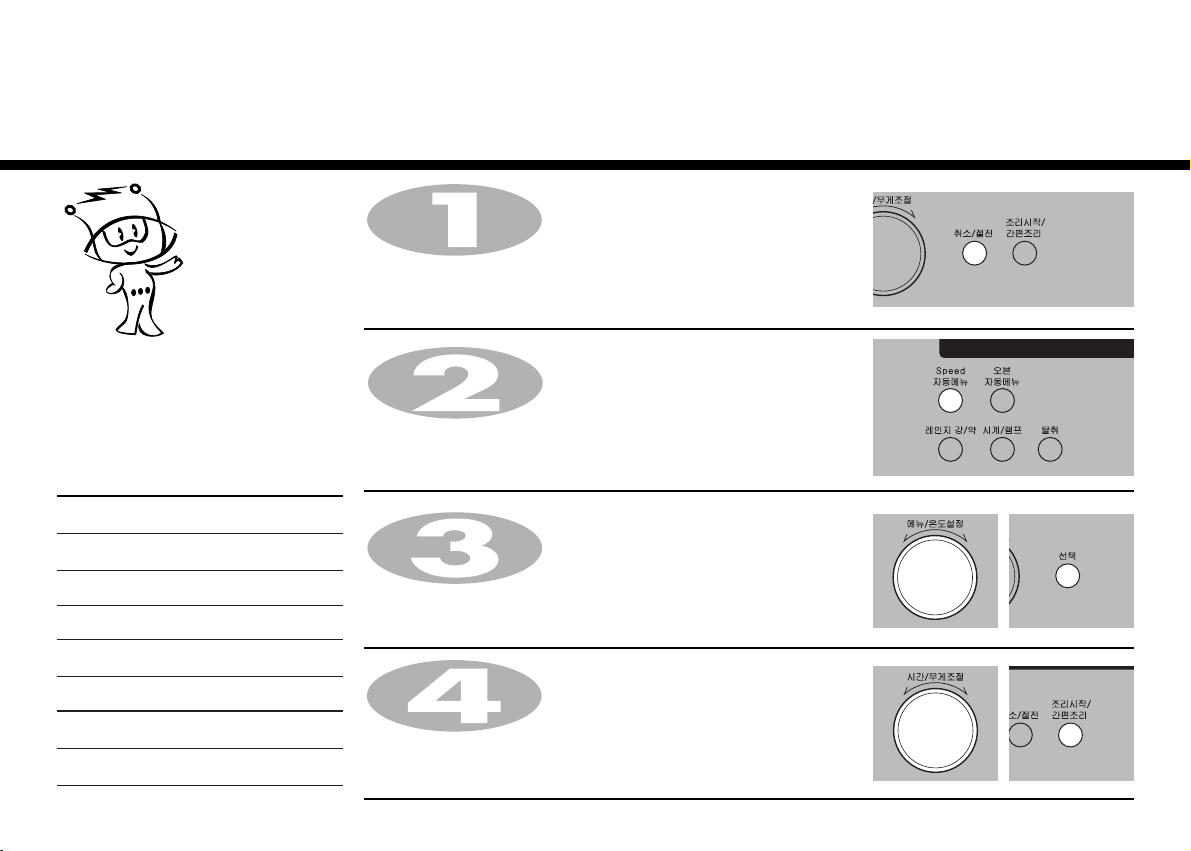

Speed
Auto Cooking In the following example I will show you how to cook 1.3kg of whole chicken.
Press 취취소소//절절전전.
Press SSppeeeedd자자동동메메뉴뉴once.
Turn Dial (메메뉴뉴//온온도도설설정정) knob until display shows “44 통통닭닭”.
Press 선선택택for category confirmation.
Speed auto cook menus are programmed.
Speed auto cook allows you to cook most
of your favorite food quickly by selecting
the food type and the weight of the food.
Turn Dial (시시간간//무무게게조조절절) knob until display shows “1.3kg”.
Press 조조리리시시작작.
After cooking you must wear gloves and container to take
metal tray out oven, because metal tray is very hot.
* Combi auto cook menu category
1
2
3
4
5
6
7
8
Roasted ribs (갈비구이)
Roasted shrimps (새우구이)
Bulgogi (불고기)
Whole chicken (통닭)
Chicken leg (닭다리)
Frozen snacks (냉동간식)
Roast sweet potato (군고구마)
Frozen pizza (냉동피자)

15
1
2
3
4
5
6
7
8
Roasted ribs (갈비구이)
Roasted shrimps (새우구이)
Bulgogi (불고기)
Whole chicken (통닭)
Chicken leg (닭다리)
Frozen snacks (냉동간식)
Roast sweet potato (군고구마)
Frozen pizza (냉동피자)
0.4 ~ 0.8kg
0.2 ~ 0.5kg
0.4 ~ 0.7kg
1.0 ~ 1.5kg
0.3 ~ 1.0kg
0.2 ~ 0.4kg
0.3 ~ 0.7kg
0.2 ~ 0.7kg
Metal tray
Metal tray
Hig rack + Metal tray + Crisping tray
Low rack + Metal tray
Hig rack + Metal tray + Crisping tray
Hig rack + Metal tray + Crisping tray
Low rack + Metal tray + Crisping tray
Metal tray
COMBI AUTO COOK MENU GUIDE
Speed auto
cook
Function Category Utensil
Weight Limit

16
Speed
Auto Cooking In the following example I will show you how to cook 100g of popcorn
SPEED AUTO COOK allows you to cook
most of your favorite food quickly by
selecting the food type and the weight of
the food.
* Range auto cook menu category
1
2
3
4
5
6
7
8
Reheat - Soup (국데우기)
Reheat - Rice (밥데우기)
Reheat - Milk (우유데우기)
Popcorn (팝콘)
Steamed egg (계란찜)
Frozen dumpling (냉동만두)
Instant noodle (라면)
Defrost (해동)
Press 취취소소//절절전전.
Press SSppeeeedd자자동동메메뉴뉴twice.
Turn Dial (메메뉴뉴//온온도도설설정정) knob until display shows “44 팝팝콘콘”.
Press 선선택택for category confirmation.
Press 조조리리시시작작.
After cooking you must wear gloves and container to take
metal tray out oven, because metal tray is very hot.

17
1
2
3
4
5
6
7
8
Reheat - Soup (국데우기)
Reheat - Rice (밥데우기)
Reheat - Milk (우유데우기)
Popcorn (팝콘)
Steamed egg (계란찜)
Frozen dumpling (냉동만두)
Instant noodle (라면)
Defrost (해동)
1, 2, 3 인분
1, 2, 3 인분
1, 2 컵
100g
1, 2, 3 인분
10, 20, 30 개
1
0.1 ~ 1.2kg
Low rack + Metal tray
Low rack + Metal tray
Low rack + Metal tray
Low rack + Metal tray
Low rack + Metal tray
Low rack + Metal tray
Low rack + Metal tray
Low rack + Metal tray
RANGE AUTO COOK MENU GUIDE
Speed auto
cook
Function Category Utensil
Weight Limit

18
Oven
Auto Cooking In the following example I will show you how to cook 1 of cake.
Press 취취소소//절절전전.
Press 오오븐븐자자동동메메뉴뉴once.
Turn Dial (메메뉴뉴//온온도도설설정정) knob until display shows “22 케케이이크크”.
Press 선선택택for category confirmation.
Speed auto cook menus are programmed.
Speed auto cook allows you to cook most
of your favorite food quickly by selecting
the food type and the weight of the food.
Press 조조리리시시작작.
After cooking you must wear gloves and container to take
metal tray out oven, because metal tray is very hot.
* Oven auto cook menu category
1
2
3
4
5
6
7
8
Pizza (피자)
Cake (케이크)
Cookie (쿠키)
Nutrition rice (영양밥)
Steamed ribs (갈비찜)
Flavored glutinous rice (약식)
Gratin (그라탱)
Oven spaghetti (오븐 스파게티)

19
1
2
3
4
5
6
7
8
Pizza (피자)
Cake (케이크)
Cookie (쿠키)
Nutrition rice (영양밥)
Steamed ribs (갈비찜)
Flavored glutinous rice (약식)
Gratin (그라탱)
Oven spaghetti (오븐 스파게티)
1
1
1
1
1
1
1
1
Metal tray
Low rack + Metal tray + Crisping tray
Metal tray
Low rack + Metal tray
Low rack + Metal tray
Low rack + Metal tray
High rack + Metal tray
High rack + Metal tray
OVEN AUTO COOK MENU GUIDE
Oven auto
cook
Function Category Utensil
Weight Limit

20
Defrost
Press 취취소소//절절전전.
Weight the food that you are about to defrost. Be certain to remove any
metallic ties or wraps; then place the food on microwave safe dish on
metal tray in your oven and close the oven door.
The low rack must be used during
defrosting.
Press 선선택택for category confirmation.
Enter the weight of the frozen food that you are about to defrost.
Turn Dial (시시간간//무무게게조조절절)knob until display shows “0.6kg” for the
weight of frozen food.
Press SSppeeeedd자자동동메메뉴뉴twice.
Turn Dial (메메뉴뉴//온온도도설설정정) knob until display shows “88 해해동동”.
Press 조조리리시시작작.
During defrosting your oven will “BEEP”, at which point open the oven door, turn food over and separate to
ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After
checking close the oven door and press 조조리리시시작작to resume defrosting.
Your oven will not stop defrosting (even when the beep sounded) unless the door is opened.
