LG 32PC5 Series User manual

PLASMA TV
OWNER’S MANUAL
PLASMA TV MODELS
32PC5*
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer when you require service.
ENGLISH
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com
all-guides.com

Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

1
ACCESSORIES
Ensure that the following accessories are included with your TV If an accessory is missing, please contact the
dealer where you purchased the product
Batteries Remote Control Power Cord
2- TV Brackets
2- Wall Brackets
2-bolts 4-bolts or stand assembly
Re er to p. 6
ACCESSORIES
Polishing Cloth
Polish the screen with the cloth
This eature is not available
or all models.
*Slightly wipe stained spot on the exterior only with the cleans-
ing cloths or the product exterior i there is stain or ingerprint on
sur ace o the exterior.
Do not wipe roughly when removing stain. Please be cautious o
that excessive power may cause scratch or discoloration.
Owner’s Manual
OK
VOL VOL
I/II
LIST
FAV
SLEEP
Q.VIEW
0
INPUT MUTE
MENU
123
456
789
POWER TV
PIP PR
RATIO EXIT
PIP PR PIP INPUT
?
SIZE
i
TIME HOLD POSITION
REVEAL INDEX TEXT PIP
PR
PR
This eature is not available or all models.
Holder
(Re er to p.8)
Cover
(Re er to p.9)
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

2

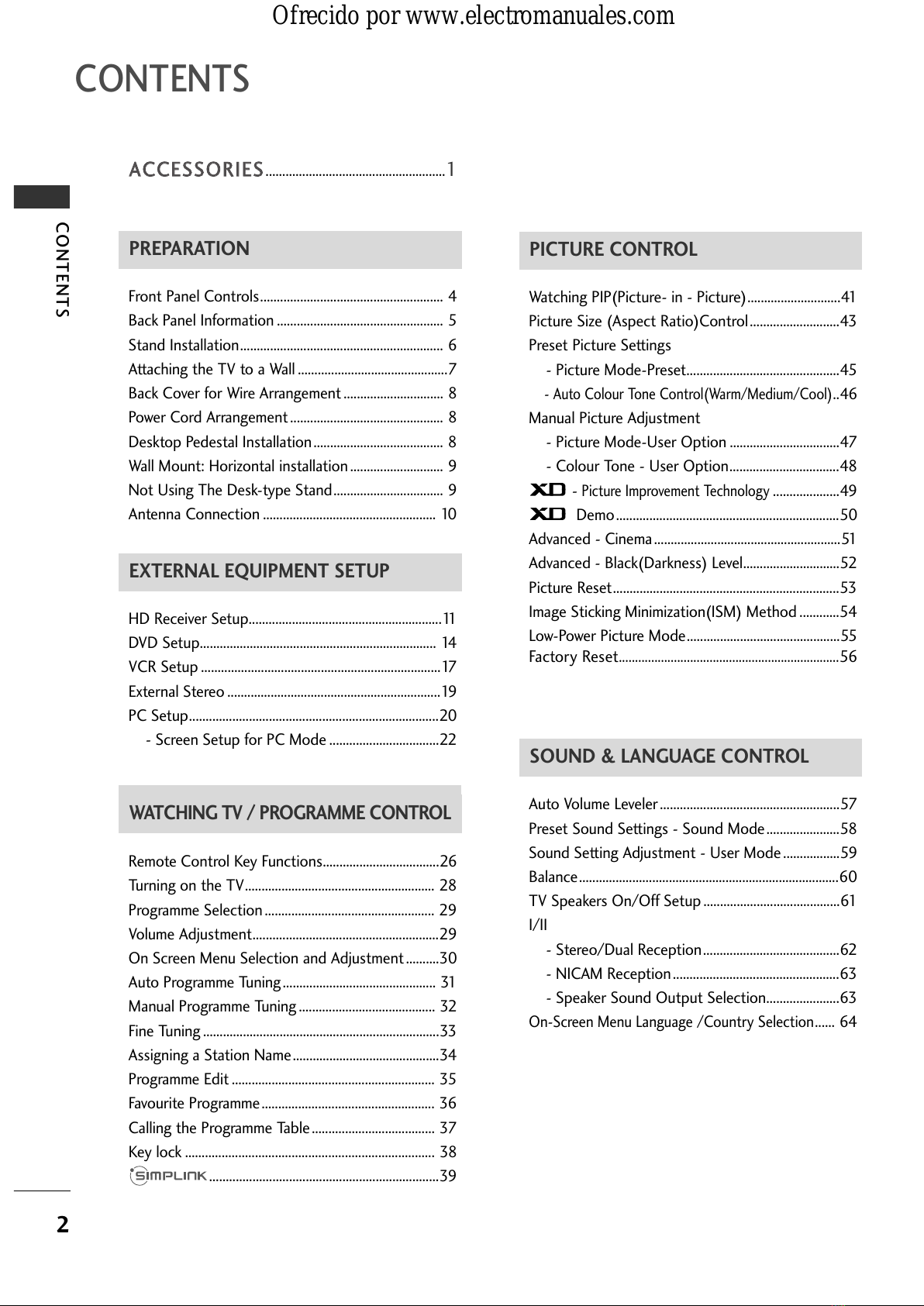

CONTENTS
CONTENTS
PREPARATION
Front Panel Controls....................................................... 4
ack Panel Information .................................................. 5
Stand Installation............................................................. 6
Attaching the TV to a Wall .............................................7
ack Cover for Wire Arrangement .............................. 8
Power Cord Arrangement.............................................. 8
Desktop Pedestal Installation....................................... 8
Wall Mount: Horizontal installation............................ 9
Not Using The Desk-type Stand................................. 9
Antenna Connection .................................................... 10
PICTURE CONTROL
Watching PIP(Picture- in - Picture)............................41
Picture Size (Aspect Ratio)Control...........................43
Preset Picture Settings
- Picture Mode-Preset..............................................45
- Auto Colour Tone Control(Warm/Medium/Cool) ..46
Manual Picture Adjustment
- Picture Mode-User Option .................................47
- Colour Tone - User Option.................................48
-
Picture Improvement Technology ....................49
Demo...................................................................50
Advanced - Cinema........................................................51
Advanced - lack(Darkness) Level.............................52
Picture Reset....................................................................53
Image Sticking Minimization(ISM) Method ............54
Low-Power Picture Mode..............................................55
Factory Reset .................................................................... 56
SOUND & LANGUAGE CONTROL
Auto Volume Leveler......................................................57
Preset Sound Settings - Sound Mode......................58
Sound Setting Adjustment - User Mode .................59
alance..............................................................................60
TV Speakers On/Off Setup .........................................61
I/II
- Stereo/Dual Reception.........................................62
- NICAM Reception..................................................63
- Speaker Sound Output Selection......................63
On-Screen Menu Language /Country Selection ...... 64
EXTERNAL EQUIPMENT SETUP
HD Receiver Setup..........................................................11
DVD Setup....................................................................... 14
VCR Setup ........................................................................17
External Stereo ................................................................19
PC Setup...........................................................................20
- Screen Setup for PC Mode .................................22
WATCHING TV /PROGRAMME CONTROL
Remote Control Key Functions...................................26
Turning on the TV......................................................... 28
Programme Selection ................................................... 29
Volume Adjustment........................................................29
On Screen Menu Selection and Adjustment ..........30
Auto Programme Tuning.............................................. 31
Manual Programme Tuning ......................................... 32
Fine Tuning .......................................................................33
Assigning a Station Name............................................34
Programme Edit ............................................................. 35
Favourite Programme.................................................... 36
Calling the Programme Table ..................................... 37
Key lock ........................................................................... 38
.....................................................................39
PREPARATION PICTURE CONTROL
WATCHING TV / PROGRAMME CONTROL
AACCCCEESSSSOORRIIEESS......................................................1
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

3
CONTENTS
APPENDIX
Troubleshooting..............................................................72
Maintenance ...................................................................74
Product Specifications..................................................75
TIME SETTING
Clock Setup .....................................................................65
Auto On/Off Timer Setting .........................................66
Sleep Timer Setting........................................................67
Auto Shut-off Setting ....................................................68
TELETEXT
Switch On/Off.................................................................69
SIMPLE Text .....................................................................69
TOP Text ...........................................................................70
FASTEXT ...........................................................................70
Special Teletext Functions............................................71
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

4
PREPARATION

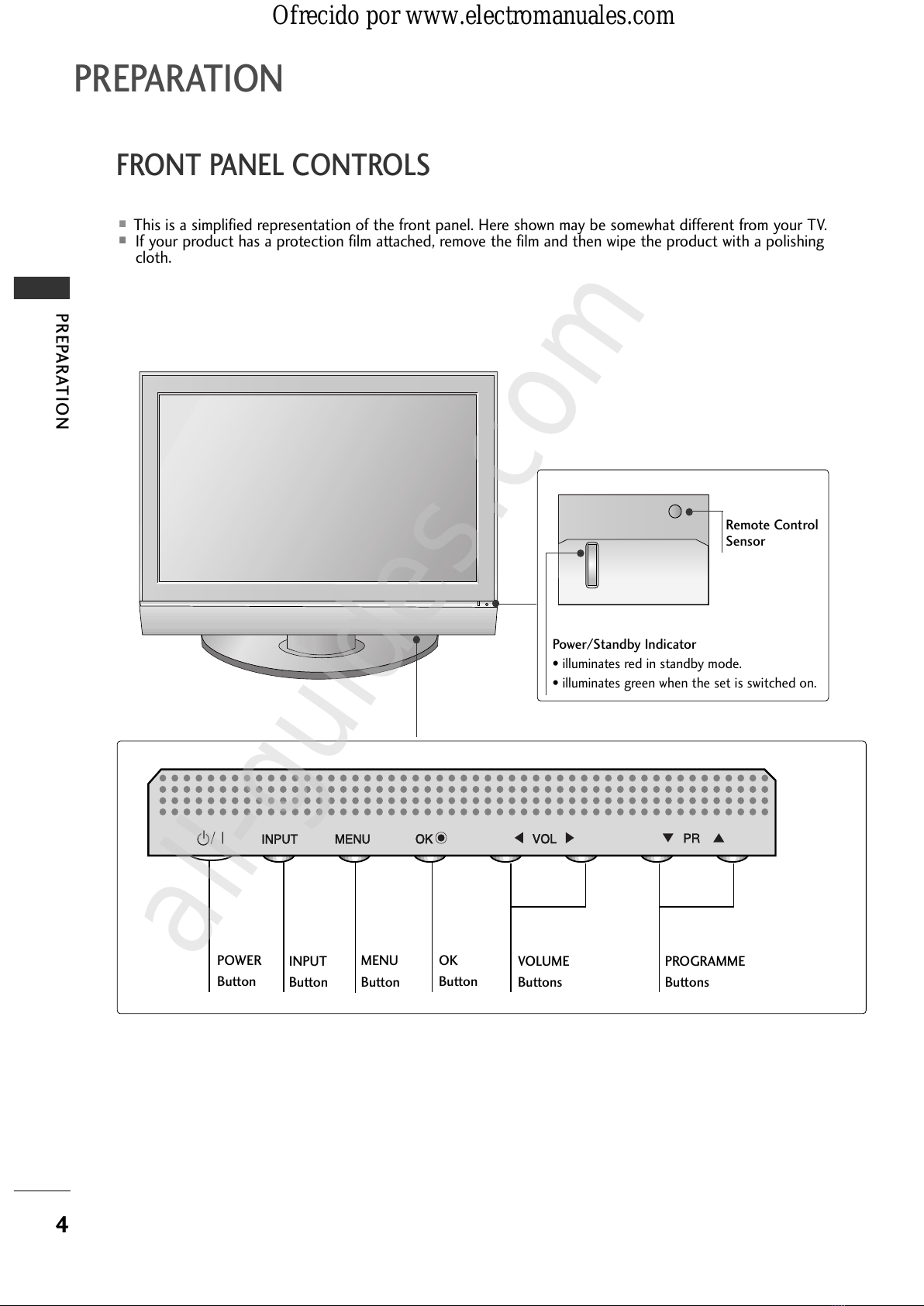

FRONT PANEL CONTROLS
PREPARATION
■
This is a simplified representation of the front panel. Here shown may be somewhat different from your TV.
■
If your product has a protection film attached, remove the film and then wipe the product with a polishing
cloth.
PR
VOL
OK
MENU
INPUT
PROGRAMME
Buttons
VOLUME
Buttons
MENU
Button
OK
Button
INPUT
Button
POWER
Button
PR
VOL
OK
MENU
INPUT
PR
VOL
OK
MENU
INPUT
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates green when the set is switched on.
Remote Control
Sensor
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com
all-guides.com

5
PREPARATION
VIDEO
AUDIO
COMPONENT IN
HDMI IN
12
RGB IN (PC)
ANTENNA
IN
1
2
VARIABLE
OUT
AUDIO IN
(RGB/DVI)
AV OUT AV IN
L/ MONO
R
AUDIO VIDEO
BACK PANEL INFROMATION
■
This is a simplified representation of the back panel. Here shown may be somewhat different from your TV.
Component Input
Connect a component video/audio device to
these jacks.
Variable Output
Connect an external amplifier or add a subwoofer
to your surround sound system.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
HDMI Input
Connect a HDMI signal to HDMI IN.
Or DVI(VIDEO)signal to HDMI/DVI port with DVI
to HDMI cable.
RGB/Audio Input
Connect the monitor output from a PC to the
appropriate input port.
Antenna Input
Connect over-the-air signals to this jack.
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
1
2
3
4
5
6
7
AV 2 AV 1
ANTENNA
IN
HDMI/DVI IN
1 2
RGB IN(PC)
VIDEO
VIDEO
AUDIO
COMPONENT
COMPONENT
IN
VARIABLE
OUT AUDIO IN
(RGB/DVI)
HDMI IN
2
1
46
3
5
7
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

6
PREPARATION
PREPARATION
STAND INSTALLATION
1
2
3
Carefully place the product screen side down on
a cushioned surface that will protect product and
screen from damage.
Assemble the product stand with the product as
shown.
Install the 4 bolts securely, in the back of the
product in the holes provided.
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

7
PREPARATION
ATTACHING THE TV TO A WALL
■
This feature is not available for all models.
■Set it up close to the wall so the product doesn’t fall over when it is pushed backwards
■The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the
product doesn’t fall over when it is pulled in the forward direction It will prevent the product from
falling for-ward and hurting people It will also prevent the product from damage caused by fall Please
make sure that children don’t climb on or hang from the product
NOTE
!
GGWhen moving the product to another place undo the ropes first.
GGUse a product holder or a cabinet that is big and strong enough for the size and weight of the product.
GGTo use the product safely make sure that the height of the bracket that is mounted on the wall is same as
that of the product.
3
1
2
Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your product has the bolts in the TV brackets/bolts position before inserting the TV brackets/bolts, loosen
the bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on
the wall. Match the height of the bracket that is mounted on the wall.
3Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the
product. It is safer to tie the rope so it becomes horizontal between the wall and the product.
2
1
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

8
PREPARATION

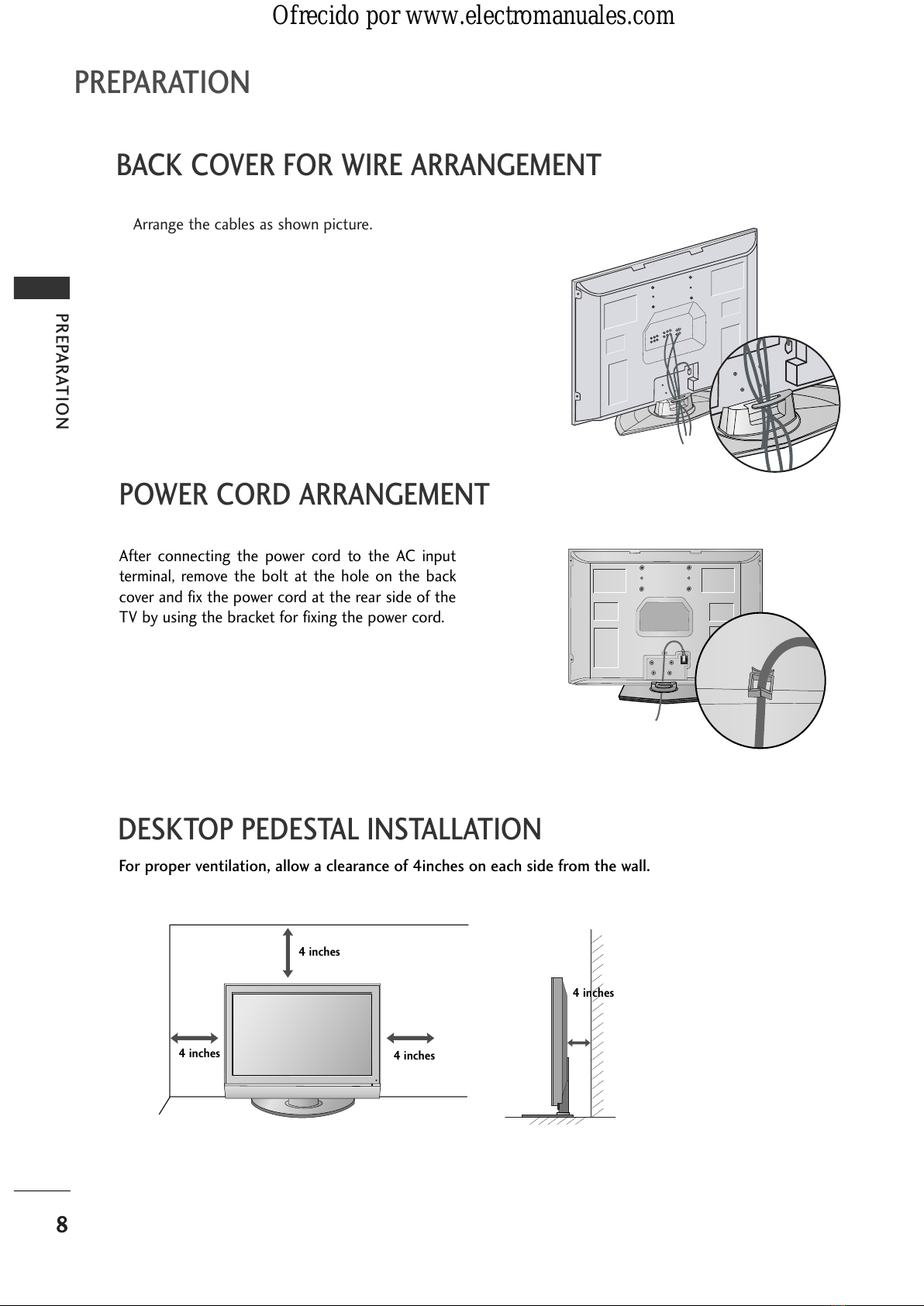

BACK COVER FOR WIRE ARRANGEMENT
PREPARATION
DESKTOP PEDESTAL INSTALLATION
For proper ventilation, allo a clearance of 4inches on each side from the all.
4 inches
4 inches
4 inches
4 inches
Arrange the cables as shown picture.
POWER CORD ARRANGEMENT
After connecting the power cord to the AC input
terminal, remove the bolt at the hole on the back
cover and fix the power cord at the rear side of the
TV by using the bracket for fixing the power cord.
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

9
PREPARATION
■The TV can be installed in various ways such as on a wall, or on a desktop etc.
■The TV is desi ned to be mounted horizontally.
Power Supply
Short-circuit
Breaker
GROUNDING
Ensure that you connect the earth ground wire to prevent
possible electric shock. If grounding methods are not possi-
ble, have a qualified electrician install a separate circuit
breaker.
Do not try to ground the unit by connecting it to tele-
phone wires, lightening rods, or gas pipes.
WALL MOUNT: HORIZONTAL INSTALLATION
For adequate ventilation allow a clearance of 4” (10cm) all around the TV. We recommend that you use a wall
mountin bracket of LG brand when mountin the TV to a wall.
4 inches
4 inches
4 inches
4 inches 4 inches
When installin the wall-mounted unit, use the protection
cover for desk-type stand installation.
NOT USING THE DESK-TYPE STAND
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com
all-guides.com

AV 2 AV 1
ANTENNA
IN
HDMI/DVI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
HDMI IN
10
PREPARATION
VIDEO
AUDIO
COMPONENT IN
HDMI IN
12
RGB IN (PC)
ANTENNA
IN
1
2
VARIABLE
OUT
AUDIO IN
(RGB/DVI)
AV OUT AV IN
L/MONO
R
AUDIO VIDEO
AV 2 AV 1
ANTENNA
IN
HDMI/DVI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
HDMI IN
PREPARATION

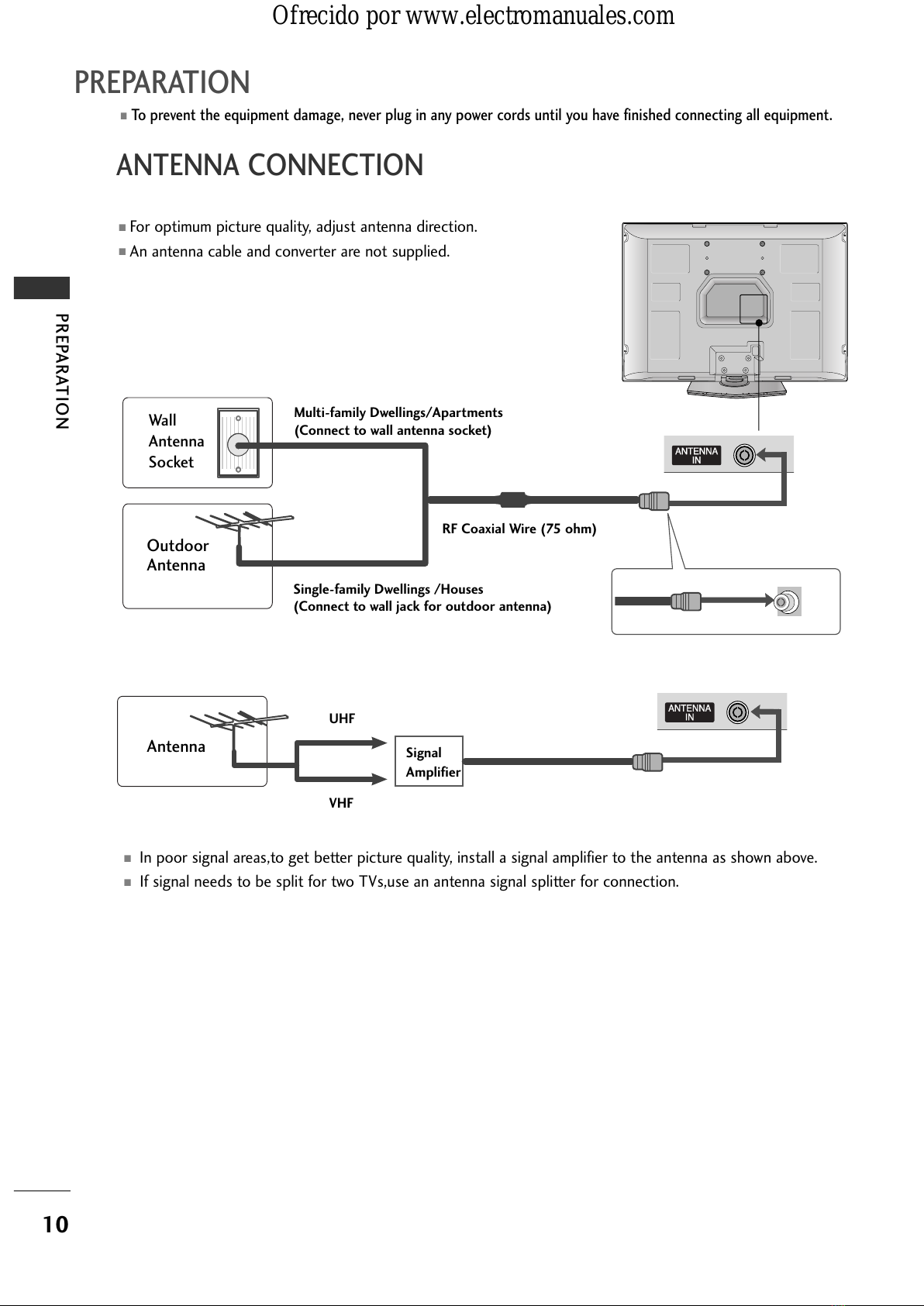

ANTENNA CONNECTION
■For optimum picture quality, adjust antenna direction.
■An antenna cable and converter are not supplied.
Multi- amily Dwellings/Apartments
(Connect to wall antenna socket)
Single- amily Dwellings /Houses
(Connect to wall jack or outdoor antenna)
Outdoor
Antenna
Antenna
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
UHF
Signal
Ampli ier
VHF
■In poor signal areas,to get better picture quality, install a signal amplifier to the antenna as shown above.
■If signal needs to be split for two TVs,use an antenna signal splitter for connection.
■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

11
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
VIDEOVIDEO
AUDIOAUDIO
COMPONENT IN
AV 2 AV 1
ANTENNA
IN
HDMI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
HDMI IN
12
1
HDMI IN
HDMI/DVI IN
HDMI/DVI IN
When connecting with a component cable
Connect the video outputs (Y, P , PR)of the digital set
top box to the CCOOMMPPOONNEENNTT IINN VVIIDDEEOOjacks on the
set.
Connect the audio output of the digital set-top box to
the CCOOMMPPOONNEENNTT IINN AAUUDDIIOOjacks on the set.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
Select Component input source with using the
IINNPPUUTT button on the remote control.
2
3
4
1
1 2
■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment
Signal
480i/576i
480p/576p
720p/1080i
Component
Yes
Yes
Yes
HDMI1/2
No
Yes
Yes
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

12
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
VIDEO
AUDIO
COMPONENT IN
AV 2 AV 1
ANTENNA
IN
HDMI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
HDMI IN
1 2
1
HDMI IN
HDMI/DVI IN
HDMI/DVI IN

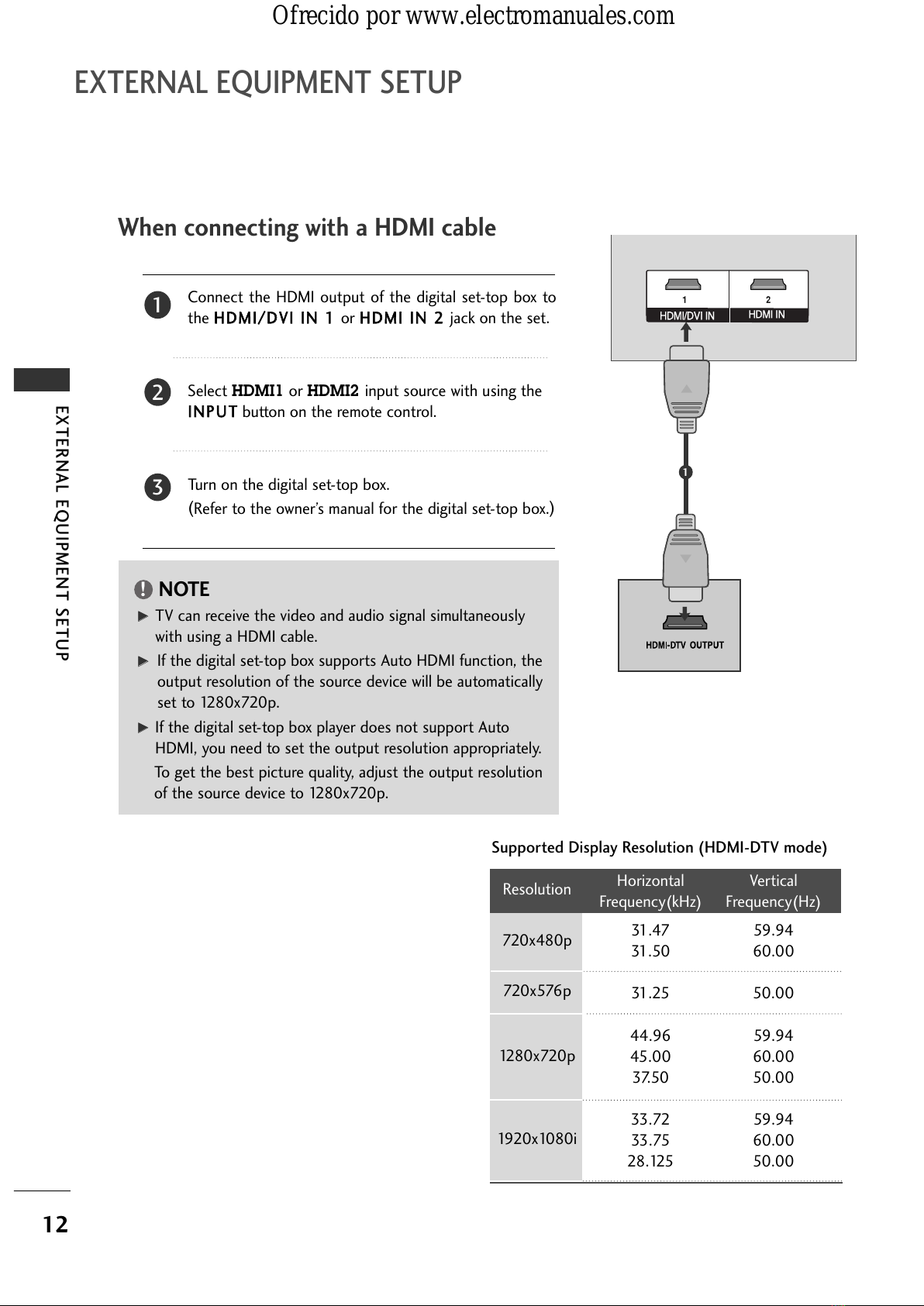

When connecting with a HDMI cable
Connect the HDMI output of the digital set-top box to
the HHDDMMII//DDVVII IINN 11 or HHDDMMII IINN 22 jack on the set.
Select HDMI1 or HDMI2 input source with using the
IINNPPUUTTbutton on the remote control.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
2
3
1
GGTV can receive the video and audio signal simultaneously
with using a HDMI cable.
GGIf the digital set-top box supports Auto HDMI function, the
output resolution of the source device will be automatically
set to 1280x720p.
GGIf the digital set-top box player does not support Auto
HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the source device to 1280x720p.
NOTE
!
1
Resolution
720x480p
720x576p
1280x720p
1920x1080i
Supported Display Resolution (HDMI-DTV mode)
Horizontal Vertical
Frequency(kHz) Frequency(Hz)
31.47 59.94
31.50 60.00
31.25 50.00
44.96 59.94
45.00 60.00
37.50 50.00
33.72 59.94
33.75 60.00
28.125 50.00
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

13
EXTERNAL EQUIPMENT SETUP
VIDEO
AUDIO
COMPONENT IN
AV 2 AV 1
ANTENNA
IN
HDMI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
HDMI IN
12
1
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN VARIABLE
OUT
HDMI INHDMI IN
AUDIO IN
(RGB/DVI)
HDMI/DVI IN
HDMI/DVI INHDMI/DVI IN
12
Connect the DVI output of the digital set-top box to the HHDDMMII//DDVVII IINN 11 jack on the set.
Connect the audio output of the digital set-top box to the AAUUDDIIOO IINN((RRGG//DDVVII)) jack on the set.
Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
Select HDMI1 input source with using the IINNPPUUTTbutton on the remote control.
2
3
4
1
When connecting with a HDMI to DVI cable
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

14
EXTERNAL EQUIPMENT SETUP
DVD SETUP
EXTERNAL EQUIPMENT SETUP
When connecting with a component cable
VIDEOVIDEO
AUDIOAUDIO
COMPONENT IN
AV 2 AV 1
ANTENNA
IN
HDMI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
AV 2 AV 1
HDMI IN
12
HDMI/DVI IN
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below
Component ports on the TV
YPBPR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video outputs (Y, P , PR)of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOOjacks on the set.
Connect the audio outputs of the DVD to the CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOOjacks on the set.
Turn on the DVD player, insert a DVD.
Select Component input source with using the IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating instructions.
2
3
4
5
1
1 2
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com
all-guides.com

15
EXTERNAL EQUIPMENT SETUP
When connecting with a Euro Scart
Connect the Euro scart socket of the DVD to the AAVV11Euro
scart socket on the set.
Turn on the DVD player, insert a DVD.
Select AV 1 input source with using the IINNPPUUTTbutton on
the remote control.
If connected to AV 2 Euro scart socket, select AV 2 input
source.
Refer to the DVD player's manual for operating instructions.
2
3
4
1
VIDEO
AUDIO
COMPONENT IN
AV 2 AV 1
ANTENNA
IN
HDMI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
AV 2V 2 AV 1
ANTENNA
IN
HDMI IN
12
AUDIO IN
(RGB/DVI)
IN(PC)
ABLE
UT
(R) AUDIO (L)
AUDIO/
VIDEO
HDMI/DVI IN
1
NOTE
!
GGPlease use the shield scart cable.
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

16
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
VIDEO
AUDIO
COMPONENT IN
AV 2 AV 1
ANTENNA
IN
HDMI IN
12
RGB IN(PC)
VIDEO
AUDIO
COMPONENT IN
AV 2 AV 1
HDMI IN
1 2
HDMI/DVI IN

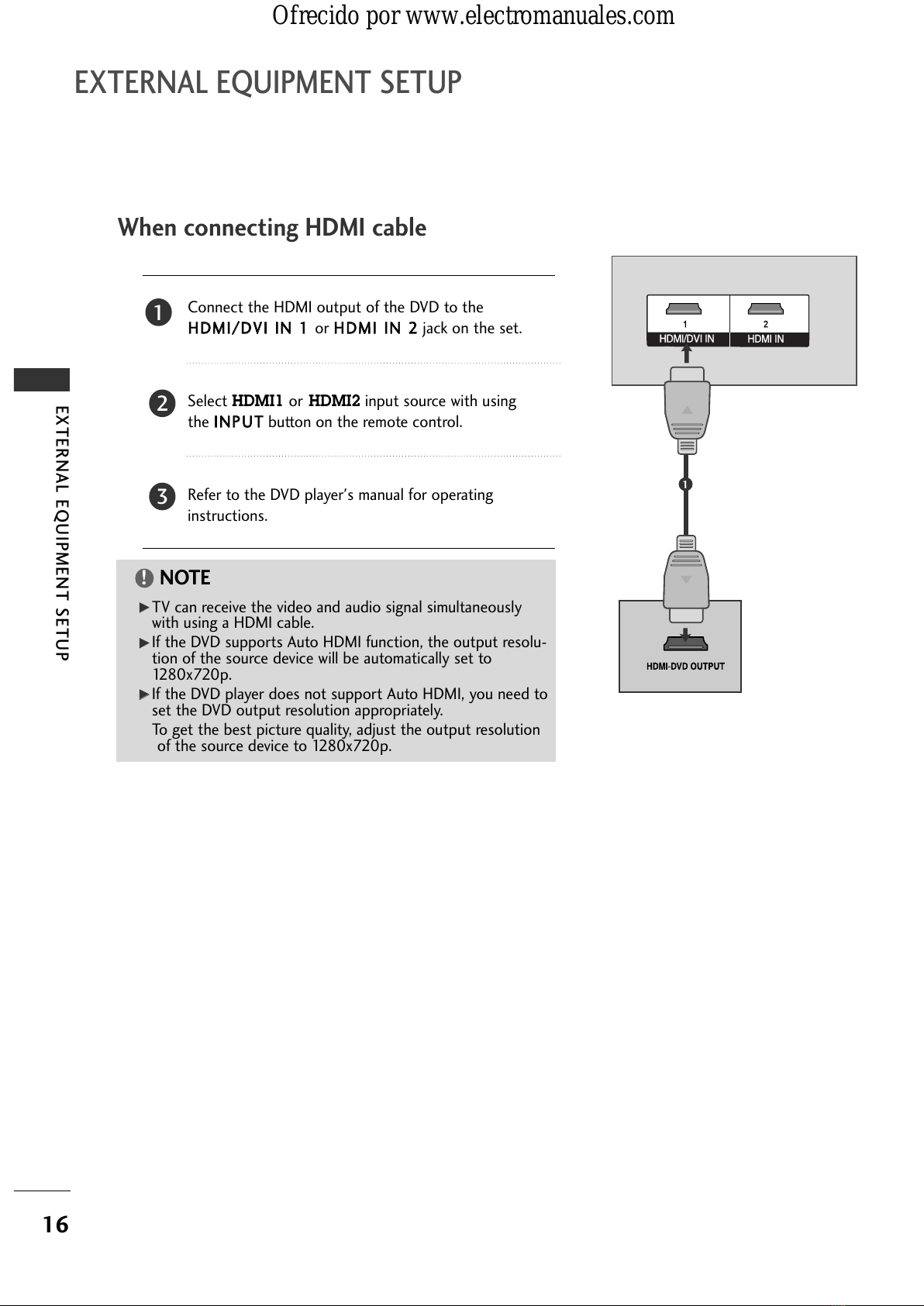

When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII IINN 11 or HHDDMMII IINN 22jack on the set.
Select HDMI1 or HDMI2 input source with using
the IINNPPUUTTbutton on the remote control.
Refer to the DVD player's manual for operating
instructions.
1
GGTV can receive the video and audio signal simultaneously
with using a HDMI cable.
GGIf the DVD supports Auto HDMI function, the output resolu-
tion of the source device will be automatically set to
1280x720p.
GGIf the DVD player does not support Auto HDMI, you need to
set the DVD output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the source device to 1280x720p.
NOTE
!
1
2
3
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

17
EXTERNAL EQUIPMENT SETUP

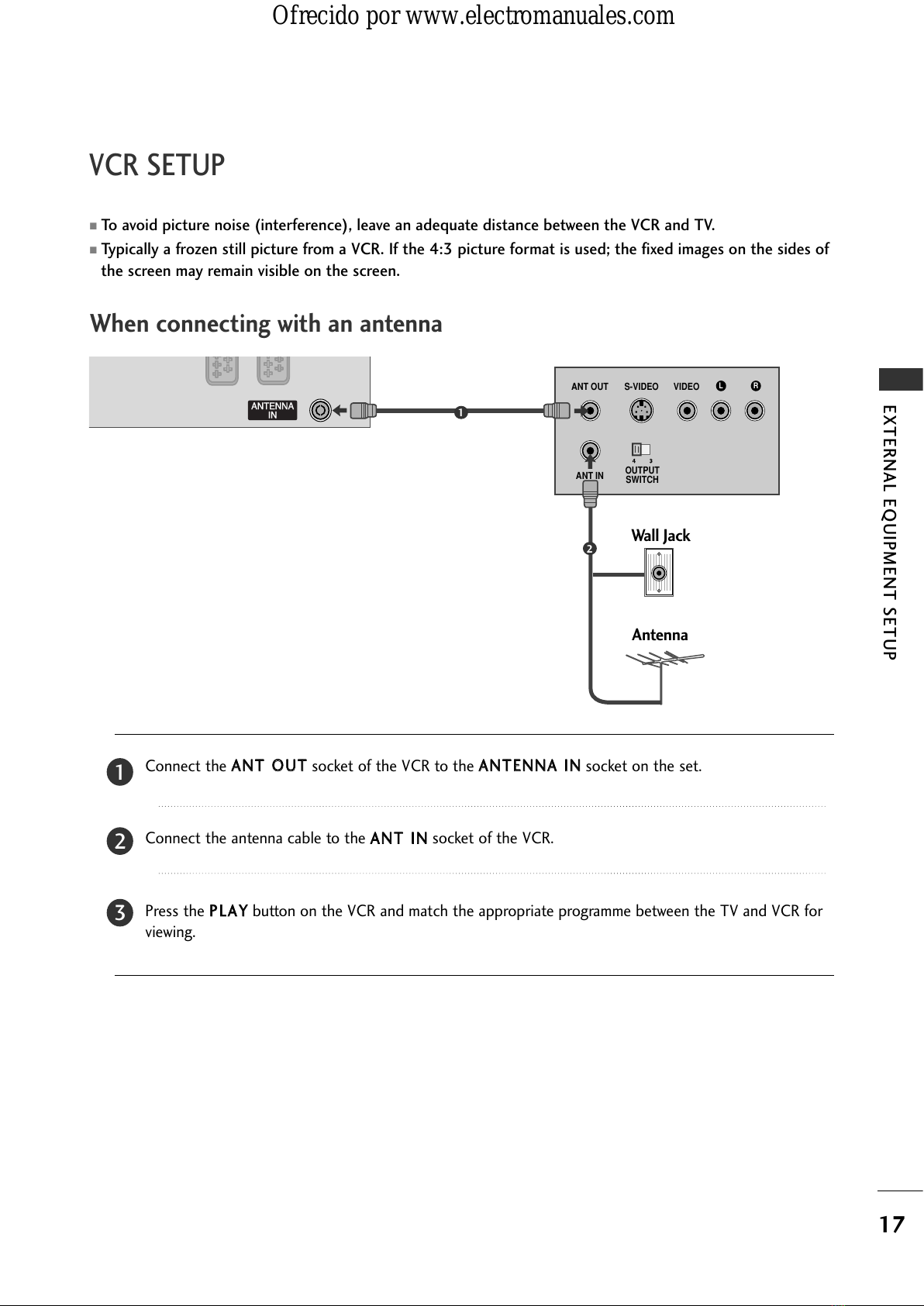

VCR SETUP
When connecting with an antenna
■To avoid picture noise (interference), leave an adequate distance between the VCR and TV
■Typically a frozen still picture from a VCR If the 4:3 picture format is used; the fixed images on the sides of
the screen may remain visible on the screen
ANTENNA
IN
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT L
AV 2 AV 1
Wall Jack
Antenna
Connect the AANNTT OOUUTTsocket of the VCR to the AANNTTEENNNNAA IINNsocket on the set.
Connect the antenna cable to the AANNTT IINNsocket of the VCR.
Press the PPLLAAYYbutton on the VCR and match the appropriate programme between the TV and VCR for
viewing.
1
2
2
3
1
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com

18
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
When connecting with a Euro Scart
Connect the Euro scart socket of the VCR to the AAVV11Euro
scart socket on the set.
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
Select AV 1 input source with using the IINNPPUUTTbutton
on the remote control.
If connected to AAVV22 Euro scart socket, select AV 2 input
source.
2
3
1
ANTENNA
IN
AV 2 AV 1V 1
ANTENNA
IN
AUDIO IN
(RGB/DVI)
IN(PC)
IABLE
OUT
(R) AUDIO (L)
AUDIO/
VIDEO
1
NOTE
!
GGIf you want to use the EURO scart cable, you have to use the
signal shielded Euro scart cable.
Ofrecido por www.electromanuales.com
All manuals and user guides at all-guides.com
