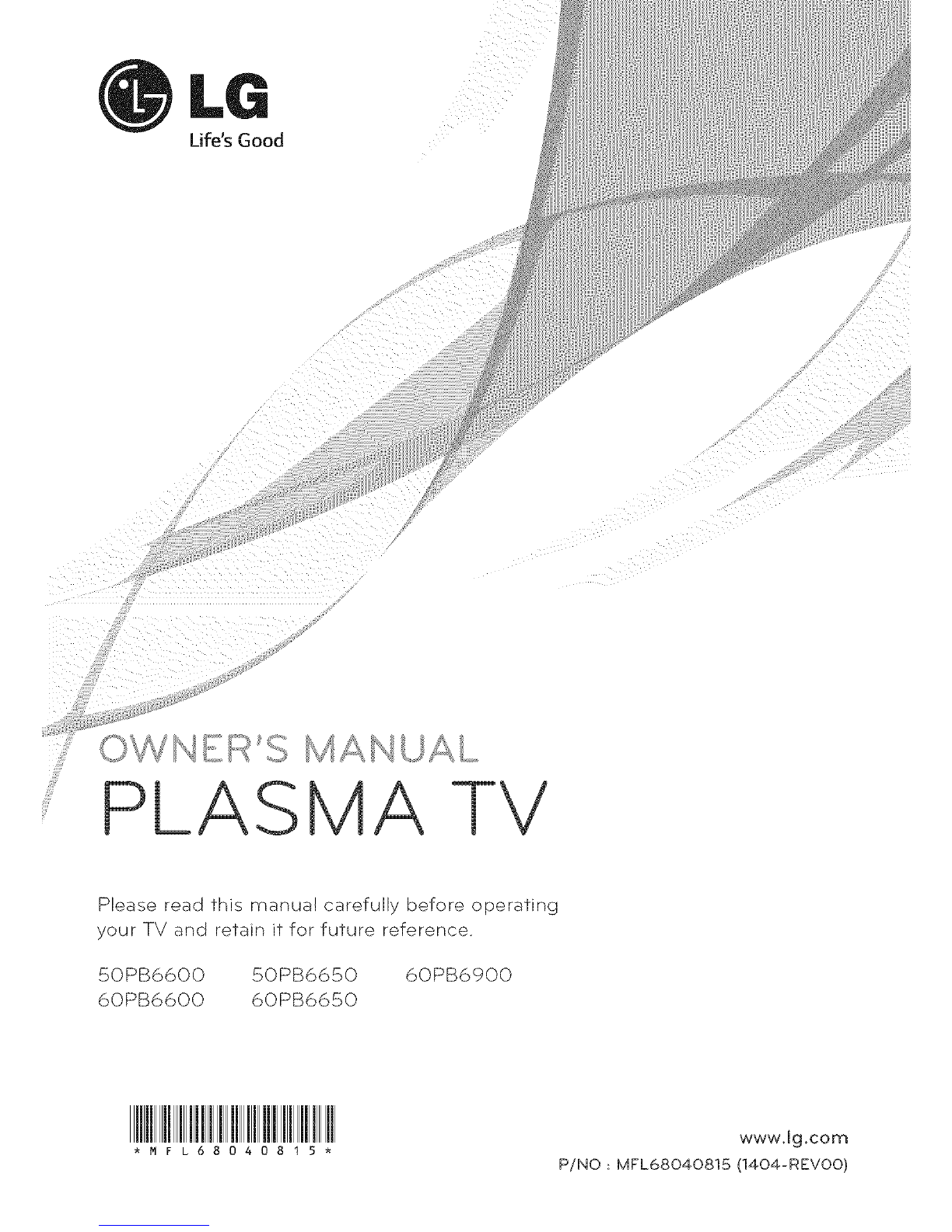

LG 50PB6600 User manual

Life's Good
PLAS
Please read this manual carefully before operatin 9
your TV and retain it for future reference.
50PB6600 50PB6650 60PB6900
60PB6600 60PB6650
_MFL680408 15_ www.lg.com
P/NO : MFL68040815 (1404_REVO0)

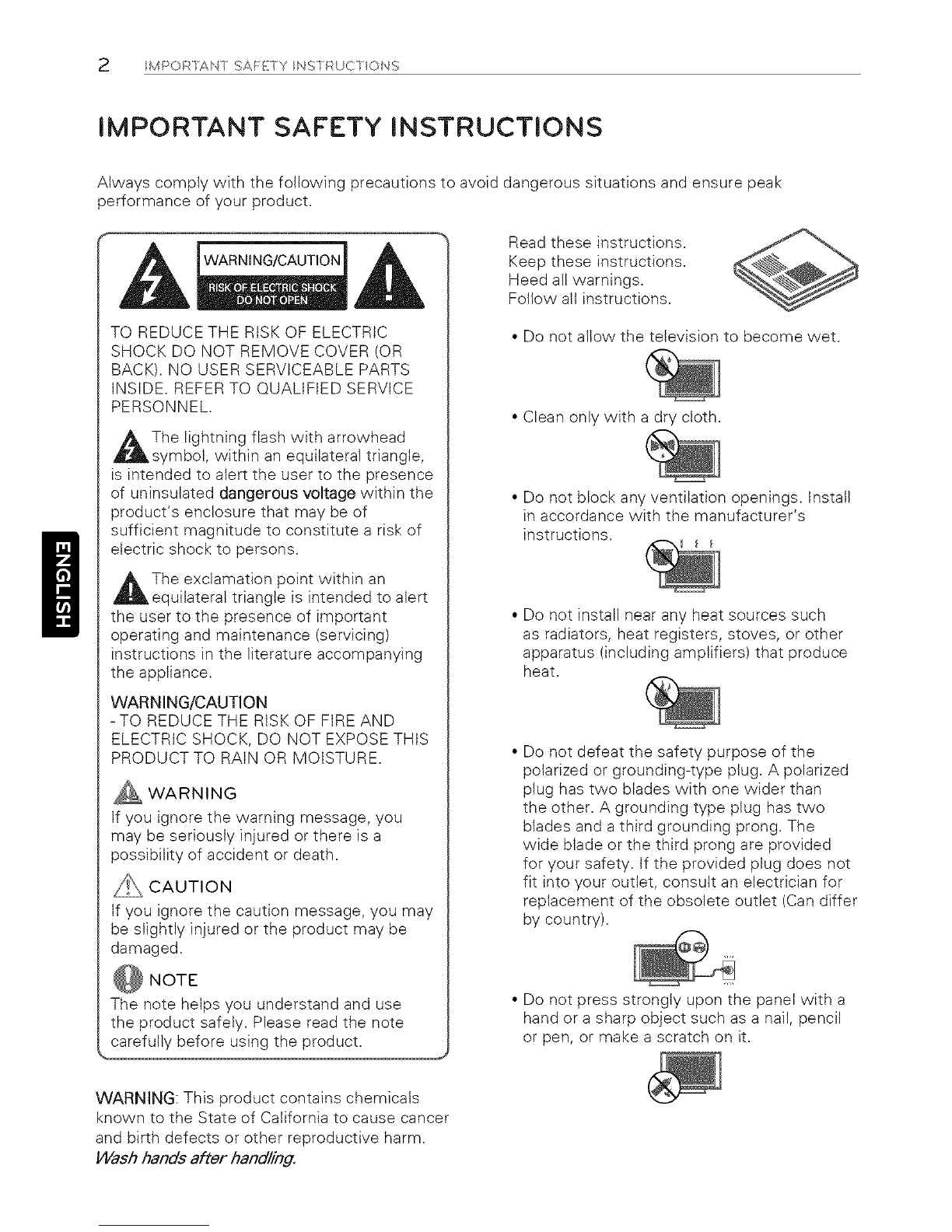

2 MPORTANT SAFETY NSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product.
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
_l_The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the presence
of uninsulated dangerous voltage within the
product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
-TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
If you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
_\,., CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
The note helps you understand and use
the product safely. Please read the note
carefully before using the product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
• Do not allow the television to become wet,
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
• Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than
the other. A grounding type plug has two
blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ
by country).
• Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
WARNING: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.

•Protectthepowercordfrombeingwalkedon
orpinchedparticularlyatplugs,convenience
receptacles,andthepointwheretheyexit
fromtheapparatus.
•Onlyuseattachments/accessoriesspecified
bythemanufacturer.
•Useonlywithacart,stand,tripod,bracket,
ortablespecifiedbythemanufacturer,or
soldwiththeapparatus.Whenacartisused,
usecautionwhenmovingthecart/apparatus
combinationtoavoidinjuryfromtip-over.
•Unplugthisapparatusduringlightningstorms
orwhenunusedforlongperiodsoftime.
•Referallservicingtoqualifiedservice
personnel.Servicingisrequiredwhen
theapparatushasbeendamagedinany
way,suchaspower-supplycordorplugis
damaged,liquidhasbeenspilledorobjects
havefallenintotheapparatus,theapparatus
hasbeenexposedtorainormoisture,does
notoperatenormally,orhasbeendropped.
•Donotstickmetalobjectsoranyother
conductivematerialintothepowercord.Do
nottouchtheendofthepowercordwhileit
ispluggedin.
•Keepthepackinganti-moisturematerialor
vinylpackingoutofthereachofchildren.Anti-
moisturematerialisharmfulifswallowed.If
swallowedbymistake,inducevomitingand
gothenearesthospital.Additionally,vinyl
packingcancausesuffocation.Keepitoutof
thereachofchildren.
IMPORTANT SAFE_-Y INSTR JCTIONS 3
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wan outlets.
Overloaded wail outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to
unplug the TV.
• Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
• Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).

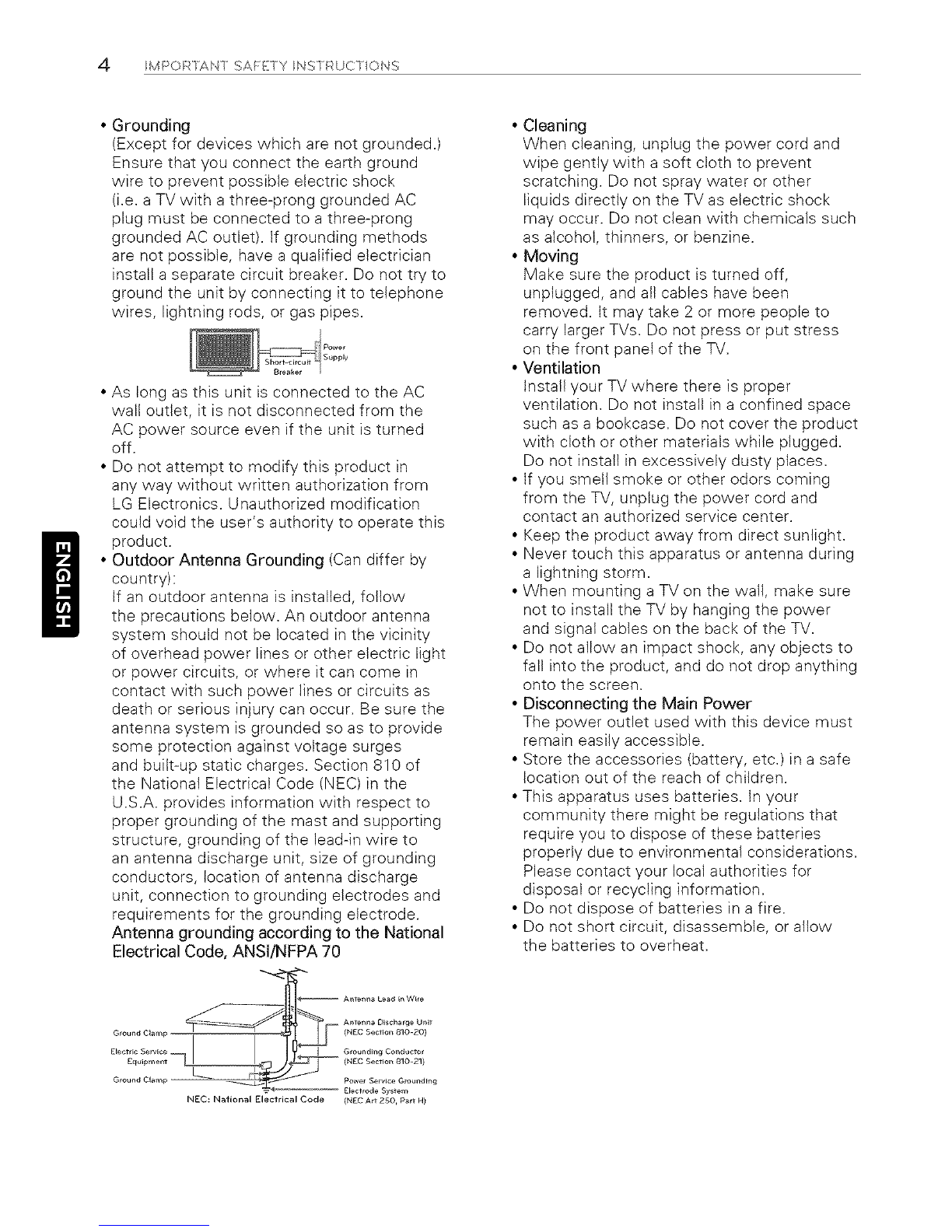

4MPORTANT SAFETY NSTRUCTIONS
• Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightning rods, or gas pipes.
• As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
• Do not attempt to modify this product in
any way without written authorization from
LG Electronics. Unauthorized modification
could void the user's authority to operate this
product.
• Outdoor Antenna Grounding (Can differ by
country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC)in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSl/NFPA 70
Antenna Discharge Unit
Grounding Conductor
u men (NEC Section 810-21)
Ground Clamp Power Service Grounding
...... Electrode System
NEC: Nafional Electrical Code (NEC Art 2SO, Part H)
• Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals such
as alcohol, thinners, or benzine.
• Moving
Make sure the product is turned off,
unplugged, and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
• Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged.
Do not install in excessively dusty places.
• If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
• Keep the product away from direct sunlight.
• Never touch this apparatus or antenna during
a lightning storm.
• When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
• Do not allow an impact shock, any objects to
fall into the product, and do not drop anything
onto the screen.
• Disconnecting the Main Power
The power outlet used with this device must
remain easily accessible.
• Store the accessories (battery, etc.) in a safe
location out of the reach of children.
• This apparatus uses batteries. In your
community there might be regulations that
require you to dispose of these batteries
properly due to environmental considerations.
Please contact your local authorities for
disposal or recycling information.
• Do not dispose of batteries in a fire.
• Do not short circuit, disassemble, or allow
the batteries to overheat.

•DotDefect
Thepanelisahightechnologyproductwith
resolutionoftwomilliontosixmillionpixets.
Inaveryfewcases,youcouldseefinedots
onthescreenwhileyou'reviewingtheTV.
Thosedotsaredeactivatedpixetsanddonot
affecttheperformanceandreliabilityofthe
TV.
•GeneratedSound
CrackingnoiseAcrackingnoisethatoccurs
whenwatchingorturningofftheTVis
generatedbyplasticthermalcontraction
duetotemperatureandhumidity.Thisnoise
iscommonforproductswherethermal
deformationisrequired.
Electricalcircuithumming/panelbuzzing
Alowlevelnoiseisgeneratedfromahigh-
speedswitchingcircuit,whichsuppliesa
largeamountofcurrenttooperateaproduct.
Itvariesdependingupontheproduct.
Thisgeneratedsounddoesnotaffectthe
performanceandreliabilityoftheproduct.
•Takecarenottotouchtheventilation
openings.WhenwatchingtheTVforalong
period,theventilationopeningsmaybecome
hot.Thisdoesnotaffecttheperformanceof
theproductorcausedefectsintheproduct.
•Donotinstallthisproductonawallifit
couldbeexposedtooiloroilmist.Thismay
damagetheproductandcauseittofall.
•IfafixedimagedisplaysontheTVscreenfor
alongperiodoftime,itwillbeimprintedand
becomeapermanentdisfigurementonthe
screen.Thisisimageburnorburn-inandnot
coveredbythewarranty.
•IftheaspectratiooftheTVissetto4:3fora
longperiodoftime,imageburnmayoccuron
theletterboxedareaofthescreen.
•AvoiddisplayingafixedimageontheTV
screenforalongperiodoftime(2ormore
hoursforLCD,1ormorehoursforthe
PlasmaTV)topreventimageburn.
IMPORTANT SAFE_-Y INSTR JCTIONS .5
For USA and Canada
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
)rovide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
_nstructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
_na particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on
a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference and (2) this device must
accept any interference received, including
interference that may cause undesired
operation of the device.
Any changes or modifications in construction
of this device which are not expressly
approved by the party responsible for
compliance could void the user's authorit to
operate the equipment.
This reminder is provided to calt the CATV
system instailer's attention to Article 820-
40 of the National Electric Code (U.S.A.).
The code provides guidelines for proper
grounding and, in particular, specifies that
the cable ground shall be connected to the
grounding system of the building, as close to
the point of the cable entry as practical.

6 MPORTANT SAFETY NSTRUCTIONS
Viewing 3D Imaging (For 3D models)
• Viewing Time
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a
long period of time may cause headache, dizziness, fatigue or eye strain.
• Some users may experience a seizure or other abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D content.
• Do not watch 3D videos if you feet nauseous, are pregnant and/or have a chronic illness such as
epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D content is not recommended for those who suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble
sensing depth and easily feet fatigue due to double images. It is advised to take frequent breaks.
• If your eyesight varies between your right and left eye, you may experience eye strain.
• Do not watch 3D content when you feet fatigue from lack of sleep, overwork or intoxication.
• When these symptoms are experienced, stop using/watching 3D content and get enough rest until
the symptom subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball
pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or
fatigue.

IMPORTANT SAFE_-Y INSTR JCTIONS 7
• Viewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D content. If you
feel discomfort in viewing 3D content, move further away from the TV.
• Viewing Position (Only for SG Mode)
- Face the center of the screen at eye level with the head looking straight ahead. Otherwise, you
maynot be abte to view 3D contents properly.
• Infants /Children
- Usage/Viewing 3D content for children under the age of 5 is prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring
and extra attention is required for children watching 3D content.)
- Children have greater binocular disparity of 3D presentations than adults because the distance
between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.
• Teenagers
- Advise teenagers under the age of 19 not to watch 3D videos for a long time when they are tired.
• Elderly
- The elderly may perceive tess of a 3D effect than the youth. Do not sit closer to the TV than the
recommended distance.
• Only use LG 3D glasses. Otherwise, you may not be abte to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easy to scratch. Use a soft, clean piece of cloth when wiping the
lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with
chemicals.

8 L CENSES /OPFN SC} JFCE !!:_OF°-WAF E NOTCE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit wwHz/g.com.
DiGiTAL PLUS HD
H|||
HIGH-DEFINITION MULTIMEDIA INTERFACE
2.0+Digital Out
OPEN SOURCE SOFTWARE NOTICE
I o obtainthe sourcecode underGPL, LGPL, MPL and otheropen sourcelicenses,thatiscontainedin
this product, please visit http.//opensource./_e.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
opensoume@/de.com. This offer is valid for three (3) years from the date on which you purchased the
product.
@ NOTE
Image shown may differ from your TV.
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
uslng,
New features may be added to this TVin the future,

ASSEMB NGANDPREPARNG C_
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
_-_ CAUTION
Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• Some models appear to have a thin film on the screen. It is actually part of the screen; do not
• remove It.
Remote
Control,
Batteries
(AAA)
Owner's
Manual Stand Body, Stand Base
Ferrite core AN-WFS00
(Depending upon WiFi/Btuetooth
model) Dongle
(For 50/60PB6600)
Stand Screws Stand Screws
3EA, M5xL25 4EA, M4xL14 Power Cord Stand Sticker (Depending upon
model)
The items supplied with your product may vary depending upon the
model.
Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
For an optimal connection, HDMt cables and USB devices should
have bezels tess than 10 mm (0.39 inches) thick and 18 mm
(0.7 inches) width.
Use an extension cable that supports USB 2.0 if the USB cable or
USB flash drive does not fit into your TV's USB port.
*A < 10 mm (0.39 inches)
*B < 18 rnrn (0.7 inches)

10 ASSEMB NGANDPREPARNG
_ NOTE .............................................................................................................................................................................................................................................................................................................................................................................................................
• How to use the ferrite core (Depending upon model)
- If there are three ferrite cores, follow as shown in Figure 1 and Figure 2.
- If there are four ferrite cores, follow as shown in Figure 1, Figure 2 and Figure 3.
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a
walt plug.
[to a wall plug] [to the TV]
[Figure 1]
(Black)
[Cross Section of
Ferrite Core]
2 Use the ferrite core to reduce the electromagnetic interference in the LAN cable.
Wind the LAN cable once on the ferrite core. Place the ferrite core close to the TV.
10ram(+/ 5ram/
[to an External device] [to the TV]
[Figure 2]
(Gray)
[Cross Section of
Ferrite Core]
3 Use the ferrite core to reduce the electromagnetic interference in the cable.
Wind the component cable on the ferrite core once. Place the ferrite core close to the TV.
[to an External device]
[Figure 3]
[to the TV]
10ram(+/ 5ram)
(Black)
[Cross Section of
Ferrite Core]

ASSEMB NGAND PREPAF NG 11
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with certain models.
The model name or design may be changed manufacturer's circumstances or policies.
AG-S3** AN-MR500 LG Audio Device AN-WF500
3D Glasses Magic Remote WiFi/Btuetooth
Dongle
(For 50/60PB6600)
AN-VC5** AN-TP300 AN-TD200
Video Call Camera Touch Pen, Cradle Touch Pen Dongle
With the Touch Pen, you can use the TV as atouch
monitor with or without connecting it to your PC.
You need to purchase the Touch Pen (including the
cradle) together with the dongle.
Compatibility PB6600 PB6650 PB6900
III
AG-S3** 3D Glasses , . . ®
I I
LG Aud o Dev ce . ® ! ® . ®
AN_WF500 WiFi/Bluetooth Dongte ® II ,I
(For 50/60PB6600) , , ,
AN-TP300 Touch Pen, Cradle ®
AN-TD200 Touch Pen Dongle ® ®
>>With the AN-WF500, you can use the Magic Remote and LG Audio Device (Wireless).
You need to purchase the AN-WF500. (For 50/60PB6600)

12 ASSEMB NGANDPREPARNG
Lifting and moving the TV
When moving or lifting the TV, read the
following to prevent the TV from being
scratched or damaged and for safe
transportation regardless of its type and size.
_-_\_ CAUTION
•Avoidtouchingthe screenatalltimes,as
thismay resultindamage tothe screen.
• Do not placethe producton thefloorwith
itsfrontfacingdown. Failuretodo so may
....!es mageto!hescree_
• It is recommended to move the TV in the
box or packing material that the TV originally
came in.
• Before moving or lifting the TV, disconnect
the power cord and all cables.
• When holding the TV, the screen should face
away from you to avoid damage.
• Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
• Use at least two people to move a large TV.
• When transporting the TV by hand, hold the
TV as shown in the following illustration.
Parts and Buttons
// j
/..... _ %
1 Intelligent Sensor - Adjusts the image quality
and brightness based on the surrounding
environment.
• When transporting the TV, do not expose the
TV to jolts or excessive vibration.
• When transporting the TV, keep the TV
upright; never turn the TV on its side or tilt
towards the left or right

ASSEMB NGANDPREPARNG 13
Using the joystick button
You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
When the TV is turned off, place your finger on the joystick button,
Power On )ress it once and release it.
When the TV is turned on, place your finger on the joystick button,
)ress it once for a few seconds and release it.
Power Off (However, if the Menu button is on the screen, pressing and holding
the joystick button will let you exit the Menu.)
Volume Control If you place your finger over the joystick button and move it left or
right, you can adjust the volume level you want.
Channels Control If you place your finger over the joystick button and move it up or
down, you can scroll through the saved channels you want.
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items (0, _, X, _) moving the joystick button up, down, left, or right.
X
TV Off Turns the power off.
Settings Accesses the main menu.
Close Clears on-screen displays and returns to TV viewing.
Input List Changes the input source.

14 ASSEMB NG AND PREPAF NG
Selling up fhe TV
You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment
center or other furniture.
Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
iiiiiiiiii 'i !i'!i'!i'!i'!i'!i!ili!!i!Beforeassemb,ing,attachthestandiiiiiiiii !iiiii!ii!i!iiiiiii!ii! i'
sticker under the stand body to reduce
the electromagnetic interference as
shown below. (Depending upon model)
Stand Sticker J
3 EA
MB x L2B
Body
I Front
Stand Base
,..-_ CAUTION
• When assembling the stand base and the
stand body, press the stand body until you
can hear a c ckng sound n the hook.
4 EA
M4 x L14
._X CAUTION
•When attachingthe standtothe TV
set,placethe screenfacingdown on a
cushionedtableorflatsurfaceto protectthe
screen fromsc ratche s

ASSEMB NGAND PREPAF NG 1.5
Mounting on a table
Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (4 inches) (minimum) space
from the walt for proper ventilation.
(Depending upon model)
8
1 (4 inches)
0ca
IlK
Connect the power cord to a wail outlet.
] Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to
the wall.
Match the location of the walt bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets
tightly with a sturdy rope or cable.
Make sure to keep the rope parallel to the
flat surface.
,@ NOTE
• Use a platform or cabinet that is strong and
large enough to support the TV securely.
• Brackets, bolts and ropes, are optional. You
can obtain additional accessories from your
local dealer.

16 ASSEMB NGAND PREPAF NG
Mounting on a wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the
wall mount bracket at the rear of the TV.
Install the walt mount bracket on a solid wall
perpendicular to the floor. If you are attaching
the TV to other building materials, please
contact qualified personnel to install the wall
mount. Detailed instructions will be included
with the wall mount. We recommend that you
use an LG brand wall mount. When you do not
use LG's walt mount bracket, Dtease use a watl
mount bracket where the device is adequately
secured to the wall with enough space to allow
connectivity to external devices.
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
60PB6600
50PB6650
60PB6650
60PB6900
VESA (Ax B} 400 x 400
Standard screw M6
Number of screws 4
Wall mount bracket PSW420BX
(optional)
...._ CAUTION
• Disconnect the power before moving or
installing the TV. Otherwise electric shock
may occur.
• If you install the TV on a ceiling or slanted
walt, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel. When using a third-party walt
mount, it is not covered by the warranty.
• Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
• Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
........................................................................................................................................................................................................................................................................................................................................................./
....... NOTE
• Use the screws that are listed in the VESA
standard screw specifications.
• The wall mount kit includes an installation
manual and necessary parts.
• The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
• The length of screws may differ depending
upon the wall mount. Make sure to use the
proper length.
• For more information, refer to the manual
supplied with the wail mount.
.......................................................................................................................................................................................................................................J

MAKNG CO _NFCTIONS 17
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
For more information on external device's connection, refer to the manual provided with each device.
if you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual provided with the connected device.
The external device connections shown may differ slightly from illustrations in this manual.
Connect external devices to the TV regardless about the order of the TV port.
if you connect a gaming device to the TV, use the cable supplied with the gaming device.
Refer to the external equipment's manual for operating instructions.
,/
Connecting to an an1'enna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations
may differ from the actual items and an RF cable is optional.
8J _HF Antenna
HF Antenna
,-_"\ CAUTION
Make sure notto bend thecopper wire of
the RF cable,
Terminal
Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.

18 MAKNG CONNFCTIO x_S
Other connections
Connect your TV to external devices. For the best picture and audio quality, connect the external device
and the TV with the HDMI cable as shown. Depending upon the model, a cable may be provided.
DVD /Blu-Ray /HD Cable Box /HD STB /PC
n!i:_'i_
o H
m
OPTICAL AUDIO IN
Digital Audio
System
Y PB PR L R
®®®
L_ VIDEO----J LAUDIO /
VCR /DVD /Blu-Ray /HD Cable Box

MAKNG CO _NI-CTIONS 19
USB/ USB Hub/ HDD
MHL passive cable Mobile phone

20 REMOTE CC}NF/:t C}.....
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly. To install batteries,
:_+#and ,.open the battery cover, replace batteries (1.5 V AAA) matching the/x
ends to the label inside the compartment, and close the battery cover. Failure to match the correct
polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or
ambient pollution. To remove the batteries, perform the installation actions in reverse.
CAUTION
• Do not mix oldand new batteries,as thismay damage the remote control.
This remote uses infrared light, When in use, it should be pointed in the direction of the TV's remote
sensor,
(For PB6600/PB6650 series)
(POWER) Turns the TV on or off.
"IV Returns to the last TV channel.
CAPTION Activates or deactivates the subtitles.
AV MODE Selects an AV mode.
I_] RATIO Resizes an image.
INPUT Changes the input source. Turns the TV on if it is off.
Number button Enters numbers.
- (Dash) Inserts a dash between numbers such as 2-1 and 2-2.
LIST Accesses the saved channel list.
FLASHBK Alternates between the two last channels selected (pressing repeatedly).
-_ VOL _ Adjusts the volume level.
FAV Accesses your favorite channel list; Selects a menu or option.
JNFO O Shows information on the current program.
MUTE ._ Mutes all sounds.
A CH V Scrolls through the saved channels.
A PAGE V Moves to the previous or next screen.
@ITII_LInK Accesses the AV devices connected to the TV; Opens the SIMPLINK
menu.
SMART _ Accesses the Home menu.
|I_."MY APPS Shows the list of Apps.
SETTINGS Accesses the main menu.
Q.MENU Accesses the quick menu.
Navigation buttons Scrolls through menus or options. (up/down/left/right)
OK(_) Selects menus or options and confirms your input.
BACK Returns to the previous screen.
EXIT Clears all on-screen displays and returns to TV viewing.
SLEEP Sets the length of time until the TV to turns off.
VD/_ Enables VD function. SAP (Secondary Audio Program) feature can also be
enabled by pressing the VD key.
Control buttons (ill, t_, |l, _!_, IJ'l_)Controls the SIMPLINK compatible devices
(USB,SIMPLINK).
I1|(Freeze) Freezes the current frame (Net supported when using USB Mode and
SIMPLINK).
Color buttons These access special functions in some menus.
(_: Red, : Green, _: Yellow, _: Blue)
