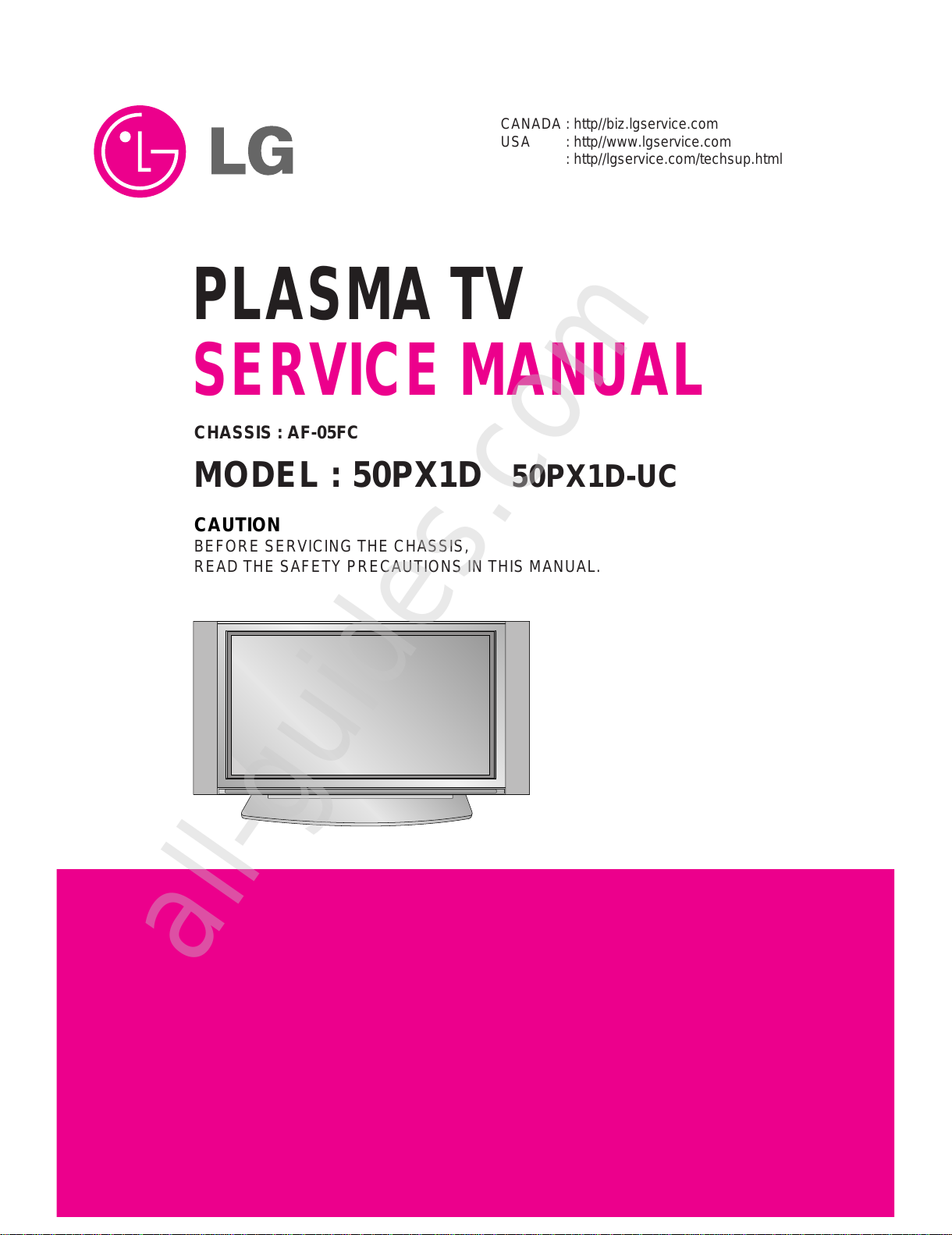

LG 50PX1D User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : AF-05FC
MODEL : 50PX1D 50PX1D-UC
CANADA : http//biz.lgservice.com
USA : http//www.lgservice.com
: http//lgservice.com/techsup.html
All manuals and user guides at all-guides.com
all-guides.com

- 2 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An lsolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitary that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this monitor is blown, replace
it with the same specified type.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on positioin, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each esposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits sepcified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
CANADA: LG Electronics Canada, Inc. 550 Matheson
Boulevard East Mississauga, Ontario L4Z 4G3
USA : LG Customer Interactive Center
P.O.Box 240007, 201 James Record Road Huntsville,
AL 35824
Digital TV Hotline [phone]
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF
All manuals and user guides at all-guides.com

- 3 -

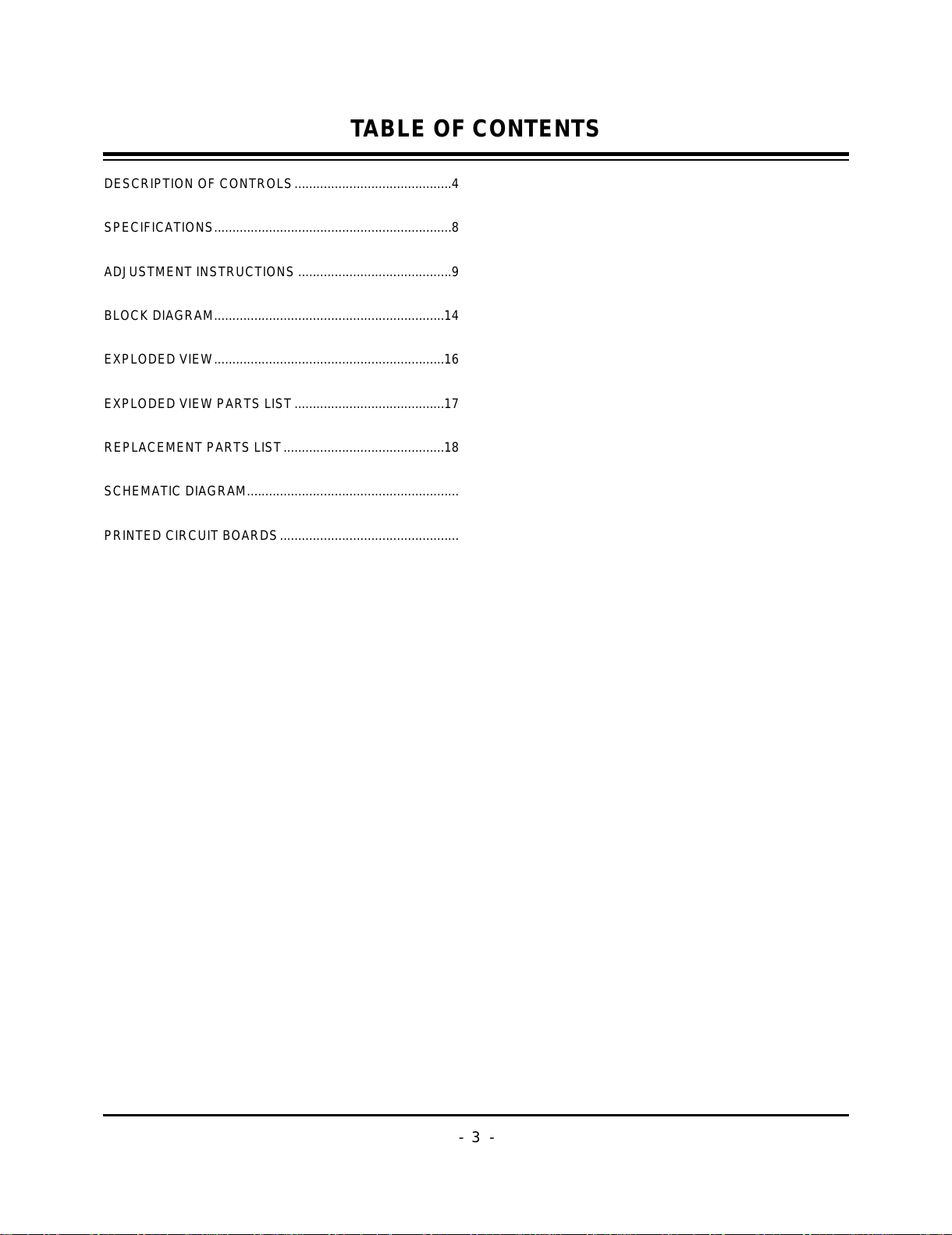

DESCRIPTION OF CONTROLS...........................................4
SPECIFICATIONS.................................................................8
ADJUSTMENT INSTRUCTIONS ..........................................9
BLOCK DIAGRAM...............................................................14
EXPLODED VIEW...............................................................16
EXPLODED VIEW PARTS LIST.........................................17
REPLACEMENT PARTS LIST............................................18
SCHEMATIC DIAGRAM..........................................................
PRINTED CIRCUIT BOARDS.................................................
TABLE OF CONTENTS
All manuals and user guides at all-guides.com

- 4 -

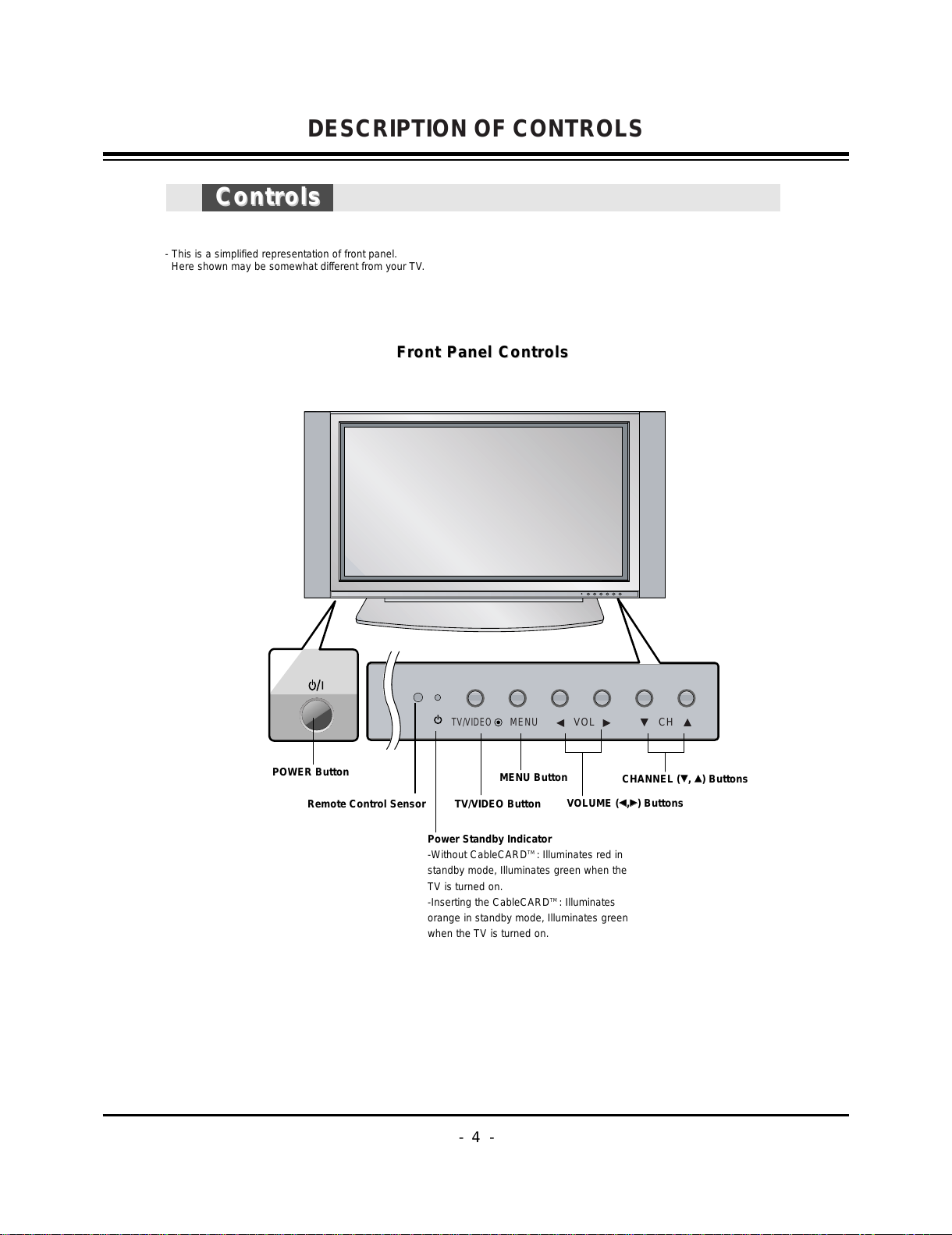

- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Controls
Controls
Front Panel Controls
Front Panel Controls
TV/VIDEO MENU VOL CH
POWER Button
Remote Control Sensor VOLUME (FF,GG) Buttons
Power Standby Indicator
-Without CableCARDTM : Illuminates red in
standby mode, Illuminates green when the
TV is turned on.
-Inserting the CableCARDTM : Illuminates
orange in standby mode, Illuminates green
when the TV is turned on.
CHANNEL (EE, DD) Buttons
MENU Button
TV/VIDEO Button
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com

- 5 -
RS-VIDEOVIDEO
L / MONO
AUDIO
FRONT
A/V INPUT
RS-232C INPUT
(CONTROL/SERVICE)
AUDIO
R
L
DVI
INPUT
COMPONENT2
INPUT
OUTPUT
AUDIO
INPUT
RGB INPUT
VIDEO
HDMI /DVI
COMPONENT INPUT 1
R
L
(MONO)
CABLE
ANTENNA
AC INPUT
DVD
/DTV
INPUT
COMPONENT INPUT 2
MONITOR OUTPUT
A/V INPUT
VIDEO
AUDIO
Cable
S-VIDEO
REMOTE
CONTROL
DIGITAL AUDIO (OPTICAL)
S-VIDEO Input
A connection available to provide bet-
ter picture quality than the video input.
CableCARD™
Used for
CableCARD™
received from
Cable Service
Provider.
VIDEO Input
Connects the video signal from a
video device.
AUDIO Input
Use to connect to hear stereo sound
from an external device.
Antenna Input
Connect over-the-
air signals to this
jack.
RGB/AUDIO INPUT
Connect the monitor output connector
from a PC to the appropriate input port.
Digital Audio (DVI:
Digital Visual
Interface/Component2)
Input/
Digital Audio Output
Connect digital audio
from various types of
equipment. Note: In
standby mode,
these ports will not
work.
DVD/DTV Input
(Component 1-2)
Connect a component
video/audio device to
these jacks.
Monitor Output
Connect a second TV
or Monitor.
Remote Control Port
Connect your wired
remote control here.
S-Video Input
Connect S-
Video out from
an S-VIDEO
device to the S-
VIDEO input.
CABLE Input
Connect cable signals to this
jack, either directly or through
a cable box.
RS-232C INPUT (CON-
TROL/SERVICE) PORT
Connect to the RS-232C
port on a PC.
HDMI/DVI
connect a
DVI(Video)
signal to
HDMI/DVI.
Audio/Video Input
Connect audio/video
output from an
external device to
these jacks.
Power Cord Socket
This TV operates on an AC power. The voltage
is indicated on the Specifications page. Never
attempt to operate the TV on DC power.
Connection Options
Connection Options
Back Connection Panel
Back Connection Panel
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com

- 6 -
-When using the remote control, aim it at the remote control sensor on the TV.
MODE
DAY -
DAY +
FLASHBK
TIMER
FREEZE
TV INPUT TV/VIDEO
EXIT
GUIDE
CC
APM
TV INPUT
• Rotates the input mode between Antenna
and Cable.
• Video, Front Video, Component 1-2, RGB-
DTV (or RGB-PC) and HDMI/DVI input
sources, screen returns to the last TV.
MUTE
Switches the sound on or off.
MODE
Selects the remote operating mode: TV,
DVD, VCR, AUDIO, CABLE or STB. Select
a mode other than TV, for the remote to
operate an external device.
FLASHBK
Tunes to the recent channels.
EXIT
Clears all on-screen displays and returns to
TV viewing from any menu.
TIMER
Lets you select the amount of time before
your TV turns itself off automatically.
MENU
Brings up the main menu to the screen.
EZ PIC
Selects a factory preset picture mode
depending on the viewing environment. FREEZE
Freezes the currently-viewed picture.
Main picture is frozen.
TV/VIDEO
External input modes rotate in regular
sequence: Antenna, Cable, Video, Front
Video, Component 1-2, RGB-DTV (or
RGB-PC) and HDMI/DVI input sources.
(Video, Front Video, Component 1-2 input
sources are linked automatically, only if
these are connected )
RATIO
Changes the aspect ratio.
INFO
When you watch the TV, information dis-
plays on top of the screen. Not available
in Component 1-2, RGB and HDMI/DVI
mode.
FAV
Scrolls the Favorite channels.
Remote Control Key Functions
Remote Control Key Functions
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com
all-guides.com

- 7 -
DAY+/DAY-
Moves the Listings Grid forward or back-
ward in 24 hour increments.
MODE
DAY -
DAY +
FLASHBK
TIMER
FREEZE
TV INPUT TV/VIDEO
EXIT
GUIDE
CC
APM
NUMBER buttons
VCR/DVD BUTTONS
• Control some video cassette recorders
or DVD players. ("RECORD" button is not
available for DVD players.)
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
CC
Select a closed caption:
Off, CC1~4, Text1~4.
THUMBSTICK (Up/Down/Left/Right/ENTER)
Allows you to navigate the on-screen menus
and adjust the system settings to your pref-
erence. CHANNEL UP/DOWN
Selects available channels found with EZ
scan.
PAGE UP/PAGE DOWN
Moves from one full set of screen infor-
mation to the next one.
EZ SOUND
Selects the sound appropriate for the pro-
gram's character. SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
LIGHT
Illuminates the remote control
buttons of selected mode.
VOLUME UP/DOWN
Increases/decreases the sound level.
GUIDE
Shows program schedule.
ADJUST
Adjusts screen position, size, and phase in
PC mode.
Remote Control Key Functions
Remote Control Key Functions
APM(Adaptive Picture Mode)
Concurrently, compare with the
Daylight, Normal, Night Time.and
Custom on the screen.
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com

- 8 -

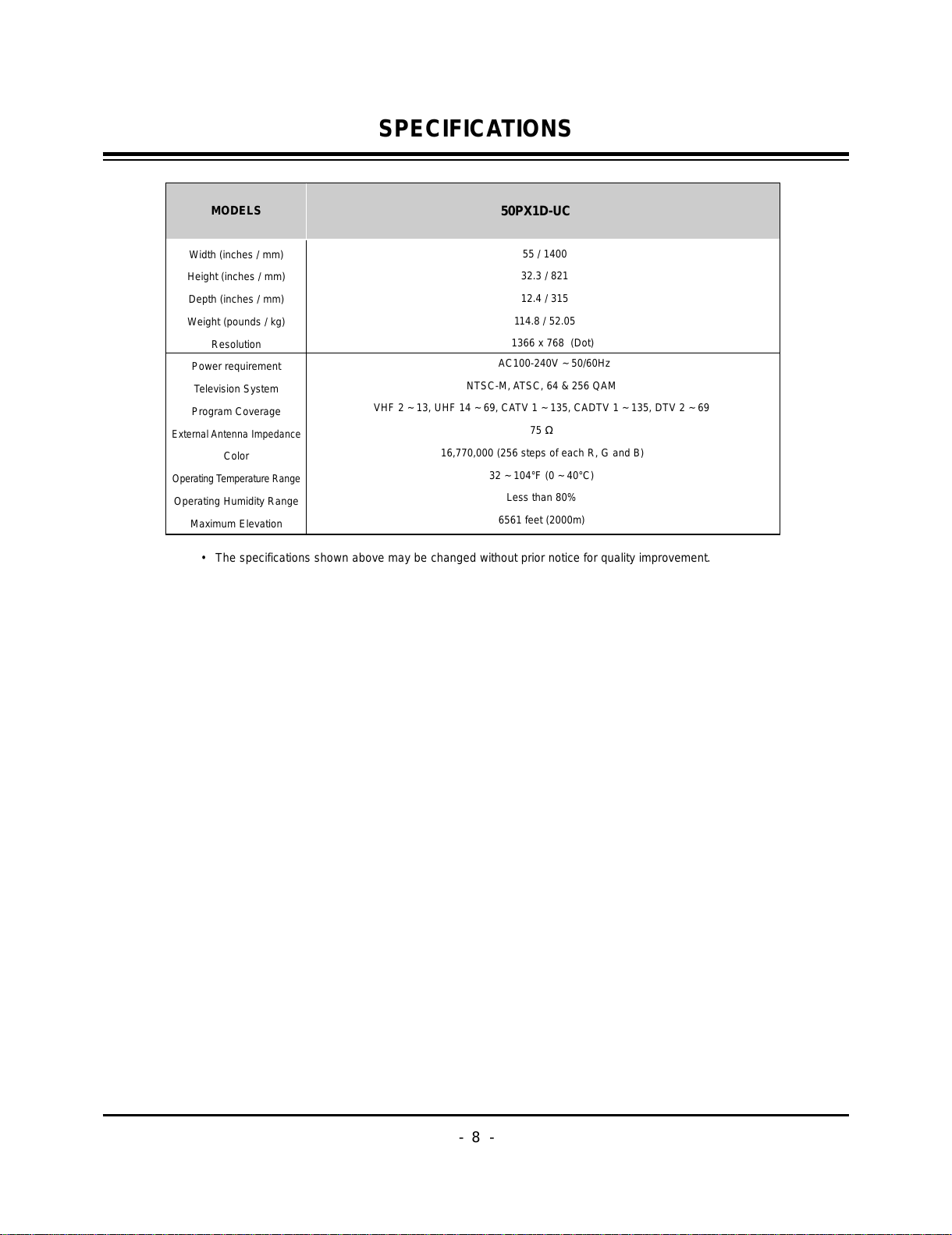

•The specifications shown above may be changed without prior notice for quality improvement.
MODELS
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135, DTV 2 ~ 69
75 Ω
16,770,000 (256 steps of each R, G and B)
32 ~ 104°F (0 ~ 40°C)
Less than 80%
6561 feet (2000m)
55 / 1400
32.3 / 821
12.4 / 315
114.8 / 52.05
1366 x 768 (Dot)
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Resolution
Power requirement
Television System
Program Coverage
External Antenna Impedance
Color
Operating Temperature Range
Operating Humidity Range
Maximum Elevation
50PX1D-UC
SPECIFICATIONS
All manuals and user guides at all-guides.com

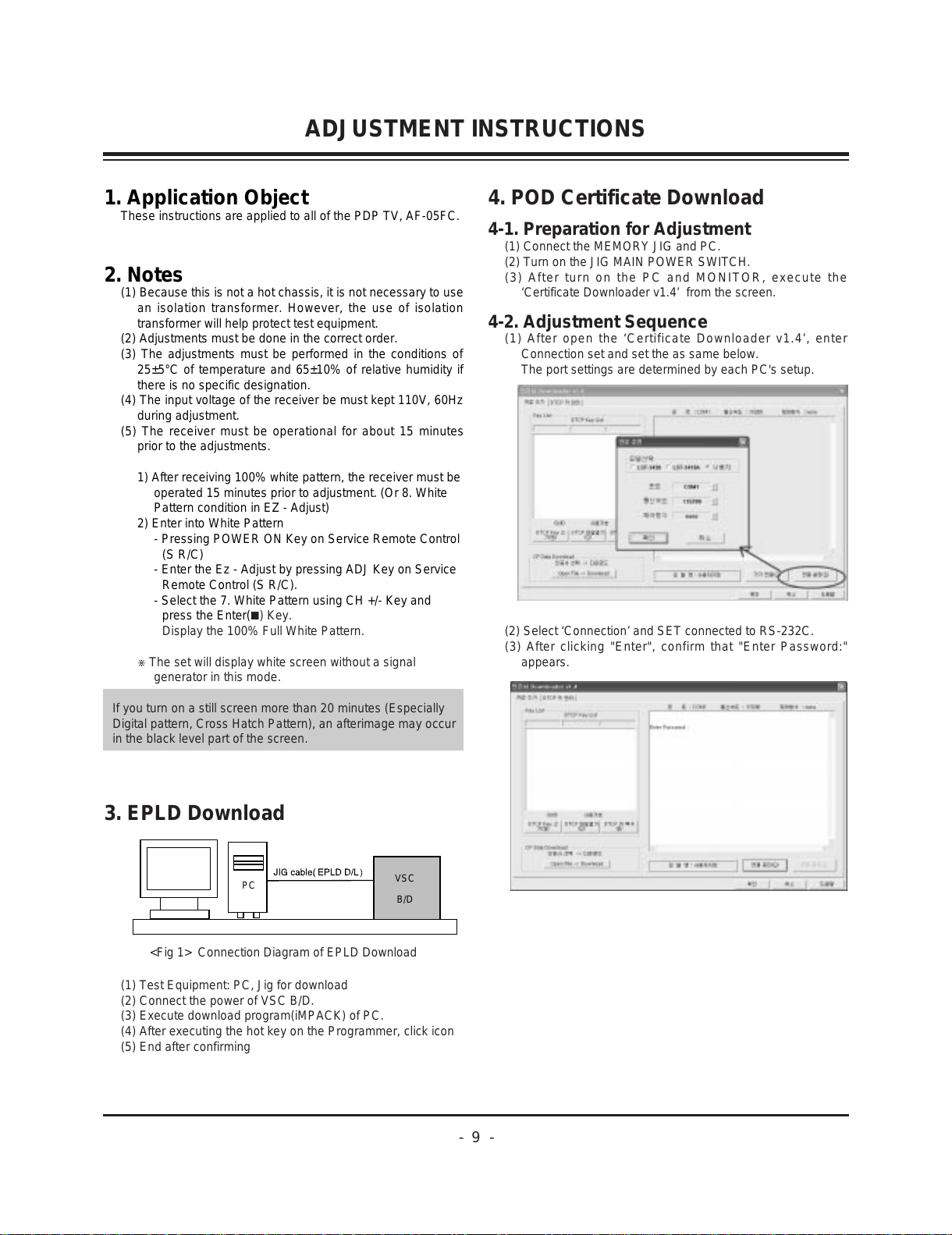

1. Application Object
These instructions are applied to all of the PDP TV, AF-05FC.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test equipment.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be performed in the conditions of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver be must kept 110V, 60Hz
during adjustment.
(5) The receiver must be operational for about 15 minutes
prior to the adjustments.
1) After receiving 100% white pattern, the receiver must be
operated 15 minutes prior to adjustment. (Or 8. White
Pattern condition in EZ - Adjust)
2) Enter into White Pattern
- Pressing POWER ON Key on Service Remote Control
(S R/C)
- Enter the Ez - Adjust by pressing ADJ Key on Service
Remote Control (S R/C).
- Select the 7. White Pattern using CH +/- Key and
press the Enter(Y) Key.
Display the 100% Full White Pattern.
[The set will display white screen without a signal
generator in this mode.
If you turn on a still screen more than 20 minutes (Especially
Digital pattern, Cross Hatch Pattern), an afterimage may occur
in the black level part of the screen.
3. EPLD Download
(1) Test Equipment: PC, Jig for download
(2) Connect the power of VSC B/D.
(3) Execute download program(iMPACK) of PC.
(4) After executing the hot key on the Programmer, click icon
(5) End after confirming
4. POD Certificate Download
4-1. Preparation for Adjustment
(1) Connect the MEMORY JIG and PC.
(2) Turn on the JIG MAIN POWER SWITCH.
(3) After turn on the PC and MONITOR, execute the
‘Certificate Downloader v1.4’ from the screen.
4-2. Adjustment Sequence
(1) After open the ‘Certificate Downloader v1.4’, enter
Connection set and set the as same below.
The port settings are determined by each PC's setup.
(2) Select ‘Connection’ and SET connected to RS-232C.
(3) After clicking "Enter", confirm that "Enter Password:"
appears.
- 9 -
ADJUSTMENT INSTRUCTIONS
PC VSC
B/D
<Fig 1> Connection Diagram of EPLD Download
All manuals and user guides at all-guides.com

- 10 -
ADJUSTMENT INSTRUCTIONS
(4) Click the "OpenFile - Download" button from CP Data
Download, ‘select Private Key’ appears and click ENTER.
(5) After clicking ENTER, the ‘opens Private key' window
appears and select the Private key applied to the SET.
The Private Key file name is on the Label of the Digital
Board.
(6) When the Dialog window appears, click OK and the write
work will begin.
(7) When completed, click ‘CP Data Download: OK’
[When ‘CP Data Download: OK’ does not appear, certificate
has not Download correctly.
SET is rebooted and certificate Download work must be
repeated.
5. Cable Operation Confirmation
(1) Confirm that the Cable Card is inserted in the slot.
(2) Enter the EZ adjust menu by pressing Adjust on the
Service Remote Control (S R/C).
(3) Go to number 2 Cable Check and press the Right key (G) .
(4) Confirm items below.
Name
Descrambler
Check
CableCARD
OOB Path
FDC_SNR
Video Signal
Normal
OK
CableCARDTM
is inserted.
OK(Lock)
OK(20dB above)
Normal Screen
Defective
Not OK
CableCARDTM
is removed.
Not OK(Unlock)
Not OK(20dB under)
Black Screen
(No Picture)
All manuals and user guides at all-guides.com

- 11 -
ADJUSTMENT INSTRUCTIONS

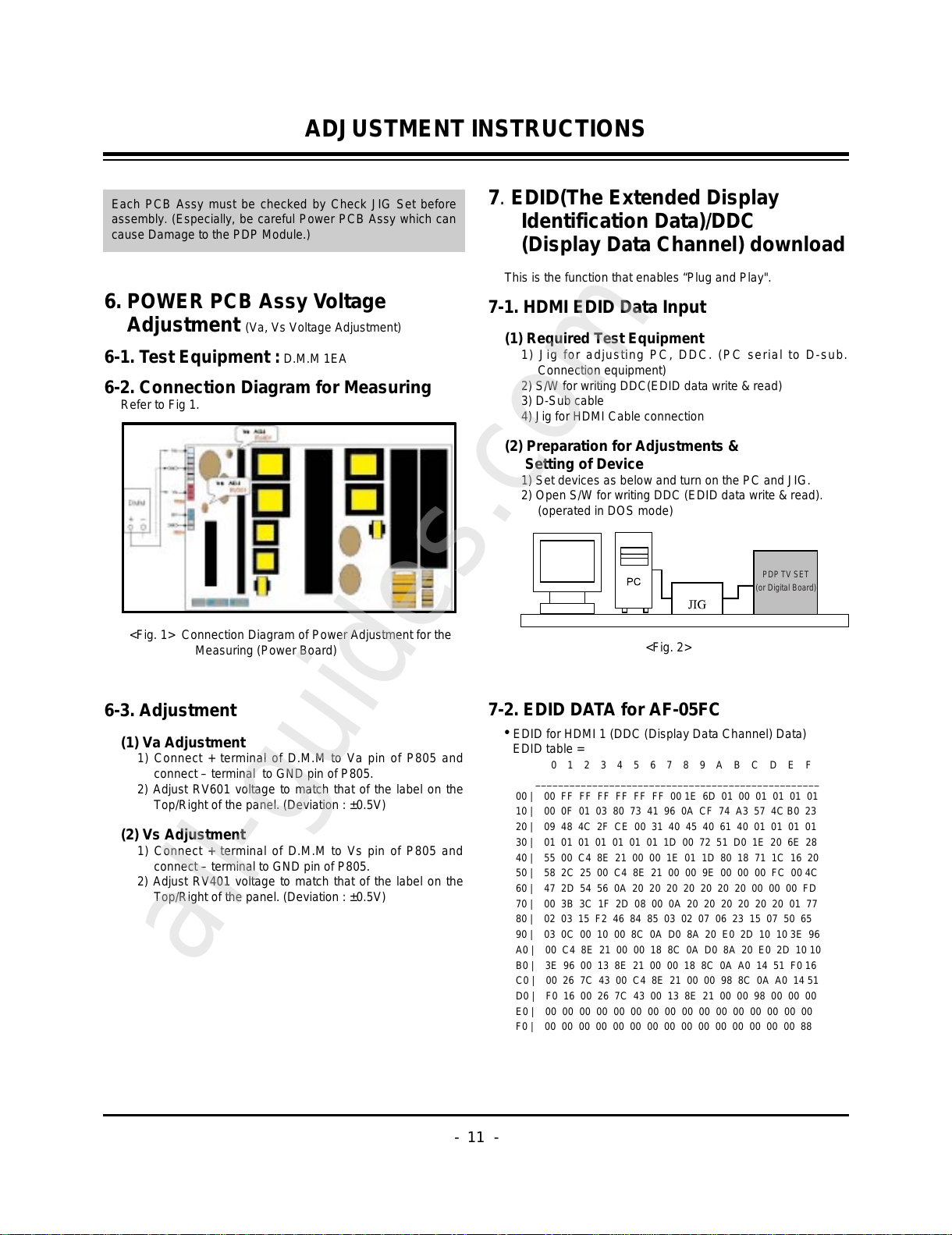

6. POWER PCB Assy Voltage
Adjustment (Va, Vs Voltage Adjustment)
6-1. Test Equipment :D.M.M 1EA
6-2. Connection Diagram for Measuring
Refer to Fig 1.
6-3. Adjustment
(1) Va Adjustment
1) Connect + terminal of D.M.M to Va pin of P805 and
connect – terminal to GND pin of P805.
2) Adjust RV601 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
(2) Vs Adjustment
1) Connect + terminal of D.M.M to Vs pin of P805 and
connect – terminal to GND pin of P805.
2) Adjust RV401 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
7. EDID(The Extended Display
Identification Data)/DDC
(Display Data Channel) download
This is the function that enables “Plug and Play".
7-1. HDMI EDID Data Input
(1) Required Test Equipment
1) Jig for adjusting PC, DDC. (PC serial to D-sub.
Connection equipment)
2) S/W for writing DDC(EDID data write & read)
3) D-Sub cable
4) Jig for HDMI Cable connection
(2) Preparation for Adjustments &
Setting of Device
1) Set devices as below and turn on the PC and JIG.
2) Open S/W for writing DDC (EDID data write & read).
(operated in DOS mode)
7-2. EDID DATA for AF-05FC
:EDID for HDMI 1 (DDC (Display Data Channel) Data)
EDID table =
0 1 2 3 4 5 6 7 8 9 A B C D E F
__________________________________________________
00 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 00 0F 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 | 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 | 01 01 01 01 01 01 01 1D 00 72 51 D0 1E 20 6E 28
40 | 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20
50 | 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 FC 00 4C
60 | 47 2D 54 56 0A 20 20 20 20 20 20 20 00 00 00 FD
70 | 00 3B 3C 1F 2D 08 00 0A 20 20 20 20 20 20 01 77
80 | 02 03 15 F2 46 84 85 03 02 07 06 23 15 07 50 65
90 | 03 0C 00 10 00 8C 0A D0 8A 20 E0 2D 10 10 3E 96
A0 | 00 C4 8E 21 00 00 18 8C 0A D0 8A 20 E0 2D 10 10
B0 | 3E 96 00 13 8E 21 00 00 18 8C 0A A0 14 51 F0 16
C0 | 00 26 7C 43 00 C4 8E 21 00 00 98 8C 0A A0 14 51
D0 | F0 16 00 26 7C 43 00 13 8E 21 00 00 98 00 00 00
E0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 88
Each PCB Assy must be checked by Check JIG Set before
assembly. (Especially, be careful Power PCB Assy which can
cause Damage to the PDP Module.)
<Fig. 1> Connection Diagram of Power Adjustment for the
Measuring (Power Board)
PDP TV SET
(or Digital Board)
<Fig. 2>
All manuals and user guides at all-guides.com
all-guides.com

- 12 -
ADJUSTMENT INSTRUCTIONS
:EDID DATA for RGB
EDID table =
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
__________________________________________________
00 | 00 FF FF FF FF FF FF 00 1E 6D 01 01 01 01 01 01
10 | 06 0D 01 03 18 5C 34 96 08 CF 72 A3 57 4C B0 23
20 | 09 45 5D EF CE 00 31 D9 31 59 45 59 01 01 01 01
30 | 01 01 01 01 01 40 C3 1E 00 20 41 00 20 30 10 60
40 | 13 00 98 08 32 00 00 18 00 00 00 FC 00 4C 47 20
50 | 54 56 0A 20 20 20 20 20 20 20 00 00 00 FD 00 30
60 | 4C 1E 64 0F 00 0A 20 20 20 20 20 20 00 00 00 00
70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C5

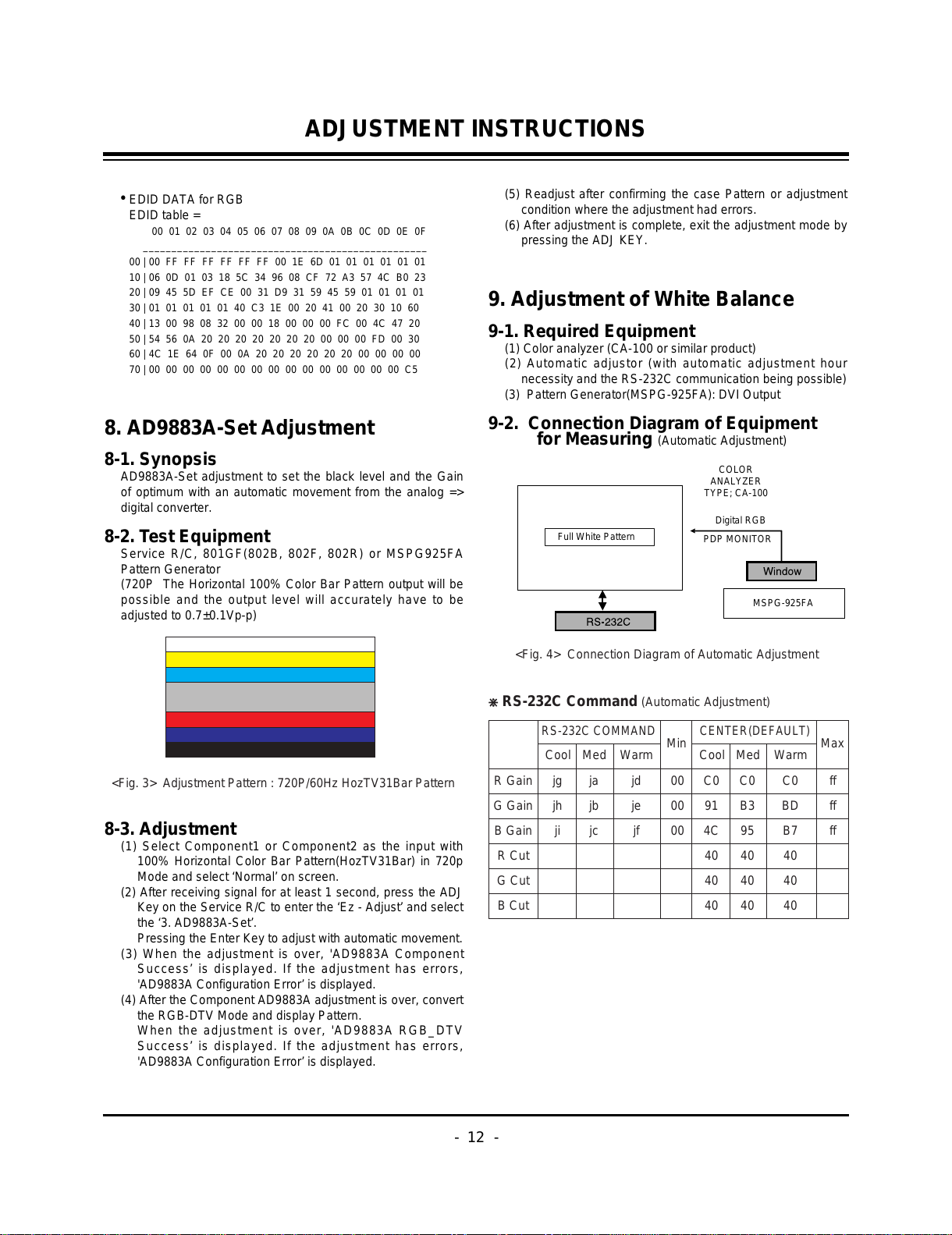

8. AD9883A-Set Adjustment
8-1. Synopsis
AD9883A-Set adjustment to set the black level and the Gain
of optimum with an automatic movement from the analog =>
digital converter.
8-2. Test Equipment
Service R/C, 801GF(802B, 802F, 802R) or MSPG925FA
Pattern Generator
(720P The Horizontal 100% Color Bar Pattern output will be
possible and the output level will accurately have to be
adjusted to 0.7±0.1Vp-p)
8-3. Adjustment
(1) Select Component1 or Component2 as the input with
100% Horizontal Color Bar Pattern(HozTV31Bar) in 720p
Mode and select ‘Normal’ on screen.
(2) After receiving signal for at least 1 second, press the ADJ
Key on the Service R/C to enter the ‘Ez - Adjust’ and select
the ‘3. AD9883A-Set’.
Pressing the Enter Key to adjust with automatic movement.
(3) When the adjustment is over, 'AD9883A Component
Success’ is displayed. If the adjustment has errors,
'AD9883A Configuration Error’ is displayed.
(4) After the Component AD9883A adjustment is over, convert
the RGB-DTV Mode and display Pattern.
When the adjustment is over, 'AD9883A RGB_DTV
Success’ is displayed. If the adjustment has errors,
'AD9883A Configuration Error’ is displayed.
(5) Readjust after confirming the case Pattern or adjustment
condition where the adjustment had errors.
(6) After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
9. Adjustment of White Balance
9-1. Required Equipment
(1) Color analyzer (CA-100 or similar product)
(2) Automatic adjustor (with automatic adjustment hour
necessity and the RS-232C communication being possible)
(3) Pattern Generator(MSPG-925FA): DVI Output
9-2. Connection Diagram of Equipment
for Measuring (Automatic Adjustment)
[[RS-232C Command (Automatic Adjustment)
<Fig. 3> Adjustment Pattern : 720P/60Hz HozTV31Bar Pattern
Full White Pattern Digital RGB
PDP MONITOR
COLOR
ANALYZER
TYPE; CA-100
MSPG-925FA
<Fig. 4> Connection Diagram of Automatic Adjustment
R Gain
G Gain
B Gain
R Cut
G Cut
B Cut
jg
jh
ji
Cool
ja
jb
jc
Med
RS-232C COMMAND CENTER(DEFAULT)
jd
je
jf
00
00
00
ff
ff
ff
Warm Min Max
C0
91
4C
40
40
40
Cool
C0
B3
95
40
40
40
Med
C0
BD
B7
40
40
40
Warm
All manuals and user guides at all-guides.com

- 13 -
ADJUSTMENT INSTRUCTIONS
9-3. Adjustment of White Balance
O Operate the Zero-calibration of the CA-100, then attach
sensor to PDP module surface when you adjust.
O Manual adjustment is also possible by the following sequence.
(1) Enter ‘Ez - Adjust’ by pressing ADJ KEY on the Service
Remote Control.
(2) Select "7. WHITE PATTERN" using CH +/- Key and HEAT
RUN at least 30 minutes by pressing the ENTER Key.
(3) Receive the Window pattern signal from Digital Pattern
Generator. (AV Input: connect the ‘HDMI’)
(4) After attaching sensor to center of screen, select ‘5. White-
Balance’ of ‘Ez - Adjust’ by pressing the ADJ KEY on the
Service R/C. Then enter adjustment mode by pressing the
Right KEY (
G ) .
(5) Adjust the Hight Light using G Gain/B Gain(Cool: 42”).
Adjust the Hight Light using R Gain/G Gain(Cool: 50”).
Adjust the Hight Light using G Gain/B Gain(Medium).
Adjust the Hight Light using G Gain/B Gain(Warm).
(6) Adjust using Volume +/- KEY.
After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
High Level: 216gray
[Cool]
X; 0.278±0.002 Y; 0.279±0.002
Color temperature: 11000°K±1000°K
[Medium]
X; 0.287±0.002 Y; 0.289±0.002
Color temperature: 9300°K±1000°K
[Warm]
X; 0.315±0.002 Y; 0.316±0.002
Color temperature: 6500°K±1000°K
10. Video(uPD)
10-1. Required Equipment
(1) Service R/C
(2) MSPG925FA Pattern Generator
(100% Color Bar Pattern output will be possible and the
output level will accurately have to be adjusted to
0.7±0.1Vp-p: Model #201(NTSC-M), Patter #32))
10-2. Adjustment
(1) After receive signal to Ant input, CVBS output of
MSPG925FA to Video and confirm the signal receiving.
(2) Enter the ‘EZ-ADJUST’ by pressing the ADJ Key on the
Service R/C.
(3) Select ‘3. Video(uPD)-Set’ and enter the adjustment mode
by pressing the right key(
G ).
(4) When enter the adjustment mode, displayed the TV 2CH
Screen automatic at picture and appear as below figure.
(5) When the automatic adjustment is over, 'RF Configuration
Success’ is displayed. If the adjustment has errors, 'Video
Configuration Error’ is displayed.
(6) After the RF signal automatic adjustment is over, convert
the Video Mode as below figure and adjust with automatic
movement the Video Mode.
When the automatic adjustment is over, 'Video
Configuration Success’ is displayed. If the adjustment has
errors, 'Video Configuration Error’ is displayed.
All manuals and user guides at all-guides.com

- 14 -
BLOCK DIAGRAM
–
– –
–
–
All manuals and user guides at all-guides.com

- 15 -

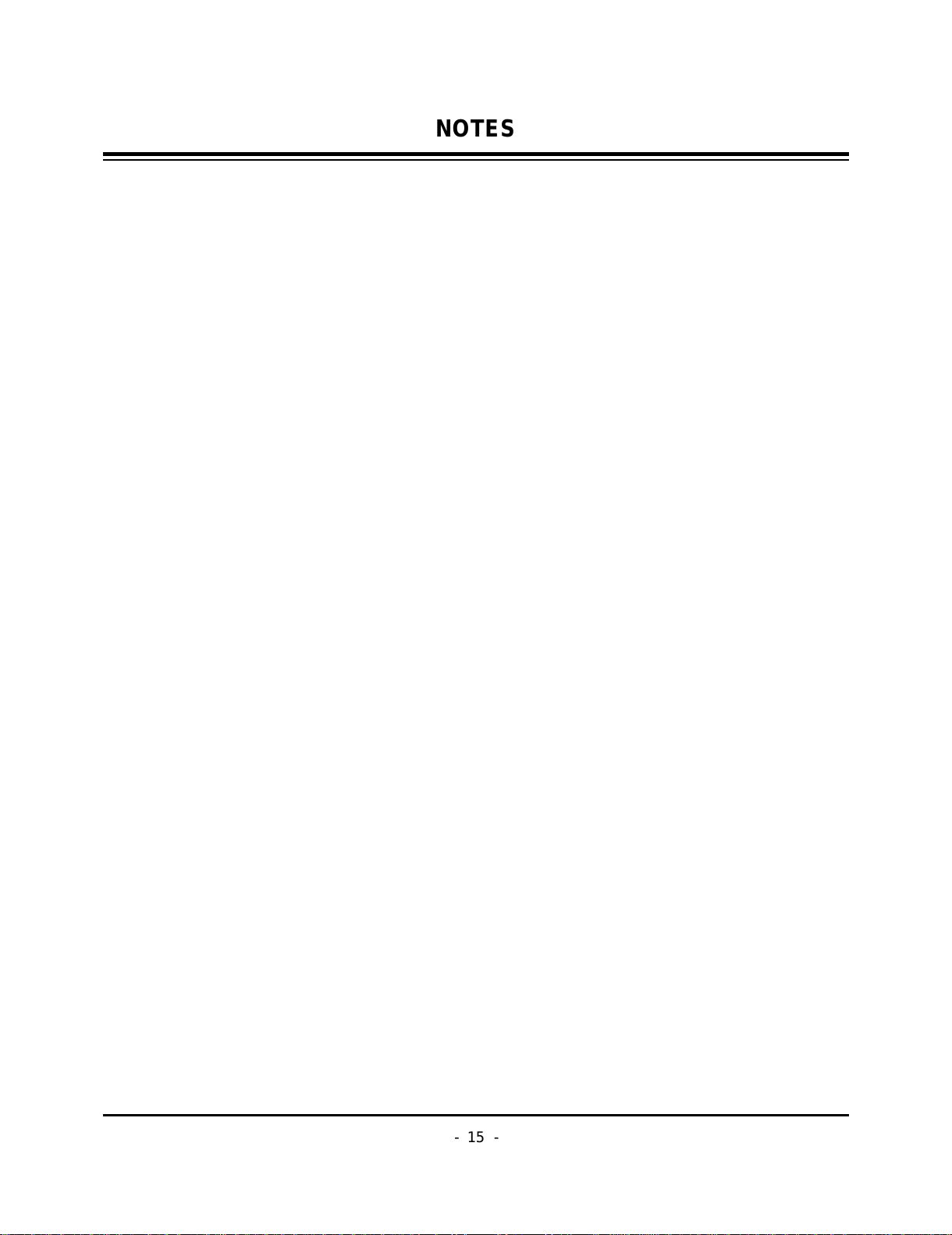

NOTES
All manuals and user guides at all-guides.com

- 16 -
EXPLODED VIEW
601
600
102
103
101
215
214 400
300
305
301
304
303
302
124
120 121
122
123
430
205 212
201
203
200
202
210
208
209
207
206
211
580
540
590
560
501
105
502
104
520
530
541
550
All manuals and user guides at all-guides.com
all-guides.com

- 17 -
EXPLODED VIEW PARTS LIST
101 5900V12003B FAN,DC D12025S SDS 120MM*120MM*25MM 12V/0.2A 1300 5V-13.2V RPM
102 4980V01018A SUPPORTER,FAN EGI LEFT PDP DN-50PY10
103 4980V01017A SUPPORTER,FAN EGI RIGHT PDP DN-50PY10
104 5900V04010A FAN,DC EFB0412LD-W147 DELTA 40*40*20 12V/0.05A 5000RPM 7.0-13.8VDC L=100MM
105 4980V00D89B SUPPORTER,FAN SECC(EGI) T1.0 (PRESS)
120 6400WTTX01A SPEAKER,WOOFER N21C-6539-27C 16 OHM 10/15W 78DB OTHERS 56MM*56MM
121 6400TTTX01A SPEAKER,TWEETER N08D-6560 8 OHM 10/15W 77DB OTHERS 29MM*29MM
122 3110V00351A CASE,FRONT (R)SPEAKER DN-50PY10 ABS PDP
123 3550V00396A COVER,DUCT DN-50PY10 ABS PDP
124 3110V00352A CASE,FRONT (L)SPEAKER DN-50PY10 ABS PDP
200 6348Q-C036H PDP,50 16:9 1365*768 PDP50X20562.AKLGG
201 6871QRH041C PCB ASSEMBLY,DISPLAY XRRT ASSY 50X2A COF RESISTOR
202 6871QCH045A PCB ASSEMBLY,DISPLAY CTRL ASSY 4023 50X2 FOR CI
203 6871QZH036B PCB ASSEMBLY,DISPLAY ZSUS ASSY 50X2A 4LAYER
205 6871QLH035C PCB ASSEMBLY,DISPLAY XRLT ASSY 50X2A COF RESISTOR
206 6871QXH025C PCB ASSEMBLY,DISPLAY XRCB ASSY 50X2A COF RESISTOR
207 6871QLH036C PCB ASSEMBLY,DISPLAY XRLB ASSY 50X2A COF RESISTOR
208 6871QDH081A PCB ASSEMBLY,DISPLAY YDRV ASSY 50X2A YDRV_BTM
209 6871QYH032B PCB ASSEMBLY,DISPLAY YSUS ASSY 50X2A YSUS 4LAYER
210 6871QDH080A PCB ASSEMBLY,DISPLAY YDRV ASSY 50X2A YDRV_TOP
211 6871QRH042C PCB ASSEMBLY,DISPLAY XRRB ASSY 50X2A COF RESISTOR
212 6871QXH024C PCB ASSEMBLY,DISPLAY XRCT ASSY 50X2A COF RESISTOR
214 4980V00D78A SUPPORTER,VERTICAL ASSY. RIGHT
215 4980V00D77A SUPPORTER,VERTICAL ASSY. LEFT
300 3091V00671N CABINET ASSEMBLY,DU-50PX13 NON AF05FC 2 TONE
301 4980V01112A SUPPORTER ASSY,AL FILTER TOP DU-50PX10
302 4980V01113A SUPPORTER ASSY,AL FILTER BOTTOM DU-50PX10
303 4980V01114A SUPPORTER ASSY,AL FILTER RIGHT DU-50PX10
304 4980V01115A SUPPORTER ASSY AL FILTER LEFT DU-50PX10
305 5230V00017A FILTER(MECH),LGM50-01 MITSUI 50 CLASS B GLASS FILTER
400 3809V00463L BACK COVER ASSEMBLY,DU-50PX13 NON TYPE B 3850VC0030F
430 3501V00186F BOARD ASSEMBLY,STAND AP-50DM10.AUL NON DU-50PX13.
501 3301V00070B PLATE ASSEMBLY,AV PLATE ASSY. DU-50PX13 PRESS
502 3301V00071B PLATE ASSEMBLY,AV 3300V00527, 3300V00529 50PX13 DU COVER ASSY PRESS
520 6871VMMZX6A PCB ASSEMBLY,MAIN AF-05FC DU-50PX13 DIGITAL B/D..
530 6871VSMR99A PCB ASSEMBLY,SUB TUNER AF05FC DU-50PX13 ANALOG B/D..
540 6871VSMF97A PCB ASSEMBLY,SUB PSW AF044P POWERSWITCH
541 5020V01068A BUTTON,POWER DU-50PX13 ABS 1KEY .
550 6871VSMQ67A PCB ASSEMBLY,SUB AUDIO AF05FA TU-50PY22
560 6871VSMR94A PCB ASSEMBLY,SUB BUTON AF05FC DU-50PX13 LOCAL
580 6709V00001A POWER SUPPLY ASSEMBLY,PDP 50INCH 480W 1H259W SANKEN 50 INCH LOW END PSU
590 3141VSNS84A CHASSIS ASSEMBLY,SUB AF05FC 50PX1D-UC LINE FILTER
600 6871VSMT96A PCB ASSEMBLY,SUB A/V AF05FB DU-50PX41S SIDE A/V
601 4811V00118K BRACKET ASSEMBLY,SIDE AV DU-42PX20 AF05FC DCR
No. Part No. Description
All manuals and user guides at all-guides.com

- 18 -

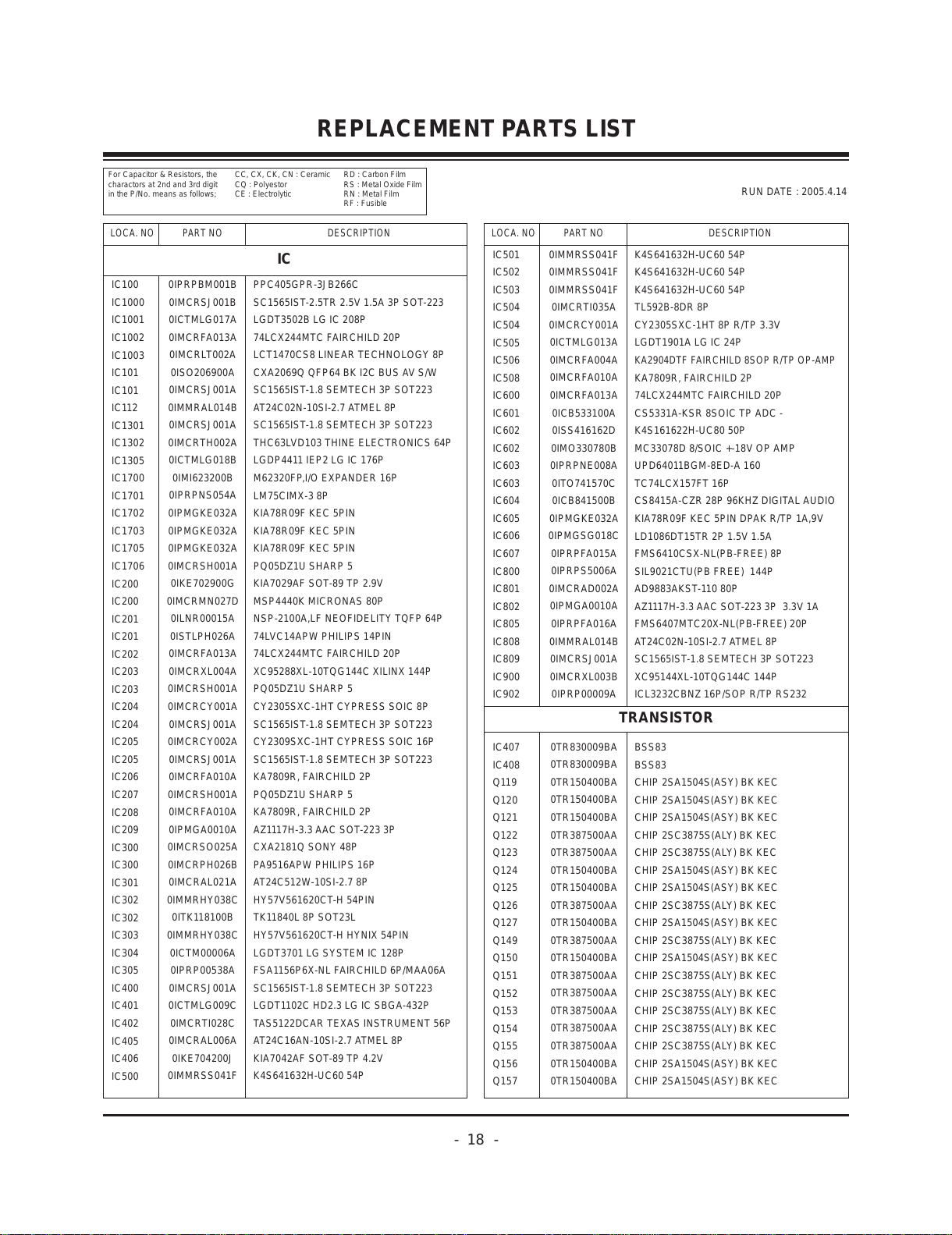

REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION
IC501
IC502
IC503
IC504
IC504
IC505
IC506
IC508
IC600
IC601
IC602
IC602
IC603
IC603
IC604
IC605
IC606
IC607
IC800
IC801
IC802
IC805
IC808
IC809
IC900
IC902
IC407
IC408
Q119
Q120
Q121
Q122
Q123
Q124
Q125
Q126
Q127
Q149
Q150
Q151
Q152
Q153
Q154
Q155
Q156
Q157
0IMMRSS041F
0IMMRSS041F
0IMMRSS041F
0IMCRTI035A
0IMCRCY001A
0ICTMLG013A
0IMCRFA004A
0IMCRFA010A
0IMCRFA013A
0ICB533100A
0ISS416162D
0IMO330780B
0IPRPNE008A
0ITO741570C
0ICB841500B
0IPMGKE032A
0IPMGSG018C
0IPRPFA015A
0IPRPS5006A
0IMCRAD002A
0IPMGA0010A
0IPRPFA016A
0IMMRAL014B
0IMCRSJ001A
0IMCRXL003B
0IPRP00009A
0TR830009BA
0TR830009BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR387500AA
0TR150400BA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
K4S641632H-UC60 54P
K4S641632H-UC60 54P
K4S641632H-UC60 54P
TL592B-8DR 8P
CY2305SXC-1HT 8P R/TP 3.3V
LGDT1901A LG IC 24P
KA2904DTF FAIRCHILD 8SOP R/TP OP-AMP
KA7809R, FAIRCHILD 2P
74LCX244MTC FAIRCHILD 20P
CS5331A-KSR 8SOIC TP ADC -
K4S161622H-UC80 50P
MC33078D 8/SOIC +-18V OP AMP
UPD64011BGM-8ED-A 160
TC74LCX157FT 16P
CS8415A-CZR 28P 96KHZ DIGITAL AUDIO
KIA78R09F KEC 5PIN DPAK R/TP 1A,9V
LD1086DT15TR 2P 1.5V 1.5A
FMS6410CSX-NL(PB-FREE) 8P
SIL9021CTU(PB FREE) 144P
AD9883AKST-110 80P
AZ1117H-3.3 AAC SOT-223 3P 3.3V 1A
FMS6407MTC20X-NL(PB-FREE) 20P
AT24C02N-10SI-2.7 ATMEL 8P
SC1565IST-1.8 SEMTECH 3P SOT223
XC95144XL-10TQG144C 144P
ICL3232CBNZ 16P/SOP R/TP RS232
BSS83
BSS83
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
LOCA. NO PART NO DESCRIPTION
IC100
IC1000
IC1001
IC1002
IC1003
IC101
IC101
IC112
IC1301
IC1302
IC1305
IC1700
IC1701
IC1702
IC1703
IC1705
IC1706
IC200
IC200
IC201
IC201
IC202
IC203
IC203
IC204
IC204
IC205
IC205
IC206
IC207
IC208
IC209
IC300
IC300
IC301
IC302
IC302
IC303
IC304
IC305
IC400
IC401
IC402
IC405
IC406
IC500
0IPRPBM001B
0IMCRSJ001B
0ICTMLG017A
0IMCRFA013A
0IMCRLT002A
0ISO206900A
0IMCRSJ001A
0IMMRAL014B
0IMCRSJ001A
0IMCRTH002A
0ICTMLG018B
0IMI623200B
0IPRPNS054A
0IPMGKE032A
0IPMGKE032A
0IPMGKE032A
0IMCRSH001A
0IKE702900G
0IMCRMN027D
0ILNR00015A
0ISTLPH026A
0IMCRFA013A
0IMCRXL004A
0IMCRSH001A
0IMCRCY001A
0IMCRSJ001A
0IMCRCY002A
0IMCRSJ001A
0IMCRFA010A
0IMCRSH001A
0IMCRFA010A
0IPMGA0010A
0IMCRSO025A
0IMCRPH026B
0IMCRAL021A
0IMMRHY038C
0ITK118100B
0IMMRHY038C
0ICTM00006A
0IPRP00538A
0IMCRSJ001A
0ICTMLG009C
0IMCRTI028C
0IMCRAL006A
0IKE704200J
0IMMRSS041F
PPC405GPR-3JB266C
SC1565IST-2.5TR 2.5V 1.5A 3P SOT-223
LGDT3502B LG IC 208P
74LCX244MTC FAIRCHILD 20P
LCT1470CS8 LINEAR TECHNOLOGY 8P
CXA2069Q QFP64 BK I2C BUS AV S/W
SC1565IST-1.8 SEMTECH 3P SOT223
AT24C02N-10SI-2.7 ATMEL 8P
SC1565IST-1.8 SEMTECH 3P SOT223
THC63LVD103 THINE ELECTRONICS 64P
LGDP4411 IEP2 LG IC 176P
M62320FP,I/O EXPANDER 16P
LM75CIMX-3 8P
KIA78R09F KEC 5PIN
KIA78R09F KEC 5PIN
KIA78R09F KEC 5PIN
PQ05DZ1U SHARP 5
KIA7029AF SOT-89 TP 2.9V
MSP4440K MICRONAS 80P
NSP-2100A,LF NEOFIDELITY TQFP 64P
74LVC14APW PHILIPS 14PIN
74LCX244MTC FAIRCHILD 20P
XC95288XL-10TQG144C XILINX 144P
PQ05DZ1U SHARP 5
CY2305SXC-1HT CYPRESS SOIC 8P
SC1565IST-1.8 SEMTECH 3P SOT223
CY2309SXC-1HT CYPRESS SOIC 16P
SC1565IST-1.8 SEMTECH 3P SOT223
KA7809R, FAIRCHILD 2P
PQ05DZ1U SHARP 5
KA7809R, FAIRCHILD 2P
AZ1117H-3.3 AAC SOT-223 3P
CXA2181Q SONY 48P
PA9516APW PHILIPS 16P
AT24C512W-10SI-2.7 8P
HY57V561620CT-H 54PIN
TK11840L 8P SOT23L
HY57V561620CT-H HYNIX 54PIN
LGDT3701 LG SYSTEM IC 128P
FSA1156P6X-NL FAIRCHILD 6P/MAA06A
SC1565IST-1.8 SEMTECH 3P SOT223
LGDT1102C HD2.3 LG IC SBGA-432P
TAS5122DCAR TEXAS INSTRUMENT 56P
AT24C16AN-10SI-2.7 ATMEL 8P
KIA7042AF SOT-89 TP 4.2V
K4S641632H-UC60 54P
IC
RUN DATE : 2005.4.14
For Capacitor & Resistors, the
charactors at 2nd and 3rd digit
in the P/No. means as follows;
CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible
TRANSISTOR
All manuals and user guides at all-guides.com

- 19 -
LOCA. NO PART NO DESCRIPTION
Q158
Q159
Q160
Q161
Q162
Q163
Q164
Q165
Q166
Q167
Q175
Q176
Q177
Q201
Q201
Q202
Q202
Q203
Q204
Q205
Q206
Q207
Q208
Q209
Q301
Q305
Q306
Q503
Q504
Q601
Q602
Q6607
Q6608
Q800
Q801
Q805
Q806
Q808
D200
D204
D301
D505
D506
D801
D900
D901
LD201
LED170
LED301
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR102008AA
0TR387500AA
0TR387500AA
0TR387500AA
0TRKE80038A
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR102009AG
0TR102009AG
0TR830009BA
0TR830009BA
0TR830009BA
0DD184009AA
0DZRM00248A
0DD184009AA
0DD184009AA
0DD184009AA
0DD184009AA
0DRSE00038A
0DRSE00038A
0DL200000CA
0DL233309AC
0DL233309AC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
KRA102S R/TP KEC SOT23 CHIP TR
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
KTC3552T-RTK SOT-23F 50V 3A
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP KRC102S KEC TP SOT-23
CHIP KRC102S KEC TP SOT-23
BSS83
BSS83
BSS83
KDS184 TP KEC - 85V - 300MA
ZENERS,RLZ8.2B-TE11
KDS184 TP KEC - 85V - 300MA
KDS184 TP KEC - 85V - 300MA
KDS184 TP KEC - 85V - 300MA
KDS184 TP KEC - 85V - 300MA
SDC15 SOT23 12.8V
SDC15 SOT23 12.8V
LED,SAM5670(DL-2LRG)
LED,SAM2333
LED,SAM2333
LOCA. NO PART NO DESCRIPTION
LED302
LED901
C100
C1003
C1005
C1009
C101
C101
C1010
C1011
C1012
C1014
C1015
C1016
C1017
C1018
C1019
C102
C1020
C1022
C1023
C1024
C1025
C1026
C1027
C1028
C1029
C103
C1030
C1031
C1033
C1034
C1037
C1038
C1039
C104
C104
C1041
C1042
C105
C106
C107
C108
C109
C110
C111
C112
C113
C114
0DL233309AC
0DL233309AC
0CS335EFKDC
0CE336SH6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE225VK6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CC200CK41A
0CK104CF56A
0CK104CF56A
0CC200CK41A
0CK104CF56A
0CK103CK56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE106VF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE225VK6DC
0CE106VF6DC
0CE336SH6DC
0CE336SH6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE106VF6DC
0CE106VF6DC
LED,SAM2333
LED,SAM2333
3.3UF 3216 16V 20%,-20%
33UF MVG 25V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
2.2UF MV 50V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
20PF 1608 50V 5%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
20PF 1608 50V 5%
0.1UF 1608 16V 10%
0.01UF 1608 50V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MV 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
2.2UF MV 50V 20%
10UF MV 16V 20%
33UF MVG 25V 20%
33UF MVG 25V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MV 16V 20%
10UF MV 16V 20%
REPLACEMENT PARTS LIST
DIODE
CAPACITOR
All manuals and user guides at all-guides.com

- 20 -
LOCA. NO PART NO DESCRIPTION
C115
C116
C117
C118
C118
C119
C120
C1200
C1201
C1203
C121
C1213
C1214
C1216
C1219
C122
C1221
C123
C124
C1242
C125
C1255
C1258
C126
C1264
C1266
C1269
C1273
C1277
C1279
C1318
C1321
C1322
C1323
C1324
C1325
C1326
C1327
C1328
C1329
C1330
C1331
C1332
C1333
C1334
C1335
C1336
C1337
C1338
C1339
C1341
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE105SK6DC
0CK104CF56A
0CK104CF56A
0CE475SK6DC
0CE475SK6DC
0CE226SF6DC
0CK104CF56A
0CE476SF6DC
0CK105DF64A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CE476SF6DC
0CE106VF6DC
0CK104CF56A
0CE108DJ618
0CK104CF56A
0CE476SF6DC
0CE108DJ618
0CE336SD6DC
0CE476SF6DC
0CE476SF6DC
0CE107SF6DC
0CE476SF6DC
0CE477SF6DC
0CE107SF6DC
0CK104CF56A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CK103CK56A
0CE476SF6DC
0CK104CF56A
0CE106VF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK102CK56A
0CK104CF56A
0CK104CF56A
0CE106VF6DC
0CK102CK56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE106VF6DC
0CK104CF56A
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
1UF MVG 50V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
4.7UF MVG 50V 20%
4.7UF MVG 50V 20%
22UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
1UF 2012 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
10UF MV 16V 20%
0.1UF 1608 16V 10%
1000UF STD 35V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
1000UF STD 35V 20%
33UF MVG 10V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
100UF MVG 16V 20%
47UF MVG 16V 20%
470UF MVG 16V 20%
100UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
0.01UF 1608 50V 10%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
10UF MV 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
1000PF 1608 50V 0.1
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MV 16V 20%
1000PF 1608 50V 0.1
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MV 16V 20%
0.1UF 1608 16V 10%
LOCA. NO PART NO DESCRIPTION
C1342
C1343
C1344
C1345
C1346
C1347
C1348
C1349
C1350
C1351
C1352
C1353
C1354
C1355
C1356
C1357
C1358
C1359
C1360
C1361
C1362
C1363
C144
C148
C149
C150
C152
C158
C161
C162
C163
C168
C1700
C1701
C1702
C1703
C1704
C1705
C1706
C1707
C1708
C1709
C171
C1710
C1711
C1712
C1713
C1714
C1715
C1716
C1717
0CK104CF56A
0CK104CF56A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK106EF56A
0CE105SK6DC
0CE226SF6DC
0CE226SF6DC
0CE476SF6DC
0CE107SF6DC
0CE105SK6DC
0CE105SK6DC
0CE225VK6DC
0CE225VK6DC
0CK105DF64A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CK104CF56A
0CK105DF64A
0CK104CF56A
0CK104CF56A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF 3216 16V 10%
1UF MVG 50V 20%
22UF MVG 16V 20%
22UF MVG 16V 20%
47UF MVG 16V 20%
100UF MVG 16V 20%
1UF MVG 50V 20%
1UF MVG 50V 20%
2.2UF MV 50V 20%
2.2UF MV 50V 20%
1UF 2012 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
1UF 2012 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
REPLACEMENT PARTS LIST
All manuals and user guides at all-guides.com
