LG 42LC2D Series User manual

3322LLCC22DD4422PPCC11DD
3322LLCC22DDBB5500PPCC11DD
3377LLCC22DD
3377LLCC22DDBB
4422LLCC22DD
4422LLCC22DDBB
Trade Mark of the DVB Digital Video
Broadcasting Project (1991 to 1996)
IIDDNNuummbbeerr((ss))::3948 : 32LC2D 4008: 32LC2DB
3949 : 37LC2D 4010 : 37LC2DB
3947 : 42PC1D 4106 : 42LC2D
4108 : 50PC1D 4107 : 42LC2DB
Please read Information Manual included together
before reading this manual and operating your
set. Retain it for future reference.
Record model number and serial number of the
set. See the label attached on the back cover and
quote this information to your dealer when you
require service.

1
ACCESSORIES
ACCESSORIES
Owner's Manual
Owner’s Manual
75ΩRF Coaxial
Power Cord
Ensure that the following accessories are included with your set. If any accessory is missing, please contact
the dealer from where you purchased the set.
D/ATV
INPUT
VOL
LIST
Q.VIEW
PR
POWER
1 2 3
456
78
0
9
INDEX
POSITION
SIZE
REVEAL
TIME I/II
GUIDE
PIPPR-
PIP
MENU
MUTE FAV
EXIT
VCR
TV
DVD
ARC
TEXT
SWAP
BACK
PIPPR+
INFO
i
?
i
OK
SUBTITLE/
PIPINPUT
SLEEP
D/A
VOL
LIST
Q.VIEW
PR
1 2 3
456
78
0
9
INDEX
POSITION
SIZE
REVEAL
I/II
TIME
GUIDE
PIPPR-
PIP
MENU
MUTE FAV
EXIT
TV
ARC
TEXT
SWAP
BACK
PIPPR+
INFO
i
?
i
OK
SLEEP
VOL
LIST
Q.VIE
1 2 3
456
78
0
9
POSITION
SIZE
TIME
MUTE FAV
Remote Control /
Batteries
2-Wall brackets 2-eye-bolts
2-TV brackets
2-Wall brackets 2-bolts
For 32/37/42LC2D*, 32/37/42LC2DB *
For 42PC1D *, 50PC1D *
Twister Holder
Arrange the wires
with the twister holder.
4-bolts (32LC2D/2DB
*
only)
See below for detail
information.
Cable
Management
Polishing Cloth
(except 32LC2D/ 2DB*)
Polish the screen with the cloth.
2-bolts for stand assembly
(Refer p.11)
(42PC1D*only)
Slightly wipe stained spot on the exterior
only with the cleansing cloths for the
product exterior if there is stain or finger-
print on surface of the exterior.
Do not wipe roughly when removing
stain. Please be cautious of that excessive
power may cause scratch or discoloration.
Carefully place the set screen side down on a
cushioned surface that will protect set and screen
from damage.
Place the hook of the stand in the back of the
set as shown.
Install the 4 bolts provided securely, in the back of
the set.
Stand Installation for 32LC2D/2DB *
1
2
3

2
CONTENTS
CONTENTS
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INTRODUCTION
Controls (Model Name: 32/37/42LC2D *). . . . . . . . . . . . . 4
Connection Options (Model Name: 32/37/42LC2D *)5

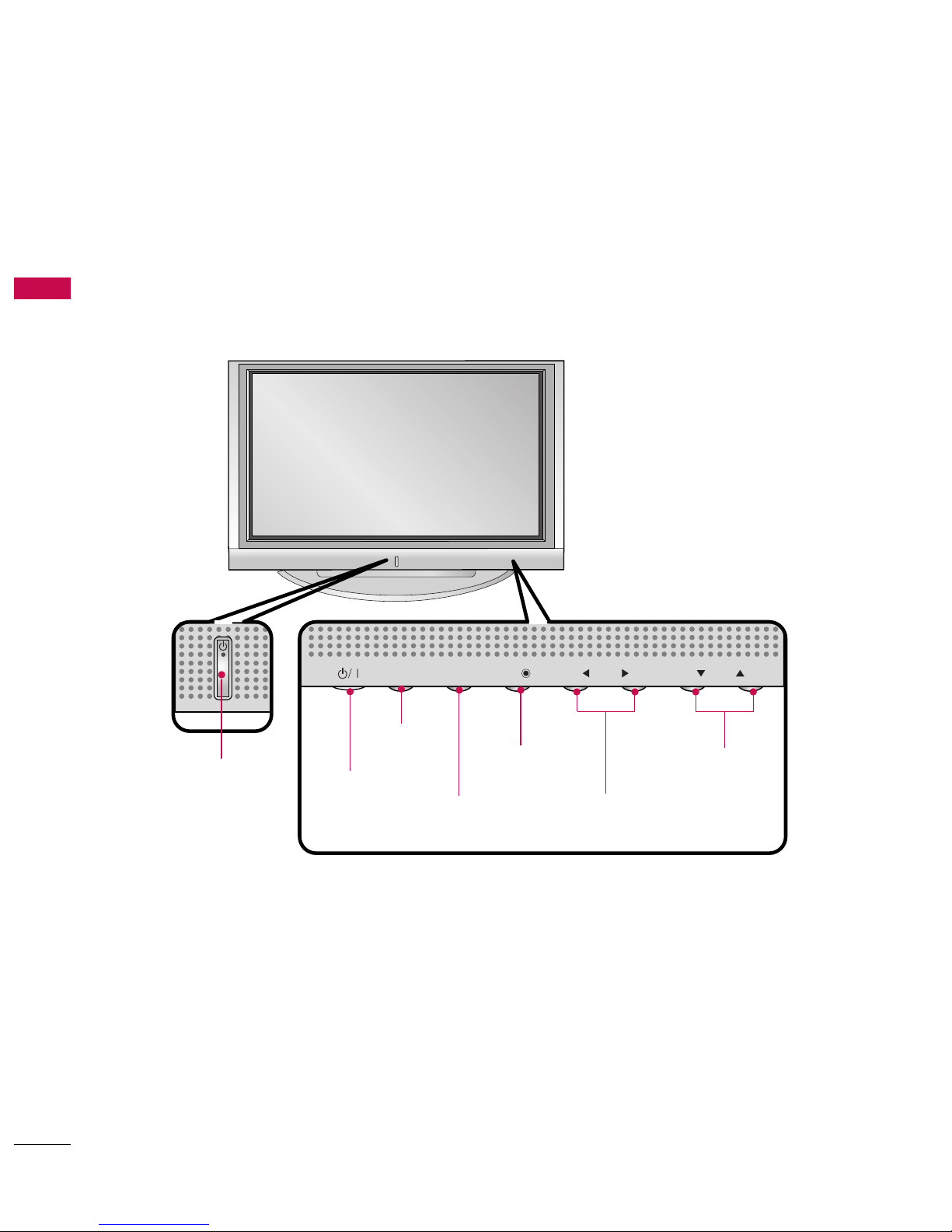

Controls (Model Name: 42/50PC1D *). . . . . . . . . . . . . . . . . . 6
Connection Options (Model Name: 42/50PC1D *). . . . 7

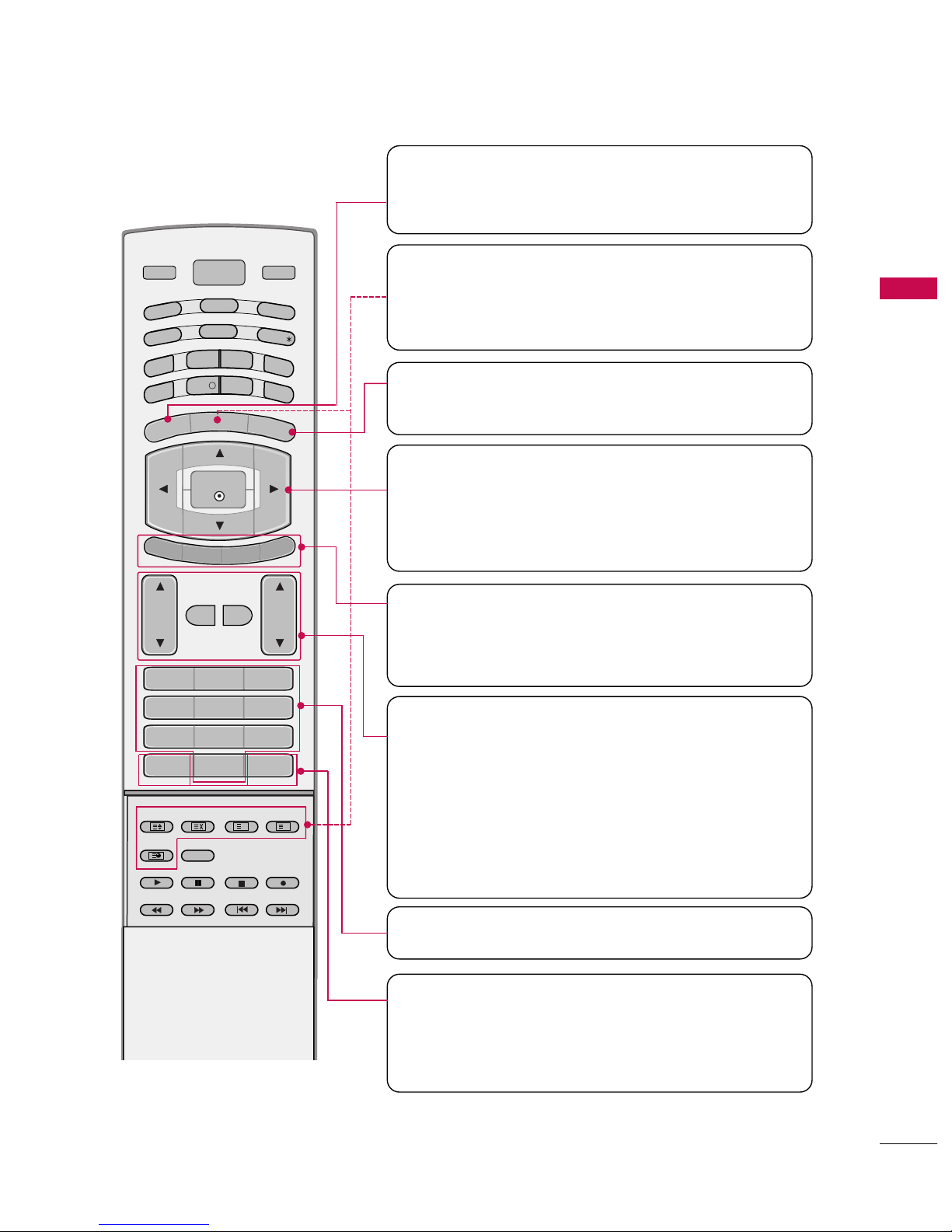

Remote Control Key Functions . . . . . . . . . . . . . . . . . . . . 8-10
INSTALLATION
Unfolding The Base Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Basic connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14

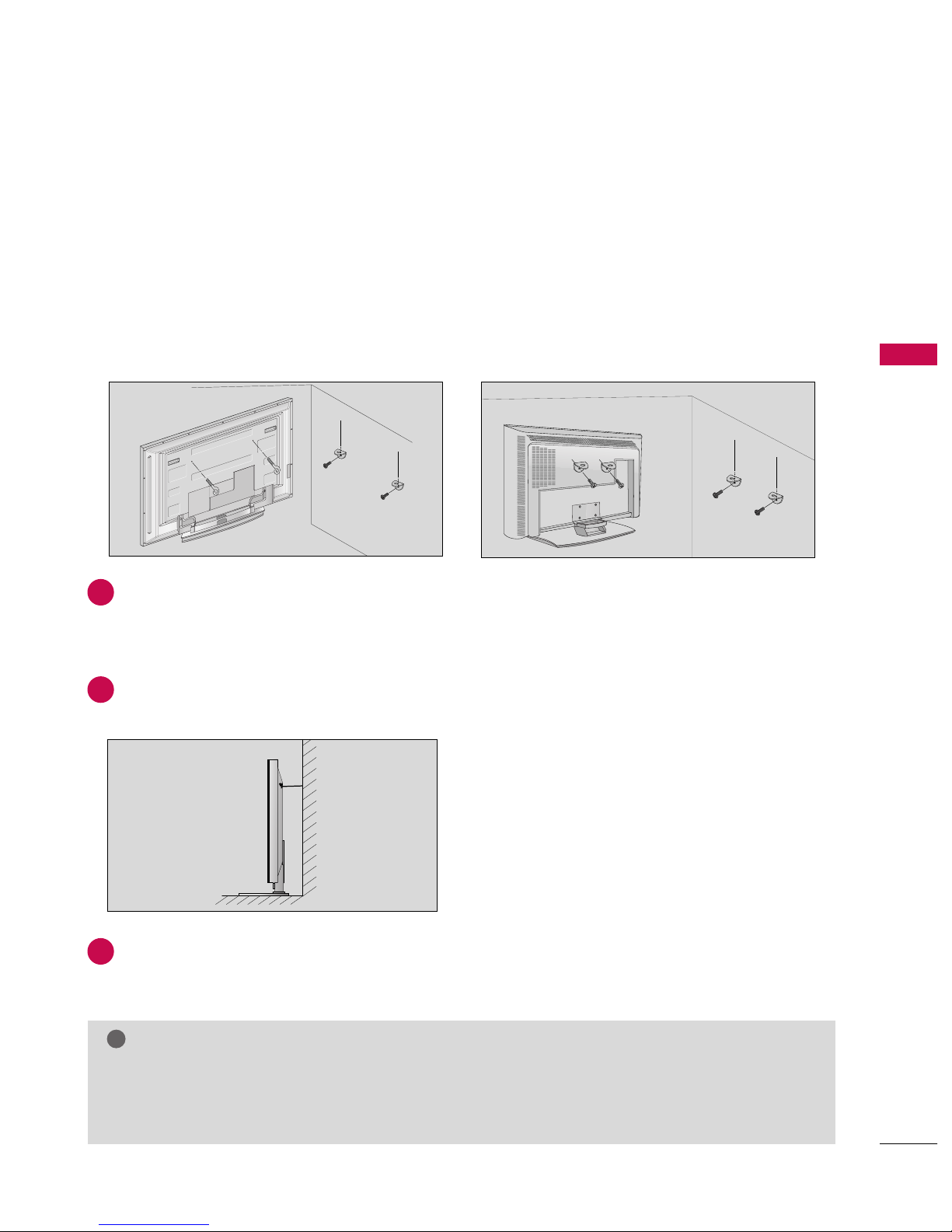

How to join the product assembly to the wall to protect
the set tumbling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CONNECTIONS & SETUP
Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Picture Out Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

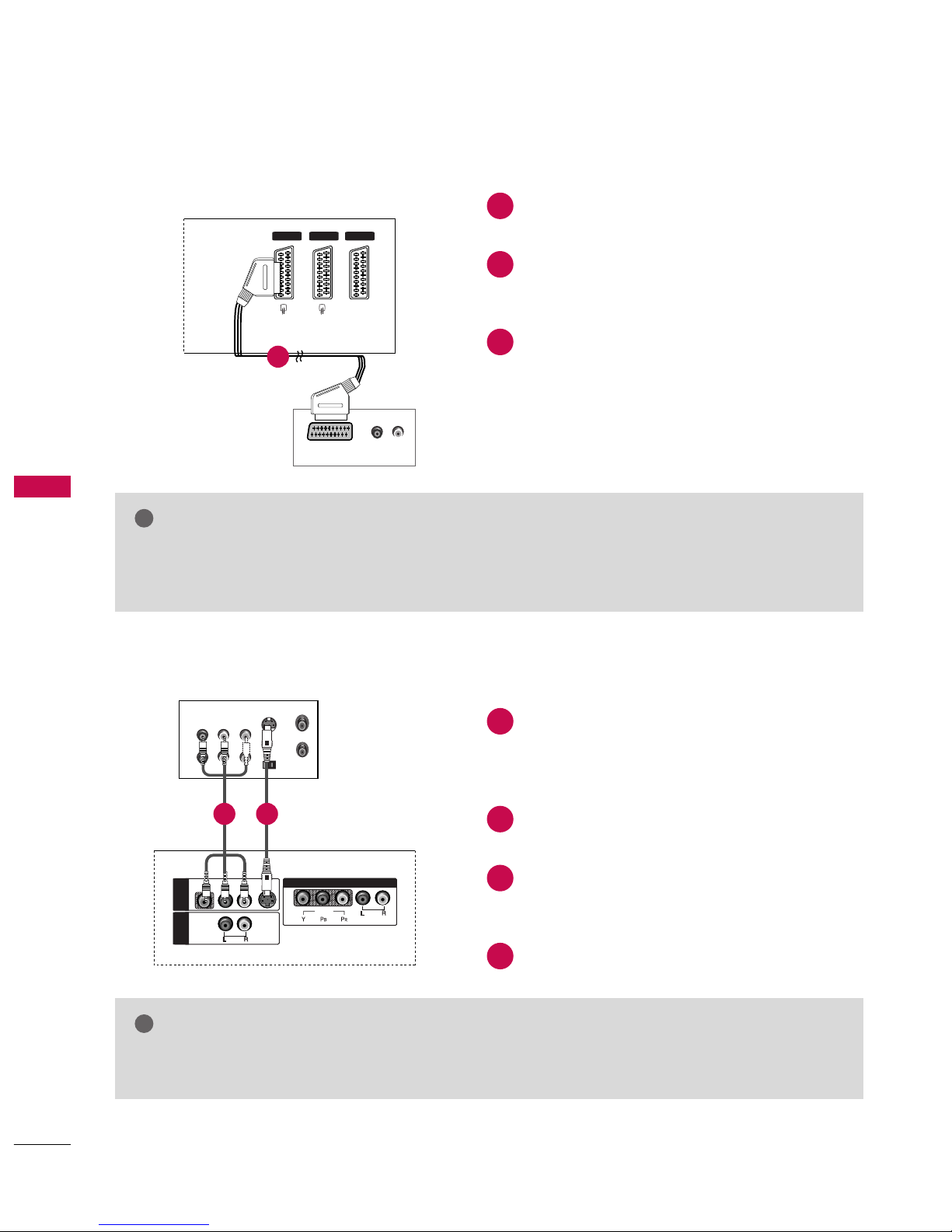

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
External AV Source Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-24
Digital Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27
BASIC OPERATION
Turning on the set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Programme Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
SPECIAL FUNCTIONS
PIP/POP/Twin Picture
Watching PIP/Double Window/POP . . . . . . . . . . . . . . . . . . . 30
Programme Selection for Sub Picture . . . . . . . . . . . . . . . . . 30
Input Source Selection for Sub Picture . . . . . . . . . . . . . . . 31
Sub Picture Size Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Moving the Sub Picture (PIP mode only) . . . . . . . . . . . . . 31
Adjusting PIP Transparency (PIP mode only) . . . . . . . . 32
Swapping between main and sub pictures . . . . . . . . . . . . 32
POP (Picture-out-of-Picture: Programme Scan) . . . 32
TELETEXT
Switch on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
SIMPLE Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
TOP Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
FASTEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Special Teletext Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
EPG (Electronic Programme Guide) (In
Digital mode)
Switch on/off EPG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Select a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Button Function in NOW/NEXT Guide Mode . . . . . 36
Button Function in Extended Description Box . . . . . 36
Button Function in 8 Days Guide Mode . . . . . . . . . . 37
Button Function in Date Change Mode . . . . . . . . . . . 37
Button Function in Record/Remind Setting Mode . . . . . 37
Button Function in Timer List Mode . . . . . . . . . . . . . . . . . . . 37

3
CONTENTS
TV MENU
On Screen Menus Selection and Adjustment . . . . . . . . . 38
STATION
Auto programme (In Digital Mode) . . . . . . . . . . . . . . . . . . . . . 39
Manual Programme Tuning (In Digital Mode) . . . . . . . . . 40
Programme Edit (In Digital Mode) . . . . . . . . . . . . . . . . . . 41-42
5V Antenna Power (In Digital Mode only) . . . . . . . . . . . . . 43
Booster (In Digital Mode only) . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Diagnostics (In Digital Mode only) . . . . . . . . . . . . . . . . . . . . . 45
Auto Programme Tuning (In Analogue Mode) . . . . . . . . . . . . 46
Manual Programme Tuning (In Analogue Mode) . . . . . . . . . . 47
Fine Tuning (In Analogue Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Assigning a Station Name (In Analogue Mode) . . . . . . . . . . . 48
Programme Edit (In Analogue Mode) . . . . . . . . . . . . . . 49-50
Favourite Programme (In Analogue Mode) . . . . . . . . . . . . . 51
Calling the Programme Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
PSM (Picture Status Memory) . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Picture Adjustment (PSM-User option) . . . . . . . . . . . . . . . . 54
CSM (Colour Status Memory) . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Manual Colour Temperature Control (CSM - User option) . . . . . . . . 55
XD Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
XD - User Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
NR (Noise Reduction) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
SOUND
SSM (Sound Status Memory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Sound Frequency Adjustment (SSM - User option) . . . . . . . . . 58
AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Balance Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
TV Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Digital audio out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Stereo/Dual Reception (In Analogue mode only) . . . . . . . . 62
NICAM Reception (In Analogue mode only) . . . . . . . . . . 62
Speaker Sound Output Selection (In Analogue mode only) . . 62
TIME
Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
On/Off Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Auto Sleep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
SPECIAL
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
System Lock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
ISM Method (Image Sticking Minimization) (option) . . . 69
Low Power (option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
SCREEN
Auto Config. (RGB [PC] mode only) . . . . . . . . . . . . . . . . . . 71
Manual Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Setting the Picture Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Selecting Wide XGA mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Initializing (Reset to original factory settings) . . . . . . . 75
APPENDIX
External Control Device Setup . . . . . . . . . . . . . . . .76-83
IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84-85
Programming the Remote . . . . . . . . . . . . . . . . . . . . . . 86
Programming Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . 88-89
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Product Specifications . . . . . . . . . . . . . . . . . . . . . 91-92

INTRODUCTION
4
INTRODUCTION
This is the front panel of 32/37/42LC2D *.
■
This is a simplified representation of front panel.
■
Here shown may be somewhat different from your set.
CONTROLS
(MODEL NAME: 32/37/42LC2D *)
Front Panel Controls
PR
VOL
MENU
INPUT
R
OK
PROGRAMME Buttons
VOLUME Buttons
OK Button
MENU Button
INPUT Button
POWER Button
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates green when the set is
switched on.
- The set can be conveniently swivelled on its stand 30°
to the left or right to provide the optimum viewing
angle.
Swivel Stand (42LC2D series only)
R
30° 30°

INTRODUCTION
5
Back Connection Panel
CONNECTION OPTIONS
AC IN
AV IN 4
L/MONO
R
AUDIOAUDIO
VIDEOVIDEO
HDMI/DVI IN
RS-232C IN
(CONTROL & SERVICE)
IN
OUT
VIDEO AUDIO
MONO
()
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
AV IN 3
VARIABLE
AUDIO OUT
AC IN
REMOTEREMOTE
CONTROLCONTROL
RGB IN
AV 1 AV 2V 2 DTV OUT
ANTENNA
IN
ANTENNA
OUT
AUDIO(RGB/DVI)
RGB(PC/DTV)
DIGITAL AUDIO
OUT
OPTICALPTICAL
AUDIO Input
VIDEO Input
■
Here shown may be somewhat different from your set.
■
This manual explains the features available on the 32/37/42LC2D *.
DIGITAL AUDIO OUT
OPTICAL
AV IN 3
VARIABLE
AUDIO OUT
AV 1/2
DTV OUT
COMPONENT IN
ANTENNA IN
ANTENNA
OUT
AUDIO IN
(RGB/DVI)
RGB IN
(PC/DTV)
AC IN
HDMI / DVI IN
RS-232C INPUT
(CONTROL&SERVICE) REMOTE CONTROL Port
A
V IN 4
V IN 4
AUDIO
AUDIO
VIDEO
VIDEO
L/MONO
R
AV 1 AV 2
COMPONENT IN
AV IN 3
( )
RGB
(PC/DTV)
RS-232C IN
(CONTROL & SERVICE)
VARIABLE
AUDIO OUT
ANTENNA
IN
HDMI IN
REMOTE
COMTROL
IN
1(DVI)
RGB IN
VIDEO
S-VIDEO
2
AUDIO
AUDIO VIDEO

INTRODUCTION
6
INTRODUCTION
CONTROLS (MODEL NAME: 42/50PC1D *)
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your set.
PR
VOL
OK
MENU
INPUT
PROGRAMME Buttons
VOLUME Buttons
MENU Button
OK Button
INPUT Button
POWER Button
Power/Standby Indicator
• illuminates red in
standby mode.
• illuminates white when
the set is switched on.
Front Panel Controls

INTRODUCTION
7
CONNECTION OPTIONS
AV IN 4
L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
DIGITAL AUDIO
OUT
OPTICALPTICAL
1(DVI)
2
RS-232C IN
(CONTROL & SERVICE)
RGB (PC / DTV)
RGB IN
AUDIO (RGB/DVI) IN
OUT
VIDEO AUDIO
MONO
()
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
AV IN 3
VARIABLEARIABLE
AUDIO OUT
REMOTE
CONTROL
AV 1 AV 2 DTV OUT
ANTENNA
IN
ANTENNA
OUT
HDMI IN
- Here shown may be somewhat different from your set.
- This manual explains the features available on the 42/50PC1D *.
AUDIO Input
VIDEO Input
DIGITAL AUDIO OUT
OPTICAL
AV IN 3
VARIABLE AUDIO OUT
AV 1/2
DTV OUT
COMPONENT IN
HDMI IN
-42PC1DV models have
a unit of HDMI input
jack.
ANTENNA IN
ANTENNA OUT AUDIO IN
(RGB/DVI)
RGB IN
(PC/DTV)
AC IN
RS-232C INPUT
(CONTROL&SERVICE) REMOTE CONTROL Port
Back Connection Panel

INTRODUCTION
8
INTRODUCTION
REMOTE CONTROL KEY FUNCTIONS
POWER
Switches the set between ON and STANDBY.
D/A TV
INPUT
VOL
LIST Q.VIEW
PR
POWER
1 2 3
4 5 6
78
0
9
INDEX
POSITION
SIZE
REVEAL
TIME I/II
GUIDE
PIP PR-
PIP
MENU
MUTE FAV
EXIT
VCR
TV
DVD
ARC
TEXT
SWAP
BACK
PIP PR+
INFO
i
?
i
OK
SUBTITLE/
PIP INPUT
SLEEP
D/A TV (Digital TV / Analogue TV)
Selects digital or analogue mode.
INPUT
Selects the DTV, TV, AV, Component, RGB or HDMI/DVI modes.
switches the set on from standby.
TV, DVD, VCR
Selects the remote operating mode: TV, VCR, DVD. Select
other operating modes, for the remote to operate external
devices.
GUIDE (Refer to p.36~37)
Shows programme schedule.
ARC (Aspect Ratio Control) (Refer to p.73)
Selects your desired picture format.
SUBTITLE/*(Refer to p.66)
Recalls your preferred subtitle in digital mode.
PIP (Refer to p.30)
Switches the sub picture on or off,select PIP, DW1/2 or
POP modes.
SIZE (Refer to p.31)
Adjusts the sub picture size.
POSITION (Refer to p.31)
Moves the sub picture position.
PIP PR +/- (Refer to p.30)
Selects a programme for the sub picture.
SWAP (Refer to p.32)
Alternates between main and sub picture.
PIP INPUT (Refer to p.31)
Selects the input mode for the sub picture.
BACK
Allow the user to move back one step in an interactive
application, EPG or other user interaction function.
SLEEP (Refer to p.65)
Sets the sleep timer.

INTRODUCTION
9
MENU
Displays on screen menus one by one.
Exits the current menu.
Memorizes menu changes.
OK
Accepts your selection or displays the current mode.
DD/ EE/ FF/ GG
Adjusts menu settings.
Selects menu item.
COLOURED BUTTONS
They are used as per the indications or functions displayed
on TV screen in case of Text displays (Teletext, EPG) and
programme edit.
VOL DD/ EE(Volume Up/Down)
Increases/decreases sound level.
PR DD/ EE(Programme Up/Down)
Selects a programme.
LIST (Refer to p.52)
Displays the programme table.
Q.VIEW
Returns to the previously viewed programme.
NUMBER BUTTONS
MUTE
Switches the sound on or off.
FAV (FAVOURITE)
Displays the selected favourite programmes.
D/A TV
INPUT
VOL
LIST Q.VIEW
PR
POWER
1 2 3
4 5 6
78
0
9
INDEX
POSITION
SIZE
REVEAL
TIME I/II
GUIDE
PIP PR-
PIP
MENU
MUTE FAV
EXIT
VCR
TV
DVD
ARC
TEXT
SWAP
BACK
PIP PR+
INFO
i
?
i
OK
SUBTITLE/
PIP INPUT
SLEEP
EXIT
Clears all on-screen displays and returns to TV viewing
from any menu.
TELETEXT BUTTONS
These buttons are used for teletext.
Text button is used to enable teletext services while other
buttons are for teletext functions. * For further details, see
the ‘Teletext’ section. (Refer to p.33~35)
