LG 50PY3DF Series User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : PB75A
MODEL : 50PY3DF 50PY3DF-AA
website:htt ://biz.LGservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
CONTENTS
SAFETY PRECAUTIONS ....................................................................................3
SPECIFICATIONS ................................................................................................4
ADJUSTMENT INSTRUCTIONS .........................................................................6
TROUBLE SHOOTING GUIDE ..........................................................................11
BLOCK DIAGRAM ............................................................................................31
EXPLODED VIEW .............................................................................................40
EXPLODED VIEW PARTS LIST ........................................................................41
REPLACEMENT PARTS LIST...........................................................................4
SCHEMATIC DIAGRAM.........................................................................................
PRINTED CIRCUIT DIAGRAM ..............................................................................

- 3 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special sa ety-related characteristics. These parts are identi ied by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special sa ety parts should be replaced with the same components as recommended in this manual to prevent
X-RADIATION, Shock, Fire, or other Hazards.
Do not modi y the original design without permission o manu acturer.
General Guidance
An isolation Transformer should always be used during the
servicing o a receiver whose chassis is not isolated rom the AC
power line. Use a trans ormer o adequate power rating as this
protects the technician rom accidents resulting in personal injury
rom electrical shocks.
It will also protect the receiver and it's components rom being
damaged by accidental shorts o the circuitry that may be
inadvertently introduced during the service operation.
I any use (or Fusible Resistor) in this monitor is blown, replace it
with the speci ied.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away rom PCB.
Keep wires away rom high voltage or high temperature parts.
Due to high vacuum and large sur ace area o picture tube,
extreme care should be used in handling the Picture Tube.
Do not li t the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed rom AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead o ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
I the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be in inite.
An other abnormality exists that must be corrected be ore the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements or each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out o the limits speci ied, there is
possibility o shock hazard and the set must be checked and
repaired be ore it is returned to the customer.

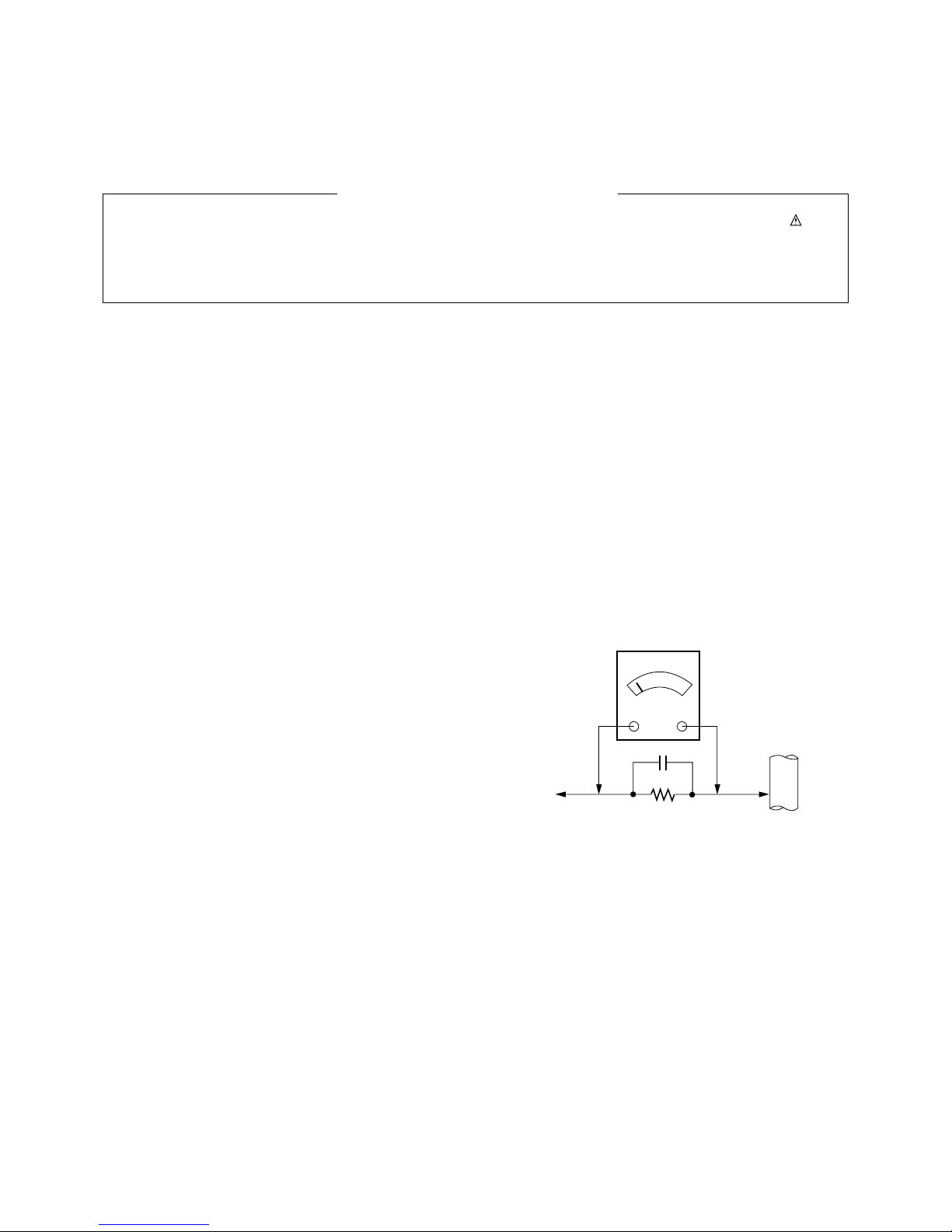

Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
SPECIFICATIONS
NOTE : Speci ications and others are subject to change without notice or improvement .
VApplication Range
This spec is applied to the 60” PLASMA TV used PB75A Chassis.
V Specification
Each part is tested as below without special appointment.
1) Temperature : 25±5°C (77±9°F), CST : 40±5
2) Relative Humidity: 65±10%
3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz)
* Standard Voltage o each product is marked by models.
4) Speci ication and per ormance o each parts are ollowed each drawing and speci ication by part number in accordance with SBOM.
5) The receiver must be operated or about 20 minutes prior to the adjustment.
VTest Method
1) Per ormance : LGE TV test method ollowed.
2) Demanded other speci ication
Sa ety : CB speci ication
EMC : CISPR 13 speci ication
VGeneral Specification
1. Model General Specification
Chassis
PB75A 50PY3DF-AA Australia LG
Model Name Market Brand Remark
50PY3DF-AA Sa ety : IEC60065,EN60950
EMC : CISPR 13 Class B
Australia
Model ApplianceMarket Remark
Broadcasting system
Available Channel
Tuner IF
Input Voltage
Screen Size
Aspect ratio
PDP Module
Operating Environment
Storage Environment
PAL-B/G, DTV : DVB-T
1) VHF : 00 ~ 12
2) UHF : 20 ~ 75
3) CATV : 02 ~ 44
4) DTV : 06 ~12, 27 ~ 69
1) PAL : 38.90MHz(Picture),
34.40MHz(Sound)
2) DVB-T : 36.125MHz
100-240V~, 50Hz
50” Wide (1920x1080)
16:9
PDP50H1(LGE)
1) Temp : 0~40deg
2) Humidity : ~80%
1) Temp : -20~60deg
2) Humidity : ~80%
1
2
3
4
5
6
7
8
9
No
Mark : 240V, 50Hz
Model Speci ication Remark

- 5 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
Display area
Outline dimension
Number o Pixels
Cell pitch
Pixel type
Weight(net)
Weight(gross)
Operation Environment Temperature
Humidity
Pressure
Storage Environment Temperature
Humidity
Pressure
I mage stick minimization Start time
mode Low Brightness
Arrival Time
1106.5(H) x 622.1(V) x 0.5mm
1180(H) x 687(V) x 56(D) ± 1(mm)
1920 (H) x 1080 (V)
192ß≠(H) x 576um(V)
RGB Closed(Well) type
23.5 24.5 25.5
320 325 330
0 ~ 60
20 ~ 80
800 ~ 1100
-10 ~ 60
10 ~ 90
700 ~ 1100
4.5 5 5.5
14 15 16
1
2
3
4
5
6
7
8
9
10
No Item Remark
1Pixel=3RGB Cells
1Pixel=3RGB Cells
12EA 1Box
Altitude : 0 to 2000M
mm
mm
um
Kg
Kg
deg
%
hPa
deg
%
hPa
min
min
Min Typ Max Unit
. Module Specification ( PDP50H1 )
-1. General Specification
- . Electro Optical Characteristic Specifications
White peak Brightness
White average brightness
Brightness uni ormity
Color Coordinate White X
Y
Color coordinate uni ormity
Contrast ratio Bright Room
Dark Room
Power Consumptoin
Non ignition dot A zone
+ Unstable dot B zone
Uncontrollable dot A zone
B zone
Non extinguishing dot A zone
Cell de ect distance
Total Cell de ects
700
130
-10
0.280
0.295
-0.02
70:1
2,000:1
25
1000
160
0
0.300
0.315
Average
110:1
3,000:1
420
+10
0.320
0.335
+0.02
500
4
11
5
8
0
20
1
2
3
4
5
6
7
8
9
10
11
12
No Item Remark
1% white window
Full white
100Lx at center
1% white window
Full window
2cell conjunction point : N≤2
3cell conjunction point : N=0
2cell conjunction point : N=0
2cell conjunction point : N=0
Full screen
cd/m2
cd/m2
W
Cells/Full
screen
Cells/Full
screen
Cells/
screen
mm
sub pixel
Min Typ Max Unit

- 6 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
ADJUSTMENT INSTRUCTIONS
1. Application Object
These instructions are applied to all o the 50” PLASMA TV,
PB75A Chassis
. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation trans ormer. However, the use o isolation
trans ormer will help protect test equipment.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be per ormed in the circumstance o
25±5°C o temperature and 65±10% o relative humidity i
there is no speci ic designation.
(4) The input voltage o the receiver be must kept 220V~,
60Hz when adjusting.
(5) The receiver must be operational or about 15 minutes
prior to the adjustments.
OPreliminary action is 100% FULL WHITE PATTERN must
be operated automatically.(Ez-Adjust 10. Test Pattern)
OTest or a terimage discharge detection
1) How to Adj R/C pressing Power key.
2) Press the ADJ KEY o the adjusting R/C to enter into the
Ez-Adjust, use the CH +/- key to select ‘10. WHITE
PATTERN’, and press the con irmation (A) key. Then,
‘100% FULL WHITE PATTERN’ is displayed
.
[Set is activated HEAT-RUN without signal generator in
this mode.
3. EDID(The Extended Display
Identification Data)/DDC
(Display Data Channel) Download
This has been established by VESA and is the unction
created to “Plug and Play” by making the computer
recon igure user environment through communication with the
monitor automatically without having the user set commands
directly to the PC or the monitor so that the user can use it
immediately.
* When writing EDID, use DDC2B protocol.
3-1. HDMI EDID Data Input
(1) Required Test Equipment
- PC, Jig or adjusting DDC. (PC serial to D-sub
Connection equipment)
- S/W or writing DDC (EDID data write & read)
- D-Sub cable
- Jig or HDMI Cable connection
( )

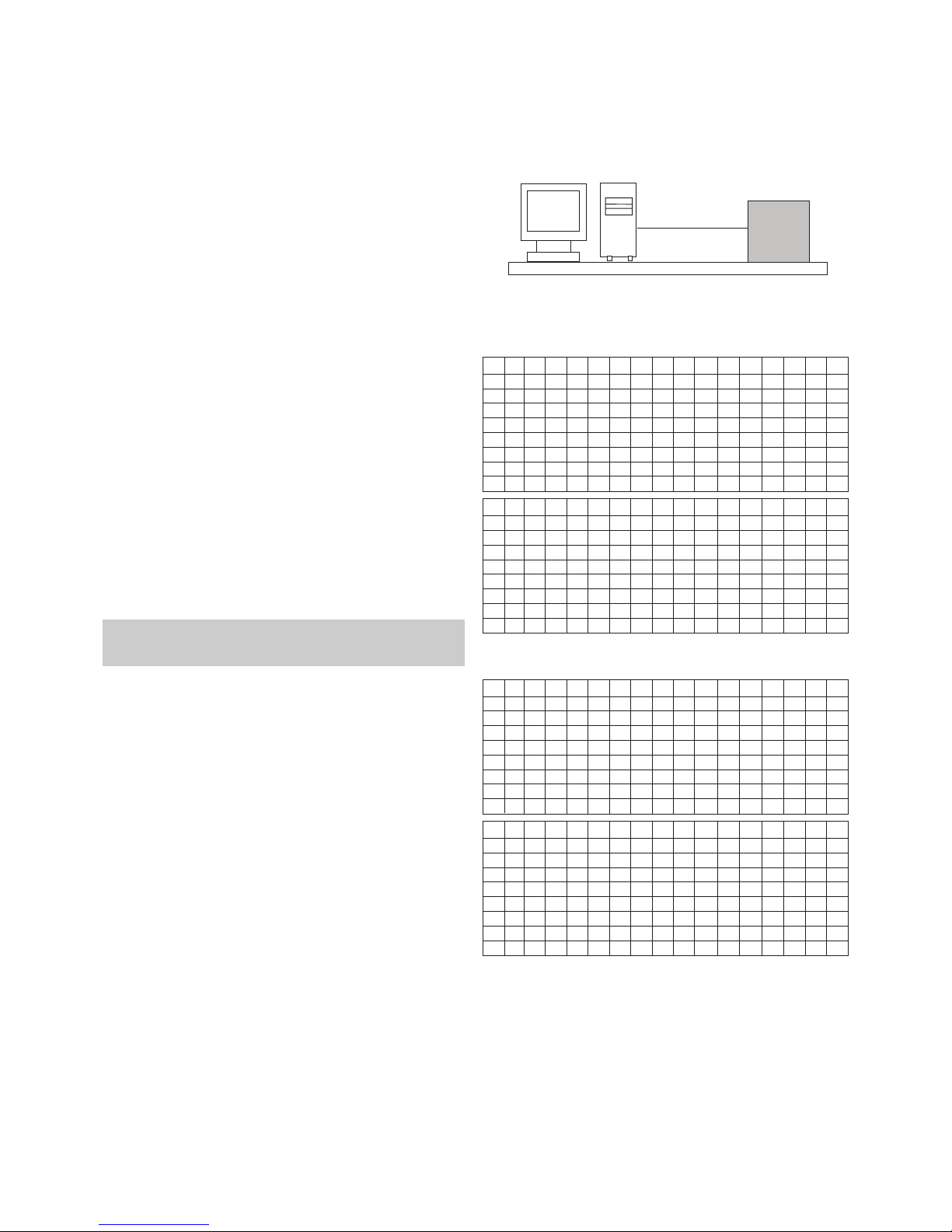

Adjustment preparation & device configuration
- Con igure as Fig. 7, and turn on the PC
- Turn on the JIG.
- Run the DDC recording S/W (EDID Data Write & Read).
(Execute in DOS mode)
3- . EDID DATA for PB75A
A EDID or HDMI-1 (DDC (Display Data Channel) Data)
EDID table =
A EDID or HDMI-2 (DDC (Display Data Channel) Data)
EDID table =
I you turn on a still screen more than 20 minutes (Especially
Digital pattern, Cross Hatch Pattern), an a terimage may occur
in the black level part o the screen.
PC
VSC
B/D
JIG cable(CPLD D/L )
<Fig.1> Connection Diagram o CPLD Download
012 34 5 67 8 9 ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CE 00 31 40 45 40 61 40 81 80 A9 40
30 D1 C0 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1A 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 00
012 34 5 67 8 9 ABCDEF
002031EF14E2022101F01020304051293
10 14 07 16 23 15 07 50 66 03 0C 00 10 00 80 01 1D
20 00 72 51 D0 1E 20 6E 28 55 00 C4 8E 21 00 00 1E
30 01 1D 80 18 71 1C 16 20 58 2C 25 00 C4 8E 21 00
40 00 9E 8C 0A D0 90 20 40 31 20 0C 40 55 00 4C 6C
50 42 00 00 18 01 1D 00 BC 52 D0 1E 20 B8 28 55 40
60 C4 8E 21 00 00 1E 01 1D 80 D0 72 1C 16 20 10 2C
70 25 80 C4 8E 21 00 00 9E 00 00 00 00 00 00 00 58
012 34 5 67 8 9 ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CE 00 31 40 45 40 61 40 81 80 A9 40
30 D1 C0 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1A 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 00
012 34 5 67 8 9 ABCDEF
002031EF14E2022101F01020304051293
10 14 07 16 23 15 07 50 66 03 0C 00 20 00 80 01 1D
20 00 72 51 D0 1E 20 6E 28 55 00 C4 8E 21 00 00 1E
30 01 1D 80 18 71 1C 16 20 58 2C 25 00 C4 8E 21 00
40 00 9E 8C 0A D0 90 20 40 31 20 0C 40 55 00 4C 6C
50 42 00 00 18 01 1D 00 BC 52 D0 1E 20 B8 28 55 40
60 C4 8E 21 00 00 1E 01 1D 80 D0 72 1C 16 20 10 2C
70 25 80 C4 8E 21 00 00 9E 00 00 00 00 00 00 00 48

- 7 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
A EDID or HDMI-3 (DDC (Display Data Channel) Data)
EDID table =
A EDID or RGB (DDC (Display Data Channel) Data)
EDID table =
4. MST3361M-Set Adjustment
4-1. Synopsis
MST3361M-Set adjustment to set the black level and the Gain
o optimum with an automatic movement rom the analog =>
digital converter.
4- . Test Equipment
Service R/C, 801GF(802B,802F,802R),
MSPG-925FA,MSPG-1025D Pattern Generator.
( 480i, 1080p Horizontal 60Hz Color Bar Pattern output will be
possible and the output level will accurately have to be
revised with 0.7±0.1Vp-p)
* It should be checked because the above pattern may be
di erent according to the model and the pattern o the used
equipment.
4-3. Adjustment method
(1) Component1 adjustment method.
1) Select Component1 as the input with Color Bar Pattern
in 480i 60Hz mode and select ‘Component1’ on screen.
2) A ter receiving signal or at least 1 second, press the
ADJ Key on the Service R/C to enter the ‘Ez - Adjust’
and select the ‘1. ADC 480i Comp1’. Pressing the Vol+
Key to adjust the component1.
3) When the adjustment is over, 'ADC Component1
Success’ is displayed.
4) When the adjustment is not normally completed, a
message saying ‘ADC Component1 480i Fail’ is
displayed. When the component is not connected, a
message saying ‘Component1 Not Connected’, when
the input ormat is not 480i, a message saying ‘Not
Valid Format’ and when the input signal is not coming
out, a message saying ‘Check Signal Status’ is
displayed or 1 second.
(MSPG-925FA : -> model : 209, pattern : 65)
012 3 4 5 67 8 9 ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CE 00 31 40 45 40 61 40 81 80 A9 40
30 D1 C0 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1A 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 00
012 3 4 5 67 8 9 ABCDEF
002031EF14E2022101F01020304051293
10 14 07 16 23 15 07 50 66 03 0C 00 30 00 80 01 1D
20 00 72 51 D0 1E 20 6E 28 55 00 C4 8E 21 00 00 1E
30 01 1D 80 18 71 1C 16 20 58 2C 25 00 C4 8E 21 00
40 00 9E 8C 0A D0 90 20 40 31 20 0C 40 55 00 4C 6C
50 42 00 00 18 01 1D 00 BC 52 D0 1E 20 B8 28 55 40
60 C4 8E 21 00 00 1E 01 1D 80 D0 72 1C 16 20 10 2C
70 25 80 C4 8E 21 00 00 9E 00 00 00 00 00 00 00 38
012 3 4 5 67 8 9 ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 0E 11 01 03 18 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CF 00 31 40 45 40 61 40 81 80 A9 40
30 D1 C0 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1A 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 59
012 3 4 5 67 8 9 ABCDEF
0 020304000E1F008051001E3040803700
10 C4 8E 21 00 00 1C 00 00 00 00 00 00 00 00 00 00
20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
30 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 25
<Fig.2> Adjust Pattern : 480i, 1080p 60Hz Color Bar Pattern

- 8 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
( ) Component1, RGB adjustment method.
1) Select Component1, RGB as the input with Color Bar
Pattern in 1080p 60Hz mode and select ‘Component1’
as input mode.
2) A ter receiving signal or at least 1 second, press the
ADJ Key on the Service R/C to enter the ‘Ez - Adjust’
and select the ‘2. ADC 480i Comp1/RGB’. Pressing the
Vol+ Key to adjust the component1.
3) When the adjustment is normally completed, the
message ‘ADC Component1 Success’ is displayed, or i
not, the message ‘ADC Component1 1080P Fail’ is
displayed. A ter adjusting the Component1 is
completed, it is automatically switched to the RGB-DTV
mode, and the RGB adjustment starts. I adjusting is
normally completed, the message ‘ADC RGB 1080P
Success’ is displayed.
4) When the adjustment is not normally completed, check
the pattern or the adjustment condition, and then adjust
it again. The error message is same to (4)) o (1)
5) A ter adjustment is complete, exit the adjustment mode
by pressing the ADJ KEY.
(MSPG-925FA : -> model : 225, pattern : 65)
5. Video Set Adjustment
It is the adjustment to reduce the color di erence o the RF
and the video signal, which adjusts Analog RF, AV-PAL, and
AV-NTSC.
5-1. Adjustment method
(1) Analog RF and AV-PAL adjustment method.
1) Connect the Video Signal Generator (Master) to the AV
input o the TV via the AV output. At this time, when
entering the input pattern with Model : 202(PAL) and
Pattern : 33(100% color Bar), the ollowing screen is
displayed.
* It should be checked because the above pattern may be
di erent according to the model and the pattern o the used
equipment.
2) A ter entering the in-house signal, when it is checked
that the signal is received, press the ADJ KEY o the
adjusting R/C to enter into ‘EZ-ADJUST’ Select ‘3.
Adjust RF and AV_PAL’ and press the right arrow key
(G) to enter into the adjustment mode.
3) When it enters into the adjustment mode, the screen is
automatically switched to TV 3CH and the ollowing
window is displayed.
4) When the automatic adjustment starts, the main screen
is adjusted, and i adjusting is completed, the message
‘RF-PAL Con iguration Success’ is displayed. I
adjusting is ailed, the message ‘RF-PAL Con iguration
Fail’ is displayed.
5) When the automatic adjustment o the RF signal is
completed, it is automatically switched to AV1 Mode
and the automatic adjustment is per ormed to the AV-
PAL. When the automatic adjustment is completed, the
message ‘AV-PAL Con iguration Success’ is displayed.
I the adjustment is ailed, the message ‘AV-PAL
Con iguration Fail’ is displayed.
( ) AV-NTSC adjustment method.
1) Connect the Video Signal Generator (Master) to the AV
input o the TV via the AV output. At this time, when
entering the input pattern with Model : 201(NTSC) and
Pattern : 33(100% color Bar), the ollowing screen is
displayed.
* It should be checked because the above pattern may be
di erent according to the model and the pattern o the used
equipment.
2) Press the ADJ KEY o the adjusting R/C to enter into
‘EZ-ADJUST’ Select ‘4. Adjust AV_NTSC’ and press the
right arrow key (G) to enter into the adjustment mode.
3) When the automatic adjustment is completed, the
message ‘AV-NTSC Con iguration Success’ is
displayed. I the adjustment is ailed, the message ‘AV-
NTSC Con iguration Fail’ is displayed.
<Fig.3> Model : 202(PAL), Pattern : 33(100% Color Bar)
<Fig.4> Model : 201(NTSC), Pattern : 33(100% Color Bar)

- 9 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
6. Adjustment of White Balance
6-1. Required Equipment
1) Color Analyzer : CA-100(CH 10)
2) When adjusting the PLASMA color temperature, the No.
10 channel with the matrix compensated (White, Red,
Green and Blue compensated) should be used or the
CS-1000 as Color analyzer (CA-100), which should be
adjusted based on the white balance adjustment
coordinate as described below.
2) Automatic adjuster (necessary or the automatic
adjustment, possible to communicate via the RS-232C)
3) Video Signal Generator MSPG-925F 720p,
216Gray(Model : 217, Pattern : 78)
6- Measuring device connection diagram
( or automatic adjustment)
6-3 White Balance adjustment method
Basically it uses the internal pattern but when internal pattern
is not possible, you can select HDMI input or adjustment.
Through the option at the most bottom part o the Ez Adjust
Menu 7.White Balance menu, you can select NONE, INNER
and HDMI, and the de ault is set to INNER. When the
adjustment cannot be done with the internal pattern, you can
select HDMI input or adjustment.
For manual adjustment, press the ADJ KEY o the adjustment
R/C to enter Ez Adjust 7.White-Balance, and the pattern is
automatically displayed. (When you set the Option to INNER,
the de ault is always set to INNER)
1) Connect the set according to the internal pattern or HDMI
input in accordance with 7-3 measuring device connection
diagram.
2) Set the Baud Rate o RS-232C to 115200. It is set to
115200 as de ault.
3) Connect the RS-232C Cable to the set.
4) Connect the HDMI Cable to the set. (Limited to the set with
HDMI option)
5) Select and adjust the model applicable to PB75A chassis
rom the adjuster.
Caution) For automatic adjustment, RS-232C Command and
Chassis are commonly applied
- Wb 00 00 Start automatic adjustment o white balance
- Wb 00 10 Start gain adjustment (Internal pattern)
- Ja 00 Adjustment data
- Jb 00 c0
- …
- Wb 00 1 End gain adjustment
* Adjust o set as necessary (wb 00 20(Start), wb 00 2 (End))
- Wb 00 End automatic adjustment o white balance
(Internal pattern disappears)
Caution) Adjustment map
* White Balance adjustment (For automatic adjustment)
- Execute Power Only Key o the adjustment R/C to execute
automatic adjustment. Set the Baud Rate to 115200.
- Always start adjustment with “wb 00 00” and end
adjustment with “wb 00 ”
- Adjust the o set i necessary.
Color Analyer
RS-232C
Full White Pattern
(Inner pattern)
<Fig. 5> Connection diagram or internal pattern
<Fig. 6> Connection diagram or HDMI input
216Gray White Pattern
(HDMI Pattern)
Color Analyer
MSPG-925FSMSPG-925FS
Video Signal Generatorideo Signal Generator
Model : 217Model : 217
Pattern : 78Pattern : 78
RS-232CRS-232C
Baud Rate : 1Baud Rate : 11520015200
Remark
RS-232C Command
[CMD ID DATA]
wb
wb
wb
wb
wb
wb
00
00
00
00
00
00
00
10
1
20
2
Start white balance adjustment
Start Gain adjustment(Internal white pattern)
End Gain adjustment
Start O set adjustment (Internal white pattern)
End O set adjustment
End white Balance adjustment (Internal pattern disappear)
R Gain
G Gain
B Gain
R Cut
G Cut
B Cut
jg
jh
ji
Cool
ja
jb
jc
Mid
RS-232C COMMAND
[CMD ID DATA]
CENTER
(DEFAULT)
jd
je
j
00
00
00
192
192
192
127
127
127
Warm
Min Max
192
192
192
64
64
64
Cool
192
192
192
64
64
64
Mid
192
192
192
64
64
64
Warm

- 10 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
6-4. Adjustment of White Balance
(For manual adjustment)
- Required Equipment : When adjusting the PLASMA color
temperature, the No. 10 channel with the matrix
compensated (White, Red, Green and Blue
compensated) should be used or the CS-1000 as Color
analyzer (CA-100), which should be adjusted based on
the white balance adjustment coordinate as described
below.
(1) Enter to ‘EZ-ADJUST’ by pressing ADJ key o R/C.
(2) HEAT RUN at least 30 minutes by pressing the ‘11. TEST
Pattern’ on the Service Remote Control and adjust.
(3) Set CA-100 in Zero Calibration, when adjust PDP module
make it contacting completely in the sur ace.
(4) Select ‘6. White-Balance’ o ‘Ez - Adjust’ by pressing the
ADJ KEY on the Service R/C. Then enter adjustment mode
by pressing the Right KEY (
G ). This time white pattern is
displayed. (When press
G key, the screen enters to Full
White internal pattern.)
(5) The adjustment completes in three color temperatures as
Cool, Medium, and Warm.
(6) When R GAIN is ixed at 192:
keep G GAIN and B GAIN less than 192 and ind proper
values or adjustment.
When G GAIN is ixed at 192:
keep R GAIN and B GAIN less than 192 and ind proper
values or adjustment.
When B GAIN is ixed at 192:
keep R GAIN and G GAIN less than 192 and ind proper
values or adjustment.
(7) Adjust using Volume +/- KEY.
(8) When the adjustment is completed, press the OK (AKEY)
button to move to the Ez –Adjust screen. Press the ADJ
KEY to exit the adjustment mode.
[Re .] White Balance Adjustment Pixel and Color Temperature
(1) Standard white balance standard white balance coordinate
when using CS-1000 device:
(2) Directed color coordinate when using CA-100 CH 10
Brightness: Full white 216gray
(3) Directed color coordinate when using CA-210 CH 10
7. Check the adjustment of the plant
shipping mode
Color temperature Color analyzer Color coordinate
XY
COOL CA-100 0.276±0.002 0.283±0.002
MEDIUM CA-100 0.285±0.002 0.293±0.002
WARM CA-100 0.313±0.002 0.329±0.002
Color temperature Color analyzer Color coordinate
XY
COOL CA-210 0.276±0.002 0.283±0.002
MEDIUM CA-210 0.285±0.002 0.293±0.002
WARM CA-210 0.313±0.002 0.329±0.002
Color temperature Measuring instrument Color coordinate
XY
COOL 11000K,
∆ uv=0.000 0.276 0.283
MEDIUM 9300K,
∆ uv=0.000 0.285 0.293
WARM 6500K,
∆ uv=0.000 0.313 0.329
1
2
3
4
5
6
7
8
9
10
Digital
30
O
16:9
1
Dynamic
Cool
O
Auto
Standard
O
0
On
On
--
O
O
O
16:9
O
Normal
O
C0, C5, C6, S11,
C20, C35, C52, C68
C43
Item ConditionNo
Remark
Input Mode
Volume Level
Mute
Aspect Ratio
SET ID
Picture PSM
Color Temp.
Advanced Cinema
Black level
Sound SSM
AVL
Balance
TV Speaker
Time Auto Clock
Manual Clock
O Timer / On Timer
Sleep Timer / Auto O
Option Sub title
Child Lock
ARC
Demo
ISM Method
Low Power
Channel Memory Analog
Digital
