LG DU-50PY10 User manual

Please read this manual
carefully
and
completely
before
operating your
TV.
Retain this manual for future reference.
Record model number and serial number of the TV in the
spaces provided
below.
See the label attached on the back cover and relate this
information to
your
dealer if
you require
service.
Model Number :
Serial Number :
MODELS: DU-50PY10
DU-60PY10
LG Electronics
U.S.A.,
Inc.
TM
R
TruSurround
XT
PLASMA
TV
OWNER'S MANUAL

2 Plasma TV

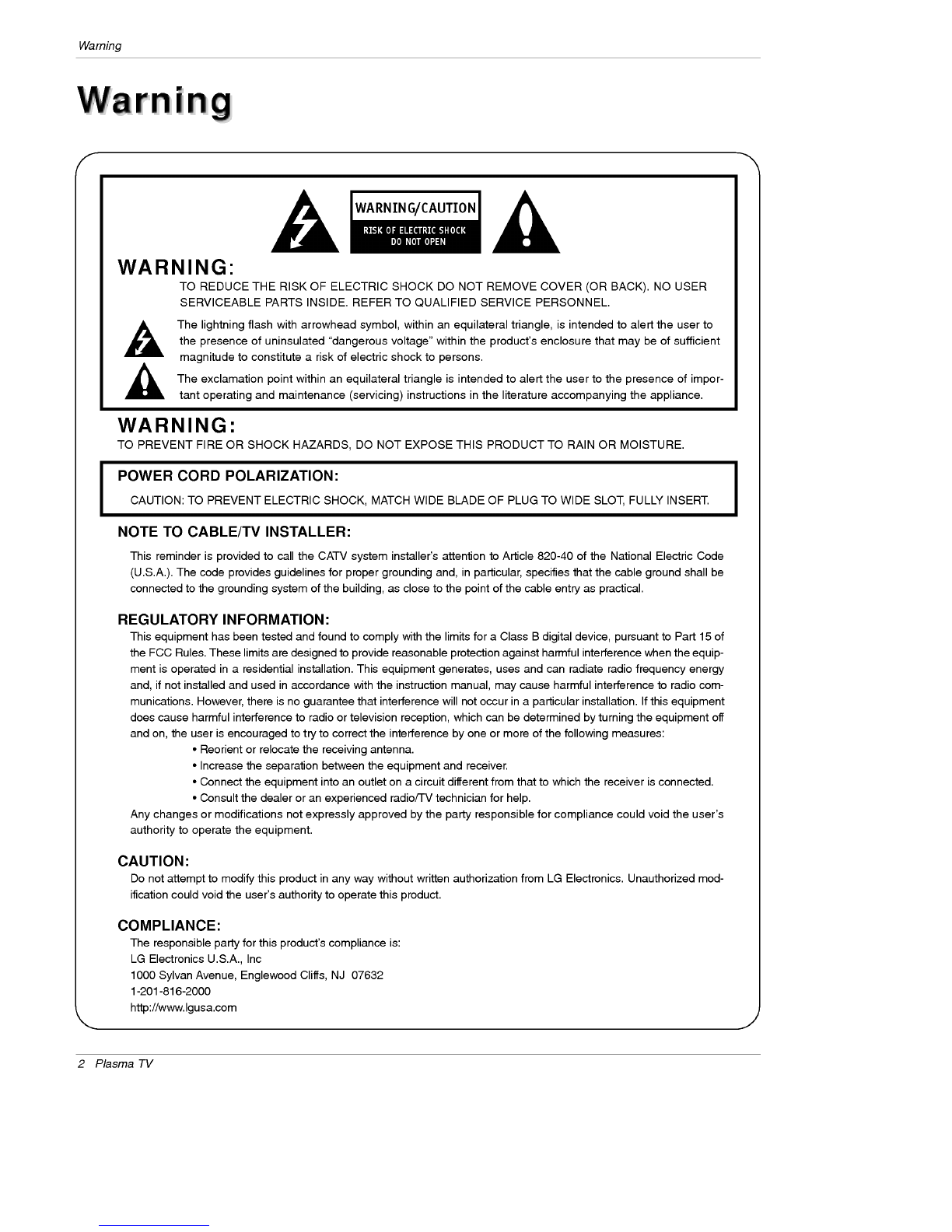

Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK).
NO USER
SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED
SERVICE PERSONNEL.
The
lightning
flash with arrowhead
symbol,
within an
equilateral triangle,
is intended to alert the user to
the
presence
of uninsulated
"dangerous voltage"
within the
product's
enclosure that
may
be of sufficient
magnitude
to constitute a risk of electric shock to
persons.
The exclamation
point
within an
equilateral triangle
is intended to alert the user to the
presence
of
impor-
tant
operating
and maintenance
(servicing)
instructions in the literature
accompanying
the
appliance.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARDS,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: TO PREVENT ELECTRIC
SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE
SLOT,
FULLY INSERT.
NOTE TO CABLE/TV INSTALLER:
This reminder is
provided
to call the CATV
system
installer's attention to Article 820-40 of the National Electric Code
(U.S.A.).
The code
provides guidelines
for
proper grounding
and,
in
particular, specifies
that the cable
ground
shall be
connected to the
grounding system
of the
building,
as close to the
point
of the cable
entry
as
practical.
REGULATORY INFORMATION:
This
equipment
has been tested and found to
comply
with the limits for a Class B
digital
device,
pursuant
to Part 15 of
the FCC Rules. These limits are
designed
to
provide
reasonable
protection against
harmful interference when the
equip-
ment is
operated
in a residential installation. This
equipment generates,
uses and can radiate radio
frequency energy
and,
if not installed and used in accordance with the instruction
manual,
may
cause harmful interference to radio com-
munications.
However,
there is no
guarantee
that interference will not occur in a
particular
installation. If this
equipment
does cause harmful interference to radio or television
reception,
which can be determined
by turning
the
equipment
off
and
on,
the user is
encouraged
to
try
to correct the interference
by
one or more of the
following
measures:
?
Reorient or relocate the
receiving
antenna.
?
Increase the
separation
between the
equipment
and receiver.
?
Connect the
equipment
into an outlet on a circuit different from that to which the receiver is connected.
?
Consult the dealer or an
experienced
radio/TV technician for
help.
Any changes
or modifications not
expressly approved by
the
party responsible
for
compliance
could void the user 's
authority
to
operate
the
equipment.
CAUTION:
Do not
attempt
to
modify
this
product
in
any way
without written authorization from LG Electronics. Unauthorized mod-
ification could void the user's
authority
to
operate
this
product.
COMPLIANCE:
The
responsible party
for this
product's compliance
is:
LG Electronics
U.S.A.,
Inc
1000
Sylvan
Avenue,
Englewood
Cliffs,
NJ 07632
1-201-816-2000
http://www.lgusa.com
WARNING/CAUTION
W
Warning
arning

Owner's Manual 3
TV
Guide
On Screen Notices for U.S.A.
TV
Guide
On Screen Notices for U.S.A.
In the United
States,
the TV Guide On Screen
system
and other related marks are
registered
marks of Gemstar-TV Guide
On Screen
system
International,
Inc. and/or one of its affiliates. In
Canada,TV
Guide On Screen
system
is a
registered
mark
of Transcontinental
Inc.,
and is used under license
by
Gemstar-TV Guide On Screen
system
International,
Inc.
The TV Guide On Screen
system
is
protected by
one or more of the
following
issued United States
patents
6,498,895,
6,418,556, 6,331,877; 6,239,794; 6,154,203; 5,940,073; 4,908,713; 4,751,578; 4,706,121.
The TV Guide On Screen
system
is manufactured under license from Gemstar-TV Guide On Screen
system
International,
Inc. and/or one of its affiliates.
Digital
Cable
Compatibility
Digital
Cable
Compatibility
This
digital
television is
capable
of
receiving
basic
analog, digital
basic and
digital premium
cable television
programming by
direct connection to a cable
system providing
such
programming.
A
security
card
provided by your
cable
operator
is
required
to view
encrypted digital programming.
Certain advanced interactive
digital
cable services such as
video-on-demand,
cable
operator
enhanced
program
the TV Guide On Screen
system,
and data enhanced television service
may require
the use of
a set
top
box. For more information contact
your
local cable
operator.
Use of the CableCARDTM TradeMark.
"CableCARDTM is a trademark of Cable Television
Laboratories,
Inc."

4 Plasma TV
Safety
Instructions
Important safeguards
for
you
and
your
new
product
Your
product
has been manufactured and tested with
your safety
in mind.
However,
improper
use can result in electrical
shock or fire hazards. To avoid
defeating
the
safeguards
that have been built into
your
new
product, please
read and observe
the
following safety points
when
installing
and
using your
new
product,
and save them for future reference.
Observing
the
simple precautions
discussed in this manual can
help you get many years
of
enjoyment
and safe
operation
that are built into
your
new
product.
This
product complies
with all
applicable
U.S. Federal
safety requirements,
and those of the Canadian Standards Association.
1.
Read Instructions
All the
safety
and
operating
instructions should be read
before the
product
is
operated.
2. Follow
Instructions
All
operating
and use instructions should be followed.
3.
Retain Instructions
The
safety
and
operating
instructions should be retained for
future reference.
4.
Heed
Warnings
All
warnings
on the
product
and in the
operating
instructions
should be adhered to.
5.
Cleaning
Unplug
this
product
from the wall outlet before
cleaning.
Do
not use
liquid
cleaners or aerosol cleaners. Use a
damp
cloth for
cleaning.
6.
Water and Moisture
Do not use this
product
near
water,
for
example,
near a bath
tub,
wash
bowl,
kitchen
sink,
or
laundry
tub,
in a wet base-
ment,
or near a
swimming pool.
7.
Accessories, Carts,
and Stands
Do not
place
this
product
on a
slippery
or tilted
surface,
or on
an unstable
cart, stand,
tripod,
bracket,
or table. The
product
may
slide or
fall,
causing
serious
injury
to a child or
adult,
and serious
damage
to the
product.
Use
only
with a
cart,
stand,
tripod,
bracket,
or table recommended
by
the manu-
facturer,
or sold with the
product. Any mounting
of the
prod-
uct should follow the manufacturer 's
instructions,
and should
use a
mounting accessory
recommended
by
the manufac-
turer.
8.
Transporting
Product
A
product
and cart combination should be moved with care.
Quick
stops,
excessive
force,
and uneven surfaces
may
cause the
product
and cart combination to overturn.
9.
Attachments
Do not use attachments not recommended
by
the
product
manufacturer as
they may
cause hazards.
10.
Ventilation
Slots and
openings
in the cabinet are
provided
for ventilation
and to ensure reliable
operation
of the
product
and to
protect
it from
overheating,
and these
openings
must not be blocked
or covered. The
openings
should never be blocked
by plac-
ing
the
product
on a
bed, sofa,
rug,
or other similar surface.
This
product
should not be
placed
in a built-in installation
such as a bookcase or rack unless
proper
ventilation is
pro-
vided or the manufacturer's instructions have been adhered
to.
11. Power
Sources
This
product
should be
operated only
from the
type
of
power
source indicated on the
marking
label. If
you
are not sure of
the
type
of
power supply
to
your
home,
consult
your product
dealer or local
power company.
For
products
intended to
operate
from
battery power,
or other
sources,
refer to the
operating
instructions.
12.
Power-Cord Polarization
This
product
is
equipped
with a three-wire
grounding type
plug,
a
plug having
a third
(grounding) pin.
This
plug
will
only
fit into the
grounding-type power
outlet. This is a
safety
fea-
ture. If
you
are unable to insert the
plug
into the
outlet,
con-
tact
your
electrician to
replace your
obsolete outlet. Do not
defeat the
safety purpose
of the
grounding-type plug.
13.
Power-Cord Protection
Power-supply
cords should be routed so that
they
are not
likely
to be walked on or
pinched by
items
placed upon
or
against
them,
paying particular
attention to cords at
plugs,
convenience
receptacles,
and the
point
where
they
exit from
the
product.
PORTABLE CART WARNING
Safety
Instructions
Safety
Instructions

Owner's Manual 5
Safety
Instructions

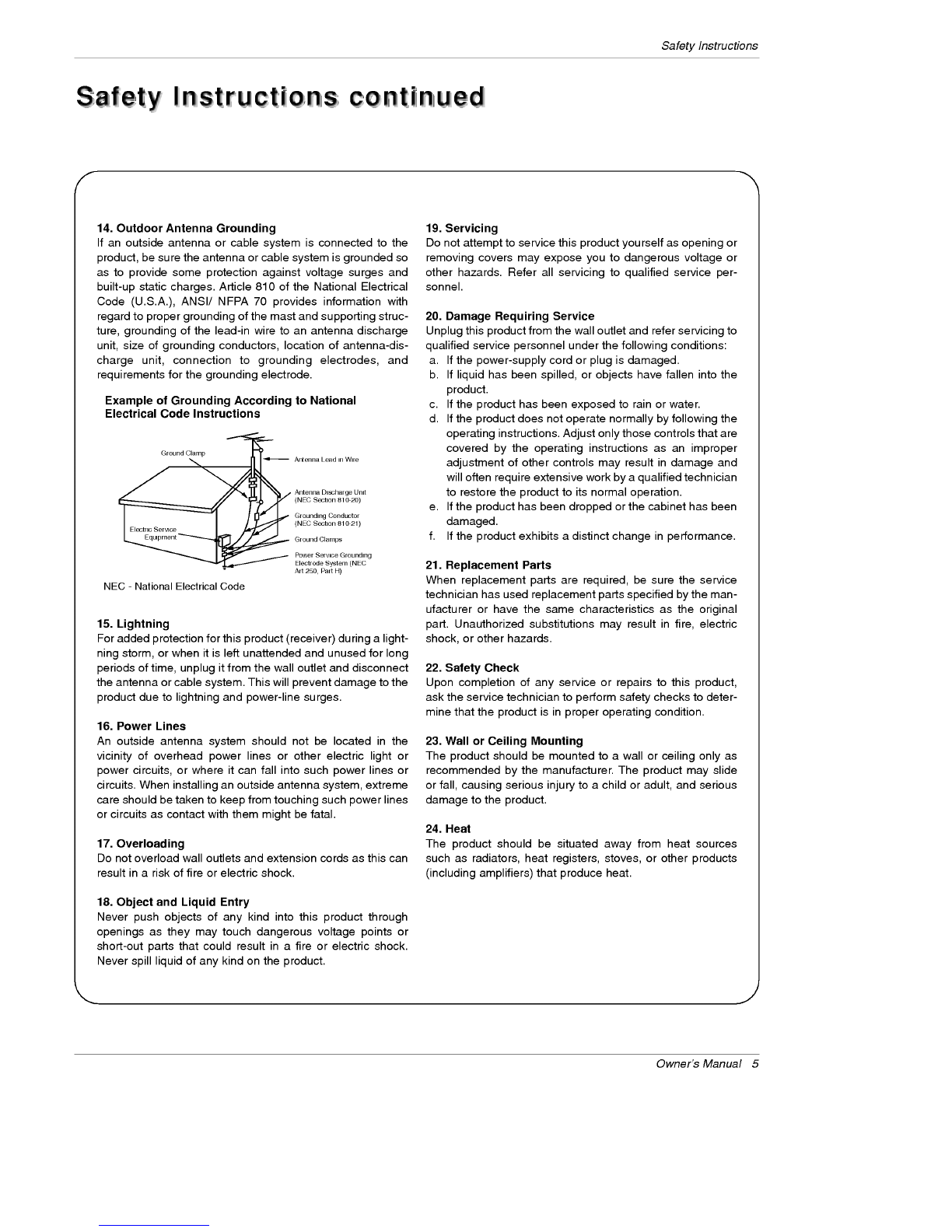

Antenna Lead in Wire
Antenna
Discharge
Unit
(NEC
Section
810-20)
Grounding
Conductor
(NEC
Section
810-21)
Ground
Clamps
Power Service
Grounding
Electrode
System (NEC
Art
250,
Part
H)
Ground
Clamp
Electric Service
Equipment
Example
of
Grounding According
to National
Electrical Code Instructions
NEC
-
National Electrical Code
14.
Outdoor Antenna
Grounding
If an outside antenna or cable
system
is connected to the
product,
be sure the antenna or cable
system
is
grounded
so
as to
provide
some
protection against voltage surges
and
built-up
static
charges.
Article 810 of the National Electrical
Code
(U.S.A.),
ANSI/ NFPA 70
provides
information with
regard
to
proper grounding
of the mast and
supporting
struc-
ture,
grounding
of the lead-in wire to an antenna
discharge
unit,
size of
grounding
conductors,
location of antenna-dis-
charge
unit,
connection to
grounding
electrodes,
and
requirements
for the
grounding
electrode.
15.
Lightning
For added
protection
for this
product (receiver) during
a
light-
ning
storm,
or when it is left unattended and unused for
long
periods
of
time,
unplug
it from the wall outlet and disconnect
the antenna or cable
system.
This will
prevent damage
to the
product
due to
lightning
and
power-line surges.
16. Power
Lines
An outside antenna
system
should not be located in the
vicinity
of overhead
power
lines or other electric
light
or
power
circuits,
or where it can fall into such
power
lines or
circuits. When
installing
an outside antenna
system,
extreme
care should be taken to
keep
from
touching
such
power
lines
or circuits as contact with them
might
be fatal.
17.
Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18.
Object
and
Liquid Entry
Never
push objects
of
any
kind into this
product through
openings
as
they may
touch
dangerous voltage points
or
short-out
parts
that could result in a fire or electric shock.
Never
spill liquid
of
any
kind on the
product.
19.
Servicing
Do not
attempt
to service this
product yourself
as
opening
or
removing
covers
may expose you
to
dangerous voltage
or
other hazards. Refer all
servicing
to
qualified
service
per-
sonnel.
20.
Damage Requiring
Service
Unplug
this
product
from the wall outlet and refer
servicing
to
qualified
service
personnel
under the
following
conditions:
a. If the
power-supply
cord or
plug
is
damaged.
b. If
liquid
has been
spilled,
or
objects
have fallen into the
product.
c. If the
product
has been
exposed
to rain or water.
d. If the
product
does not
operate normally by following
the
operating
instructions.
Adjust only
those controls that are
covered
by
the
operating
instructions as an
improper
adjustment
of other controls
may
result in
damage
and
will often
require
extensive work
by
a
qualified
technician
to restore the
product
to its normal
operation.
e. If the
product
has been
dropped
or the cabinet has been
damaged.
f. If the
product
exhibits a distinct
change
in
performance.
21.
Replacement
Parts
When
replacement parts
are
required,
be sure the service
technician has used
replacement parts specified by
the man-
ufacturer or have the same characteristics as the
original
part.
Unauthorized substitutions
may
result in
fire,
electric
shock,
or other hazards.
22.
Safety
Check
Upon completion
of
any
service or
repairs
to this
product,
ask the service technician to
perform safety
checks to deter-
mine that the
product
is in
proper operating
condition.
23. Wall or
Ceiling Mounting
The
product
should be mounted to a wall or
ceiling only
as
recommended
by
the manufacturer. The
product may
slide
or
fall,
causing
serious
injury
to a child or
adult,
and serious
damage
to the
product.
24.
Heat
The
product
should be situated
away
from heat sources
such as
radiators,
heat
registers,
stoves,
or other
products
(including amplifiers)
that
produce
heat.
Safety
Instructions continued
Safety
Instructions continued

6 Plasma TV
Contents
After
reading
this
manual,
keep
it
handy
for future reference.
Warnings.....................................2
DigitalCableCompatibility.........................3
SafetyInstructions.............................4~5
Introduction
Controls...............................8
ConnectionOptions......................9
RemoteControlKeyFunctions
. . . . . . . . . . . .10
Installation
Joining
the TV
assembly
to the wall to
protect
the set tum-
bling...................................11
InstallationInstructions.....................12
External
Equipment
Connections ..... .... .13~18
AntennaorCableConnection . . . . . . . . . . .13~14
VCRSetup...........................14

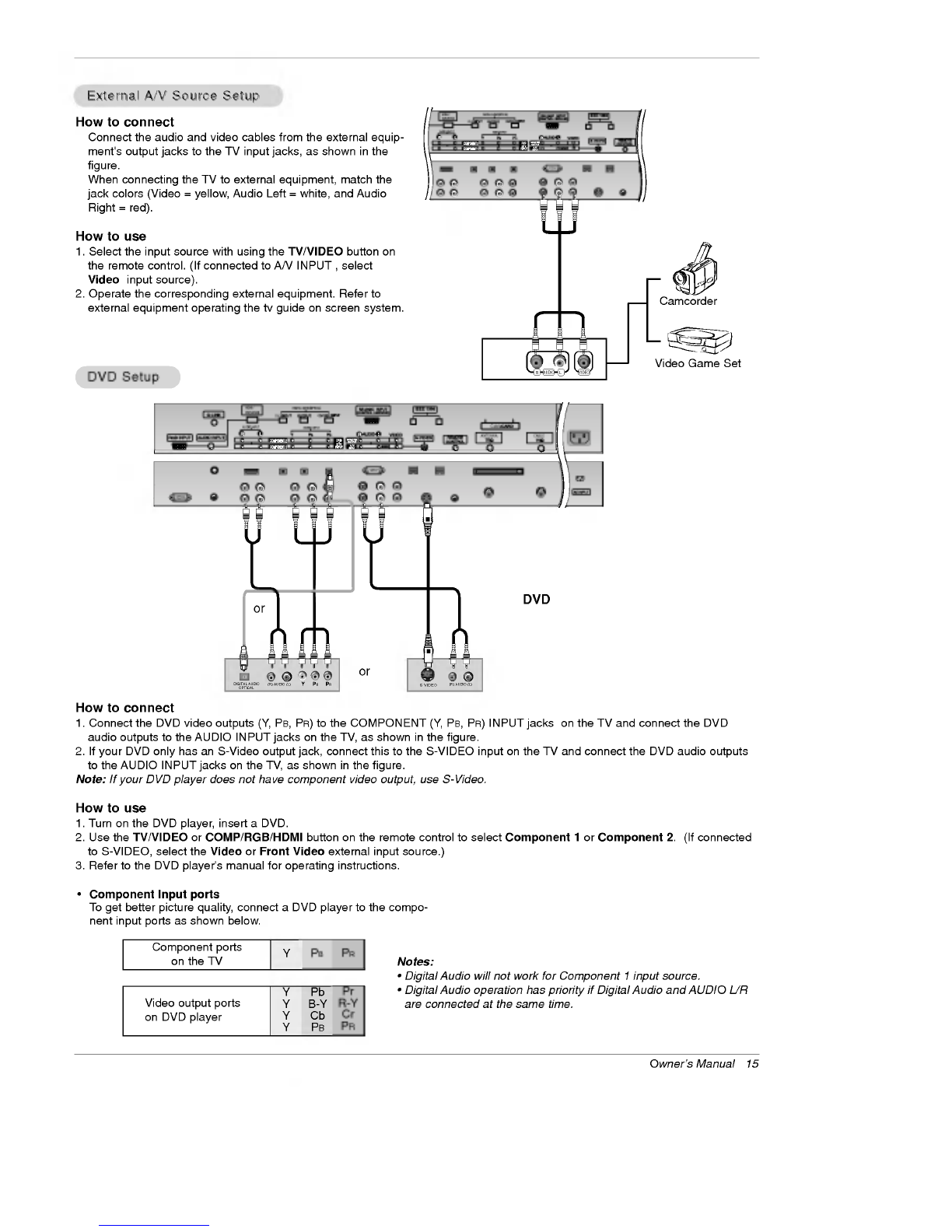

ExternalA/VSourceSetup................15
DVDSetup............................15
CableCARDTMSetup.....................16
HDSTBSetup.........................16
PCSetup.............................17
MonitorOutSetup......................18
DigitalAudioOutput.....................18

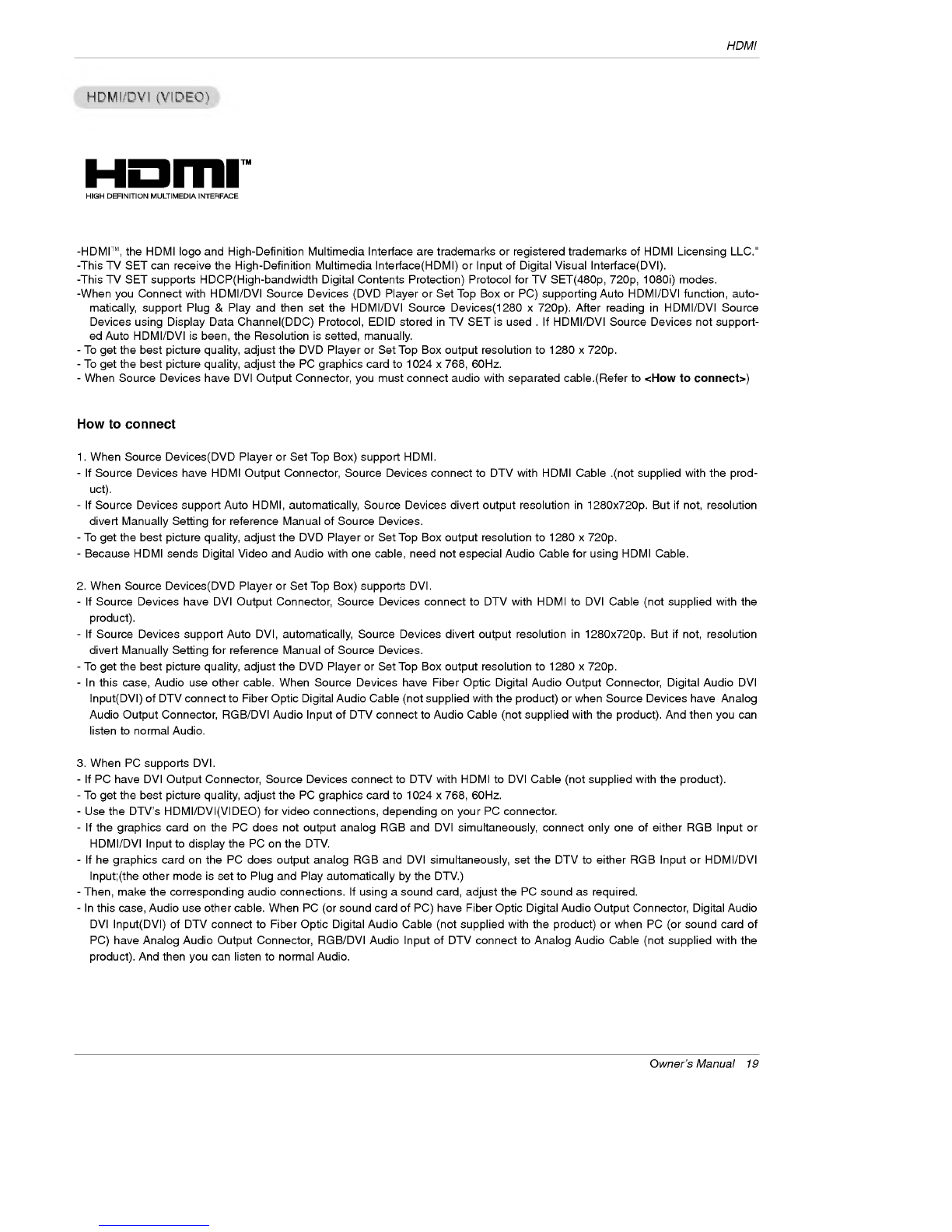

HDMI/DVI(VIDEO).....................19~21
TVGuideOnScreenSetup..............22~31
IEEE1394................................32~36
TVGuideOnScreenSystem.
. . . . . . . . . . . . .37~55
Operation
Screen
Setup
for PC mode
Adjustments
for screen
Position, Size,
and Phase . .56
On-screen Menus
Language
Selection . . . . . . . . .57
Setup
Menu
Options
EZScan(ChannelSearch)................58
ManualScan..........................58
ChannelEdit...........................59
DTVSignalStrength.....................59
ChannelLabelSetup....................60
MainPictureSourceSelection . . . . . . . . . . . . .60
Aux.Label.............................60
Video Menu
Options
EZPicture............................61
Manual Picture Control
(Off Option)
. . . . . . . . .61
ColorTemperatureControl................61
XD..................................62
VideoPreset..........................62
Audio Menu
Options
AudioLanguage........................63
EZSoundRite/EZSound.................63
ManualSoundControl(offOption)
. . . . . . . . . .63
FrontSurround.........................64
TVSpeakersOn/OffSetup................64
Stereo/SAPBroadcastsSetup
. . . . . . . . . . . . .64
Time Menu
Options
AutoClockSetup.......................65
ManualClockSetup.....................65
On/OffTimerSetup.....................65
SleepTimer/AutoOff....................66
Option
Menu Features
AspectRatioControl.....................67
CinemaModeSetup.....................67
Caption...............................68
Caption/Text..........................68
CaptionOption/Demo...................69
ISMMethod...........................70
LowPower............................71
SplitZoom............................71
Lock Menu
Options
ParentalLockSetup.....................73
CableCARDTM Function
Cablemenuoptions.....................74
Scrambledchannel......................74
CableChannelList......................75
EmergencyAlertMessage................75
Remote Control
PIP
(Picture-in-Picture)/Twin
Picture . . . . . . . . . ..76
WatchingPIP/POP/TwinPicture.
. . . . . . . . . . ..76
Selecting
an
Input Signal
Source for PIP/Twin Picture . .76
SwappingPIP/TwinPicture................76
TVProgramSelectionforPIP.
. . . . . . . . . . . . .76
MovingthePIPsubpicture................77
Adjusting
Main and Sub Picture Sizes for Twin Picture . .77
POP
(Picture-out-of-Picture:
Channel
Scan)
. . .77
Information..............................78
EZMute................................79
ExternalControlDeviceSetup.
. . . . . . . . . . . . . . .80~84
IRCodes................................85~86
ProgrammingtheRemote......................87
ProgrammingCodes.......................88~89
TroubleshootingChecklist......................90
Maintenance.................................91
ProductSpecifications.........................92
Warranty.................................95~96
Contents
Contents
Setup
and
Operation
Checklist
Setup
and
Operation
Checklist
Setup
and
Operation
Checklist
(See pages
11~18 for available connection and
operational setup options.)
1.
Unpack
TV and all accessories.
2. Connect all external video and audio
equipment.
see
pages
13~ 18.
3 Install batteries in remote control.
See
page
10.
4. Turn TV on.
See
page
57.
5. Turn video source
equipment
on.
6. Select
viewing
source for TV.
See
pages
60.
7. Fine-tune source
and sound to
your personal prefer-
ence or as
required by
source.
See
pages
61~ 64.
8. Additional features set
up
See Contents above.

Owner's Manual 7

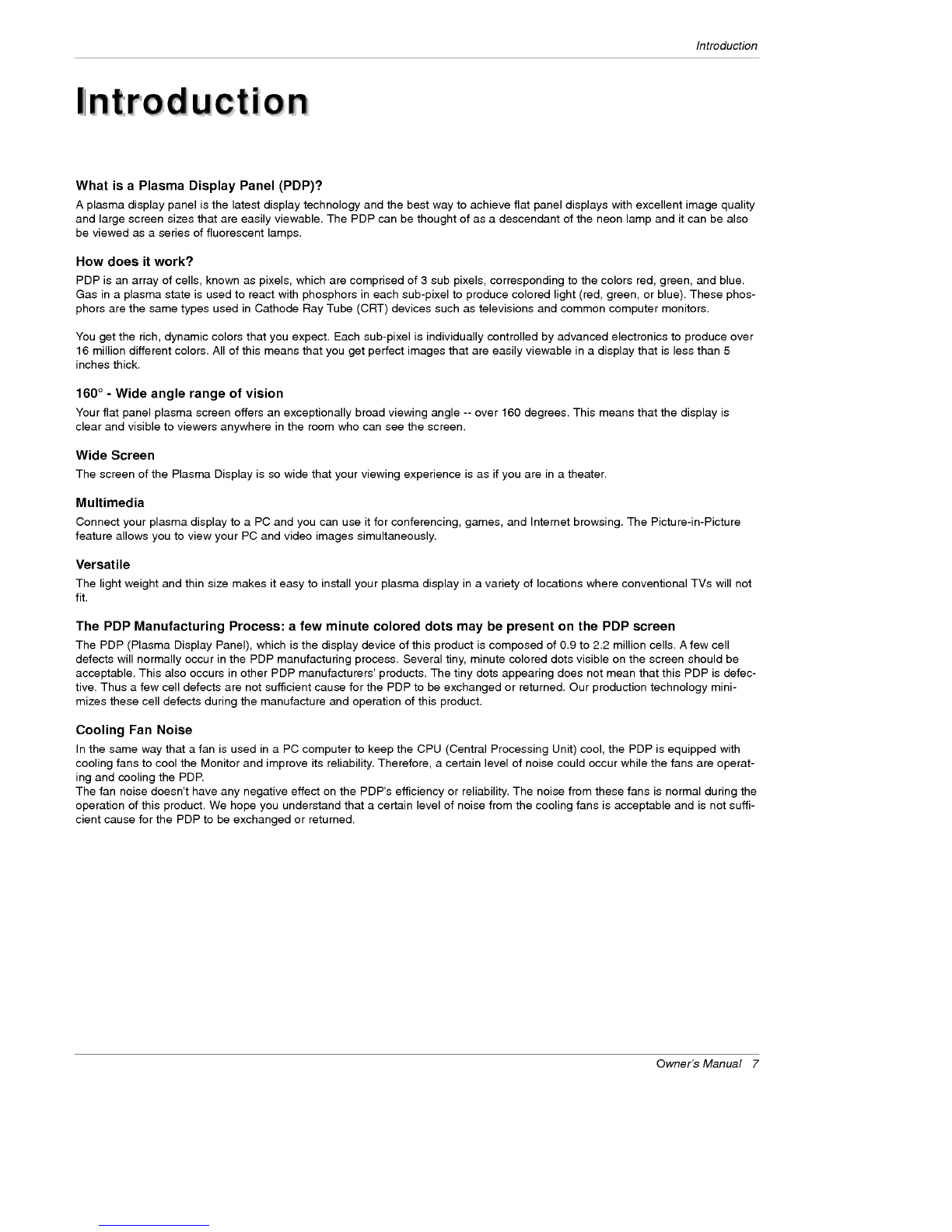

Introduction
Introduction
Introduction
What is
a
Plasma
Display
Panel
(PDP)?
A
plasma display panel
is the latest
display technology
and the best
way
to achieve flat
panel displays
with excellent
image quality
and
large
screen sizes that are
easily
viewable. The PDP can be
thought
of as a descendant of the neon
lamp
and it can be also
be viewed as a series of fluorescent
lamps.
How
does it
work?
PDP is an
array
of
cells,
known as
pixels,
which are
comprised
of 3 sub
pixels, corresponding
to the colors
red,
green,
and blue.
Gas in a
plasma
state is used to react with
phosphors
in each
sub-pixel
to
produce
colored
light (red, green,
or
blue).
These
phos-
phors
are the same
types
used in Cathode
Ray
Tube
(CRT)
devices such as televisions and common
computer
monitors.
You
get
the
rich,
dynamic
colors that
you expect.
Each
sub-pixel
is
individually
controlled
by
advanced electronics to
produce
over
16 million different colors. All of this means that
you get perfect images
that are
easily
viewable in a
display
that is less than 5
inches thick.
160°
-
Wide
angle range
of
vision
Your flat
panel plasma
screen offers an
exceptionally
broad
viewing angle
--
over 160
degrees.
This means that the
display
is
clear and visible to viewers
anywhere
in the room who can see the screen.
Wide Screen
The screen of the Plasma
Display
is so wide that
your viewing experience
is as if
you
are in a theater.
Multimedia
Connect
your plasma display
to a PC and
you
can use it for
conferencing, games,
and Internet
browsing.
The Picture-in-Picture
feature allows
you
to view
your
PC and video
images simultaneously.
Versatile
The
light weight
and thin size makes it
easy
to install
your plasma display
in a
variety
of locations where conventional TVs will not
fit.
The PDP
Manufacturing
Process:
a few
minute colored dots
may
be
present
on
the
PDP
screen
The PDP
(Plasma Display Panel),
which is the
display
device of this
product
is
composed
of 0.9 to 2.2 million cells. A few cell
defects will
normally
occur in the PDP
manufacturing process.
Several
tiny,
minute colored dots visible on the screen should be
acceptable.
This also occurs in other PDP manufacturers'
products.
The
tiny
dots
appearing
does not mean that this PDP is defec-
tive. Thus a few cell defects are not sufficient cause for the PDP to be
exchanged
or returned. Our
production technology
mini-
mizes these cell defects
during
the manufacture and
operation
of this
product.
Cooling
Fan
Noise
In the same
way
that a fan is used in a PC
computer
to
keep
the CPU
(Central Processing Unit)
cool,
the PDP is
equipped
with
cooling
fans to cool the Monitor and
improve
its
reliability.
Therefore,
a certain level of noise could occur while the fans are
operat-
ing
and
cooling
the PDP.
The fan noise doesn't have
any negative
effect on the PDP's
efficiency
or
reliability.
The noise from these fans is normal
during
the
operation
of this
product.
We
hope you
understand that a certain level of noise from the
cooling
fans is
acceptable
and is not suffi-
cient cause for the PDP to be
exchanged
or returned.

8 Plasma TV
Introduction
TV/VIDEO
MENU
VOL CH
POWER TV GUIDE
POWER
Controls
Controls
-
This is a
simplified representation
of front
panel.
Here shown
may
be somewhat different from
your
TV.
Front Panel Controls
Front Panel Controls
TV/VIDEO
MENU VOL
CH
TV GUIDE
MENU
Button
TV/VIDEO
Button
POWER
Button
VOLUME
(
,
)
Buttons
CHANNEL
(
,
)
Buttons
INDEX
Switches
LED
Display
on or off.
TV
GUIDE Button
Remote Control
Sensor
Power
Indicator
Illuminates
orange
in stand-
by
mode,
Illuminates
green
when the TV is turned on.
(If power
isn't turn on in
red,
contact
your
service
center.)

Owner's Manual 9
Introduction

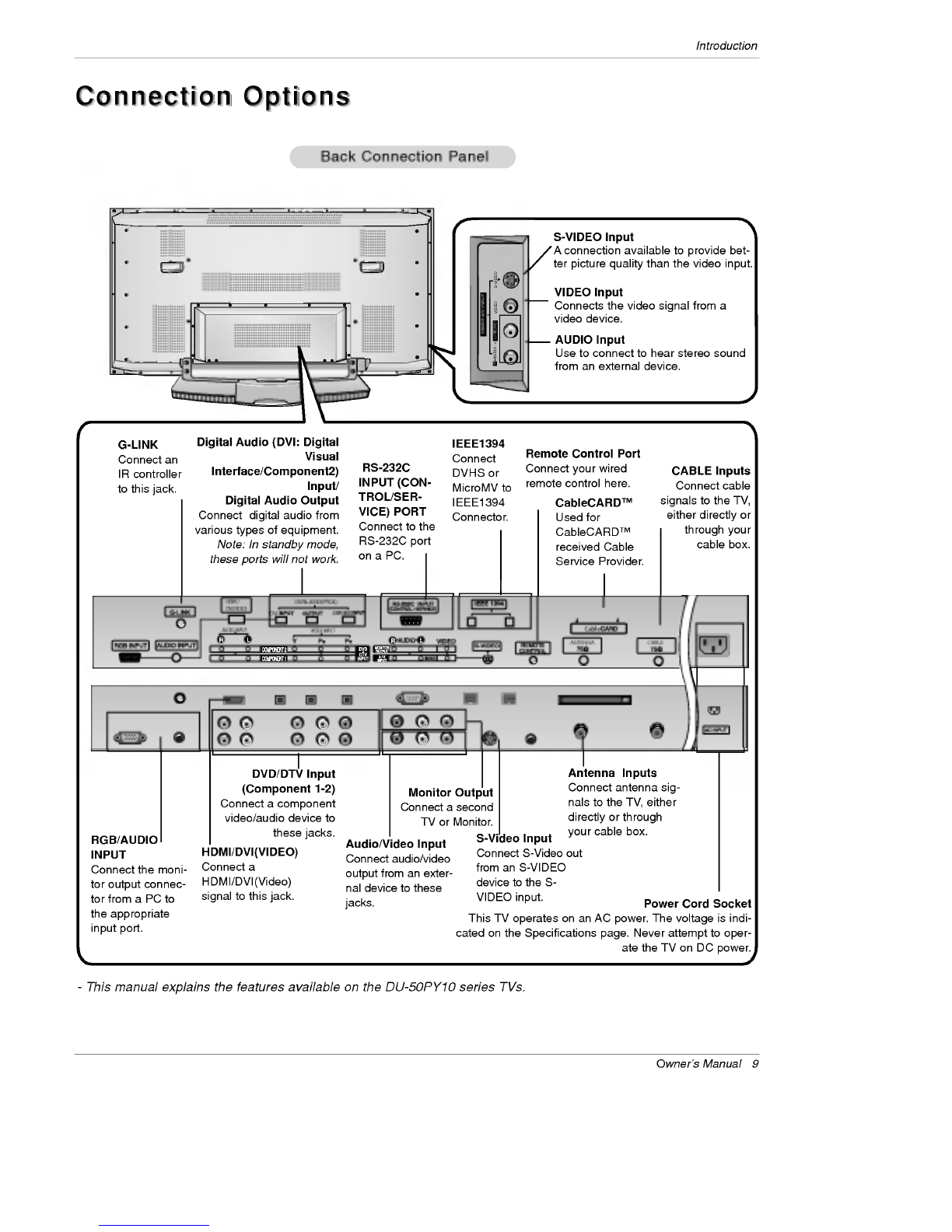

Connection
Options
Connection
Options
R
S-VIDEO
VIDEO
L/MONO
AUDIO
FRONT A/V INPUT
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO INPUT
CABLE
HDMI
/
DVI(VIDEO)
Cable
ANTENNA
AC NPU
Back Connection Panel
Back Connection Panel
Antenna
Inputs
Connect antenna
sig-
nals to the
TV,
either
directly
or
through
your
cable box.
RGB/AUDIO
INPUT
Connect the moni-
tor
output
connec-
torfromaPCto
the
appropriate
input port.
Digital
Audio
(DVI: Digital
Visual
Interface/Component2)
Input/
Digital
Audio
Output
Connect
digital
audio from
various
types
of
equipment.
Note: In
standby
mode,
these
ports
will not work.
DVD/DTV
Input
(Component 1-2)
Connect a
component
video/audio device to
these
jacks.
Monitor
Output
Connect a second
TV or Monitor.
Remote Control Port
Connect
your
wired
remote control here.
S-Video
Input
Connect S-Video out
from an S-VIDEO
device to the S-
VIDEO
input.
IEEE1394
Connect
DVHS or
MicroMV to
IEEE1394
Connector.
CABLE
Inputs
Connect cable
signals
to the
TV,
either
directly
or
through your
cable box.
RS-232C
INPUT
(CON-
TROL/SER-
VICE)
PORT
Connect to the
RS-232C
port
onaPC.
CableCARDTM
Used for
CableCARDTM
received Cable
Service Provider.
G-LINK
Connect an
IR controller
to this
jack.
HDMI/DVI(VIDEO)
Connect a
HDMI/DVI(Video)
signal
to this
jack.
S-VIDEO
Input
A connection available to
provide
bet-
ter
picture quality
than the video
input.
VIDEO
Input
Connects the video
signal
from a
video device.
AUDIO
Input
Use to connect to hear stereo sound
from an external device.
Power
Cord Socket
This TV
operates
on an AC
power.
The
voltage
is indi-
cated on the
Specifications page.
Never
attempt
to
oper-
ate the TV on DC
power.
Audio/Video
Input
Connect audio/video
output
from an exter-
nal device to these
jacks.
-
This manual
explains
the features available on the DU-50PY10 series TVs.

10 Plasma TV
Installation
-
When
using
the remote
control,
aim it at the remote control sensor on the TV.
SKIP
L
GHT
T
/VIDEO
MODE
COMP/RGB/HDMI
MUTE
SURF
VOL CH
PGUP
PGDN
INFO
SAP
RATIO
CC
MENU
TV GUIDE
TIMER
EXIT
PLAY PAUSE STOP RECORD
PIP PIPCH- PIPCH+ PIPINPUT
ENTER
SIGNAL SWAP
REW FF
POWER
1394
FLASHBK
VIDEO
SOUND
ADJUST
DAY +
DAY
-
FREEZE
ZOOM
LIGHT
Illuminates the remote control buttons.
TV/VIDEO
Selects:
DTV,
Analog,
Video,
Front
Video,
Component
1-2,
RGB-DTV
(or RGB-PC),
HDMI/DVI
input
sources.
COMP/RGB/HDMI
Selects:
Component
1-2,
RGB-DTV
(or
RGB-
PC),
HDMI/DVI
input
sources.
NUMBER
buttons
DASH
Uses to enter a
program
number for
multiple
program
channels such as
2-1,2-2,etc.
MUTE
Switches the sound on or
off.(Refer
to
p.79)
VCR/DVD
BUTTONS
Control some video cassette recorders or
DVD
player. ("RECORD"
button is not avail-
able for DVD
player.)
Selects the
frequency setting
in the record-
ing:
Once,
Regularly, Weekly,
Off.("RECORD"
button
only)
RATIO
Changes
the
aspect
ratio.
MODE
Selects the remote
operating
mode:
TV,
VCR, DVD, CABLE,
HDSTB or AUDIO.
Select other
operating
modes,
for the
remote to
operate
external devices.
POWER
Turns
your
TV or
any
other
programmed
equipment
on or
off,
depending
on mode.
1394
(Refer
to
p.32-36)
SURF
Use to scroll the Surf channel.
CC
Select a closed
caption:
Off, CC1~4,
Text1~4.
FLASHBK
Tunes to the last channel viewed.
THUMBSTICK
(Up/Down/Left/Right/ENTER)
Allows
you
to
navigate
the on-screen menus
and
adjust
the
system settings
to
your pref-
erence.
CHANNEL
UP/DOWN
Selects available channels found with EZ
scan.
PAGE UP/PAGE
DOWN
Moves from one full set of screen infor-
mation to the next one.
EXIT
Clears all on-screen
displays
and returns to
TV
viewing
from
any
menu.
TIMER
Lets
you
select the amount of time before
your
TV turns itself off
automatically.
VOLUME UP/DOWN
Increases/decreases the sound level.
SAP
Selects MTS sound:
Mono, Stereo,
and SAP
in
Analog
mode.
Change
the audio
language
in DTV mode.
MENU
Brings up
the main menu to the screen.
Enters or exits a Panel Menu in the TV Guide On
Screen
system.
INFO
When
you
watch the
TV,
information
displays
on
top
of the screen. Not available in
Component
1-2,
RGB and HDMI/DVI
mode.(Refer
to
p.78)
TV
GUIDE
Brings up
the TV Guide On Screen
system
to
the screen.
PIP
Switches between
PIP,
POP
(Picture-out-of-
Picture)
and Twin
modes.
Switches the video window
locking
or
unlocking
in the
Listings
Grid.
PIPCH-/PIPCH+
Changes
to next
higher/lower
PIP channel.
PIP INPUT
Selects the
input
source for the sub
picture.
SWAP
Exchanges
the main/sub
images
in
PIP/Twin
mode.
VIDEO
Adjusts
the
factory preset picture
depending
on the
viewing
environment.
ADJUST
Adjusts
screen
position,
size,
and
phase
in PC mode.
SOUND
Selects the sound
appropriate
for the
program's
character.
SIGNAL
Displays
the
digital signal strength.
Installing
Batteries
?
Open
the
battery compartment
cover on the back side and install the batteries
matching
correct
polarity (+
with
+,
-
with
-).
?
Install two 1.5V AA batteries. Don't mix old or used batteries with new ones.
Replace
cover.
Remote Control
Key
Functions
Remote Control
Key
Functions
FREEZE
Freezes the
currently-viewed picture.
Main
pic-
ture is frozen in PIP/Twin
mode.
ZOOM
Enlarges
the main
size.
DAY+/DAY-
Moves forward or backward in 24 hour
increments in the
Listings
Grid.

Owner 's Manual 11
Installation
-
Secure the TV
assembly by joining
it to a wall
by using
the TV/Wall brackets.
Joining
the TV
assembly
to the wall to
protect
the set
tumbling
?
After the set must be mounted on the desk
top,
install the
TV brackets on the TV as shown.
Install the TV brackets on the TV as shown.
Insert the 2 bolts and
tighten securely,
in the
upper
holes
on the bracket.
Install the wall brackets on the wall with 4
bolts*,
(not
supplied
with the
product),
as shown.
Match the
height
of the TV brackets and the wall brack-
ets.
Check to be sure the brackets are
tightened securely.
?
Secure the TV
assembly
to the wall with
strong strings
or wound wire
cables,
(not supplied
with the
product),
as
shown.
Installation
Installation
Owner's Manual
1.5V
1.5V
Batteries
Power Cord
LIGHT
TVIDEO
MODE
COMP/RGB/DVI
MUTE SURF
VOL CH
NFO
SAP RATO
CC
MENU
SOUND VDEO
EXIT
PLAY PAUSE ST OP RECORD
PP PIPCH- PIPCH+ PPINPUT
FREEZE
ADJUST
OK
ZOOM SGNAL SWAP
REW FF SKIP
POWER
TMER
FLASHBK
75Ω Round Cable
Ensure that the
following
accessories are included with
your plasma display.
If an
accessory
is
missing, please
contact the dealer
where
you purchased
the
product.
2-TV brackets
2-Wall brackets
4-TV bracket
bolts(50")
G-LINK Cable
2-TV bracket
bolts(60")

12 Plasma TV
Installation
Installation Instructions
Installation Instructions
?
The TV can be installed in various
ways
such as on a
wall,
or on a
desktop
etc.
?
The TV is
designed
to be mounted
horizontally.
The
speakers
shown are
optional.
GROUNDING
Ensure that
you
connect the
grounding
/ earth wire to
prevent possible
electric shock. If
grounding
methods are not
possible,
have a
qualified
electrician install a
separate
circuit breaker. Do not
try
to
ground
the
unit
by connecting
it to
telephone
wires,
lightening
rods,
or
gas pipes.
Power
Supply
Short-circuit
Breaker
4 inches
4 inches
4 inches 4 inches
2 inches
W Wall Mount: Horizontal installation
all Mount: Horizontal installation
For proper
ventilation,
allow a clearance of 4" on each
side and 2" from the wall. Detailed installation instruc-
tions are available from
your
dealer,
see the
optional
Wall
Mounting
Bracket Installation and
Setup
The TV
guide
on screen
system.
4 inches
4 inches
2.36 inches
4 inches
2 inches
Desktop
Pedestal Installation
Desktop
Pedestal Installation
For proper
ventilation,
allow a clearance of 4" on each
side and the
top,
2.36" on the
bottom,
and 2" from the
wall. Detailed installation instructions are included in
the
optional Desktop
Stand Installation and
Setup
The
tv
guide
on screen
system
available from
your
dealer.

Owner 's Manual 13
Installation
Antenna or Cable Connection
Antenna or Cable Connection
External
Equipment
Connections
External
Equipment
Connections
-
Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections
-
For
optimum picture quality, adjust
antenna direction if needed.
1.
Analog
and
Digital
TV
signals provided
on
antenna
2.
Analog
and
Digital
TV
signals provided
on
cable
CABLE ANTENNA
Multi-family Dwellings/Apartments
(Connect
to wall antenna
socket)
Single-family Dwellings
/Houses
(Connect
to wall
jack
for outdoor
antenna)
Outdoor
Antenna
Wall Antenna
Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire
(75 ohm)Bronze
Wire
Turn clockwise to
tighten.
Bronze Wire
Be careful not to bend the bronze wire when
connecting
the antenna.
Bronze Wire
Cable TV Wall
Jack
RF Coaxial Wire
(75 ohm)
CABLE
Cable
ANTENNA

14 Plasma TV
Installation
-
To avoid
noise
(interference),
leave an
adequate
distance between the VCR and TV
-
Use the ISM Method
(on
the
Option menu)
feature to avoid
having
a fixed
remain on the screen for a
long period
of time.
If the 4:3
format is
used;
the fixed
images
on the sides of the screen
may
remain visible on the screen.
Connection
Option
1
Set VCR
output
switch to 3 or 4 and then tune
TV to the same channel number.
Connection
Option
2
1. Connect the audio and video cables from the
VCR's
output jacks
to the TV
input jacks,
as
shown in the
figure.
When
connecting
the TV to
VCR,
match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red).
If
you
connect an S-VIDEO
output
from VCR to
the S-VIDEO
input,
the
picture quality
is
improved; compared
to
connecting
a
regular
VCR to the Video
input.
2. Insert a video
tape
into the VCR and
press
PLAY on the VCR.
(Refer
to the VCR owner's
manual.)
3. Select the
input
source with
using
the
TV/VIDEO button on the remote control.
(If
connected to A/V INPUT
,
select
Video
input
source)
Do not connect to both Video and
S-Video at the same time.
VCR
Setup
VCR
Setup
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
DVI COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO INPUT
CABLE
HDMI /
DVI(VIDEO)
Cable
ANTENNA
VCR Rear
1
2
Note:
The TV will let
you
know when the
analog,
cable,
and
digital
channel scans are
complete.
?
In a
poor signal
area to
improve picture quality, purchase
and install a
signal amplifier.
?
If the antenna needs to be
split
for two
TV's,
install a "2-
Way Signal Splitter"
in the connections.
?
If the antenna is not installed
properly,
contact
your
deal-
er for assistance.
Cable
ANTENNA
Signal
Amplifier
3.
Analog
and
Digital
TV
signals provided
on
cable and antenna
Antenna
RF Coaxial Wire
(75 ohm)
Bronze Wire
Turn clockwise to
tighten.
Cable TV Wall
Jack
RF Coaxial Wire
(75 ohm)
CABLE
Cable
ANTENNA

Owner 's Manual 15
?
Component Input ports
To
get
better
picture quality,
connect a DVD
player
to the
compo-
nent
input ports
as shown below.
How
to connect
Connect the audio and video cables from the external
equip-
ment's
output jacks
to the TV
input jacks,
as shown in the
figure.
When
connecting
the TV to external
equipment,
match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red).
How
to use
1. Select the
input
source with
using
the TV/VIDEO button on
the remote control.
(If
connected to A/V INPUT
,
select
Video
input source).
2.
Operate
the
corresponding
external
equipment.
Refer to
external
equipment operating
the tv
guide
on screen
system.
Component ports
on the TV
YPBPR
Video
output ports
on DVD
player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How
to connect
1. Connect the DVD video
outputs (Y,
PB,
PR)
to the COMPONENT
(Y,
PB,
PR)
INPUT
jacks
on the TV and connect the DVD
audio
outputs
to the AUDIO INPUT
jacks
on the
TV,
as shown in the
figure.
2. If
your
DVD
only
has an S-Video
output jack,
connect this to the S-VIDEO
input
on the TV and connect the DVD audio
outputs
to the AUDIO INPUT
jacks
on the
TV,
as shown in the
figure.
Note:
If
your
DVD
player
does not have
component
video
output,
use S-Video.
How
to use
1. Turn on the DVD
player,
insert a DVD.
2. Use the TV/VIDEO or
COMP/RGB/HDMI
button on the remote control to select
Component
1 or
Component
2.
(If
connected
to
S-VIDEO,
select the
Video
or
Front Video
external
input source.)
3. Refer to the DVD
player's
manual for
operating
instructions.
External
External
A/V Source
Setup
A/V Source
Setup
DVD
Setup
DVD
Setup
RL
AUDIO VIDEO
DVI COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEOINPUT
AUDIO INPUT
HDMI /
DVI(VIDEO)
C
B R
(R)
AUDIO
(L)
DIGITAL AUDIO
OPTICAL
(R)
AUDIO
(L)
S-VIDEO
CABLE
Cable
ANTENNA
DVI COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO INPUT
HDMI /
DVI(VIDEO)
DVD
or
Camcorder
Video Game Set
Notes:
?
Digital
Audio will not work for
Component
1
input
source.
?
Digital
Audio
operation
has
priority
if
Digital
Audio and AUDIO L/R
are connected at the same time.
or

16 Plasma TV
Installation
-
This TV can receive
Digital
Over-the-air/Cable
signals
without an external
digital set-top
box.
However,
if
you
do receive
Digital
signals
from a
digital set-top
box or other
digital
external
device,
refer to the
figure
as shown below.
-
This TV
supports
HDCP
(High-bandwidth Digital
Contents
Protection) protocol
for
Digital
Contents
(480p,720p,1080i).
How
to connect
Use the TV's COMPONENT
(Y,
PB,
PR)
INPUT,
RGB or HDMI/DVI
jack
for video
connections,
depending
on
your set-top
box connector.
Then,
make the
corresponding
audio connections.
How
to use
1. Turn on the
digital set-top
box.
(Refer
to the owner's manual for the
digital set-top box.)
2. Use TV/VIDEO or
COMP/RGB/HDMI
on the remote control to select
Component
1,
Component
2, RGB-DTV,
or HDMI/DVI source.
HDSTB
Setup
HDSTB
Setup
(R)
AUDIO
(L)
RGB-DTV OUTPUT B
R
(R)
AUDIO
(L)
DIGITAL AUDIO
OPTICAL (R)
AUDIO
(L)
DVI-DTV OUTPUT
DIGITAL AUDIO
OPTICAL
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO INPUT
HDMI /
DVI( VIDEO)
CABLE
Cable
ANTENNA
HDMI-DTV OUTPUT
Digital Set-top
Box
or
or
or
or
Signal
480i
480p
720p
1080i
Component
1/2
Yes
Yes
Yes
Yes
RGB-DTV,HDMI/DVI
No
Yes
Yes
Yes
CableCARD
CableCARDTM
TM
Setup
Setup
I
CABLE
Cable
ANTENNA
How
to use
Insert the CableCARDTM
TM
received from Cable Service
provider
to
CableCARDTM
TM
slot of TV back
panel.
If Host or CableCARDTM
TM
does not
display
on the
screen,
contact with Cable
service
provider by phone.
Note
:
?
CableCARDTM
TM
has the
types
of
Motorola,
Scientific
Atlanta,
SCM etc..
These 3
types
of CableCARDTM
TM
can be used for this PLASMA TV.
Caution:
When
removing
the CableCARDTM
TM,
do not
fall it as this
may
cause
impact
to the
CableCARDTM TM.

Owner 's Manual 17
Installation
How
to connect
1. To
get
the best
picture quality, adjust
the PC
graphics
card to
1024x768,
60Hz.
2. Use the TV's RGB INPUT or HDMI/DVI
(Digital
Visual
Interface)
INPUT
port
for video
connections,
depending
on
your
PC con-
nector.
?
If the
graphic
card on the PC does not
output analog
and
digital
RGB
simultaneously,
connect
only
one of either RGB INPUT
or DVI INPUT to
display
the PC on the TV.
?
If the
graphic
card on the PC does
output analog
and
digital
RGB
simultaneously,
set the TV to either RGB or
HDMI/DVI;
(the
other mode is set to
Plug
and
Play automatically by
the
TV.)
3.
Then,
make the
corresponding
audio connections. If
using
a sound
card,
adjust
the PC sound as
required.
How
to use
1. Turn on the PC and the TV.
2. Turn on the
display by pressing
the POWER button on the TV's remote control.
3. Select
RGB-PC
or HDMI/DVI
input
source in main
input option
of SETUP menu.
(Refer
to
P.59)
4. Check the
on
your
TV. There
may
be noise associated with the
resolution,
vertical
pattern,
contrast or
brightness
in PC
mode. If noise is
present, change
the PC mode to another
resolution,
change
the refresh rate to another rate or
adjust
the
brightness
and contrast on the menu until the
is clear. If the refresh rate of the PC
graphic
card can not be
changed,
change
the PC
graphic
card or consult the manufacturer of the PC
graphic
card.
Notes:
?
Depending
on the
graphics
card,
DOS mode
may
not work if
you
use a HDMI to DVI cable.
?
Avoid
keeping
a fixed
on the TV's screen for a
long period
of time. The fixed
image may
become
permanently
imprinted
on the screen. Use the Orbiter screen saver when
possible.
?
The
synchronization input
form for Horizontal and Vertical
frequencies
is
separate.
PC
Setup
PC
Setup
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEOINPUT
AUDIO INPUT
HDMI /
DVI( VIDEO)
CABLE
Cable
ANTENNA
-
This TV
provides Plug
and
Play capability, meaning
that the PC
adjusts automatically
to the TV's
settings.
-
The TV
perceives
640x480,
60Hz as DTV
480p
based on the PC
graphic
card,
change
the screen
scanning
rate for the
graphic
card
accordingly.
Resolution
640x350
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
37.861
37.500
43.269
70.09
85.08
70.08
85.03
59.94
72.80
75.00
85.00
35.156
37.879
48.077
46.875
53.674
48.363
56.476
60.023
56.25
60.31
72.18
75.00
85.06
60.00
70.06
75.02
Vertical
Frequency(Hz)
Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Monitor
Display Specifications (RGB-PC )

18 Plasma TV
Installation
Send the TV's audio to external audio
equipment (stereo system)
via
the
Digital
Audio
Output (Optical) port.
How
to connect
1. Connect one end of an
optical
cable to the TV
Digital
Audio
(Optical) Output port.
2. Connect the other end of the
optical
cable to the
digital
audio
(opti-
cal) input
on the audio
equipment.
3. Set the
"
TV
Speaker
option
-
Off"
in the AUDIO menu. Refer to
page
64.
See the external audio
equipment
instruction manual for
operation.
Caution:
Do not look into the
optical output port.
Looking
at the laser beam may
damage
your
vision.
Digital
Digital
Audio
Output
Audio
Output
DVI COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO INPUT
HDMI /
DVI(VIDEO)
The TV has a
special signal output capability
which allows
you
to
hook
up
a second TV or monitor.
Connect the second TV or monitor to the TV's MONITOR OUTPUT.
See the
Operating
Manual of the second TV or monitor for further
details
regarding
that device's
input settings.
Note
?
Component,
RGB-PC/RGB-DTV, HDMI/DVI,
DTV
input
sources
cannot be used for Monitor out.
S-VIDEO
IN
(R)
AUDIO
(L)
VIDEO
DVI COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO INPUT
HDMI /
DVI( VIDEO)
Monitor Out
Setup
Monitor Out
Setup
Resolution
640x480
800x600
Horizontal
Frequency(KHz)
31.469
37.861
37.500
35.156
37.879
48.077
46.875
59.94
72.80
75.00
56.25
60.31
72.18
75.00
48.363
56.476
60.023
60.00
70.06
75.02
Vertical
Frequency(Hz)
Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Monitor
Display Specifications (HDMI/DVI Mode)

Owner 's Manual 19
HDMI
HDMI/DVI
(VIDEO)
HDMI/DVI
(VIDEO)
-HDMITM,
the HDMI
logo
and
High-Definition
Multimedia Interface are trademarks or
registered
trademarks of HDMI
Licensing
LLC."
-This TV SET can receive the
High-Definition
Multimedia
Interface(HDMI)
or
Input
of
Digital
Visual
Interface(DVI).
-This TV SET
supports HDCP(High-bandwidth Digital
Contents
Protection)
Protocol for TV
SET(480p, 720p, 1080i)
modes.
-When
you
Connect with HDMI/DVI Source Devices
(DVD Player
or Set
Top
Box or
PC) supporting
Auto HDMI/DVI
function,
auto-
matically, support Plug
&
Play
and then set the HDMI/DVI Source
Devices(1280
x
720p).
After
reading
in HDMI/DVI Source
Devices
using Display
Data
Channel(DDC)
Protocol,
EDID stored in TV SET is used . If HDMI/DVI Source Devices not
support-
ed Auto HDMI/DVI is
been,
the Resolution is
setted,
manually.
-
To
get
the best
picture quality, adjust
the DVD
Player
or Set
Top
Box
output
resolution to 1280 x
720p.
-
To
get
the best
picture quality, adjust
the PC
graphics
card to 1024 x
768,
60Hz.
-
When Source Devices have DVI
Output
Connector,
you
must connect audio with
separated cable.(Refer
to <How
to
connect>)
How
to connect
1. When Source
Devices(DVD Player
or Set
Top Box) support
HDMI.
-
If Source Devices have HDMI
Output
Connector,
Source Devices connect to DTV with HDMI Cable
.(not supplied
with the
prod-
uct).
-
If Source Devices
support
Auto
HDMI,
automatically,
Source Devices divert
output
resolution in
1280x720p.
But if
not,
resolution
divert
Manually Setting
for reference Manual of Source Devices.
-
To
get
the best
picture quality, adjust
the DVD
Player
or Set
Top
Box
output
resolution to 1280 x
720p.
-
Because HDMI sends
Digital
Video and Audio with one
cable,
need not
especial
Audio Cable for
using
HDMI Cable.
2. When Source
Devices(DVD Player
or Set
Top Box) supports
DVI.
-
If Source Devices have DVI
Output
Connector,
Source Devices connect to DTV with HDMI to DVI Cable
(not supplied
with the
product).
-
If Source Devices
support
Auto
DVI,
automatically,
Source Devices divert
output
resolution in
1280x720p.
But if
not,
resolution
divert
Manually Setting
for reference Manual of Source Devices.
-
To
get
the best
picture quality, adjust
the DVD
Player
or Set
Top
Box
output
resolution to 1280 x
720p.
-
In this
case,
Audio use other cable. When Source Devices have Fiber
Optic Digital
Audio
Output
Connector,
Digital
Audio DVI
Input(DVI)
of DTV connect to Fiber
Optic Digital
Audio Cable
(not supplied
with the
product)
or when Source Devices have
Analog
Audio
Output
Connector,
RGB/DVI Audio
Input
of DTV connect to Audio Cable
(not supplied
with the
product).
And then
you
can
listen to normal Audio.
3. When PC
supports
DVI.
-
If PC have DVI
Output
Connector,
Source Devices connect to DTV with HDMI to DVI Cable
(not supplied
with the
product).
-
To
get
the best
picture quality, adjust
the PC
graphics
card to 1024 x
768,
60Hz.
-
Use the DTV's
HDMI/DVI(VIDEO)
for video
connections,
depending
on
your
PC connector.
-
If the
graphics
card on the PC does not
output analog
RGB and DVI
simultaneously,
connect
only
one of either RGB
Input
or
HDMI/DVI
Input
to
display
the PC on the DTV.
-
If he
graphics
card on the PC does
output analog
RGB and DVI
simultaneously,
set the DTV to either RGB
Input
or HDMI/DVI
Input;(the
other mode is set to
Plug
and
Play automatically by
the
DTV.)
-
Then,
make the
corresponding
audio connections. If
using
a sound
card,
adjust
the PC sound as
required.
-
In this
case,
Audio use other cable. When PC
(or
sound card of
PC)
have Fiber
Optic Digital
Audio
Output
Connector,
Digital
Audio
DVI
Input(DVI)
of DTV connect to Fiber
Optic Digital
Audio Cable
(not supplied
with the
product)
or when PC
(or
sound card of
PC)
have
Analog
Audio
Output
Connector,
RGB/DVI Audio
Input
of DTV connect to
Analog
Audio Cable
(not supplied
with the
product).
And then
you
can listen to normal Audio.

20 Plasma TV
HDMI
Reference
Cable
sample
HDMI
Cable
(not supplied
with
the
product)
HDMI
to
DVI
Cable
(not supplied
with
the
product)
Fiber
Optic
Digital
Audio Cable
(not supplied
with
the
product)
Analog
Audio
Cable(RCA
type)
(not supplied
with
the
product)
Analog
Audio
Cable(Stereo
to RCA
type)
(not supplied
with
the
product)
