LG 50PZ570T User manual

www.lg.com
OWNER’S MANUAL
LED LCD TV / LCD TV /
PLASMA TV
Please read this manual carefully before operating the
set and retain it for future reference.

2
ENG
ENGLISH
LICENSES
ENG
ENGLISH
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This
is an official DivX Certified® device that plays DivX video. Visit www.divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be regis-
tered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain
your registration code, locate the DivX VOD section in your device setup menu. Go
to vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® and DivX Plus ™ HD (H.264/MKV) video up to
1080p HD including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are
used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
NOTE
 Image shown may differ from your TV.
 Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

3
ENGENGLISH
LICENSES

4
ENG
ENGLISH
TABLEOFCONTENTS
TABLEOFCONTENTS
2 LICENSES
6 ASSEMBLINGANDPREPARING
6 Unpacking
9 Separate purchase
10 Parts and buttons
14 Lifting and moving the TV
14 Setting up the TV
14 - Attaching the stand
17 - Not using the Desk-Type Stand
17 - Mounting on a table
19 - Mounting on a wall
20 - Tidying cables
21 REMOTECONTROL
24 Magic Motion Remote Control Functions
25 - Registering Magic Motion Remote Control
25 - How to use Magic Motion Remote Control
25 - Precautions to Take when Using the
Magic Motion Remote Control
26 WATCHINGTV
26 Connecting to an antenna
26 - Connecting an antenna
26 - Connecting with a satellite dish
27 Turning the TV on for the first time
27 Watching TV
28 Accessing Home menu
29 Managing programmes
29 - Automatically setting up programme
32 - Cable DTV Setting
32 - Satellite DTV Setting
33 - Tivu Programme List Update
34 - Manually setting up programme (In
digital mode)
35 - Manually setting up programme (In
analogue mode)
37 - Editing your programme list
38 - Booster
38 - Using favourite programmes
38 - CI [Common interface] Information
39 Using additional options
39 - Adjusting aspect ratio
40 - Changing AV modes
41 - Using the input list
42 Using the quick menu
43 ENTERTAINMENT
43 Network Connection
43 - Connecting to a wired network
44 - Connecting to a wireless network
46 - When a security code is already set
49 - Network Status
50 Premium Account Function
50 - Notice
52 LG Apps Function
52 - Registration LG Apps
53 - Sign in with your LG Apps account
54 - Using LG Apps
55 - Using My Apps
56 Web Browser Function
56 - Using Web Browser
57 - Browsing Favourite Websites
58 - Browsing Websites by Directly Entering
Address
58 - Viewing Visited Website List
59 Smart Share Function
59 - Connecting USB storage devices
60 - Connecting DLNA DMP (Digital Living
Network Alliance, Digital Media Player)
63 - Connecting DLNA DMR (Digital Living
Network Alliance, Digital Media Render)
64 - Browsing files
65 - Viewing Videos
68 - DivX registration code
69 - Viewing Photos
71 - Listening to music
73 Media Link Function
73 - Media Link Connection
74 - Using Media Link
74 - Viewing Movies
75 - Using Music Section
75 - Using TV Programme Section
76 - Installing Plug-Ins
77 DVR Function
77 - Precautions when using the USB Device
78 - Timeshift (PAUSE & REPLAY OF LIVE
TV)
81 - RECORDING
82 - SCHEDULE
85 - RECORDED TV
88 EPG (Electronic Programme Guide)
Function (In digital mode)
88 - Switch on/off EPG
88 - Select a programme
89 - NOW/NEXT Guide Mode
89 - 8 Day Guide Mode
89 - Date Change Mode
89 - Extended Description Box

5
ENGENGLISH
TABLEOFCONTENTS
90 3DIMAGING
90 3D Technology
91 When using 3D Glasses
91 3D Imaging Viewing Range
91 Viewing 3D Imaging
92 - Setting 3D Imaging
93 CUSTOMIZINGTVSETTINGS
93 The SETUP Menu
94 Customizing Settings
94 - SETUP Settings
95 - PICTURE Settings
100 - AUDIO Settings
103 - TIME Settings
105 - LOCK Settings
106 - OPTION Settings
109 - NETWORK Settings
110 - SUPPORT Settings
111 MAKINGCONNECTIONS
112 Connection Overview
113 Connecting to a HD receiver, DVD, or
VCR player
113 - HDMI Connection
113 - DVI to HDMI Connection
114 - Component Connection
114 - Euro Scart Connection
115 - Composite Connection
115 Connecting to a PC
116 - HDMI Connection
116 - DVI to HDMI Connection
117 - RGB Connection
118 Connecting to an Audio System
118 - Digital Optical Audio Connection
118 Connecting to Headphone Connection
119 Connecting to a USB
119 Connecting to a CI Module
120 Connecting the Wireless Media Box
120 SIMPLINK Connection
121 - Activating and Using the SIMPLINK
menus
122 TELETEXT
122 Switch On/Off
122 Simple Text
122 - Page selection
122 Top Text
122 - Block / Group / Page Selection
122 - Direct Page Selection
123 Fastext
123 - Page selection
123 Special Teletext Function
124 DIGITALTELETEXT
124 Teletext within digital service
124 Teletext in digital service
125 MAINTENANCE
125 Updating the TV Firmware
126 Cleaning Your TV
126 - Screen and frame
126 - Cabinet and stand
126 - Power cord
127 Preventing “Image burn” or “Burn-in” on
your TV screen
128 TROUBLESHOOTING
130 SPECIFICATIONS
138 IRCODES
139 EXTERNALCONTROLDEVICE
SETUP
139 RS-232C Setup
139 Type of connector;
D-Sub 9-Pin Male
140 RS-232C Configurations
141 Communication Parameters
141 Command reference list
142 Transmission / Receiving Protocol
148 OPENSOURCELICENSE

6
ENG
ENGLISH
ASSEMBLINGANDPREPARING

Remote control and batteries
(AAA)
Nero MediaHome 4 Essentials CD Owner’s manual
Polishing cloth1
(Depending on model)
Cleansing Cloths (Mitt)2
(Depending on model)
Ferrite core
(Depending on model)
ASSEMBLINGANDPREPARING
Unpacking

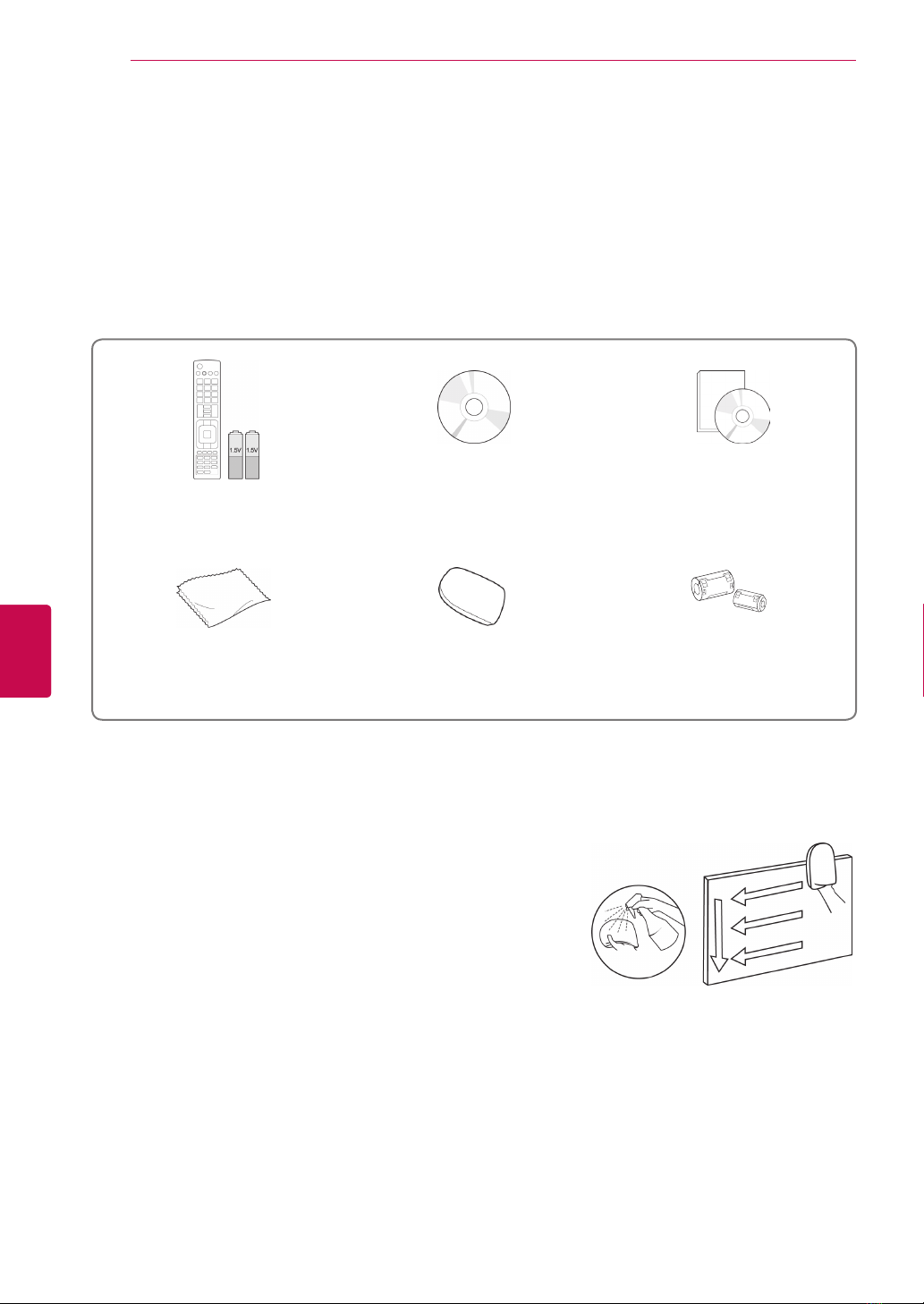

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and item.
1 Gently wipe the spots on the cabinet with the polishing cloth.
2 Wipe spots on the exterior only with the cleasing cloths.
Do not wipe roughly when removing stains. Excessive pressure
may cause scratches or discolouration.
For cleaning front frame, please slowly wipe in one direction
after spraying water 1-2 times on cleansing cloths. Please
remove excessive moisture after cleaning. Excessive moisture
may cause water stains on the frame. Water

7
ENGENGLISH
ASSEMBLINGANDPREPARING
Only 32/37/42/47LV37**
x 8
M4 x 12
Screw for assembly Cable holder
(Depending on model)
Screw for fixing
(Only 32/37LV37**)
Only 50/60PZ57**, 50/60PZ75**, 50/60PZ95**
x 4 x 3
M4 x 26 M5x14.5
x 4 x 3
M4 x 28 M5 x 24
x 4 x 4
M4 x 28 M5x14.5
Only 50PZ57**, 50PZ75**, 50PZ95** Only 60PZ57** Only 60PZ75**, 60PZ95**
Screw for assembly
Protection cover Protection cover
tape
Cable holder Power Cord holder
Power Cord 3D Glasses
(AG-S250)
Magic Motion Remote
Control, Strap,
Batteries (AA)
(Only 50/60PZ95**)
Wireless LAN for Broad-
band/DLNA Adaptor
(AN-WF100)
(Only 50/60PZ95**)

8
ENG
ENGLISH
ASSEMBLINGANDPREPARING
 The items supplied with your product may vary depending on the model.
 Product specifications or contents of this manual may be changed without prior notice due to upgrade
of product functions.

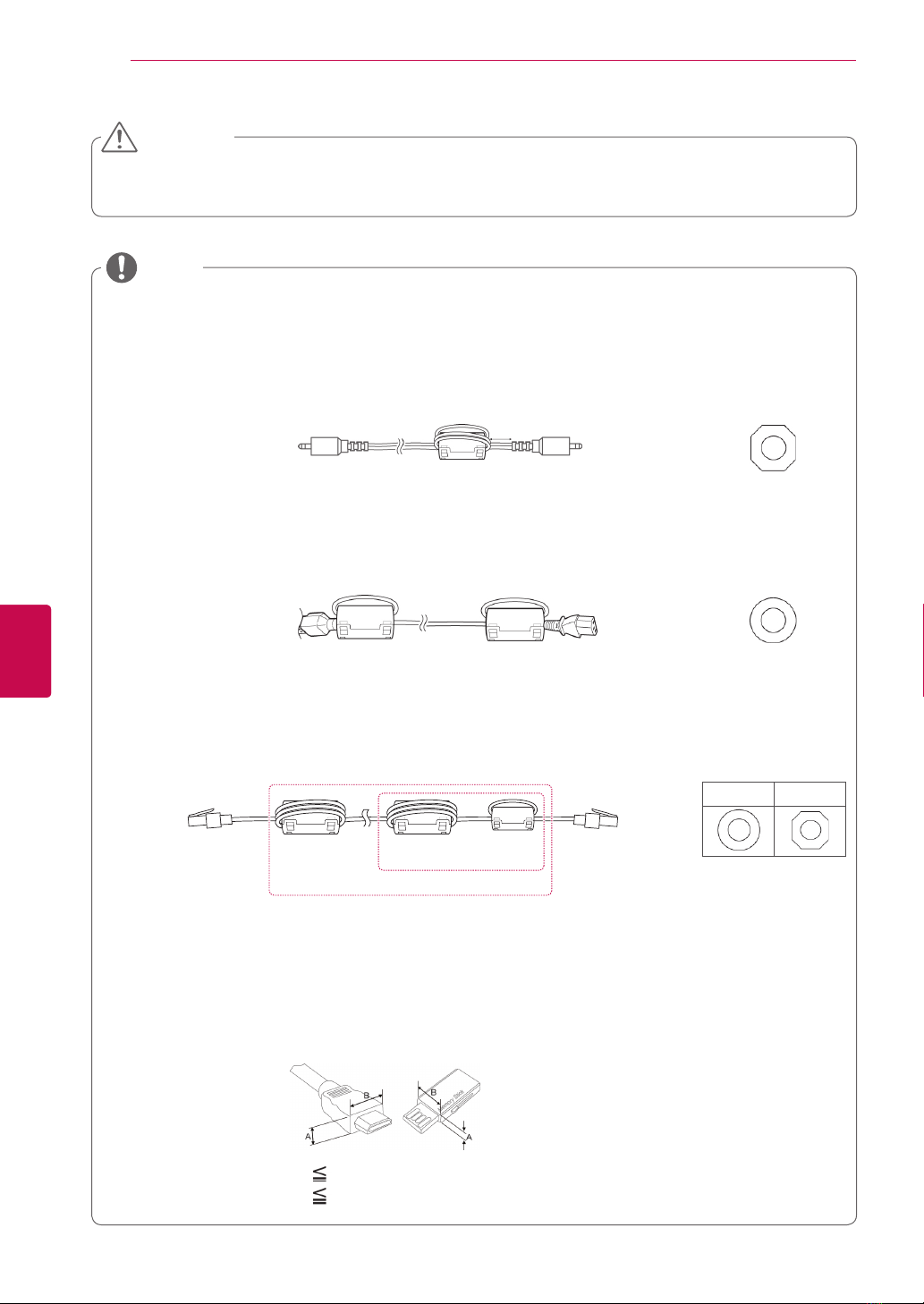

 How to use the ferrite core (Only Plasma TV)
NOTE
 For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. (Only 32/37/42/47LV37**)
*A 10 mm
*B 18 mm
1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.
[to an External device]
[Figure 1]
[to the TV]
[to the TV]
(Gray)
[Cross Section of
Ferrite Core]
10 mm(+ / - 5 mm)
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.
[to a wall plug]
(Black)
[Cross Section of
Ferrite Core]
[Figure 2]
- If there are two ferrite cores, follow as shown in Figures 3(1).
- If there are three ferrite cores, follow as shown in Figures 1 and 3(1).
- If there are six ferrite cores, follow as shown in Figures 1, 2 and 3(2).
3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN
cable once on the small ferrite core and thrice on the big ferrite core. Place the ferrite core close to
the TV.
A (Gray) B (Gray)
[Cross Section of
Ferrite Core]
 Do not use any unapproved items to ensure the safety and product life span.
 Any damages or injuries by using unapproved items are not covered by the warranty.
CAUTION
[to the TV]
[to an
External
device]
[Figure 3]
A B
A(1)
(2)

9
ENGENGLISH
ASSEMBLINGANDPREPARING
Separatepurchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.

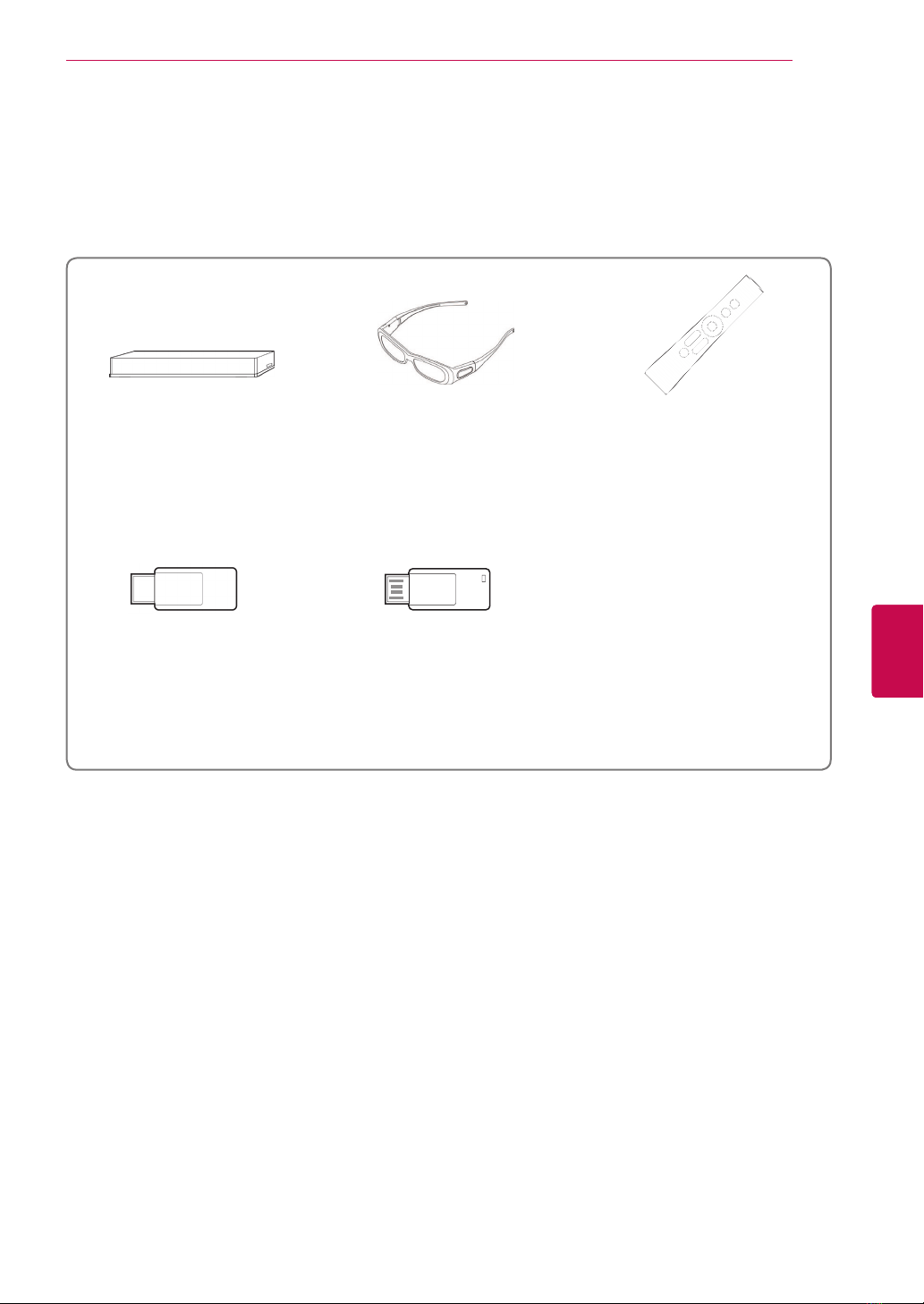

These devices only work with compatible LG LED LCD TV, LCD TV or Plasma TV.
Wireless Media Box
(AN-WL100E, AN-WL100ET)
(Only 50/60PZ75**, 50/60PZ95**)
3D Glasses
(AG-S230, AG-S250, AG-S270)
(Only 50/60PZ57**, 50/60PZ75**,
50/60PZ95**)
Magic Motion Remote Control
(AN-MR200)
Wireless LAN for Broadband/
DLNA Adaptor
(AN-WF100)
(Only 32/37/42/47LV37**,
50/60PZ75**)
LG USB for VOD
(AN-UM200)
(Only France)

10
ENG
ENGLISH
ASSEMBLINGANDPREPARING

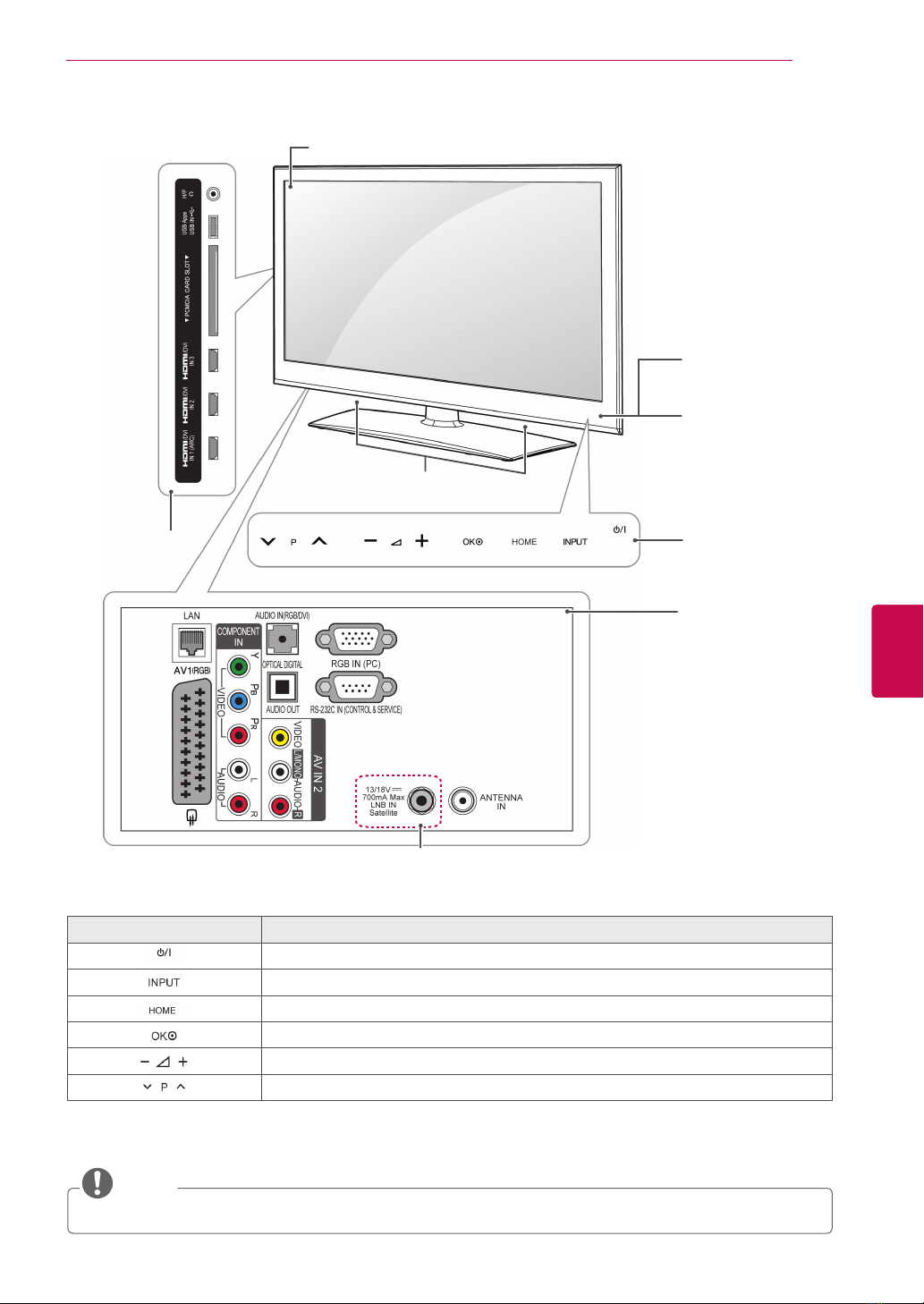

Partsandbuttons
 Image shown may differ from your TV.
 TV can be placed in standby mode in order to reduce the power consumption. And TV should be
turned off if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture
is reduced, and this will reduce the overall running cost.
NOTE
 Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from
fragments of glass, or the TV may fall.
 Do not drag the TV. The floor or the product may be damaged.
 In case of some model, the thin film on screen is a part of TV, So don’t take it off.
CAUTION

11
ENGENGLISH
ASSEMBLINGANDPREPARING

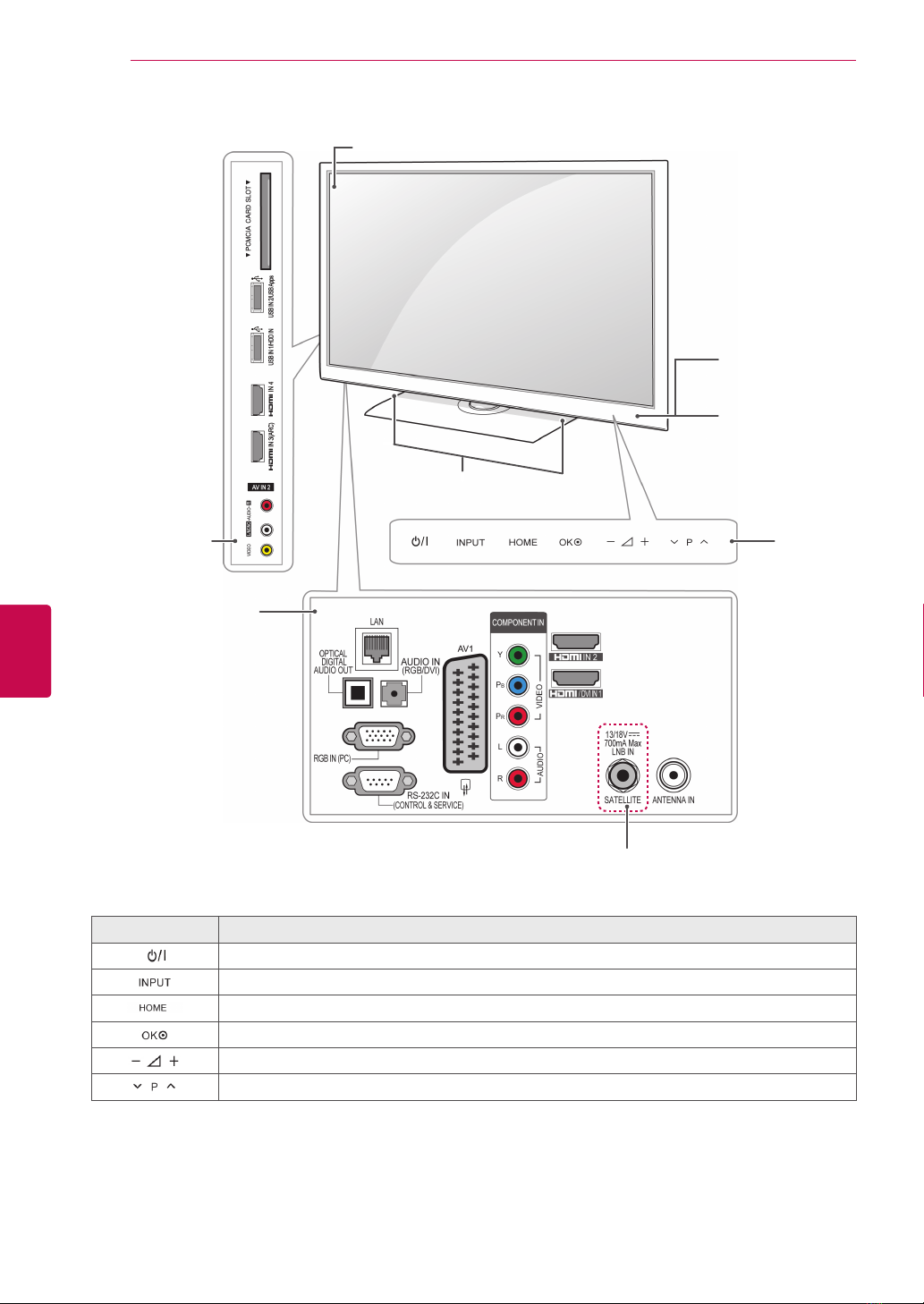

Only 32/37/42/47LV37**
NOTE
 You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
Touchbutton2Description
Turns the power on or off.
Changes the input source.
Accesses the Home menu, or saves your input and exits the menus.
Selects the highlighted menu option or confirms an input.
Adjusts the volume level.
Scrolls through the saved programmes.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
Remotecontroland
intelligent1sensors
PowerIndicator
Screen
Touchbuttons2
RearConnectionpanel
(Seep.111)
SideConnectionPanel
Speakers
Only 32/37/42/47LV375G,
32/37/42/47LV375S,
32/37/42/47LV370S

12
ENG
ENGLISH
ASSEMBLINGANDPREPARING
SideConnection
Panel
Only 50/60PZ57**
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
Touchbutton2Description
Turns the power on or off.
Changes the input source.
Accesses the Home menu, or saves your input and exits the menus.
Selects the highlighted menu option or confirms an input.
Adjusts the volume level.
Scrolls through the saved programmes.
Screen
Touchbuttons2
Only 50/60PZ570G, 50/60PZ570S
RearConnectionpanel
(Seep.111)
Speakers
PowerIndicator
Remotecontroland
intelligent1sensors

13
ENGENGLISH
ASSEMBLINGANDPREPARING
SideConnection
Panel
Only 50/60PZ75**, 50/60PZ95**
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
Touchbutton2Description
Turns the power on or off.
Changes the input source.
Accesses the Home menu, or saves your input and exits the menus.
Selects the highlighted menu option or confirms an input.
Adjusts the volume level.
Scrolls through the saved programmes.
Screen
Touchbuttons2
Remotecontroland
intelligent1sensors
PowerIndicator
Only 50/60PZ750G, 50/60PZ750S,
50/60PZ950G, 50/60PZ950S
RearConnectionpanel
(Seep.111)
Speakers

14
ENG
ENGLISH
ASSEMBLINGANDPREPARING
LiftingandmovingtheTV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged
and for safe transportation regardless of its type
and size.
SettinguptheTV
Put your TV on a pedestal stand and mount the TV
on a table or wall.
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
Attachingthestand
 It is recommended to move the TV in the box
or packing material that the TV originally came
in.
 Before moving or lifting the TV, disconnect the
power cord and all cables.
 When holding the TV, the screen should face
away from you to avoid damage.
 Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
 When transporting a large TV, there should be
at least 2 people.
 When transporting the TV by hand, hold the
TV as shown in the following illustration.
 When transporting the TV, do not expose the
TV to jolts or excessive vibration.
 When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
 Avoid touching the screen at all times, as
this may result in damage to the screen.
CAUTION
Only 32/37/42/47LV37**
1 Lay the TV with the screen side down on a flat
surface.
 Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
CAUTION
3 Assemble the TV as shown.

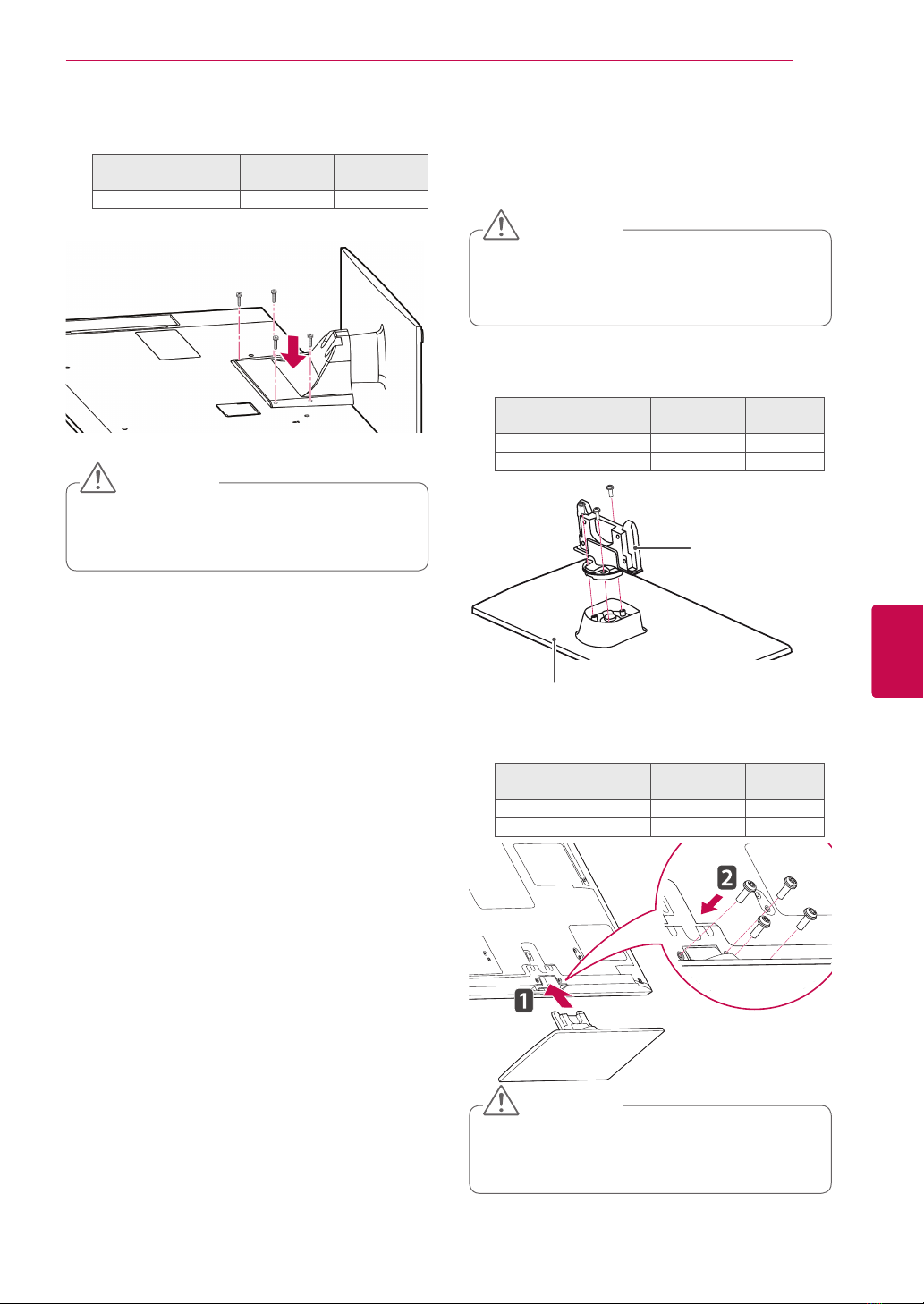

2 Assemble the parts of the StandBody with the
StandBase of the TV.
Model Screwfor
assembly
Numberof
screws
32/37/42/47LV37** M4 x 12 4
StandBody
StandBase

15
ENGENGLISH
ASSEMBLINGANDPREPARING
4 Secure the TV and the stand with the 4 screws.
Model Screwfor
assembly
Numberof
screws
32/37/42/47LV37** M4 x 12 4
 Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
CAUTION
Only 50/60PZ57**
1 Lay the TV with the screen side down on a flat
surface.
 Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
CAUTION
2 Assemble the parts of the StandBody with the
StandBase of the TV.
Model Screwfor
assembly
Numberof
screws
50PZ57** M5 x 14.5 3
60PZ57** M5 x 24 3
StandBase
StandBody
3 Secure the TV and the stand with the 4 screws.
Model Screwfor
assembly
Numberof
screws
50PZ57** M4 x 26 4
60PZ57** M4 x 28 4
 Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
CAUTION
StandBody

16
ENG
ENGLISH
ASSEMBLINGANDPREPARING
2 Assemble the parts of the StandBody with the
StandBase of the TV.
Model Screwfor
assembly
Numberof
screws
50PZ75**
50PZ95**
M5x14.5 3
60PZ75**
60PZ95**
M5x14.5 4
Only 50/60PZ75**, 50/60PZ95**
1 Lay the TV with the screen side down on a flat
surface.
 Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
CAUTION
 Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
CAUTION
3 Secure the TV and the stand with the 4 screws.
Model Screwfor
assembly
Numberof
screws
50PZ75**
50PZ95**
M4 x 26 4
60PZ75**
60PZ95**
M4 x 28 4
StandBody
StandBase
StandBody
StandBase

17
ENGENGLISH
ASSEMBLINGANDPREPARING
 Swivel 20 degrees to the left or right and
adjust the angle of the TV to suit your
view.
NOTE
 Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION
2 Connect the power cord to a wall outlet.
Mountingonatable
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (minimum) space from the
wall for proper ventilation.
10 cm
10 cm 10 cm
10 cm
Only 50/60PZ57**, 50/60PZ75**, 50/60PZ95**
NotusingtheDesk-TypeStand
When installing the wall mounting bracket, use the
Protection cover. This will protect the opening from
accumulating dust and dirt.

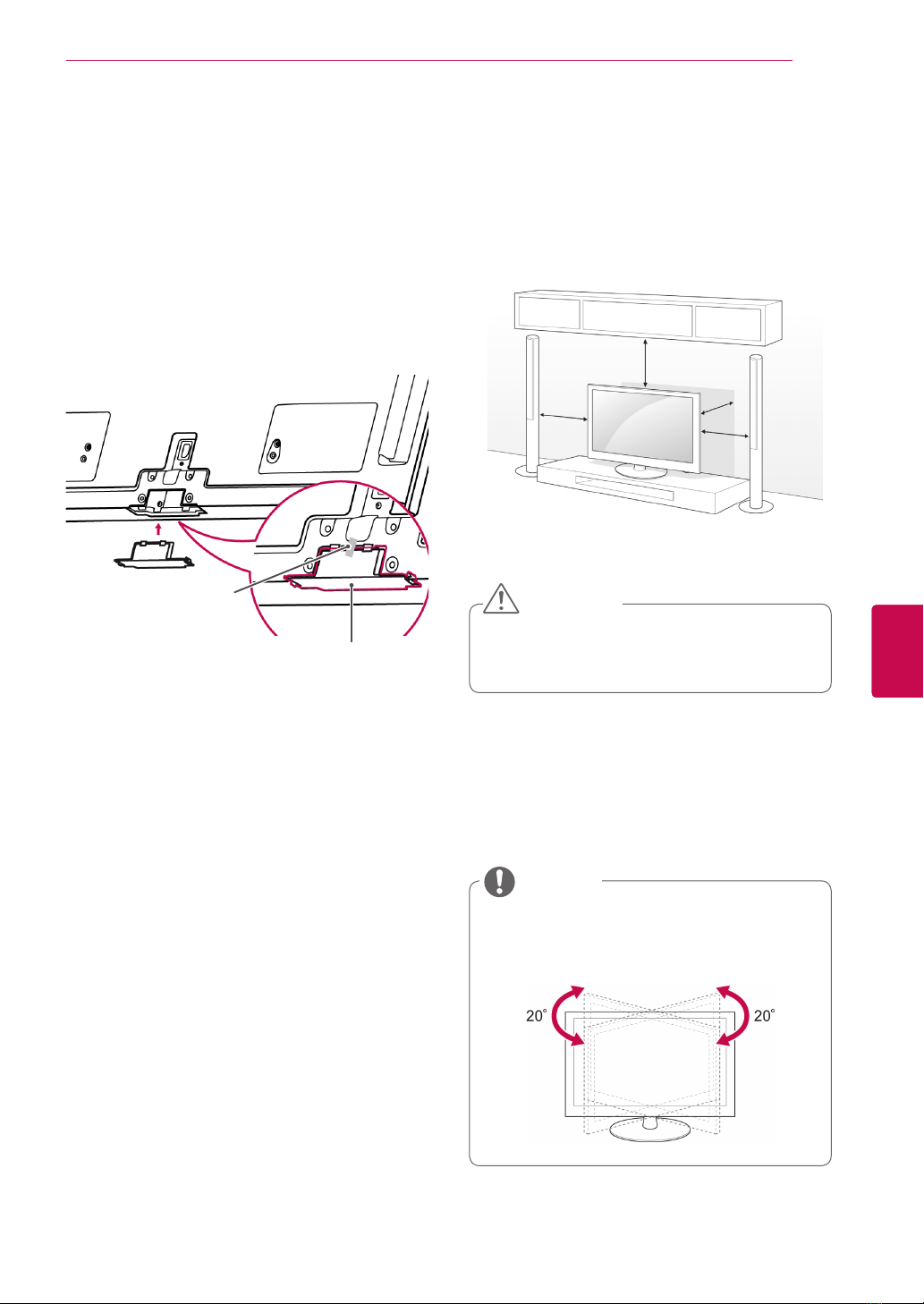

 Push the supplied protection cover into the
opening at the bottom of the TV until it locks in
place.
 Attach the protection cover tape.
Protectioncovertape
Protectioncover

18
ENG
ENGLISH
ASSEMBLINGANDPREPARING
SecuringtheTVtoawall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
 Use a platform or cabinet that is strong
and large enough to support the TV
securely.
NOTE
 Make sure that children do not climb on
or hang on the TV.
CAUTION
SecuringtheTVtoatable
Only 32/37LV37**
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the stand.
 To prevent TV from falling over, the TV
should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause
injury.
WARNING

19
ENGENGLISH
ASSEMBLINGANDPREPARING
UsingtheKensingtonsecuritysystem
(This feature is not available for all models.)
The Kensington security system connector is
located at the rear of the TV. For more information
of installation and using, refer to the manual
provided with the Kensington security system or
visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
Mountingonawall
Attach a wall mount bracket at the rear of the TV
carefully and install the wall mount bracket on a
solid wall perpendicular to the floor. When you
attach the TV to other building materials, please
contact qualified personnel.
LG recommends that wall mounting be performed
by a qualified professional installer.
Make sure to use screws and wall mount bracket
that meet the VESA standard. Standard dimen-
sions for the wall mount kits are described in the
following table.
Separatepurchase(WallMountingBracket)
Model 32LV37** 37LV37**
VESA(AxB) 200 x 100 200 x 200
Standardscrew M4 M6
Numberofscrews 4 4
Wallmount
bracket
LSW100B,
LSW100BG
LSW200B,
LSW200BG
Model 42/47LV37**
VESA(AxB) 400 x 400
Standardscrew M6
Numberofscrews 4
Wallmount
bracket
LSW400B, LSW400BG,
DSW400BG
10 cm
10 cm
10 cm
10 cm

20
ENG
ENGLISH
ASSEMBLINGANDPREPARING
Tidyingcables
Only 32/37/42/47LV37**

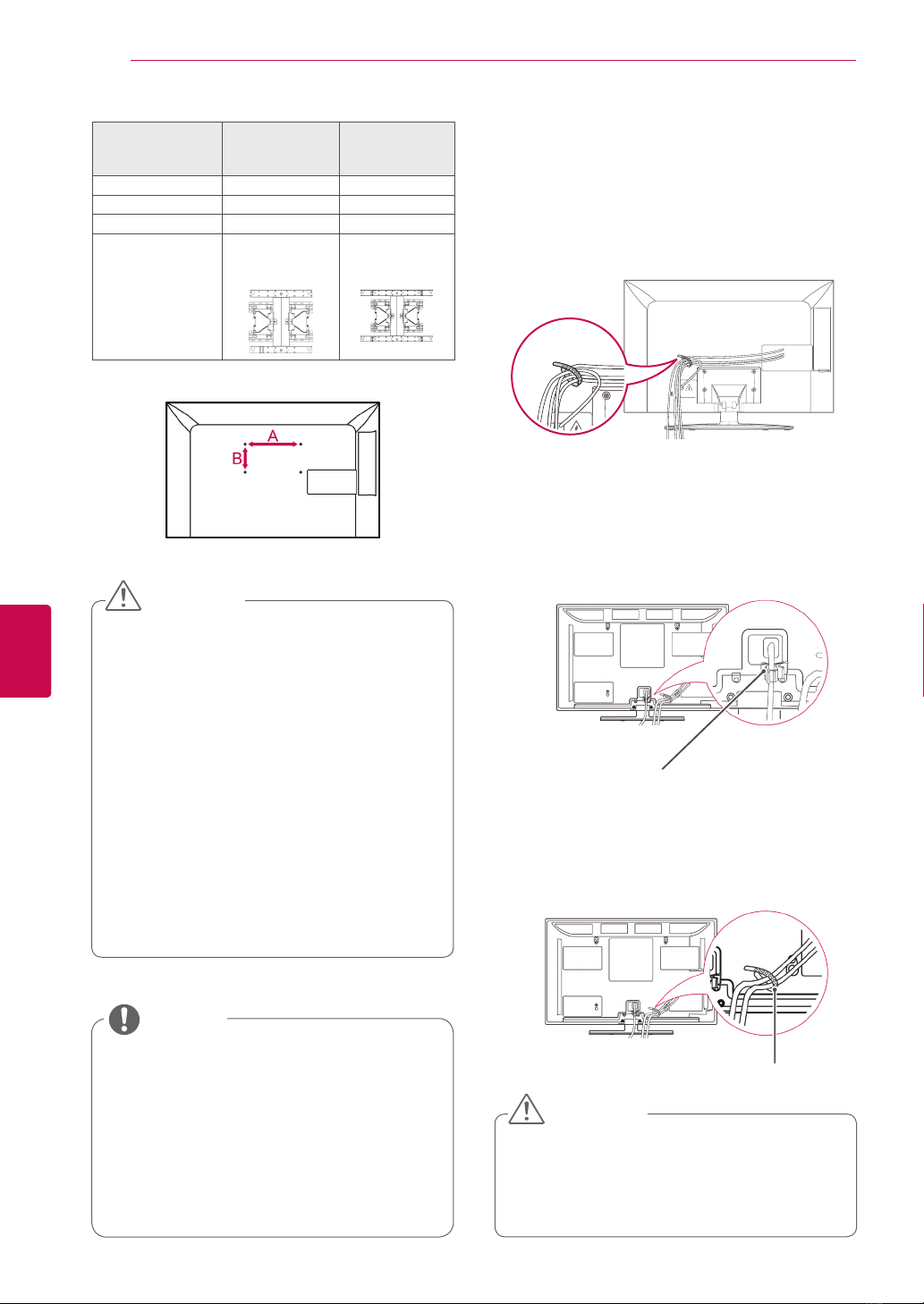

1 Gather and bind the cables with the Cable
Holderon the TV back cover.
Only 50/60PZ57**, 50/60PZ75**, 50/60PZ95**
1 Install the PowerCordHolder and Power
Cord. It will help prevent the power cable from
being removed by accident.
2 Gather and bind the cables with the Cable
Holder. Install the LAN cable as shown to
reduce the electromagnetic wave.
 Do not move the TV by holding the Cable
Holder & PowerCordHolder, as the
Cable holders may break, and injuries
and damage to the TV may occur.
CAUTION
CableHolder
 Disconnect the power first, and then move or
install the TV. Otherwise electric shock may
occur.
 If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
 Do not over tighten the screws as this may
cause damage to the TV and void your war-
ranty.
 Use the screws and wall mount bracket that
meet the VESA standard. Any damages or
injuries by misuse or using an improper ac-
cessory are not covered by the warranty.
CAUTION
 Use the screws that are listed on the VESA
standard screw specifications.
 The wall mount kit includes an installation
manual and necessary parts.
 The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
 For more information, refer to the manual
supplied with the wall mount bracket.
NOTE
Model 50PZ57**
50PZ75**
50PZ95**
60PZ57**
60PZ75**
60PZ95**
VESA(AxB) 400 x 400 600 x 400
Standardscrew M6 M8
Numberofscrews 4 4
Wallmount
bracket
PSW400B,
PSW400BG,
DSW400BG
PSW600B,
PSW600BG
PowerCordHolder
