INSTALLATION MANUAL
ELECTRIC RANGE
Please read these instructions thoroughly before
installing and operating the range.
ENGLISH ESPAÑOL

2
TABLE OF CONTENTS
TABLE OF CONTENTS
3 SAFETY
3 Before You Begin
3 Important Safety Instructions
5 Prepare to Install the Range
6 PREPARE TO INSTALL RANGE
6 Installation Drawings (LRE/LSRE Series only)
7 Installation Drawings (LSE Series only)
8 ELECTRICAL CONNECTIONS
8 Electrical Connection Requirements
8 Connect Range Cord
9 3-Wire Connection With a Power Supply Cord
10 4-Wire Connection With a Power Supply Cord
10 3-Wire Connection: Conduit
1 1 4-Wire Connection: Conduit
12 INSTALL THE RANGE
12 Anti-Tip Device Installation
12 Final Installation
12 Optional Rear Filler

3
ENGLISH
SAFETY
BEFORE YOU BEGIN
Remove all tape and packing materials before using the range.
Dispose of all plastic bags after unpacking the range. Never allow children to play with packing materials.
You can download the installation and owner’s manual at: http://www.lg.com.
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or
damage when using the range. This guide does not cover all possible conditions that may occur. For further assistance
contact your service agent or manufacturer.
This is the safety alert symbol. This symbol alerts you to potential hazards that can cause personal injury to
you and others. All safety messages will follow the safety alert symbol with either the word “WARNING” or
“CAUTION”.
WARNING
This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.
CAUTION
This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.
• The information in this manual should be followed exactly.
- A re or electrical shock may result causing property damage, personal injury or death.
• DO NOT step or sit on oven door. Install the Anti-Tip Bracket supplied with the range.
- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the Anti-Tip
Device is properly reengaged when the range is pushed back against the wall.
- Install the Anti-Tip Bracket. Screws must be xed to at least two locations.
- A child or adult can tip the range and be killed.
- Failure to do so can result in death or serious burns to children or adults.
- 1) According to the Anti-Tip Bracket Template, install Anti-Tip Bracket to the oor and wall.
- Anti-Tip will fasten the range by holding the range’s leg from the rear side and the Anti-Tip Bracket Template
lets you know the location of Anti-Tip Bracket easily.
- 2) Engage the range to the Anti-Tip Bracket by putting the range’s legs into each Anti-Tip Bracket.
- 3) Re-engage the Anti-Tip Bracket if you can move the range without oven’s front direction.
- 4) See installation instructions for details (refer to the page 12).
• New branch-circuit installations (1996 NEC) for mobile homes, recreational vehicles, and installations
where local codes do not allow grounding through the neutral wire require a 4-conductor UL listed range
cord or 4 wire conduit connection.
• The middle (neutral or ground) wire of a 3 wire power cord or a 3 wire conduit has to be connected to the
middle post of the main terminal block. The remaining two wires of the power cord or conduit have to be
connected to the outside posts of the main terminal connection block.
- Failure to do so can result in electrical shock, severe personal injury or death.
WARNING

4
SAFETY
• Only a 4-conductor power-supply cord kit rated 120/240 volts, 50 amperes and marked for use with
ranges with closed-loop connectors or open-end spade lugs with upturned ends shall be used. The
middle (neutral) wire of the power cord or 4-wire conduit has to be connected to the middle post of
the main terminal block. The other two wires of the power cord or conduit have to be connected to the
outside posts of the main terminal connection block. The 4th ground wire must be connected to the
frame of the range with the ground screw.
- Failure to do so can result in electrical shock, severe personal injury or death.
WARNING
• Put on gloves during installation procedure.
- Failure to do so can result in bodily injury.
• Make sure that the wall covering, countertop and cabinets around the range can withstand the heat (up
to 194°F) generated by the range.
- Discoloration, delamination or melting may occur.
- This range has been designed to comply with the maximum allowable wood cabinet temperatures of 194°F.
• Cabinet storage space located above the surface units should be avoided.
• Install a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets
If cabinet storage is to be provided.
- The risk of burns or re by reaching over the heated surface elements can be reduced.
CAUTION

5
ENGLISH
SAFETY
• The information in this manual should be
followed exactly.
- A fire or electrical shock may result causing
property damage, personal injury or death.
WARNING
Tip - Over Hazard
A child or adult can tip the range and be
killed. Verify the anti-tip bracket have been
installed. Ensure the anti-tip bracket is
enganged when the range is moved.
Do not operate the range without the anti-
tip bracket in place. Failure to follow these
instructions can result in death or serious
burns to children and adults.
WARNING
bracket Leveling
leg
bracket Leveling
leg
To check visually that leveling leg is inserted
into bracket, grasp the top rear edge of the
range and carefully attempt to tilt it forward.
• Put on gloves during installation procedure.
- Failure to do so can result in bodily injury.
CAUTION
• Read all instructions contained in these installation
instructions before installing range.
• Remove all packing materials from the oven
compartments before connecting the electrical
supply to the range.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the
consumer.
NOTE
Keep these instructions with your owner’s manual
for future reference.
• As when using any appliance generating heat, there
are certain safety precautions you should follow.
• Be sure your range is installed and grounded
properly by a qualied installer or service technician.
• Make sure the wall coverings around the range
can withstand the heat generated by the range.
• To eliminate the need to reach over the surface
elements, cabinet storage space above the
elements should be avoided.
NOTE
PREPARE TO INSTALL THE RANGE
TOOLS NEEDED
Phillips Screwdriver
Pliers
Tape Measure
Pencil
1/4”Nut Driver
Flat-blade
Screwdriver
Level
Adjustable Wrench
Safety Glasses
Gloves
Drill
PARTS PROVIDED
Template (1)
(For Anti-Tip Bracket Mounted
on Concrete Floors and Walls)
Anchor Sleeves (6)
Rear ller & 2 Screws
(LSE Series only)
Anti-Tip Bracket Kit (1)
Lag Bolts (6)
PARTS NOT PROVIDED
(UL Approved 40 or 50 AMP)
4-Wire Cord OR 3-Wire Cord
Strain Relief
(For Conduit
Installations Only)

6
PREPARE TO INSTALL THE RANGE
SAVE FOR THE USE OF THE LOCAL ELECTRICAL INSPECTOR.
NOTE

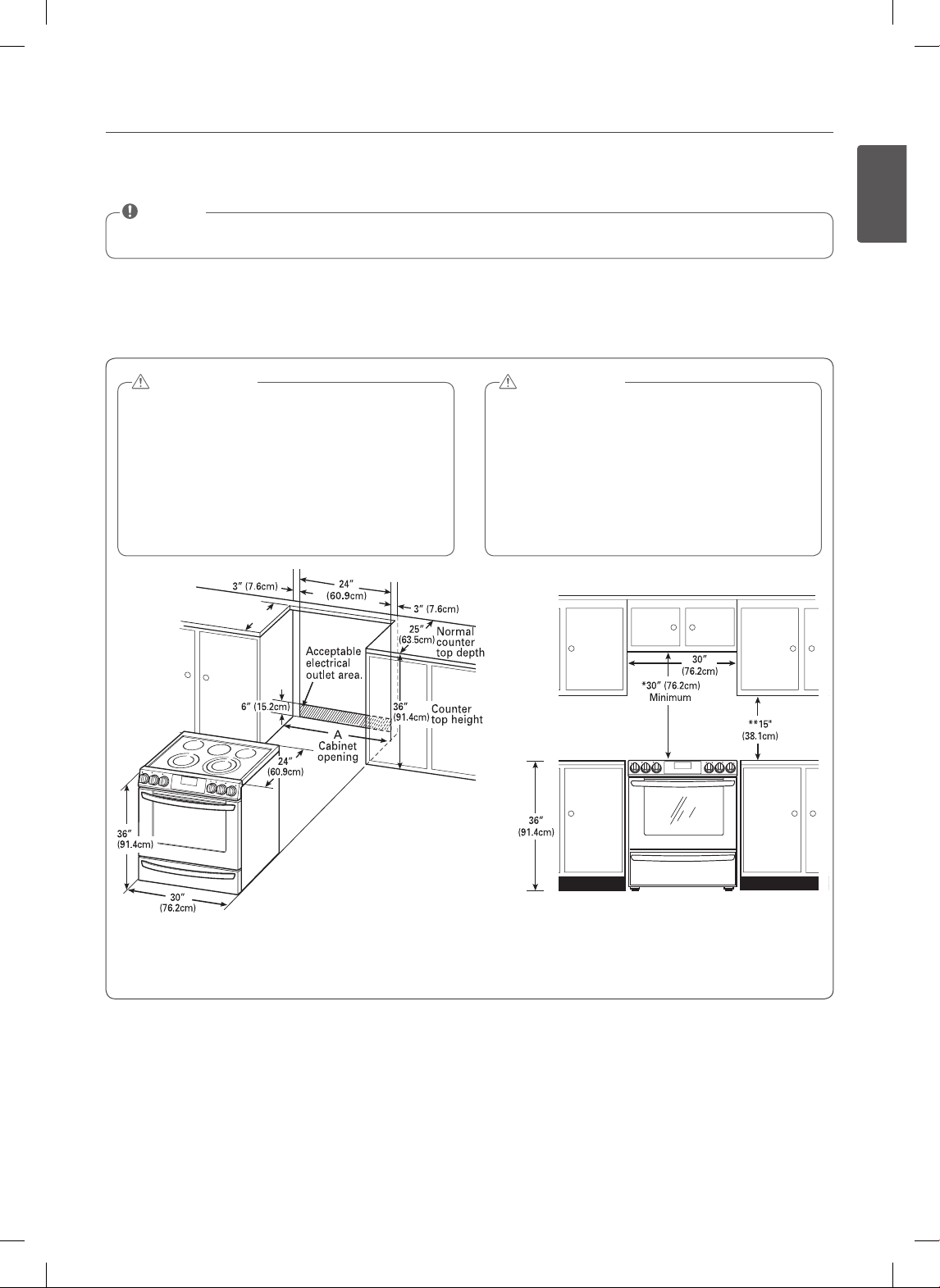

CLEARANCES AND DIMENSIONS (Figure 1)
To install range refer to the following Figure 1.
For installation in CANADA, a Free-standing range is not to be installed closer than 15/32 (12mm) from any
adjacent surface.
INSTALLATION DRAWINGS (LRE/LSRE Series only)
• Make sure that the wall covering, countertop
and cabinets around the range can withstand
the heat (up to 194°F) generated by the range.
- Discoloration, delamination or melting may
occur.
- This range has been designed to comply
with the maximum allowable wood cabinet
temperatures of 194°F.
CAUTION
• Cabinet storage space located above the
surface units should be avoided.
• Install a range hood that projects horizontally
a minimum of 5 inches beyond the bottom
of the cabinets. If cabinet storage is to be
provided.
- The risk of burns or re by reaching over the
heated surface elements can be reduced.
CAUTION
MINIMUM DIMENSIONS (Figure 2)
* 30”(76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood
or metal cabinet; or 24”(60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less than
1/4”(6.4 cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015”(0.381 mm) stainless
steel, 0.024”(0.610 mm) aluminum or 0.020”(0.508 mm) copper.
** 15”(38.1 cm) minimum between countertop and adjacent cabinet bottom.
FIGURE 1 FIGURE 2
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA

7
ENGLISH
PREPARE TO INSTALL THE RANGE
SAVE FOR THE USE OF THE LOCAL ELECTRICAL INSPECTOR
NOTE
CLEARANCES AND DIMENSIONS (Figure 1)
To install range refer to the following Figure 1.
For installation in CANADA, a Free-standing range is not to be installed closer than 15/32 (12mm) from any
adjacent surface.
INSTALLATION DRAWINGS (LSE Series only)
• Make sure that the wall covering, countertop
and cabinets around the range can withstand
the heat (up to 194°F) generated by the range.
- Discoloration, delamination or melting may
occur.
- This range has been designed to comply
with the maximum allowable wood cabinet
temperatures of 194°F.
CAUTION
• Cabinet storage space located above the
surface units should be avoided.
• Install a range hood that projects horizontally
a minimum of 5 inches beyond the bottom
of the cabinets. If cabinet storage is to be
provided.
- The risk of burns or re by reaching over the
heated surface elements can be reduced.
CAUTION
24”
(60.9cm)
MINIMUM DIMENSIONS (Figure 2)
* 30”(76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood
or metal cabinet; or 24”(60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less than
1/4”(6.4 cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015”(0.381 mm) stainless
steel, 0.024”(0.610 mm) aluminum or 0.020”(0.508 mm) copper.
** 15”(38.1 cm) minimum between countertop and adjacent cabinet bottom.
FIGURE 1 FIGURE 2
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA

8
ELECTRICAL CONNECTIONS
ELECTRICAL CONNECTION
REQUIREMENTS
This appliance must be installed and grounded on a
branch circuit by a qualified technician in accordance
with the National Electrical code ANSI/NFPA NO. 70 -
latest edition.
All wiring should conform to Local and NEC. This
range requires a single-phase, 3 wire, A.C 120/208V or
120/240V 60Hz electrical system. Use only a 3-conductor
or a 4-conductor UL-listed range cord with closedloop
terminals, open-end spade lugs with upturned ends
or similar terminations. DO NOT install the power cord
without a strain relief.
A range cord rated at 40 amps with 120/240 minimum
volt range is required. If a 50 amp range cord is used, it
should be marked for use with 13/8”diameter connection
openings.
This appliance may be connected by means of conduit
or power cord. If conduit is being used, go to page 9
for 3 wire conduit connections or page 10 for 4 wire
conduit connections.
• New branch-circuit installations (1996 NEC)
for mobile homes, recreational vehicles, and
installations where local codes do not allow
grounding through the neutral wire require
a 4-conductor UL listed range cord or 4 wire
conduit connection.
WARNING
Specied power-supply-cord kit rating
Range rating, watts Specied rating
of power-
supply-cord kit,
amperes
Diameter (inches) of Range
connection Opening
120/240 volts
3-wire
120/208 volts
3-wire
Power cord Conduit
8,750 - 16,500
16,501 - 22,500
7,801 - 12,500
12,501 - 18,500
40 or 50A
50
1 3/8”
1 3/8”
1 1/8”
1 1/8”
3, 4 - Wire electrical wall Receptacle
4 Wire receptacle (14-50R)
3 Wire receptacle (10-50R)
FIGURE 3

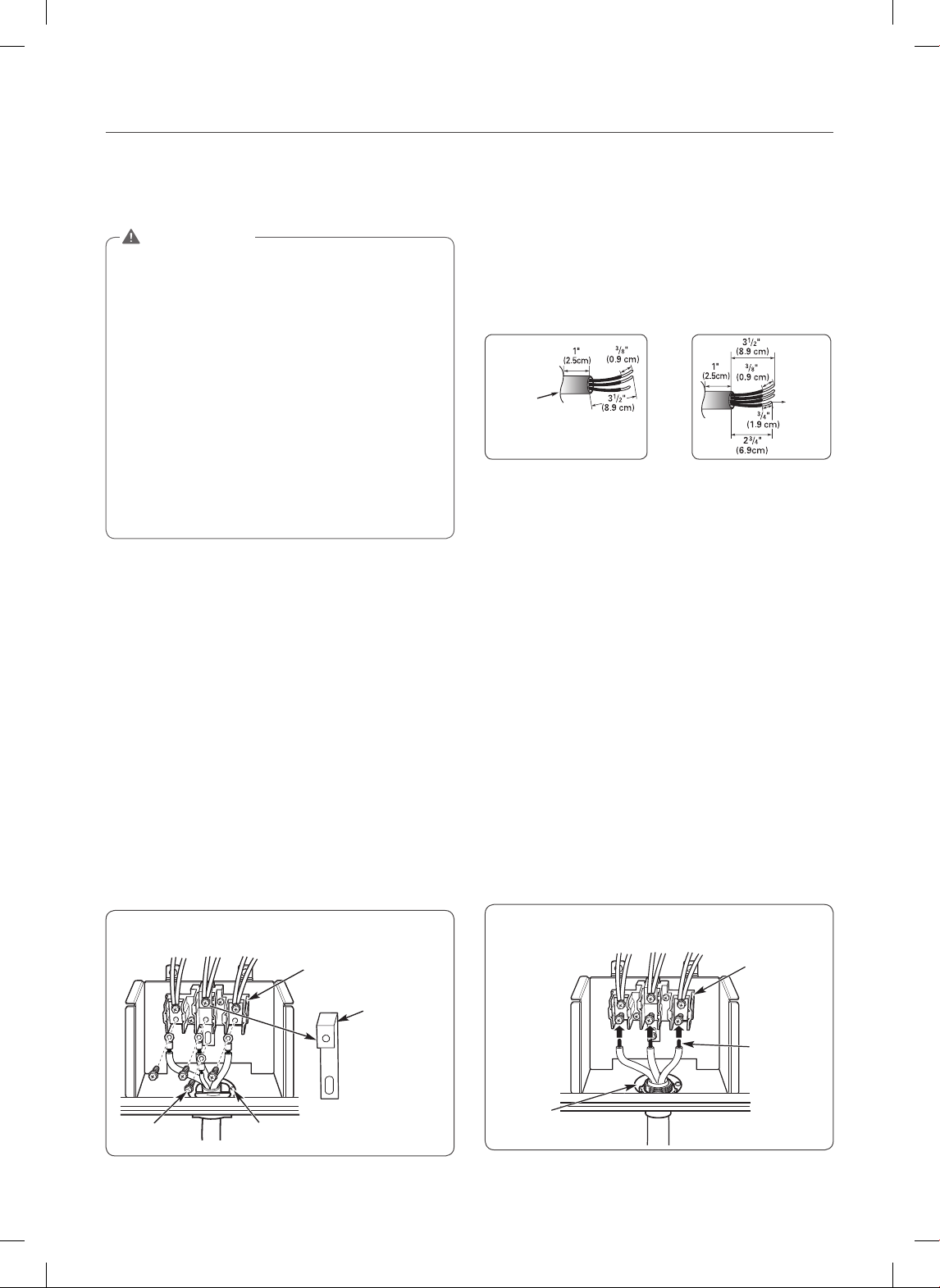

CONNECT RANGE CORD
The Rear Access cover must be removed. Loosen the
three screws with a screwdriver. The terminal block will
then be accessible.
Terminal block
Drawer body cover
(LSE series only)
Drawer body
Access cover
Cord/Conduit
connection plate
Power cord outlet
FIGURE 4
The Cord/Conduit connection plate is used for the
installation of power cord or conduit. For power cord,
install it with the connection plate as INSTALLED. For
conduit, remove the connection plate located below the
rear of the drawer body and use the conduit hole (11/8”)
instead of power cord hole (13/8”). (Refer to Figure 5 and 6.)
13/8"
(3.5cm)
13/8"
(Cord)
11/8" (Conduit)
11/8"
(2.8cm)
Remove the Conduit connection plate
FIGURE 5
FIGURE 6
Strain relief
Conduit
Assemble the
strain relief hole
Reinstall the Cord/Conduit connection plate
Ring
Cord Strain
relief
Conduit
Body
Cord/Conduit
connection
plate

9
ENGLISH
ELECTRICAL CONNECTIONS
3-WIRE CONNECTION WITH
A POWER SUPPLY CORD
• The middle (neutral or ground) wire of a 3
wire power cord or a 3 wire conduit has to
be connected to the middle post of the main
terminal block. The remaining two wires of the
power cord or conduit have to be connected
to the outside posts of the main terminal
connection block.
- Failure to do so can result in electrical shock,
severe personal injury or death.
WARNING
Install the power cord as follows:
For power cord installations, Hook the strain relief over
the power cord hole (13/8”) located below the rear of
drawer body. Insert the power cord through the strain
relief and tighten it. (Refer to Figure 7.)
DO NOT install the power cord without a strain relief.
1. Remove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 8.)
2. Insert the 3 screws through each power cord terminal
ring and into the lower terminals of the terminal block.
Make sure that the center wire (white/neutral) is
connected to the center lower position of the terminal
block.
3. Tighten 3 screws securely into the terminal block.
Do not remove the ground strap connections.
4. Go to page 12.
Cord strain relief
Power cord
Conduit
connection
plate
Separate Strain Relief
before installation
Assemble the strain relief
to the 1 3/8” opening in
Conduit connection plate
FIGURE 7
3-wire connection
Terminal
block
Conduit
connection plate
Black White Red
FIGURE 8

10
ELECTRICAL CONNECTIONS
4-WIRE CONNECTION WITH
A POWER SUPPLY CORD
• Only a 4-conductor power-supply cord kit rated
120/240 volts, 50 amperes and marked for use
with ranges with closedloop connectors or
open-end spade lugs with upturned ends shall
be used. The middle (neutral) wire of the power
cord or 4-wire conduit has to be connected to
the middle post of the main terminal block. The
other two wires of the power cord or conduit
have to be connected to the outside posts of
the main terminal connection block. The 4th
ground wire must be connected to the frame of
the range with the ground screw.
- Failure to do so can result in electrical shock,
severe personal injury or death.
WARNING
Follow the instructions under “CONNECT RANGE CORD”
on page 8 to correctly install the strain relief.
1. Remove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 9.)
Remove the ground screw and retain it.
2. Remove ground strap and discard as shown in
Figure 9.
Do not discard any screws.
3. Insert the ground screw into the power cord ground
wire terminal ring and secure it to the range frame.
4. Insert the 3 screws through each power cord terminal
ring and into the lower terminals of the terminal block.
Make sure that the center wire (white/neutral) is
connected to the center lower position of the terminal
block.
Tighten 3 screws securely into the terminal block.
5. Go to page 12.
4-wire connection
Terminal
block
Conduit
connection plate
Ground screw
Remove ground
strap and discard
Ground
strap
Black White Red
FIGURE 9
3-WIRE CONNECTION: CONDUIT
Install the conduit as follows:
Remove the Conduit connection plate from the rear of
drawer body and rotate it as shown in Figure 5. The
conduit hole (11/8”) must be used.
First, prepare conduit wires as shown in Figure 10.
3 wire 4 wire
Conduit
connection
plate
or
Ground
wire
FIGURE 10
Second, install conduit as shown in Figure 6.
For conduit installations, after purchasing a strain relief,
insert it in the conduit hole (11/8”). Then install the
conduit through the body of strain relief and fasten the
strain relief with its ring. Reinstall the bracket.
For conduit connections :
If the wire in the conduit is copper it must be 8 or 10
AWG wiring.
If the wire in the conduit is aluminum it must be 6 or 8
AWG wiring.
1. Loosen the lower 3 screws from the terminal block.
(Refer to Figure 11.)
2. Insert the bare wire (white/neutral) end through the
center terminal block opening.
Do not remove ground strap connections.
3. Insert the two side bare wire ends into the lower left
and the lower right terminal block opening.
Tighten the 3 screws securely into the terminal block.
(approximately 35 - 50 IN-LB)
4. Go to page 12.
3-wire connection
Terminal
block
Wire ends
Conduit
connection plate
Black White Red
FIGURE 11

11
ENGLISH
ELECTRICAL CONNECTIONS
4-WIRE CONNECTION: CONDUIT
1. Follow the instructions under “Install the conduit as
follows” on page 10 to correctly install the strain relief.
DO NOT install the conduit without a strain relief.
2. Loosen the 2 lower left and right screws from the
terminal block. (Refer to Figure 12.)
Remove the lower 2 center screws.
3. Remove ground strap and discard as shown in
Figure 12.
Do not discard any screws.
4. Attach the ground bare wire end to range frame and
secure it in place with the ground screw (Refer to
figure 12.)
5. Insert the bare wire (white/neutral) end through the
center terminal block opening.
6. Insert the two side bare wire ends into the left and the
right terminal block opening.
Tighten the 3 screws securely into the terminal block.
(approximately 35 - 50 IN-LB)
7. Go to page 12.
4-wire connection
Remove
ground
strap and
discard
Terminal
block
Wire
ends
Conduit
connection plate
Black White Red
Ground
strap
Ground
Wire
Ground
Screw
FIGURE 12

12 INSTALL THE RANGE
Replace the access cover on the range back. To replace
the wire cover, insert double projections in the pockets
located below the opening and tighten the three screws.
Access cover
ANTI-TIP DEVICE INSTALLATION
Tip - Over Hazard
A child or adult can tip the range and be
killed. Verify the anti-tip brackes have been
installed. Ensure the anti-tip bracket is
enganged when the range is moved.
Do not operate the range without the anti-
tip bracket in place. Failure to follow these
instructions can result in death or serious
burns to children and adults.
WARNING
bracket Leveling
leg
bracket Leveling
leg
To check visually that leveling leg is inserted
into bracket, grasp the top rear edge of the
range and carefully attempt to tilt it forward.
Anti-tip
bracket Wall plate
Screw must
enter wood
or concrete
1. Locate the bracket using the template
An Anti-tip bracket is packaged with template. The
instructions include necessary information to
complete the installation.
Read and follow range installation instruction sheet
(template).
2. Level the range
Level the range by adjusting the leveling legs with a
wrench.
Leg
leveler
Raise
range
Lower
range
Use a spirit level to check your adjustments. Place the
level diagonally on the oven rack, and check each
direction for level.
First check direction .
After check direction .
If the spirit level doesn’t
show level on the rack,
adjust the leveling legs
with a wrench.
FINAL INSTALLATION
• Move range close enough to the opening to plug into
the receptacle.
• Slide range into position insuring that the left back leg
slides under the anti-tip bracket. Range will sit 0” away
from the back wall when properly installed.
• Carefully tip range forward to insure that the anti-tip
bracket engages the range back brace and prevents
tip-over.
• Turn on electrical power. Check range for proper
operation as described in owner’s manual.
OPTIONAL REAR FILLER
If the counter does not bridge the opening at the rear
wall the rear filler kit, that is provided with the slide in
range, will be needed.
If the countertop depth is greater than 25” there will
be a gap between the ller kit and the back wall.
NOTE
If the countertop depth is less than 24”, the control panel
will not sit ush with the countertop.
(See gure 1 on page 6)
Spirit level
