REFRIGERATOR
SERVICE MANUAL
MODEL: GR-P227/L227 COLOR: TITANIUM
http://eic.lgservice.com

WARNINGS AND PRECAUTIONS FOR SAFETY ................................................................................................................ 3
SPECIFICATIONS................................................................................................................................................................... 4
PARTS IDENTIFICATION....................................................................................................................................................... 6
HOW TO INSTALL THE REFRIGERATOR.......................................................................................................................... 10
HOW TO ADJUST DOOR HEIGHT OF THE REFRIGERATOR........................................................................................ 10
HOW TO INSTALL WATER PIPE........................................................................................................................................11
HOW TO CONTROL THE AMOUNT OF WATER SUPPLIED TO THE ICEMAKER......................................................... 15
MICOM FUNCTION .............................................................................................................................................................. 17
EXPLATION FOR MICOM CIRCUIT..................................................................................................................................... 27
EXPLANATION FOR PWB CIRCUIT ..................................................................................................................................27
ICE MAKER AND DISPENSER WORKING PRINCIPLE AND REPAIR ............................................................................. 42
OPERATION PRINCIPLE....................................................................................................................................................42
FUNCTIONS OF ICE MAKER ............................................................................................................................................43
ICE EJECTION CONTROL FUNCTION..............................................................................................................................44
CIRCUIT................................................................................................................................................................................ 48
TROUBLE DIAGNOSIS........................................................................................................................................................ 49
TROUBLE SHOOTING ...................................................................................................................................................... 49
FAULTS .............................................................................................................................................................................. 59
COOLING CYCLE HEAVY REPAIR................................................................................................................................... 76
HOW TO DEAL WITH CLAIMS.......................................................................................................................................... 83
HOW TO DISASSEMBLE AND ASSEMBLE....................................................................................................................... 88
DOOR................................................................................................................................................................................. 88
HANDLE............................................................................................................................................................................. 89
SHROUD, GRILLE FAN..................................................................................................................................................... 89
WATER VALVE DISASSEMBLY METHOD ........................................................................................................................ 90
FAN AND FAN MOTOR DISASSEMBLY METHOD........................................................................................................... 90
DISPENSER....................................................................................................................................................................... 91
EXPLODED VIEW ................................................................................................................................................................ 93
CONTENTS
- 2 -

Please observe the following safety precautions in order to
use safely and correctly the refrigerator and to prevent
accident and danger during repair.
1. Be care of an electric shock. Disconnect power cord
from wall outlet and wait for more than three minutes
before replacing PWB parts. Shut off the power
whenever replacing and repairing electric components.
2. When connecting power cord, please wait for more than
five minutes after power cord was disconnected from the
wall outlet.
3. Please check if the power plug is pressed down by the
refrigerator against the wall. If the power plug was
damaged, it may cause fire or electric shock.
4. If the wall outlet is over loaded, it may cause fire. Please
use its own individual electrical outlet for the refrigerator.
5. Please make sure the outlet is properly earthed,
particularly in wet or damp area.
6. Use standard electrical components when replacing
them.
7. Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing
and connecting parts.
8. Do not fray, damage, machine, heavily bend, pull out,
or twist the power cord.
9. Please check the evidence of moisture intrusion in the
electrical components. Replace the parts or mask it
with insulation tapes if moisture intrusion was
confirmed.
10. Do not touch the icemaker with hands or tools to
confirm the operation of geared motor.
11. Do not let the customers repair, disassemble, and
reconstruct the refrigerator for themselves. It may
cause accident, electric shock, or fire.
12. Do not store flammable materials such as ether,
benzene, alcohol, chemicals, gas, or medicine in the
refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals,
etc., or container with full of water on the top of the
refrigerator.
14. Do not put glass bottles with full of water into the
freezer. The contents shall freeze and break the glass
bottles.
15. When you scrap the refrigerator, please disconnect the
door gasket first and scrap it where children are not
accessible.
WARNINGS AND PRECAUTIONS FOR SAFETY
- 3 -

SPECIFICATIONS
- 4 -
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W) X 790(D) X 1753(H)
NET WEIGHT (kg) 132
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
DRIER MOLECULAR SIEVE XH-7
1753
602
948
894
662
711
790
1135.5
<Front View> <Plane View>
1. Ref No. : GR-P227
ITEMS SPECIFICATIONS
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
Home Bar Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA) / 30W (1 EA)

SPECIFICATIONS
- 5 -
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W) X 790(D) X 1753(H)
NET WEIGHT (kg) 132
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
602
948
894
662
711
790
1135.5
1753
<Front View> <Plane View>
2. Ref No. : GR-L227
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA) / 30W (1 EA)

PARTS IDENTIFICATION
- 6 -
Freezer
compartment Refrigerator compartment
Automatic Icemaker
Lamp
Shelf
Shelf
Door rack
Drawer
Drawer
Door rack
Lower cover
Milk product corner
Lamp
Shelf
Refreshment center(Optional)
CanServer (Optional)
Shelf (Foldingor Normal)
Wine holder
(Plastic or wire)
Egg Box
Vegetable Drawer
HumiditySwitch
Door Rack
Door Rack
Miracle Zone (Optional)
Freshcompartment
(Optional)
Conversionswitch
(Meats/Vegetables)
(Optional)
Cover PWB
Water Tube
Home Bar
Frame Display
Dispenser Lamp
Ice &Water
Dispenser Button

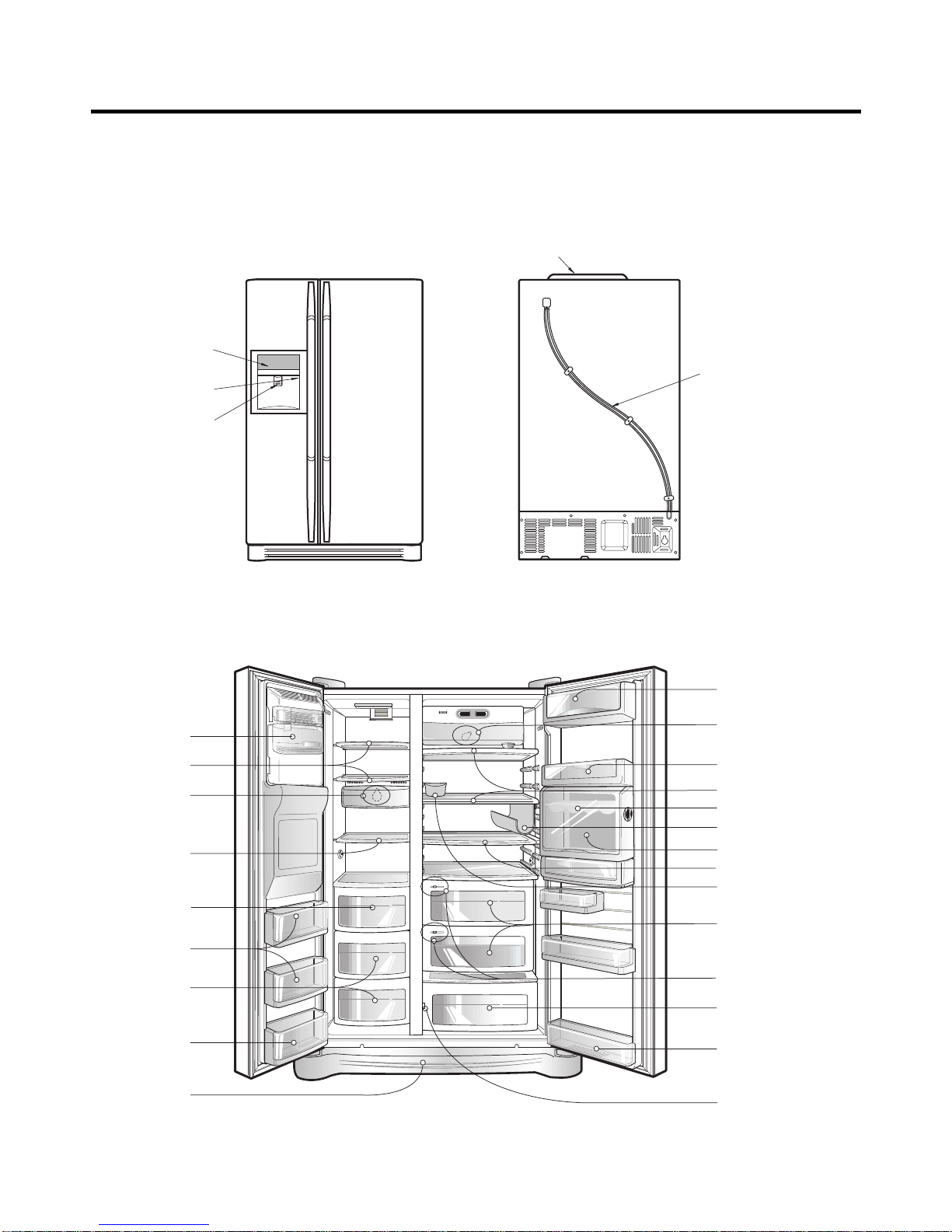

1. Ref No. : GR-P227 /P257 (INTERNAL FILTER)

2. Ref No. : GR-P227 /P257 (EXTERNAL FILTER)
PARTS IDENTIFICATION
- 7 -
Freezer
compartment Refrigerator compartment
Automatic Icemaker
Lamp
Shelf
Shelf
Door rack
Drawer
Drawer
Door rack
Lower cover
Milk product corner
Lamp
Shelf
Refreshment center(Optional)
CanServer (Optional)
Shelf (Foldingor Normal)
Wine holder
(Plastic or wire)
Egg Box
Vegetable Drawer
HumiditySwitch
Door Rack
Door Rack
Miracle Zone (Optional)
Freshcompartment
(Optional)
Conversionswitch
(Meats/Vegetables)
(Optional)
Cover PWB
Home Bar
Frame Display
Dispenser Lamp
Ice &Water
Dispenser Button

PARTS IDENTIFICATION
- 8 -
Freezer
compartment Refrigerator compartment
Automatic Icemaker
Lamp
Shelf
Shelf
Door rack
Drawer
Drawer
Door rack
Lower cover
Milk product corner
Lamp
Shelf
Refreshment center(Optional)
CanServer (Optional)
Shelf (Foldingor Normal)
Wine holder
(Plastic or wire)
Egg Box
Vegetable Drawer
HumiditySwitch
Door Rack
Door Rack
Miracle Zone (Optional)
Freshcompartment
(Optional)
Conversionswitch
(Meats/Vegetables)
(Optional)
Cover PWB
Water Tube
Frame Display
Dispenser Lamp
Ice &Water
Dispenser Button
3. Ref No. : GR-L227 /P257 (INTERNAL FILTER)

4. Ref No. : GR-L227 /P257 (EXTERNAL FILTER)
PARTS IDENTIFICATION
- 9 -
Freezer
compartment Refrigerator compartment
Automatic Icemaker
Lamp
Shelf
Shelf
Door rack
Drawer
Drawer
Door rack
Lower cover
Milk product corner
Lamp
Shelf
Refreshment center(Optional)
CanServer (Optional)
Shelf (Foldingor Normal)
Wine holder
(Plastic or wire)
Egg Box
Vegetable Drawer
HumiditySwitch
Door Rack
Door Rack
Miracle Zone (Optional)
Freshcompartment
(Optional)
Conversionswitch
(Meats/Vegetables)
(Optional)
Frame Display
Dispenser Lamp
Ice &Water
Dispenser Button
Cover PWB

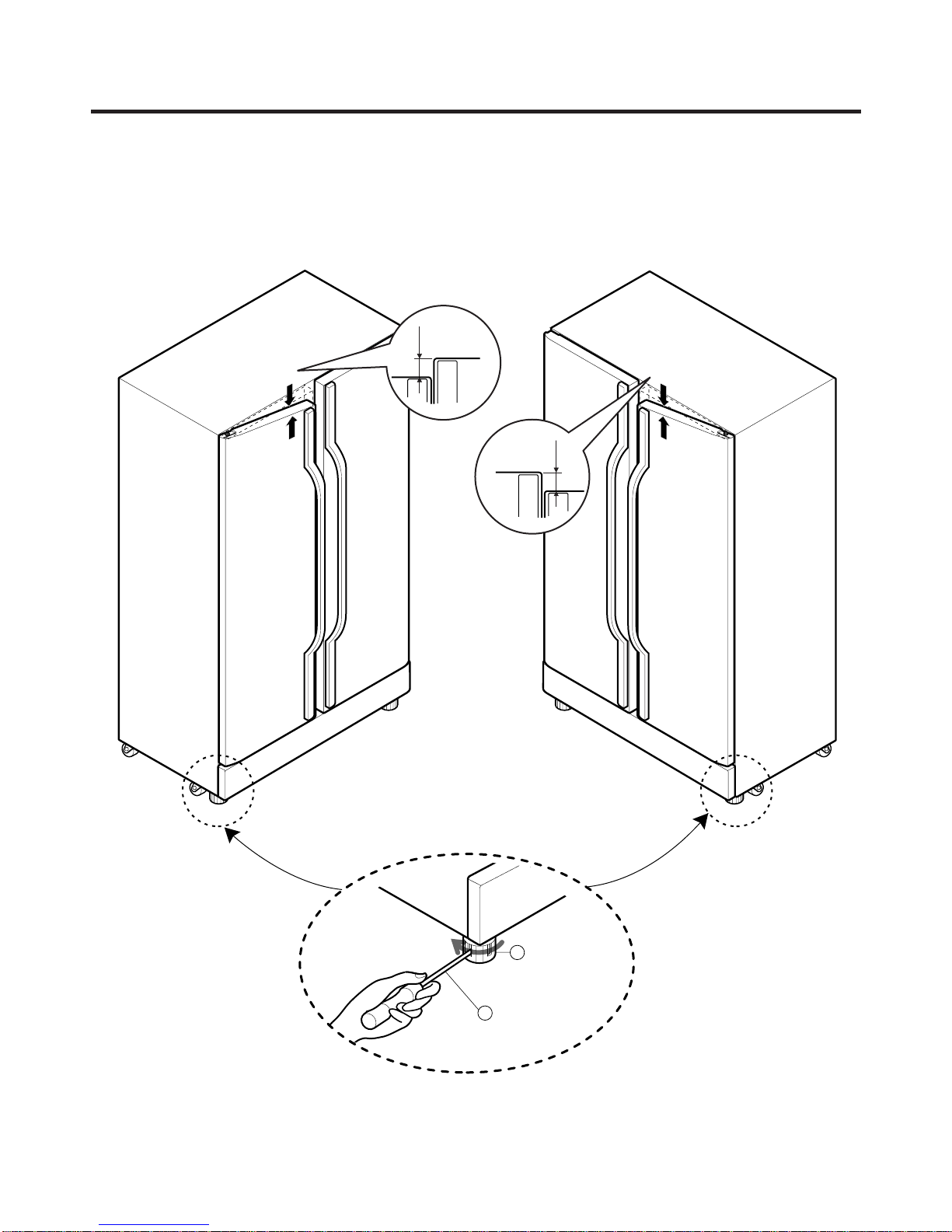

1. How to Adjust Door Height of Refrigerator
■Make the refrigerator level first. (If the refrigerator is not installed on the flat floor, the height of freezer and refrigerator
door may not be the same.)
1. If the height of freezer door is lower than that of
refrigerator compartment : 2. If the height of freezer door is higher than that of refrigerator compartment :
Insert a driver Binto the groove Aof adjusting screw
and rotate driver in arrow direction (clockwise) until the
refrigerator becomes horizontal.
Insert a driver Binto the groove Aof adjusting screw
and rotate driver in arrow direction (clockwise) until the
refrigerator becomes horizontal.
HOW TO INSTALL REFRIGERATOR
- 10 -
Adjusting
Screw
Driver
Height
Difference
Height
Difference
Height
Difference
Height
Difference
1
2

2. How to Install Water Pipe
■Before Installation
1. The icemaker requires the water pressure of 1.5 -
8.5kgf/cm2. (It is acceptable if city water fills a cup of
180cc with water for 3 seconds)
2. Install booster pump where the city water pressure is
below 1.5kgf/cm2for normal operation of water and ice
dispenser.
3. The total length of water pipe shall be less than 12m. Do
not bend the pipe at right angle. If the length is more
than 12m, there will be troubles on water supply due to
water pressure drop.
4. Please install water pipe where there is no heat around.
2-1. When connecting directly to the water tap.
■Please confirm the following installation parts.
HOW TO INSTALL REFRIGERATOR
- 11 -
Class. Shape and Spec. Nomenclature P/No Remarks
Valve Feed 5221JA3001A Common Use
Connector, (MECH) Pipe 4932JA3003A
Conversion Connector(3/4") 6631JA3004A No Holes
Balance Conector(3/4") 6631JA3004B
Packing(ø24x3t) 3920JA3001B
Connector, (MECH) Pipe 4932JA3003B
Conversion Connector(W25) 6631JA3004C No Holes
Balance Conectoor(W25) 6631JA3004D
Packing(ø23x3t) 3920JA3001A
Connector, (MECH) Pipe 4932JA3003C
Conversion Connector(W28) 6631JA3004E No Holes
Balance Conector(W28) 6631JA3004F
Packing(ø26x3t) 3920JA3001C
Connector, (MECH) Pipe 4932JA3003D
Conversion Connector(1/2") 6631JA3004G No Holes
Balance Conector(1/2") 6631JA3004H
Packing(ø19x3t) 3920JA3001D
Conve-
rtible
Water
Valve
Water
Conn-
ector
Valve Feed Rubber, Packing Connector, Pipe
Tape, TeflonConnector, Pipe

1. Connection of Pipe Connector A and B.
1) Turn off main valve of water pipe.
2) Disconnect water tap from piping by loosening nuts.
3) Connect pipe connector A and B to piping after sealing
the pipe connector with sealing tapes.
4) Connect feed valve to pipe connector A.
5) If there is only one tap water pipe, connect pipe
connector A only and install feed pipe.
2. Water Supply
1) After the installation of feed water, plug the refrigerator
to the earthered wall outlet, press the water dispenser
button for 2 - 3 minutes, and confirm that the water
comes out.
Caution : • Feed pipe should be connected to cold water
line. If it is connected to hot water line, trouble
may occur.
• Please check rubber packing when connecting
feed pipe.
2) Check leakage at connecting part, then arrange water
tube and locate the refrigerator at its regular place if
there is no leaking.
HOW TO INSTALL REFRIGERATOR
- 12 -
Single Lever Type Faucet
(general)
Feed
Valve
General Type
Feed
Valve
Two Hands Type Faucet Single Lever Type Faucet (one
hole, tech type and hand spray)
Feed
Valve
Feed
Valve
Pipe Connector B
Hot Water
Pipe Connector A
Feed
Valve
Cold Water
How to wind
Sealing Tapes.
Water Tube
Water Tube
Nut

3. When customer uses bottled water.
*If customer wants to use bottled water, extra pump should be installed as shown below.
1. The pump system should not be on the floor (it may cause noise and vibration). Securely fasten the inlet and outlet
nuts of pump.
2. If there is any leakage after installation, cut the water tube at right angle and reassemble.
3. When put the water tube end into the bottle, leave a clearance between bottle bottom and water tube end.
4 Check water coming out and any leakage.
Caution : • If feed tube is more than 4m, less water will come out due to pressure drops.
• Use standard feed tube to prevent leaking.
■Outternal Filter
1. Filter Fixation
1) There are two types of filter. One is nut type and the other is connector type.
2) Connect feed tube to the filter outlet and water valve connecting tube.
3) Fix the filter at proper place around the sink where it is easy to replace the filter and to receive the cleaning water.
Please consider the length of tube shall be less than 8m when locating filter.
2. Filter Cleaning
1) Connect feed tube to the inlet of feed valve and filter.
2) Clean the main valve and feed valve with water for at
least one minute until clean water comes out.
HOW TO INSTALL REFRIGERATOR
- 13 -
Water Tube or
Nut
Nut Inlet Outlet
Connector Type Nut Type
Water
Filter
Filter Inlet Feed Valve
Hot Water
Cold Water

■Install Water Filter (Applicable to some models only)
■Before Installing water filter
1. Before installing the filter, take out the top shelf of the
refrigerator after tilting it to the direction (a) and lifting it
to the direction (b) and move it to the lower part.
2. Remove the lamp cover by pressing the protrusion
under the cover and pulling the cover to the front.
■Installing water filter
1. Initial installation of water filter
Remove the filter substitute cap by turning it
counterclockwise (a) by 90 degrees and pulling it down.
Note : Keep it safe to use it later when you do not use the
filter.
Remove the red cap from the filter and attach the
sticker. Insert the upper part of the filter (a) after
aligning with the guideline marked on the control box,
and fasten it by turning it clockwise by 90 degrees.
Note : Check that the guideline and the fastening
indication line are aligned.
2. Replacement of water filter
While holding the lower part of the filter, turn it
counterclockwise (a) by 90 degrees and pull it down.
Note : Check that the guideline and the loosening
indication line are aligned.
■After installing water filter
Reassemble the lamp cover and the top shelf of the
refrigerator. To place the top shelf of the refrigerator, raise
the front part of the shelf a bit so that the hook of the shelf
is fit into the groove.
In order to clean the water filter system, drain water for
about 3 min.
Note : Then open the door of the refrigerator and check for
water droppings on the shelf under the filter.
Aligning with the guide line
and the fastening indication line
Aligning with the guide line
and the loosening indication line
Control box
Control box
Separation
of red cap
Adhesion
sticker
Substitute
cap
HOW TO INSTALL REFRIGERATOR
- 14 -

- 15 -
3. How to Control the Amount of Water Supplied to Icemaker.
3-1. Confirm the amount of water supplied to the icemaker.
1. Remove the cover bucket : Lift the cover with a slight twisting.
2. Remove the ice bucket : Lift the lower part slightly and take the ice bucket out slowly.
• Caution : • Do not put your hands or tools into the
chute to confirm the operation of geared
motor. It may damage refrigerator or hurt
your hands.
• Check the operation of motor with its operation
noise.
3. Apply electricity after connecting water pipe.
1) Press test switch under the icemaker for two seconds as shown below.
2) The bell rings(ding~dong) and ice tray rotates and water comes out from the icemaker water tube.
3) The water shall be supplied two or three times into the tray. The amount of water supplied for each time is small.
Put a water container under the ice tray and press test switch.
4) When ice tray rotates, the water in it will spill. Collect the spilt water and throw away into the sink.
5) When ice tray has finished rotation, water comes out from the water tube. Confirm the amounts of water in the ice tray.
(refer to fig. The optimum amount of water is 80cc)
* It is acceptable if the adjusted level of water is a bit smaller than maximum level.
HOW TO INSTALL REFRIGERATOR
Test Switch
Confirm the amount
of water(Recommend:
the water should
not be over this
maximum level line). Ice maker

3-2. Control the amount of water supplied to the icemaker.
Caution : • Please unplug the power cord from the wall outlet and wait for more than three minutes before disconnecting
PCB cover as 310V is applied in the control panel.
1. Disconnect PCB cover from the upper part of the refrigerator.
2. Adjust the amount of water supplied by using DIP switch.
■Water Supplying Time Control Option
1) The water supplying time is set at 4.5 seconds when the refrigerator is delivered.
2) The amount of water supplied depends on the setting time and water pressure (city water pressure).
3) If ice cube is too small, increase the water supplying time. This happens when too small water is supplied into the ice tray.
4) If ice cube sticks together, decrease the water supplying time. This happens when too much water is supplied into the ice tray.
Caution : When adjusting the amount of water supplied, adjust step by step. Otherwise the water may spill over.
3. When adjustment of control switch for the amount of water supplied is complete, check the level of water in the ice tray.
HOW TO INSTALL REFRIGERATOR
(+) Driver
1
ON
Switch ON
Switch OFF 2
Confirm the amount
of water(Recommend:
the water should
not be over this
maximum level line).
* The quantity of water supplied depends
on DIP switch setting conditions and
water pressure as it is a direct tap water
connection type. (the water supplied is
generally 60 cc to 100 cc)
* DIP switch is on the main PCB.
No DIP SWITCH SETTING
S1 S2
1
2
3
4
OFF OFF 4.5 SEC
ON OFF 4.0 SEC
OFF ON 5.5 SEC
ON ON 6.5 SEC
WATER SUPPLY
TIME REMARKS
- 16 -

1. Monitor Panel
1-1. GR-P227
1-2. Display Second Function
1. Door Alarm Buzzer Mute Mode
Press ALARM/LOCK to turn the buzzer on or off.
2. Display Power saving Mode
It places display in standby mode until door is opened.
Press FREEZER and EXPRESS FRZ. buttons simultaneously to turn all LEDs ON and then OFF with the recognition
sound of Ding~ after 5 seconds. (Be sure not to press only one button to work.)
- 17 -

Dispenser
Selection Button
Expres Freezer
Selection Button Door Alarm Button/
Lock Button
Dispenser Light On/Off Button/
Filter Status Display RESET Button
Temperature Adjust Button
For Refrigerator Compartment
Temperature Adjust Button
For Freezer Compartment
Display Power
Saving Mode
Demo Mode
Buzzer Mute Mode
MICOM FUNCTION

Once the mode activates, the display is always OFF. Until door is opened or display button is pressed. When 20 seconds
has elapsed after closing door or pressing button, the display turns OFF. To deactivate this mode is same as the activation
methods. The mode inactivates when resetting the power.
3. Exhibition Mode
Demo mode is available for displaying the refrigerator in a sales setting or similar condition.
It allows the display, dispenser, lights, and fan to operate without running the compressor.
To enter the DEMO mode, press and hold the REFRIGERATOR and EXPRESS FRZ. buttons simultaneously for 5
seconds until the Ding~ sounds.
To exit the DEMO mode and return to normal operation, press and hold the REFRIGERATOR and EXPRESS FRZ.
buttons simultaneously for 5 seconds until the Ding~ sounds again.
The refrigerator will default to the NORMAL mode (DEMO mode OFF) if the power fails.
2. Description of Function
2-1-1. Funnction of Temperature Selection
Some models only
* The temperature can vary ±3 °C depending on the load condition.
❉Whenever pressing button, setting is repeated in the order of (Medium) ➝(Medium Max) ➝(Max) ➝(Min) ➝
(Medium Min).
• The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target
temperature, not actual temperature within refrigerator.
• Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum
2~3 days.
MICOM FUNCTION
- 18 -
Division Power Initially On 1st Press 2st Press 3th Press 4th Press
Temperature
Control Medium Medium Max Max Min Medium Min
Freezer Control -19 °C -22 °C -23 °C -15 °C -17 °C
Refrigeration 3 °C 2 °C 0°C 6 °C 4 °C
Control
Division Power Initially On 1st Press 2nd Press 3rd Press 4th Press 5th Press 6th Press 7th Press 8th Press
Temperature
Control Medium Medium Max Max Min Medium Max
Freezer Control -19 °C -20 °C -21 °C -22 °C -23 °C -15 °C -16 °C -17 °C -18°C
Temperature
Control Medium Max Min
Refrigeration 3 °C 2 °C 1°C 0 °C 6 °C 5 °C 4 °C
Control

2-1-2. LCD Back Light Control
1. In order to easily view display status on the LCD, LCD Back Light is turned on for a minute in application of initial power,
for a minute in button manipulation and for a minute after closing time from opening time of door.
2. If pressing any display button once with the backlight turned off, buzzer rings and button function is not performed but
only backlight is turned on (If pressing the first button with the back light turned off, only back light ON function is
performed).
3. If pressing the special freezing button and the freezing temperature adjustment button for more than a second, the back
light is turned on and all the graphics of LCD are turned on. If releasing the button, the LCD graphic is displayed in the
previous status and the back light is turned off (check LCD graphic and back light ON/OFF status).
2-1-3. Outside temperature display function
1. Outside temperature sensor at the left U of refrigerator senses ambient temperature and displays the outside temperature
in the left side of “Outside temperature” text on the LCD of the display part.
2. Ambient temperature is displayed up to -9°C ~ 49°C and displayed as “Lo” for less than -10°C and as “HI” for more than
50°C. If the ambient temperature sensor fails, it is displayed as “Er”.
3. Since display temperature of outside temperature is temperature sensed by the ambient sensor in the hinge U of the
freezing room, it may differ from the outside temperature display of other household electrical appliances.
2-1-4. Lock function (display button lock)
1. In power application of refrigerator, the LOCK text is turned off at the right side of lock graphic of display with the lock
replease status.
2. If desiring to lock the dislay the dispenser and control panel, push on the LOCK button more than 3 seconds. LOCK is
turned on at the right side of lock graphic of display with lock status.
3. The buzzer sound and control panel and dispenser function is not performed even if pressing display button other than
lock key in the lock status.
4. If desiring to release the lock status and pressing the lock button more than 3 seconds. LOCK text is turned off at the right
side of lock graphic of display with the lock release status.
2-1-5. Filter condition display function
1. There is a replacement indicator light for the water filter cartridge on the dispenser.
2. Water filter needs replacement once six months.
3. Water filter light and FILTER RESET HOLD 3SECS text turn on to tell you need to replace the filter soon.
4. After replacing the filter, press and hold the lock button more than 3seconds.
Then water filter light and FILTER RESET HOLD 3SECS text turn off with reset status.
MICOM FUNCTION
- 19 -

2-2. Dispenser use selection
You can select water or ice.
❉Please select water, slice ice and square ice by pressing button as you desire.
❉Please press the push button lightly by catching and pushing in cup.
• The border line is indicated for the selected function.
• “Tak!” sounds if 5 seconds pass after ice comes out.
It is sound that the outlet of ice is closed.
REFERENCE : Please wait for 2-3 seconds in order to take final ice slices or drops of
water when taking out cup from the pressing switches after taking ice
or water.
2-3. Automatic ice maker
• The automatic ice maker can automatically make 6 pieces of ice cube at a time, 50~60 pieces a day. But these quantities
may be varied according to various conditions including how many times the refrigerator door opens and closes.
• Ice making stops when the ice storage bin is full.
• If you don’t want to use automatic ice-maker, change the ice-maker switch to ON-OFF.
If you want to use automatic ice-maker again, change the switch to OFF-ON.
NOTE : It is normal that a noise is produced when ice made is dropped into the ice storage bin.
2-4. When ice maker does not operate smoothly
Ice is lumped together
• When ice is lumped together, take the ice lumps out of the ice storage bin, break them into small pieces, and then place
them into the ice storage bin again.
• When the ice maker produces too small or lumped together ice, the amount of water supplied to the ice maker need to be
adjusted. Contact the service center.
✻If ice is not used frequently, it may lump together.
Power failure
• Ice may drop into the freezer compartment. Take the ice storage bin out and discard all the ice then dry it and place it
back. After the machine is powered again, crushed ice will be automatically selected.
The unit is newly installed
• It takes about 12 hours for a newly installed refrigerator to make ice in the freezer compartment.
2-5. Express Freezer
Please select this function for prompt freezer.
• “On” or “Off” is repeated whenever pressing button.
• The arrow mark graphic remains at the On status after flickering 4 times
when selecting Special Refrigeration “On”.
• Super freezer function automatically turns off if a fixed time passes.
2-6. Lock
This button stops operation of different button.
• Locking or Release is repeated whenever pressing the .
• Pressing the other button when selecting ‘ALARM/LOCK’, the button does
not operate.
MICOM FUNCTION
- 20 -
Pressing
Switch
DISPENSER
