LG GS-L668PNL User manual

MFL69124626
Rev.00_061616
OWNER’S MANUAL
REFRIGERATO R
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
www.lg.com

TABLE OF CONTENTS
This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by
the manufacturer.
SAFETY INSTRUCTIONS .......................................................03
INSTALLATION........................................................................11

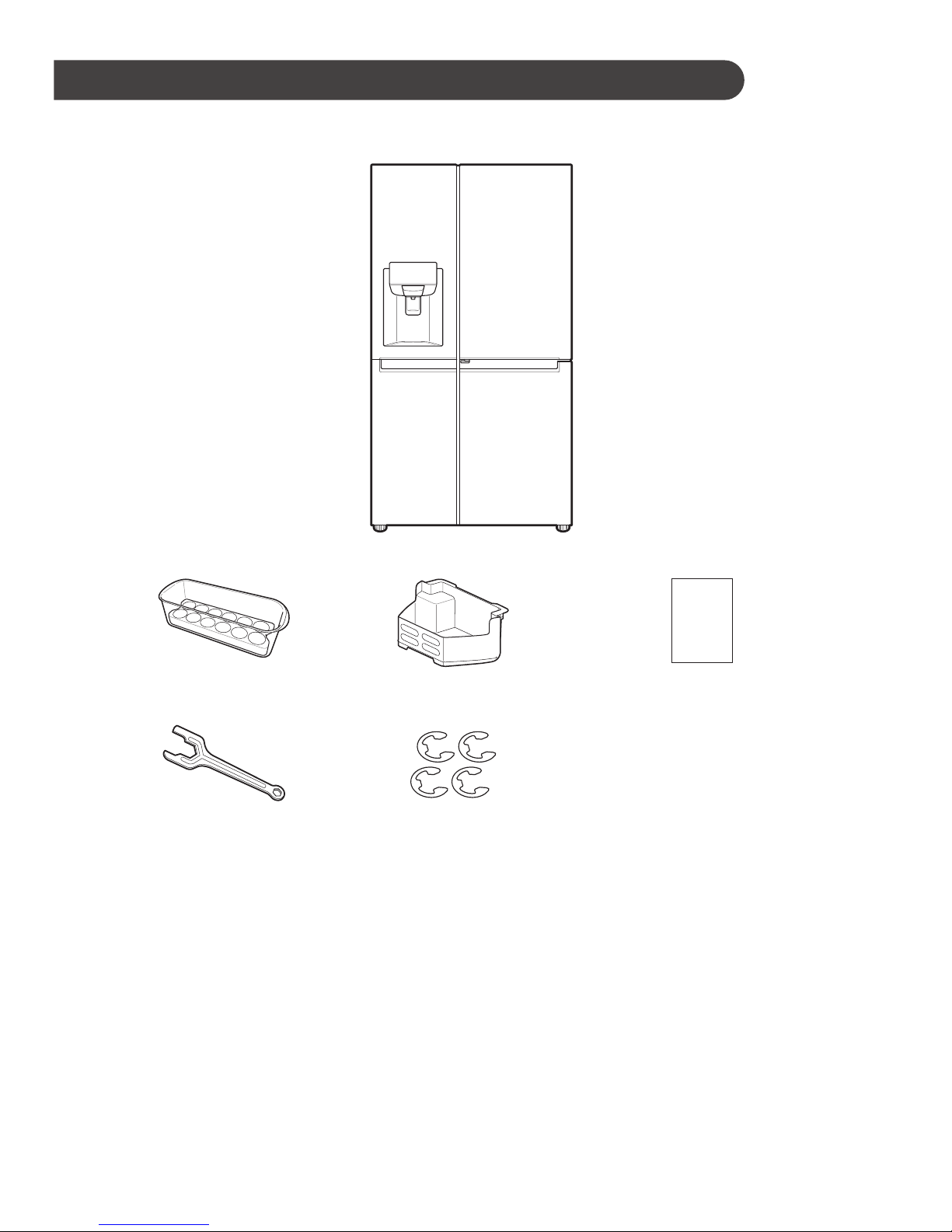

Compartments .......................................................................................... 11
Notes for Moving and Transporting .......................................................... 12
Notes for Installation................................................................................. 12
Removing the Door................................................................................... 12
Refitting the Door...................................................................................... 14

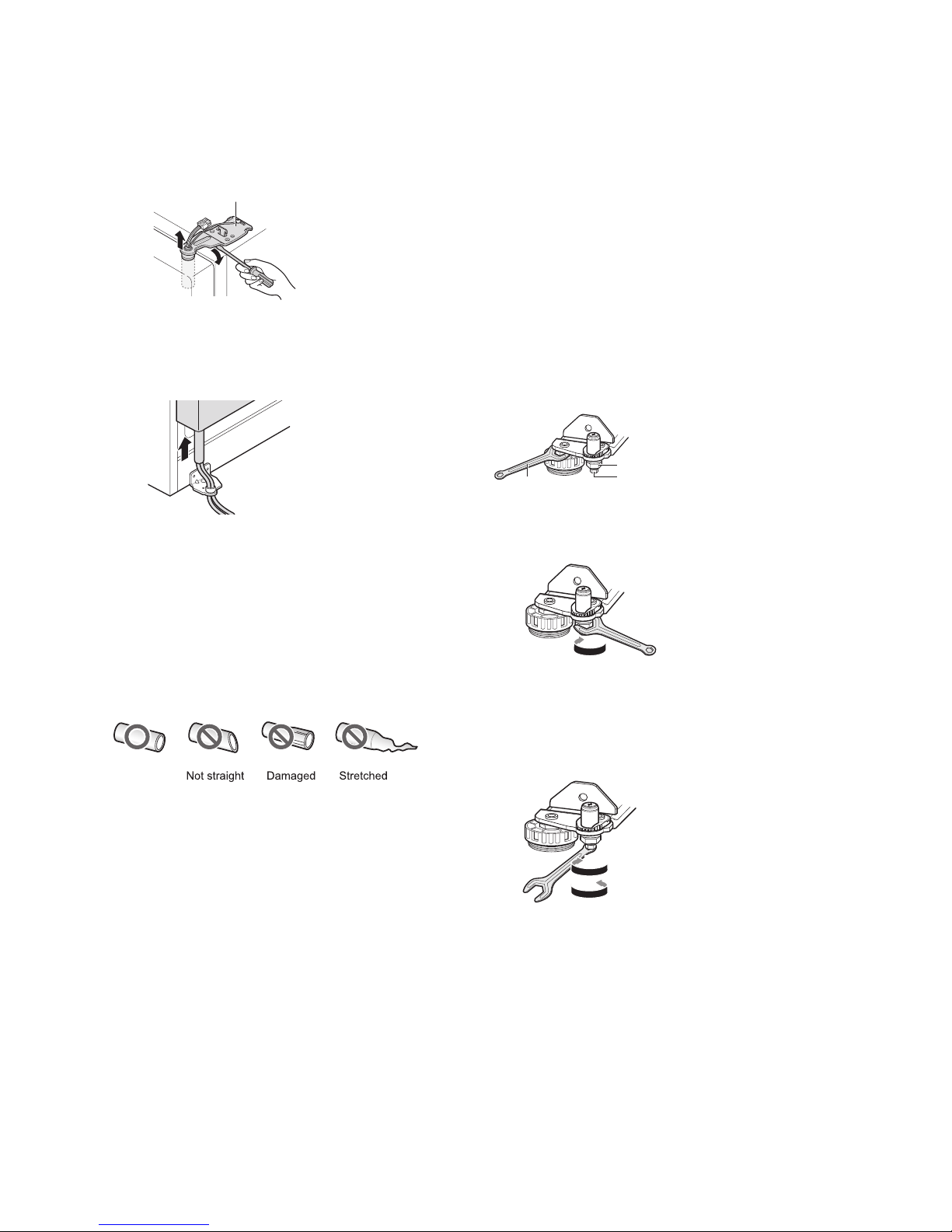

Adjusting the Height of the Door............................................................... 14
Connecting the Water Line (For Plumbed models Only) .......................... 15
OPERATION ............................................................................18

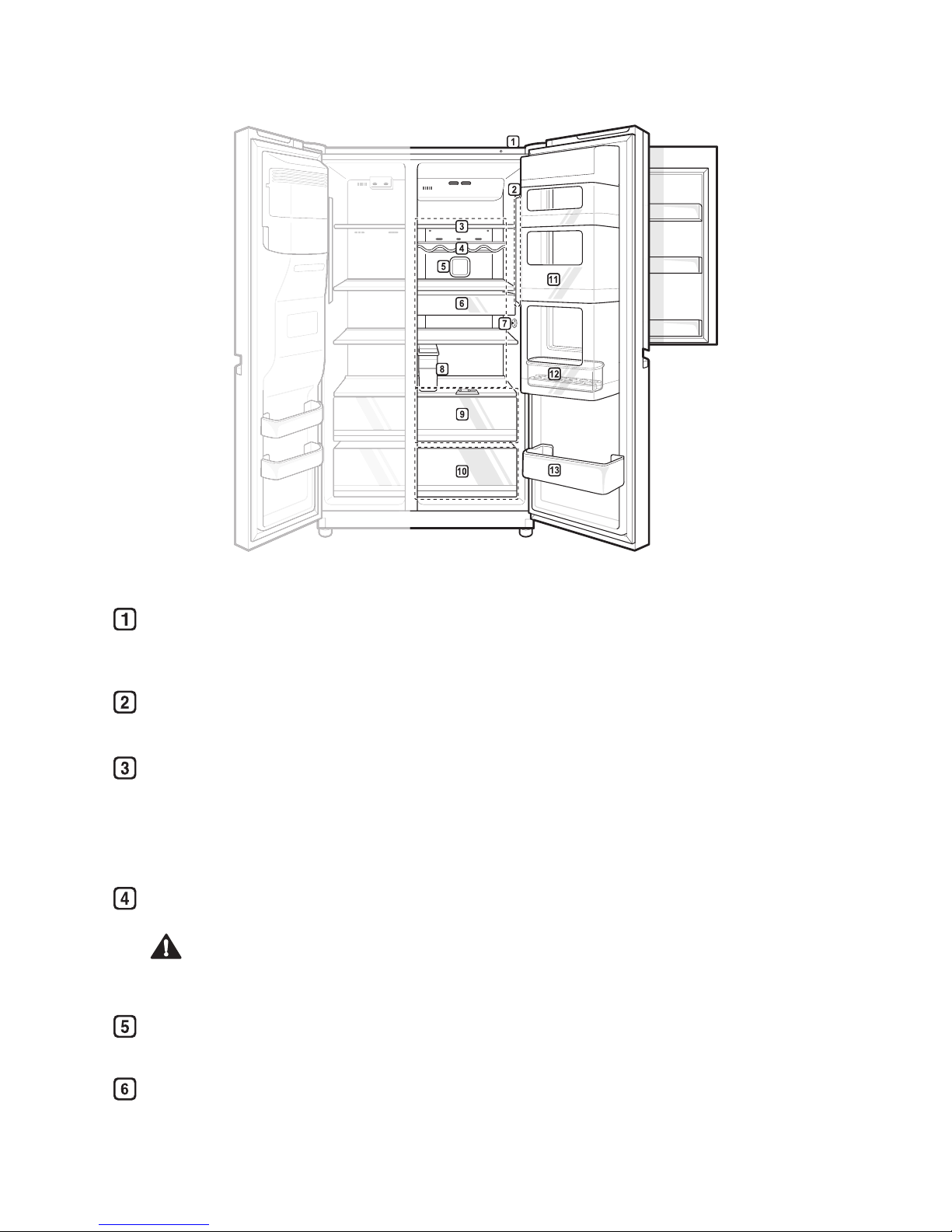

Parts and Functions.................................................................................. 18
Notes for Operation ................................................................................. 22
Control Panel............................................................................................ 23
Water Dispenser Tank (Non plumbed models only) ................................. 25
Water and Ice Dispenser .......................................................................... 26
Automatic Icemaker.................................................................................. 26
Door in Door (Optional) ............................................................................ 28
Fresh Vegetable Drawer (Optional) .......................................................... 29
Other Functions ....................................................................................... 29
SMART FUNCTION .................................................................30
Application Installation.............................................................................. 30
Product Registration ................................................................................. 30
Using the Tag On Function ....................................................................... 30
Using Smart Diagnosis™ ......................................................................... 31
MAINTENANCE.......................................................................33
Notes for Cleaning ................................................................................... 33
Replacing the Pure N Fresh Filter (Optional) ........................................... 33
Cleaning the Door Basket......................................................................... 34
Cleaning the Shelf .................................................................................... 34
Cleaning the Water Dispenser.................................................................. 35
Replacing the Water Filter (For Plumbed models Only) ........................... 35
TROUBLESHOOTING.............................................................36

03
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect operation
of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
To reduce the risk of explosion, re, death, electric
shock, injury or scalding to persons when using
this product, follow basic precautions, including the
following:
CAUTION
This indicates that failure to follow the instructions can
cause minor injury or damage to the product.
To reduce the risk of explosion, re, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
WARNING

04
Important Safety Instructions
Installation
•This appliance should only be transported by two or more people
holding the appliance securely.
•Ensure that the outlet socket is properly grounded, and that the
earth pin on the power cord is not damaged or removed from
the power plug. For more details on grounding, inquire at an LG
Electronics customer information centre.
•This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate outlet socket that is installed
and grounded in accordance with all local codes and ordinances.
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized service
centre.
•Do not plug the appliance into a multi way power board, a double
adaptor or an extension power cable.
•Do not modify or extend the power cord.
•Avoid using any extension cords or double adaptor. The appliance
should be connected to a dedicated power line which is separately
fused.
•Install the appliance in a place where is easy to unplug the power
plug of the appliance.
•Be careful not to point the power plug up or let the appliance lean
against the power plug.
•Install the appliance on a rm and level oor.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind or
rain or temperatures below freezing.

05
•Do not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.
•Be careful not to expose the rear of the appliance when installing.
•Be careful not to let the appliance door fall during assembly or
disassembly.
•Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
Operation
•Do not use the appliance for any purpose (storage of medical
or experimental materials or shipping) other than any domestic
household food storage use.
•In case of ood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Unplug the power plug during a severe thunderstorm or lightening
or when not in use for a long period of time.
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy object
on it.
•If water penetrates electrical parts of the appliance, disconnect
power plug and contact an LG Electronics customer information
centre.
•Do not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
•Do not apply excessive force or impact to the back cover of the
appliance.
•Do not put animals, such as pets into the appliance.
•Be careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury. Do not allow
any persons to swing from any of the doors as it can cause the unit
to topple over and cause serious injury.

06
•Avoid the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
•Do not place heavy or fragile objects, liquid lled containers,
combustible substances, or ammable objects (such as candles
and lamps) on the appliance.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the
area immediately. This appliance uses a very eco-friendly gas
(isobutane, R600a) as the refrigerant. Although it uses a small
amount of the gas, it is still combustible gas. Gas leakage during
appliance transport, installation or operation can cause re,
explosion or injury if sparks are caused.
•Do not use or store ammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide,
air freshener, cosmetics, etc.) near the appliance.
•Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour,
or smoke coming from the appliance.
•Fill with potable water only into icemaker or dispenser water tank.
Maintenance
•Disconnect the power cord before cleaning the appliance or
replacing the inside lamp (where tted).
•Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug rmly and pull straight out from the socket
outlet.
•Do not spray water inside or outside the appliance to clean it.

07
•Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
•Only a qualied service personnel from LG Electronics service
centre should disassemble, repair, or modify the appliance. Contact
an LG Electronics customer information centre if you move and
install the appliance in a different location.
•Do not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
Disposal
•When discarding the appliance, remove the door gasket while
leaving the shelves and baskets in place and keep children away
from the appliance.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
Technical safety
•Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or
a similarly qualied person before disposing of them.
•This appliance contains a small amount of isobutane refrigerant
(R600a), natural gas with high environmental compatibility, but it is
also combustible. When transporting and installing the appliance,
care should be taken to ensure that no parts of the refrigerating
circuit are damaged.

08
•Refrigerant leaking out of the pipes could ignite or cause an
explosion.
•If a leak is detected, avoid any naked ames or potential sources
of ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a ammable
gas air mixture if a leak in the refrigerating circuit occurs, the size
of the room in which the appliance is used should correspond to
the amount of refrigerant used. The room must be 1 m2in size for
every 8 g of R600a refrigerant inside the appliance.
•The amount of refrigerant in your particular appliance is shown on
the identication plate inside the appliance.
•Never start up an appliance showing any signs of damage. If in
doubt, consult your dealer.
•Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
•This appliance is intended to be used in household and similar
applications only. It should not be used for commercial, or catering
purposes, or in any mobile application such as a caravan or boat.
CAUTION
To reduce the risk of minor injury to persons, malfunction,
or damage to the product or property when using this
product, follow basic precautions, including the following:
Installation
•Do not tilt the appliance to pull or push it when transporting.

09
Operation
•Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
•Do not place glass containers or bottles in the freezer
compartment, shelves or ice bin that will be exposed to
temperatures below freezing.
•The tempered glass on the front side of the appliance door or
the shelves can be damaged by an impact. If it is broken, do not
touch it with hands, as this may result in injury.
•Make sure your hands and feet do not get stuck when opening
and closing the appliance door or the door in door.
•Do not place heavy objects on top of the door in door.
•Do not use the door in door as a chopping board and ensure
it is not scratched by a sharp tool,as this may cause appliance
damage.
•Do not store an excessive amount of water bottles or containers
for side dishes on the door baskets. The basket may break or
your hand may bump into the surrounding structure, causing
injury.
•Keep food organized inside the appliance.
•Prevent animals from nibbling on the power cable or water hose.
•Do not open or close the appliance door with excessive force.
•If the hinge of the appliance door is damaged or operates
improperly, stop using the appliance and contact an authorized
service centre.
•Supervise a child or a person with poor cognitive skills to ensure
they use the appliance safely.Do not damage the pipes of the
refrigerant circuit.

10
•Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
•Do not clean glass shelves or covers with warm water when
they are cold. They may break if exposed to sudden temperature
changes.
•Never eat frozen foods immediately after they have been taken
out in the freezer compartment
•Do not insert your hands into the mechanical part of the automatic
icemaker such as the ice bin or the ice dispenser.
•Do not use a thin crystal cup or chinaware when using the
dispenser.
•Do not remove the cover of the automatic icemaker. Touching any
mechanical part of the automatic icemaker. It may result in injury.
Maintenance
•Do not insert the shelves upside down. The shelves may fall,
causing injury.
•To remove frost from the appliance, contact an LG Electronics
customer information centre.
•Dispose of the ice inside the ice bin in the freezer compartment
during an extended power outage.
•Connect the water supply line (for plumbed models only) to a
potable water source only. Otherwise, impurities in the water may
cause illness.
