LG LFC28768 series User manual

OWNER’S MANUAL
FRENCH DOOR
REFRIGERATOR
Please read this guide thoroughly before operating and
keep it handy for reference at all times.
LFC28768**
www.lg.comP/No.: MFL63264274
ENGLISH FRANÇAIS ESPAÑOL

2

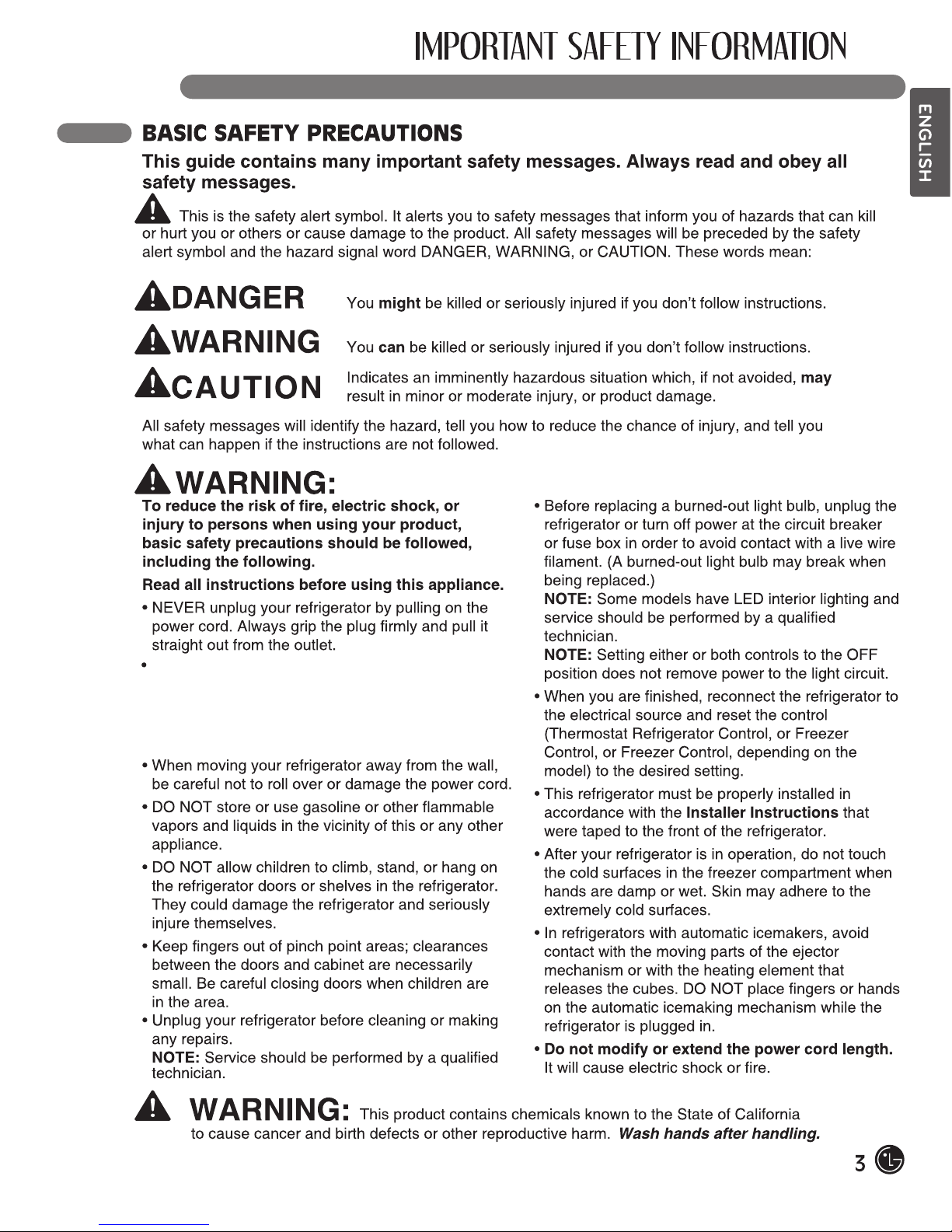

IMPORTANT SAFETY INFORMATION
Basic Safety Precautions ........................................3
CFC Disposal ..........................................................4
How to Connect Electricity ......................................5
PARTS AND FEATURES
Special Features .....................................................6
Key Parts and Components ....................................7
INSTALLATION
Choose the Proper Location ...................................8
Clearances ..............................................................8
Flooring ...................................................................9
Handle Removal......................................................9
Refrigerator Door and Freezer Drawer Removal ..10
Light Replacement ................................................15
Connecting the Water Supply ...............................16
Connecting the Water Lines..................................17
Leveling the Refrigerator Doors ............................18
Starting..................................................................19
HOW TO USE
Setting The Controls .............................................20
Automatic Icemaker .............................................21
Storing Foods .......................................................22
Location of Foods .................................................23
Shelf Height Adjustment .......................................24
Removing and Replacing Components ................25
CARE AND CLEANING
Cleaning the Refrigerator .....................................27
General Information .............................................27
TROUBLESHOOTING
Before Calling for Service …………………………29
SMART DIAGNOSIS
Smart Diagnosis ………………………...............…28
SPECIFICATIONS
Key Dimensions and Specifications .....................33
WARRANTY
Product Registration Information ..........................34
THANK YOU!
Congratulations on your purchase
and welcome to the LG family.
Your new LG French Door
Refrigerator combines
advanced cooling technology
with simple operation and high
efficiency. Follow the operating
and care instructions in this
manual and your refrigerator
will provide you with many years
of reliable service.

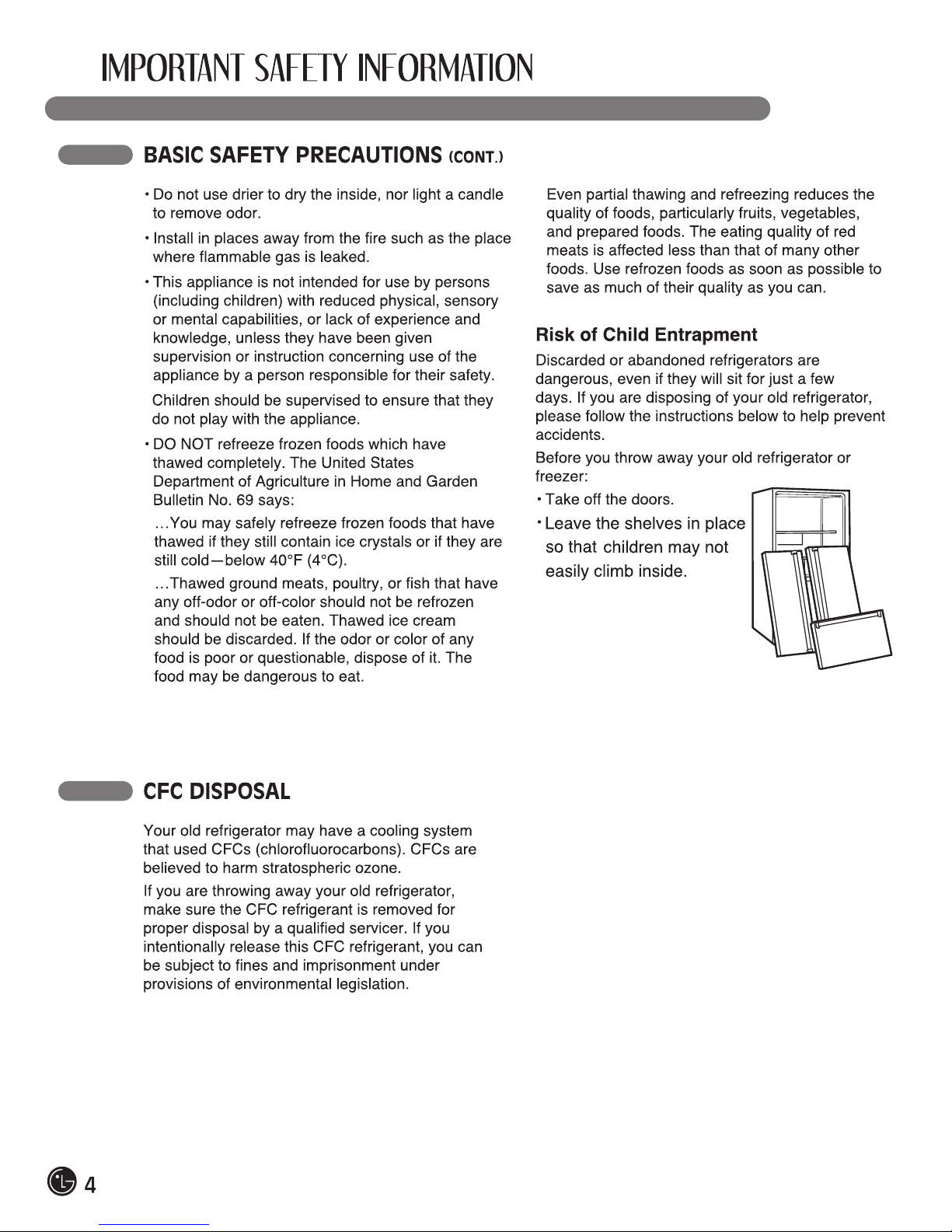

If the supply cord is damaged, it must be replaced by
the manufacturer or its service agentor a similarly qualied
person in order to avoid a hazard. Do not use a cord that
shows cracks or abrasion damage along its length or at
either the plug or connector end.

ENGLISH
5
HOW TO CONNECT ELECTRICITY
IMPORTANT: Please read carefully.
wWARNING
Electrical Shock Hazard
For personal safety, this appliance must be
properly grounded. Have the wall outlet and
the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.

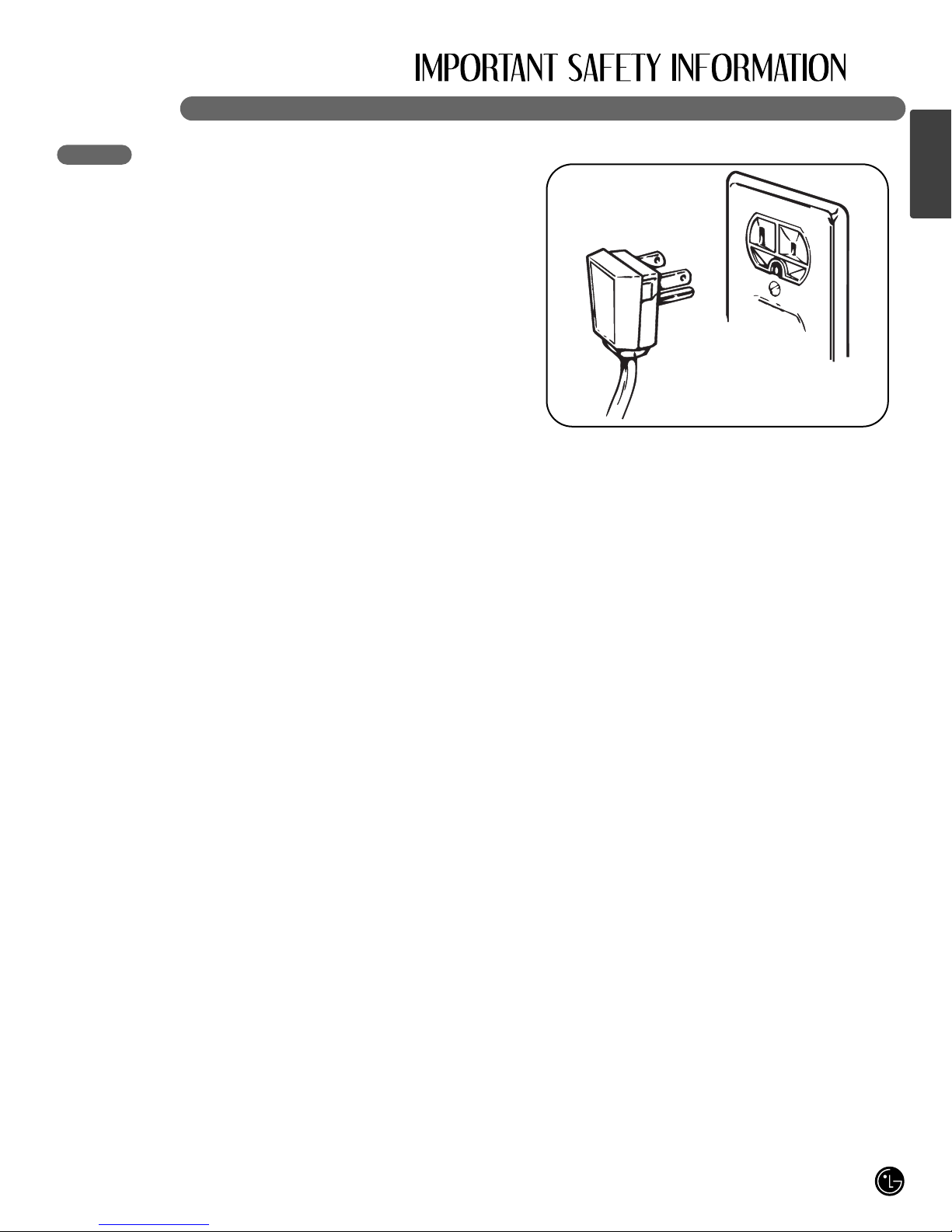

RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into
its own individual properly grounded electrical
outlet rated for 120 volts, 60 Hz, AC only, and
fused at 20 a peres. This provides the
best perfor ance and also prevents overloading
house wiring circuits which could cause a fire
hazard fro overheated wires. It is
reco ended that a separate circuit serving
only this appliance be provided.
Use a receptacle which cannot be turned off with
a switch or pull chain. Do not use an extension
cord. Where a standard two-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded three-prong wall outlet.
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not use an adapter plug.
NOTE: So e odels have LED interior lighting and
service should be perfor ed by a qualified technician.
When you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Ther ostat, Refrigerator Control, or Freezer Control,
depending on the odel) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an extension cord.
However, if you still elect to use an extension
cord, it is absolutely necessary that it be a UL-listed
(USA), 3-wire grounding-type appliance
extension cord having a grounding-type plug
and outlet and that the electrical rating of the
cord be 20 a peres ( ini u ) and 120 volts.
Use of an extension cord will increase the
clearance needed for the back of the
refrigerator.
SAVE THESE INSTRUCTIONS

6

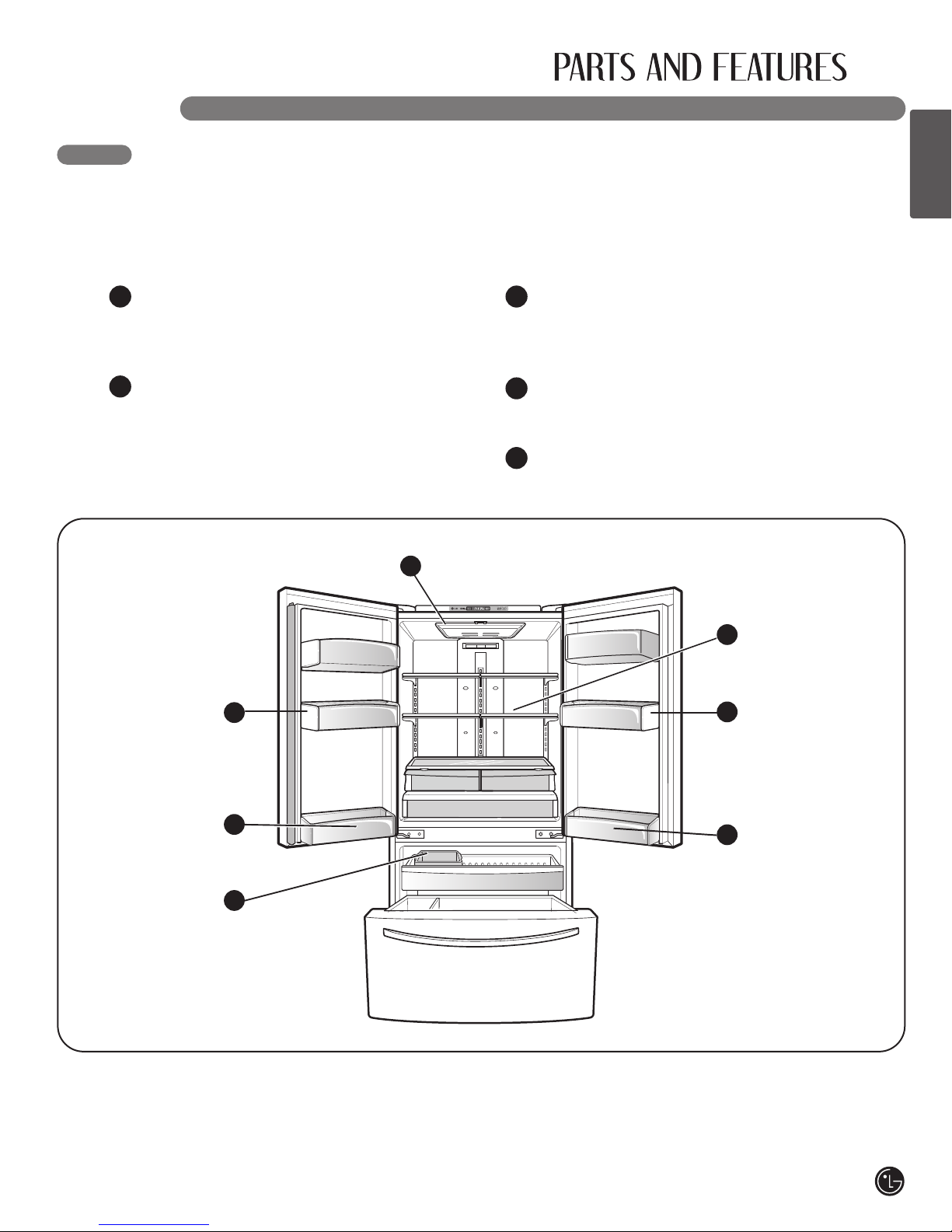

SPECIAL FEATURES

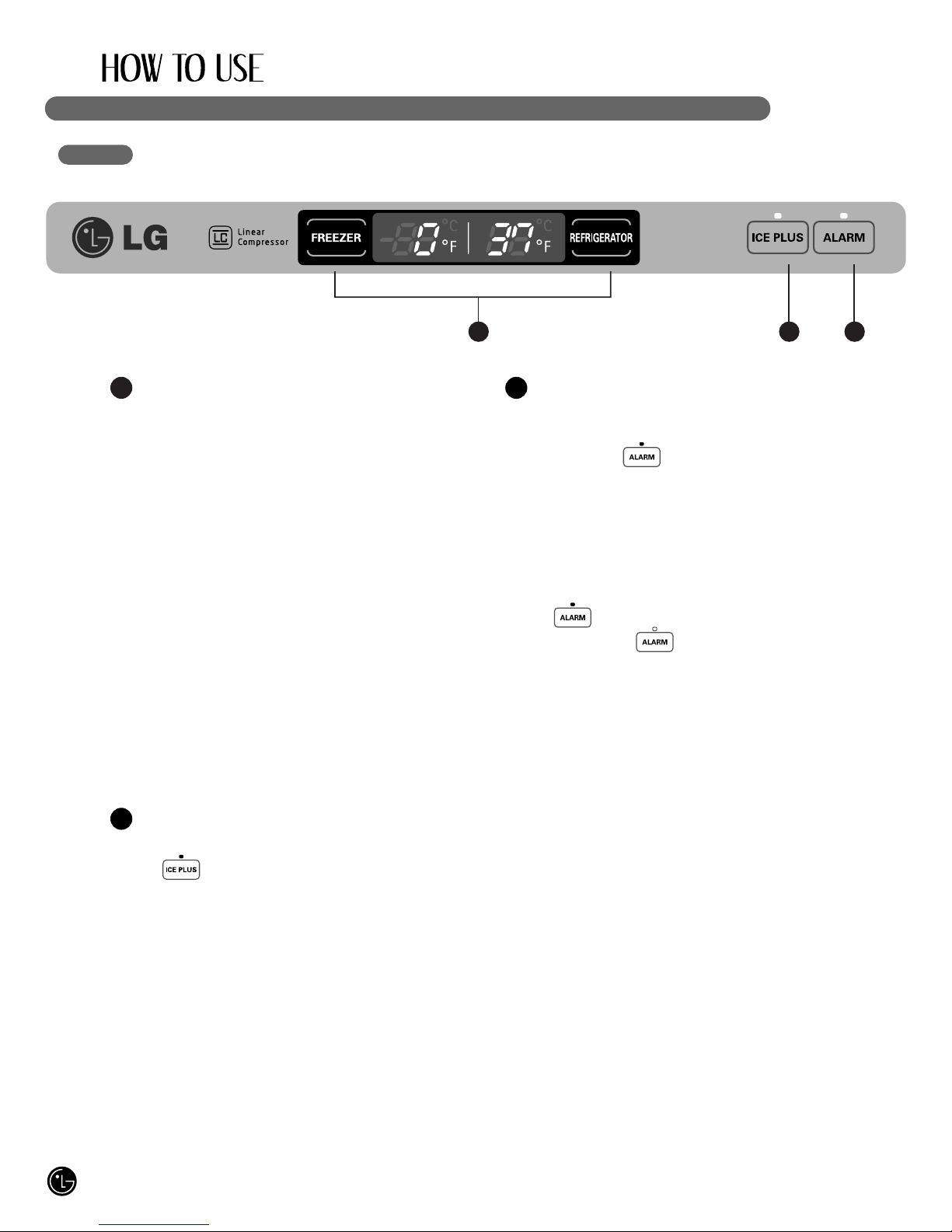

CONTROL PANEL LED DISPLAY SCREEN
Simple electronic controls are user-friendly.
The LED screen shows refrigerator and freezer
temperatures, displays water filter status,
dispenser information, and more.
ICE PLUS
When this feature is activated, the freezer section
will run at the coldest temperature for a 24- hour
period to increase ice production.
DOOR ALARM
A warning alarm sounds at 30-second intervals
when the refrigerator or freezer door is left open
for more than 60 seconds.
CRISPERS
LG’s crispers preserve humidity and help vegetables
stay crisp.
GLIDE‘N’SERVE
Provides storage space with a variable temperature
control that keeps the compartment colder than
refrigerator.
NOTE: This guide covers several different models.
The refrigerator you have purchased may have some or all of the items listed below.
The locations of the features shown below may not match your model.
1
2
4
5
Mullion
Folds in when the left door is opened.
6
3
5
6
4
21 3

7
KEY PARTS AND COMPONENTS
In addition to the special features and components
outlined in the Special Features section, there are
several other important components that are
referenced in this manual.
ENGLISH
ADJUSTABLE REFRIGERATOR SHELVING
The refrigerator compartment shelves are
adjustable to allow flexibility for storage needs.
GALLON STORAGE BINS
Three interchangeable bins can be arranged to
suit your storage needs.
REMOVABLE ICE STORAGE BIN
The ice storage bin can be removed to fill ice
buckets, coolers, or pitchers.
LED INTERIOR LAMPS
Refrigerator interior is lit by the LED array.
FIXED DOOR BINS
1
2
3
4
5
3
5
2
5
1
2
4

8
CHOOSE THE PROPER LOCATION
wWARNING
Excessive Weight Hazard
Two or more people are required when
moving and unpacking the appliance.
• Store and install the refrigerator where it will not
be exposed to te peratures below freezing or
exposed to outdoor weather conditions.
• Install this appliance in an area where the
te perature is between 55°F (13°C) and 110°F
(43°C). If the te perature around the appliance
is too low or too high, cooling ability ay be
adversely affected.
• If this refrigerator is installed where the
te perature is above 110°F (43°C), the
freezing capacity is co pro ised and the cost
of electricity used increases.
• To reduce the risk of electric shock, do not
install the refrigerator in a wet or da p area.
• Select a place where a water supply can be
easily connected for the auto atic ice aker
and dispenser.
• Unstable installation ay cause vibration and
noise. If the floor is not even, ake the
refrigerator level by rotating the height adjusting
screws.
• Properly ground the refrigerator to confor with
all governing codes and ordinances.
wAUTION
Avoid placing the unit near heat sources,
direct sunlight, or moisture.

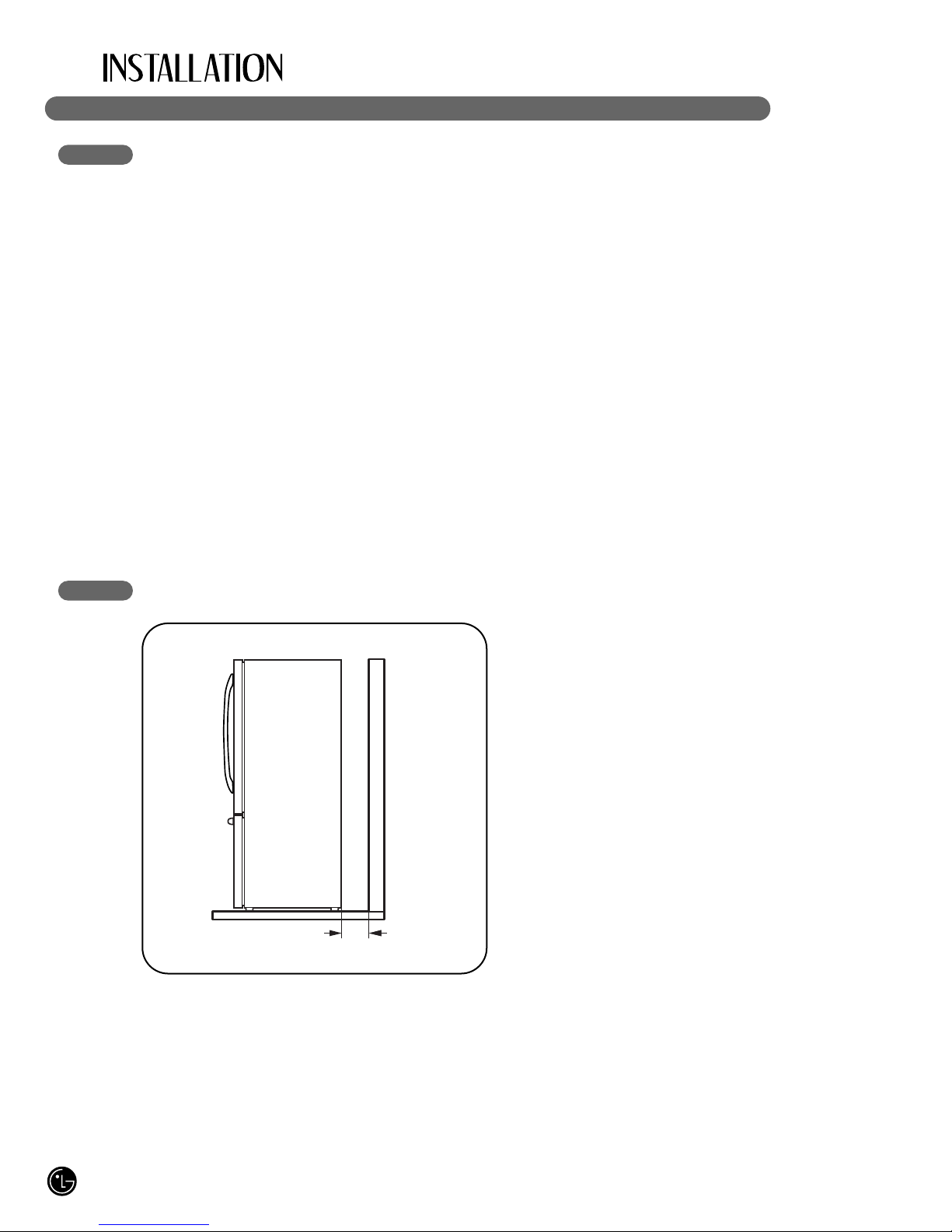

CLEARANCES
• Too s all a distance fro adjacent ite s ay
result in lowered freezing capability and
increased electricity consu ption charges.
Allow at least 24 in. (61 c ) in front of the
refrigerator to open the doors.
NOTE: For co plete di ensions and specifications,
see page 33.
2" (5.08 c )

ENGLISH
9
FLOORING
• To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
• To avoid vibration, the unit must be level.
If required, adjust the leveling legs to compensate
for unevenness of the floor. The front should be
slightly higher than the rear to aid in door
closing. The leveling legs can be turned easily
by pushing against the top of the refrigerator to
take the weight off the feet. Turn the leveling
legs clockwise to raise the unit or
counterclockwise to lower it.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the refrigerator on a platform or
weakly supported structure.
NOTE: When moving the refrigerator for cleaning
or service, be sure to protect the floor. Always
pull the refrigerator straight out when moving it.
Do not wiggle or walk the refrigerator when trying
to move it; floor damage could occur.
HANDLE REMOVAL
To move the refrigerator through a house door, it
may be necessary to remove the refrigerator
door handles.
NOTE: Handle appearance may vary from
illustrations on this page.
CAUTION
• Use special care when removing handles to
prevent scratching the doors.
• The handle could be damaged if you hit it with
a hammer while removing or attaching.
• When you assemble or disassemble a handle,
you must push or pull with reasonable force.
NOTE: It is recommend that the doors be removed when it is necessary to move the refrigerator through a
narrow opening.

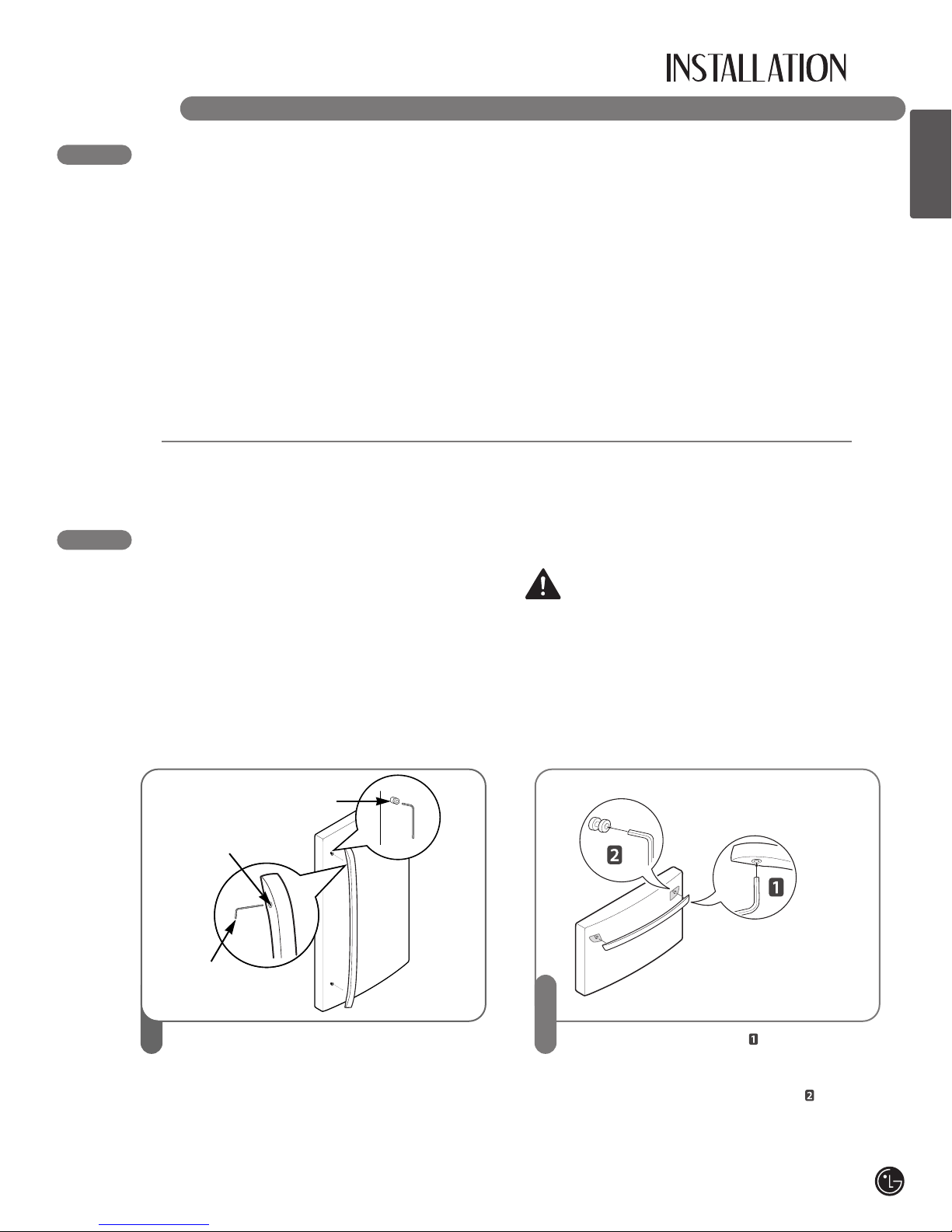

Loosen the set screws with a 2.5 mm (3/32")
Allen wrench and remove the handle.
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a 1/4" Allen
wrench.
12
Mounting
Fasteners
Set Screw
Allen Wrench
1Loosen the set screws located on the
lower side of the handle with a
1
/8
in. Allen
wrench and remove the handle.
2Loosen the mounting fasteners that
connect to the freezer drawer and handle
using a
1
/4
in. Allen wrench, and remove
the mounting fasteners.
1

1_MFL63728512_영어 2012.5.12 3:53 PM 페이지10 1_MFL63728512_영어 2012.5.12 3:53 PM 페이지10
10
HANDLE REMOVAL (CONT.)
HANDLE REINSTALLATION

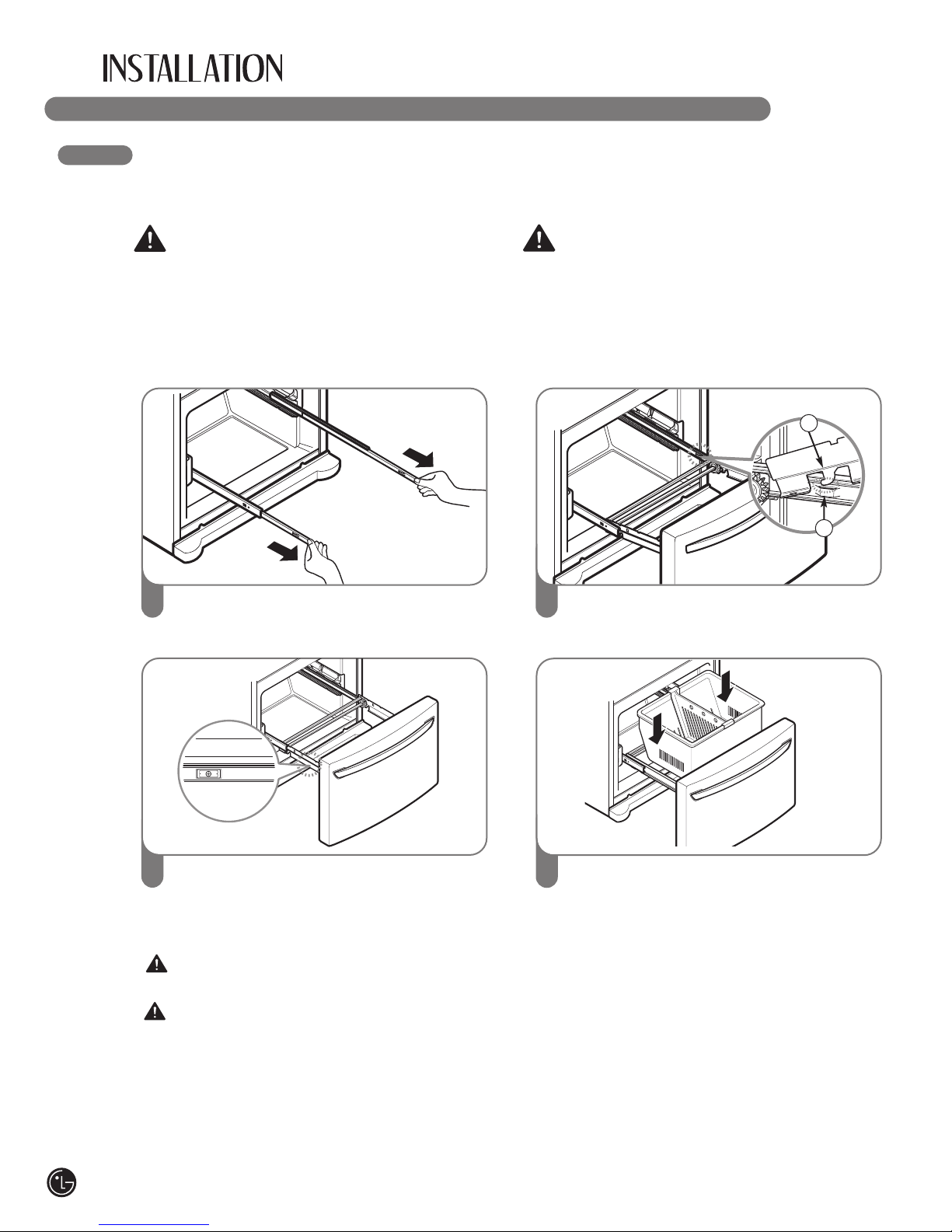

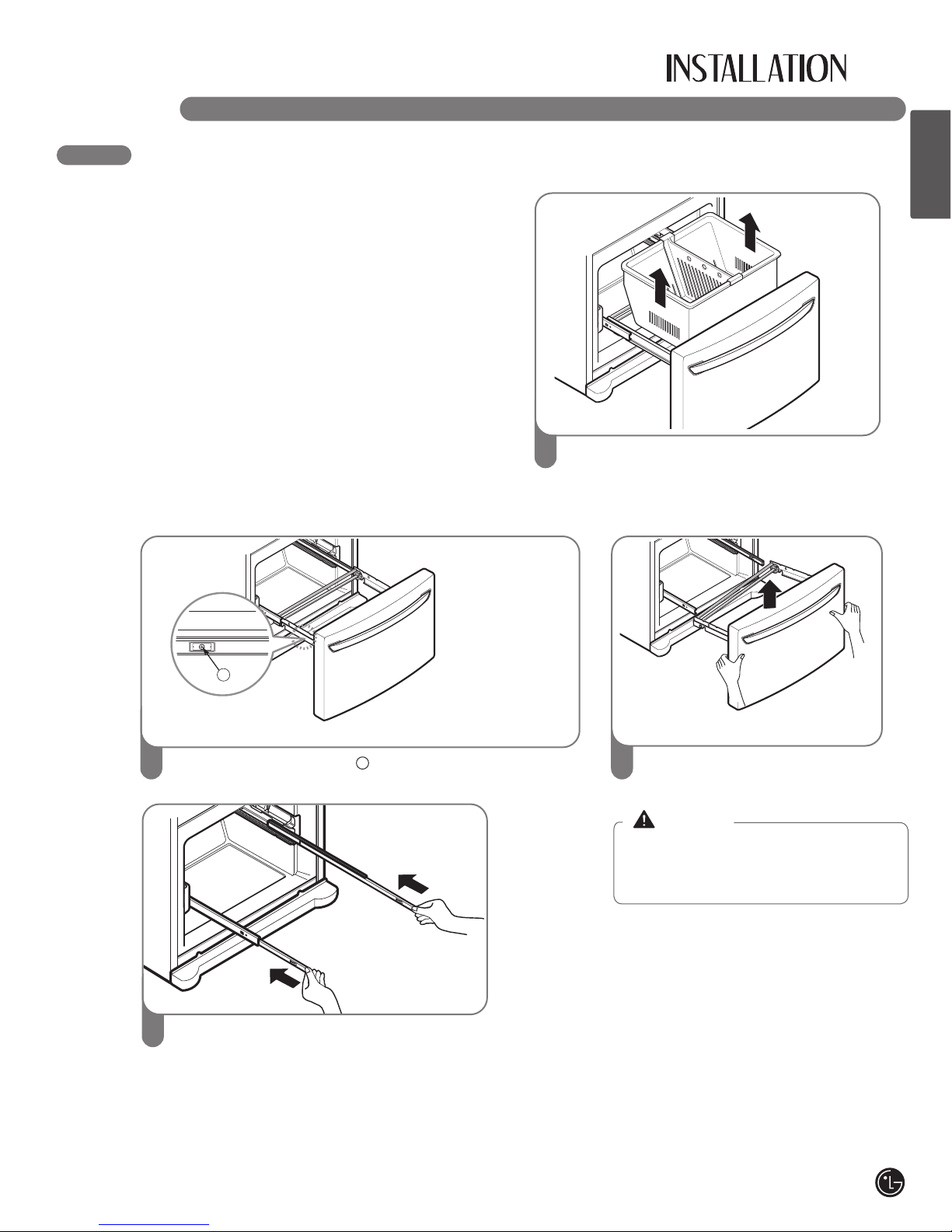

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

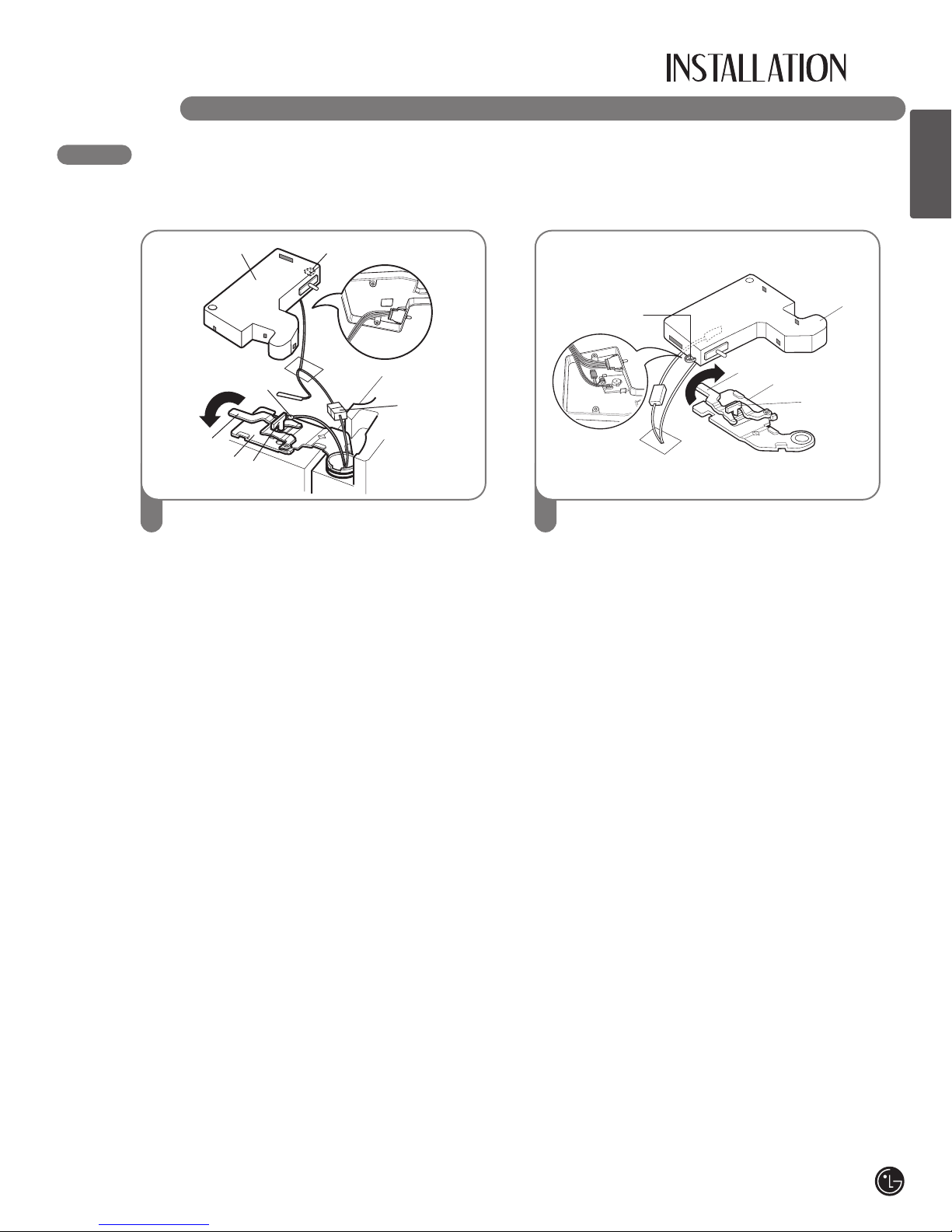

REFRIGERATOR DOOR REMOVAL
wWARNING
Electric Shock Hazard
• Disconnect electrical supply to the refrigerator before installing. Failure to do so could result in death or
serious injury.
• Do not put hands or feet or metal sticks into the air vents, base grille, or bottom of the refrigerator. You may
be injured or receive an electrical shock.
• Be careful when you work with the hinge, base grille, and stopper. You may be injured.
Before you begin, remove food and bins from the doors. f your entrance door is too narrow for the refrigerator
to pass through, remove the refrigerator door and move the refrigerator sideways through the doorway.
wWARNING
When the customer takes apart the handle or
assemble it from a refrigerator, please be cautious of
following things.
• Hold the handle with your own hand to make sure
not to drop the handle to the floor or instep while
taking apart the handle from a refrigerator.
• Do not swing the handle towards people or animals
after taking apart the handle.
• nsert the bracket hole of the handle into the stopper
bolt of the door exactly, and then assemble the set
screws to fix the handle.
• Check if there's any gap between the door and
handle after fixing the handle.
Place the handle on the door by aligning handle
footprints to fit mounting fasteners and tighten the
set screws with a 2.5 mm (3/32") Allen wrench.
NOTE: f the handle mounting fasteners need to
be tightened or removed use a 1/4" Allen wrench
11
Assemble the mounting fasteners at
both ends of the handle using a 1 /4in. Allen
wrench.
2
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 1
/8in. Allen wrench.
2
Mounting
Fasteners
1_MFL63728512_영어 2012.5.12 3:53 PM 페이지10
