LG DM2740DAB User manual

www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
DM2740 (DM2740, CMS2730F)
OWNER’S MANUAL
DVD Micro
Hi-Fi System
ENGLISH
FRANÇAIS
PORTUGUÊS
DM2740-FB_DAGOILK_ENG.indd 1 2014-06-13  2:55:54

1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure that
may be of sucient magnitude to
constitute a risk of electric shock
to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
DM2740-FB_DAGOILK_ENG.indd 2 2014-06-13  2:55:55

Getting Started 3
Getting Started
1
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
Notes on Copyrights
yThis product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi, and is intended for home and
other limited viewing uses only unless otherwise
authorized by Rovi. Reverse engineering or
disassembly is prohibited.
yUnder the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programs, video tapes, BD-ROM discs, DVDs, CDs
and other materials may subject you to civil and/
or criminal liability.
DM2740-FB_DAGOILK_ENG.indd 3 2014-06-13  2:55:55

Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 Accessories
7 Introduction
7 – Playable Discs
7 – About the “7” Symbol Display
7 – Symbols Used in this Manual
7 – Regional Codes
8 Playable file Requirement
9 Remote control
10 Front panel
12 Rear panel
2 Connecting
13 Attaching the speakers to the unit
13 Connections to Your TV
14 – HDMI Out Connection
15 – Video Connection
15 – Resolution Setting
15 – Video Output Resolution
16 Optional Equipment Connection
16 – AUDIO (PORT. IN) In Connection
16 – Listening to music from your portable
player or external device
16 – OPTICAL In connection
16 – Speaker ez setup
17 – Antenna Connection
18 – USB Connection
3 System Setting
19 Adjust the setup settings
19 – OSD Initial language settings -
Optional
19 – To display and exit the Setup menu
20 – Language
20 – Display
21 – Audio
21 – Lock (Parental Control)
22 – Others
DM2740-FB_DAGOILK_ENG.indd 4 2014-06-13  2:55:55

Table of Contents 5
1
2
3
4
5
6
4 Operating
23 Using the Home Menu
23 Basic Operations
24 Other Operations
24 – Displaying Disc Information on-screen
24 – To display the DVD Menu
24 – To display the DVD title
24 – 1.5 times speed playback
25 – Starting play from selected time
25 – Resume playback
25 – Changing subtitle code page
25 – Last Scene Memory
25 – Screen Saver
25 – Power Resume - Optional
26 – Marked Playback
26 – Viewing a PHOTO file
27 – System Select - Optional
28 Setting the Clock
28 – Using your player as an alarm clock
28 – Sleep Timer Setting
29 – Dimmer
29 – Turn off the sound temporarily
29 – DEMO
29 – Auto Power Down
30 Radio Operations
30 – Listening to the radio
30 – Presetting the Radio Stations
30 – Deleting all the saved stations
30 – Deleting a saved station
30 – Improving poor FM reception
31 Sound adjustment
31 – Setting the surround mode
31 – Adjust the speaker level settings
32 Advanced Operations
32 – Recording to USB
33 Using a Bluetooth® wireless technology
33 – Listening to music of a Bluetooth
device
5 Troubleshooting
36 Troubleshooting
6 Appendix
37 Area Code List
38 Language code List
39 Trademarks and Licenses
40 Specifications
42 Maintenance
42 – Handling the Unit
42 – Notes on Discs
DM2740-FB_DAGOILK_ENG.indd 5 2014-06-13  2:55:55

Getting Started6
Getting Started
1
Unique Features
Portable In
Listens to music from your portable device. (MP3,
Notebook, etc)
USB Direct Recording
Records music from CD to your USB device.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Bluetooth
Listens to music stored on your Bluetooth device.
NFC Tag
You can easily connect to Bluetooth devices
through NFC Tag.
Accessories

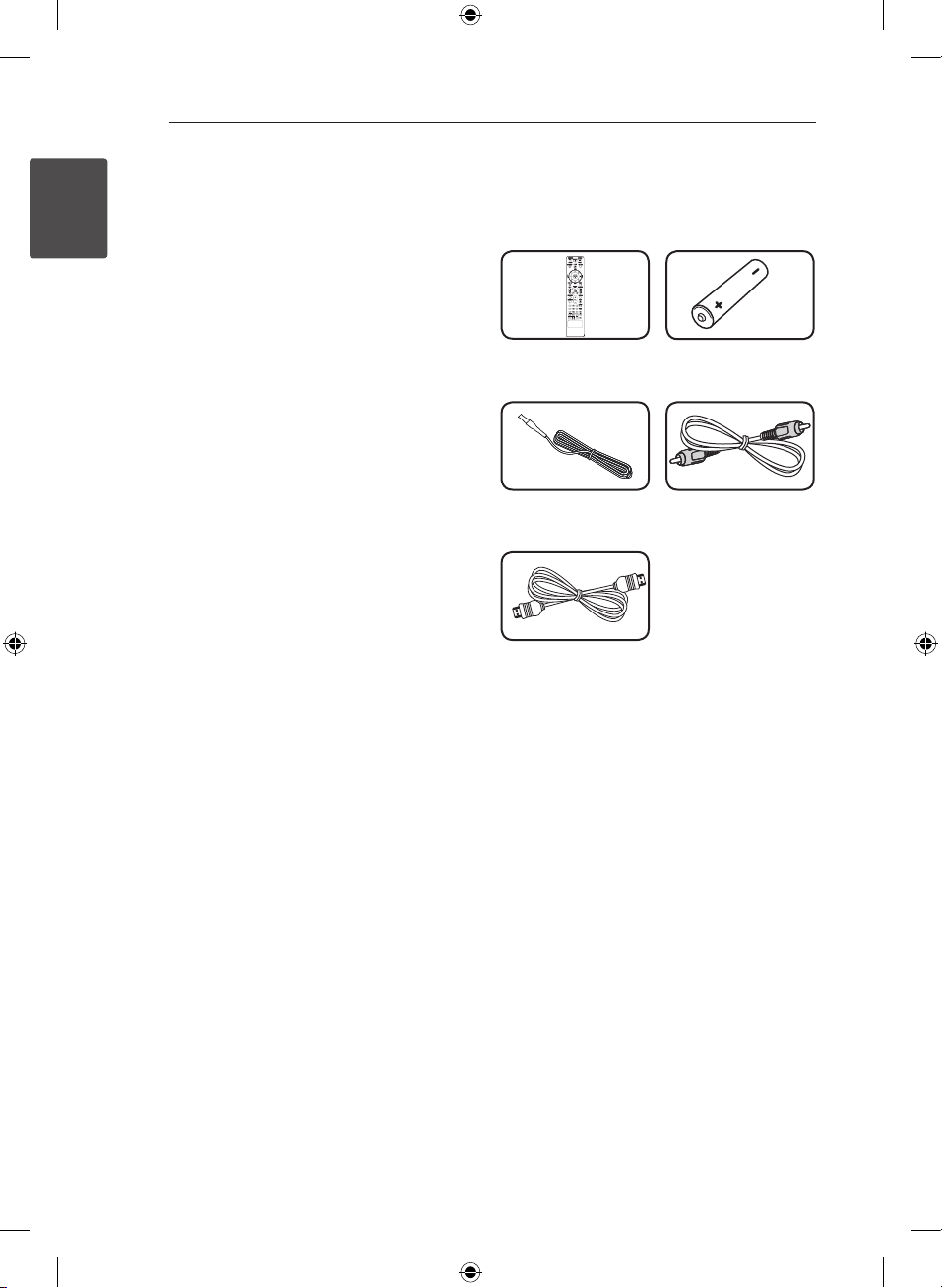

Please check and identify the supplied accessories.
Remote control (1) Battery (1)
FM antenna (1) Video cable (1)
HDMI cable (1)
DM2740-FB_DAGOILK_ENG.indd 6 2014-06-13  2:55:56

Getting Started 7
Getting Started
1
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, DivX, MP3, WMA and/or
JPEG les. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the
recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.
DVD-VIDEO (8 cm / 12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm / 12 cm disc)
Video mode and nalized only.
DVD-RW (8 cm / 12 cm disc)
Video mode and nalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (8 cm / 12 cm disc)
Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be
purchased.
About the “7” Symbol Display
“7” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specic media.
Symbols Used in this Manual
rDVD-Video, DVD±R/RW in Video
mode or VR mode and nalized
tAudio CDs
yVideo les contained in the
USB/Disc
uAudio les contained in the
USB/Disc
iPhoto les
, Note
Indicates special notes and operating features.
, Tip
Indicates tip and hints for making the task easier.
> Caution
Indicates cautions for preventing possible damages
from abuse.
Regional Codes
This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.
yMost DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
yIf you try to play a DVD with a dierent regional
code from your unit, the message“Check
Regional Code” appears on the TV screen.
DM2740-FB_DAGOILK_ENG.indd 7 2014-06-13  2:55:58

Getting Started8
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
ySampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yBit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
ySupport Version : v2, v7, v8, v9
yMaximum les : Under 999
yFile extensions : “.mp3”/ “.wma”
yCD-ROM le format : ISO9660/ JOLIET
yWe recommend that you use Easy-CD Creator,
which creates an ISO 9660 le system.
yYou have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system
for Windows Vista)
The DTS is not supported. In case of DTS audio
format, audio is not output.
Photo file requirement
Photo le compatibility with this unit is limited as
follows :
yMax pixel in width : 2 760 x 2 048 pixel
yMaximum les : Under 999
ySome discs may not operate due to a dierent
recording format or the condition of disc.
yFile extensions: “.jpg”
yCD-ROM le format : ISO9660/ JOLIET
DivX file requirement
DivX le compatibility with this unit is limited as
follows:
yAvailable resolution: up to 720 x 576 (W x H)
pixels.
yThe le name of the DivX subtitle should be
entered within 45 characters.
yIf there is impossible code to express in the
DivX le, it may be displayed as“ _ “ mark on the
display.
yFrame rate : less than 30 fps.
yIf the video and audio structure of recorded
les is not interleaved, either video or audio is
outputted.
yPlayable DivX le : “.avi”, “.mpg”, “.mpeg”, “.divx”
yPlayable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
yPlayable Codec format : “DIVX3.11”, “DIVX4”,
“DIVX5”, “DIVX6”.
yPlayable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.
ySampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yBit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
yFor Discs formatted in Live le system, you can
not it on this unit.
yIf the name of movie le is dierent from that of
the subtitle le, during playback of a DivX le,
subtitle may not be display.
yIf you play a DivX le dier from DivXspec, it may
not operate normally.
DM2740-FB_DAGOILK_ENG.indd 8 2014-06-13  2:55:58

Getting Started 9
Getting Started
1
Remote control
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert one (size AAA) battery with
4and 5matched correctly.
• • • • • • a • • • • •
PRADIO&INPUT: Changes
input sources.
MARKER: Marks play list.
1POWER: Switches the unit ON
or OFF.
BOPEN/CLOSE: Ejects or insert
the disc from slot loader.
SLEEP: Sets the System to turn o
automatically at a specied time.
(Dimmer : The display window will
be darken by half.)
mINFO/DISPLAY: Accesses On-
Screen Display.
nHOME: Displays the [Home
Menu].
DISC MENU: Accesses the menu
on a DVD disc.
• • • • • • b • • • • •
W/S/A/D (up/ down/ left/
right):Used to navigate on-screen
displays.
PRESET +/-: Selects programme
of Radio.
TUNING -/+: Tunes in the desired
radio station.
bENTER: Acknowledges menu
selection.
Presetting the radio stations.
x RETURN: Moves backwards
in the menu or exits the setup
menu.
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
• • • • • • c • • • • •
C/V SKIP: Goes to the next
or previous chapter / track / le.
c/v SCAN: Searches
backward or forward.
ZSTOP: Stops playback.
dPLAY, MONO/STEREO: Starts
playback. Selects Mono/ Stereo.
MPAUSE/STEP: Pauses playback.
• • • • • • d • • • • •
SPEAKER LEVEL: Sets the sound
level of desired speaker.
SOUND EFFECT: Selects a sound
eect mode.
VOL +/- (Volume): Adjusts
speaker volume.
OPTICAL: Changes input source
to optical directly.
MUTE: Mutes the sound.
• • • • • • e • • • • •
0-9 numerical buttons: Selects
numbered options in a menu.
CLEAR: Removes a number when
setting the password.
REPEAT: Selects a play mode.
(Repeat/ Random)
• • • • • • f • • • • •
TV Control buttons: Controls the
TV. (LG TV only)
-You can control the sound lev
el, input source, and power
switching of LG TVs as well.
Hold POWER (TV) and press PR/
CH (+/-) button repeatedly until
the TV turns on or o.
XREC: USB Direct Recording.
?: This button is not available.
DM2740-FB_DAGOILK_ENG.indd 9 2014-06-13  2:55:59

Getting Started10
Getting Started
1
Front panel
DM2740-FB_DAGOILK_ENG.indd 10 2014-06-13  2:55:59

Getting Started 11
Getting Started
1
aDisc Slot
Insert a disc in the disc slot with the label side
left.
b
You can easily connect to Bluetooth devices
through NFC Tag.
c1/! (POWER)
Switches the unit ON or OFF.
dDisplay window
Shows the current status of the unit.
eFUNC. (FUNCTION)
Changes the input source or function.
fUSB Port
Connects an USB device.
gEQ
Chooses sound impressions.
SET/DEMO
Conrms the setting. Show DEMO.
ALARM
With the ALARM function you can turn DVD/
CD, USB play and TUNER reception on at a
desired time.
CLOCK
For setting the clock and checking the time.
hB(OPEN/CLOSE)
Ejects or insert the disc from slot loader.
iC/V (Skip/Search):
Goes to next or previous le/track.
Searches backward or forward (Press and hold)
Tunes in the desired radio station.
d/M(PLAY / PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
Selects stereo/mono in FM mode.
j o/ p(VOLUME)
Adjusts speaker volume.
Z (STOP)
Stops playback.
kUSB REC.
Recoding to USB.
lPORT. IN
Connects to a portable player with audio
outputs.
PHONES
Headphone jack
Precautions in using the touch buttons
yUse the touch buttons with clean and dry
hands.
- In a humid environment, wipe out any
moisture on the touch buttons before
using.
yDo not press the touch buttons hard to
make it work.
- If you apply too much strength, it can
damage the sensor of the touch buttons.
yTouch the button that you want to work in
order to operate the function correctly.
yBe careful not to have any conductive
material such as metallic object on the
touch buttons. It can cause malfunctions.
> Caution
DM2740-FB_DAGOILK_ENG.indd 11 2014-06-13  2:55:59

Getting Started12
Getting Started
1
Rear panel

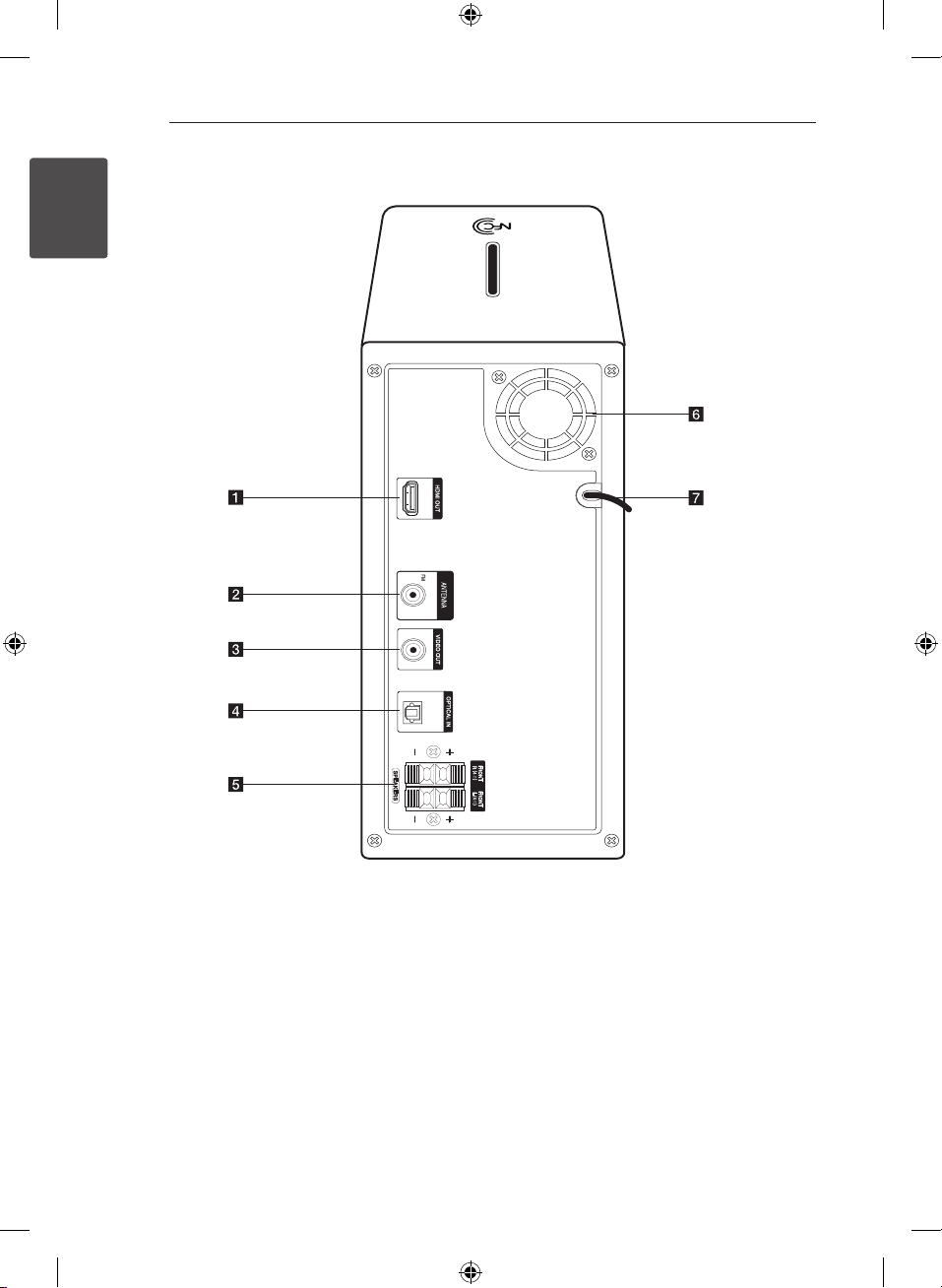

aHDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
bANTENNA (FM)
Connects the FM wired antenna
cVIDEO OUT
Connects to a TV with video inputs.
dOPTICAL IN
Connects to optical audio equipment.
eSPEAKERS terminal
fCooling Fan
gPower cord
DM2740-FB_DAGOILK_ENG.indd 12 2014-06-13  2:55:59

2 Connecting
Connecting 13
Connecting
2
Attaching the speakers
to the unit

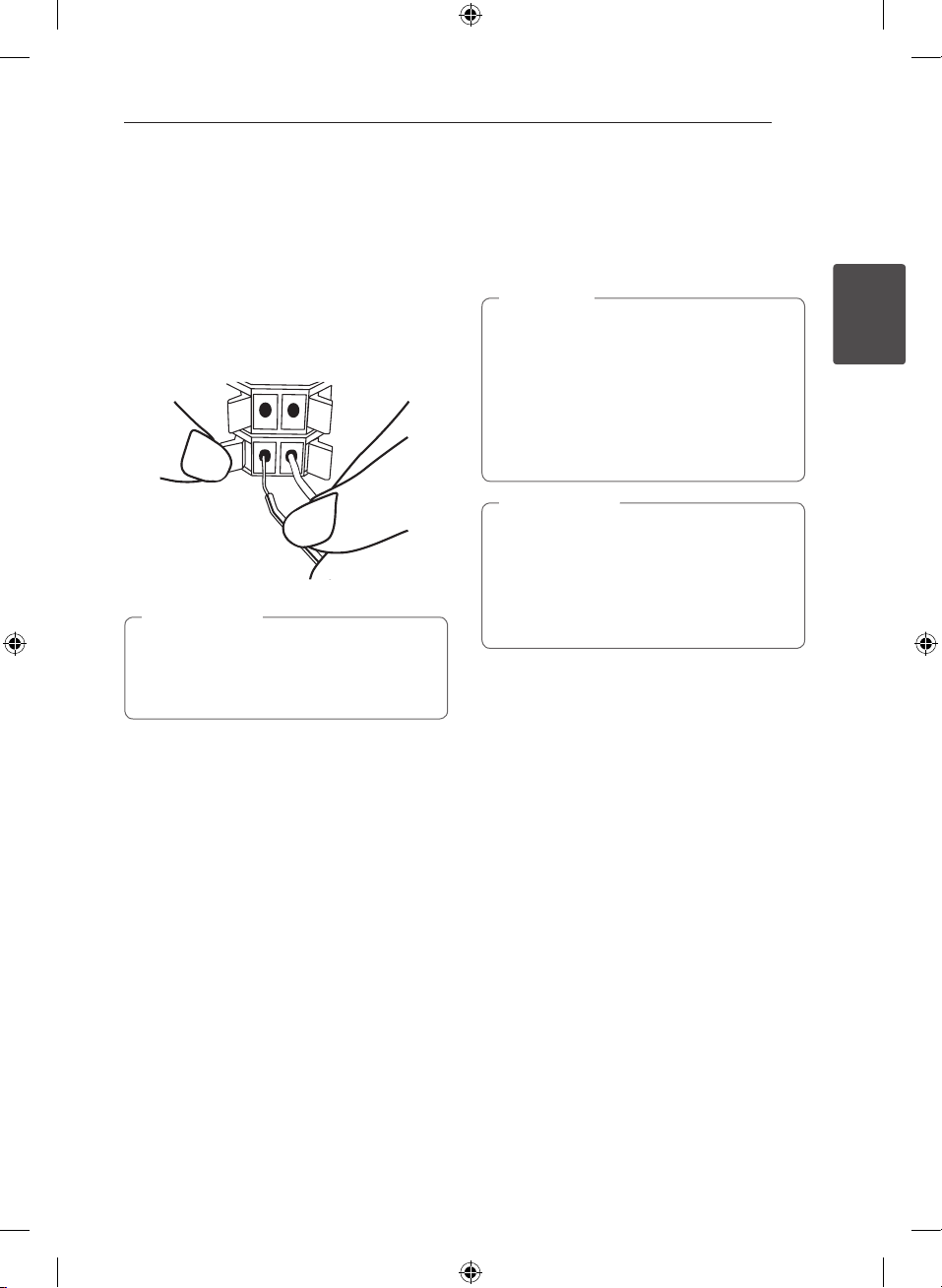

To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
> Caution
Connections to Your
TV
Make one of the following connections, depending
on the capabilities of your existing equipment.
yDepending on your TV and other
equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.
yPlease refer to the manuals of your TV,
Stereo System or other devices as necessary
to make the best connections.
, Note
yMake sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel
yDo not connect your player via your VCR.
The image could be distorted by the copy
protection system.
> Caution
DM2740-FB_DAGOILK_ENG.indd 13 2014-06-13  2:56:00

Connecting14
Connecting
2
HDMI Out Connection

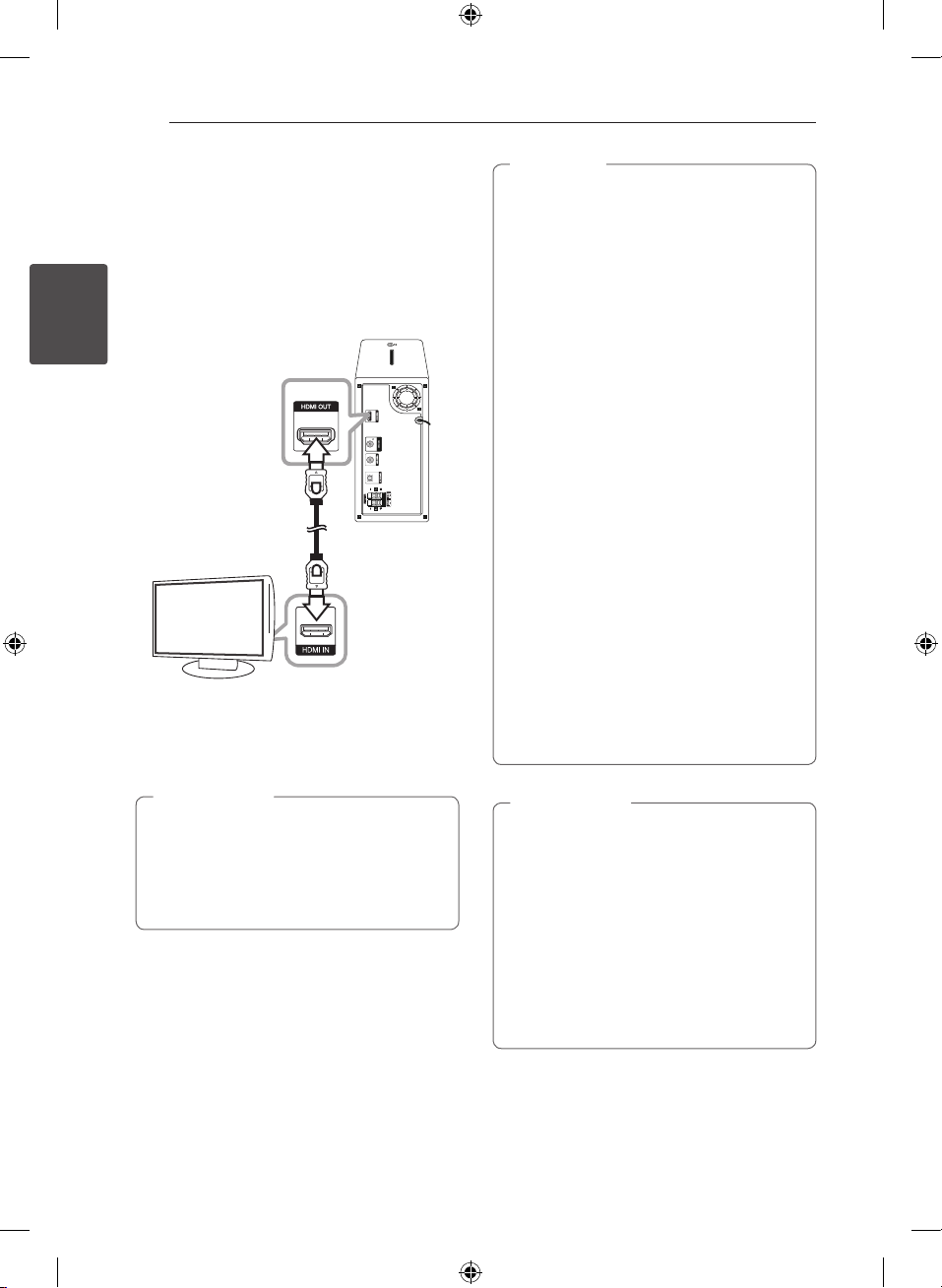

If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ cable).
Connect the HDMI OUT jack on the unit to the
HDMI IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
Unit
TV
yYou can fully enjoy digital audio and video
signals together with this HDMI connection.
yWhen you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to“Resolution” on page 15.)
, Tip
yIf a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.
yWhen you connect a HDMI or DVI
compatible device make sure of the
following:
- Try switching o the HDMI/DVI device and
this unit. Next, switch on the HDMI/DVI
device and leave it for around 30 seconds,
then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.
yNot all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
yIf there is noise or lines on the screen, please
check the HDMI cable and usea higher
version cable than High Speed HDMI™
cable.
, Note
yChanging the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn o the unit and then turn it
on again.
yWhen the HDMI connection with HDCP is
not veried, TV screen is changed to black
or green screen or the snow noise may
occur on the screen. In this case, check the
HDMI connection, or disconnect the HDMI
cable.
> Caution
DM2740-FB_DAGOILK_ENG.indd 14 2014-06-13  2:56:00

Connecting 15
Connecting
2

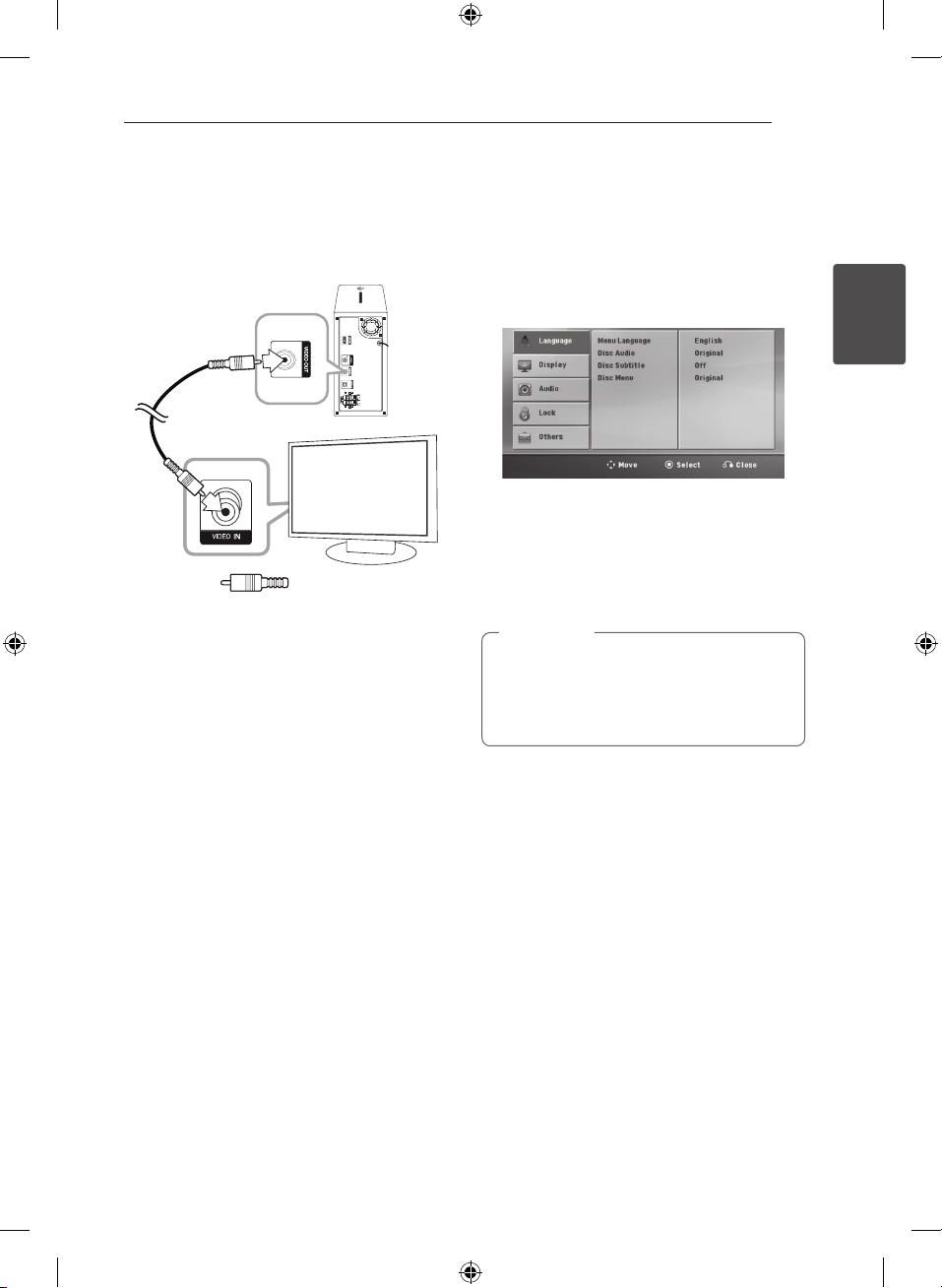

Video Connection
Connect the VIDEO OUT jack on the unit to the
video in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Unit
TV
Yellow
Resolution Setting
The unit provides several output resolutions for
HDMI OUT TO TV.
You can change the resolution using [Setup] menu.
1. Press
nHOME.
2. Use
A/D to select the [Setup] and press
bENTER. The [Setup] menu appears.
3. Use
W/S to select [Display] option then press
Dto move to the second level.
4. Use
W/S to select the [Resolution] option
then press Dto move to the third level.
5. Use
W/S to select the desired resolution then
press bENTER to confirm your selection.
If your TV does not accept the resolution you
have set on the player, you can set resolution
to 480p (or 576p) as follows:
Press ZSTOP for more than 5 seconds.
, Note
Video Output Resolution
Displayed resolution in display window and
outputted resolution may dierent according to
connection type.
[HDMI OUT]: 1080p, 1080i, 720p and 480p (or 576p)
and 480i (or 576i)
[VIDEO OUT]: 480i (or 576i).
DM2740-FB_DAGOILK_ENG.indd 15 2014-06-13  2:56:00

Connecting16
Connecting
2
Optional Equipment
Connection

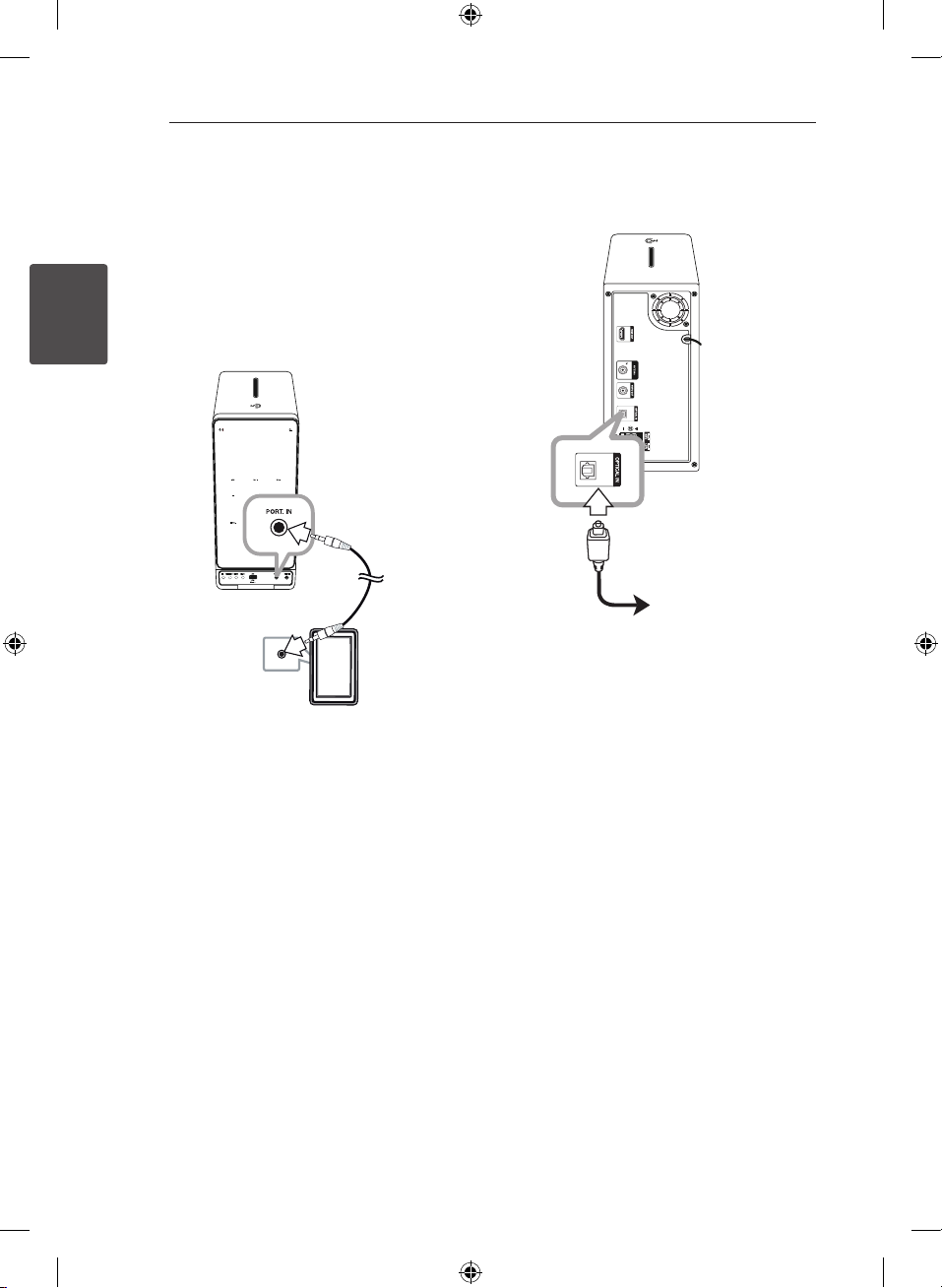

AUDIO (PORT. IN) In
Connection
Connect an output of portable device (MP3 or PMP
etc) to the AUDIO (PORT. IN) input connector.
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external devices.
1. Connect the portable player to the
PORT.IN(PORTABLE IN) connector of the unit.
2. Turn the power on by pressing 1(POWER).
3. Select the PORTABLE function by pressing
PRADIO&INPUT.
4. Turn on the portable player or external device
and start it playing.
OPTICAL In connection
Connect an optical output of Unit (or Digital Device
etc) to the OPTICAL IN connector.
To the digital
optical output jack of your
component
Speaker ez setup
Listen to sound from TV, DVD and Digital Device
with 2 ch mode. Even in power o mode, if you
press OPTICAL, then power is on and automatically
changed to AUX OPT mode.
1. Connect the unit’s OPTICAL IN jack to jack on
optical out of your TV (or Digital Device etc.).
2. Select the AUX OPT by using the OPTICAL.
To select the AUX OPT directly.
3. Listen sound with 2 ch speaker.
4. To escape from AUX OPT by using the OPTICAL.
Function is retuned to previous one.
DM2740-FB_DAGOILK_ENG.indd 16 2014-06-13  2:56:01

Connecting 17
Connecting
2
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM wire antenna to the FM antenna
connector.
Be sure to fully extend the FM wire antenna.
, Note
DM2740-FB_DAGOILK_ENG.indd 17 2014-06-13  2:56:01

Connecting18
Connecting
2
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit
1. Choose a different function mode or press
Zon the unit or ZSTOP on the remote
control twice in a row.
2. Remove the USB device from the unit.
, Note
Compatible USB Devices
yMP3 Player : Flash type MP3 player.
yUSB Flash Drive : Devices that support USB2.0
or USB1.1.
yThe USB function of this unit does not support
some USB devices.
USB device requirement
yDevices which require additional program
installation connected to a computer, are not
supported.
yDo not extract the USB device while in operation.
yFor a large capacity USB, it may take longer than
a few minute to be searched.
yTo prevent data loss, back up all data.
yIf you use a USB extension cable or USB hub, the
USB device is not recognized.
yUsing NTFS le system is not supported. (Only
FAT(16/32) le system is supported.)
yThis unit is not supported when the total
number of les is 1 000 or more.
yExternal HDD, Card readers, Locked devices,
or hard type usb devices are not supported.
yUSB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
DM2740-FB_DAGOILK_ENG.indd 18 2014-06-13  2:56:02

3 System Setting

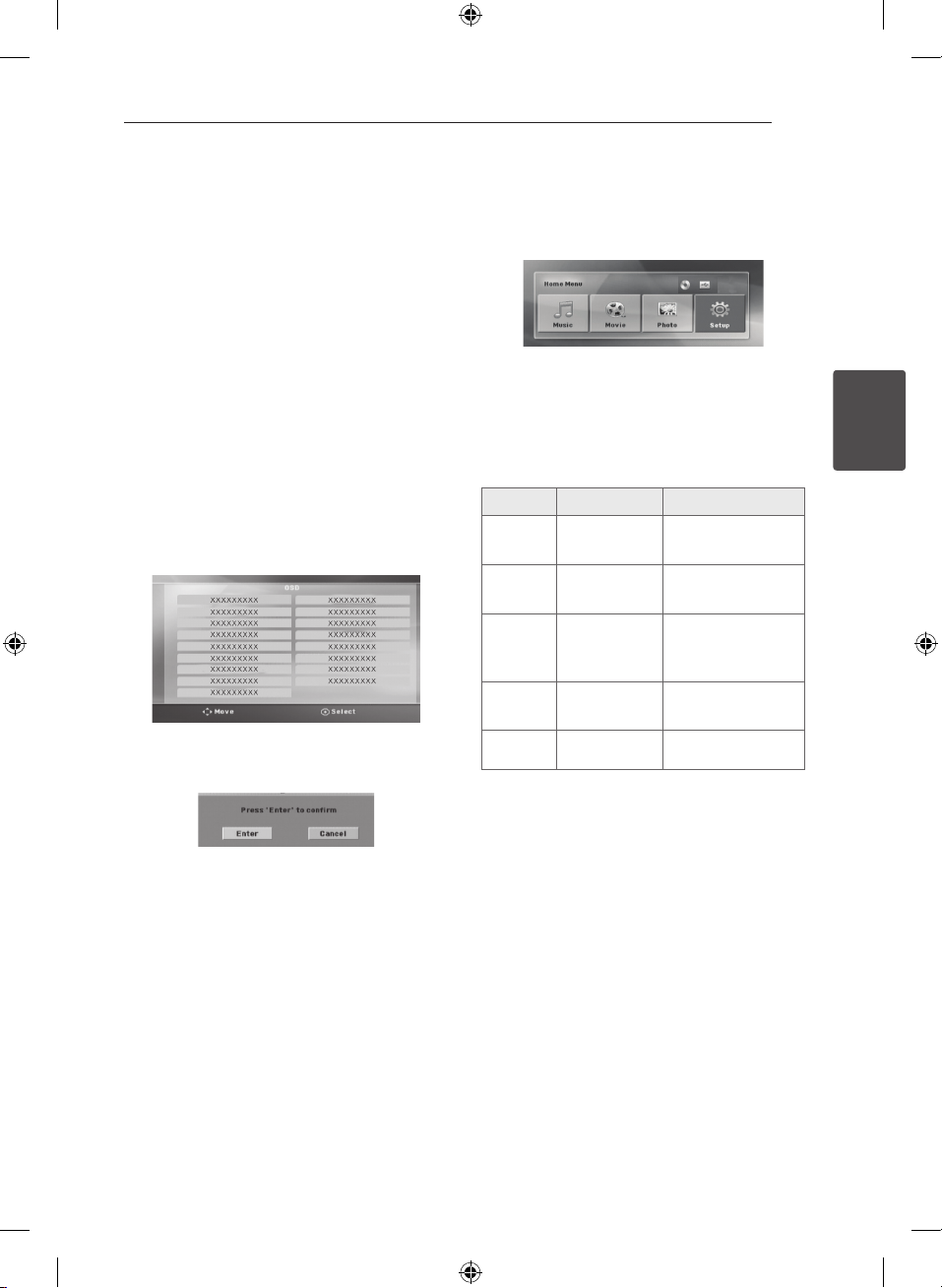

System Setting 19
System Setting
3
Adjust the setup
settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
You can also set a language for the subtitles and
the Setup menu, among other things. For details on
each Setup menu item, see pages 19 to 22.
OSD Initial language settings
- Optional
During the rst use of this unit, the initial language
setup menu appears on your TV screen. You must
complete initial language selection before using
the unit. English will be selected as the initial
language.
1. Press
1(POWER) to turn the unit on. The
language setup menu will appear on the screen.
2. Use
WSAD to select a language then press
bENTER.
The confirm menu will appear.
3. Use
AD to select the [Enter] then press
bENTER to finish the language setup.
To display and exit the Setup
menu
1. Press
nHOME.
Displays the [Home Menu].
2. Select an [Setup] by using A D.
3. Press
bENTER.
Displays the [Setup].
4. Press
nHOME or xRETURN to exit in the
[Setup] Menu.
About help menu for Setup
Menu Buttons Operation
ws
Move WS Moving to another
menu.
a
Move AMoving to previous level.
d
Move D
Moving to next
level or selecting
menu.
x
Close xRETURN To exit the [Setup]
menu.
b
Select bENTER To conrm menu.
DM2740-FB_DAGOILK_ENG.indd 19 2014-06-13  2:56:02

System Setting20
System Setting
3
Language
Menu Language
Select a language for the Setup menu and then on
screen display.
Disc Audio / Disc Subtitle / Disc
Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the
disc was recorded.
[Other]
To select another language, press numeric
buttons and then bENTER to enter the
corresponding 4-digit number according to
the language code list on the page 38. If you
enter the wrong language code, press CLEAR.
[O (for Disc Subtitle)]
Turn o Subtitle.
Display
TV Aspect
Select which screen aspect to use based on the
shape of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the
upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the
entire screen and cuts o the portions that do
not t. (If the disc/le is not compatible with
Pan Scan, the picture is displayed at Letterbox
ratio.)
Resolution
Sets the output resolution of the HDMI video signal.
Refer to“Resolution Setting”for details about the
resolution (page 15).
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV. If the VIDEO OUT is only
connected, this changes the resolution to 480i
(or 576i) as default resolution.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[480p (or 576p)]
Outputs 480 (or 576) lines of progressive video.
[480i (or 576i)]
Outputs 480 (or (576) lines of interlaced video.
DM2740-FB_DAGOILK_ENG.indd 20 2014-06-13  2:56:02
