LG 30FZ1DC User manual

COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : AC-02SD
MODEL : 30FZ1DC
MODEL : 32FZ1DC-UB
CANADA : http//biz.lgservice.com
USA : http//www.lgservice.com
: http//lgservice.com/techsup.html

- 2 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An lsolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitary that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 !1.5KV: 14-19 inch, 26!1.5KV: 19-21 inch,
29.0!1.5KV: 25-29 inch, 30.0 !1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on positioin, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each esposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits sepcified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
CANADA: LG Electronics Canada, Inc. 550 Matheson
Boulevard East Mississauga, Ontario L4Z 4G3
USA : LG Customer Interactive Center
P.O.Box 240007, 201 James Record Road Huntsville,
AL 35824
Digital TV Hotline [phone]
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 3 -
DESCRIPTION OF CONTROLS...........................................4
SPECIFICATIONS.................................................................9
ADJUSTMENT INSTRUCTION...........................................10
BLOCK DIAGRAM...............................................................23
EXPLODED VIEW...............................................................26
EXPLODED VIEW PARTS LIST.........................................27
REPLACEMENT PARTS LIST............................................28
SCHEMATIC DIAGRAM..........................................................
PRINTED CIRCUIT BOARDS.................................................
TABLE OF CONTENTS

- 4 -
Front Panel Controls
power
Standby indicator (Illuminates brightly when the TV is in
standby mode. Dims when the TV is switched on.)
Remote control sensor
TV/VIDEO
menu
vol left/ right
Volume(GG) button increases the sound level and volume(FF)
button decreases the sound level.
ch (Channel) up / down
1
2
3
4
These buttons work just as they do on
your remote control.
5
6
7
TV/VIDEO
MENU
VOL
CH
124
367
5
- Here shown may be somewhat different from your TV.
DESCRIPTION OF CONTROLS

- 5 -
Rear Connections Panel
Mini glossary
JACK A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jack and the Audio/Video jacks that are
color-coded.
SIGNAL Picture and sound traveling through cable, or over the air, to your television screen.
CALIBRATION
DIGITAL
AUDIO OUTPUT
OPTICAL
DVD/DTV INPUT
VIDEO AUDIO
L(MONO) R
ANTENNA
HDMI/DVI
DIGITAL
AUDIO INPUT
OPTICAL
(DVI)
PR
COMPONENT1
(480i/480p/720p/1080i)
COMPONENT2
S-VIDEO
PB
Y
L
R
IN1
IN2
AUDIO
PR
PB
Y
L
R
AUDIO
+75 Ω
INPUT
IN3
S-Video In
A connection available with
some high-end equipment that
provides even better picture
quality for Video 1, 2.
RF Connectors:
Antenna Input,
Used to connect
cable or antenna
signals to the televi-
sion, either directly
or through your
cable box.
Video 1, 2 and 3 Inputs
Connects the video sig-
nals from various types
of equipment.
Y, PB, PR
DVD Component Video and HD
Component Video
Some top-of-the-line DVD players
use what is called “component
video,” for extremely accurate pic-
ture reproduction. Refer to your
DVD manual for further information.
- Connecting external equipment to your TV.
- Here shown may be somewhat different from your TV.
Left/Right Audio
Used for stereo sound
from various types of
equipment.
Component Left/Right
Audio
Used for stereo sound
from various types of
equipment.
HDMI/DVI Input
Used to connect
from a DTV
source.
Digital Audio
Output Optical
Connects to exter-
nal audio equip-
ment like a home
theater system.
Digital Audio Input
Optical
Connects to digital
audio from various
types of equipment.
DESCRIPTION OF CONTROLS

- 6 -
Front Connections Panel
Front A/V Panel
S-VIDEO VIDEO IN
L/MONO
AUDIO
R
FRONT VIDEO
There are four jacks on the lower-right front
front of your TV that make connecting
Audio/Video devices like video games and
camcorders very simple.
The jacks are like those found on the back
jack connection panel. This means that most
equipment that connects to those types of
jacks on the rear jackpack, may be connect-
ed to the Front connection panel (Front
Video).
To use the Front jacks as the signal source,
select them using Main input menu as
described on page 25. They will be named
“Front Video” in the Main input menu.
Left/Right Audio
Used for stereo sound
from various types of
equipment.
Video in
Connects the video
signals from any
piece of equipment.
S-Video
A connection available on some very
high-end equipment that provides
better picture quality than video
input.
When you select Front video or
Front S-Video, the Front Audio
inputs are automatically select-
ed as well.
Do not connect to both Video
and S-Video at the same time.
Connect either Video or S-
Video only.
Mini glossary
A/V CABLESAudio/Video cables. Three cable connector—Right audio (red), Left audio (white), and Video (yellow). A/V cables are used
for stereo playback of videocassettes and for higher quality picture and sound from other A/V devices.
A/V DEVICE Any device that produces video (picture) and/or audio (sound) (VCR, DVD, cable box, or television).
DESCRIPTION OF CONTROLS

- 7 -
Remote Control Functions in TV Mode
123
456
789
0
TV
MODE TV/VIDEO POWER
VIDEO1FRONT
HDMI
VCR
CABLE DVDSAT
MUTE
SURROUNDFREEZESAP
RATIO
INFO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENUEXIT
TIMERCC SIGNAL
VOLCH
FAV
EZSOUND
EZPIC
COMP2COMP1
VIDEO2
SKIP
DASH(-) FLASHBK
FAV
Use to scroll the FAV chan-
nel list.
MENU
Brings up the main
menu to the screen.
EXIT
Clears all on-screen dis-
plays and returns to TV
viewing from any menu.
CC
Lets you select a closed caption
mode for displaying captioning
information when provided for
DTV/Analog signal.
EZ PIC
Adjusts the factory preset picture depend-
ing on the viewing environment.
SAP
Selects MTS sound: Mono,
Stereo, and SAP in analog mode.
Change the audio language in
DTV mode.
SURROUND
Selects : Off, 3D
EchoSound System and
SRS TruSurround XT.
MUTE
Switches the Mute or the EZ mute.
Mute: The sound is off. EZ mute:
Turns the sound off, and displays the
caption.
THUMBSTICK
(UP/DOWN/LEFT/RIGHT/ )
Allows you to navigate the on-screen
menus and to adjust the system settings
and preferences, by moving to an option
with F G and selecting the highlighted
option with .
VIDEO1
Selects the Video1 input source.
MODE
Selects the remote operating
mode: TV, VCR, Cable, DVD or
Satellite. Select other operating
modes, for the remote to oper-
ate external devices.
COMP2
Selects the Component 2
input source.
EZ SOUND
Selects the sound appropri-
ate for the program’s catego-
ry.
FREEZE
Captures and freezes
the currently-viewed
picture.
RATIO
Changes the aspect ratio.
TV/VIDEO
Selects: Antenna, Cable, Video1,
Video2, Front video, Component
1-2 and HDMI/DVI input sources.
MODE INDICATOR
LIGHTS
Show active remote mode
every time any button is
pressed.
D
E
DESCRIPTION OF CONTROLS

- 8 -
Remote Control Functions in TV Mode
123
456
789
0
TV
MODE TV/VIDEO POWER
VIDEO1FRONT
HDMI
VCR
CABLE DVDSAT
MUTE
SURROUNDFREEZESAP
RATIO
INFO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENUEXIT
TIMERCC SIGNAL
VOLCH
FAV
EZSOUND
EZPIC
COMP2COMP1
VIDEO2
SKIP
DASH(-) FLASHBK
POWER
Turns your TV or any other
programmed equipment on
or off, depending on mode.
CHANNEL UP/DOWN
Scrolls through available channels
present in EZ Scan memory.
NUMBER KEYPAD
For direct channel selection and
programming functions.
ENTER
When in the menu system
and other on-screen dis-
plays, selects highlighted
options.
RECORD, PAUSE, REW,
FFWD, PLAY, STOP
Control the functions on your VCR.
VOLUME UP/DOWN
Increases/decreases the sound
level.
INFO
When you watch the TV, displays
information on top of the screen.
Not available in Component 1-2
and HDMI/DVI.
SKIP LEFT/RIGHT
Playing CDs: Selects
songs.
Playing DVDs: Selects
movie chapters.
COMP1
Selects the Component 1 input
source.
HDMI
Selects the HDMI input source.
DASH(-)
Is used to enter a program
number for multiple program
channels such as 2-1,2-2,etc.
FLASHBK
Tunes to the previous channel
viewed.
TIMER
Lets you select the amount
of time before your TV
turns itself off automatically.
SIGNAL
Displays the digital signal
strength.
FRONT
Selects the front video input source.
VIDEO2
Selects the Video2 input source.
DESCRIPTION OF CONTROLS

- 9 -
Model 32FZ1DC-UB
Horizontal Size (inches) 35.86
Height (inches) 23.66
Thickness (inches) 21.73
Weight (pounds) 132.3
Power requirement AC 120V~ 60Hz
Television system American TV Standard, NTSC, ATSC with STB
Television Channel VHF: 2 - 13
UHF: 14 - 69
CATV: 1 - 135
CADTV: 1 - 135
DTV: 2 - 69
Power consumption (W) 220W
Antenna 75 ohm external terminal for VHF/UHF
Audio Output (W) 7W x 2
Supplied accessories Remote control, batteries 2 size AA (Alkaline battery)
Screen Aspect Ratio 16 : 9
External input ports Video/Audio input (3 set)
S-Video input (2)
Component input (2 set)
Variable audio output (1 set)
HDMI/DVI input (1)
Digital audio optical input (DVI)(1)
Digital audio optical output (1)
Calibration port (1)
Cable/Antenna port
Design and specifications are subject to change without prior notice.
SPECIFICATIONS

- 10 -
1. Application Object
These instructions are applied to the AC-02SD chassis.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of an isolation
transformer will help protect test instruments.
(2) Adjustments must be done in the correct order.
(3) The input voltage of the receiver must remain at
120V±10% while adjusting.
(4) The receiver must be operated for about 20 minutes prior
to the adjustment.
[Never operate the set over 10 minutes with a still picture
because a fluorescent material may get damage.
3. CPLD Download Work
3-1. Required Test Equipments &
Preparation for Adjustment
(1) Connect the PC and memory JIG as shown in <Fig. 1>.
(2) Turn on JIG MAIN POWER SW.
(3) After turning on the PC and moniter, operate the device
programming software.
3-2. Adjustment Sequence
(1) Once the program is running, [OPTION MODE
SELECTION] is displayed in the window.
Check the “Load configuration File(.cdf, .pdr)” in this
window and click the finish button
(2) When the screen displays the open window, select the
suitable file(*.cdf) according to model.
(3) IC figure is change to green by clicking it.
(4) Select program options.
(5) Check the [Erase before programming] and [Verify] menu
as shown <Fig. 2> and press the OK button.
(6) At this time, the download starts. The download will finish
in about 10 seconds.
4. SUB MICOM Download
4-1. Select the MICOM Model
ADJUSTMENT INSTRUCTIONS
3.3V
<Fig. 1 > How to connect the MEMORY JIG and PC
<Fig . 2>

- 11 -
Select the MICOM Model.(M16C/6H Group --> M306H3FC)
[After setting, you need not set, again.
4-2. JIG Connection
Connection to the Micom Port on the TV Board.
(Spot of the red line(an arrow)is connected to the port 1.)
4-3. Program Download
5. EDID Data Input
5-1. Required Test Equipment
(1) PC, Jig for adjusting DDC. (256 bytes write)
(2) S/W for writing DDC(EDID data write & read)
5-2. Setting of Device
5-3. Adjustment
(1) Set devices as above and turn on the PC and JIG.
(2) Open S/W for writing DDC (EDID data write & read).
(3) Enter the Model-->Open in the Menu and then select EDID
DATA.
(4) Click the Digital and cancel the ANALOG.
Then connect to turn on the yellow light at the board &
connection.
(5) Click the Write Data & Verify and then download the EDID
DATA.
ADJUSTMENT INSTRUCTIONS
<MICOM JIG>
Connection
the Computer
Program Click
3. When the program is clicked, appear the window as below
PC
JIG
TV
SET
1. In performing the Download program, if it rightly connects
to the board, it is appeared as upper red box.
And it is appeared as lower dialog box.
2. Click the OPEN to select the download program.
So appear the dialog box.

- 12 -
<CHECK SUM: 12E6>
6. Focus Adjustment
(1) Set Picture condition to “Normal”.
CONTRAST : 100
BRIGHT : 60
Normal TINT : 60
COLOR : 0
SHARPNESS : 60
(2) Set the Aspect ratio to Wide Mode.
(3) Receive a Cross Hatch Pattern, adjusting the FOCUS
Knob on the flyback transformer for the best focus in the
area designated “A” above.
[Heat run over 15 minutes before adjustment.
7. CUT-OFF Adjustment
(Screen Voltage Adjustment)
7-1. Test equipment
Oscilloscope, 100:1 Probe
7-2. Adjustment
(1) Select EZ Adjust 3. CUT-OFF, by pressing the ADJ key on
the SVC Remote control.
When it enters to adjustment mode, the pattern from a
signal generator is being selected, it becomes with Normal
image 16:9 and the CUT-OFF DRIVE data setting 31.
(2) Connect the oscilloscope ground lead to GND on the CPT
board and the probe to the GK pin connector of the CPT
socket.
Using the SCREEN knob on the Flyback Transformer,
adjust the black level voltage to 175±2V.
8. Deflection Adjustment
8-1. Preliminary Steps
Select EZ Adjust 1. Raster, Cent, H/V Size by using the ADJ
key on the SVC Remote control.
In the adjustment mode a Digital Pattern signal signal is
displayed.
8-2. Raster V-Center(V.Center) Adjustment
Select 62. V-Postition in the adjustment mode and adjust it to
position the vertical center line in vertical center of the CPT.
ADJUSTMENT INSTRUCTIONS
A
175±2V
CUT-OFF Adjustment
(SCREEN voltage adjustment OSCILLOSCOPE, 100:1
PROBE, VOLTS/DIV : 0.5V/DIV SEC/DIV : 5us, The TRIGGER
MODE it puts in the TV-H)

8-3. Vertical Deflection Size Adjustment
(Overscan : 10%)
(1) Select 59. V-SIZE in the adjustment mode.
(2) Adjust until the smaller inscribed circle coincides with the
outer frame of screen.
(3) Select 95. LO-VLIN or 94. UP-VLIN and adjust until the
larger inscribed circle coincides with the outer frame of
screen.
8-4. Raster H-center(H.CENTER) Adjustment
Select 77. H Postion in the adjustment mode and adjust until
left and right screen are symmetrically equal.
8-5. Horizontal Deflection Size Adjustment
(1) Reduce 66 H-Size to verify screen protection (overscan)
on the right and left sides.
(2) Adjust the horizontal size, using a test pattern.
8-6. Horizontal Pincushion Adjustment
(1) Select EZ Adjust 2. Pin-Cushion by pressing the ADJ key
on the SVC Remote control.
(2) Select PIN-PHASE, PIN-AMP, AFC-BOW, AFC-ANGLE,
UP-CPIN, LO-CPIN in the adjustment mode and adjust
until there is no Pincushion distortion or trapezoid
distortion on the screen.
9. Component MST3586 Offset/Gain
Adjustment
9-1. Test Equipment
(1) SVC Remote Control,
(2) MASTER Pattern Generator
9-2. Preliminary Steps
(1) Turn the power supply on.
(2) Enter the Component mode.
(3) Receive the “1080I” Format, “Hoz30Bar” Pattern of the
Video Pattern Generator.
(4) Certainly, adjust the output signal in state of 700mVp-
p±10mV.
9-3. ADC Offset Adjustment
(1) After receiving a signal press the ADJ Key on the SVC
Remote Control repeatedly to acess the Adjustment mode.
(2) Adjustment will set the automatically by pressing the
“9.MST3586-Set” of adjustment item.
(3) After finishing the adjustment, output the “MST3586-OK”
OSD on the screen.
10. White Balance Adjustment
Perform the Screen Voltage Adjustment first.
Color Temp must be adjusted from Medium Mode.
(The image condition must be adjusted from Normal condition)
Manual adjustment is also possible by the following sequence.
(1) Receive White Pattern.
(2) Set screen size to wide mode
(3) Select EZ Adjust 2.White Balance by pressing ADJ Key on
the SVC Remote control.
(4) Adjustment
1) Using the SVC Remote control, set the DCOL value of
CXA2150 to the “0”.
2) Set an image with Normal image.
3) Adjust R-DRIVE and B-DRIVE data so the color
coordinates in High light are the values in Table below.
(Bright Level : 35Ft_L)
4) Adjust “CONTRAST” and “BRIGHT” so the bright level
is 4.5±0.5F.L.
5) Adjust R-CUT and B-CUT data so the color coordinates
in Low light are the values in Table below.
6) Repeat 2)~ 5) until the color coordinates in High and
Low color satisfies the Table.
7) After finishing the adjustment, resect the DCOL value of
CXA2150 to the “3”.
8) Check the adjusted color coordinates with the white
balance meter.
High Light : x=287
! 3, y=293 ! 3
Low Light : x=287
! 3, y=293 ! 3
Color temperature : 9,000K! 1000(-5MPCD)
[The White Balance it executes from automatic adjustment
hour Normal image condition.
Start adjustments from initial setting of R.DRIVE=31,
G.DRIVE=31, B.DRIVE=31, R.CUT=31, G.CUT=31,
B.CUT=31.
- 13 -
ADJUSTMENT INSTRUCTIONS
<1080I Hoz30Bar Pattern>
LO-VLIN UP-VLIN

- 14 -
11. Sub Bright, TINT, COLOR
Adjustment
11-1. Sub Bright Adjustment
(1) Select EZ Adjust 5. Sub Bright pressing ADJ key on the
SVC Remote control.
(2) Adjust to the point where “2” is not visible.
11-2. Sub COLOR, TINT Adjustment
(1) Select EZ Adjust 6. Sub Tint, Color pressing ADJ key on
the SVC Remote control.
(2) Select SUB COLOR and adjust the 1 and 1’ portion not to
be classified.
(3) Select SUB TINT and adjust the 3 and 3’ portion not to be
classified.
ADJUSTMENT INSTRUCTIONS
WHITE
B M C WBK BK BK
1
1' 3
3'
GREEN MAGENTA CYAN BLUERED YELLOW
0 1 2 3 4 5 76 8 9
US14CH

- 15 -
12. Service Mode Adjustment Data
(SVC Remote control ‘ADJ’ Key)
(1) Raster, Center, H/V_Size Data
(2) W/B Data
(3) SUB-BRIGHT: 20
(4) SUB-TINT/COLOR
SUB-TINT: 13
SUB-COLOR: 7
ADJUSTMENT INSTRUCTIONS
NO OSD DATA
1 V-POSITION 31
2 V-SIZE 33
3 H-POSITION 24
4 H-SIZE 36
5 UP-VLIN 0
6 LO-VLIN 0
7 PIN-AMP 37
8 PIN-PHASE 46
9 UP-CPIN 37
10 LO-CPIN 34
11 AFC-BOW 30
12 AFC-ANGLE 29
NO OSD DATA
1 R-DRIVE 31
2 G-DRIVE 31(Fix.)
3 B-DRIVE 31
4 R-CUTOFF 31
5 G-CUTOFF 31(Fix.)
6 B-CUTOFF 31

- 16 -
13. Service Mode Adjustment Data
(SVC Remote control ‘IN-START’ Key)
(1) CXA2150
ADJUSTMENT INSTRUCTIONS
NO ITEM Initial
Data Initial
Data
Initial
Data
NO ITEM NO ITEM
1 PIC_ON 1 46 CD_OFF 0 91 JMP_SW 0
2 R_ON 1 47 SHP_CD 0 92 V_SCROLL 28
3 G_ON 1 48 SHP_F1 0 93 VFREQ 1
4 B_ON 1 49 PRE_OVER 0 94 UP_VLIN 0
5 DCOL 0 50 VM_COR 3 95 LO_VLIN 0
6 WB_SW 0 51 VM_F0 2 96 V_COMP 5
7 GAMMA_L 1 52 VM_LMT 3 97 H_COMP 10
8 PICTURE 63 53 VM_DLY 3 98 VSAW0_DCL 0
9 BLK_BTM 0 54 AKBTIM 12 99 VSAW1_DC 0
10 HUE 32 55 BLK_OFF 0 100 VSAW0_AMP 0
11 COL_AXIS 2 56 AKBOFF 0 101 PIN_COMP 0
12 COLOR 38 57 UP_BLK 2 102 VSAW1_AMP 0
13 CTI_LEV 1 58 LO_BLK 5 103 AFC_COMP 0
14 BRIGHT 21 59 V_SIZE 33 104 MP_PARA_DC 0
15 S_ABL 0 60 V_ON 1 105 MP_PARA_AMP 0
16 SHARPNESS 52 61 EW_DC 0 106 HC_PARA_DC 57
17 LTI_LEV 3 62 V_POSITION 31 107 ASP_SW 0
18 R_DRIVE 31 63 VSAW0_DCH 0 108 VDRV_SW 0
19 PLIMIT _LEV 0 64 V_LIN 7 109 HC_PARA_AMP 45
20 G_DRIVE 31 65 S_CORRECTION 2 110 HC_PARA_PHASE 31
21 ABL_MODE 2 66 H_SIZE 36 111
22 B_DRIVE 31 67 UP_UCP 0 112
23 CTI_MODE 0 68 PIN_AMP 37 113
24 SUB_BRIGHT 15 69 LO_UCP 0 114
25 GAMMA 1 70 UP_CPIN 37 115
26 R_CUTOFF 31 71 UP_UCG 1 116
27 LTI_MODE 1 72 LO_CPIN 34 117
28 G_CUTOFF 31 73 LO_UCG 1 118
29 DPIC_LEV 2 74 PIN_PHASE 46 119
30 B_CUTOFF 31 75 UC_POL 0 120
31 DC_TRAN 3 76 VBLK_SW 0 121
32 SUB_CONT 12 77 H_POSITION 24 122
33 LRGB2_LEV 0 78 CLP_SHIFT 0 123
34 SUB_COL 7 79 SYNC_PHASE 0 124
* System
RF, AV, 480i: 2
480p: 2
HD, 720p, 1080I: 3
* SHP-F0
SD: 1
HD: 0

- 17 -
(2) CXA1875AM
(3) VPX3226E
ADJUSTMENT INSTRUCTIONS
NO OSD DATA
1REF 0
2SW3 1
3SW2 1
4Tilt1 0
5Tilt2 1
6DFGain 80
7DFPhase 120
8DAC2 0
9Tilt CTR 0
10 CSCTR 48
NO OSD DATA OSD DATANO
1 NOSEL 3 11 CHROMA_V 0
2 DDR 3 12 FREQUENCY 1
3 HDG 3 13 BRIGHTNESS 1
4 VDG 0 14 LIM 0
5 VPK 4 15 CONTR1 31
6 CORING 3 16 NOISE1 0
7 PEAKING 3 17 CLAMP1 1
8 LOWPASS 0 18 BRIBYP1 0
9 SKEWFILTER 0 19 CONBYP1 0
10 VACK 0

- 18 -
(4) UPD64083
ADJUSTMENT INSTRUCTIONS
NO ITEM Initial
Data Initial Data Initial Data
NO ITEM NO ITEM
1 YAPS 3 32 LDSR 2 63 VCT 0
2 COUTS 3 33 YTRR 1 64 SHT 0
3 NRMO 0 34 VTRH 1 65 KILR 0
4 KILS 1 35 WSC 1 66 PLLFG 1
5 MSS 0 36 TT 0 67 FSCFG 0
6 KSDS 0 37 FELCHK 1 68 BPLLFS 0
7 CLKS 0 38 TH 0 69 HPLLFS 0
8 EXCSS 1 39 ID1DECON 1 70 VSSL 3
9 PECS 0 40 WSS 0 71 HSSL 8
10 MFREEZE 0 41 VAPINV 31 72 BGPW 7
11 EXADINS 0 42 VAPGAIN 0 73 BGPS 3
12 DYCOS 2 43 YPFG 10 74 VTVH 0
13 CDL 4 44 YPFT 0 75 FSCOFF 1
14 HDP 4 45 SELD2FH 0 76 NRZOFF 1
15 CPP 0 46 CLPH 0 77 NSDSW 0
16 DYGAIN 9 47 C0HS 0 78 ADPDS 1
17 DYCOR 2 48 CC3N 0 79 ADCLKS 3
18 DCGAIN 6 49 YEGS 2 80 HIZEN 0
19 DCCOR 3 50 V1PS 2 81 EXTDYCO 0
20 CNRLIN 1 51 SELD1FL 0 82 SYSPDS 0
21 CNRINY 0 52 KCTT 0 83 ADCLPSTP 0
22 CNRK 0 53 CSHDT 0 84 ADCLPFSW 0
23 YNRLIM 1 54 OVST 0 85 HCNTFSYN 0
24 YNRINV 0 55 ED2OFF 1 86 CNROFS 0
25 YNRK 0 56 YHCGAIN 0 87
26 STOS 1 57 YHCCOR 1 88
27 STIS 0 58 CLKGT 0 89
28 CL8OFF 1 59 CLKGEB 0 90
29 ID1W0A2 0 60 CLKGGT 0 91
30 ID1W0A1 0 61 CLKG2D 1 92
31 ID1ON 0 62 OTT 0 93

- 19 -
(5) MST3000
ADJUSTMENT INSTRUCTIONS
NO ITEM Initial Data Initial DataNO ITEM
1 CHIP_REVISION 0 32 RED_CLAMP_SEL 1
2 PLL_DIV_MSB 103 33 GREEN_CLAMP_SEL 0
3 PLL_DIV_LSB 1 34 BLUE_CLAMP_SEL 1
4 VCO_RANGE 2 35 SYNC_SEPARATOR 32
5 CHARGE_PUMP_CURRE 4 36 PRE_COAST 15
6 PHASE_ADJUST 16 37 POST_COAST 15
7 CLAMP_PLACEMENT 56 38
8 CLAMP_DURATION 64 39
9 HSYNC_OUTPUT_PULS 32 40
10 RED_GAIN 167 41
11 GREEN_GAIN 196 42
12 BLUE_GAIN 168 43
13 RED_OFFSET 60 44
14 GREEN_OFFSET 48 45
15 BLUE_OFFSET 60 46
16 HSYNC_POLARITY 1 47
17 HSYNC_INPUT_POL 0 48
18 HSYNC_OUTPUT_POL 1 49
19 ACTIVE_HSYNC_OVER 1 50
20 ACTIVE_HSYNC_SEL 1 51
21 VSYNC_OUTPUT_INV 1 52
22 ACTIVE_VSYNC_OVER 1 53
23 ACTIVE_VSYNC_SEL 1 54
24 CLAMP_FUNCTION 0 55
25 CLAMP_POLARITY 0 56
26 COAST_SLELECT 1 57
27 COAST_POLARITY_OVER 0 58
28 COAST_POLARITY 1 59
29 SEEK_MODE_OVERR 0 60
30 POWER_DOWN 1 61
31 SYNC_FREEN_THRESH 26 62

- 20 -
PURITY & CONVERGENCE ADJUSTMENT
Caution:
Convergence and Purity have been factory aligned. Do not
attempt to tamper with these alignments.
However, the effects of adjacent receiver components, or
replacement of picture tube or deflection yoke may require the
readjustment of purity and convergence.
¯Purity Adjustment
This procedure DOES NOT apply to bonded yoke and picture
tube assemblies.
The instrument should be at room temperature (60 degrees F or
above) for six (6) hours and be operating at low beam current
(dark background) for approximately 20 to 30 minutes before
performing purity adjustments.
CAUTION: Do not remove any trim magnets that may be
attached to the bell of the picture tube.
1. Remove the AC power and disconnect the internal
degaussing coil.
2. Remove the yoke from the neck of the picture tube.
3. If the yoke has the tape version beam bender, remove it and
replace it with an adjustable type beam bender (follow the
instructions provided with the new beam bender)
4. Replace the yoke on the picture tube neck, temporarily
remove the three (3) rubber wedges from the bell of the
picture tube and then slide the yoke completely forward.
5. Reconnect the internal degaussing coil.
6. Position the beam bender locking rings at the 9 o'clock
position and the other three pairs of tabs (2,4 and 6 pole
magnets) at the 12 o'clock position.
7. Perform the following steps, in the order given, to prepare the
receiver for the purity adjustment procedure.
a. Face the receiver in the "magnetic north" direction.
b. Externally degauss the receiver screen with the television
power turned off.
c. Turn the television on for approximately 10 seconds to
perform internal degaussing and then turn the TV off.
d. Unplug the internal degaussing coil. This allows the
thermistor to cool down while you are performing the purity
adjustment. DO NOT MOVE THE RECEIVER FROM ITS
"MAGNETIC NORTH" POSITION.
e. Turn the receiver on and obtain a red raster by increasing
the red bias control (CW) and decreasing the bias controls
for the remaining two colors (CCW).
f. Attach two round magnets on the picture tube screen at 3
o'clock and 9 o'clock positions, approximately one (1) inch
from the edge of the mask (use double-sided tape).

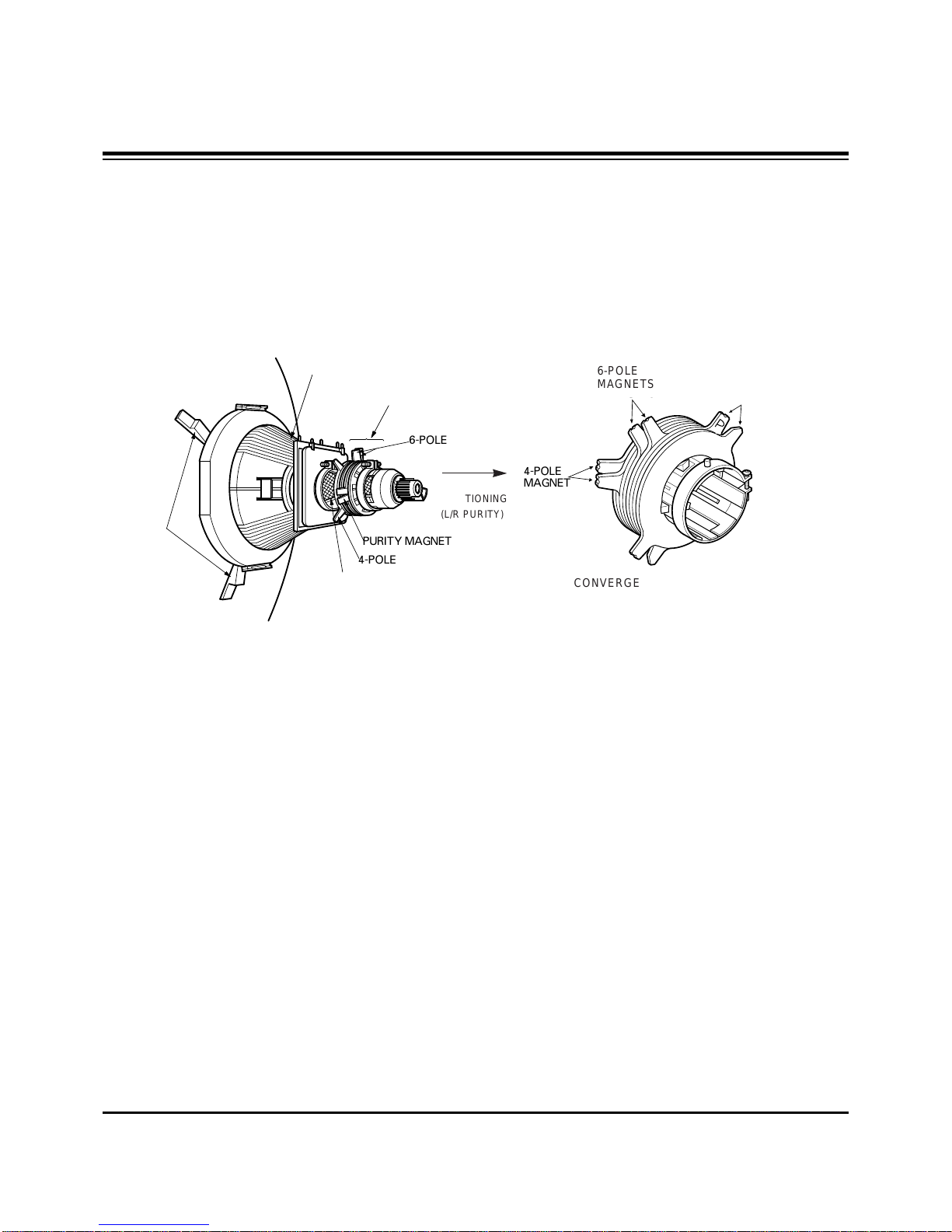

DEFLECTION YOKE
PURITY &CONVERGENCE
MAGNET ASSEMBLY
RUBBER
WEDGES
GLASS CLOTH TAPE
,,,,
,,,,
,,,,,
,,,,
,,,,
,,
,,
,,,
,,,
,,
,,,,,
,,,,,
,,,,,
,,,,,,
,,,,,
,,,,,
,,,,,
,,,,,
,,
PURITY MAGNET
6-POLE
4-POLE
4-POLE
MAGNET
CONVERGENCE MAGNET ASSEMBLY
6-POLE
MAGNES PURITY MAGNET(2-POLE)
X-AXIS YOKE
POSITIONING
(L/R PURITY)
6-POLE
MAGNETS
CONVERGENCE MAGNET ASSEMBLY
