Lg Rt-29fa30v User manual

COLOR TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : MC-007C

MODEL:RT-29FA30V/RX/RU

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

- 2 -

CONTENTS

Contents ................................................................................................................. 2

Safety Precautions ............................................................................................3

Specifications ..................................................................................................... 4

Control Descriptions ........................................................................................ 5

Disassembly Instructions .............................................................................

Adjustment Instructions ............................................................................... 9

Exploded View .................................................................................................. 24

Exploded View Parts List .............................................................................25

Replacement Parts List ............................................................................... 26

SVC. Sheet ................................................................................................................

- 3 -

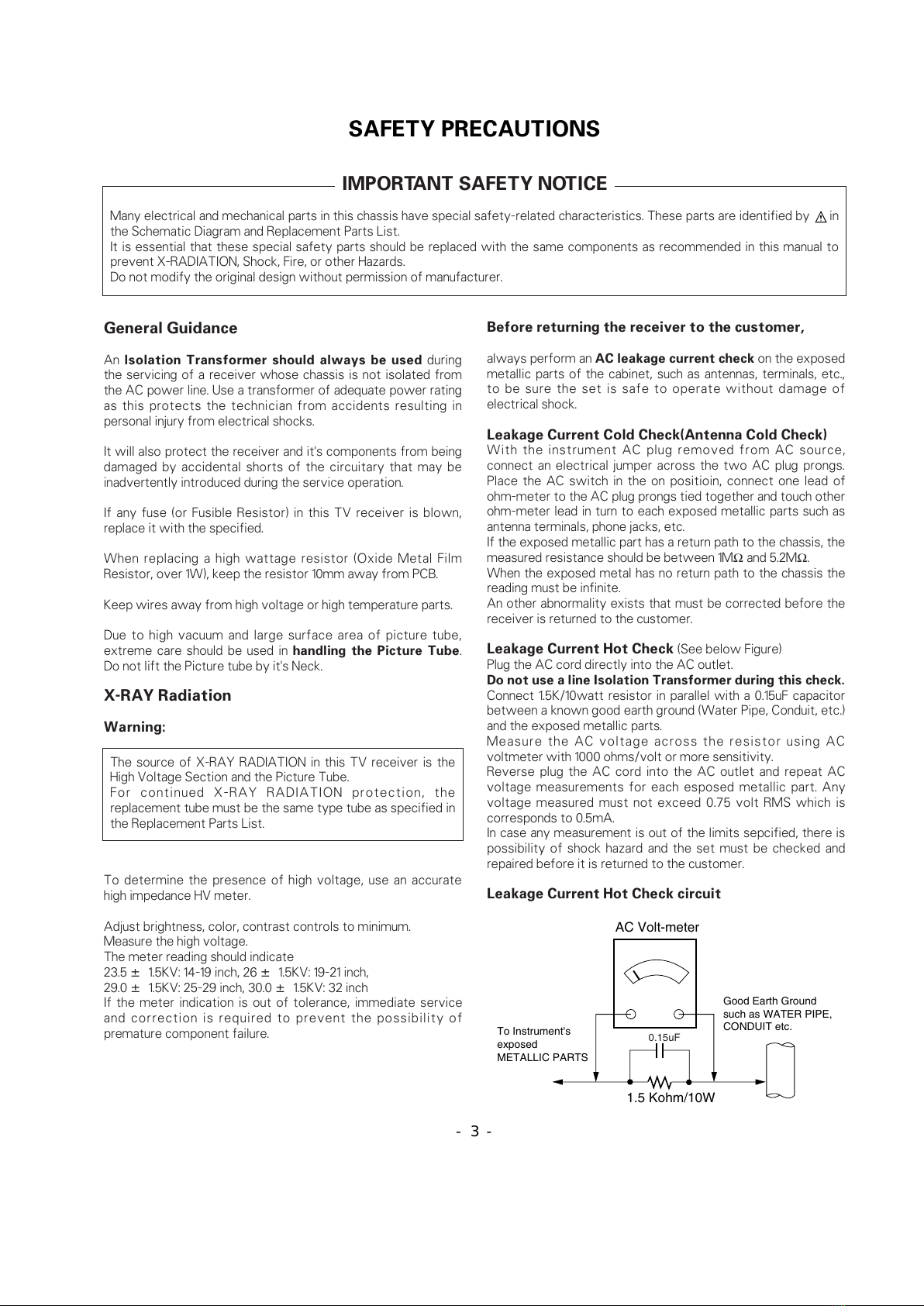

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in

the Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced ith the same components as recommended in this manual to

prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design ithout permission of manufacturer.

General Guidance

An lsolation Transformer should always be used during

the servicing of a receiver hose chassis is not isolated from

the AC po er line. Use a transformer of adequate po er rating

as this protects the technician from accidents resulting in

personal injury from electrical shocks.

It ill also protect the receiver and it's components from being

damaged by accidental shorts of the circuitary that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blo n,

replace it ith the specified.

When replacing a high attage resistor (Oxide Metal Film

Resistor, over 1W), keep the resistor 10mm a ay from PCB.

Keep ires a ay from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube.

Do not lift the Picture tube by it's Neck.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate

high impedance HV meter.

Adjust brightness, color, contrast controls to minimum.

Measure the high voltage.

The meter reading should indicate

23.5 ±1.5KV: 14-19 inch, 26 ±1.5KV: 19-21 inch,

29.0 ±1.5KV: 25-29 inch, 30.0 ±1.5KV: 32 inch

If the meter indication is out of tolerance, immediate service

and correction is required to prevent the possibility of

premature component failure.

Before returning the receiver to the customer,

al ays perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc.,

to be sure the set is safe to operate ithout damage of

electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source,

connect an electrical jumper across the t o AC plug prongs.

Place the AC s itch in the on positioin, connect one lead of

ohm-meter to the AC plug prongs tied together and touch other

ohm-meter lead in turn to each exposed metallic parts such as

antenna terminals, phone jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be bet een 1MΩ and 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See belo Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10 att resistor in parallel ith a 0.15uF capacitor

bet een a kno n good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC

voltmeter ith 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC

voltage measurements for each esposed metallic part. Any

voltage measured must not exceed 0.75 volt RMS hich is

corresponds to 0.5mA.

In case any measurement is out of the limits sepcified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the

High Voltage Section and the Picture Tube.

For continued X-RAY RADIATION protection, the

replacement tube must be the same type tube as specified in

the Replacement Parts List.

1.5 Kohm/10W

To Instrument's

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

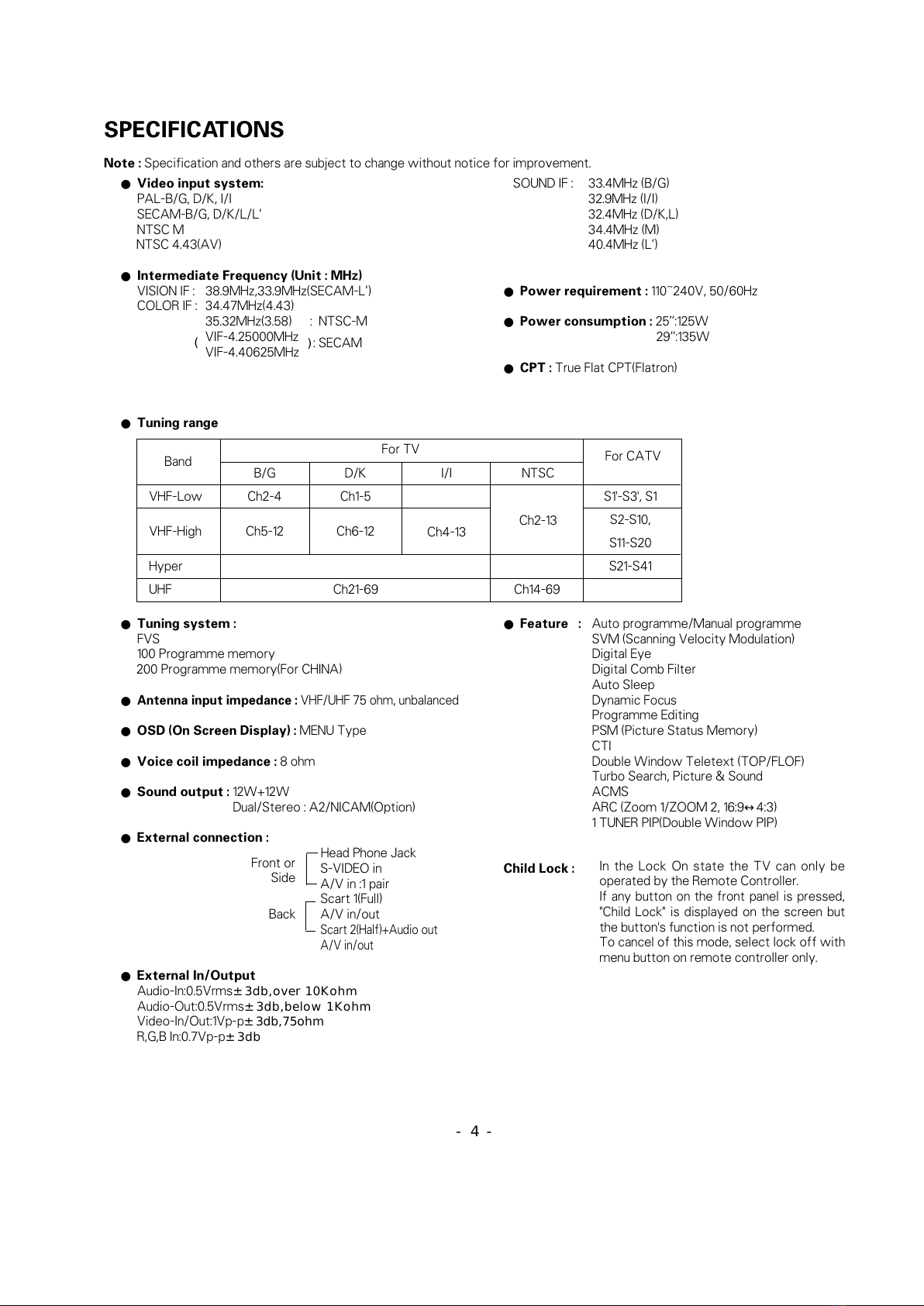

SPECIFICATIONS

Note : Specification and others are subject to change ithout notice for improvement.

●Video input system:

PAL-B/G, D/K, I/I

SECAM-B/G, D/K/L/L’

NTSC M

NTSC 4.43(AV)

●Intermediate Frequency (Unit : MHz)

VISION IF : 38.9MHz,33.9MHz(SECAM-L’)

COLOR IF : 34.47MHz(4.43)

35.32MHz(3.58) : NTSC-M

VIF-4.25000MHz

VIF-4.40625MHz

SOUND IF : 33.4MHz (B/G)

32.9MHz (I/I)

32.4MHz (D/K,L)

34.4MHz (M)

40.4MHz (L’)

●Power requirement : 110~240V, 50/60Hz

●Power consumption : 25”:125W

29”:135W

●CPT : True Flat CPT(Flatron)

●Tuning system :

FVS

100 Programme memory

200 Programme memory(For CHINA)

●

Antenna input impedance : VHF/UHF 75 ohm, unbalanced

●OSD (On Screen Display) : MENU Type

●Voice coil impedance : 8 ohm

●Sound output : 12W+12W

Dual/Stereo : A2/NICAM(Option)

●External connection :

Head Phone Jack

S-VIDEO in

A/V in :1 pair

Scart 1(Full)

A/V in/out

Scart 2(Half)+Audio out

A/V in/out

●External In/Output

Audio-In:0.5Vrms±3db,over 10Kohm

Audio-Out:0.5Vrms±3db,below 1Kohm

Video-In/Out:1Vp-p±3db,75ohm

R,G,B In:0.7Vp-p±3db

●Feature : Auto programme/Manual programme

SVM (Scanning Velocity Modulation)

Digital Eye

Digital Comb Filter

Auto Sleep

Dynamic Focus

Programme Editing

PSM (Picture Status Memory)

CTI

Double Windo Teletext (TOP/FLOF)

Turbo Search, Picture & Sound

ACMS

ARC (Zoom 1/ZOOM 2, 16:9↔4:3)

1 TUNER PIP(Double Windo PIP)

Child Lock :

●Tuning range

Band

VHF-Lo

VHF-High

Hyper

UHF

S1'-S3', S1

S2-S10,

S11-S20

S21-S41

For TV For CATV

B/G

Ch2-4

Ch5-12

D/K

Ch1-5

Ch6-12

I/I

Ch4-13

NTSC

Ch2-13

Ch21-69 Ch14-69

In the Lock On state the TV can only be

operated by the Remote Controller.

If any button on the front panel is pressed,

"Child Lock" is displayed on the screen but

the button's function is not performed.

To cancel of this mode, select lock off ith

menu button on remote controller only.

(): SECAM

Front or

Side

Back

- 5 -

DESCRIPTION OF CONTROLS

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. MENU

selects a menu.

4. DD / EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

FF / GG (Volume Up/Down)

adjusts the volume.

adjusts menu settings.

OK

accepts your selection or displays the current mode.

5. VCR BUTTONS (option)

control a LG video cassette recorder.

6. SSM (Sound Status Memory)

recalls your preferred sound setting.

7. PSM (Picture Status Memory)

recalls your preferred picture setting.

8. EYE/*(option)

switches the eye function on or off.

9. TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

10. MUTE

switches the sound on or off.

11. ARC (Aspect Ratio Control)

changes the picture format.

12. TV/AV

selects TV or AV mode.

clears the menu / text from the screen.

switches the set on from standby.

13. TURBO PICTURE / SOUND BUTTON

selects Turbo picture / sound.

TEXT/EYE/

Q.VIEW

?

MIX TIME

REVEAL SLEEP

i

M

(With teletext / Without PIP)

(With teletext / PIP)

TV/AV

SOUND


TURBO

ARC

MUTE

POWER

MENU

PR

VOL

PR

VOL OK

PLAY

P/STILL

LIST

STOP REC

REW FF

I/II

TEXT/ PIPEYE/

PR- PR+ SWAP INPUT

SSM

PSM

123

456

789

0

?

MIX TIME

REVEAL SLEEP

SIZE STILL

POSITION

9/4PIP

i

M

2

11

1

4

5

7

8

9

12

10

16

14

15

13

17

6

3

9

18

- 6 -

0

231

564

897

POWER

MENU

LIST

ARC I/II

SSM SLEEP

PSM

SOUNDPICTURE

Q.VIEW

PR

OK

VOL VOL

PR

TV/AV

MUTE

TURBO

EYE/

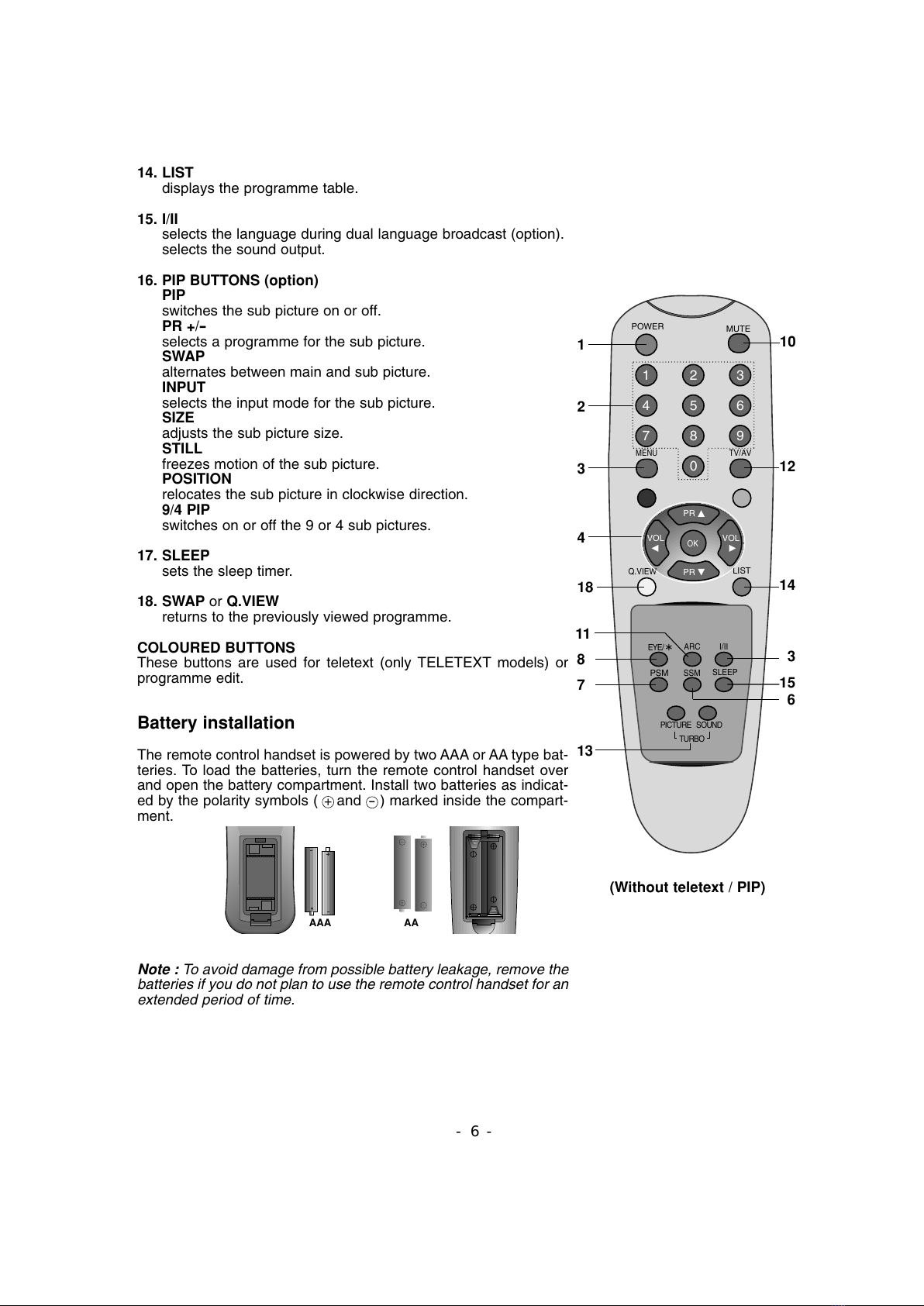

14. LIST

displays the programme table.

15. I/II

selects the language during dual language broadcast (option).

selects the sound output.

16. PIP BUTTONS (option)

PIP

switches the sub picture on or off.

PR +/

-

selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

9/4 PIP

switches on or off the 9 or 4 sub pictures.

17. SLEEP

sets the sleep timer.

18. SWAP or Q.VIEW

returns to the previously viewed programme.

COLOURED BUTTONS

These buttons are used for teletext (only TELETEXT models) or

programme edit.

Battery installation

The remote control handset is powered by two AAA or AA type bat-

teries. To load the batteries, turn the remote control handset over

and open the battery compartment. Install two batteries as indicat-

ed by the polarity symbols ( and ) marked inside the compart-

ment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

+

-

AAA AA

10

(Without teletext / PIP)

1

2

4

3

18

11

8

7

13

12

3

15

14

6

- 7 -

1. MAIN POWER

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in standby

mode.

dims when the set is switched on.

3. REMOTE CONTROL SENSOR

4. MENU

selects a menu.

5. TV/AV

selects TV or AV mode.

clears the menu from the screen.

switches the set on from standby.

6. OK

accepts your selection or displays the current

mode.

7. (Function)

selects volume, EYE (option), picture items or

brief auto programme while the menus not dis-

play.

8. DD / EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

FF / GG (Volume Down/Up)

adjusts the volume.

adjusts menu settings.

9. +/- (DD/EE)

adjusts the function or selects a programme.

switches the set on from standby.

10.AUDIO/VIDEO IN SOCKETS (AV3)

Connect the audio/video out sockets of exter-

nal equipment to these sockets.

S-VIDEO/AUDIO IN SOCKETS (S-AV) (option)

Connect the video out socket of an S-VIDEO

VCR to the S-VIDEO socket.

Connect the audio out sockets of the S-VIDEO

VCR to the audio sockets as in AV3.

11.HEADPHONE SOCKET (option)

Connect the headphone plug to this socket.

12.EYE (option)

adjusts picture according to the surrounding

conditions.

Note : Do not place any heavy objects (over 4Kg)

on the RT-29FA30/33 series models.

Front panel

MENU OK VOL PR

POWER

MENU O K VOL PR

STAND BY

POWER

1

1 2 3 1246 8

4 6 8 2 3 12

POWER

TV/AV

AV3

VIDEO AUDIO

VOL PR

L/MONO R

S-VIDEO

VIDEO

(L/MONO)

AUDIO

AV3

R

L

Side Panel

S-VIDEO VIDEO L/MONO RAUDIO

AV3

11

10

11

VIDEO

AUDIO

L

R

MONO

AV3

11

10

CT-29Q26/27 series CT-25Q26/27 series

CT-25/29H46/47 series

CT-25/29H36/37 series

CT-29K36/37 series

POWER

MENU

STAND-BY

OK VOL PR AV3

VIDEO (L/MONO) AUDIO (R)

POWER

MENU OK VOL PR

1 46 8 2 3 12

1 2 3 5 7 10 11 129

POWER

TV/AV

VOL PR

CT-29M30/32 series

1 2 3 5 7 9

1 2 3 4 6 8 10 12

RT-29FA30/33 series

ON/OFF

MENU OK VOL PR

1 24 6 8 11 12103

- 8 -

Fig. 2-1

Fig. 2-2

CPT

PCB

Remove

Screws

STEREO

PCB

Main PCB

VCD

PCB

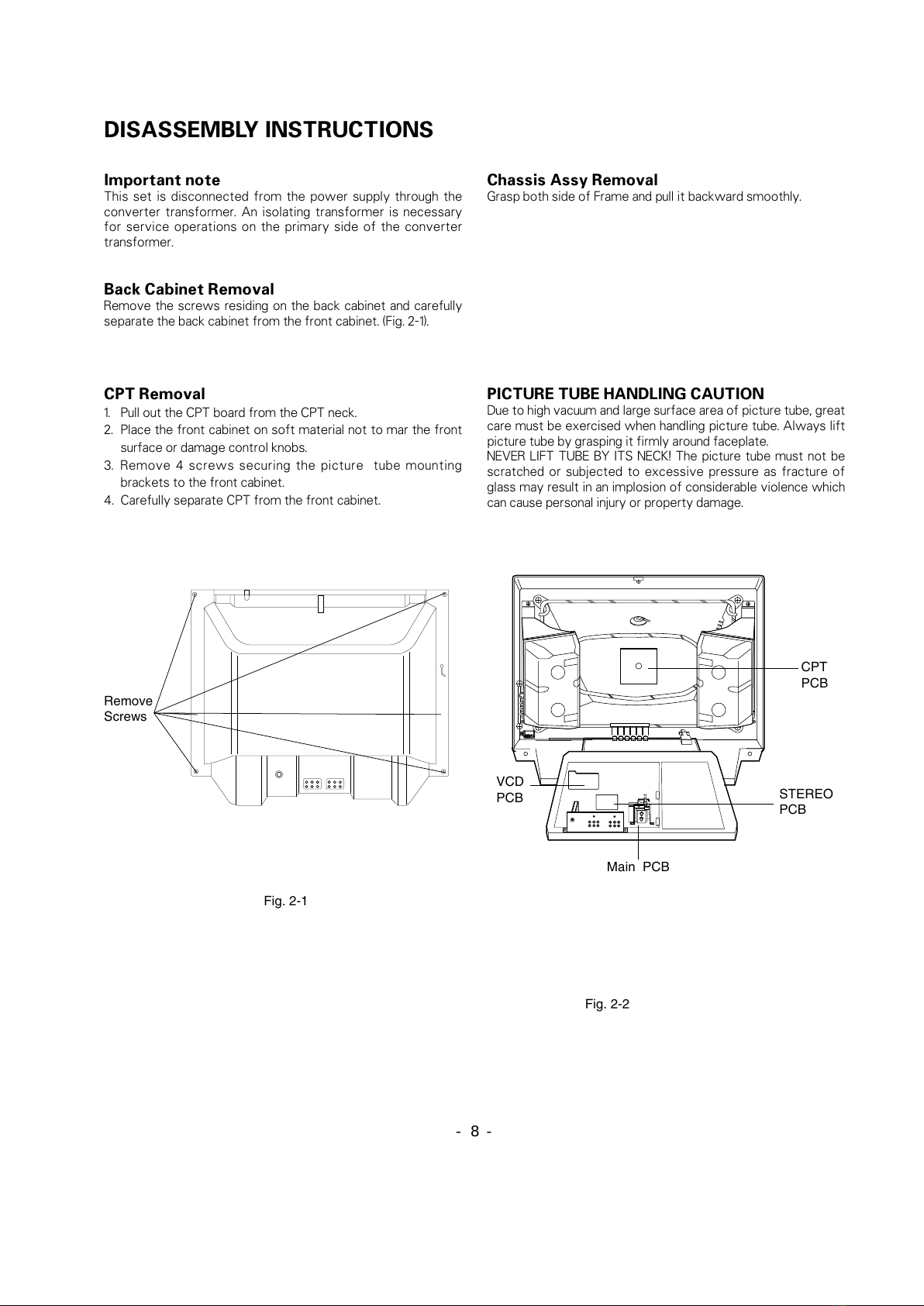

DISASSEMBLY INSTRUCTIONS

Important note

This set is disconnected from the po er supply through the

converter transformer. An isolating transformer is necessary

for service operations on the primary side of the converter

transformer.

Back Cabinet Removal

Remove the scre s residing on the back cabinet and carefully

separate the back cabinet from the front cabinet. (Fig. 2-1).

Chassis Assy Removal

Grasp both side of Frame and pull it back ard smoothly.

CPT Removal

1. Pull out the CPT board from the CPT neck.

2. Place the front cabinet on soft material not to mar the front

surface or damage control knobs.

3. Remove 4 scre s securing the picture tube mounting

brackets to the front cabinet.

4. Carefully separate CPT from the front cabinet.

PICTURE TUBE HANDLING CAUTION

Due to high vacuum and large surface area of picture tube, great

care must be exercised hen handling picture tube. Al ays lift

picture tube by grasping it firmly around faceplate.

NEVER LIFT TUBE BY ITS NECK! The picture tube must not be

scratched or subjected to excessive pressure as fracture of

glass may result in an implosion of considerable violence hich

can cause personal injury or property damage.

- 9 -

OSafety Precautions

1. It is safe to adjust after using insulating transformer between

the power supply line and chassis input to prevent the risk of

electric shock and protect the instrument.

2. Never disconnect leads while the TV receiver is on.

3. Don't short any portion of circuits while power is on.

4. The adjustment must be done by the correct appliances.

5. Unless otherwise noted, set the line voltage to 230Vac!10%,

50Hz.

5. The adjustment of TVshould be performed after warming up

for 15 minutes.

OTest Equipment required

1. RF signal generator (with pattern generator)

2. DC Power Supply

3. Multimeter (volt meter)

4. Oscilloscope

5. Color analyzer

O

PIF (Picture Intermediate Frequency) Adjustment

1) Connect the measuring equipment to the Main Board as

shown in Fig.1.

2) Set RF frequency and output level of RF SIGNAL

GENERATOR as shown Table 1.

3) Turn off S1 and S3 and on S2.

4) Adjust L104 so that the DC voltage may be 2.4!0.05Vdc.

(Table 1)

OL’ VCO Adjustment (For SECAM-L’ MODEL)

1) Connect the measuring equipment to the Main Board as

shown in Fig.1.

2) Set RF frequency and output level of RF SIGNAL

GENERATOR as shown Table 1.

3) Turn on S1,S3 and off S2.

2) Adjust VR122 so that the DC Voltage may be 2.4!0.05Vdc.

O

RF AGC (Automatic Gain Control) Adjustment

1) Input PAL-B/G 05 CH.

2) Connect Multimeter to TP2(J15),AGC adjustment point.

3) Adjust VR121 until the voltage of Multimeter becomes

2.5!0.1V.

OScreen Voltage Adjustment

1) Tune the RF Modulator to receive a PAL or SECAM signal.

2) Press MIX button on remote controller for Service to get into

the Screen Adjust Mode.

3) Adhere the Color Analyzer on the White window of CPT

face.

4) Adjust Screen Volume of FBT so that the luminance of White

window is 12!1 FL.

OFocus Adjustment

1) Tune the TV set to receive a digital pattern.

2) Adjust the upper Focus volume of FBT for the best focus of

vertical line B.

3) Adjust the lower Focus volume of FBT for the best focus of

area A.

4) Repeat above step 2) and 3) for the best overall focus.

IC101

TDA4470

TP1(VCO)

IC102(KI7805)

22 7

13

14

1

0.01uF

JP1

L104

9V

Power-

Supply

V Multimeter or Oscilloscope

JP2

38.9MHz

34.25MHz

(B/G,D/K,I,L)

(SECAM-L')

100 ohm

S1

5V

4.7 Kohm

S3

S2 JP3

100 ohm Q122 VR122

R108

R144

Test Point : TP1

Adjust : L104

Test Point : TP1

Adjust : VR122

Frequency

38.9MHz

34.25MHz

System

B/G,D/K/I,SECAM-L

SECAM-L’

Modulation

OFF

Output level

10mVp-p

Adjust

L104

VR122

Fig. 1 : Connection Diagram of Equipment for PIF Adjustment

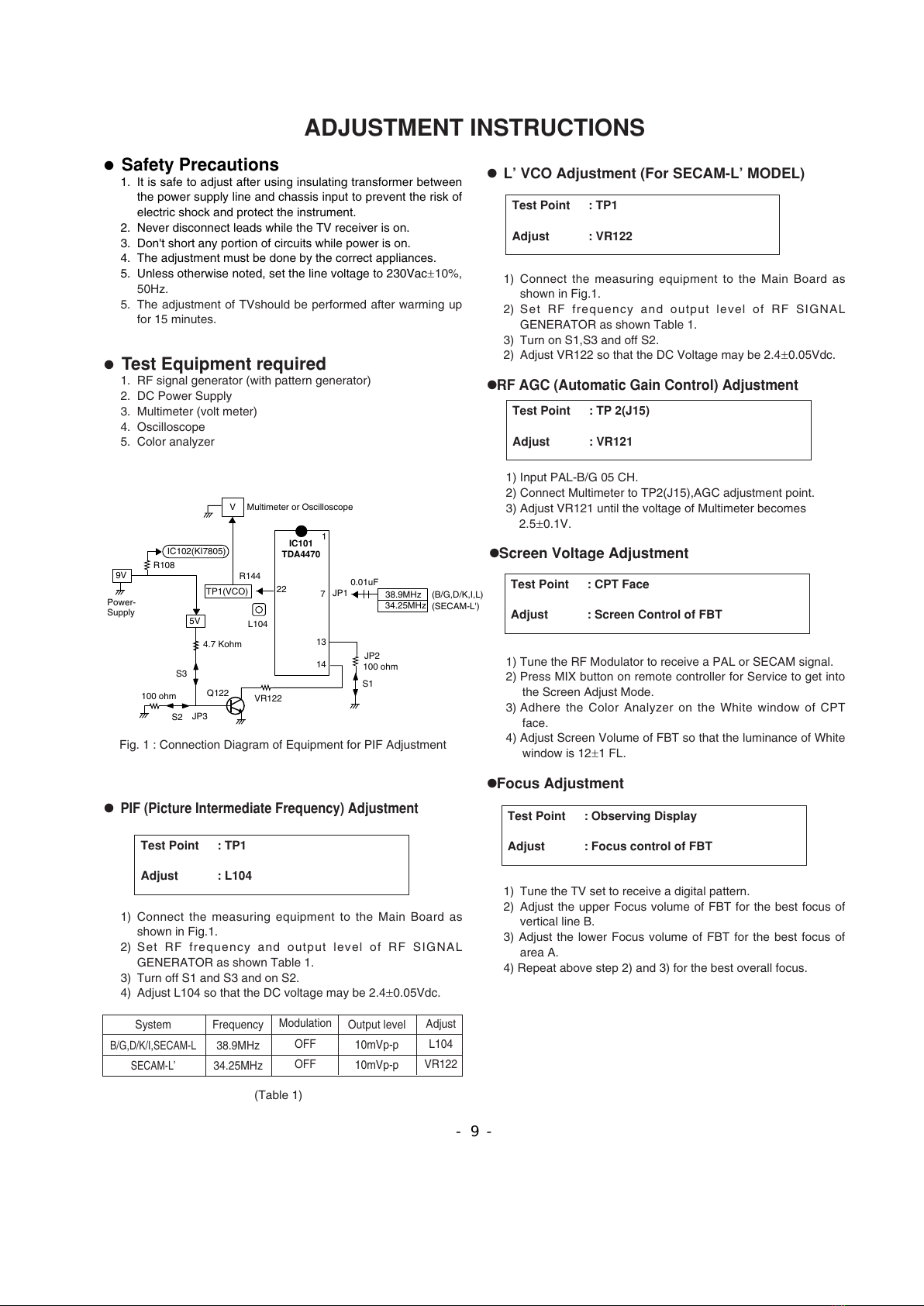

ADJUSTMENT INSTRUCTIONS

Test Point : TP 2(J15)

Adjust : VR121

Test Point : CPT Face

Adjust : Screen Control of FBT

Test Point : Observing Display

Adjust : Focus control of FBT

- 10 -

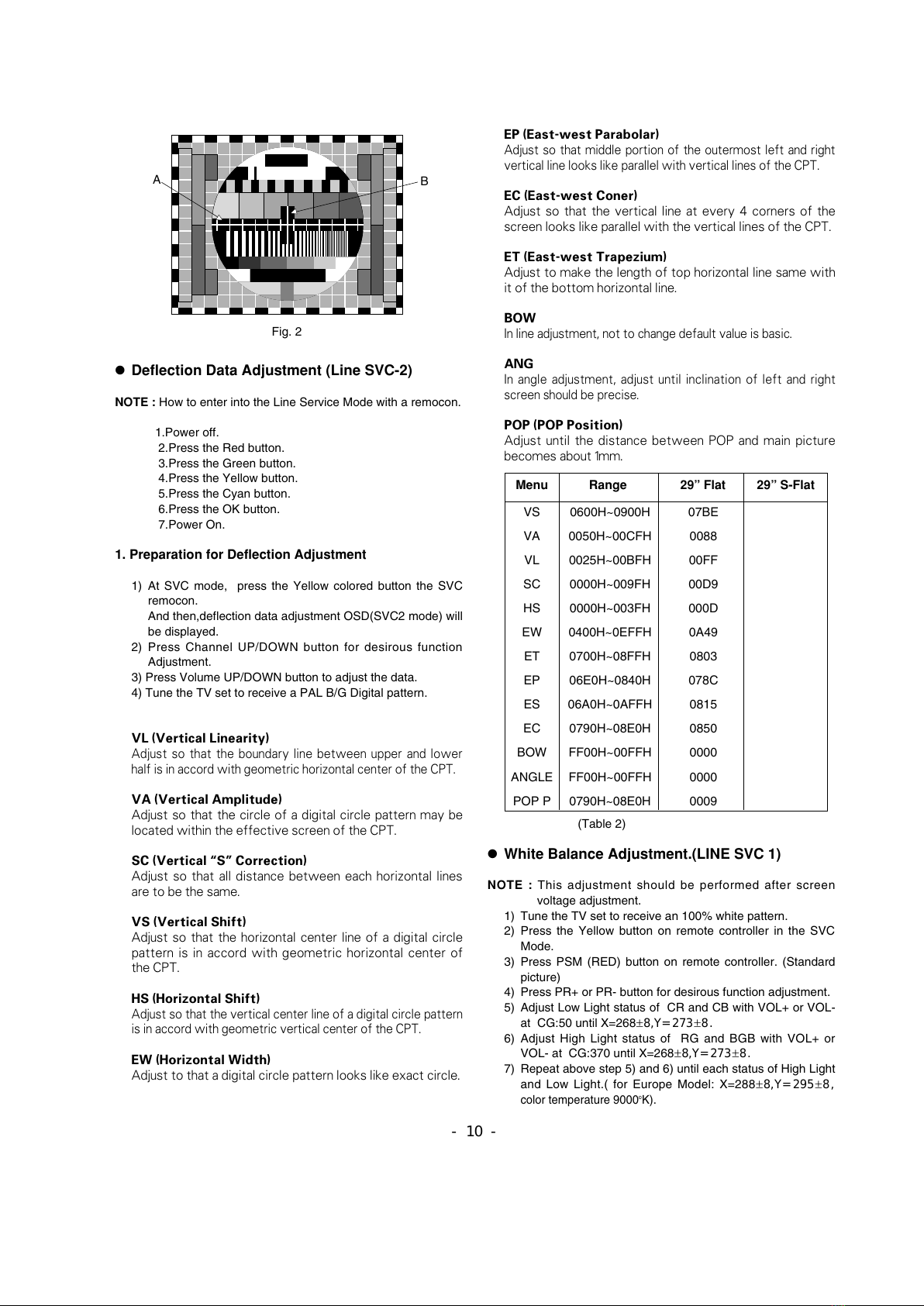

ODeflection Data Adjustment (Line SVC-2)

NOTE : How to enter into the Line Service Mode with a remocon.

1.Power off.

2.Press the Red button.

3.Press the Green button.

4.Press the Yellow button.

5.Press the Cyan button.

6.Press the OK button.

7.Power On.

1. Preparation for Deflection Adjustment

1) At SVC mode, press the Yellow colored button the SVC

remocon.

And then,deflection data adjustment OSD(SVC2 mode) will

be displayed.

2) Press Channel UP/DOWN button for desirous function

Adjustment.

3) Press Volume UP/DOWN button to adjust the data.

4) Tune the TV set to receive a PAL B/G Digital pattern.

VL (Vertical Linearity)

Adjust so that the boundary line bet een upper and lo er

half is in accord ith geometric horizontal center of the CPT.

VA (Vertical Amplitude)

Adjust so that the circle of a digital circle pattern may be

located ithin the effective screen of the CPT.

SC (Vertical “S” Correction)

Adjust so that all distance bet een each horizontal lines

are to be the same.

VS (Vertical Shift)

Adjust so that the horizontal center line of a digital circle

pattern is in accord ith geometric horizontal center of

the CPT.

HS (Horizontal Shift)

Adjust so that the vertical center line of a digital circle pattern

is in accord ith geometric vertical center of the CPT.

EW (Horizontal Width)

Adjust to that a digital circle pattern looks like exact circle.

EP (East-west Parabolar)

Adjust so that middle portion of the outermost left and right

vertical line looks like parallel ith vertical lines of the CPT.

EC (East-west Coner)

Adjust so that the vertical line at every 4 corners of the

screen looks like parallel ith the vertical lines of the CPT.

ET (East-west Trapezium)

Adjust to make the length of top horizontal line same ith

it of the bottom horizontal line.

BOW

In line adjustment, not to change default value is basic.

ANG

In angle adjustment, adjust until inclination of left and right

screen should be precise.

POP (POP Position)

Adjust until the distance bet een POP and main picture

becomes about 1mm.

(Table 2)

OWhite Balance Adjustment.(LINE SVC 1)

NOTE : This adjustment should be performed after screen

voltage adjustment.

1) Tune the TV set to receive an 100% white pattern.

2) Press the Yellow button on remote controller in the SVC

Mode.

3) Press PSM (RED) button on remote controller. (Standard

picture)

4) Press PR+ or PR- button for desirous function adjustment.

5) Adjust Low Light status of CR and CB with VOL+ or VOL-

at CG:50 until X=268!

8,Y=273

!

8.

6) Adjust High Light status of RG and BGB with VOL+ or

VOL- at CG:370 until X=268!

8,Y=273

!

8.

7) Repeat above step 5) and 6) until each status of High Light

and Low Light.( for Europe Model: X=288!

8,Y=295

!

8,

color temperature 9000

o

K).

b

AB

Fig. 2

Menu

VS

VA

VL

SC

HS

EW

ET

EP

ES

EC

BOW

ANGLE

POP P

0600H~0900H

0050H~00CFH

0025H~00BFH

0000H~009FH

0000H~003FH

0400H~0EFFH

0700H~08FFH

06E0H~0840H

06A0H~0AFFH

0790H~08E0H

FF00H~00FFH

0790H~08E0H

07BE

0088

00FF

00D9

000D

0A49

0803

078C

0815

0850

0000

0009

Range 29”Flat 29”S-Flat

- 11 -

(Table 3)

OSVC Data & PSM,SSM Data.

Table 1. ABL Data (LINE SVC-3)

Table 2. SOUND PRE-SCALER (LINE SVC-4)

Table 3. PSM Data

Menu

DVCO

IBRM

WDRM

BCLTH

BCLTM

BCLGA

SVGA

SVDEL

SVD1

LDLY

HBST

HBSO

0~1FFH

0~3FFH

0~7FFH

0~1FFH

0~01FF

00C8

0190

0060

000B

000A

0003

0005

0003

FFFE

00F0

0158

Range 29”Flat 29”S-Flat

Menu

FP

NP

SP

S1 VOL

S2 VOL

DVD

0~127

1

0011

0045

001E

0042

Range DATA

Mode

CONTRAST

BRIGHT

COLOR

SHARPNESS

90

50

100

55

60

40

30

50

60

40

30

STANDARD DYNAMIC MILD GAME

Menu

CR

CG

CB

RG

GG

BG

0 ~ 511

80

370

Range DATA

OOPTION Adjustment (LINE-SERVICE OPTION)

Table 4. OPTION Function

- 12 -

OPTION

DVD

GAME

TEXT

TOP

ACMS

CH+AU

EYE

TURBO

SCART

A2 ST

I II SV

MONO

VOL

H-PH

DGS

TILT

200PRO

AV2

HOTEL

KEY

SYS

M-VOL

OSD

T-LAN

1

DVD

GAME

TEXT

TOP

China,Australia

EYE

Turbo Search

SCART

STEREO

I/II

MONO

Middle East Africa,India VOL.

H/Phone

Degaussing

TILT

China Only

Back:JACK(2EA)

HOTEL

0

X

Australia Only

X

Normal VOL.

X

Back:JACK(1EA)

X

Option 1

Option 2

Option 3

Option 4

Menu

- 13 -

Table 5. OPTION 1 Function

Table 6. OPTION 1 CODE Data

Without TOP Text

Austrailia

EYE

TURBO

SCART

CH+AU

ACMS

TOP

TEXT

GAME

Option Code

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Function Remark

Without GAME

With GAME

Without TXT

With TXT

FLOP TXT

TOP TEXT

Without ACMS funtion

With ACMS funtion

Without D/K CHINA or BB System

With D/K CHINA or BB System

WITHOUT EYE

WITH EYE

Without TURBO SEARCH Funtion

With TURBO SEARCH Funtion

PNONE JACK

SCART JACK

OPTION

Data

TEXT

GAME TOP

ACMS

CH+AU

TURBO SCART

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EYE

0

1

0

OPTION

Data

TEXT

GAME TOP

ACMS

CH+AU

TURBO SCART

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EYE

1

0

1

0

1

0

- 14 -

OPTION

Data

TEXT

GAME TOP

ACMS

CH+AU

TURBO SCART

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EYE

0

1

0

1

0

1

0

OPTION

Data

TEXT

GAME TOP

ACMS

CH+AU

TURBO SCART

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EYE

0

1

0

1

0

1

0

- 15 -

OPTION

Data

TEXT

GAME TOP

ACMS

CH+AU

TURBO SCART

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EYE

0

1

0

1

0

1

OPTION

Data

TEXT

GAME TOP

ACMS

CH+AU

TURBO SCART

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EYE

0

1

0

1

0

1

Table 7. OPTION 2 Function

Table 8. OPTION 2 CODE Data

- 16 -

OPTION

Data

TEXT

GAME TOP

ACMS

CH+AU

TURBO SCART

254

255

1

0

1

EYE

1

VOL

DGS

200 PR

TILT

MONO

I/II SV

A2 ST

Option Code

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Function Remark

RF MONO

RF STEREO

I/II

NORMAL VOLUME CURVE

W/O H.PHONE

W/H.PHONE

W/O DEGAUSSING

W/DEGAUSSING

W/O TILT

W/TILT

OPTION

Data

I/II

SV

A2

ST

MONO

VOL

H-PH

TILT 200

PRO

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

DGS

0

1

0

OPTION

Data

I/II

SV

A2

ST

MONO

VOL

H-PH

TILT 200

PRO

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

DGS

1

0

1

0

1

0

- 17 -

OPTION

Data

I/II

SV

A2

ST

MONO

VOL

H-PH

TILT 200

PRO

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

DGS

0

1

0

1

0

1

0

OPTION

Data

I/II

SV

A2

ST

MONO

VOL

H-PH

TILT 200

PRO

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

DGS

0

1

0

1

0

1

0

- 18 -

OPTION

Data

I/II

SV

A2

ST

MONO

VOL

H-PH

TILT 200

PRO

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

DGS

0

1

0

1

0

1

OPTION

Data

I/II

SV

A2

ST

MONO

VOL

H-PH

TILT 200

PRO

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

DGS

0

1

0

1

0

1

Table 9. OPTION 3 Function

Table 10. OPTION 3 CODE Data

- 19 -

OPTION

Data

I/II

SV

A2

ST

MONO

VOL

H-PH

TILT

200

PRO

254

255

1

0

1

DGS

1

REAR JACK

HOTEL OPTION

LOCAL KEY

RF SYSTEM

OPTION

INCH/CPT

Deflection DATA

SYS

INCH

KEY

HOTEL

AV2

Option Code

0

1

0

1

0

1

2

3

0

1

2

3

0

1

2

3

Function Remark

REAR JACK 1EA

REAR JACK 2EA

W/O HOTEL

W/HOTEL

6 KEY

4 KEY

SOFT TOUCH

8 KEY

BG/I/DK

BG/L

BG/I/DK/M

RESERVED

25”/29”FLAT CPT

21”FLAT CPT

25/29”FST CPT

OPTION

Data

AV 2

HOTEL

KEY

SYS

INCH

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

0

1

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

OPTION

Data

AV 2

HOTEL

KEY

SYS

INCH

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

- 20 -

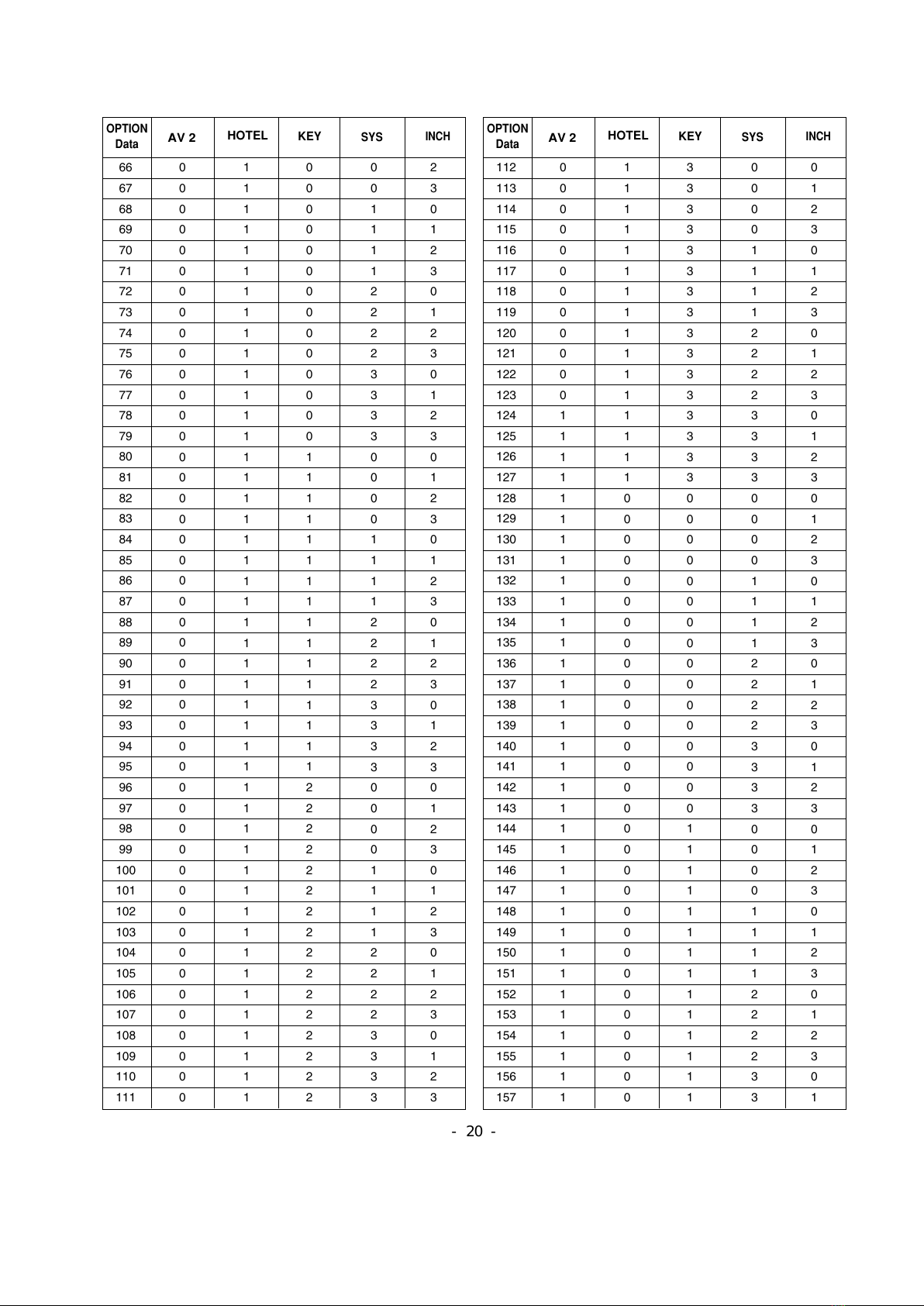

OPTION

Data

AV 2

HOTEL

KEY

SYS

INCH

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

0

1

0

1

2

0

1

2

3

0

1

2

3

0

1

2

3

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

OPTION

Data

AV 2

HOTEL

KEY

SYS

INCH

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

0

1

0

3

0

1

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

LG RT-29FA30V User manual

Popular TV manuals by other brands
