SERVICE MANUAL

LG DI-28Z12

MODEL

- 1 -

Y Safety Precautions

1. It is safe to adjust after using insulating transformer

between the power supply line and chassis input to

prevent the risk of electric shock and protect the

instrument.

2. Never disconnect leads while the TV receiver is on.

3. Don't short any portion of circuits while power is on.

4. The adjustment must be done by the correct appliances.

But this is changeable in view of productivity.

5. Unless otherwise noted, set the line voltage to

230Vac!10%, 50Hz.

Y Test Equipment required

1. RF signal generator (with pattern generator) 1[EA]

2. DC Power Supply

3. Digital Multimeter (volt meter) 2[EA]

4. Oscilloscope 2[EA]

5. White balance meter 1[EA]

:

VCO (Voltage Controlled Oscillator) Adjustment

1) Turn on DC power supplies.

2) Adjust Video Detector Coil (L107) for 2.85!0.1Vdc.

NOTE : The condition of signal Generator.

:RF AGC (Auto Gain Control) Adjustment

The RF AGC control (VR101) was aligned at the time of

manufacture for optimum performance over a wide range

conditions. Readjust of VR101 should not be necessary

unless unusual local conditions exists, such as:

1) Channel interference in a CATV system.

2) Picture bending and/or color beats, which are unusually

due to excessive RF signal input when the receiver is too

close to a transmitting tower or when the receiver is

connected to an antenna distribution system where the RF

signal has been amplified.

In this case, the input signal should be attenuated (with

pad or filter) to a satisfactory level.

3) Picture noise caused by "broadcast noise" or weak signal.

If the broadcast is "clean" and the RF signal is at least

1mV (60dBu), the picture will be noise free in any area.

Adjusting the VR101 (RF AGC) control to one end of rotation

will usually cause a relatively poor signal to noise ratio;

Adjusting to the jother end of rotation will usually cause a

degradation of over load capabilities resulting in color beats or

adjacent channel reference.

Adjustment (Refer to Table 1)

VL (Vertical Linearity)

Adjust so that the boundary line between upper and lower

half is in accord with vertical blanking line.

VS (Vertical Shift)

Adjust so that the horizontal center line of digital circle

pattern is in accord with geometric horizontal center of

the picture tube.

VH (Vertical Height)

Adjust inside of the circle at top and bottom display.

Test Point : J72

Adjust : L107

Test Point : J189 or Observing Display

Adjust : VR101

ADJUSTMENT

Frequency

38.9MHz

Modulation

OFF

Output level

80dBu

5Vdc

Power

Supply

RF

Signal

generator

38.9MHz

GND

L106

L01

C115(-)

IC102

TDA9815

L107

(VCO ADJ.)

Z101

G3962

Ceramic

CAP.

10000pF

Ceramic

CAP.

10000pF

Multimeter &

oscilloscope

2.85Vdc

IC01

u-COM

J72

34 5

Digital

Multimeter

AGC TP.

J189

Tuner

VR101

(AGC ADJ.)

IF Board

Fig.1 : Connection Diagram of Equipment for VCO Adjustment.

Fig. 2 : Connection Diagram of Equipment for AGC Adjustment.

- 2 -

SC (Vertical “S” Correction)

Adjust so that all distance between each horizontal lines are

to be the same.

EW (Horizontal Width)

Adjust so that digital circle pattern looks like exact circle.

EP (East-west Parabolar)

Adjust so that middle portion of the outemost left and right

vertical paralled with vertical lines of the picture tube.

EC (East-west Coner)

Adjust so that the vertical line at every 4 corners of the

screen looks like parallel with the vertical lines of the picture

tube.

ET (East-west Trapezium)

Adjust to make the length of top horizontal line same with it

of the bottom horizontal line.

Position of Blanking

1) Selection to the Mode of 4:3

2) Adjust the blanking width control (VR1701) for the same

left and right side of the picture tube.

:Screen & White Balance (W/B) Adjustment

NOTE : This adjustment should be preformed after screen

voltage adjustment.

1) Turn the TV set to receive white pattern of PAL standard

signal.

2) Adjust contrast, Brightness for 45!1ft-L at the center area of

screen.

3) Press Yellow button after SVC Mode on remote controller

then you can find "RG---/GG---/BG---" OSD around middle-

left of screen.

4) Set the "GG---" to "GG031".

5) Press CH (UP/DOWN) button you can find "RG---"/"BG---"

OSD around middle-left of screen.

6) Adjust volume up or down button in each status of "RG---

"/"BG---" for X=281!8, Y=288!8 with color analyzer

Table 1 : White Balance initial data

NOTE : "* " marked items don't need adjust.

:Deflection Data Adjustment

NOTE: To enter SVC mode, press "SVC" button on the Remote

control or "OK" button on both TV set and the Remote

control.

1. Deflection Adjustment Flow

1) At deflection adjustment mode, select FUBK signal.

And then, deflection data adjustment OSD displays and at

the left top of its auto detected field frequency and deflection

adjustment mode are displayed.

2) Press "Yellow" button and at deflection adjustment mode

(press "DE/FG" button) adjust with 50Hz 16:9 mode and

the other mode data are stored automatically. After finishing

adjustment at 50Hz 16:9 mode and check the adjusted data

of different mode.

3) Check the adjusted data changing 50Hz ZOOM1, ZOOM2

and 4:3 mode by pressing "ARC" button and if errors,

readjust at each mode.

Adjustment at 50Hz Wide mode

Item

RG

GG

BG

YD

PK

Range of Change

0~63

Initial Data

31

* 03

* 05

Adjustment

R-Drive

G-Drive

B-Drive

Y-Delay

Peak White Limit

Test Point : Observe Display

Adjust : Screen Control of FBT

R, G, B Drive level (For SVC Mode)

16:9, 4:3

ZOOM1

ZOOM2

ZOOM1

16:9, 4:3

ZOOM2

Top

Bottom

Vertical Size

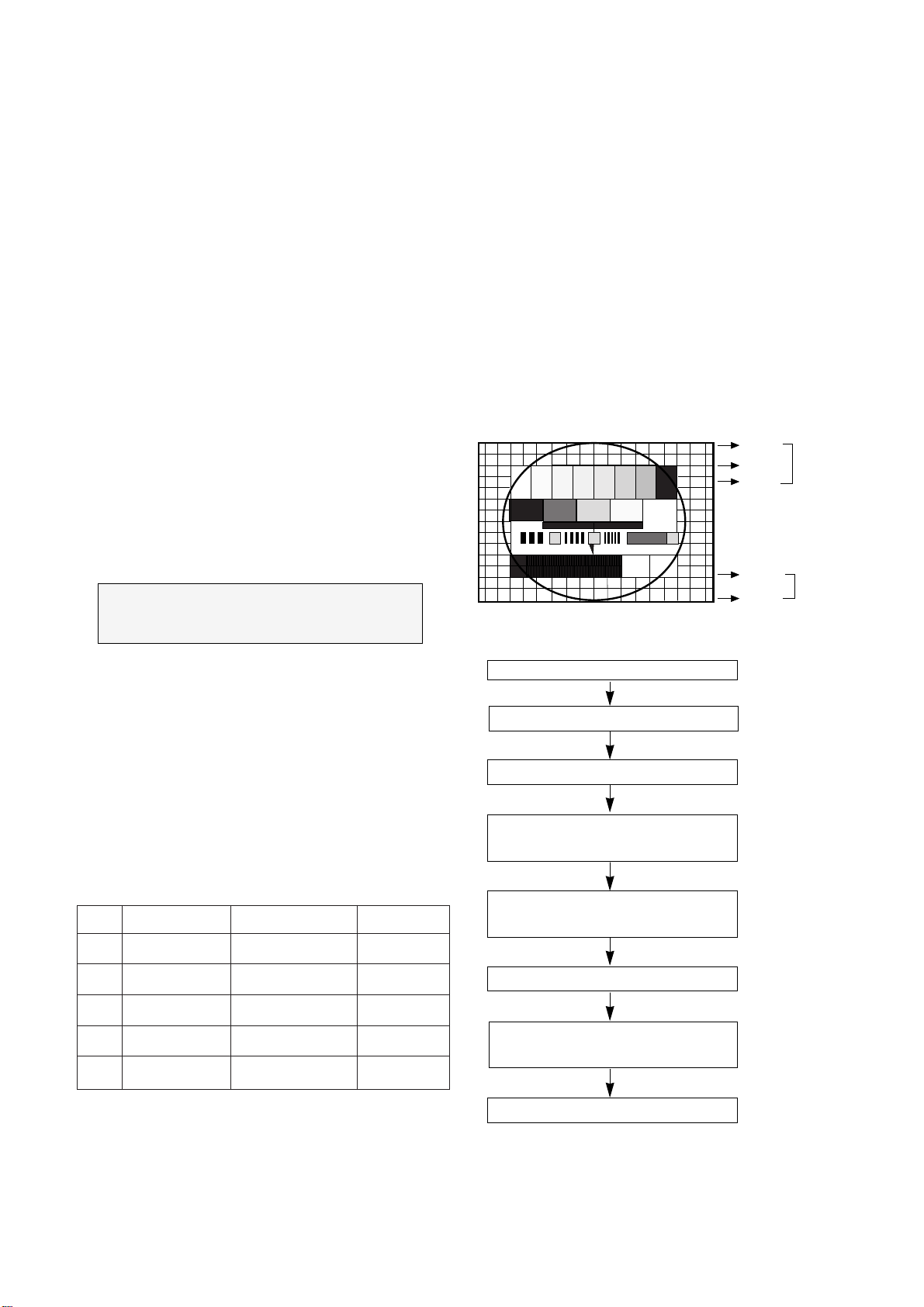

[Deflection Adjustment Flowchart

Enter SVC Mode

: Press MENU button 2 times

: Press MENU button twice

Adjust deflection data, 50Hz wide mode

Press ARC button

Adjust position of blanking

(50Hz 4:3 Mode)

Adjust deflection data

(50Hz ZOOM1, 4:3 mode)

Swap into AV mode

Return to TV mode

Adjust deflection data

(60Hz 16:9, ZOOM1, ZOOM2, 4:3 mode)

- 3 -

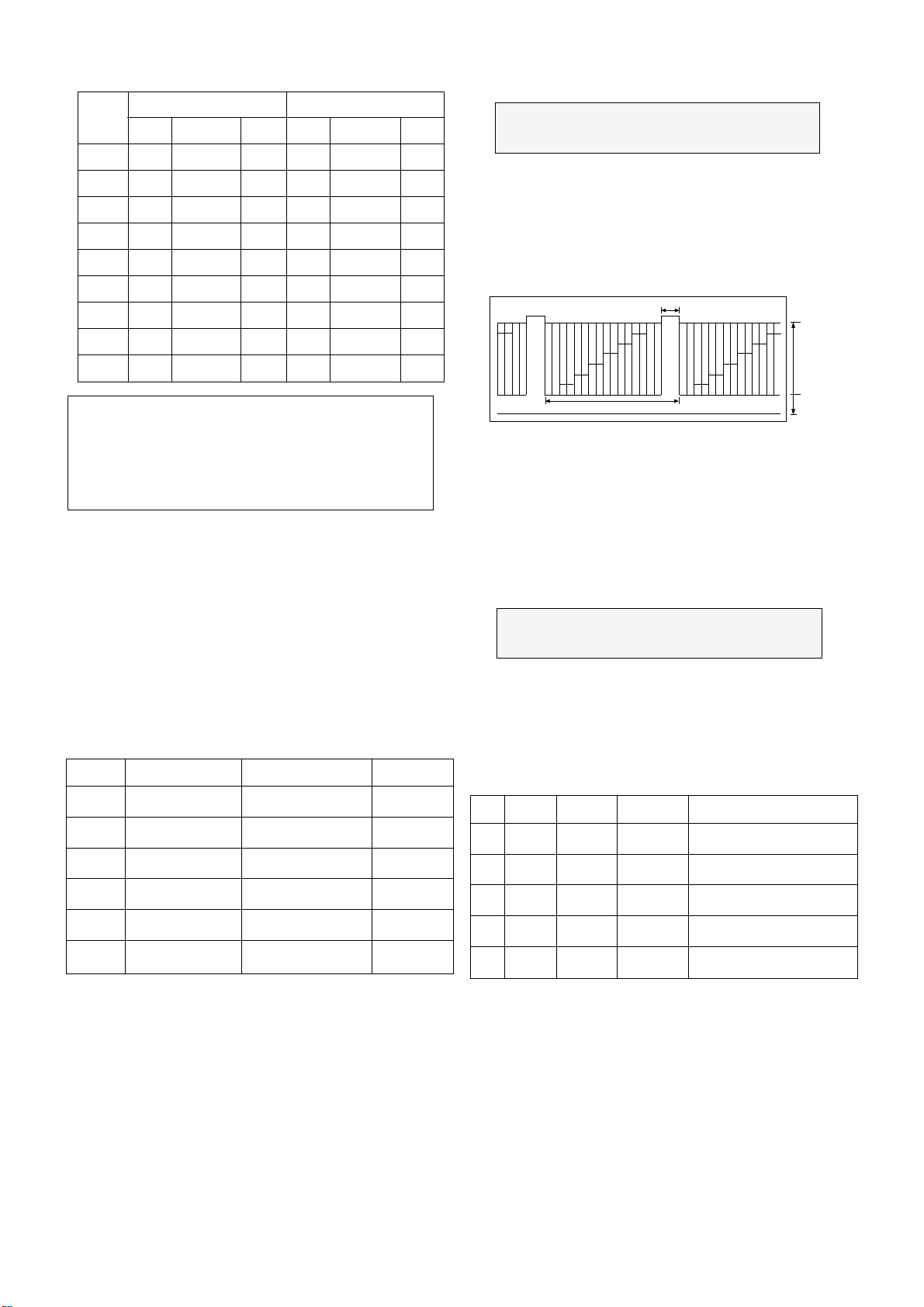

Table 2 : Deflection initial data

Table 1/2 : Corresponding buttons for each adjustment

:Audio Data Adjustment

NOTE : If you press "3" button on the remote controller in SVC

Mode then you can find On Screen Display as follow

Table 3.

* Never change these data, these are important reference data

for TV.

Table 3 : Audio initial data

:Screen Voltage Adjustment

1) Turn the TV set to receive digital pattern. (Under the

condition of ARC Mode 16:9 (Wide Mode))

2) Press PSM button on remote controller. (Standard picture)

3) Connect the prove of oscilloscope to the RK (Red Cathod of

CPT Board).

4) Adjust Screen Volume of FBT so that the waveform is the

same as below Fig.3.

:Focus Adjustment

NOTE : This adjustment should be performed after warming up

for 10 minutes.

[Set condition of the 16:9 (Wide Mode)]

1) Tune the TV set to reveive digital pattern.

2) Adjust the under Focus Volume for the best vertical Focus on

the center of the screen.

3) Adjust the upper Focus Volume for the best horizontal Focus

on the center of the screen.

Table 4 : CH preset Data

NOTE : These adjustments are possible with serviceable

remote controller installed SVC button.

If you don't have serviceable remote controller,

simultaneously press OK buttons on local control

and on remote controller then TV is changed from

normal mode to SVC mode.

Item

SP loud

HP vol

SC vol

SC pres

FM pres

NC pres

Range of Change

0~127

Initial Data

000

030

059

019

042

Adjustment

SPK loudness

SCART Vol

SC prescale

FM prescale

NC prescale

AD

1

2

3

4

5

Pattern

PHILIPS

FUBK

RED

C/HATCH

PHILIPS

Signal Function & Check

NICAM Stereo

Deflection Adjustment

ITC

NICAM, TXT

VHF

Ch.

PI-41

PI-11

C-36

PI-63

PI-05

Freq.

631~25

231~25

691~25

807~25

183~25

Test Point : RK (Red Cathod of CPT Board)

Adjust : Screen Control of FBT

Test Point : Observe display

Adjust : Focus control of FBT

Horizontal

FlyBack Time Black level

White level

GND for dc

1H-LINE

160Vp-p

Fig. 3 : The waveform of RK(Red Cathode) of CPT Board

150Vp-p

HS

EW

EP

EC

ET

VL

VH

SC

VS

Item 50Hz DATA 60Hz DATA

16:9

18

45

10

20

28

35

18

26

35

ZOOM 1/2

18

45

10

20

16

35

18

26

35

4:3

18

32

10

20

16

35

21

26

35

16:9

26

44

10

20

25

35

20

22

35

ZOOM 1/2

26

44

10

20

16

35

12

22

35

4:3

26

31

10

20

16

35

20

22

35

- 4 -

PURITY & CONVERGENCE ADJUSTMENT

Caution:

Convergence and Purity have been factory aligned. Do not

attempt to tamper with these alignments.

However, the effects of adjacent receiver components, or

replacement of picture tube or deflection yoke may require the

need to readjust purity any convergence.

Y Purity Adjustment

This procedure DOES NOT apply to bonded yoke and picture

tube assemblies.

The instrument should be at room temperature (60 degrees F or

above) for six (6) hours and be operating at low beam current

(dark background) for approximately 20 to 30 minutes before

performing purity adjustments.

CAUTION: Do not remove any trim magnets that may be

attached to the bell of the picture tube.

1. Remove the AC power and disconnect the internal

degaussing coil.

2. Remove the yoke from the neck of the picture tube.

3. If the yoke has the tape version beam bender, remove it and

replace it with a adjustable type beam bender (follow the

instructions provided with the new beam bender)

4. Replace the yoke on the picture tube neck, temporarily

remove the three (3) rubber wedges from the bell of the

picture tube and then slide the yoke completely forward.

5. Reconnect the internal degaussing coil.

6. Position the beam bender locking rings at the 9 o'clock

position and the other three pairs of tabs (2,4 and 6 pole

magnets) at the 12 o'clock position.

7. Perform the following steps, in the order given, to prepare the

receiver for the purity adjustment procedure.

a. Face the receiver in the "magnetic north" direction.

b. Externally degauss the receiver screen with the television

power turned off.

c. Turn the television on for approximately 10 seconds to

perform internal degaussing and then turn the TV off.

d. Unplug the internal degaussing coil. This allows the

thermistor to cool down while you are performing the purity

adjustment. DO NOT MOVE THE RECEIVER FROM ITS

"MAGNETIC NORTH" POSITION.

e. Turn the receiver on and obtain a red raster by increasing

the red bias control (CW) and decreasing the bias controls

for the remaining two colors (CCW).

f. Attach two round magnets on the picture tube screen at 3

o'clock and 9 o'clock positions, approximately one (1) inch

from the edge of the mask (use double-sided tape).

DEFLECTION YOKE

PURITY &CONVERGENCE

MAGNET ASSEMBLY

RUBBER

WEDGES

GLASS CLOTH TAPE

,,,,

,,,,,

,,,,

,,

,,,

,,

,,,,,

,,,,,,

,,,,,

,,

PURITY MAGNET

6-POLE

4-POLE

MAGNET

CONVERGENCE MAGNET ASSEMBLY

6-POLE

MAGNES PURITY MAGNET(2-POLE)

X-AXIS YOKE

POSITIONING

(L/R PURITY)

6-POLE

MAGNETS

CONVERGENCE MAGNET ASSEMBLY

- 5 -

8. Referring to above, perform the following two steps:

a. Adjust the yoke Z-axis to obtain equal blue circles.

b. Adjust the appropriate beam bender tabs to obtain correct

purity (four equal circles).

9. After correct purity is set, tighten the yoke clamp screw and

remove the two screen magnets.

10. Remove the AC power and rotate the receiver 180 degrees

(facing "magnetic south").

11. Reconnect the internal degaussing coil.

12. Turn the receiver on for 10 seconds (make sure the receiver

came on) to perform internal degaussing, and then turn the

receiver off.

13. Unplug the internal degaussing coil.

14. Turn on the receiver and check the purity by holding one (1)

round magnet at the 3 o'clock and a second round magnet at

9 o'clock position. If purity is not satisfactory, repeat steps 8

through 14.

15. Turn off the receiver and reconnect the internal degaussing

coil.

Y Convergence Adjustment

Caution: This procedure DOES NOT apply to bonded yoke and

picture tube assemblies.

Do not use screen magnets during this adjustment

procedure. Use of screen magnets will cause an

incorrect display.

1. Remove AC power and disconnect the internal degaussing

coil.

2. Apply AC Power and set the brightness to the Picture Reset

condition. Set the Color control to minimum.

3. Apply 8V to the pin42 of IC501.

4. Adjust the Red, Green and Blue Bias controls to get a dim

white line.

5. Remove the AC power and 8V from the pin42 of IC501.

6. Reconnect the internal degaussing coil and apply AC power.

7. Turn the receiver on for 10 seconds to perform internal

degaussing and then turn the receiver off again.

8. Unplug the internal degaussing-coil.

9. Turn on the receiver, connect a signal generator to the VHF

antenna terminal and apply a crosshatch signal.

Caution: During the convergence adjustment procedure, be

very careful not to disturb the purity adjustment tabs

are accidentally move, purity should be confirmed

before proceeding with the convergence adjustments.

Note:

Make sure the focus is set correctly on this instrument

before proceeding with the following adjustment.

10. Converge the red and blue vertical lines to the green vertical

line at the center of the screen by performing the following

steps (below TABLE).

a. Carefully rotate both tabs of the 4-pole ring magnet

simultaneously in opposite directions from the 12 o'clock

position to converge the red and blue vertical lines.

b. Carefully rotate both tabs of the 6-pole ring magnet

simultaneously in opposite directions form the 12 o'clock

position to converge the red and blue (now purple)

vertical lines with the green vertical line.

11. Converge the red and blue horizontal with the green line at

the center of the screen by performing the following steps.

(below TABLE)

a. Carefully rotate both tabs of the 4-pole ring magnet

simultaneously in the same direction (keep the spacing

between the two tabs the same) to converge the red and

blue horizontal lines.

b. Carefully rotate both tabs of the 6-pole ring magnet

simultaneously in same direction (keep the spacing

between the two tabs the same) to converge the red and

blue (now purple) horizontal lines with the green

horizontal line.

c. Secure the tabs previsouly adjusted by locking them in

place with the locking tabs on the beam bender.

MAGNETS

RED RED

1.ADJUST YOKE Z-AXIS FIRST

TO GET EQUAL BLUE

COLOR CIRCLES

2 .ADJUST BEAM BENDER 2 POLE

MAGNET TO GET FOUR EQUAL

COLOR CIRCLES

- 6 -

RING

PAIRS

4

POLE

ROTATION DIRECTION

OF BOTH TABS

OPPOSITE

SAME

OPPOSITE

SAME

MOVEMENT OF RED

AND BLUE BEAMS

B B

RR OR

OR

B R B R

OR

B

R

B

R

B R OR BR

6

POLE

12. While watching the 6 o'clock positions on the screen, rock the

front of the yoke in a vertical (up/down) direction to converge

the red and blue vertical lines. (Fig upper left)

13. Temporarily place a rubber wedge at the 12 o'clock position

to hold the vertical position or the yoke.

14.

Check the 3 o'clock and 9 o'clock areas to confirm that the red

and blue horizontal lines are converged.

If the lines are not converged, slightly offset the vertical tilt of the

yoke (move the rubber wedge if necessary) to equally balance the

convergence error of the horizontal lines at 3 o'clock and 9 o'clock

and the vertical lines at 6 o'clock and 12 o'clock.

15. Place a 1.5 inch piece of glass tape over the rubber foot at

the rear of the 12 o'clock wedge.

16. While watching the 6 o'clock and 12 o'clock areas of the

screen, rock the front of the yoke in the horizontal (left to

right) motion to converge the red and blue horizontal lines.

(Fig. upper right)

17. Temporarily place a rubber wedge at the 5 o'clock and 7

o'clock positions to hold the horizontal position of the yoke.

18. Check the 3 o'clock and 9 o'clock areas to confirm that the

red and blue vertical lines are converged. If the lines are not

converged, slightly offset the horizontal tilt of the yoke (move

the temporary rubber wedges if necessary) to equally

balance the convergence error of the horizontal lines at 6

o'clock and 12 o'clock and the vertical lines at 3 o'clock and 9

o'clock.

19. Using a round magnet confirm purity at the center, right and

left sides and corners. See Purity Adjustment Procedure.

20. Reconfirm convergence and apply a 1.5 inch piece of glass

tape over the rubber foot at the rear of the 5 o'clock and the 7

o'clock wedges.

RED

BLUE

RED BLUE

BLUE

RED

GREEN

BLUE RED

GREEN

ADJUSTMENT

VIEWING

AREA

UP/DOWN ROCKING OF THE YOKE

CAUSES OPPOSITE ROTATION OF RED

AND BLUE RASTERS

ADJUSTMENT

VIEWING

AREA RED

RED

GREEN

TV

SCREEN

LEET/RIGHT ROCKING OF THE YOKE

CAUSES OPPOSITE SIZE CHANGE OF

THE RED AND BLUE RASTERS

UP/DOWN ROCKING OF THE YOKE

CAUSES OPPOSITE ROTATION OF RED

AND BLUE RASTERS

LEFT/RIGHT ROCKING OF THE YOKE

CAUSES OPPOSITE SIZE CHANGE OF THE

RED AND BLUE RASTERS

- 1 -

,,,,

,,,,,

,,,,,,,,

,,,,,,,,,,

,,,,,,,,,,,,,

,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,

,,,,,,,,,,,,

,,,,,,,,,,

,,,,,,,

,,,,,

,,,

,,

,,,,,

,,,,,,,,

,,,,,,,,,

,,,,,,,,,,,,

,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,

,,,,,,,,,,,

,,,,,,,,,

,,,,,,,

,,,,

,,,

510

400

943

913

112

102

170 150

153

121

120

912

922

300

174

530

501

520

550

540

590 521

561

563

560

570

580

562

320

331

315

330

EXPLODED VIEW

102 341-919C HOLDER,D-COIL

112 6341V28001A BARE CPT ASSY,W66QBD590X 0.4GGAUS

120 6400VF5001C SPEAKER,MID-RANGE 8 OHM 5/12W

121 120-C76F SPEAKER,TWEETER 8OHM 10/20

150 150-201L COIL,DEGAUSSING

153 6150Z-5031F DY DW28SLNO1

170 170-797W LEAD SET,CPT EARTH

174 174-225N POWER CORD

300 3091V00153A CABINET ASSY

315 315-739C DOOR,MAIN 1

320 320-075B SPRING,KNOB

330 5020V00277A BUTTON,POWER

331 441-754A BUTTON,DOOR OPEN

400 3809V00114A BACK COVER ASSY

501 312-391B FRAME,MAIN

510 6871VSN089A PWB ASSY,CPT

520 6871VMN094A PWB ASSY,MAIN 1

521 401-745E BOARD ASSY,AV

530 6871VDN007A PWB ASSY,DEF+POWER(MAIN2)

540 109-548E PCB ASSY,SHARP & BLANK

550 6871VSN088A PWB ASSY,AUDIO

560 6871VSN090A PWB ASSY,LED DISPLAY

561 2075V00001A INTERNET SET TOP BOX

562 6718V00001A CARD PCMCIA,SMART CARD

563 4810V00120A BRACKET,MAIN 1

570 6871VSN091A PWB ASSY,KEY

580 6871VSN092A PWB ASSY,POWER

590 6871VSN087A PWB ASSY,AV

912 332-240A SCREW ASSY,’P’TYPE+WASHER

913 332-229D SCREW ASSY,HEXAGON HEAD

922 1PTF0402816 SCREW,TRUSS HEAD D4 L12

943 1PTF0403116 SCREW,TRUSS HEAD D4 L16

- 2 -

EXPLODED VIEW PARTS LIST

LOCA. NO PART NO DESCRIPTIONS

The components identified by mark are

critical for safety.

Replace only with part number specified.

TUNER(FS)

IC101, VIF/SIF

TDA9815

IF AGC

IC601

SOUND

PROCESSOR

MSP3410

CTI

TDA4566

TDA8376

VIDEO

CHROMA

DEFLECTION

IC1601

SOUND AMP

LA4282

VIDEO S/W

TEA6415

CPT

A/V2

VIDEO AMP

TEA6108

SVM

CPT/VM ASSY

SHARNESS

AN5342K R.G.B.

VM

L

R

SCART1

SKY-OUT

VM

IH DELAY

TDA4665

H-BLANKING

MC14538BCP

STR-6709

IC801 SMPS

TRANS

FBT

FRONT A/V,S-VIDEO

R.G.B.

Y

U.V

AC IN

MAIN S/W H-DRIVE

H-OUT

V-OUT

LA7845

MAIN2 ASSY(POWER& DEFLECTION)

POWER-IN ASSY

GM71C4256

SDA5273

SDB8032

74HC373

27C512

MEGATEXT

PART

R.G.B.

STB

U-COM

CXP EEPROM

24C16

CVBS(MONITOR)

U-COM

INTER

-FACE

R.G.B.

CVBS(RF)

CVBS(MONITOR)

CVBS(A/V1)

CVBS

U.V

Y

RGB S/W

TEA5114

R.G.B.

AUDIO

L,R

R,G,B,

CVBS1

CVBS2

R.G.B.

CVBS

(STB)

DEAD SET

(NO RASTER, NO SOUND)

Check the waveform at the pin46, 48

(SDA, SCL) of IC01

4.5Vp-p 0V

0V

0V 12V

High(5V) Low

Abnormal

Normal

0V

8V

Check the voltage at the pin8, 37

of IC501

Check the voltage at (+) lead of

C830 Check/Replace

Q806, 807, 808

Check the voltage at the pin6 of IC01

during main power SW(SW801) on

Check/Replace X01 Check/Replace

IC504

Open the pin5, 6

(SDA, SCL) of IC03

Check/Replace

FR851, D813, IC805 Check the voltage at

(+) lead of IC226

Check/Replace

IC809

Check all the 8V line

whether short to

ground. If then

remove it.

Check the waveform

at pin13 of IC01

Troubleshooting Guide

NO BLANKING AT 4:3 MODE

Check the voltage at the pin11 of

IC1701

0V

5V

1.5V

High Low

Check/Replace IC01

Check/Replace IC1701

Check/Replace

D1710, Q1704

Check the voltage at the pin10 of

IC1701

Check the voltage at the collector

of Q1704

Check/Replace

D1707, 1708, 1709,

Q1701, 1702, 1703

NO SOUND

(PICTURE OK)

Check the voltage at the (+) lead of

C822

0V

0V 31V

31V

* A2 Stereo

* FM Mono

Check/Replace FR852, D815

Check/Replace F1601

Check the voltage at the pin10 of

IC1601

Check the waveform at the pin1, 7

of IC1603

Normal Abnormal

Check/Replace IC1601 Check the waveform at the pin21,

23 of IC603

Normal Abnormal

Check/Replace IC602 Check the waveform at the pin47

of IC603

Normal Abnormal

Check/Replace X601, IC603 Check/Replace IC102

NO COLOR

Check the waveform at the pin34 of

IC501

Abnormal Normal

Check/Replace X502

Check/Replace

IC501

Check the waveform at the pin29,

30 of IC501

Abnormal

Check/Replace

IC502

Check the waveform

at the pin11, 12 of

IC501

Normal

Check the waveform

at the pin7, 8 of

IC503

Abnormal

Check/Replace

IC503

Normal

Check/Replace

IC501

NO RASTER

(SOUND OK)

Check heater element is lighting

Check the heater Voltage

0V

NG

6.0-6.6Vrms

110V

min Normal

0V

Check/Replace FR901

Screen is black

Increase screen voltage of FBT

Increase by Remote

controller

Check the voltage at

the pin14, 26 of IC501

Retrace line is visible

Check the waveform

at the pin40 of IC501

Check/Replace D810

Good

NG

Check the B+ (110V)

at C422

Check/Replace CPT

Normal

Abnormal

Check the waveform at

the collector of Q401

Check/Replace

IC501

0V

Yes No

over 0.6V

Check the voltage at

the pin39 of IC501

Check/Replace IC504

& SCART pin16

0V

Check the voltage (7.5Vp-

p) at the pin41 of IC501

Check/Replace

IC501

Normal

Abnormal

Check the waveform at

the collector of Q402

Check/Replace Q401

Normal

Abnormal

Check/Replace T403

Check/Replace Q402

Check the Contrast &

Bright level by OSD

Check/Replace

FR436, D406

Check/Replace

IC501 Check/Replace

R442, 443, ZD410

Check/Replace CPT

Board

Abnormal Normal

Noraml

Check/Replace X702 Check the waveform at the pin1,

4, 6 of IC504

NO TELETEXT

Check the voltage at the pin41 of IC01

Below 0.5V

Abnormal

5V

Normal

OK NG

Check/Replace SCART pin16

Check/Replace X701

Check/Replace

IC501

Check the waveform at the pin6 of

IC701

Check the waveform at the pin10

of IC701

No Yes

Check the voltage at the

pin61, 62, 63 of IC701 Check the voltage at the pin14 of

IC501

Check/Re

place

IC504

Abnormal

Normal

Check/Replace Q206 Check the waveform at the pin10,

11, 15 (I2C BUS) of IC703

Check the waveform at the pin15,

16, 17 of IC501

Check/Replace

IC504, 701

Check/Replace IC701

NO PICTURE/NO SOUND

(RASTER OK)

Check the 33V at Tuner

0V Normal

Normal Abnormal

Check/Replace FR848, D311,

R829, R830, ZD812

Check/Adjust

VIF/SIF

Check the waveform at the emitter

of Q205

0V

Check 5V Power line

Check the voltage at

the pin29 of IC102

5V

Check/Replace

IC102/Tuner

NO SKY SOUND

NO SKY PICTURE

CHECK SIGANAL

AT P03,P202A,P203A CHECK/REPLACE

IC201,IC01

CHECK CONECTOR

P203A,P202A,P203A CHECK /REPLACE CONECTOR

P203A,P202A,P203A

CHECK CONNECTOR

POWER IN AT STB CHECK/REPLACE

CONNECTOR POWER IN AT STB

& POWER IN PCB ASSY

CHECK /REPLACE

STB ASSY

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

IC01

IC02

IC03

IC04

IC102

IC1271

IC1272

IC1273

IC1601

IC1603

IC1701

IC201

IC301

IC401

IC402

IC501

IC502

IC503

IC504

IC602

IC603

IC604

IC701

IC702

IC703

IC704

IC705

IC706

IC801

IC802

IC804

IC805

IC806

IC809

IC901

D104

D1601

D1602

D1603

D1604

D1701

D1702

D1703

D1704

D1705

D1706

D1707

D1708

D1709

D1710

D1711

0ISO864611A

0ISS780500J

0IAL241600B

0ISS753300A

0IPH981500B

0IMA534200A

0IMO145770E

0IKE780900E

0ISA428200A

0IKE455800E

0IMO145380C

0ISG641500A

0ISA784500A

0IKE455800E

0ISH123200B

0IPH837600A

0IPH466550A

0IPH456620A

0ISG511400A

0IKE455800E

0IIT341000H

0ISS753300A

0ISM527320A

0IOK514256D

0IGS903200A

0IPH743730D

0ITI275120D

0ISS753300A

0ISK670900A

0ISH123200B

0ISK110000A

0ISH122100A

0ISH052100A

0IKE780800A

0IPH610800A

0DD414809ED

0DD247109AA

IC,CXP864P61S-1(OTP) 52,SDIP BK M

IC,KA78L05AZ TO-92 TP 5V REGULATO

IC,AT24C16-10PC 8D EEPROM 16K

IC,KA7533Z RESET T0-92 TP 3.3V

IC,TDA9815-V3 32SD MULTI IF

IC,AN5342K 30SD SHARPNESS CONTROL

IC,MC14577CP 8D DUAL VIDEO AMP

IC,KIA7809PI 3P(TO-220IS)1A,9V

IC,LA4282

IC,KIA4558 8DIP DUAL OP AMP

IC,MC14538BCP 16D 2-MONO MUL.VIB.

IC,TEA6415C,20D,VIDEO MATRIX S/W

IC,LA7845 7SIP V/OUT(1.5A)

IC,KIA4558 8DIP DUAL OP AMP

IC,PC123 FY2PHOTO COUPLER

IC,TDA8376-N1 52SD MULTI VIDEO P.

IC,TDA4665/V5 16DIP BK 1H DELAY L

IC,TDA4566/V2 18D CTI

IC,TEA5114

IC,KIA4558 8DIP DUAL OP AMP

IC,MSP3410D 52P,SDIP BK B4-VERSIO

IC,KA7533Z RESET T0-92 TP 3.3V

IC,SDA5273-2 68PLCC BK MEGA TEXT

IC,MSM514256B-70RS 20DIP BK 1M DR

IC,GMS90C32 40P,DIP BK 8BIT MICRO

IC,74HC373N 20P,DIP BK OCTAL D-TY

IC,TMS27C512-10JL 28D 64K*8 EPROM

IC,KA7533Z RESET T0-92 TP 3.3V

IC,STR/S6709 9S SMPS-CNTR

IC,PC123 FY2PHOTO COUPLER

IC,SE110N(LF12) 3P 110V ERROR AMP

IC,PQ12RF21 4P(TO-220) 12V S/W RE

IC,PQ05RF21 4P(TO-220) 5V S/W REG

IC,KIA7808PI 3P(TO-220IS) 1A,8V

IC,TDA6108JF 9SIP BK VIDEO OUT AM

DIODE,DS4148

DIODE,1S2471

LOCA. NO PART NO DESCRIPTION

D1712

D1713

D1714

D2901

D2902

D2904

D2906

D2907

D2908

D2909

D2910

D2911

D301

D306

D402

D406

D407

D408

D409

D410

D411

D412

D420

D501

D502

D503

D505

D506

D509

D801

D802

D803

D805

D806

D808

D809

D810

D811

D812

D813

D815

D819

D824

D901

D902

D903

D913

D923

D933

LD01

LD02

LD03

ZD01

ZD01K

0DD247109AA

0DD414809ED

0DD150009CC

0DD150009CE

0DD414809ED

0DD011150AA

0DD100009AU

0DD200009AF

0DD100009AU

0DD414809ED

0DD100009AU

0DD414809ED

0DD606000AA

0DD060009AC

0DD100009AM

0DD100009AU

0DD100009AM

0DD100009AL

0DD414809ED

0DD410000AD

0DD100009AU

0DD420000BB

0DD100009AM

0DD420000BB

0DR210009AA

0DD414809ED

0DL200000CA

0DL112100AB

0DL112100AC

0DZ560009AA

0DZ620009AA

DIODE,1S2471

DIODE,DS4148

DIODE,RGP15G

DIODE,GP15J (1.5A/600V)

DIODE,DS4148

DIODE,ESC011M-15

DIODE,EU1AV 600V 0.25A

DIODE,RU-2MV

DIODE,EU1AV 600V 0.25A

DIODE,DS4148

DIODE,EU1AV 600V 0.25A

DIODE,DS4148

DIODE,RBV606,SANKEN

DIODE,TVR06J 0.6A/600V 250NS

DIODE,EU1ZV

DIODE,EU1AV 600V 0.25A

DIODE,EU1ZV

DIODE,EH-1ZV

DIODE,DS4148

DIODE,RU4AM,LF-L1

DIODE,EU1AV 600V 0.25A

DIODE,D4L20U

DIODE,EU1ZV

DIODE,D4L20U

DIODE,RECTIFIER BAV21

DIODE,DS4148

DIODE,LED DL-2LRG RED GREEN OPTO

DIODE,LED DL-11S2GN1 OPTO

DIODE,LED DL-11S2YN1 OPTO

DIODE,ZENER MTZ5.6B

DIODE,ZENER MTZ6.2B

IC

-22 -

DIODE

The components identified by mark is

critical for safety.

Replace only with part number specified.

- 23 -

LOCA. NO PART NO DESCRIPTION

ZD02

ZD02K

ZD03

ZD03K

ZD201

ZD205

ZD206

ZD2901

ZD302

ZD303

ZD404

ZD405

ZD410

ZD502

ZD504

ZD702

ZD704

ZD705

ZD706

ZD707

ZD804

ZD812

ZD820

ZD908

Q01

Q03

Q1L

Q101

Q102

Q1271

Q1273

Q1274

Q1275

Q1601

Q1602

Q1603

Q1701

Q1702

Q1703

Q1704

Q1705

Q1706

Q1707

Q2L

Q202

Q204

Q205

Q206

Q2902

Q2903

Q2905

Q2907

0DZ560009AA

0DZ620009AA

0DZ560009AA

0DZ620009AA

0DZ103009AA

0DZ330009AN

0DZ180009AA

0DZ120009AA

0DZ180009AA

0DZ820009AA

0DZ510009AB

0DZ750009AA

0DZ330009AN

0DZ560009AA

0DZ750009AA

0DZ330009BA

0DZ110009AA

0DZ750009AA

0TR319809AA

0TR126609AA

0TR319709AB

0TR387500AA

0TR319809AA

0TR126609AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR126609AA

0TR319809AA

0TR126609AA

0TR319809AA

0TR320209AA

0TR127009AA

DIODE,ZENER MTZ5.6B

DIODE,ZENER MTZ6.2B

DIODE,ZENER MTZ5.6B

DIODE,ZENER MTZ6.2B

DIODE,ZENER Z10.3 (MTZJ11A)

DIODE,ZENER MTZ3.3A TP(52MM)

DIODE,ZENER MTZ18B

DIODE,ZENER Z12BM TA

DIODE,ZENER MTZ18B

DIODE,ZENER MTZ8.2B

DIODE,ZENER MTZ5.1B

DIODE,ZENER MTZ7.5B

DIODE,ZENER MTZ3.3A TP(52MM)

DIODE,ZENER MTZ5.6B

DIODE,ZENER MTZ7.5B

DIODE,ZENER HZT33

DIODE,ZENER MTZ 11B

DIODE,ZENER MTZ7.5B

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3197,TP(KTC388A),KEC

TR,2SC3875S(ALY)

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,2SA1504S(ASY)

TR,2SC3875S(ALY)

TR,2SA1504S(ASY)

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3202-TP-Y (KTC1959)KEC

TR,KTA1270-TP-Y (KTA562TM)KEC

LOCA. NO PART NO DESCRIPTION

Q2908

Q2909

Q2910

Q3L

Q301

Q4L

Q401

Q402

Q403

Q404

Q405

Q406

Q407

Q408

Q409

Q410

Q411

Q412

Q413

Q414

Q502

Q503

Q601

Q602

Q603

Q604

Q605

Q606

Q607

Q608

Q701

Q707

Q708

Q801

Q802

Q803

Q806

Q807

Q808

Q809

Q810

Q811

Q812

Q813

Q818

C01

C01K

C01L

C02K

C02L

C03K

C04

0TR322709AA

0TR968000AA

0TR223800AA

0TR126609AA

0TR945009AA

0TR126609AA

0TR223800AA

0TR188700AA

0TF910000AA

0TR733009AA

0TR205900AA

0TR945009AA

0TR733009AA

0TR945009AA

0TR319809AA

0TR126609AA

0TR319809AA

0TR385200AA

0TR322709AA

0TR945009AA

0TR968000AA

0TR322809AA

0TR945009AA

0TR733009AA

0TR945009AA

0TR733009AA

0CE476DF618

0CN1030F679

0CE476DF618

0CN4720F569

0CN1030F679

0CN3910K519

0CN1040K949

TR,KTC3227-Y,TP(KTC1627A),KEC

TR,KTA968A-Y KEC

TR,KTC2238A-Y

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KSC945C-Y,TP,SS

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC2238A-Y

TR,2SD1887 TO-3PML SANYO

FET,BUZ91A TO-220AB SIEMENS

TR,KSA733C-Y TP SANSUNG

TR,KTD2059-O,TO-220IS,100V,5A

TR,KSC945C-Y,TP,SS

TR,KSA733C-Y TP SANSUNG

TR,KSC945C-Y,TP,SS

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,2SC3852A SANKEN

TR,KTC3227-Y,TP(KTC1627A),KEC

TR,KSC945C-Y,TP,SS

TR,KTA968A-Y KEC

TR,KTC3228-0 TP(KTC2383),KEC

TR,KSC945C-Y,TP,SS

TR,KSA733C-Y TP SANSUNG

TR,KSC945C-Y,TP,SS

TR,KSA733C-Y TP SANSUNG

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 4700PF 16V X

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(HIGH DIELE) 390P 50V K

C,TUBULA(HIGH DIELE) 0.1M 50V Z

TRANSISTOR

CAPACITOR

The components identified by mark is

critical for safety.

Replace only with part number specified.

- 24 -

LOCA. NO PART NO DESCRIPTION

C04K

C05K

C06

C06K

C07

C07K

C08

C08K

C1S

C101

C102

C103

C104

C105

C106

C107

C108

C109

C110

C112

C113

C114

C115

C116

C117

C118

C119

C12

C120

C121

C122

C124

C125

C126

C127

C1277

C1279

C128

C1281

C1286

C1288

C1292

C1295

C13

C131

C1601

C1602

C1603

C1604

C1605

C1606

C1607

C1608

0CN3910K519

0CN4710K519

0CN1030F679

0CN4710K519

0CN1030F679

0CN4710K519

0CN1020K519

0CN4710K519

0CE476DF618

0CN1030F679

0CE106DK618

0CK1030K945

0CE476DF618

0CN1030F679

0CE335DK618

0CN1030F679

0CE476DF618

0CN1030F679

0CE476DF618

0CN1030F679

0CE684DK618

0CE225DK618

0CN1040K949

0CE226DK618

0CN1030F679

0CN1020K519

0CN1030F679

0CE225DK618

0CQ1042K439

0CN4710K519

0CN1040K949

0CN1030F679

0CE226DF618

0CE4763F618

0CN1030F679

0CE4763F618

0CE224DK618

0CK4720K515

0CE4763F618

0CE475DK618

0CE105DK618

0CE335DK618

0CE108DJ618

181-442Z

0CE108DK61A

0CK1030K945

0CQ1031N509

181-442Z

0CE107DH618

C,TUBULA(HIGH DIELE) 390P 50V K

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,TUBULA(HIGH DIELE) 470PF 50V K

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 3.3UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 0.68UF STD 50V M

C,ELECTROLYTIC 2.2UF STD 50V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 22UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 2.2UF STD 50V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 22UF STD 16V M

C,ELECTROLYTIC 47UF 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF 16V M

C,ELECTROLYTIC 0.22UF STD 50V M

C,CERAMIC(HIGH DIELE) 4700P 50V K

C,ELECTROLYTIC 47UF 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 3.3UF STD 50V M

C,ELECTROLYTIC 1000UF STD 35V M

C,POLYESTER 0.1MF 50V K

C,ELECTROLYTIC 1000UF STD 50V M

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,POLYESTER(MYLAR) 0.01U 100V K

C,POLYESTER 0.1MF 50V K

C,ELECTROLYTIC 100UF STD 25V M

LOCA. NO PART NO DESCRIPTION

C1609

C1610

C1611

C1612

C1613

C1614

C1615

C1616

C1633

C1634

C1635

C1636

C1637

C1666

C1667

C1668

C1705

C1708

C1709

C1711

C1714

C18

C2S

C20

C226

C227

C228

C229

C23

C230

C231

C232

C235

C237

C238

C239

C24

C240

C242

C243

C244

C245

C246

C248

C249

C25

C250

C251

C252

C253

C254

C255

C256

C257

0CE106DH618

0CQ5621N509

0CE107DH618

0CE106DH618

0CQ5621N509

0CE107DH618

0CE106DH618

0CE334DK618

0CQ5631N409

0CK1030K945

0CQ5631N409

0CE334DK618

0CE106DH618

0CE227DF618

0CE477DF618

0CC1810K475

0CC1010K465

0CE477DF618

0CE4763F618

0CE476DF618

0CN4710K519

0CN1030F679

0CE107DF618

0CE106DK618

0CN1810K519

0CQ2242K439

0CN1040K949

0CN1030F679

0CX5600K409

0CN1030F679

0CE107DF618

0CQ2242K439

0CN3910K519

0CE476DF618

0CE227DF618

0CN1030F679

0CQ2242K439

0CN1010K519

0CN4710K519

0CE107DF618

0CN4710K519

0CX5600K409

0CE476DF618

0CN4710K519

0CQ2242K439

0CE477DF618

C,ELECTROLYTIC 10UF STD 25V M

C,POLYESTER(MYLAR) 0.0056U 100V K

C,ELECTROLYTIC 100UF STD 25V M

C,ELECTROLYTIC 10UF STD 25V M

C,POLYESTER(MYLAR) 0.0056U 100V K

C,ELECTROLYTIC 100UF STD 25V M

C,ELECTROLYTIC 10UF STD 25V M

C,ELECTROLYTIC 0.33UF STD 50V M

C,POLYESTER(MYLAR) 0.0560UF 100V J

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,POLYESTER(MYLAR) 0.0560UF 100V J

C,ELECTROLYTIC 0.33UF STD 50V M

C,ELECTROLYTIC 10UF STD 25V M

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 470UF STD 16V M

C,CERAMIC(TEMP COMP) 180PF 50V J

C,CERAMIC(TEMP COMP) 100PF 50V J

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 47UF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 180PF 50V K

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(T.C) 56P 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,TUBULA(HIGH DIELE) 390P 50V K

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,TUBULA(HIGH DIELE) 100PF 50V K

C,TUBULA(HIGH DIELE) 470PF 50V K

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(T.C) 56P 50V J

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 470PF 50V K

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,ELECTROLYTIC 470UF STD 16V M

The components identified by mark is

critical for safety.

Replace only with part number specified.

- 25 -

LOCA. NO PART NO DESCRIPTION

C258

C26

C263

C264

C265

C266

C267

C2902

C2904

C2905

C2907

C2909

C2910

C2911

C2912

C2913

C2914

C2915

C2917

C2918

C2919

C301

C302

C303

C304

C305

C306

C310

C401

C403

C404

C405

C406

C407

C408

C409

C411

C412

C413

C414

C415

C416

C417

C418

C419

C420

C421

C422

C423

C424

C425

C428

C429

C430

0CE476DF618

0CE227DJ618

0CE106DK618

0CN4710K519

0CN3910K519

0CN1040K949

0CX4700K409

0CN1810K519

0CSZVTA001F

0CK1010K515

0CK4720W510

0CE106DP618

0CE476DK618

0CE106DN618

0CE106DP618

0CQ3341N401

0CE107DJ618

0CE108DH618

0CQ3331N509

0CK5610K515

0CE474DK618

0CK1520W515

0CE105DN618

181-083A

0CK5610W515

181-834B

181-010K

0CE107DK618

181-013Q

0CE106BR618

181-013P

0CC1010K465

0CK1030K945

0CE476BK618

0CE5651K652

0CE476DH618

0CK1020K515

0CE105DK618

0CE2276Q650

0CE3361R610

0CK56101515

0CQ2241N501

0CK56101515

0CE108DH618

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 220UF STD 35V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(HIGH DIELE) 390P 50V K

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,TUBULA(T.C) 47PF 50V J

C,TUBULA(HIGH DIELE) 180PF 50V K

C,TANTAL TAP684K035BRS

C,CERAMIC(HIGH DIELE) 100P 50V K

C,CERAMIC(HIGH DIELE) 4700P 500V K

C,ELECTROLYTIC 10UF STD 160V M

C,ELECTROLYTIC 47UF STD 50V M

C,ELECTROLYTIC 10UF STD 100V M

C,ELECTROLYTIC 10UF STD 160V M

C,POLYESTER(MYLAR) 0.33U 100V J

C,ELECTROLYTIC 100UF STD 35V M

C,ELECTROLYTIC 1000UF STD 25V M

C,POLYESTER(MYLAR) 0.033U 100V K

C,CERAMIC(HIGH DIELE) 560P 50V K

C,ELECTROLYTIC 0.47UF STD 50V M

C,CERAMIC(HIGH DIELE) 1500P 500V K

C,ELECTROLYTIC 1UF STD 100V M

C,PP 1600V 0.003MF J

C,CERAMIC(HIGH DIELE) 560PF 500V K

C,MPP 1600V 0.018UF J

C,PP 630V 0.01UF J

C,ELECTROLYTIC 100UF STD 50V M

C,MPP 400V 0.36UF J

C,ELECTROLYTIC 10UF KME 250V M

C,MPP 400V 0.33UF J

C,CERAMIC(TEMP COMP) 100PF 50V J

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 47UF KME 50V M

C,ELECTROLYTIC 5.6UF SM 50V M

C,ELECTROLYTIC 47UF STD 25V M

C,CERAMIC(HIGH DIELE) 1000PF 500V K

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 220UF SMS 200V M

C,ELECTROLYTIC 33U SM 250V M

C,CERAMIC(HIGH DIELE) 560P 1KV K

C,POLYESTER(MYLAR) 0.22MF 100V L

C,CERAMIC(HIGH DIELE) 560P 1KV K

C,ELECTROLYTIC 1000UF STD 25V M

LOCA. NO PART NO DESCRIPTION

C431

C432

C433

C434

C435

C436

C438

C440

C442

C501

C502

C503

C504

C505

C506

C507

C508

C509

C510

C511

C512

C513

C514

C515

C516

C517

C518

C519

C520

C521

C523

C524

C525

C526

C527

C528

C529

C530

C531

C532

C533

C534

C535

C536

C537

C538

C539

C540

C541

C542

C543

C544

C545

C546

0CE108DJ618

0CE108DH618

0CQ3321N509

0CX3R90K509

0CK56101515

0CE107DK618

181-091G

0CQ2721N409

181-013V

0CN1030F679

0CE476DF618

0CQ1042K439

0CN1030F679

0CE476DF618

0CE107DF618

0CN1040K949

0CE476DF618

0CN1010K519

0CQ4742K439

0CC6800K415

0CC3310K405

0CC2210K415

0CQ4742K439

0CE107DF618

0CQ1042K439

0CE475DK618

0CQ1042K439

0CQ2242K439

0CQ1042K439

0CQ4731N509

0CN1030F679

0CE476DF618

0CQ1042K439

0CE105DK618

0CE475DK618

0CQ1042K439

0CE105DK618

0CQ4721N509

0CQ3321N509

0CE107DF618

0CN1040K949

0CQ1042K439

C,ELECTROLYTIC 1000UF STD 35V M

C,ELECTROLYTIC 1000UF STD 25V M

C,POLYESTER(MYLAR) 0.0033U 100V K

C,TUBULA(T.C) 3.9PF 50V K

C,CERAMIC(HIGH DIELE) 560P 1KV K

C,ELECTROLYTIC 100UF STD 50V M

C,DE0907 R471K 2K

C,POLYESTER(MYLAR) 2700PF 100V J

C,MPP 400V 0.39UF J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 100PF 50V K

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,CERAMIC(TEMP COMP) 68P 50V J

C,CERAMIC(TEMP COMP) 330P 50V J

C,CERAMIC(TEMP COMP) 220P 50V J

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,ELECTROLYTIC 100UF STD 16V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 4.7UF STD 50V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,POLYESTER(MYLAR) 0.047U 100V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 1UF STD 50V M

C,POLYESTER(MYLAR) 0.0047U 100V K

C,POLYESTER(MYLAR) 0.0033U 100V K

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,POLYESTER(MYLAR) 0.1UF S 50V J

The components identified by mark is

critical for safety.

Replace only with part number specified.

- 26 -

LOCA. NO PART NO DESCRIPTION

C547

C548

C549

C550

C551

C552

C553

C554

C555

C563

C567

C571

C572

C573

C601

C602

C603

C604

C605

C606

C607

C608

C609

C610

C611

C612

C613

C614

C615

C616

C617

C618

C619

C620

C621

C622

C625

C626

C627

C628

C629

C630

C631

C632

C634

C635

C636

C637

C638

C639

C640

C641

C642

C643

0CQ3921N409

0CC2210K415

0CC1500K415

0CQ1042K439

0CN1810K519

0CQ1042K439

0CN5610K519

0CN1030F679

0CE107DF618

0CN1030F679

0CN1040K949

0CE226DK618

0CE476DF618

0CQ6821N519

0CQ6831N509

0CQ1031N509

0CN1030F679

0CE476DF618

0CQ6831N509

0CQ1031N509

0CQ6821N519

0CE476DF618

0CE226DK618

0CE106DK618

0CE476DF618

0CE106DK618

0CN1030F679

0CE106DK618

0CN1030F679

0CQ3342K439

0CN1030F679

0CE106DK618

0CN1040K949

0CC5600K415

0CC1300K415

0CE476DF618

0CE105DK618

0CX2700K409

C,POLYESTER(MYLAR) 0.0039U 100V J

C,CERAMIC(TEMP COMP) 220P 50V J

C,CERAMIC(TEMP COMP) 15P 50V J

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,TUBULA(HIGH DIELE) 180PF 50V K

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,TUBULA(HIGH DIELE) 560P 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 22UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.0068U 100V K

C,POLYESTER(MYLAR) 0.068U 100V K

C,POLYESTER(MYLAR) 0.01U 100V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.068U 100V K

C,POLYESTER(MYLAR) 0.01U 100V K

C,POLYESTER(MYLAR) 0.0068U 100V K

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 22UF STD 50V M

C,ELECTROLYTIC 10UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.33UF S 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,CERAMIC(TEMP COMP) 56P 50V J

C,CERAMIC(TEMP COMP) 13P 50V J

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,TUBULA(T.C) 27PF 50V J

LOCA. NO PART NO DESCRIPTION

C644

C645

C646

C647

C648

C649

C652

C655

C656

C657

C658

C659

C660

C661

C662

C701

C702

C703

C704

C705

C706

C707

C708

C709

C710

C711

C713

C714

C715

C716

C717

C718

C719

C720

C721

C722

C723

C724

C725

C761

C777

C778

C779

C801

C802

C803

C804

C807

C808

C809

C810

C811

C812

C813

0CX2700K409

0CN1030F679

0CE476DF618

0CQ4742K439

0CN1030F679

0CQ1021N509

0CK1030K945

0CE226DK618

0CQ1021N509

0CC2200K415

0CQ3342K439

0CE105DK618

0CE106DK618

0CN1030F679

0CE106DK618

0CN1030F679

0CE476DF618

0CX5600K409

0CE226DK618

0CE476DF618

0CN1030F679

0CC3000K415

0CN1030F679

0CE106DK618

0CN1030F679

0CE106DK618

0CE228DF618

0CE226DK618

0CX6800K409

0CQZVBK002C

0CQZVBK002B

181-091D

0CE227DH618

0CE106DN618

0CE477BH618

0CK1020K515

181-083A

181-091C

C,TUBULA(T.C) 27PF 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.001U 100V K

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 22UF STD 50V M

C,POLYESTER(MYLAR) 0.001U 100V K

C,CERAMIC(TEMP COMP) 22P 50V J

C,POLYESTER(MYLAR) 0.33UF S 50V J

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(T.C) 56P 50V J

C,ELECTROLYTIC 22UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,CERAMIC(TEMP COMP) 30P 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,ELECTROLYTIC 2200UF STD 16V M

C,ELECTROLYTIC 22UF STD 50V M

C,TUBULA(T.C) 68P 50V J

C,POLYESTER A.C 275V 0.22UF K

C,POLYESTER A.C 275V 0.15UF K

C,DE0905 R 102K 1KV

C,ELECTROLYTIC 220UF STD 25V M

C,ELECTROLYTIC 10UF STD 100V M

C,ELECTROLYTIC 470UF KME 25V M

C,CERAMIC(HIGH DIELE) 1000PF 500V K

C,PP 1600V 0.003MF J

C,DE0705 R 471K 1KV

The components identified by mark is

critical for safety.

Replace only with part number specified.

LG DI-28Z12 User manual

Popular TV manuals by other brands
